mp-23947/Cs3MgH5/anharm

Space group: I4/mcm (140)
Link: Materials Project
Download: mp-23947.tar.gz

Harmonic properties

../../_images/fig_bandos_pr12567.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo12567.png — (b) Thermodynamic properties

Grüneisen parameters

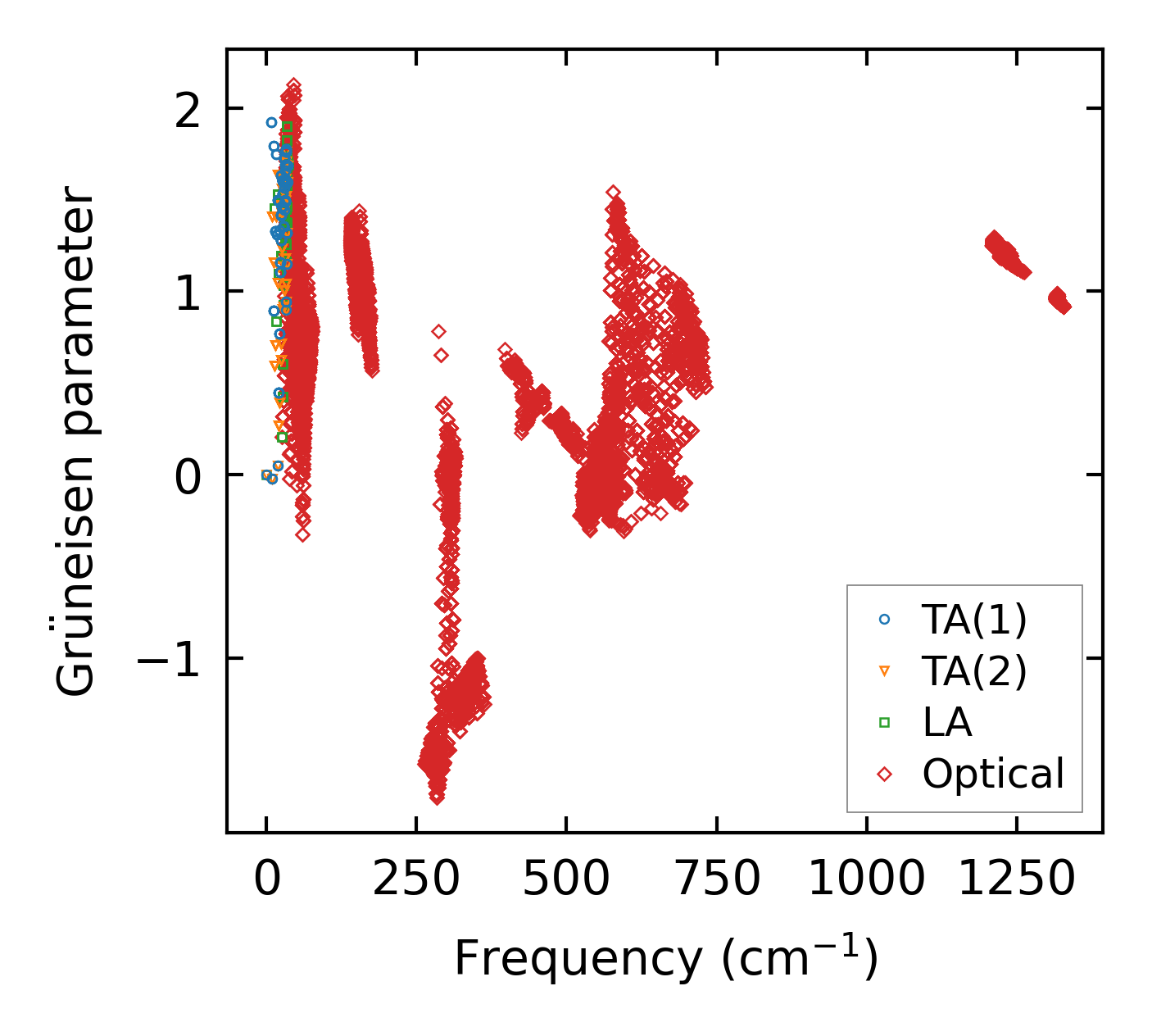

../../_images/fig_gru_all5212.png — (a) Grüneisen parameters

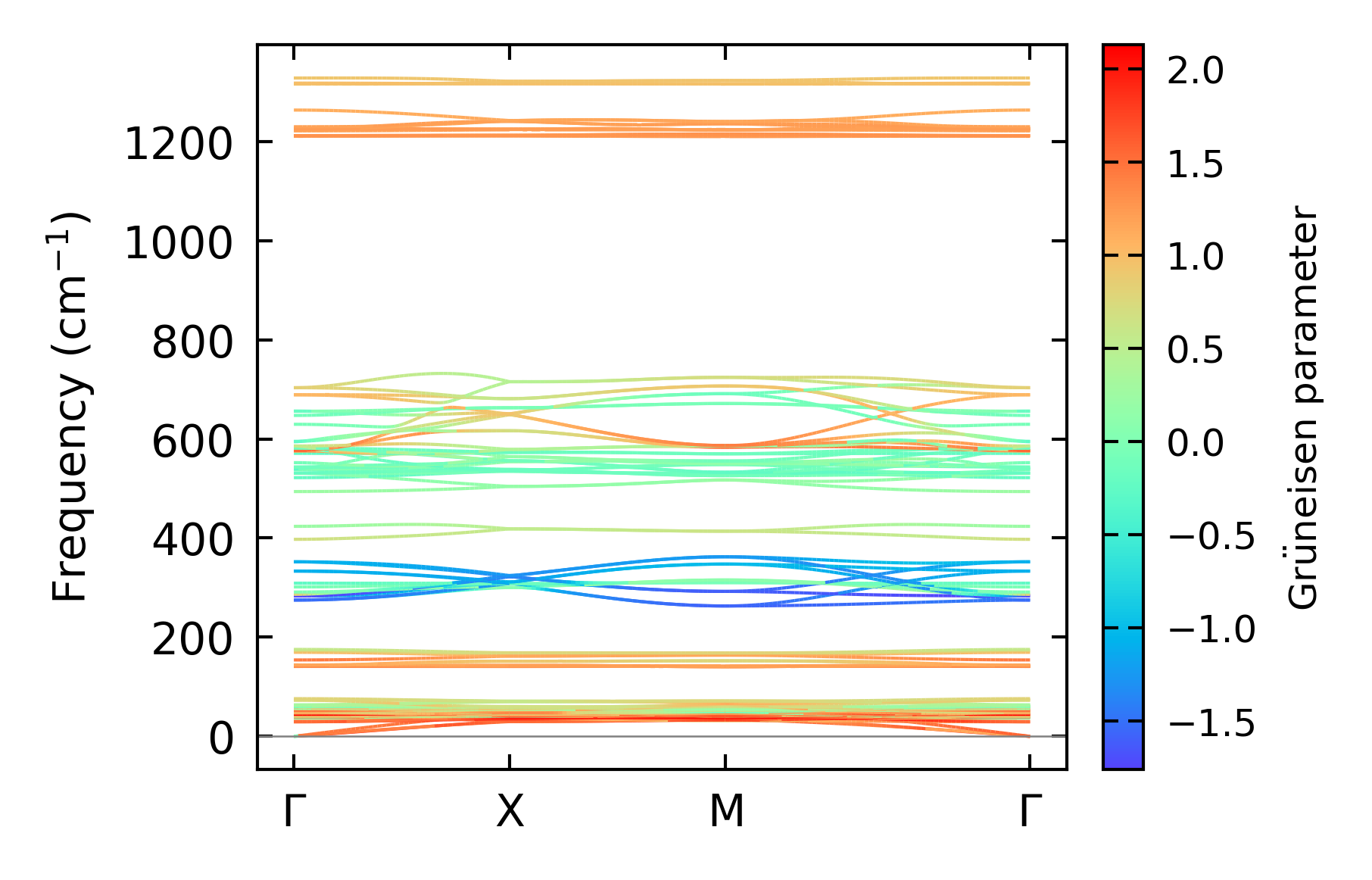

../../_images/fig_gruneisen5212.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x8x5, supercell: 2x2x1

../../_images/fig_kappa9804.png — (a) Temperature-dependent lattice thermal conductivity

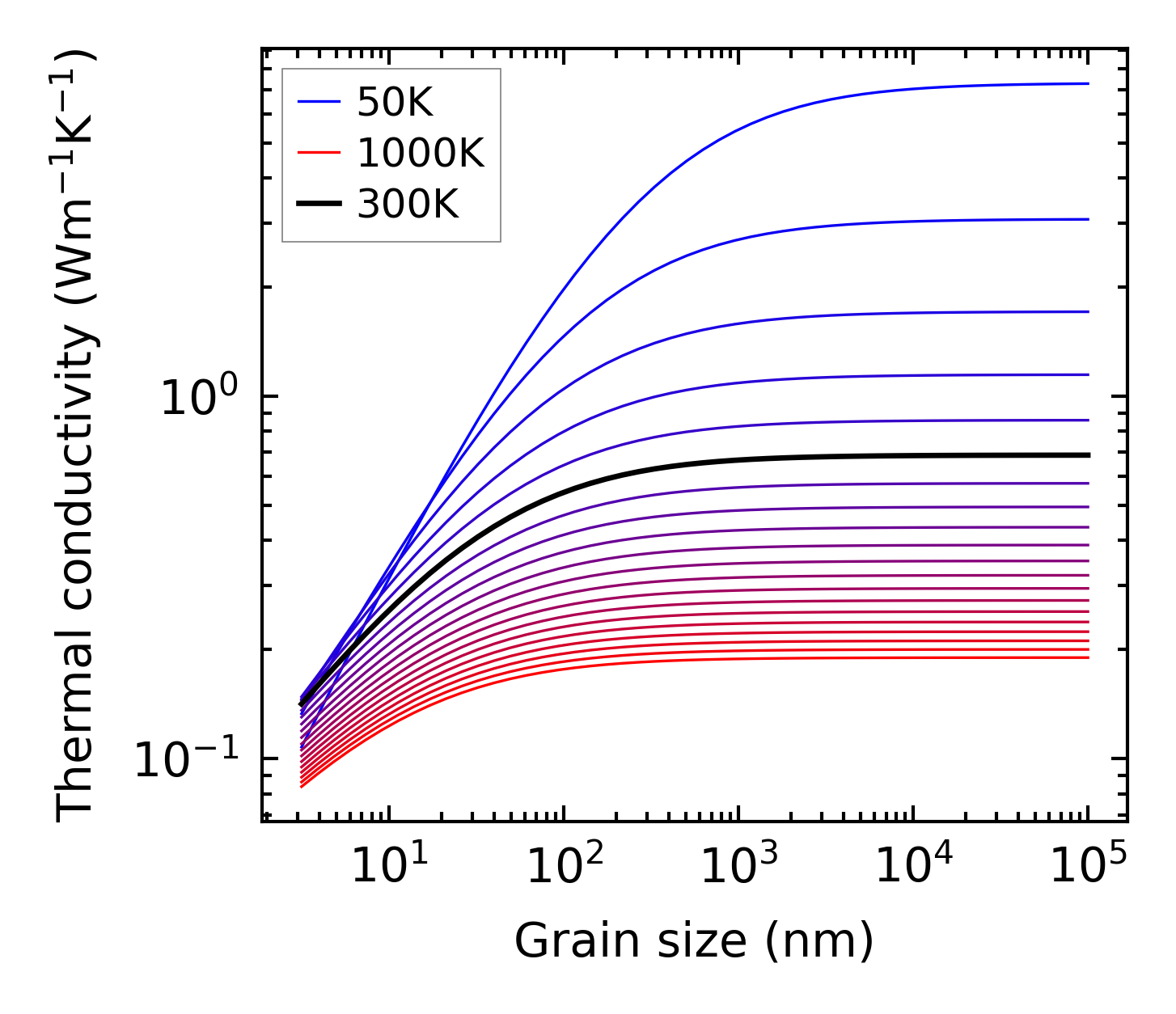

../../_images/fig_kappa_vs_grain_size5274.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

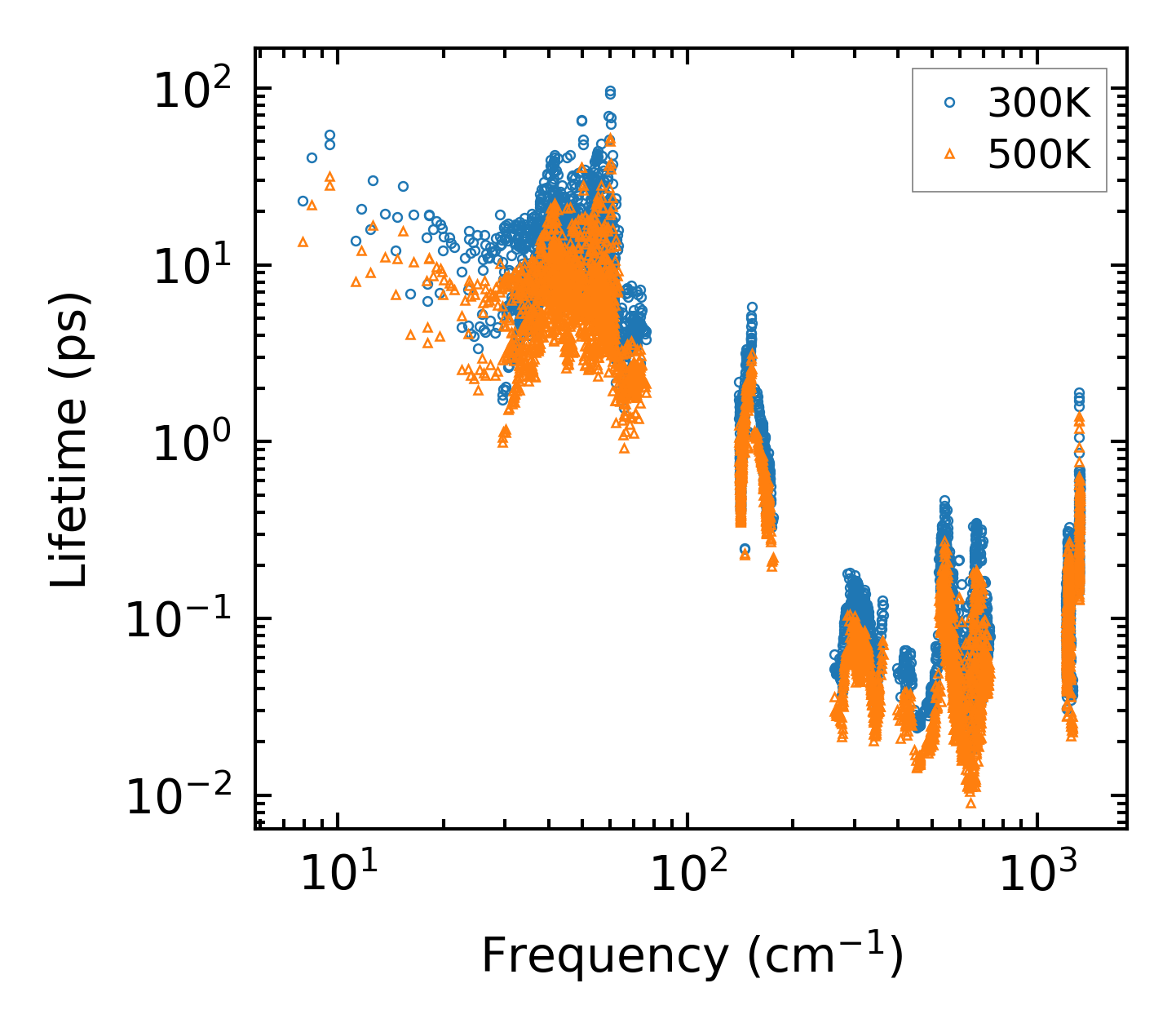

../../_images/fig_lifetime5161.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates5160.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

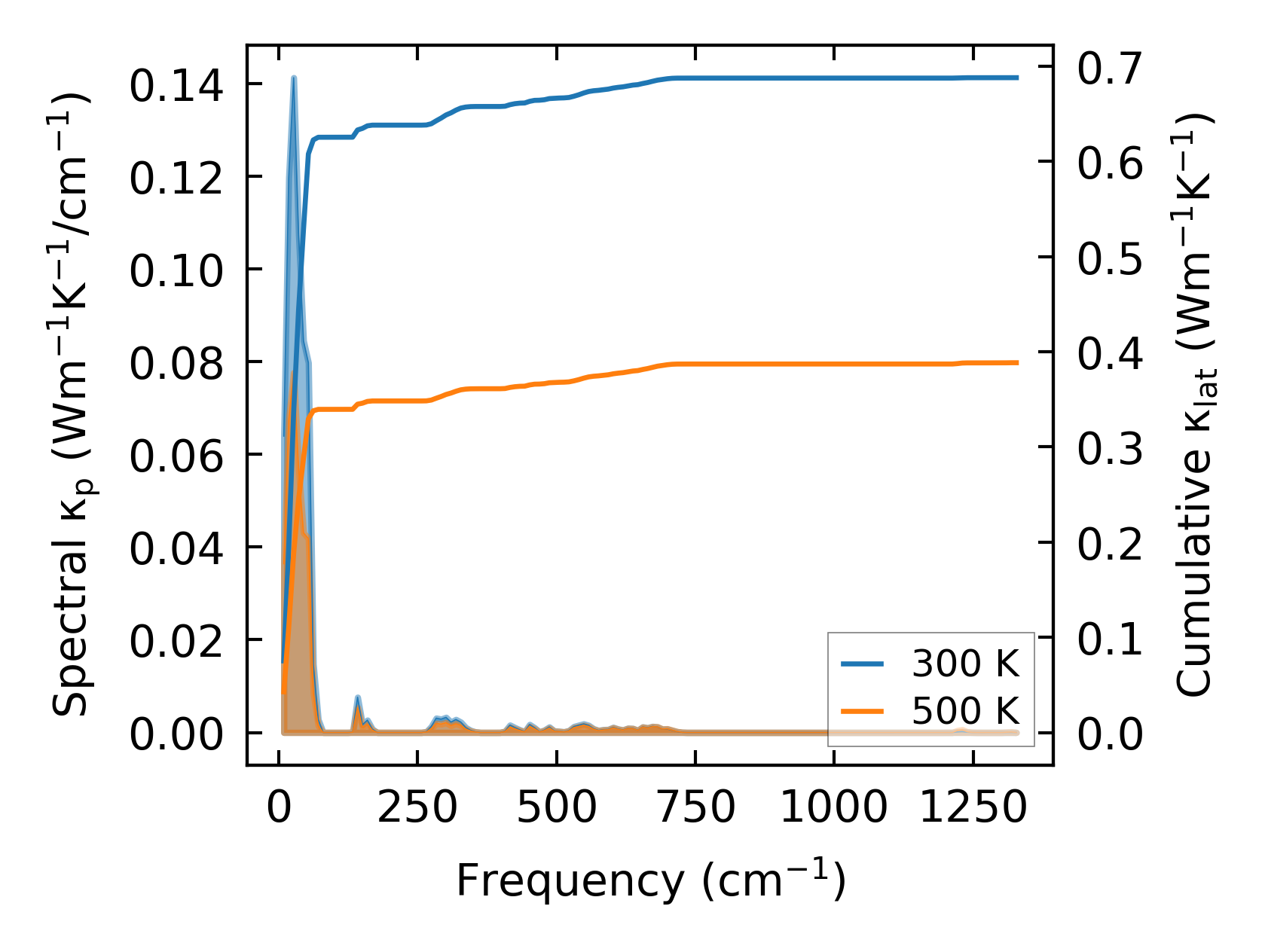

../../_images/fig_cumu_frequency5161.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp5160.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

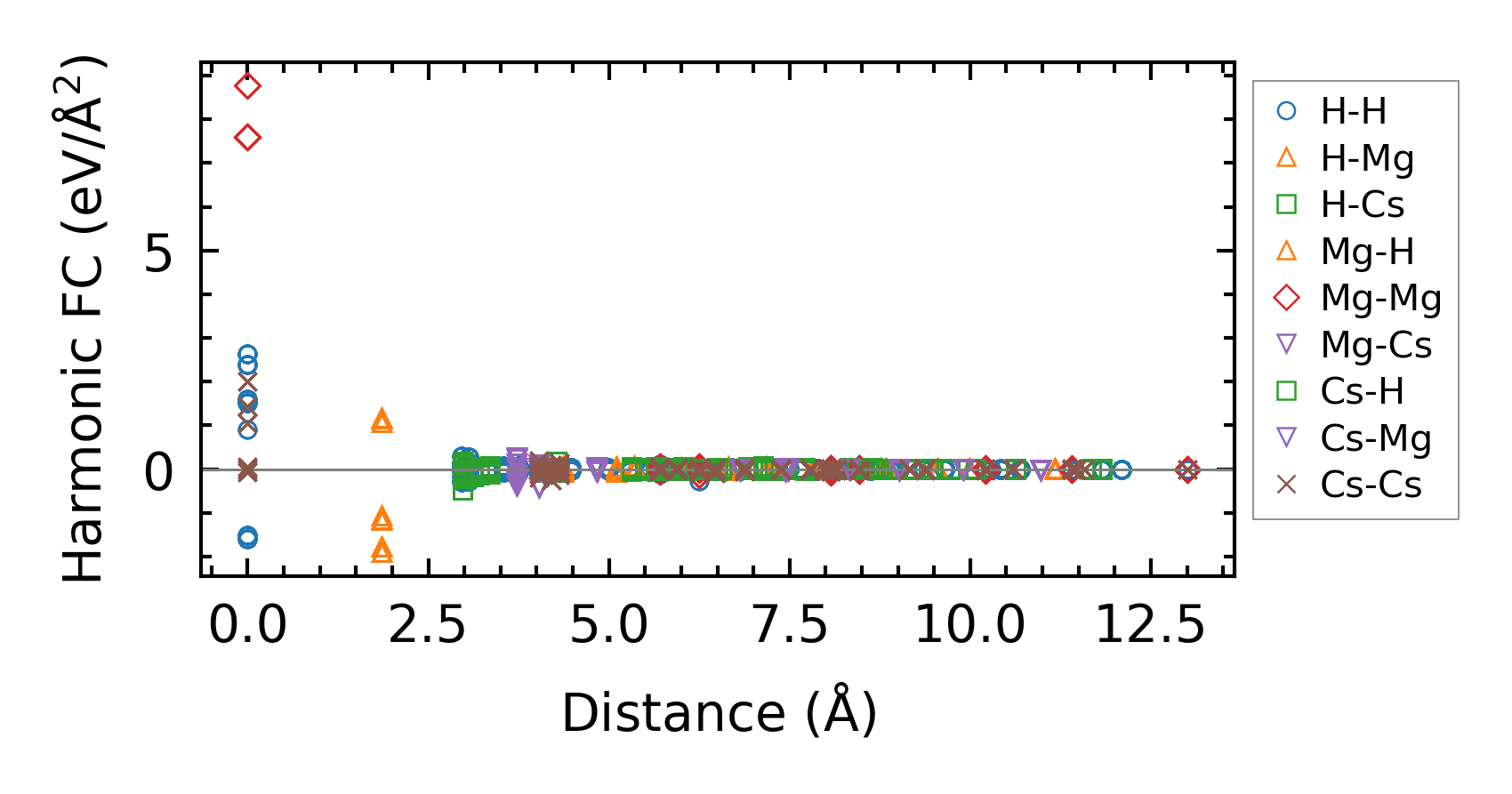

../../_images/fig_fc212265.png — (a) Force constants w.r.t atomic distance

Summary

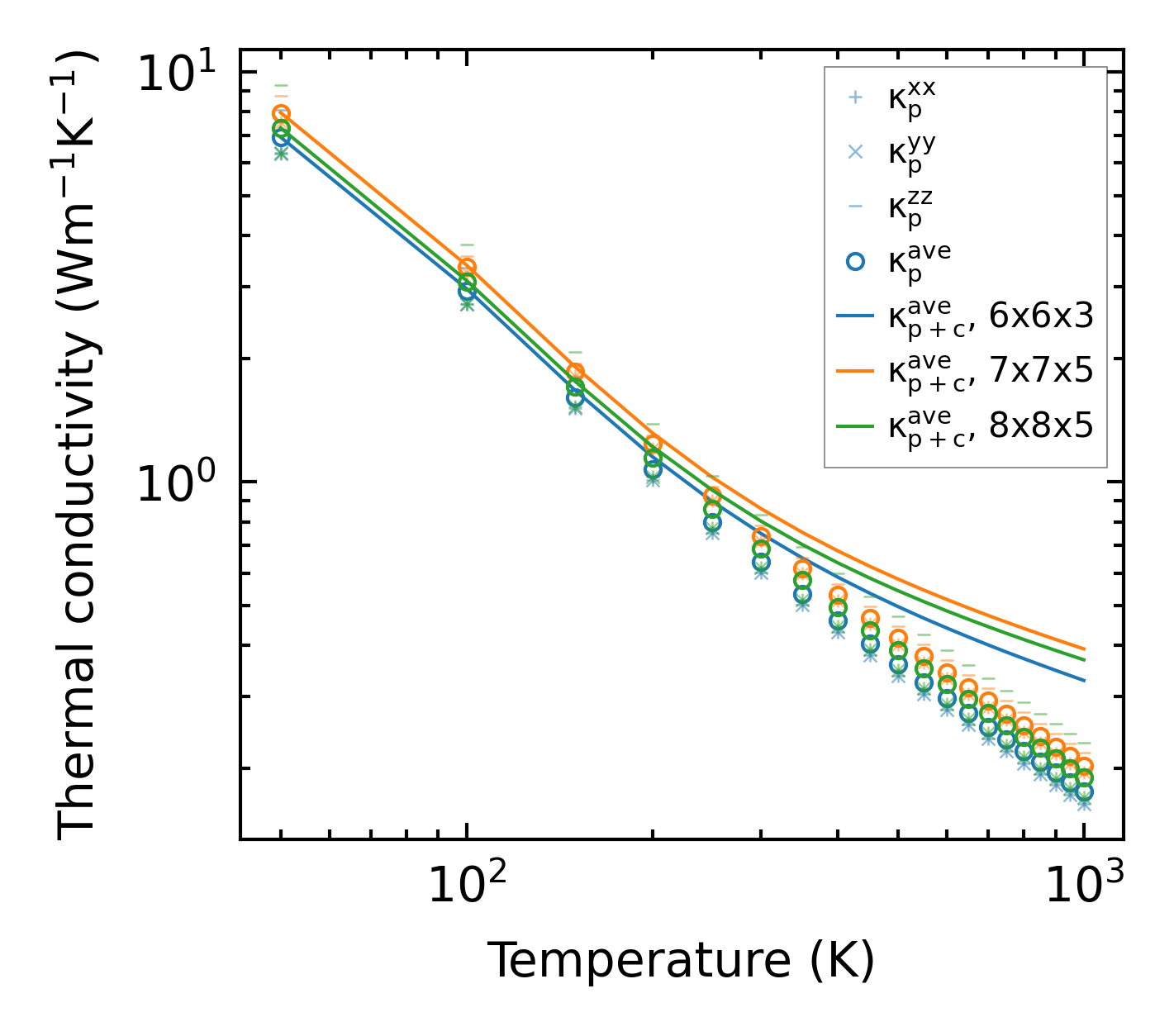

../../_images/fig_kappa9805.png — (a) Temperature-dependent lattice thermal conductivity

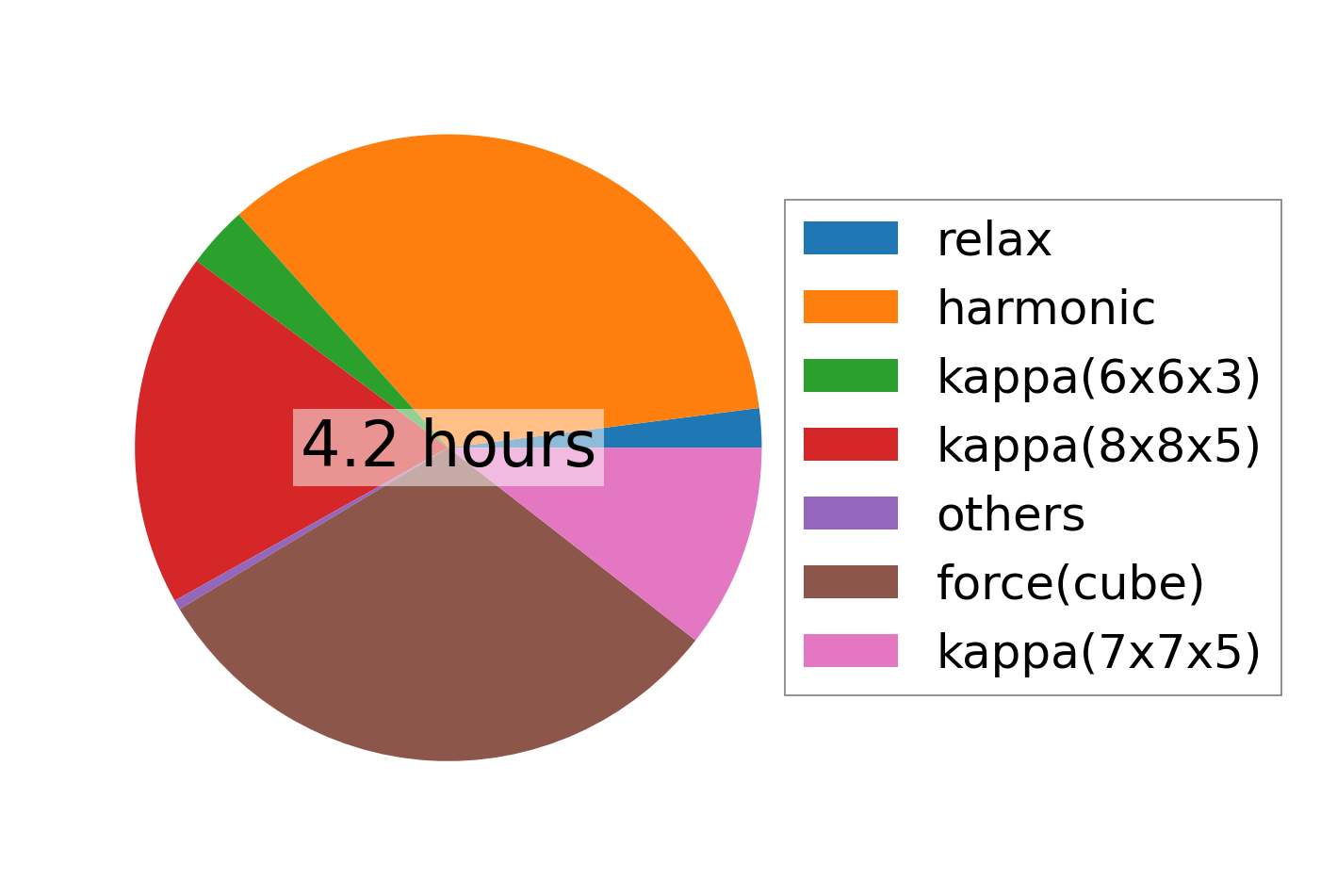

../../_images/fig_times21362.png — (b) Computation time
