mp-23041/SbSI/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-23041.tar.gz

Harmonic properties

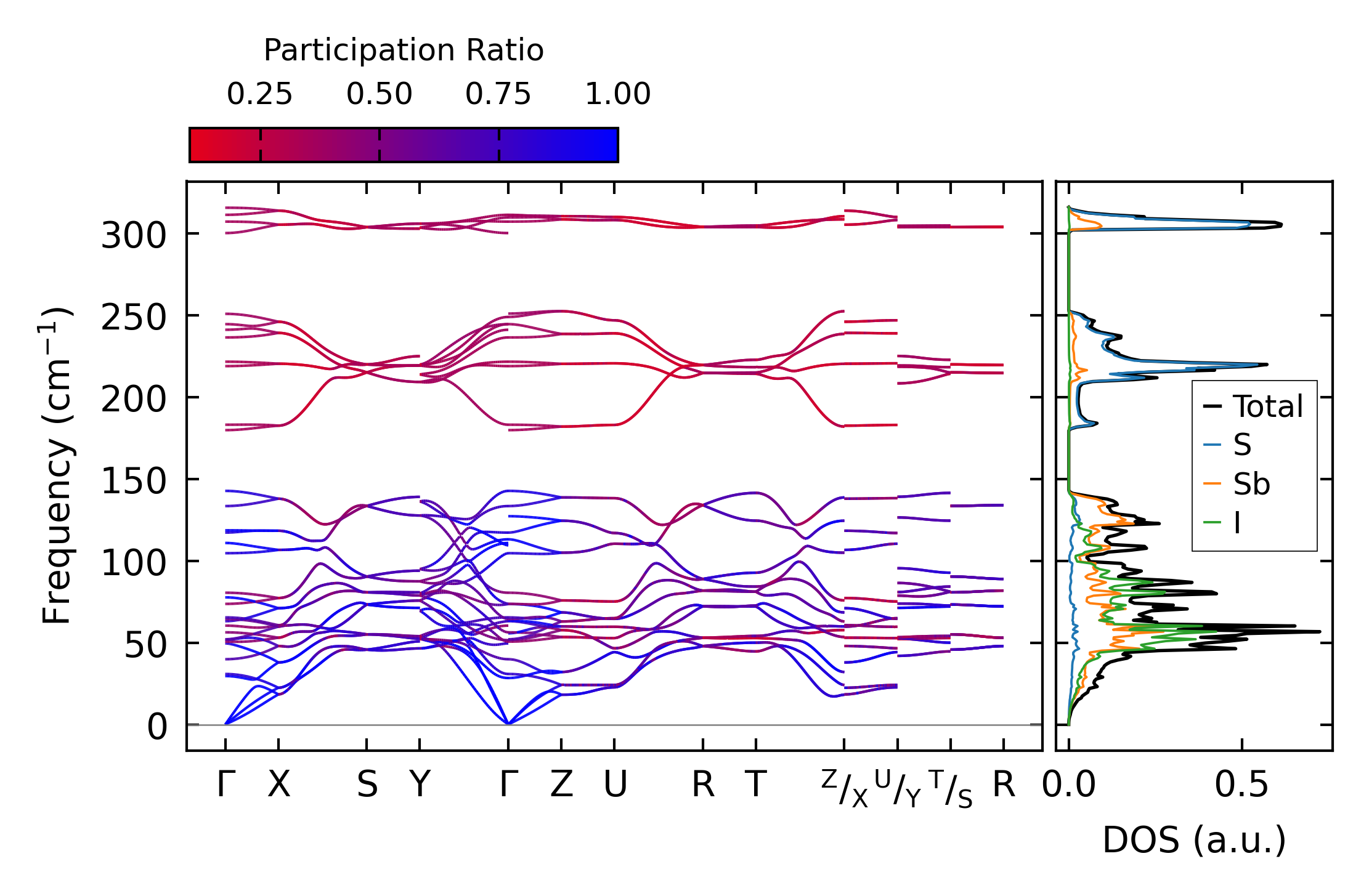

../../_images/fig_bandos_pr12836.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo12836.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all5318.png — (a) Grüneisen parameters

../../_images/fig_gruneisen5318.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x17x7, supercell: 2x3x2

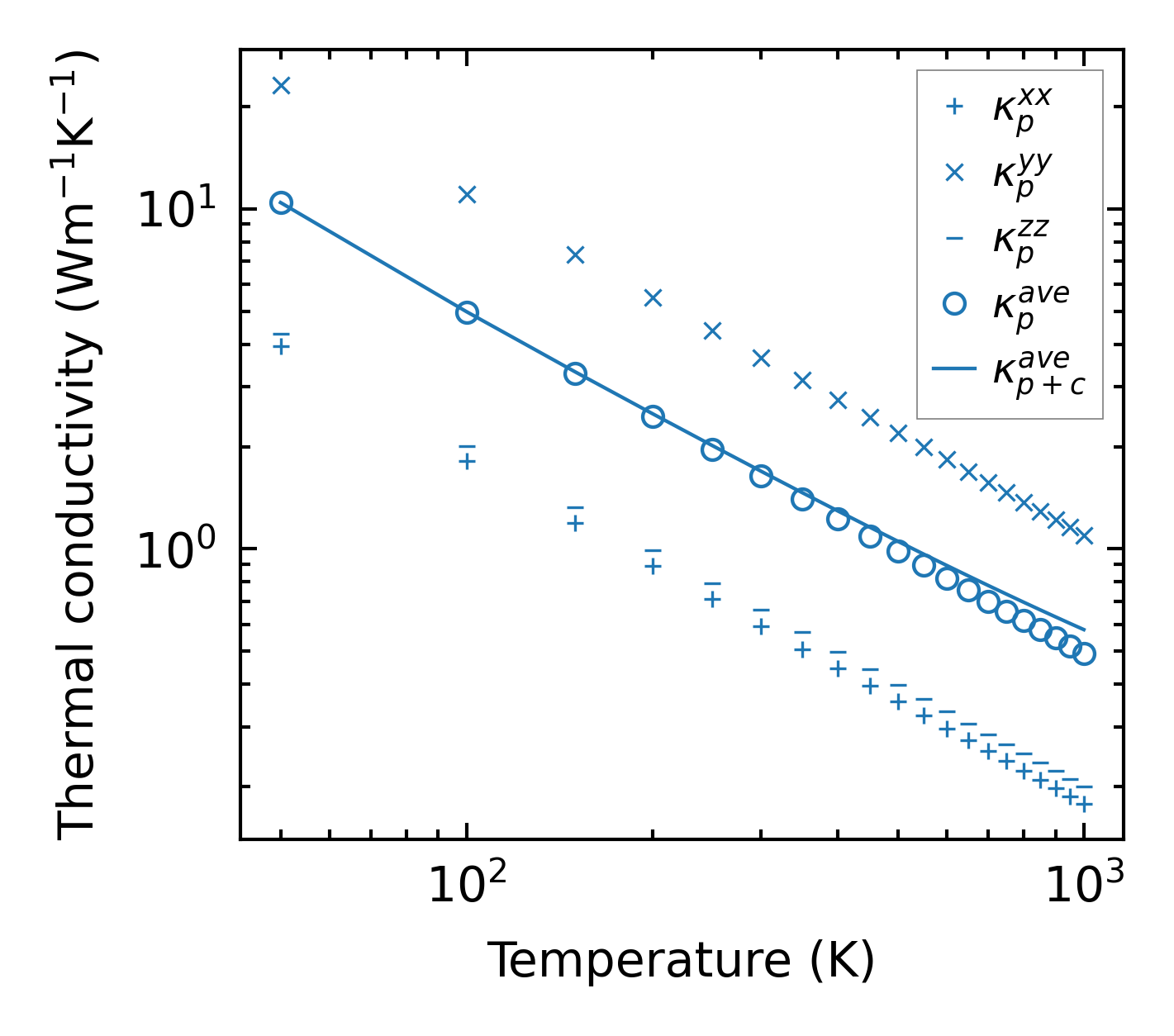

../../_images/fig_kappa9990.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size5381.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

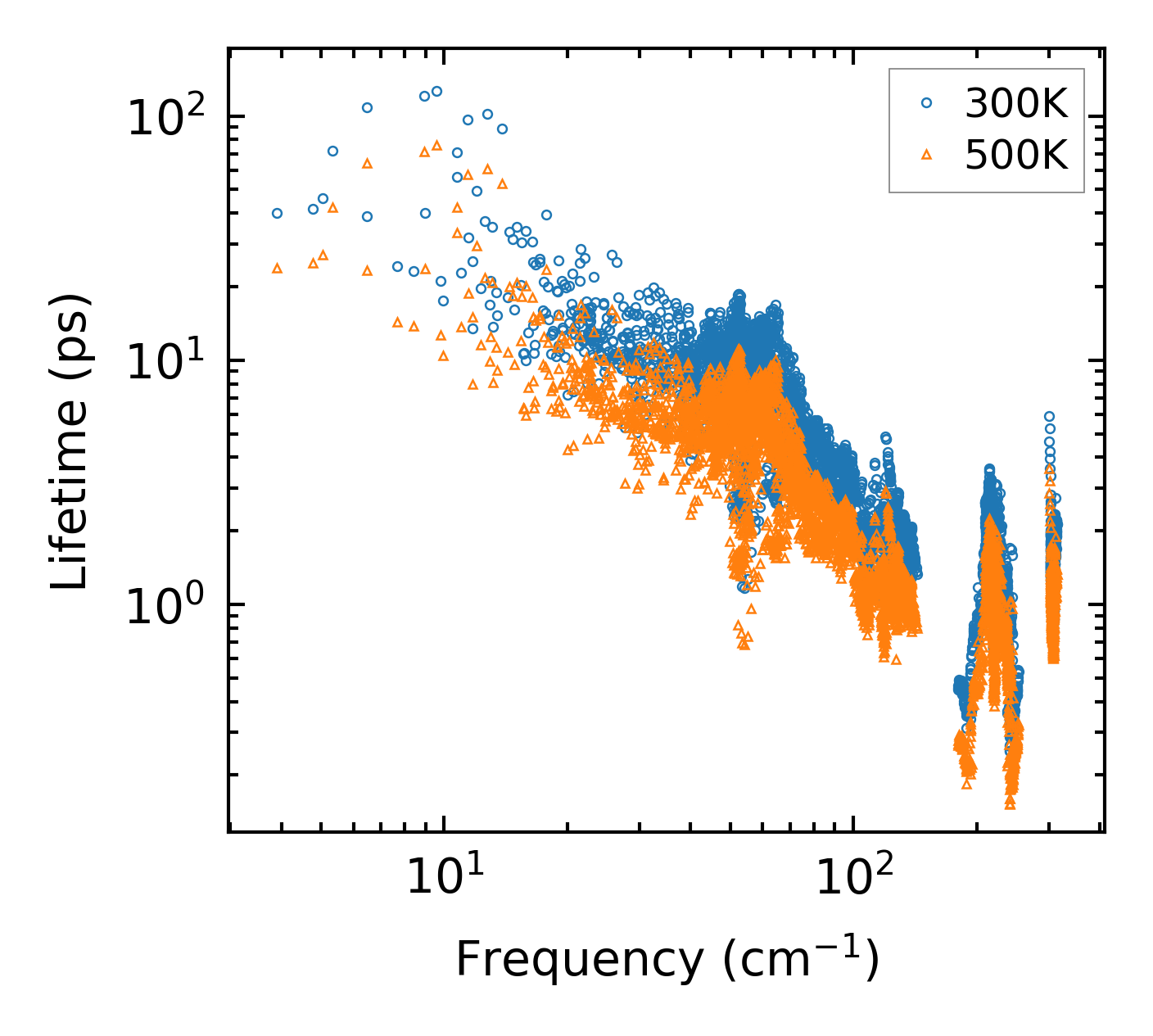

../../_images/fig_lifetime5267.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates5266.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

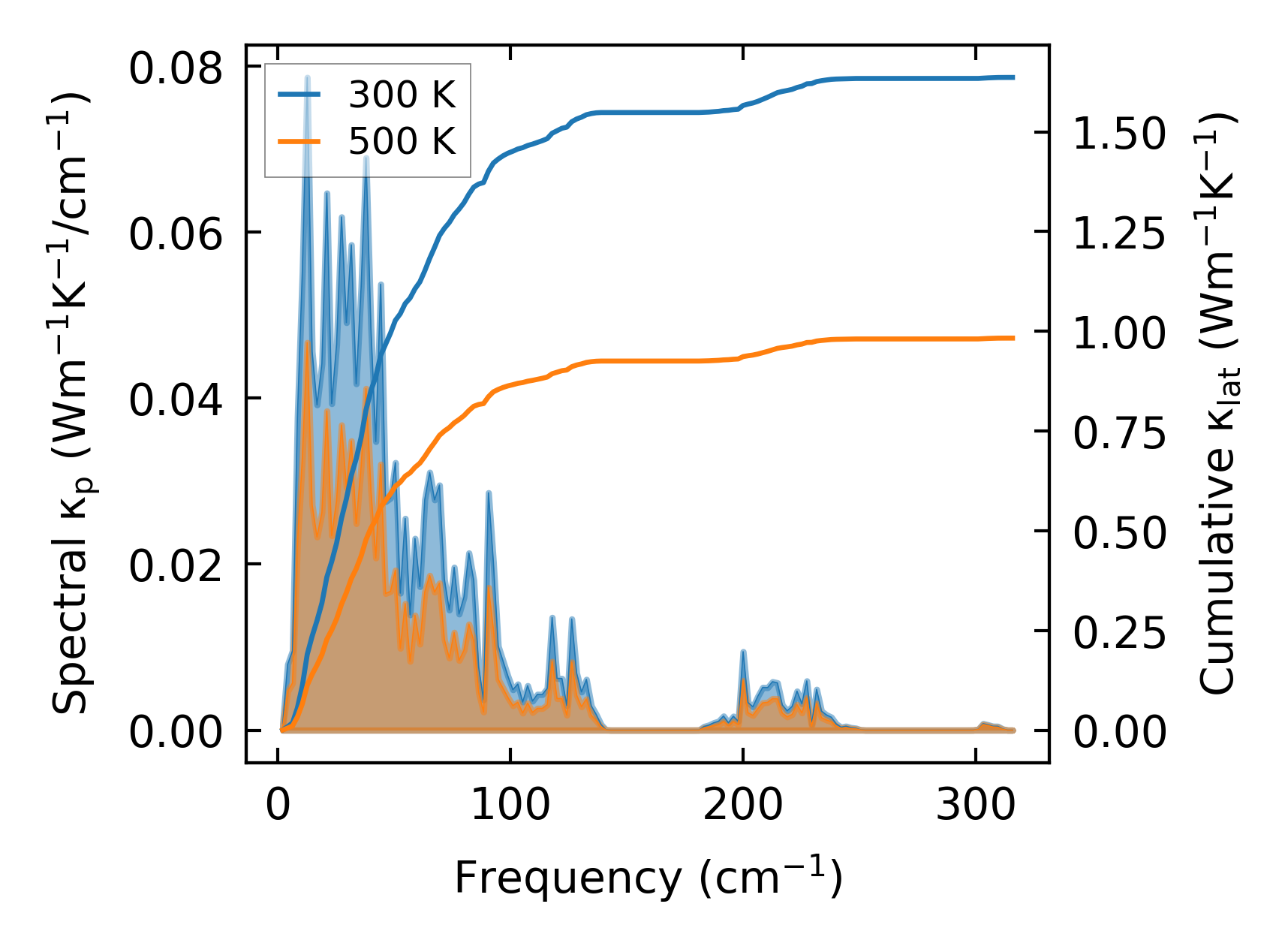

../../_images/fig_cumu_frequency5267.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

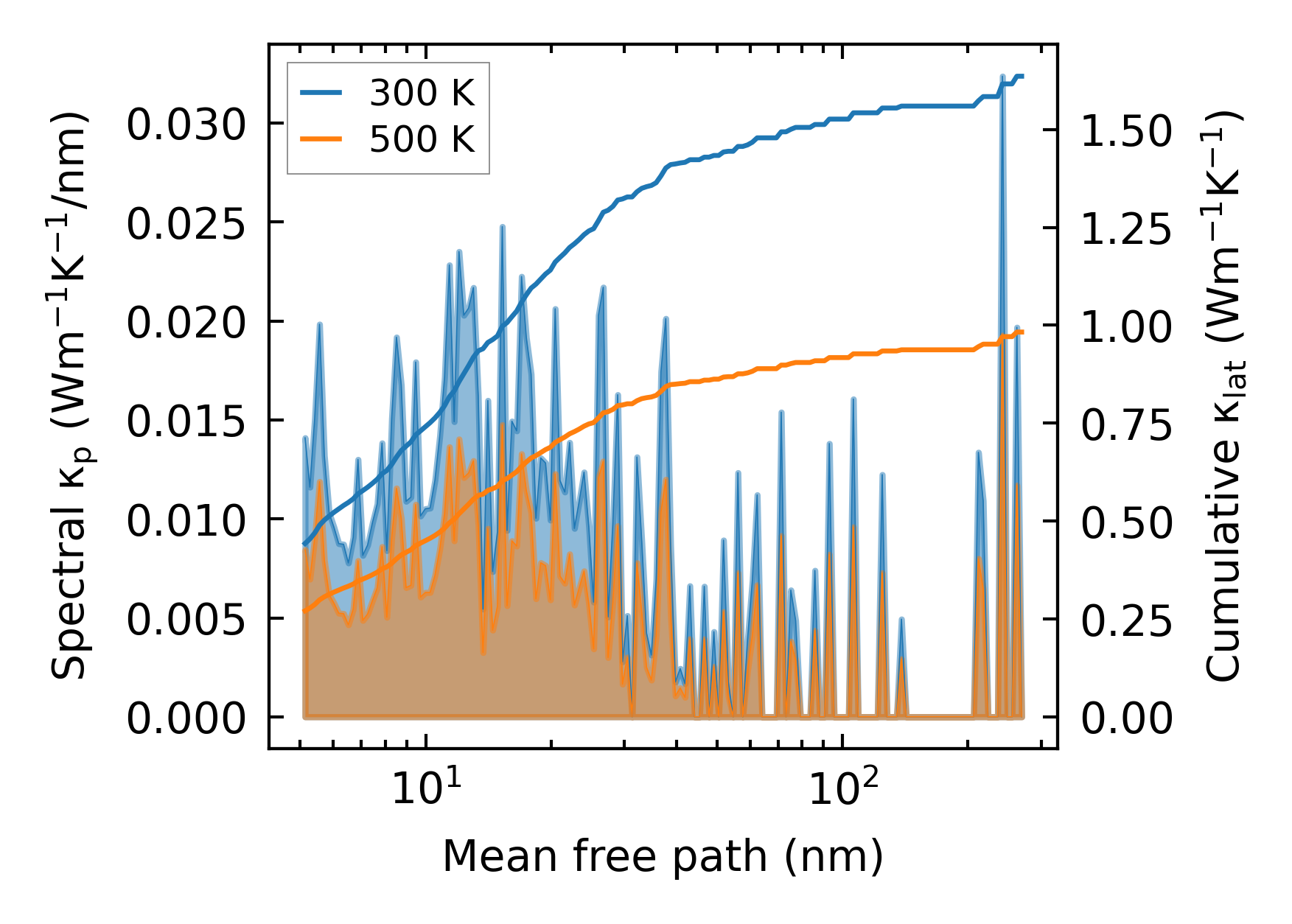

../../_images/fig_cumu_mfp5266.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

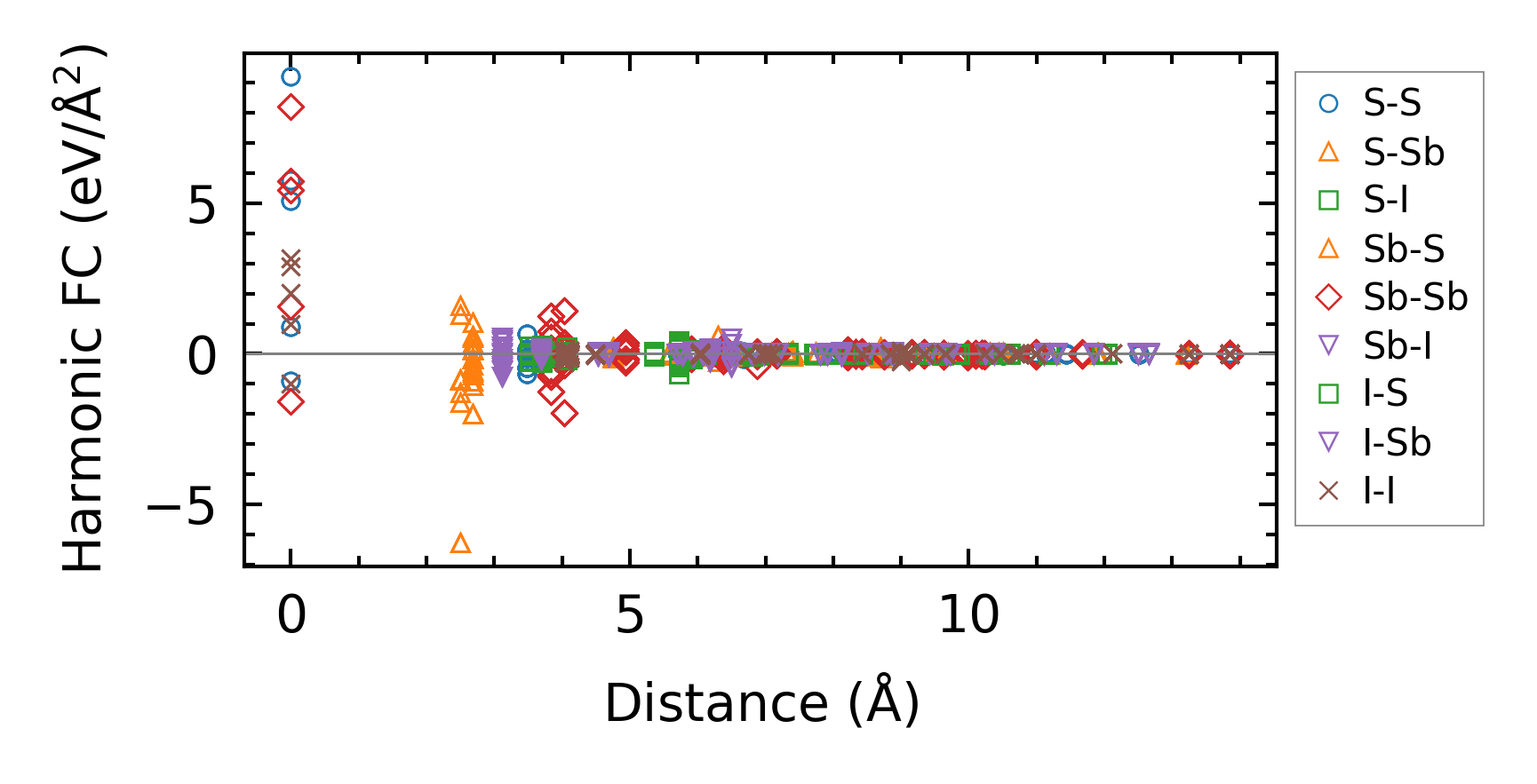

../../_images/fig_fc212532.png — (a) Force constants w.r.t atomic distance

Summary

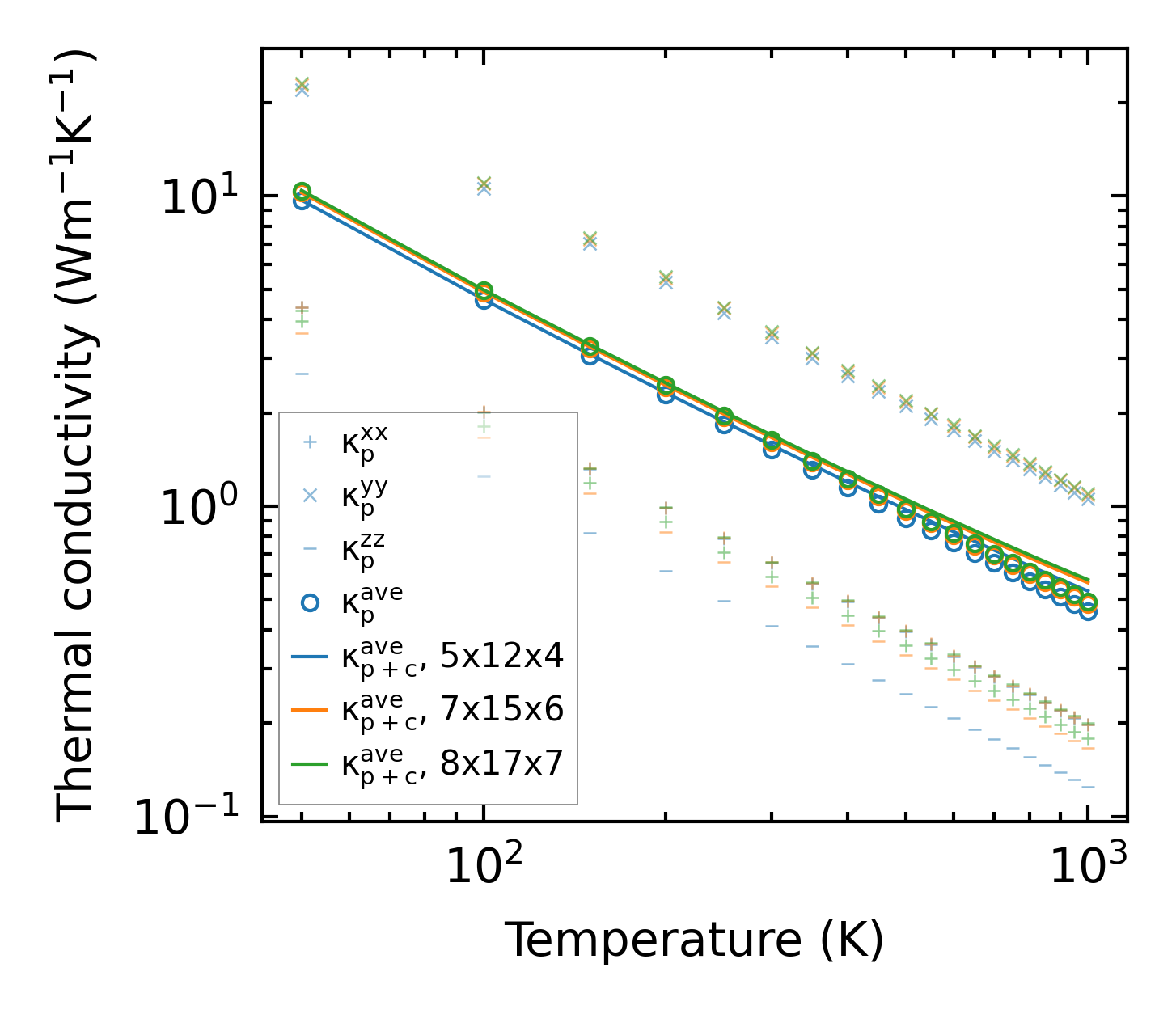

../../_images/fig_kappa9991.png — (a) Temperature-dependent lattice thermal conductivity

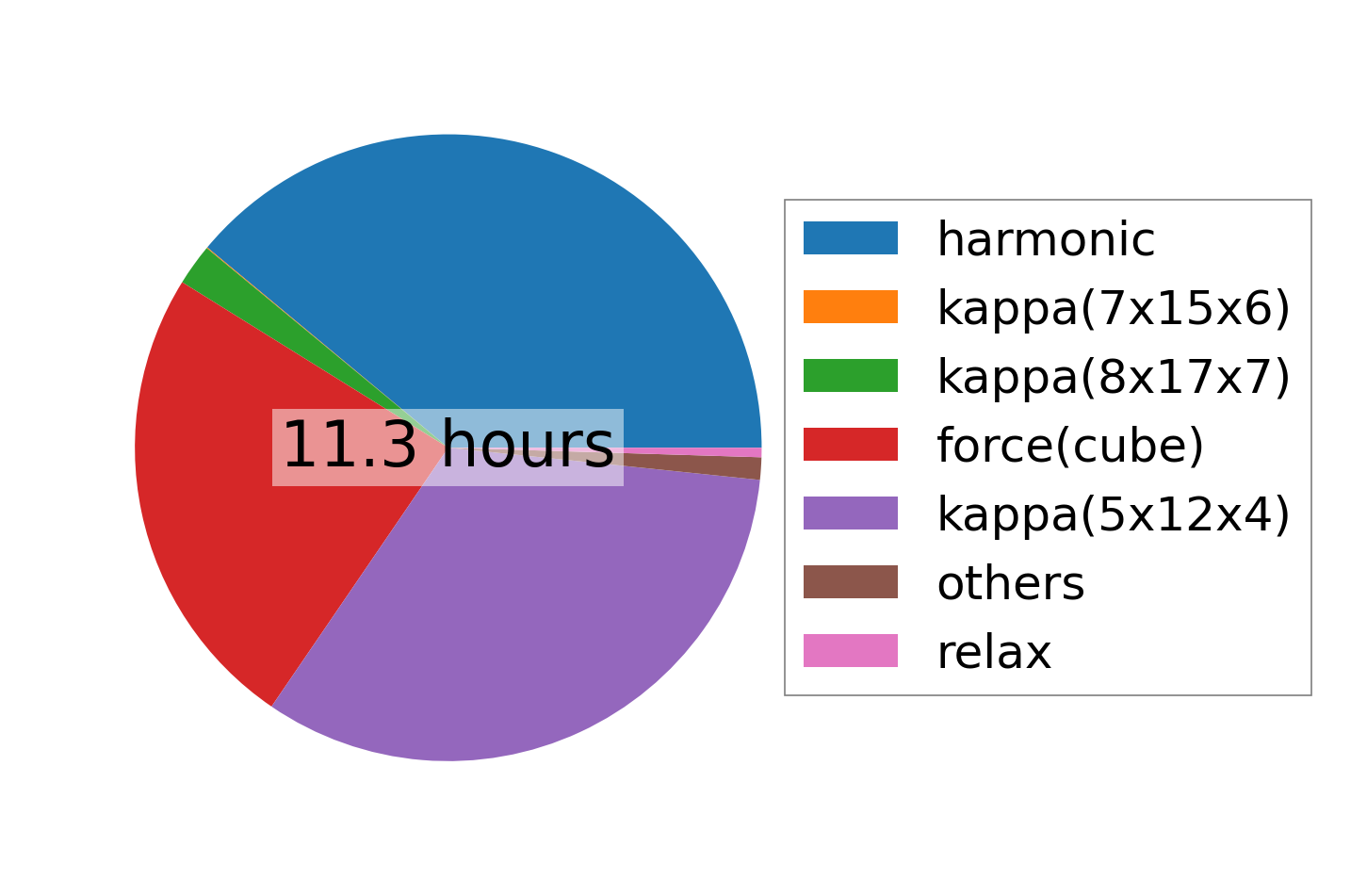

../../_images/fig_times21752.png — (b) Computation time
