mp-23859/CaHCl/anharm

Space group: P4/nmm (129)
Link: Materials Project
Download: mp-23859.tar.gz

Harmonic properties

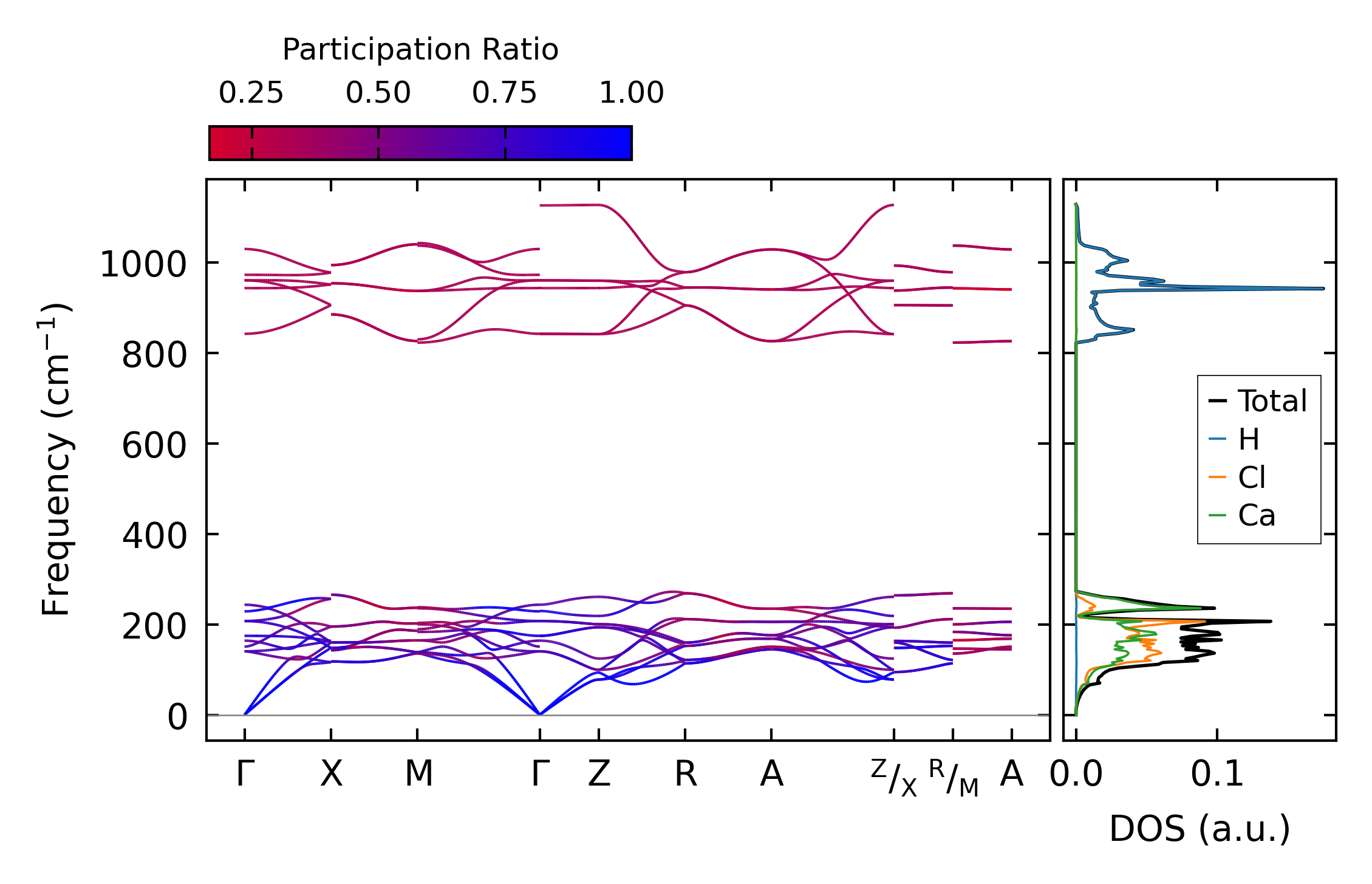

../../_images/fig_bandos_pr12524.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo12524.png — (b) Thermodynamic properties

Grüneisen parameters

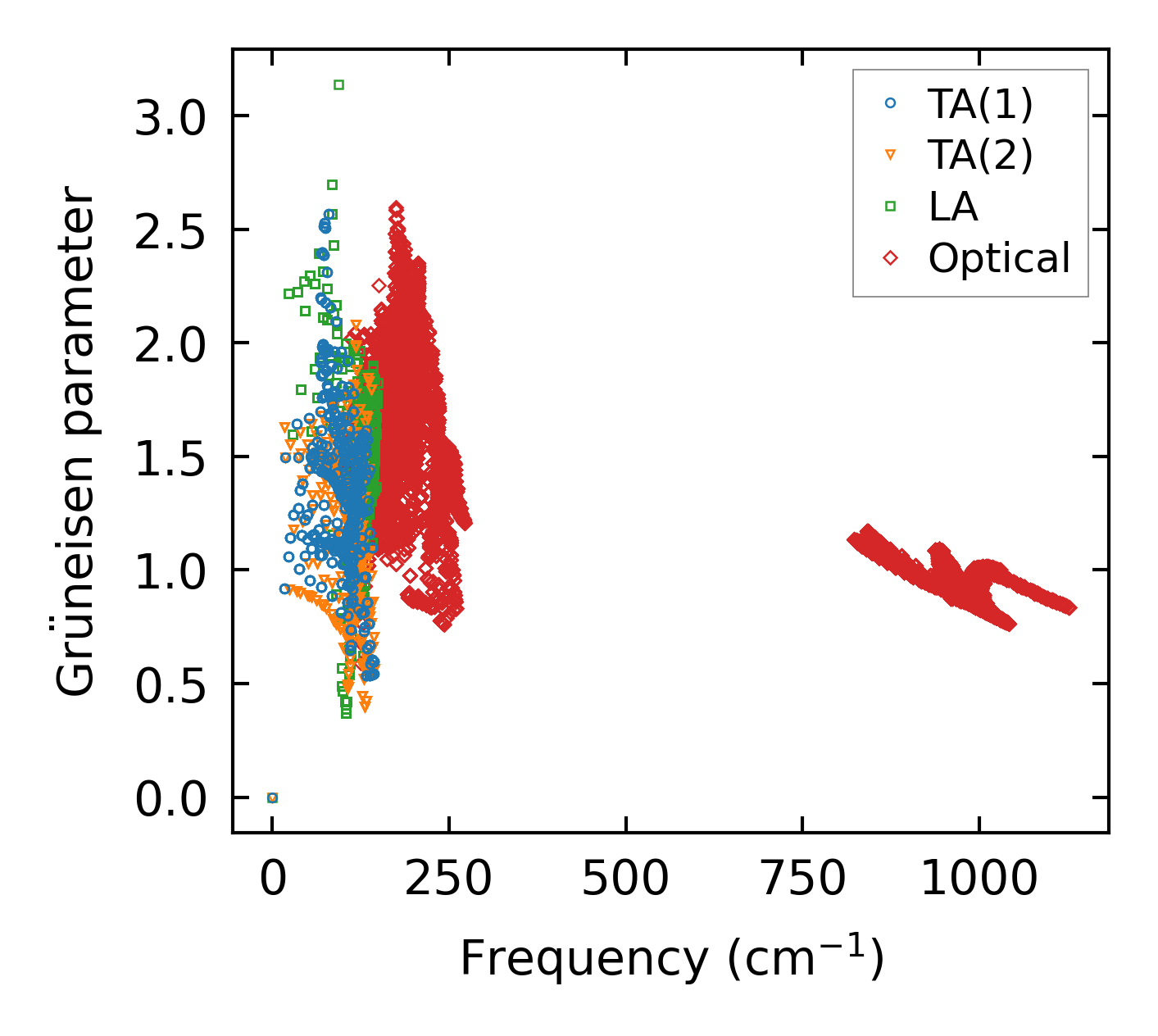

../../_images/fig_gru_all5200.png — (a) Grüneisen parameters

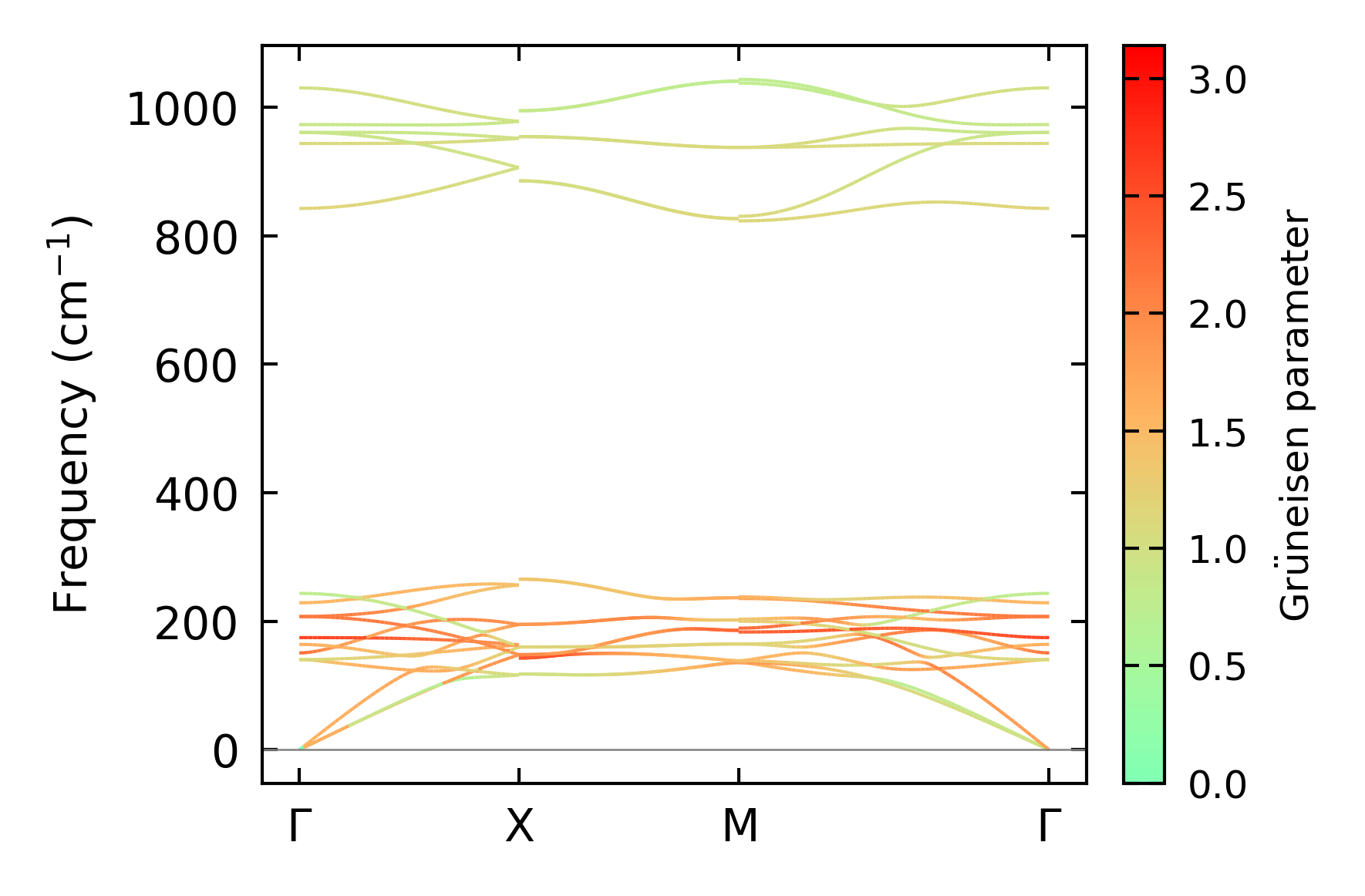

../../_images/fig_gruneisen5200.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 19x19x10, supercell: 3x3x2

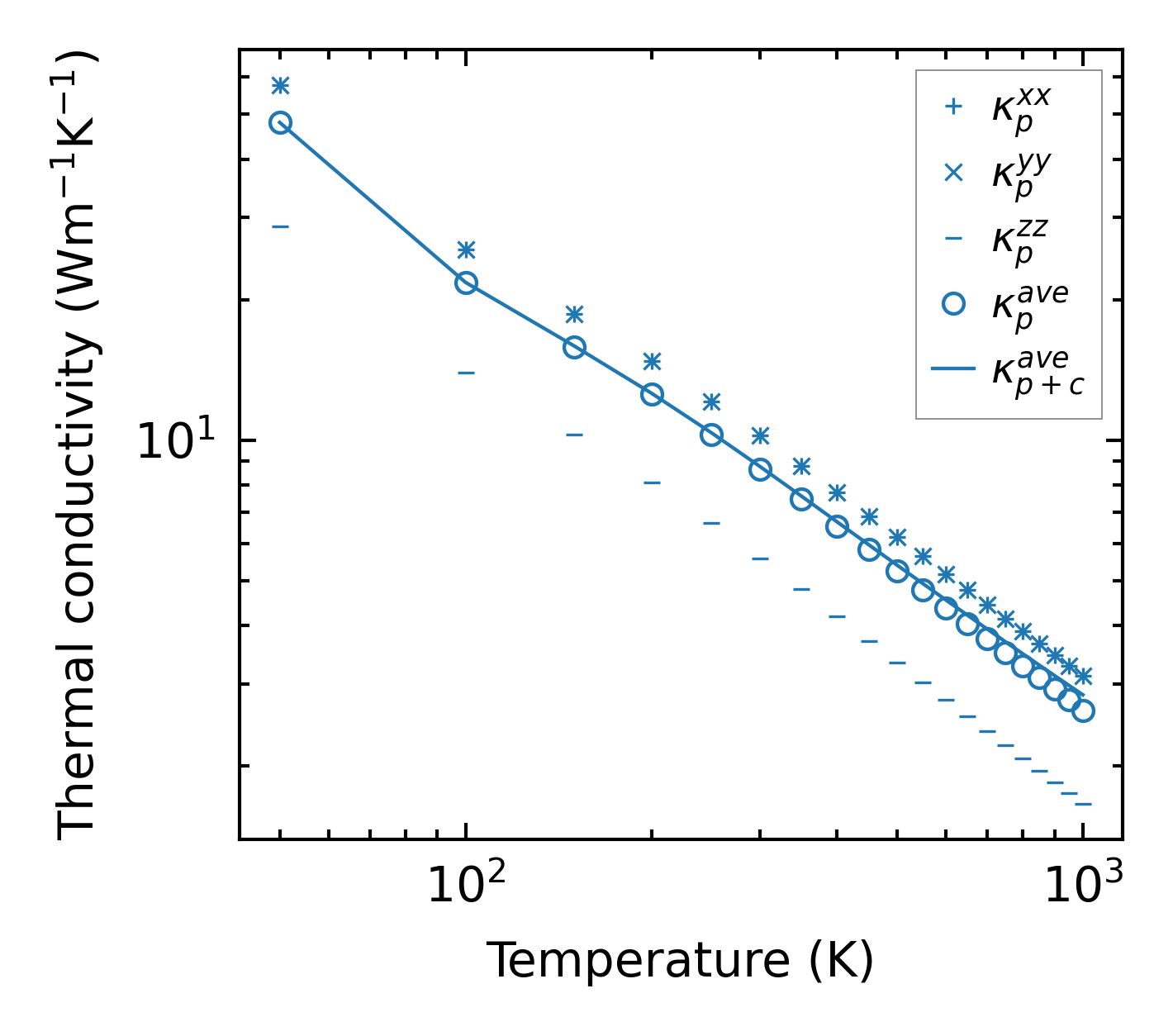

../../_images/fig_kappa9781.png — (a) Temperature-dependent lattice thermal conductivity

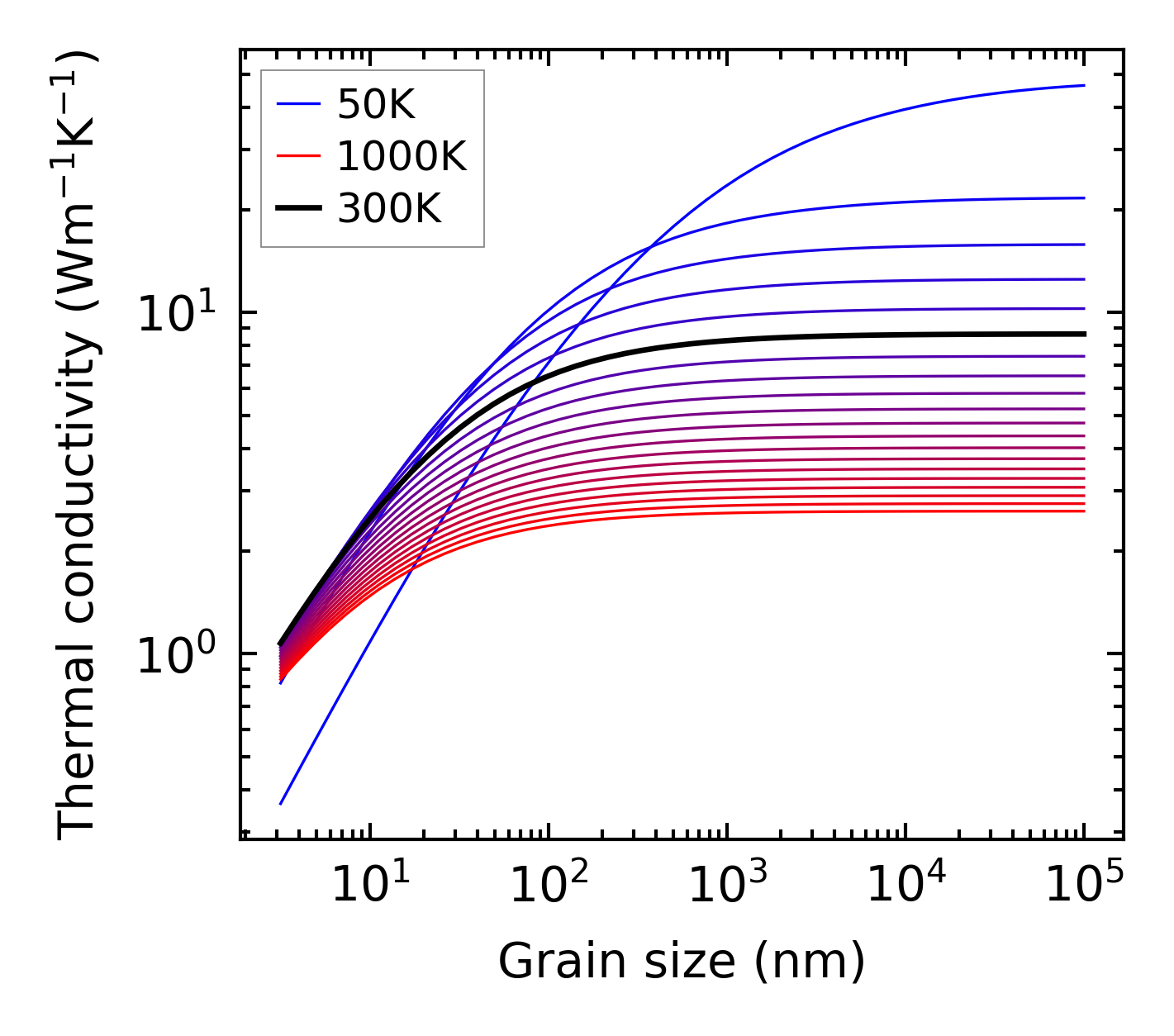

../../_images/fig_kappa_vs_grain_size5262.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

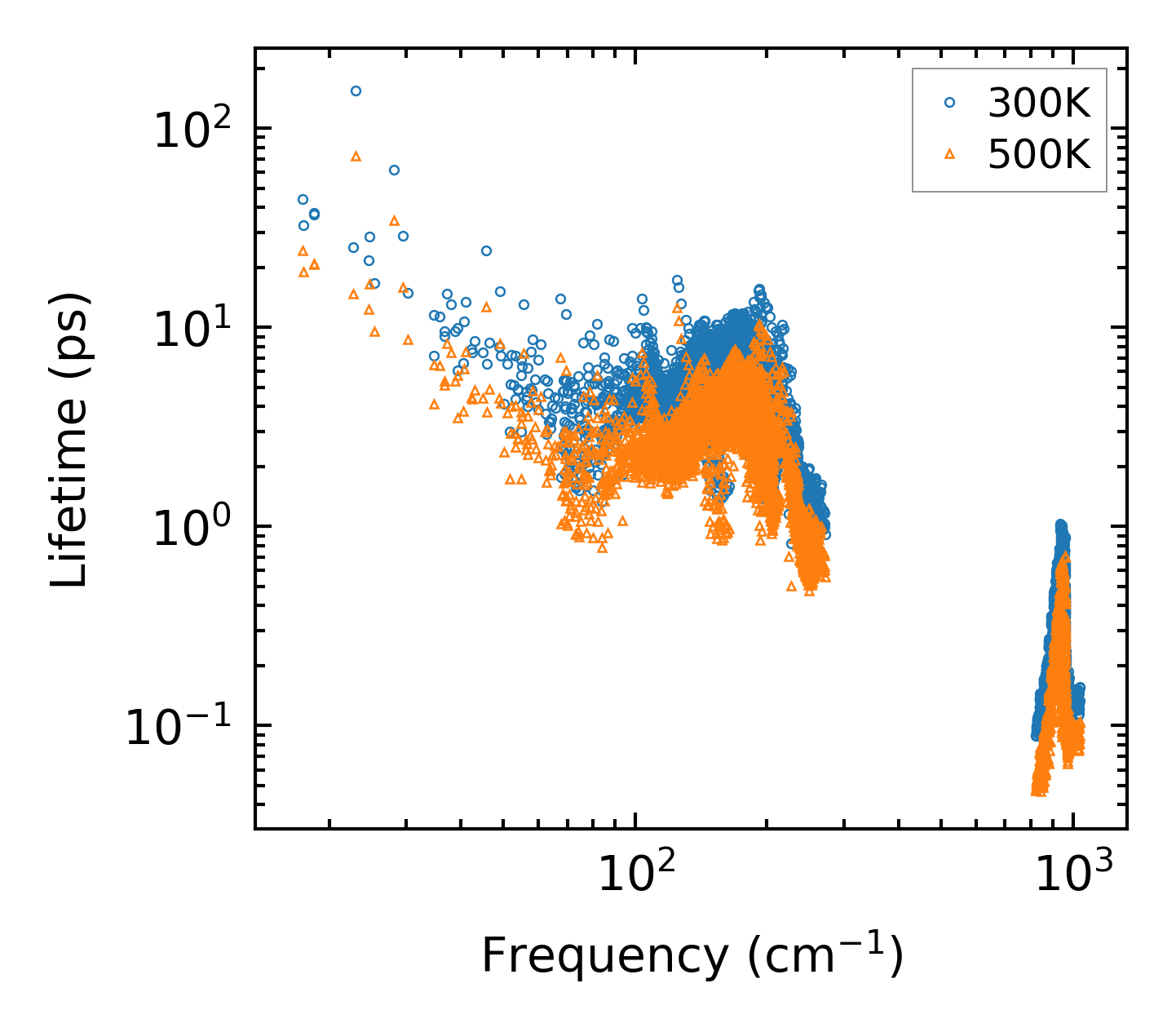

../../_images/fig_lifetime5149.png — (a) Phonon lifetime due to phonon-phonon scattering

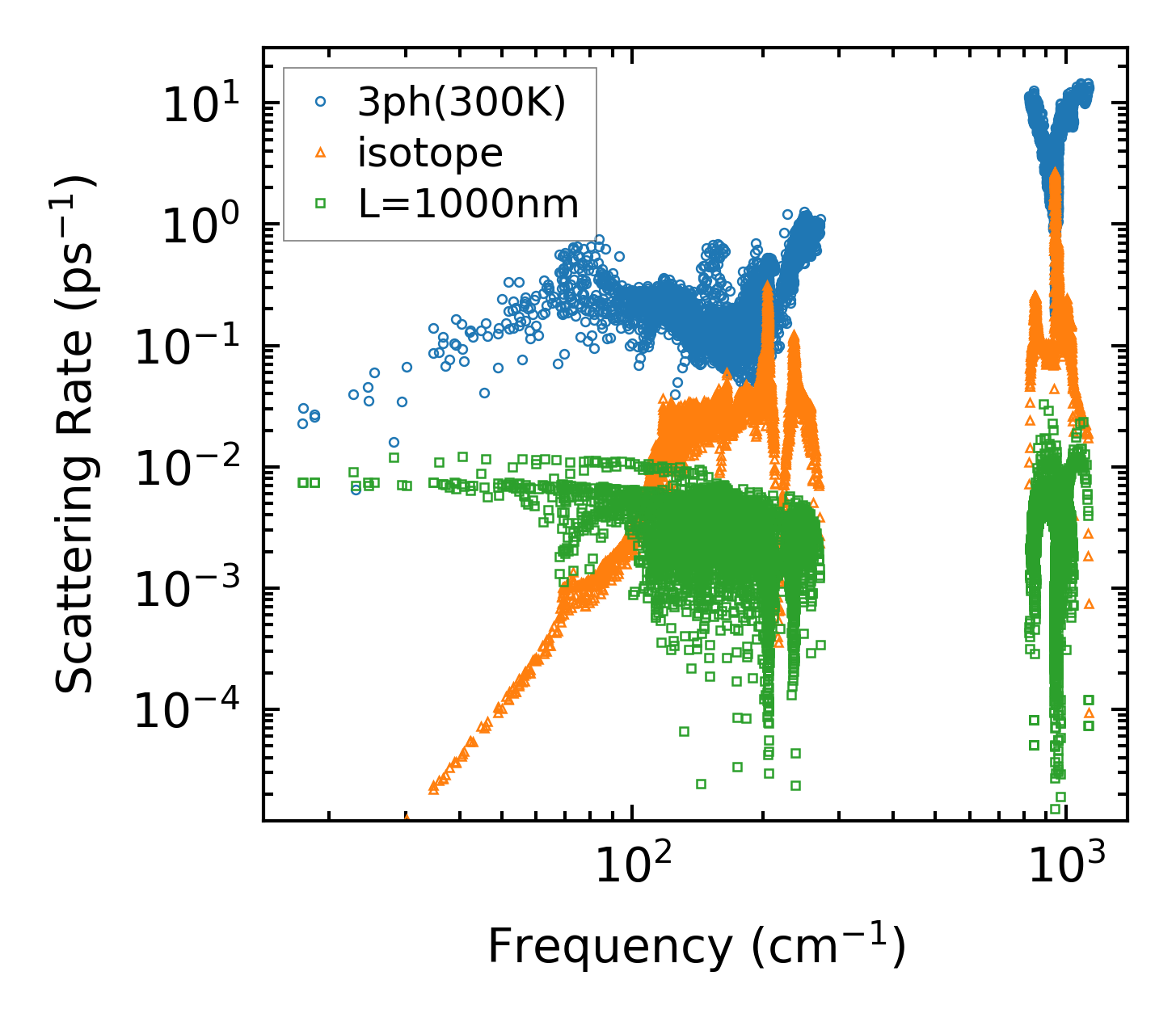

../../_images/fig_scat_rates5148.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

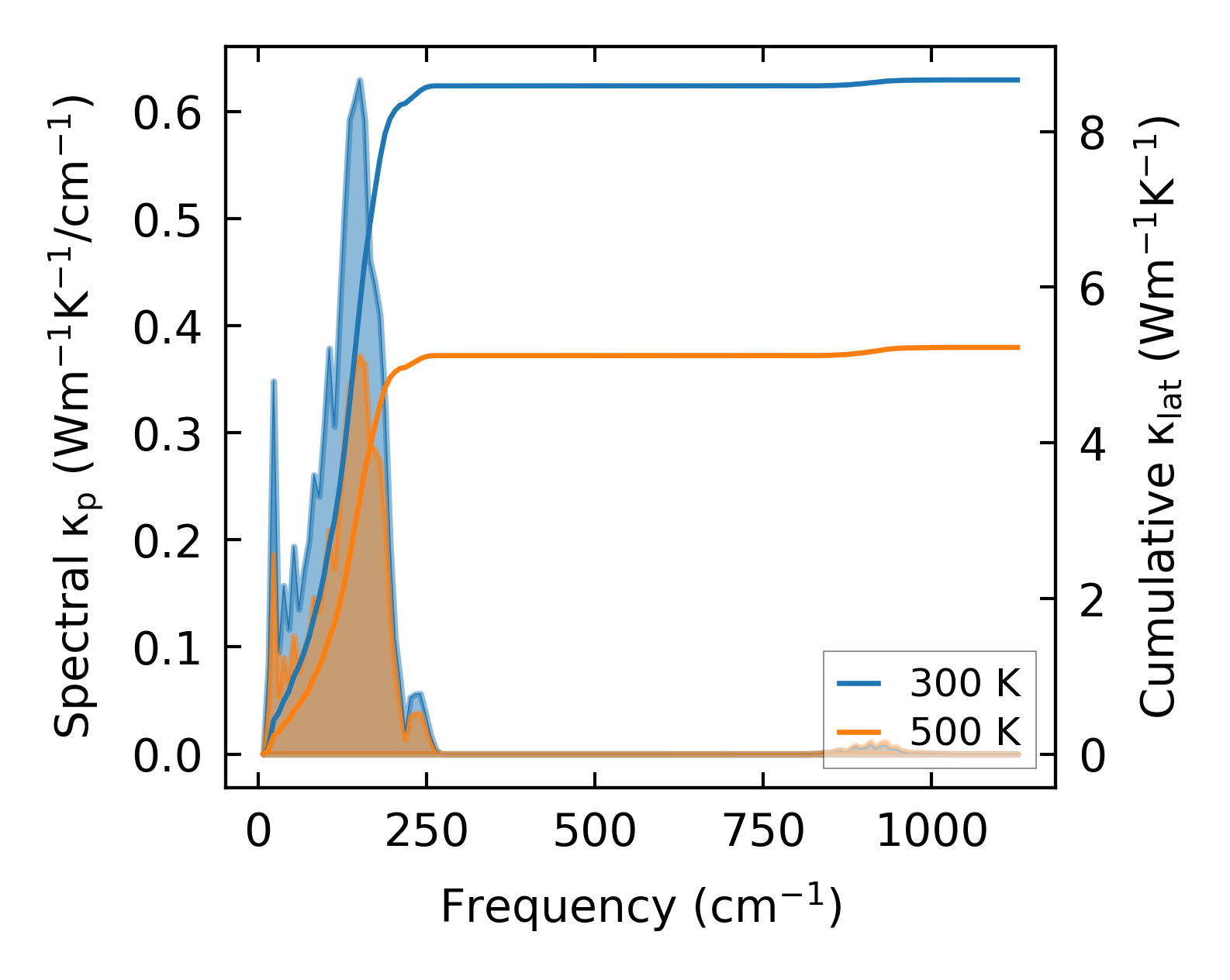

../../_images/fig_cumu_frequency5149.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

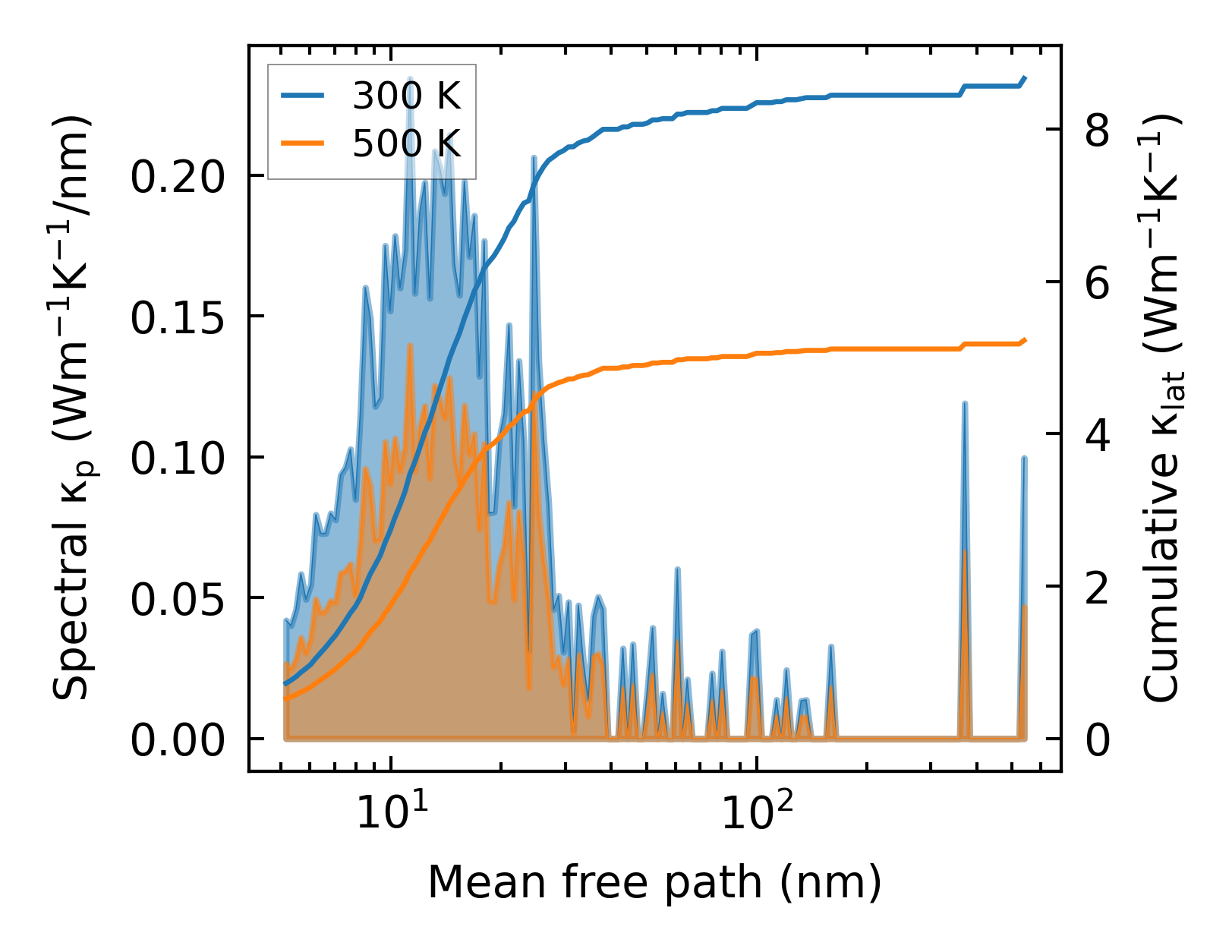

../../_images/fig_cumu_mfp5148.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

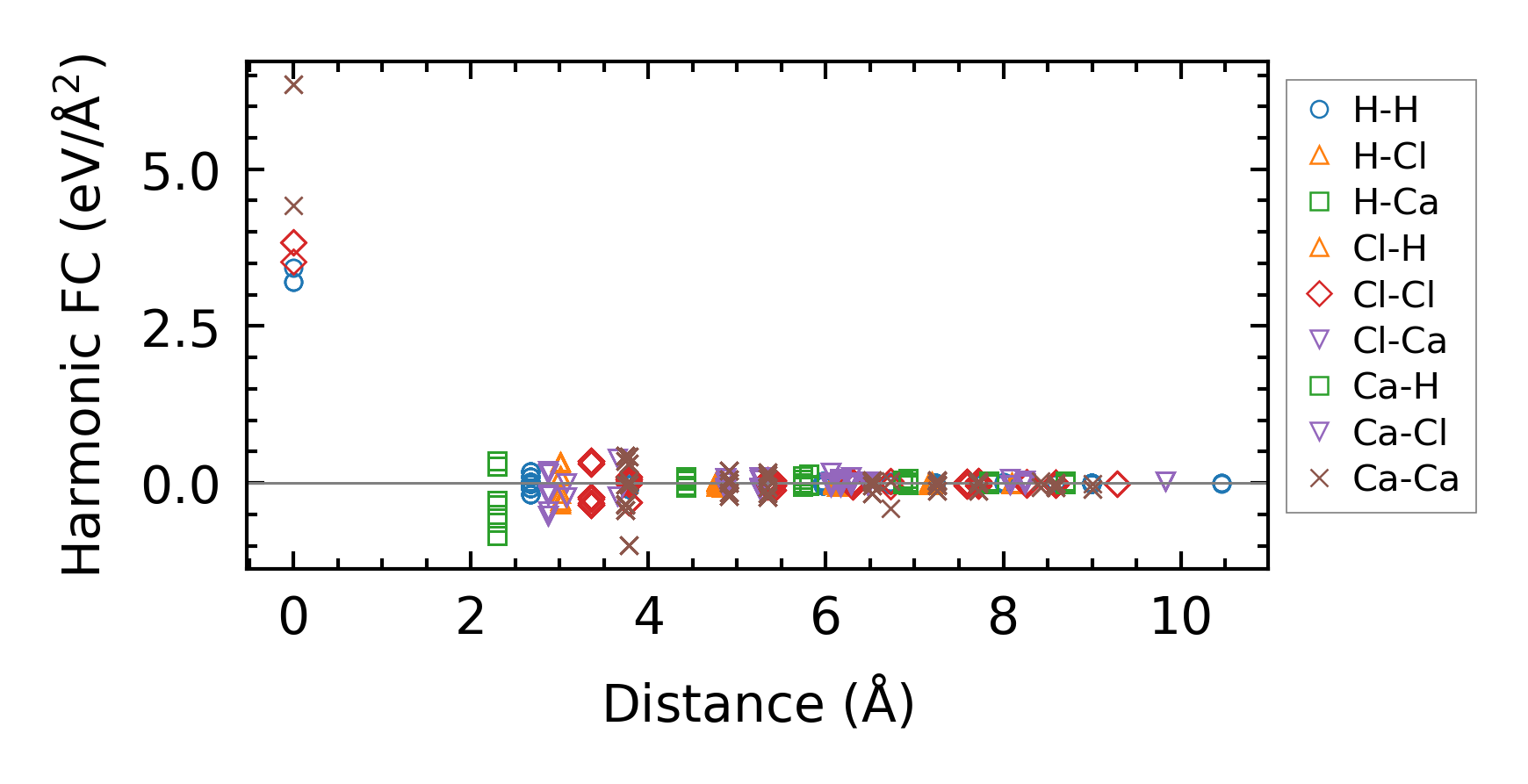

../../_images/fig_fc212223.png — (a) Force constants w.r.t atomic distance

Summary

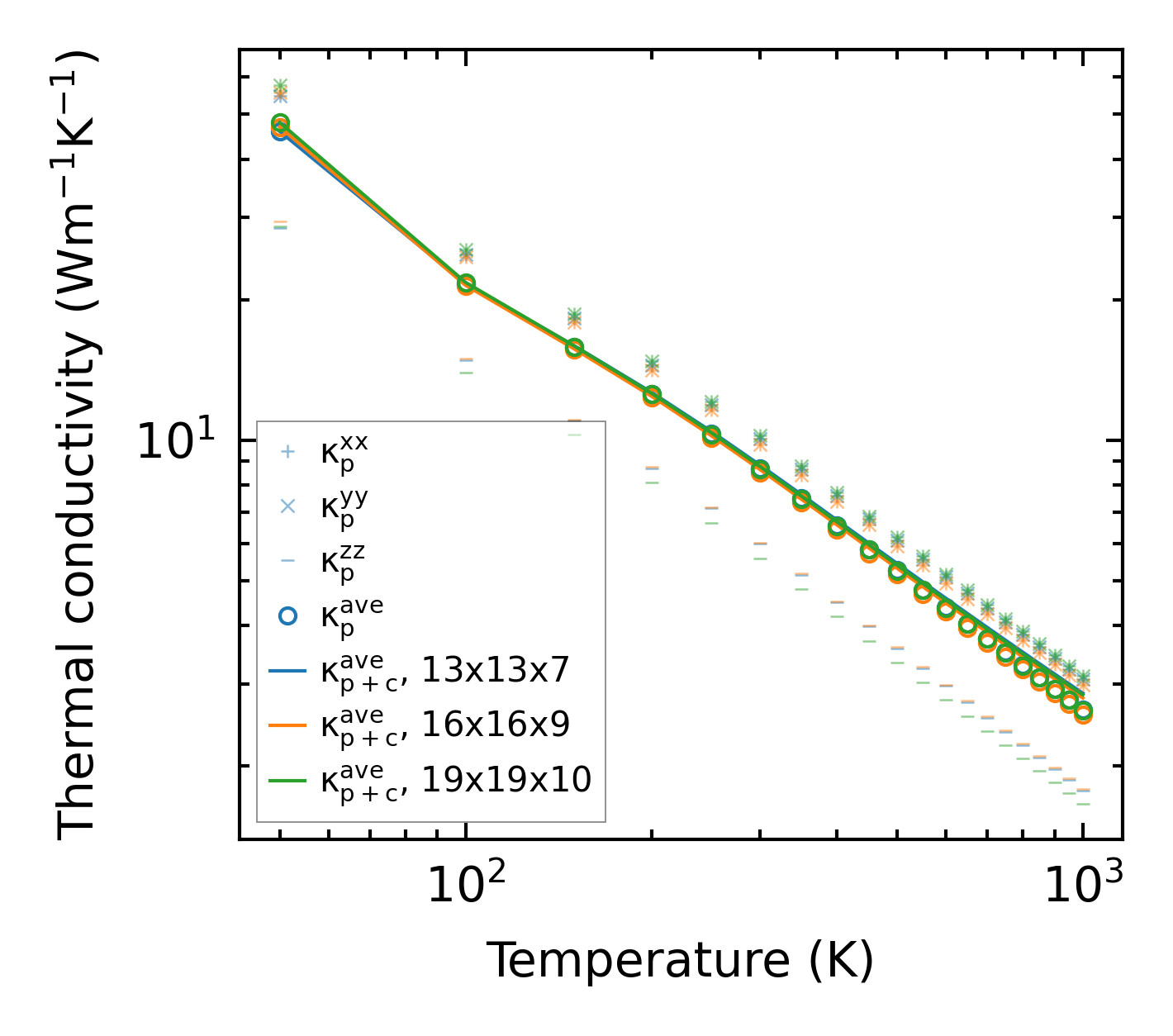

../../_images/fig_kappa9782.png — (a) Temperature-dependent lattice thermal conductivity

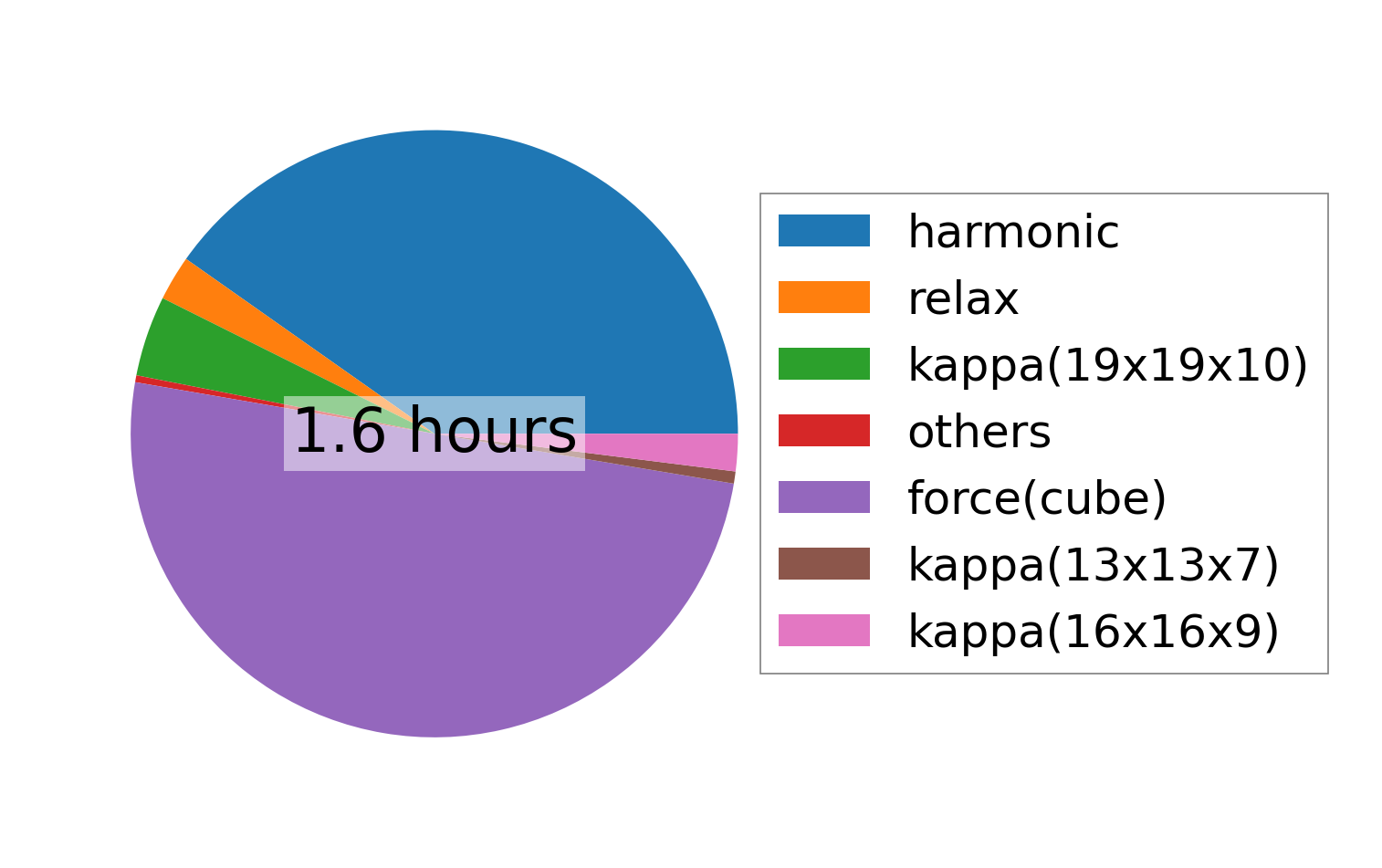

../../_images/fig_times21293.png — (b) Computation time
