mp-23496-2/CsAg2I3/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-23496-2.tar.gz

Equation of state

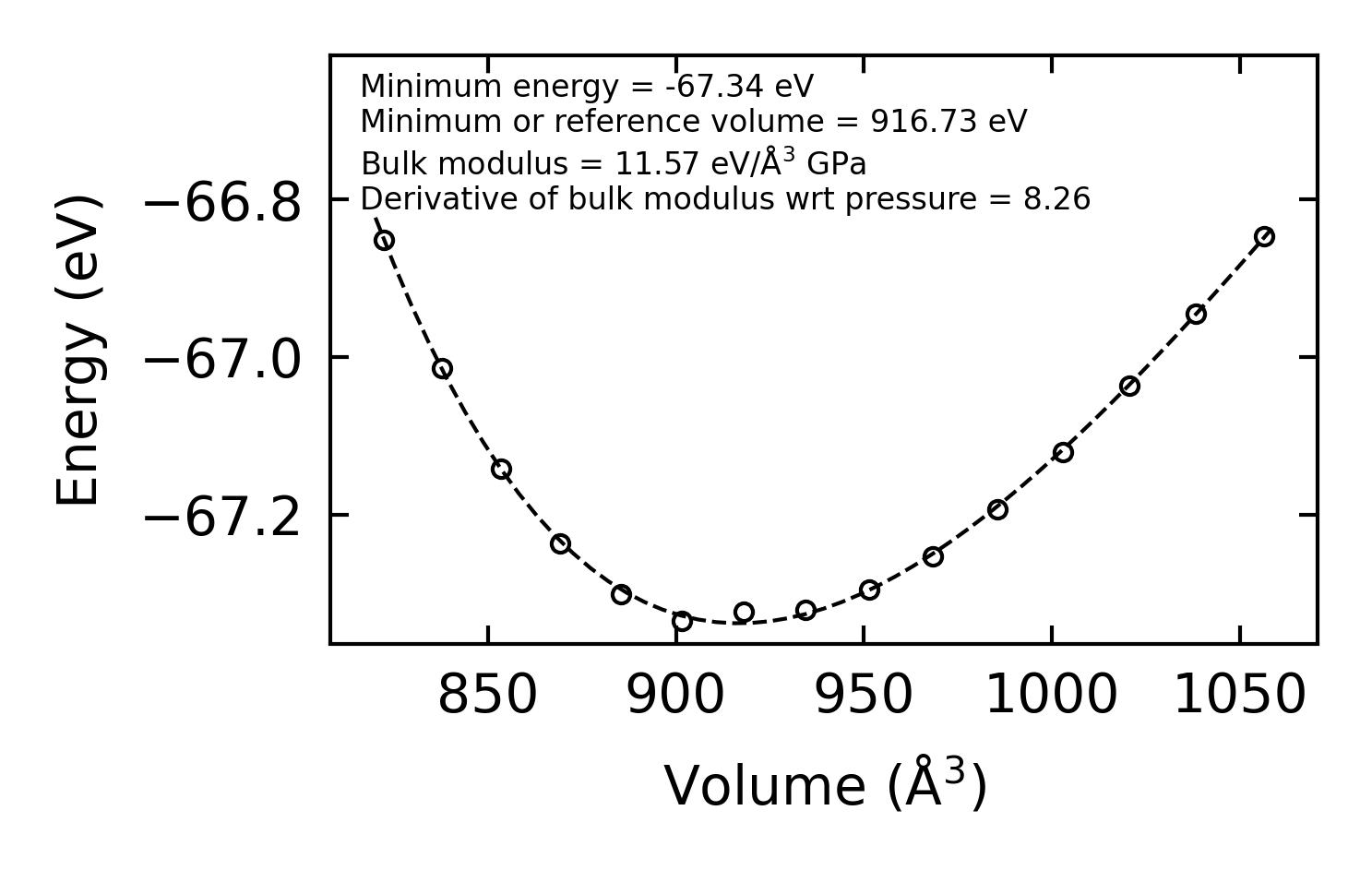

../../_images/fig_bm6339.png — (a) Equation of state

Harmonic properties

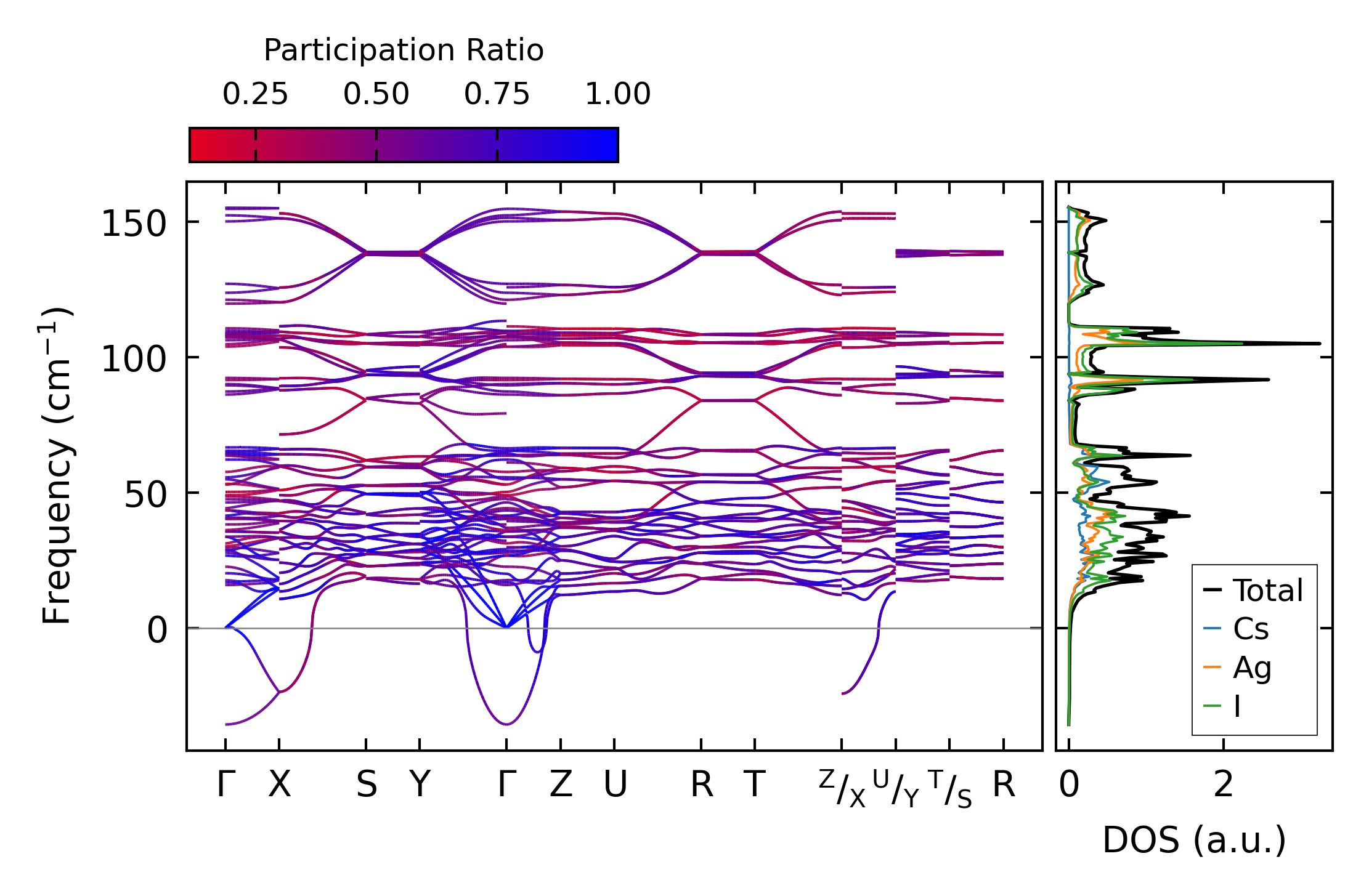

../../_images/fig_bandos_pr12710.png — (a) Phonon dispersion with participation ratio and DOS

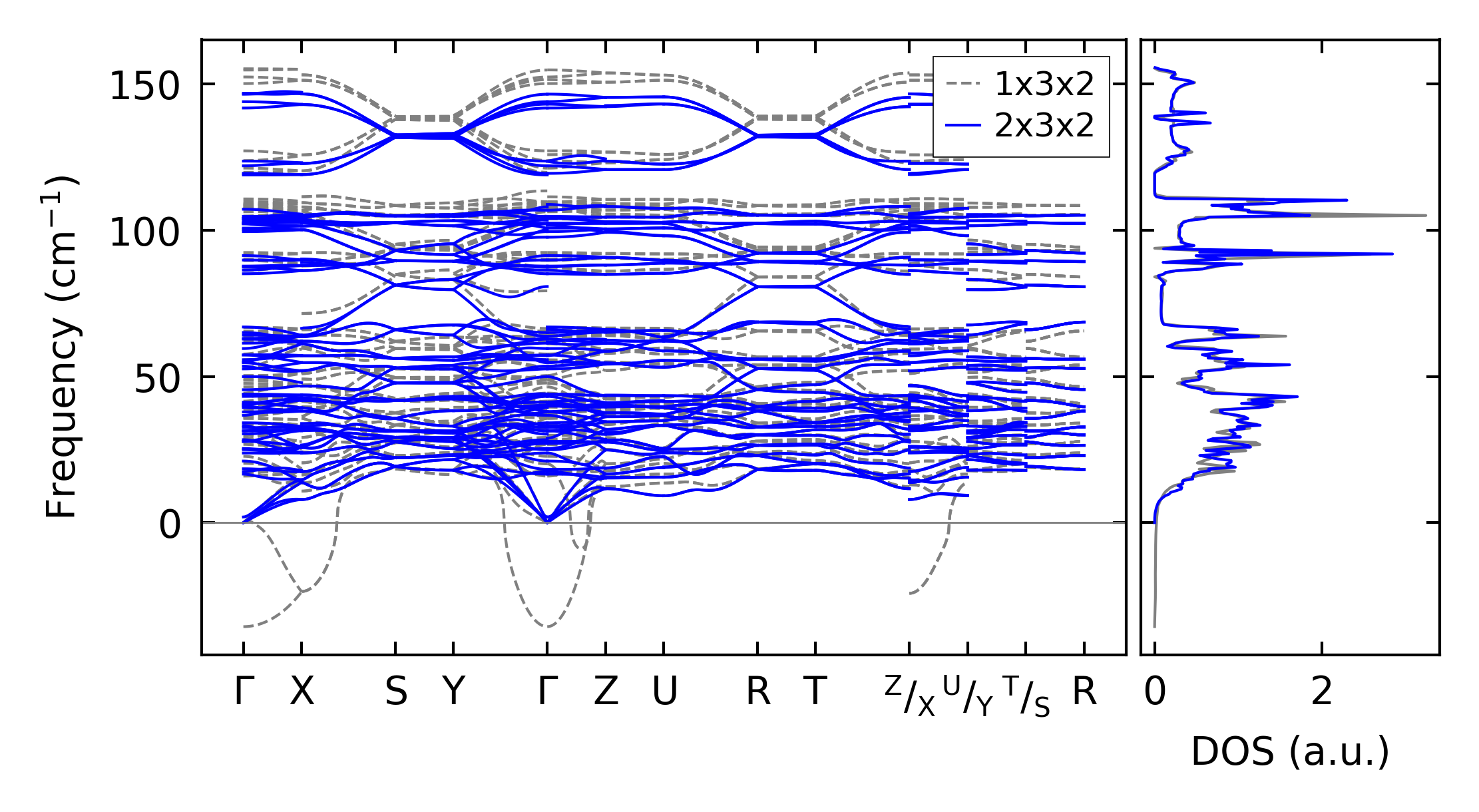

../../_images/fig_bandos17088.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo12710.png — (c) Thermodynamic properties

Grüneisen parameters

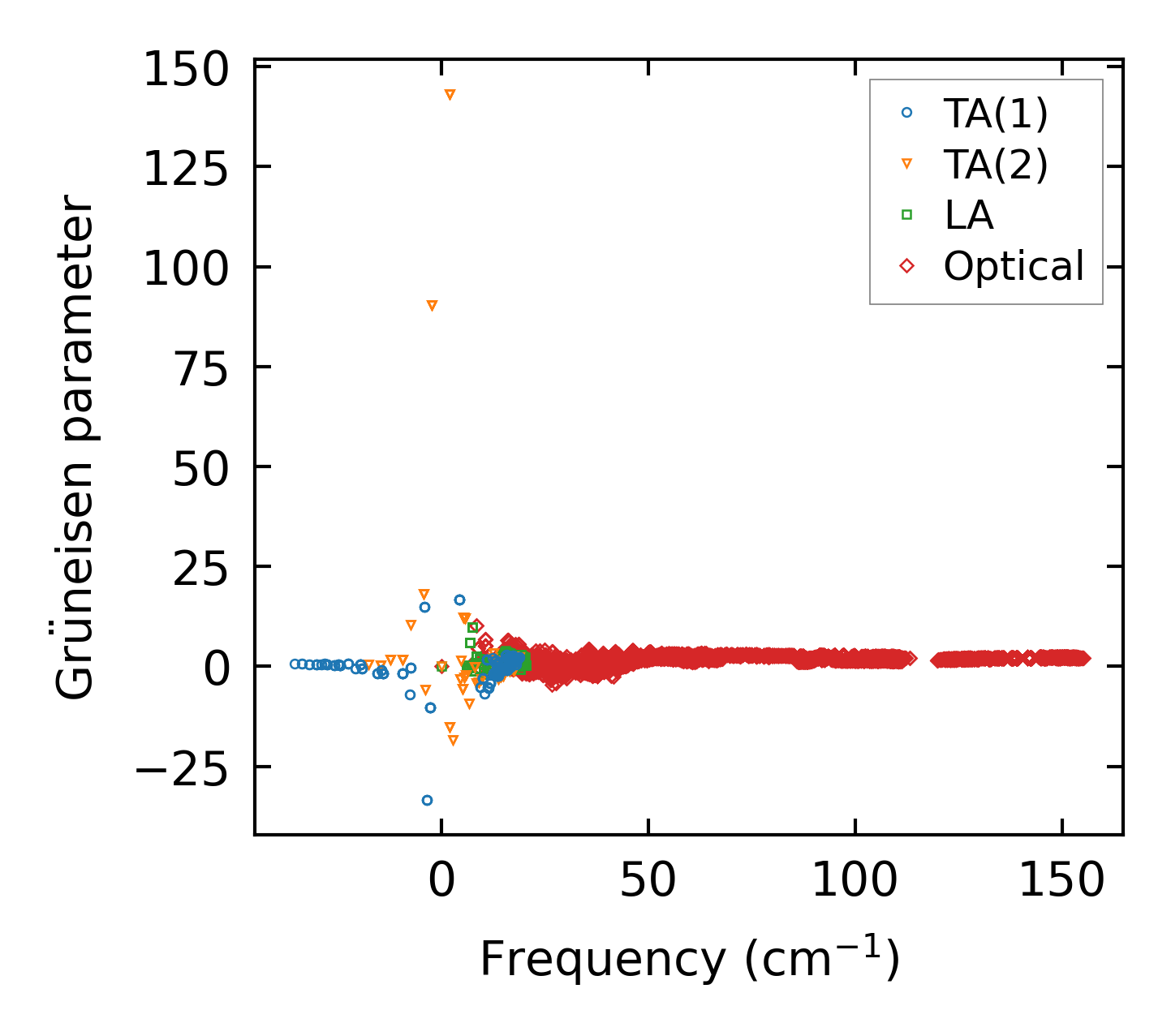

../../_images/fig_gru_all5270.png — (a) Grüneisen parameters

../../_images/fig_gruneisen5270.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x3x2 — q-mesh: 5x12x6, supercell: 2x3x2

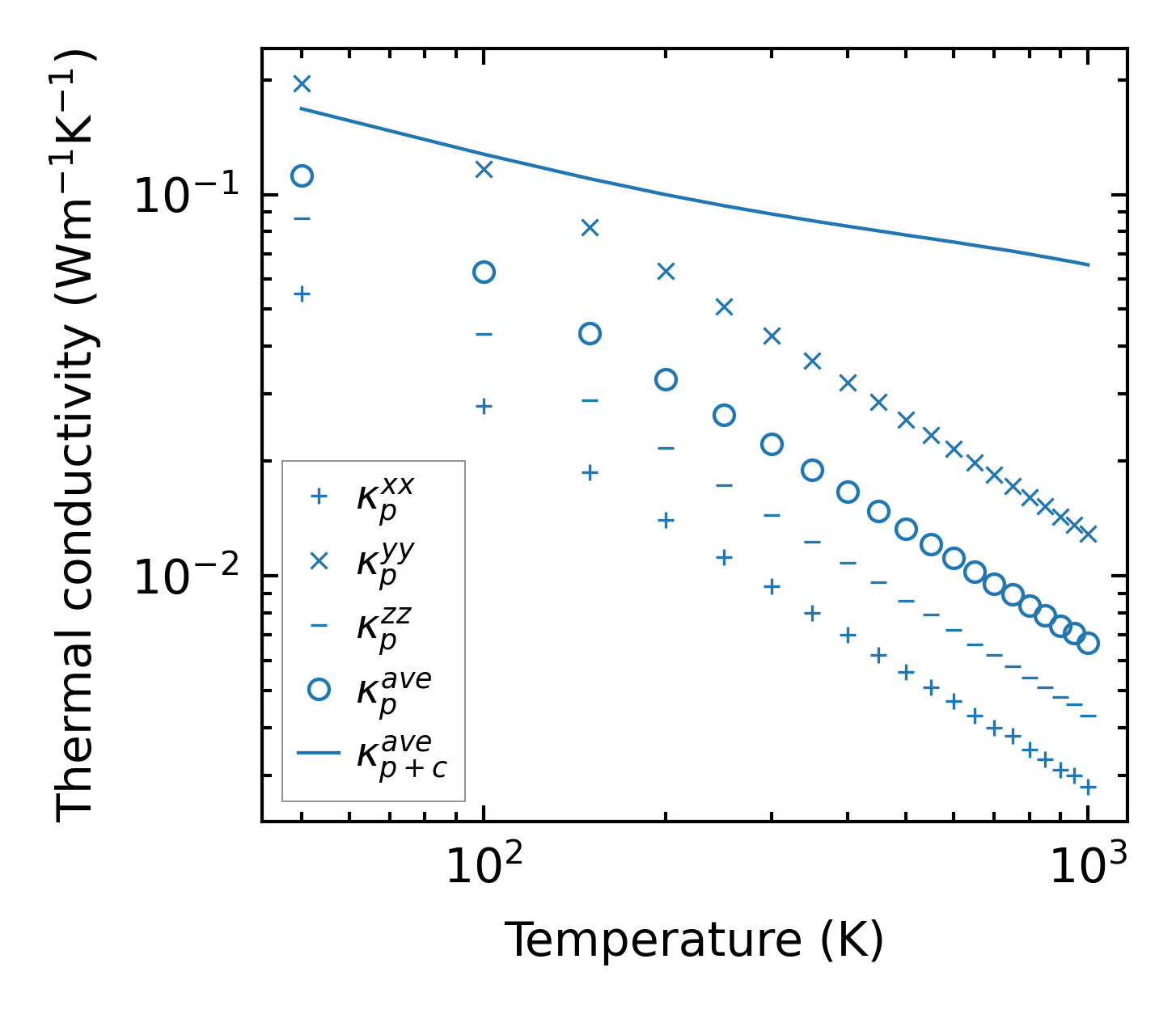

../../_images/fig_kappa9905.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size5332.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

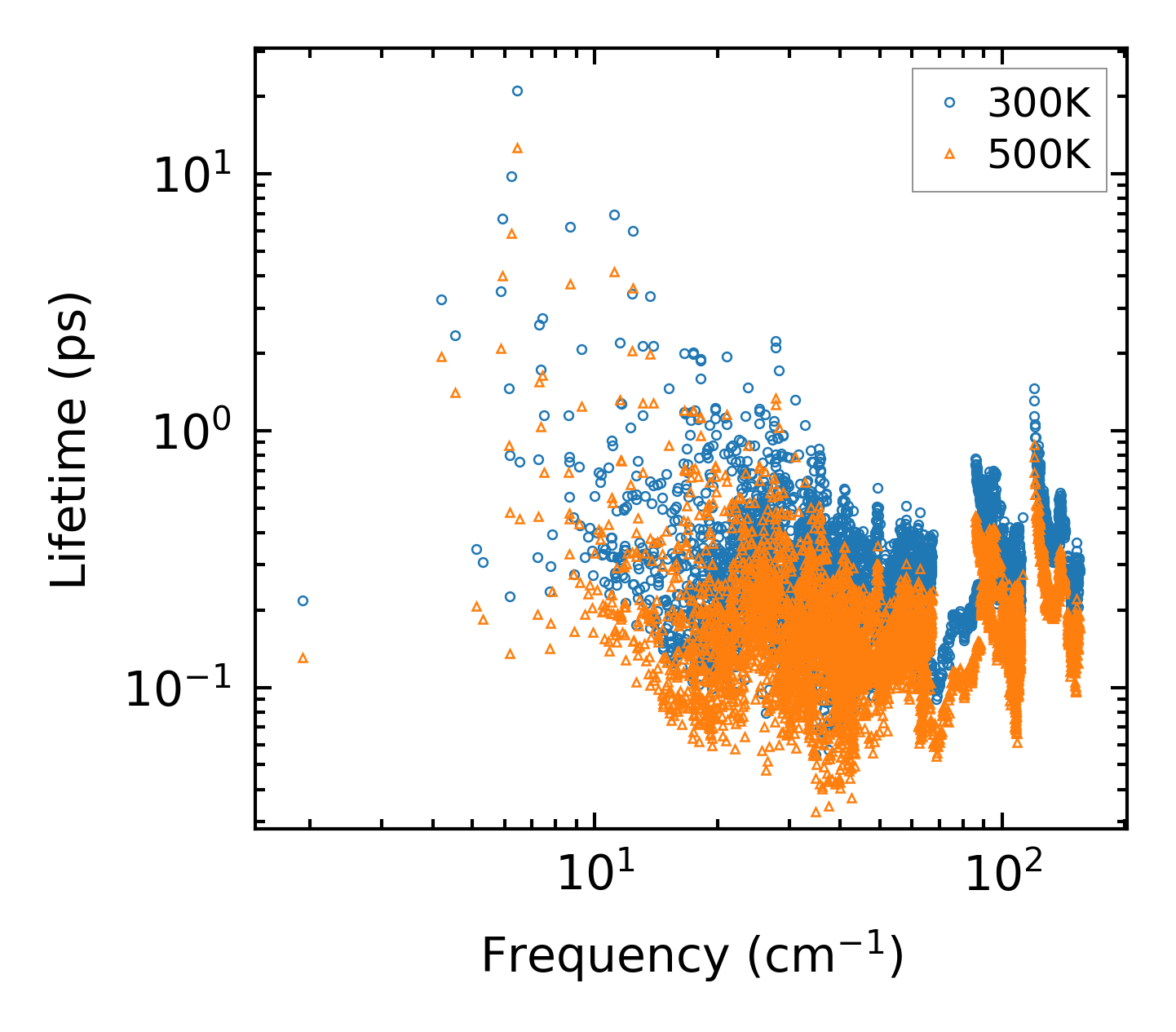

../../_images/fig_lifetime5219.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates5218.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

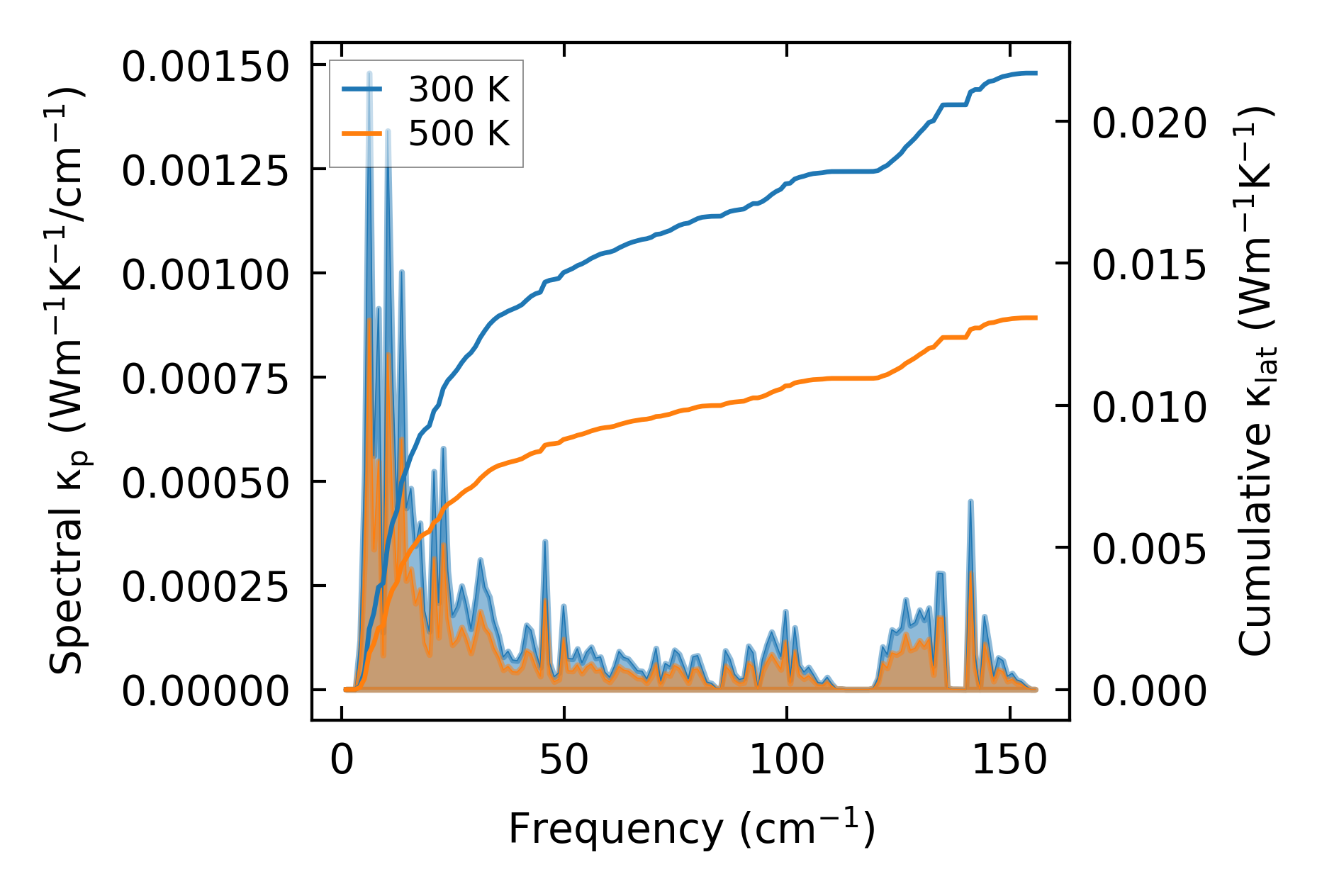

../../_images/fig_cumu_frequency5219.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

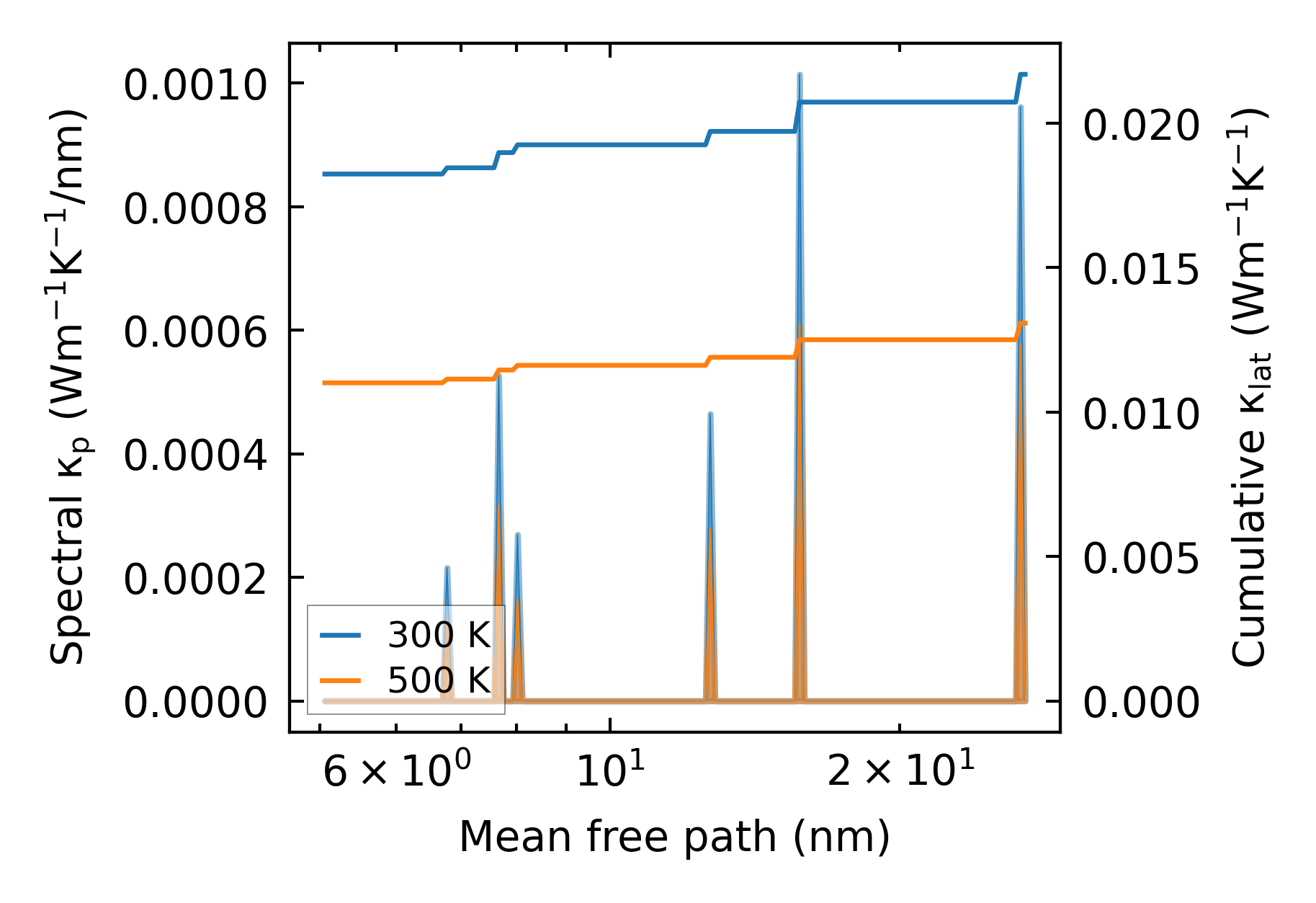

../../_images/fig_cumu_mfp5218.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc212406.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_times21577.png — (a) Computation time
