mp-23804/Mg2FeH6/anharm

Space group: Fm-3m (225)
Link: Materials Project
Download: mp-23804.tar.gz

Harmonic properties

../../_images/fig_bandos_pr12506.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo12506.png — (b) Thermodynamic properties

Grüneisen parameters

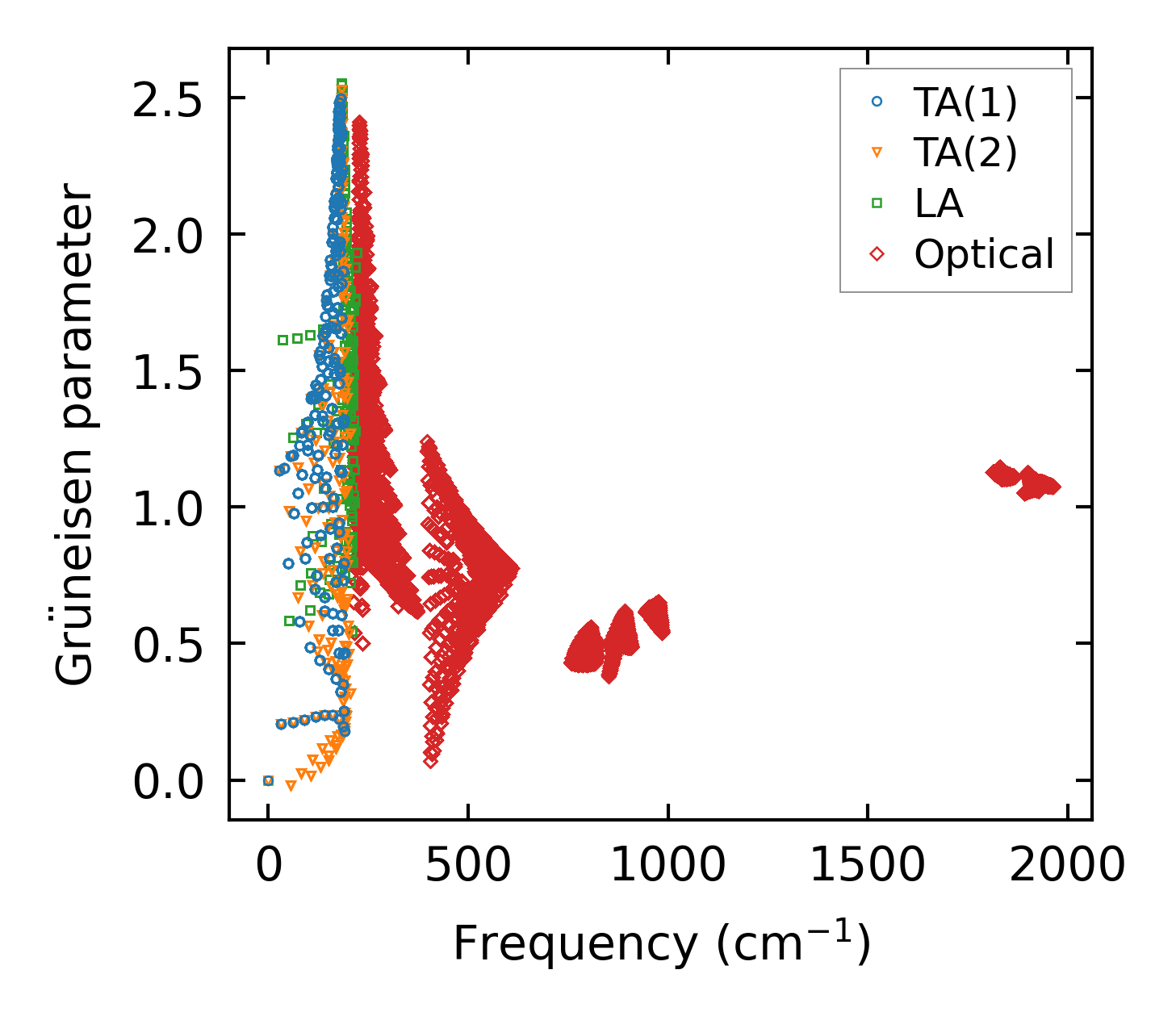

../../_images/fig_gru_all5193.png — (a) Grüneisen parameters

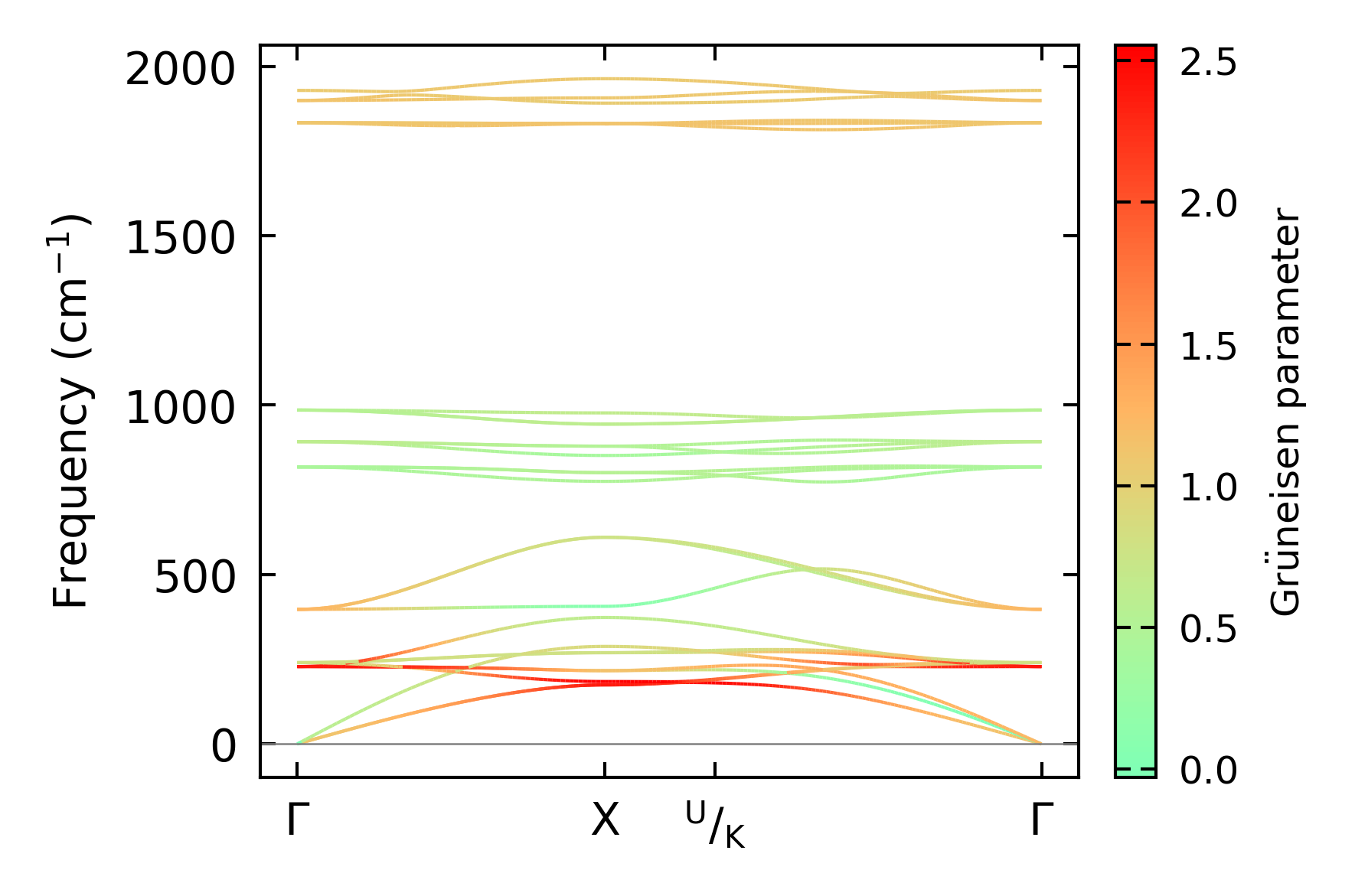

../../_images/fig_gruneisen5193.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 18x18x18, supercell: 1x1x1

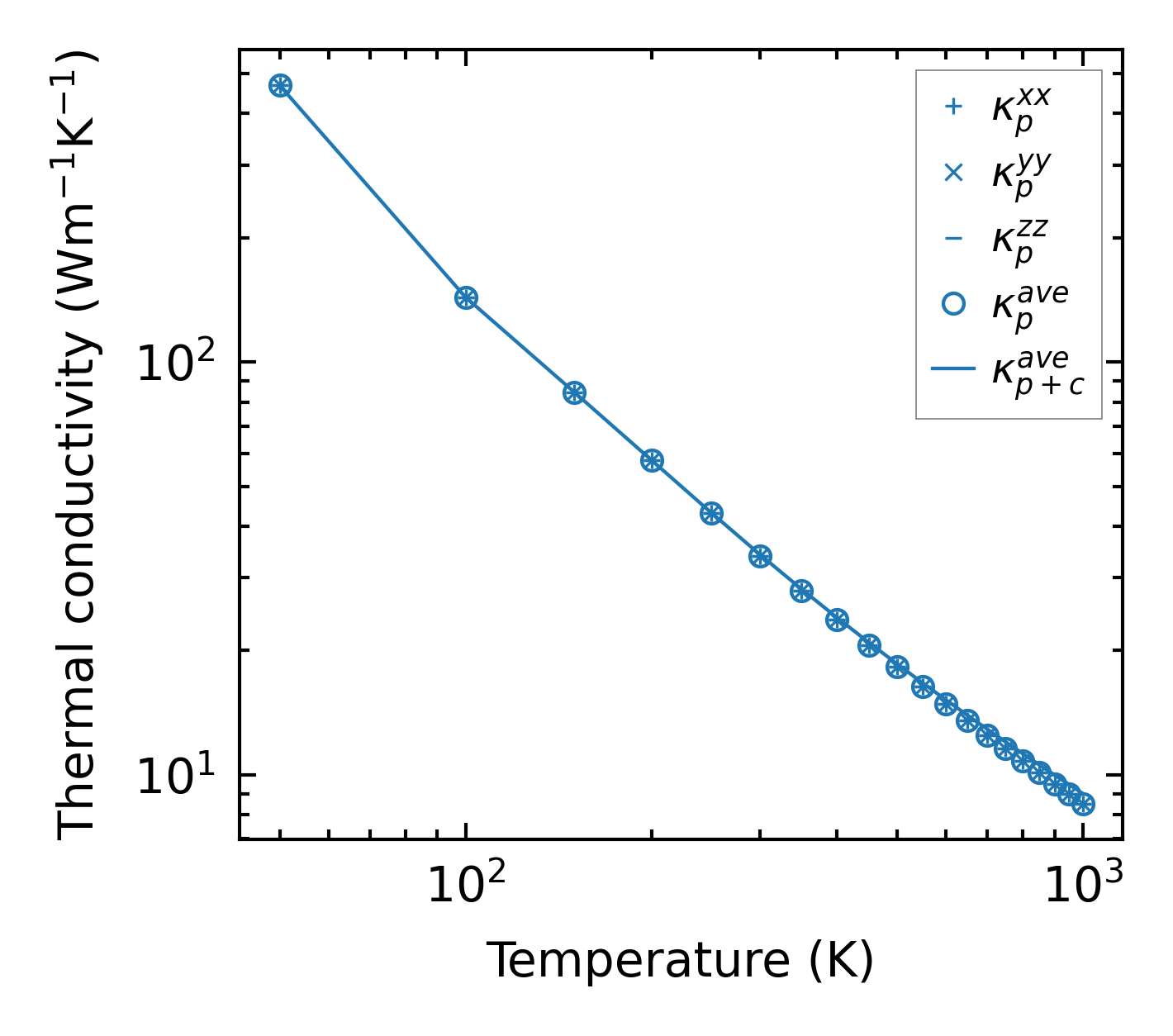

../../_images/fig_kappa9767.png — (a) Temperature-dependent lattice thermal conductivity

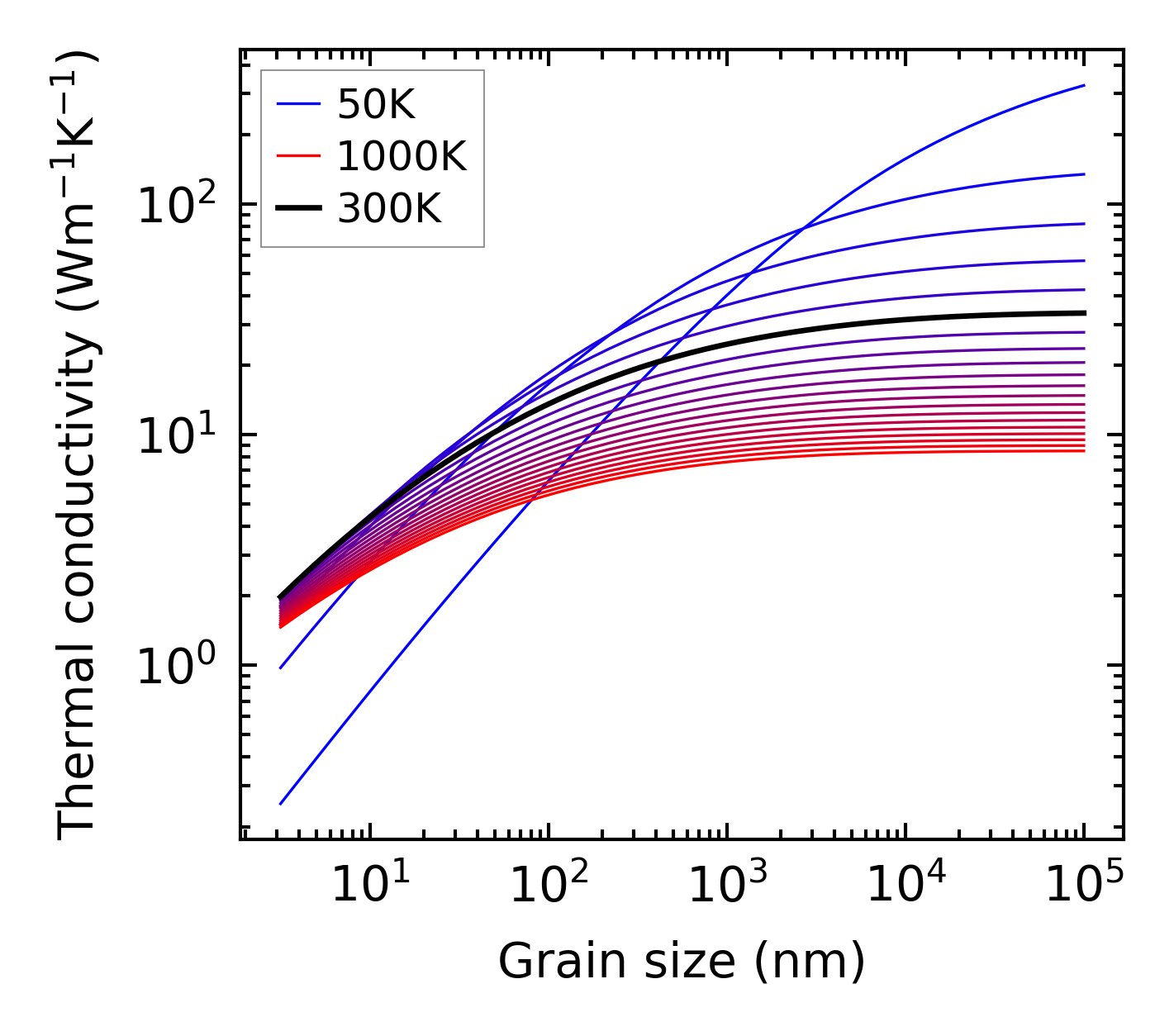

../../_images/fig_kappa_vs_grain_size5255.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

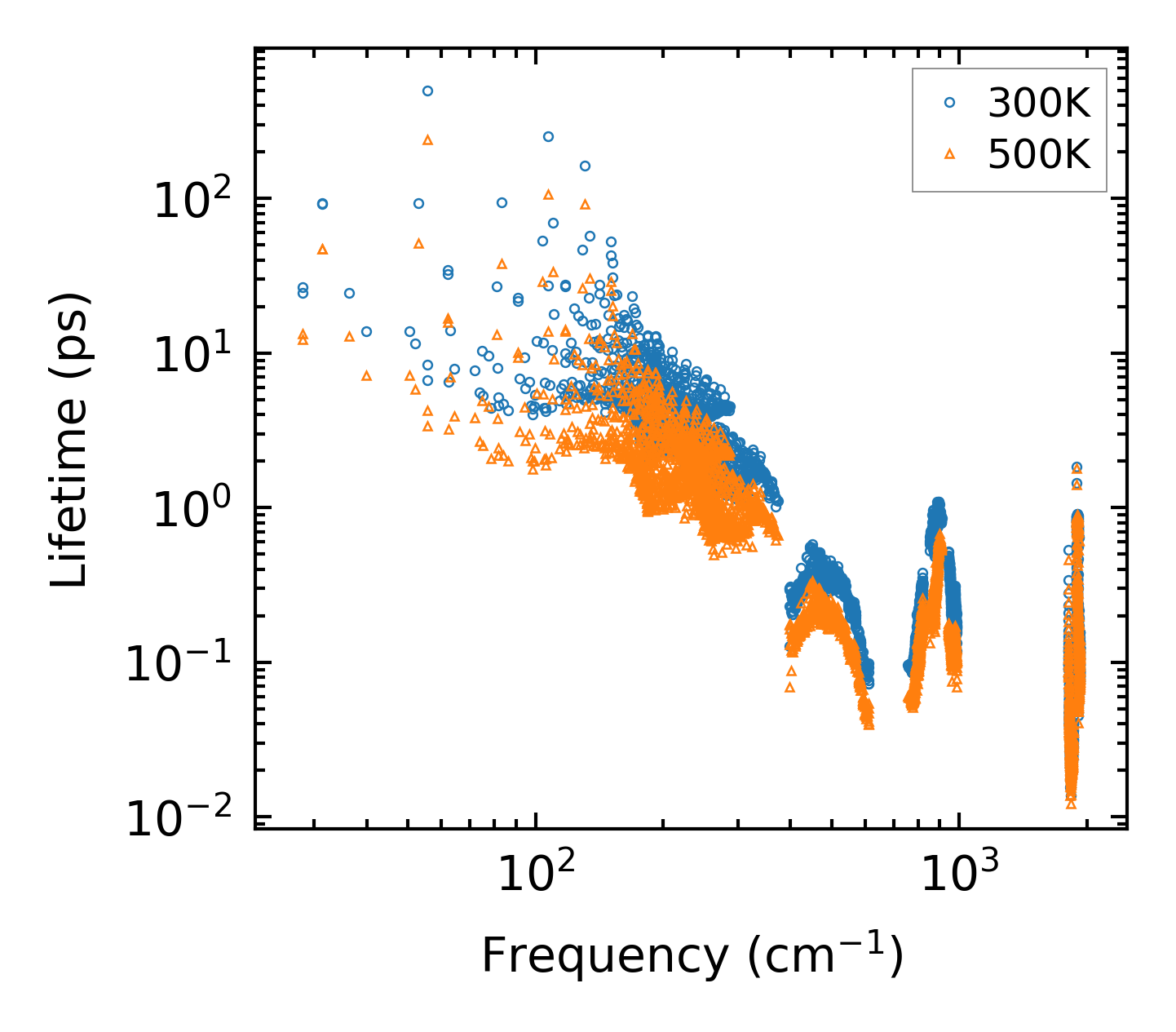

../../_images/fig_lifetime5142.png — (a) Phonon lifetime due to phonon-phonon scattering

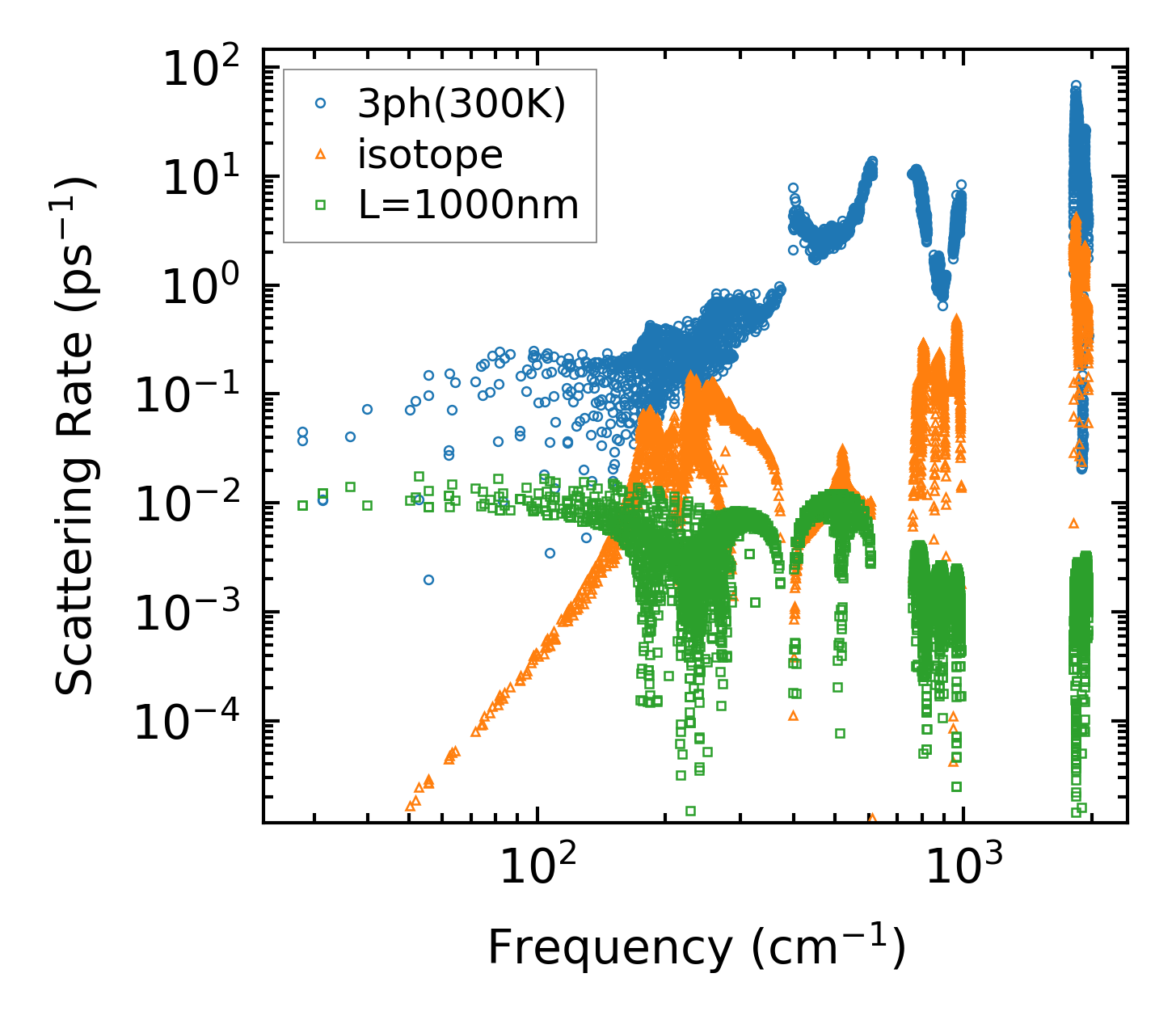

../../_images/fig_scat_rates5141.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

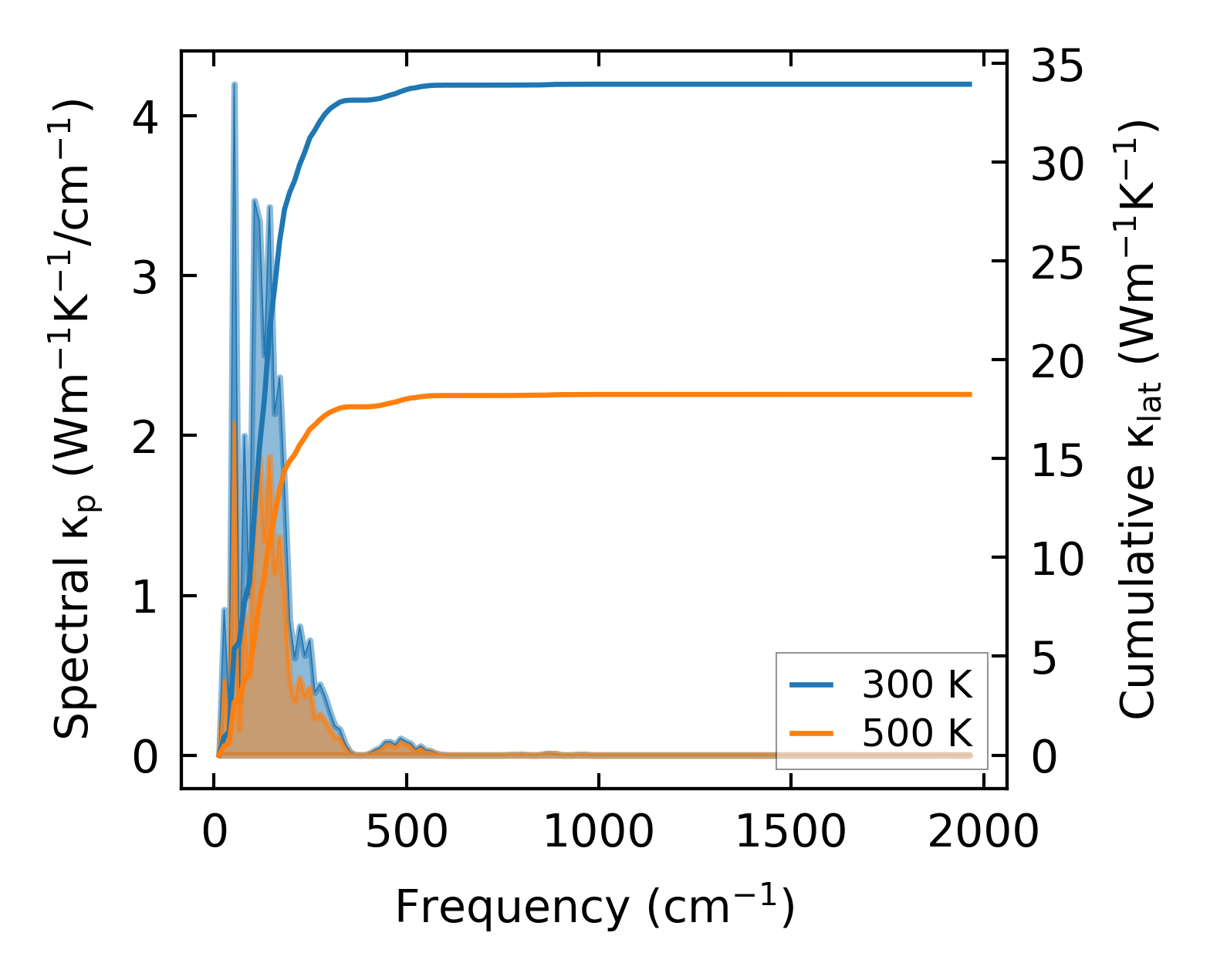

../../_images/fig_cumu_frequency5142.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

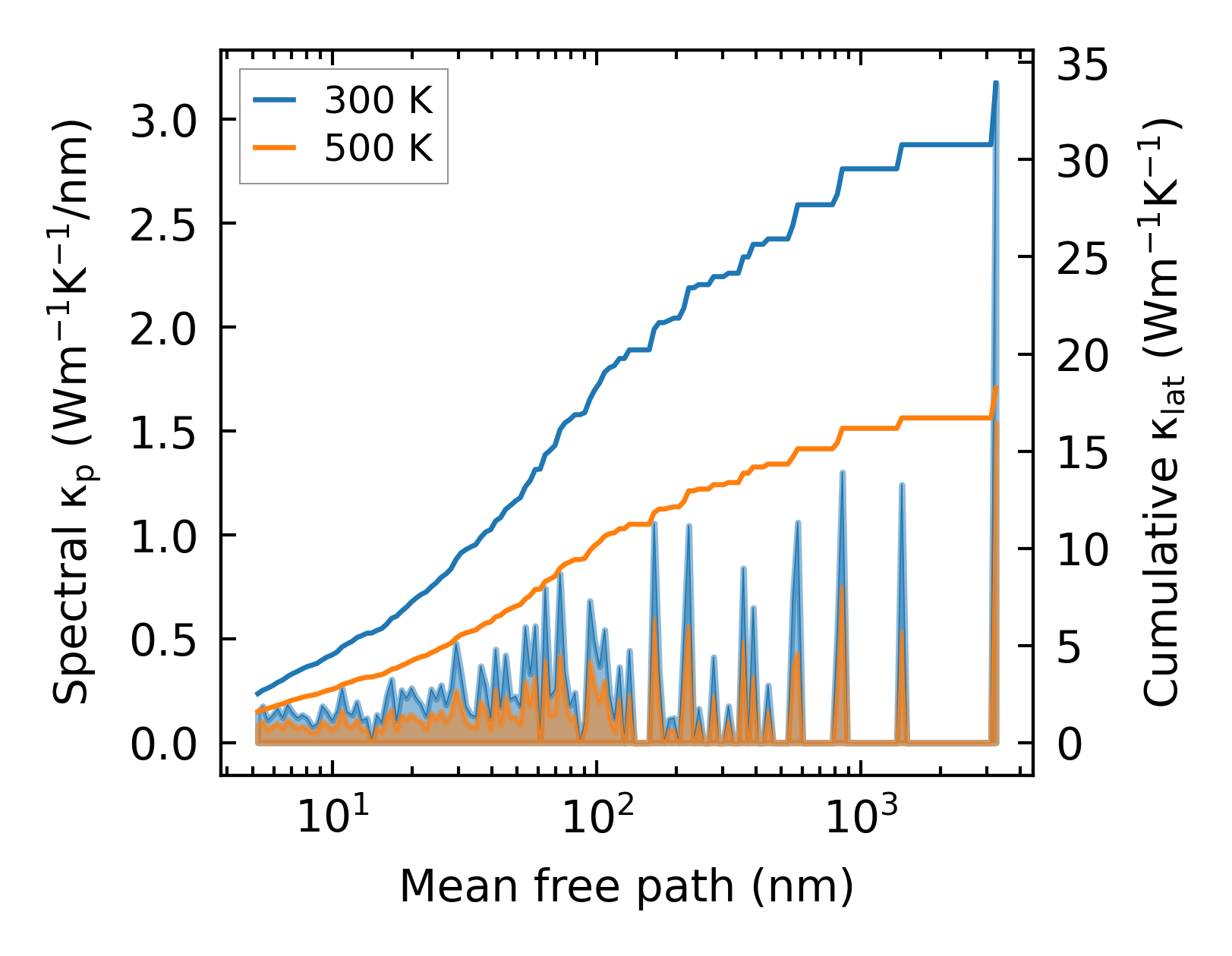

../../_images/fig_cumu_mfp5141.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

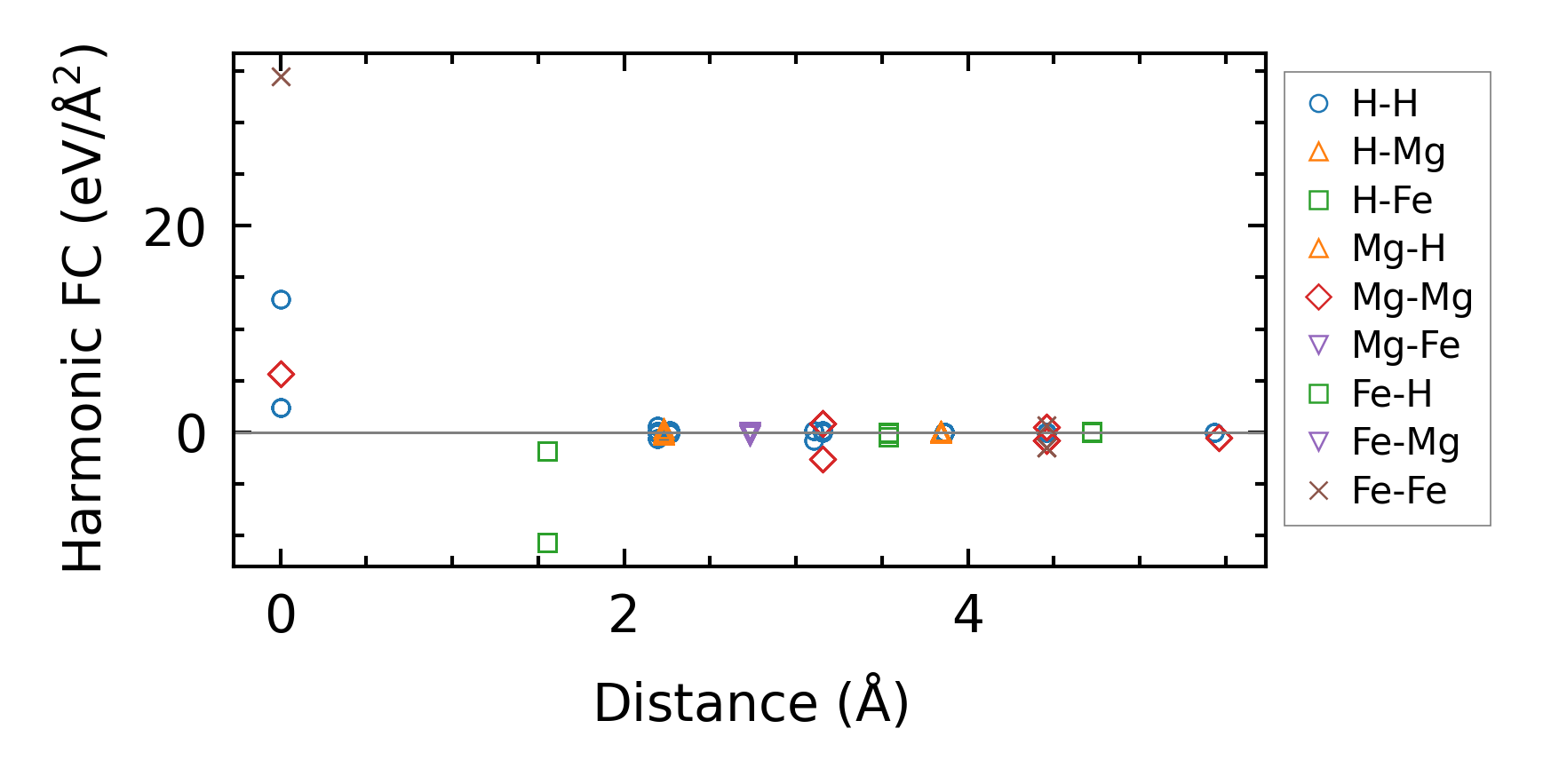

../../_images/fig_fc212205.png — (a) Force constants w.r.t atomic distance

Summary

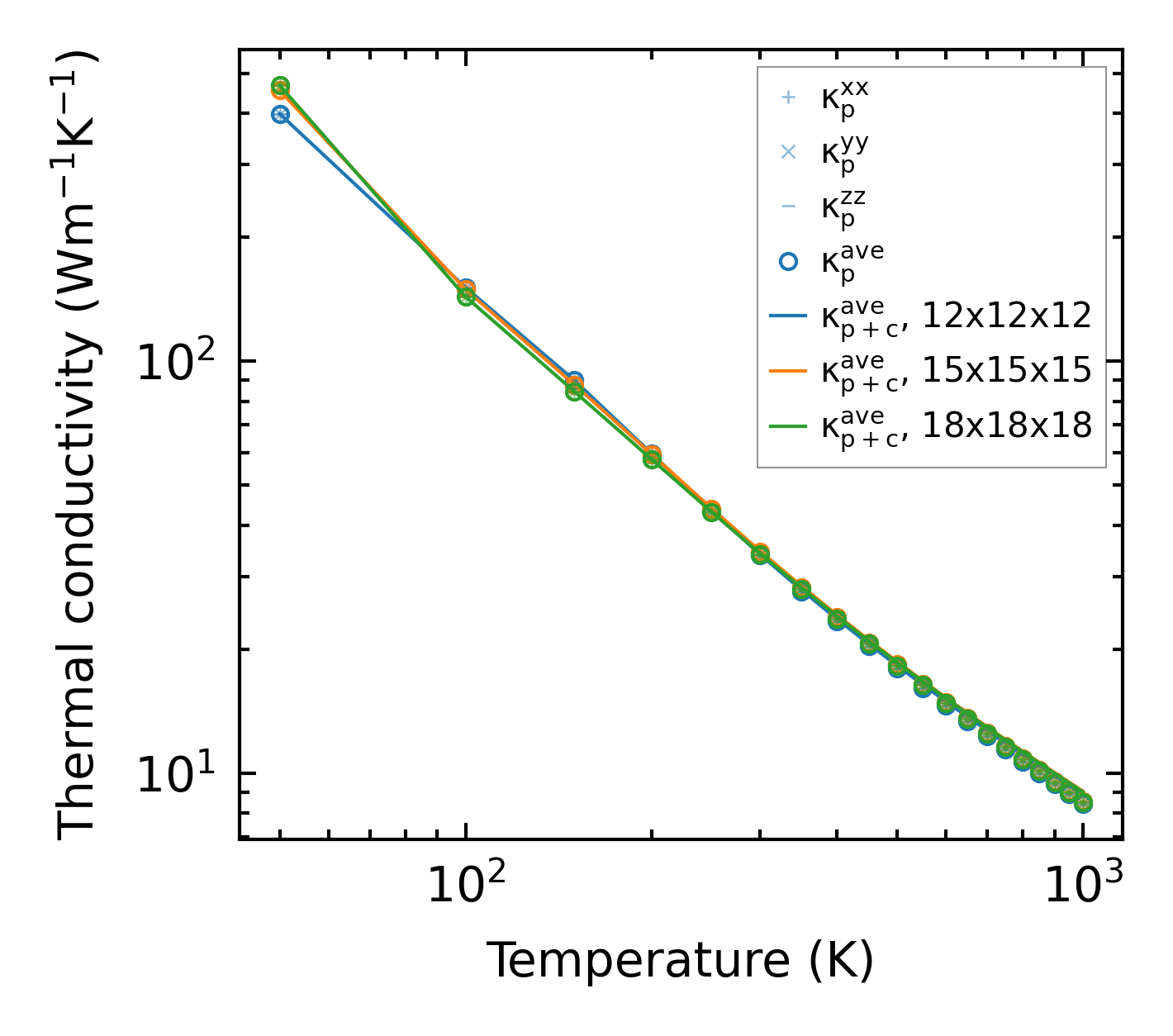

../../_images/fig_kappa9768.png — (a) Temperature-dependent lattice thermal conductivity

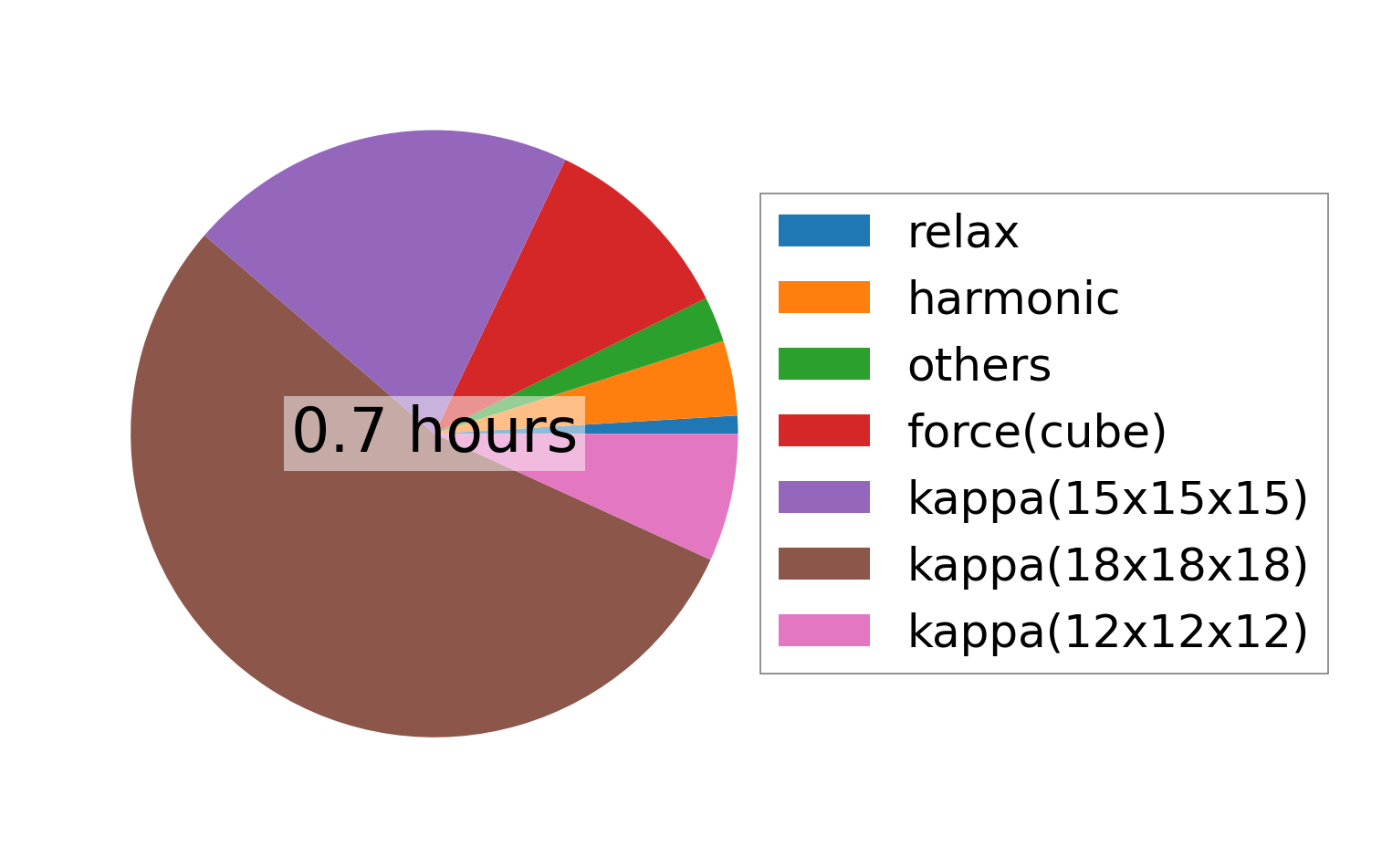

../../_images/fig_times21261.png — (b) Computation time
