mp-23177-2/HgBr/anharm

Space group: I4/mmm (139)
Link: Materials Project
Download: mp-23177-2.tar.gz

Equation of state

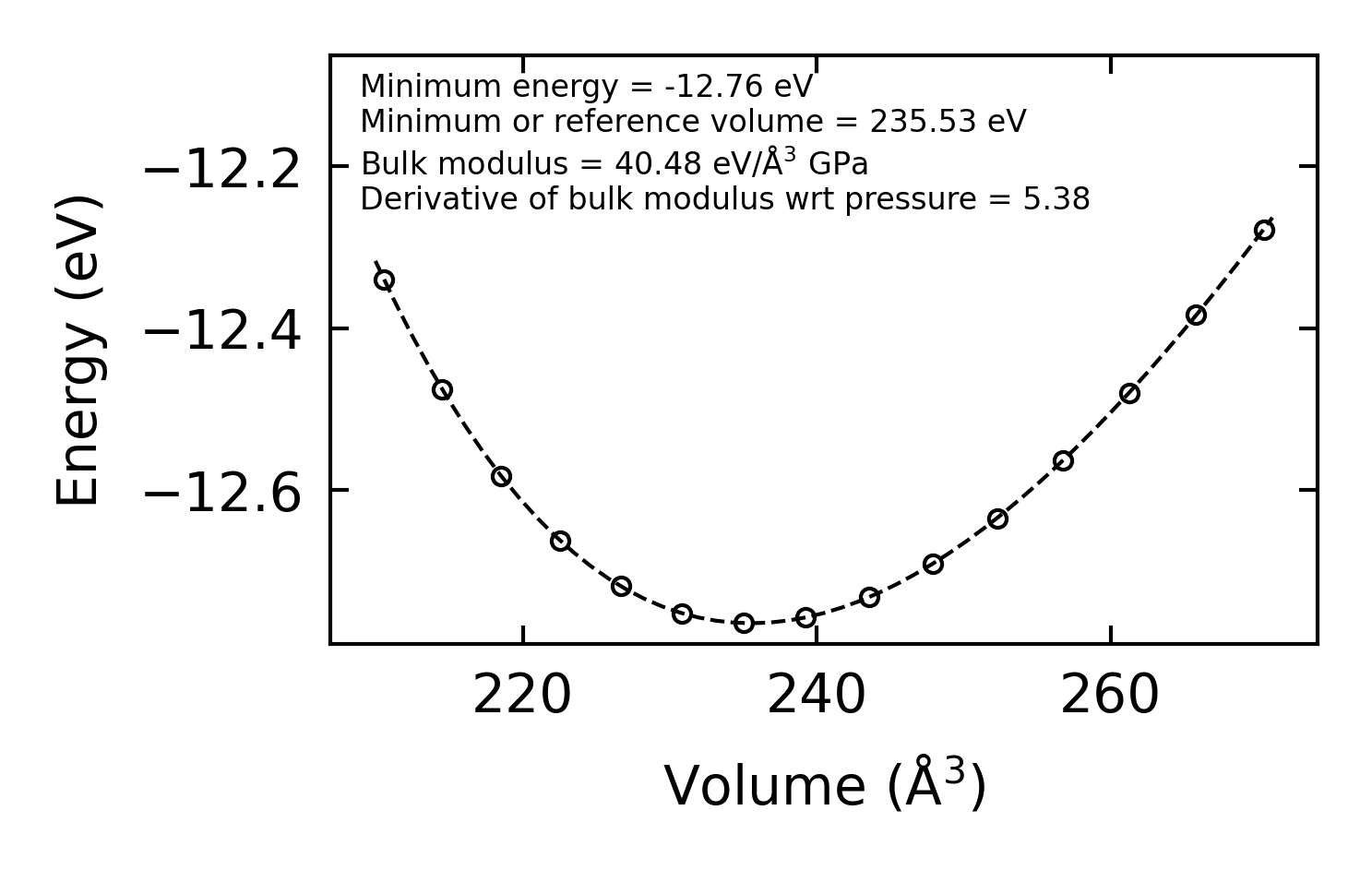

../../_images/fig_bm6462.png — (a) Equation of state

Harmonic properties

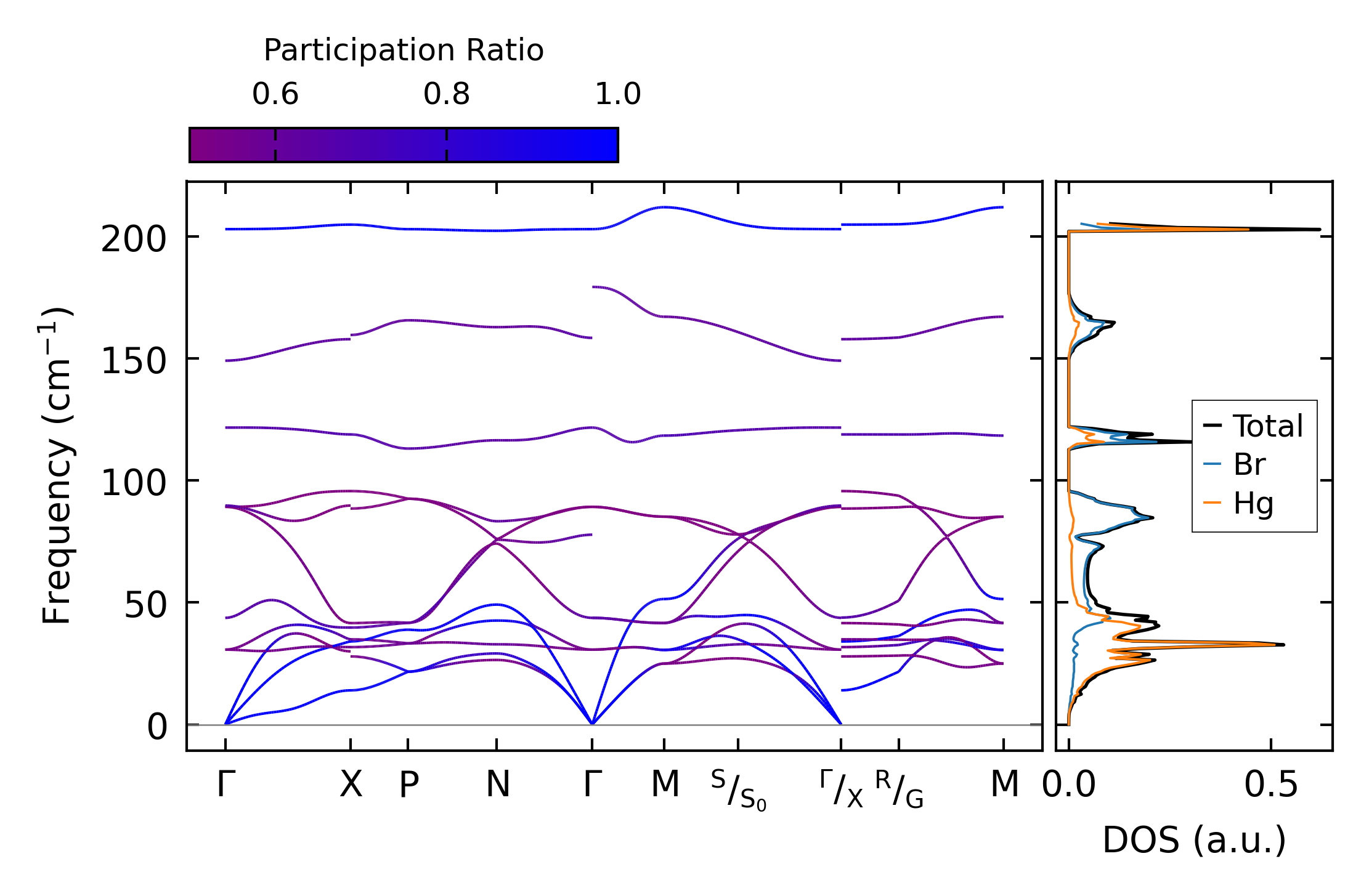

../../_images/fig_bandos_pr12931.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo12931.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all5368.png — (a) Grüneisen parameters

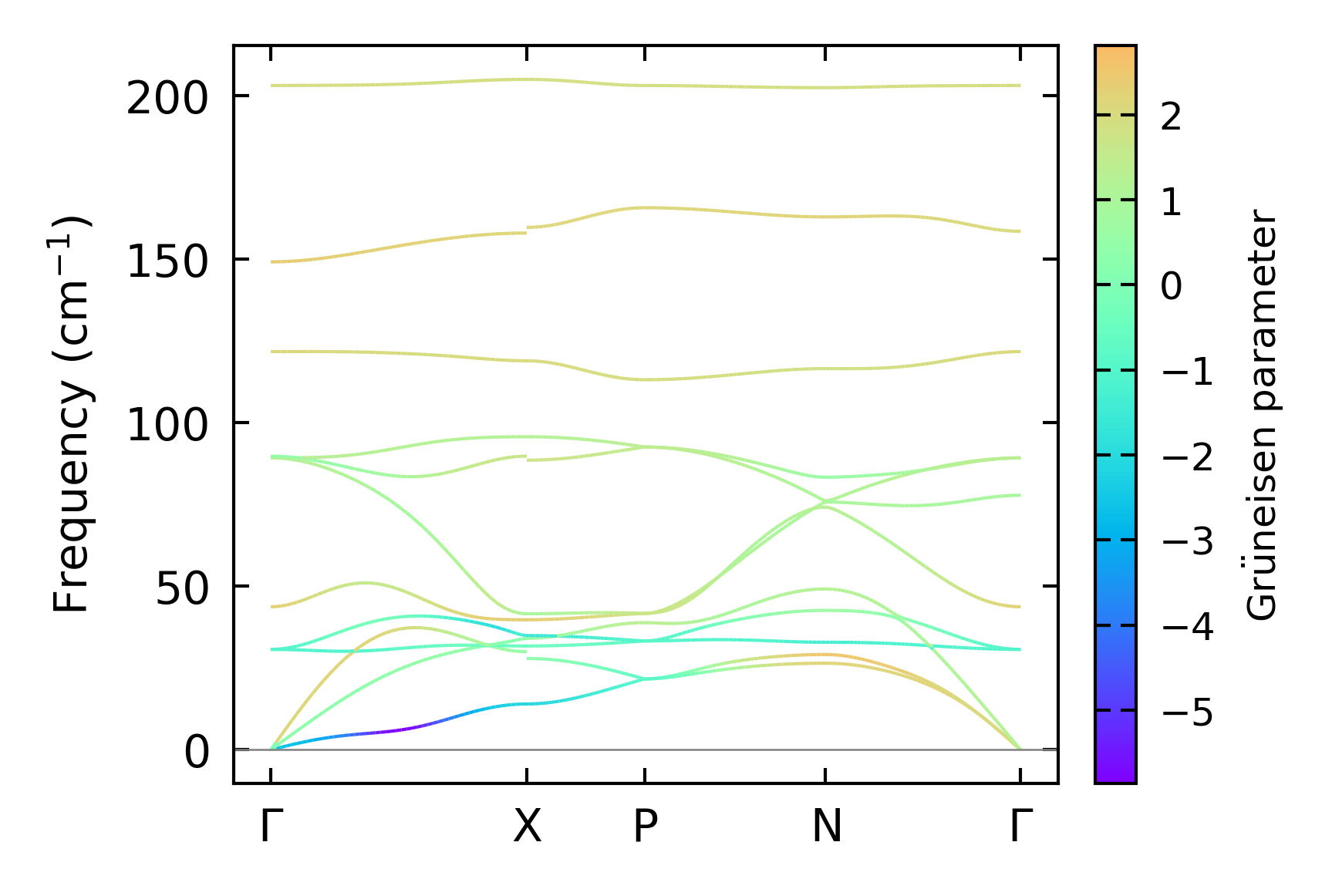

../../_images/fig_gruneisen5368.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon — q-mesh: 14x14x14, supercell: 3x3x2

../../_images/fig_kappa10083.png — (a) Temperature-dependent lattice thermal conductivity

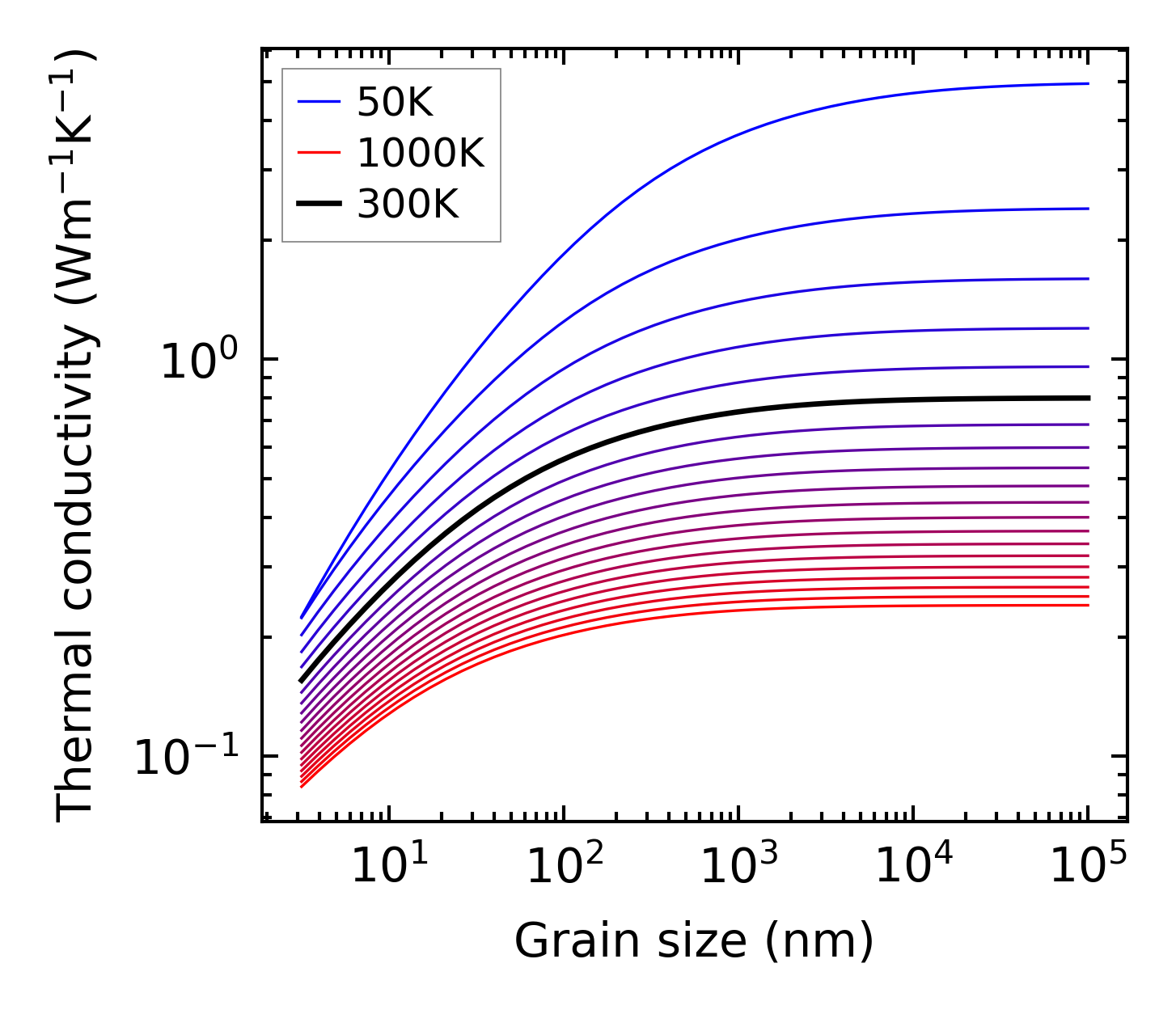

../../_images/fig_kappa_vs_grain_size5432.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

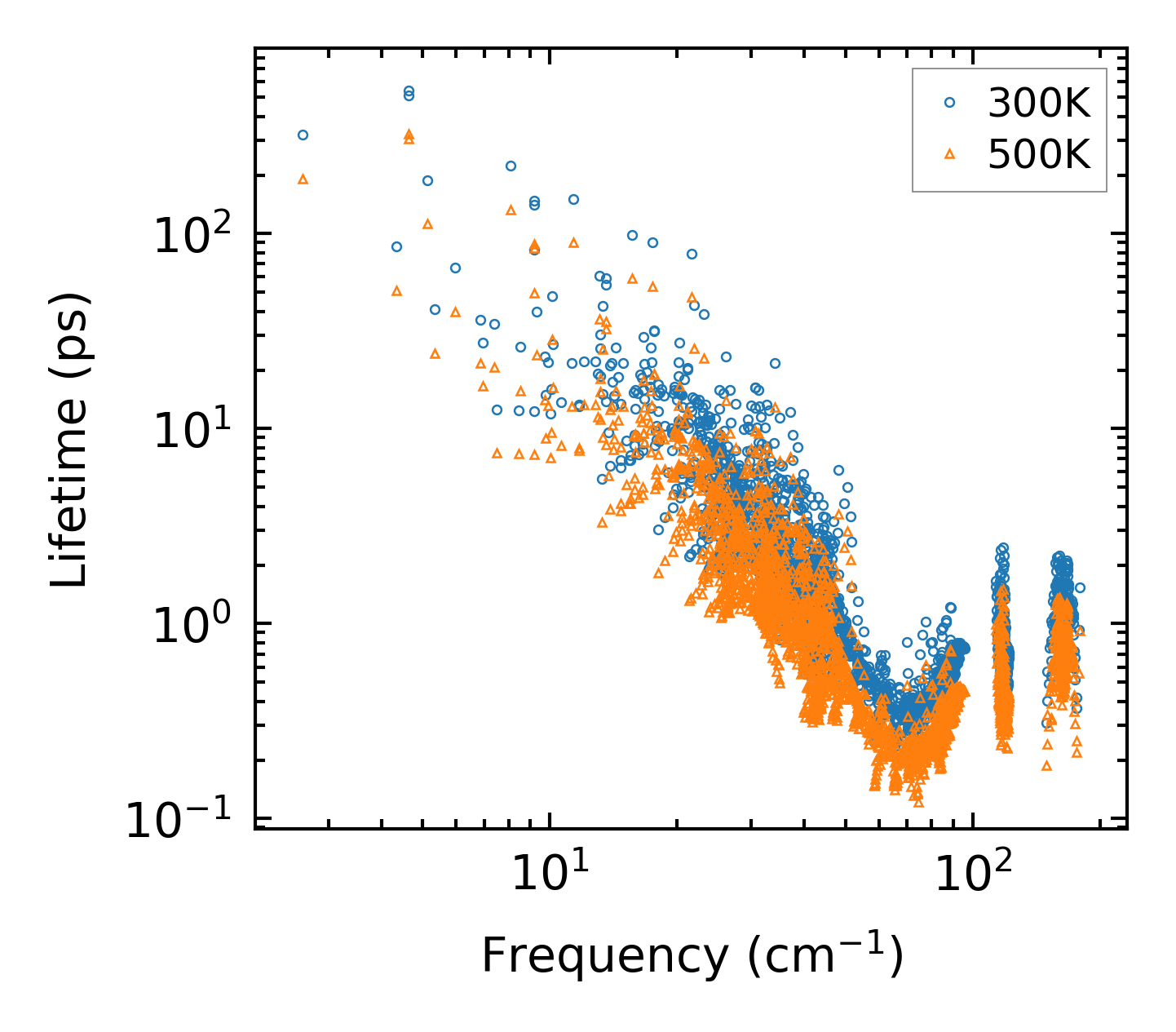

../../_images/fig_lifetime5316.png — (a) Phonon lifetime due to phonon-phonon scattering

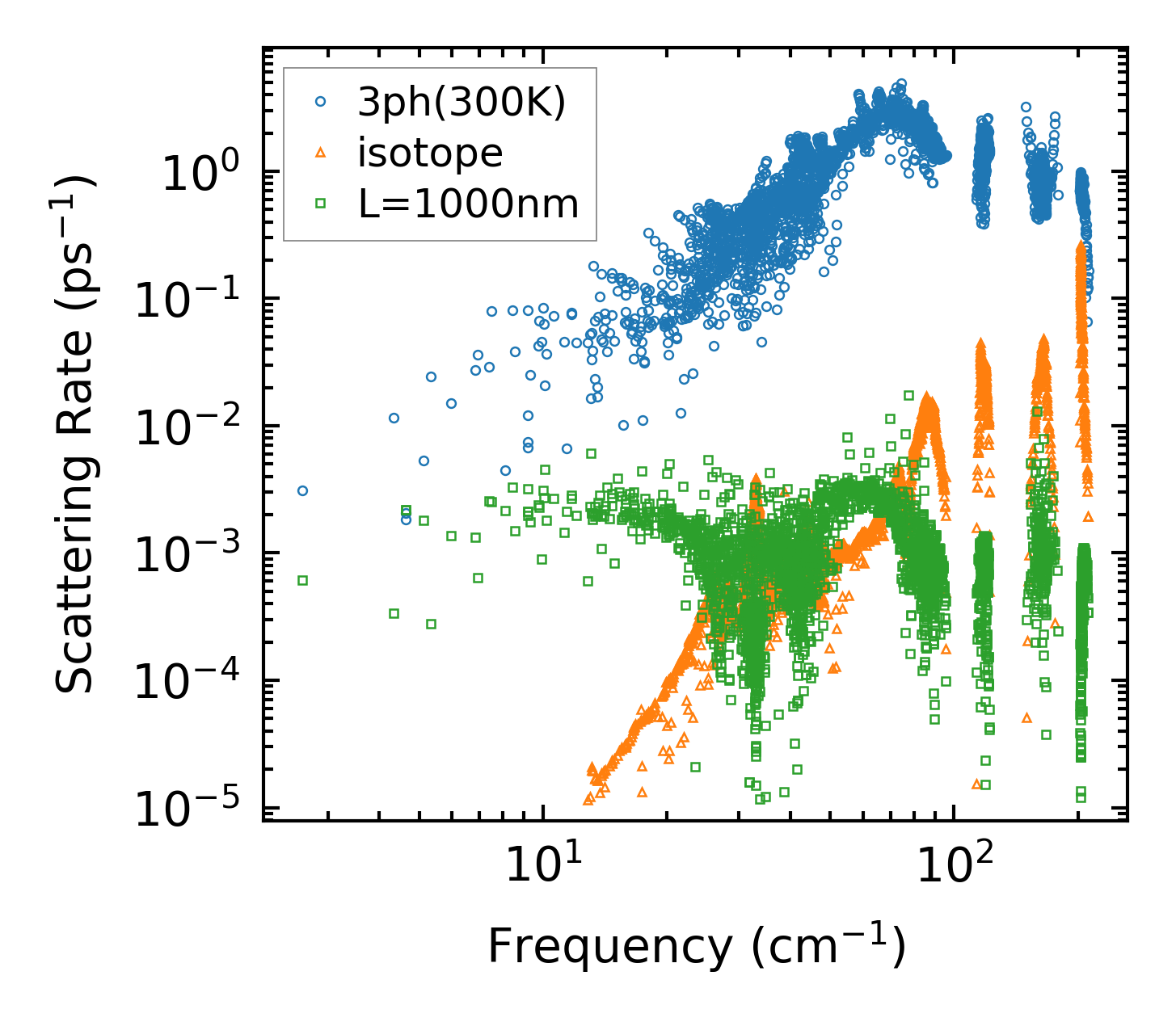

../../_images/fig_scat_rates5315.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency5316.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp5315.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

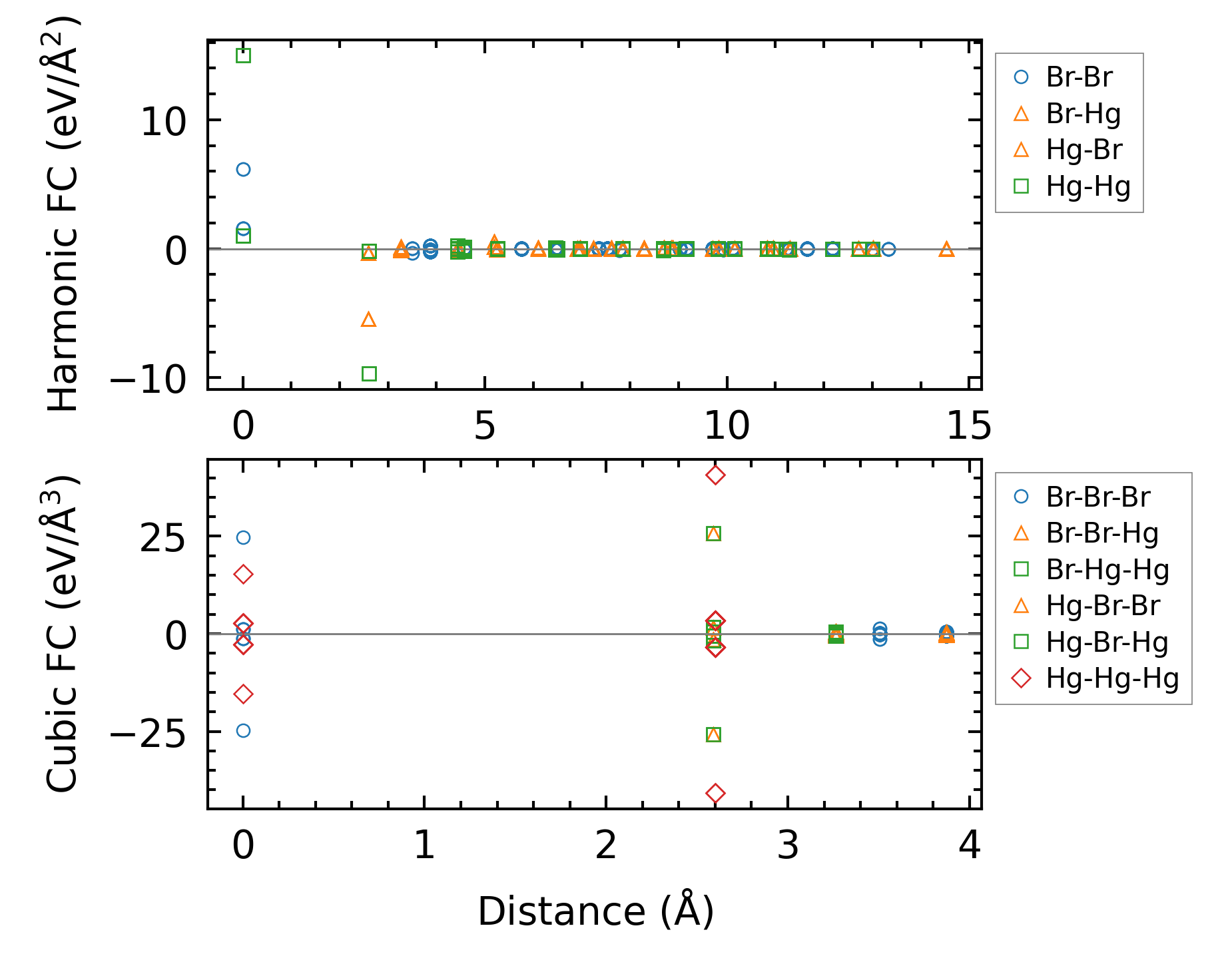

../../_images/fig_fc3307.png — (a) Force constants w.r.t atomic distance

Summary

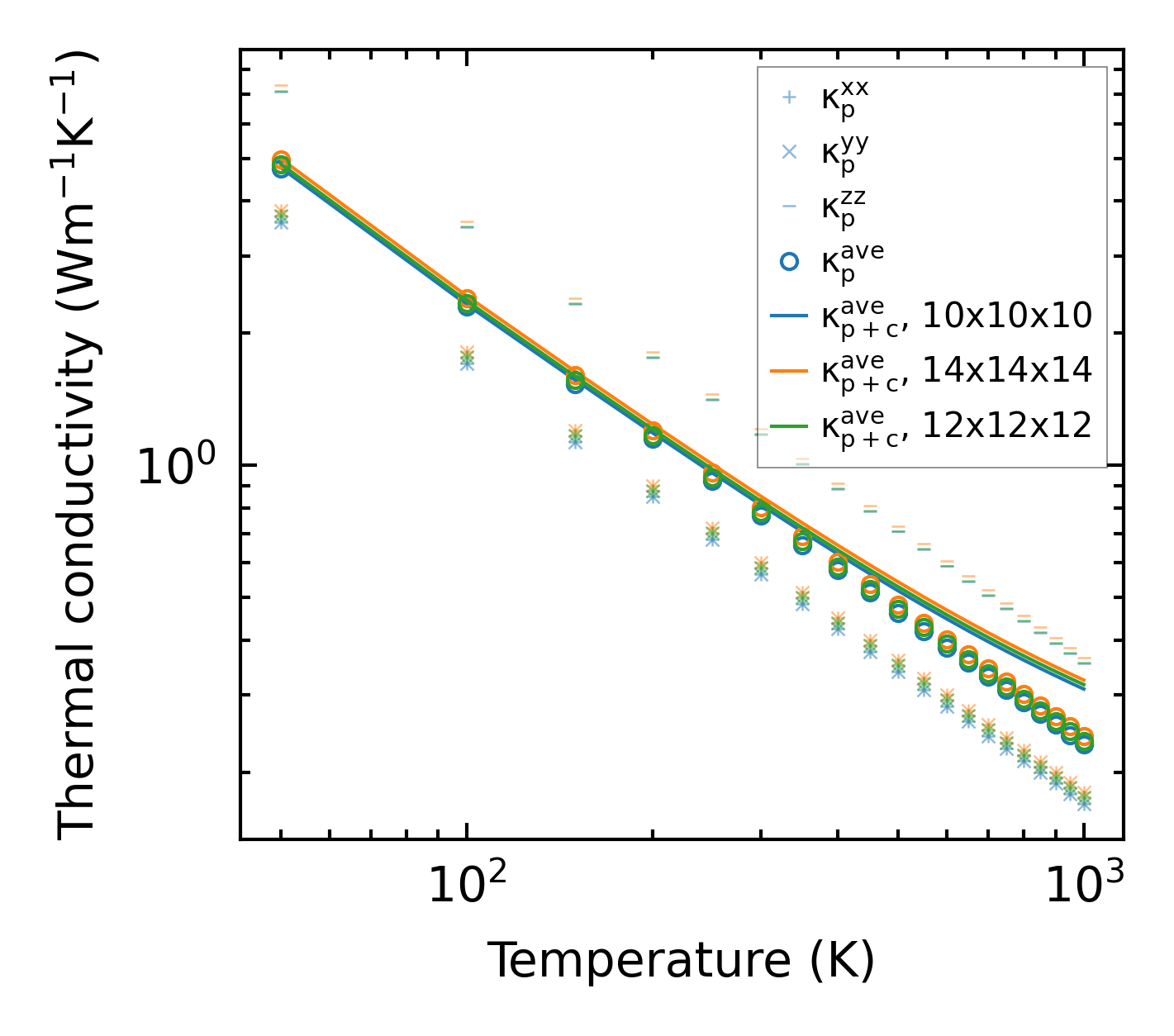

../../_images/fig_kappa10084.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times21884.png — (b) Computation time
