mp-23711/MgH2/anharm

Space group: Pbcn (60)
Link: Materials Project
Download: mp-23711.tar.gz

Harmonic properties

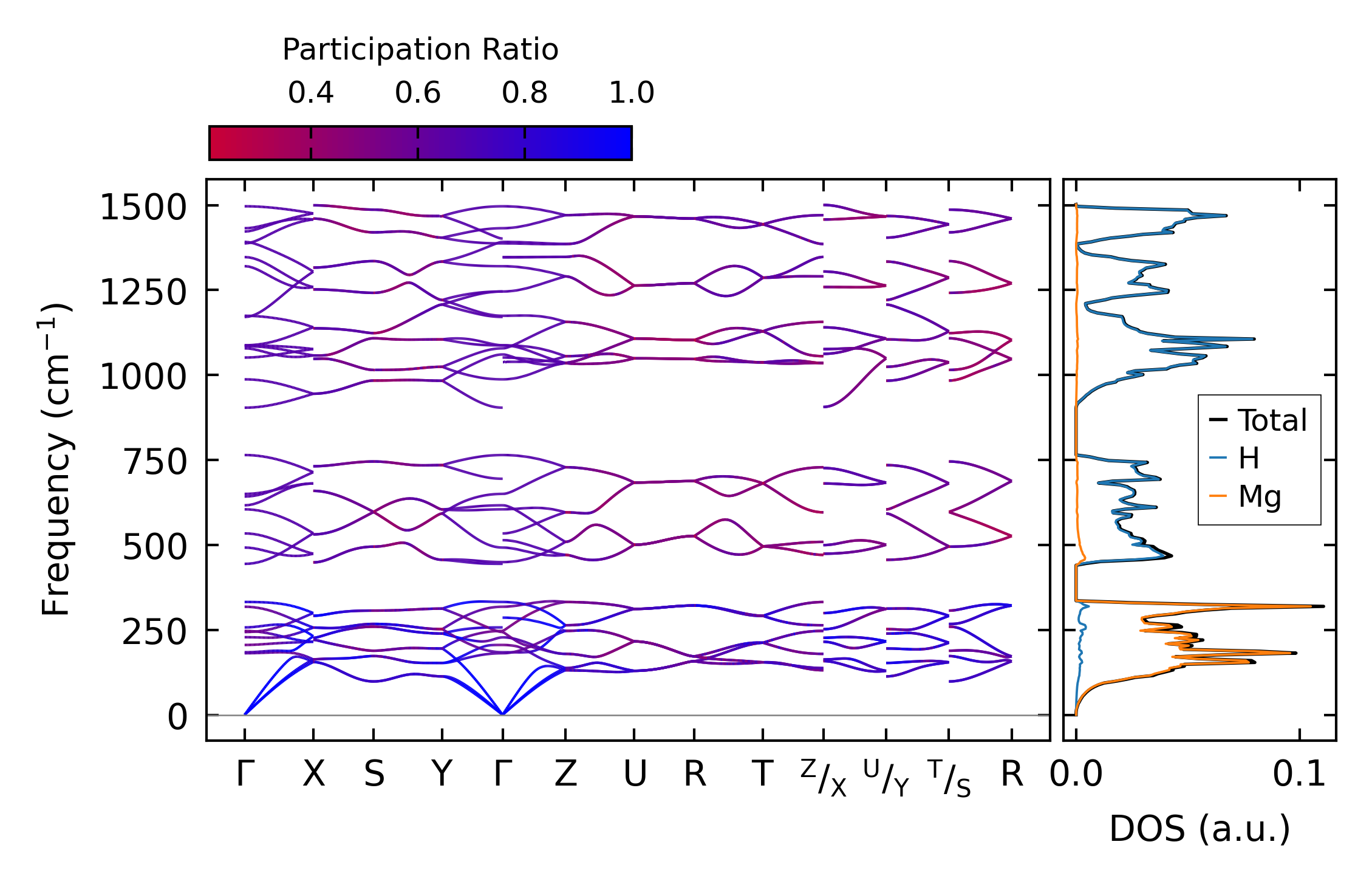

../../_images/fig_bandos_pr12813.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo12813.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all5313.png — (a) Grüneisen parameters

../../_images/fig_gruneisen5313.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 16x13x14, supercell: 3x2x2

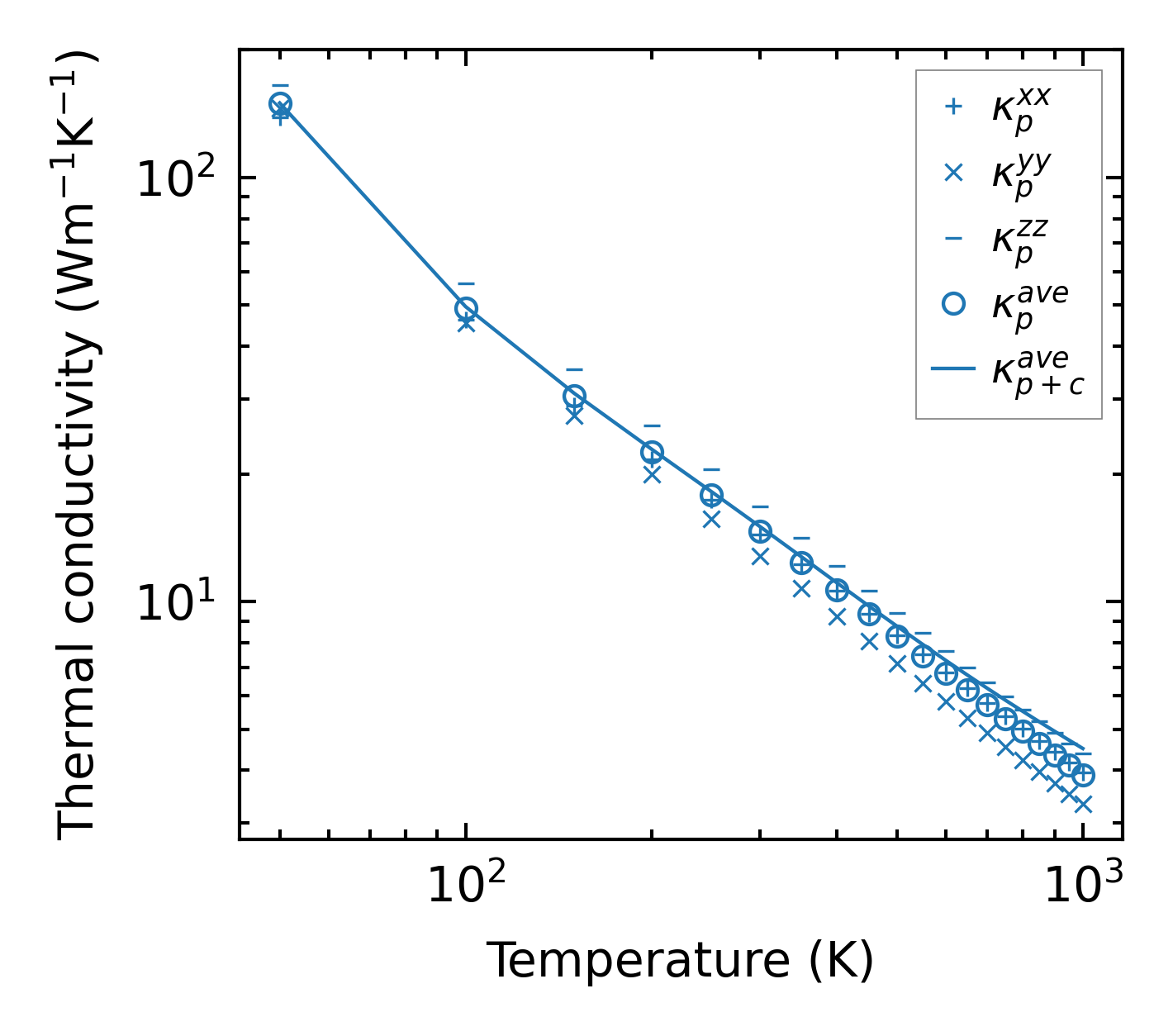

../../_images/fig_kappa9981.png — (a) Temperature-dependent lattice thermal conductivity

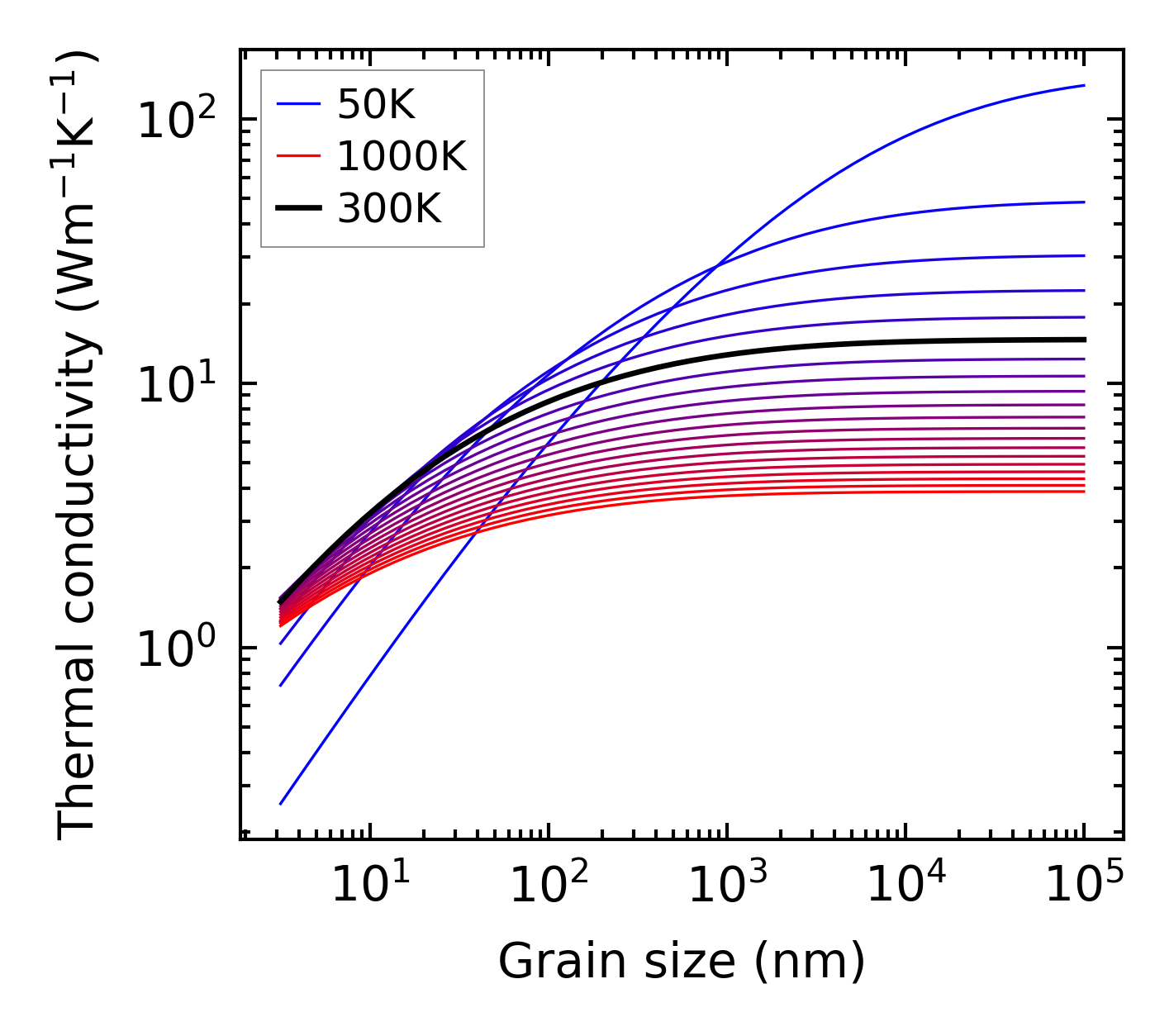

../../_images/fig_kappa_vs_grain_size5376.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

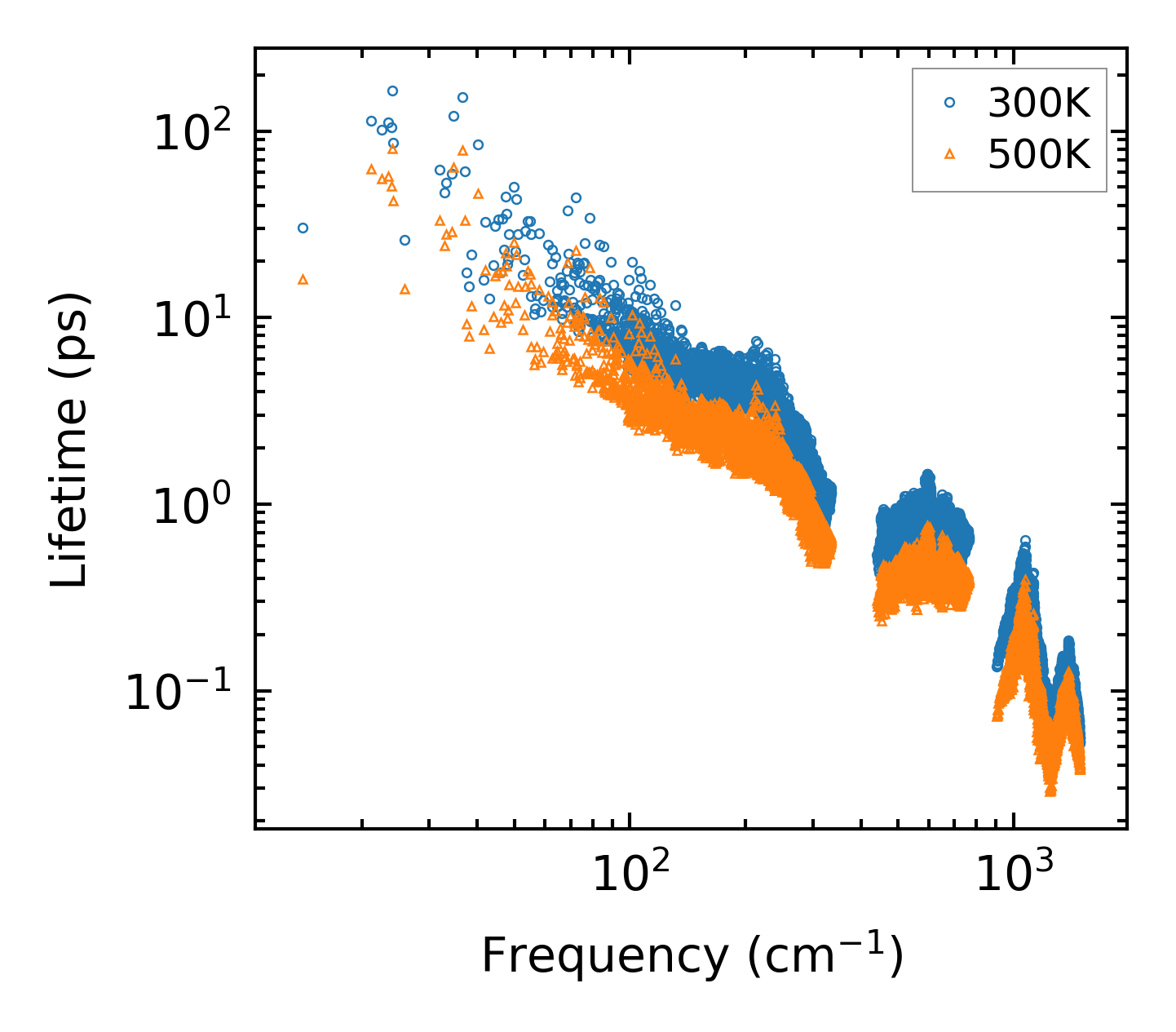

../../_images/fig_lifetime5262.png — (a) Phonon lifetime due to phonon-phonon scattering

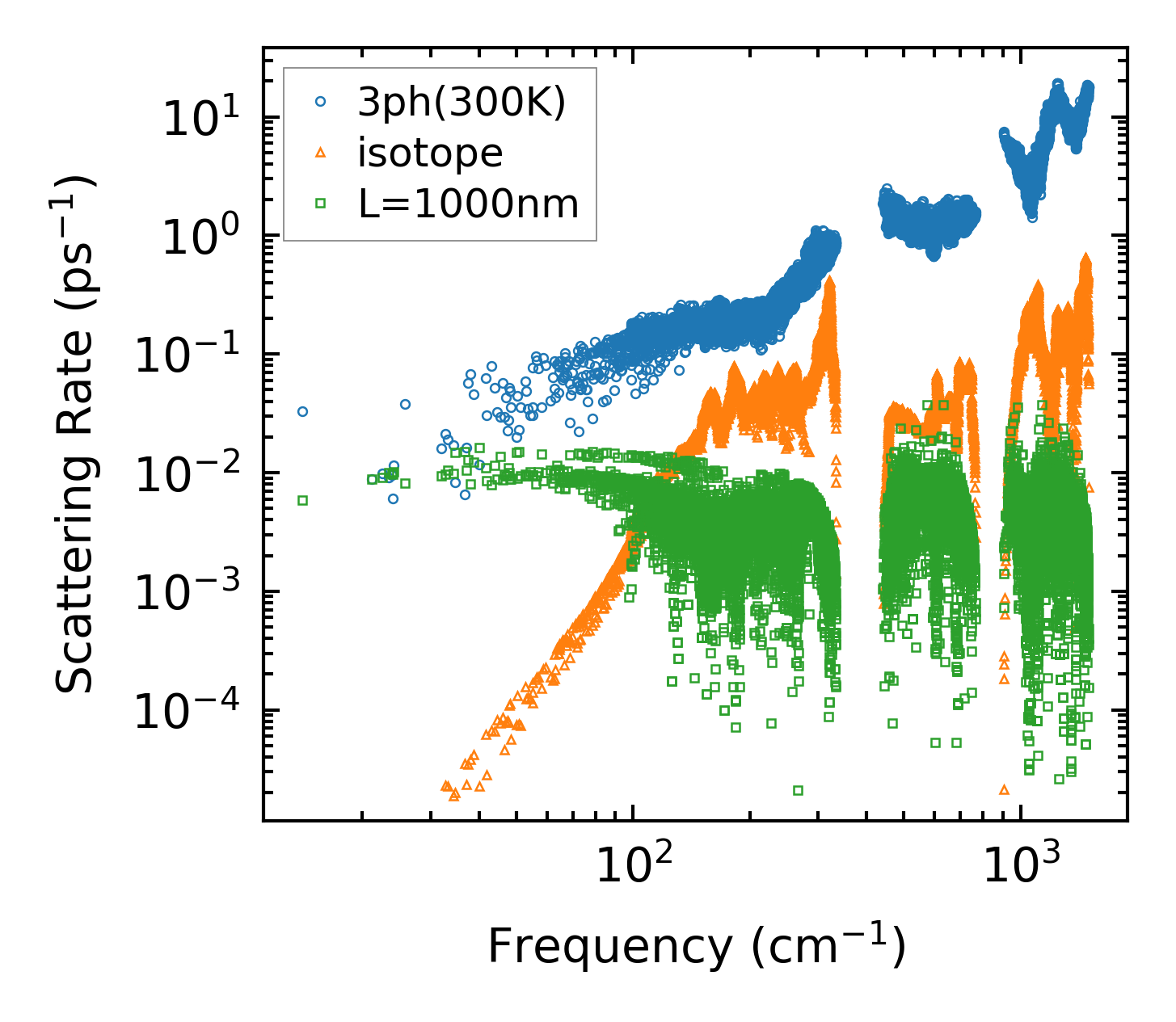

../../_images/fig_scat_rates5261.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

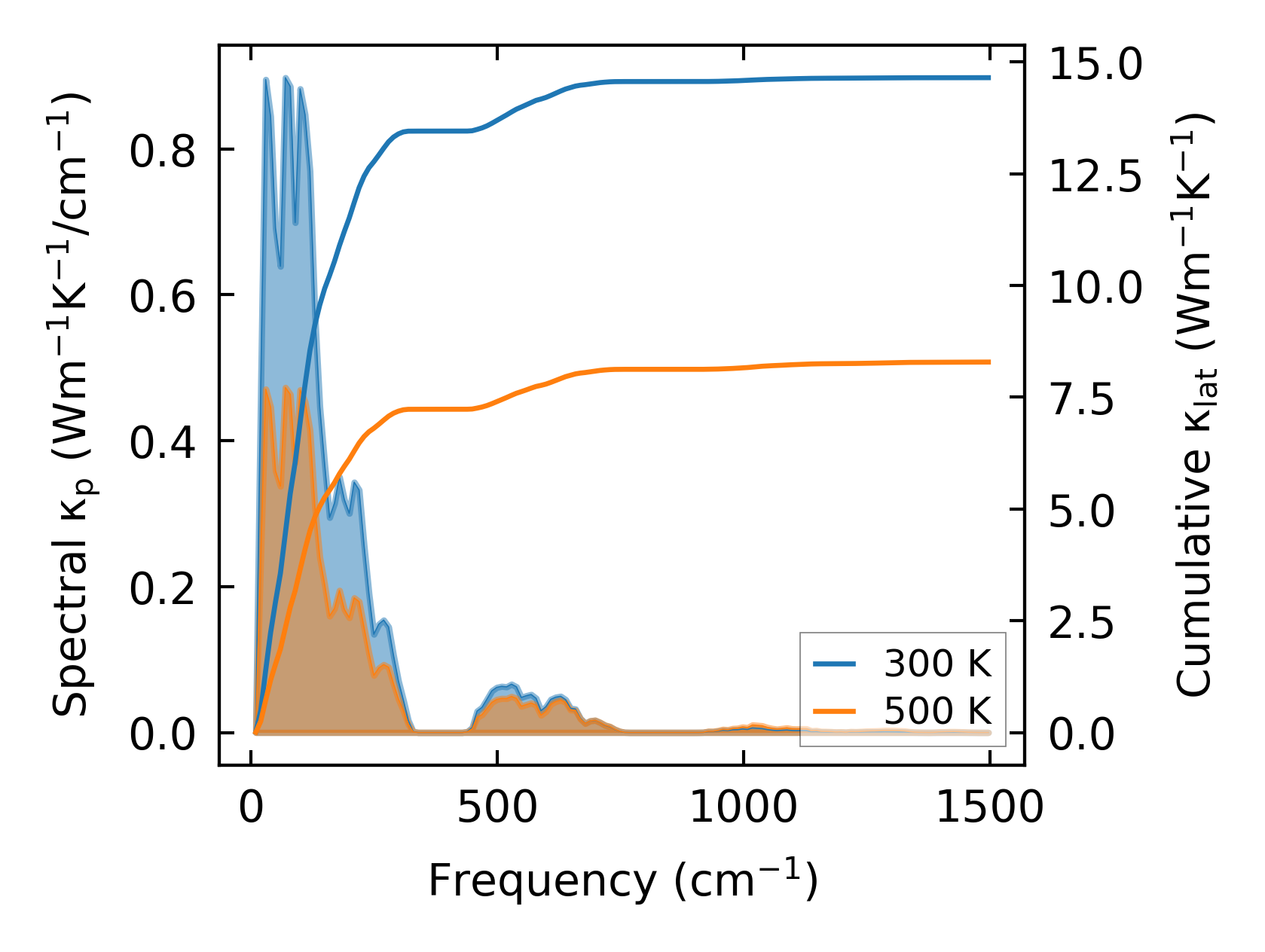

../../_images/fig_cumu_frequency5262.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp5261.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc212509.png — (a) Force constants w.r.t atomic distance

Summary

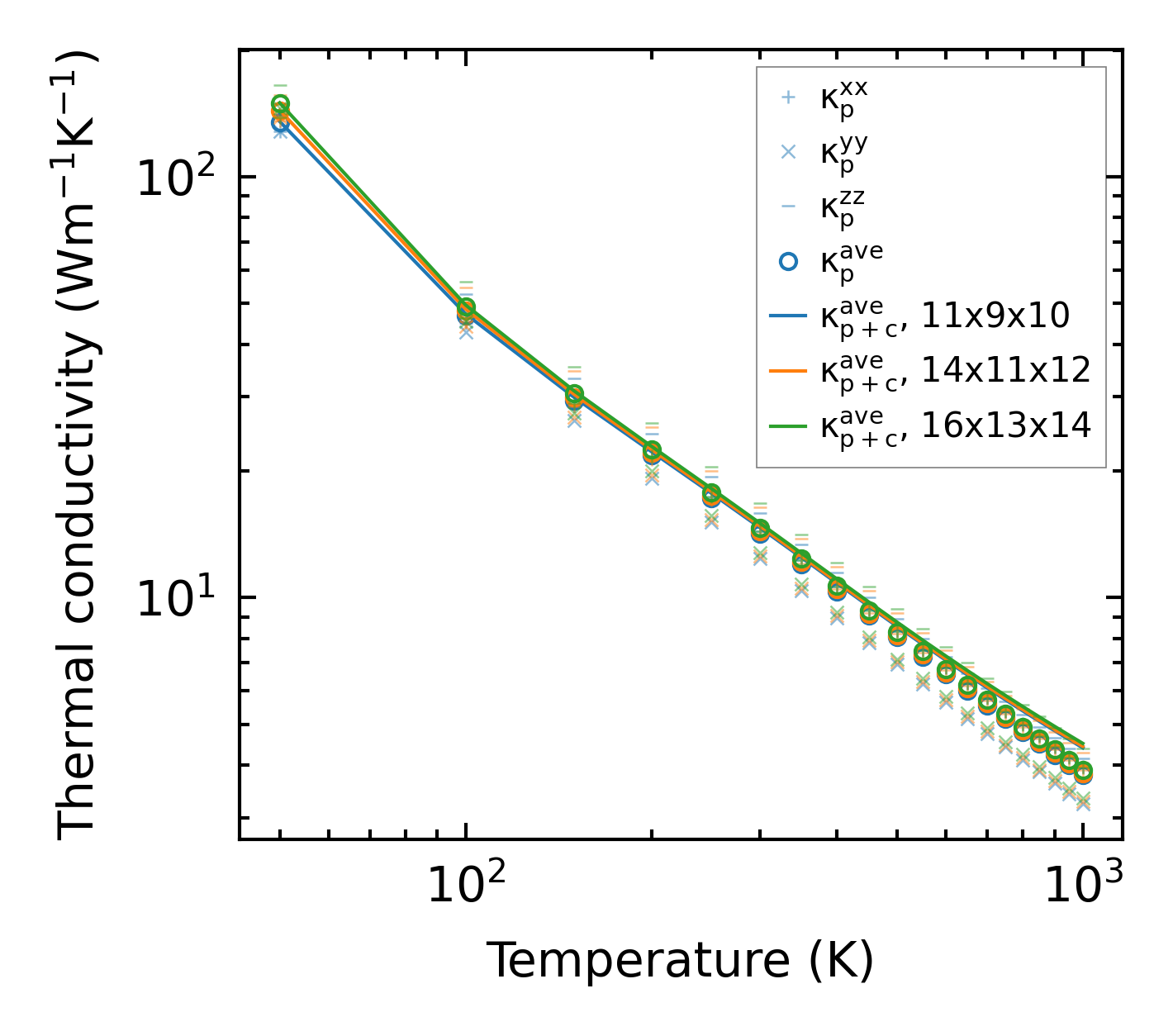

../../_images/fig_kappa9982.png — (a) Temperature-dependent lattice thermal conductivity

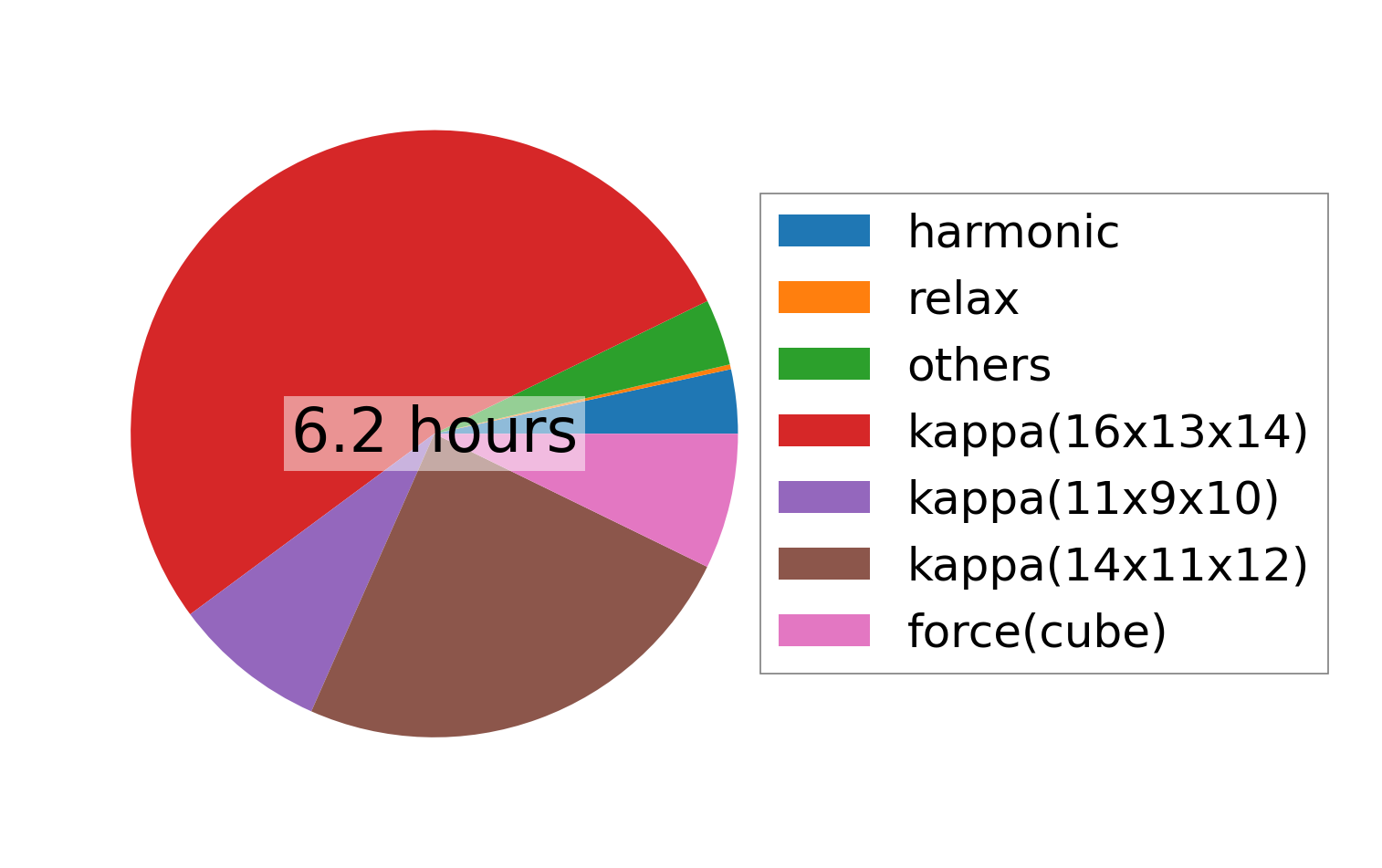

../../_images/fig_times21723.png — (b) Computation time
