mp-23454/CsAgBr2/anharm

Space group: Cmcm (63)
Link: Materials Project
Download: mp-23454.tar.gz

Harmonic properties

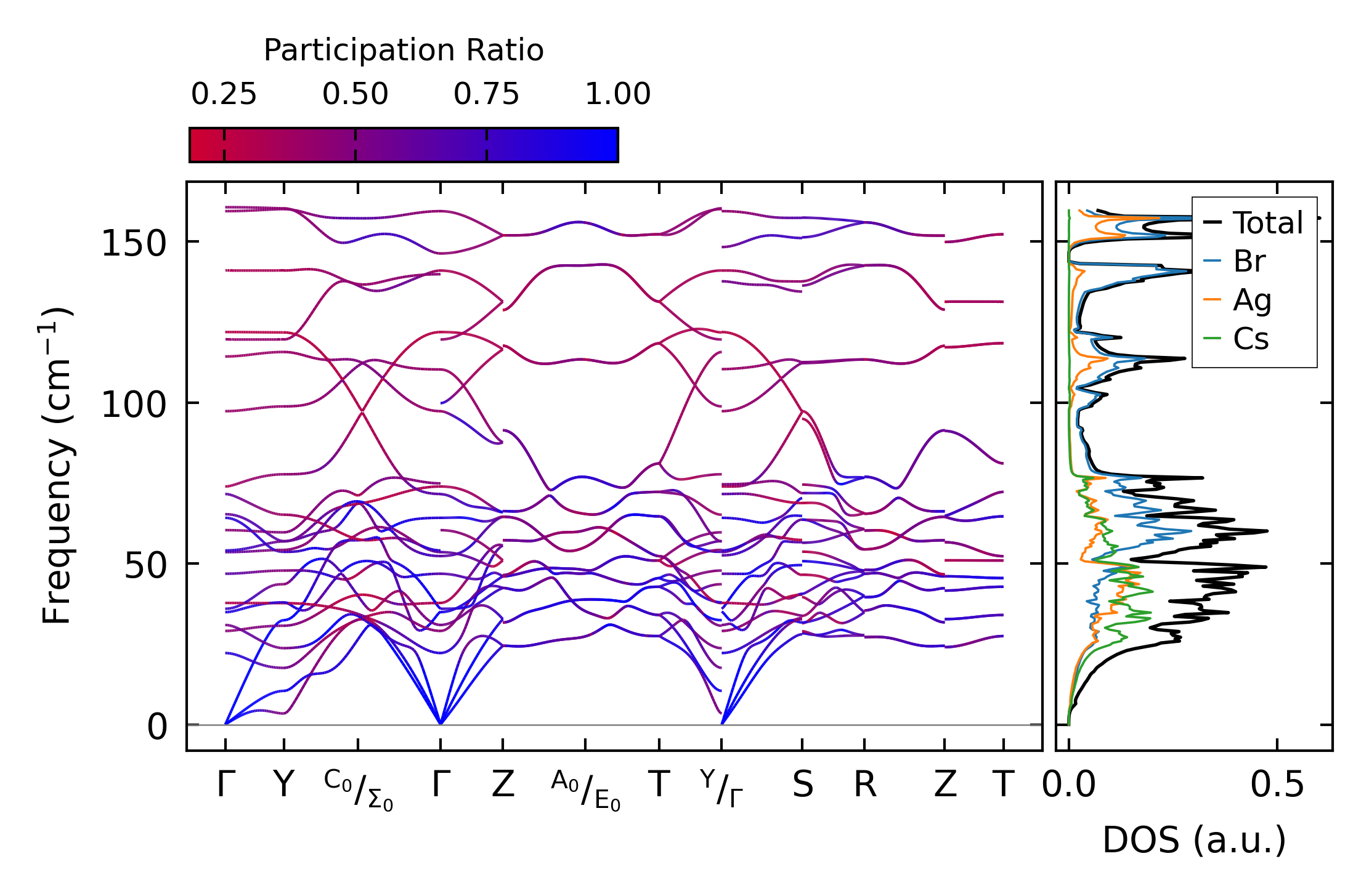

../../_images/fig_bandos_pr12690.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo12690.png — (b) Thermodynamic properties

Grüneisen parameters

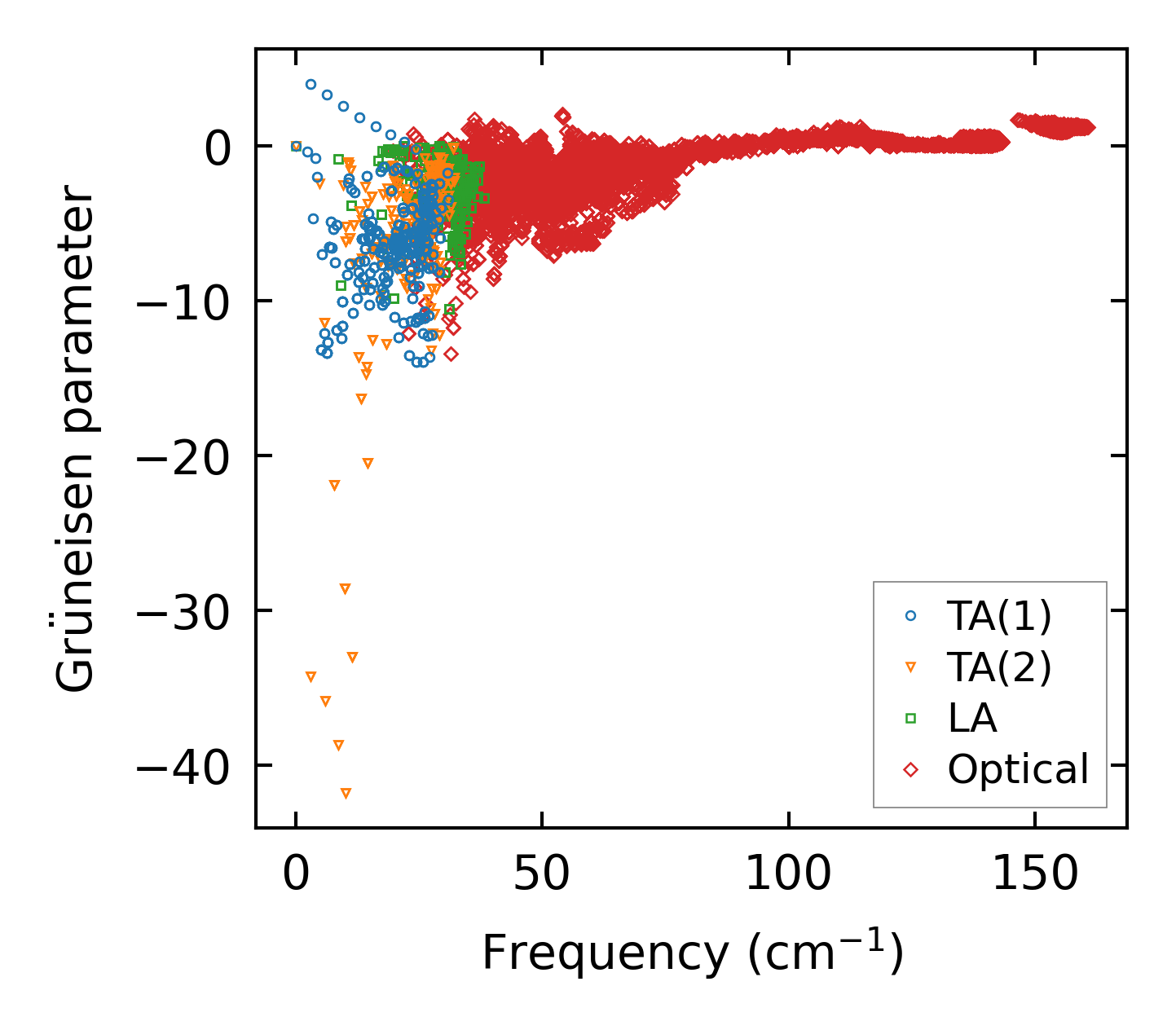

../../_images/fig_gru_all5260.png — (a) Grüneisen parameters

../../_images/fig_gruneisen5260.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 9x9x16, supercell: 3x1x3

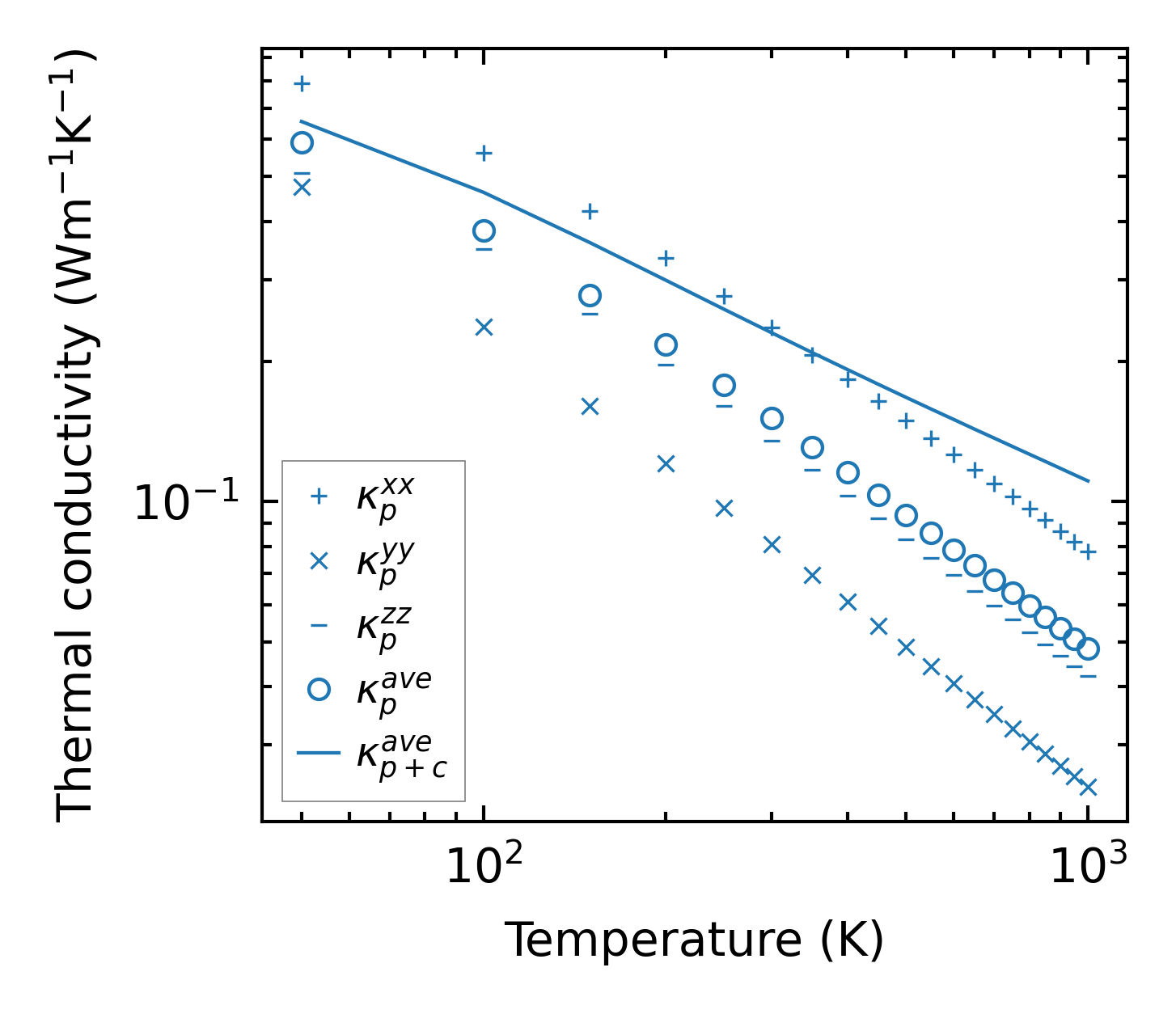

../../_images/fig_kappa9888.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size5322.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

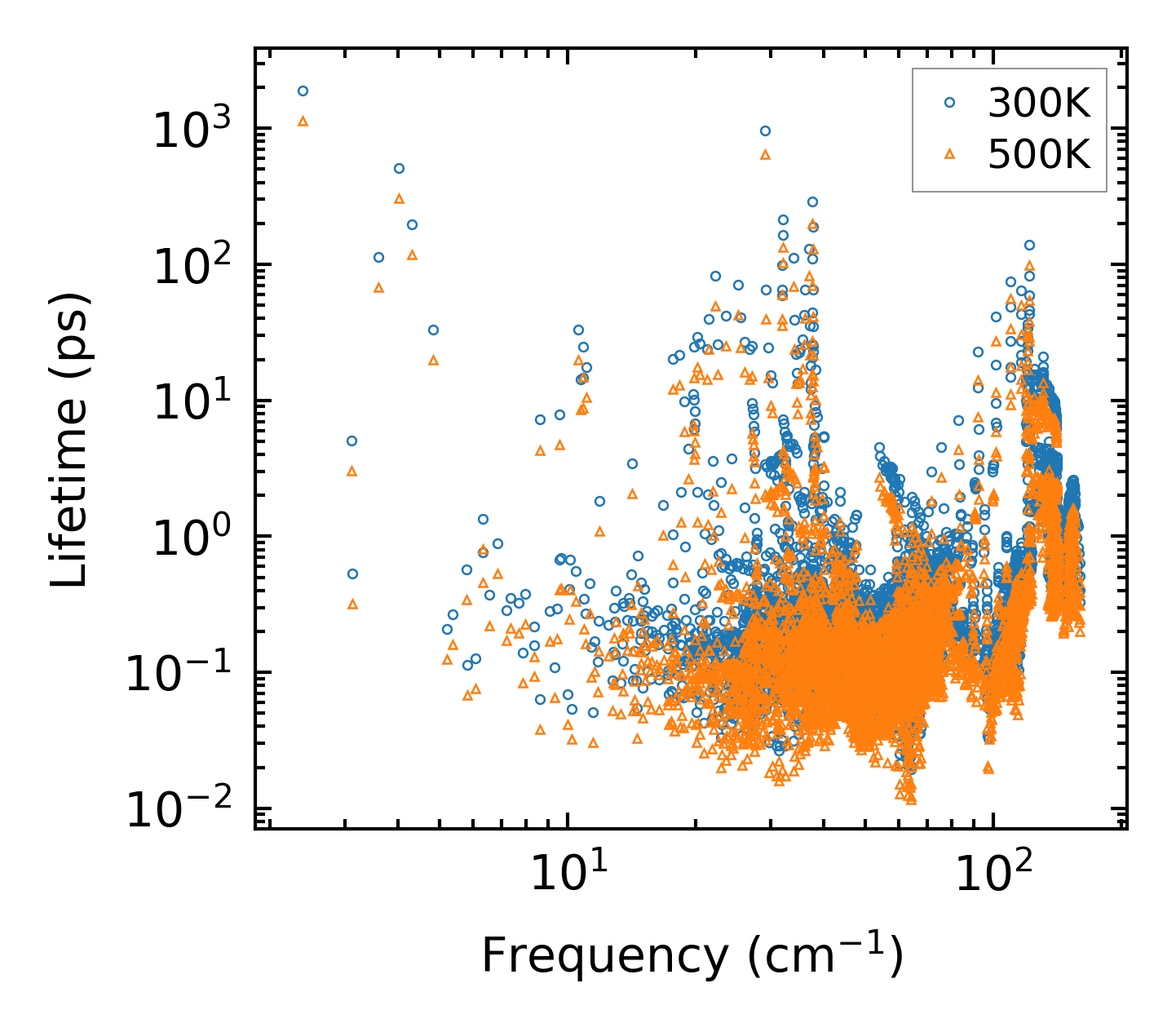

../../_images/fig_lifetime5209.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates5208.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

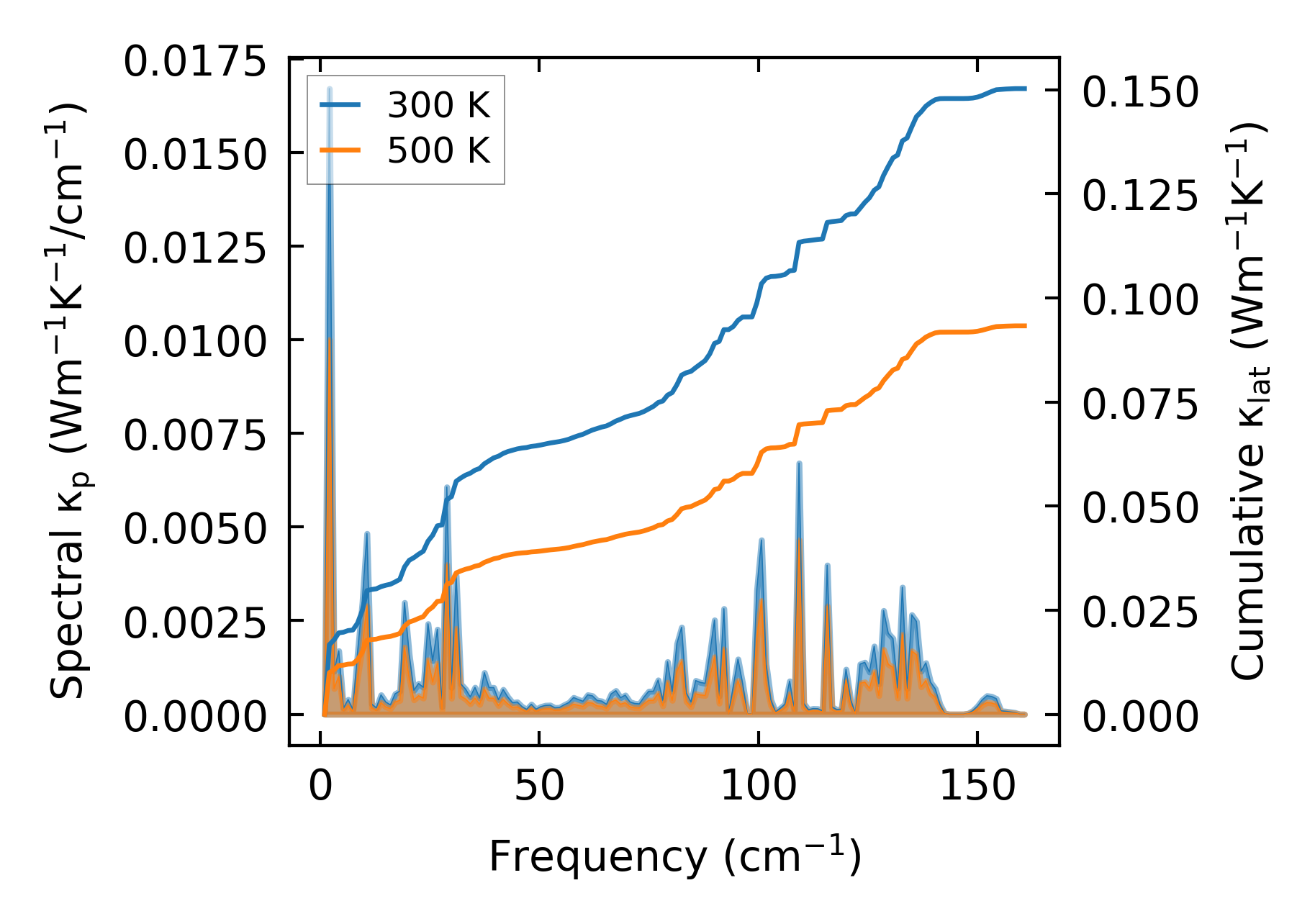

../../_images/fig_cumu_frequency5209.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

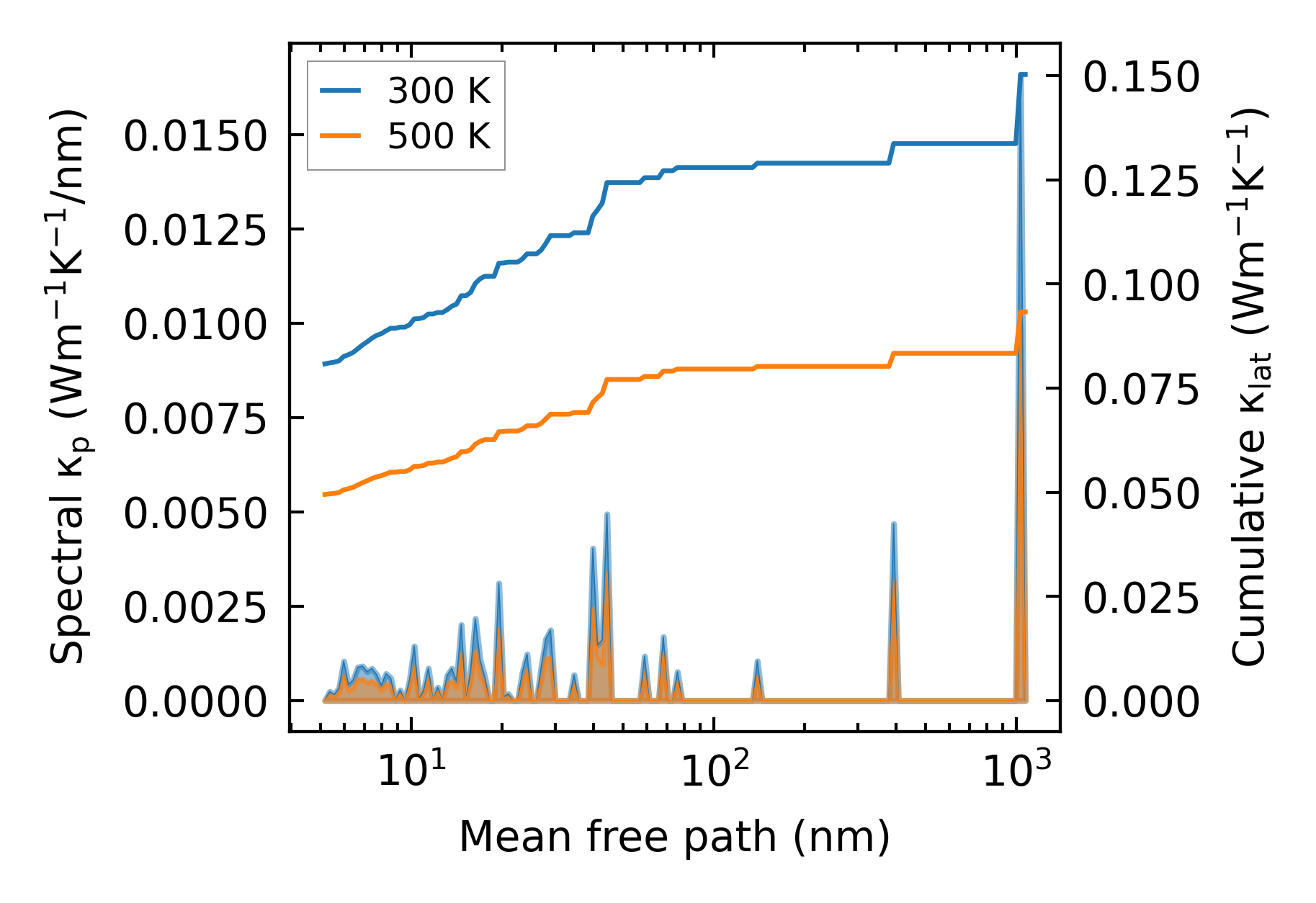

../../_images/fig_cumu_mfp5208.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

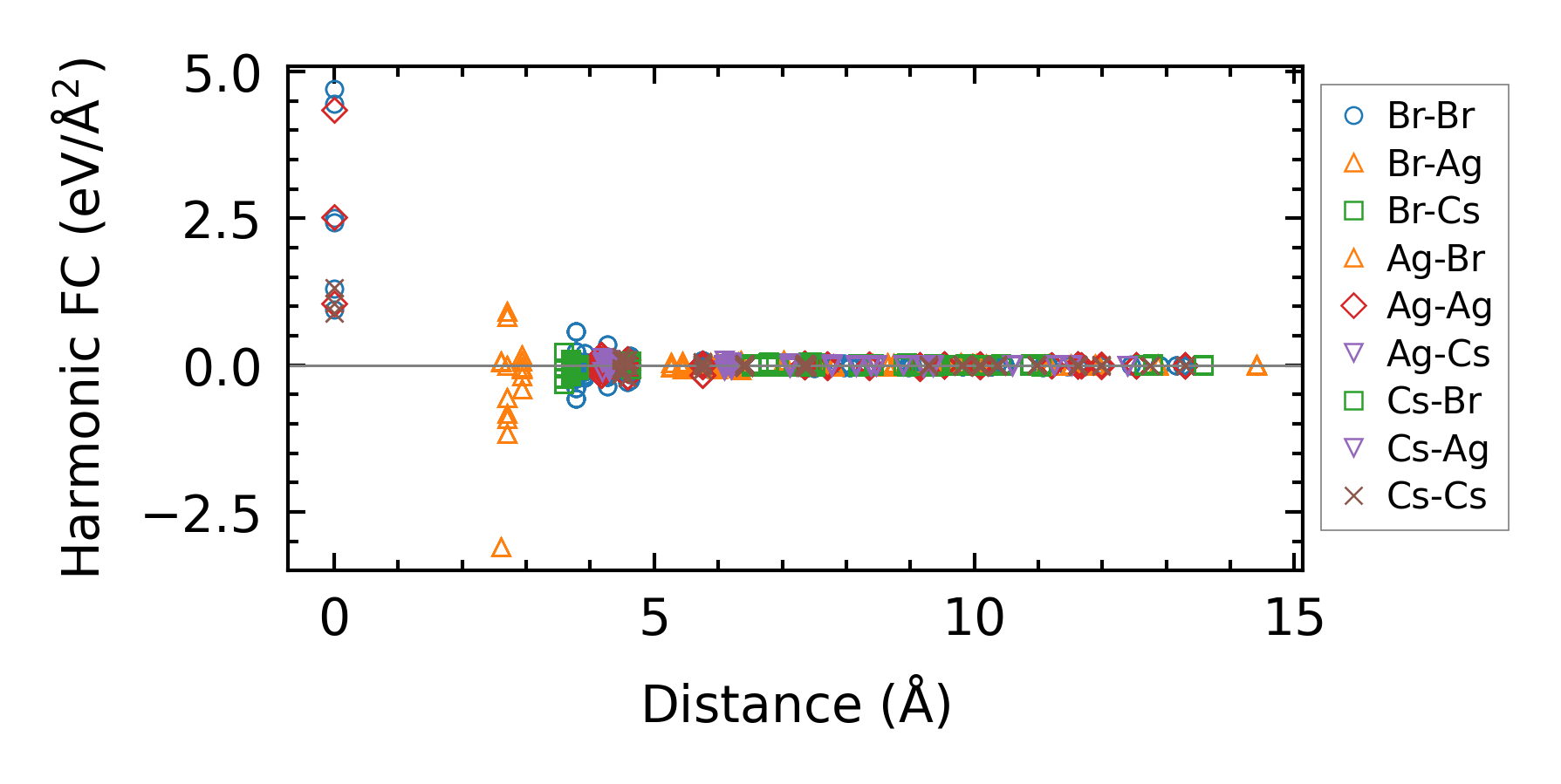

../../_images/fig_fc212386.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa9889.png — (a) Temperature-dependent lattice thermal conductivity

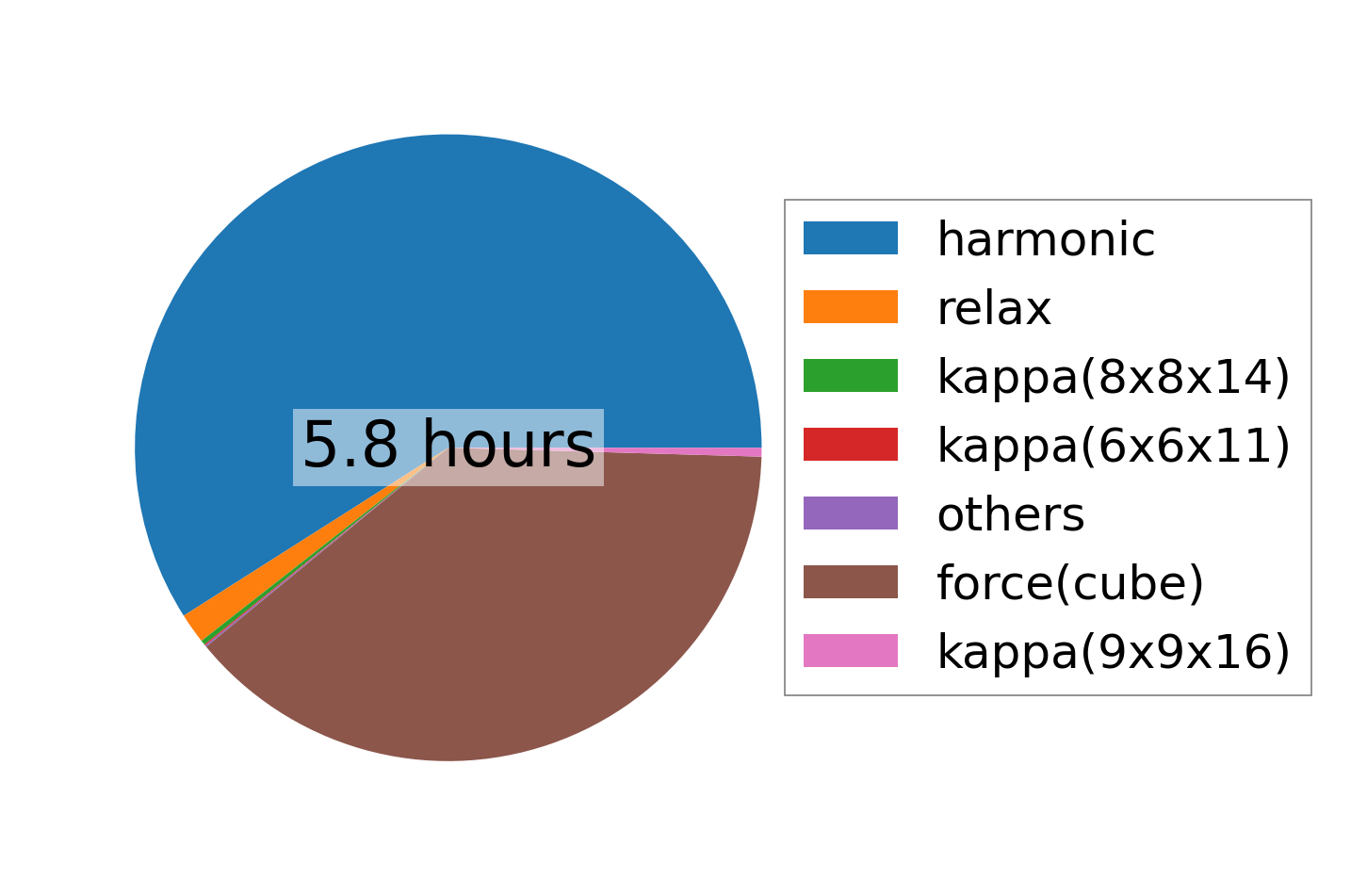

../../_images/fig_times21549.png — (b) Computation time
