mp-23583-2/Cs4BiSbCl12/anharm

Space group: I4_1/amd (141)
Link: Materials Project
Download: mp-23583-2.tar.gz

Equation of state

../../_images/fig_bm6368.png — (a) Equation of state

Harmonic properties

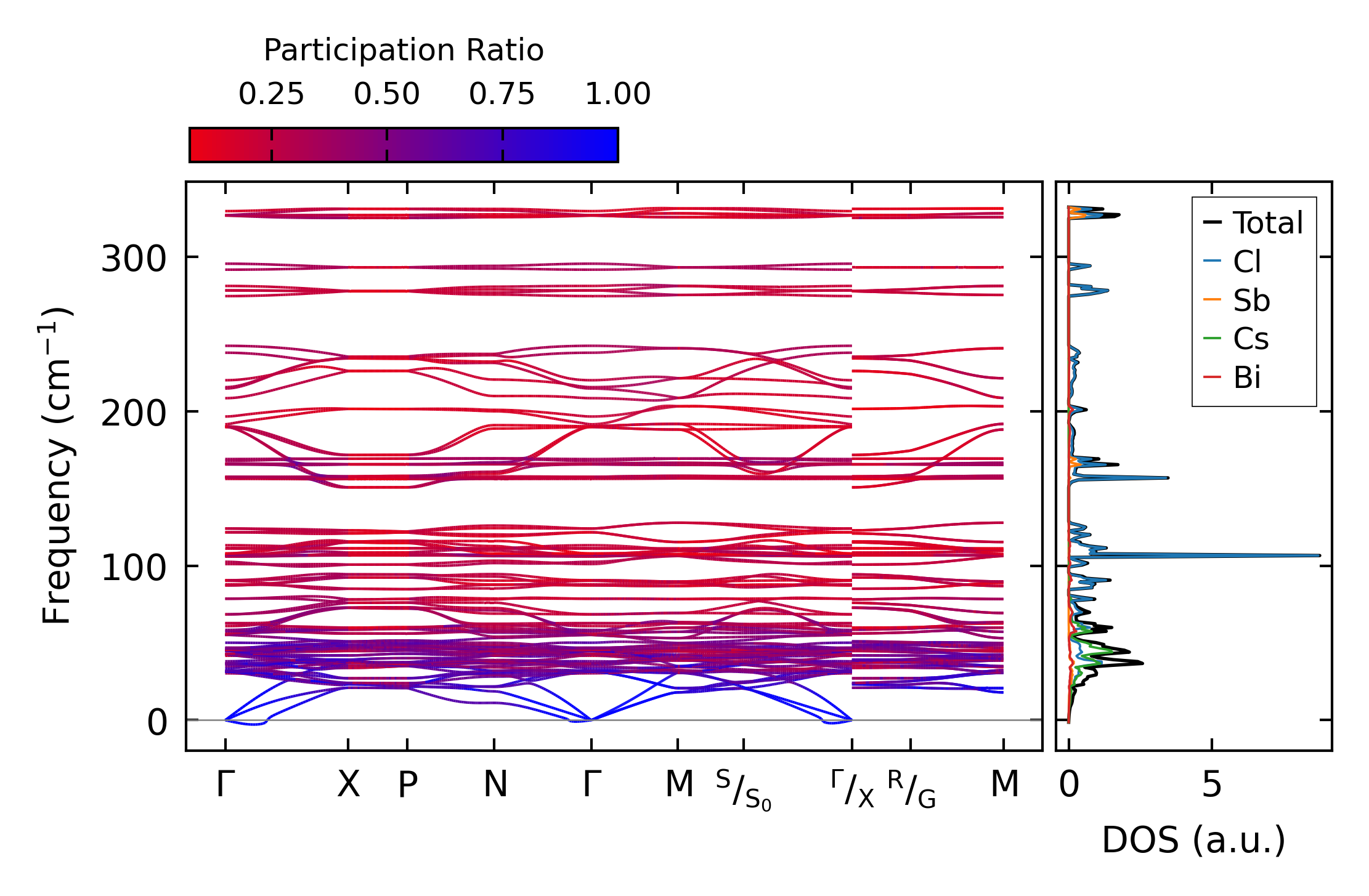

../../_images/fig_bandos_pr12756.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos17145.png — (b) Phonon dispersion and DOS

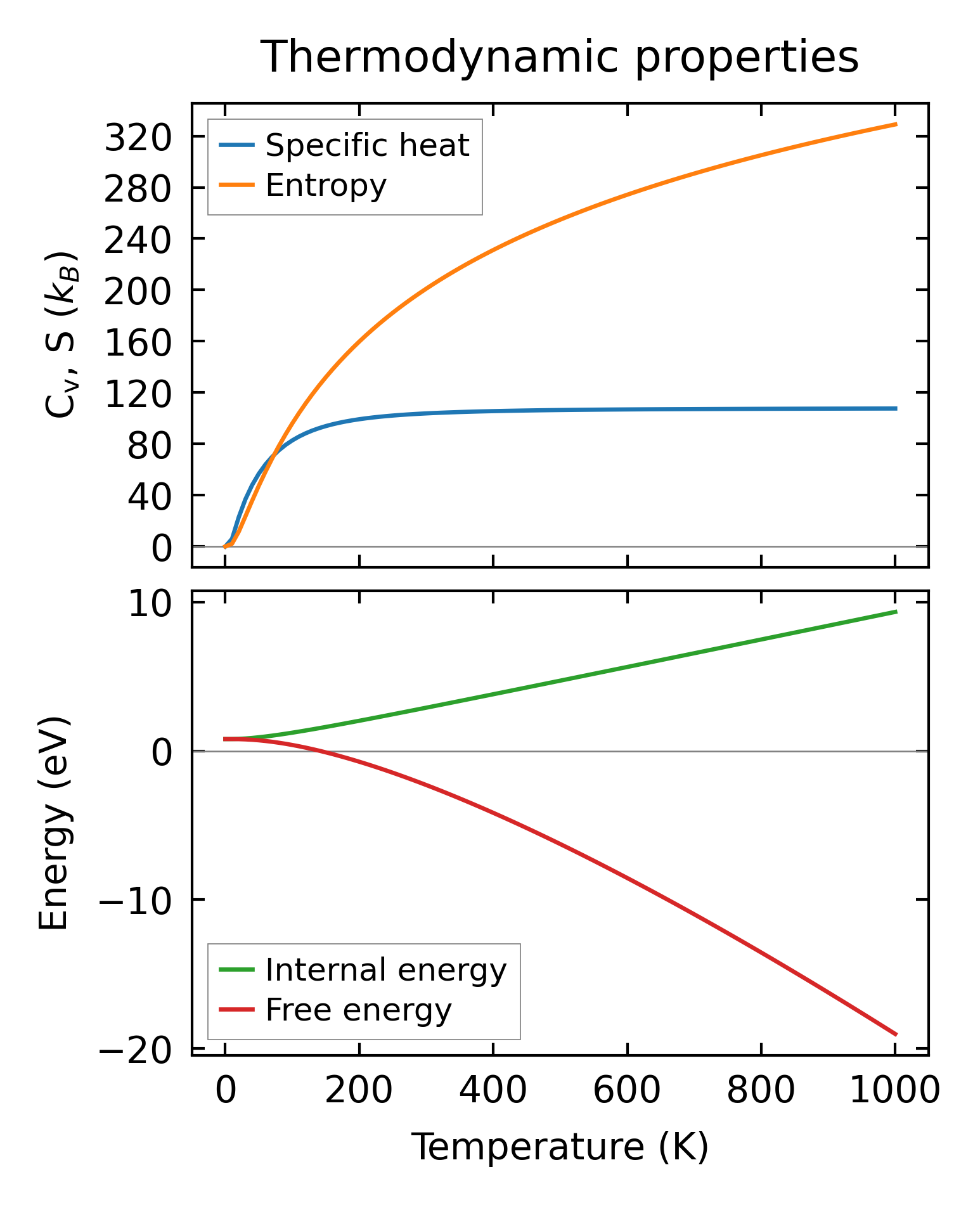

../../_images/fig_thermo12756.png — (c) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all5289.png — (a) Grüneisen parameters

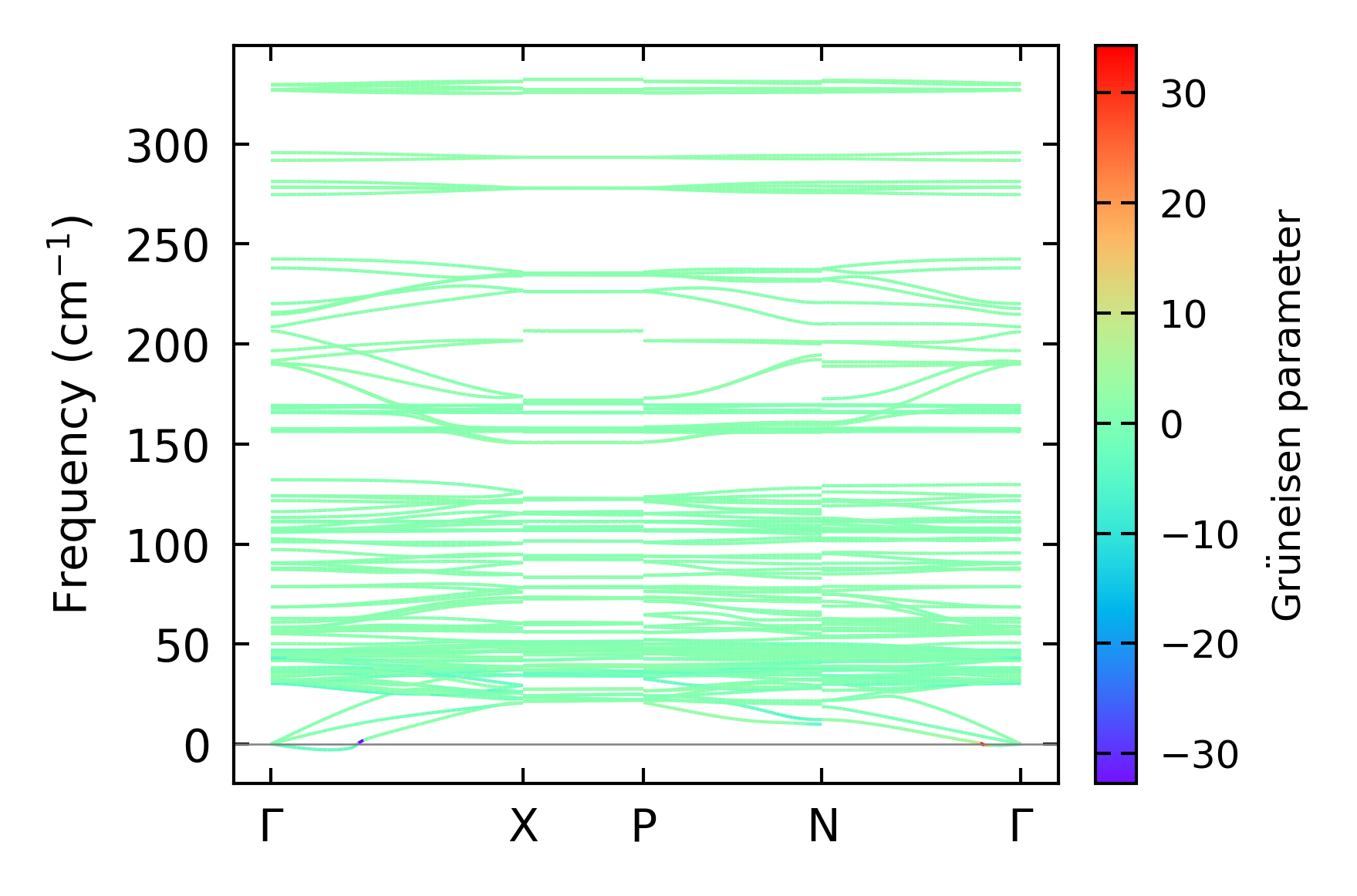

../../_images/fig_gruneisen5289.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x1 — q-mesh: 6x6x6, supercell: 2x2x1

../../_images/fig_kappa9938.png — (a) Temperature-dependent lattice thermal conductivity

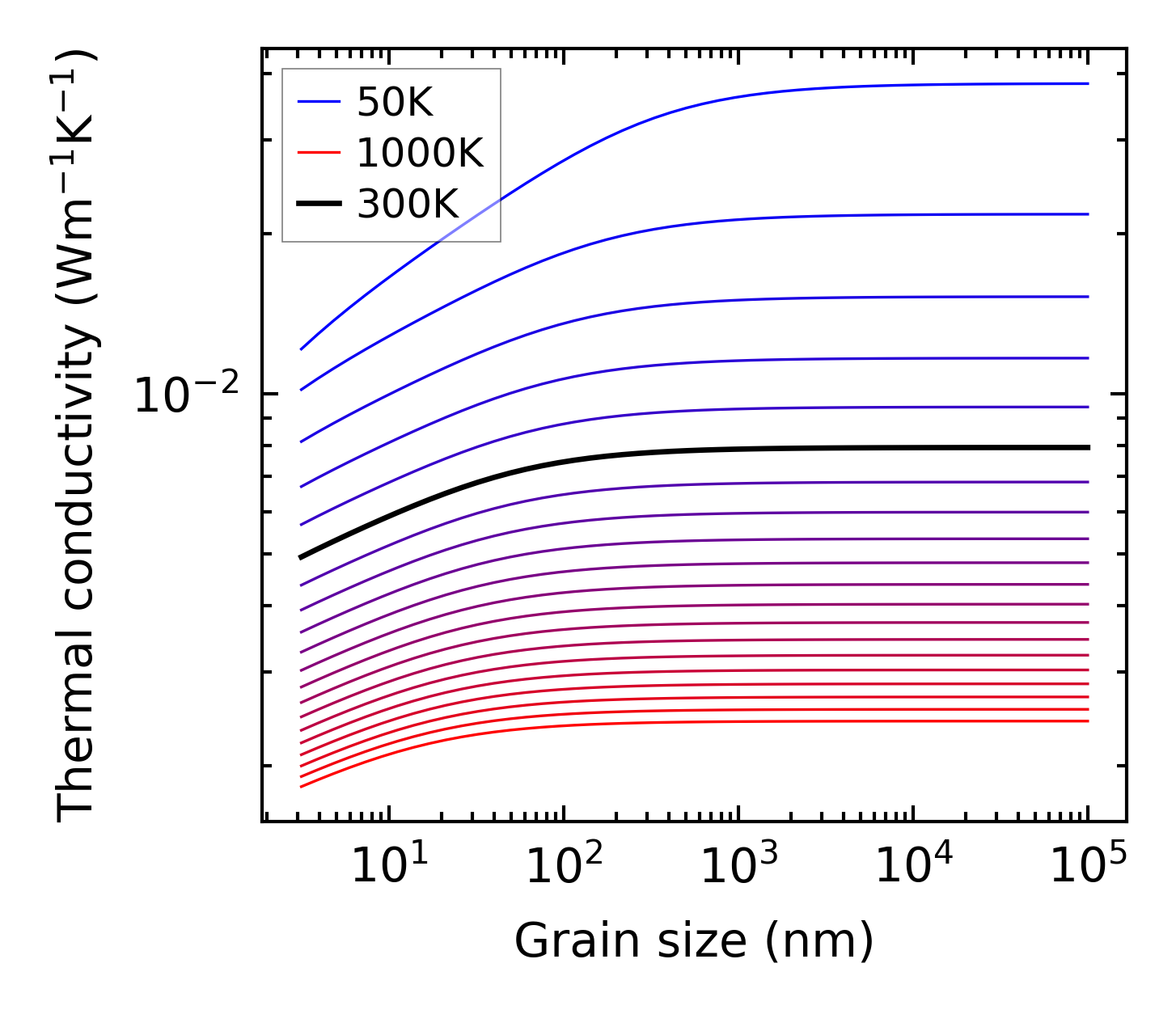

../../_images/fig_kappa_vs_grain_size5351.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

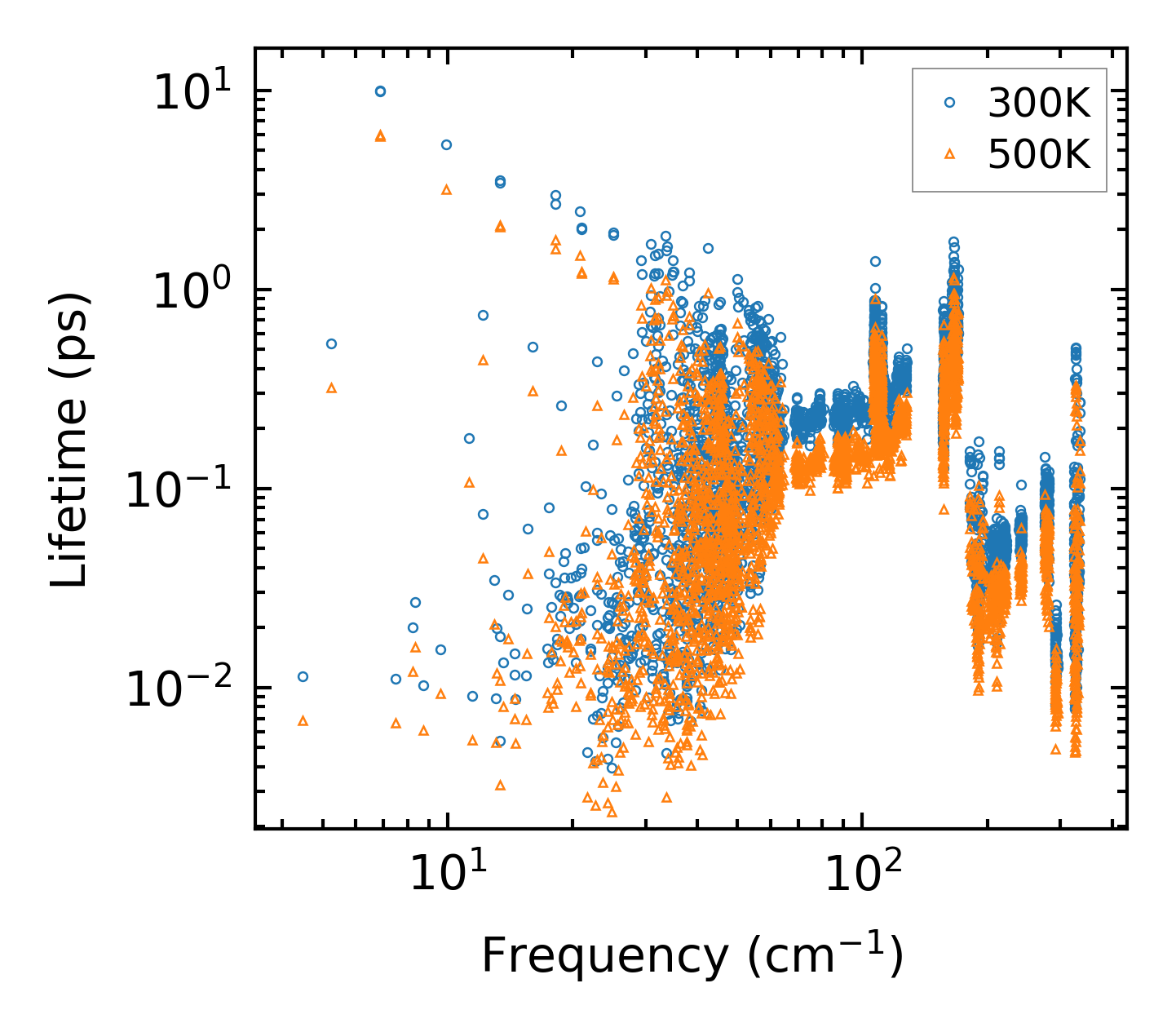

../../_images/fig_lifetime5238.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates5237.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

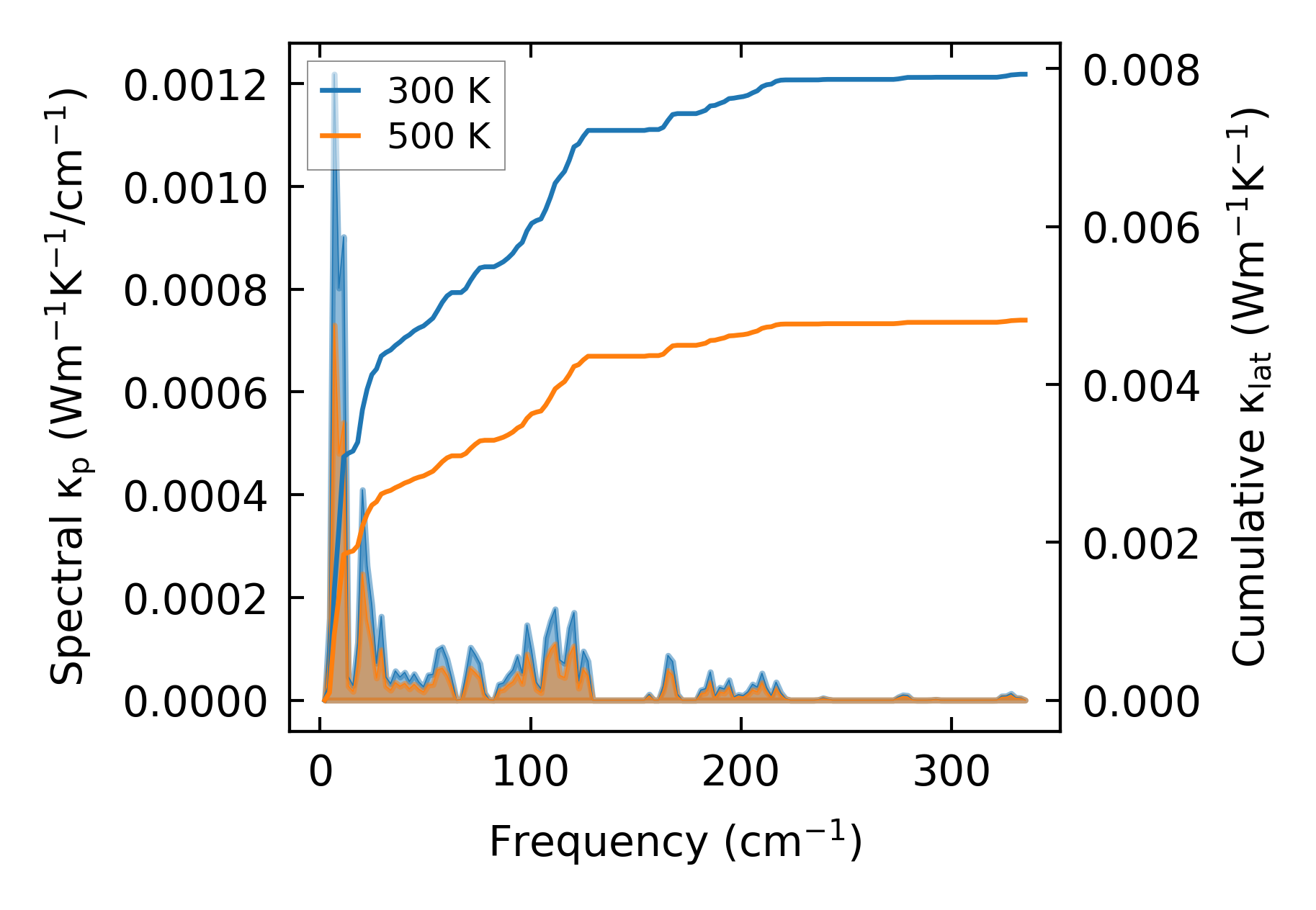

../../_images/fig_cumu_frequency5238.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

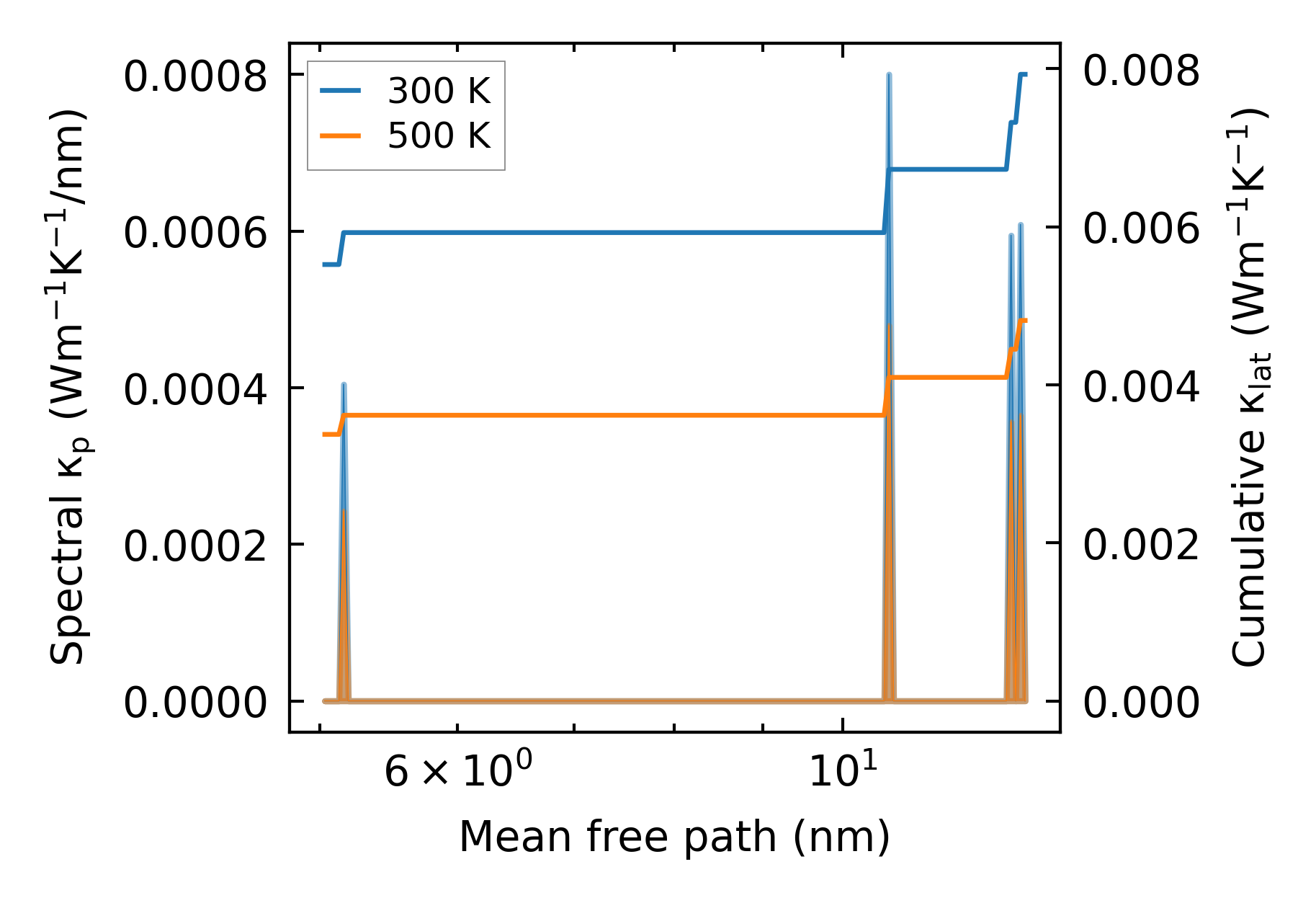

../../_images/fig_cumu_mfp5237.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc212452.png — (a) Force constants w.r.t atomic distance

Summary

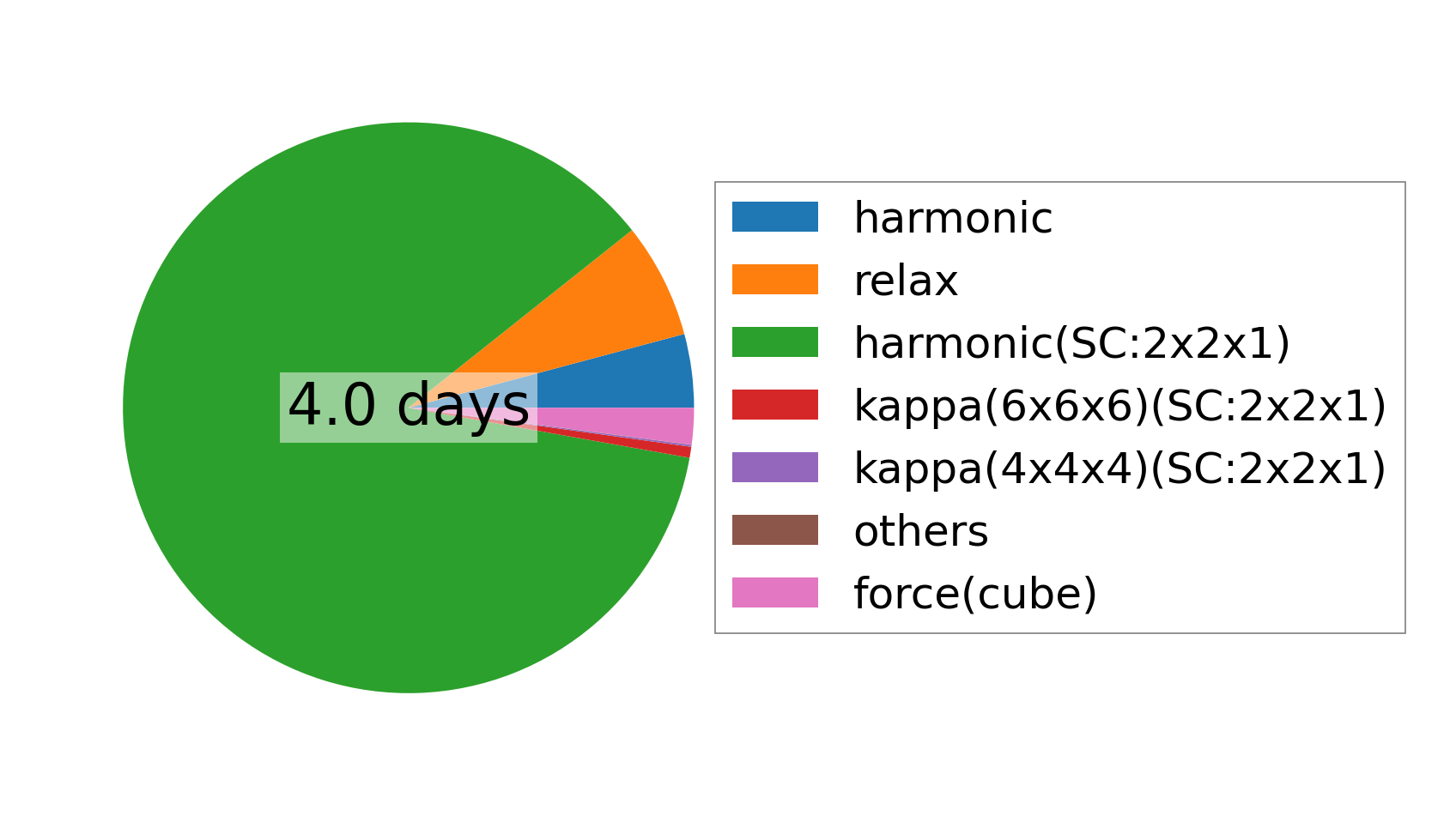

../../_images/fig_times21646.png — (a) Computation time
