mp-23267/BeCl2/anharm

Space group: Ibam (72)
Link: Materials Project
Download: mp-23267.tar.gz

Equation of state

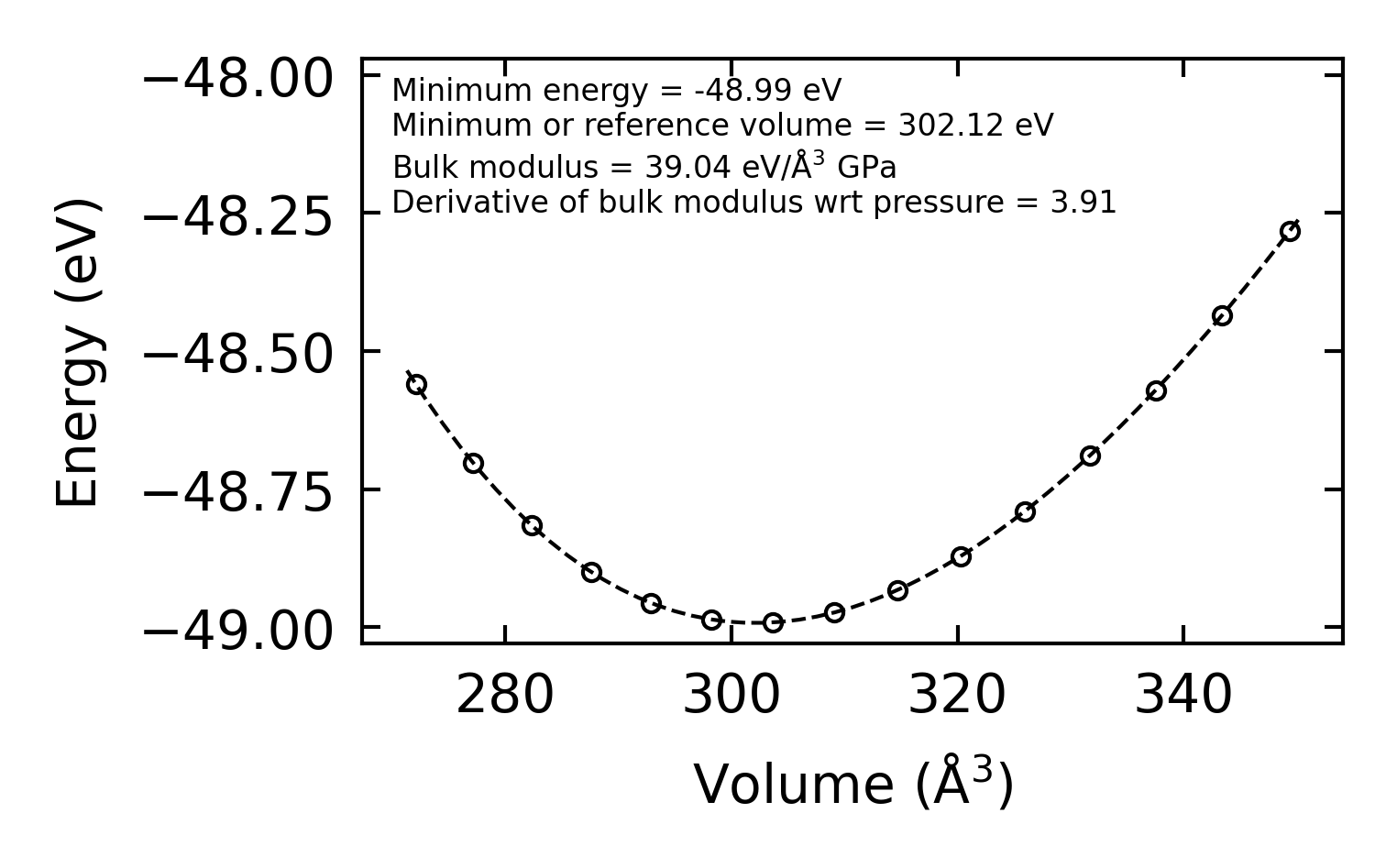

../../_images/fig_bm6477.png — (a) Equation of state

Harmonic properties

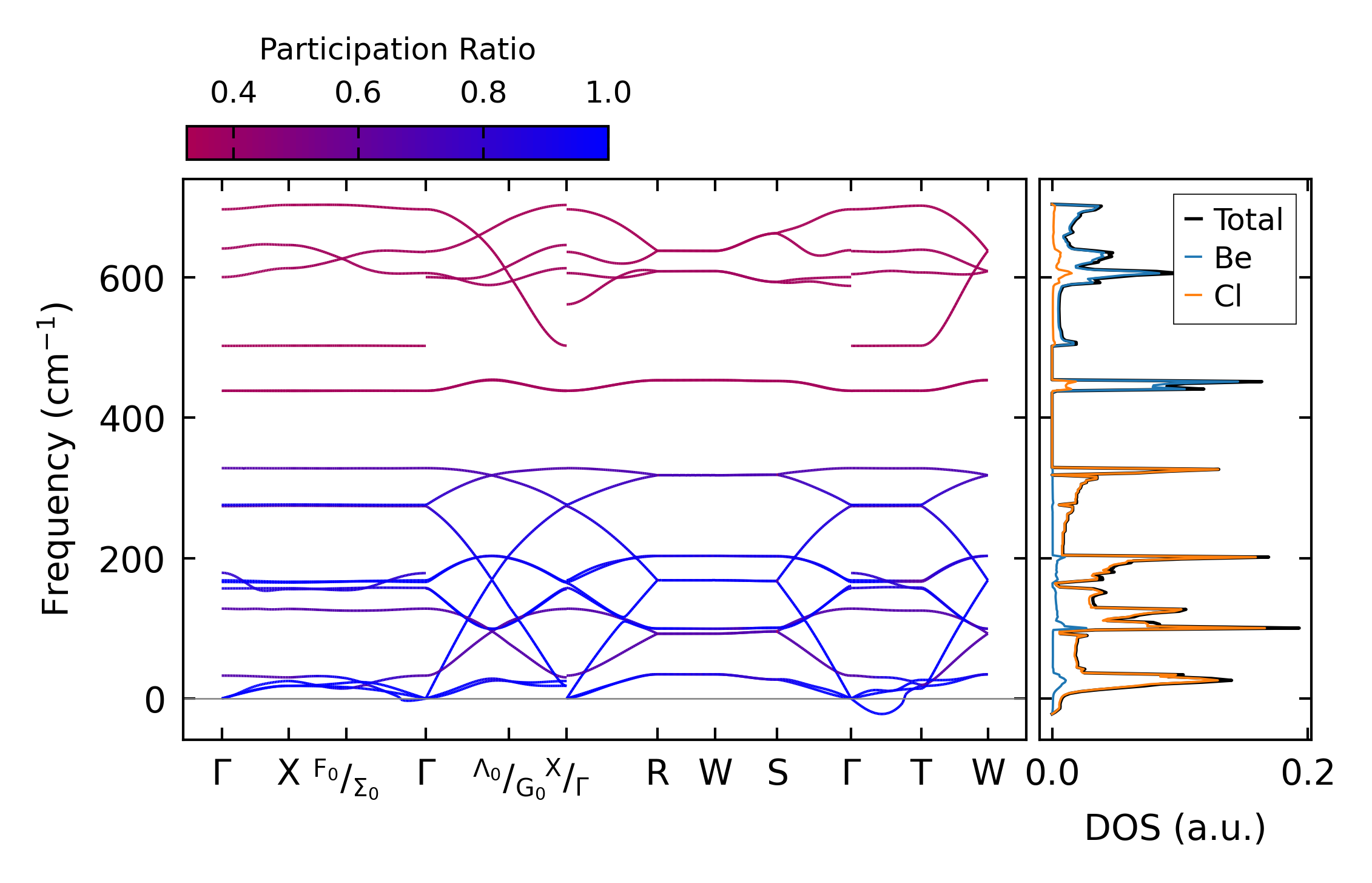

../../_images/fig_bandos_pr12970.png — (a) Phonon dispersion with participation ratio and DOS

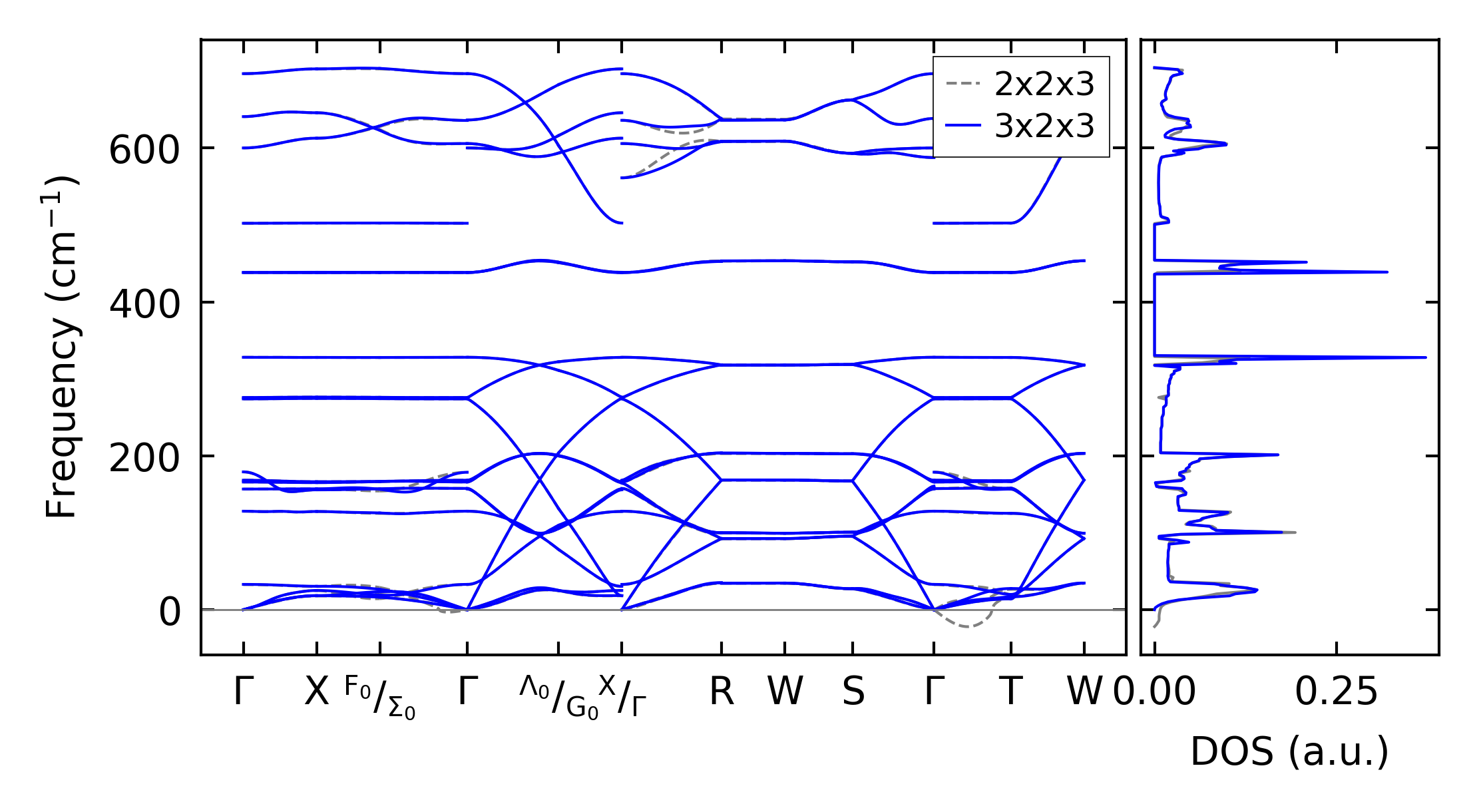

../../_images/fig_bandos17354.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo12970.png — (c) Thermodynamic properties

Grüneisen parameters

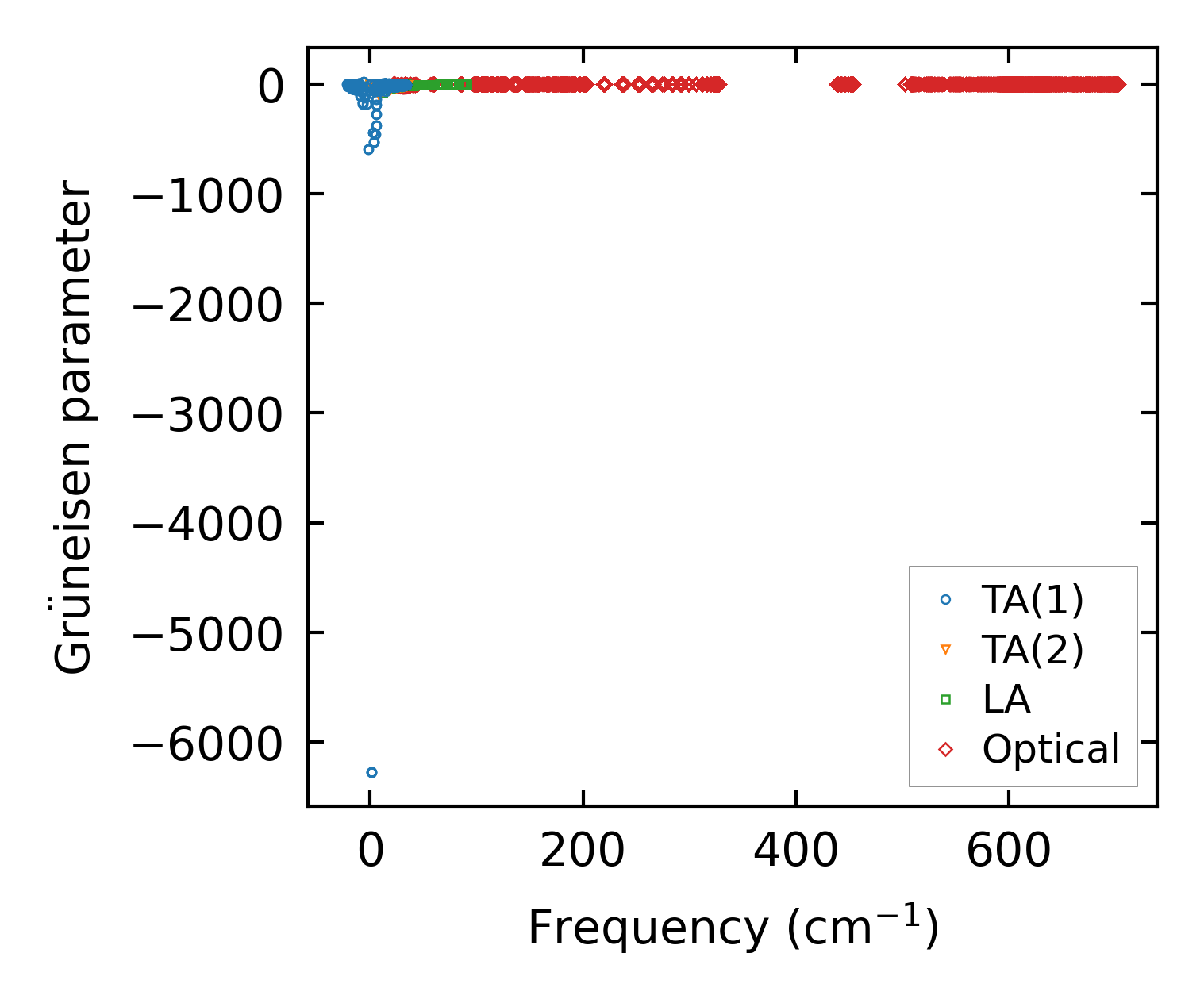

../../_images/fig_gru_all5394.png — (a) Grüneisen parameters

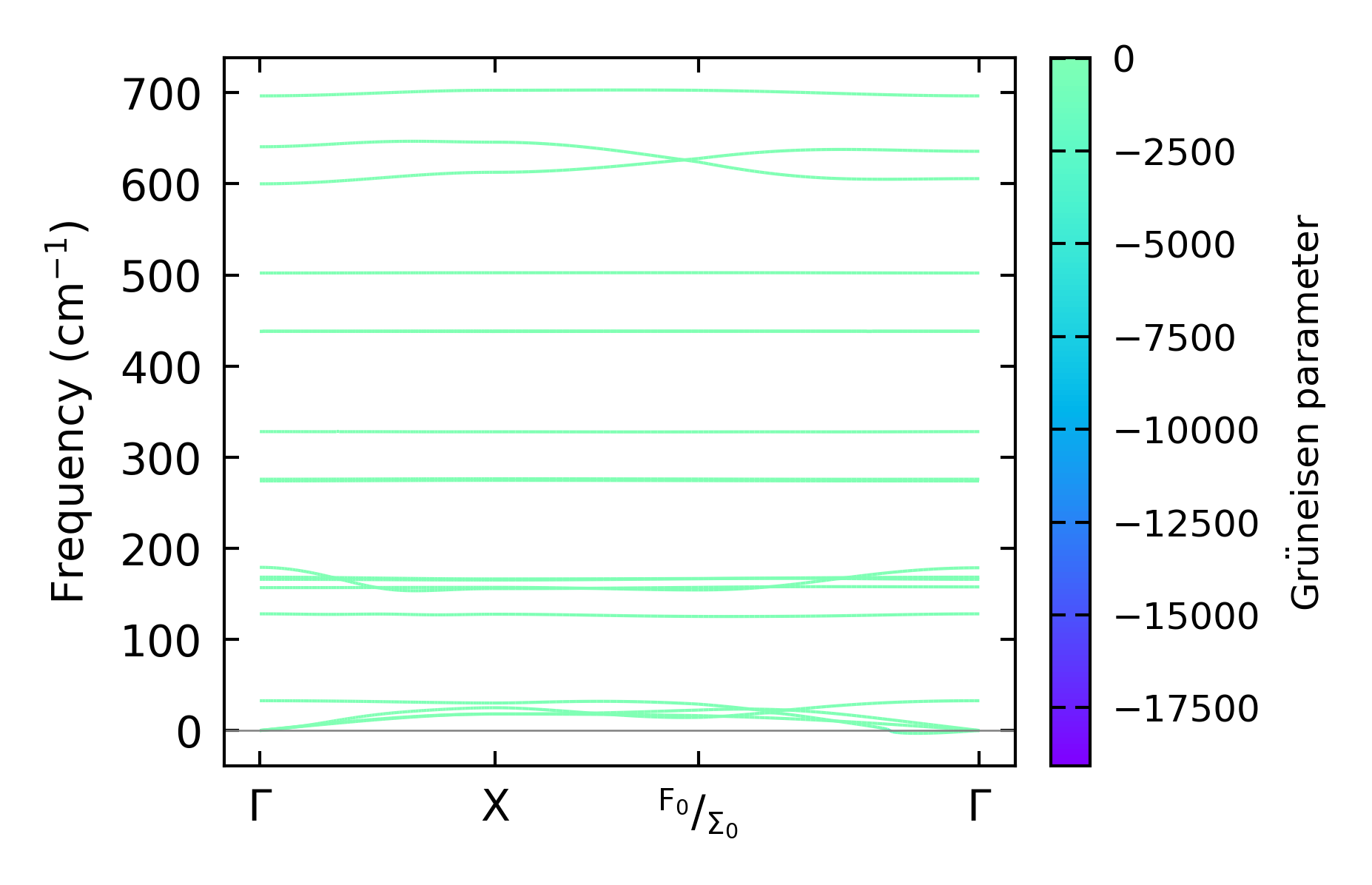

../../_images/fig_gruneisen5394.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 3x2x3 — q-mesh: 13x13x13, supercell: 3x2x3

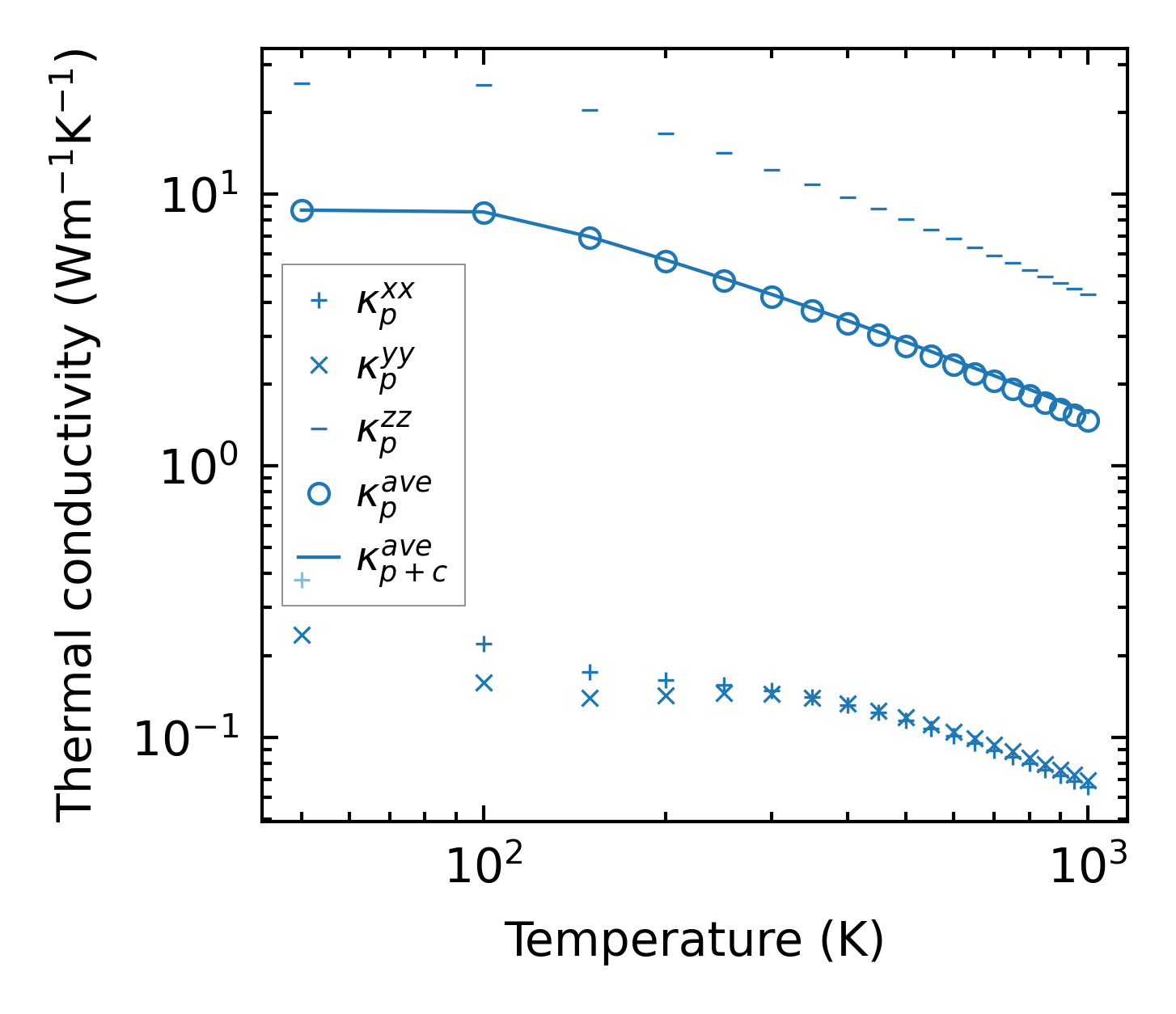

../../_images/fig_kappa10133.png — (a) Temperature-dependent lattice thermal conductivity

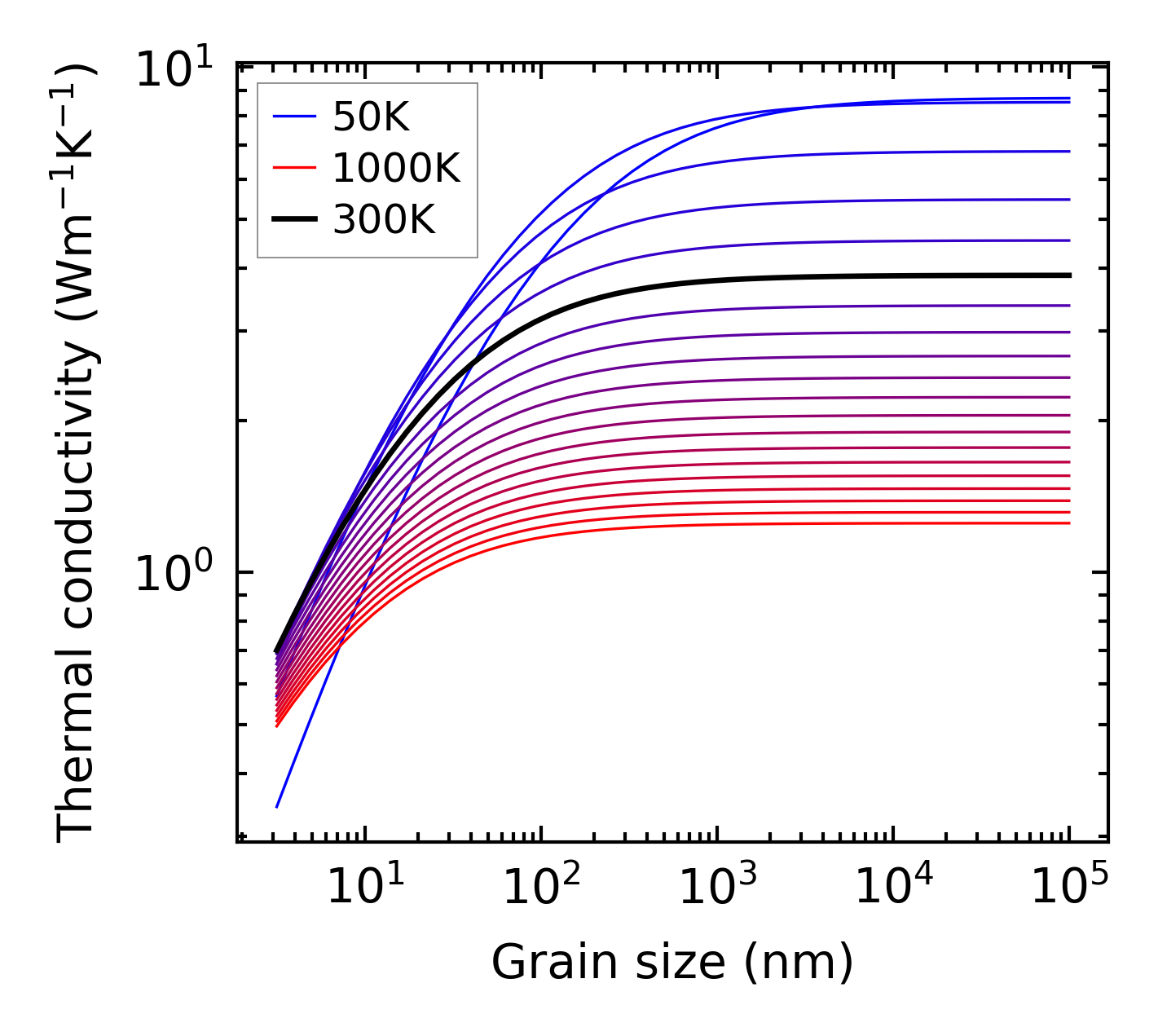

../../_images/fig_kappa_vs_grain_size5458.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

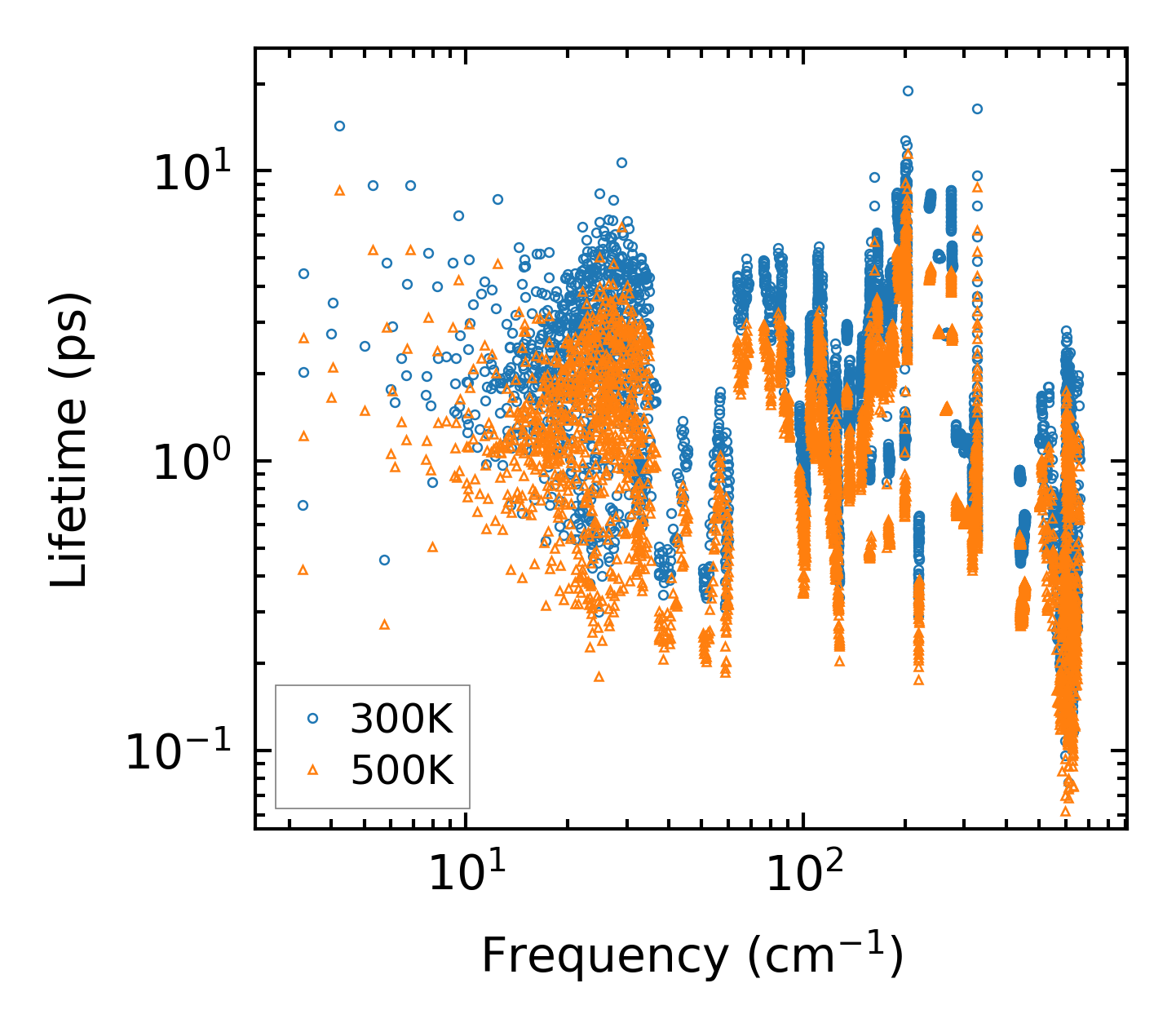

../../_images/fig_lifetime5342.png — (a) Phonon lifetime due to phonon-phonon scattering

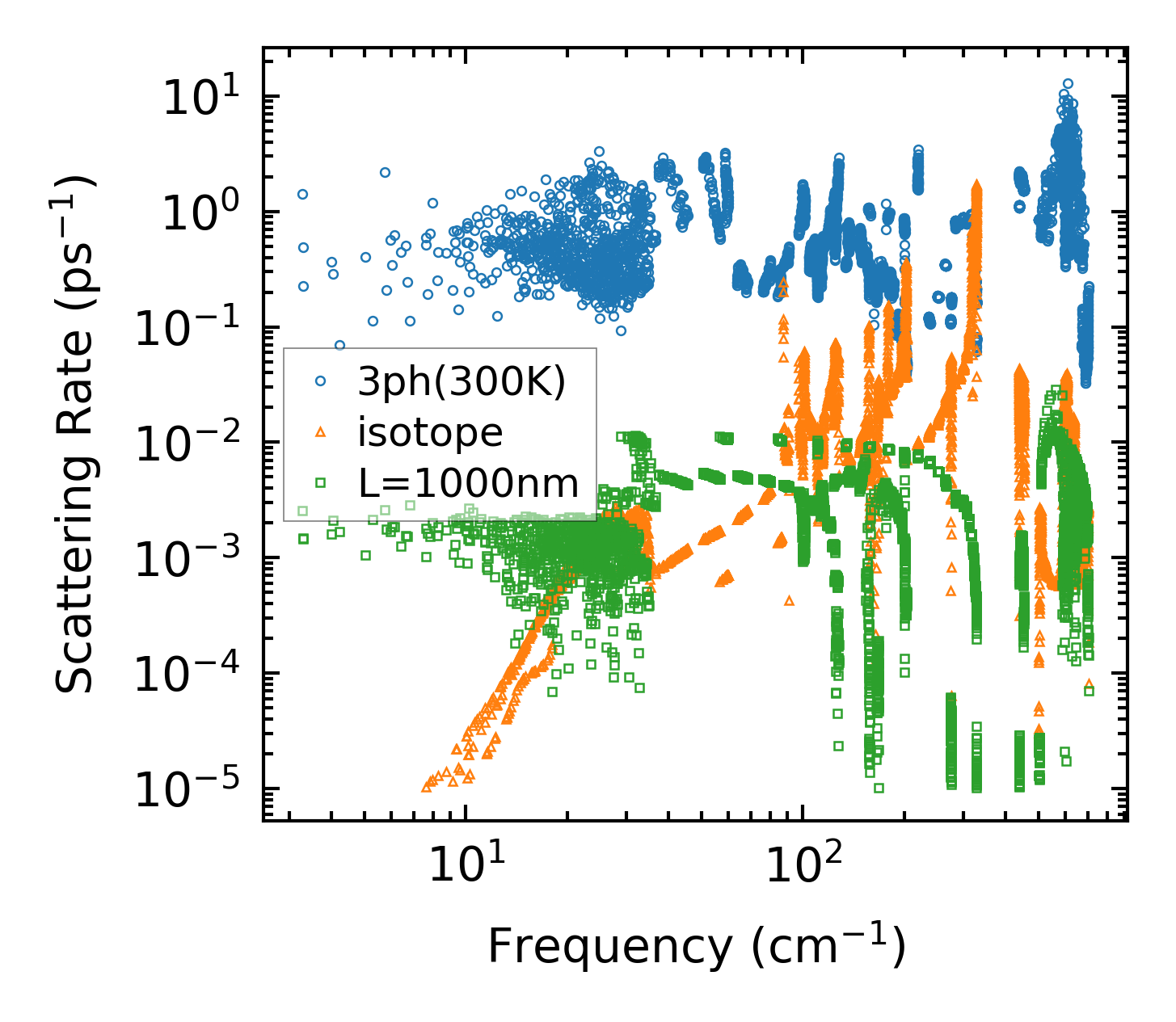

../../_images/fig_scat_rates5341.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

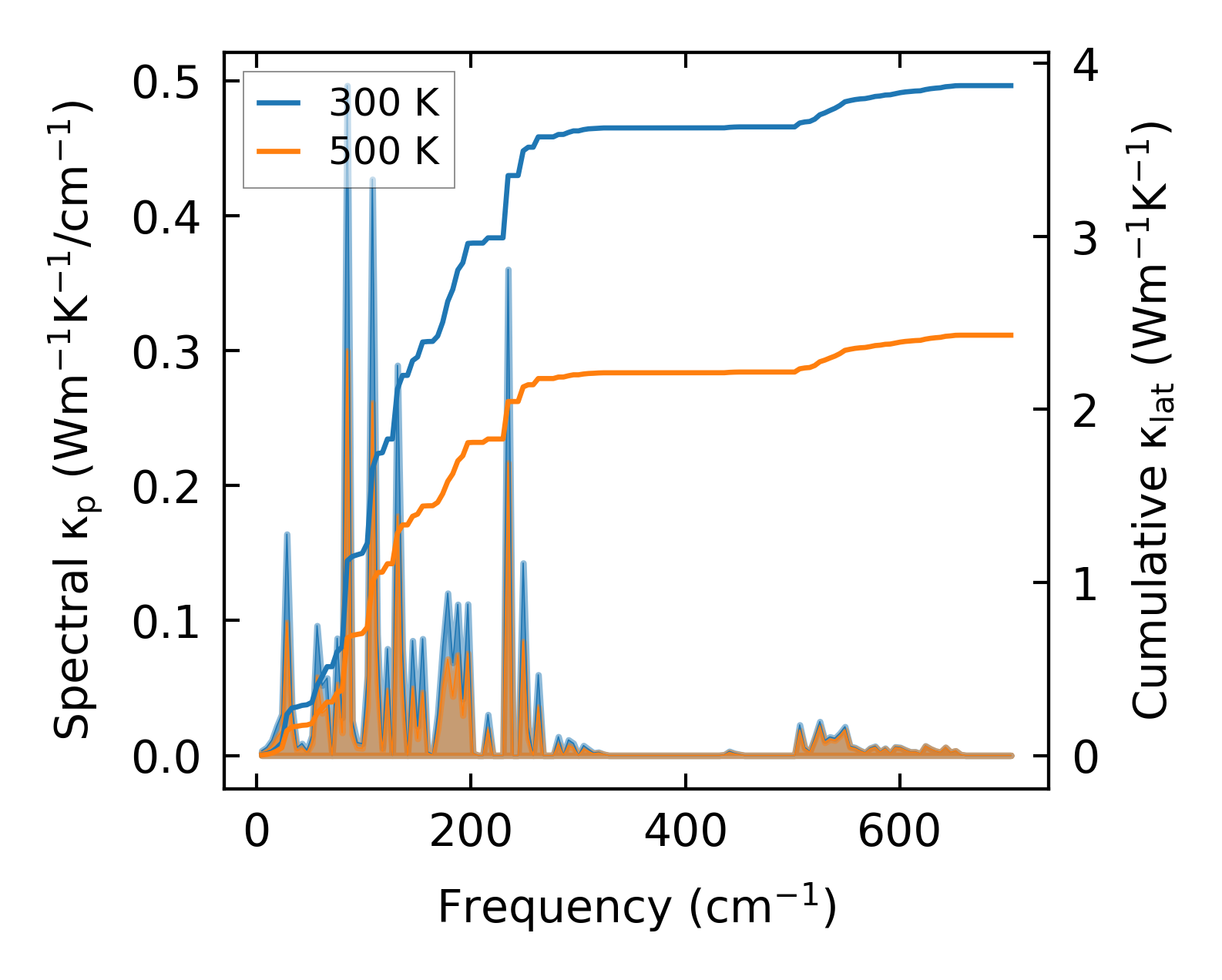

../../_images/fig_cumu_frequency5342.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

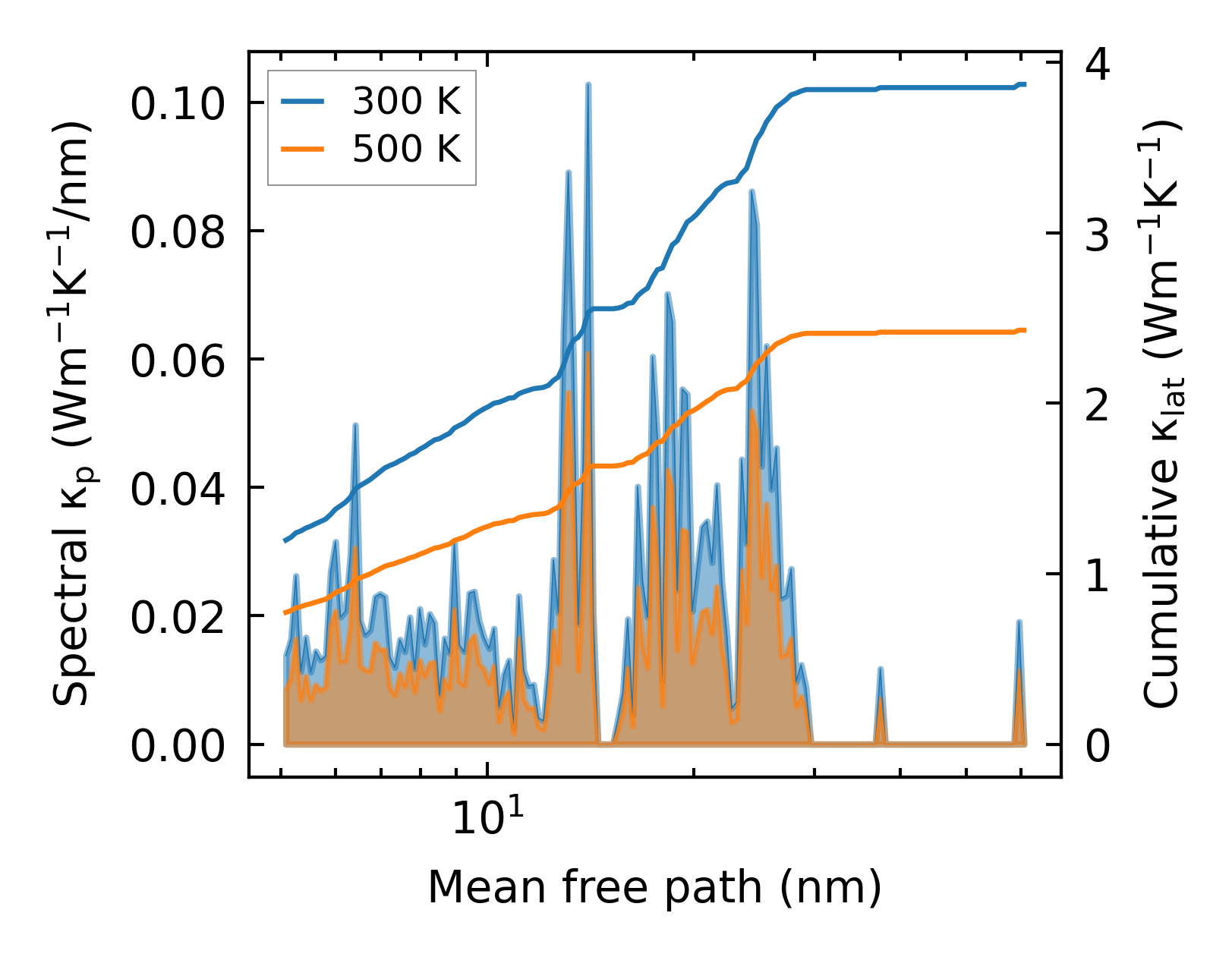

../../_images/fig_cumu_mfp5341.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

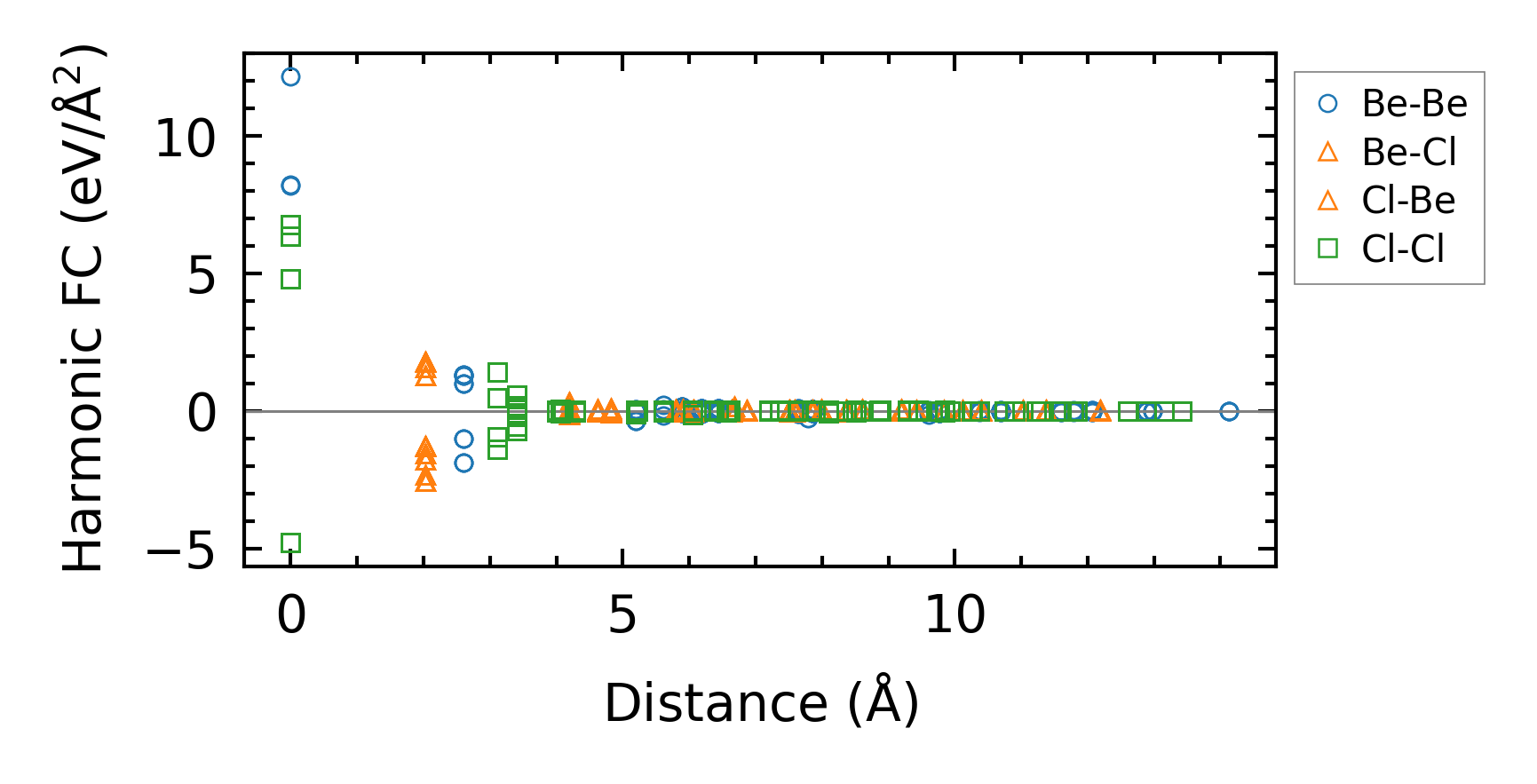

../../_images/fig_fc212658.png — (a) Force constants w.r.t atomic distance

Summary

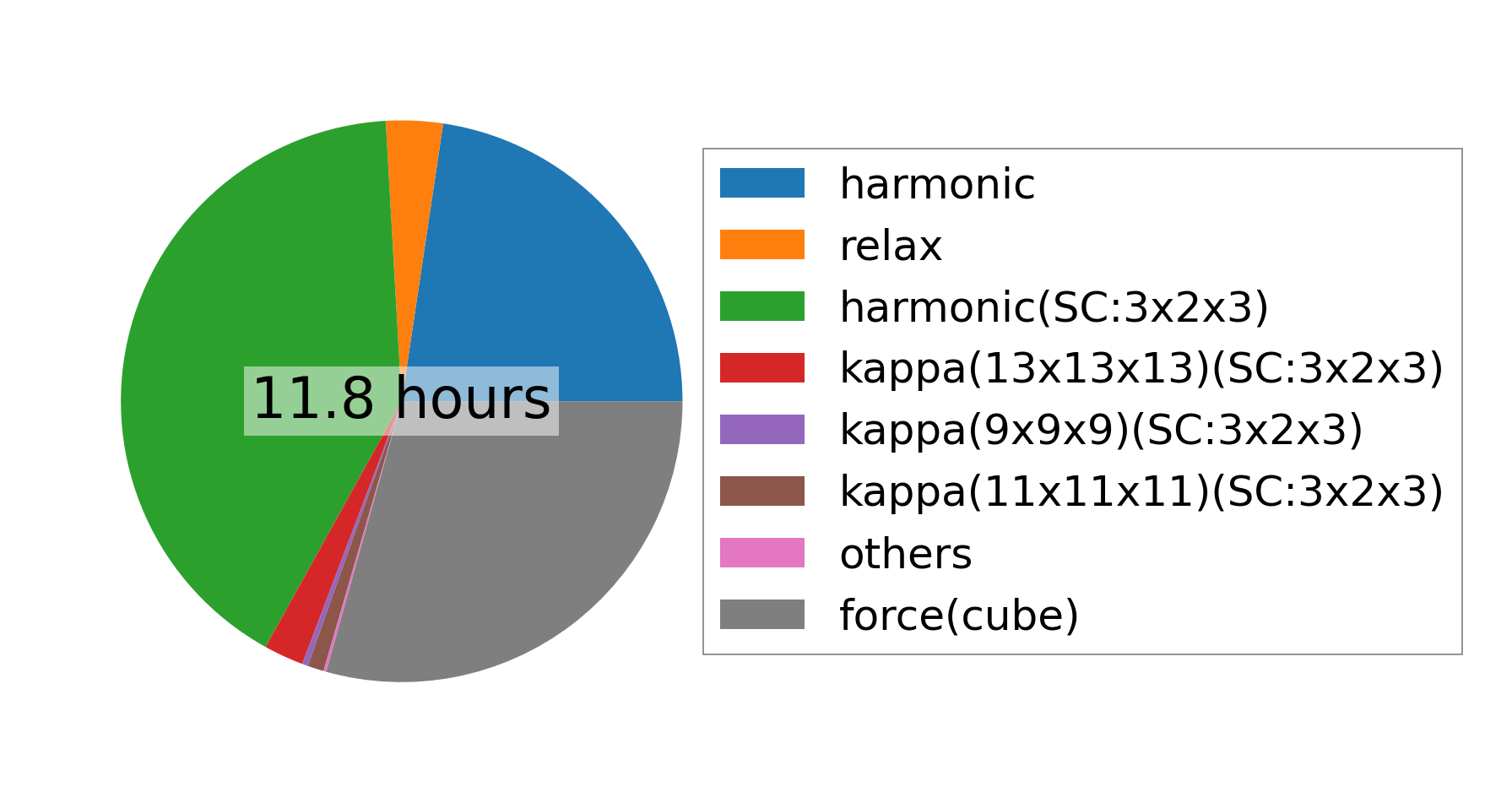

../../_images/fig_times21937.png — (a) Computation time
