mp-23643-2/Cd5P3ClO12/anharm

Space group: P6_3/m (176)
Link: Materials Project
Download: mp-23643-2.tar.gz

Equation of state

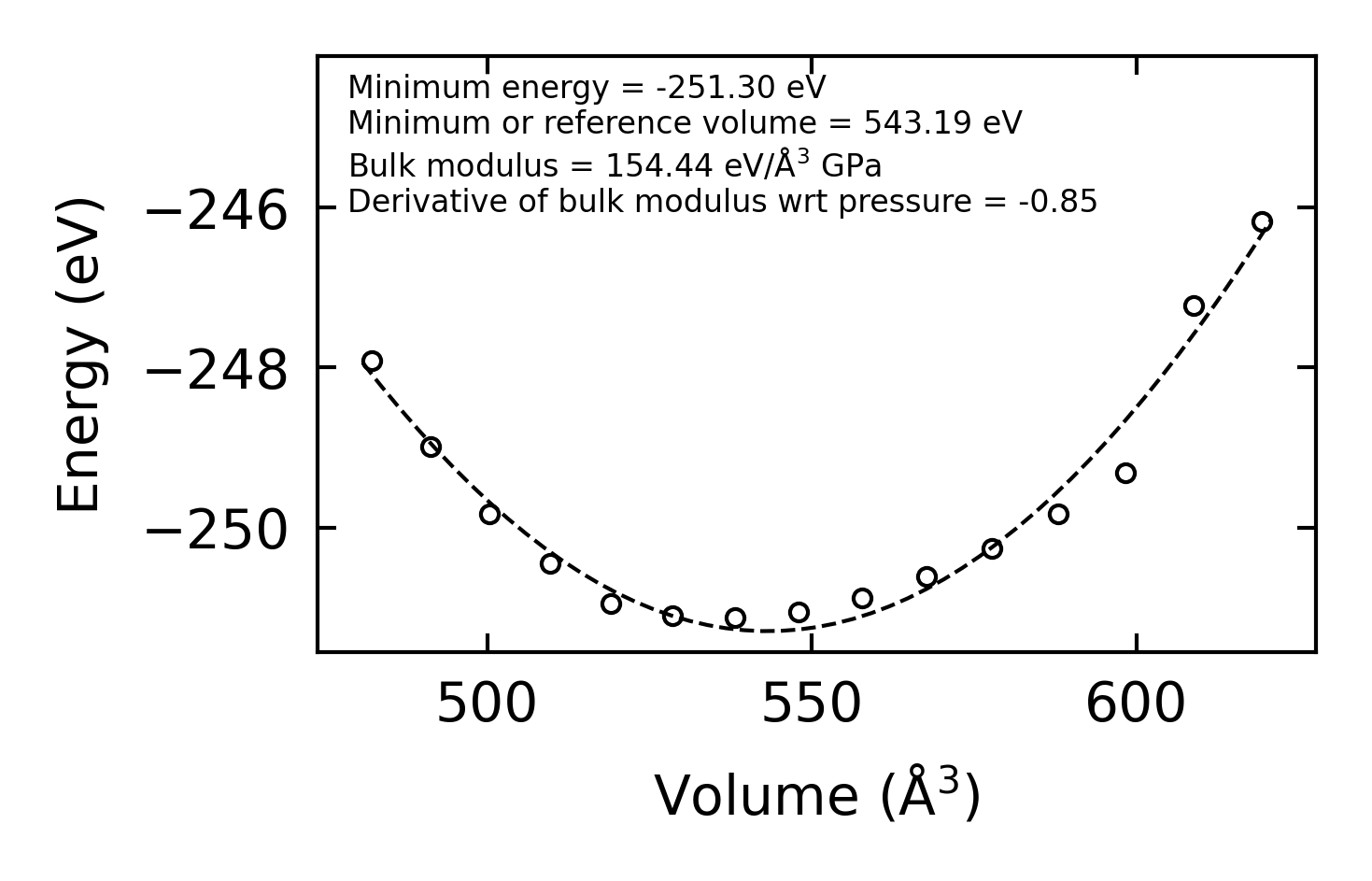

../../_images/fig_bm6378.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr12775.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo12775.png — (b) Thermodynamic properties

Grüneisen parameters

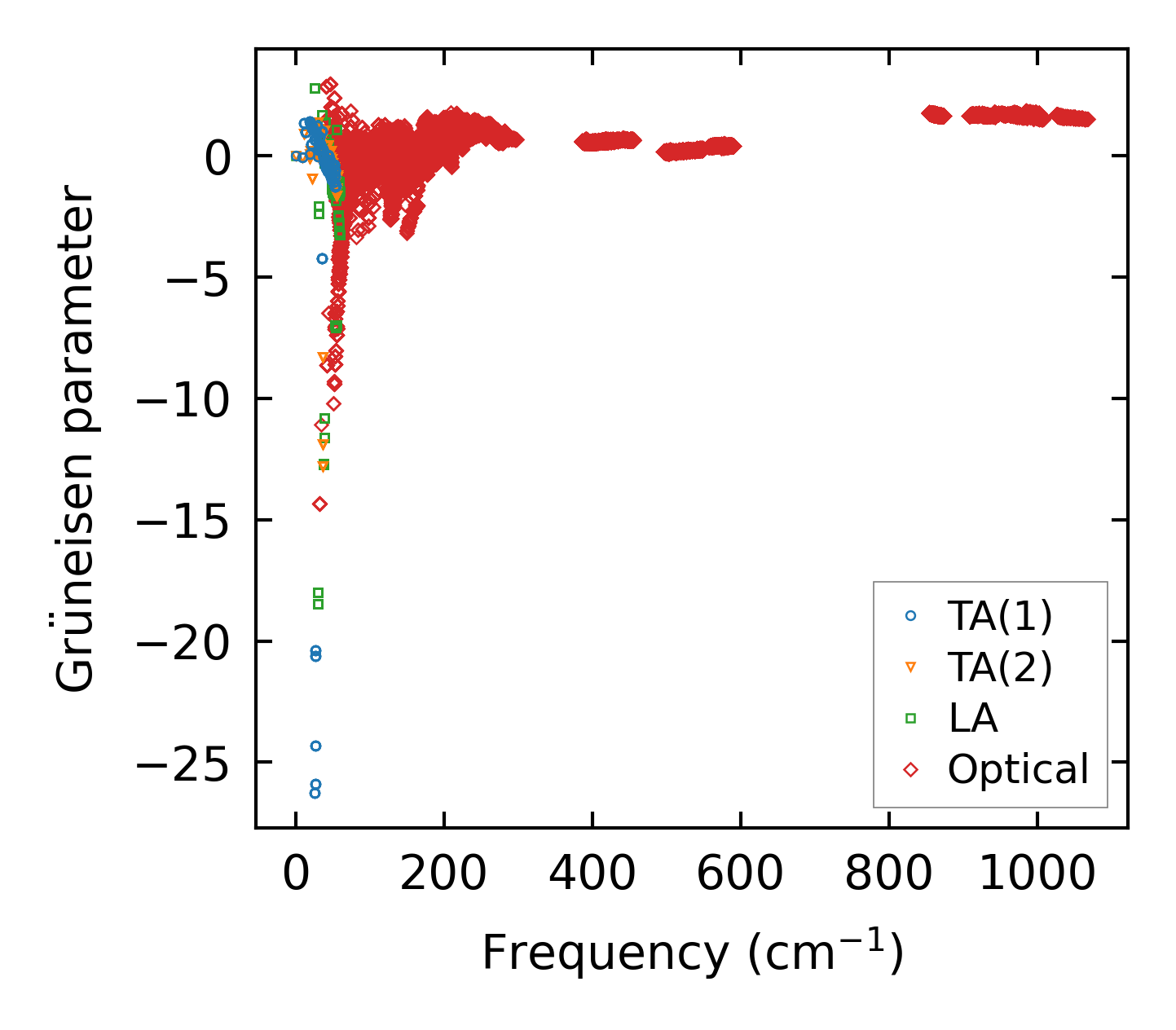

../../_images/fig_gru_all5295.png — (a) Grüneisen parameters

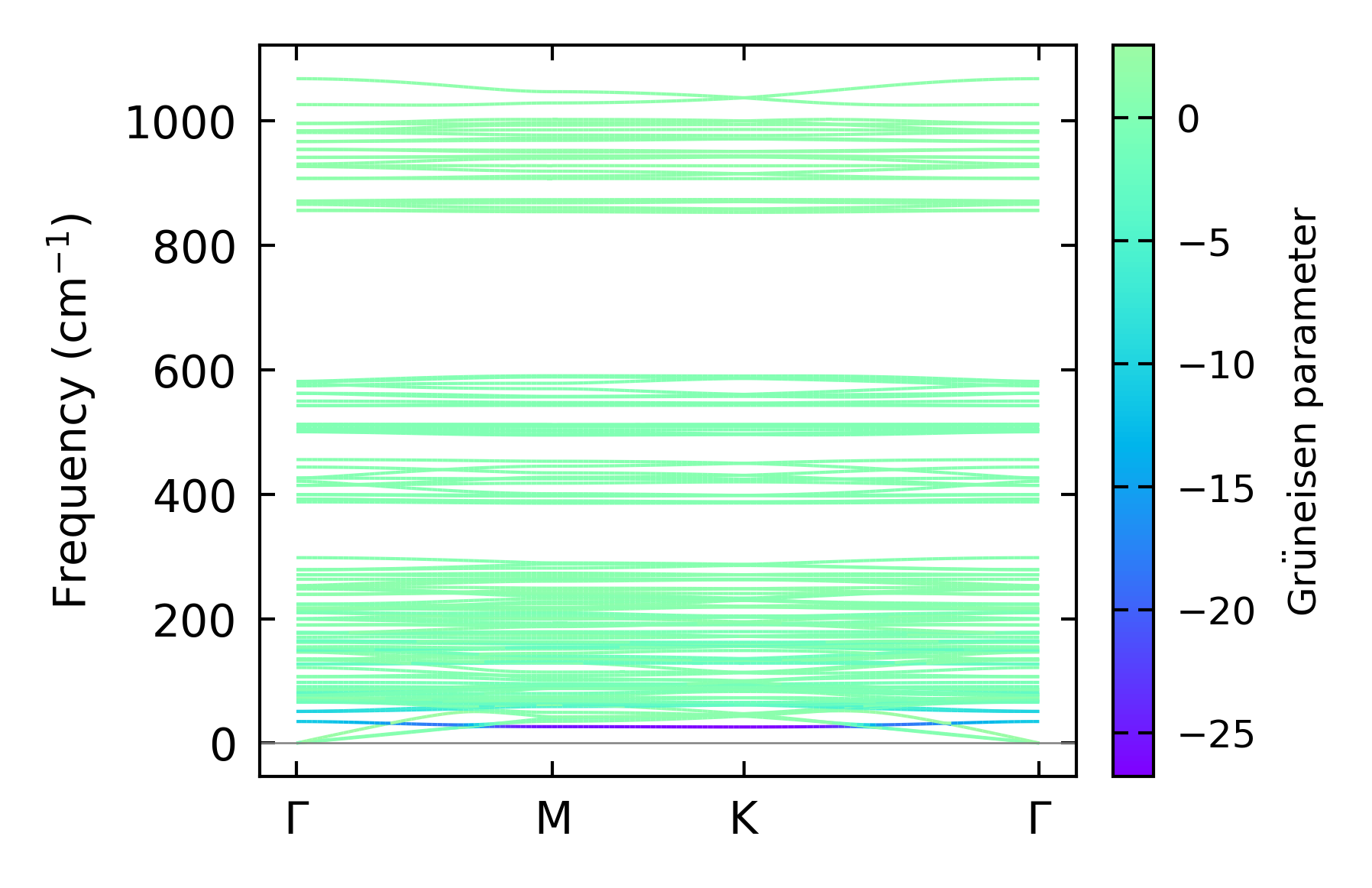

../../_images/fig_gruneisen5295.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x7x11, supercell: 1x1x2

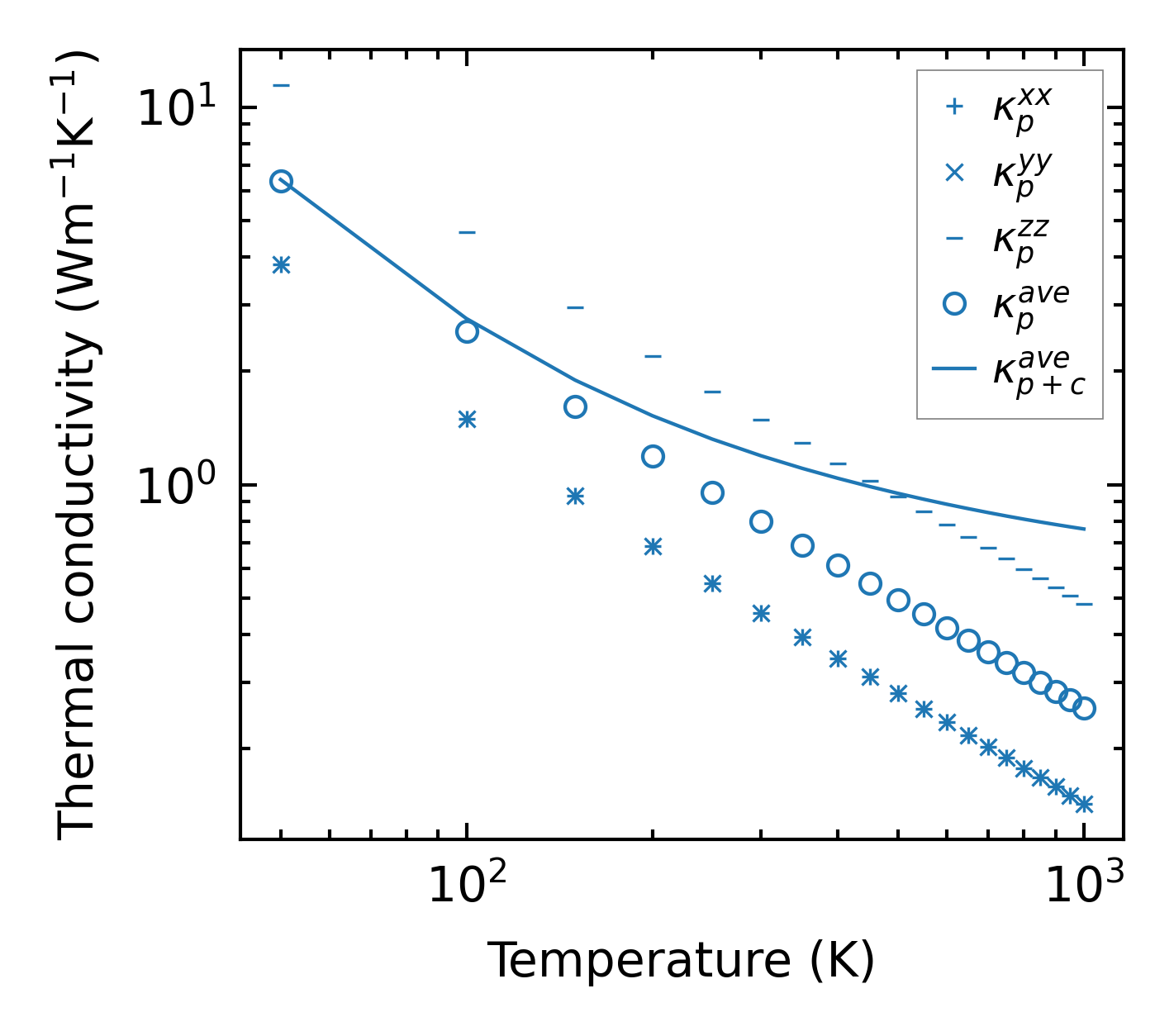

../../_images/fig_kappa9947.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size5357.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

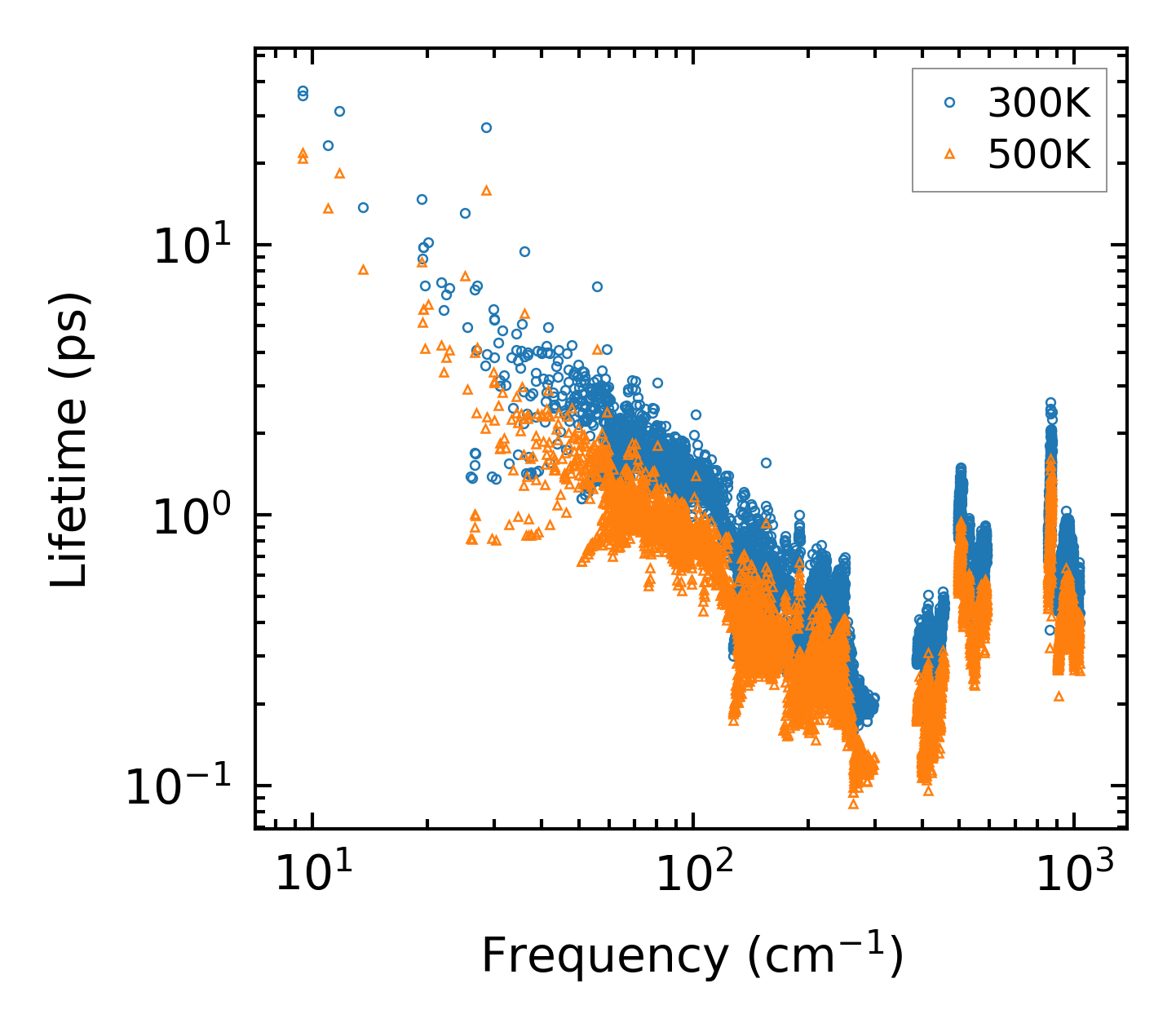

../../_images/fig_lifetime5244.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates5243.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

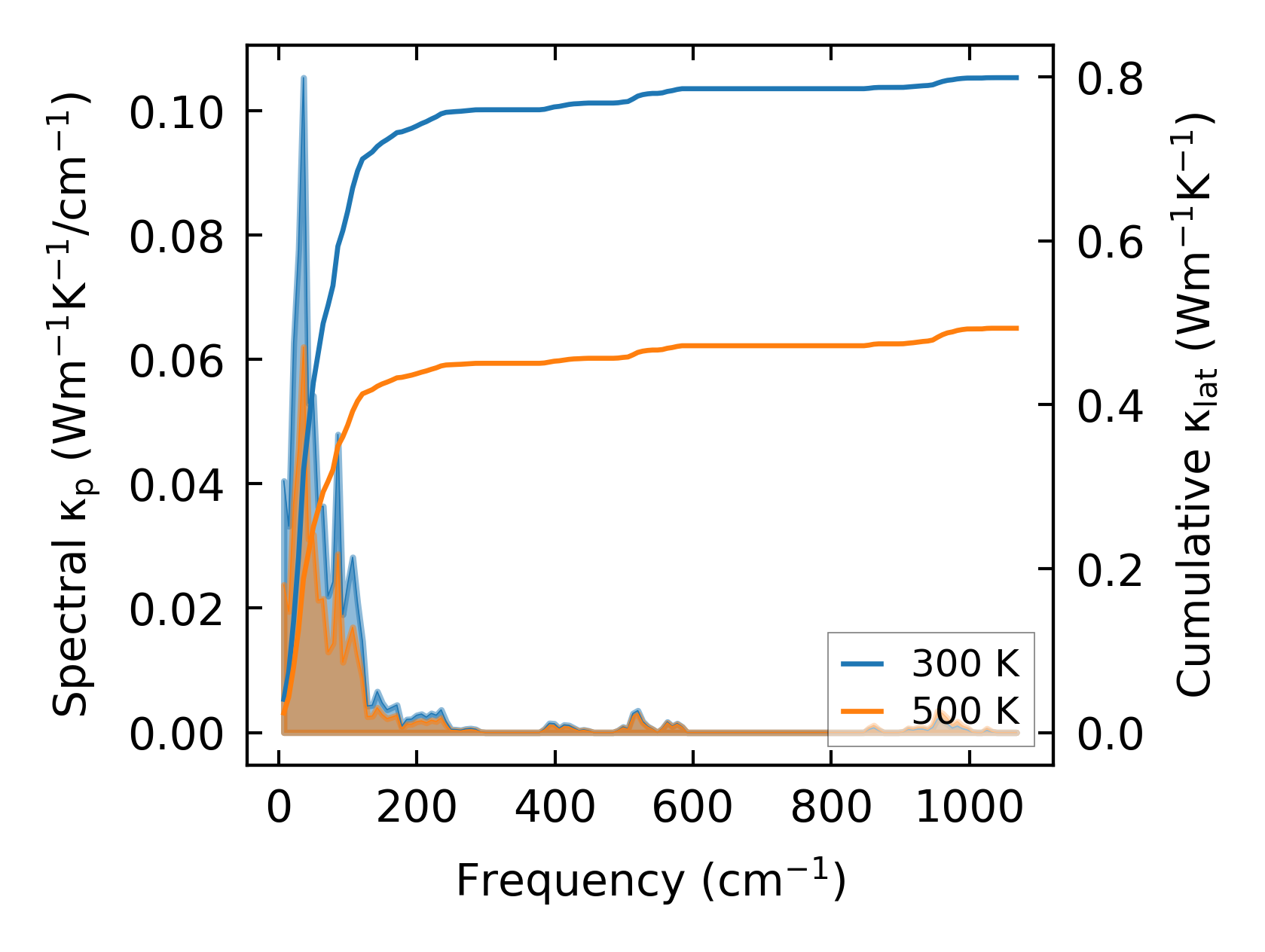

../../_images/fig_cumu_frequency5244.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

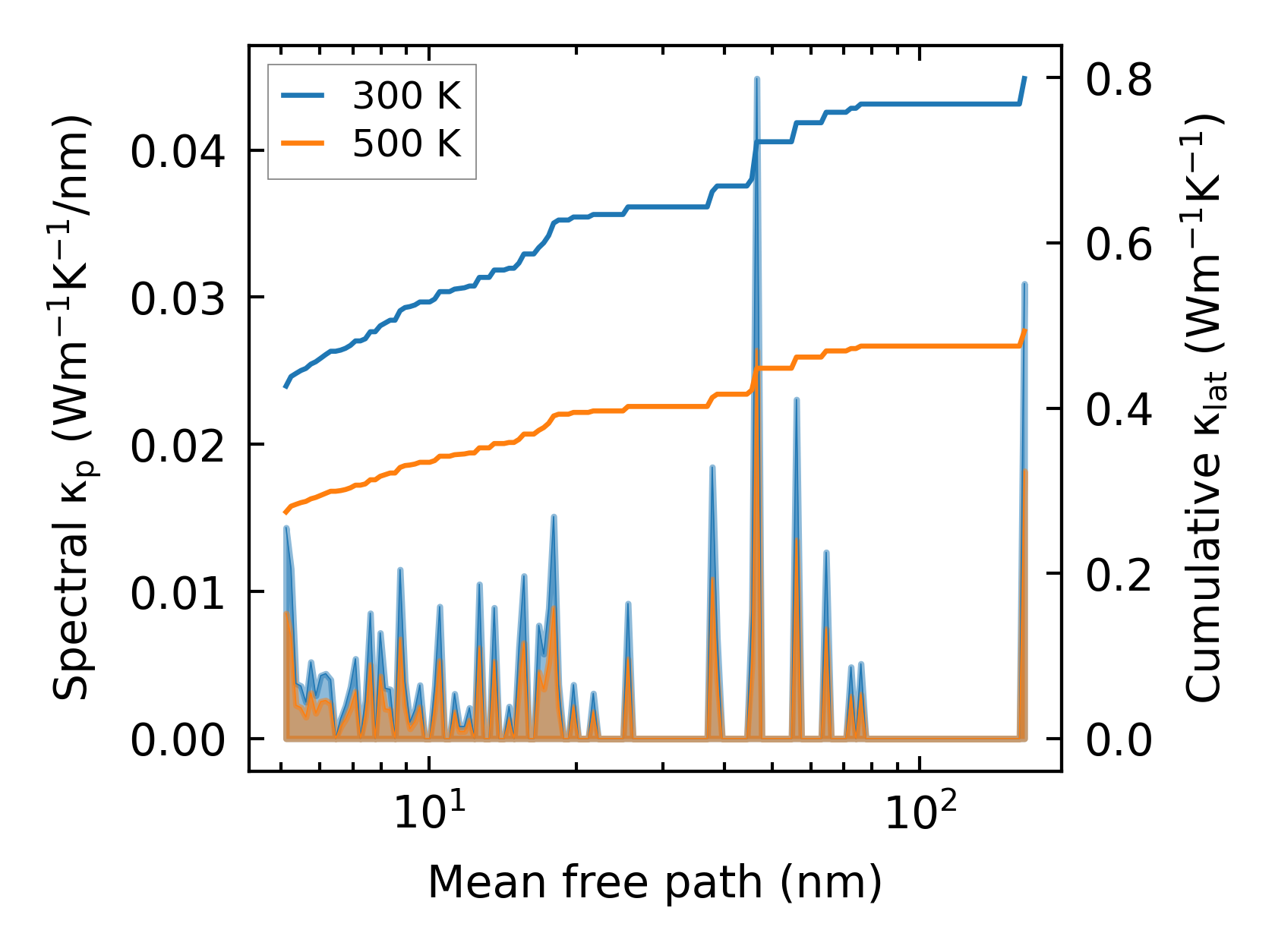

../../_images/fig_cumu_mfp5243.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc212471.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa9948.png — (a) Temperature-dependent lattice thermal conductivity

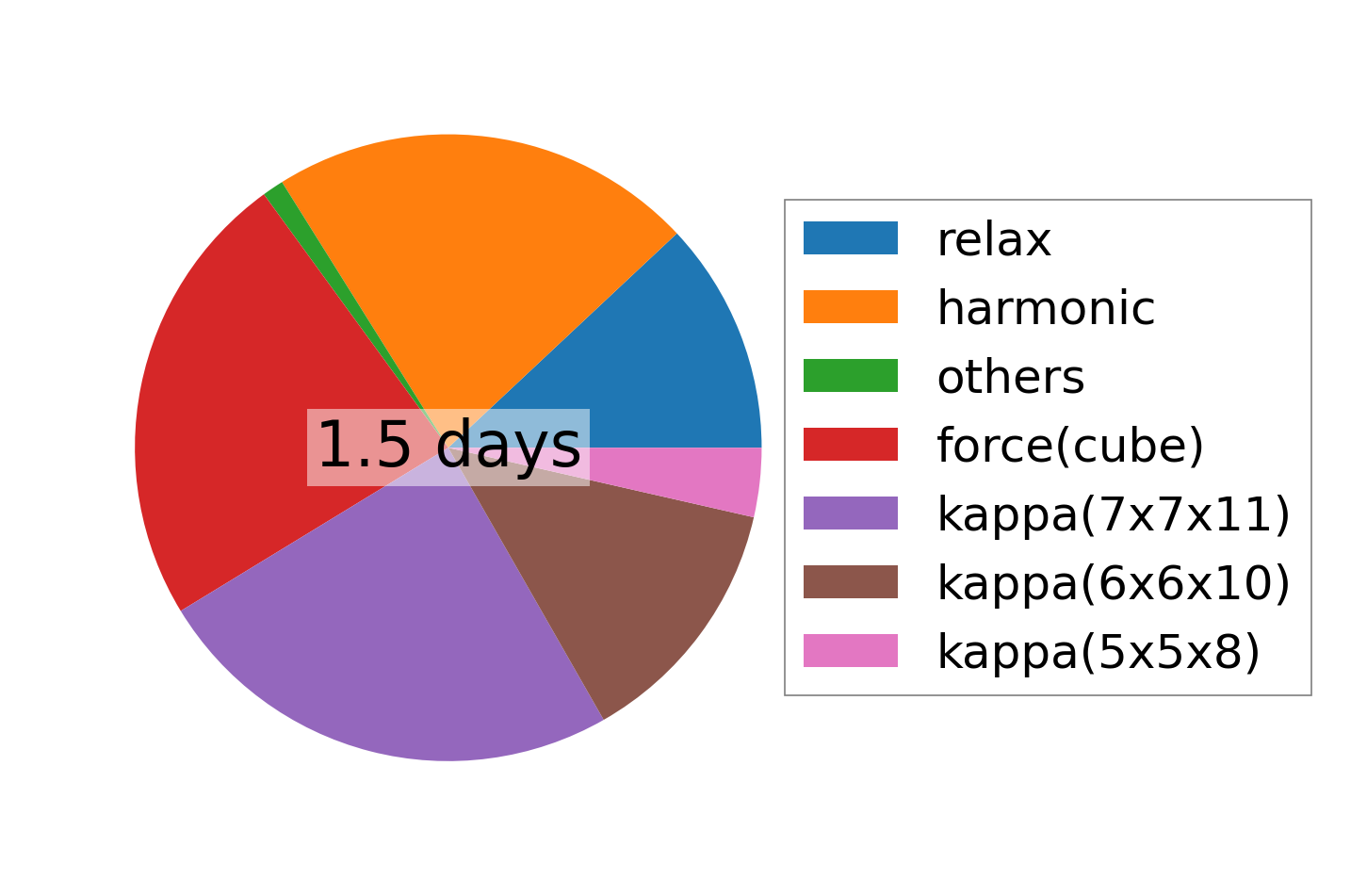

../../_images/fig_times21673.png — (b) Computation time
