mp-23167/TlCl/anharm

Space group: Pm-3m (221)
Link: Materials Project
Download: mp-23167.tar.gz

Harmonic properties

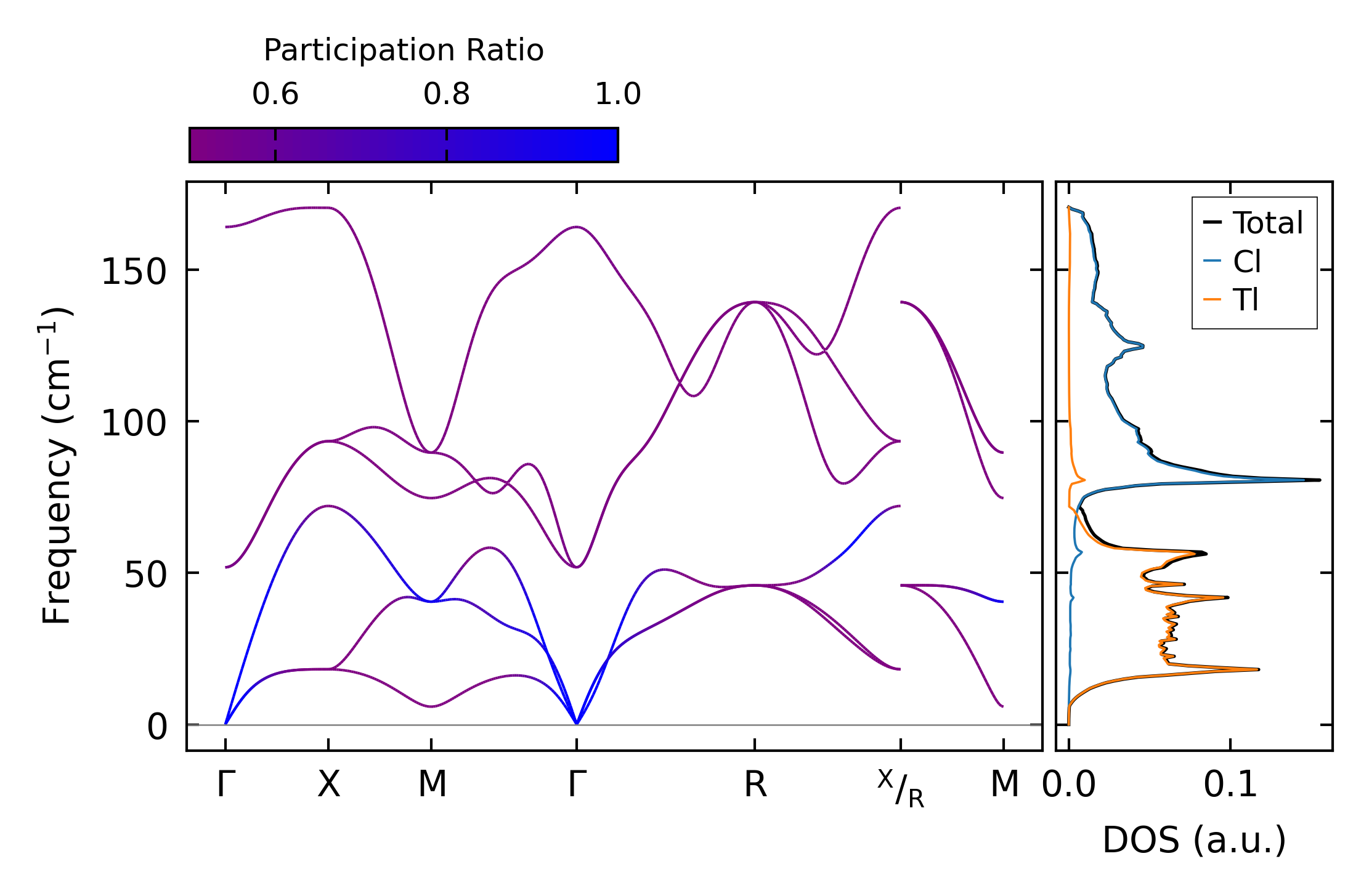

../../_images/fig_bandos_pr12927.png — (a) Phonon dispersion with participation ratio and DOS

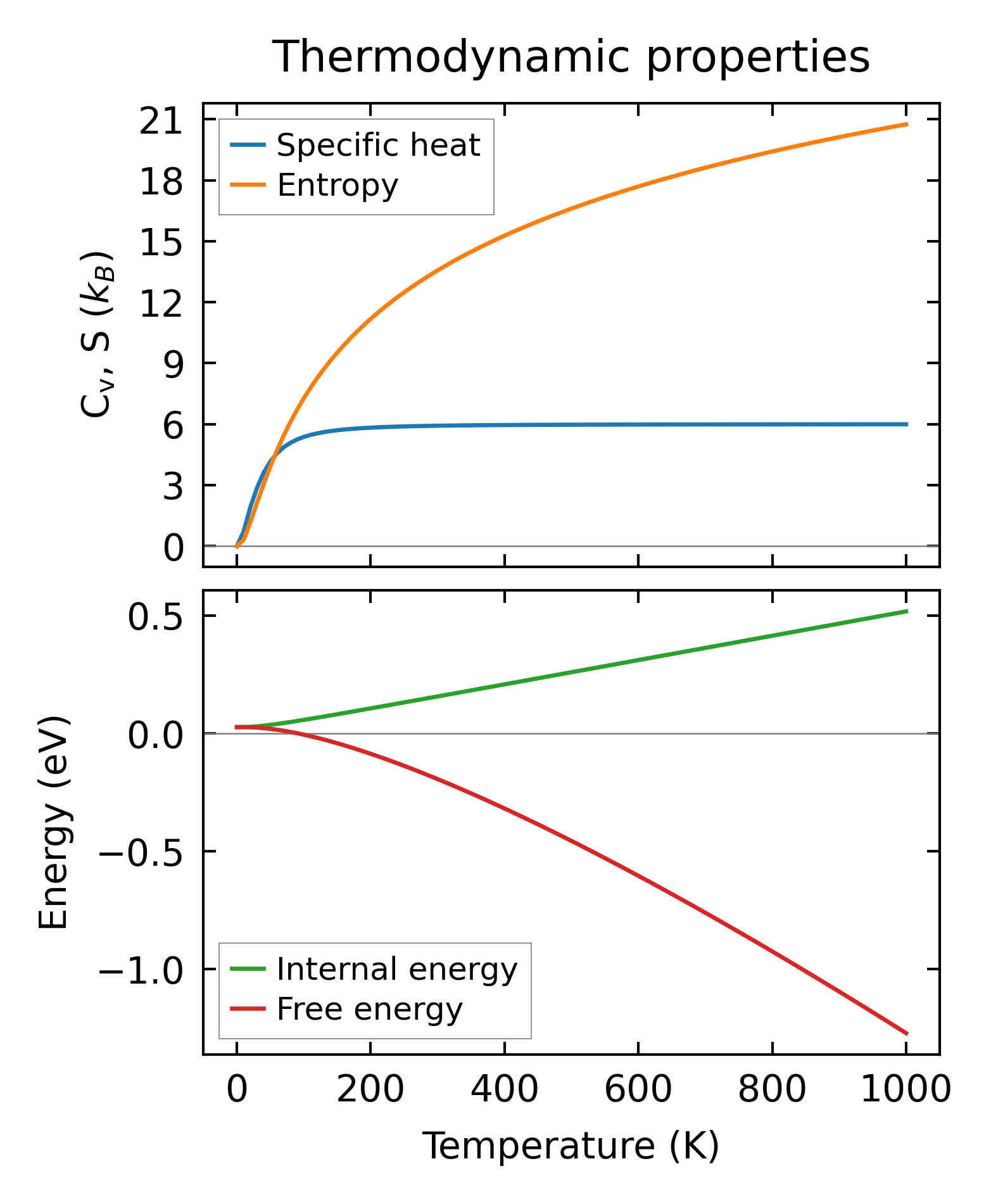

../../_images/fig_thermo12927.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all5366.png — (a) Grüneisen parameters

../../_images/fig_gruneisen5366.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon — q-mesh: 19x19x19, supercell: 4x4x4

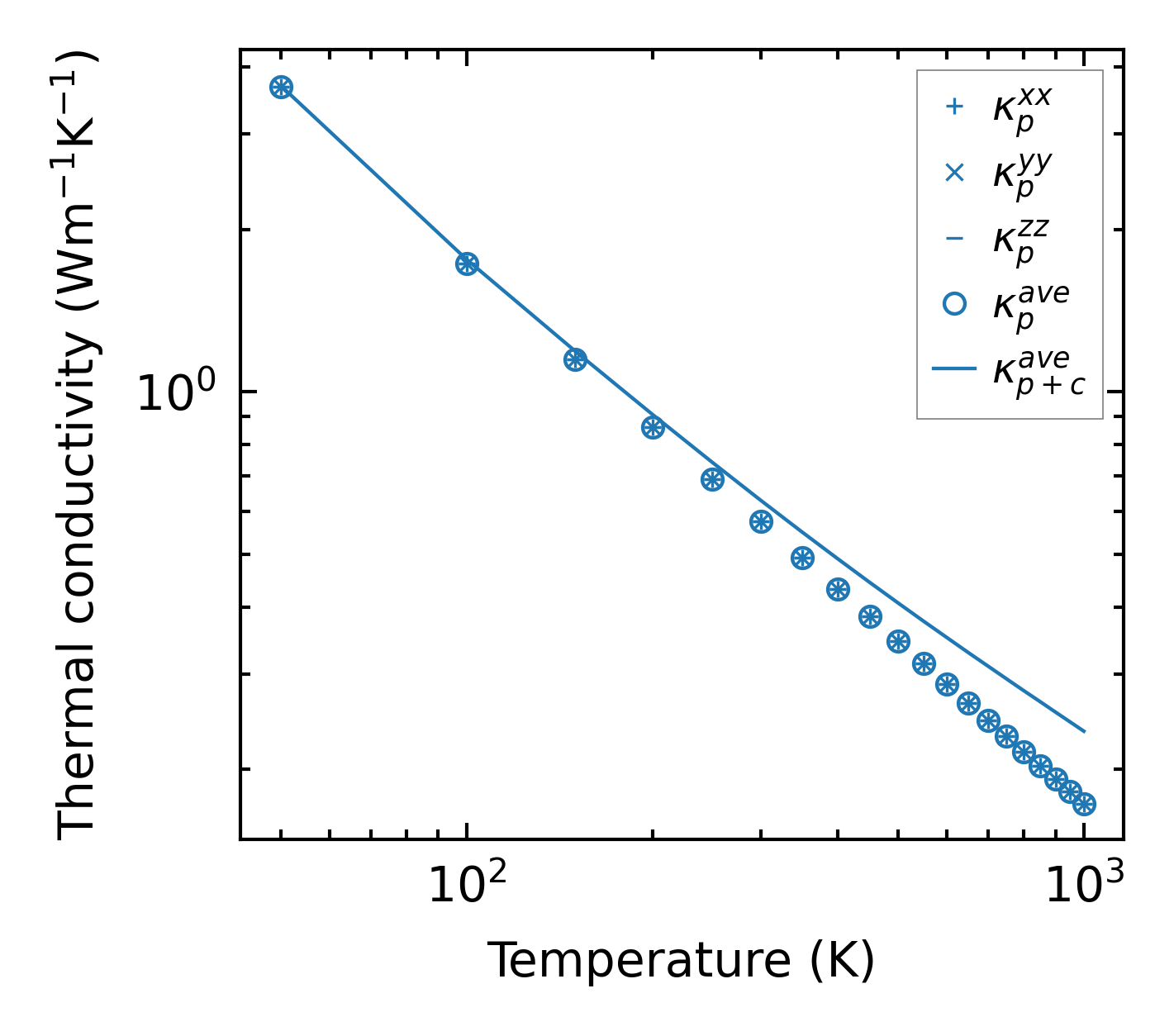

../../_images/fig_kappa10080.png — (a) Temperature-dependent lattice thermal conductivity

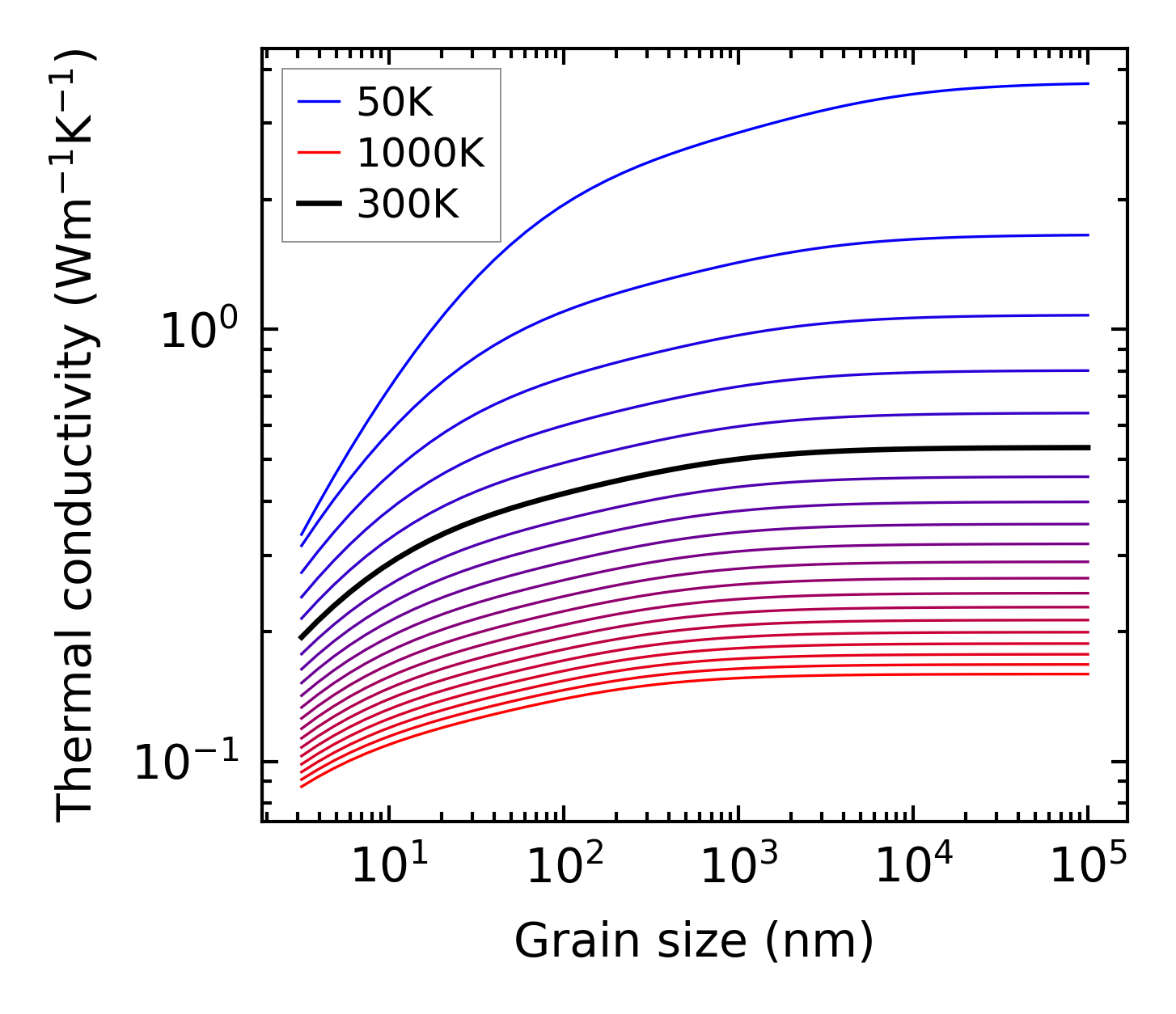

../../_images/fig_kappa_vs_grain_size5430.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime5314.png — (a) Phonon lifetime due to phonon-phonon scattering

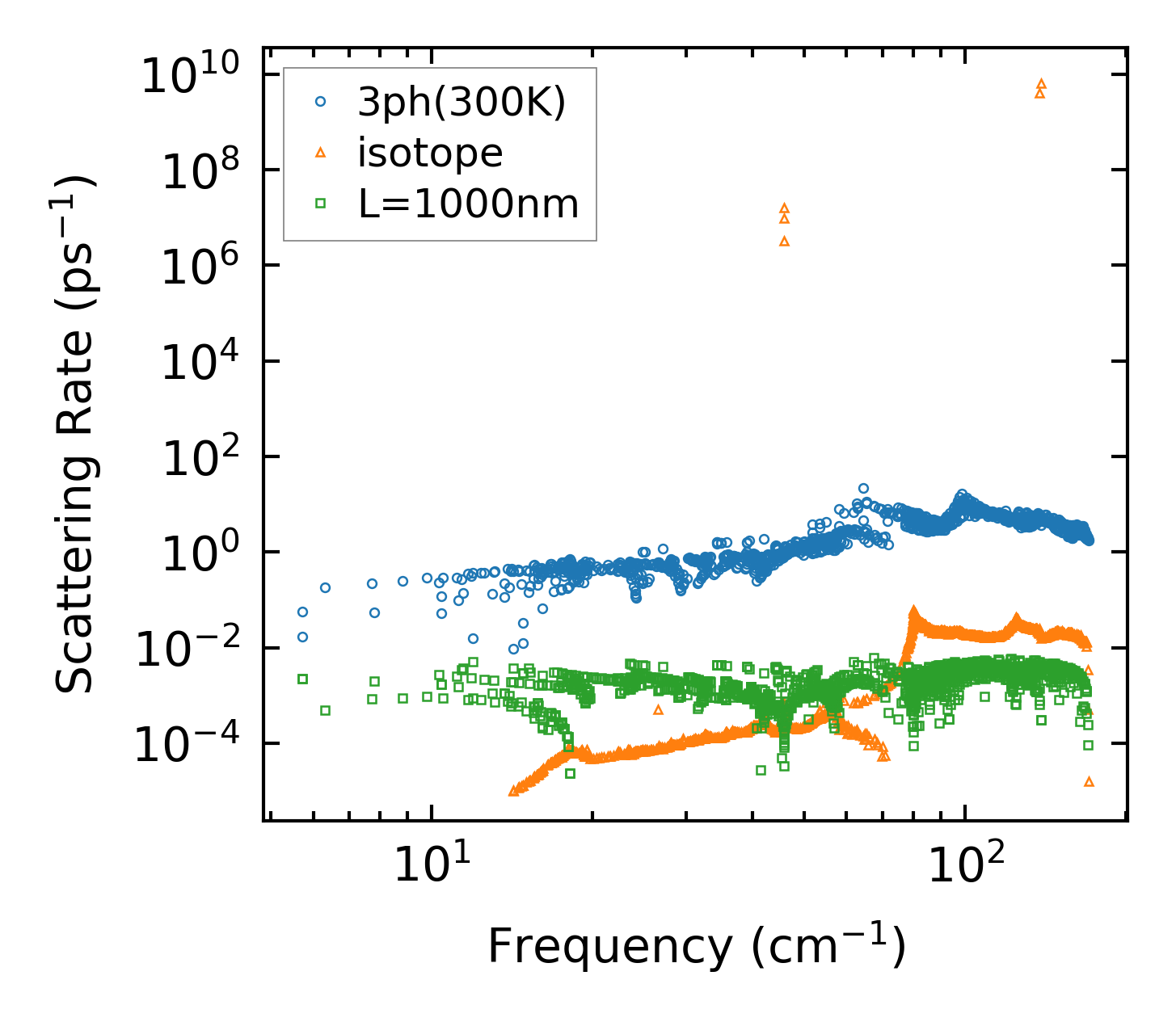

../../_images/fig_scat_rates5313.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

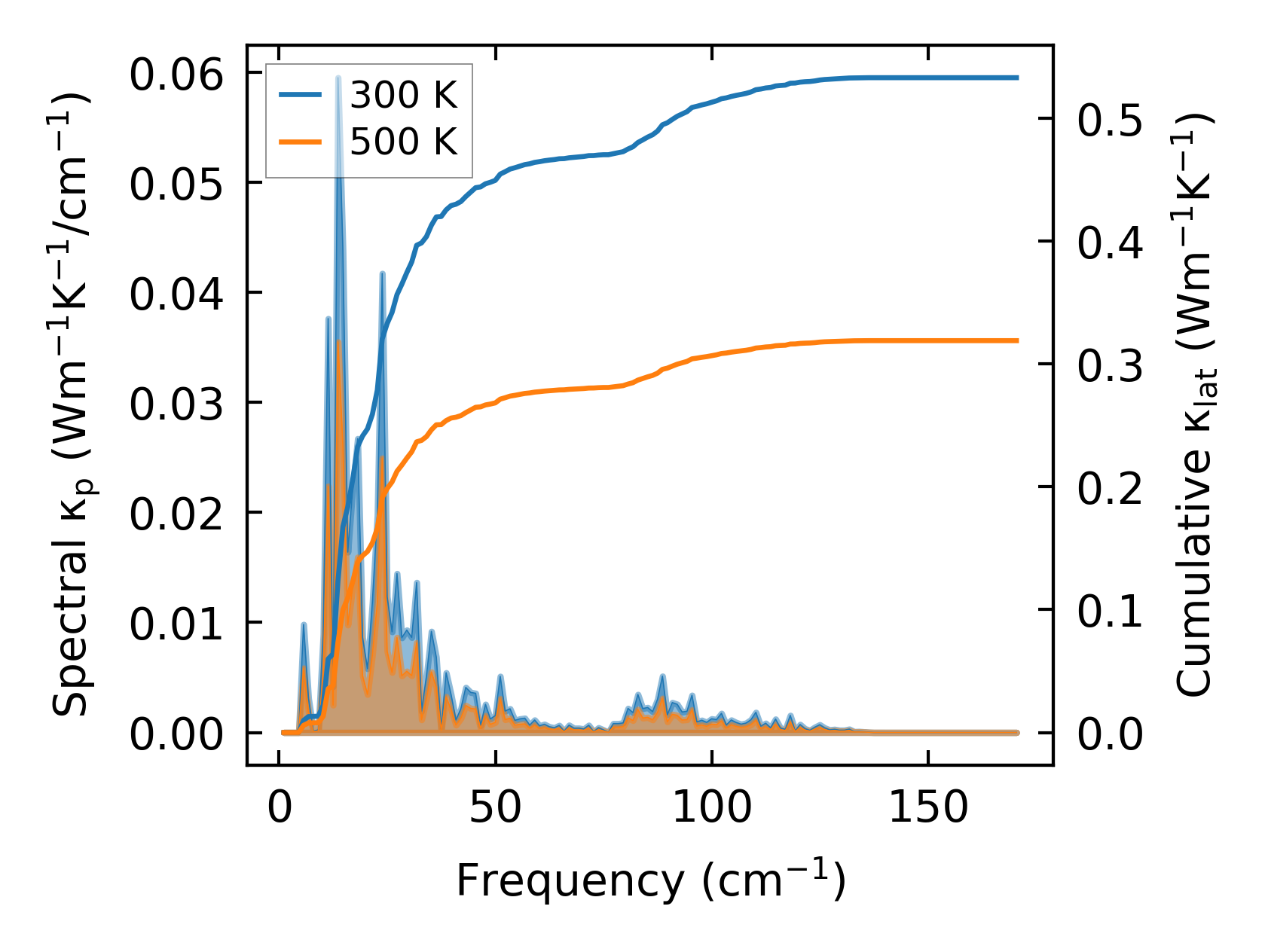

../../_images/fig_cumu_frequency5314.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp5313.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

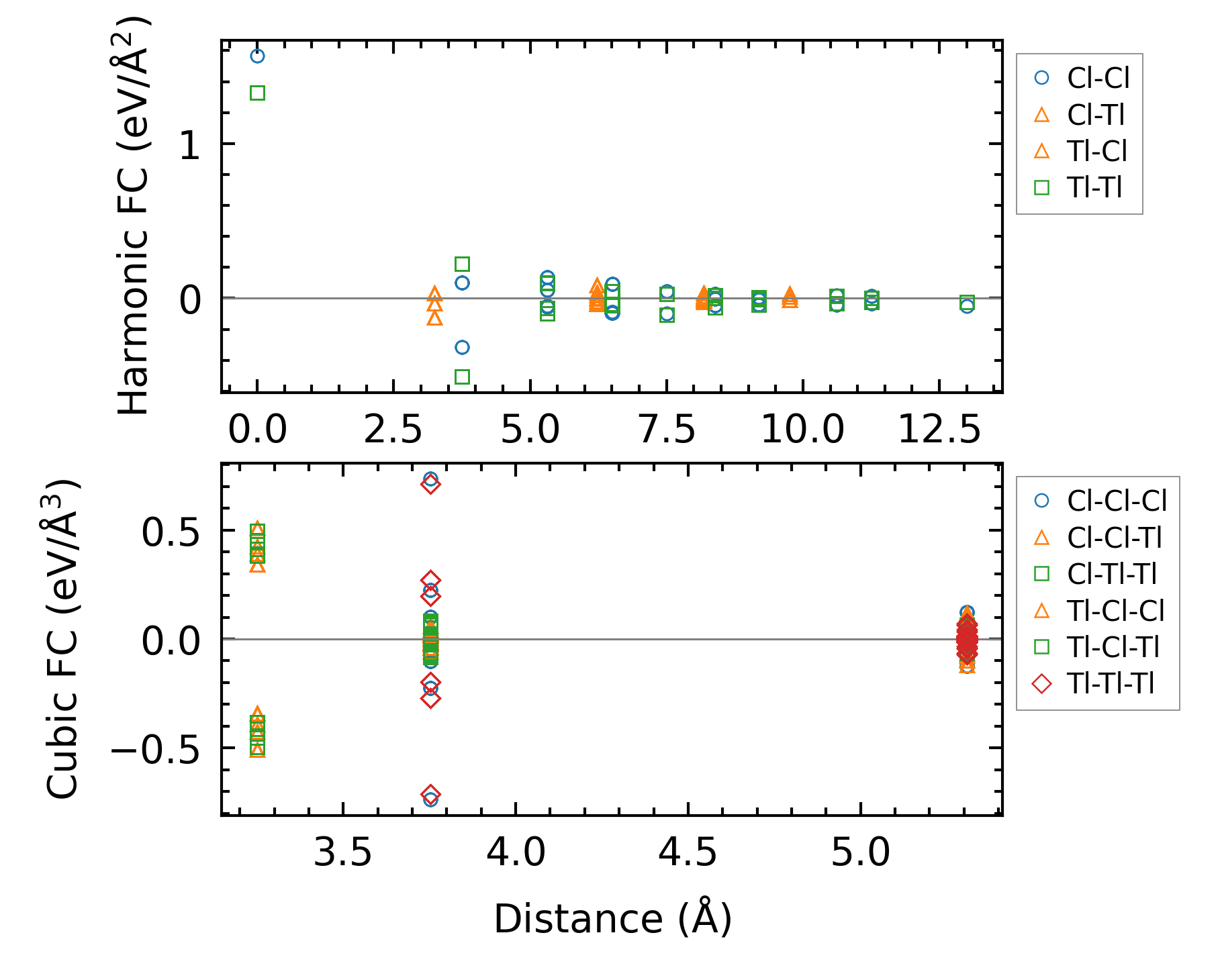

../../_images/fig_fc3306.png — (a) Force constants w.r.t atomic distance

Summary

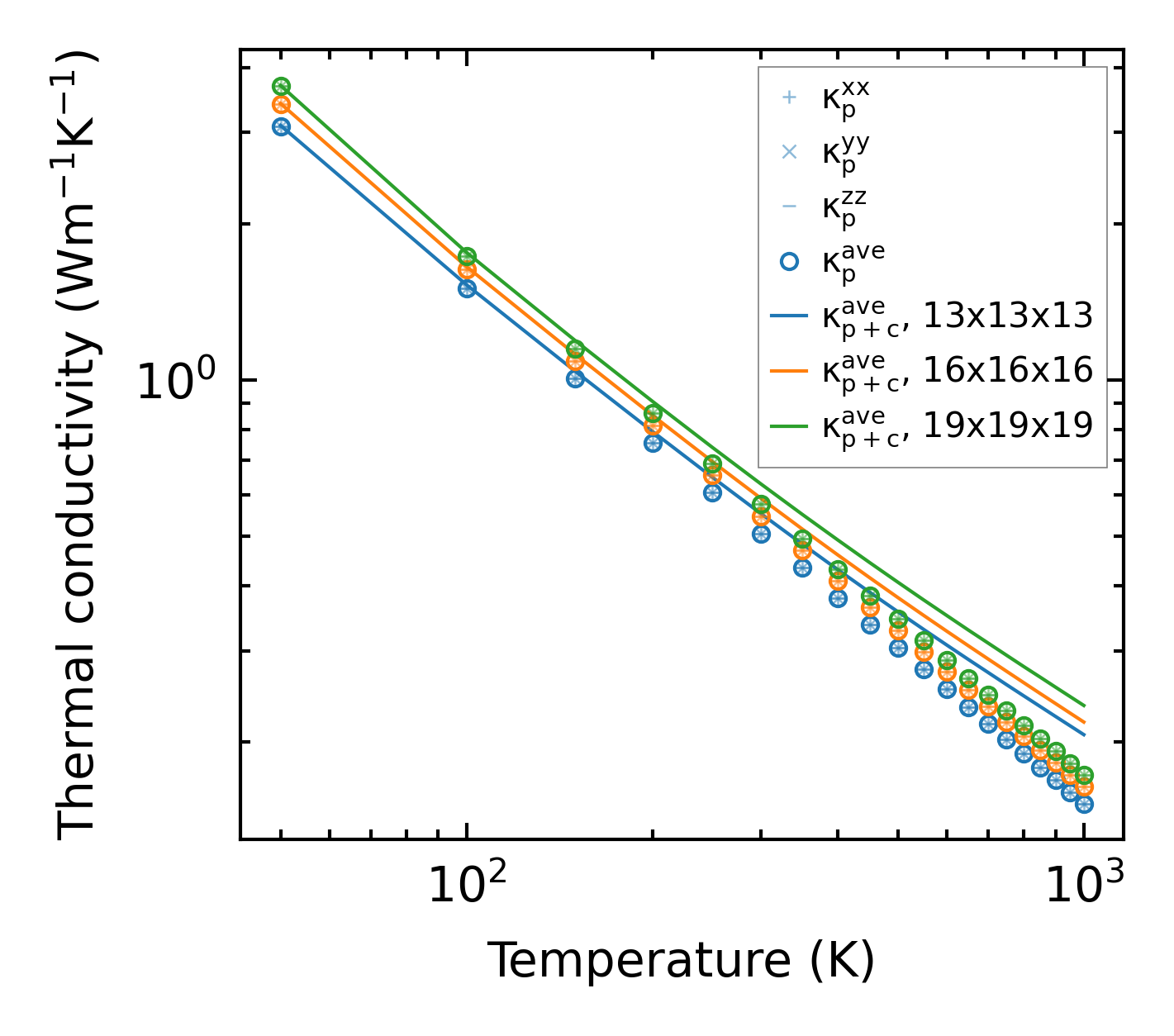

../../_images/fig_kappa10081.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times21874.png — (b) Computation time
