mp-23740/Mg2PHO5/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-23740.tar.gz

Harmonic properties

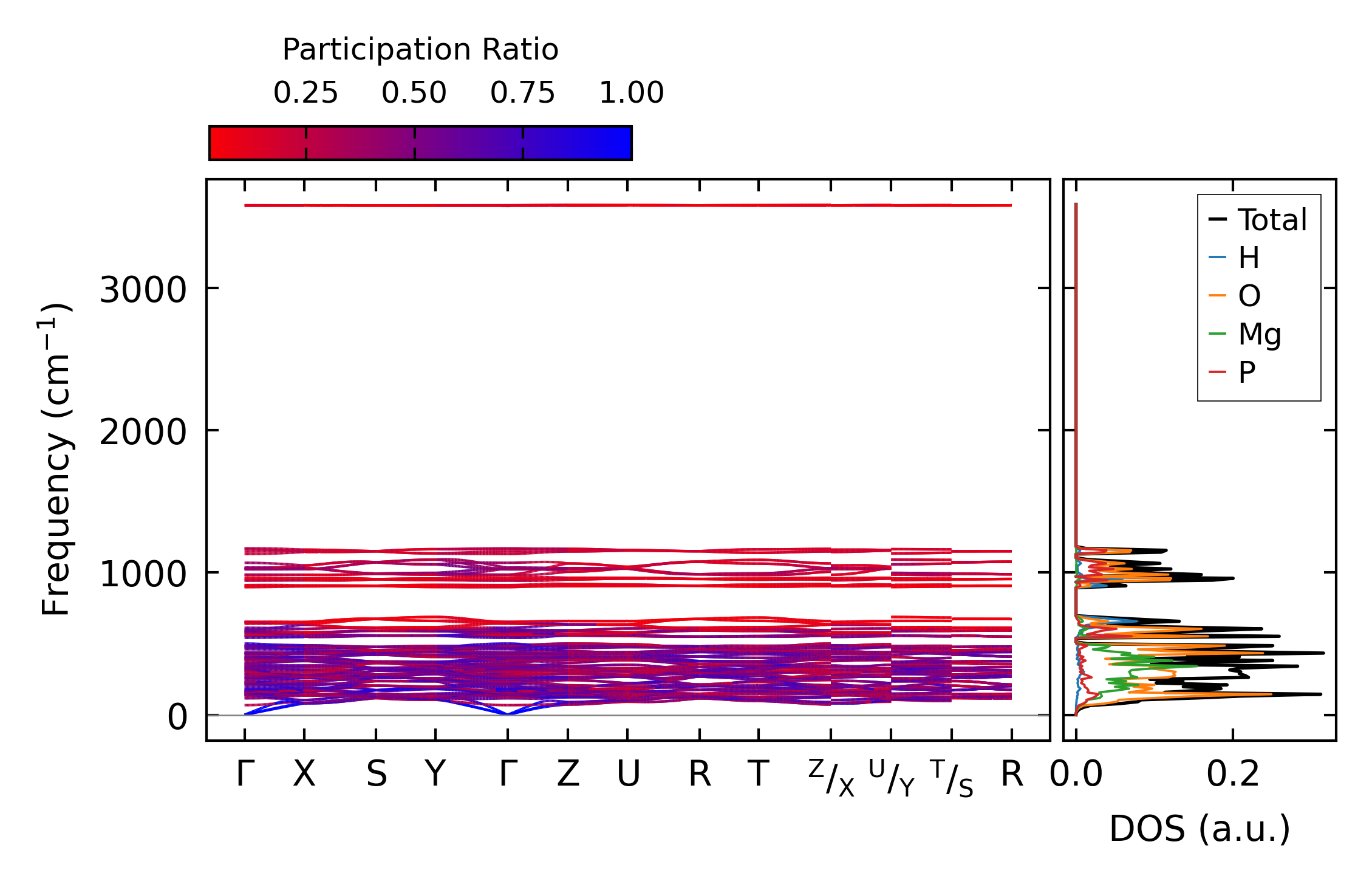

../../_images/fig_bandos_pr12481.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo12481.png — (b) Thermodynamic properties

Grüneisen parameters

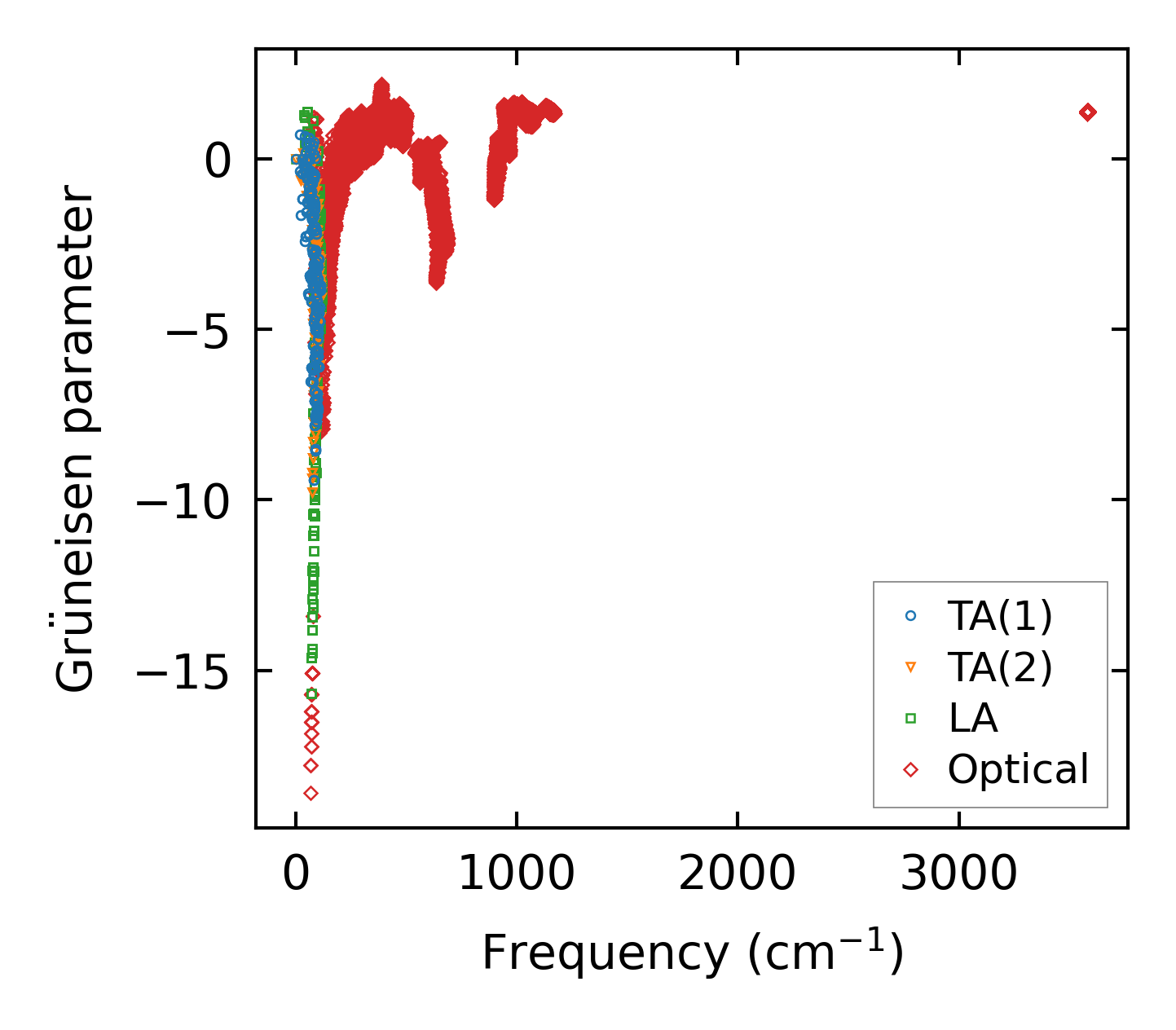

../../_images/fig_gru_all5182.png — (a) Grüneisen parameters

../../_images/fig_gruneisen5182.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x11x9, supercell: 1x2x2

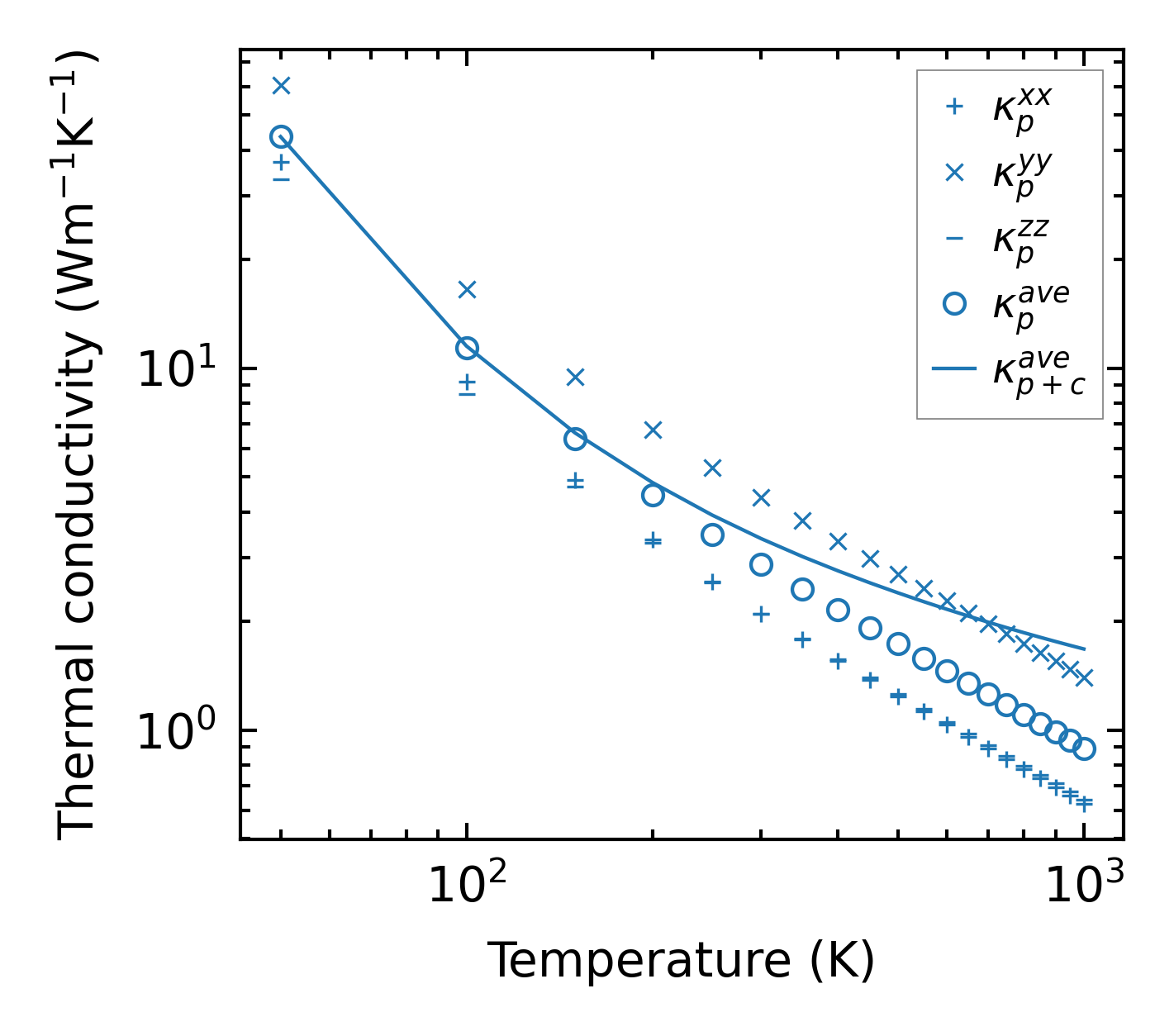

../../_images/fig_kappa9750.png — (a) Temperature-dependent lattice thermal conductivity

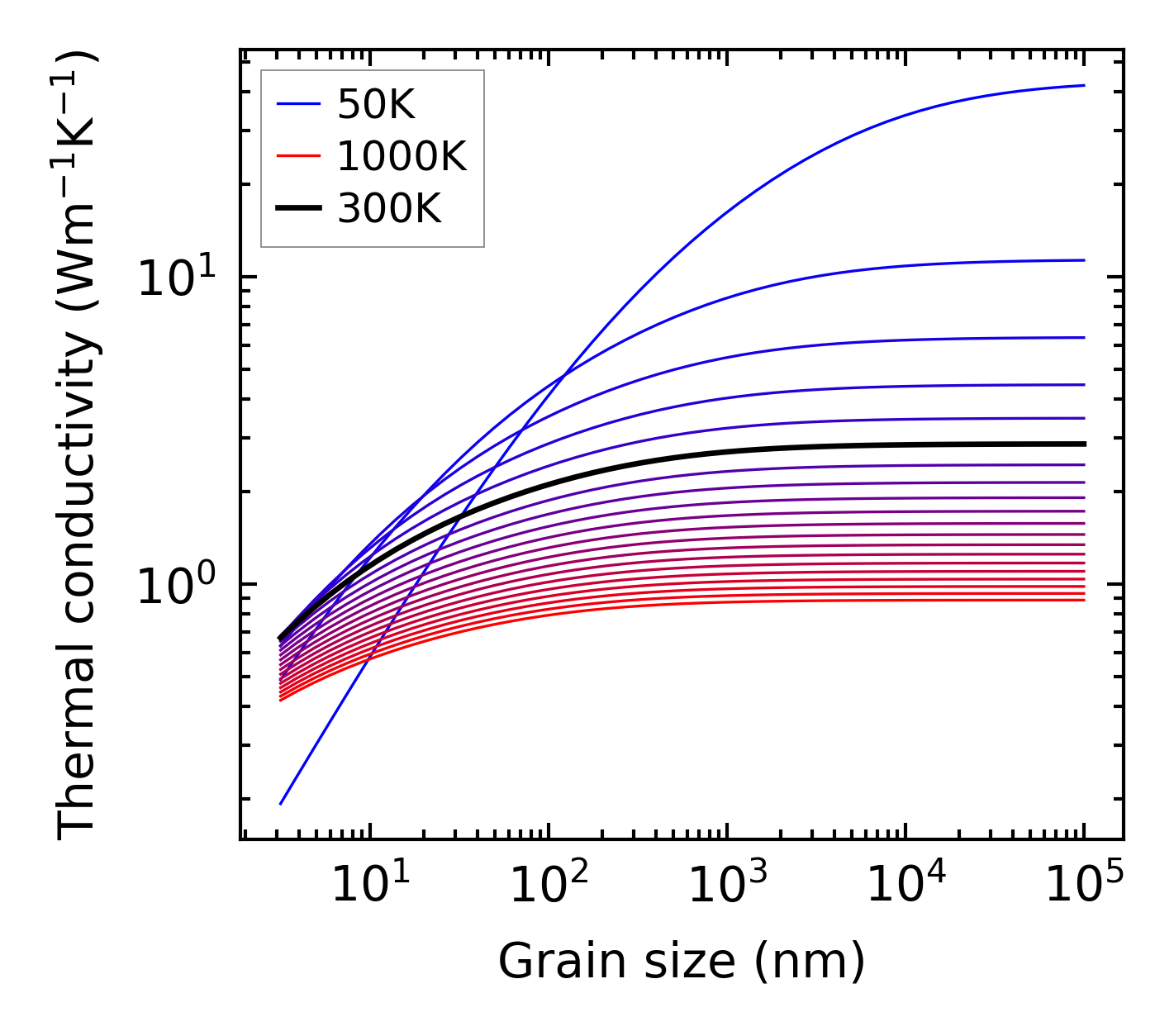

../../_images/fig_kappa_vs_grain_size5244.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

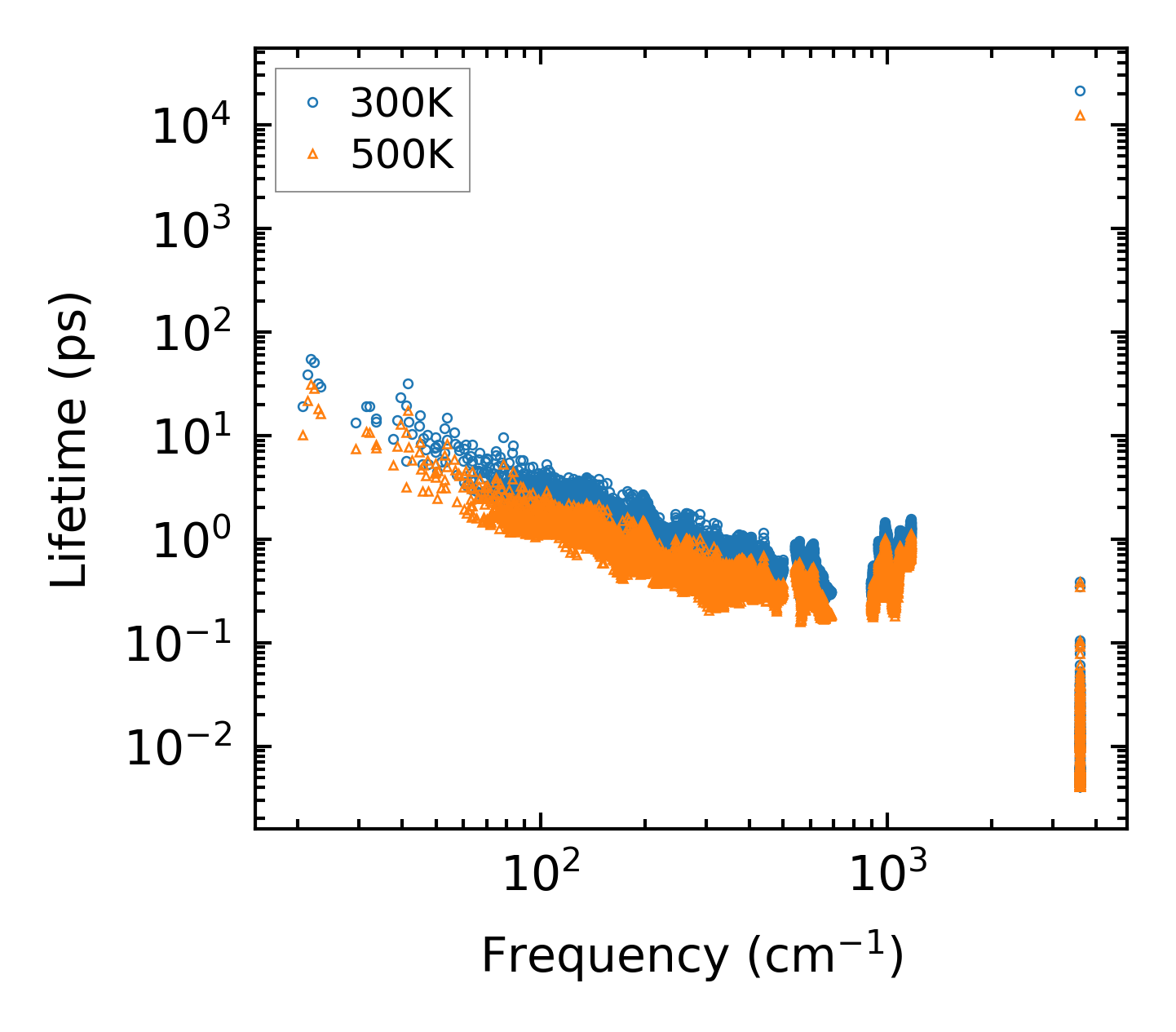

../../_images/fig_lifetime5131.png — (a) Phonon lifetime due to phonon-phonon scattering

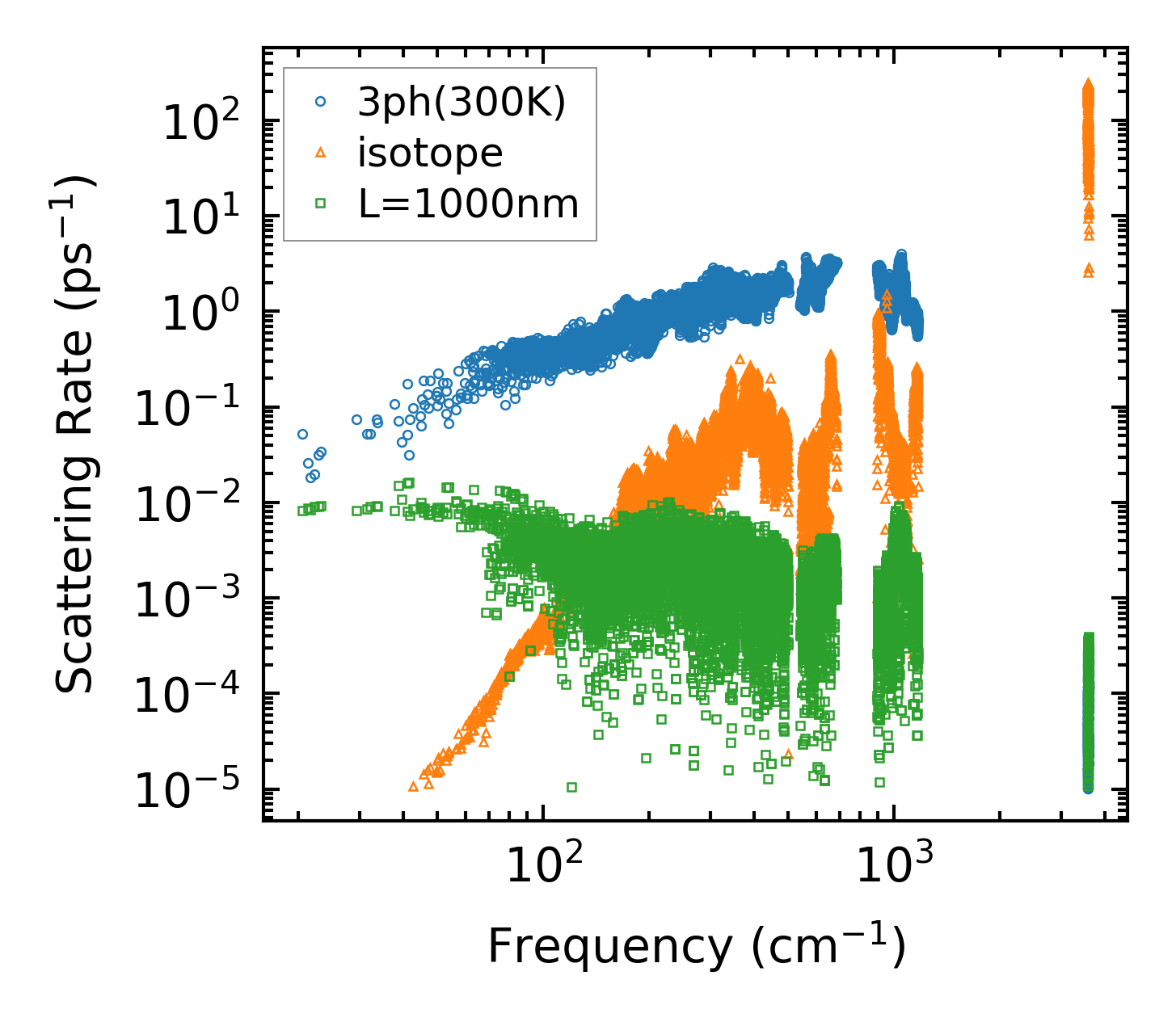

../../_images/fig_scat_rates5130.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

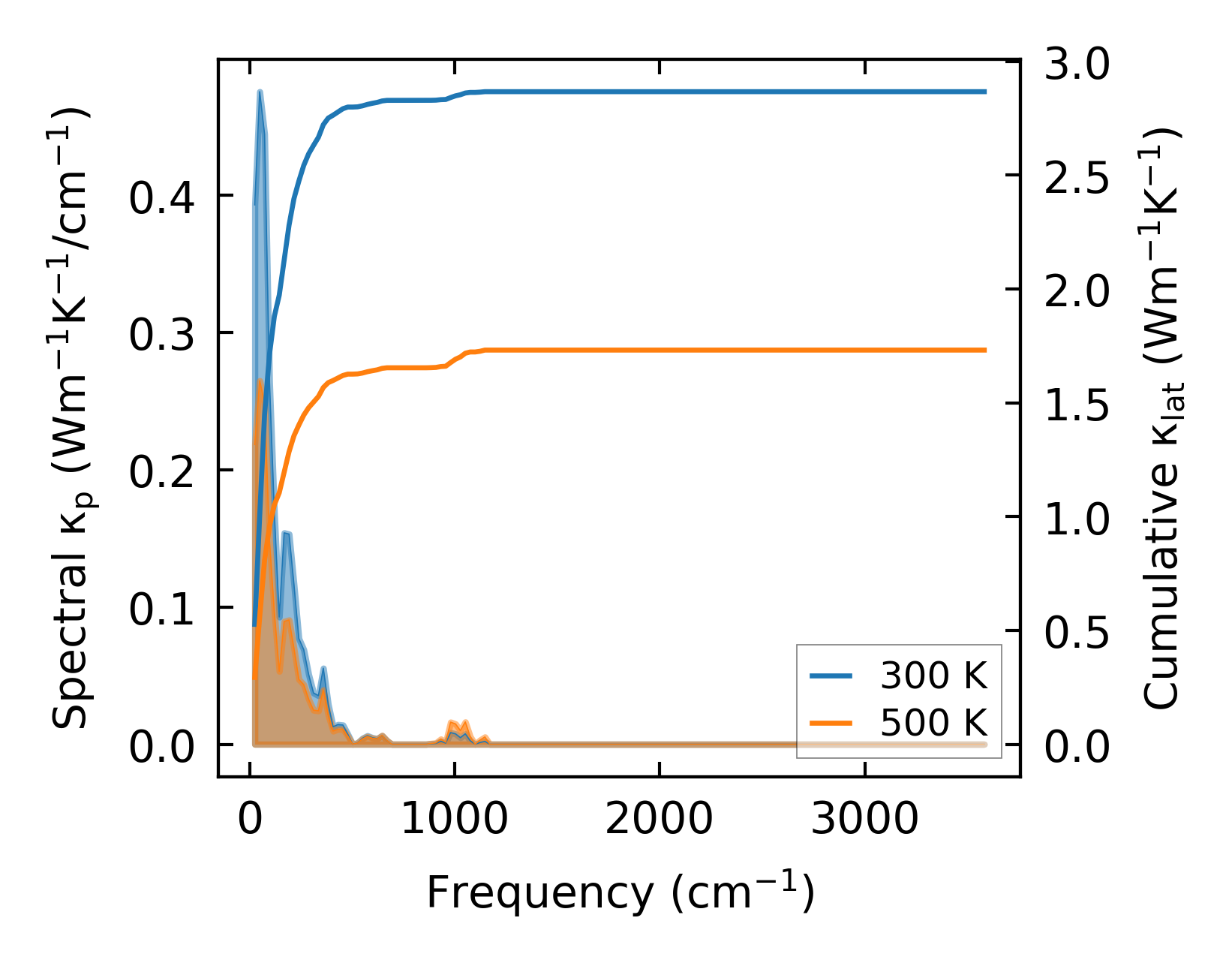

../../_images/fig_cumu_frequency5131.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

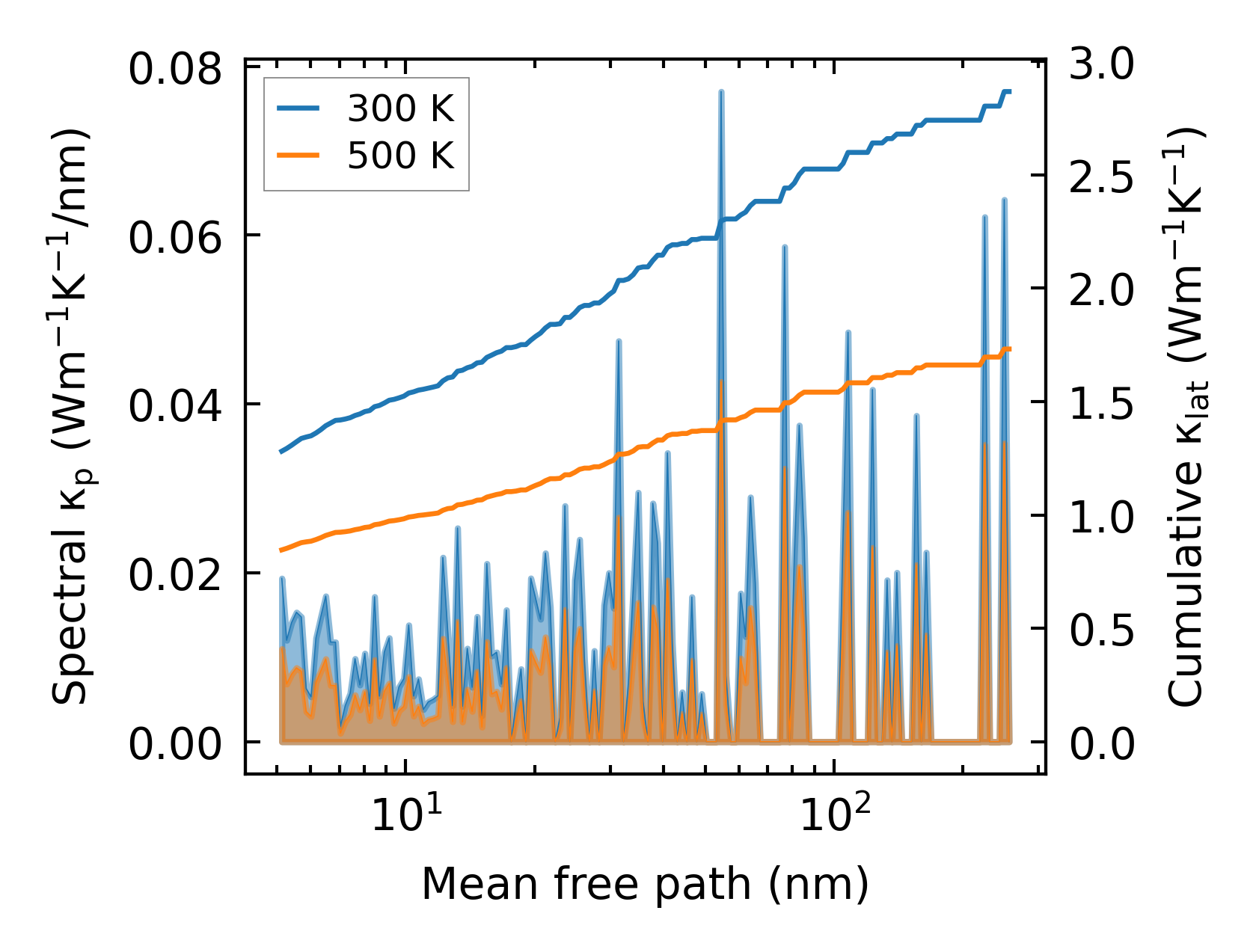

../../_images/fig_cumu_mfp5130.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

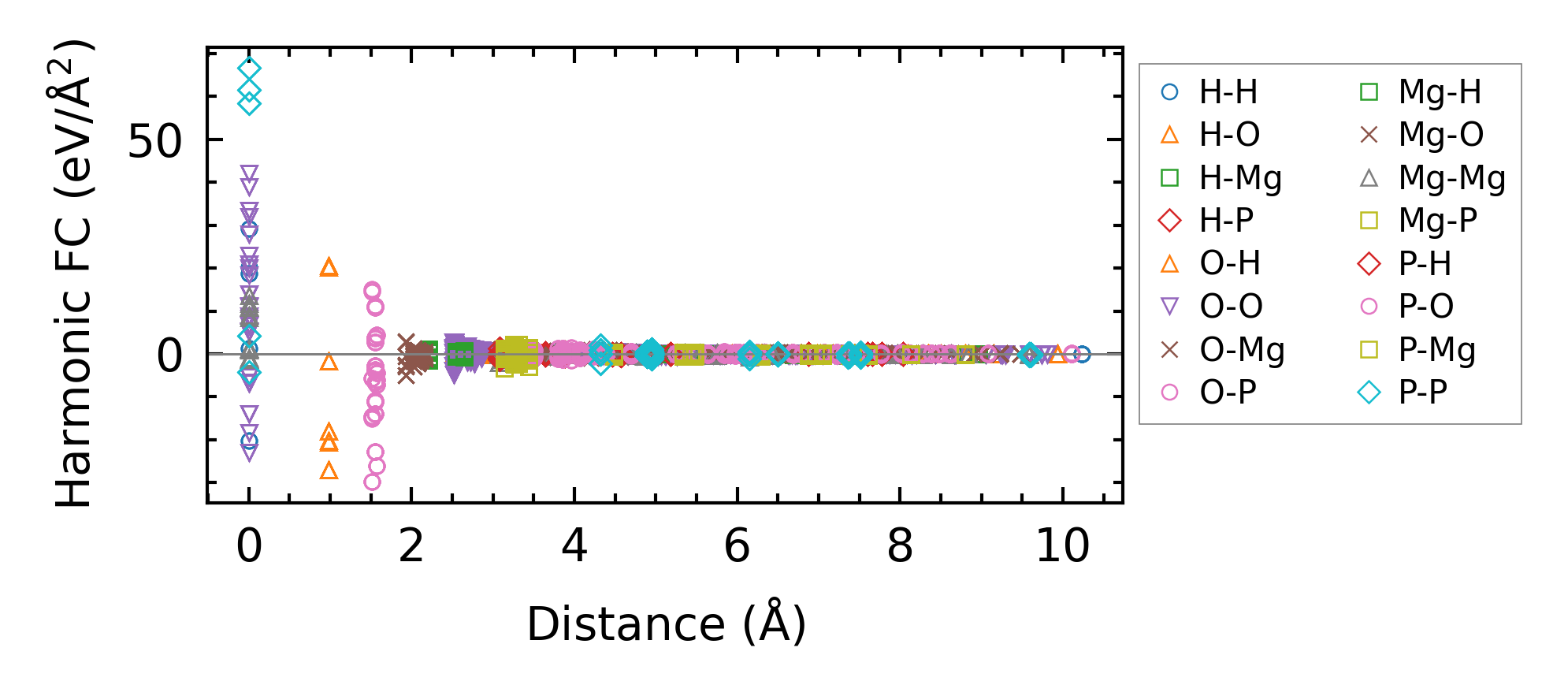

../../_images/fig_fc212180.png — (a) Force constants w.r.t atomic distance

Summary

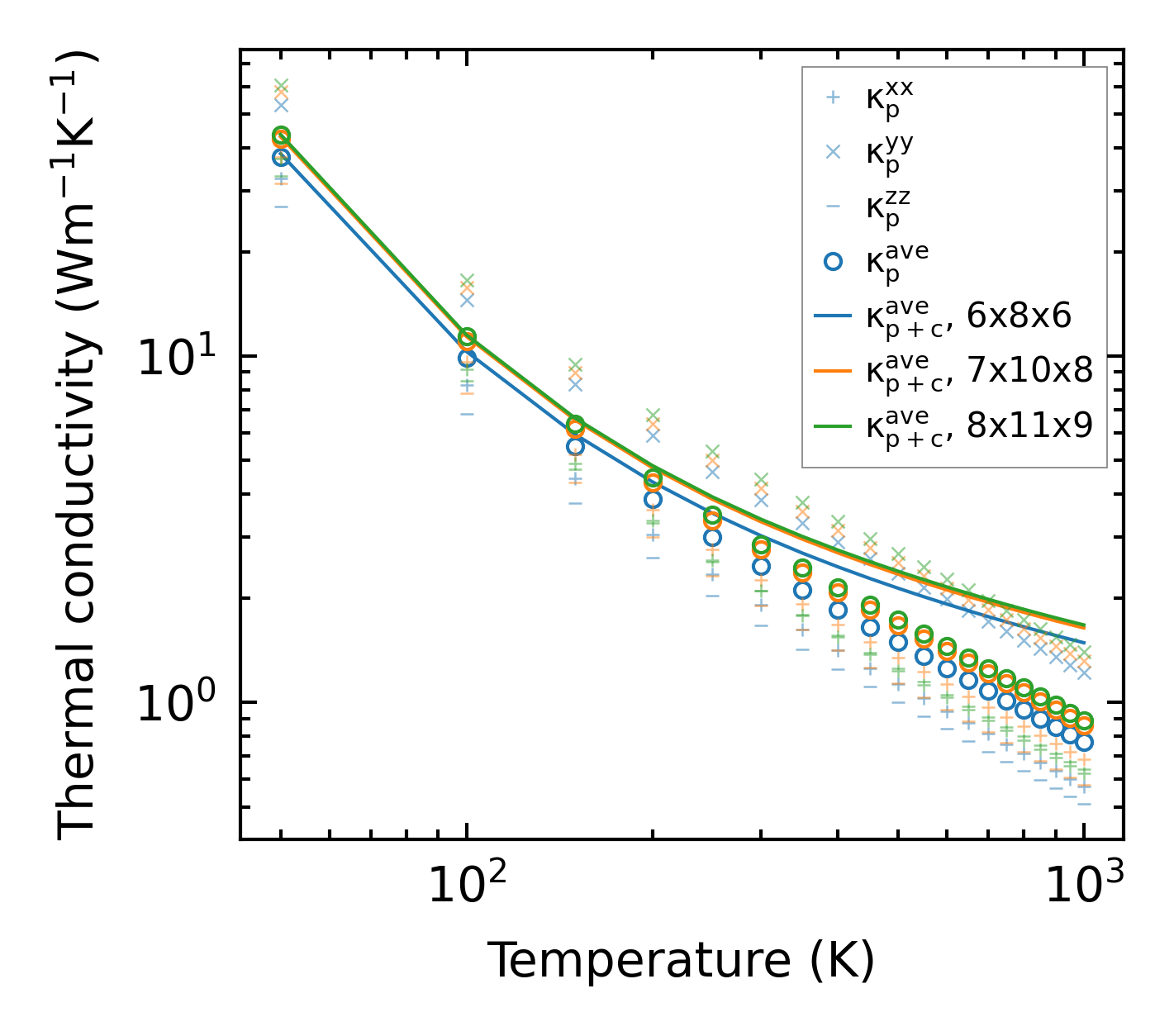

../../_images/fig_kappa9751.png — (a) Temperature-dependent lattice thermal conductivity

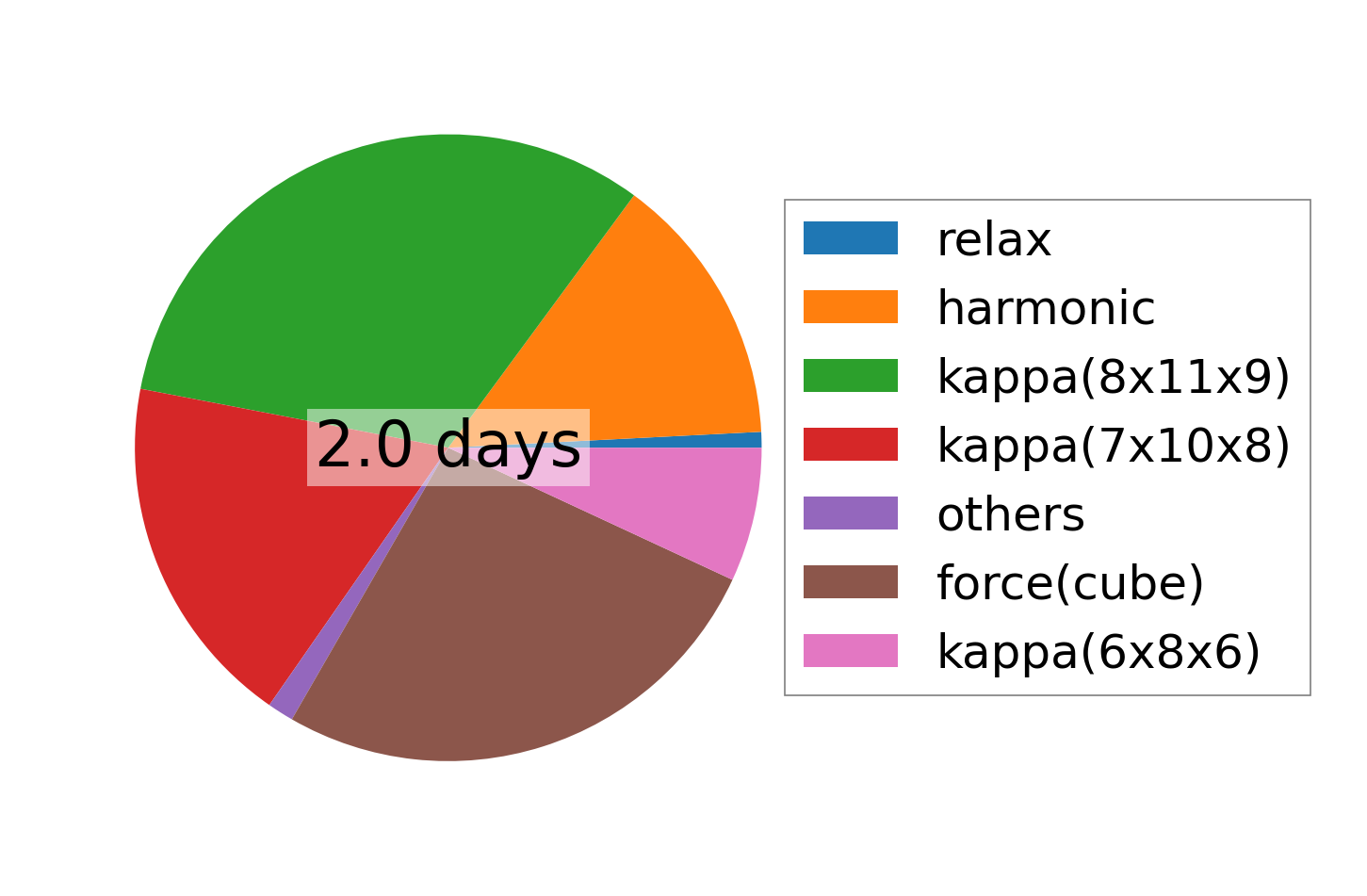

../../_images/fig_times21208.png — (b) Computation time
