mp-23260/BaI2/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-23260.tar.gz

Harmonic properties

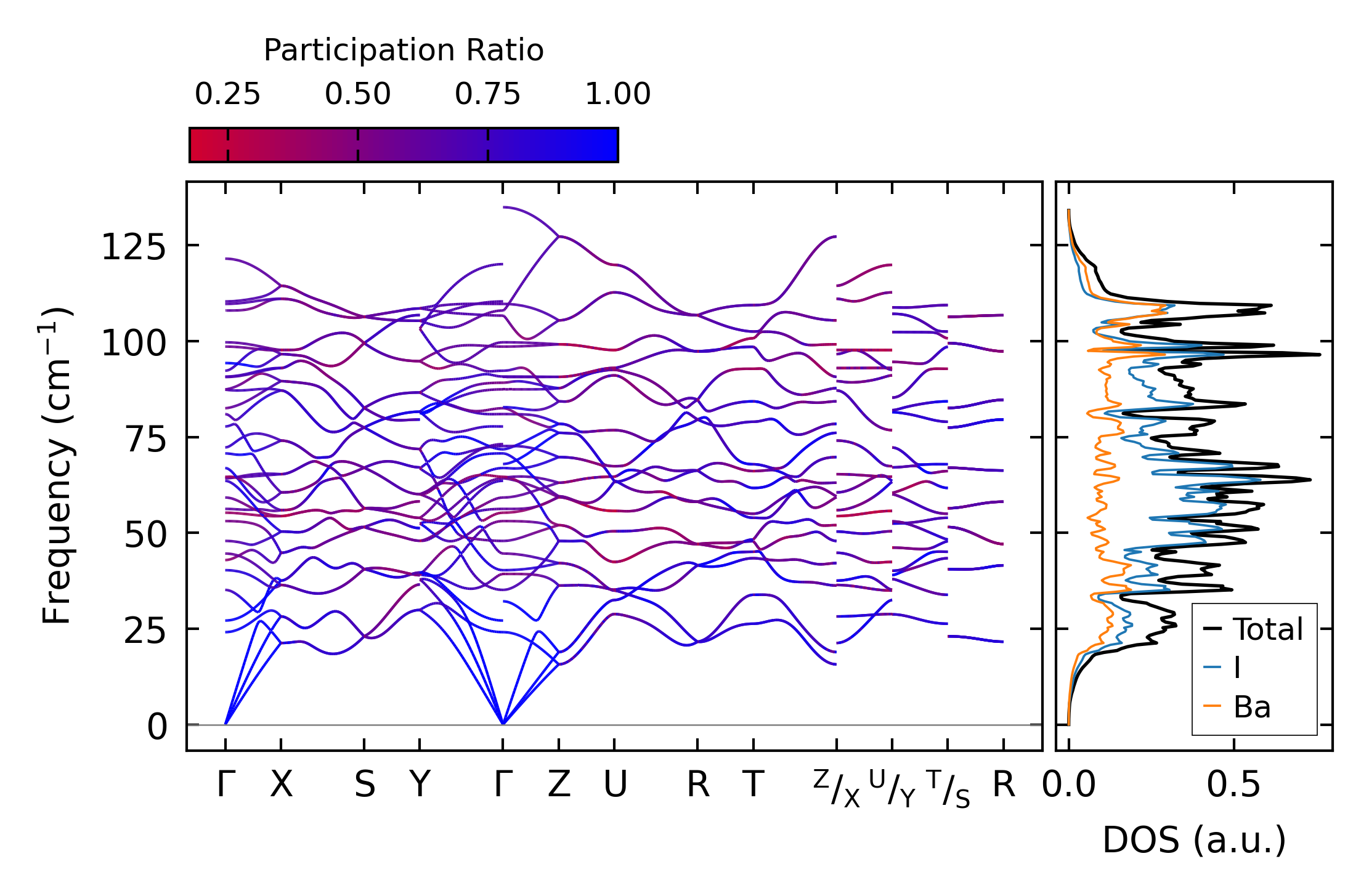

../../_images/fig_bandos_pr12966.png — (a) Phonon dispersion with participation ratio and DOS

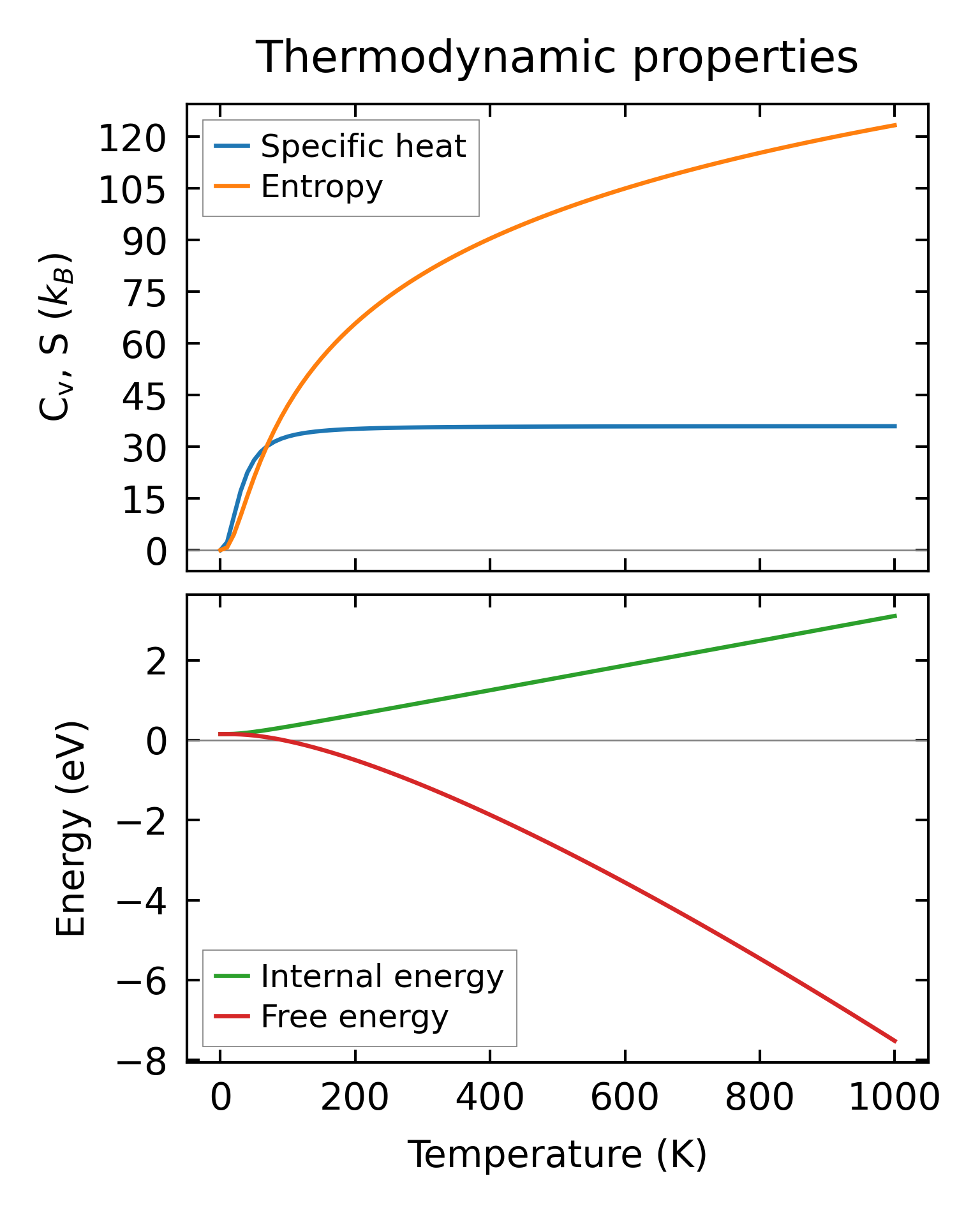

../../_images/fig_thermo12966.png — (b) Thermodynamic properties

Grüneisen parameters

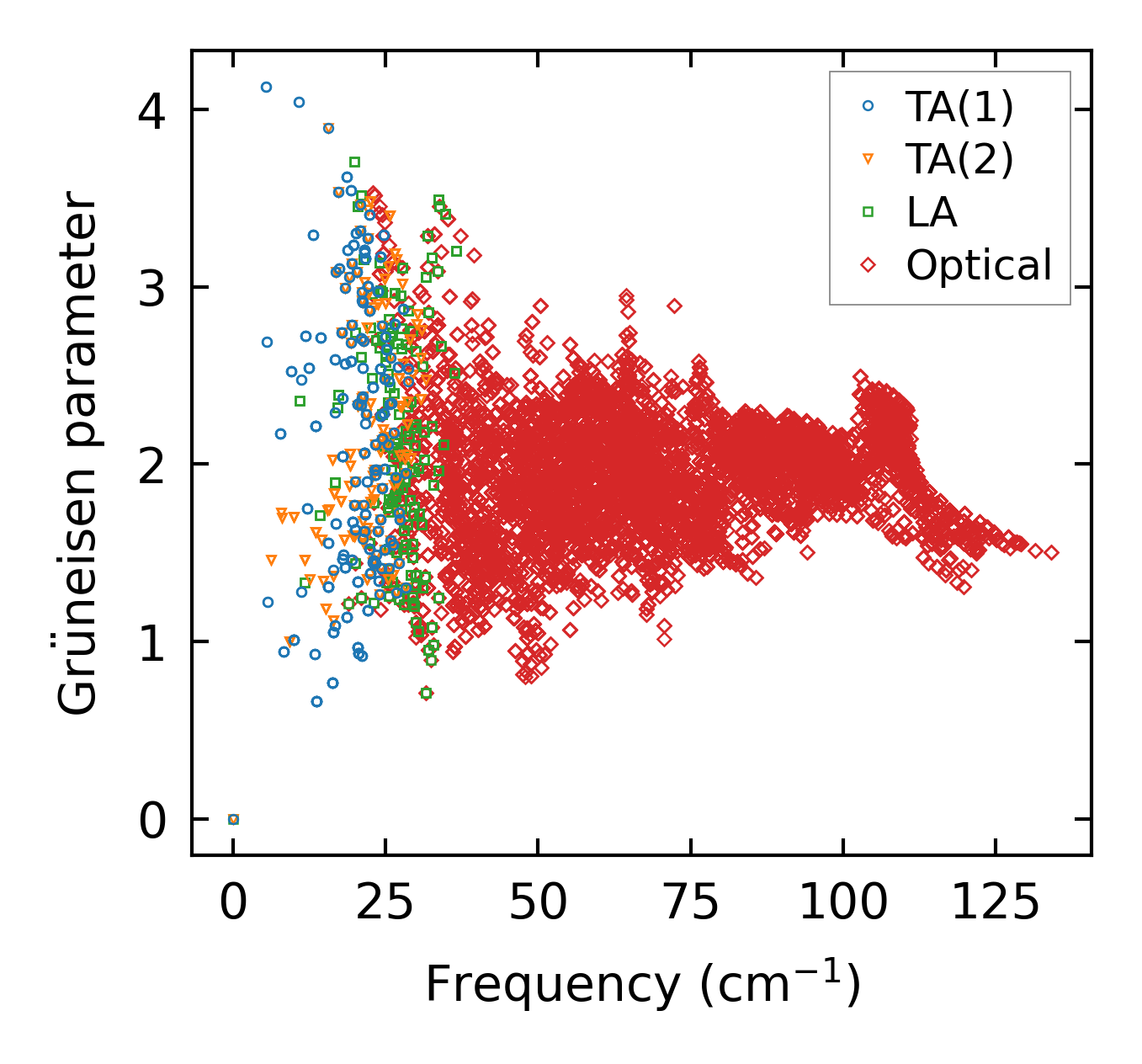

../../_images/fig_gru_all5392.png — (a) Grüneisen parameters

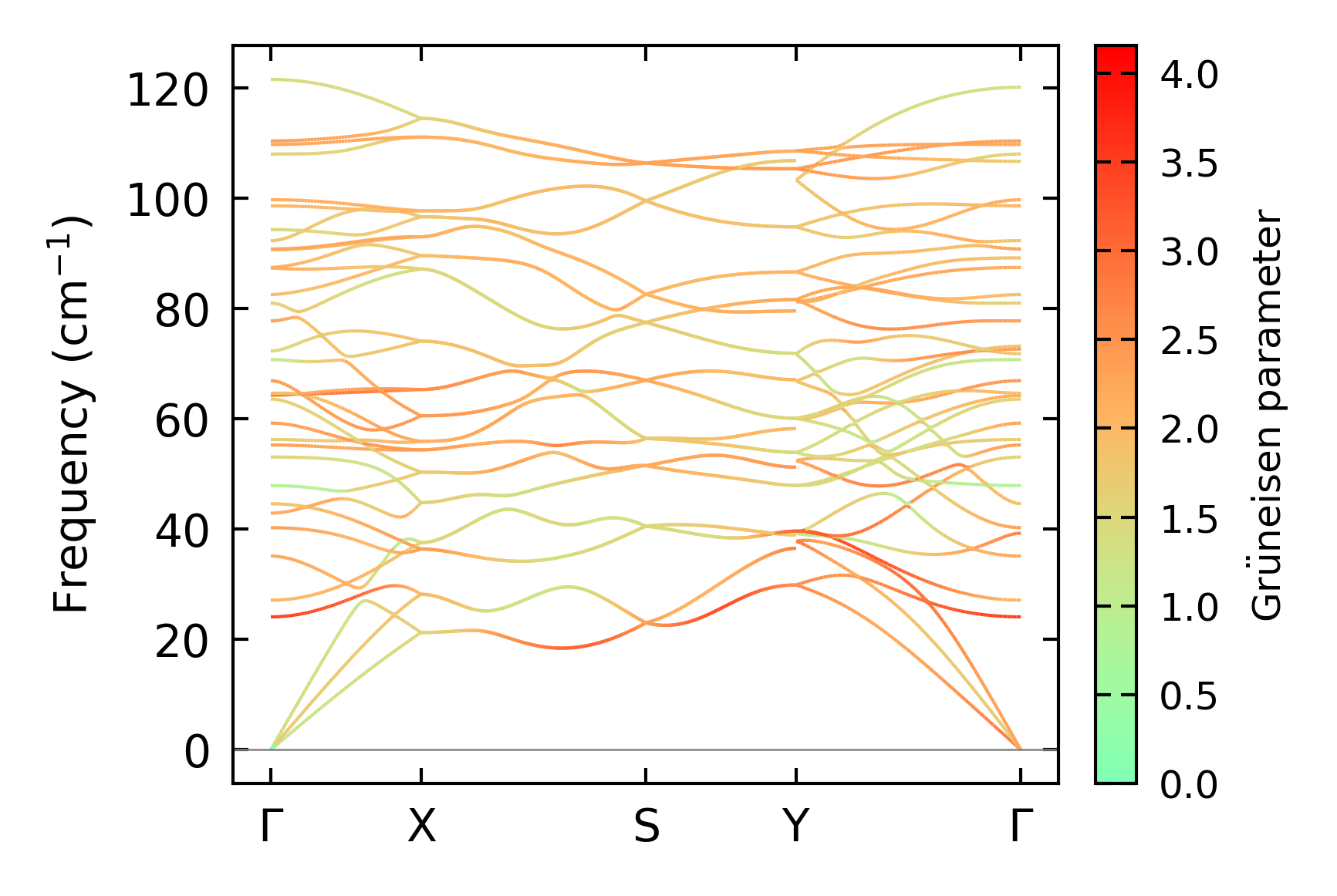

../../_images/fig_gruneisen5392.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x13x6, supercell: 2x3x2

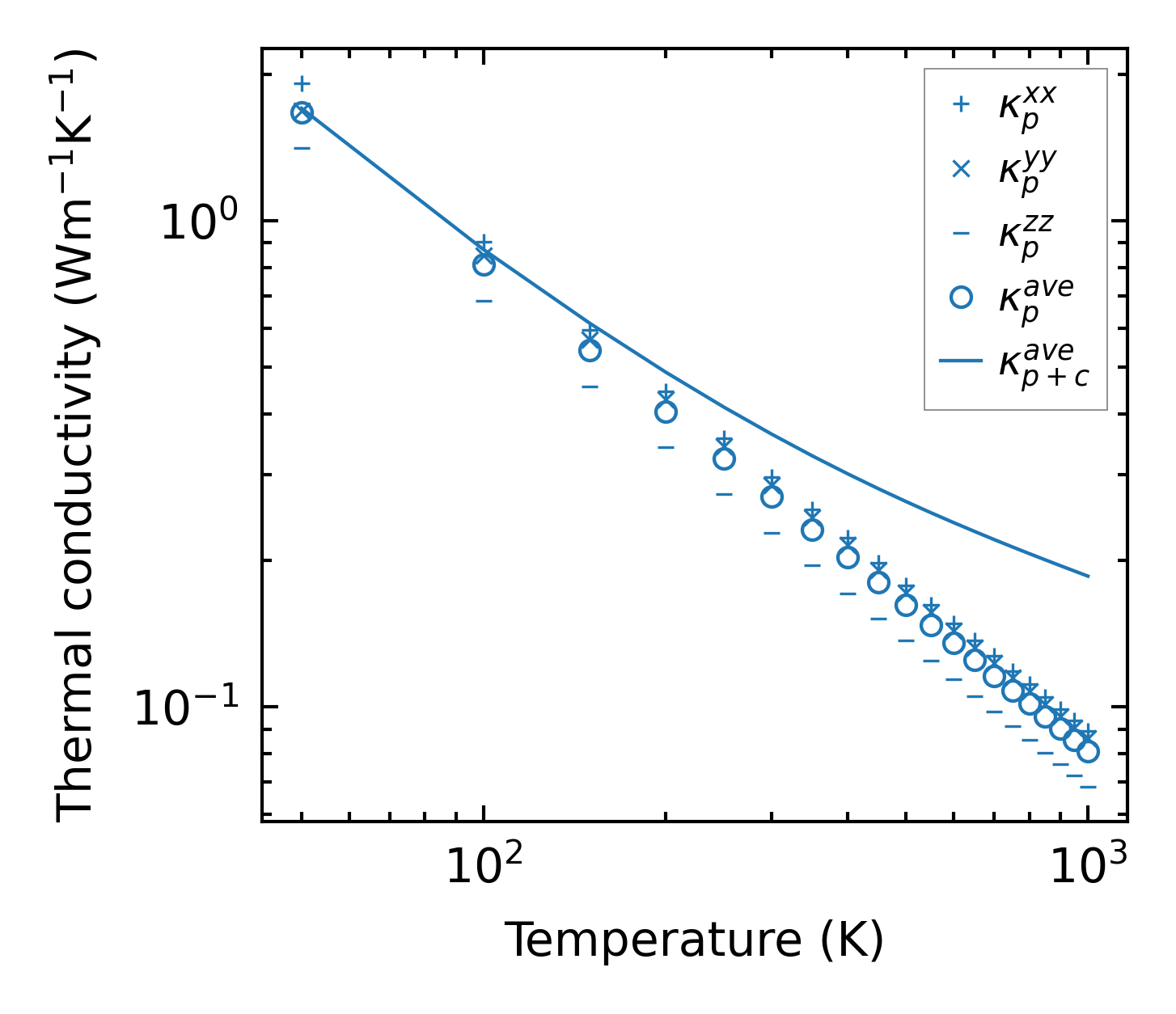

../../_images/fig_kappa10129.png — (a) Temperature-dependent lattice thermal conductivity

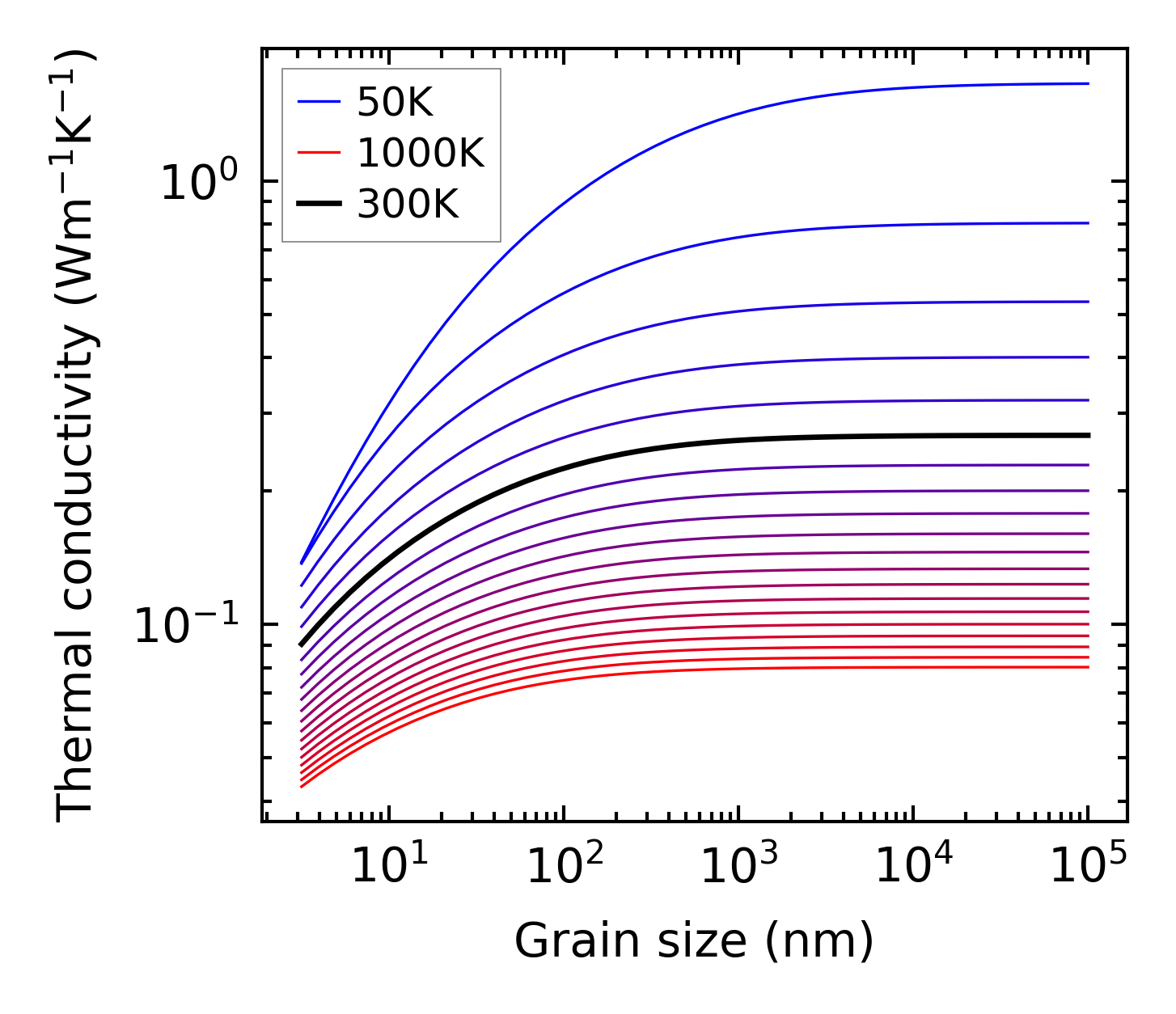

../../_images/fig_kappa_vs_grain_size5456.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

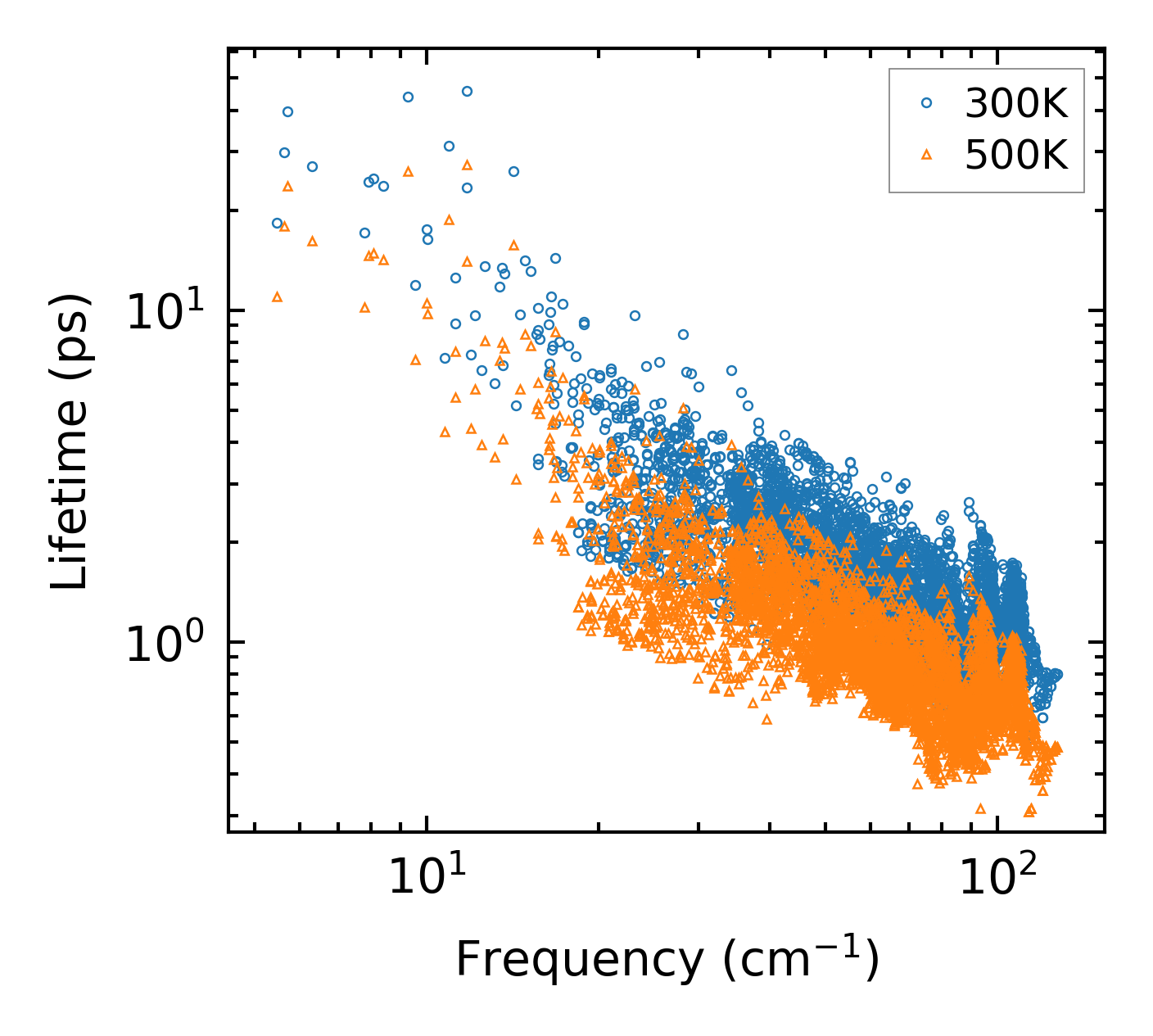

../../_images/fig_lifetime5340.png — (a) Phonon lifetime due to phonon-phonon scattering

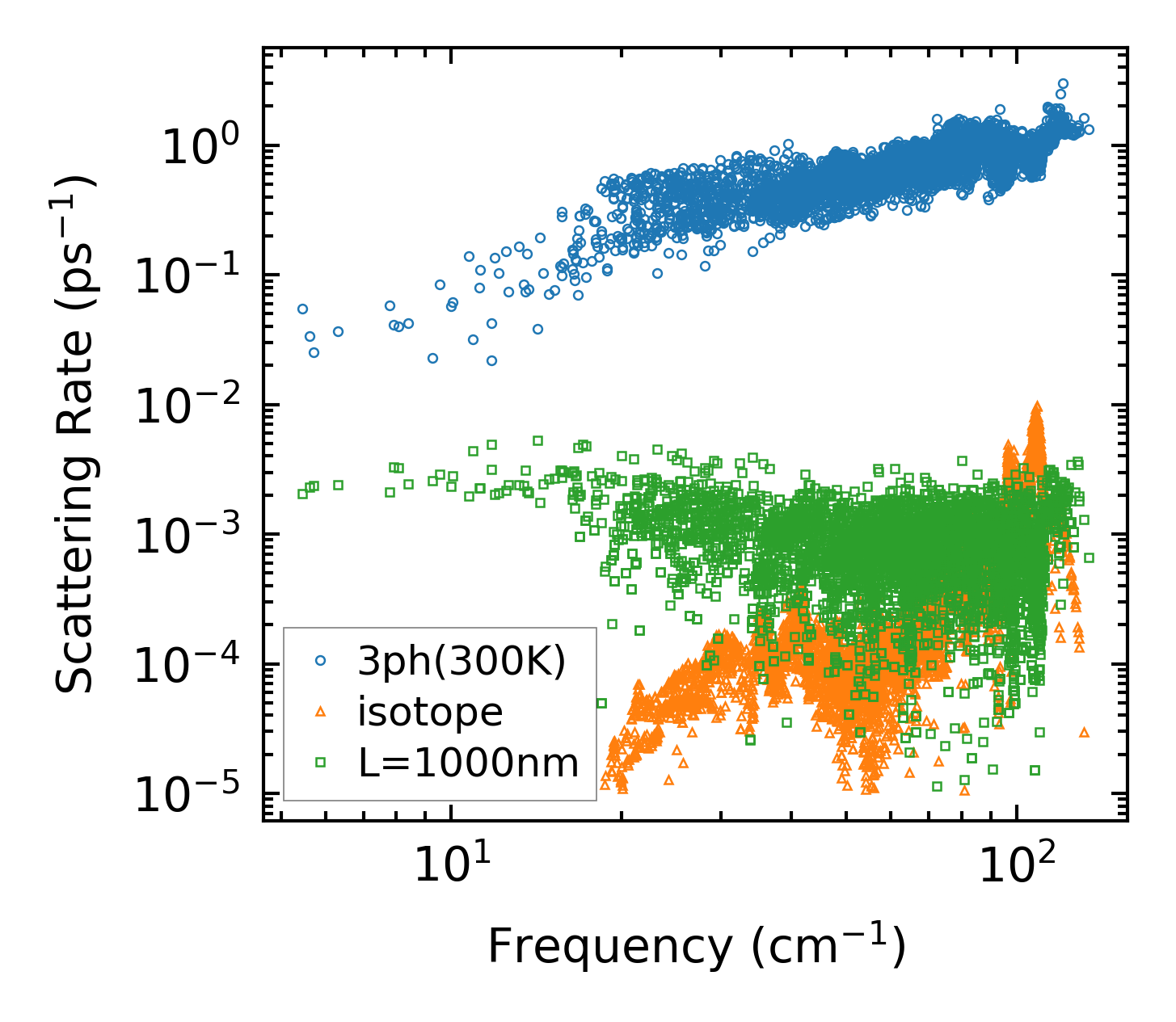

../../_images/fig_scat_rates5339.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

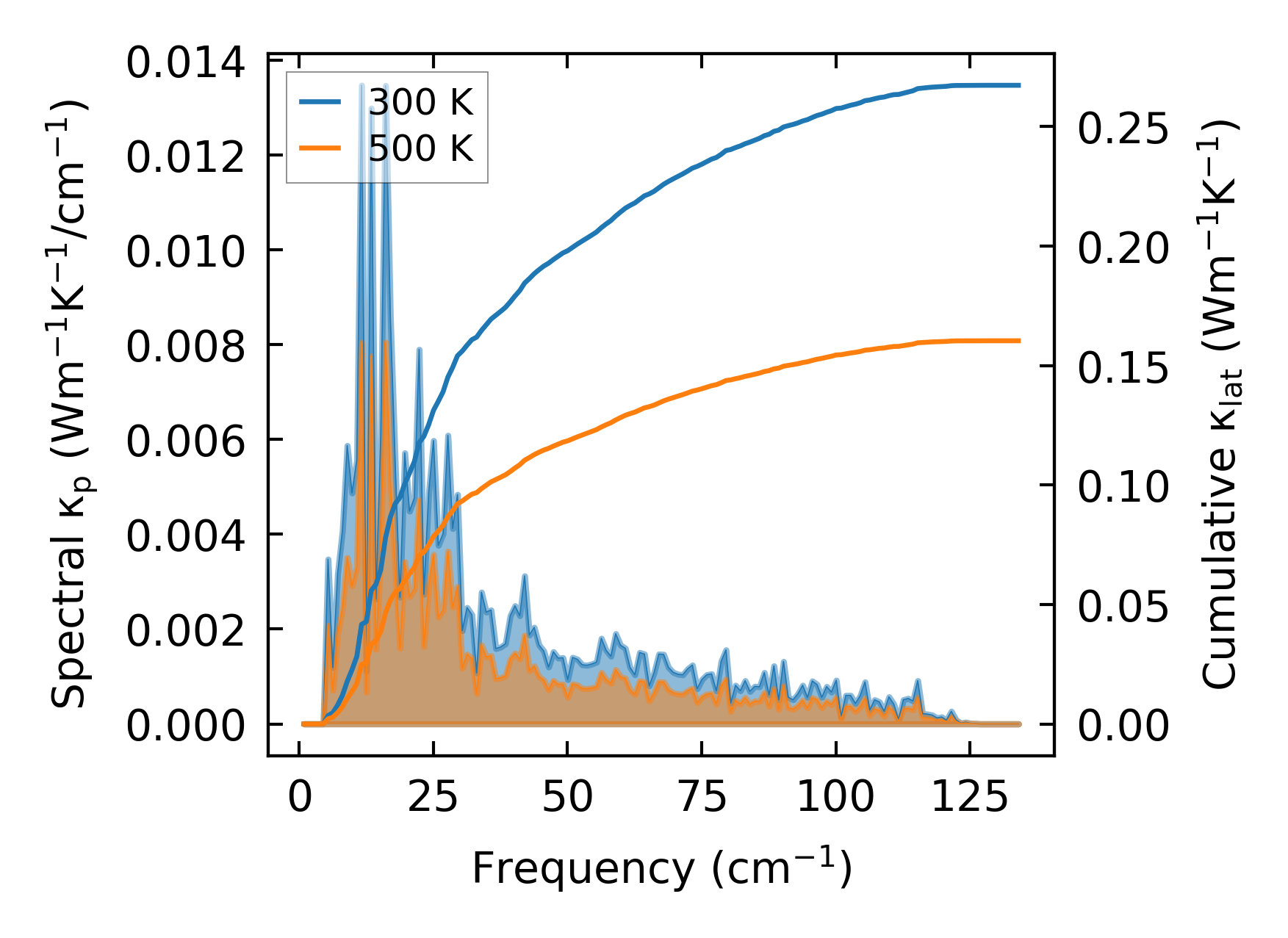

../../_images/fig_cumu_frequency5340.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

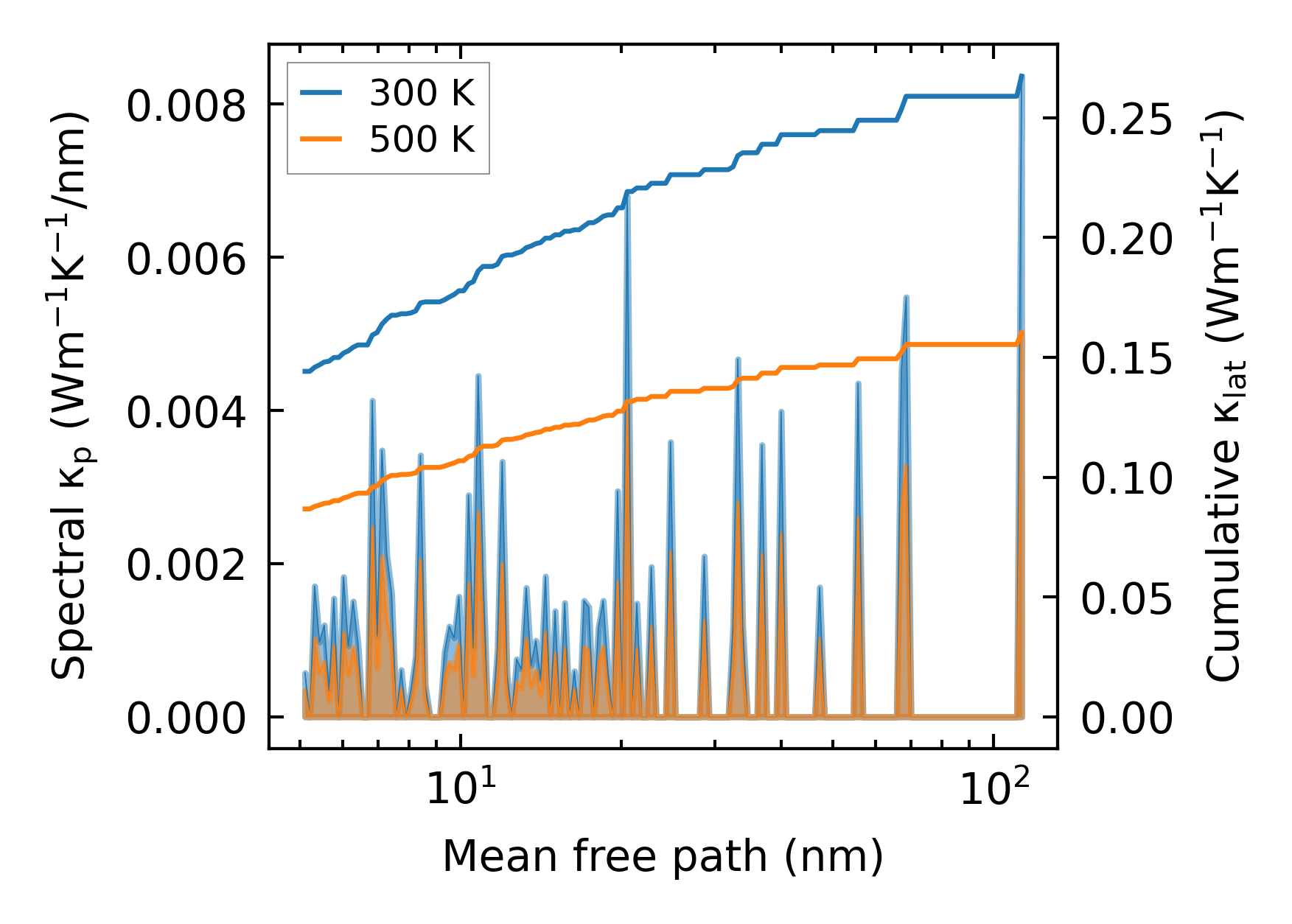

../../_images/fig_cumu_mfp5339.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

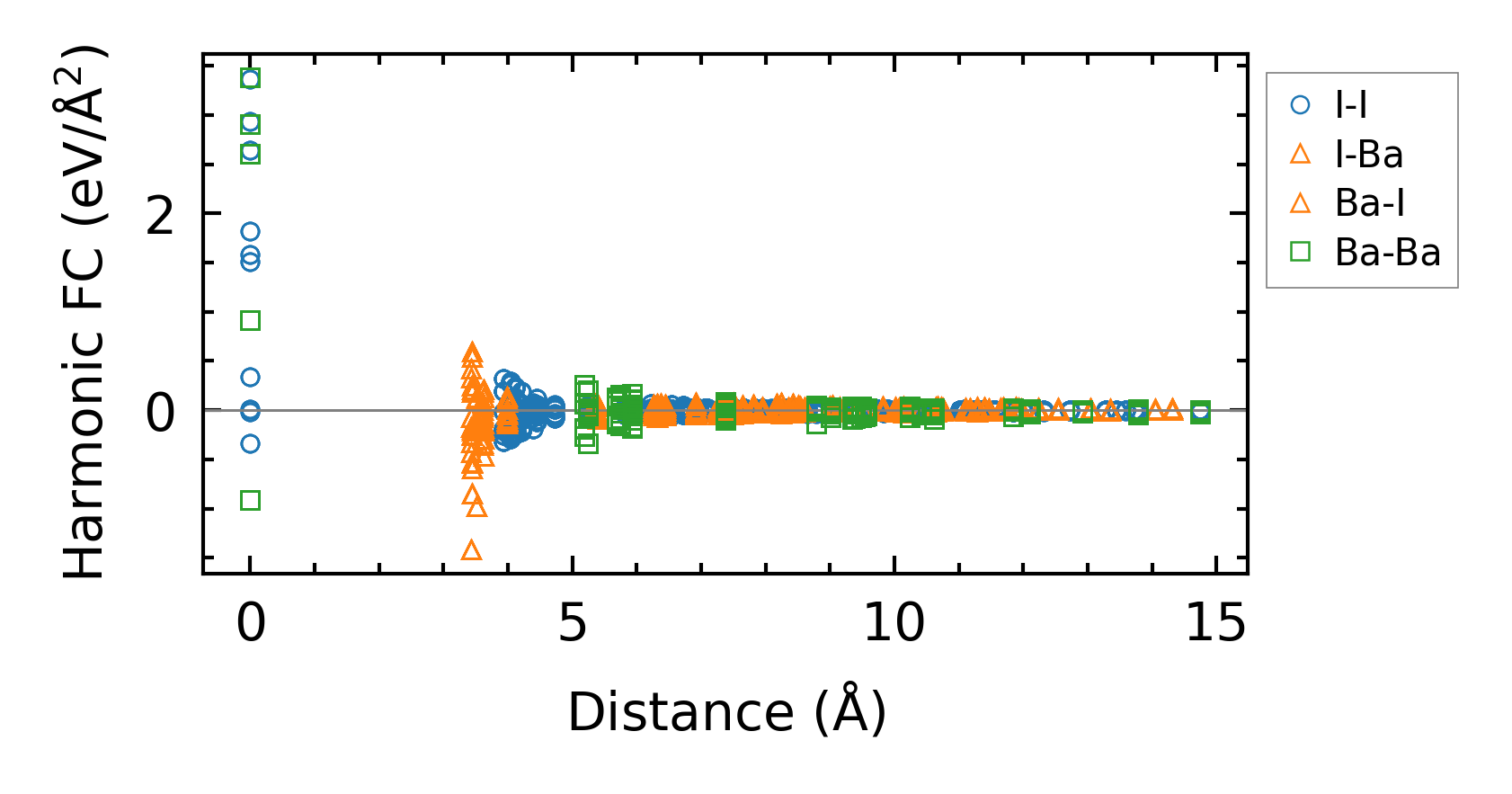

../../_images/fig_fc212654.png — (a) Force constants w.r.t atomic distance

Summary

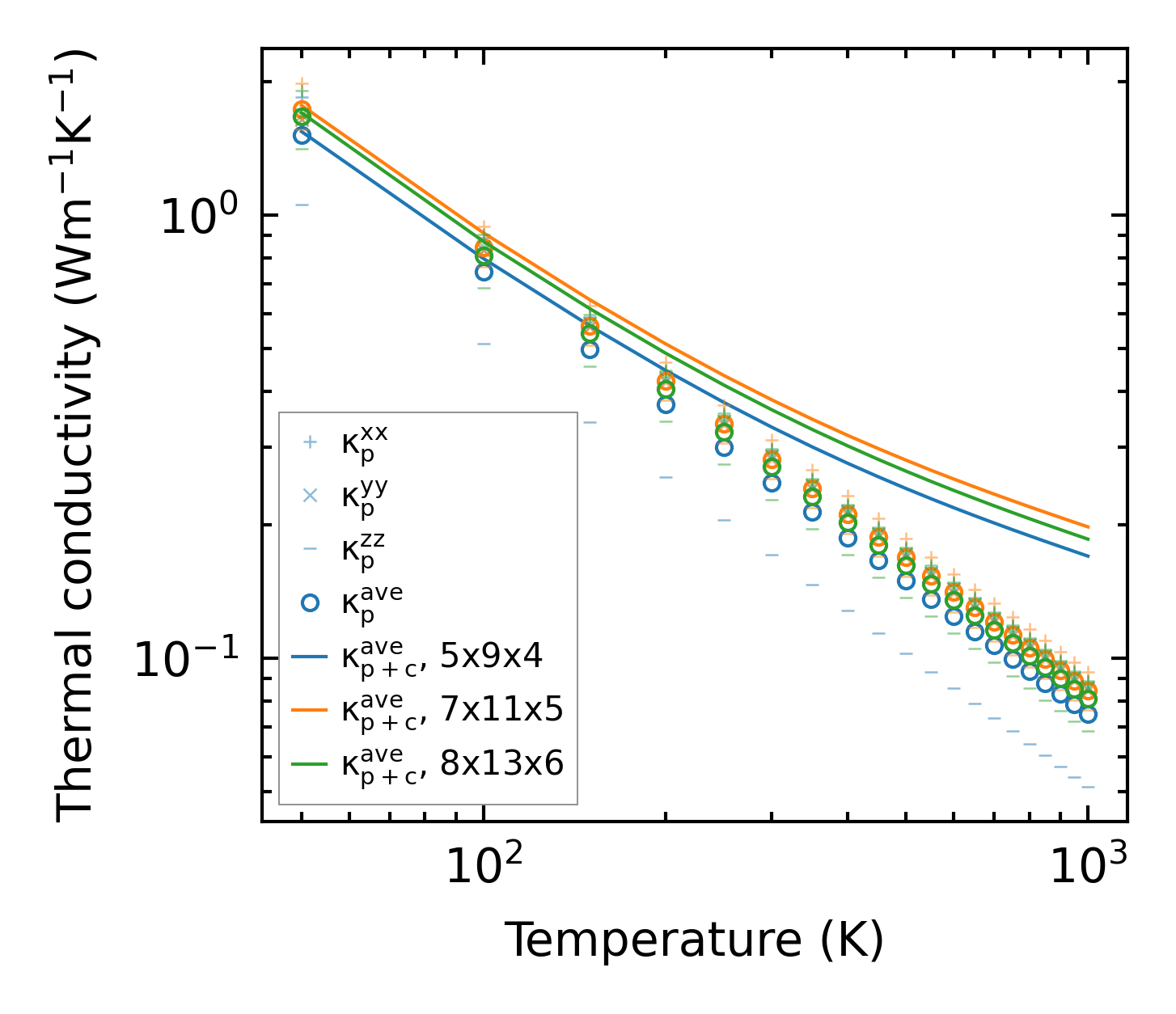

../../_images/fig_kappa10130.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times21931.png — (b) Computation time
