mp-23090/La3Si2S8I/anharm

Space group: C2/c (15)
Link: Materials Project
Download: mp-23090.tar.gz

Harmonic properties

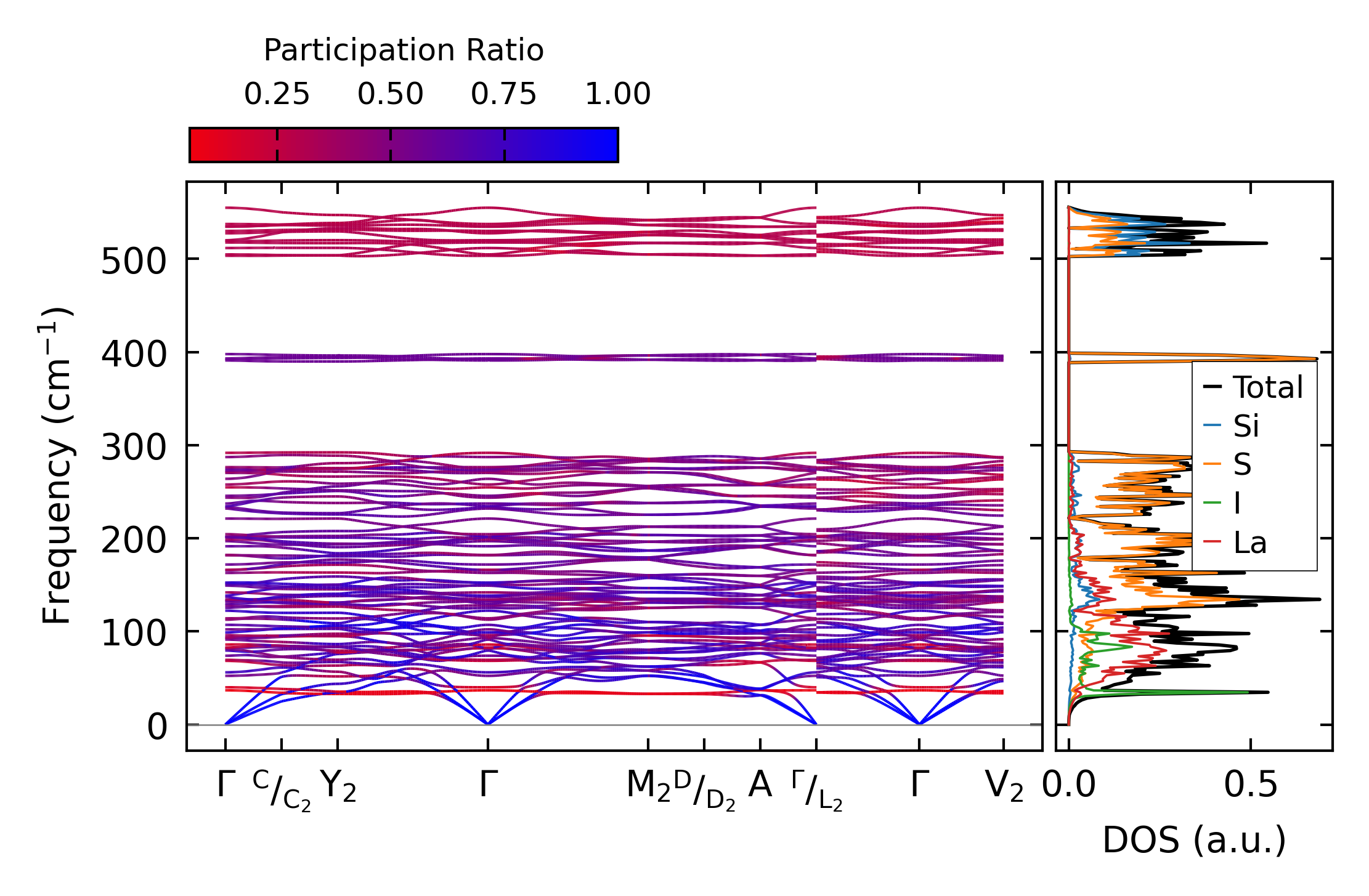

../../_images/fig_bandos_pr12873.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo12873.png — (b) Thermodynamic properties

Grüneisen parameters

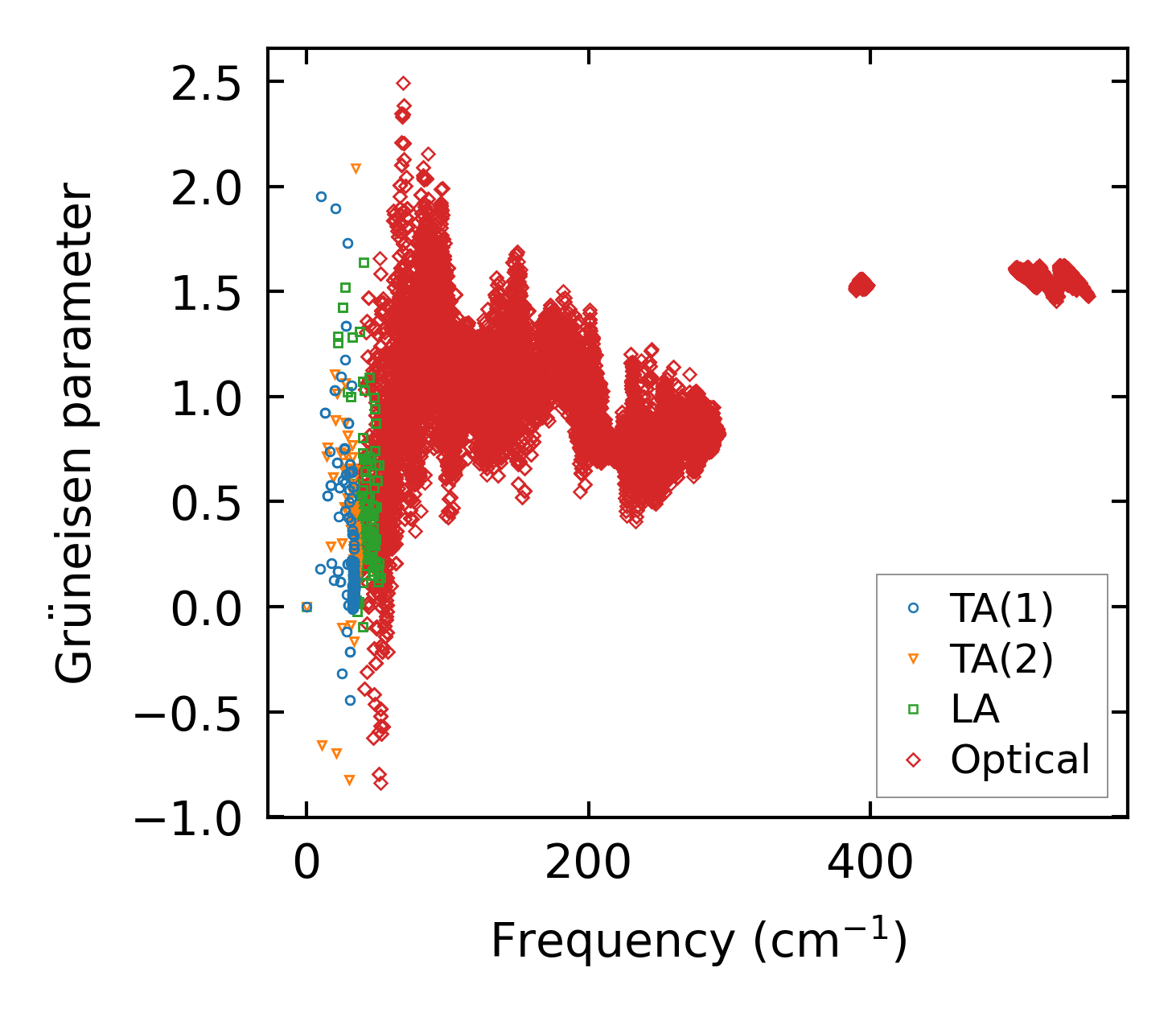

../../_images/fig_gru_all5340.png — (a) Grüneisen parameters

../../_images/fig_gruneisen5340.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x8x7, supercell: 1x2x1

../../_images/fig_kappa10033.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size5404.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

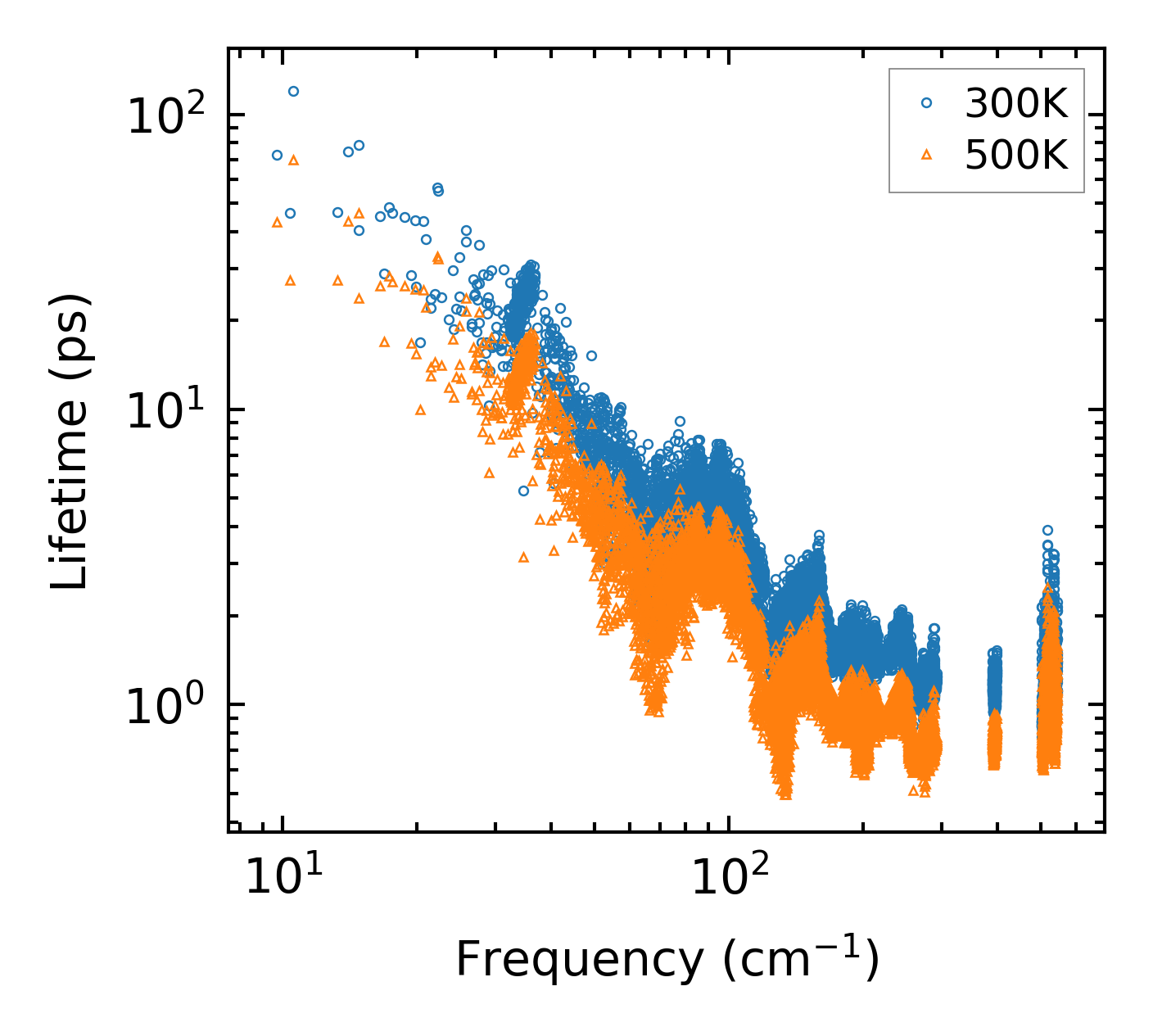

../../_images/fig_lifetime5289.png — (a) Phonon lifetime due to phonon-phonon scattering

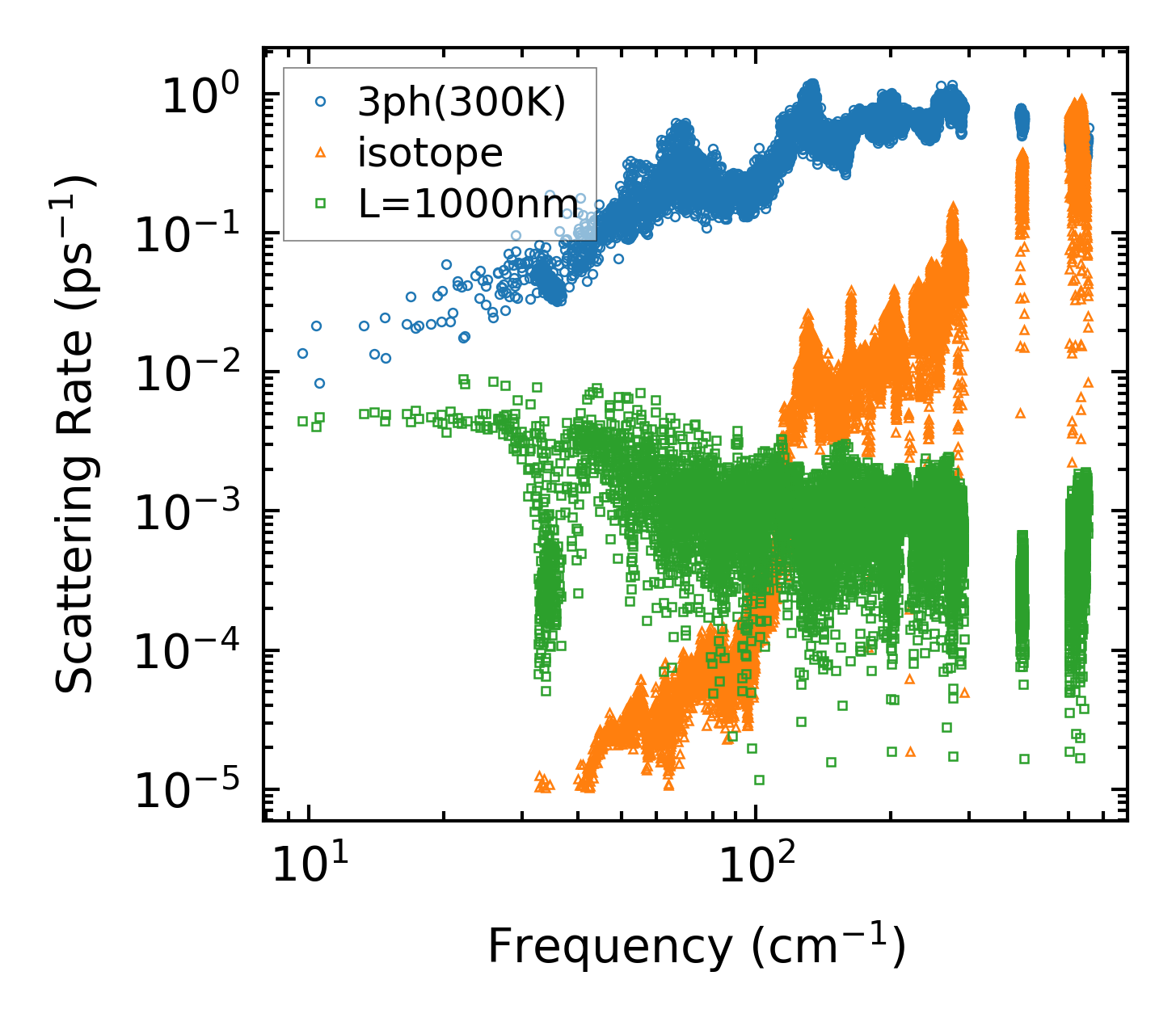

../../_images/fig_scat_rates5288.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

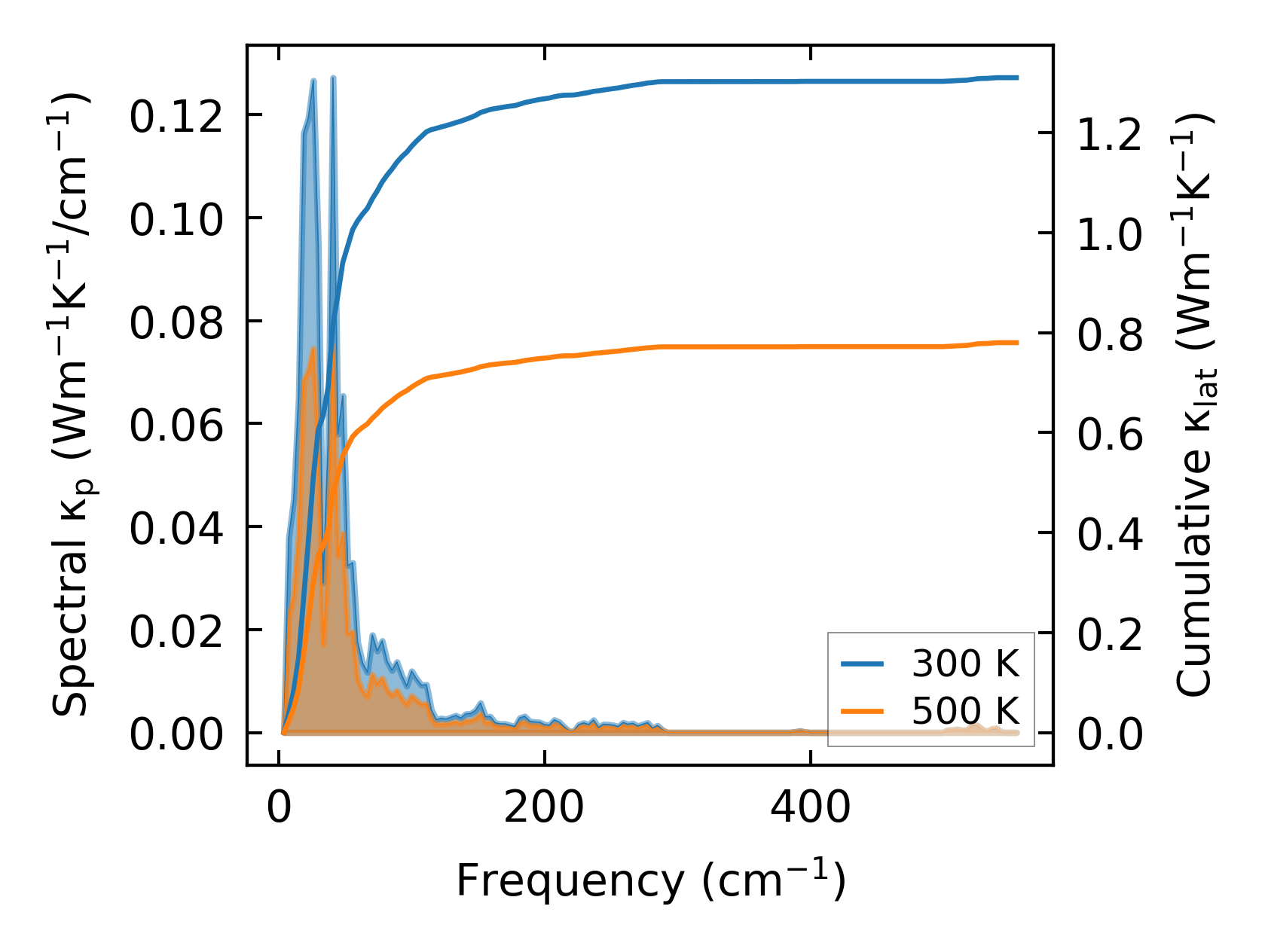

../../_images/fig_cumu_frequency5289.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

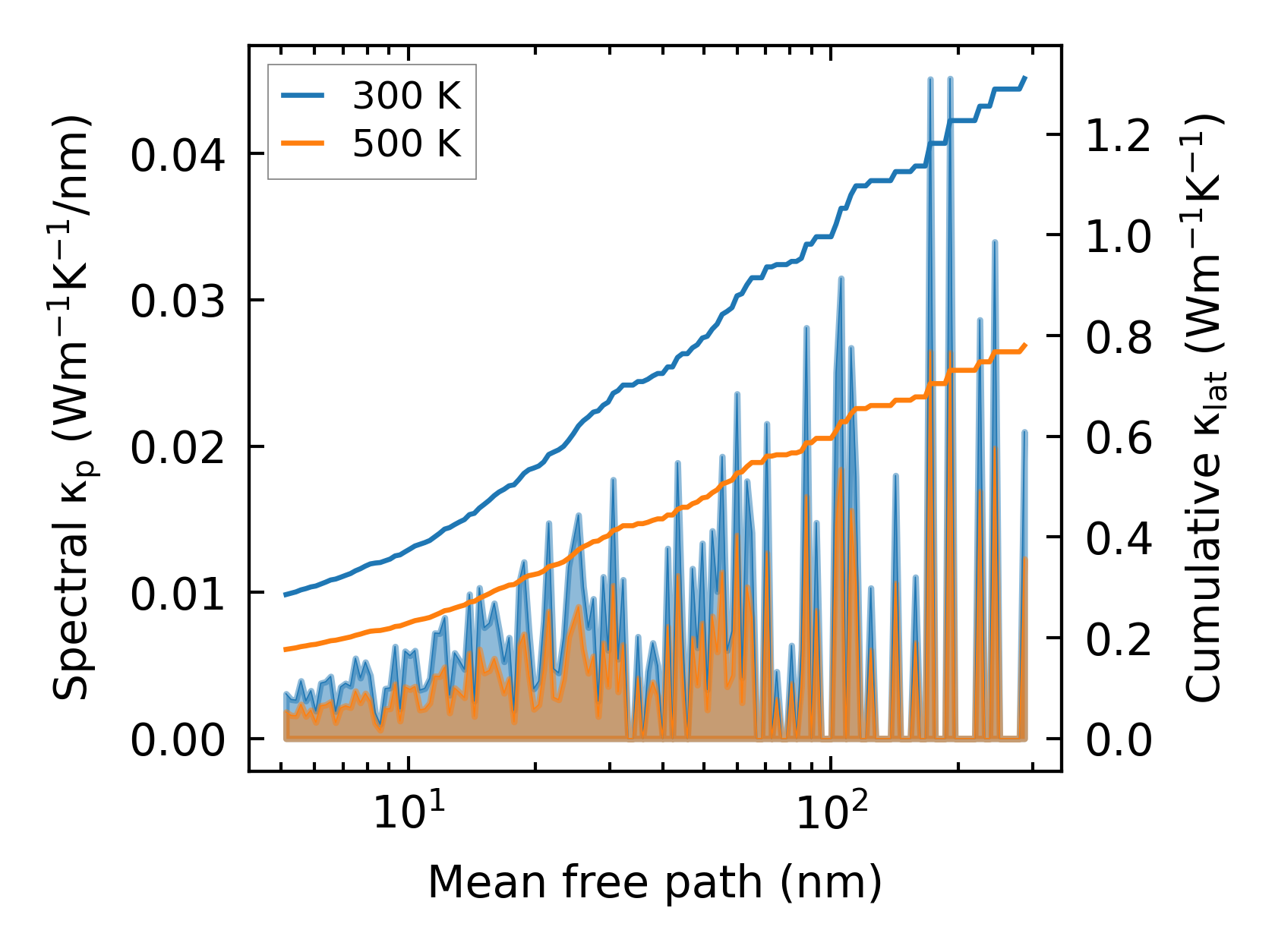

../../_images/fig_cumu_mfp5288.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

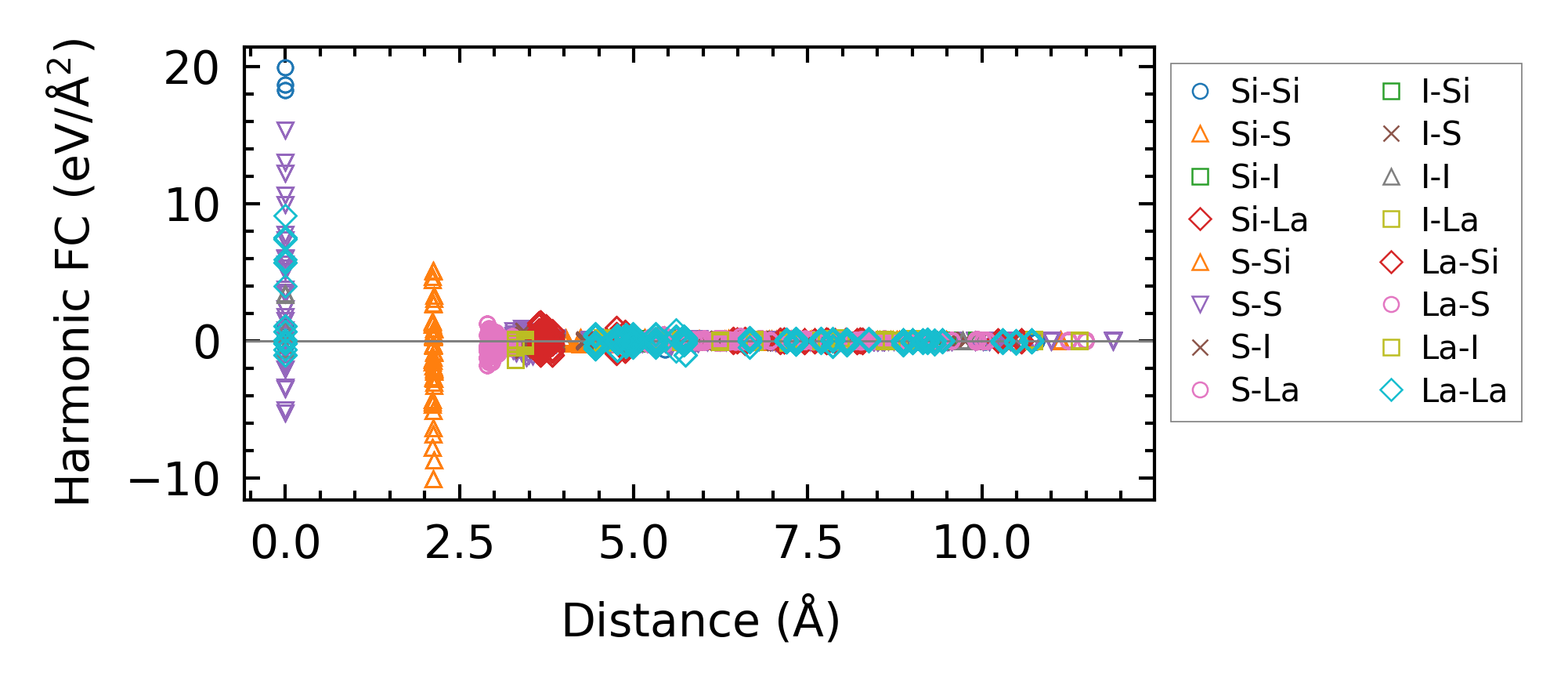

../../_images/fig_fc212569.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa10034.png — (a) Temperature-dependent lattice thermal conductivity

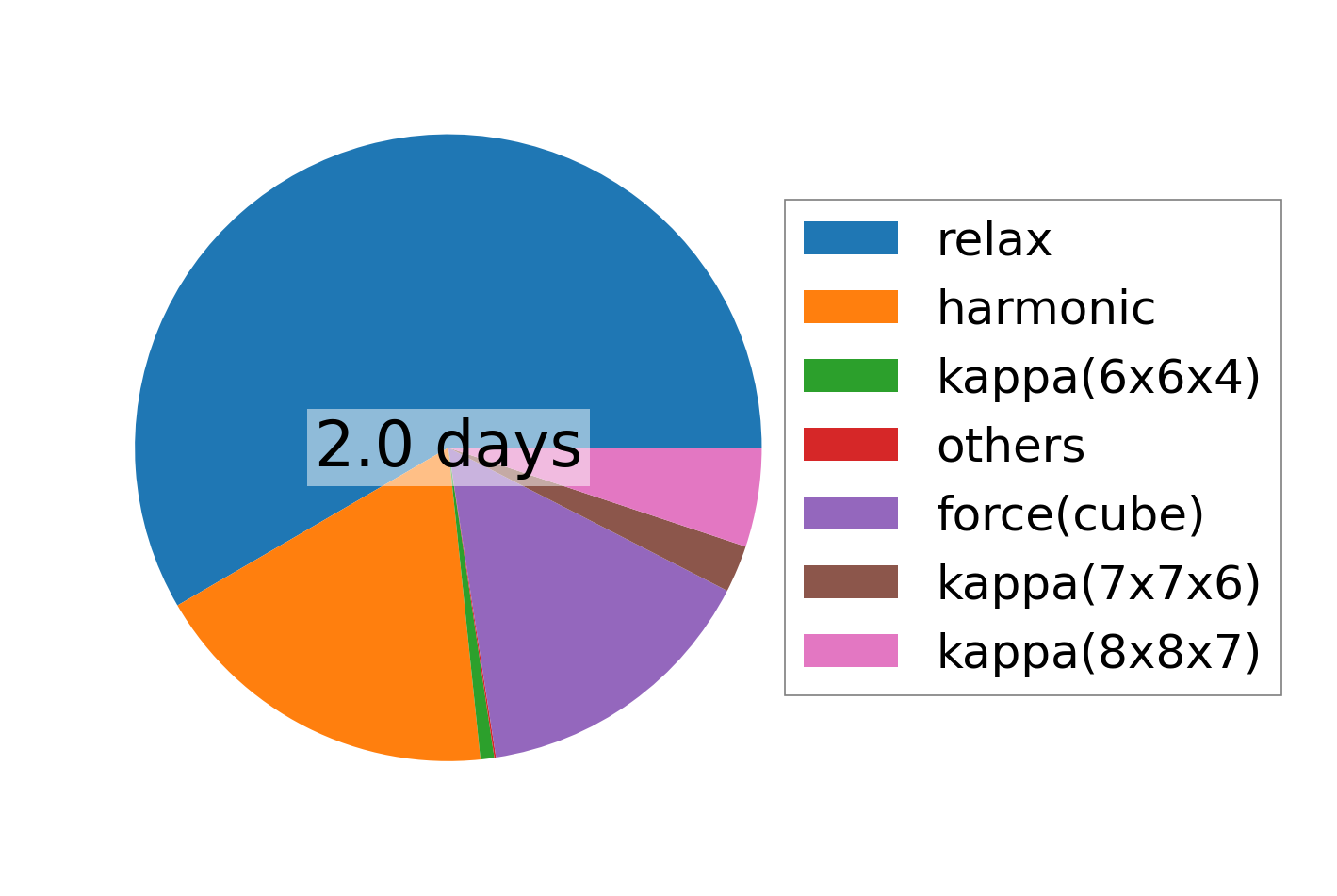

../../_images/fig_times21806.png — (b) Computation time
