mp-23703/LiH/anharm

Space group: Fm-3m (225)
Link: Materials Project
Download: mp-23703.tar.gz

Harmonic properties

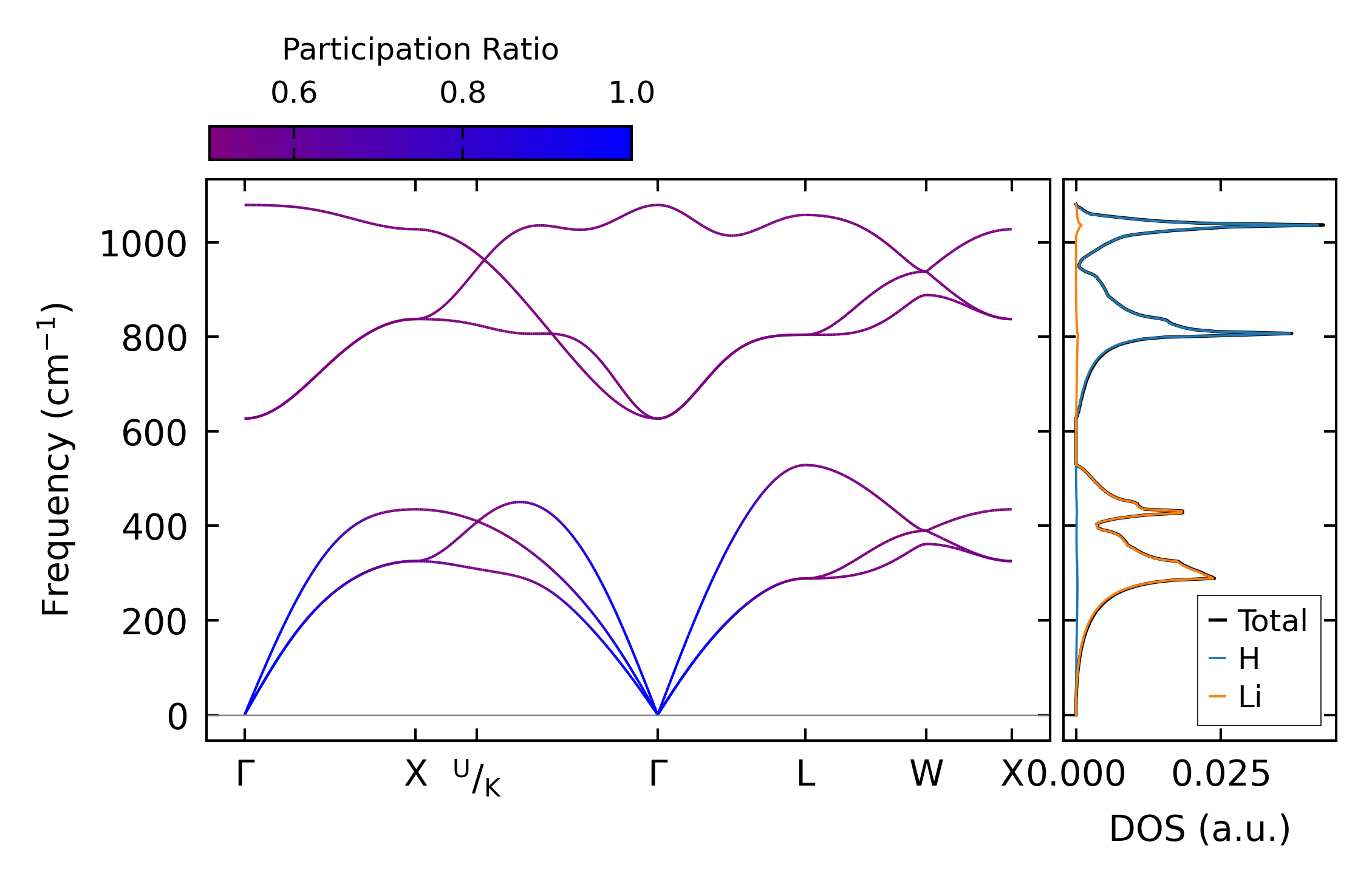

../../_images/fig_bandos_pr12807.png — (a) Phonon dispersion with participation ratio and DOS

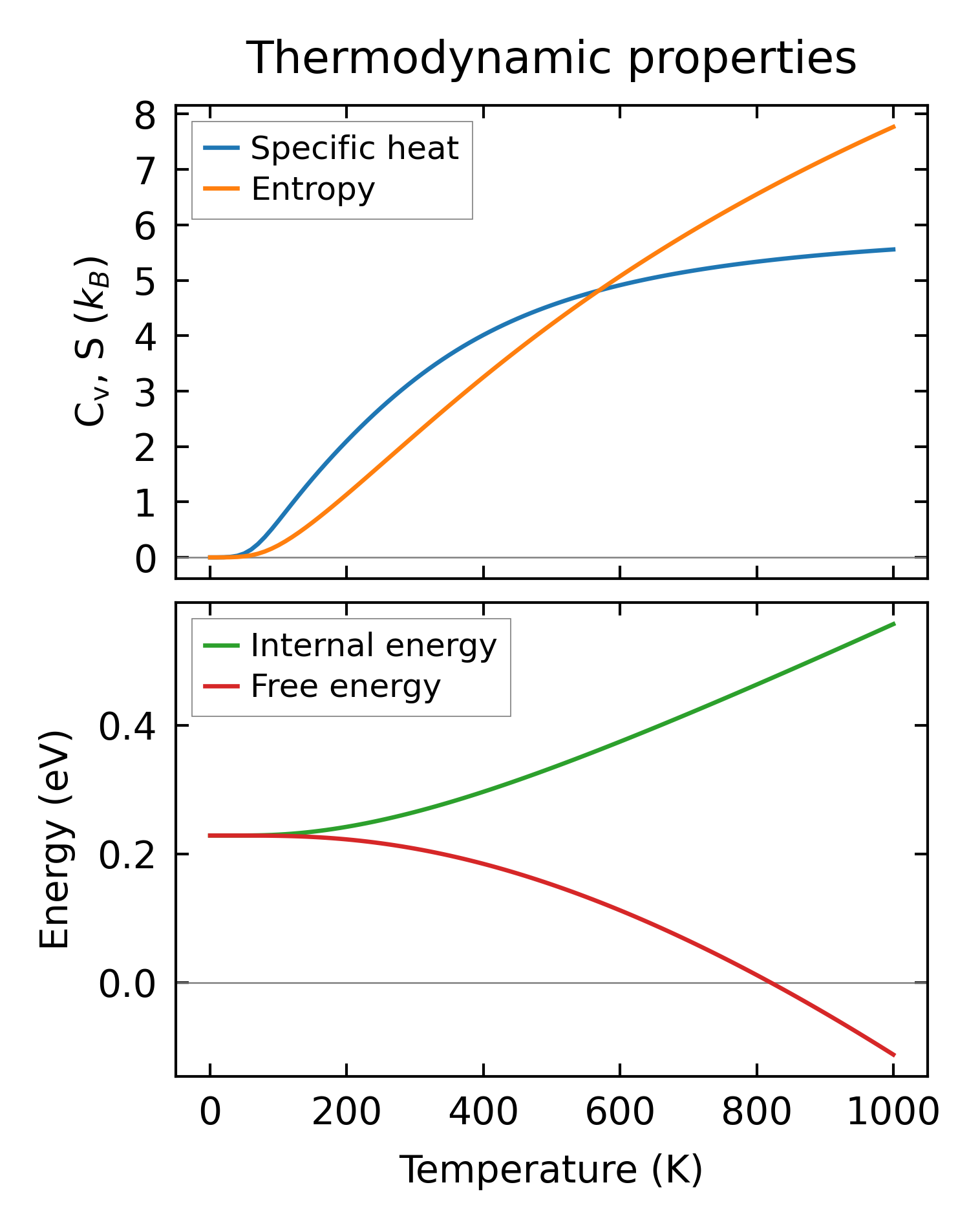

../../_images/fig_thermo12807.png — (b) Thermodynamic properties

Grüneisen parameters

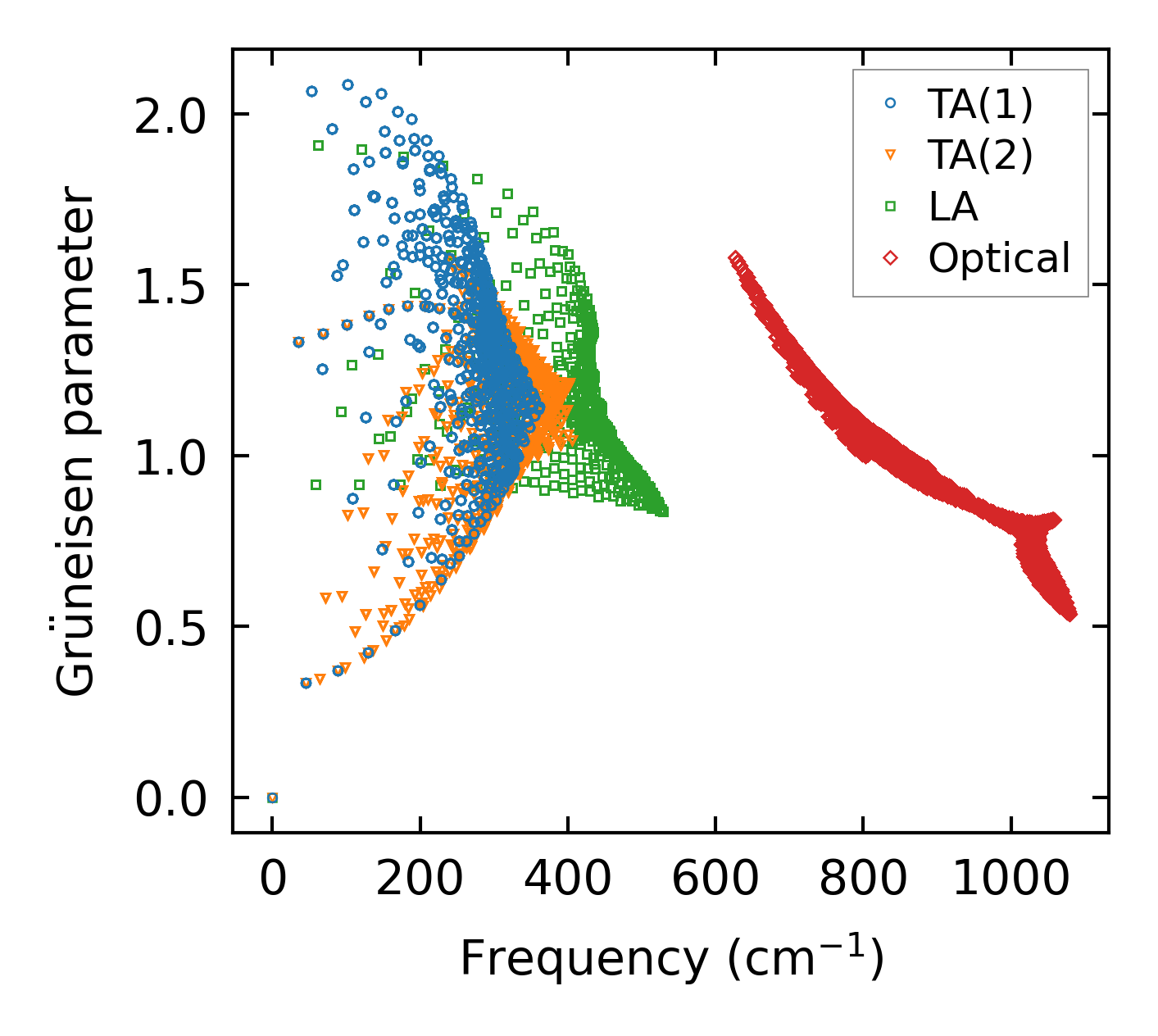

../../_images/fig_gru_all5309.png — (a) Grüneisen parameters

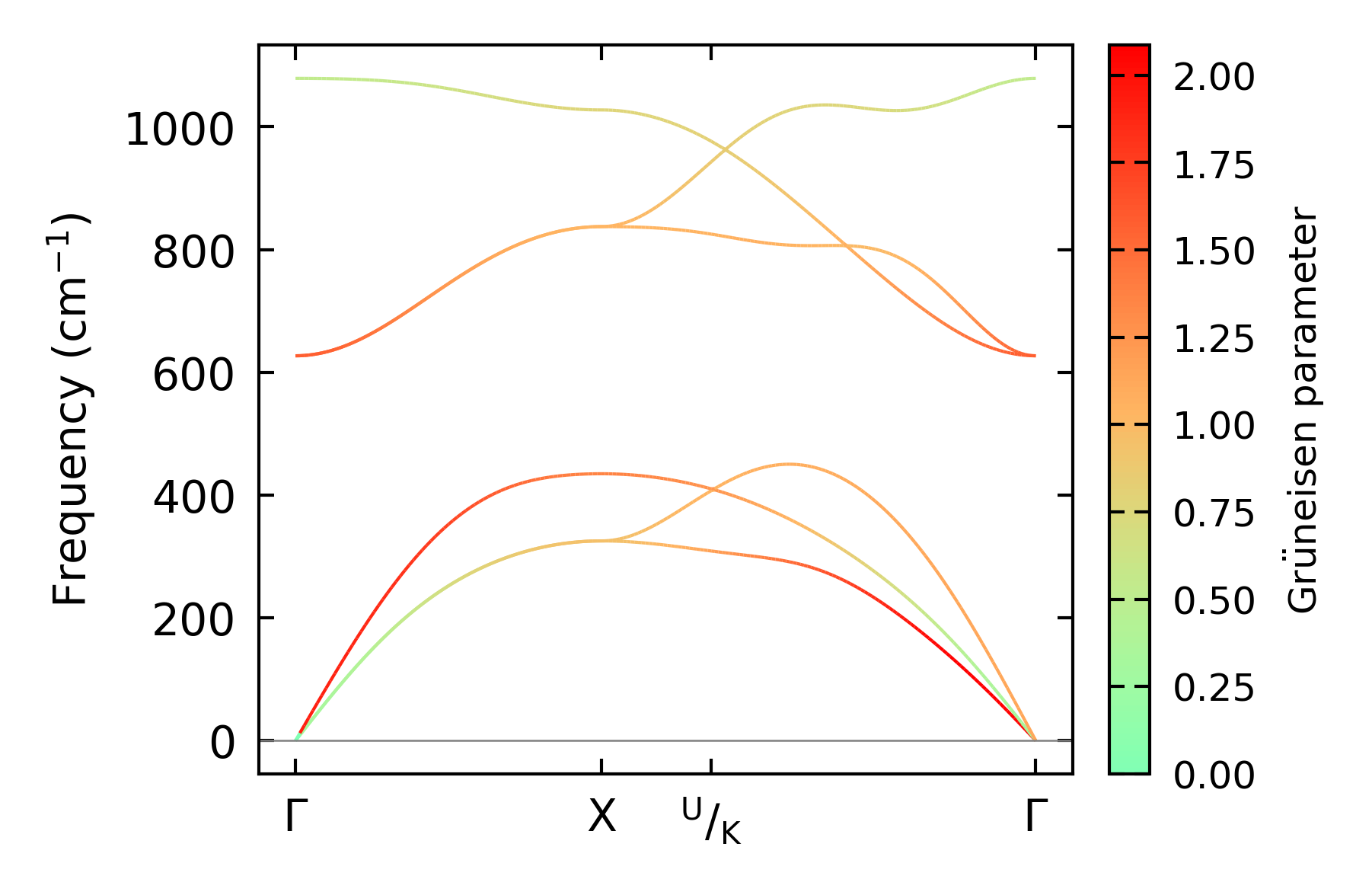

../../_images/fig_gruneisen5309.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 28x28x28, supercell: 2x2x2

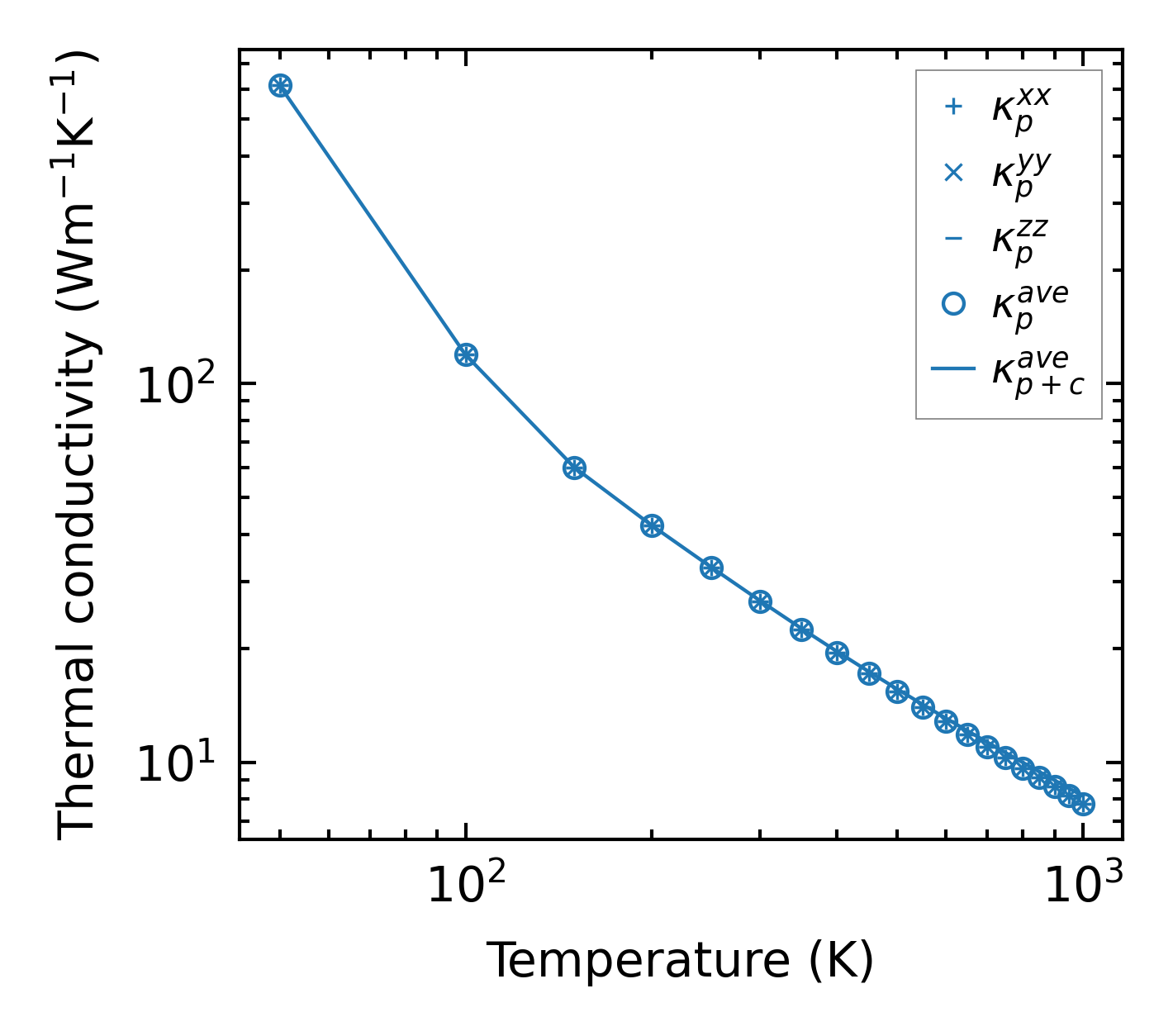

../../_images/fig_kappa9973.png — (a) Temperature-dependent lattice thermal conductivity

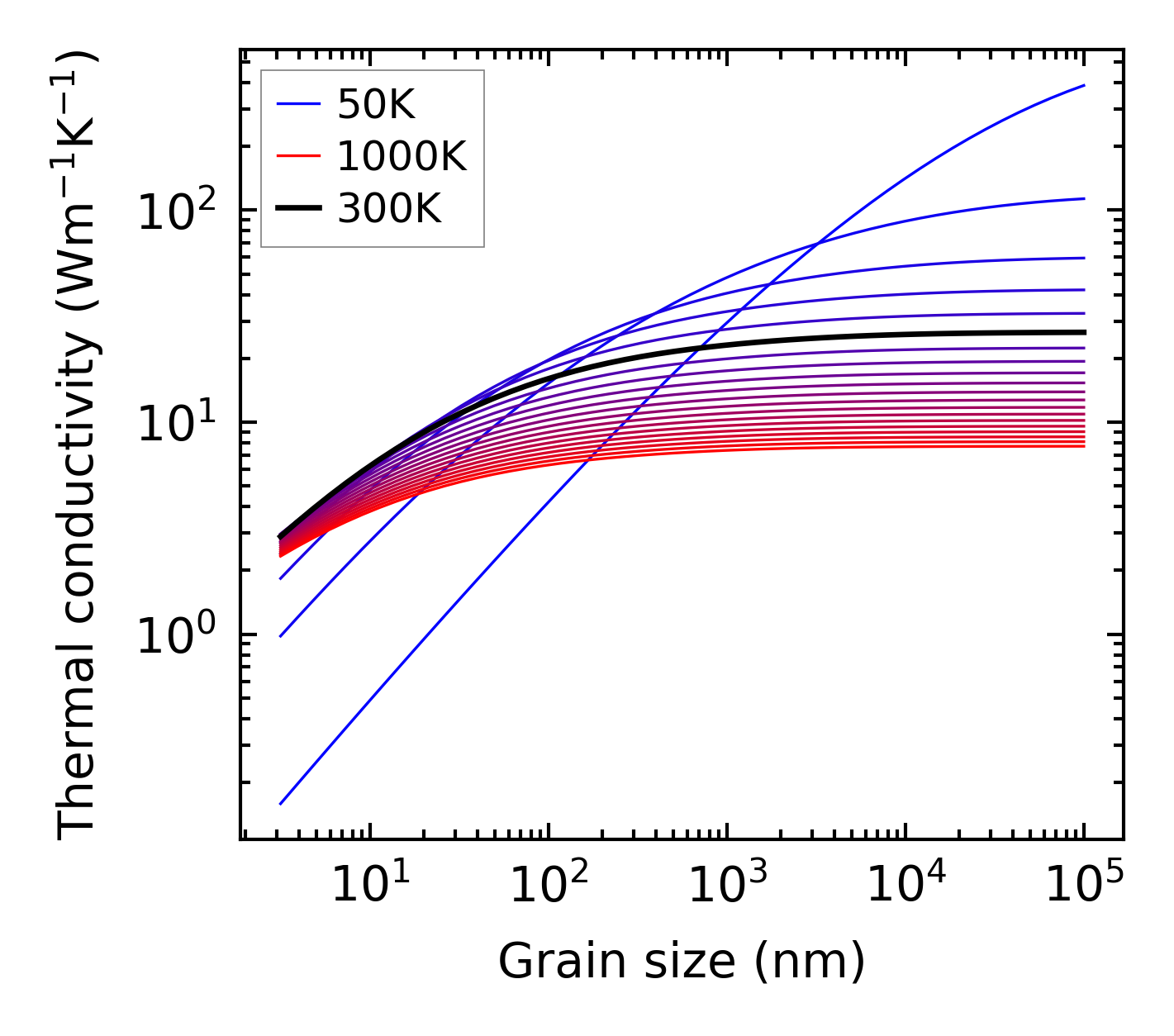

../../_images/fig_kappa_vs_grain_size5372.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

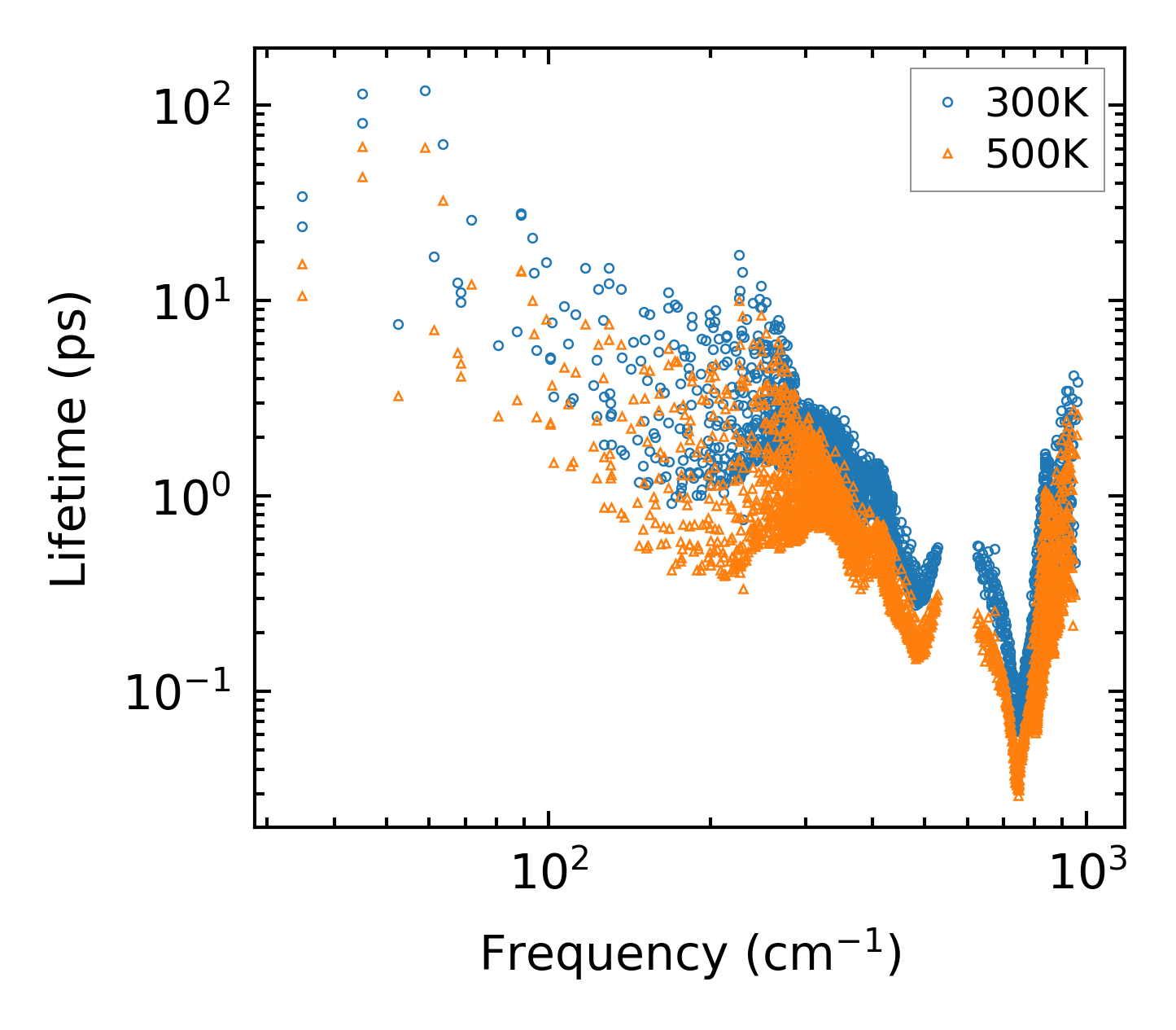

../../_images/fig_lifetime5258.png — (a) Phonon lifetime due to phonon-phonon scattering

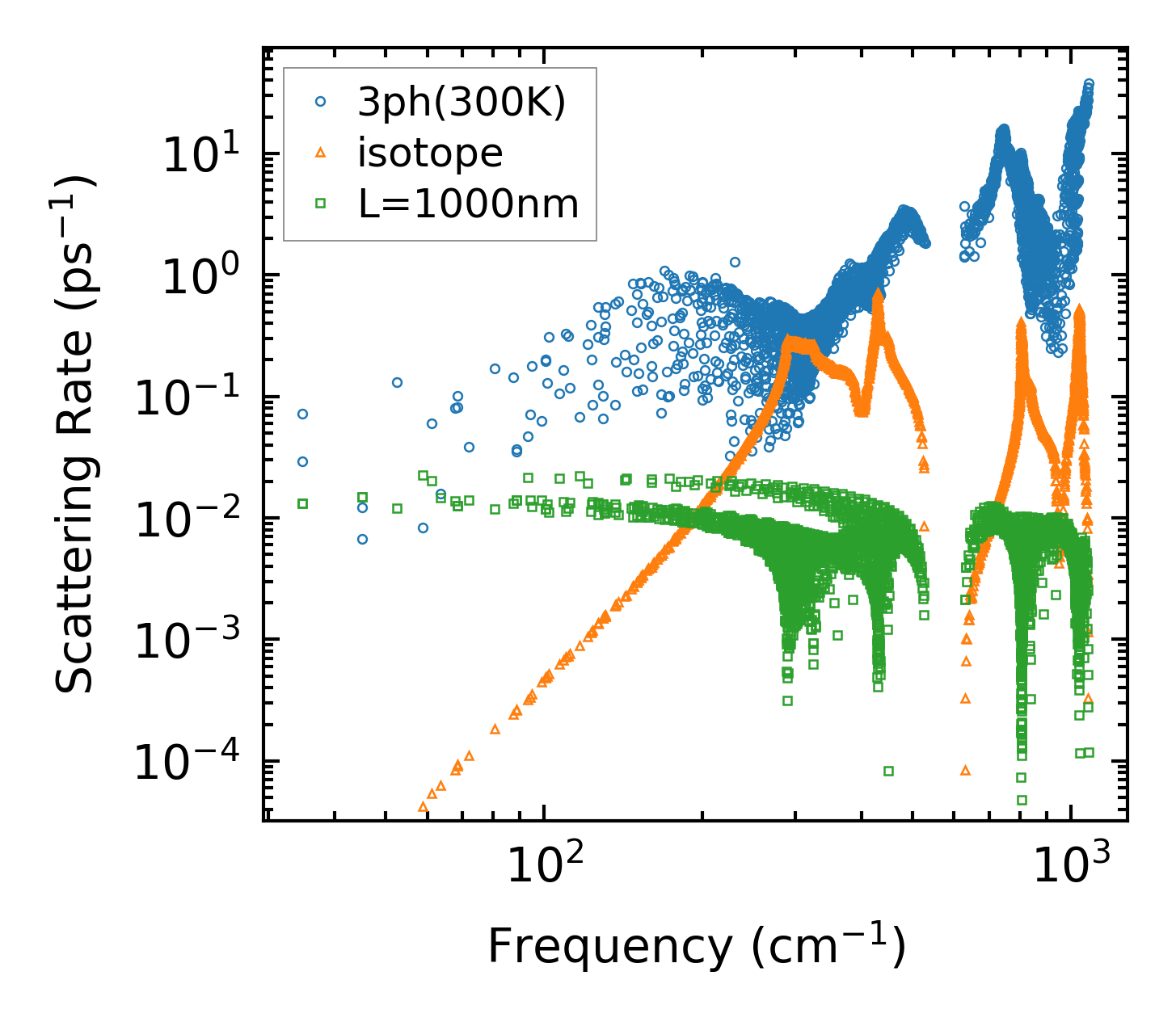

../../_images/fig_scat_rates5257.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

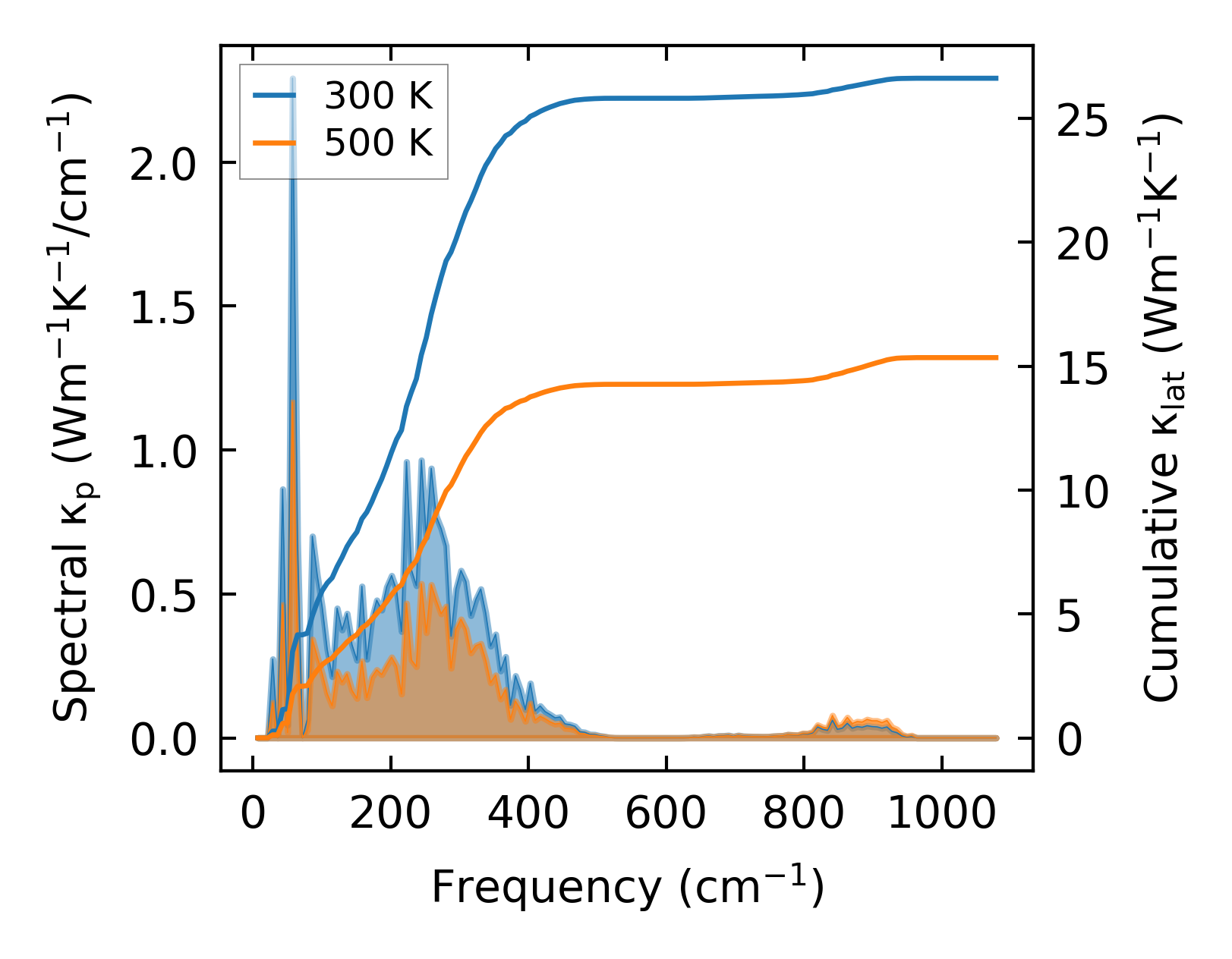

../../_images/fig_cumu_frequency5258.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

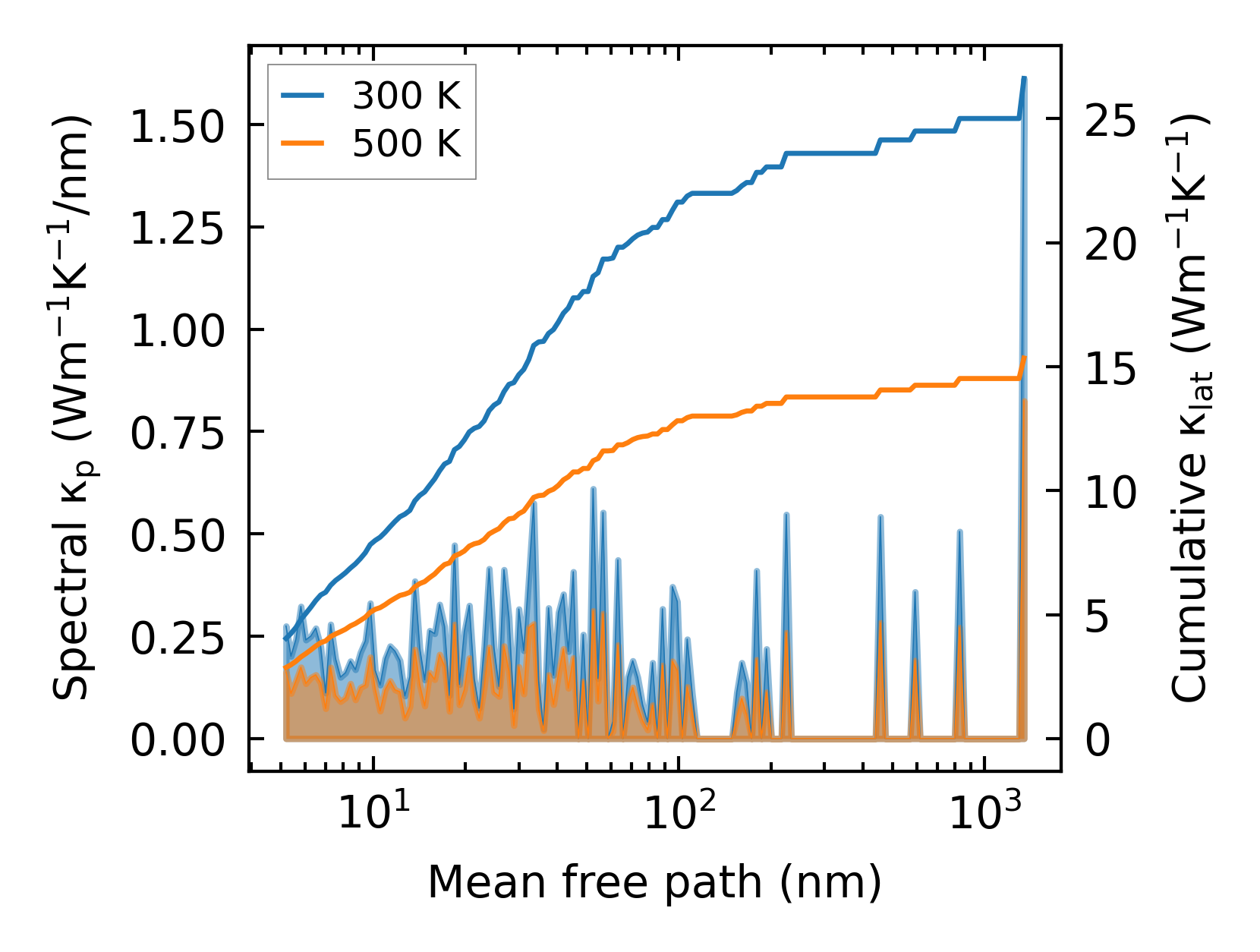

../../_images/fig_cumu_mfp5257.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

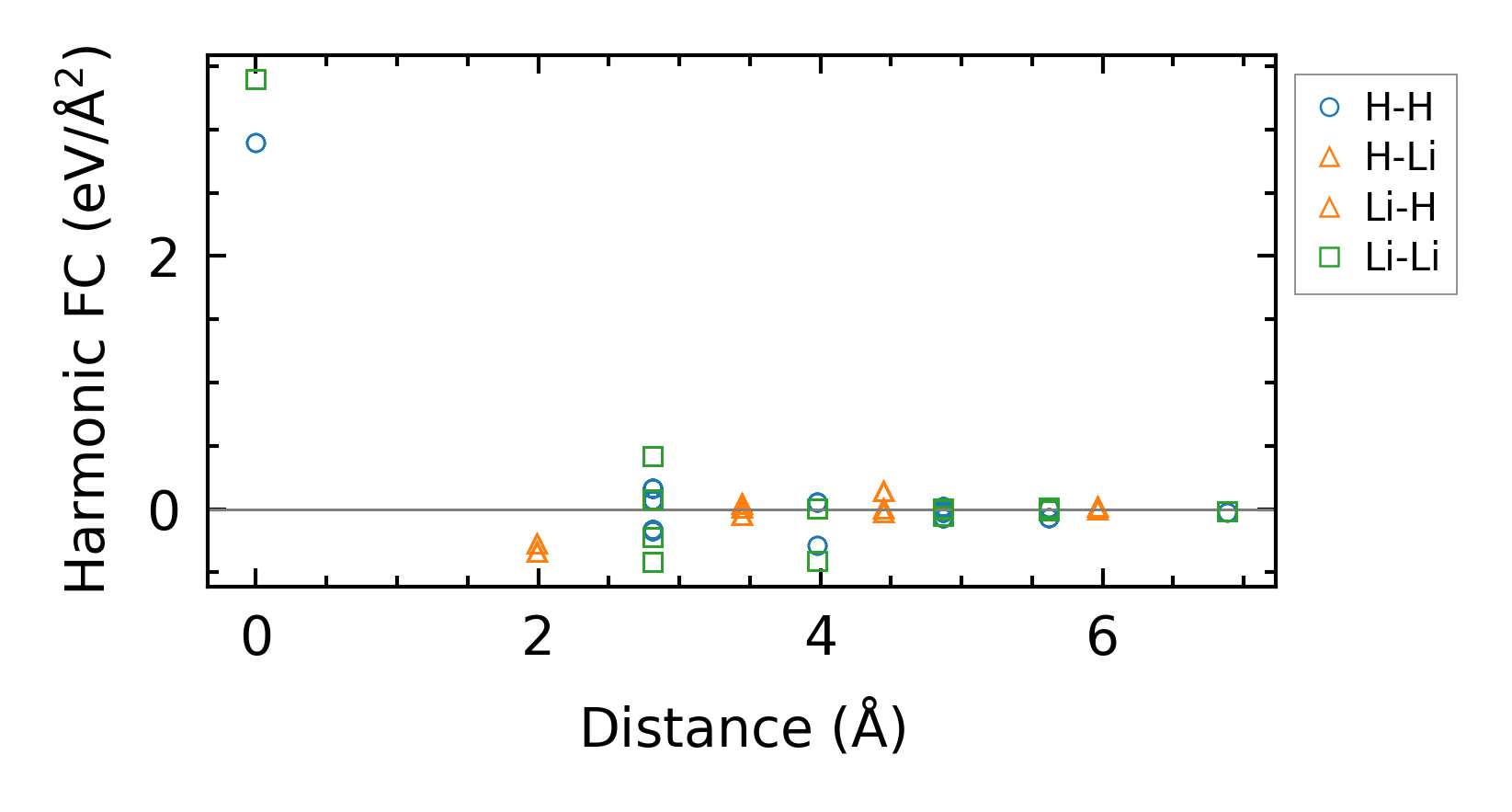

../../_images/fig_fc212503.png — (a) Force constants w.r.t atomic distance

Summary

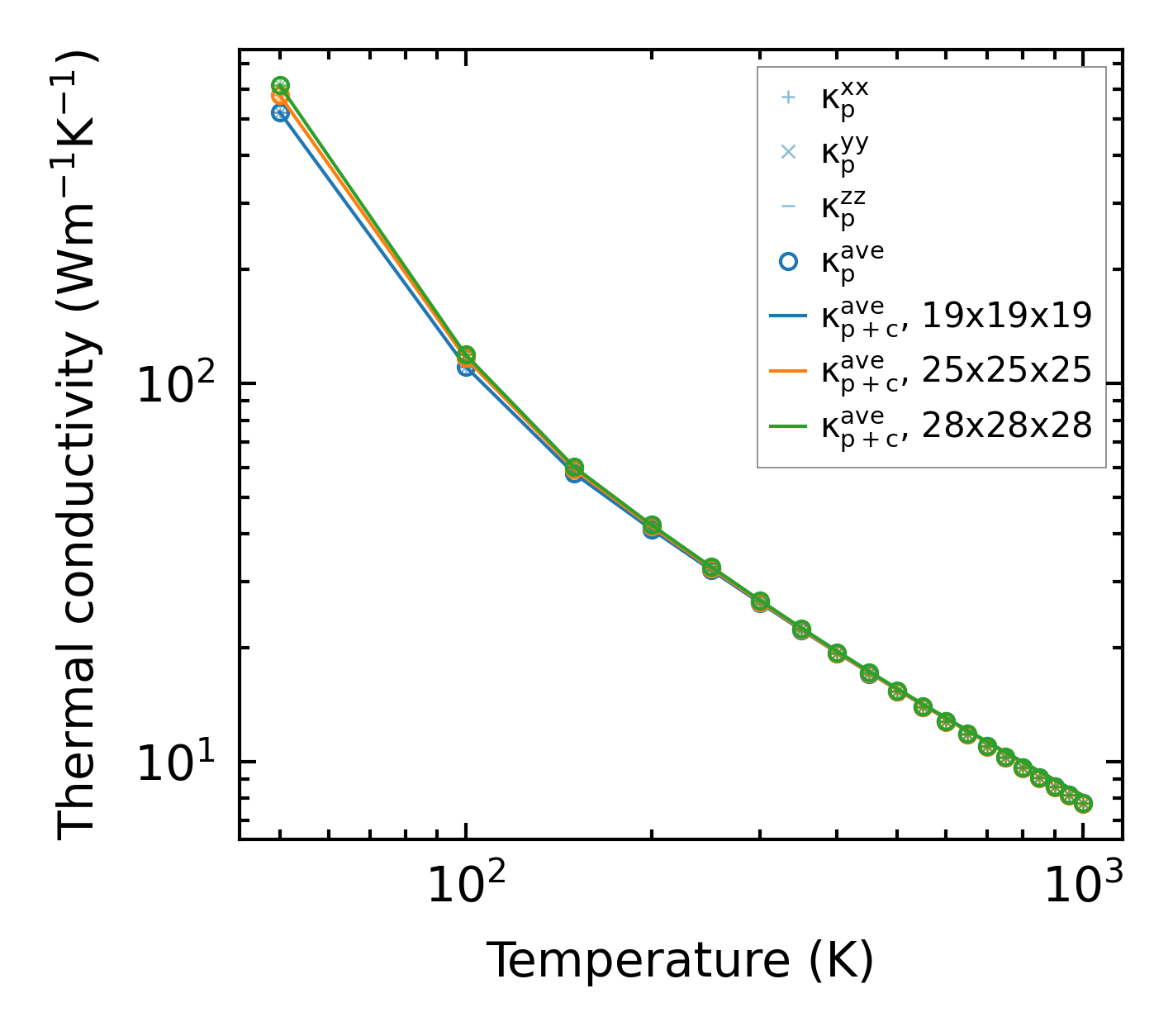

../../_images/fig_kappa9974.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times21716.png — (b) Computation time
