mp-23933/AlH3/anharm

Space group: R-3c (167)
Link: Materials Project
Download: mp-23933.tar.gz

Harmonic properties

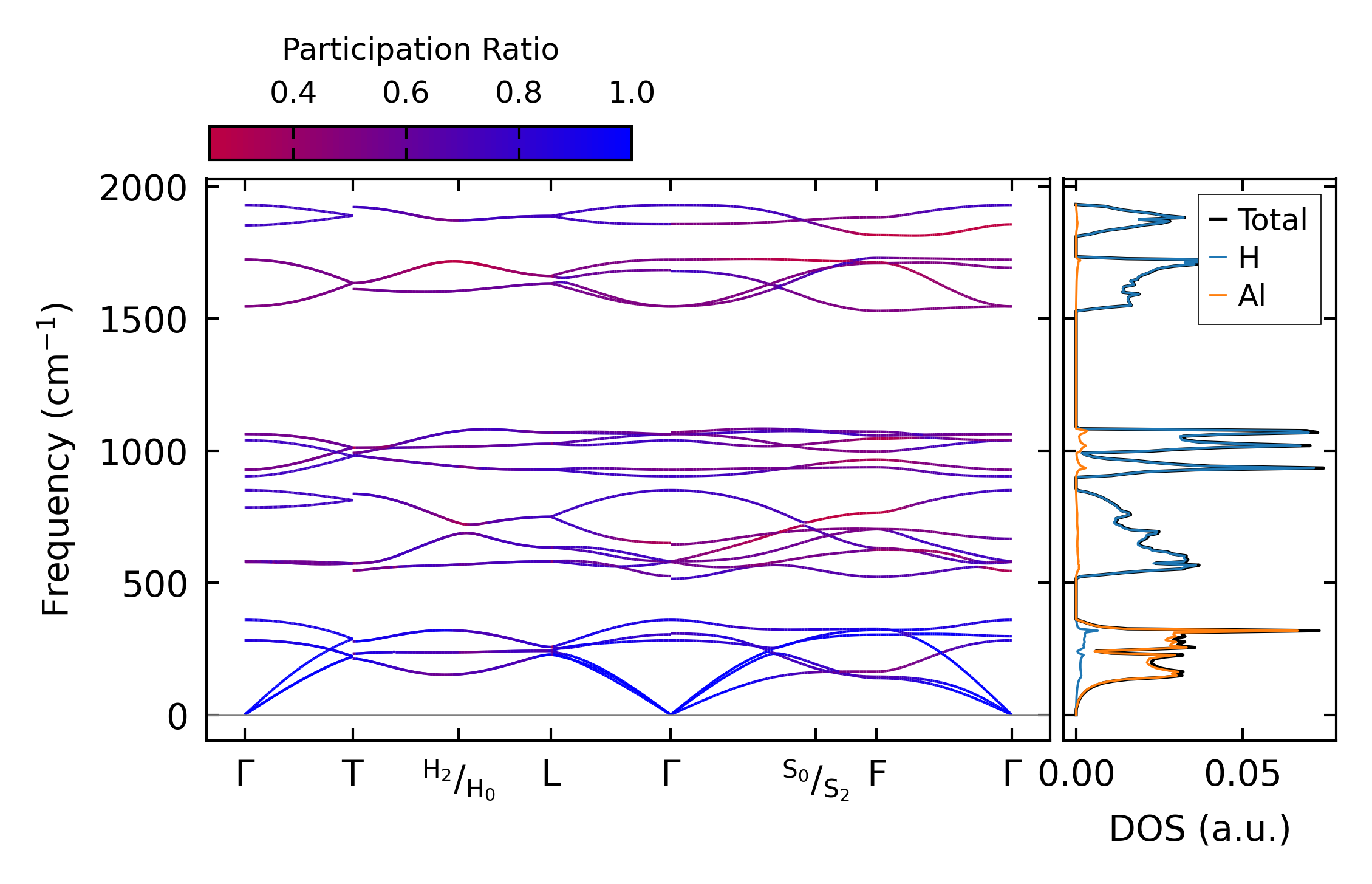

../../_images/fig_bandos_pr12559.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo12559.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all5210.png — (a) Grüneisen parameters

../../_images/fig_gruneisen5210.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 18x18x18, supercell: 2x2x1

../../_images/fig_kappa9801.png — (a) Temperature-dependent lattice thermal conductivity

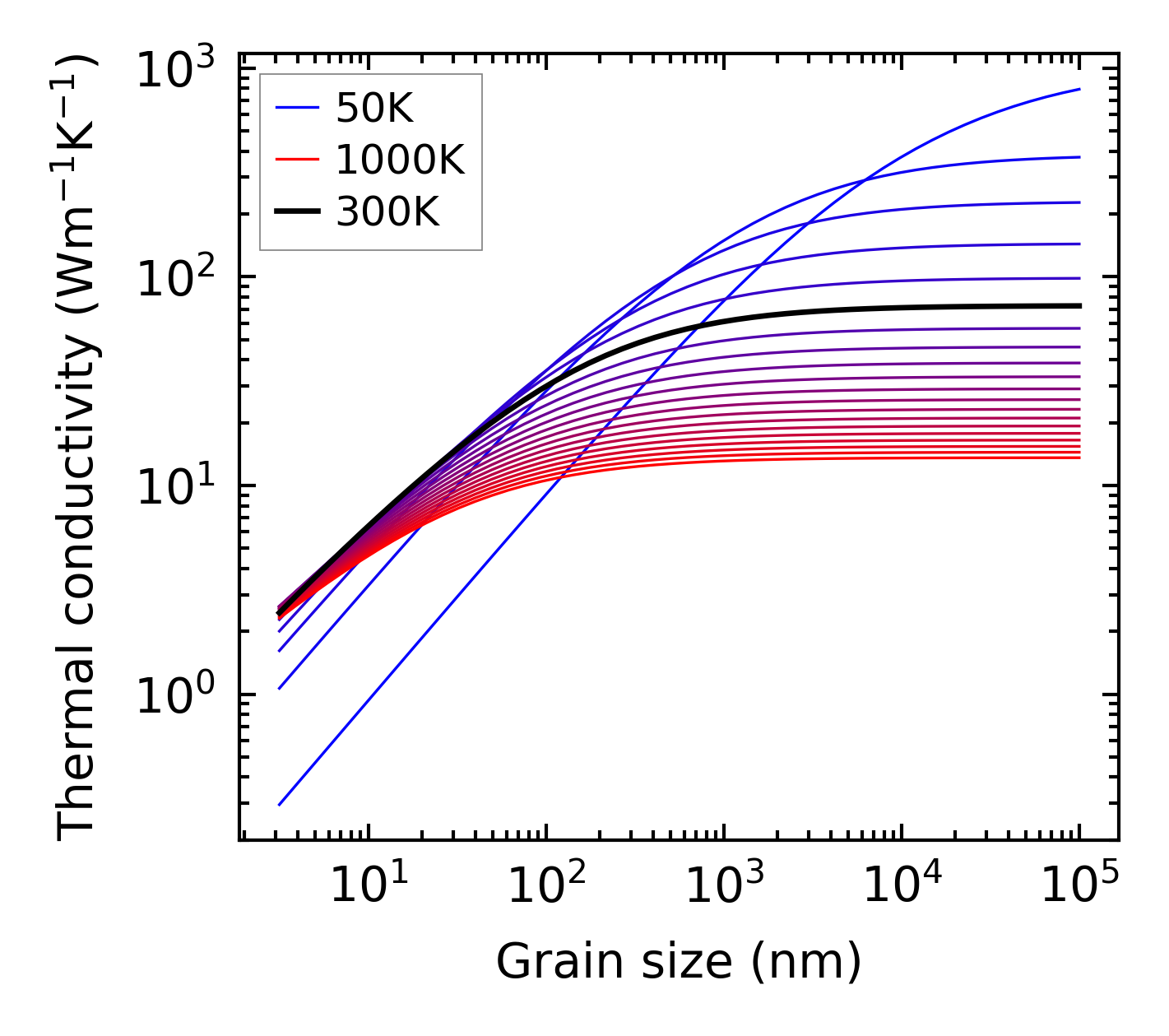

../../_images/fig_kappa_vs_grain_size5272.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime5159.png — (a) Phonon lifetime due to phonon-phonon scattering

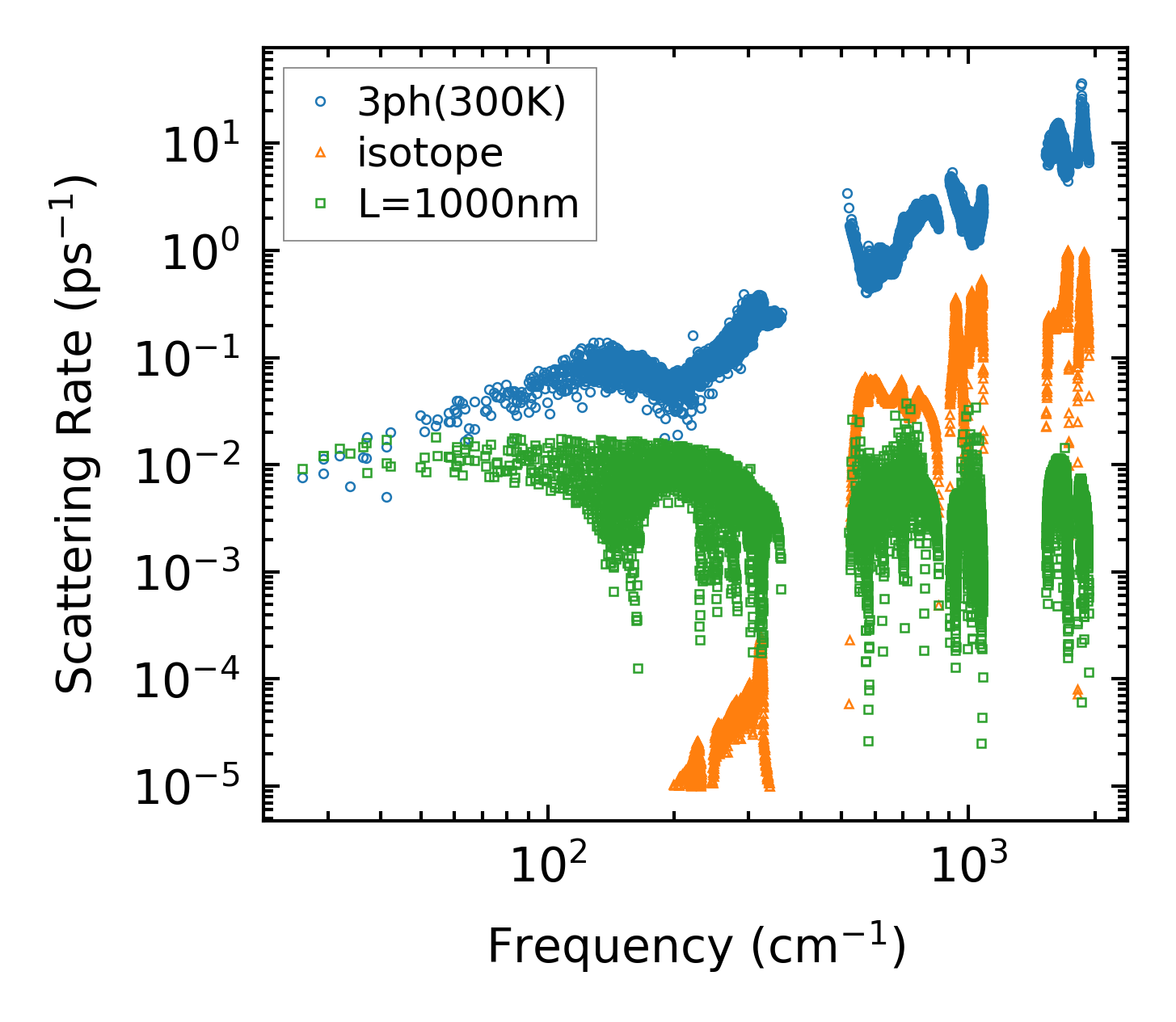

../../_images/fig_scat_rates5158.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

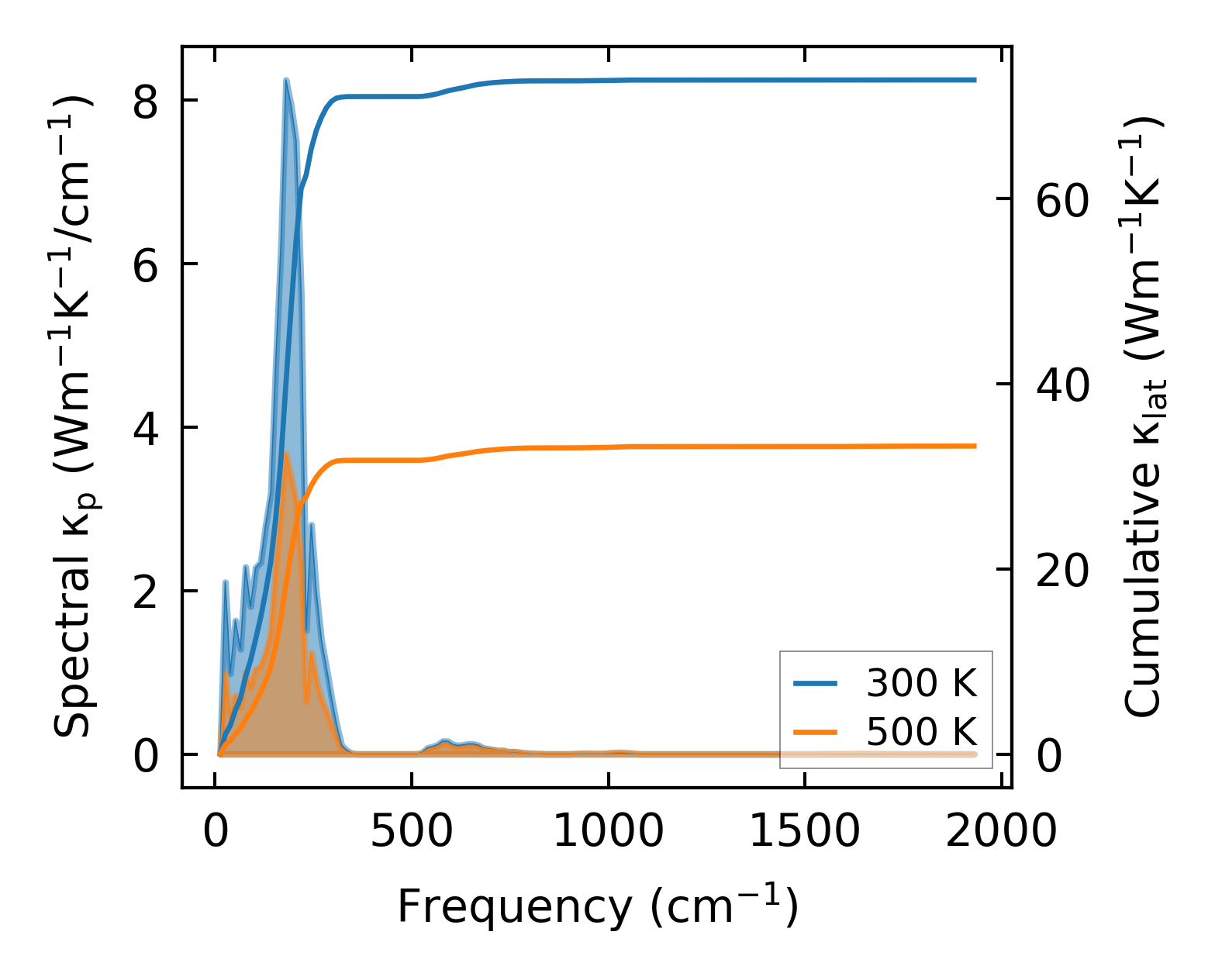

../../_images/fig_cumu_frequency5159.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

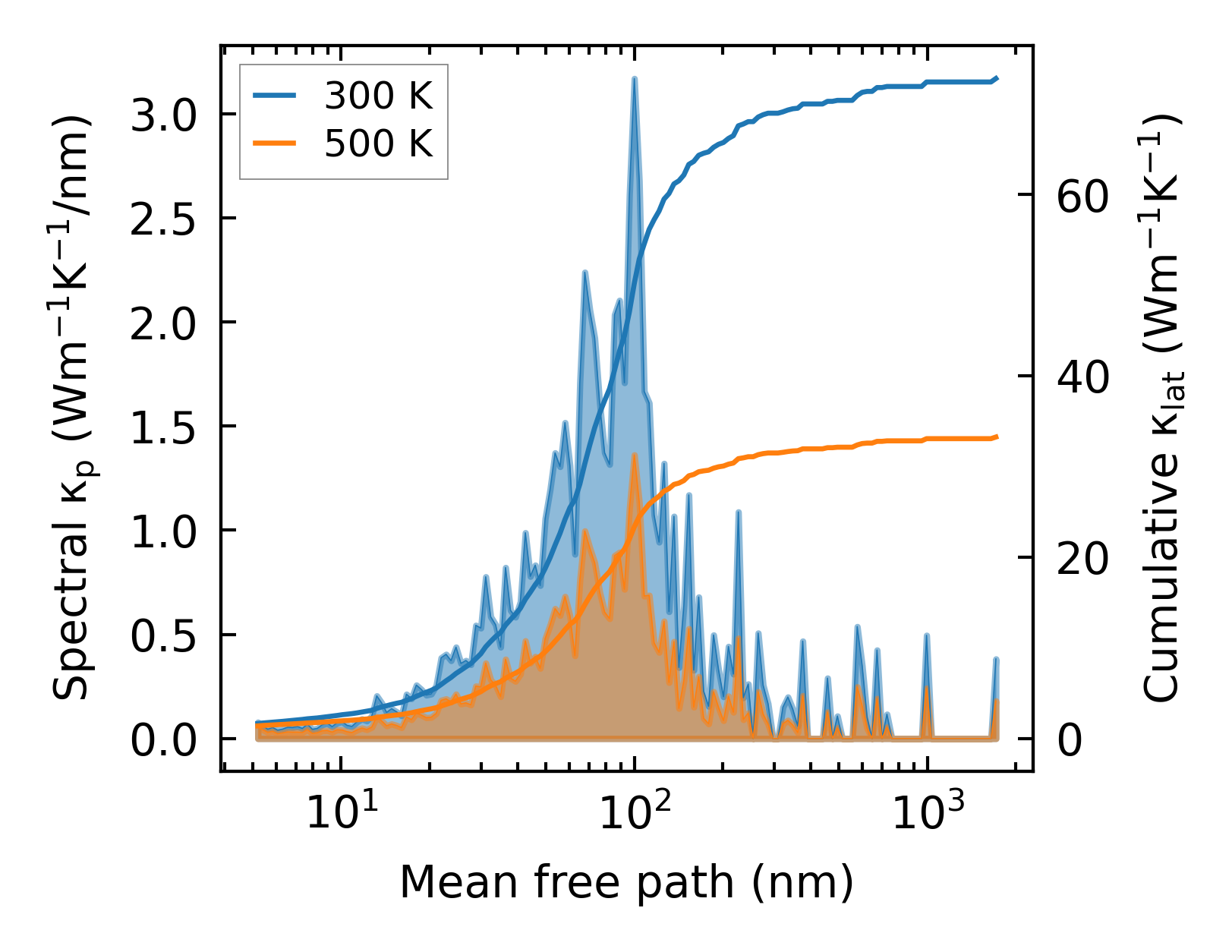

../../_images/fig_cumu_mfp5158.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

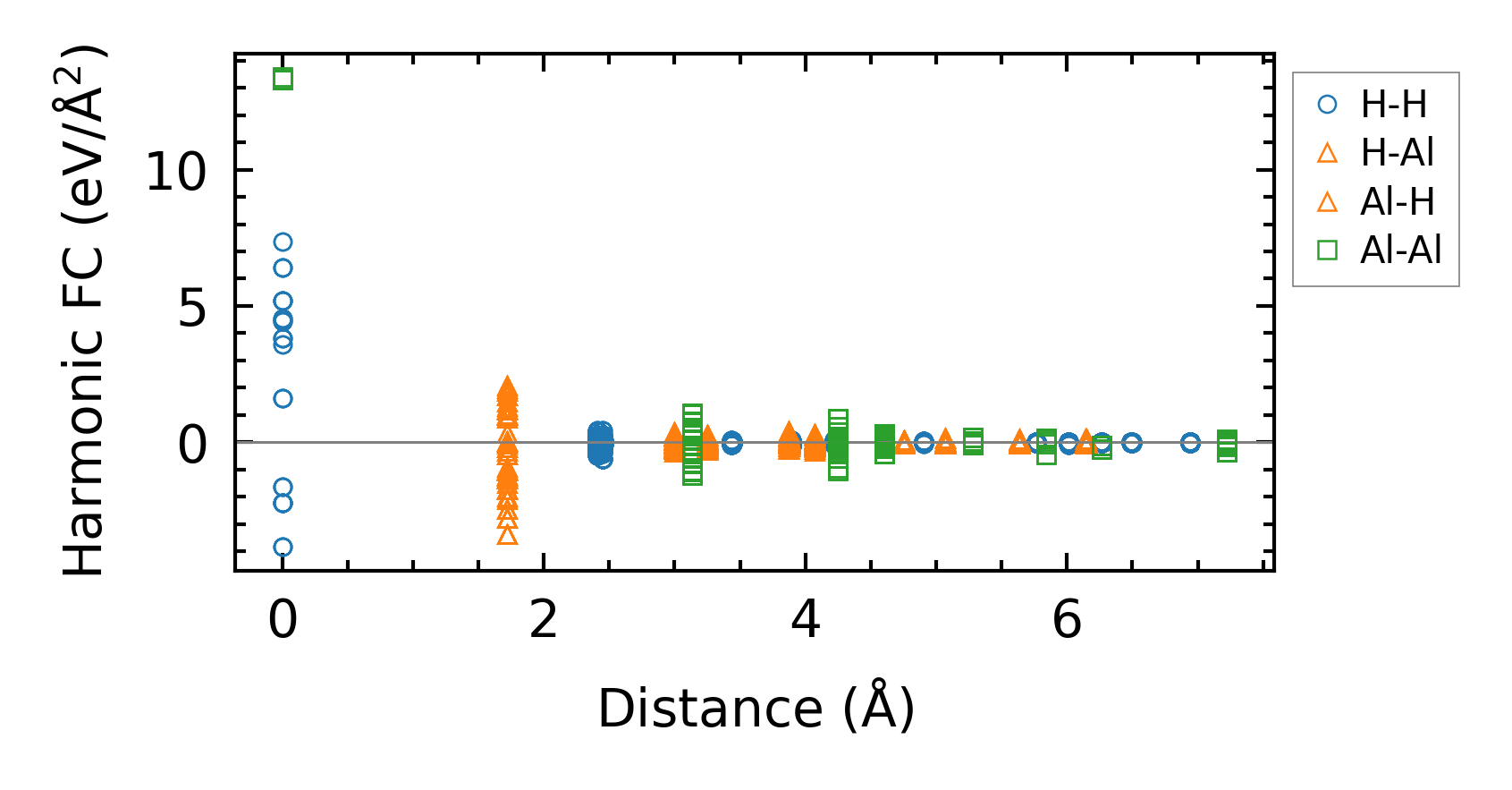

../../_images/fig_fc212257.png — (a) Force constants w.r.t atomic distance

Summary

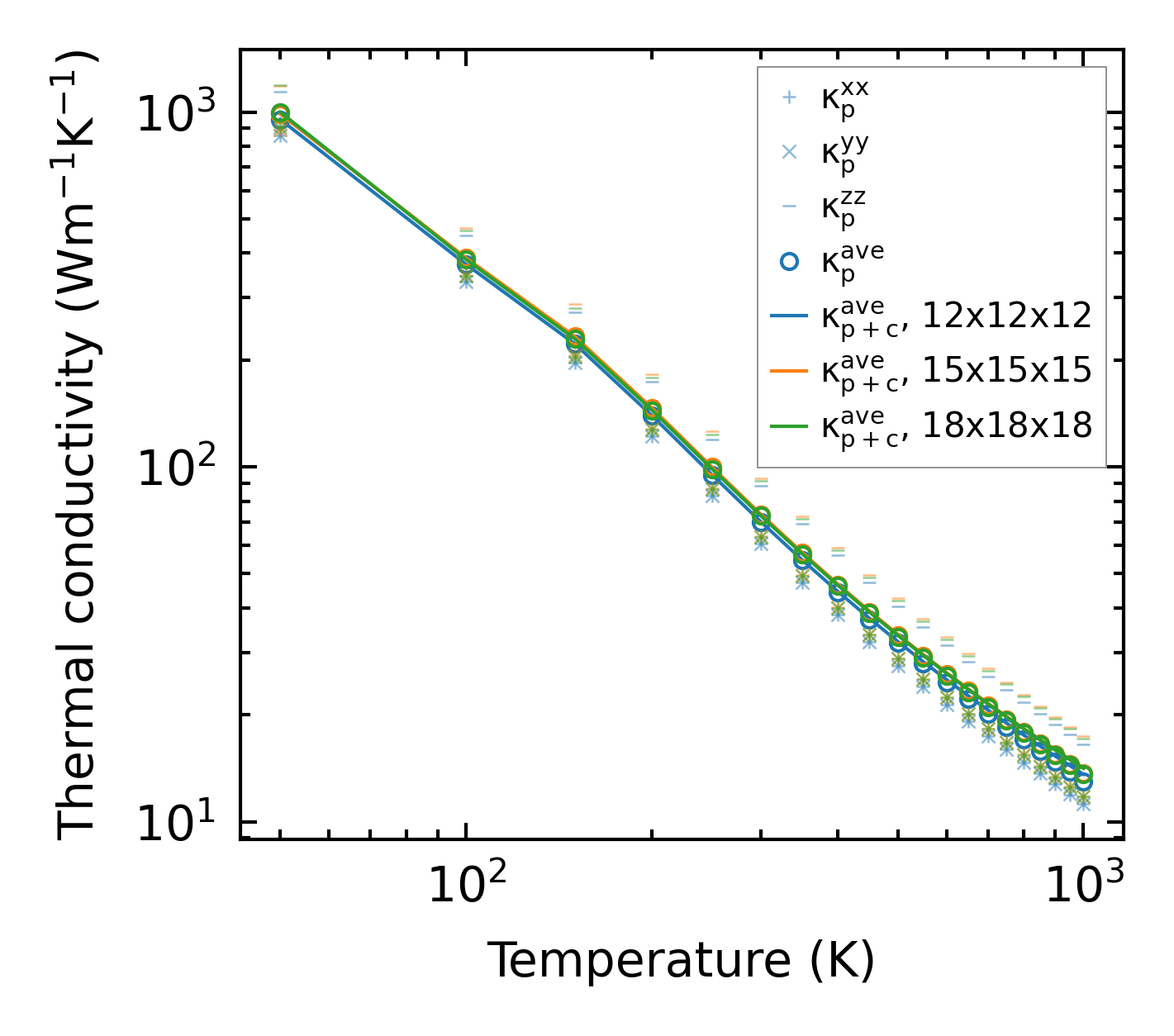

../../_images/fig_kappa9802.png — (a) Temperature-dependent lattice thermal conductivity

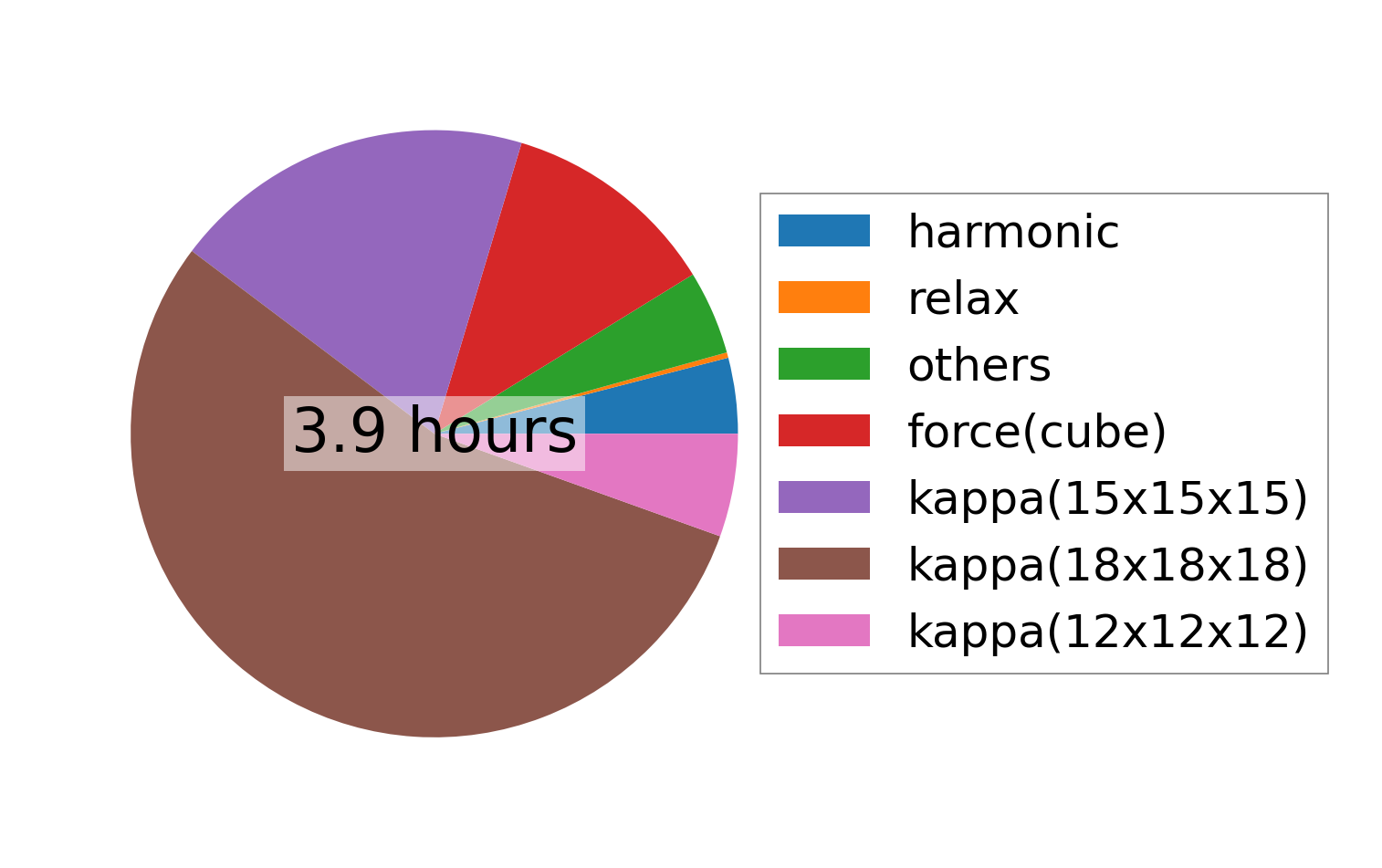

../../_images/fig_times21349.png — (b) Computation time
