mp-23125/K3NaFeCl6/anharm

Space group: R-3c (167)
Link: Materials Project
Download: mp-23125.tar.gz

Harmonic properties

../../_images/fig_bandos_pr12898.png — (a) Phonon dispersion with participation ratio and DOS

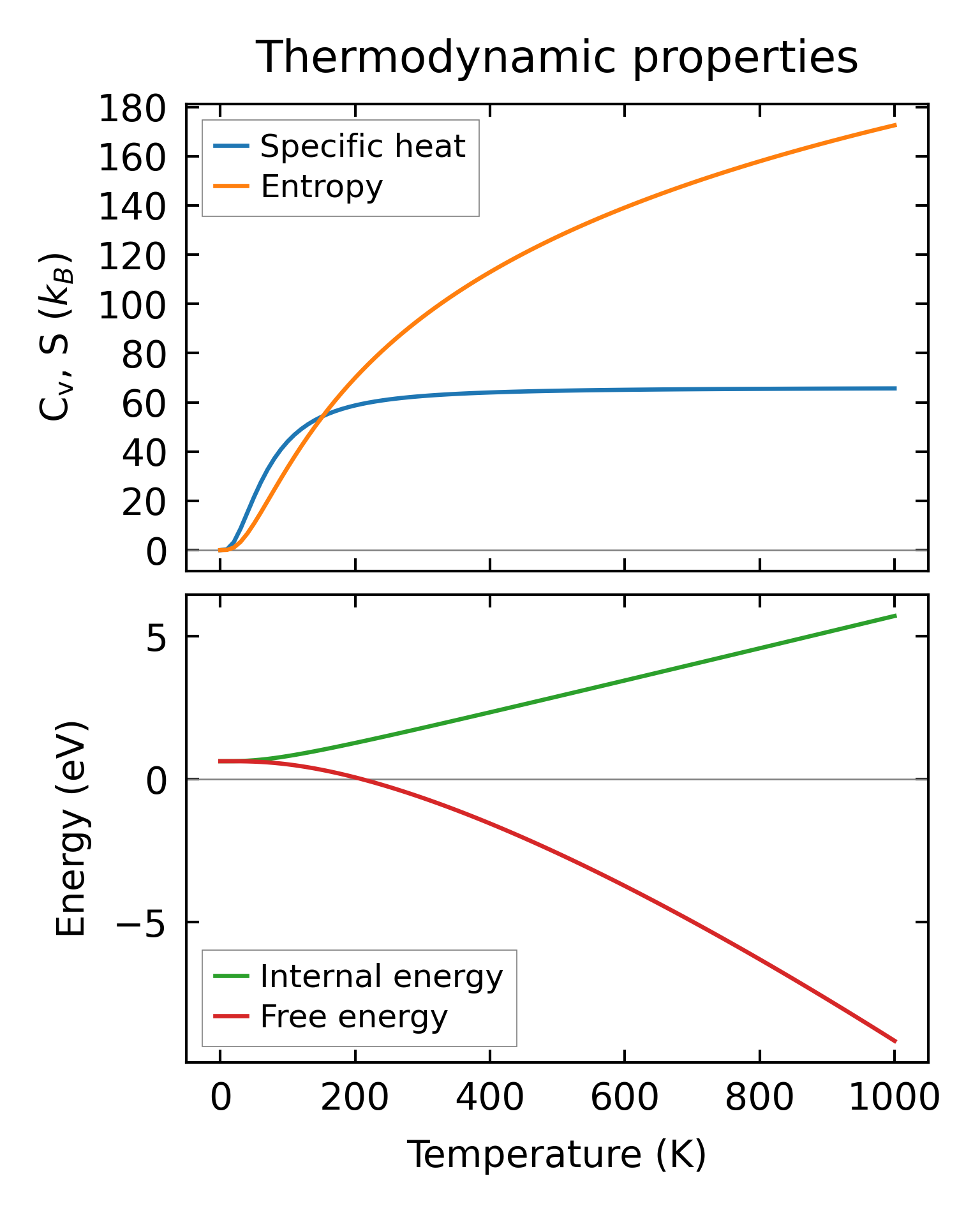

../../_images/fig_thermo12898.png — (b) Thermodynamic properties

Grüneisen parameters

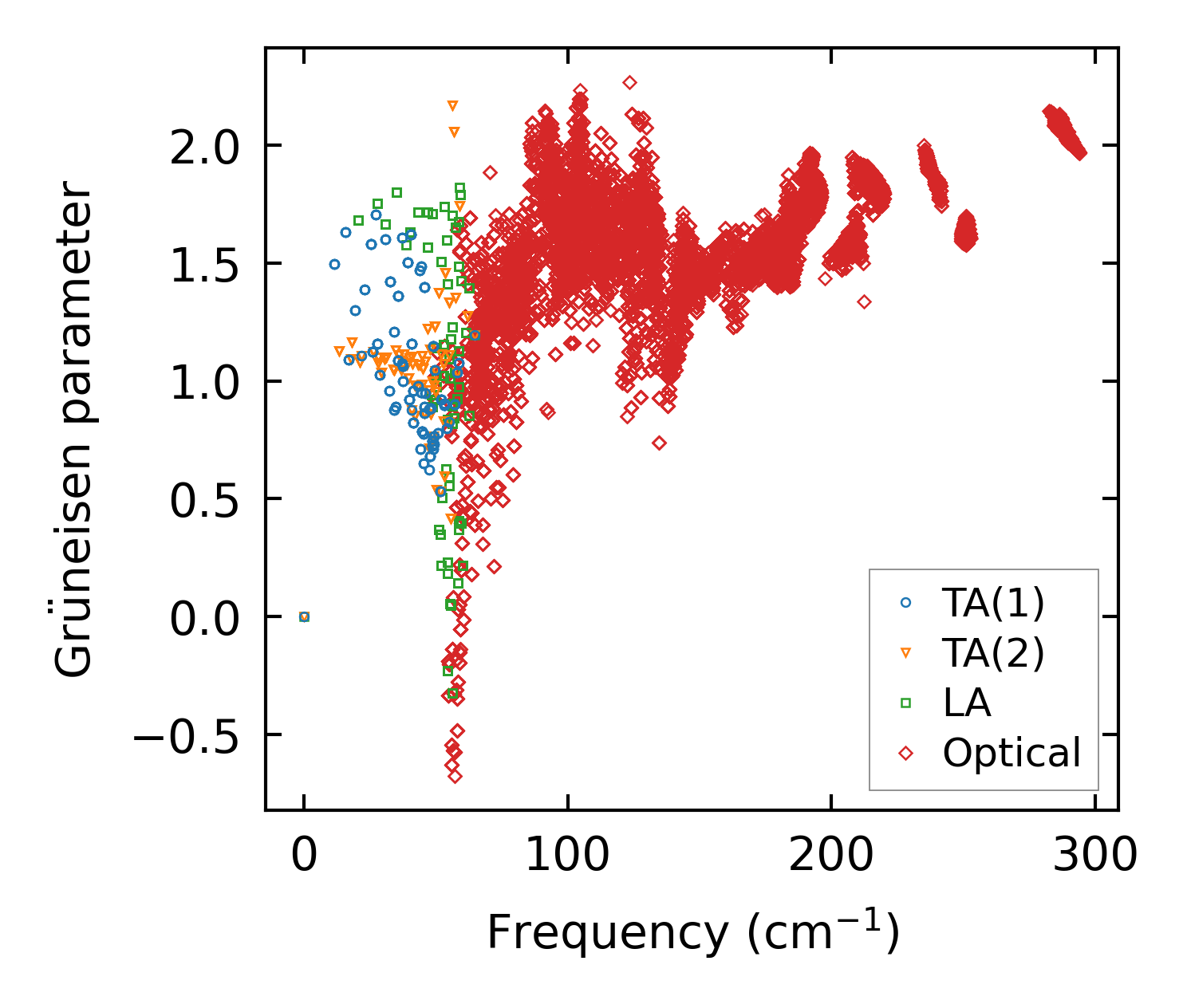

../../_images/fig_gru_all5354.png — (a) Grüneisen parameters

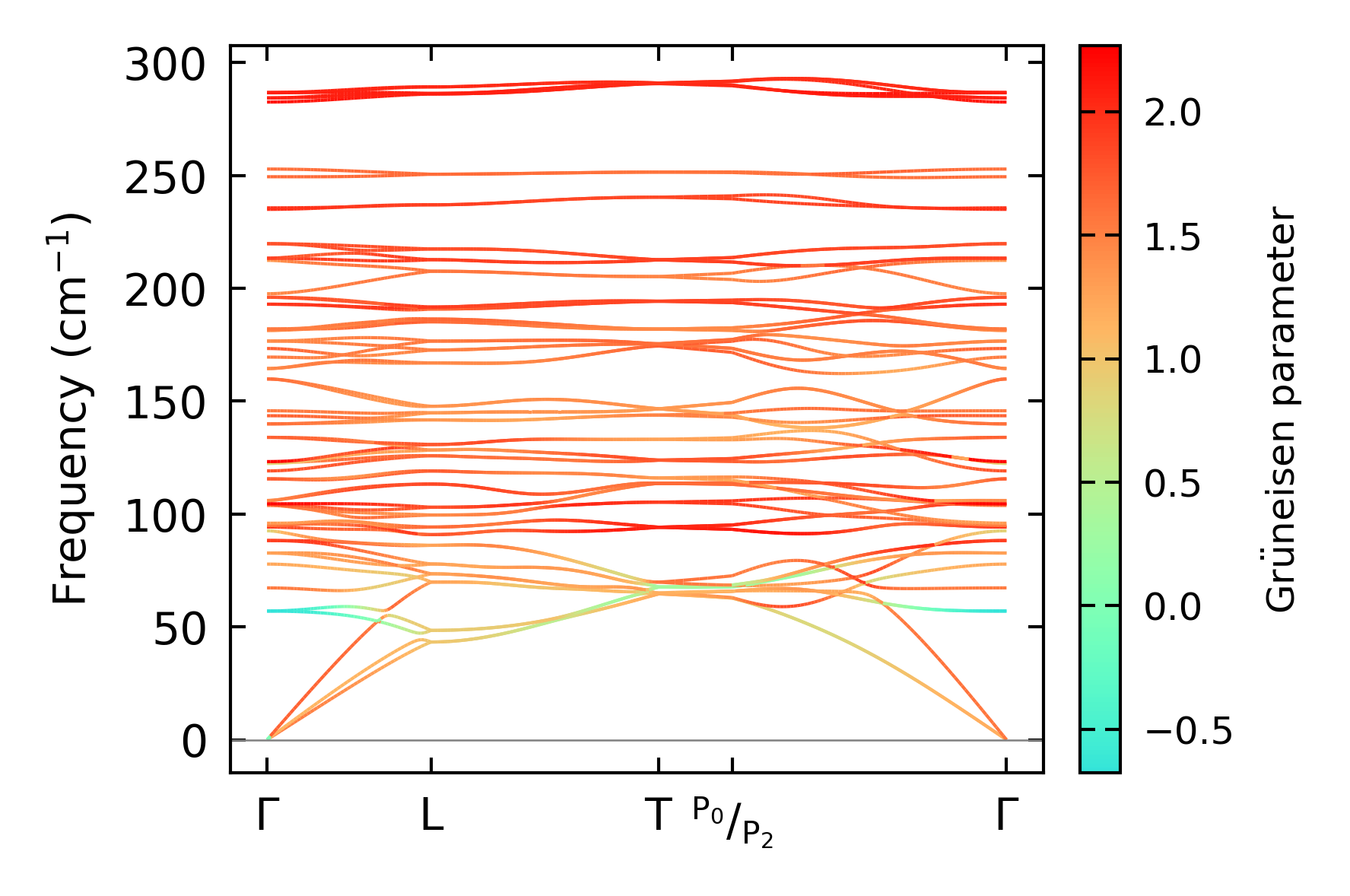

../../_images/fig_gruneisen5354.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x8x8, supercell: 1x1x1

../../_images/fig_kappa10058.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size5418.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

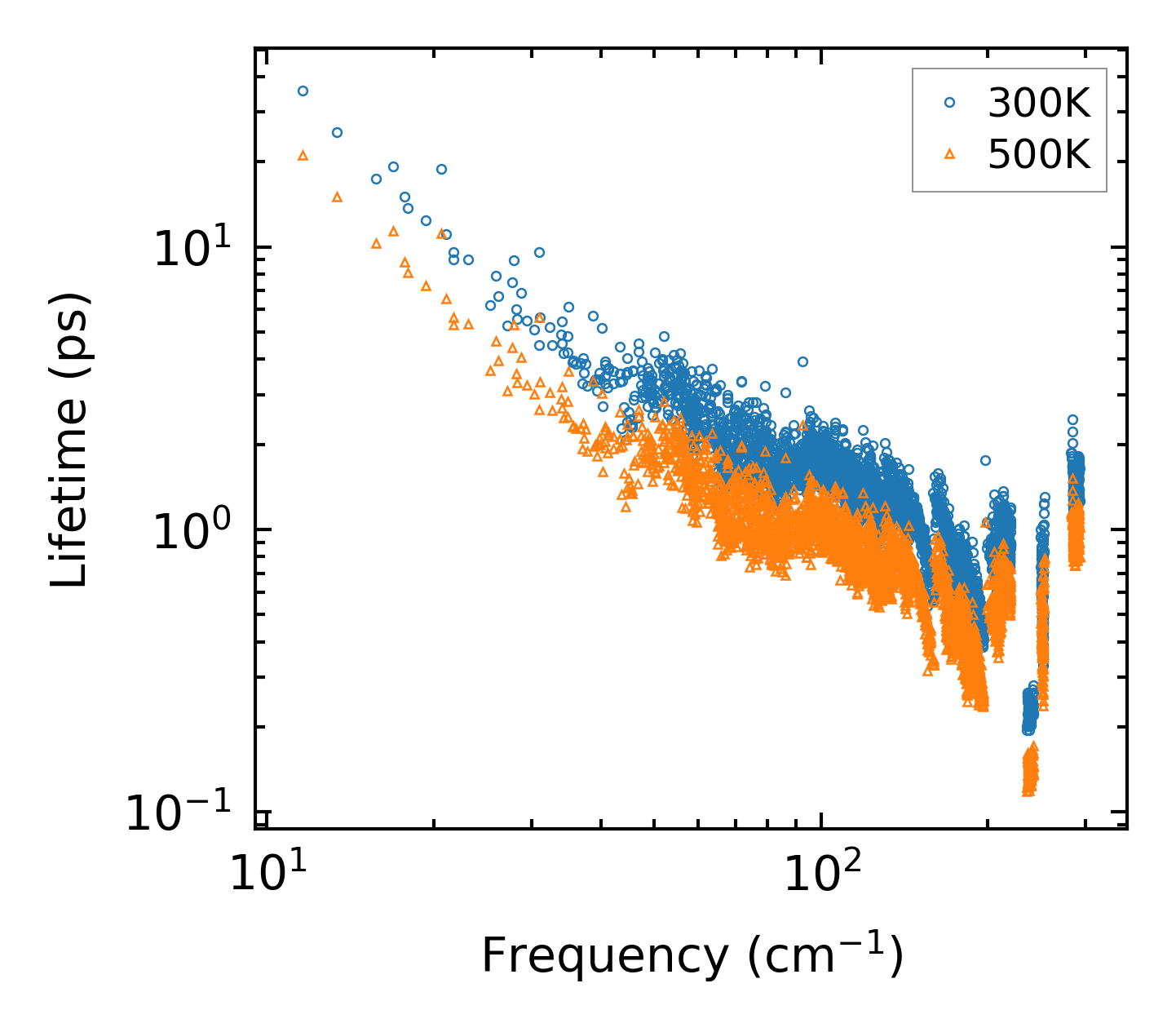

../../_images/fig_lifetime5302.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates5301.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

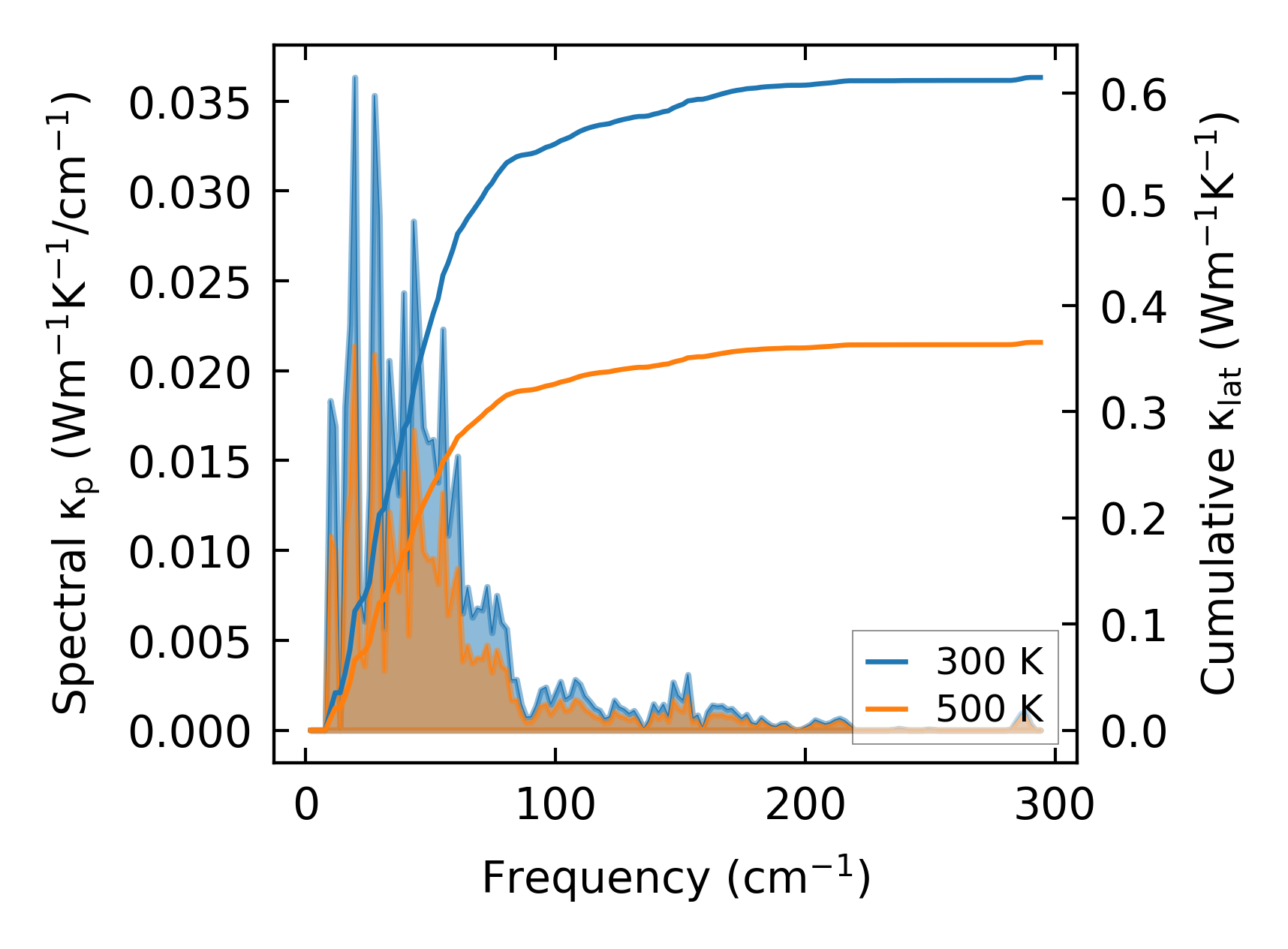

../../_images/fig_cumu_frequency5302.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp5301.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

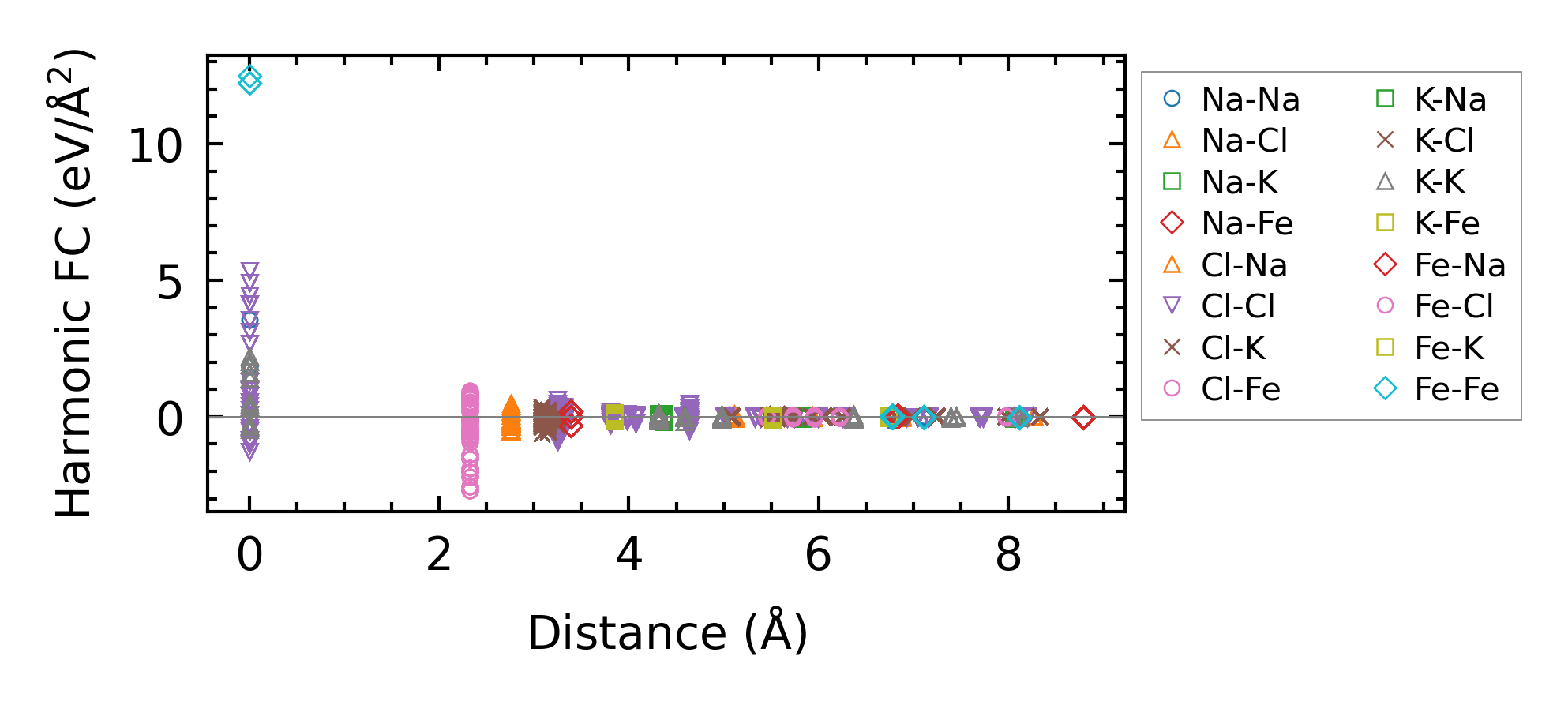

../../_images/fig_fc212594.png — (a) Force constants w.r.t atomic distance

Summary

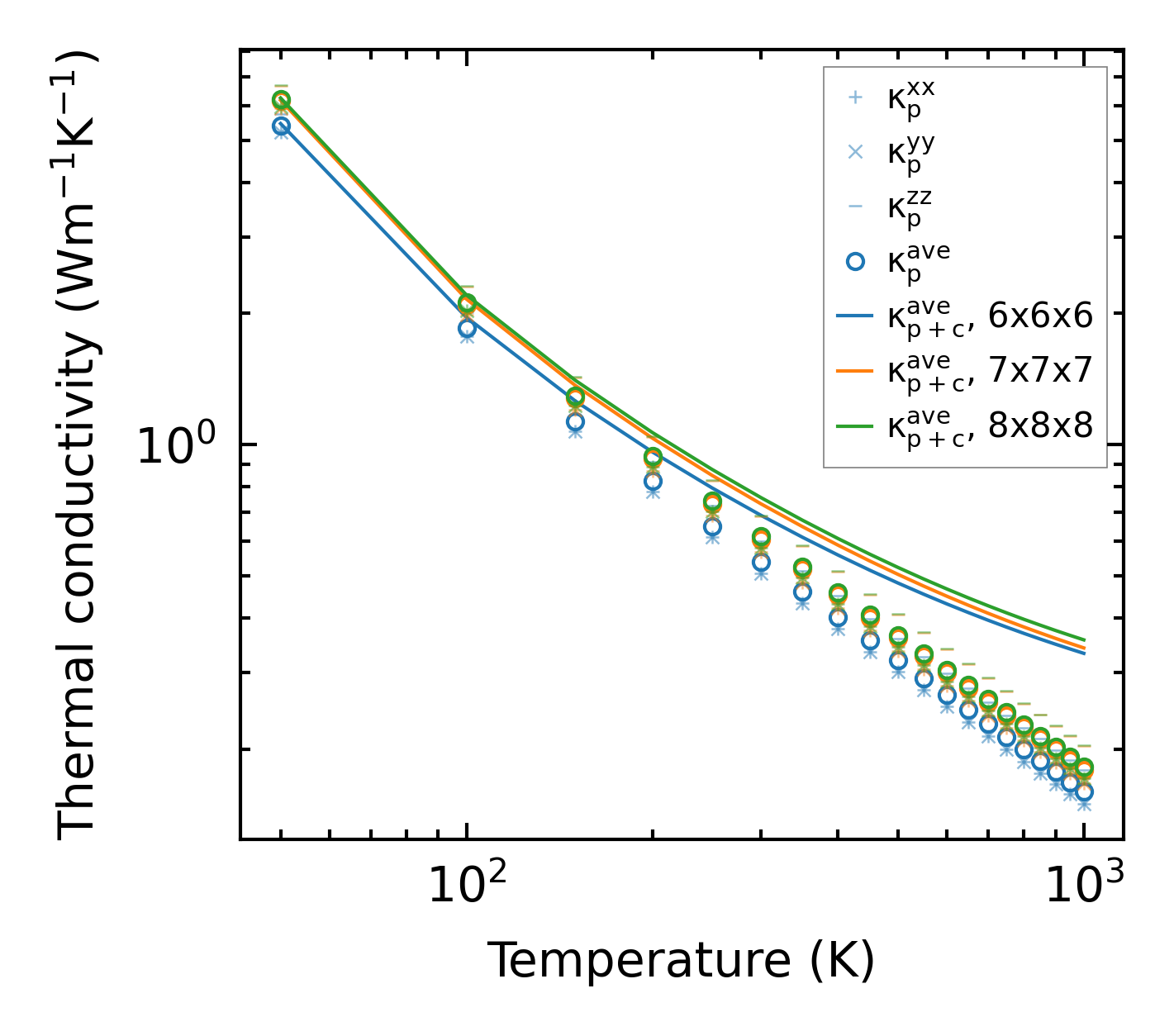

../../_images/fig_kappa10059.png — (a) Temperature-dependent lattice thermal conductivity

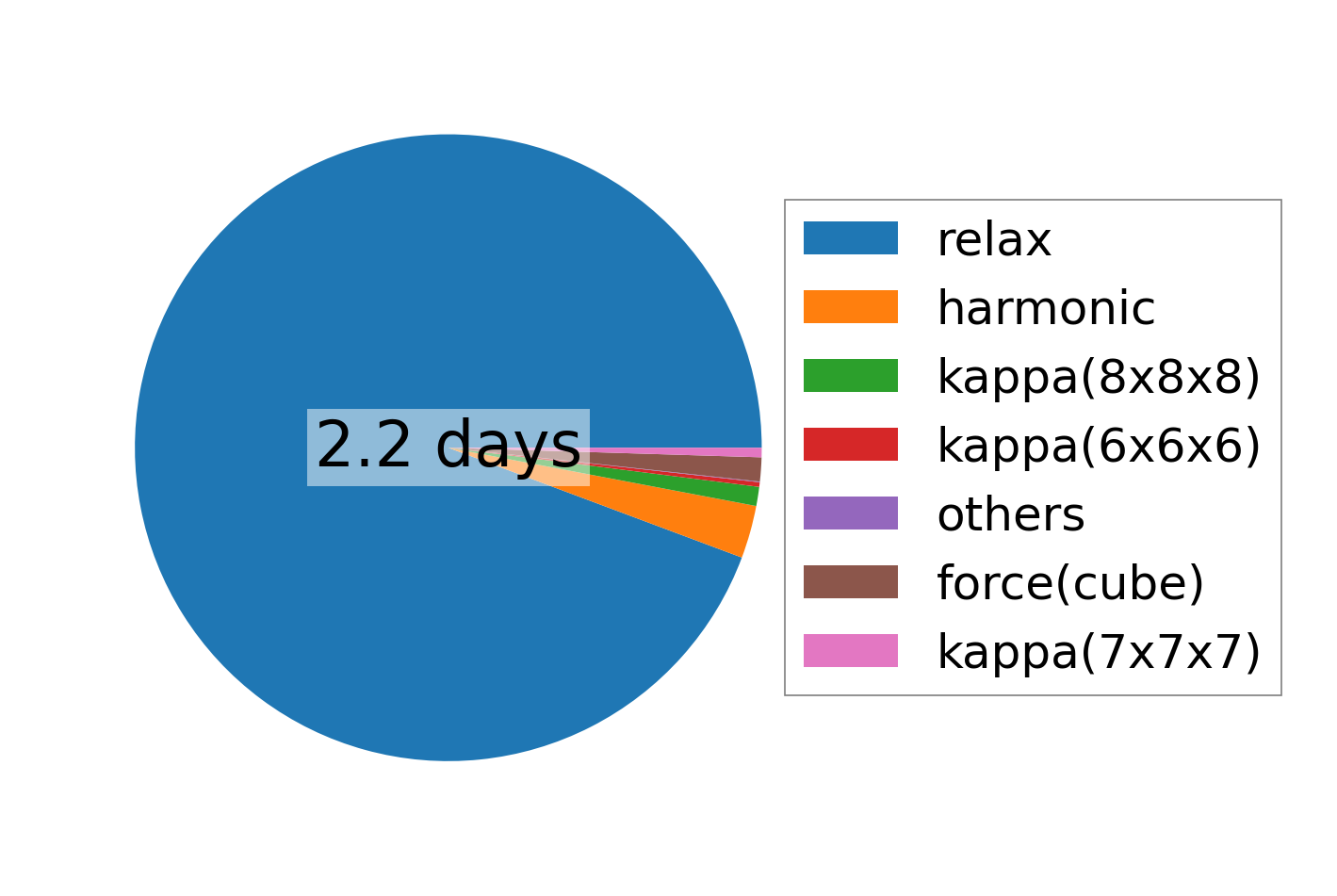

../../_images/fig_times21836.png — (b) Computation time
