mp-23655/Na4Al3Si3IO12/anharm

Space group: P-43n (218)
Link: Materials Project
Download: mp-23655.tar.gz

Equation of state

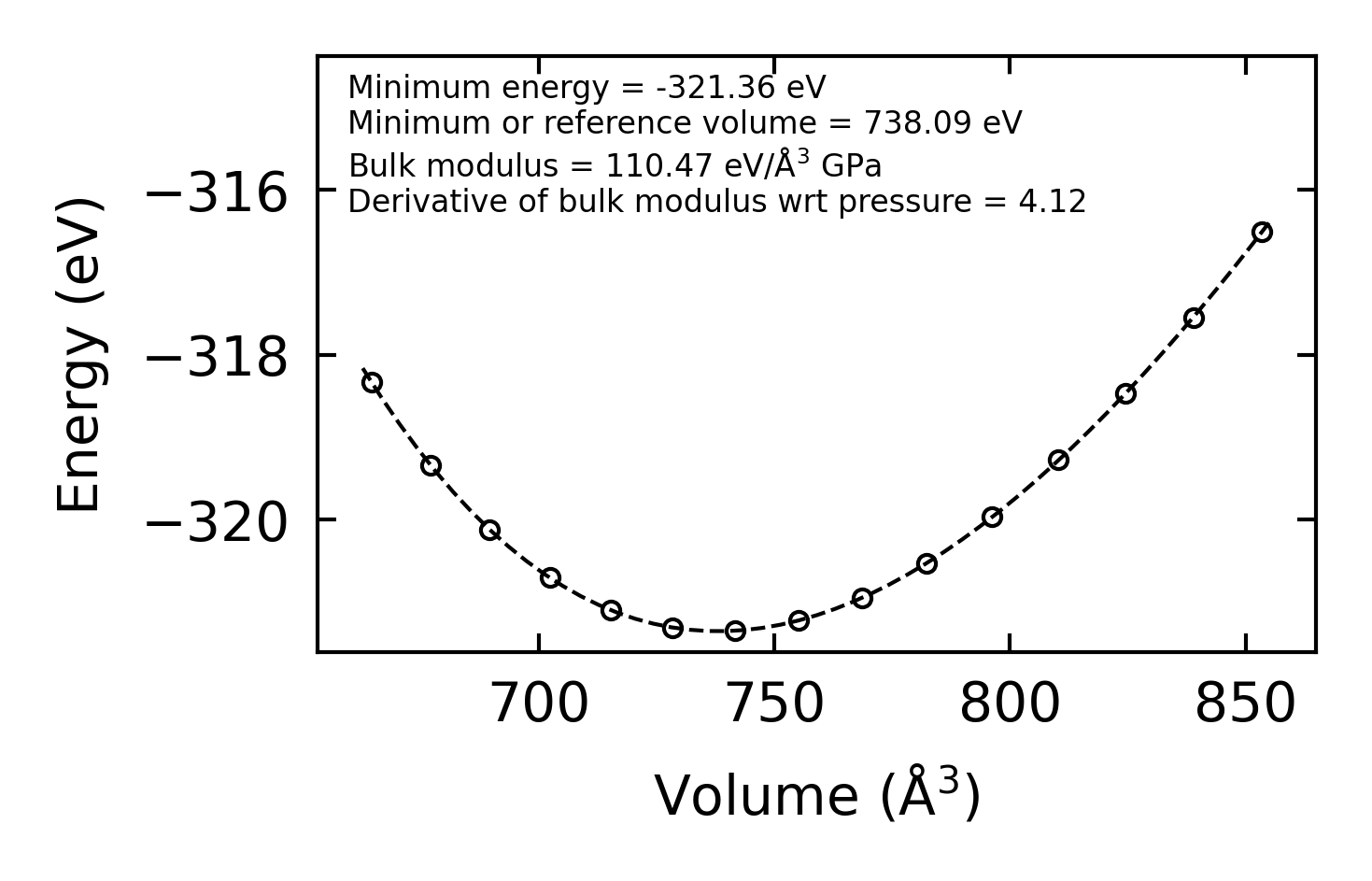

../../_images/fig_bm6380.png — (a) Equation of state

Harmonic properties

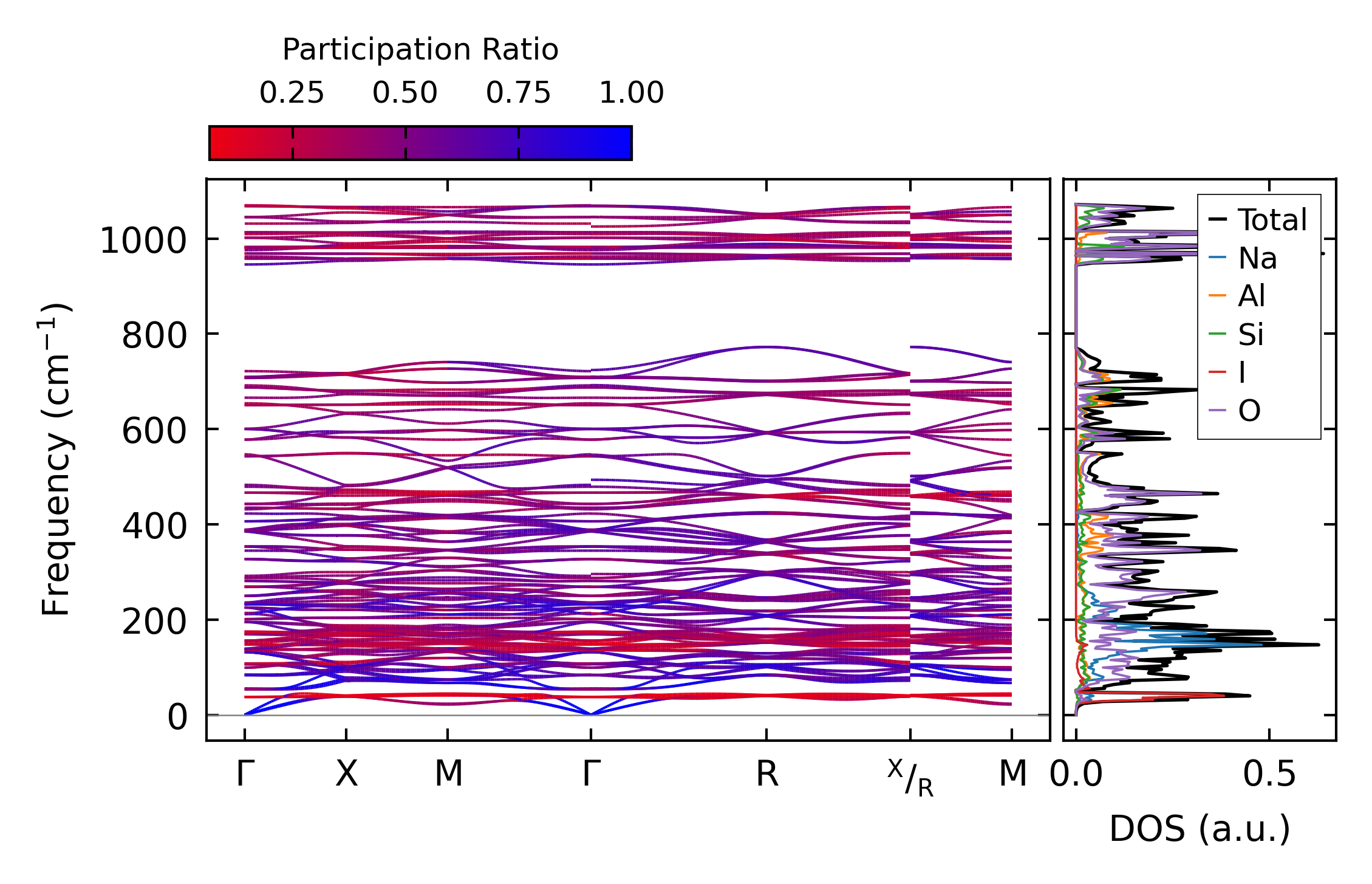

../../_images/fig_bandos_pr12781.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo12781.png — (b) Thermodynamic properties

Grüneisen parameters

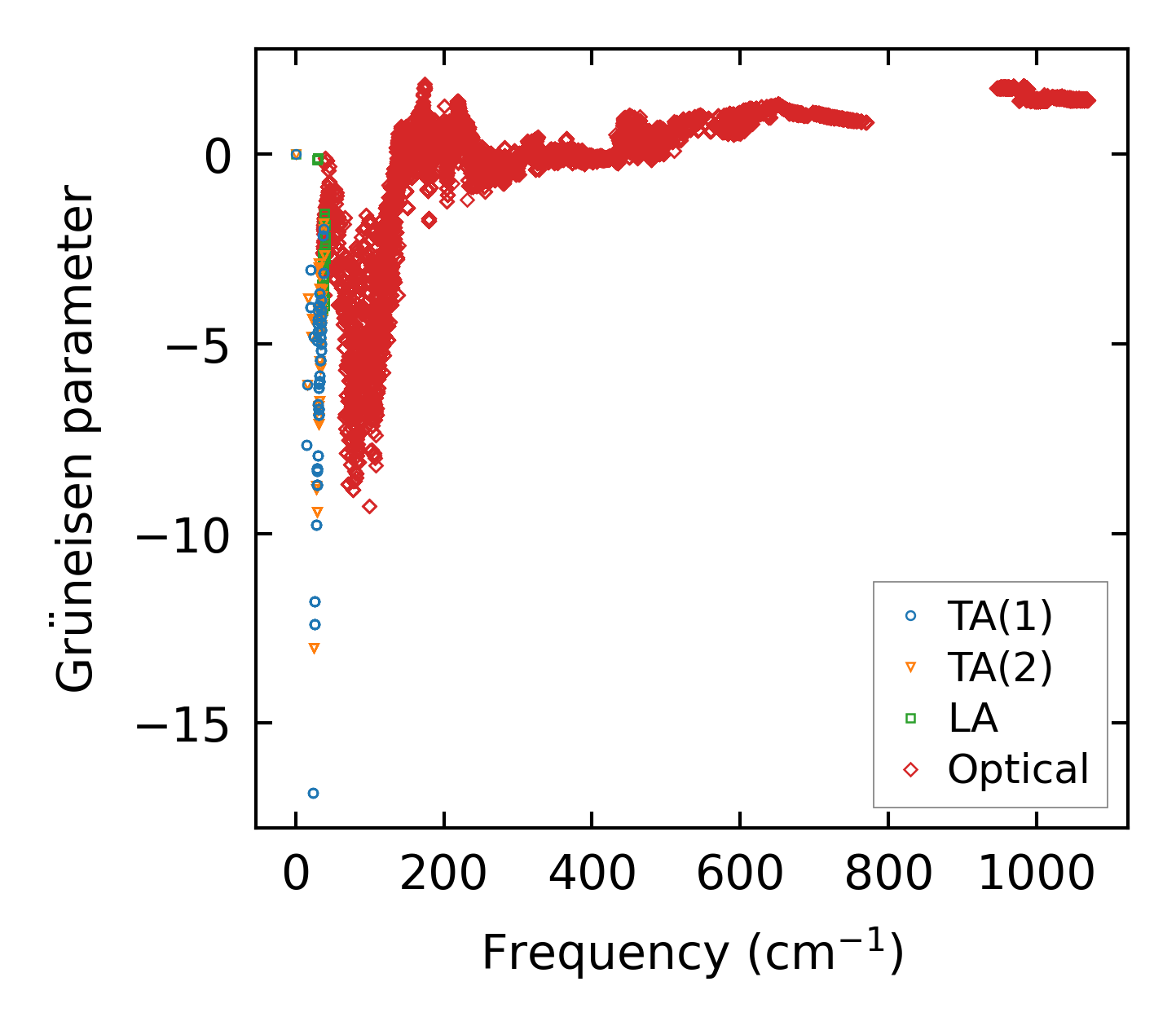

../../_images/fig_gru_all5299.png — (a) Grüneisen parameters

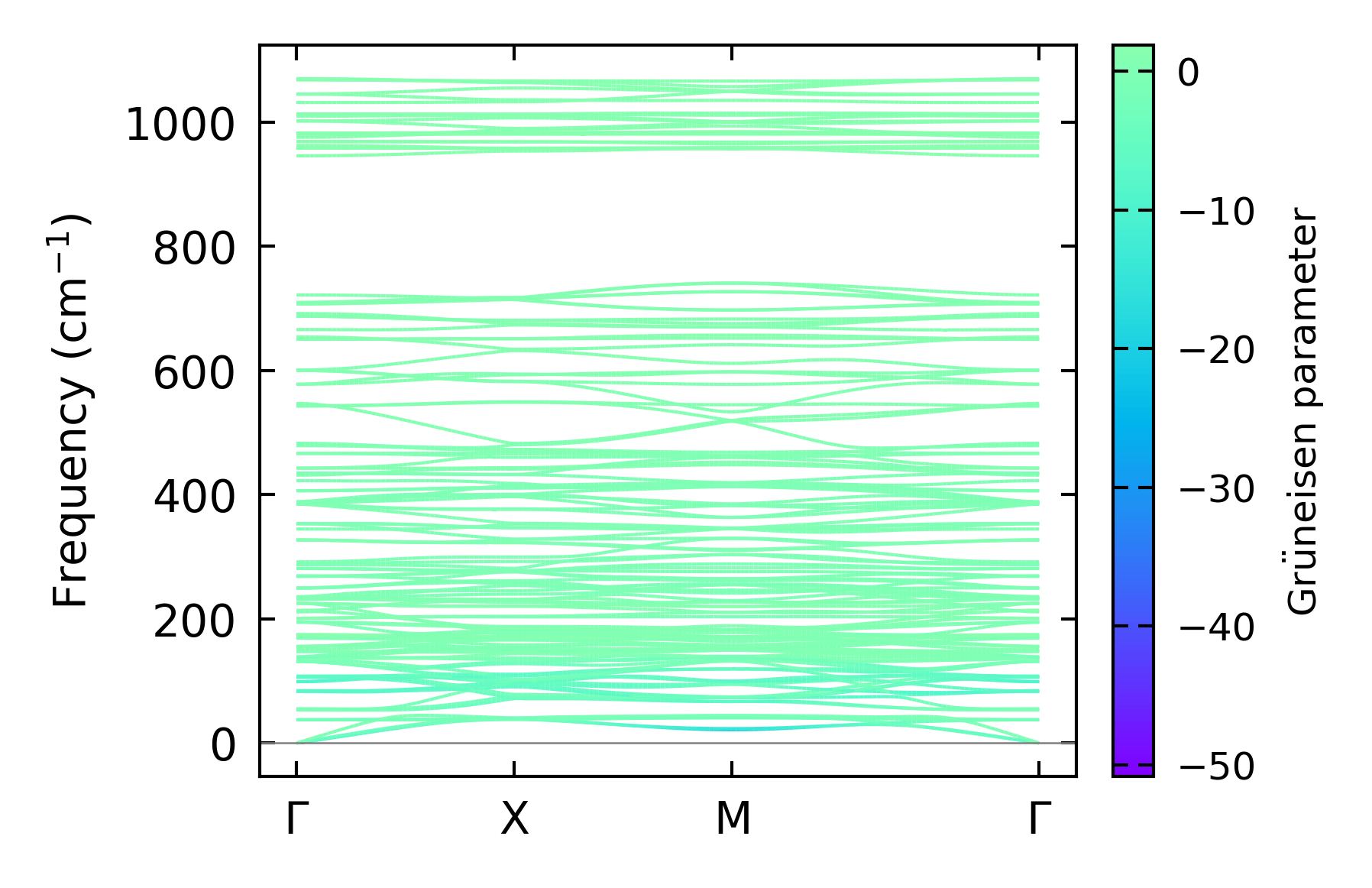

../../_images/fig_gruneisen5299.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x7x7, supercell: 1x1x1

../../_images/fig_kappa9955.png — (a) Temperature-dependent lattice thermal conductivity

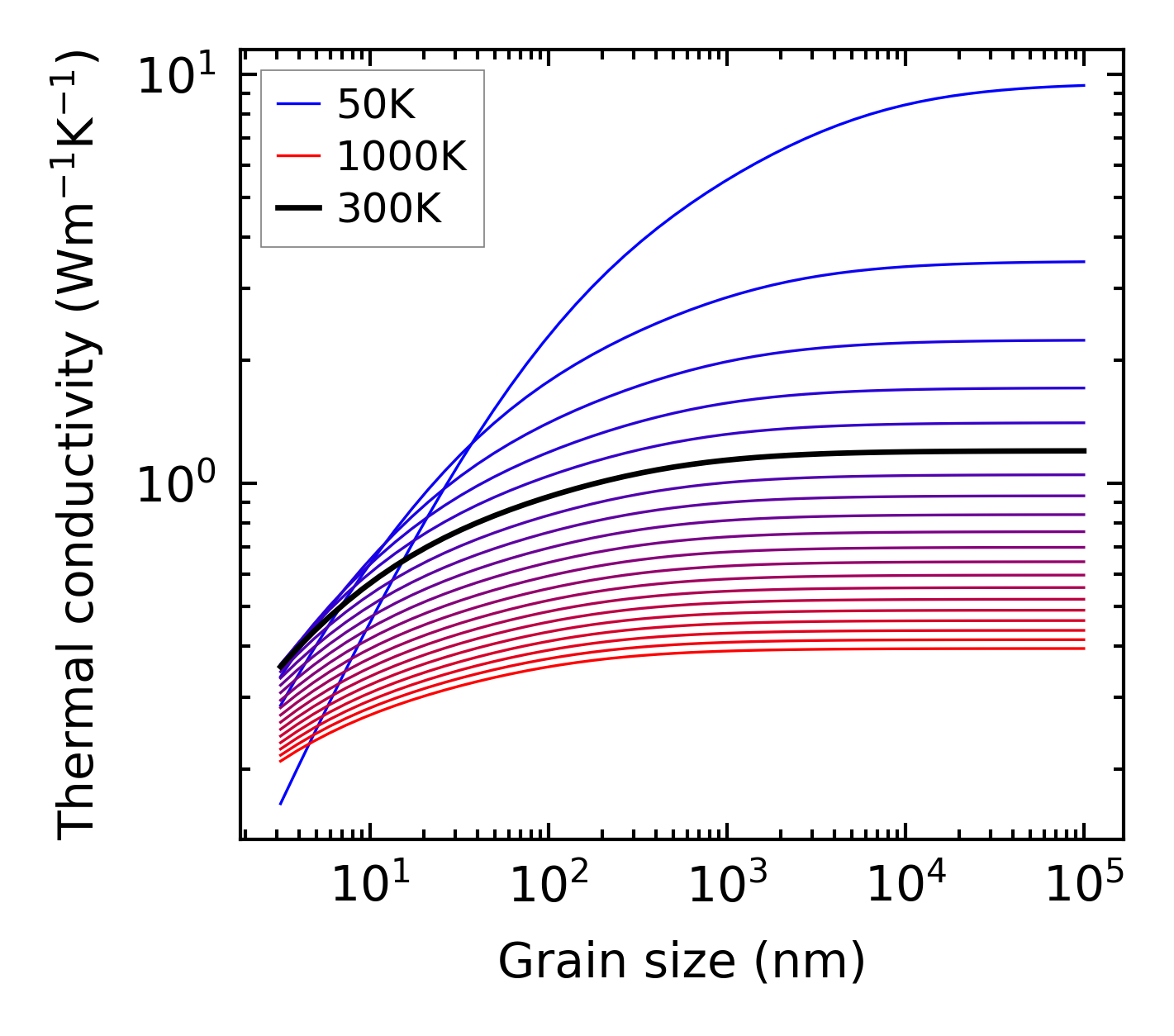

../../_images/fig_kappa_vs_grain_size5361.png — (b) Peierls lattice thermal conductivity w.r.t grain size

3-phonon (LASSO), supercell 2x2x2 — q-mesh: 7x7x7, supercell: 2x2x2

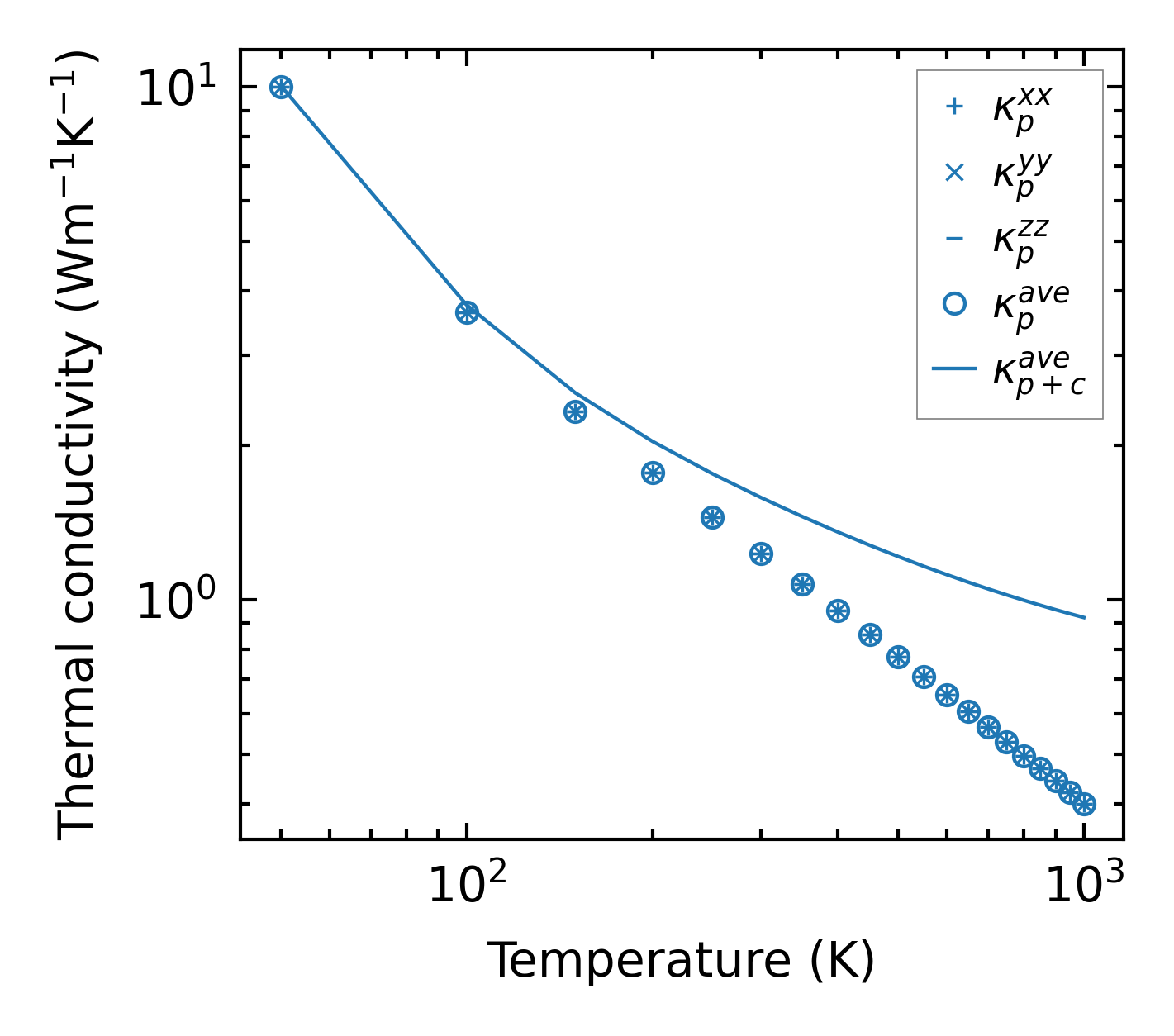

../../_images/fig_kappa9956.png — (a) Temperature-dependent lattice thermal conductivity

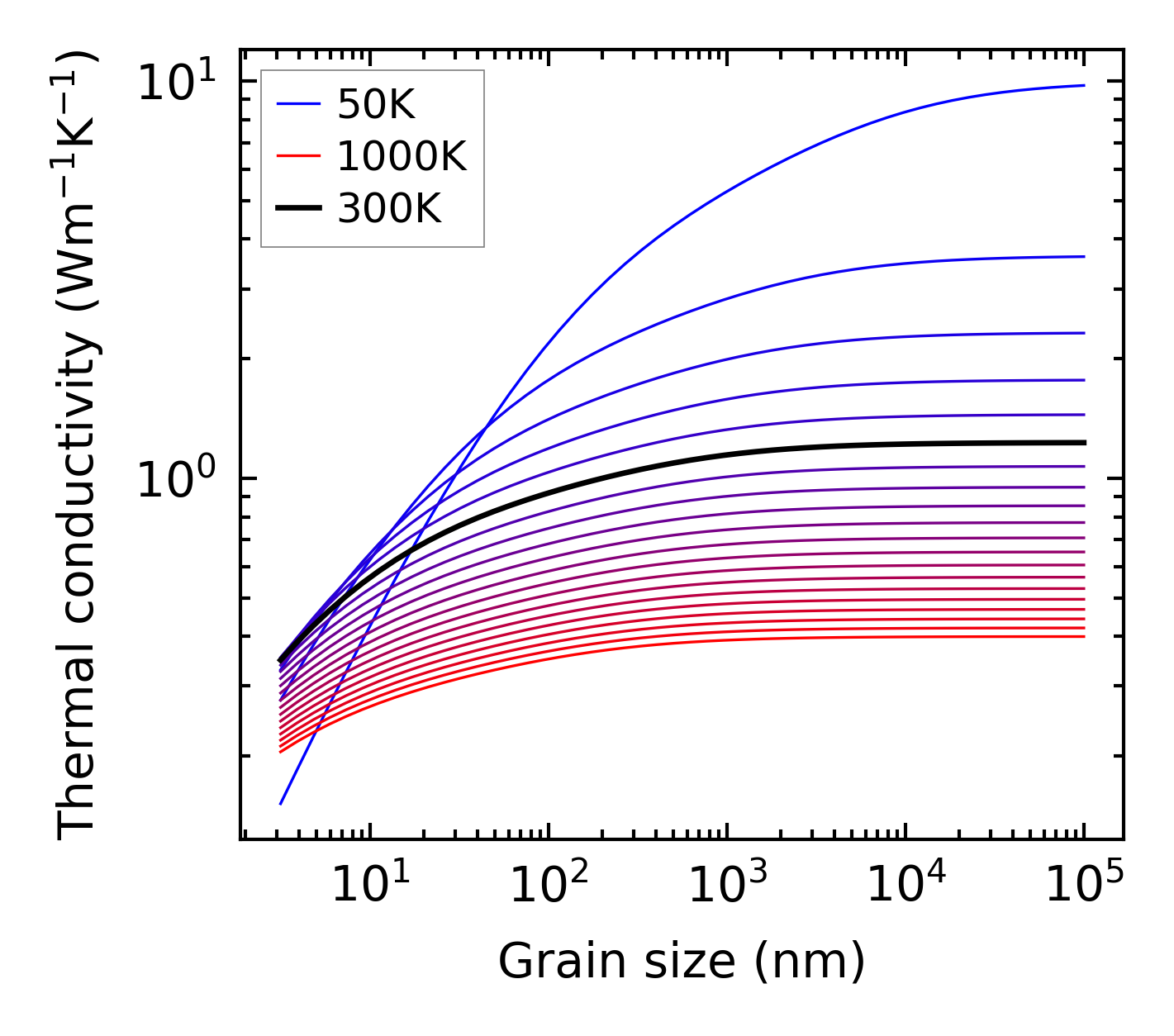

../../_images/fig_kappa_vs_grain_size5362.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

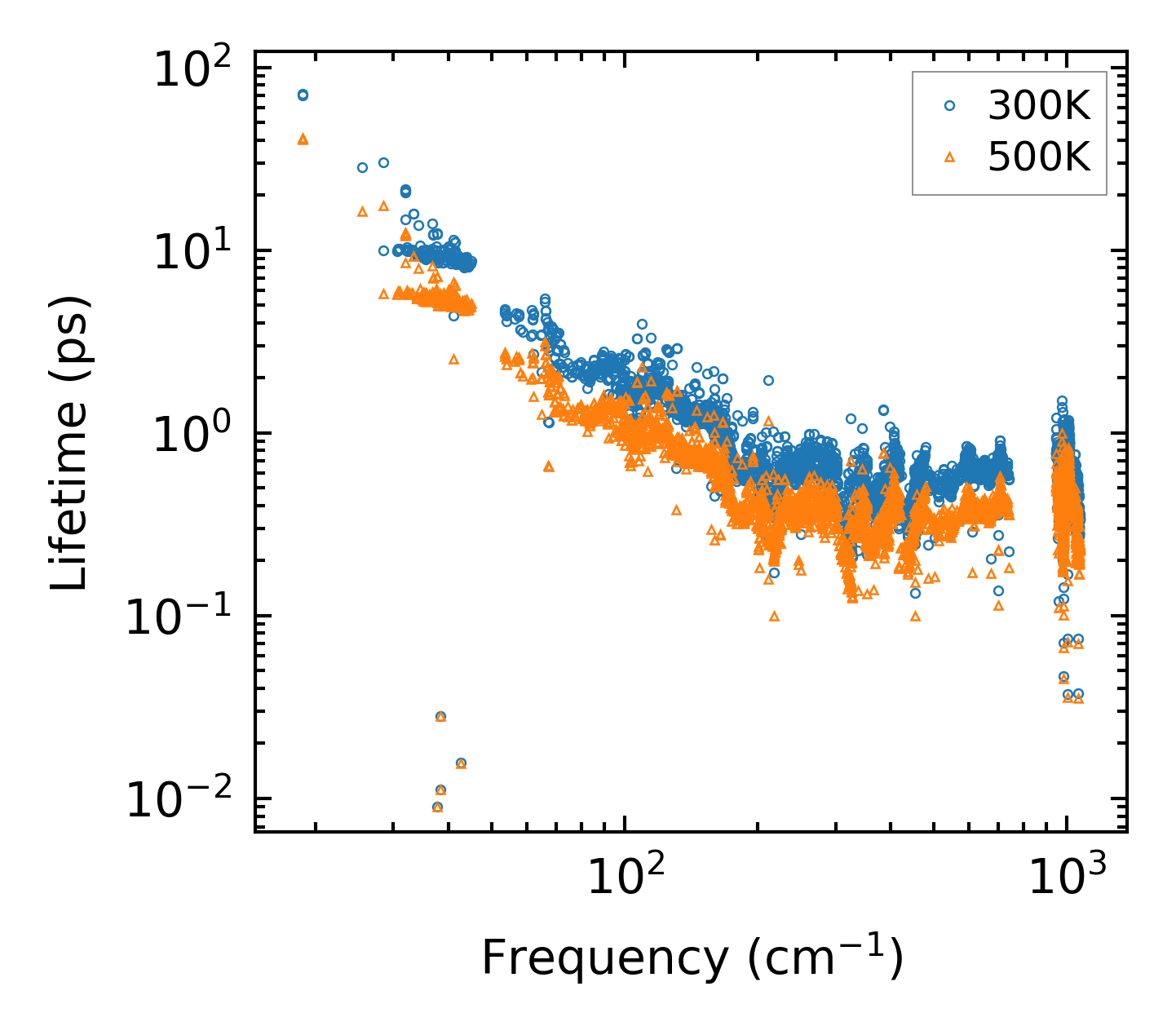

../../_images/fig_lifetime5248.png — (a) Phonon lifetime due to phonon-phonon scattering

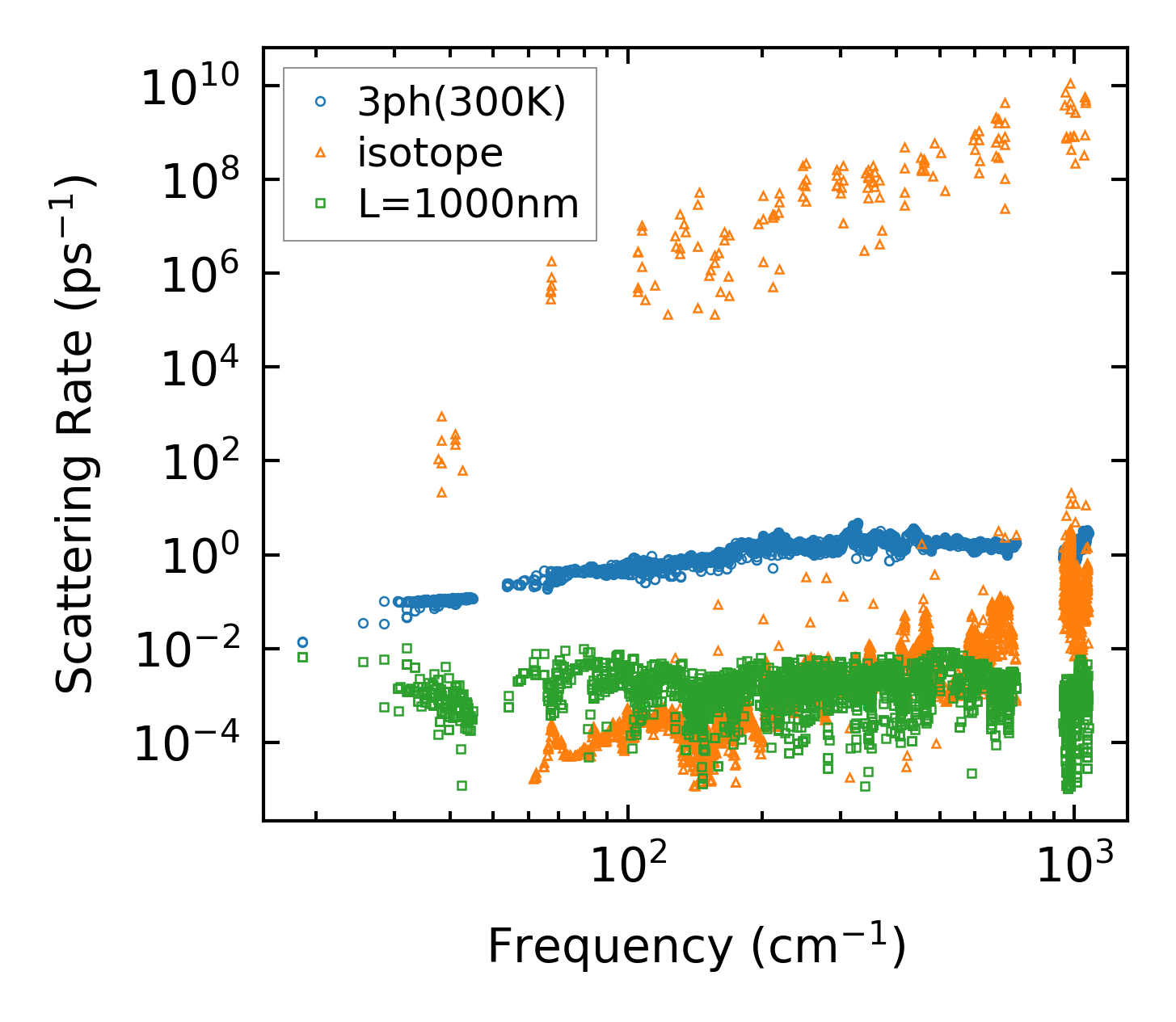

../../_images/fig_scat_rates5247.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

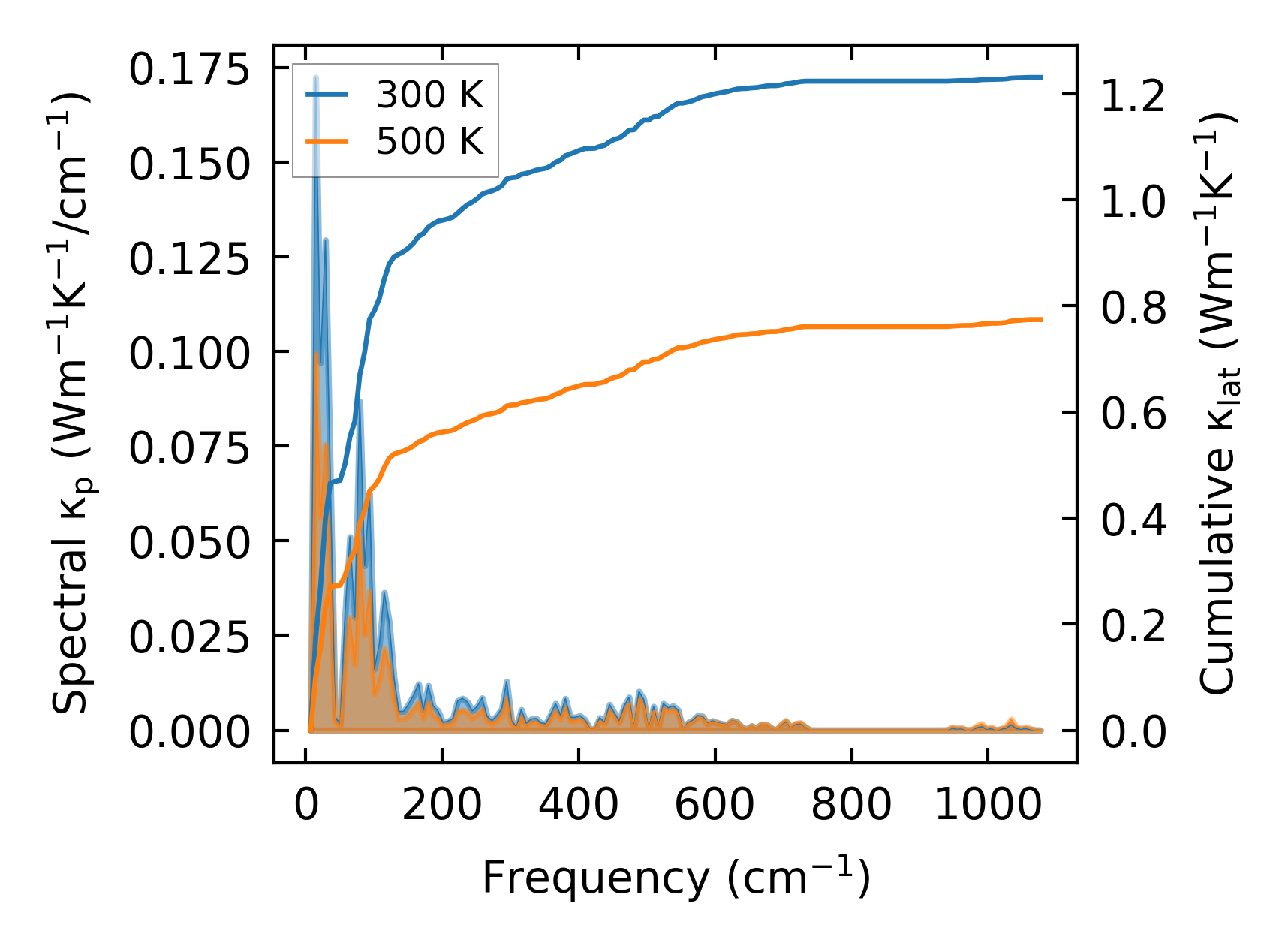

../../_images/fig_cumu_frequency5248.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

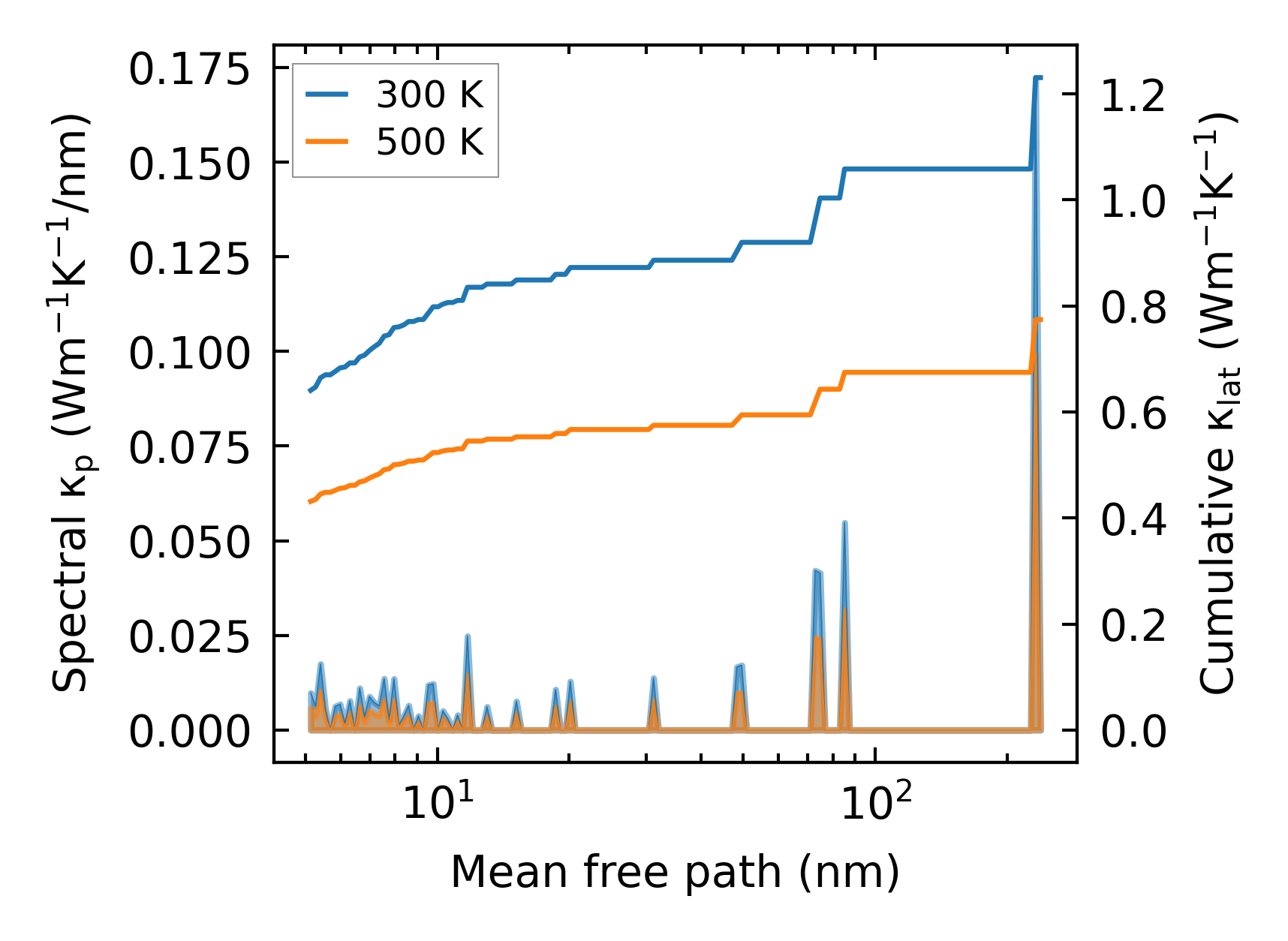

../../_images/fig_cumu_mfp5247.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

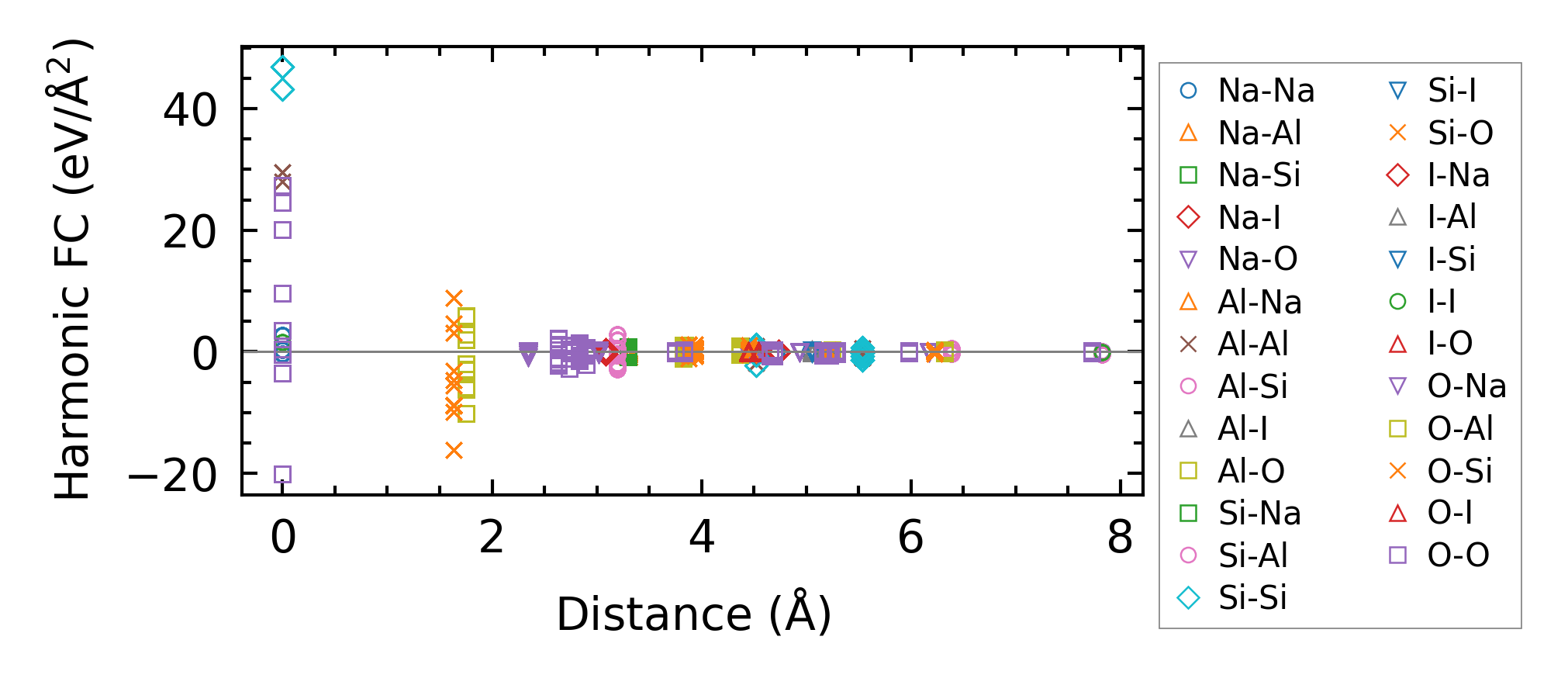

../../_images/fig_fc212477.png — (a) Force constants w.r.t atomic distance

Summary

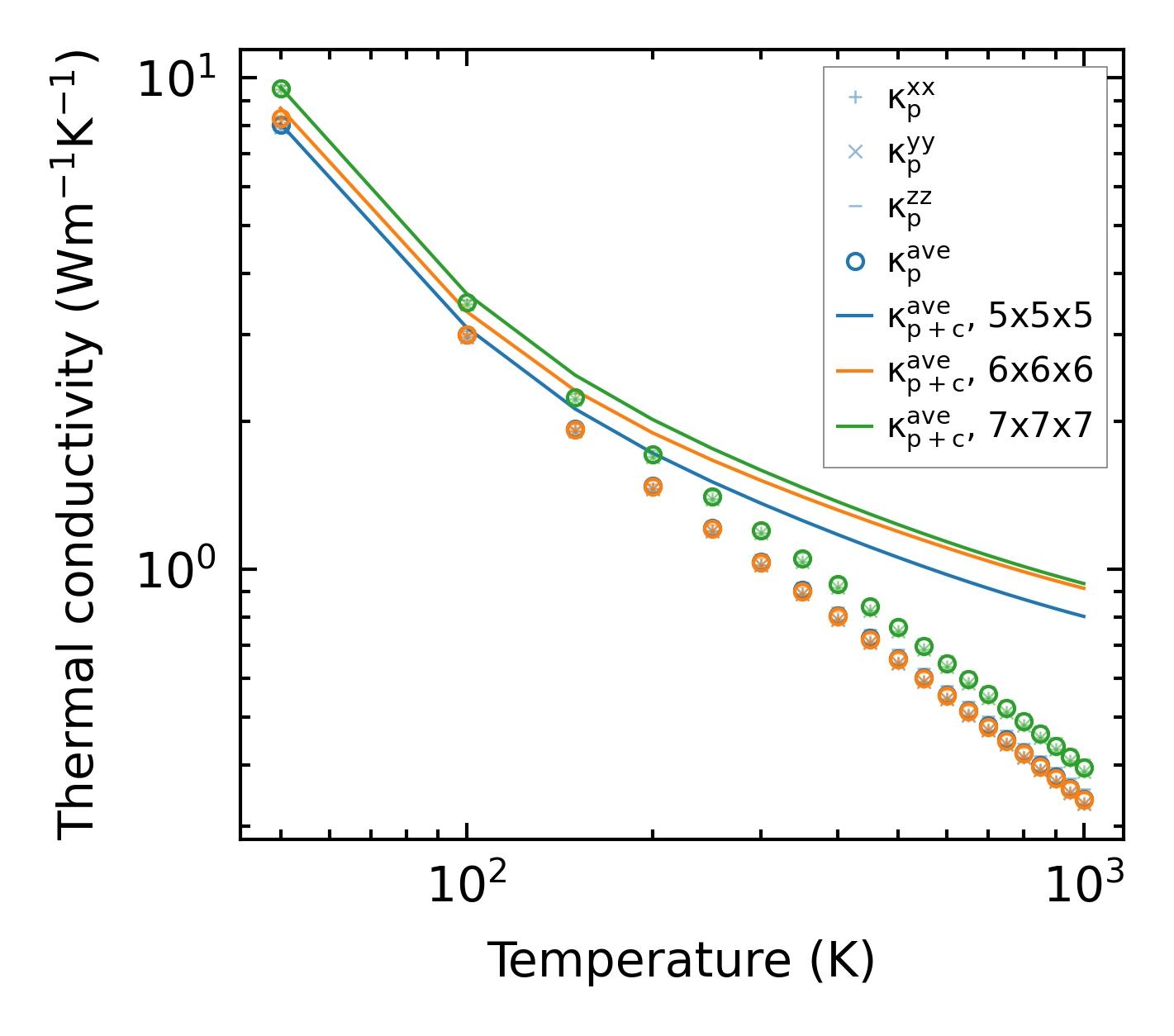

../../_images/fig_kappa9957.png — (a) Temperature-dependent lattice thermal conductivity

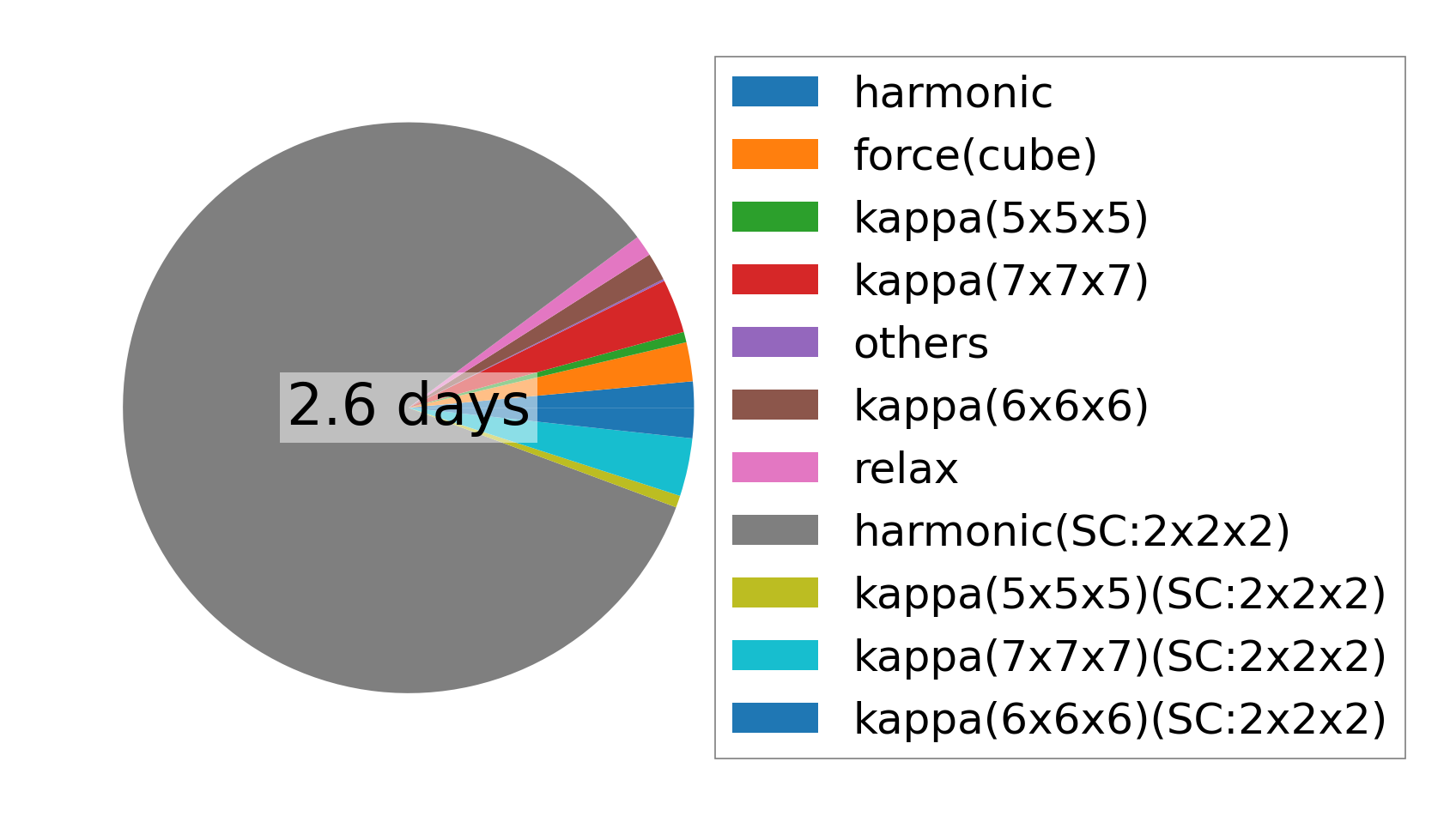

../../_images/fig_times21680.png — (b) Computation time
