mp-23289/KCl/anharm

Space group: Pm-3m (221)
Link: Materials Project
Download: mp-23289.tar.gz

Harmonic properties

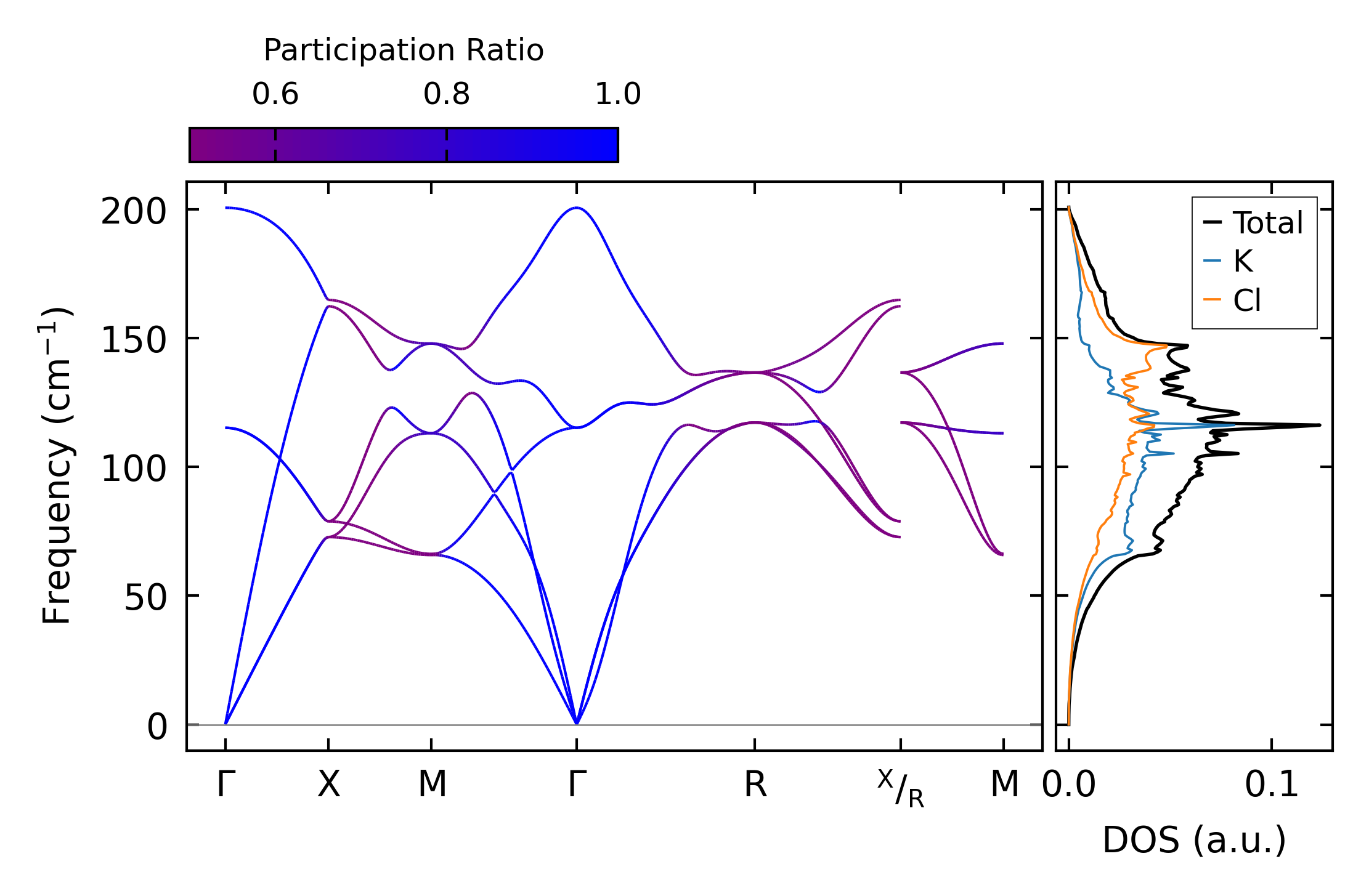

../../_images/fig_bandos_pr12979.png — (a) Phonon dispersion with participation ratio and DOS

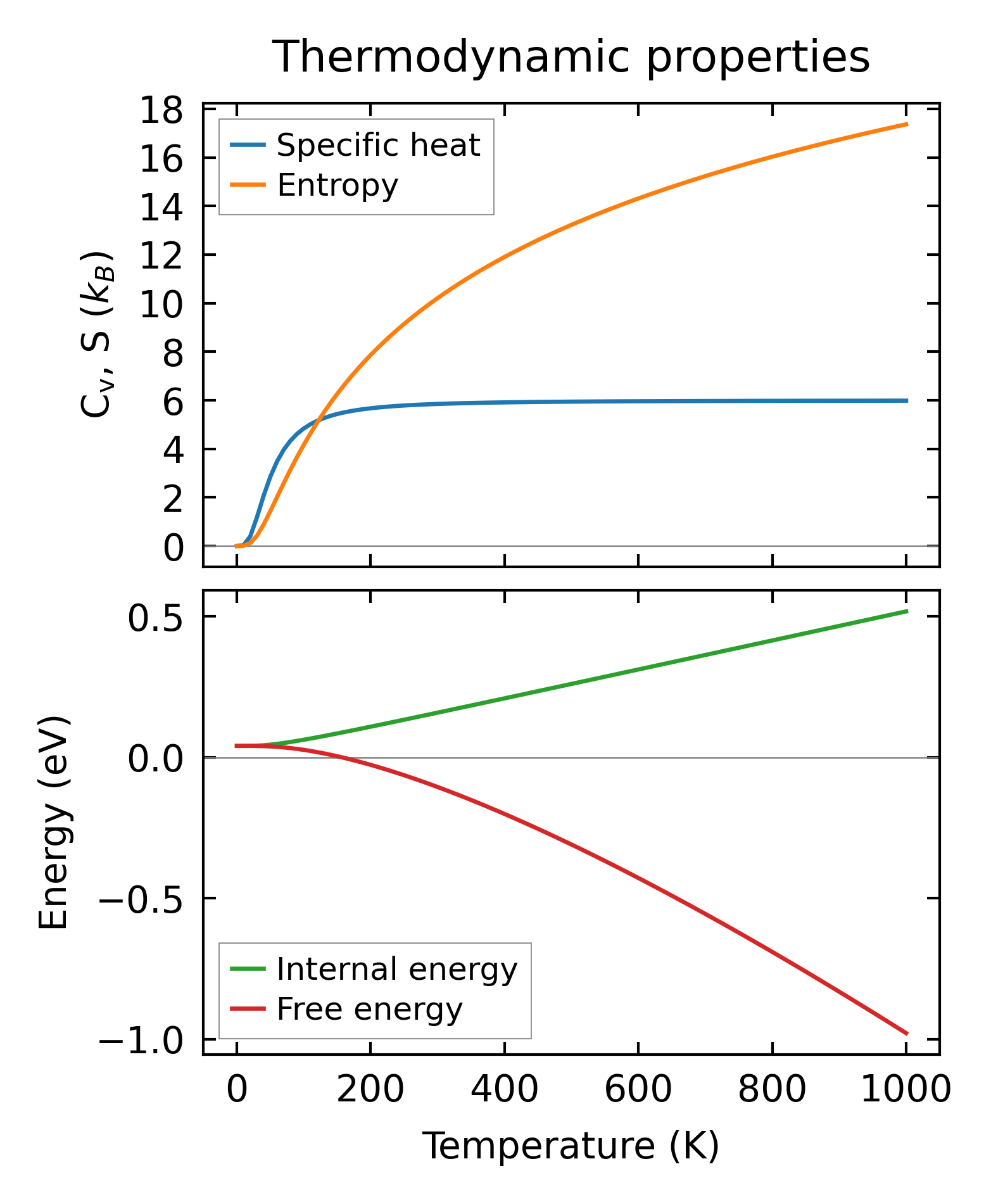

../../_images/fig_thermo12979.png — (b) Thermodynamic properties

Grüneisen parameters

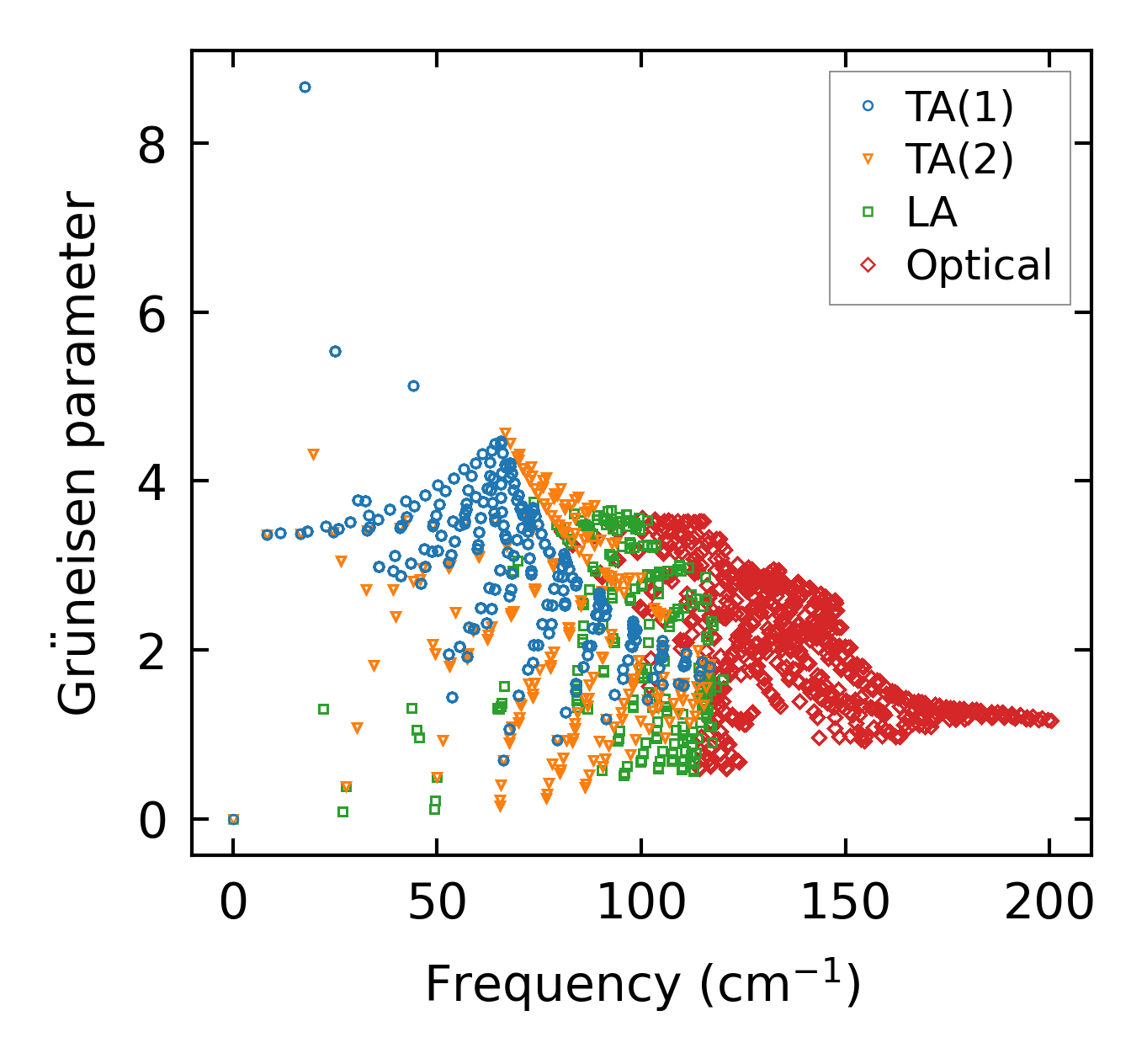

../../_images/fig_gru_all5398.png — (a) Grüneisen parameters

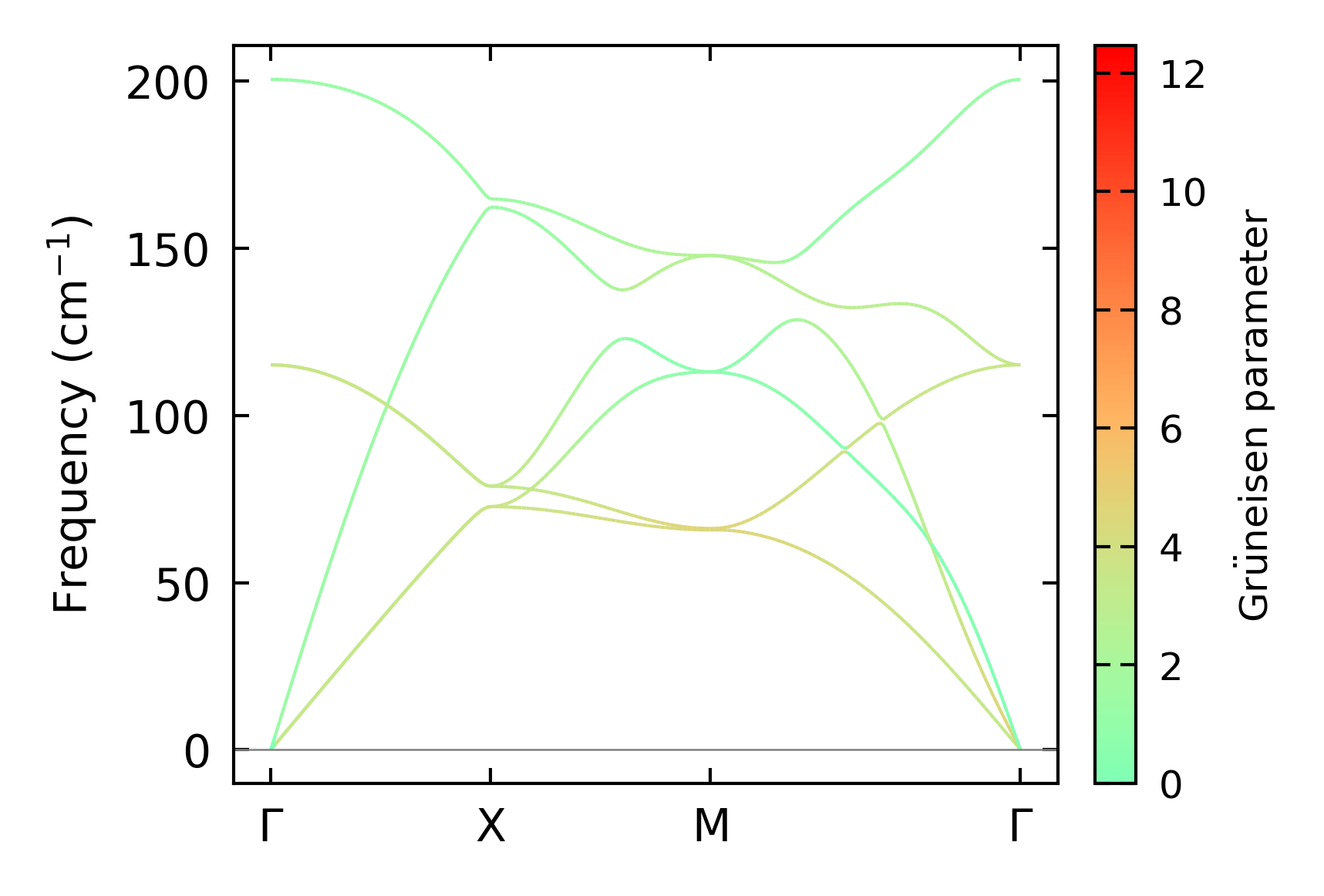

../../_images/fig_gruneisen5398.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon — q-mesh: 19x19x19, supercell: 4x4x4

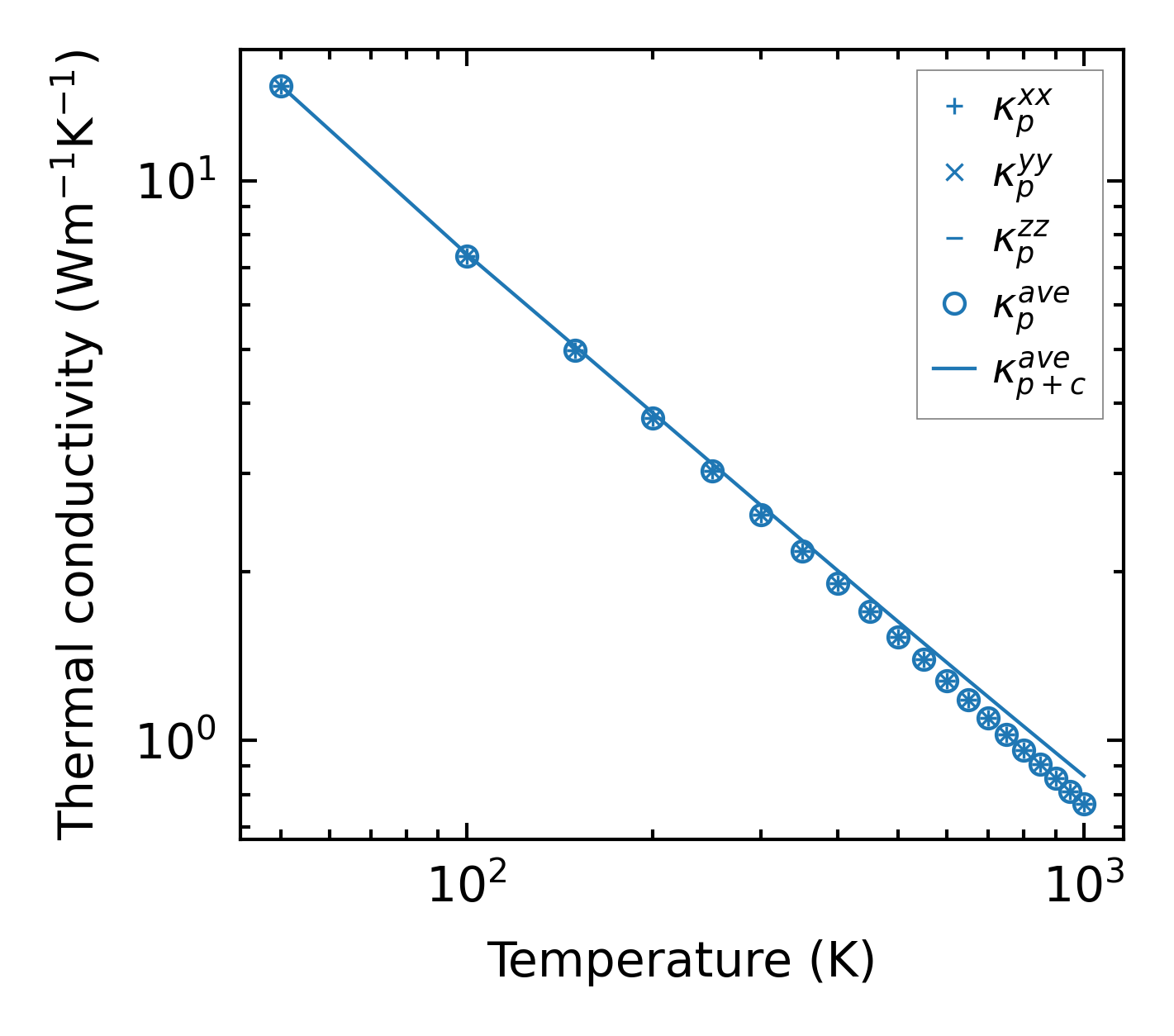

../../_images/fig_kappa10140.png — (a) Temperature-dependent lattice thermal conductivity

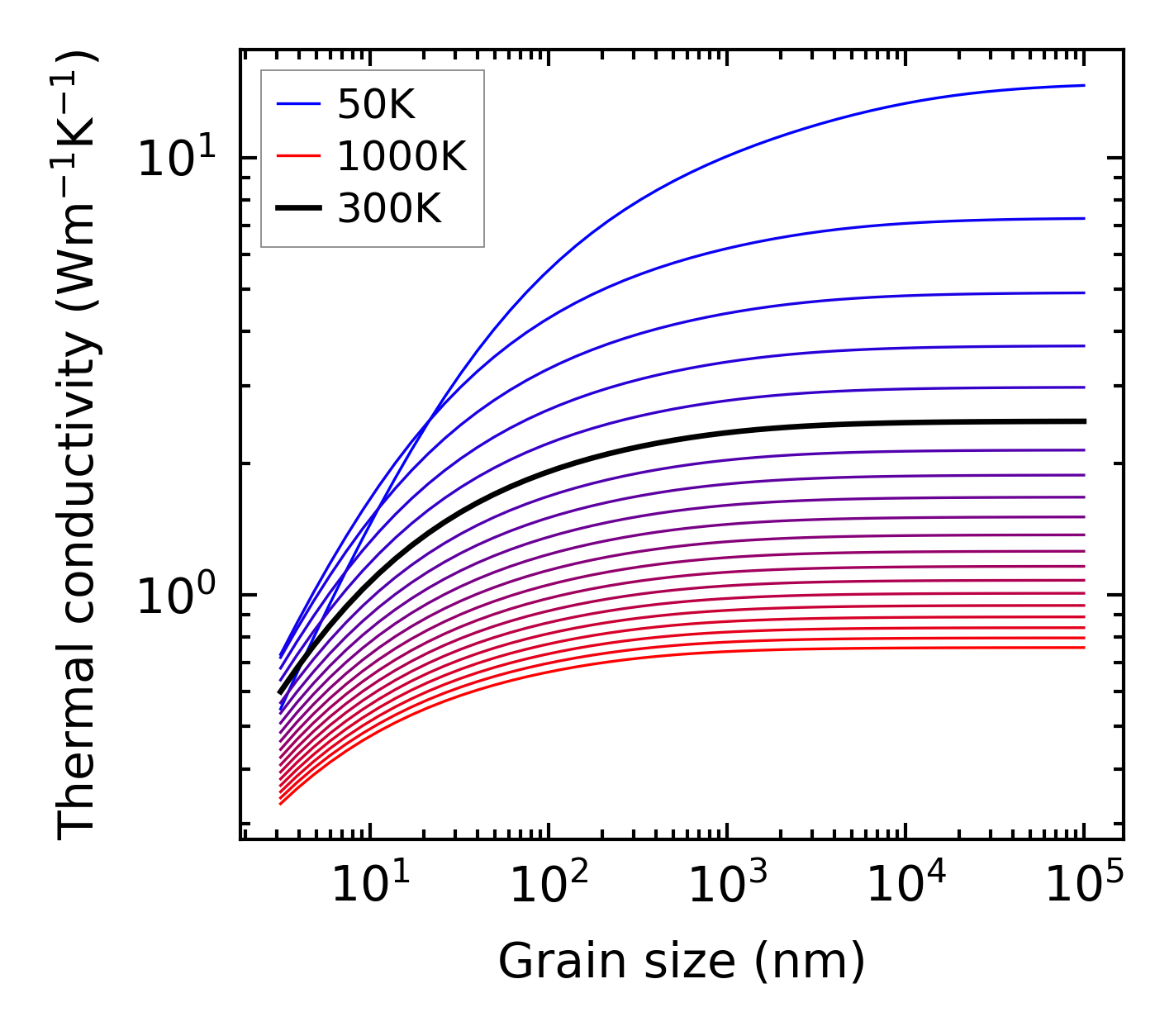

../../_images/fig_kappa_vs_grain_size5462.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

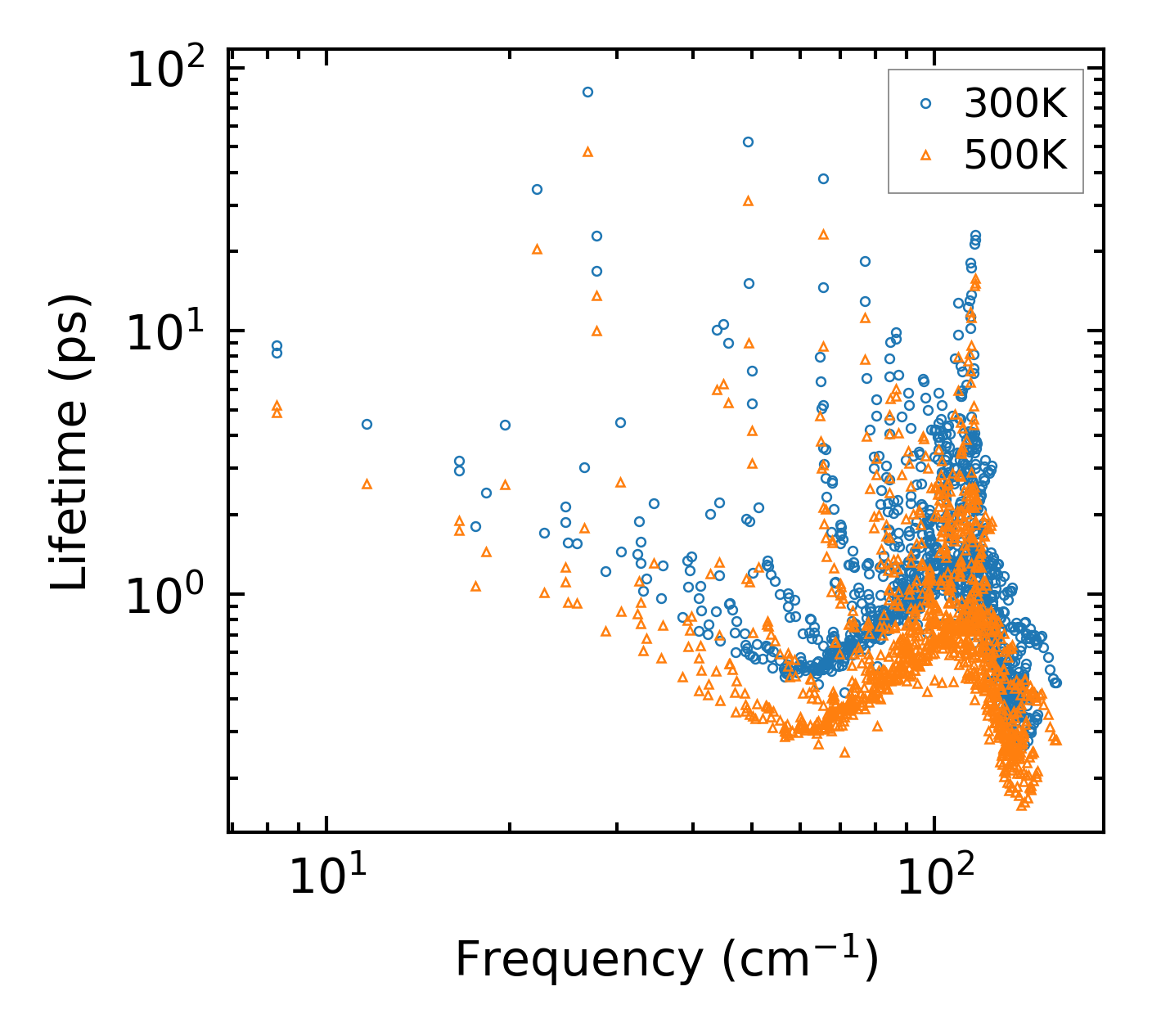

../../_images/fig_lifetime5346.png — (a) Phonon lifetime due to phonon-phonon scattering

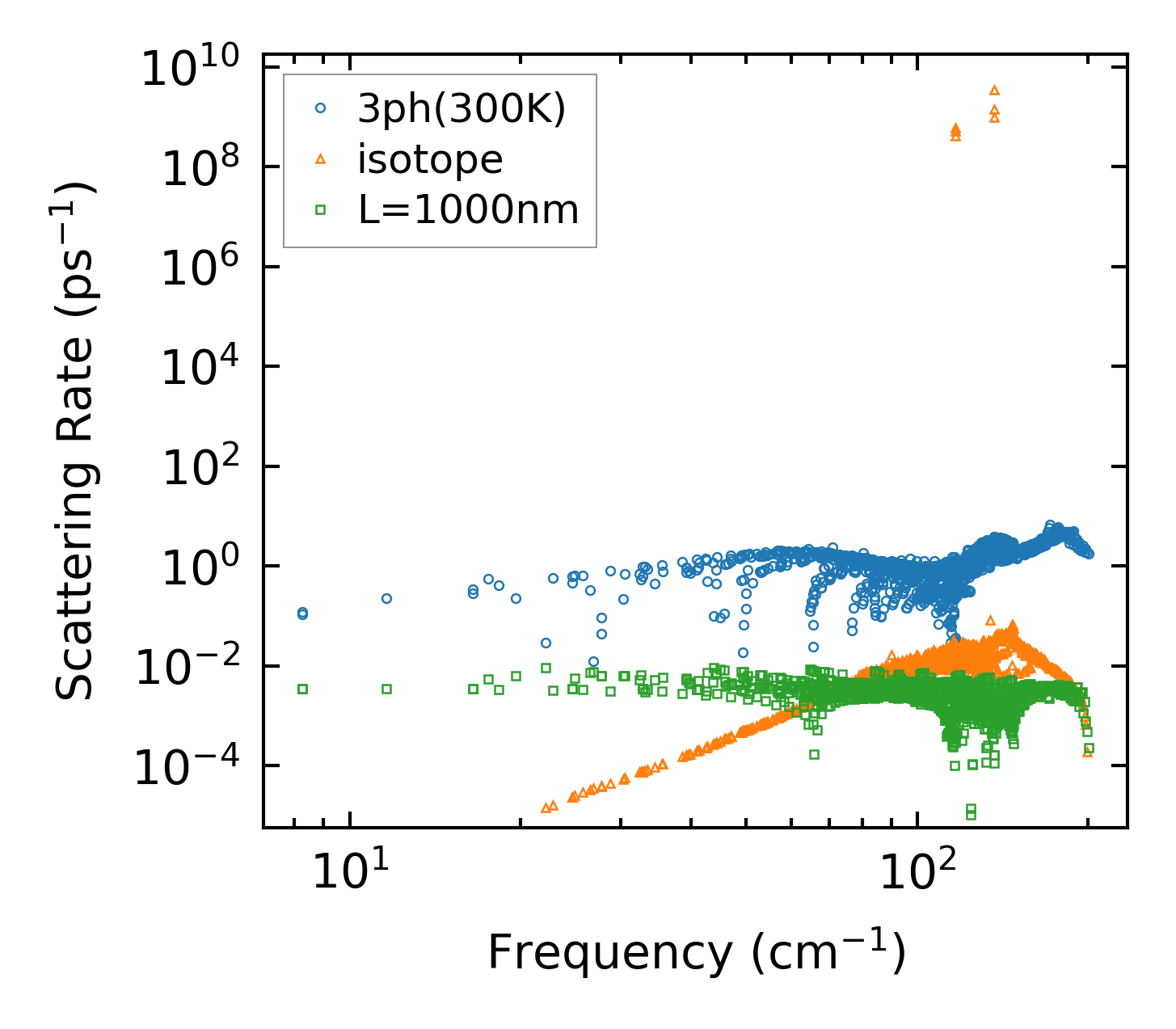

../../_images/fig_scat_rates5345.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

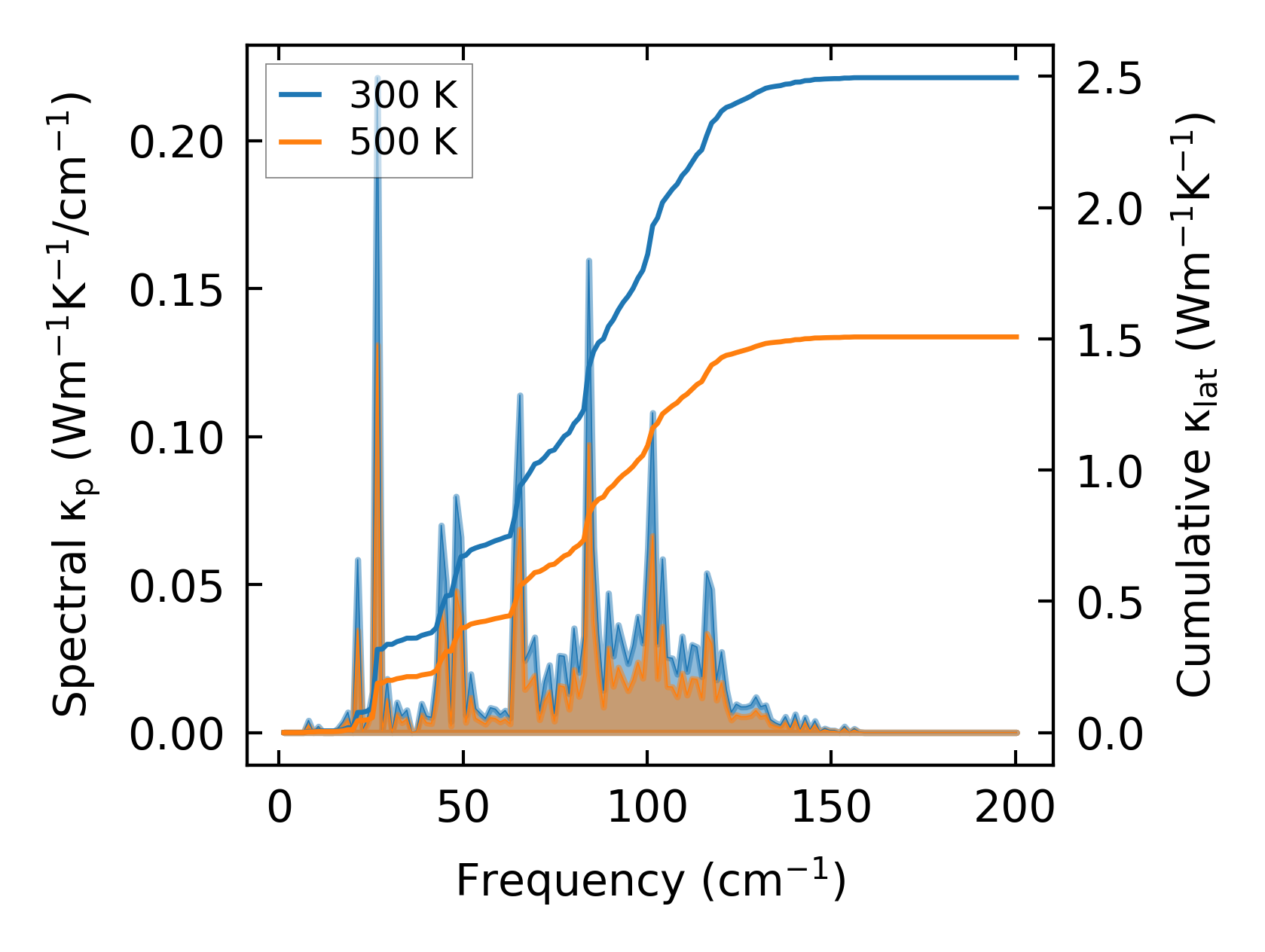

../../_images/fig_cumu_frequency5346.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

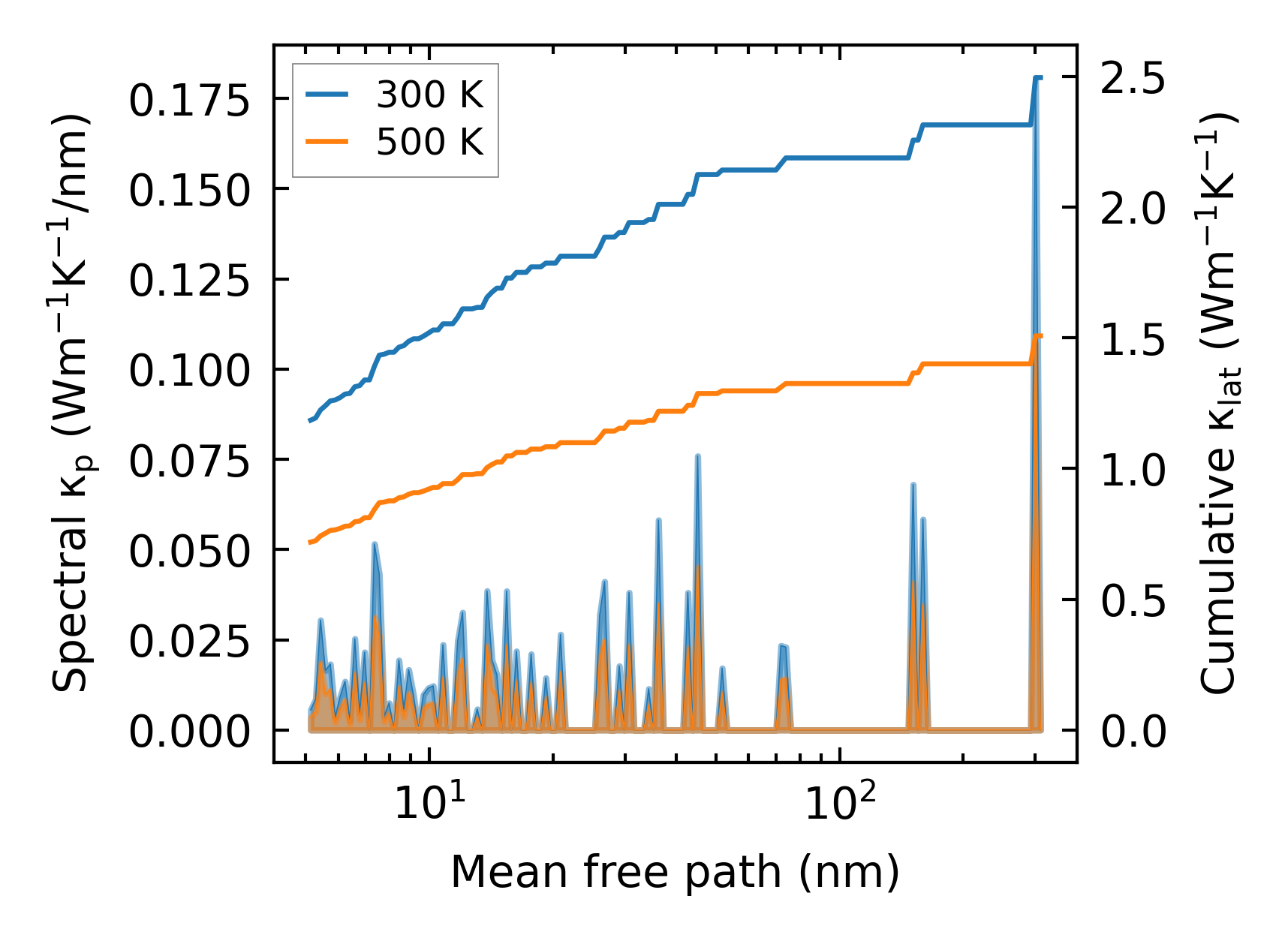

../../_images/fig_cumu_mfp5345.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

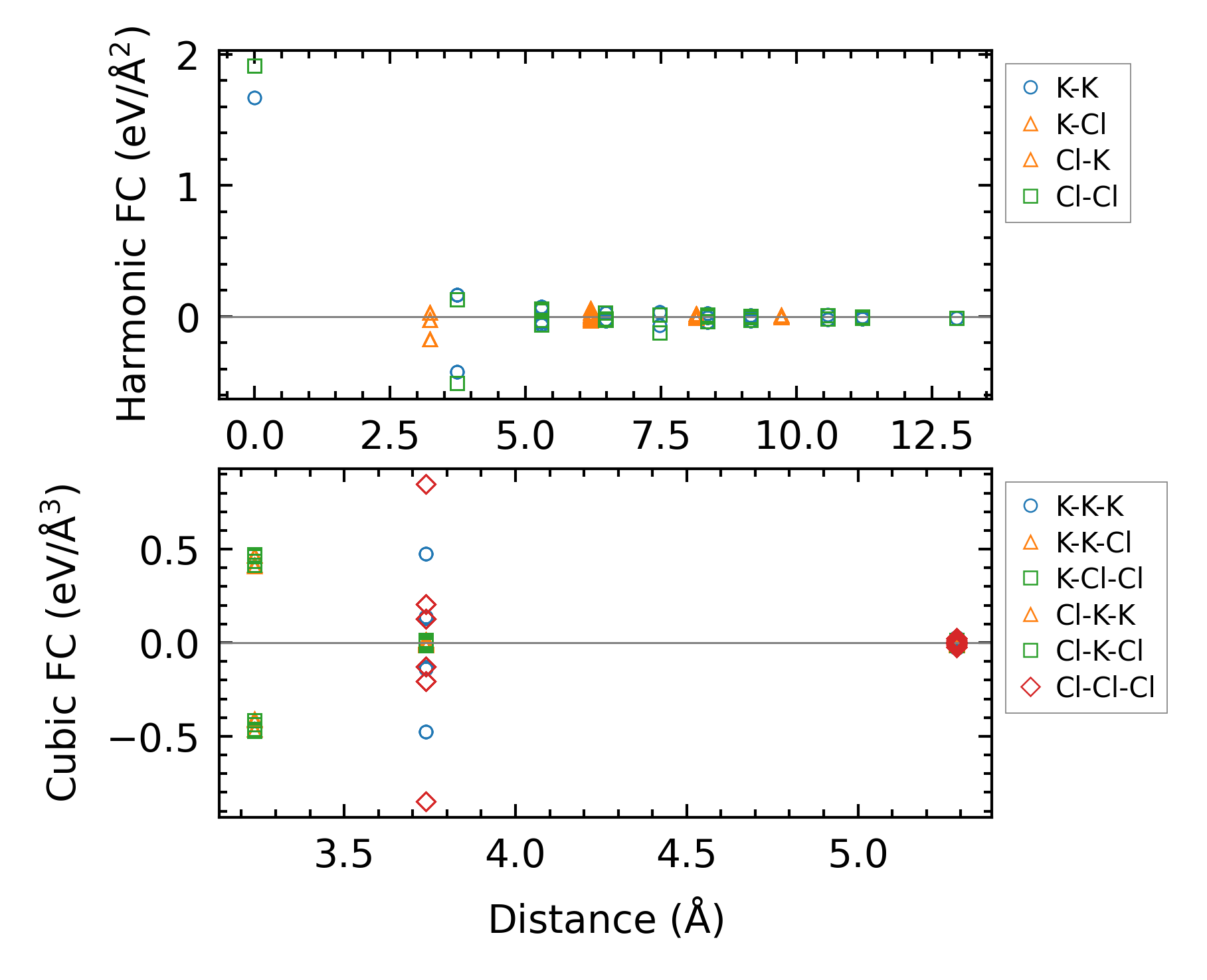

../../_images/fig_fc3315.png — (a) Force constants w.r.t atomic distance

Summary

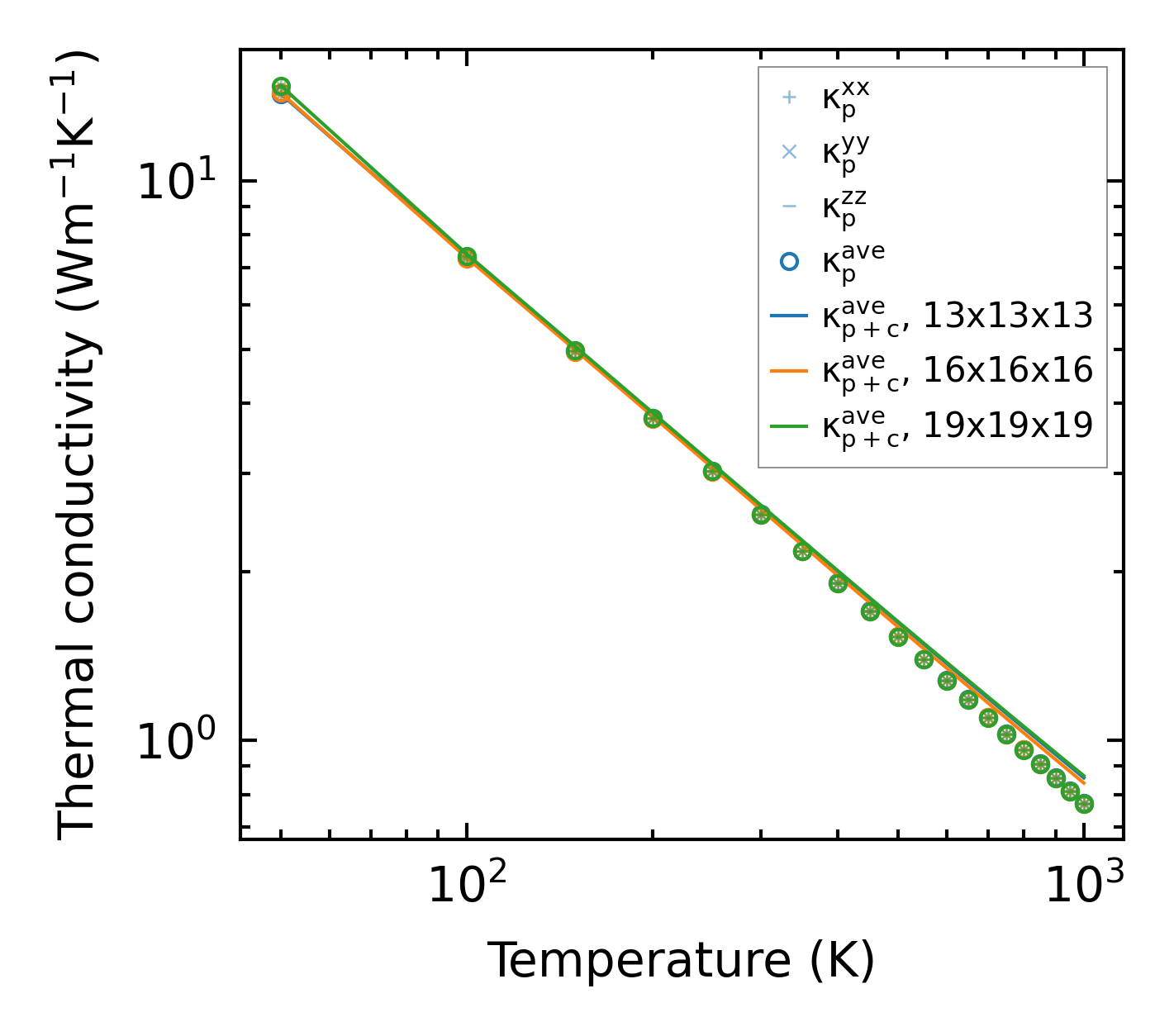

../../_images/fig_kappa10141.png — (a) Temperature-dependent lattice thermal conductivity

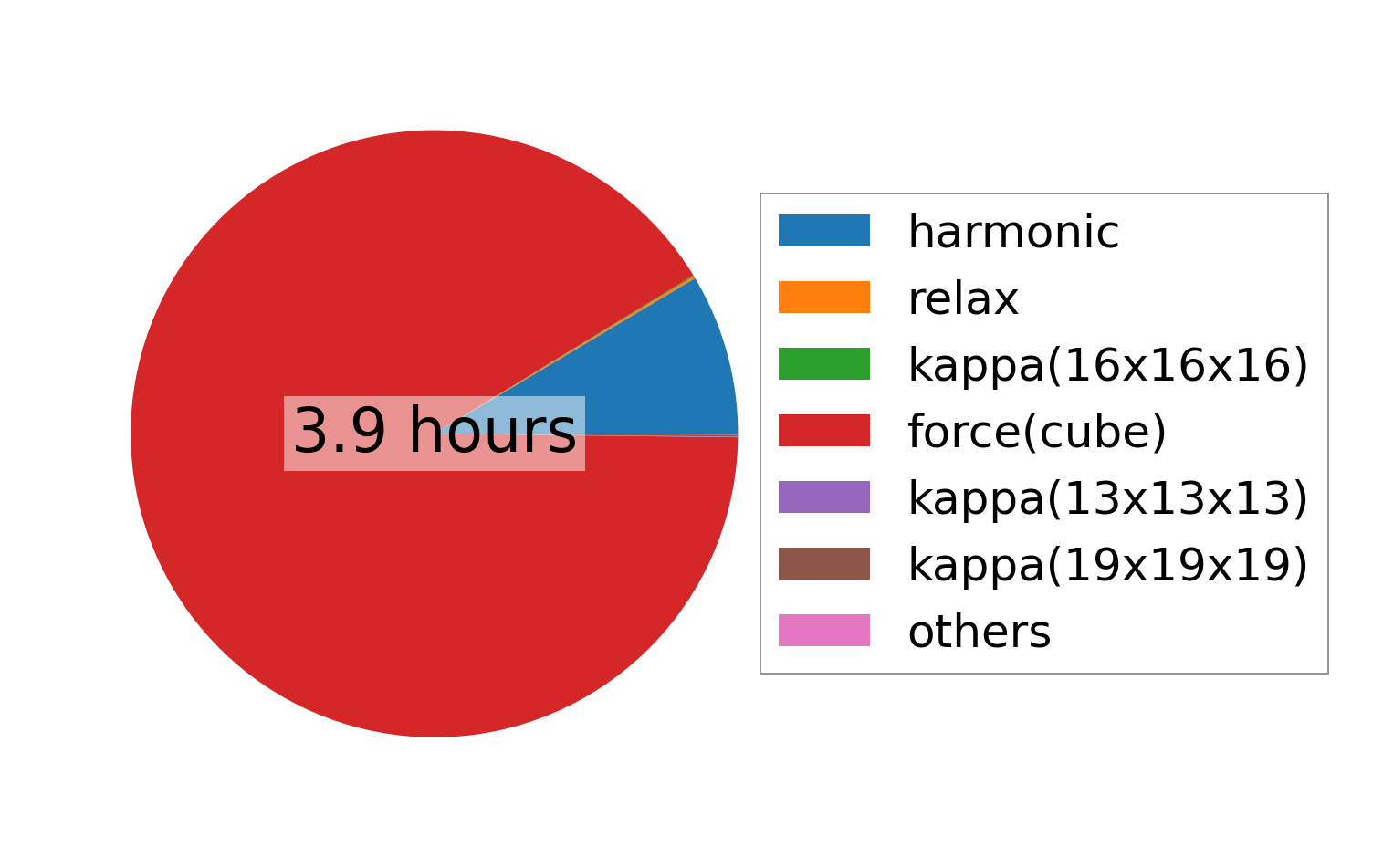

../../_images/fig_times21951.png — (b) Computation time
