mp-23622/Sm3Si2ClO8/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-23622.tar.gz

Harmonic properties

../../_images/fig_bandos_pr12770.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo12770.png — (b) Thermodynamic properties

Grüneisen parameters

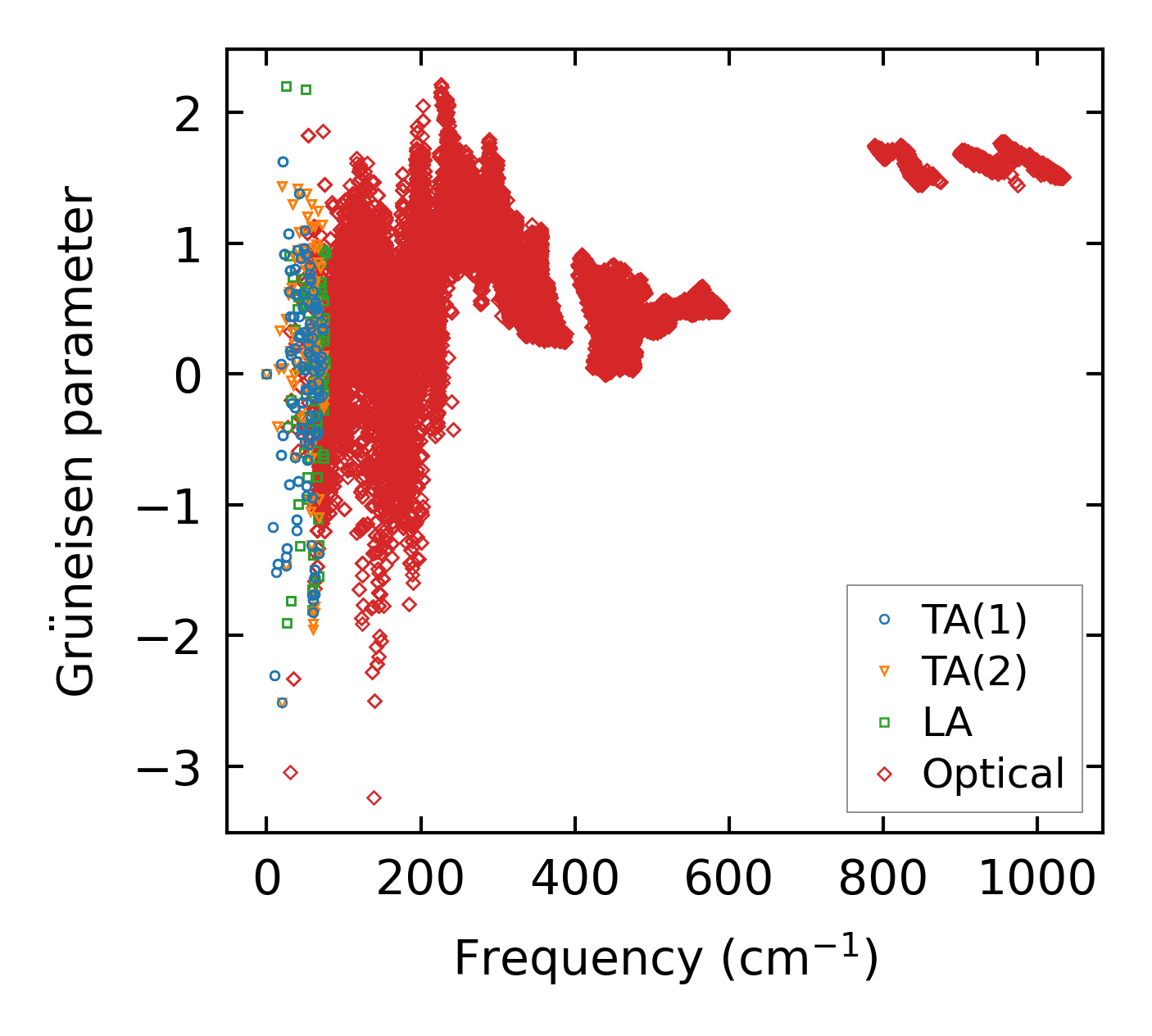

../../_images/fig_gru_all5293.png — (a) Grüneisen parameters

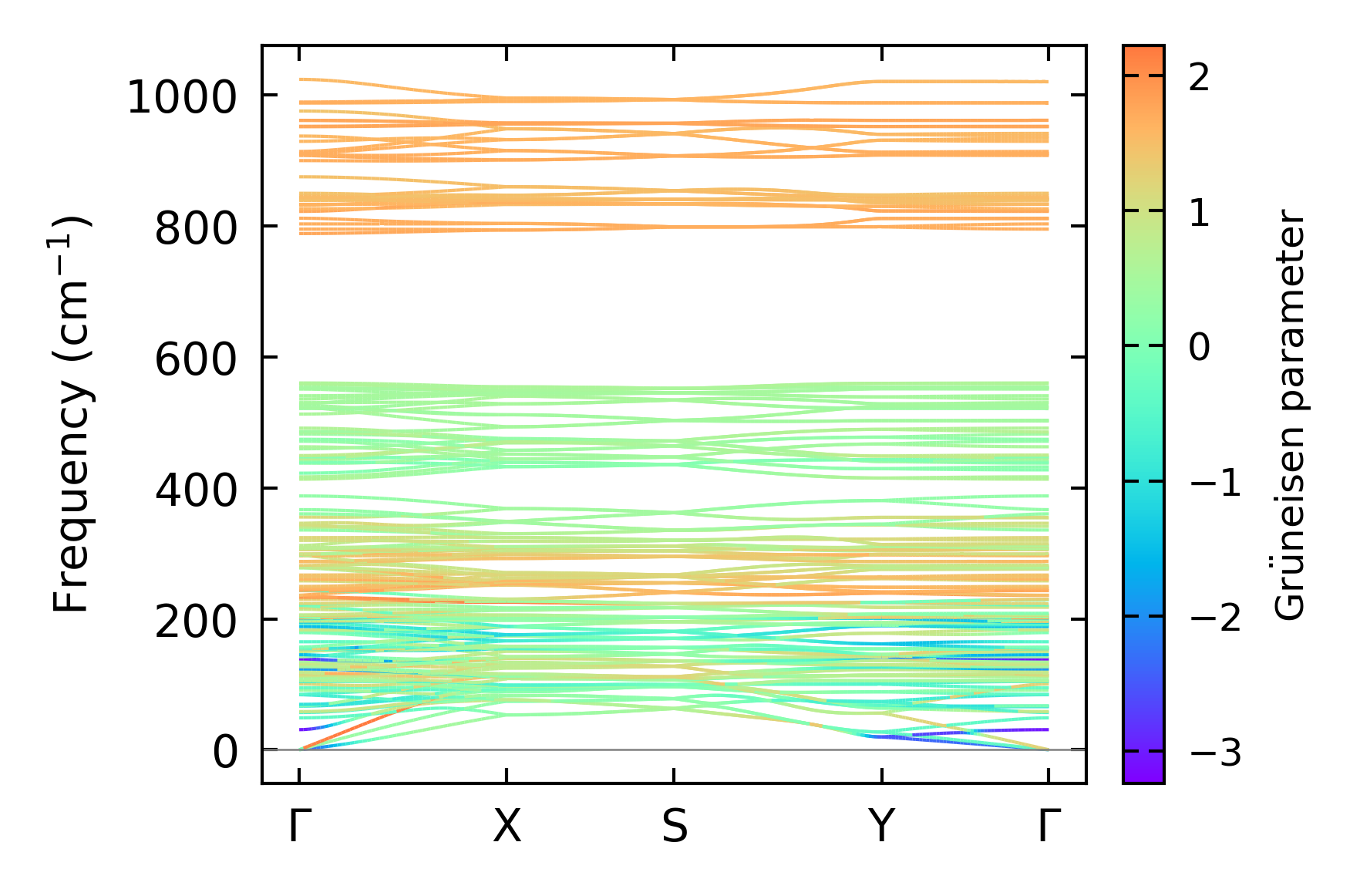

../../_images/fig_gruneisen5293.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x4x11, supercell: 1x1x2

../../_images/fig_kappa9943.png — (a) Temperature-dependent lattice thermal conductivity

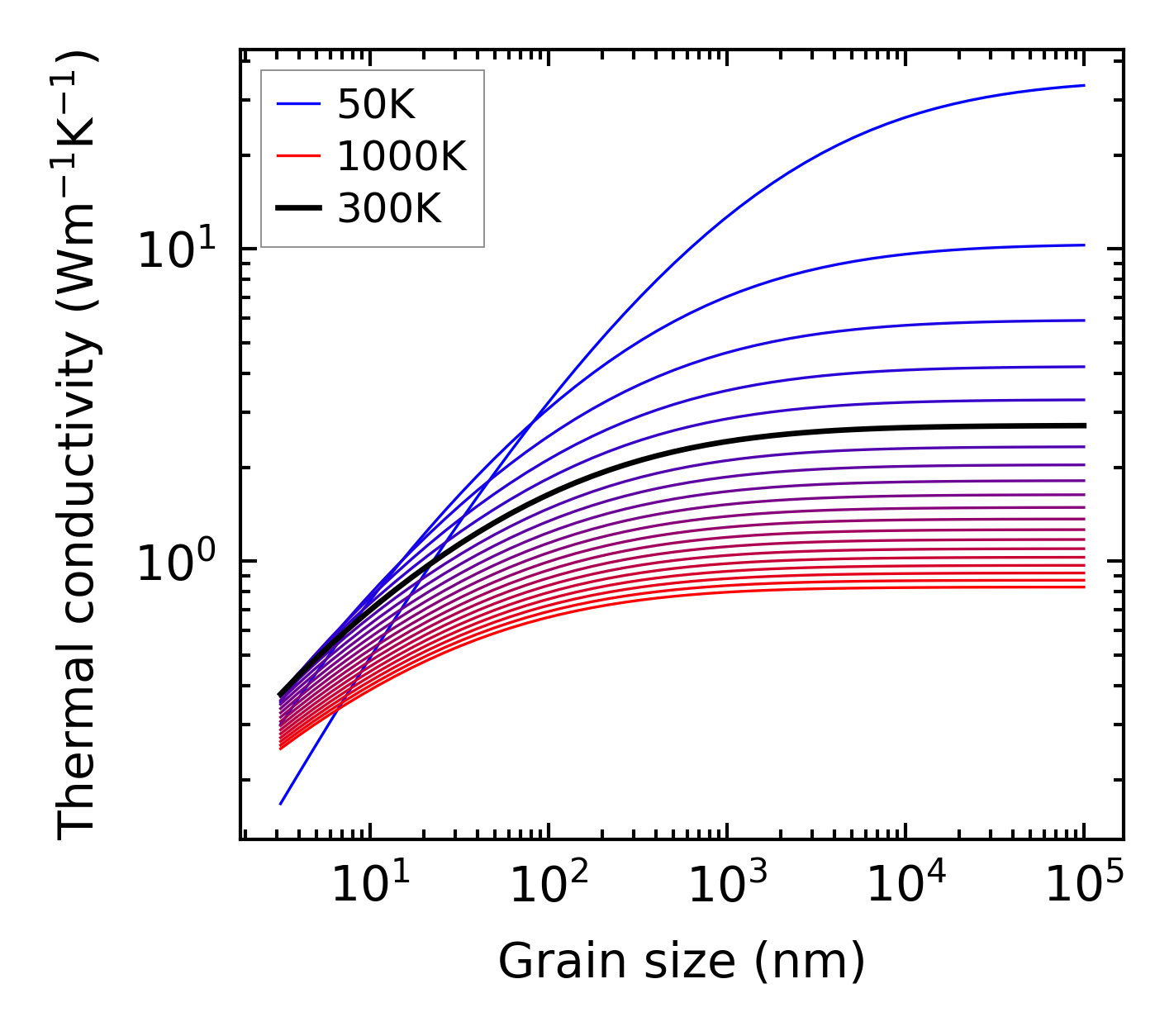

../../_images/fig_kappa_vs_grain_size5355.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

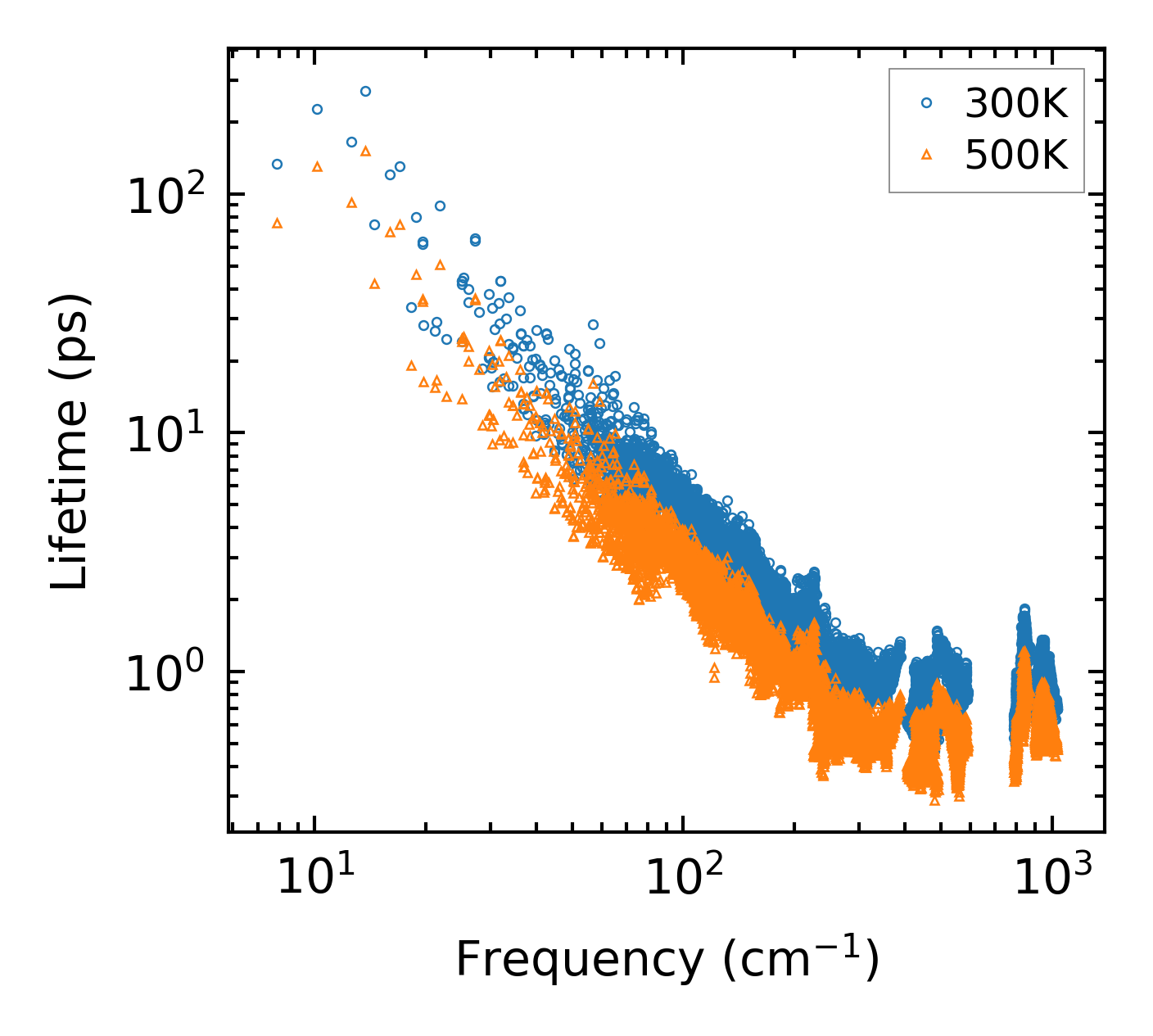

../../_images/fig_lifetime5242.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates5241.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency5242.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

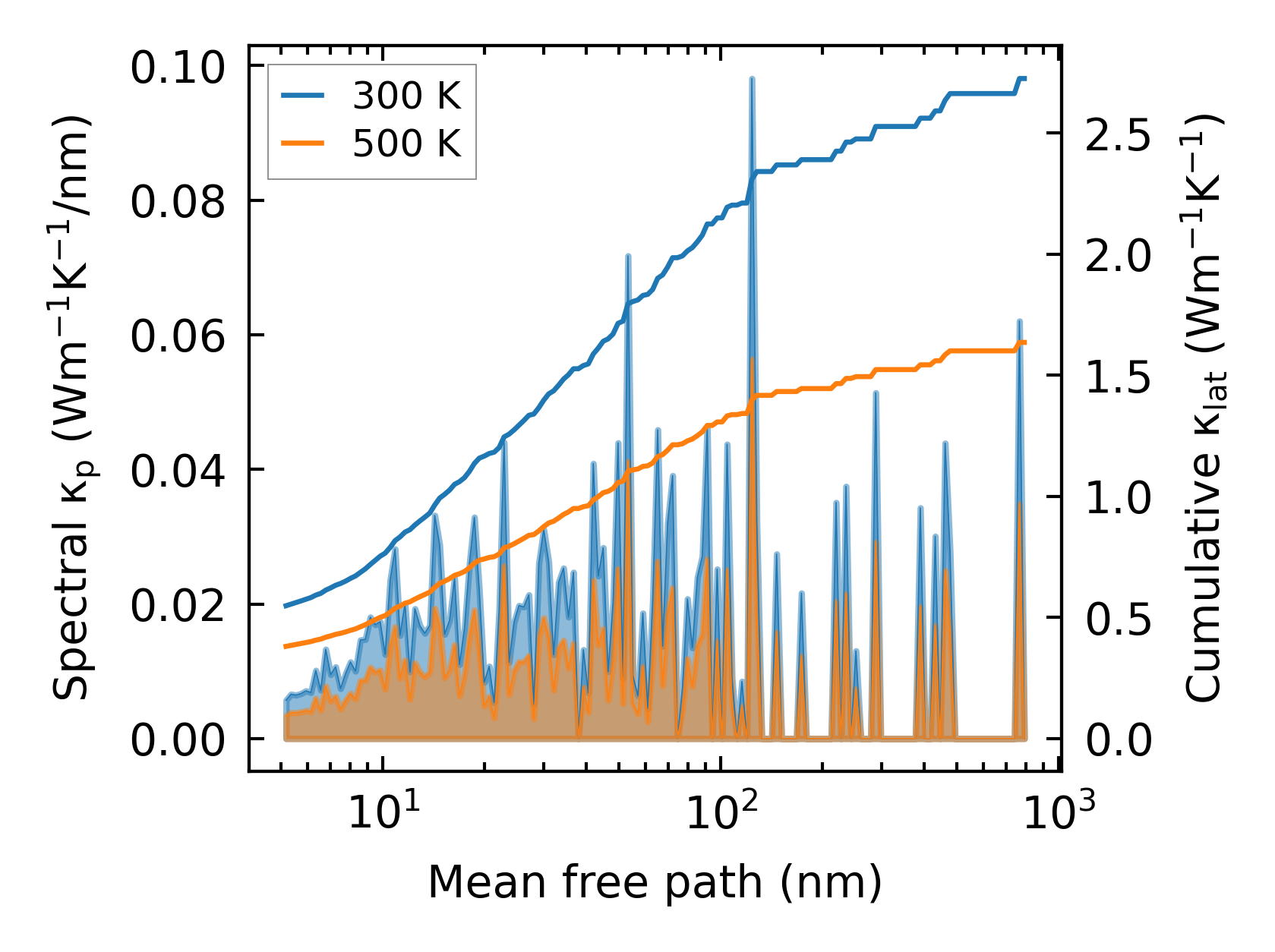

../../_images/fig_cumu_mfp5241.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

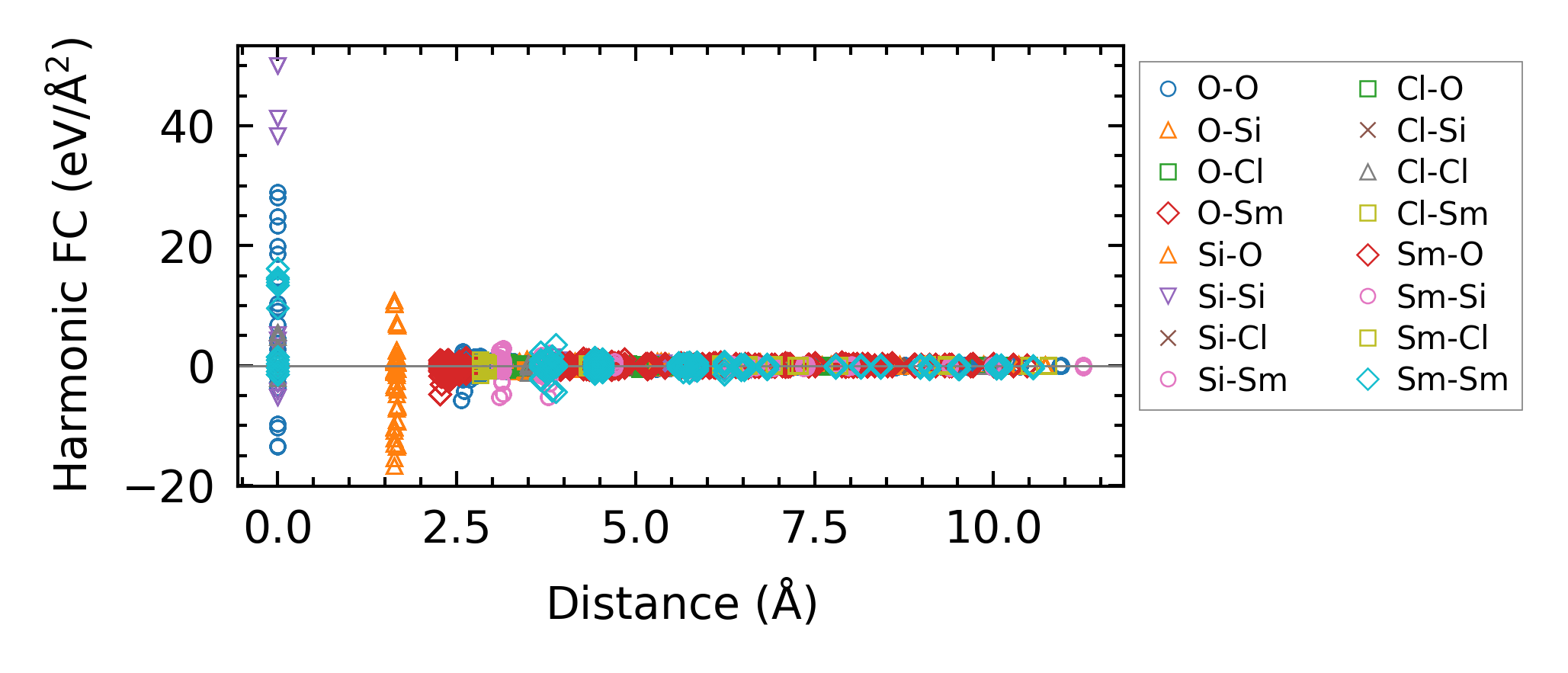

../../_images/fig_fc212466.png — (a) Force constants w.r.t atomic distance

Summary

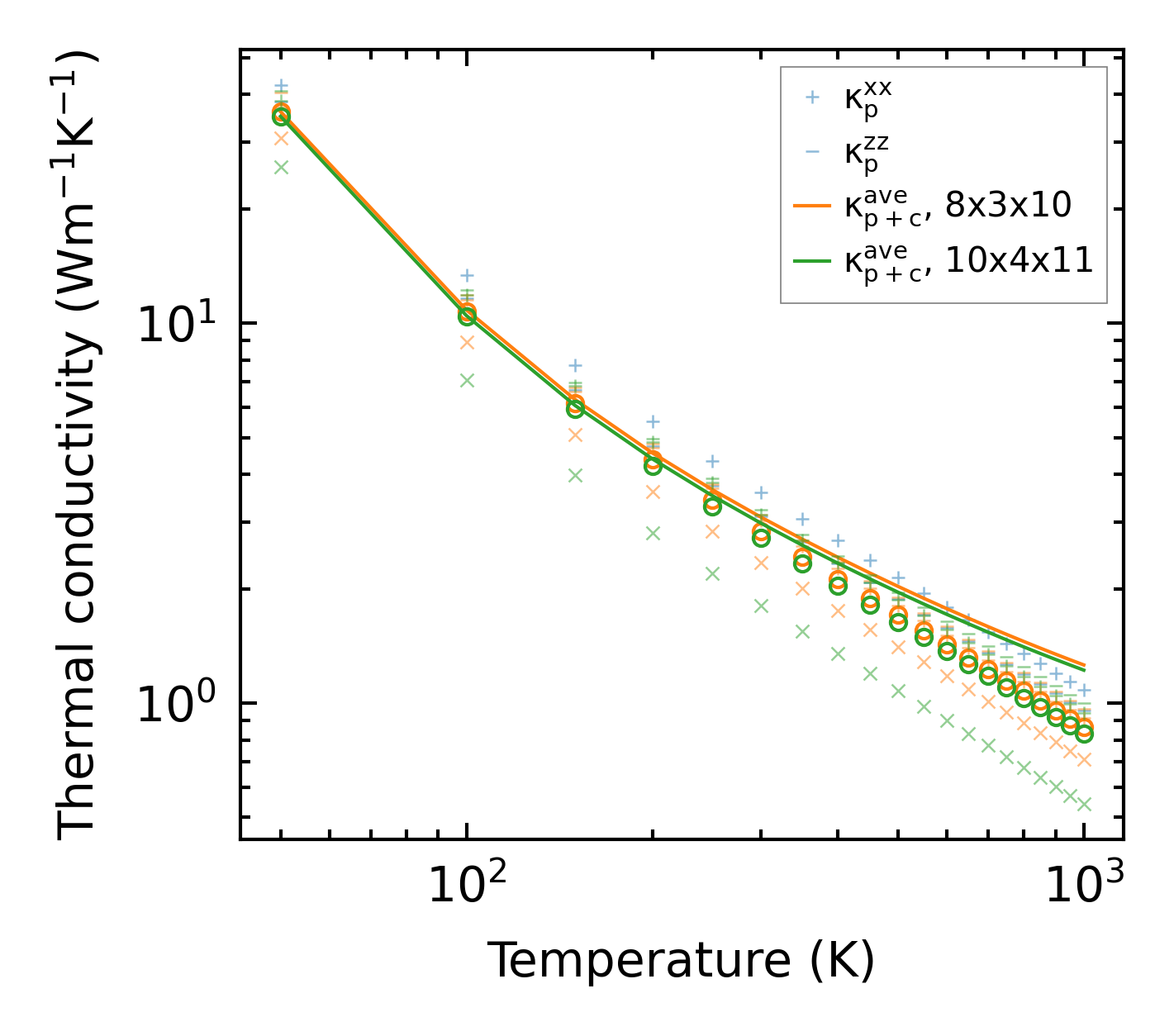

../../_images/fig_kappa9944.png — (a) Temperature-dependent lattice thermal conductivity

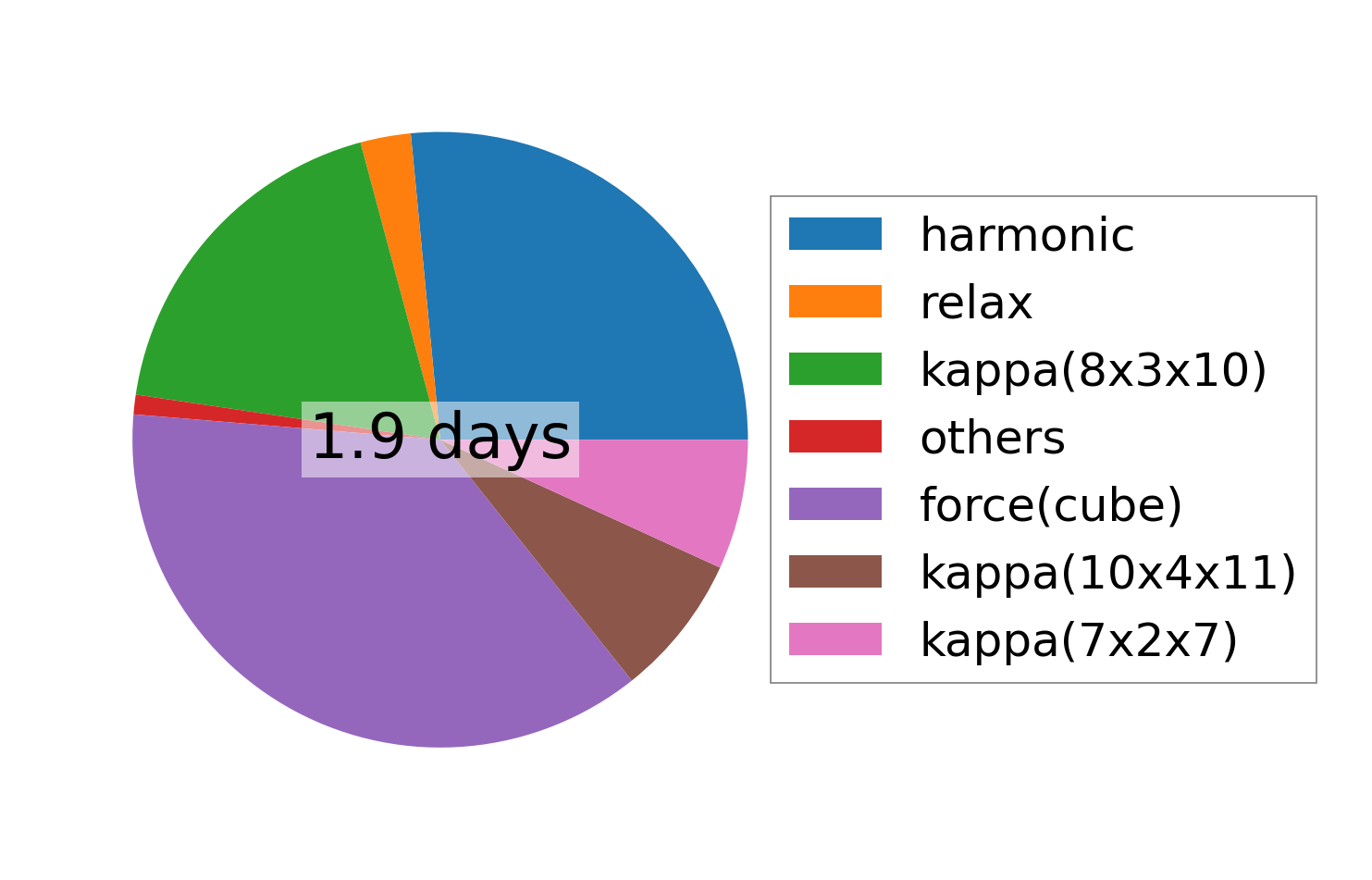

../../_images/fig_times21662.png — (b) Computation time
