mp-23122-2/Li10B14Cl2O25/anharm

Space group: F23 (196)
Link: Materials Project
Download: mp-23122-2.tar.gz

Harmonic properties

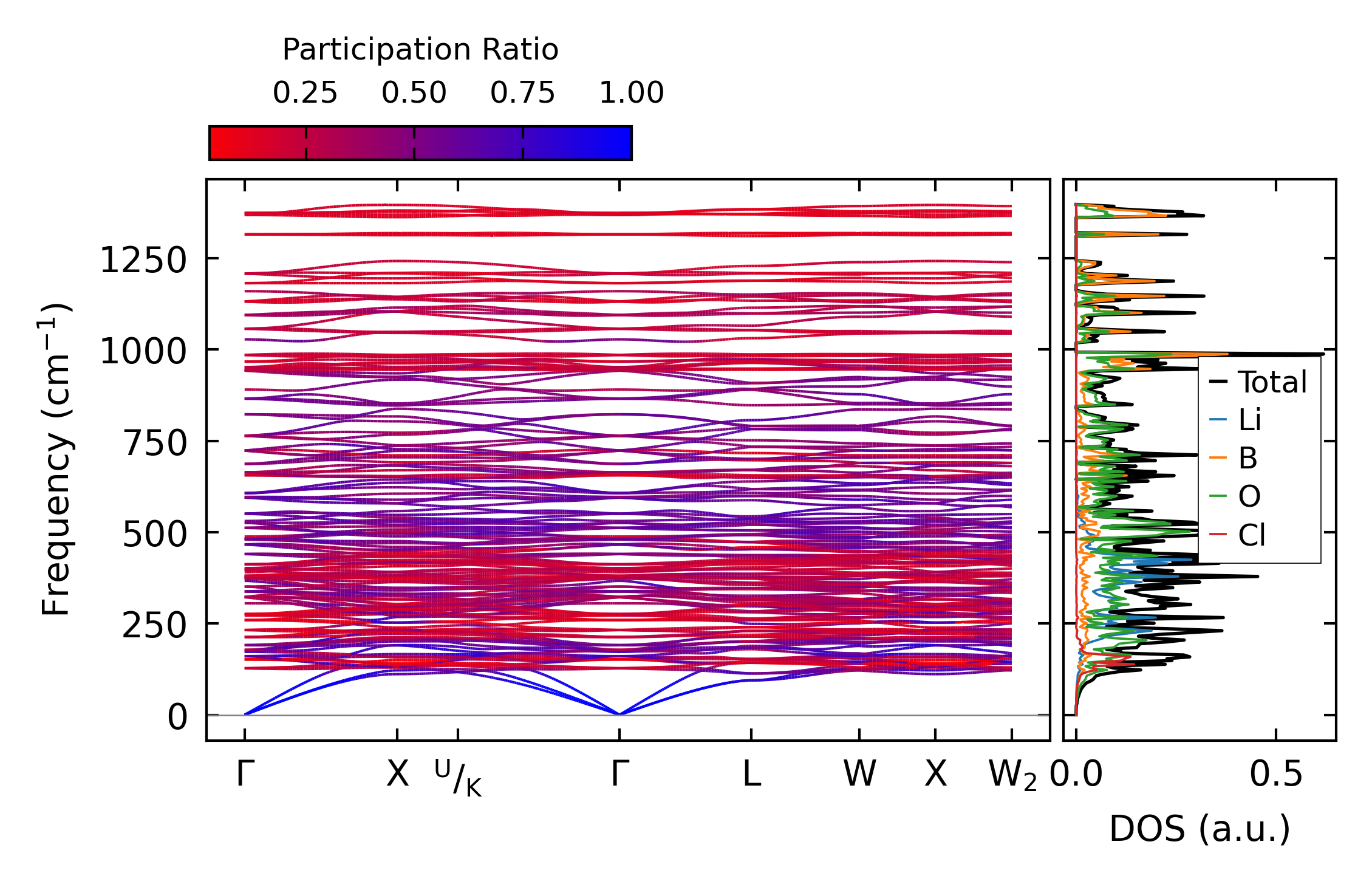

../../_images/fig_bandos_pr12897.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo12897.png — (b) Thermodynamic properties

Grüneisen parameters

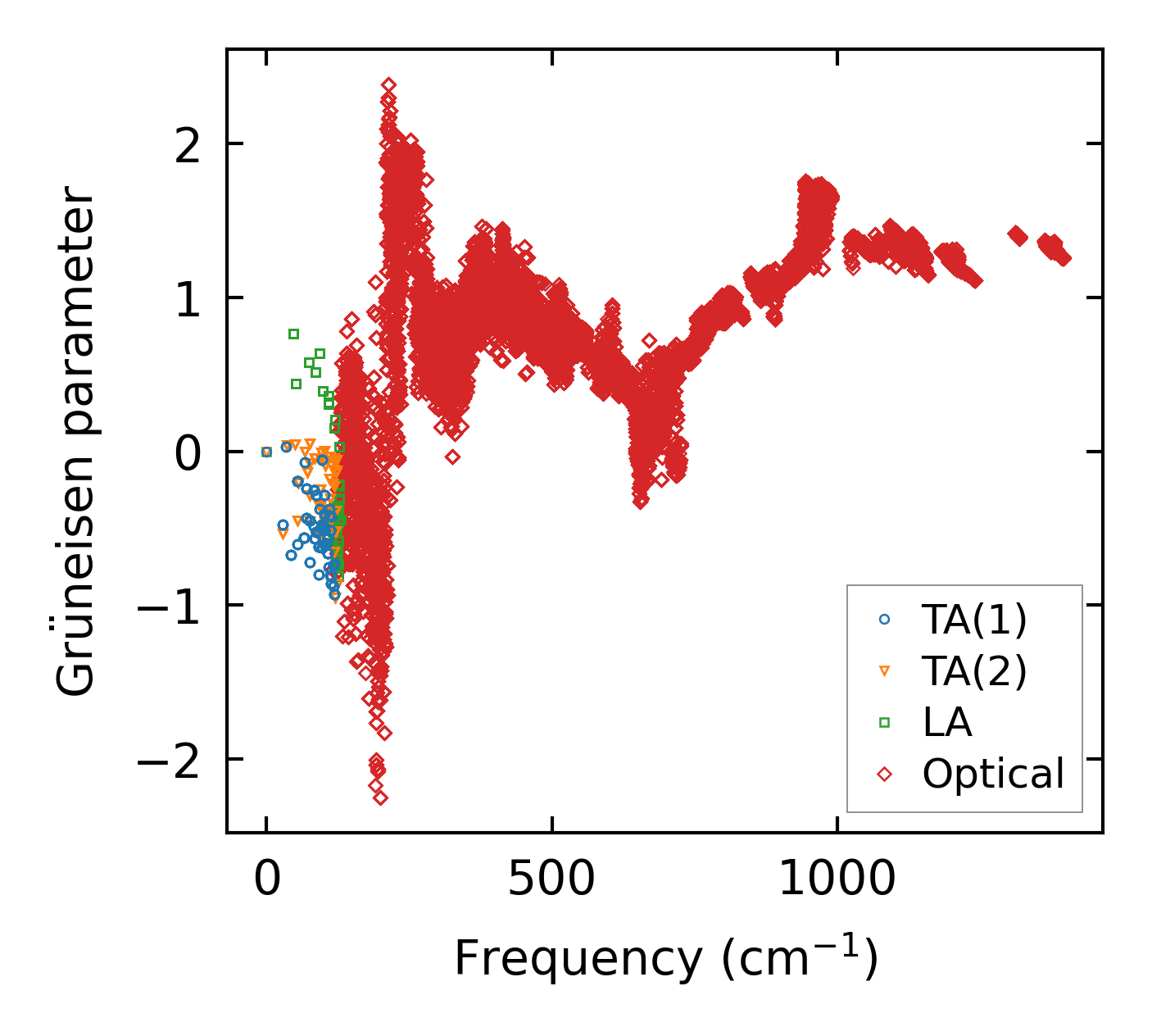

../../_images/fig_gru_all5353.png — (a) Grüneisen parameters

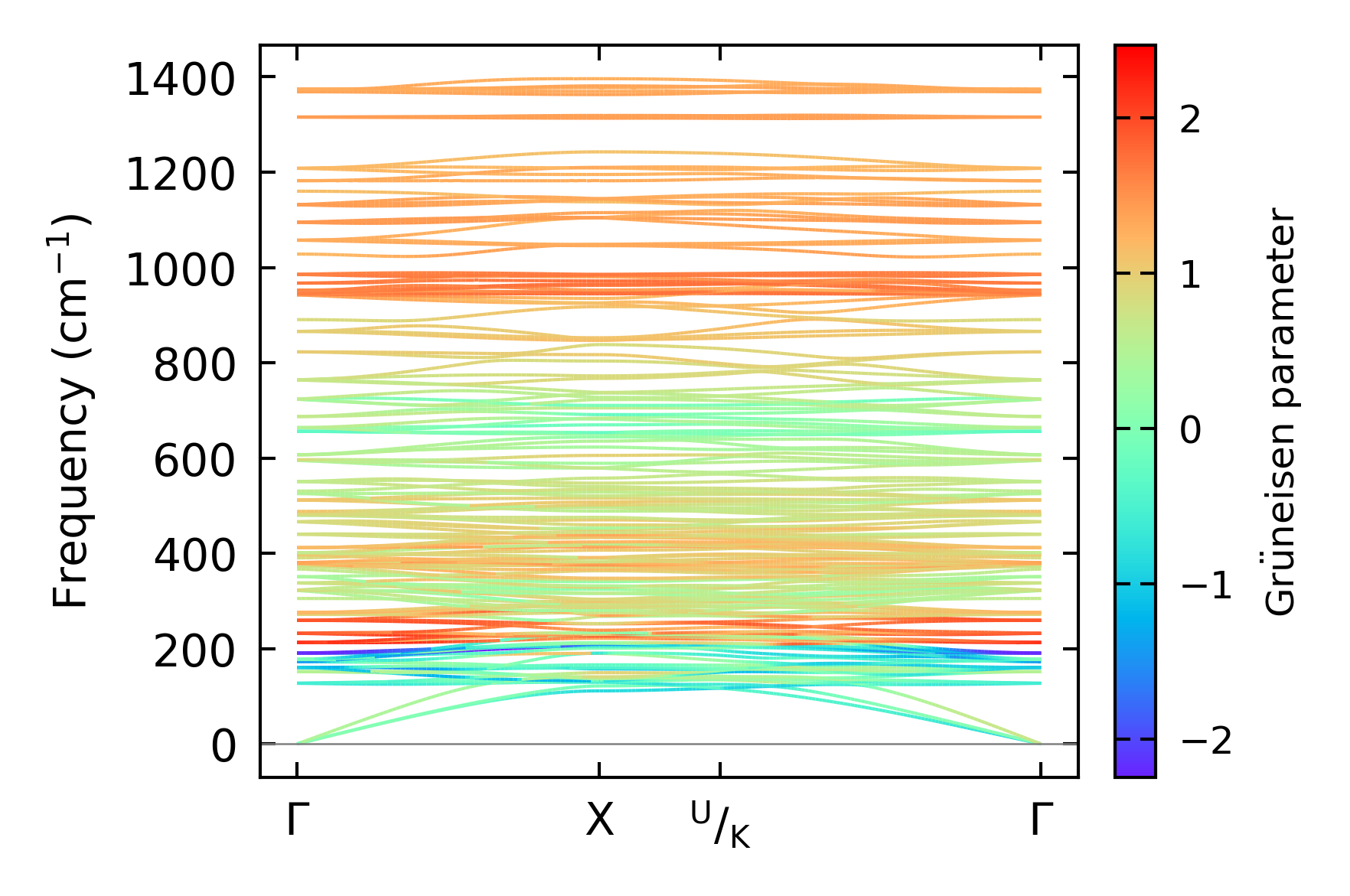

../../_images/fig_gruneisen5353.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 9x9x9, supercell: 1x1x1

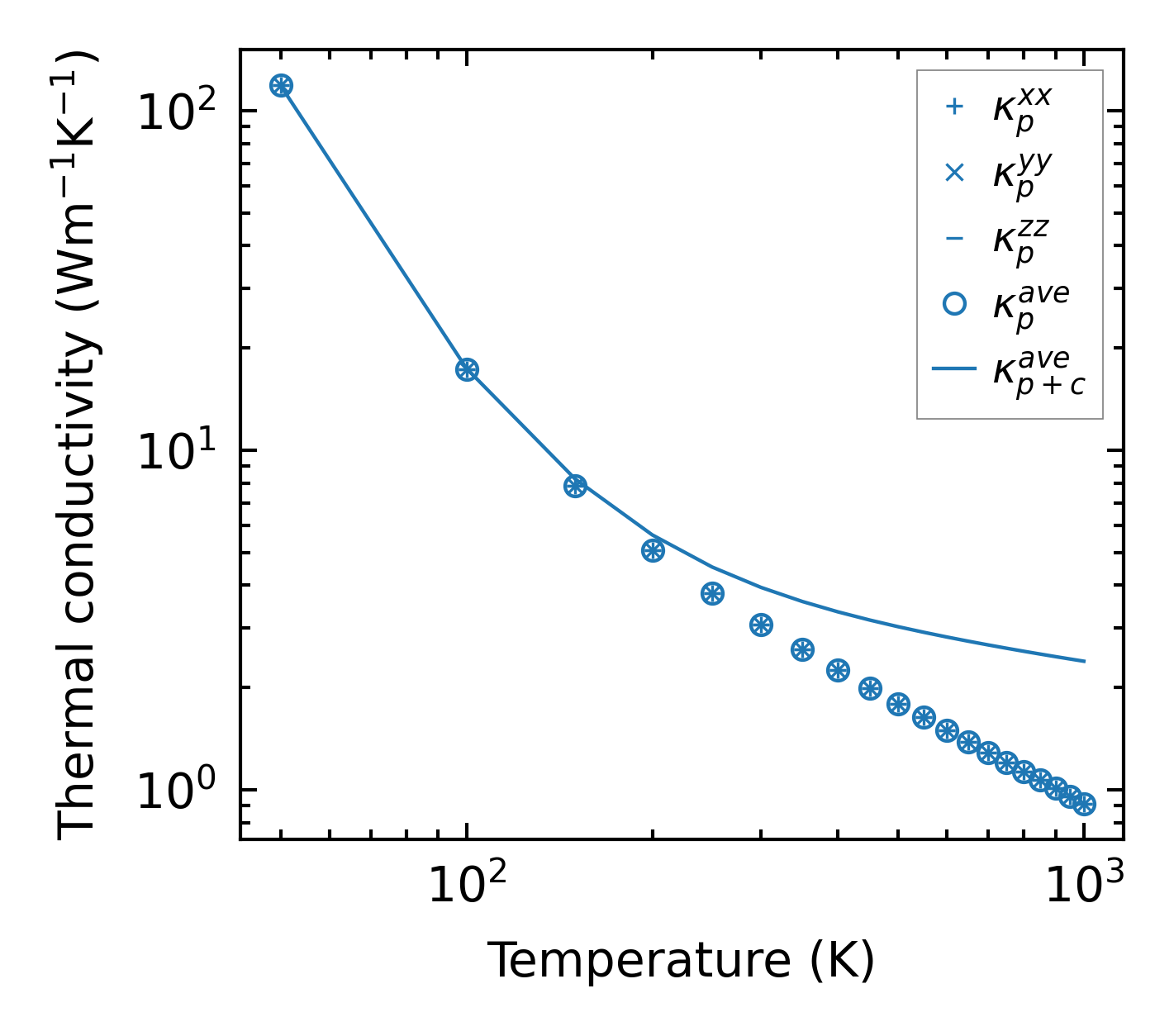

../../_images/fig_kappa10056.png — (a) Temperature-dependent lattice thermal conductivity

Force constants

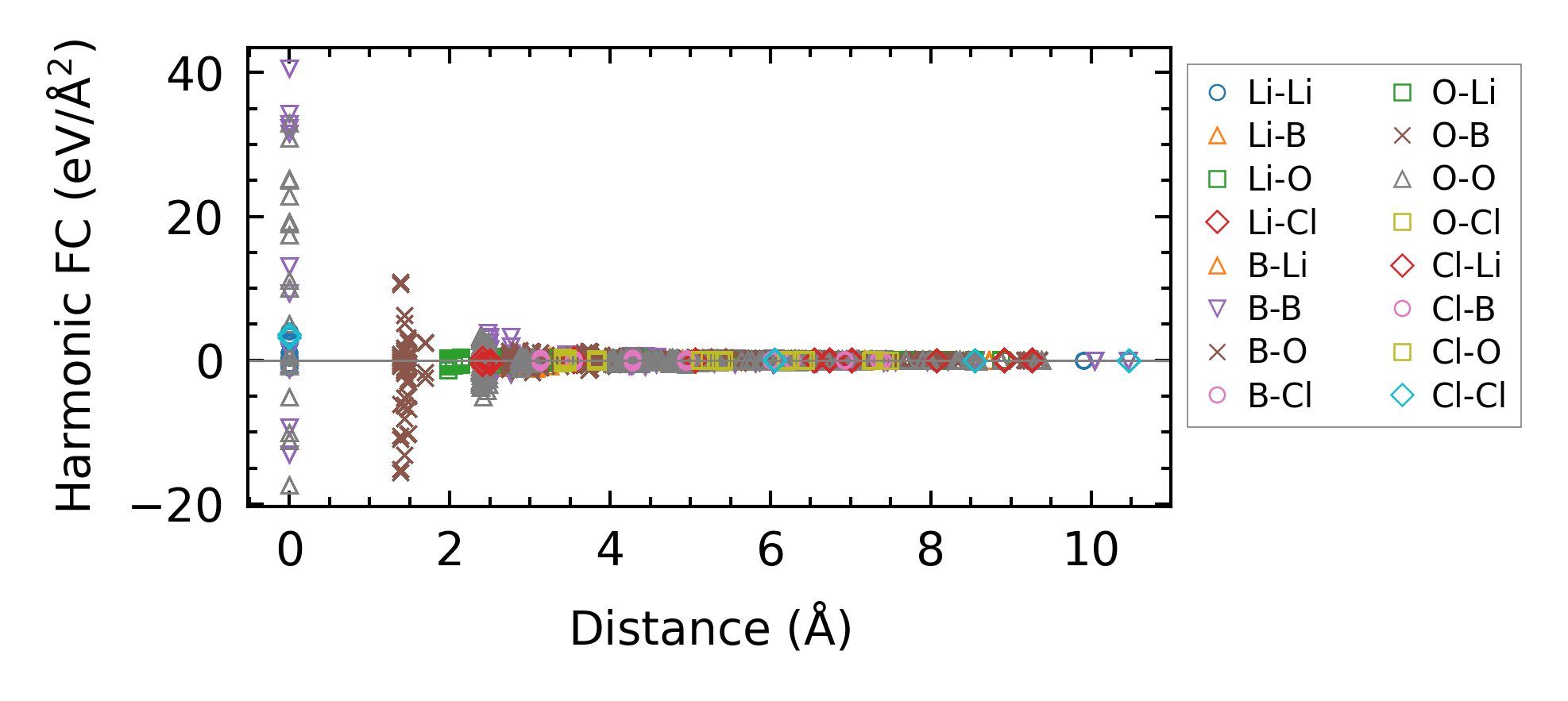

../../_images/fig_fc212593.png — (a) Force constants w.r.t atomic distance

Summary

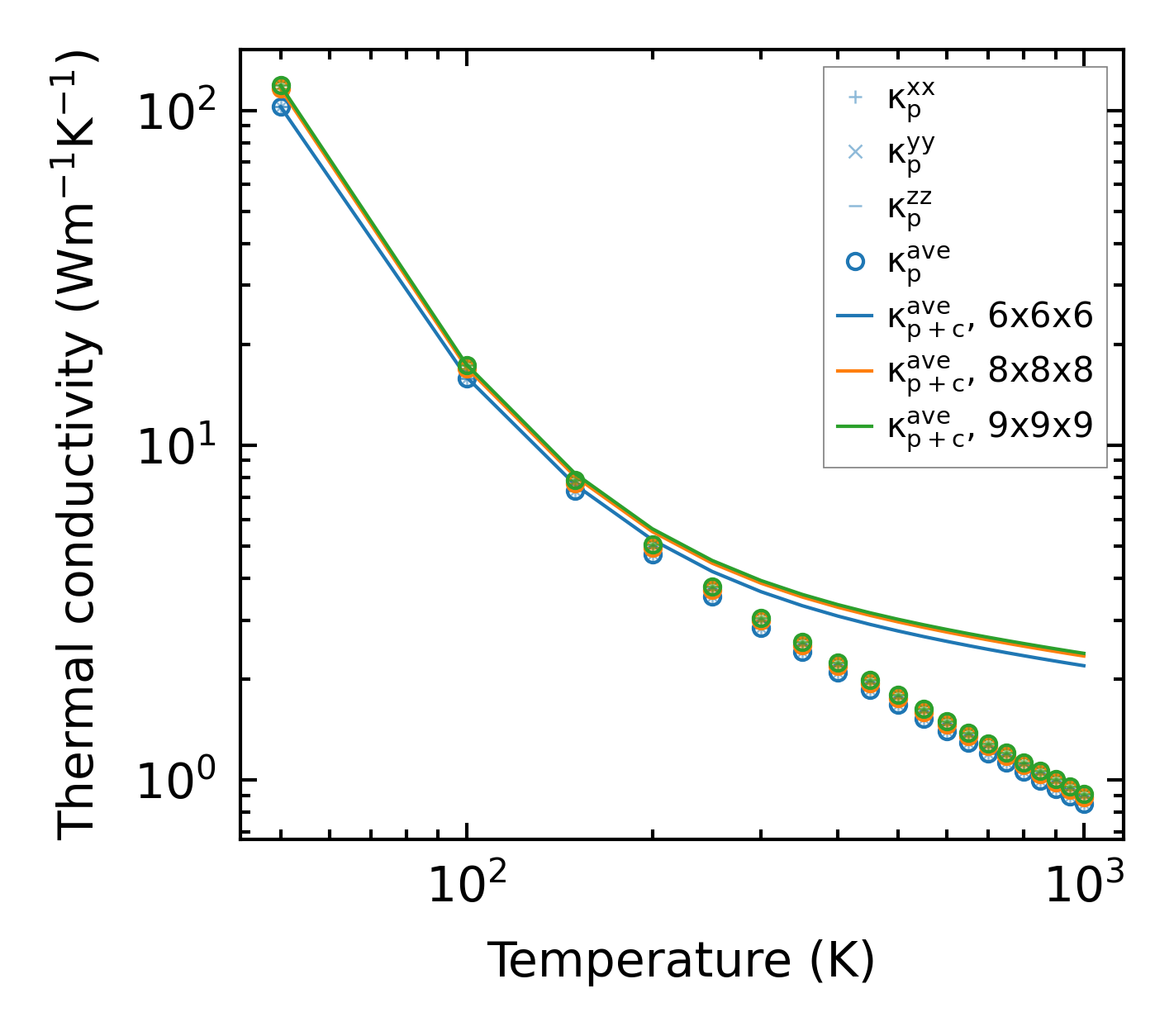

../../_images/fig_kappa10057.png — (a) Temperature-dependent lattice thermal conductivity

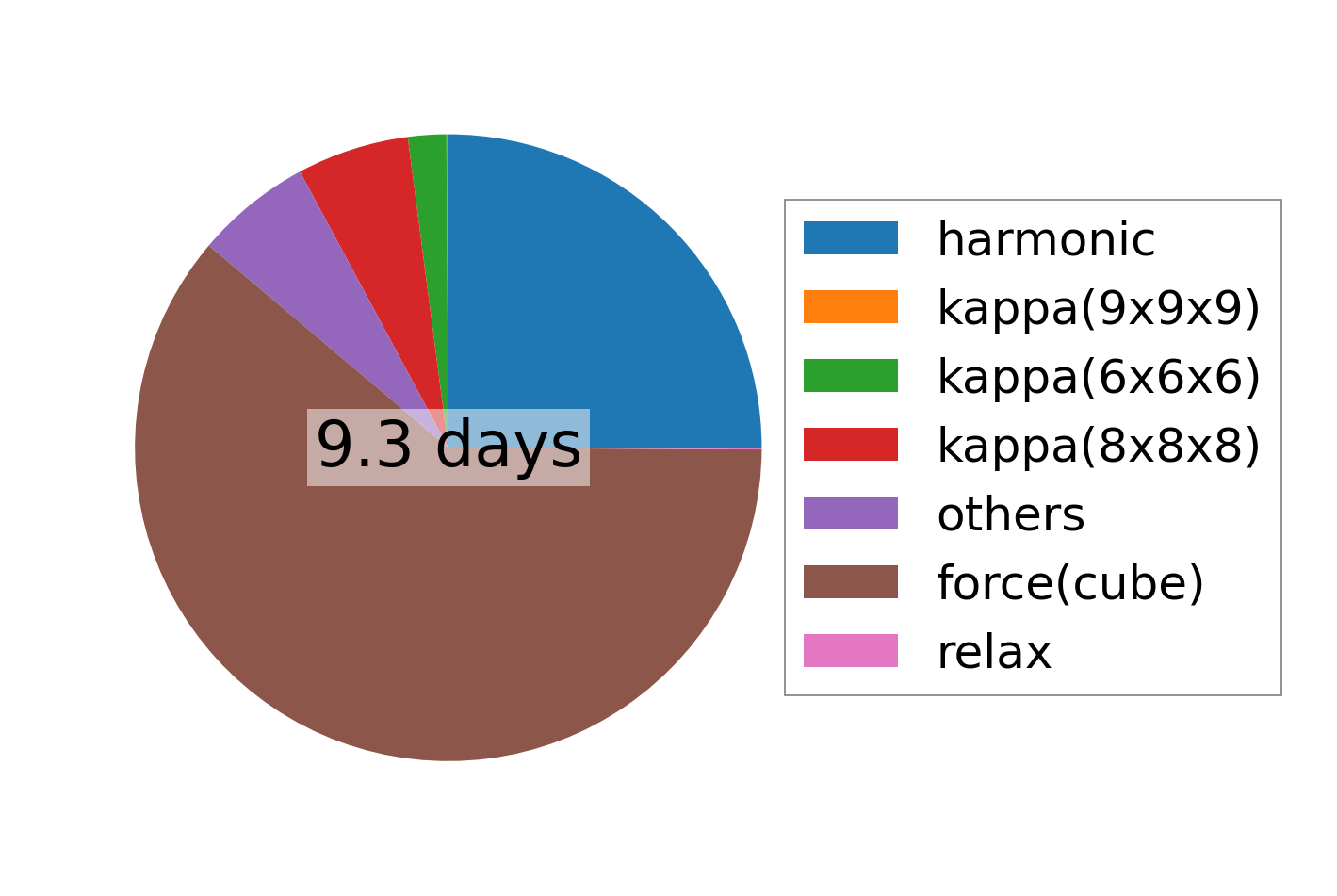

../../_images/fig_times21835.png — (b) Computation time
