mp-23326-2/Ca4Cl6O/anharm

Space group: P6_3mc (186)
Link: Materials Project
Download: mp-23326-2.tar.gz

Equation of state

../../_images/fig_bm6488.png — (a) Equation of state

Harmonic properties

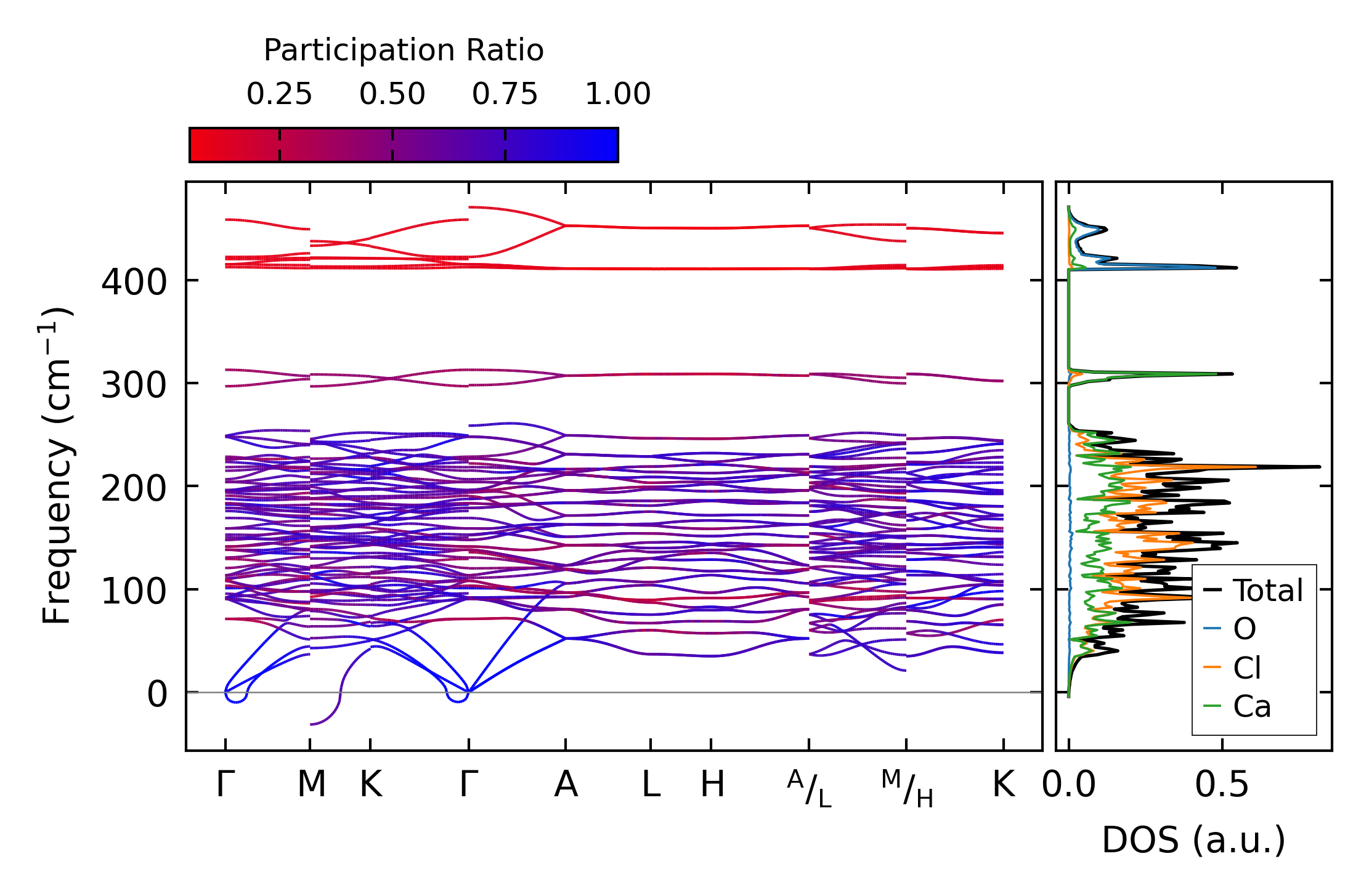

../../_images/fig_bandos_pr12995.png — (a) Phonon dispersion with participation ratio and DOS

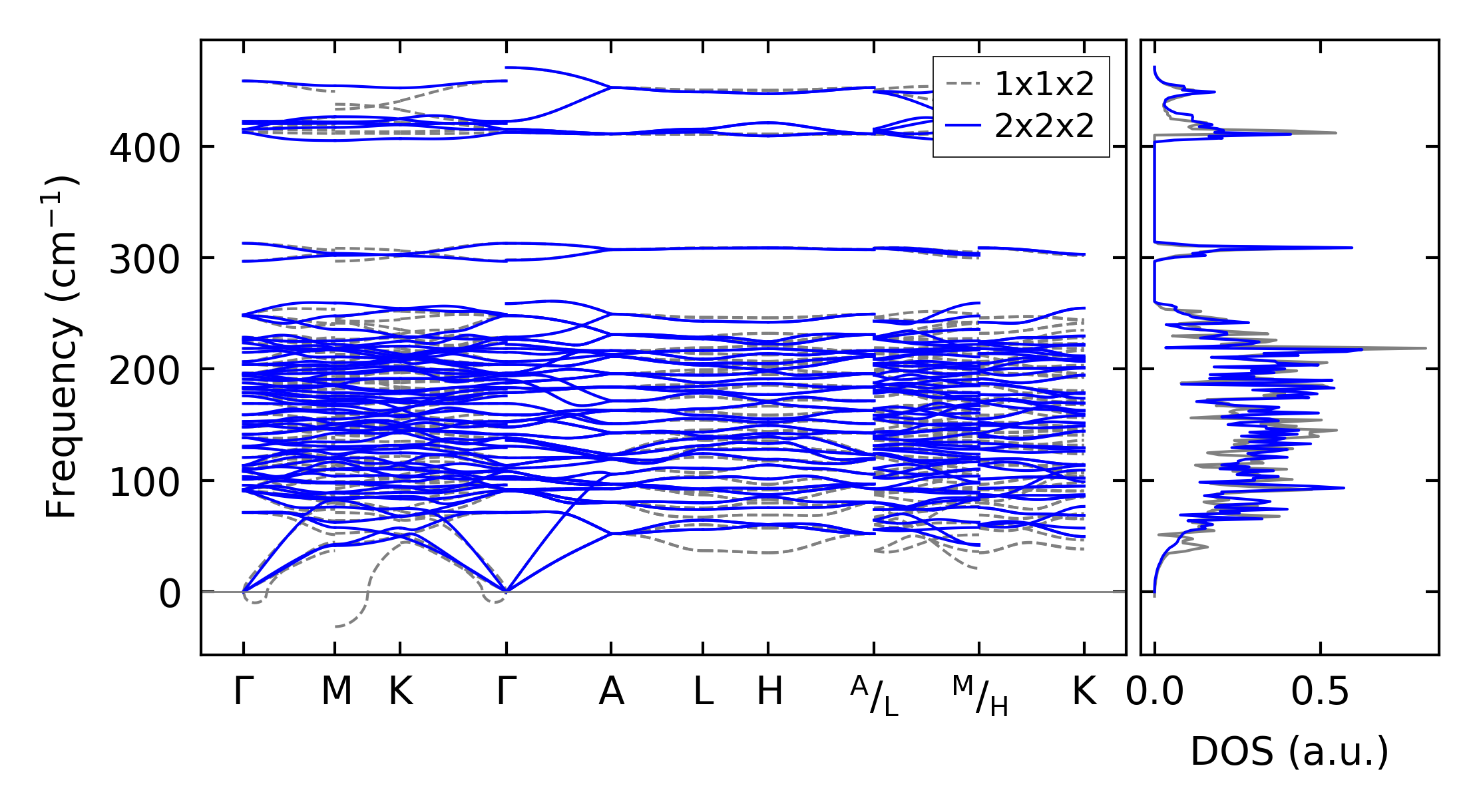

../../_images/fig_bandos17379.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo12995.png — (c) Thermodynamic properties

Grüneisen parameters

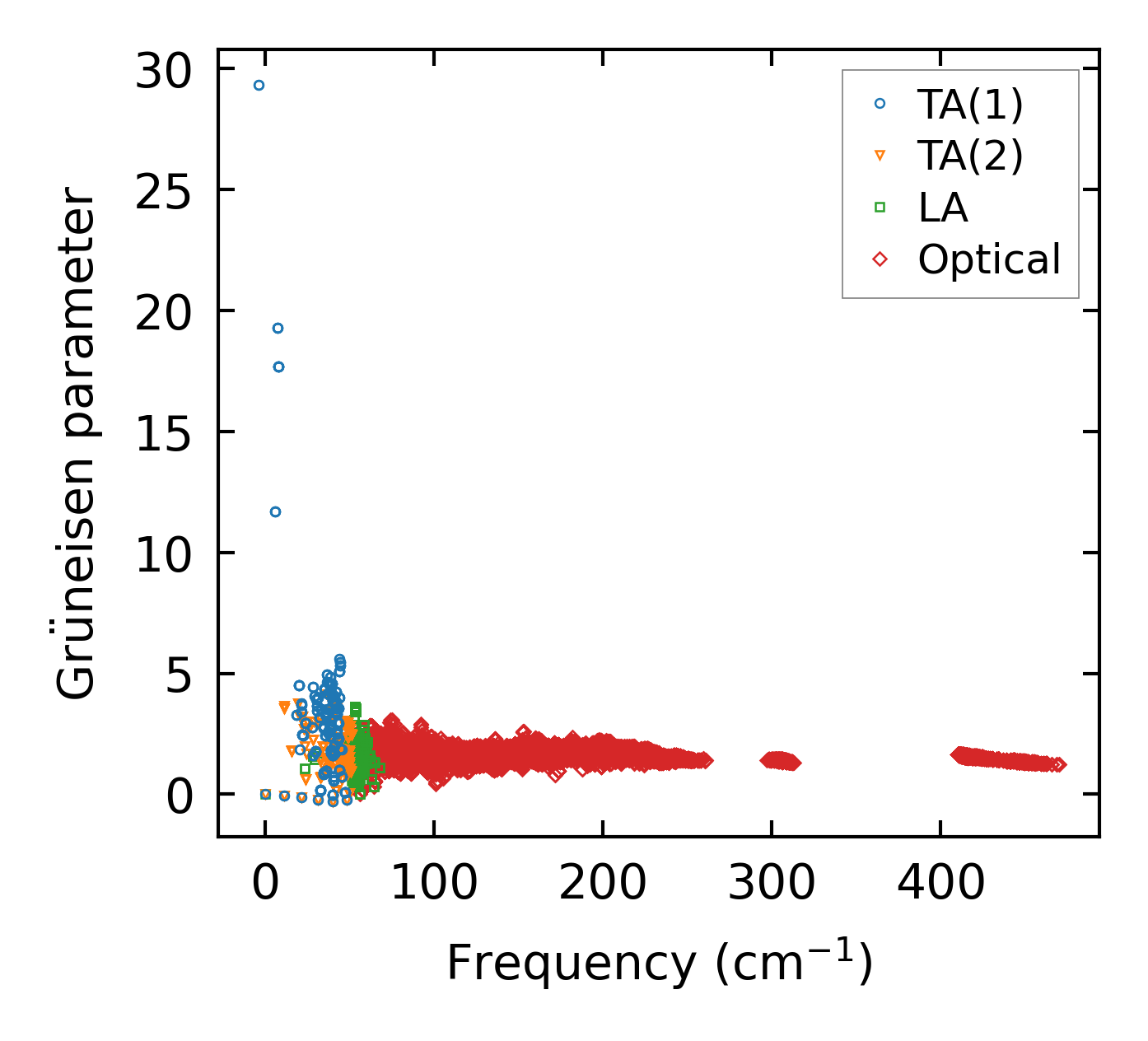

../../_images/fig_gru_all5409.png — (a) Grüneisen parameters

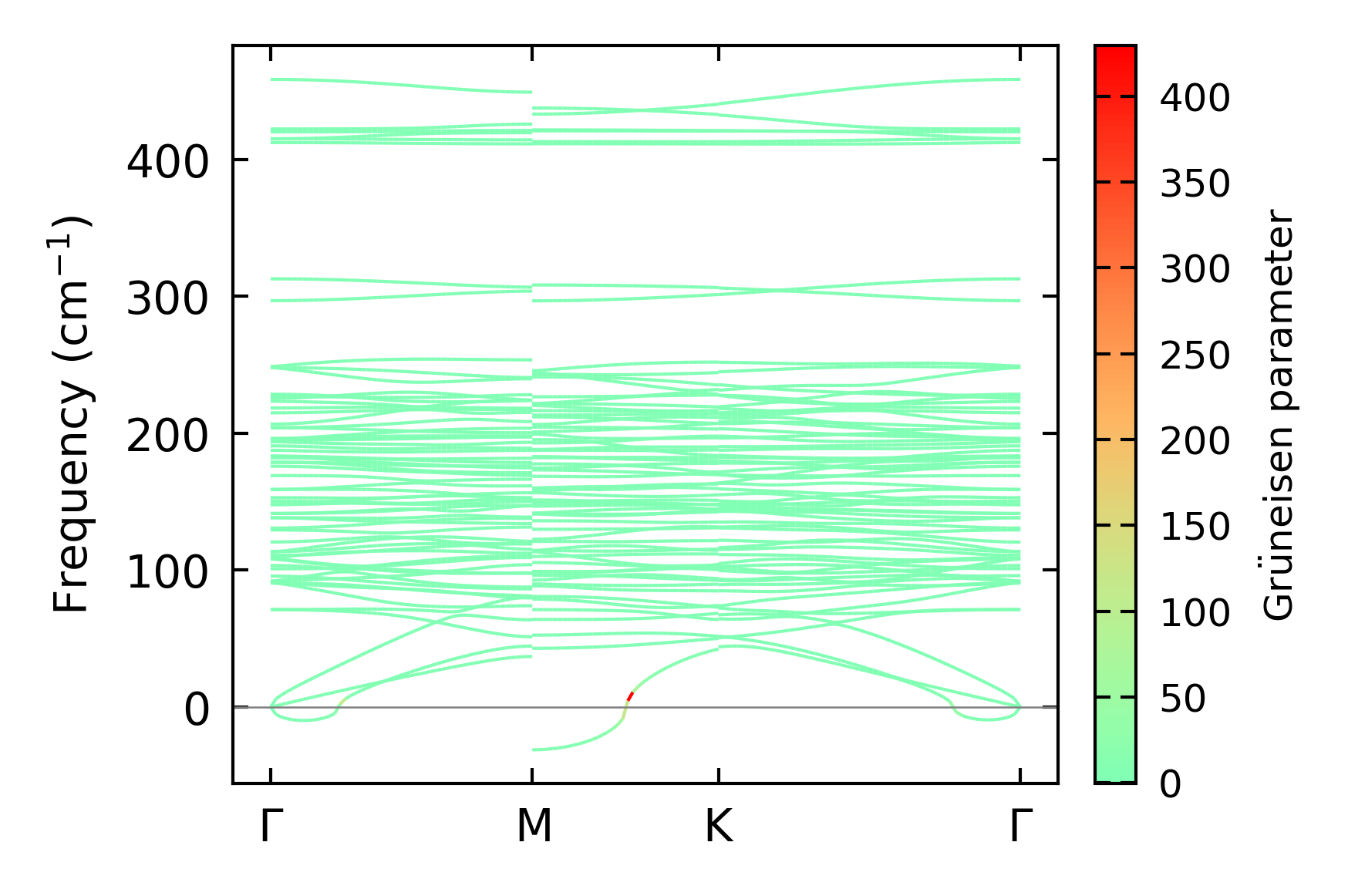

../../_images/fig_gruneisen5409.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x2 — q-mesh: 8x8x11, supercell: 2x2x2

../../_images/fig_kappa10160.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size5473.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime5357.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates5356.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

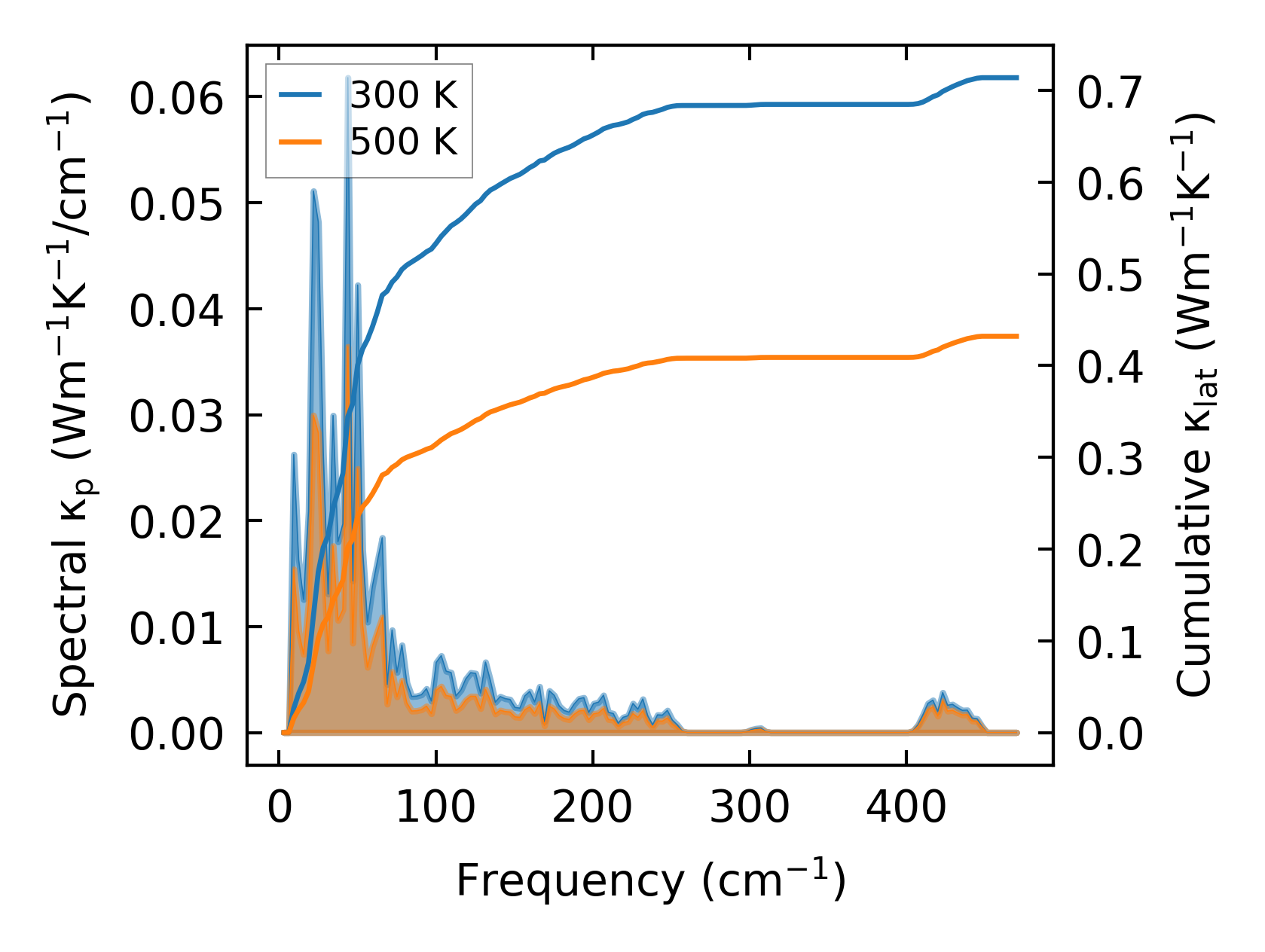

../../_images/fig_cumu_frequency5357.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

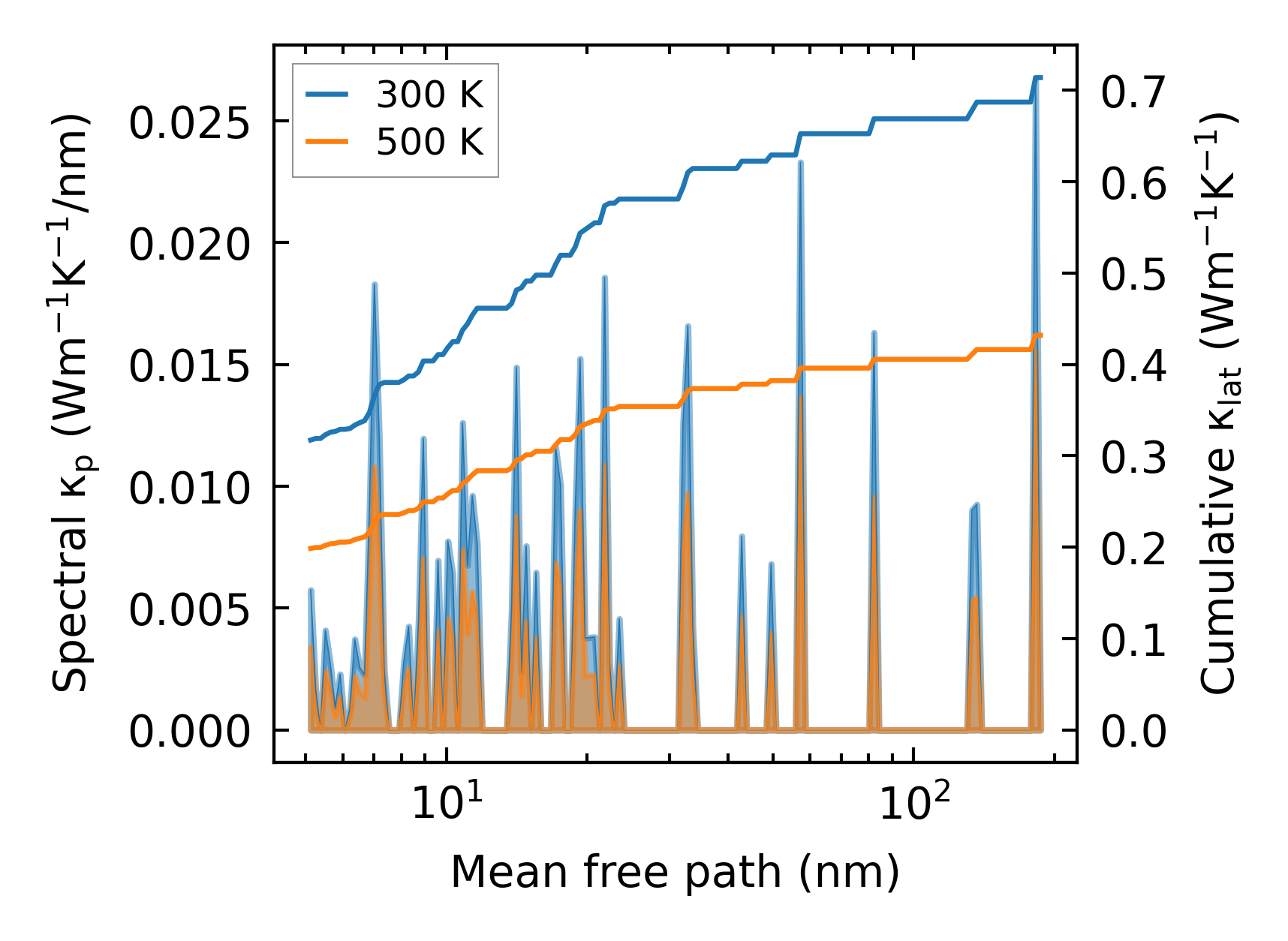

../../_images/fig_cumu_mfp5356.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

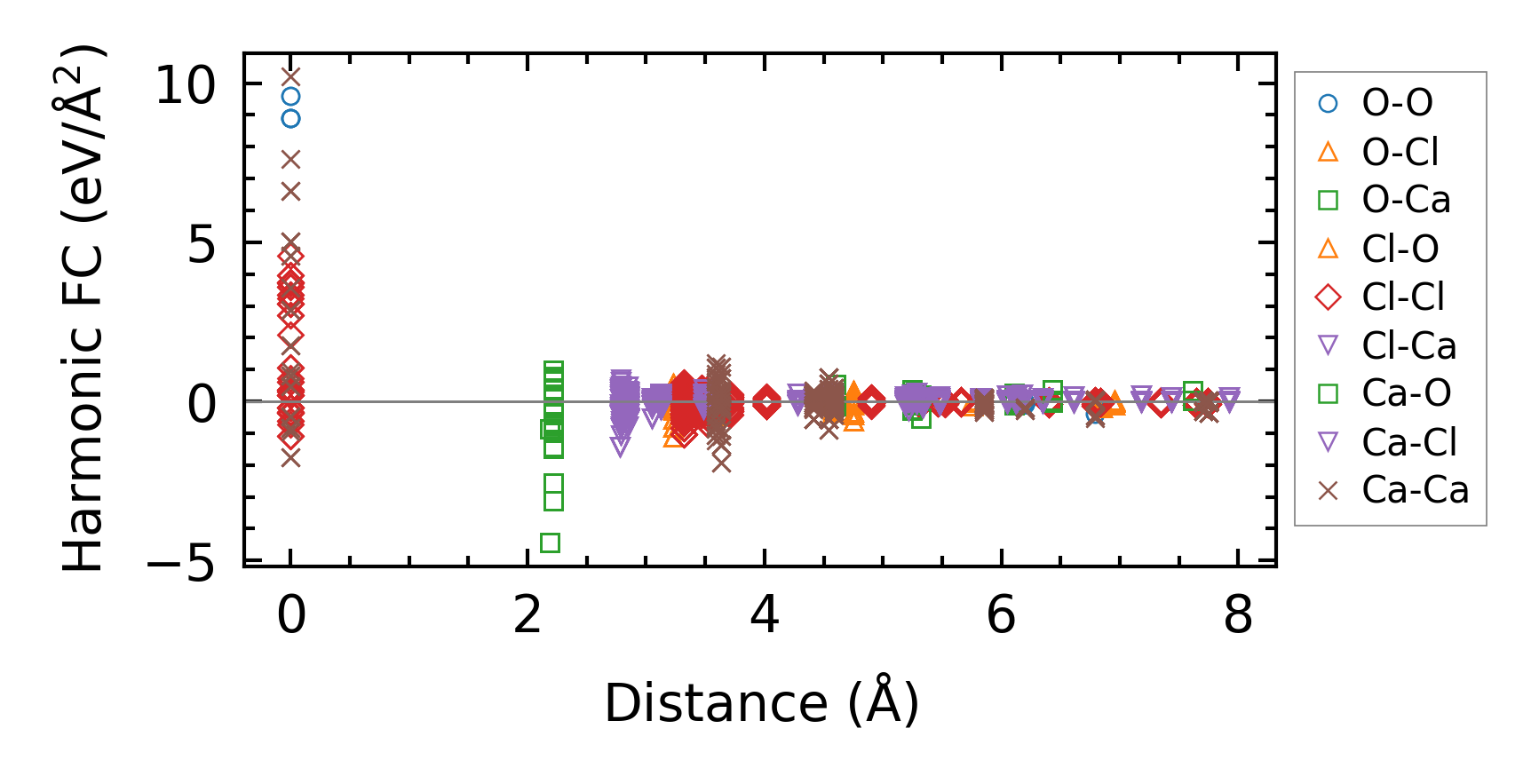

../../_images/fig_fc212676.png — (a) Force constants w.r.t atomic distance

Summary

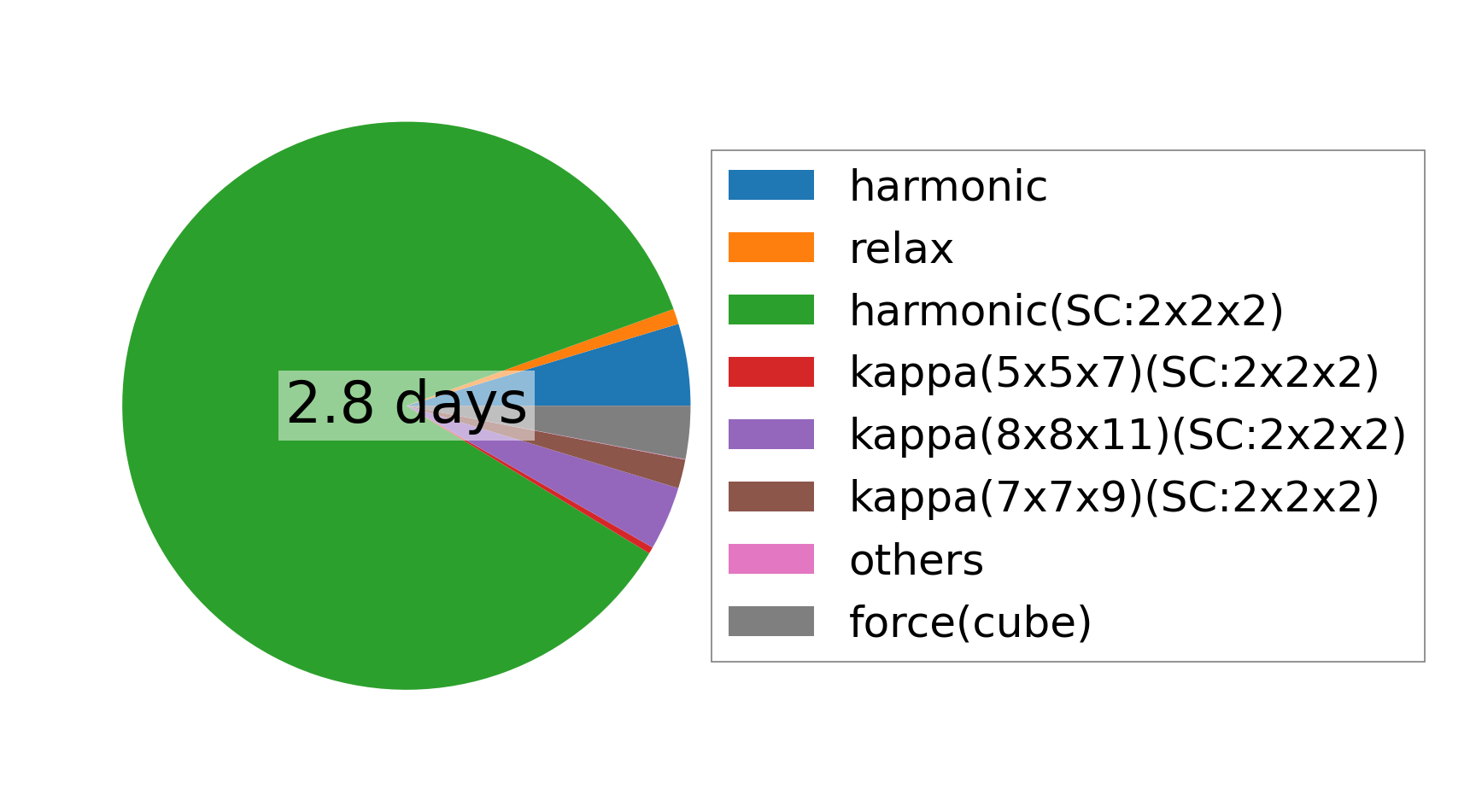

../../_images/fig_times21974.png — (a) Computation time
