mp-23149/K4Al3Si3ClO12/anharm

Space group: P-43n (218)
Link: Materials Project
Download: mp-23149.tar.gz

Harmonic properties

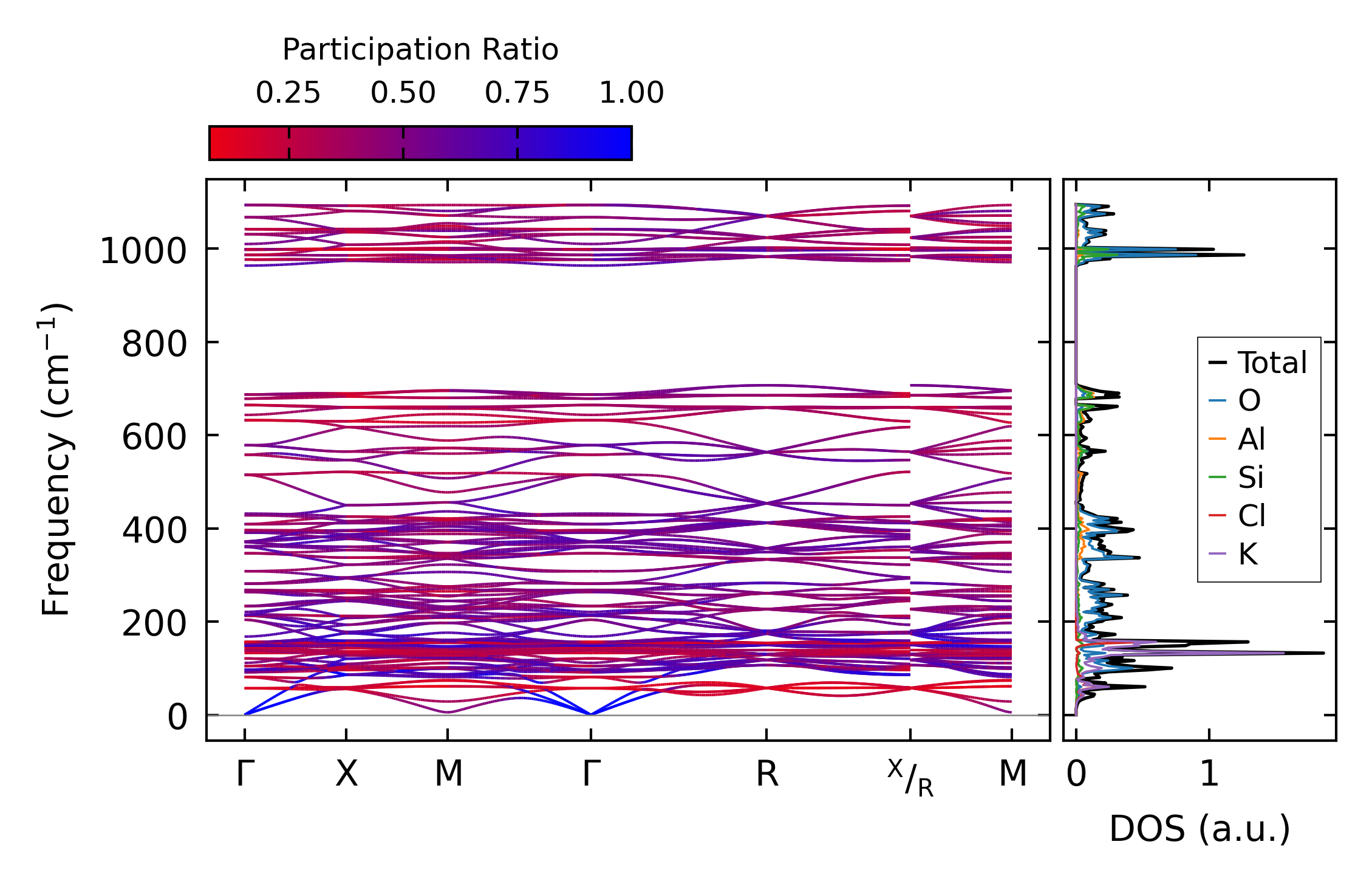

../../_images/fig_bandos_pr12915.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo12915.png — (b) Thermodynamic properties

Grüneisen parameters

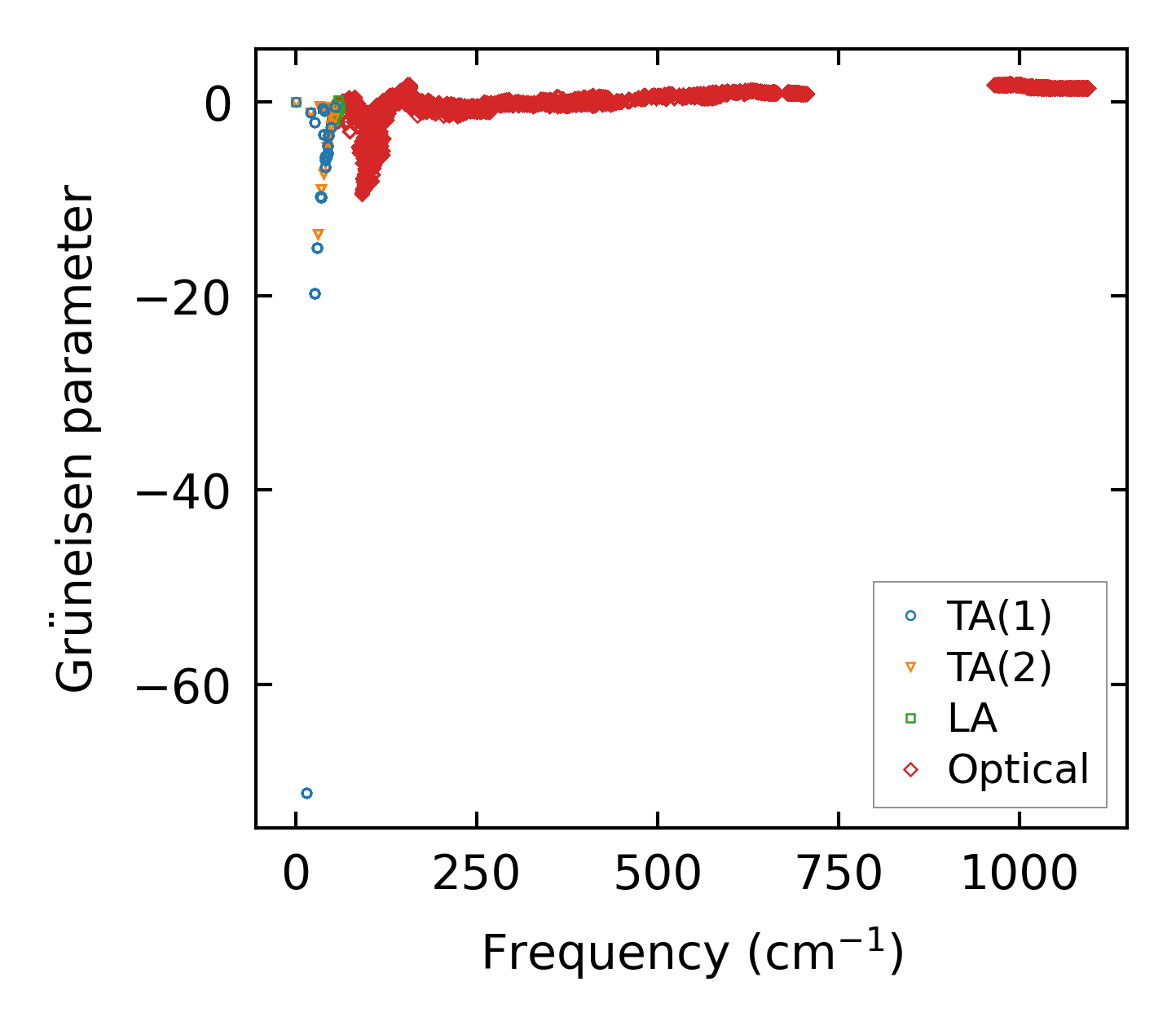

../../_images/fig_gru_all5362.png — (a) Grüneisen parameters

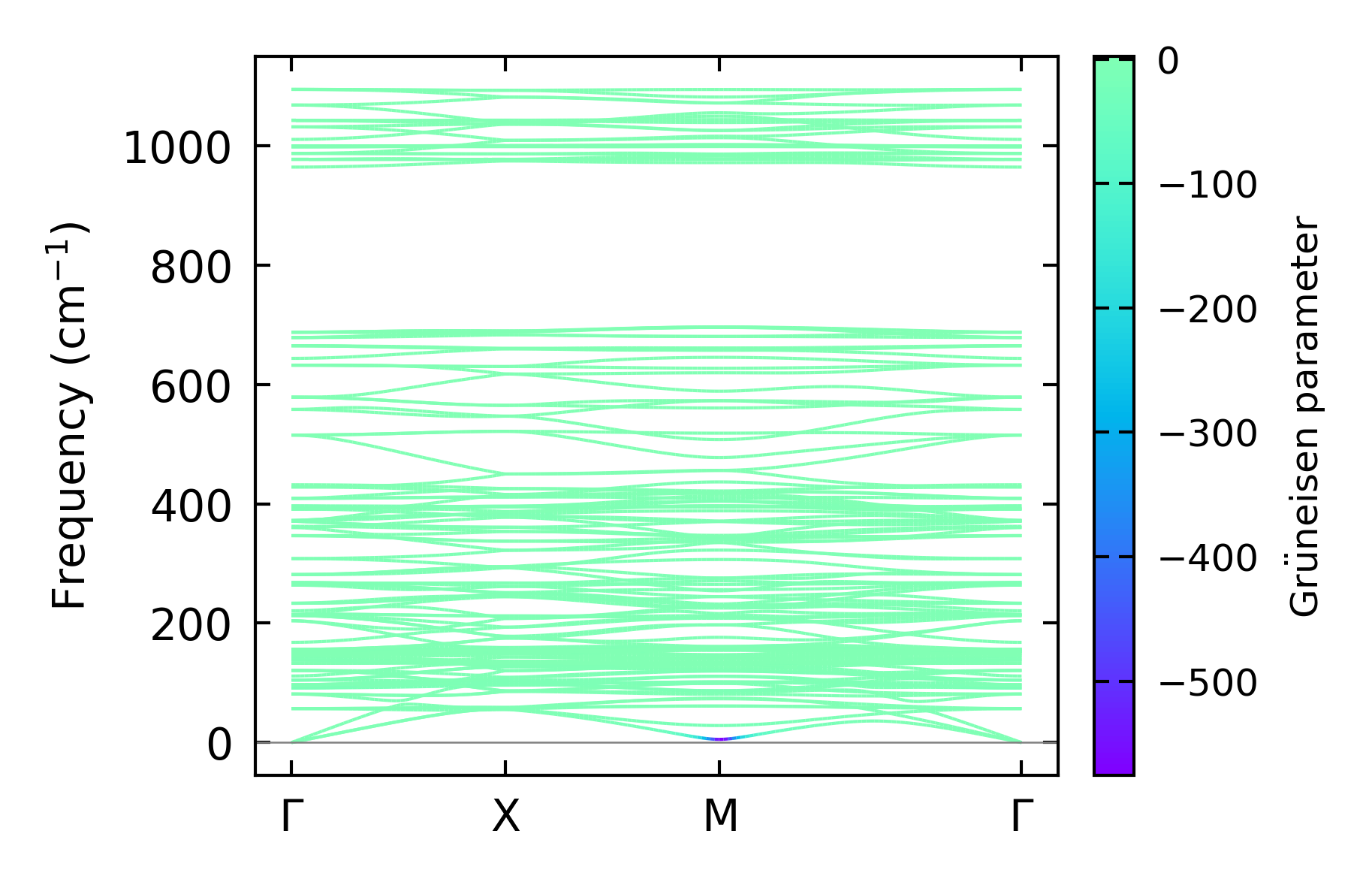

../../_images/fig_gruneisen5362.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x7x7, supercell: 1x1x1

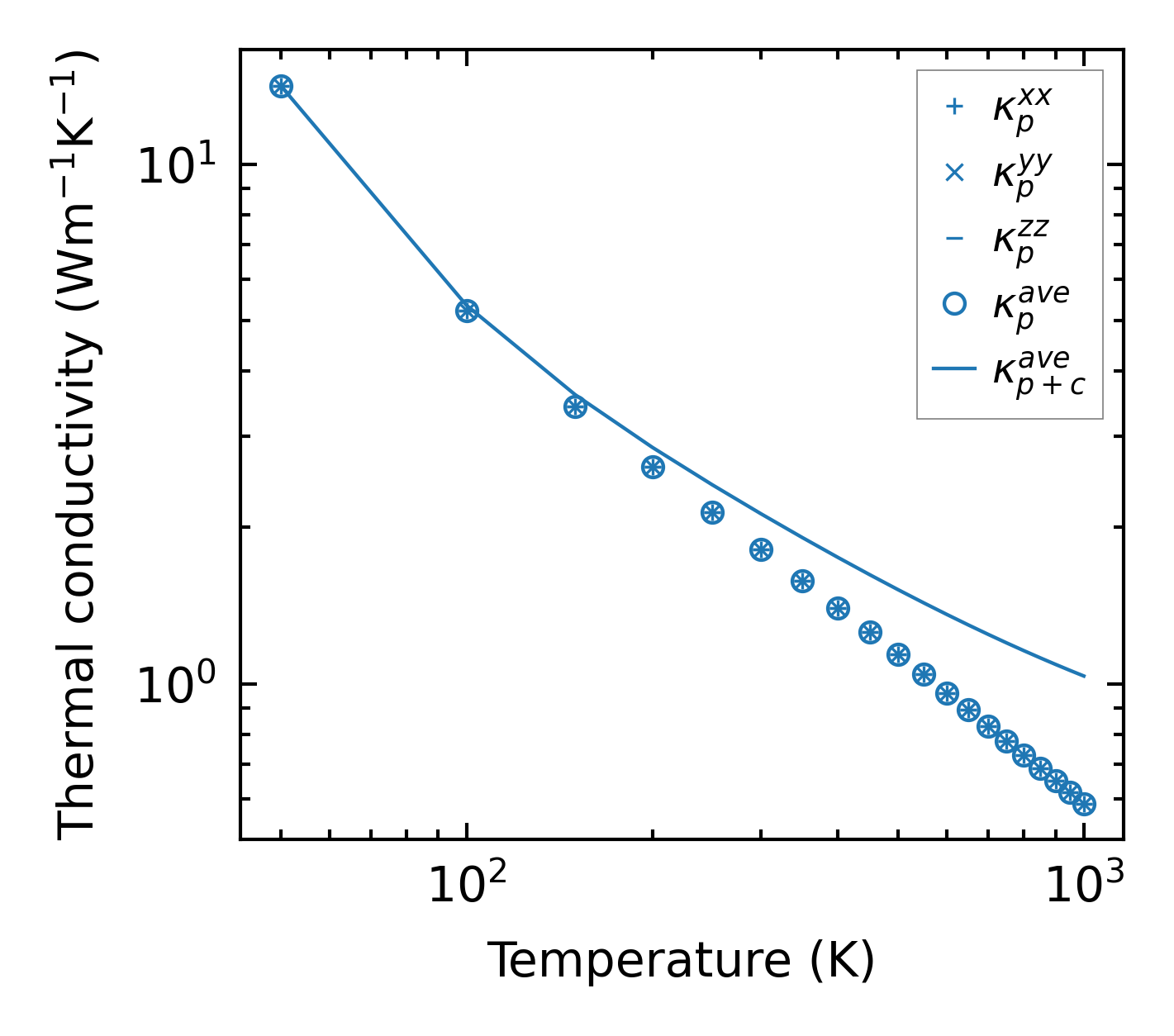

../../_images/fig_kappa10072.png — (a) Temperature-dependent lattice thermal conductivity

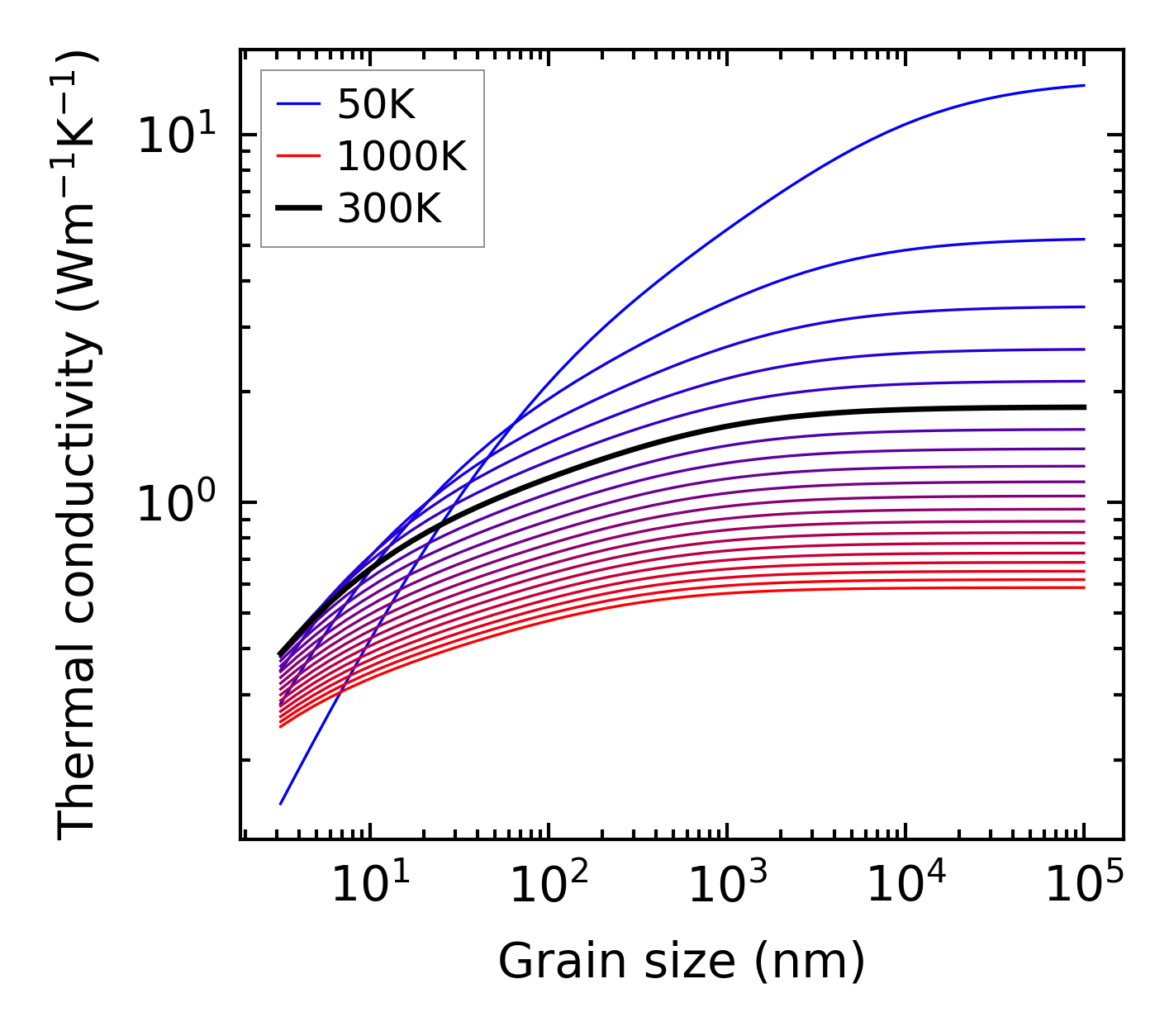

../../_images/fig_kappa_vs_grain_size5426.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

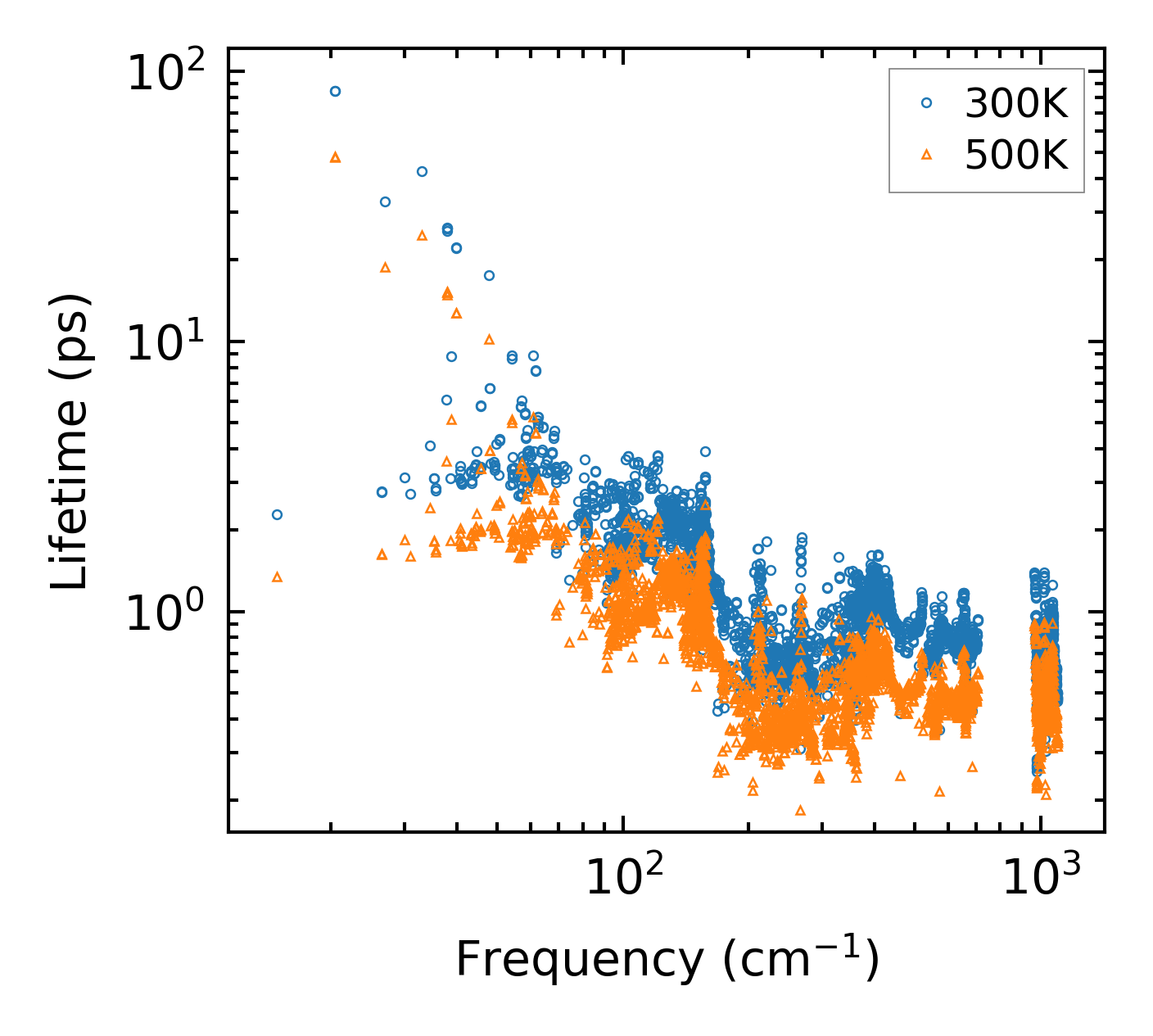

../../_images/fig_lifetime5310.png — (a) Phonon lifetime due to phonon-phonon scattering

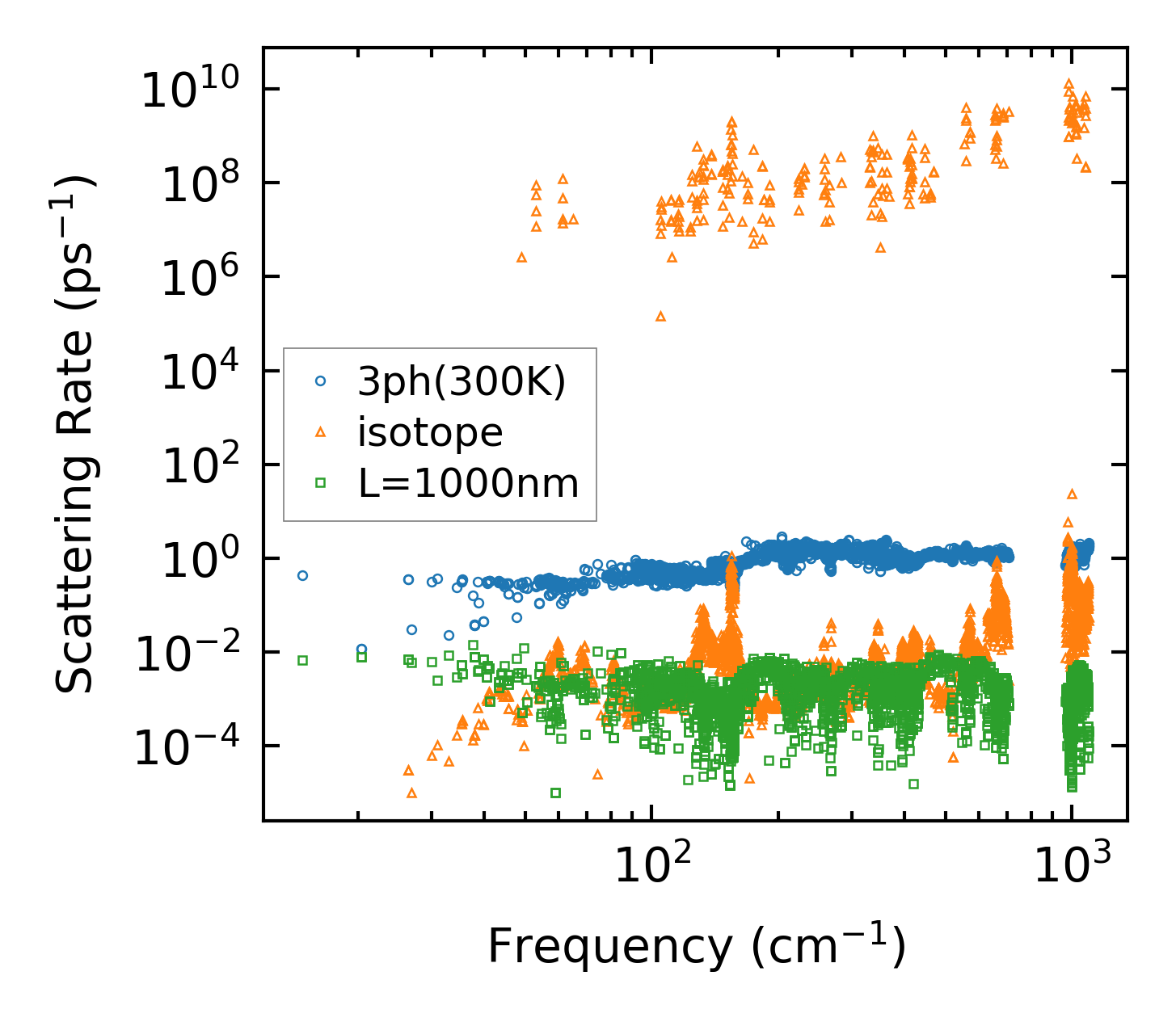

../../_images/fig_scat_rates5309.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

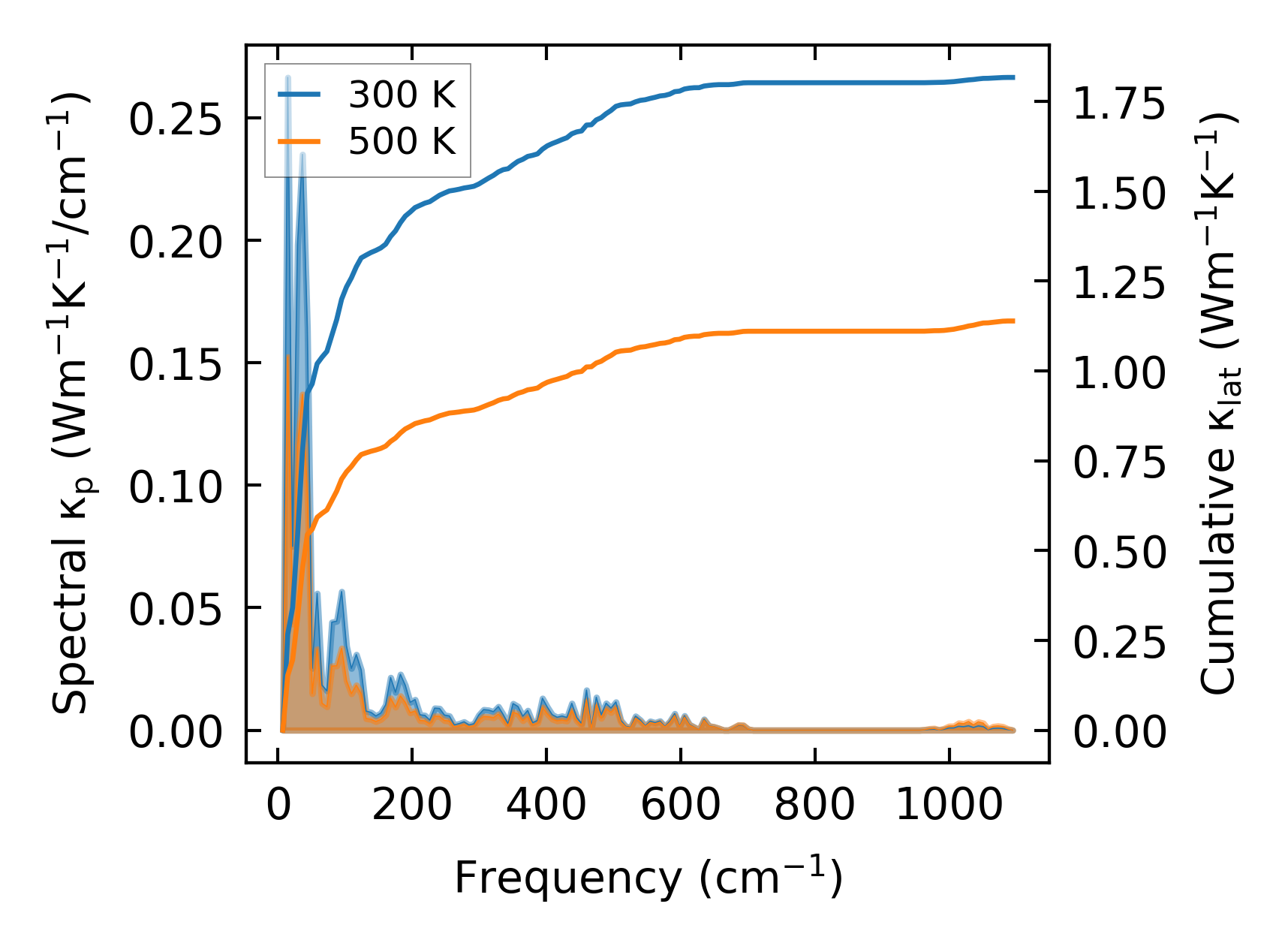

../../_images/fig_cumu_frequency5310.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

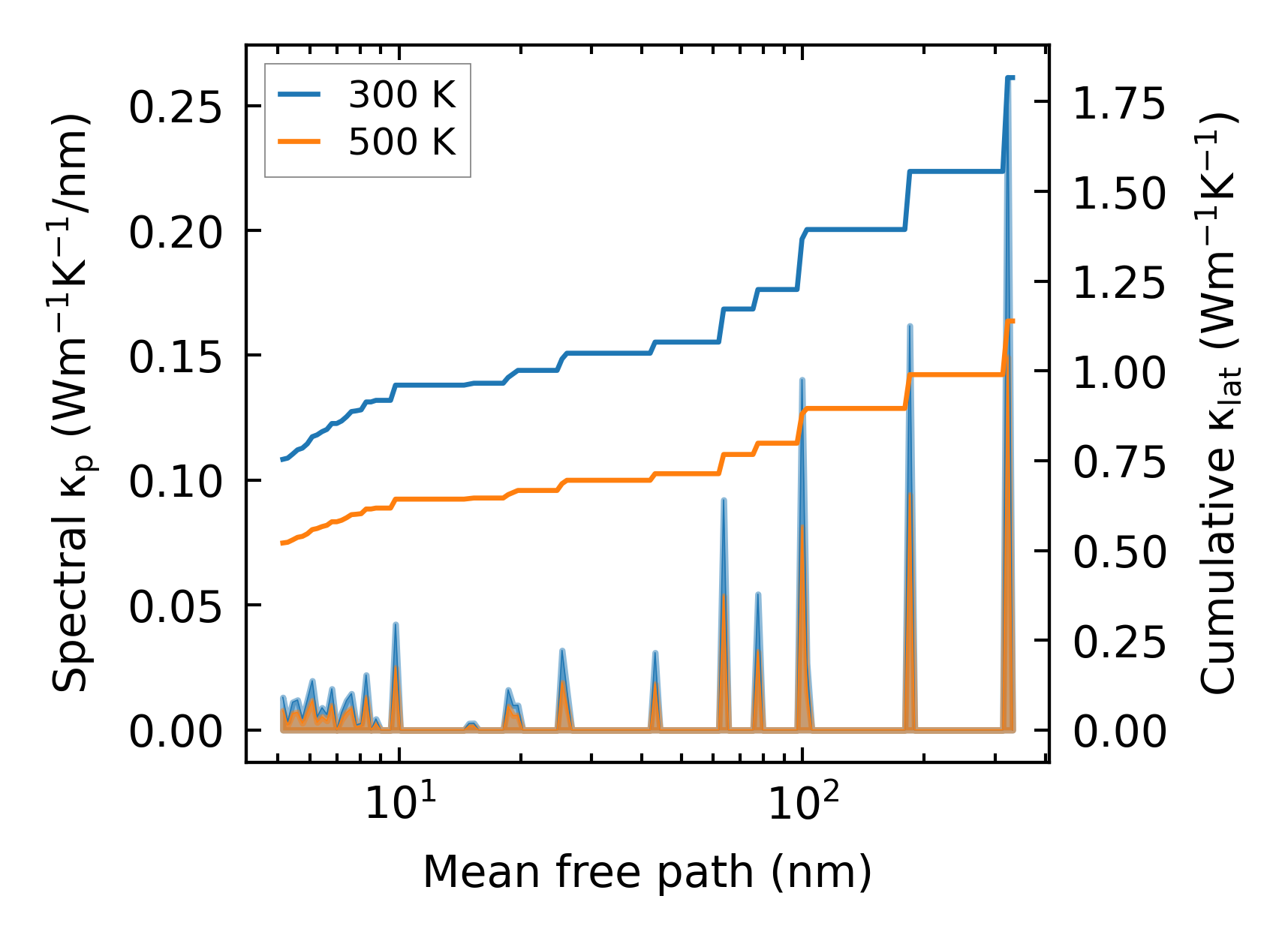

../../_images/fig_cumu_mfp5309.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

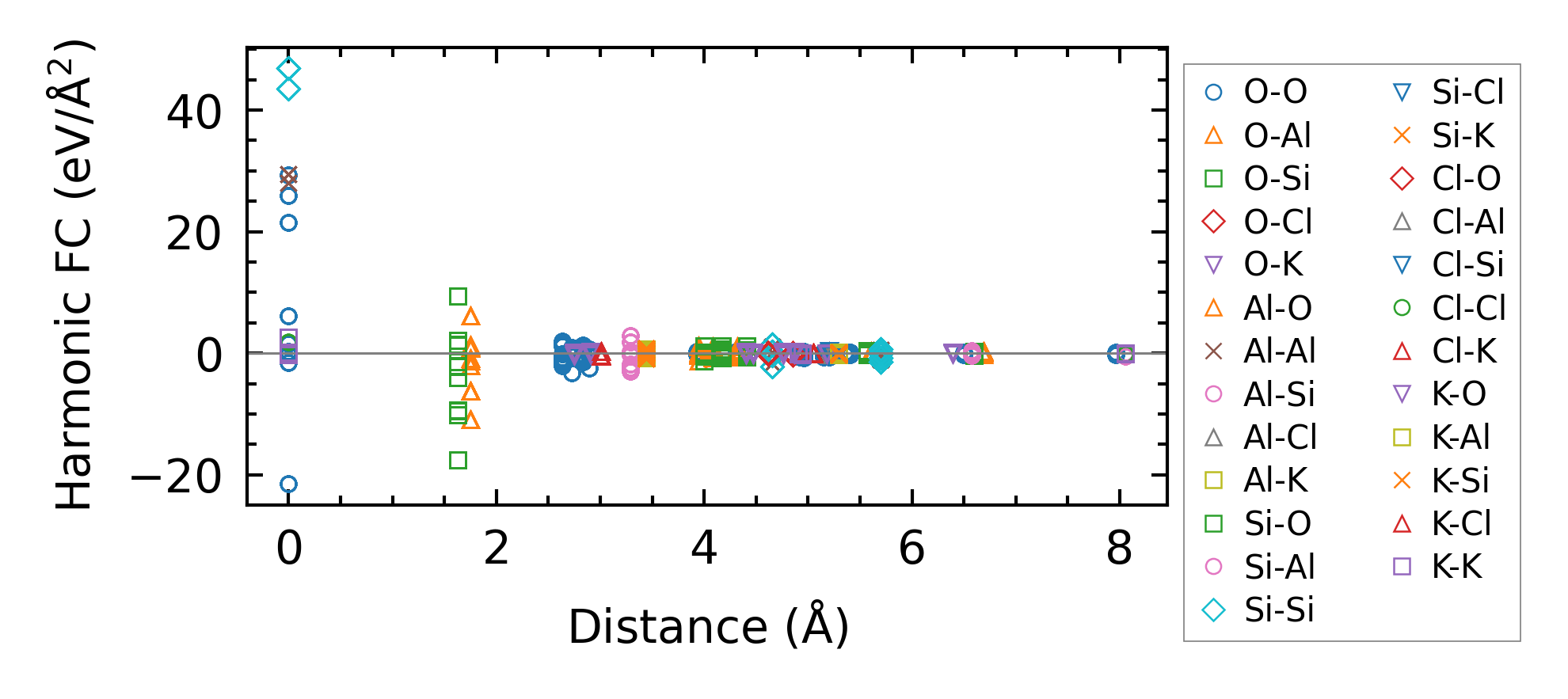

../../_images/fig_fc212611.png — (a) Force constants w.r.t atomic distance

Summary

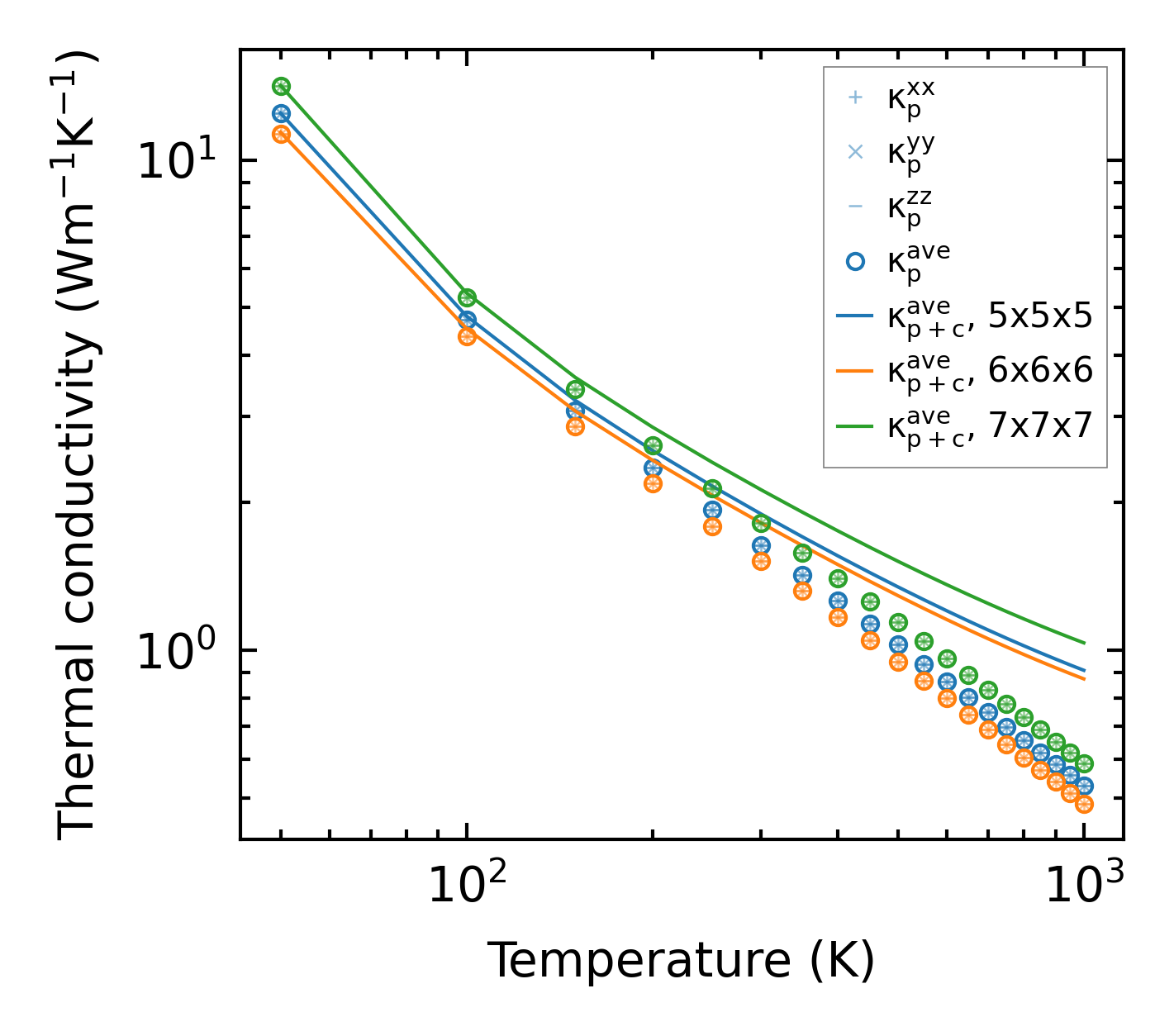

../../_images/fig_kappa10073.png — (a) Temperature-dependent lattice thermal conductivity

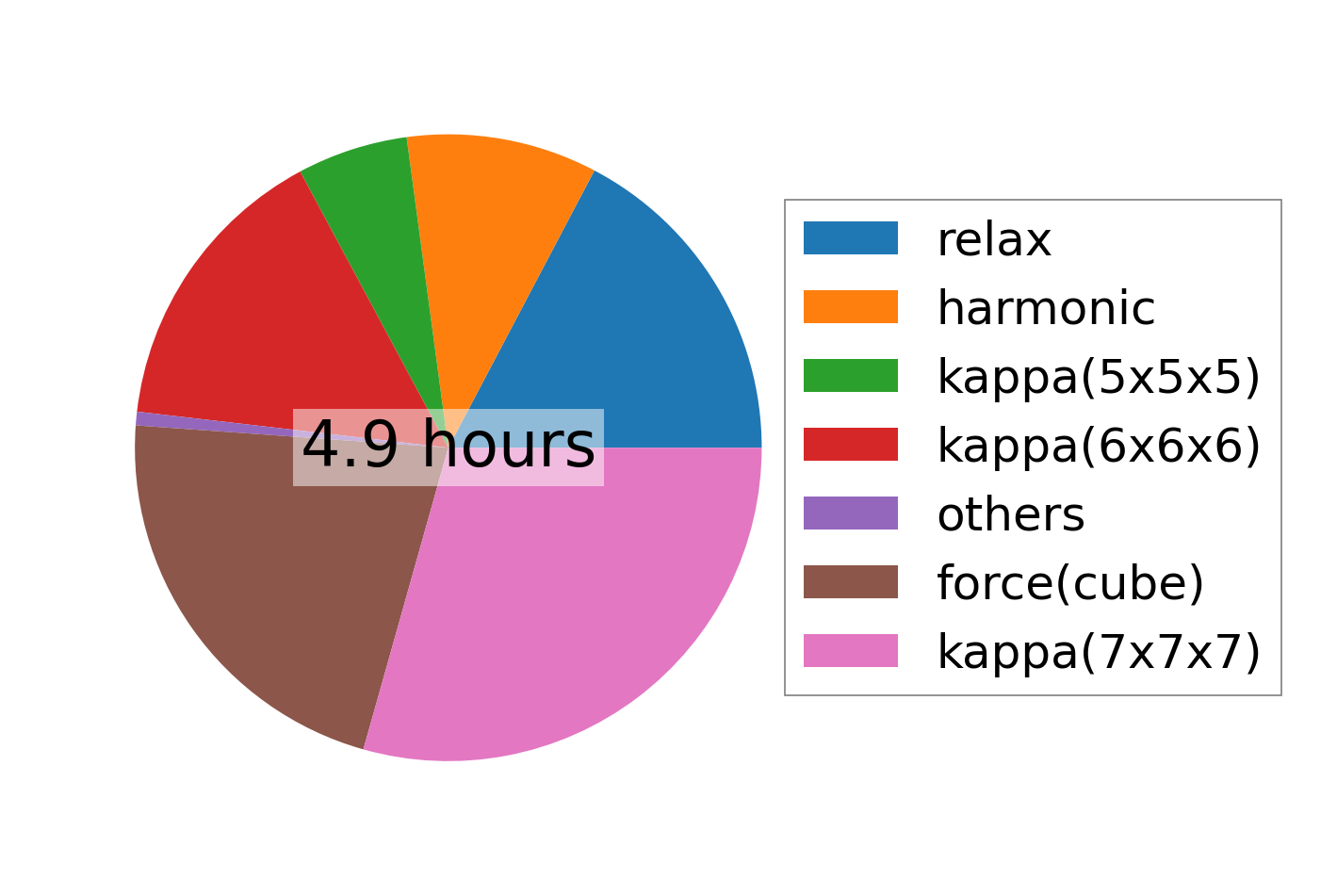

../../_images/fig_times21856.png — (b) Computation time
