mp-23560/Ge3Bi4O12/anharm

Space group: I-43d (220)
Link: Materials Project
Download: mp-23560.tar.gz

Harmonic properties

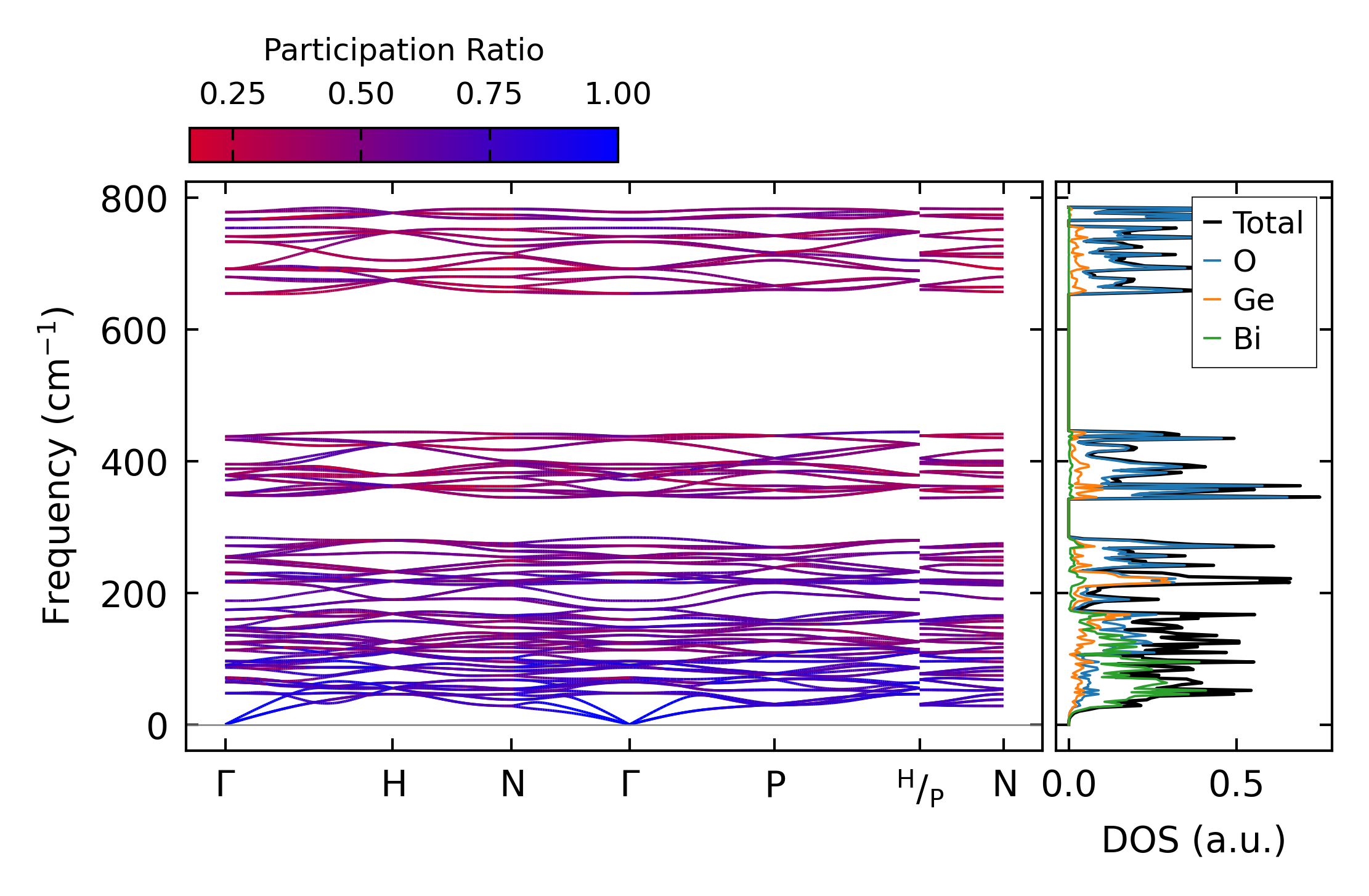

../../_images/fig_bandos_pr12745.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo12745.png — (b) Thermodynamic properties

Grüneisen parameters

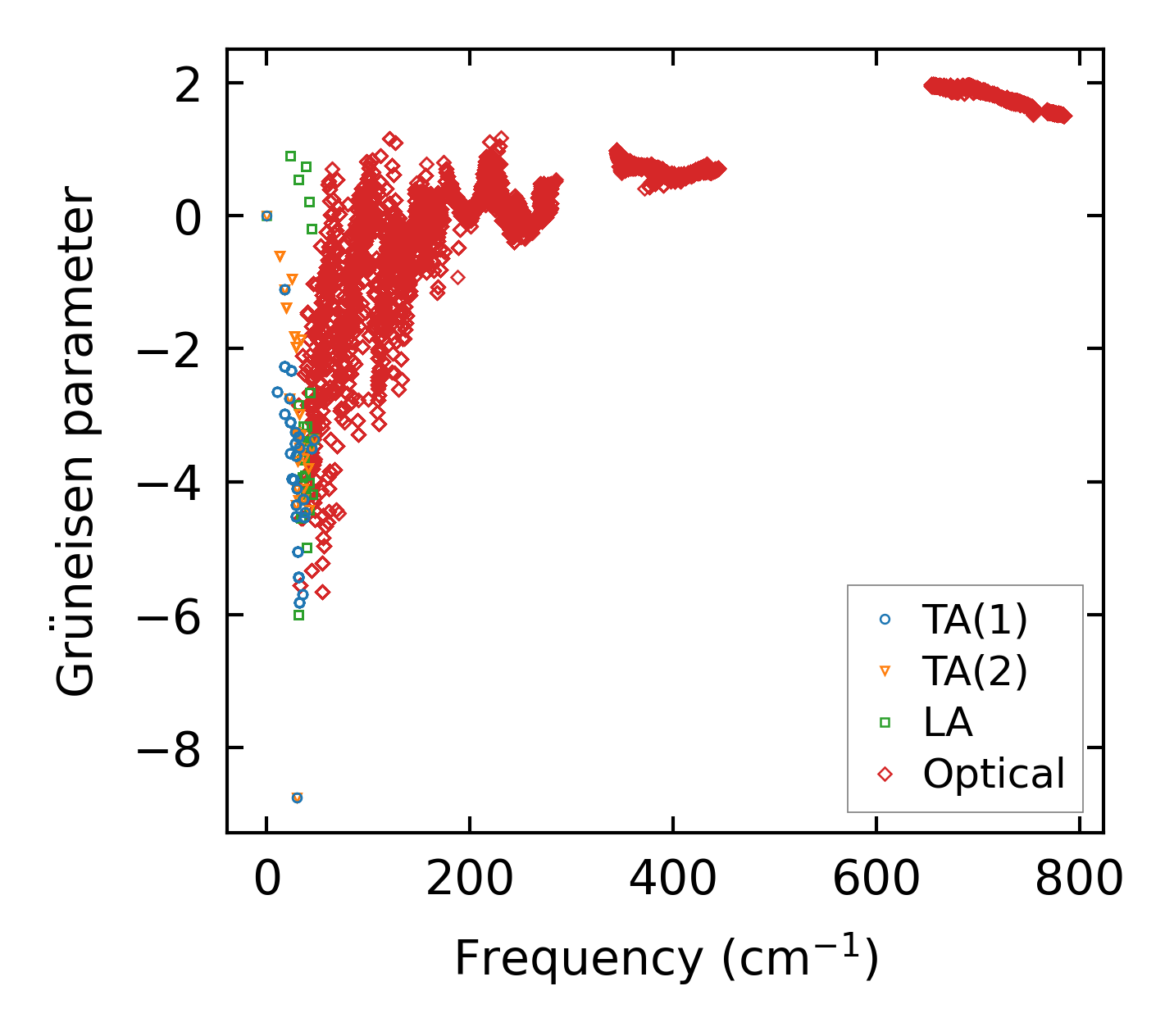

../../_images/fig_gru_all5284.png — (a) Grüneisen parameters

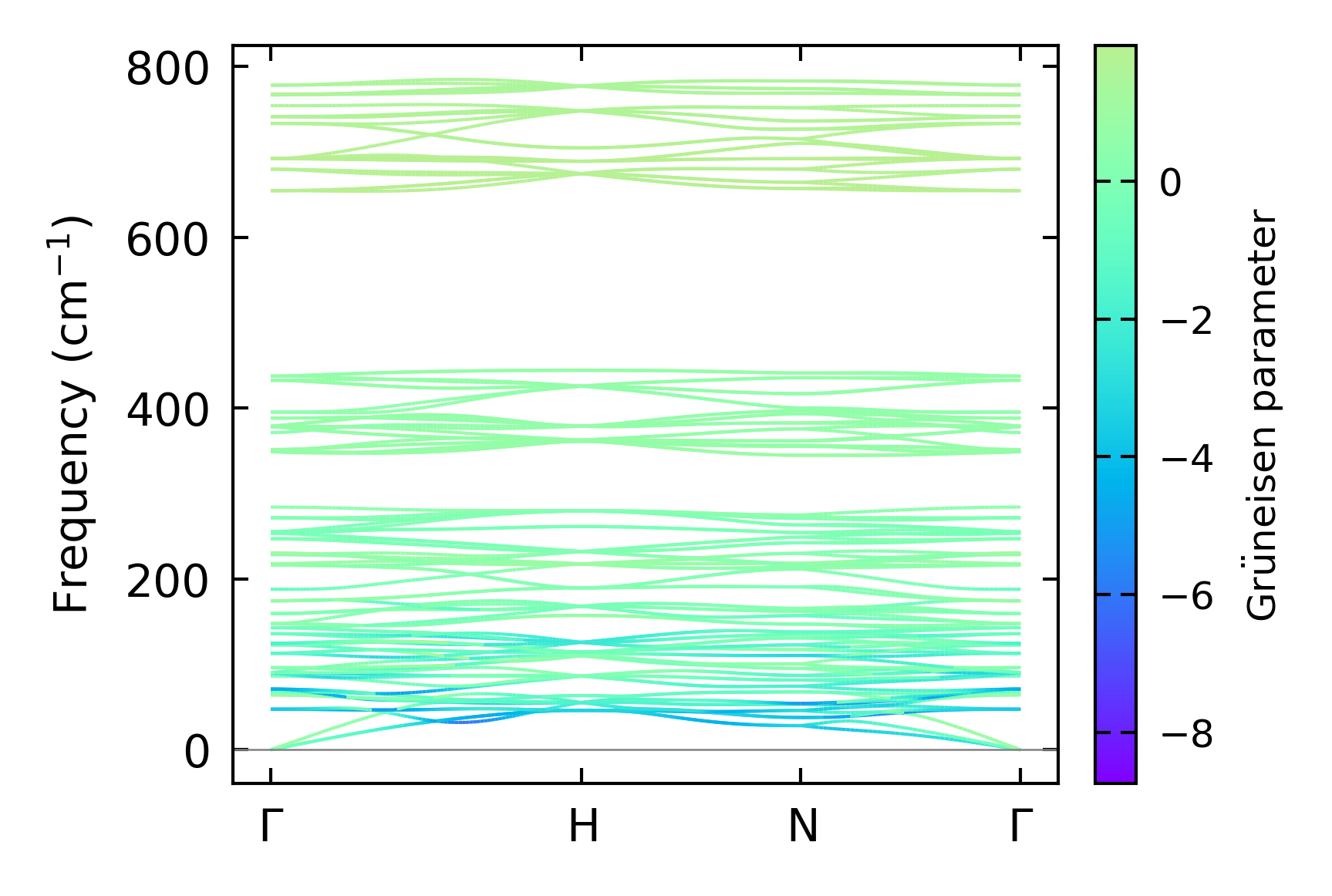

../../_images/fig_gruneisen5284.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x8x8, supercell: 1x1x1

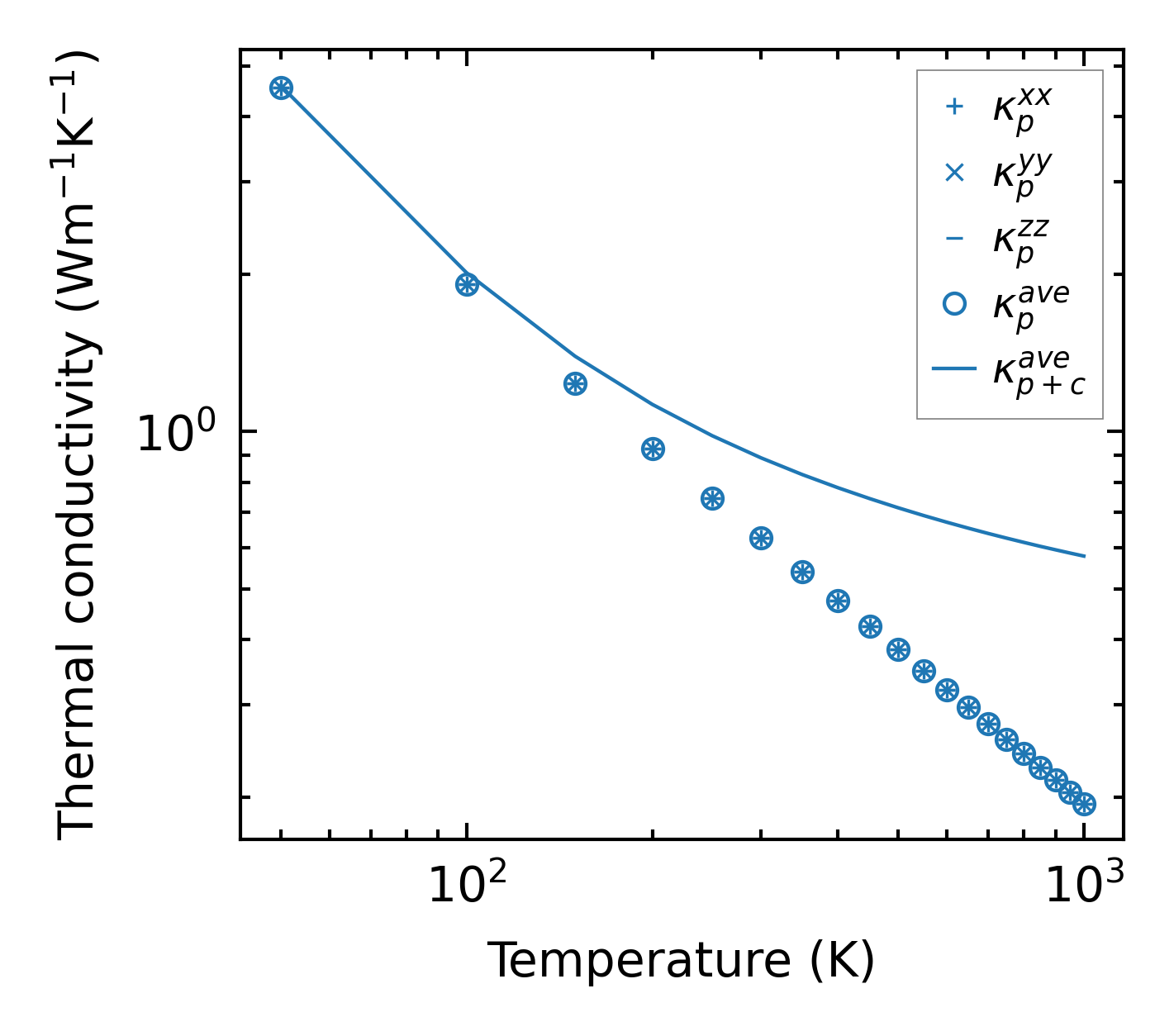

../../_images/fig_kappa9929.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size5346.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

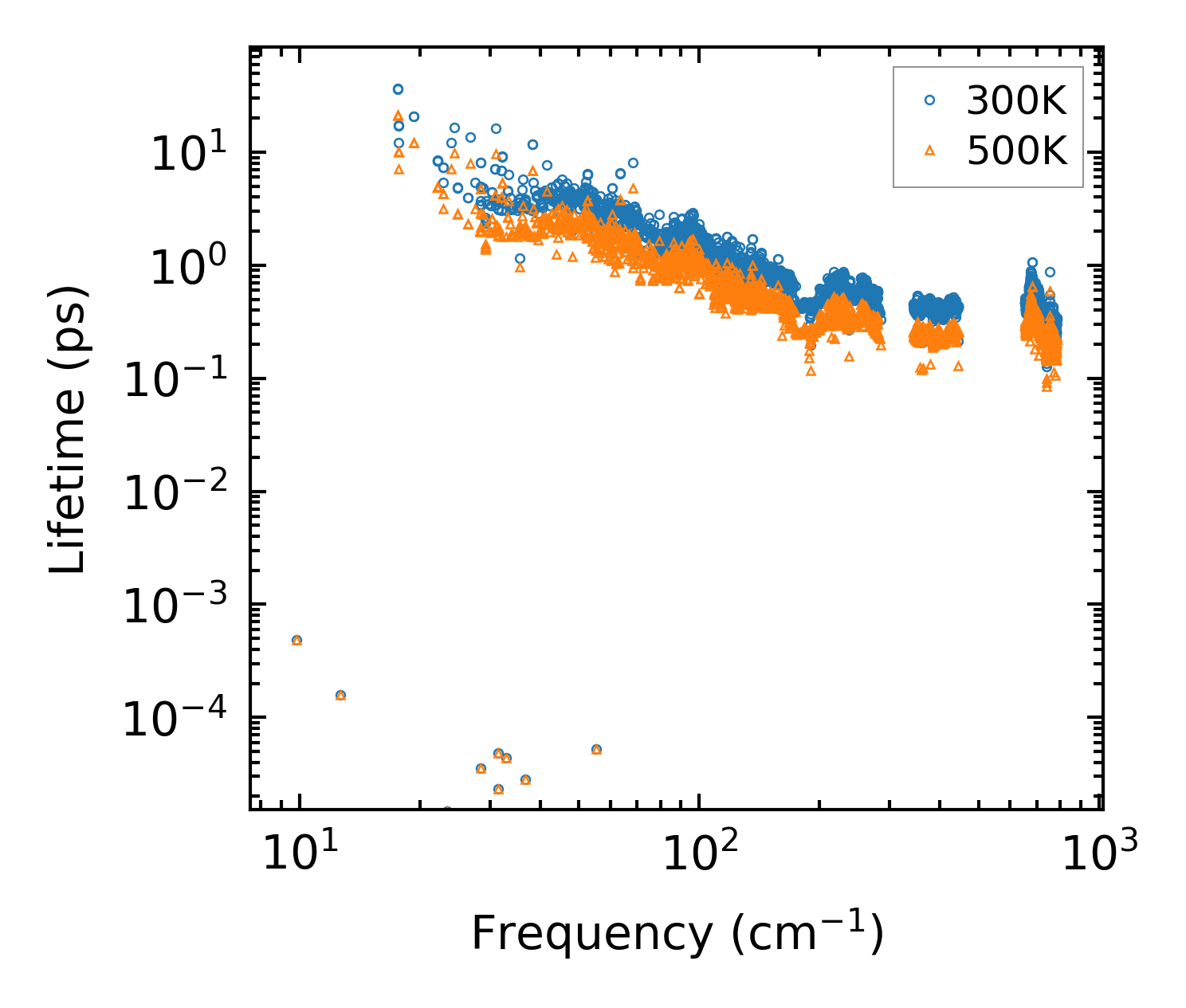

../../_images/fig_lifetime5233.png — (a) Phonon lifetime due to phonon-phonon scattering

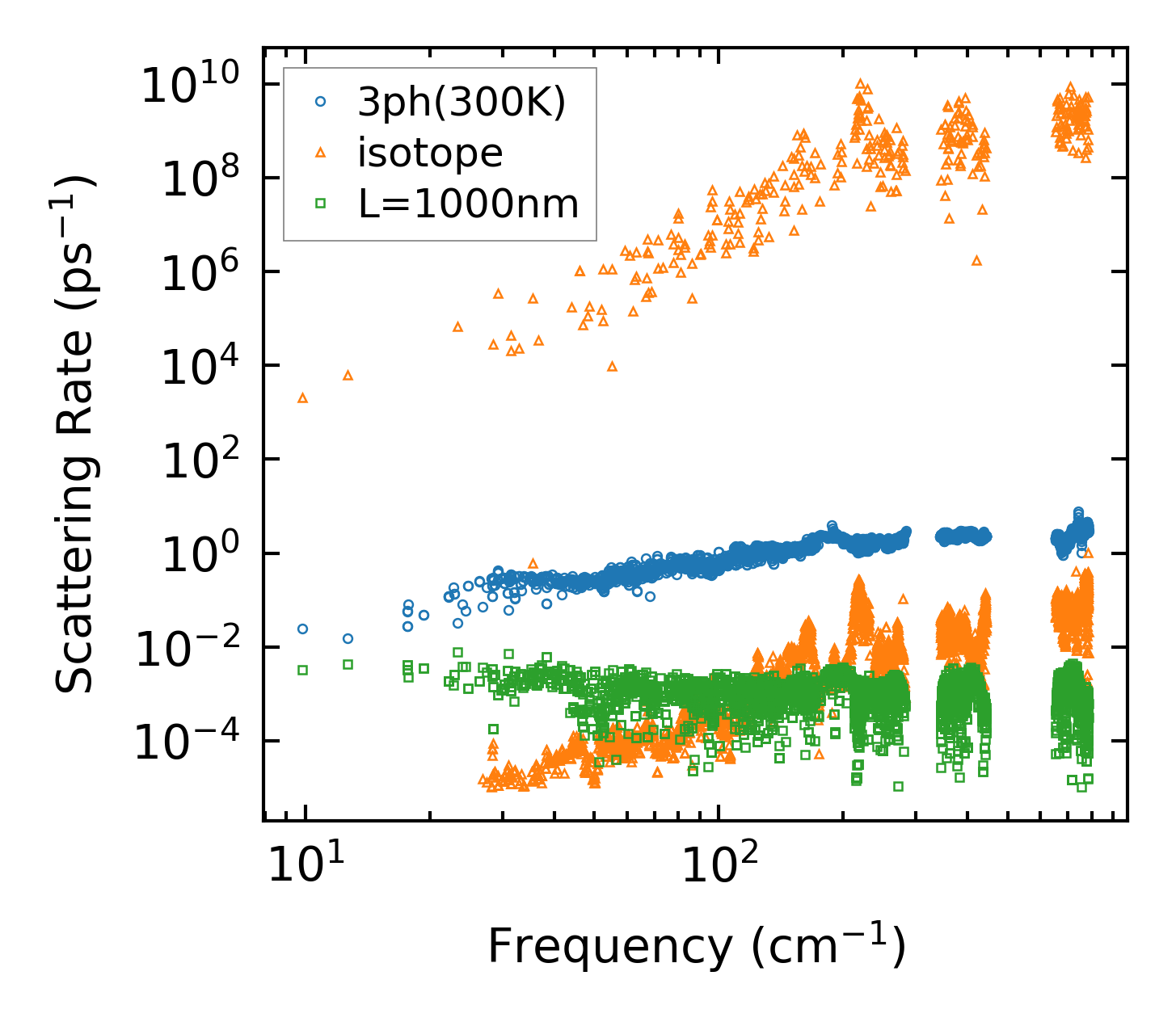

../../_images/fig_scat_rates5232.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

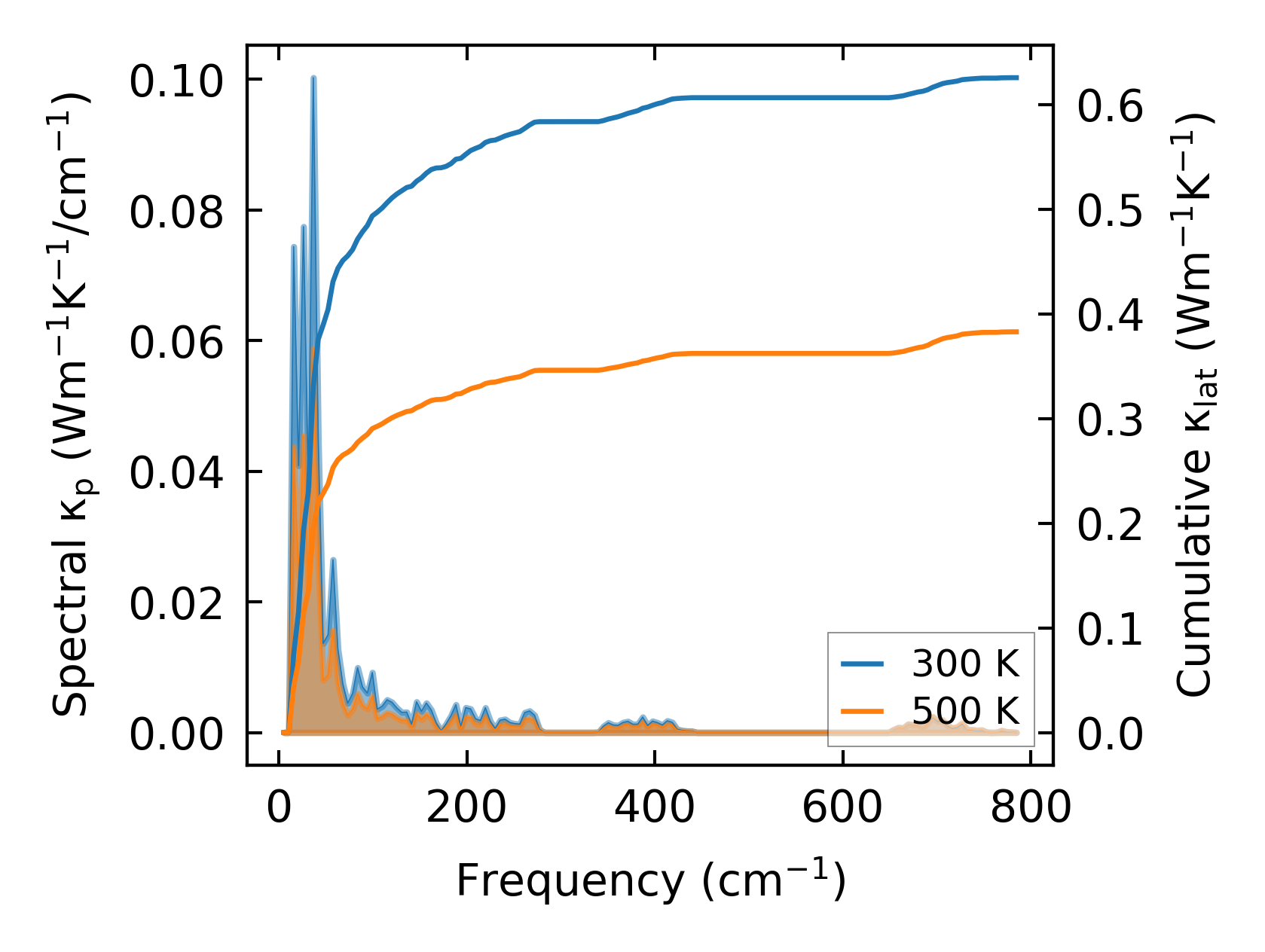

../../_images/fig_cumu_frequency5233.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

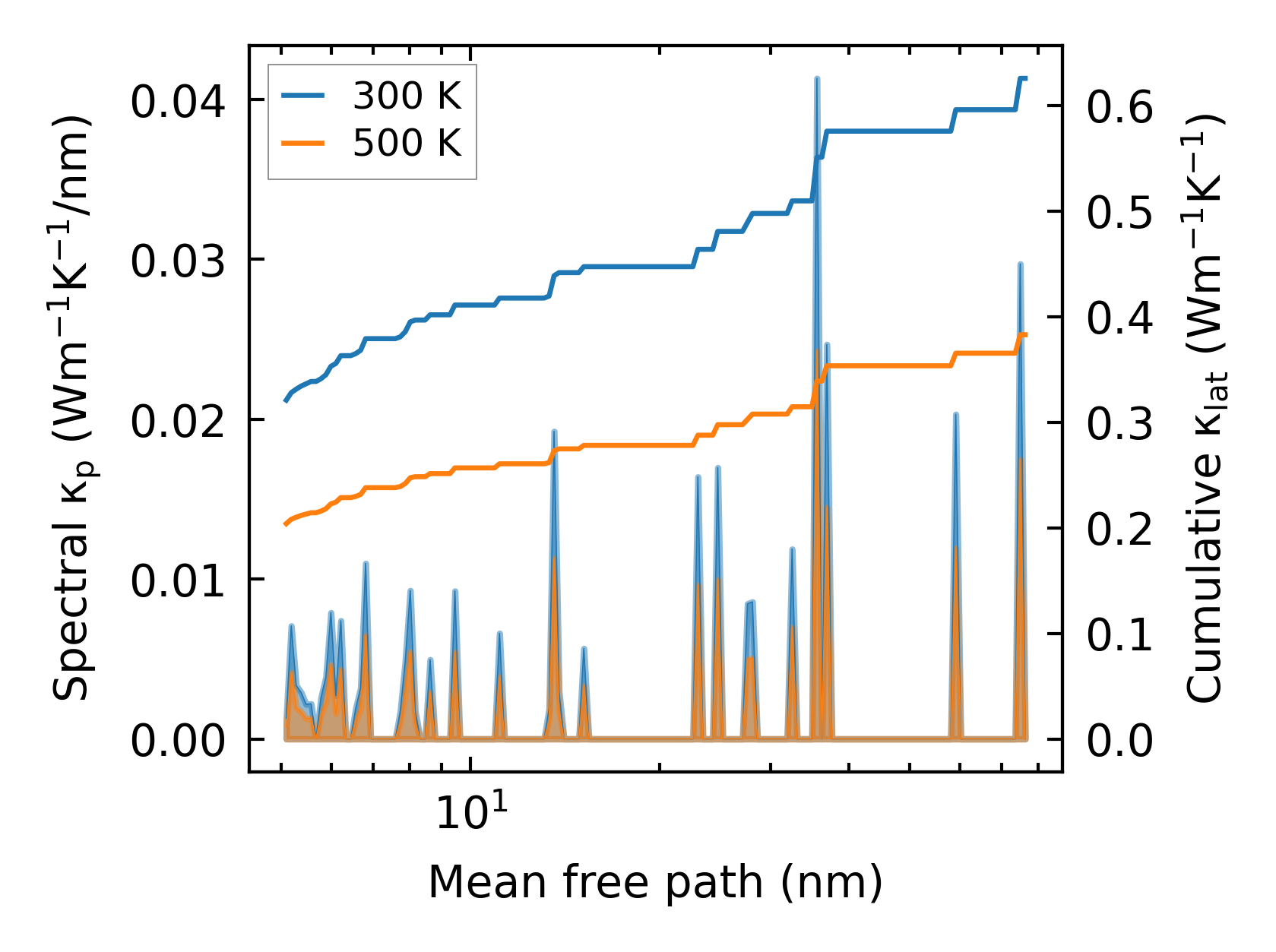

../../_images/fig_cumu_mfp5232.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

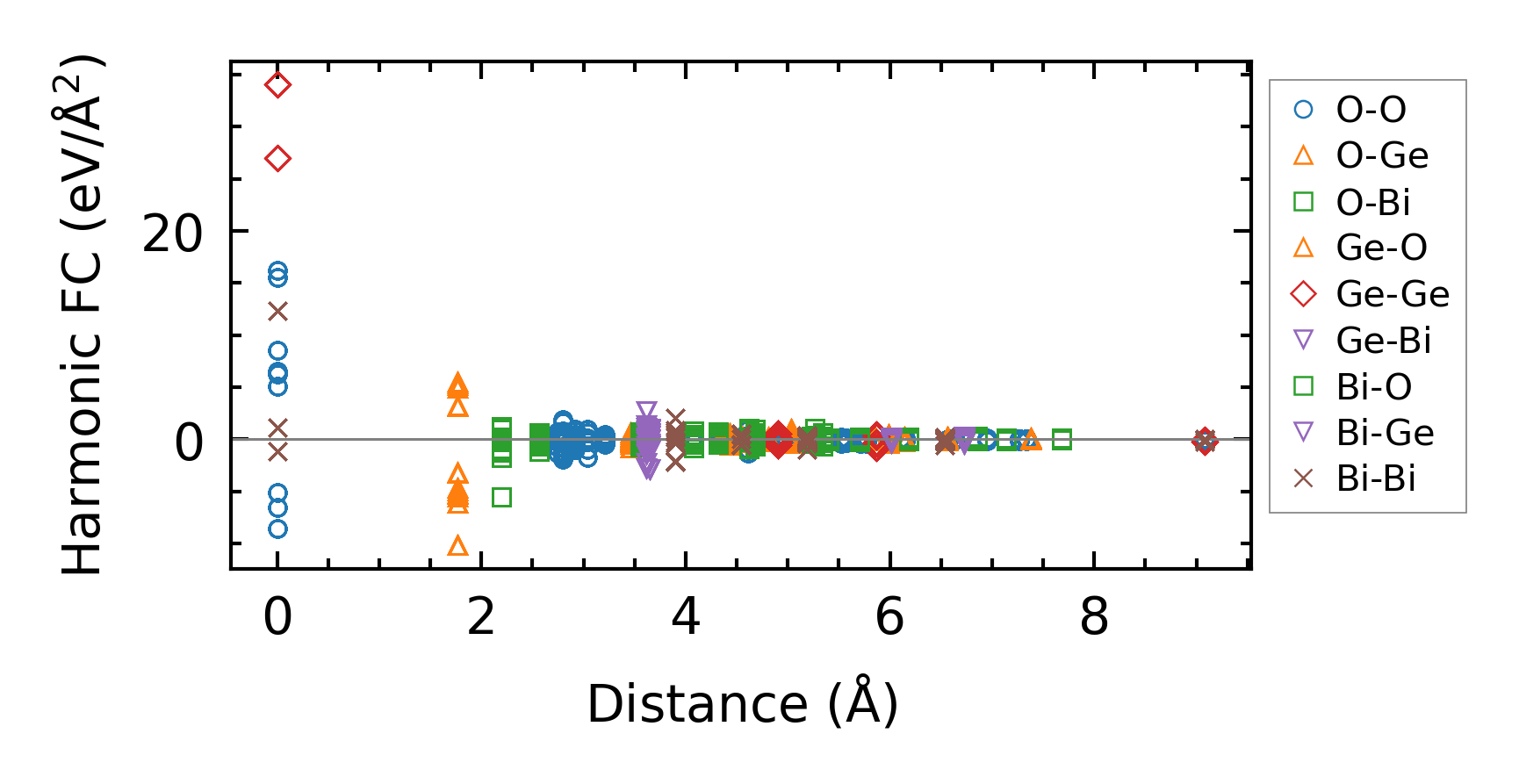

../../_images/fig_fc212441.png — (a) Force constants w.r.t atomic distance

Summary

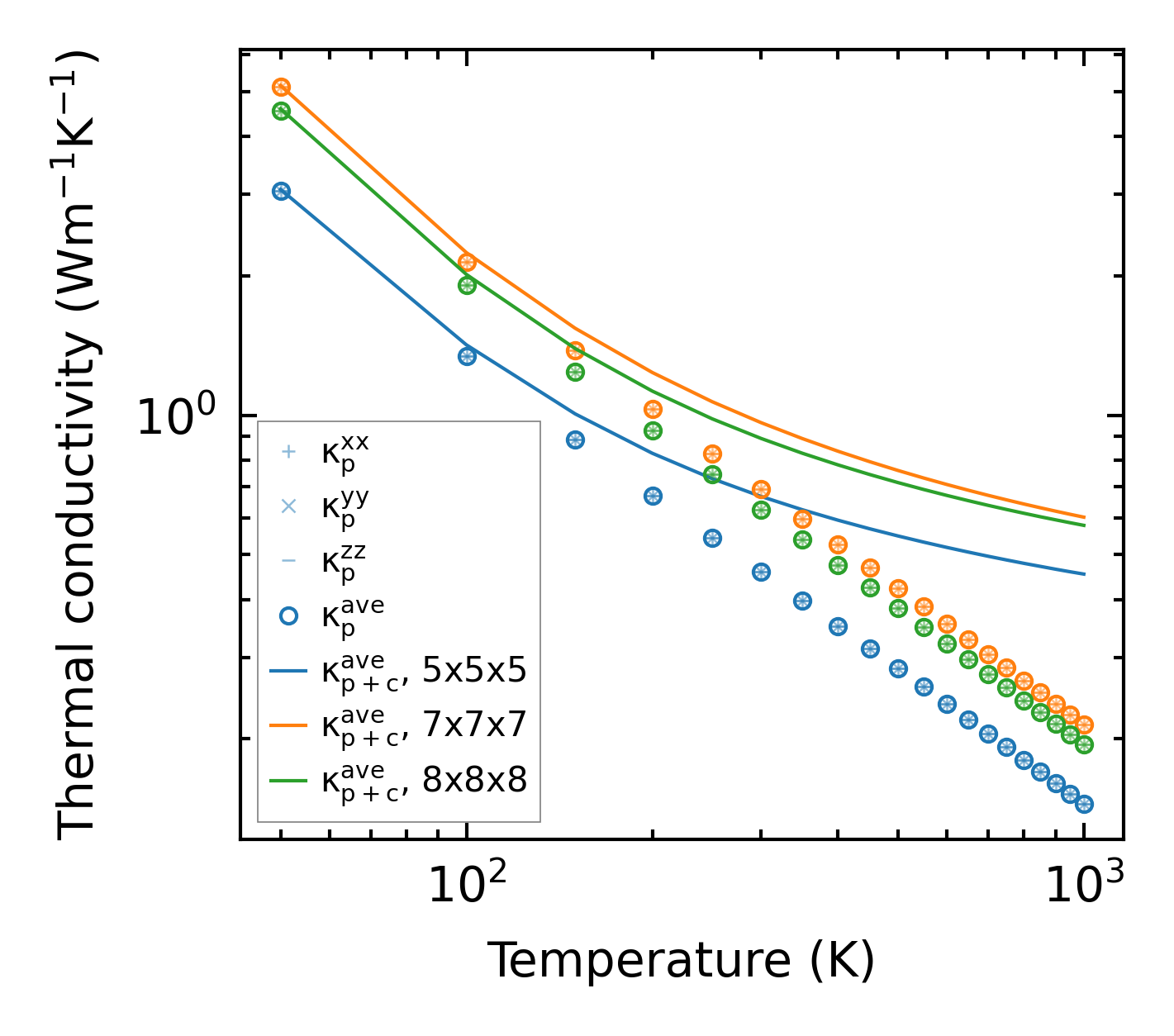

../../_images/fig_kappa9930.png — (a) Temperature-dependent lattice thermal conductivity

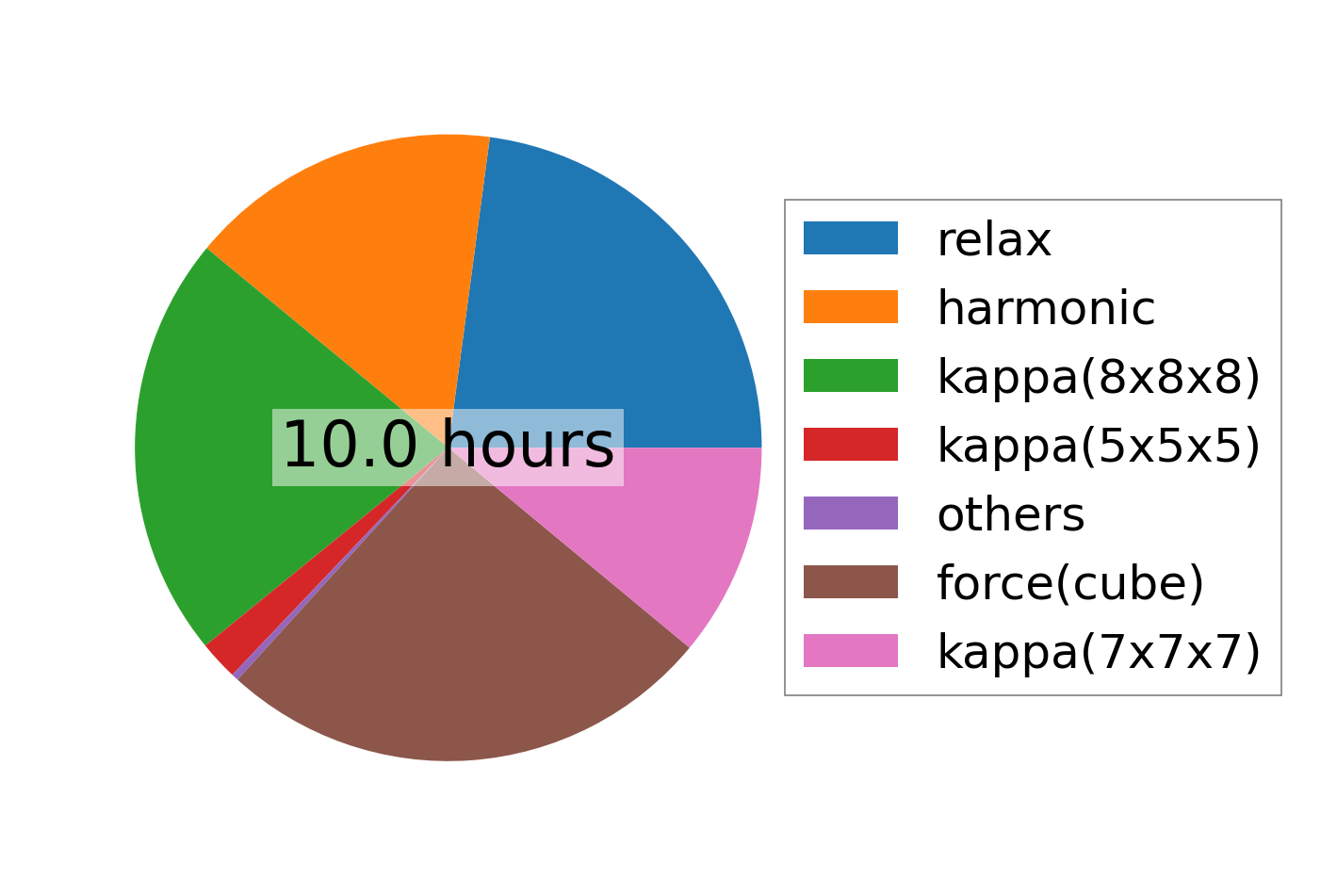

../../_images/fig_times21629.png — (b) Computation time
