mp-23293/TbCl3/anharm

Space group: Cmcm (63)
Link: Materials Project
Download: mp-23293.tar.gz

Harmonic properties

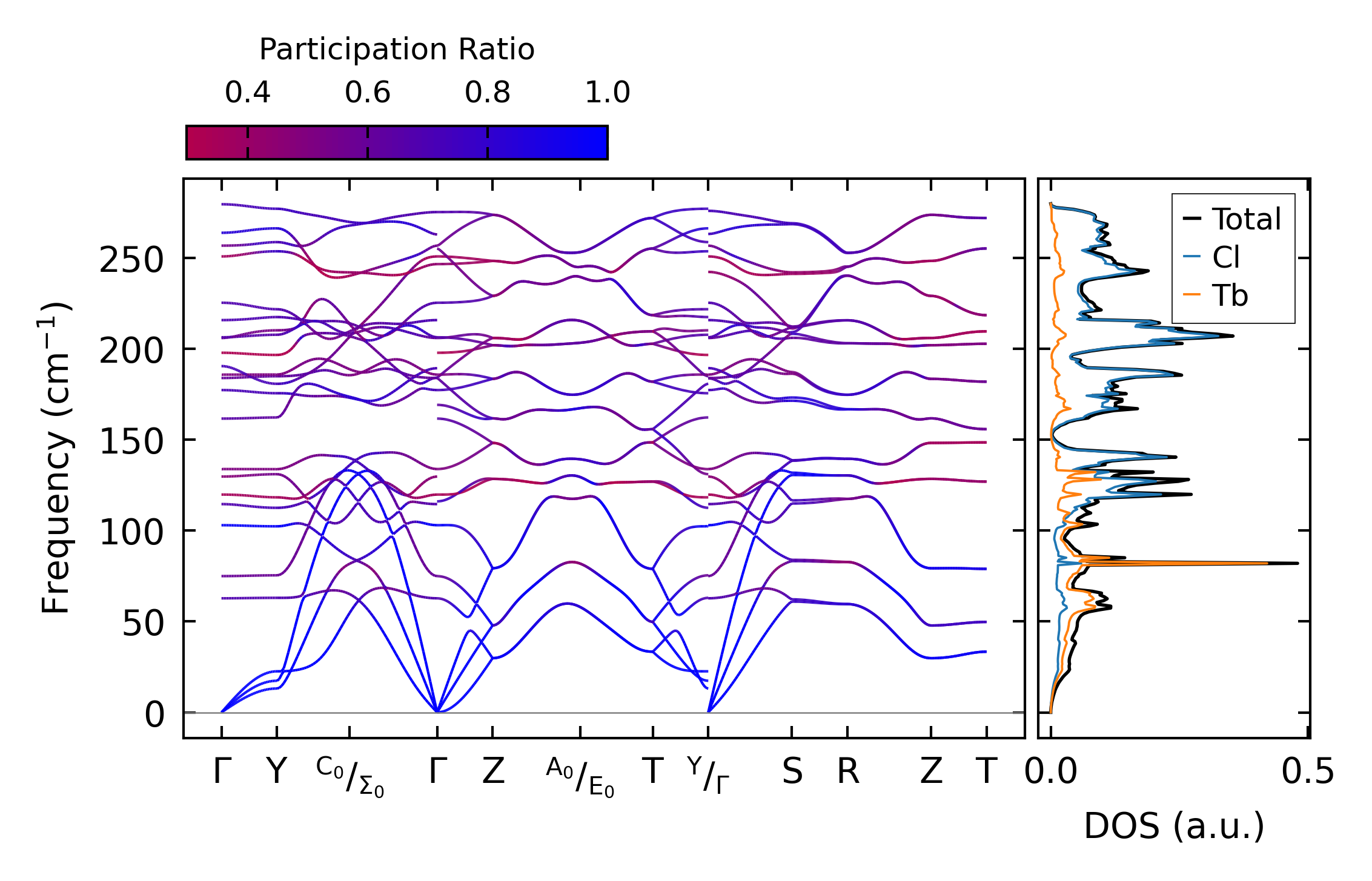

../../_images/fig_bandos_pr12982.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo12982.png — (b) Thermodynamic properties

Grüneisen parameters

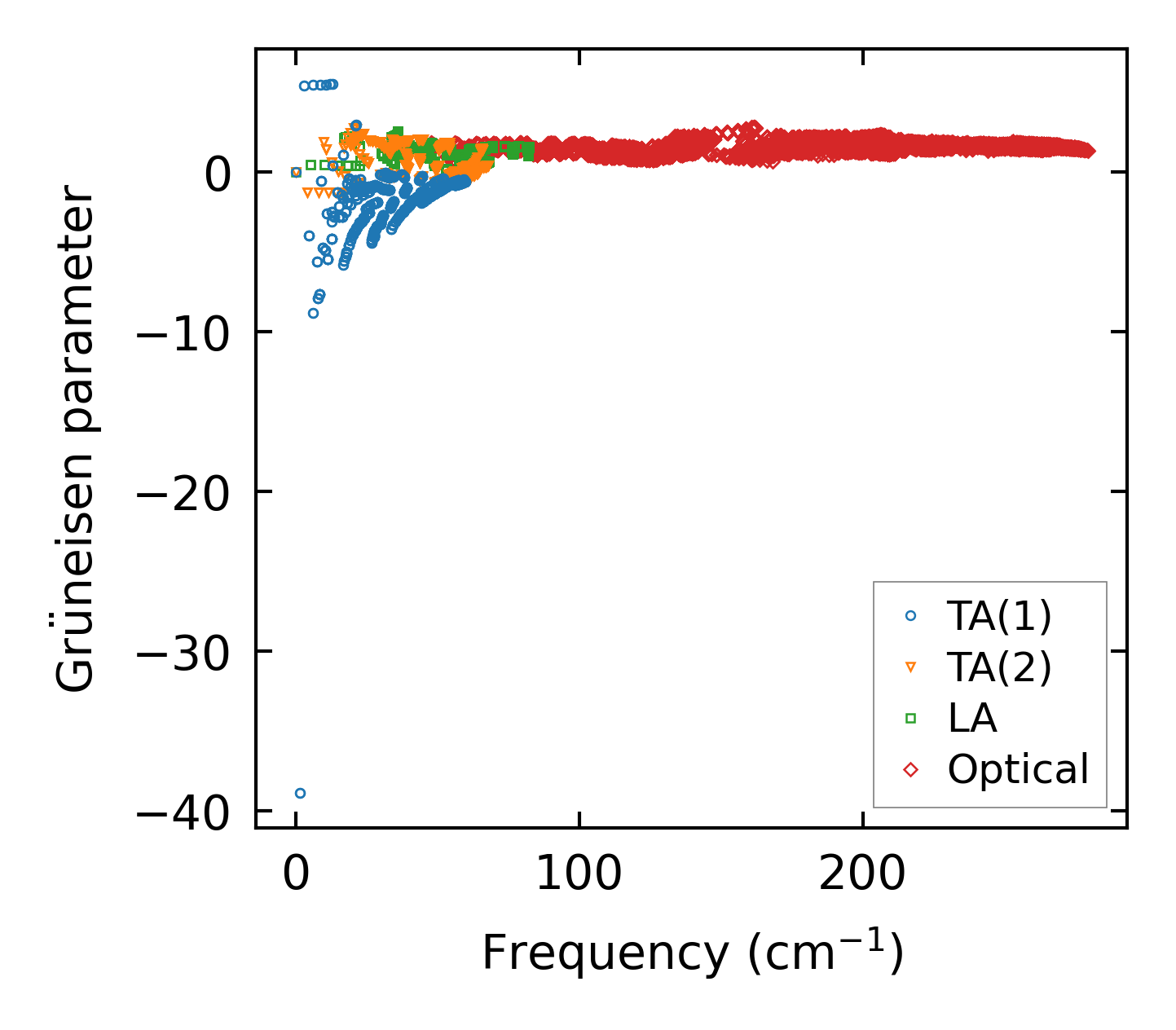

../../_images/fig_gru_all5401.png — (a) Grüneisen parameters

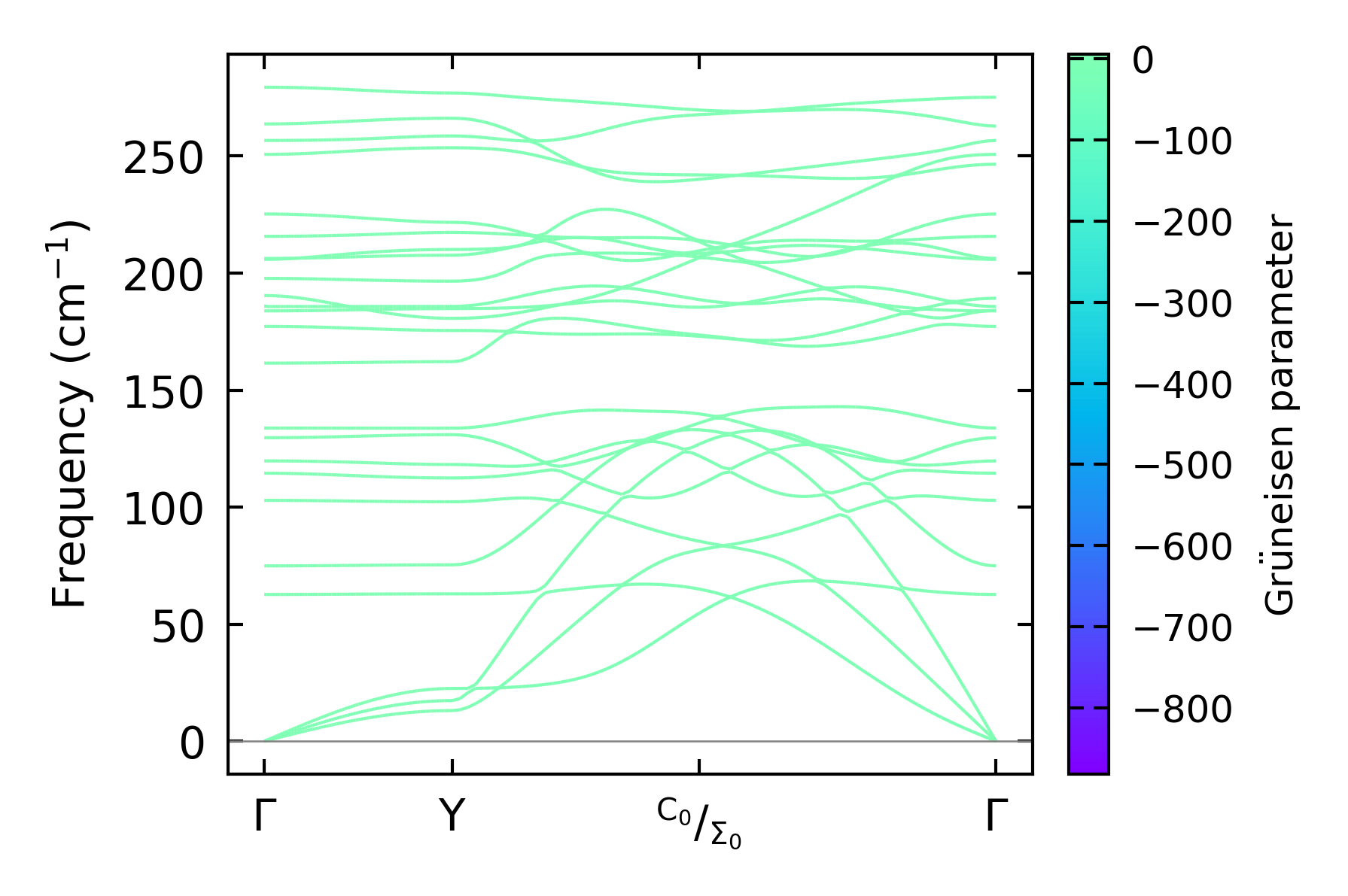

../../_images/fig_gruneisen5401.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x10, supercell: 4x1x2

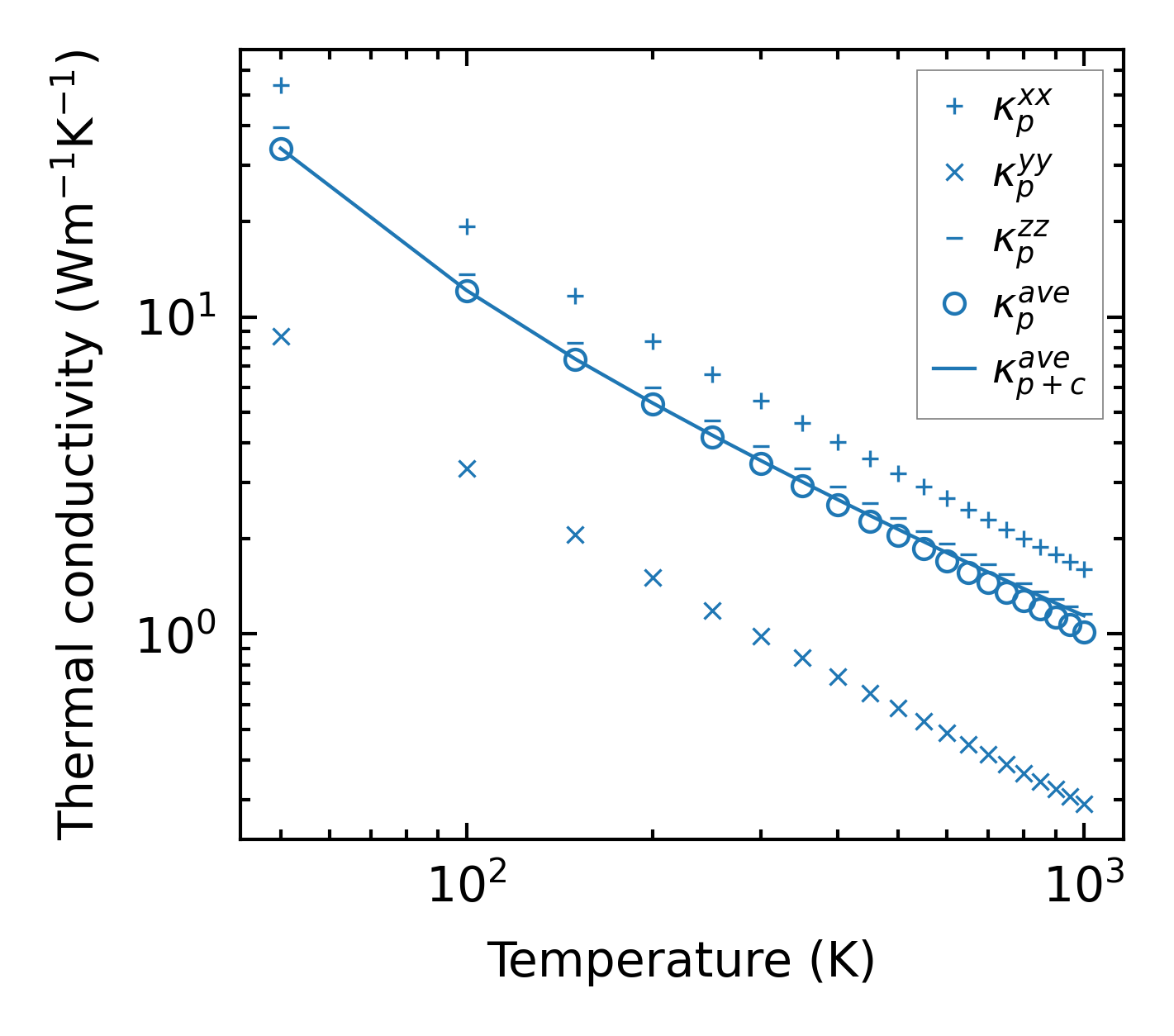

../../_images/fig_kappa10146.png — (a) Temperature-dependent lattice thermal conductivity

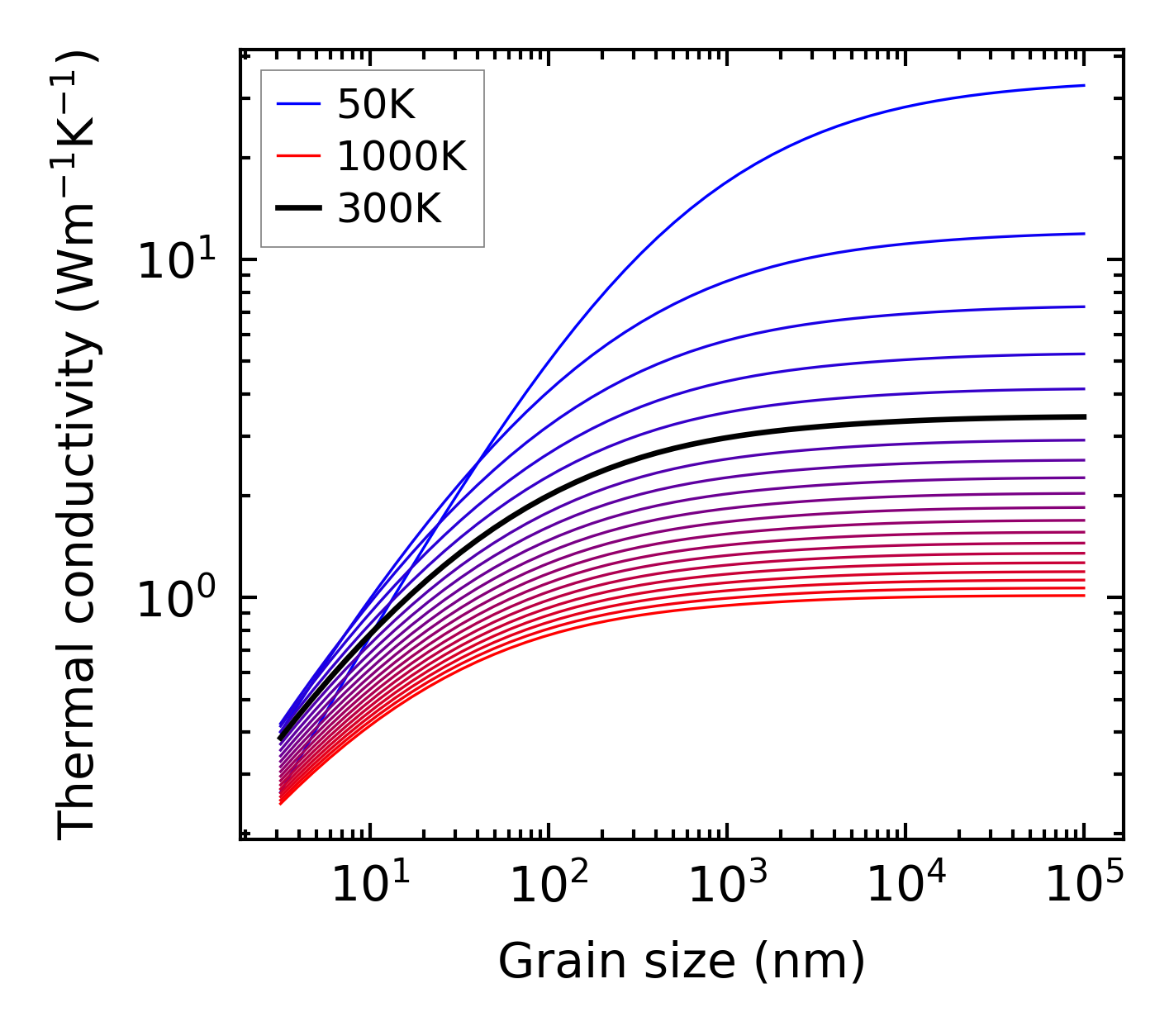

../../_images/fig_kappa_vs_grain_size5465.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

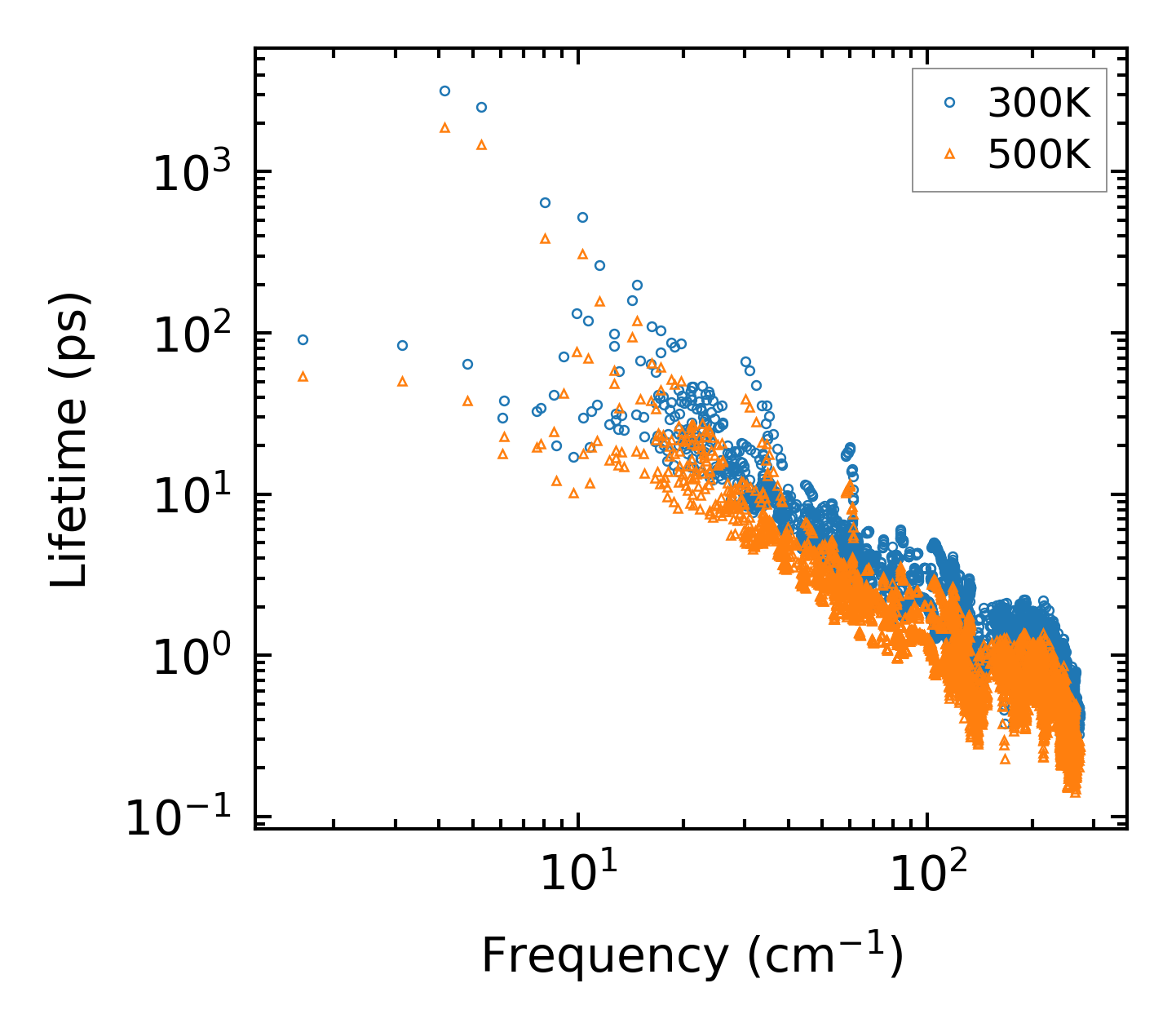

../../_images/fig_lifetime5349.png — (a) Phonon lifetime due to phonon-phonon scattering

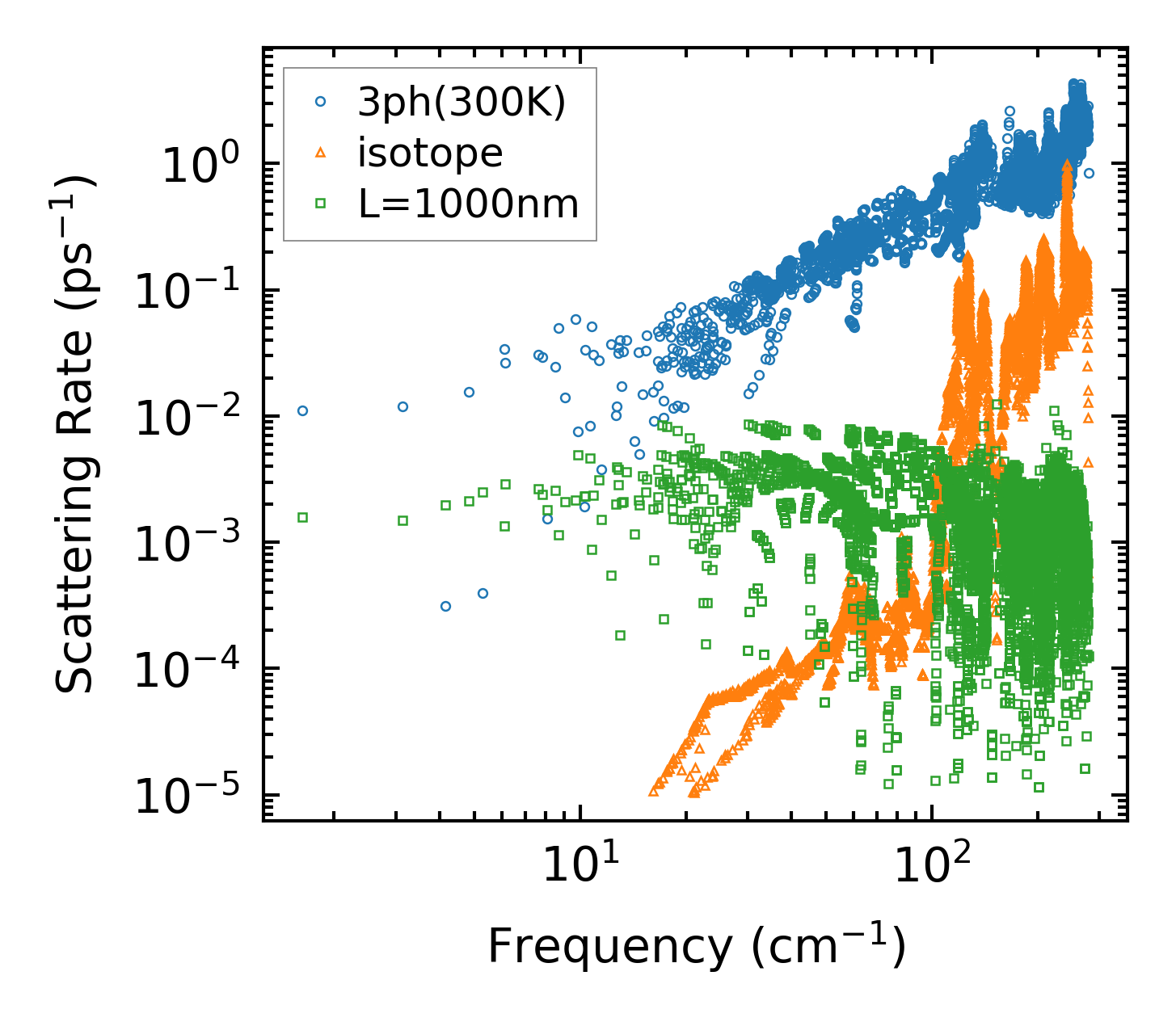

../../_images/fig_scat_rates5348.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

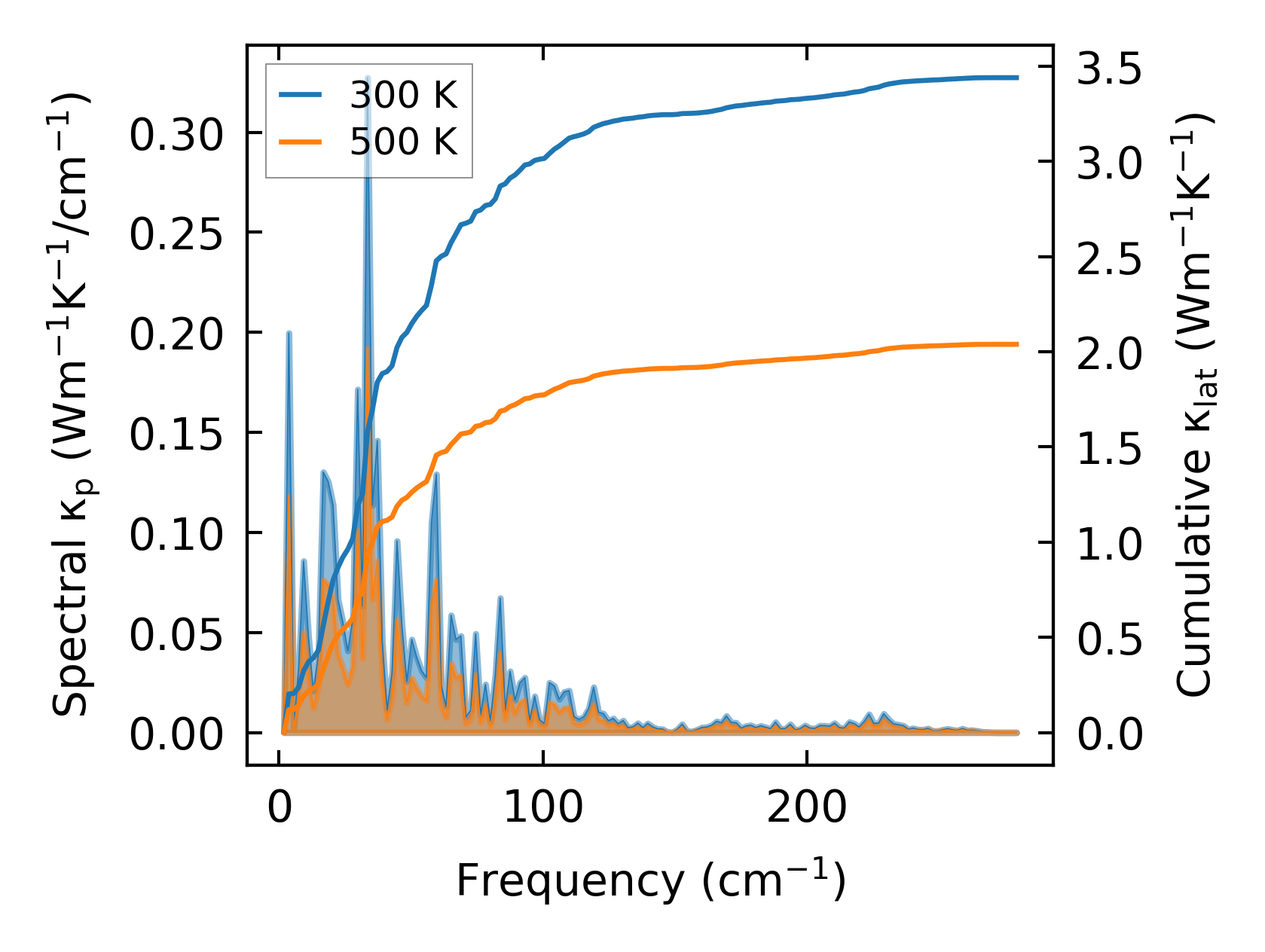

../../_images/fig_cumu_frequency5349.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

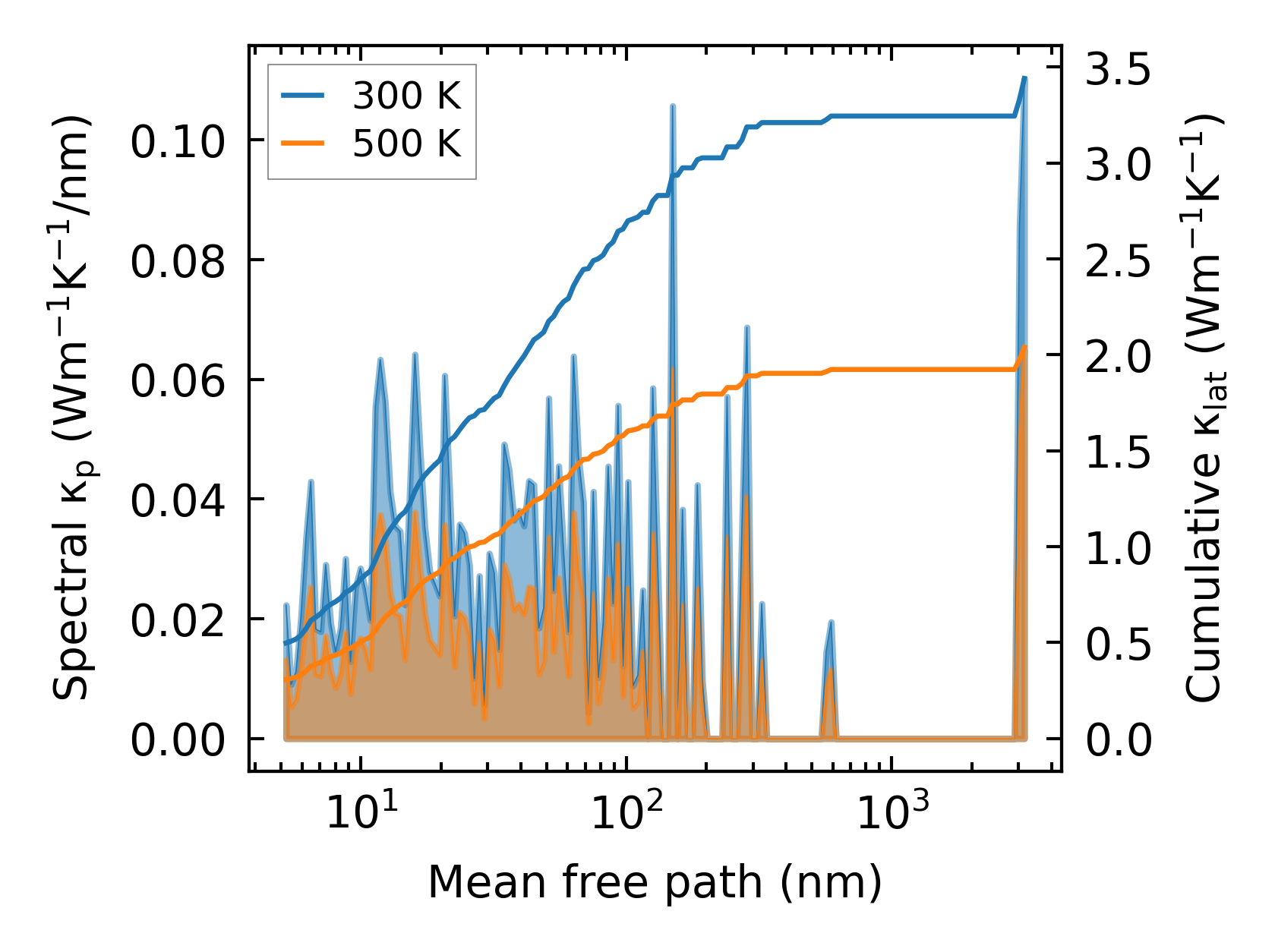

../../_images/fig_cumu_mfp5348.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

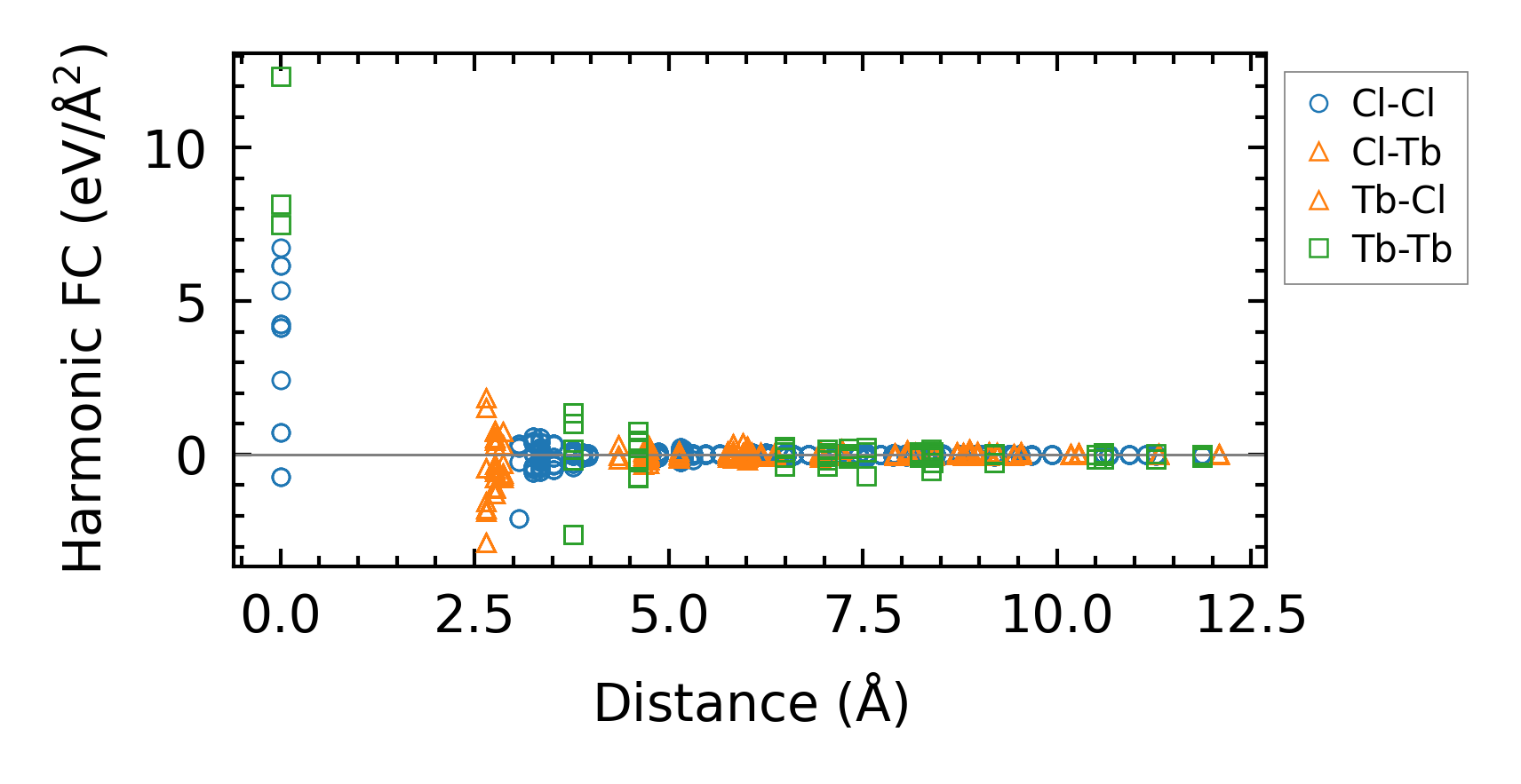

../../_images/fig_fc212667.png — (a) Force constants w.r.t atomic distance

Summary

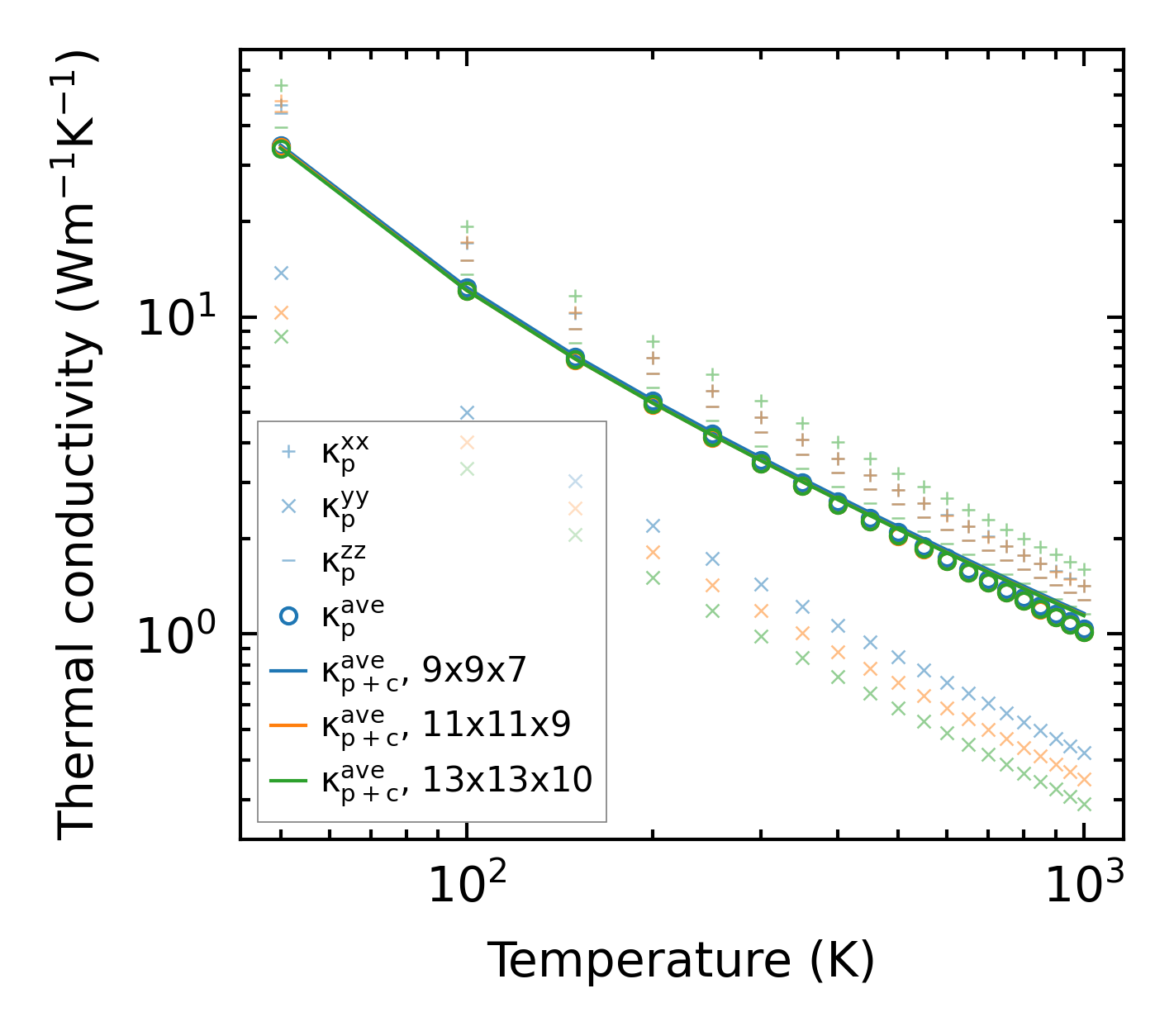

../../_images/fig_kappa10147.png — (a) Temperature-dependent lattice thermal conductivity

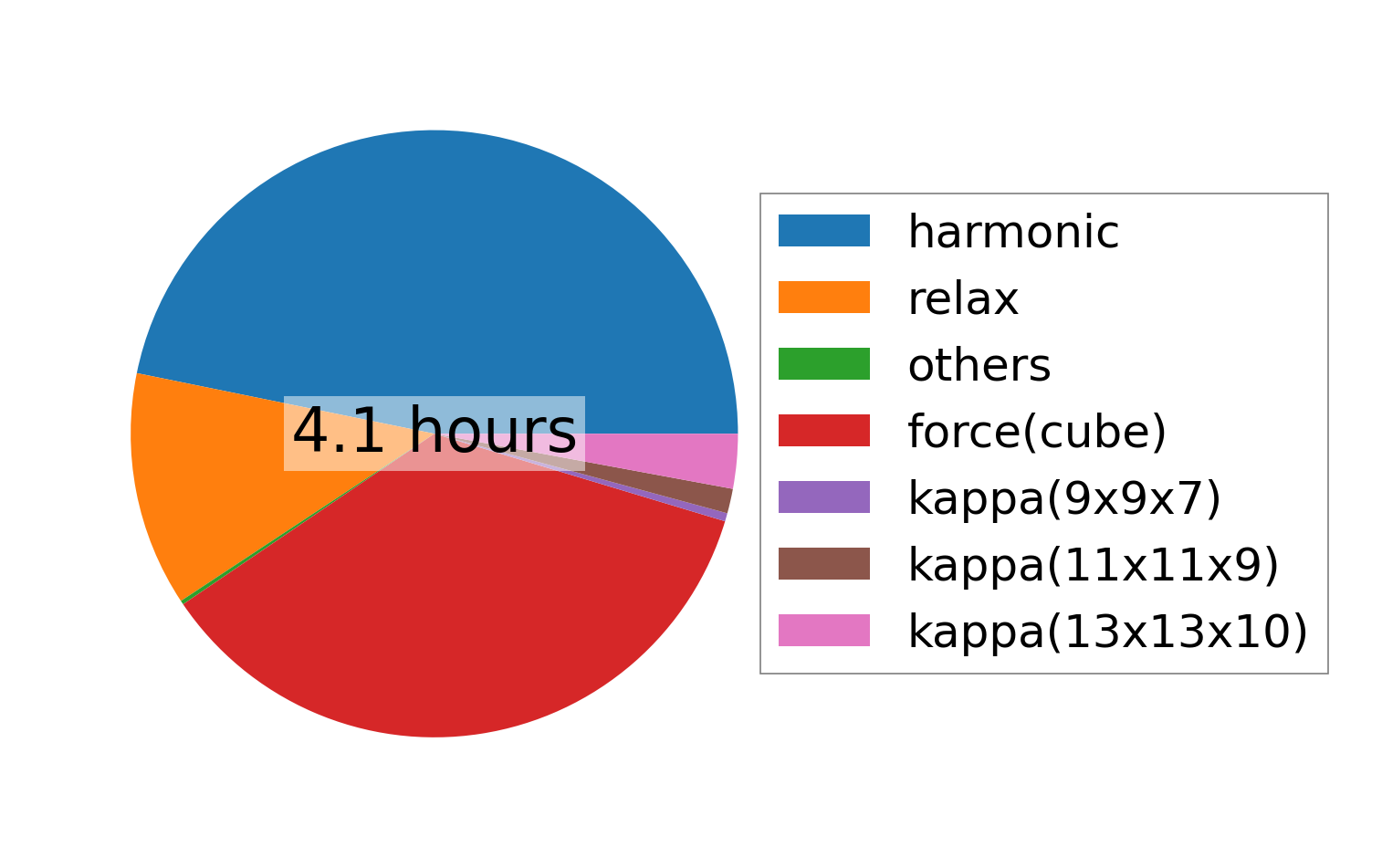

../../_images/fig_times21954.png — (b) Computation time
