mp-23690-2/CaH4SO6/anharm

Space group: C2/c (15)
Link: Materials Project
Download: mp-23690-2.tar.gz

Equation of state

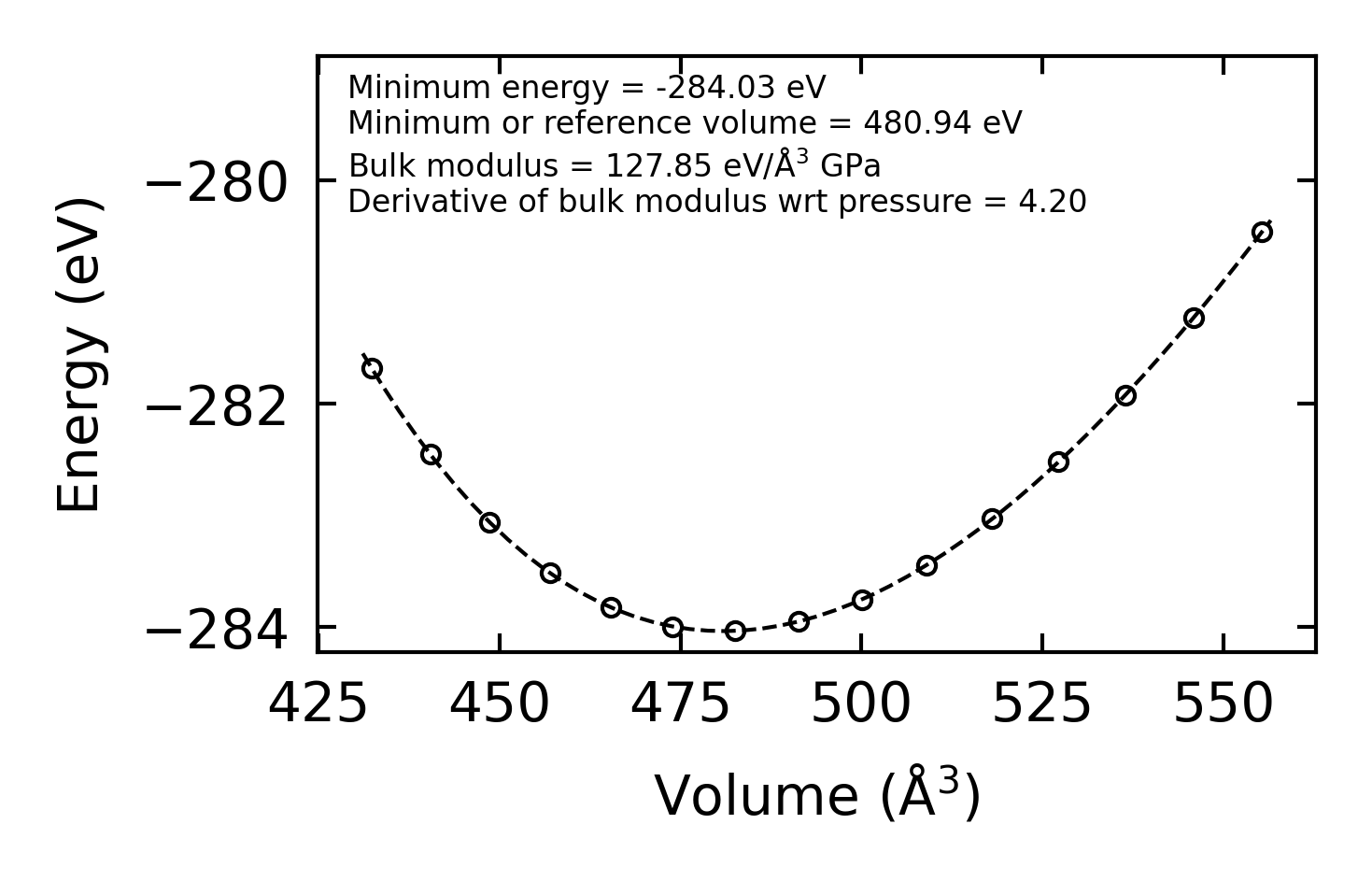

../../_images/fig_bm6391.png — (a) Equation of state

Harmonic properties

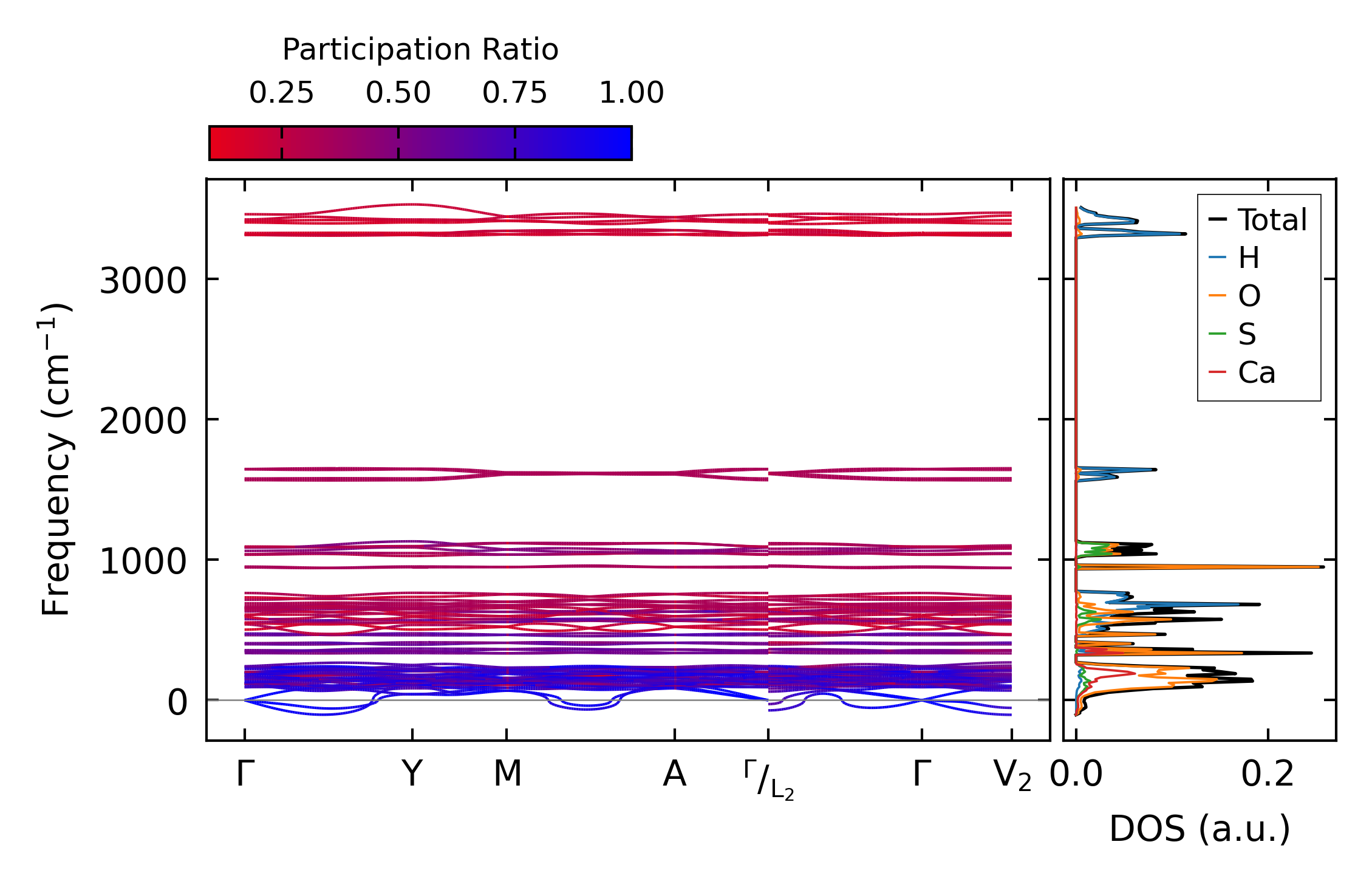

../../_images/fig_bandos_pr12799.png — (a) Phonon dispersion with participation ratio and DOS

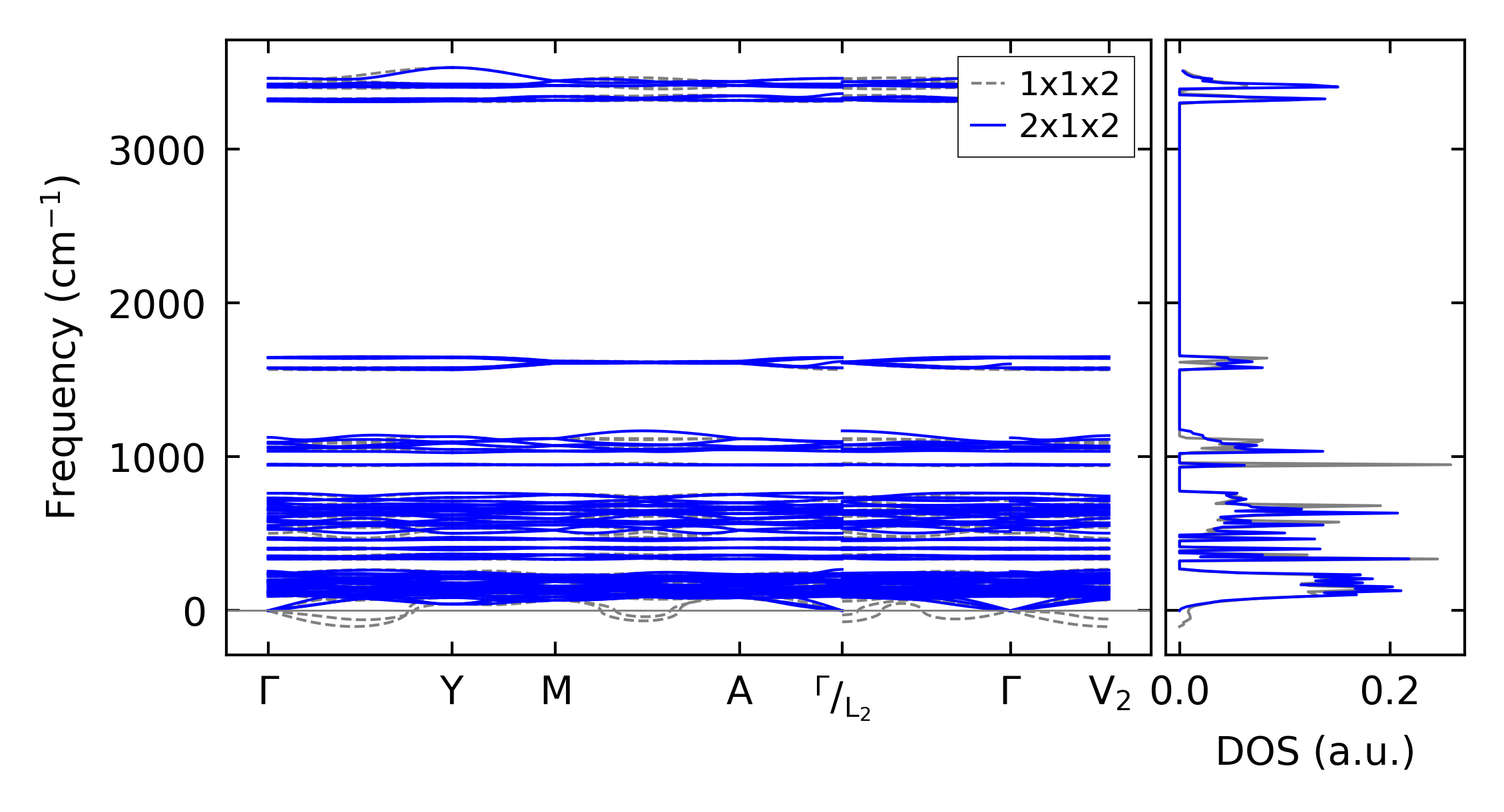

../../_images/fig_bandos17194.png — (b) Phonon dispersion and DOS

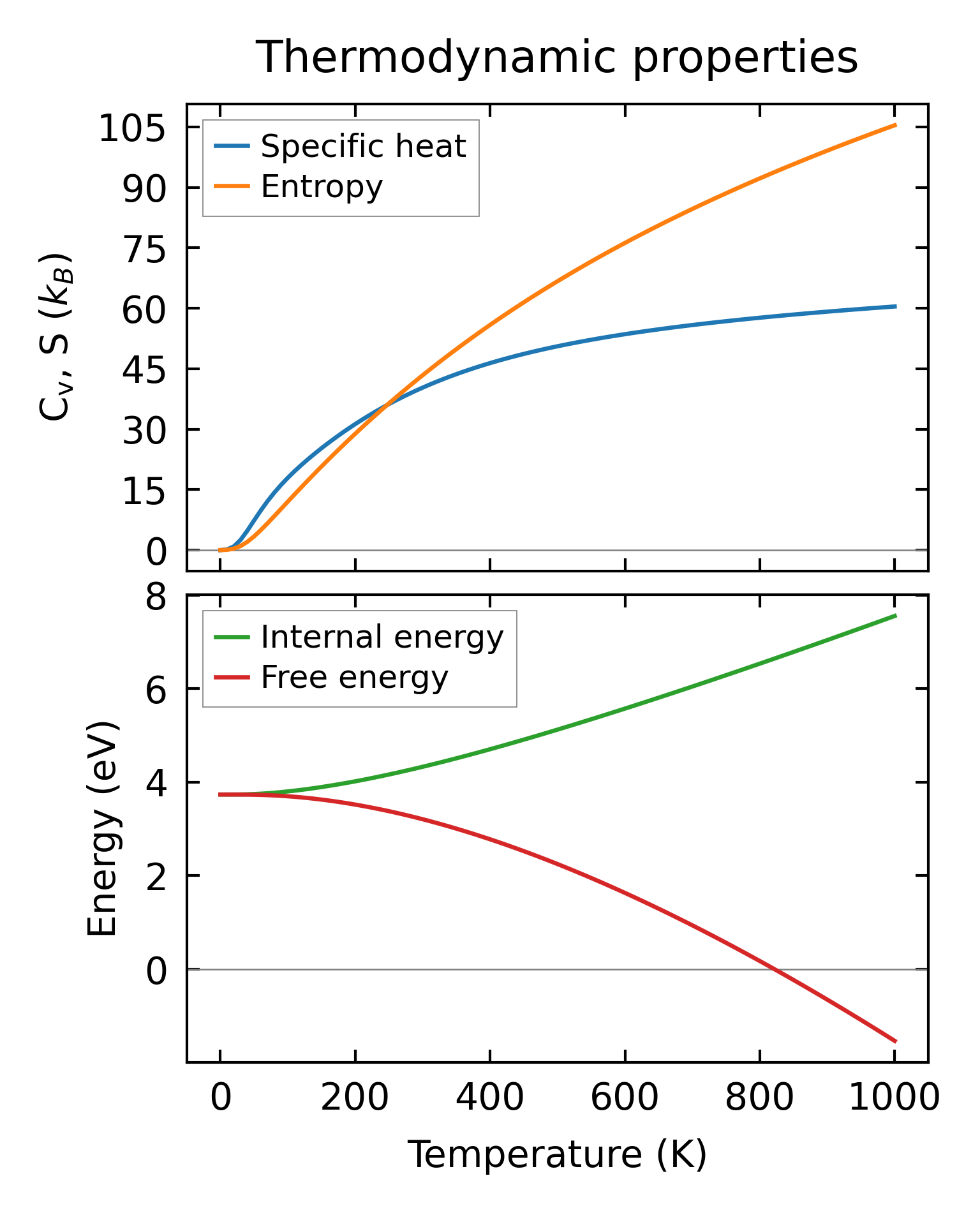

../../_images/fig_thermo12799.png — (c) Thermodynamic properties

Grüneisen parameters

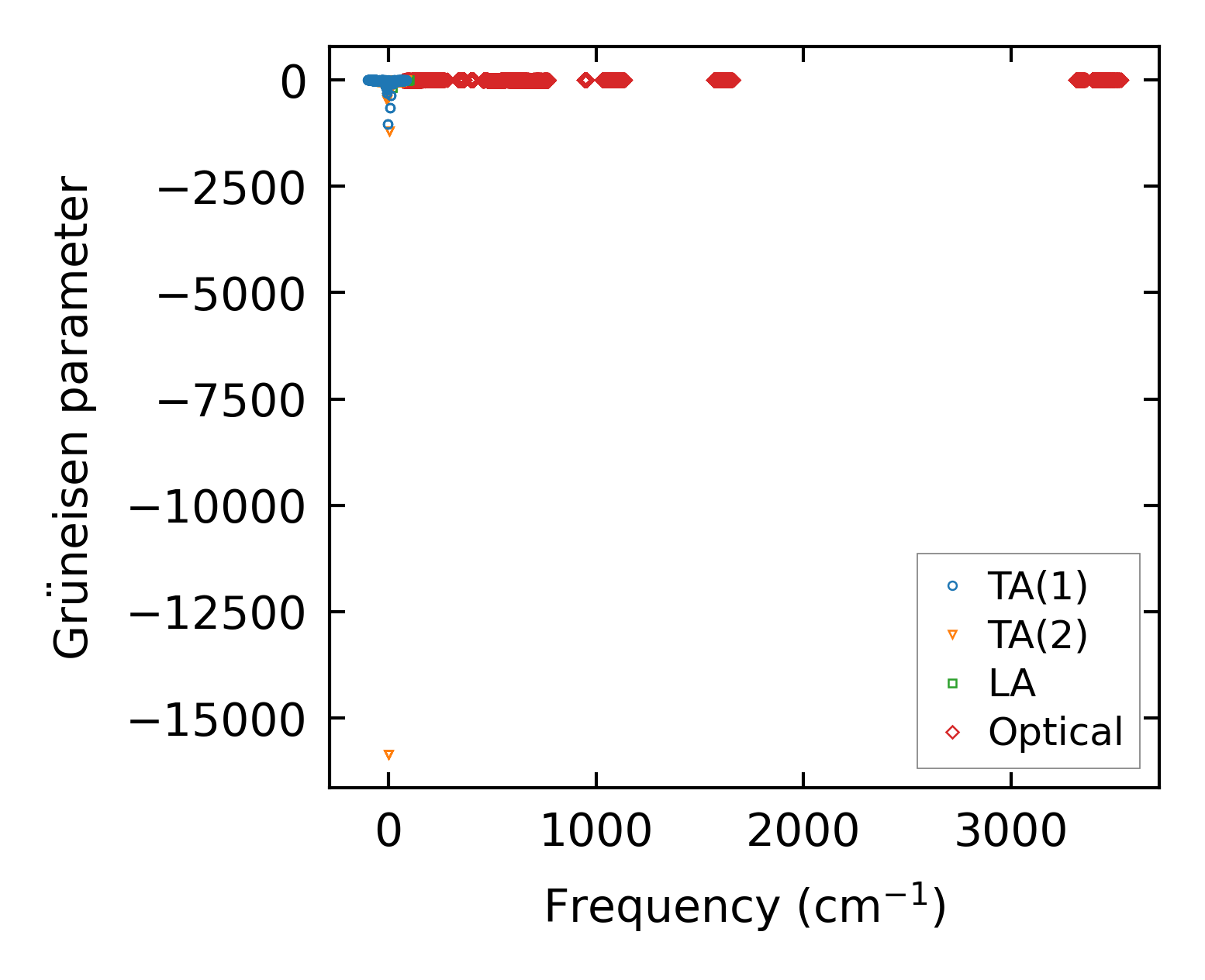

../../_images/fig_gru_all5305.png — (a) Grüneisen parameters

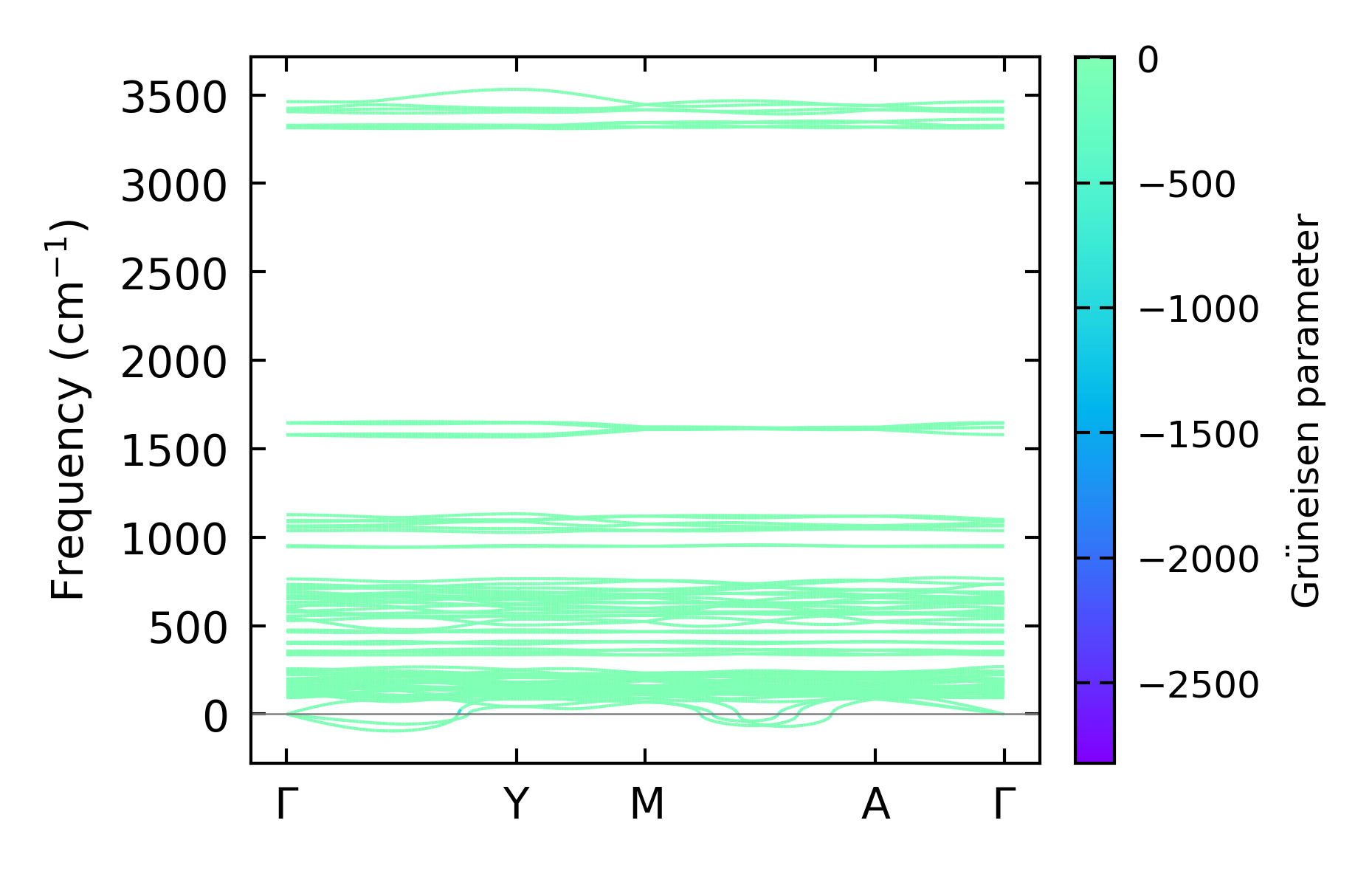

../../_images/fig_gruneisen5305.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x1x2 — q-mesh: 10x10x14, supercell: 2x1x2

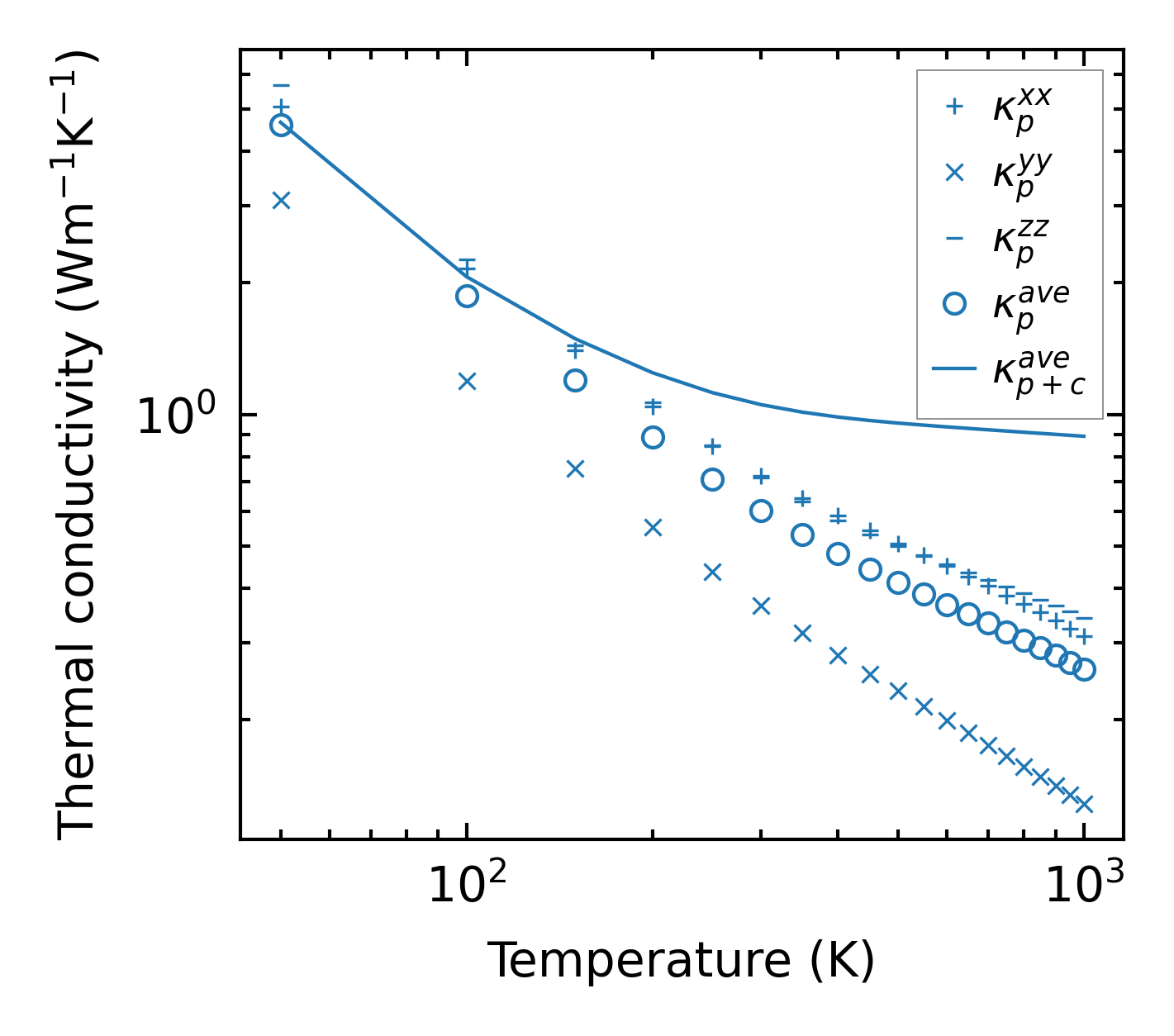

../../_images/fig_kappa9967.png — (a) Temperature-dependent lattice thermal conductivity

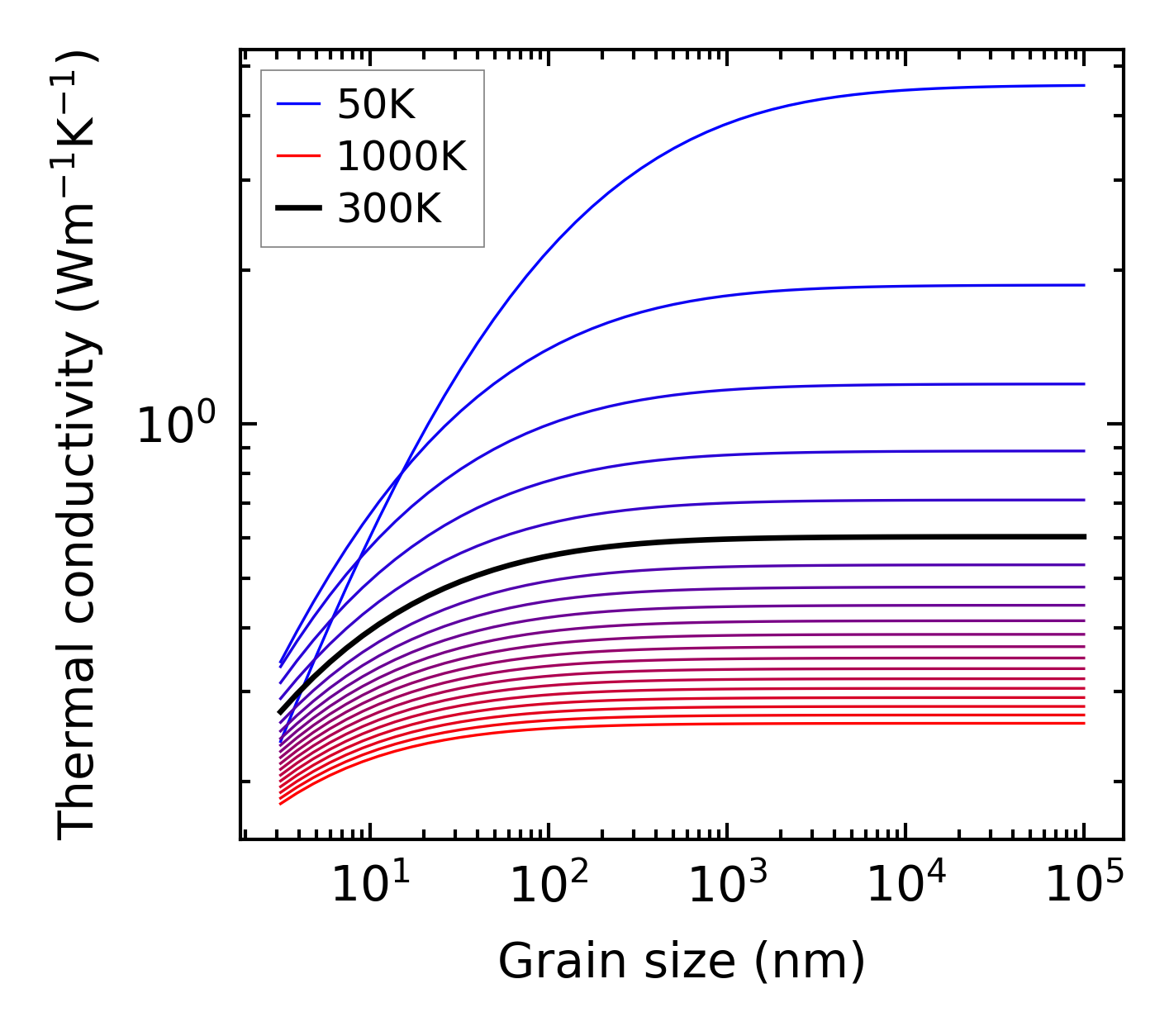

../../_images/fig_kappa_vs_grain_size5368.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

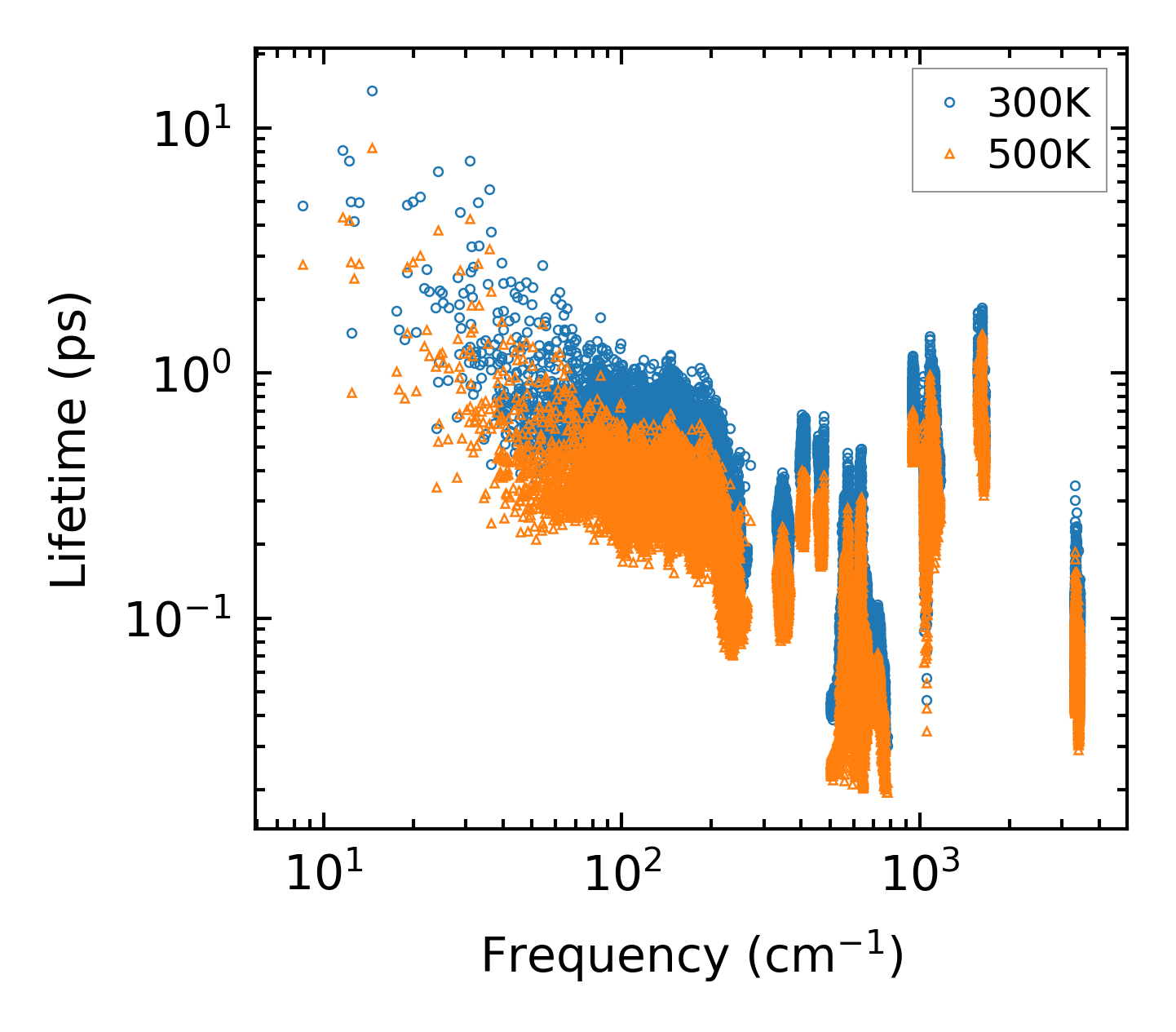

../../_images/fig_lifetime5254.png — (a) Phonon lifetime due to phonon-phonon scattering

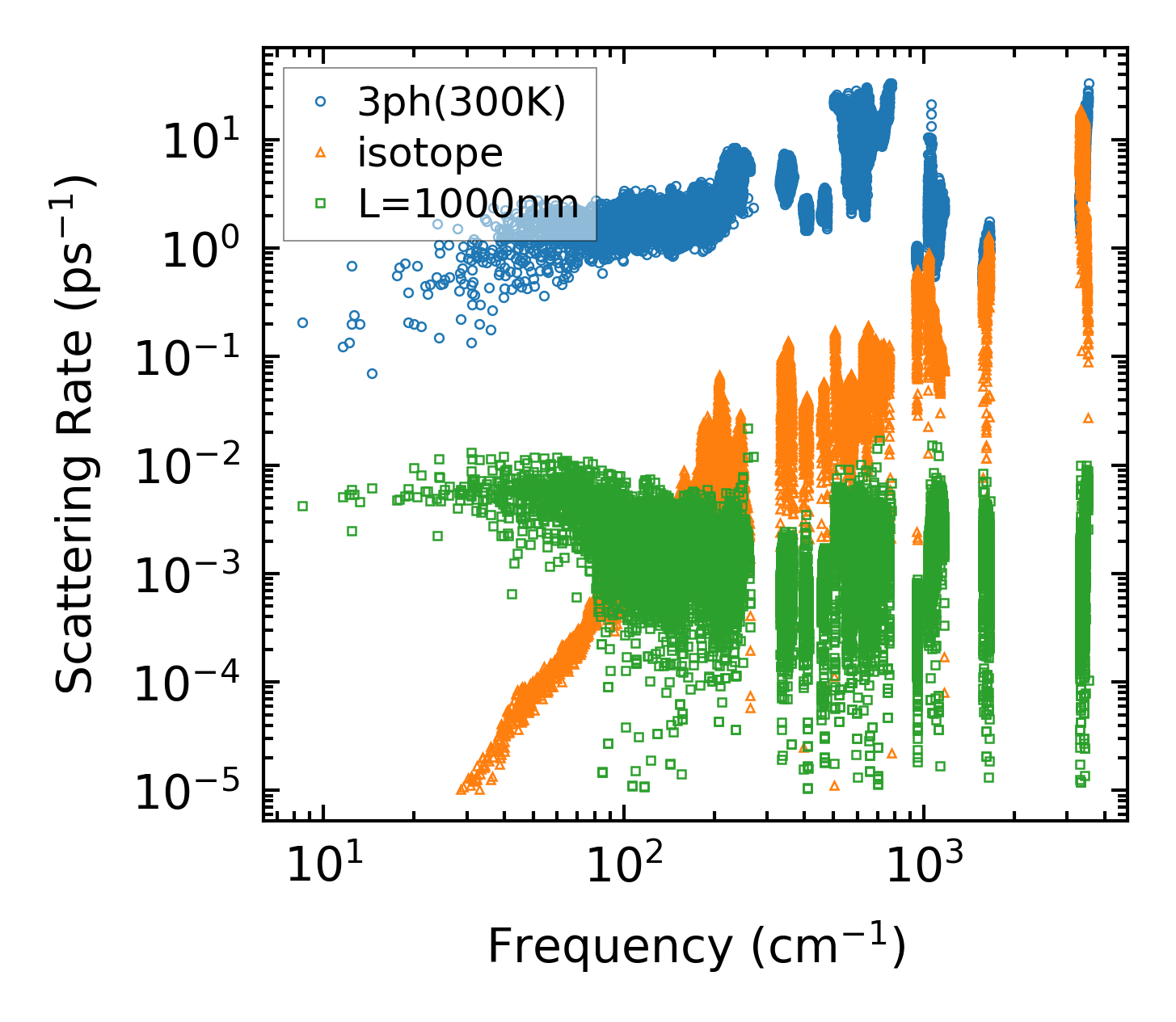

../../_images/fig_scat_rates5253.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

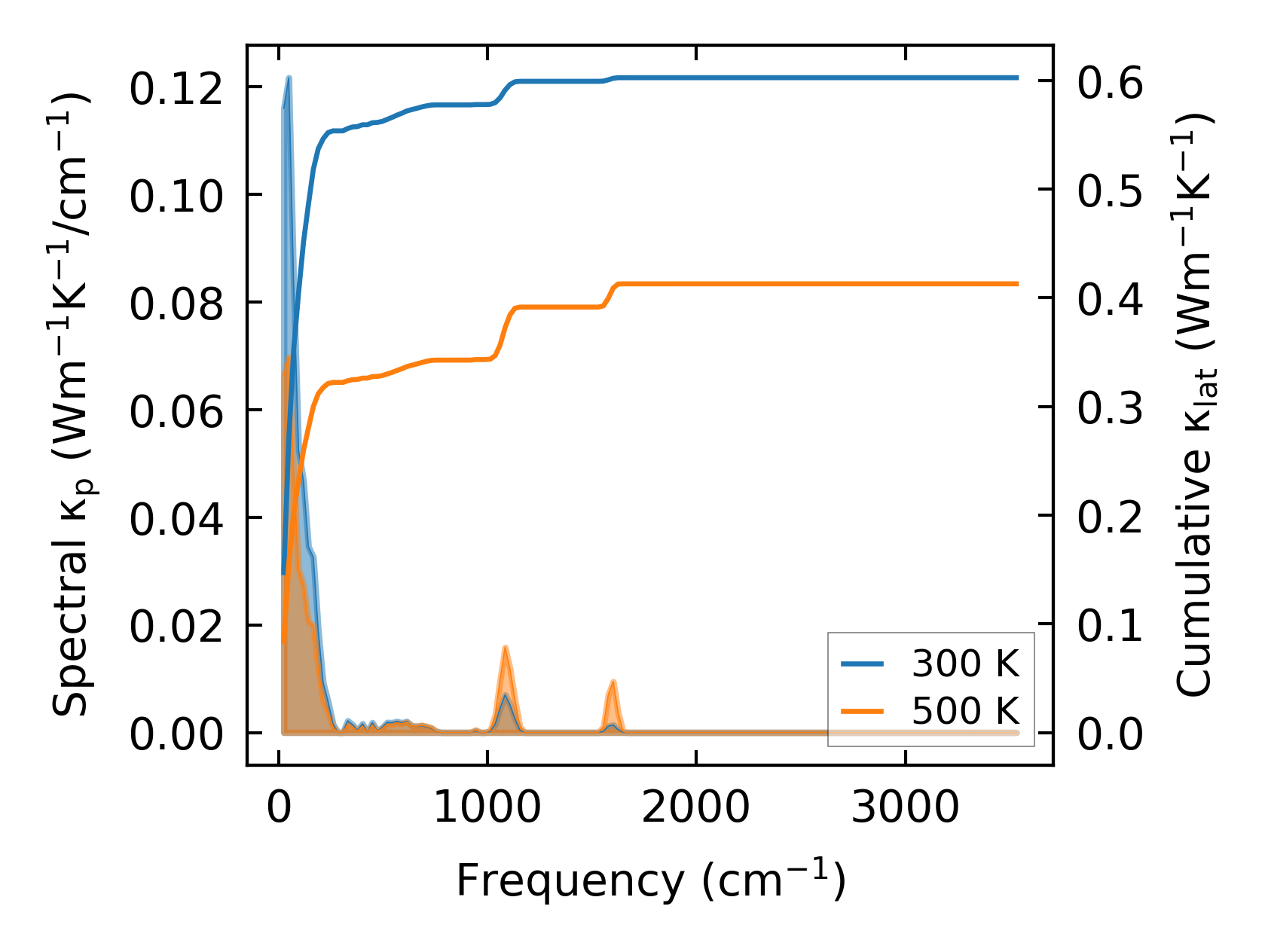

../../_images/fig_cumu_frequency5254.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

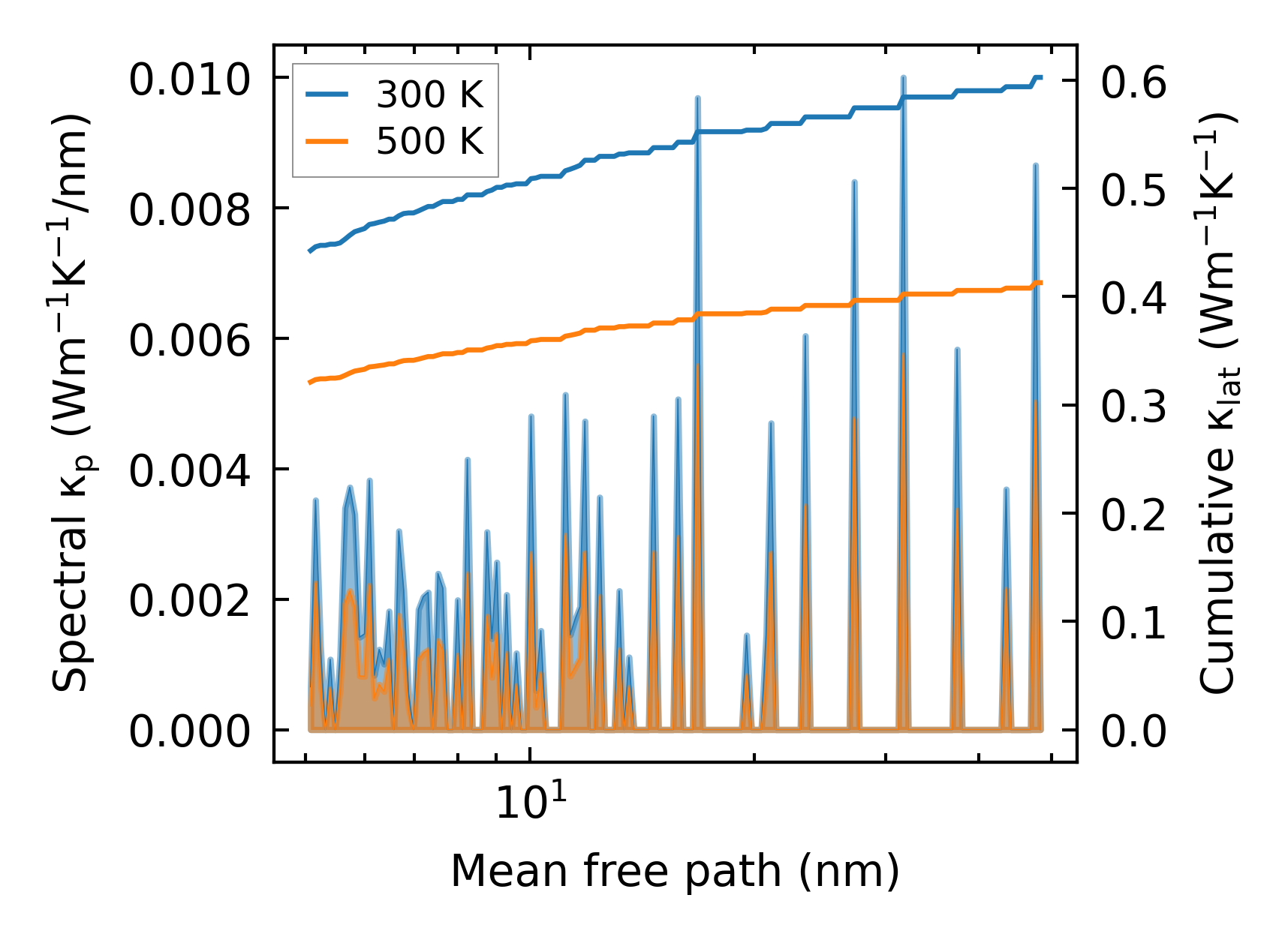

../../_images/fig_cumu_mfp5253.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

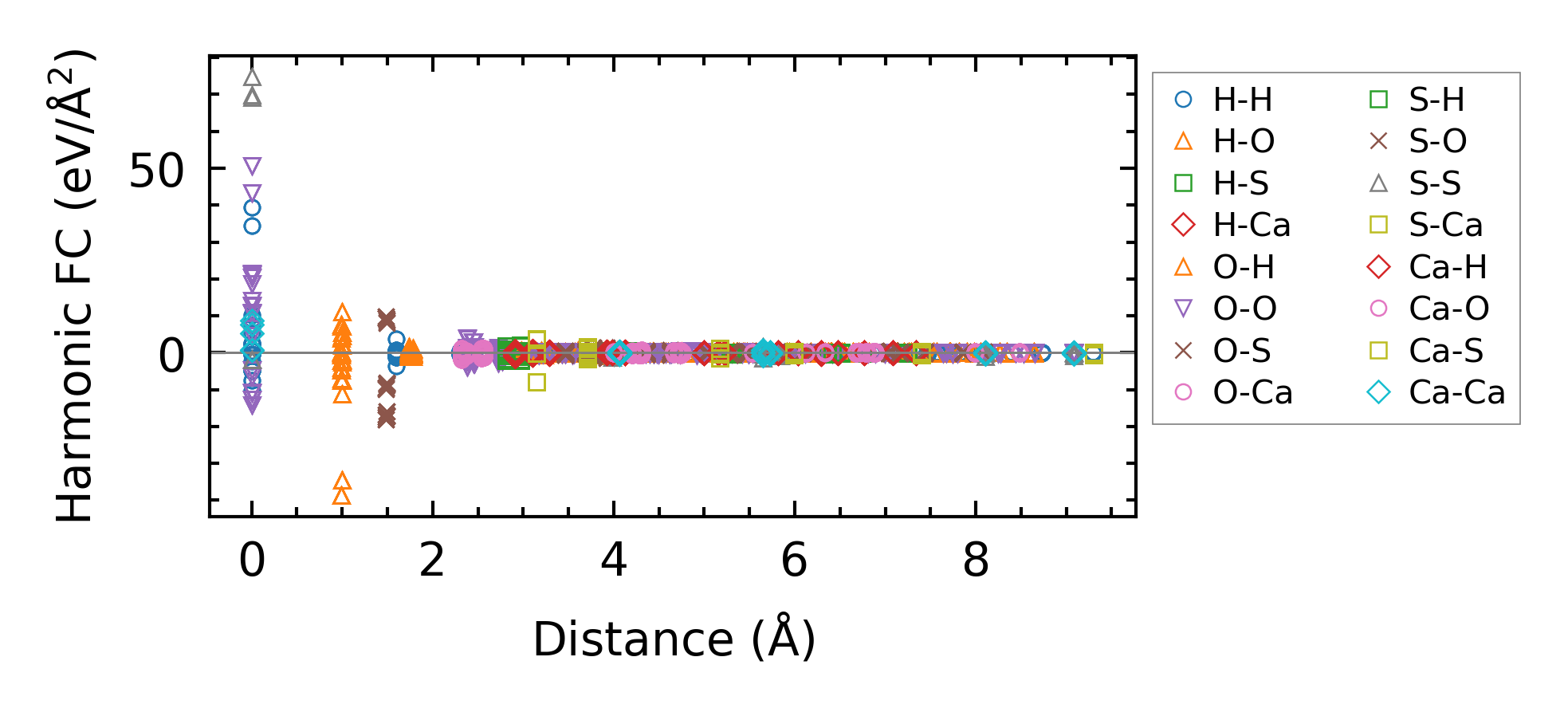

../../_images/fig_fc212495.png — (a) Force constants w.r.t atomic distance

Summary

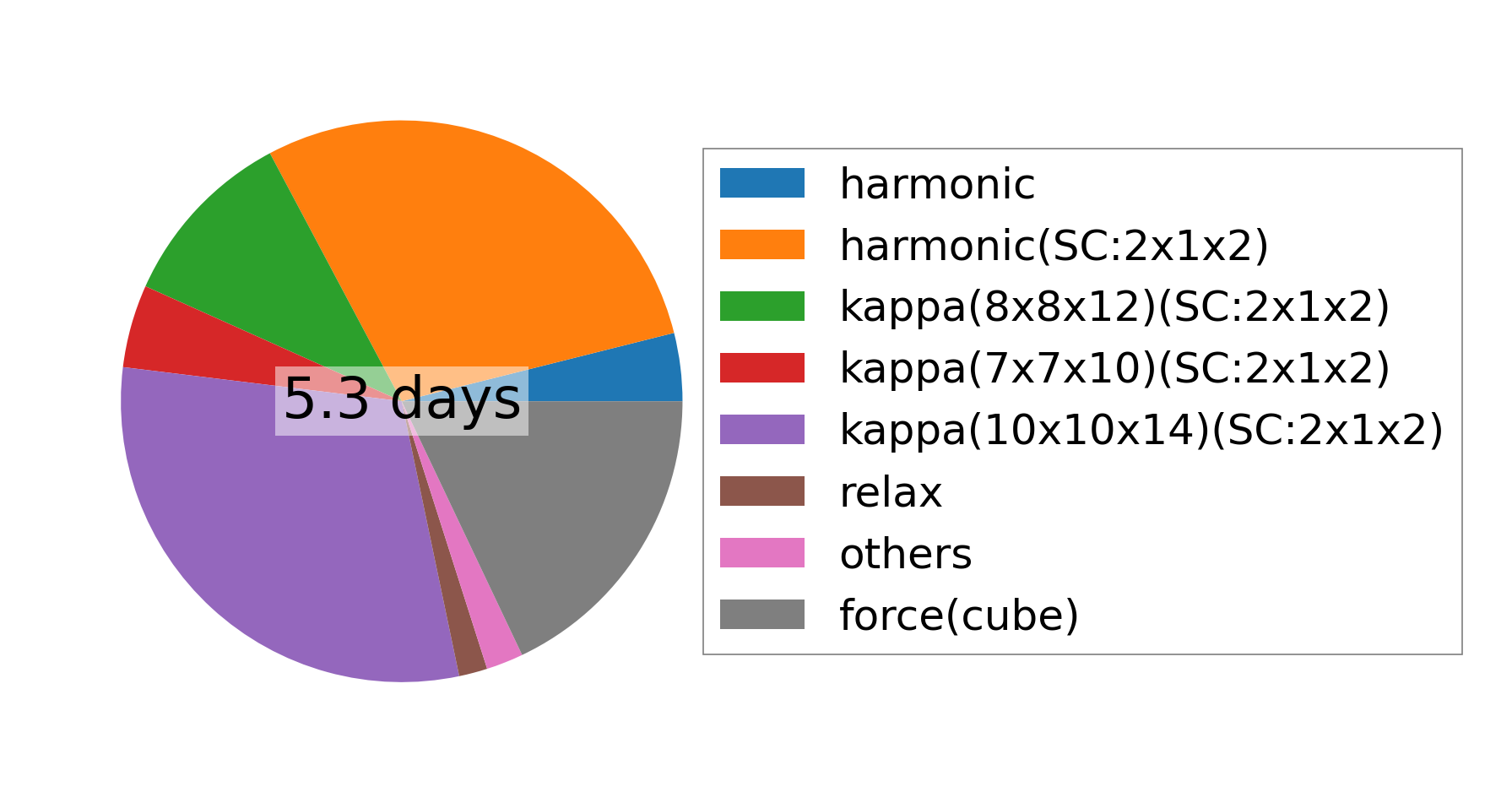

../../_images/fig_times21707.png — (a) Computation time
