mp-23072-2/BiBrO/anharm

Space group: P4/nmm (129)
Link: Materials Project
Download: mp-23072-2.tar.gz

Equation of state

../../_images/fig_bm6422.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr12864.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo12864.png — (b) Thermodynamic properties

Grüneisen parameters

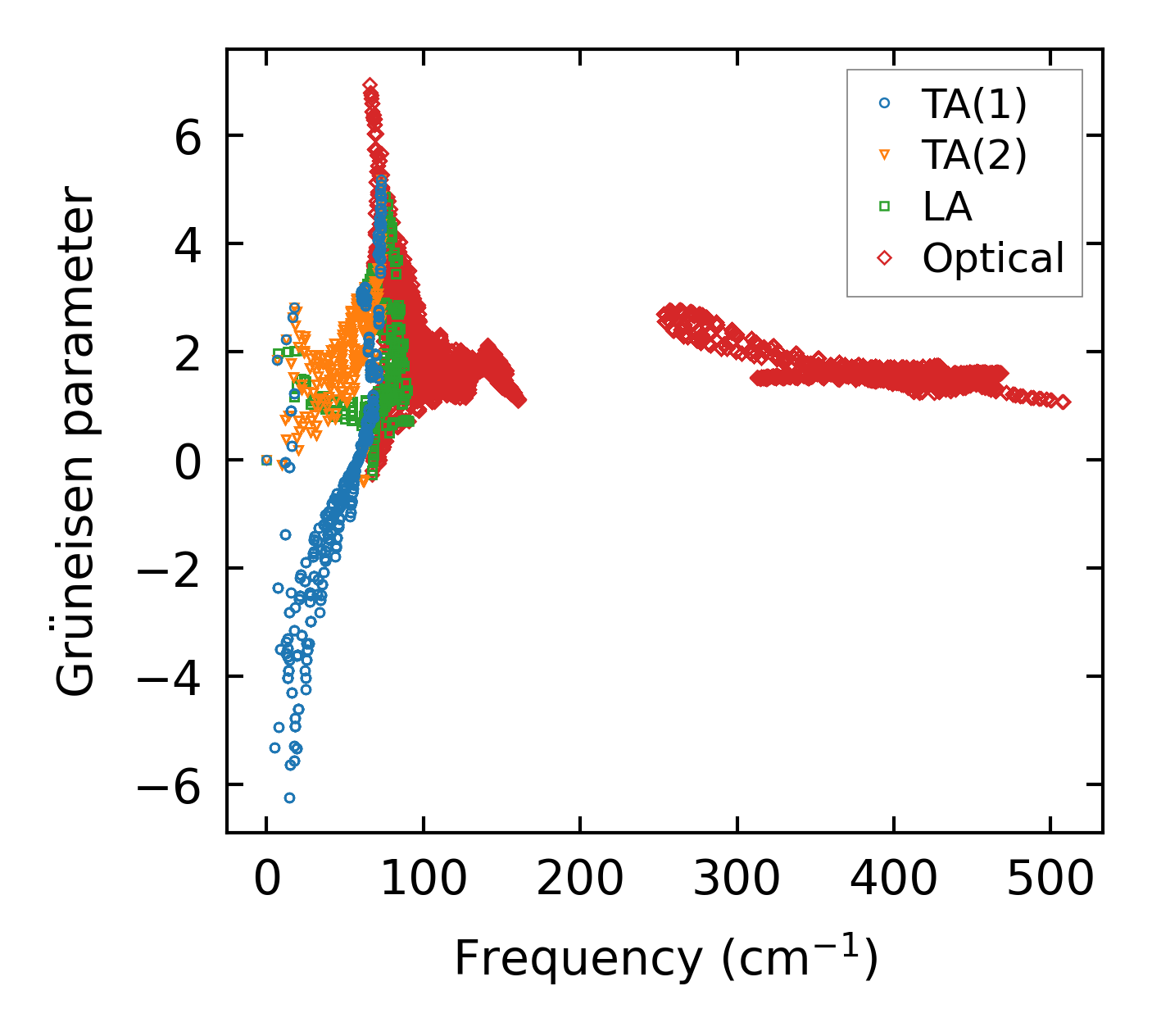

../../_images/fig_gru_all5337.png — (a) Grüneisen parameters

../../_images/fig_gruneisen5337.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 18x18x8, supercell: 3x3x2

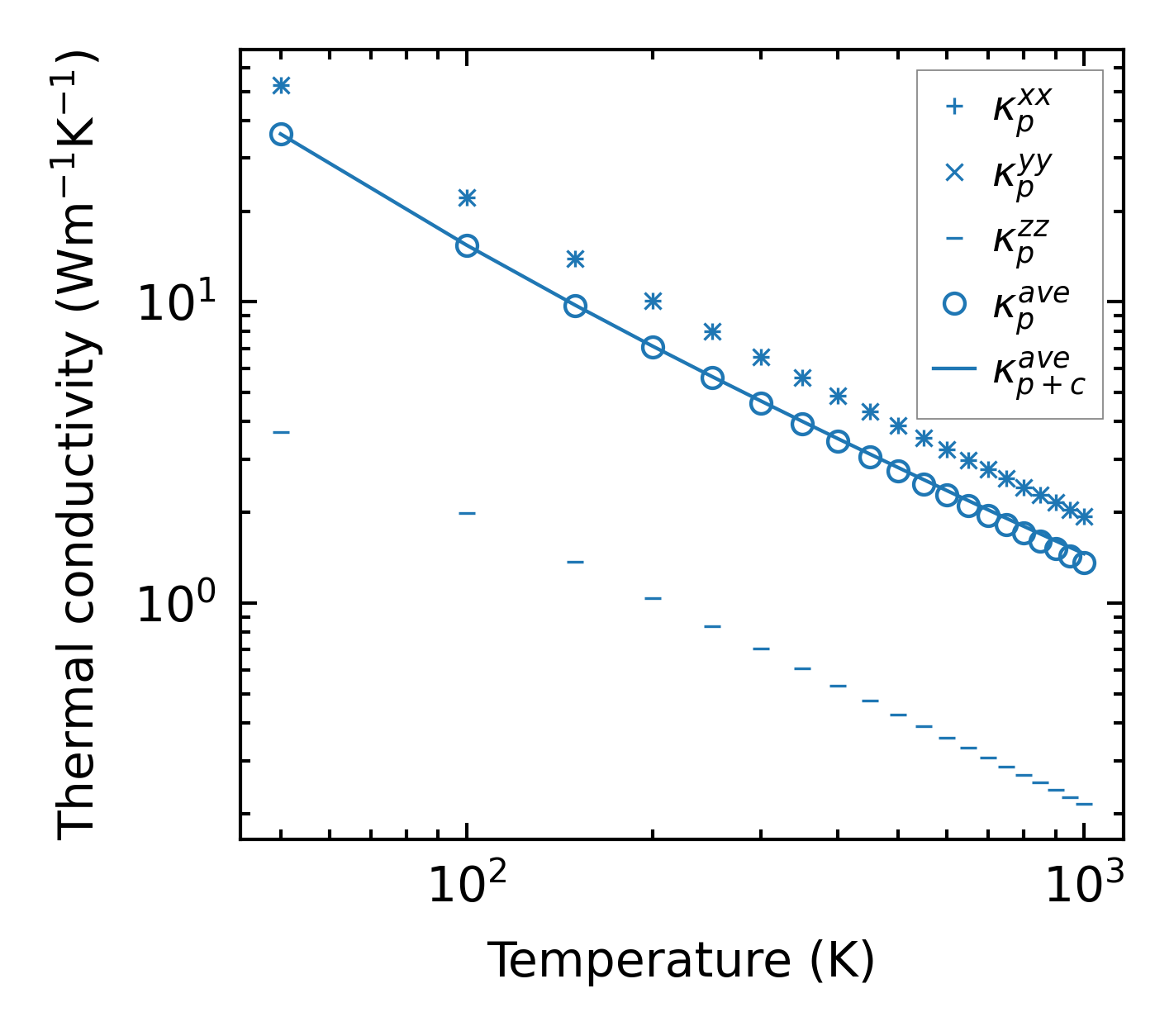

../../_images/fig_kappa10028.png — (a) Temperature-dependent lattice thermal conductivity

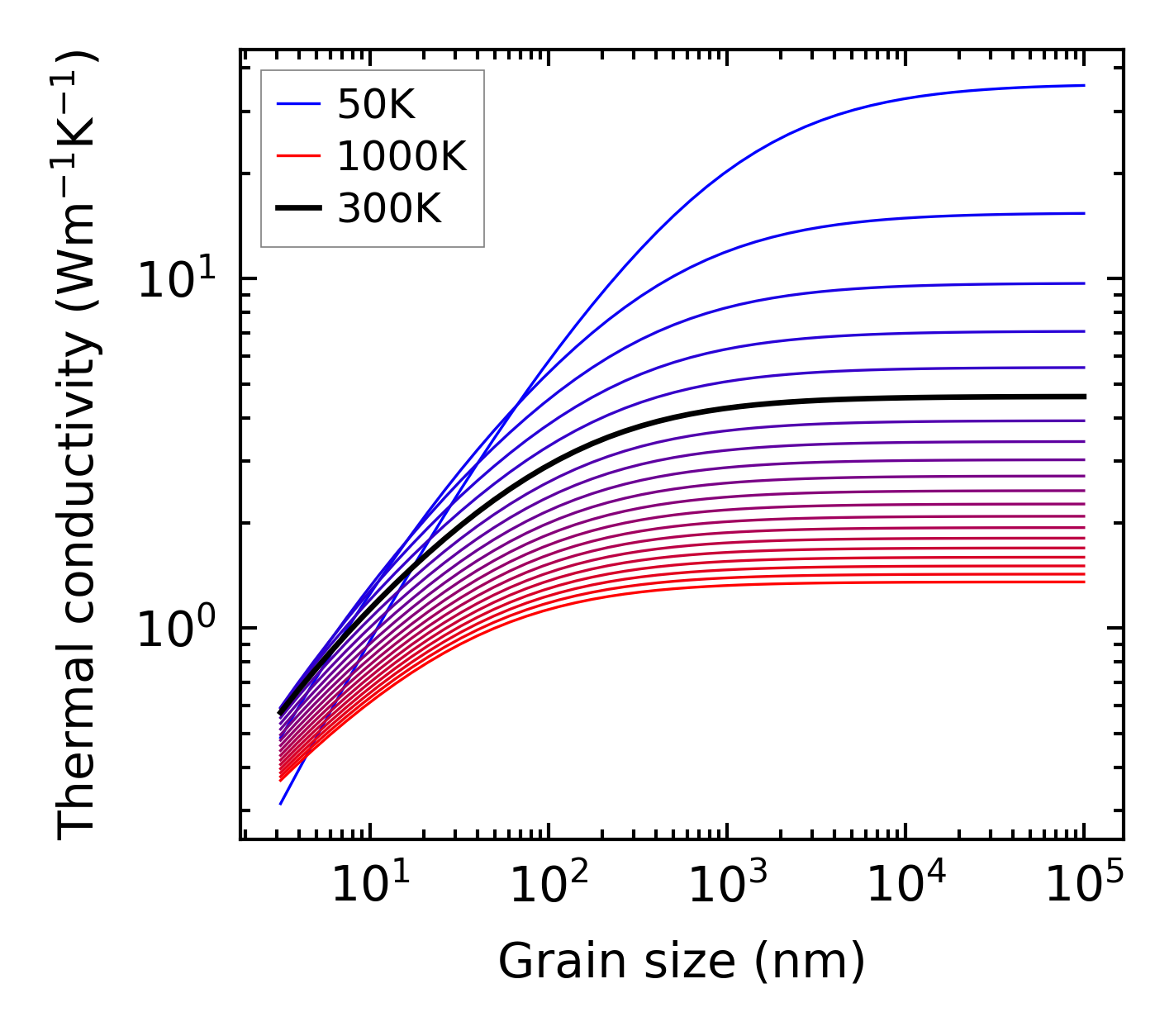

../../_images/fig_kappa_vs_grain_size5401.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

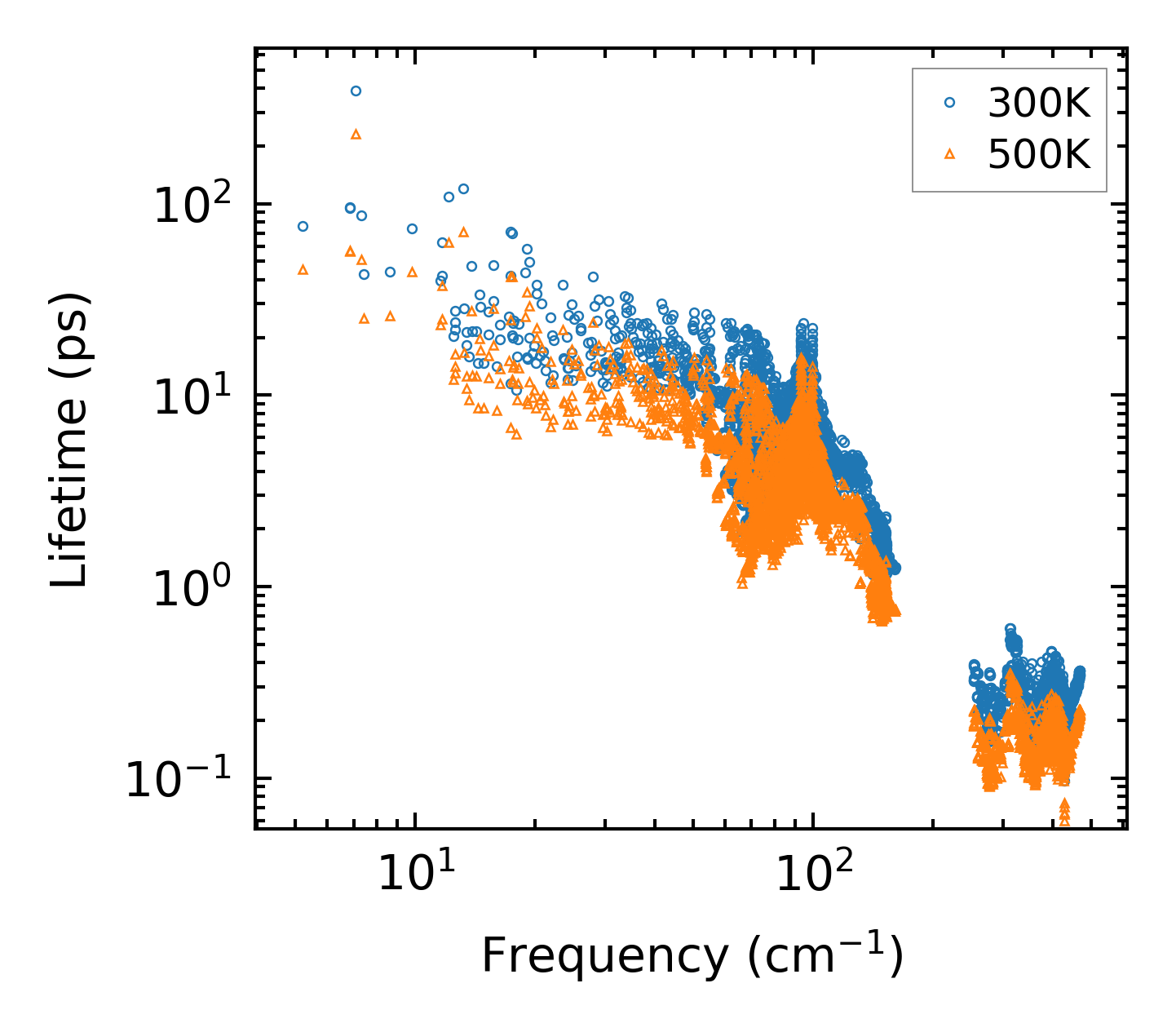

../../_images/fig_lifetime5286.png — (a) Phonon lifetime due to phonon-phonon scattering

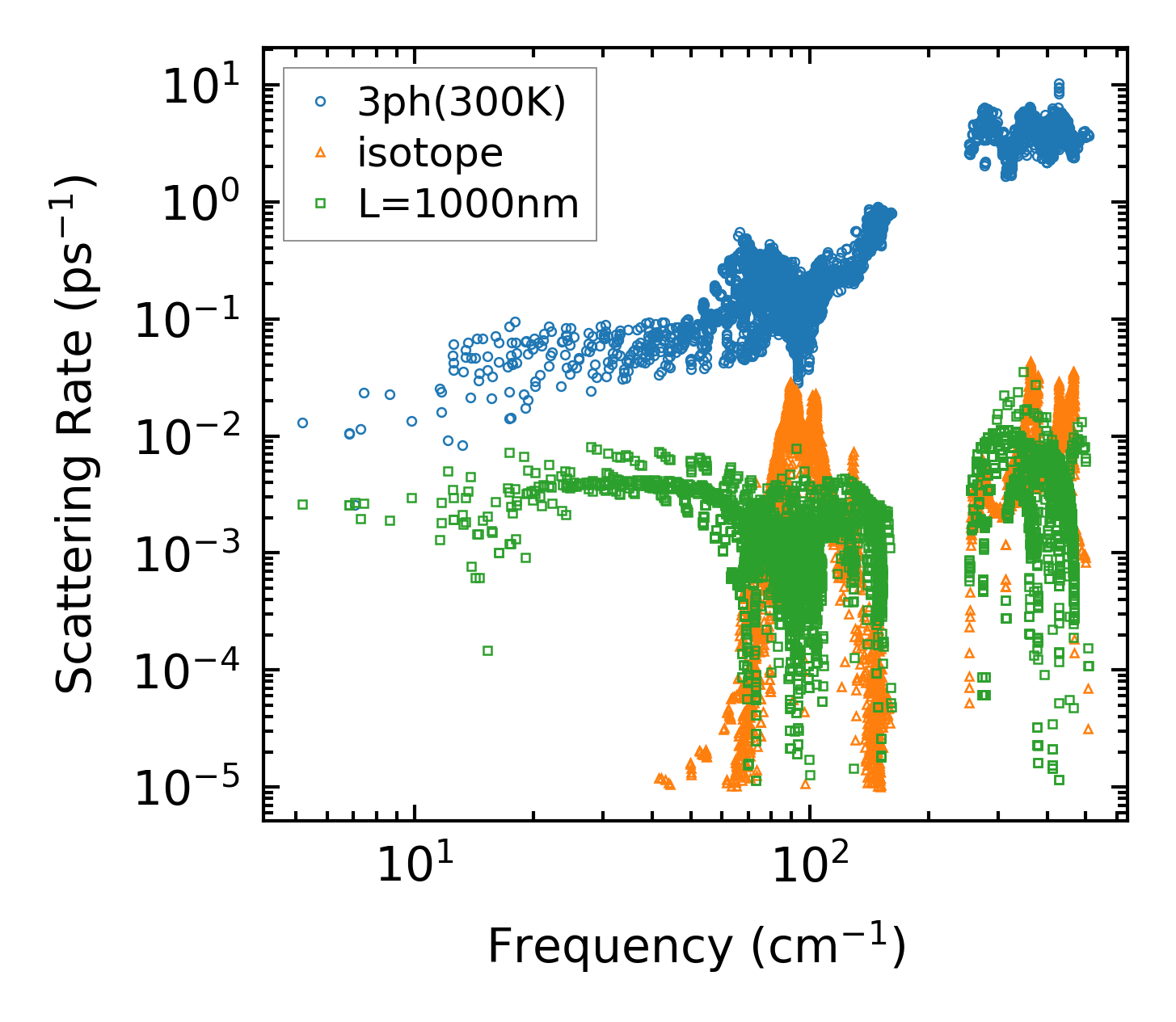

../../_images/fig_scat_rates5285.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

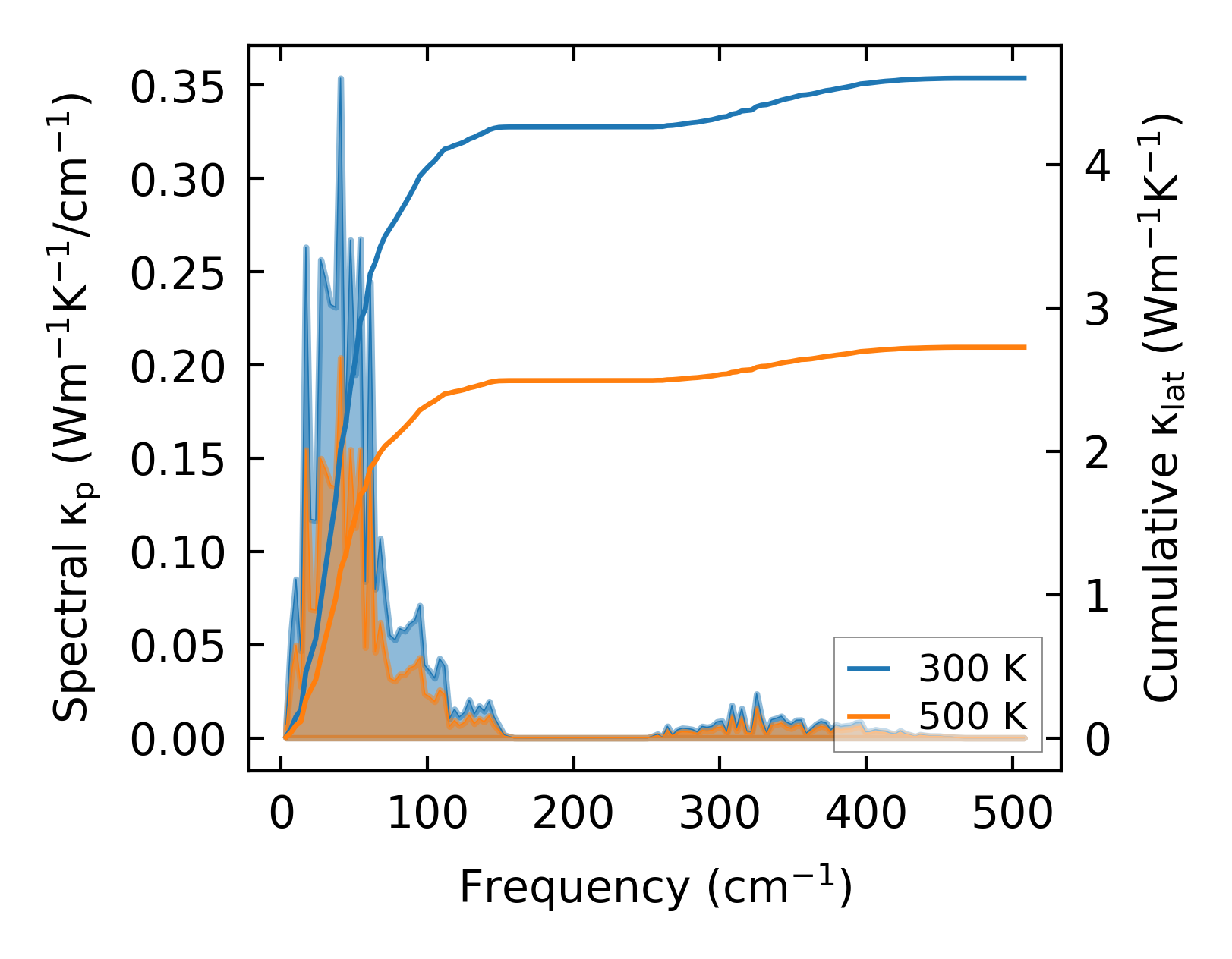

../../_images/fig_cumu_frequency5286.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp5285.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc212560.png — (a) Force constants w.r.t atomic distance

Summary

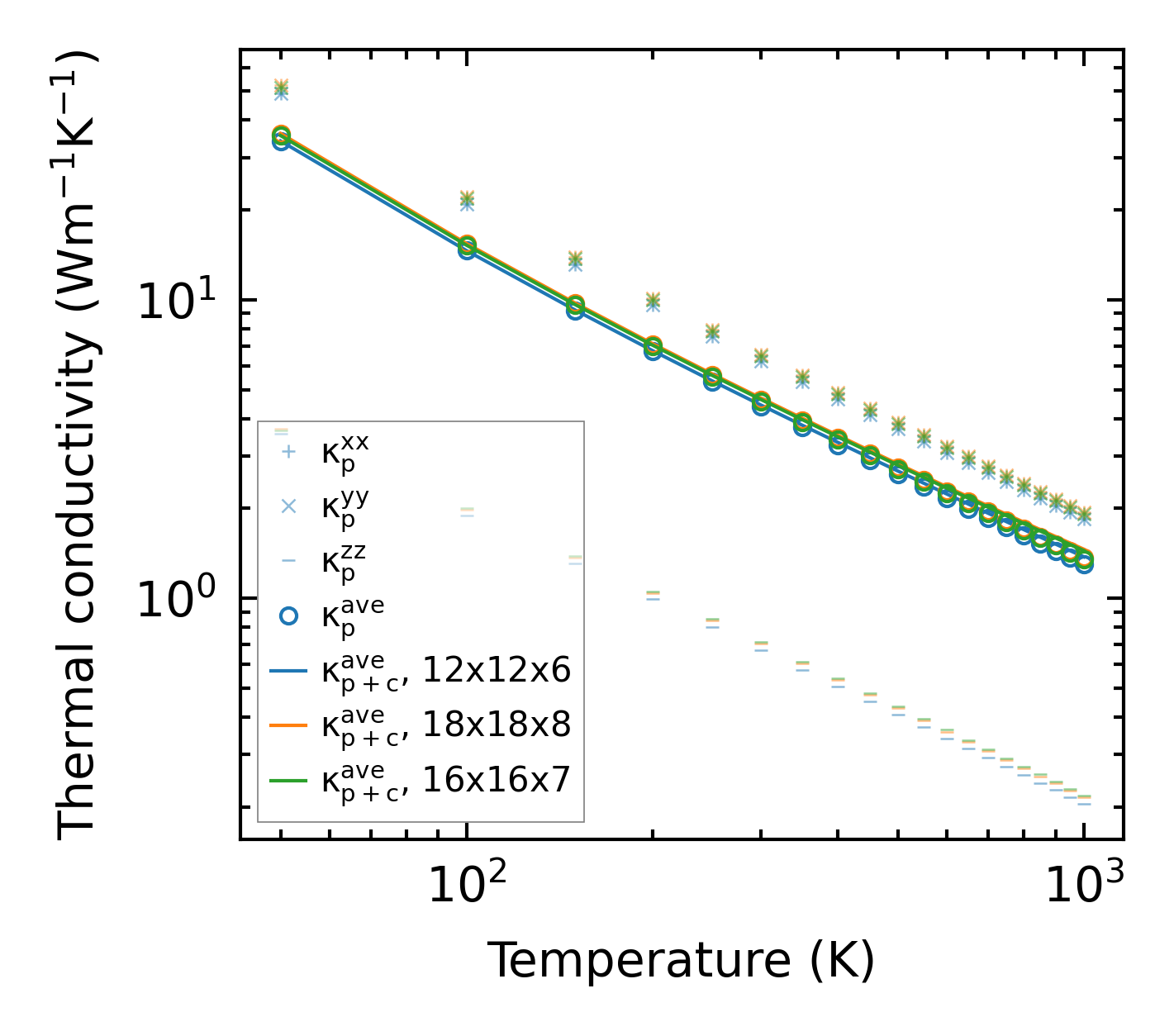

../../_images/fig_kappa10029.png — (a) Temperature-dependent lattice thermal conductivity

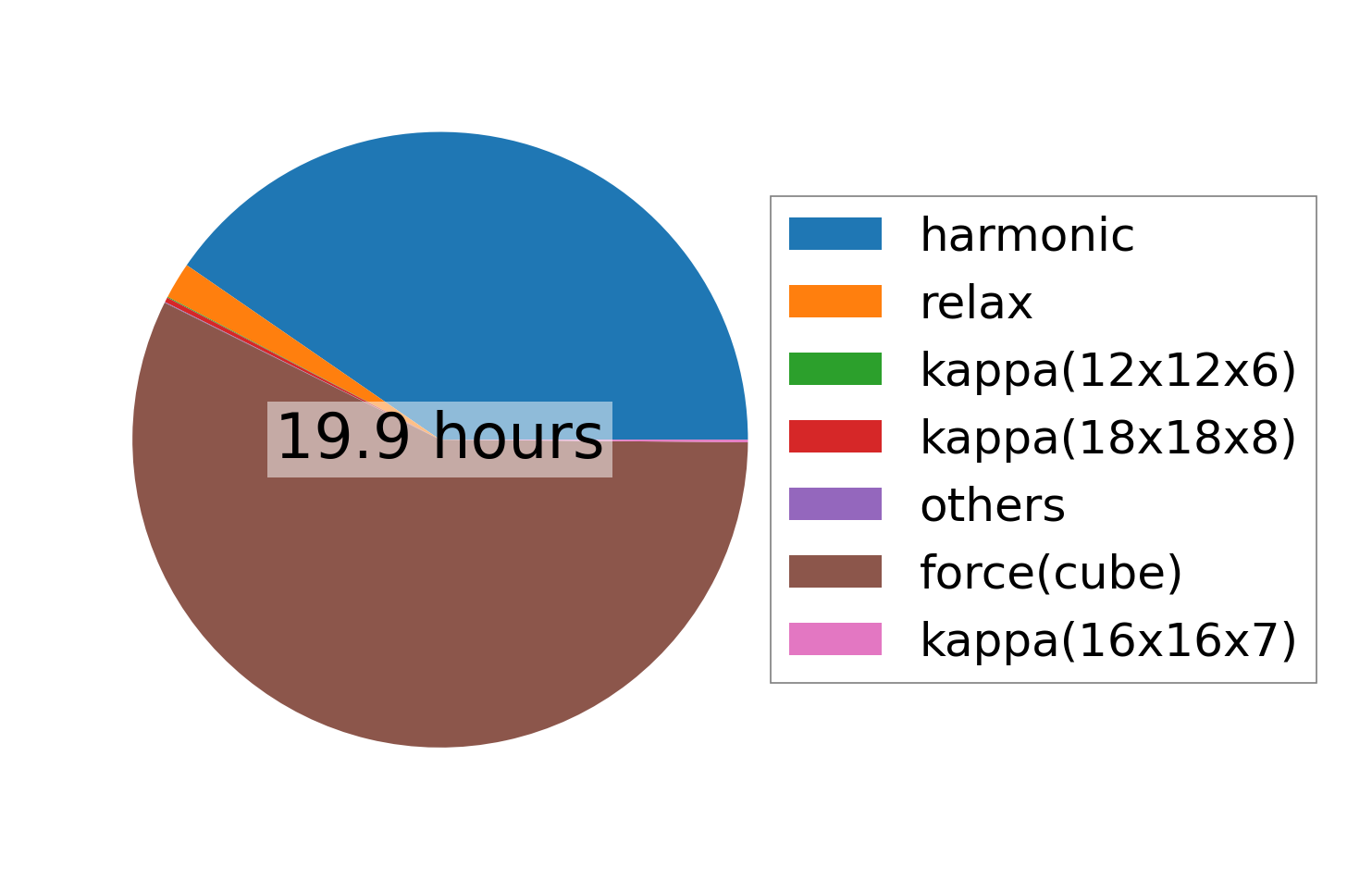

../../_images/fig_times21788.png — (b) Computation time
