mp-23122/Li10B14Cl2O25/anharm

Space group: F23 (196)
Link: Materials Project
Download: mp-23122.tar.gz

Equation of state

../../_images/fig_bm6443.png — (a) Equation of state

Harmonic properties

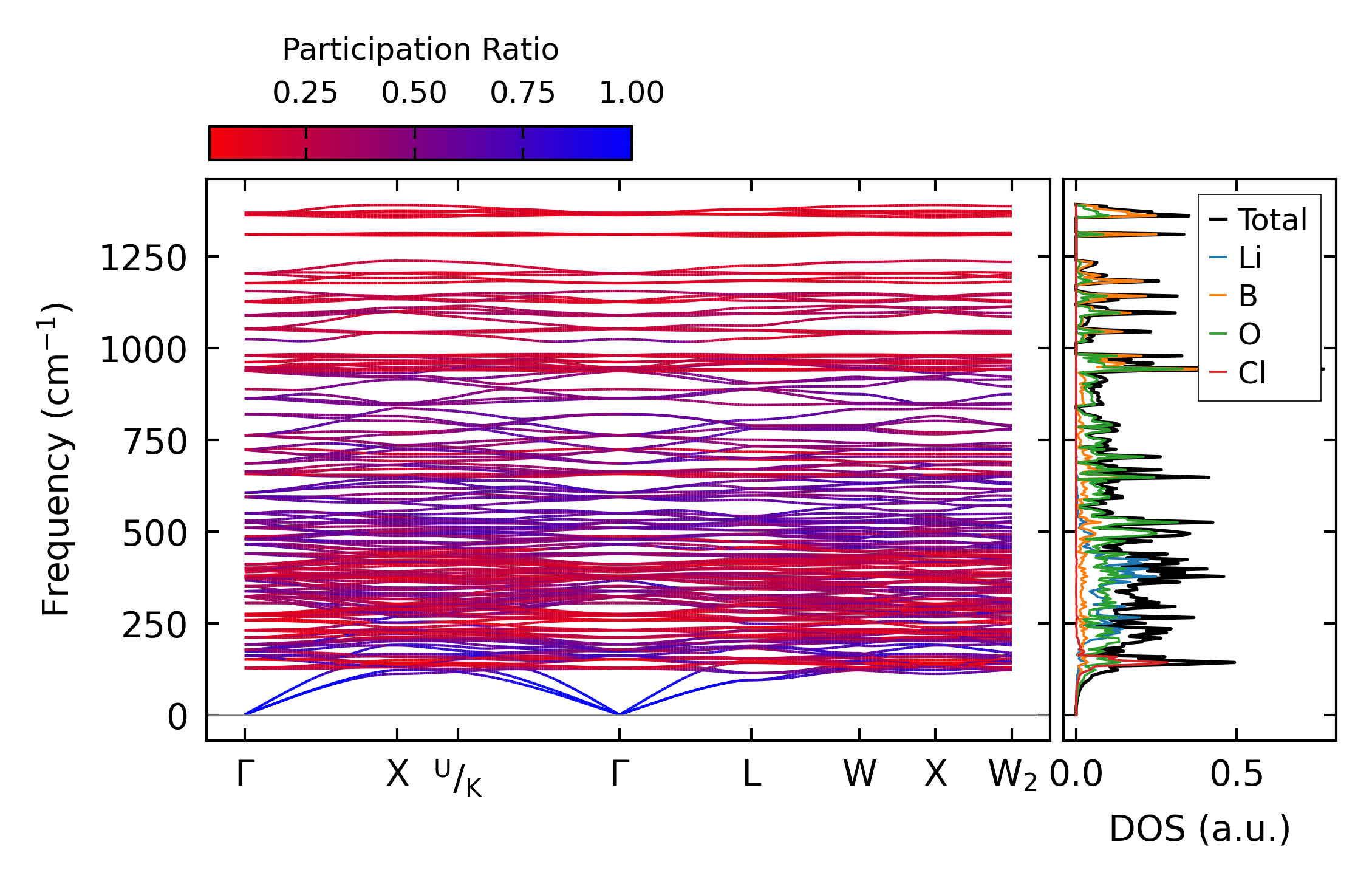

../../_images/fig_bandos_pr12896.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo12896.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all5352.png — (a) Grüneisen parameters

../../_images/fig_gruneisen5352.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 9x9x9, supercell: 1x1x1

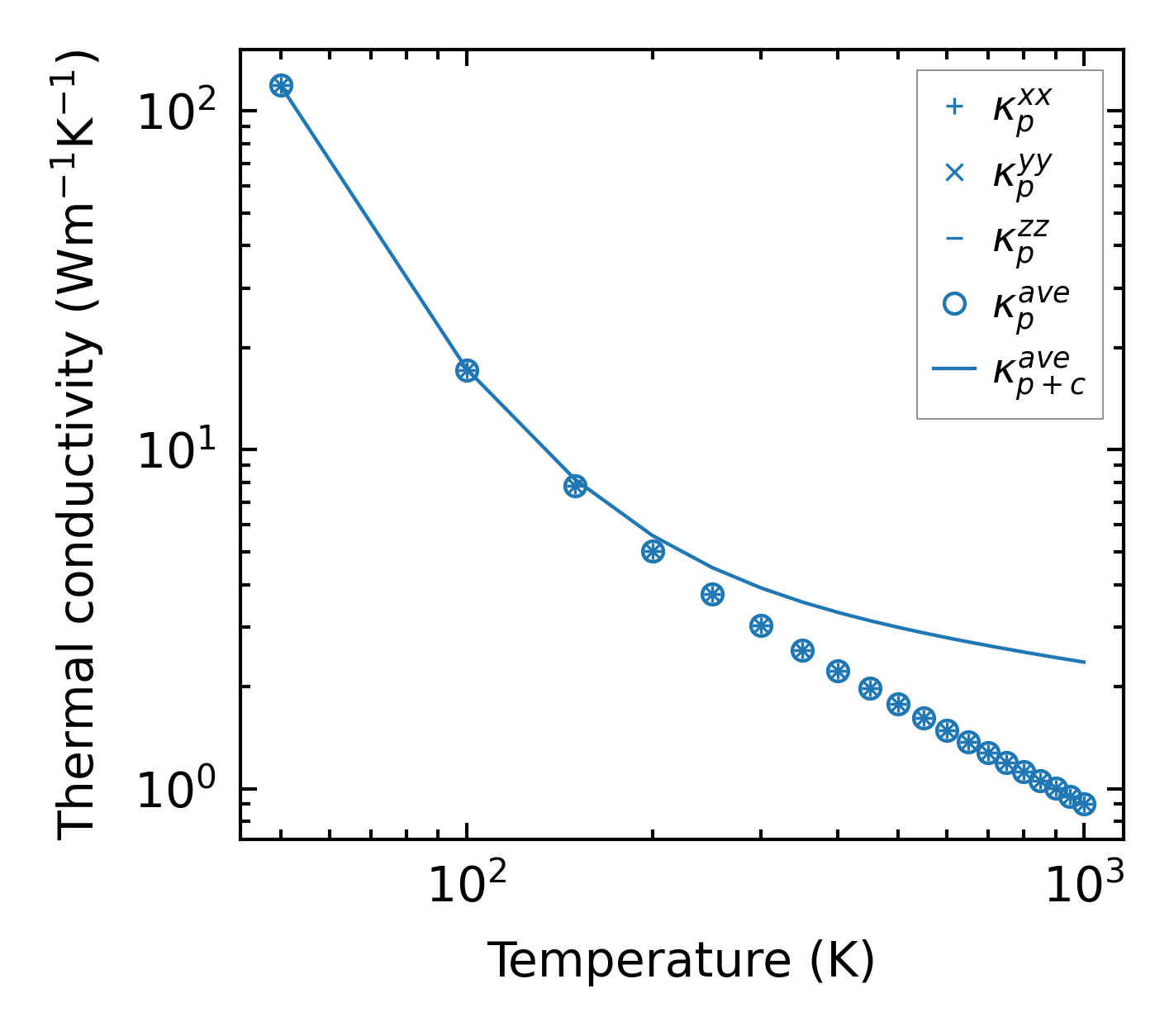

../../_images/fig_kappa10054.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size5417.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

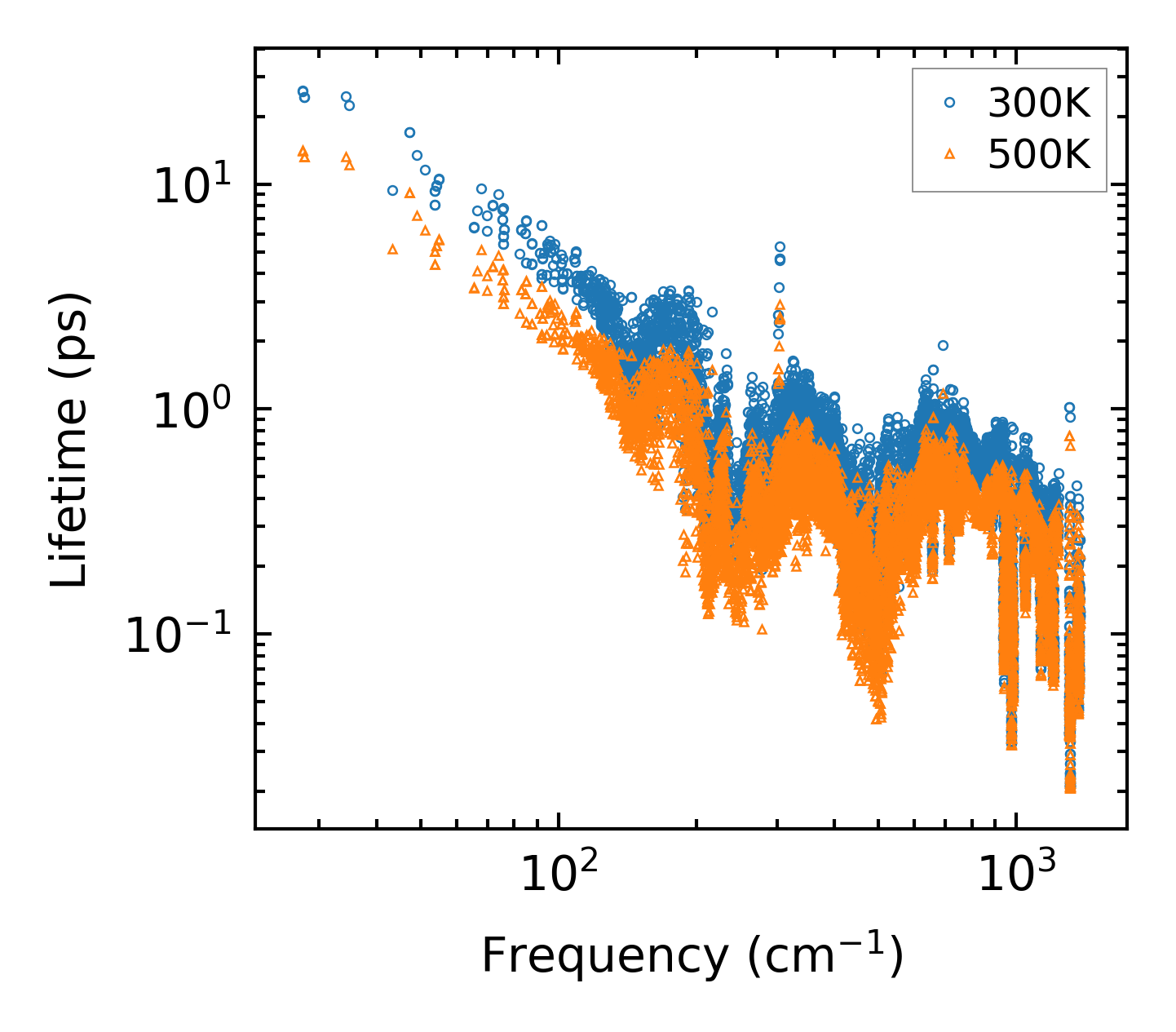

../../_images/fig_lifetime5301.png — (a) Phonon lifetime due to phonon-phonon scattering

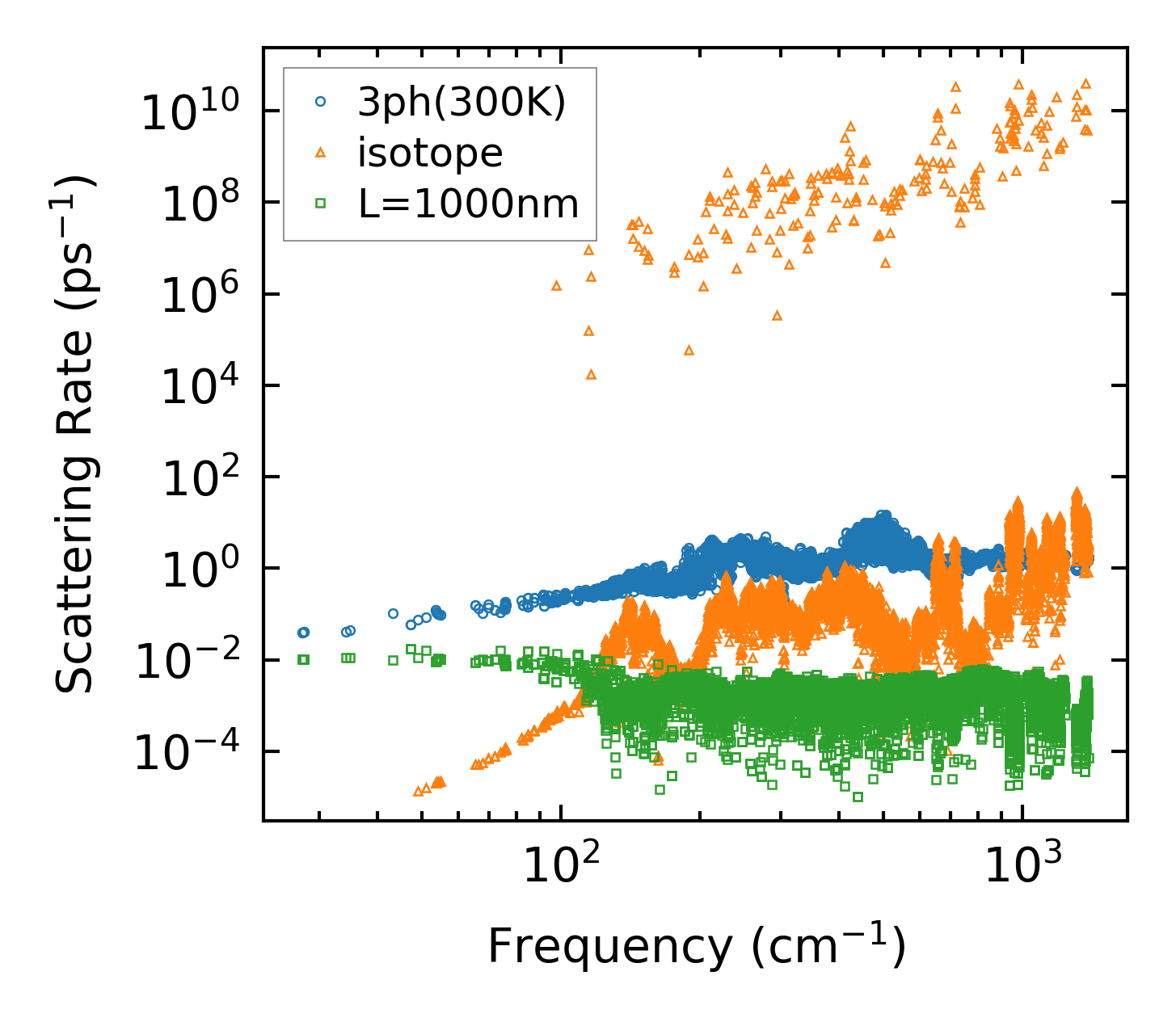

../../_images/fig_scat_rates5300.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

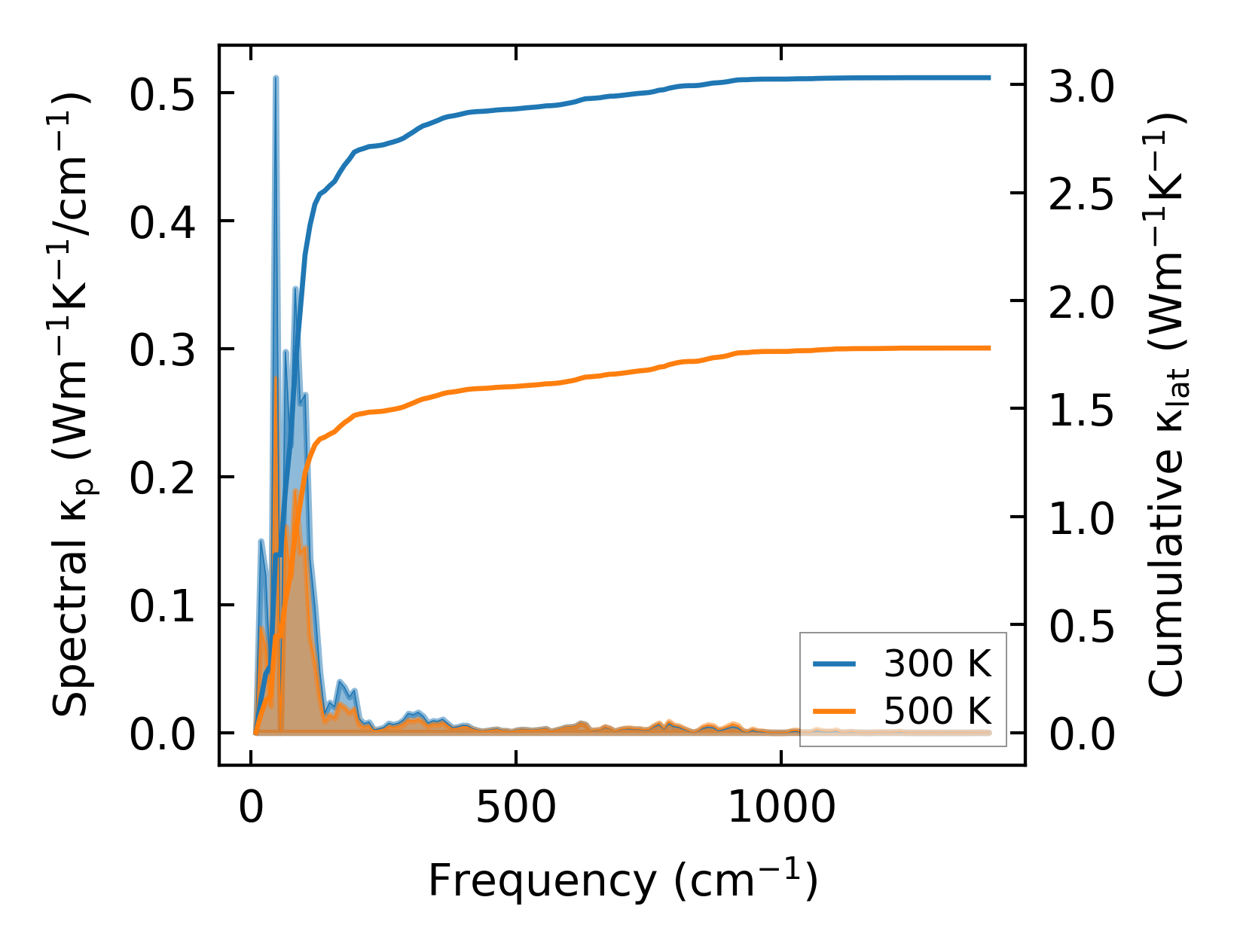

../../_images/fig_cumu_frequency5301.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

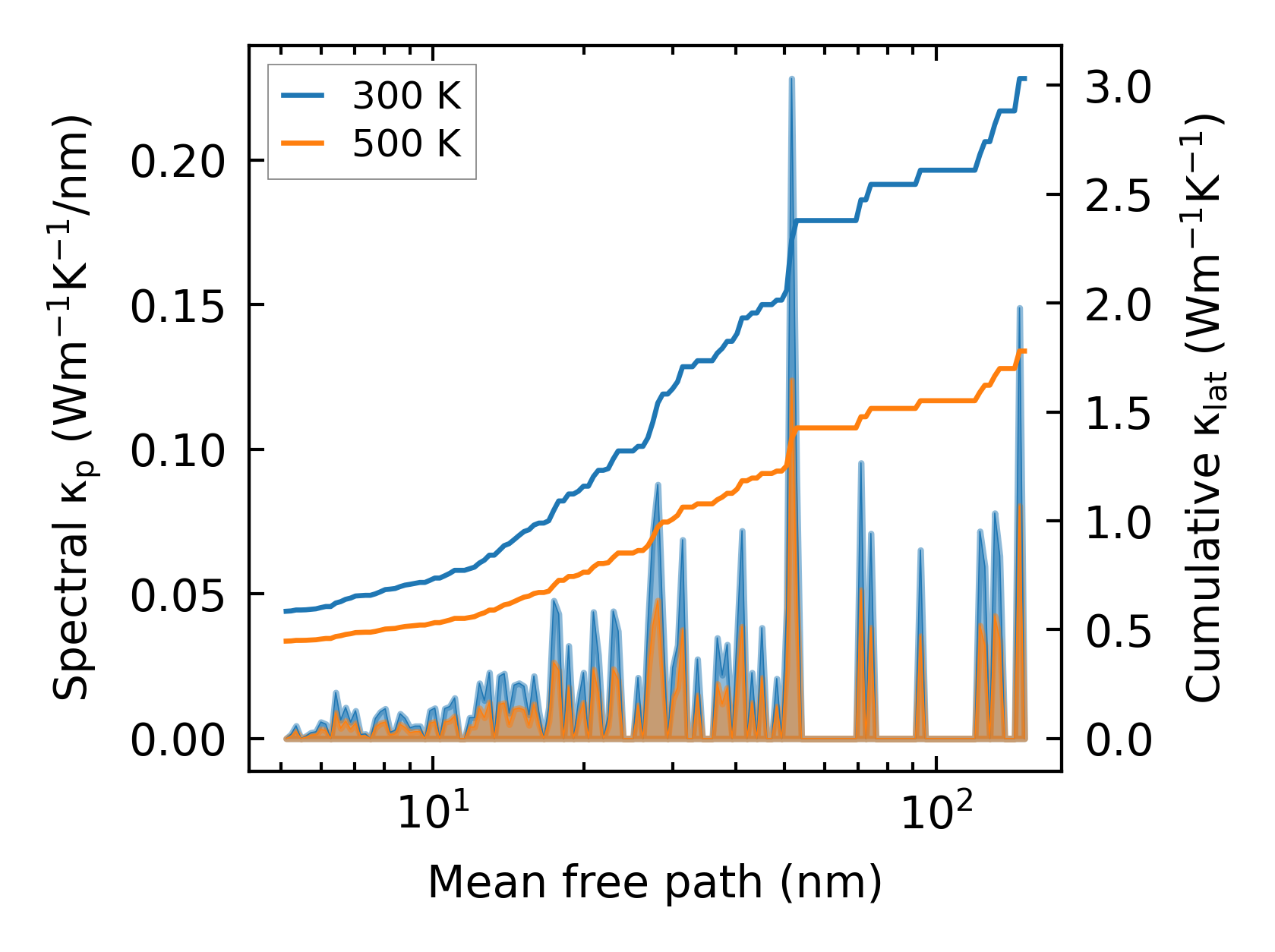

../../_images/fig_cumu_mfp5300.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc212592.png — (a) Force constants w.r.t atomic distance

Summary

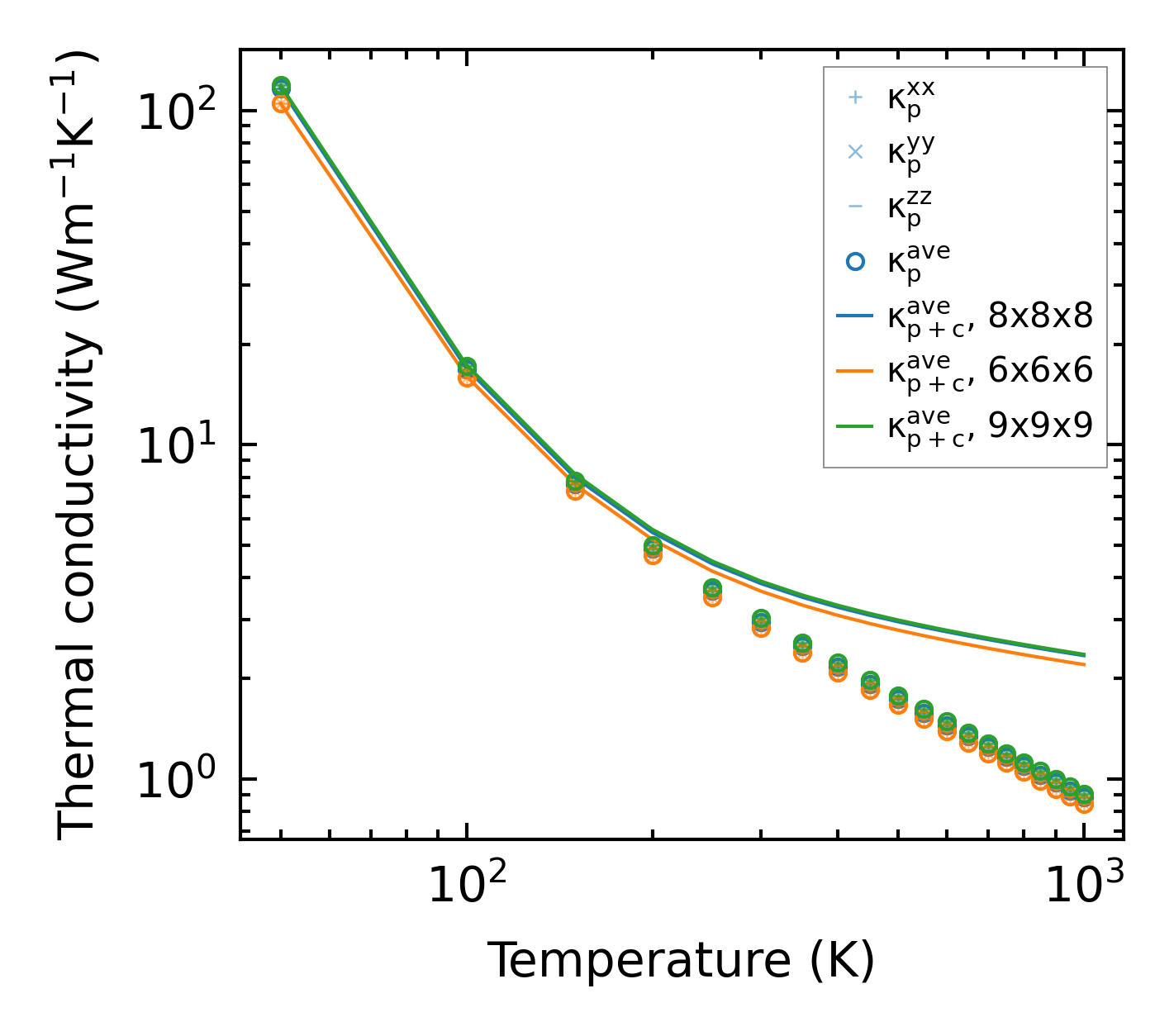

../../_images/fig_kappa10055.png — (a) Temperature-dependent lattice thermal conductivity

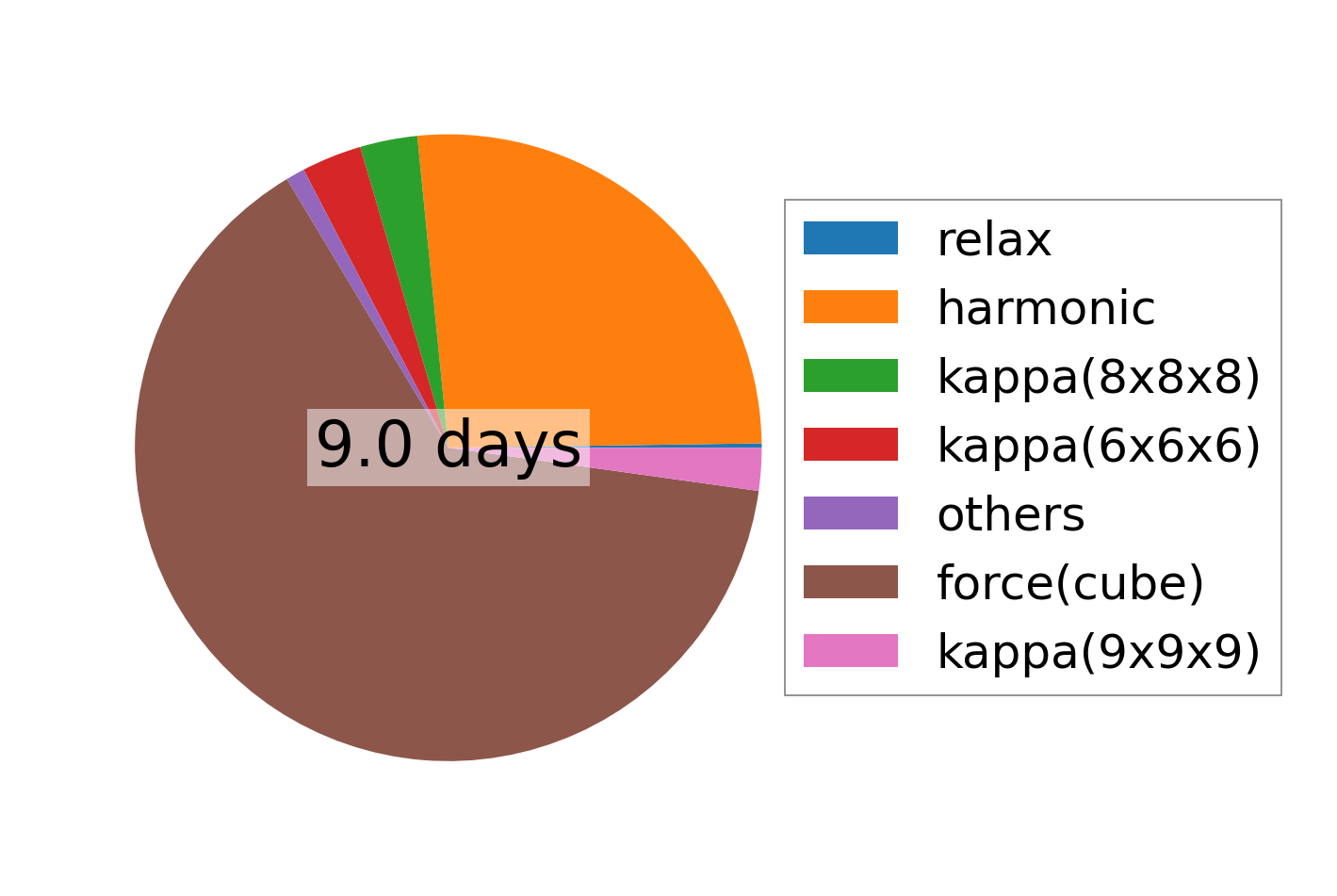

../../_images/fig_times21834.png — (b) Computation time
