mp-23497/Li2ZnI4/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-23497.tar.gz

Harmonic properties

../../_images/fig_bandos_pr12711.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo12711.png — (b) Thermodynamic properties

Grüneisen parameters

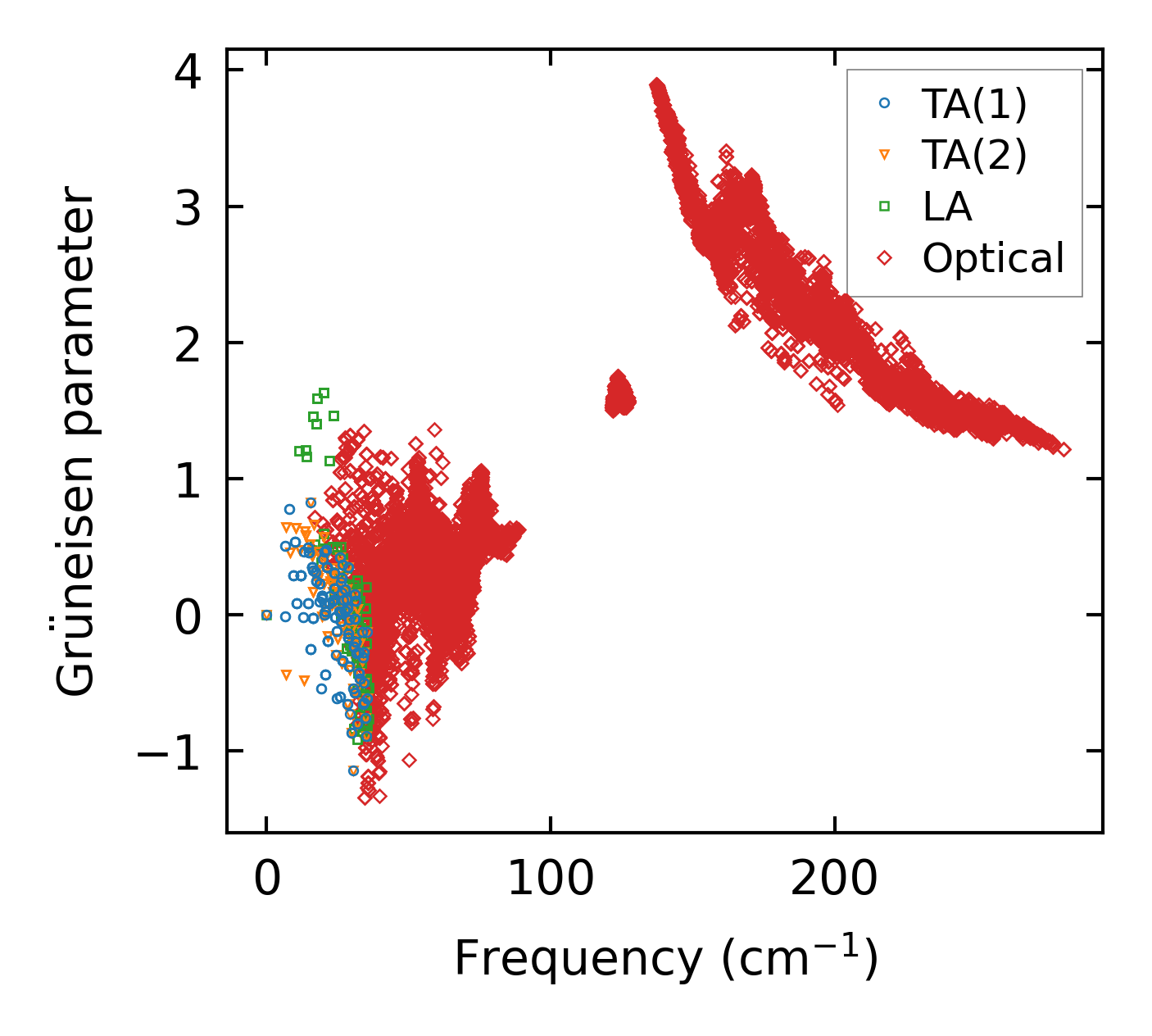

../../_images/fig_gru_all5271.png — (a) Grüneisen parameters

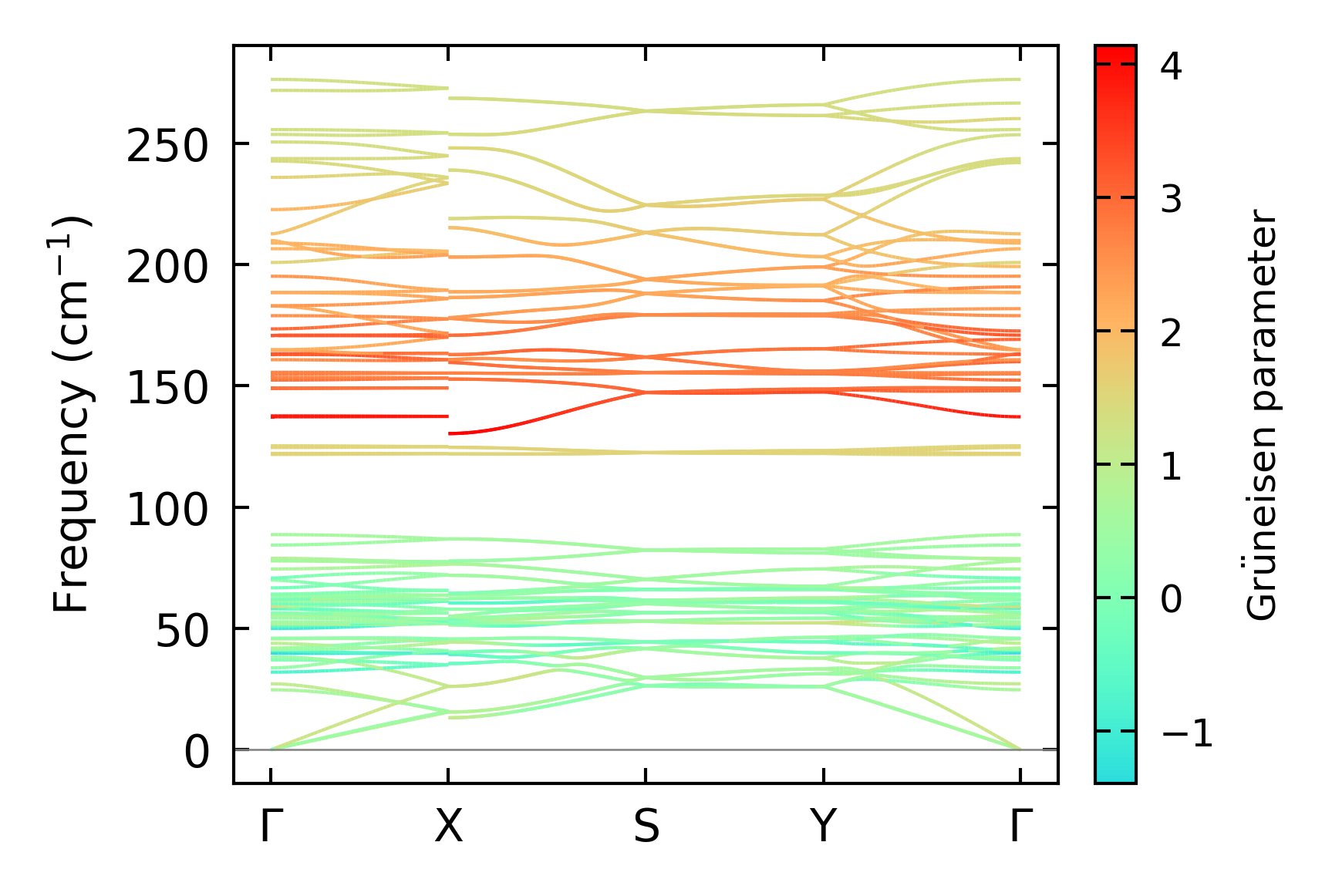

../../_images/fig_gruneisen5271.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 4x8x10, supercell: 1x2x2

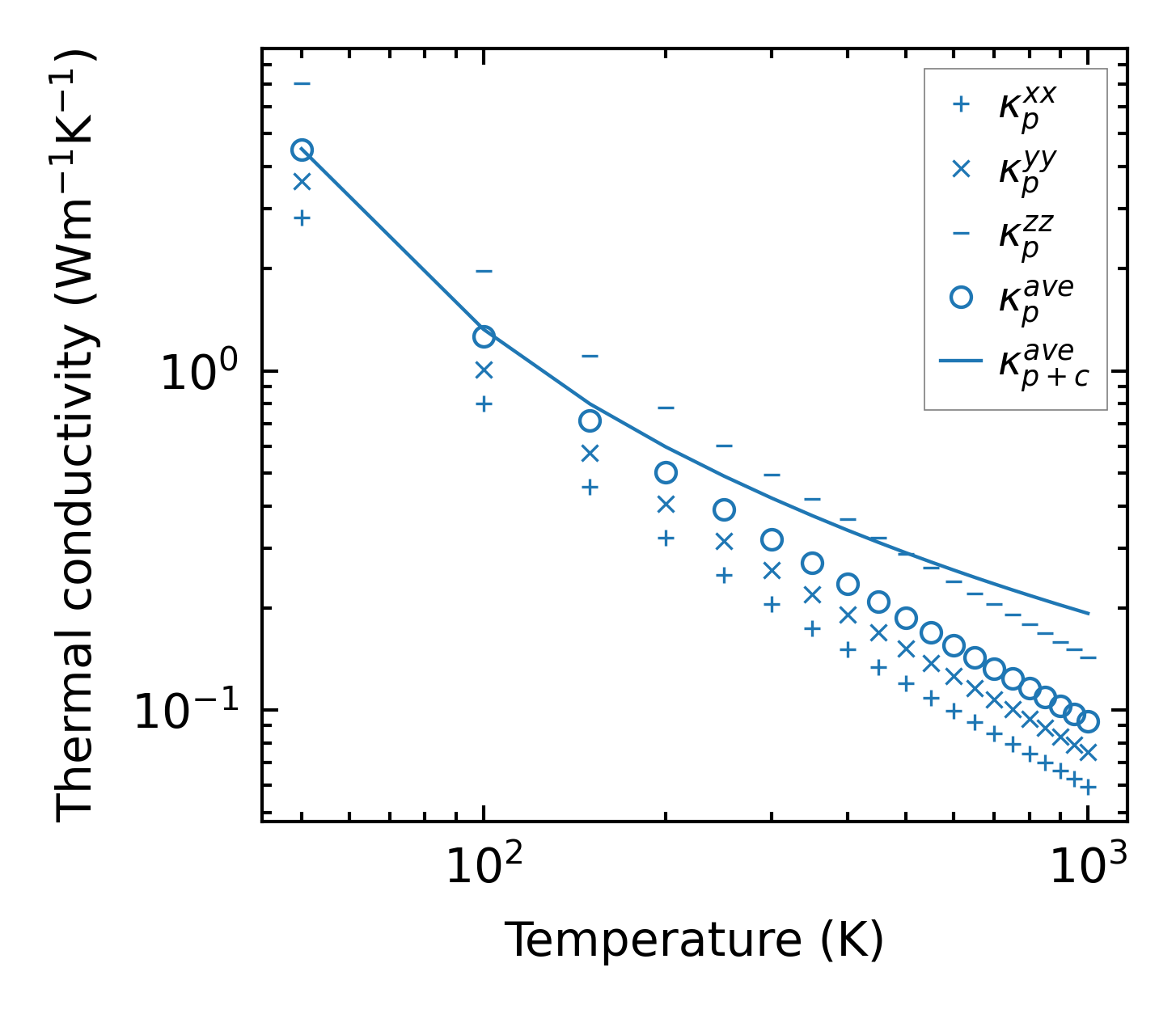

../../_images/fig_kappa9906.png — (a) Temperature-dependent lattice thermal conductivity

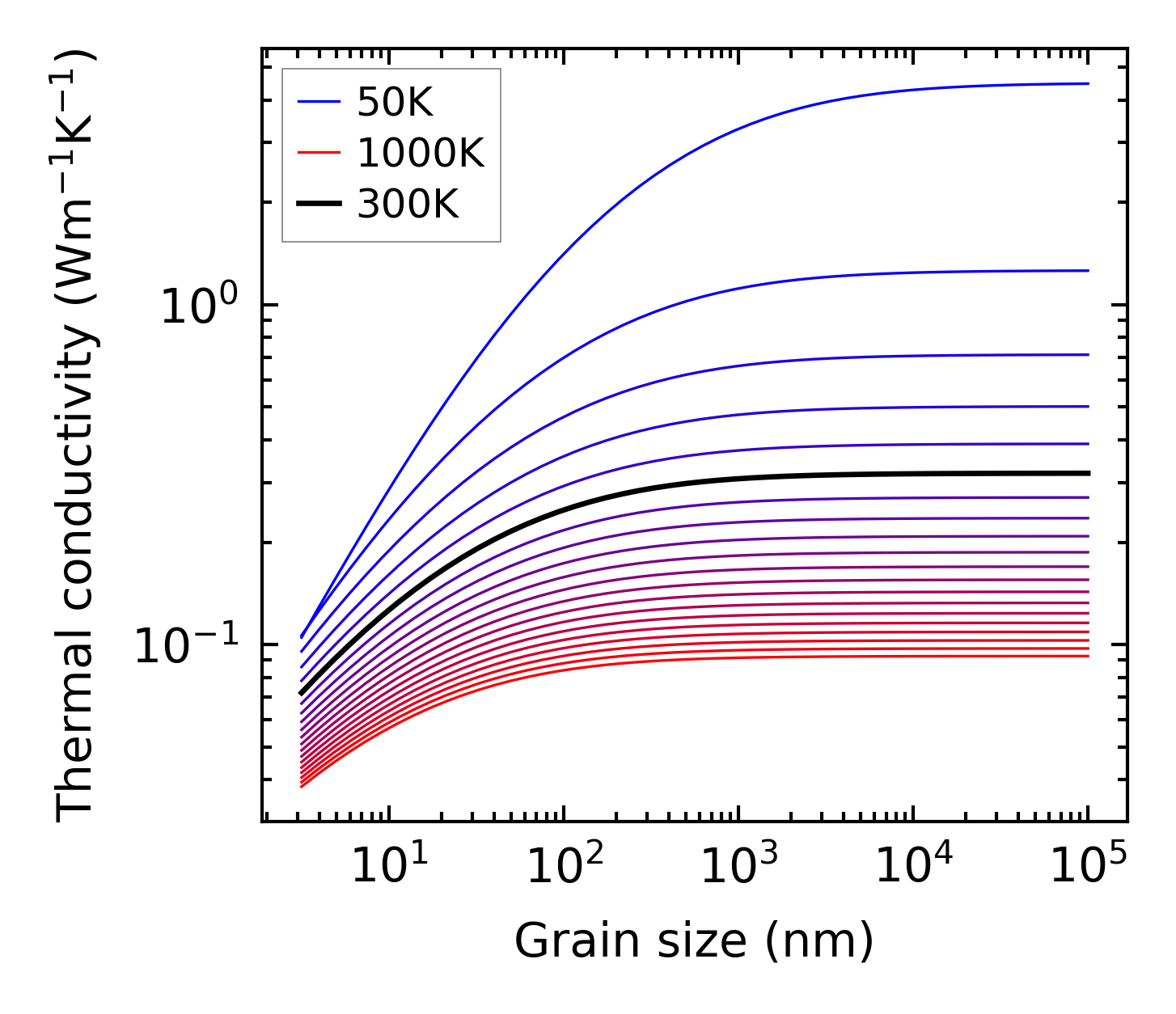

../../_images/fig_kappa_vs_grain_size5333.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime5220.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates5219.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

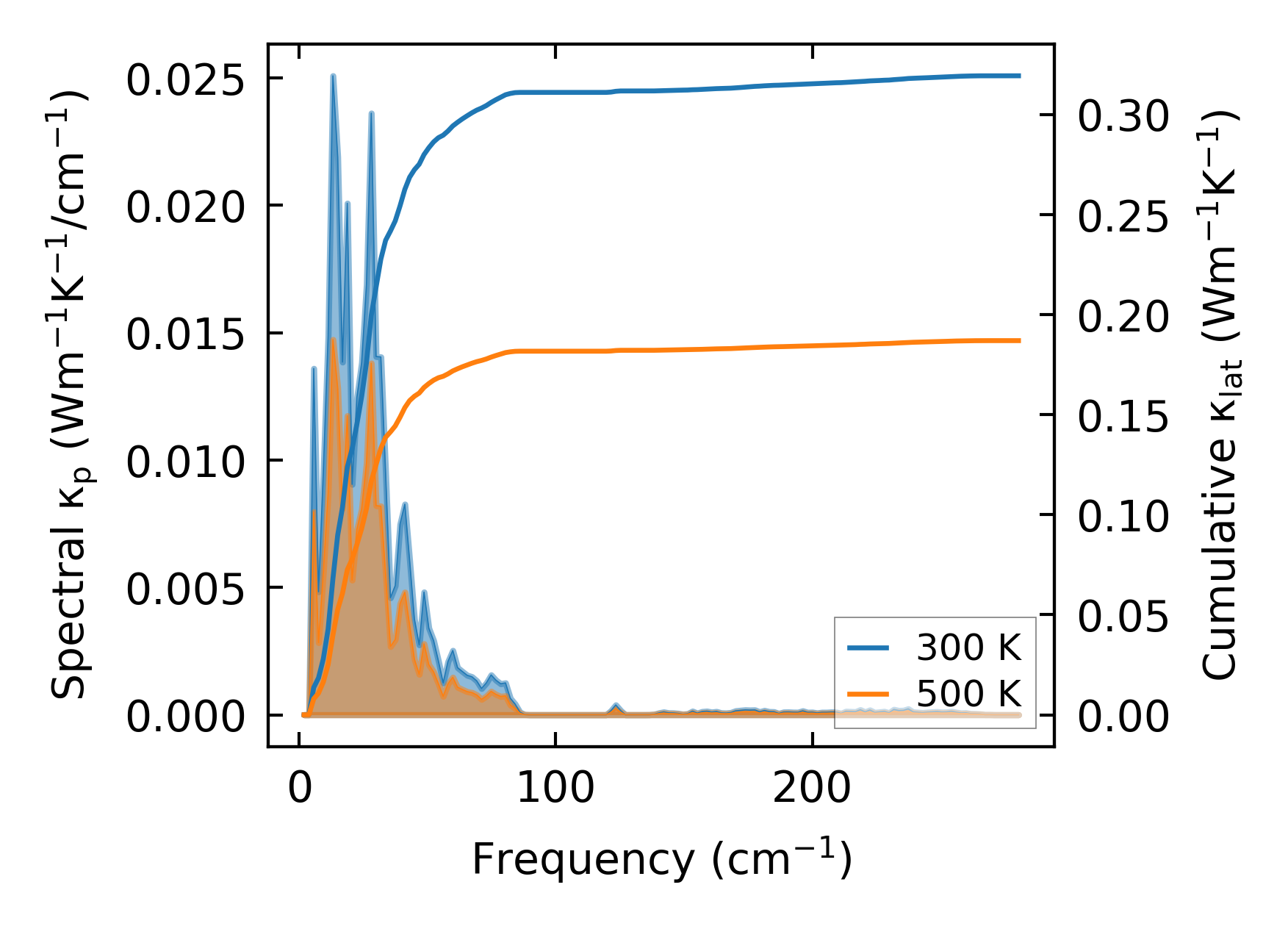

../../_images/fig_cumu_frequency5220.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp5219.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

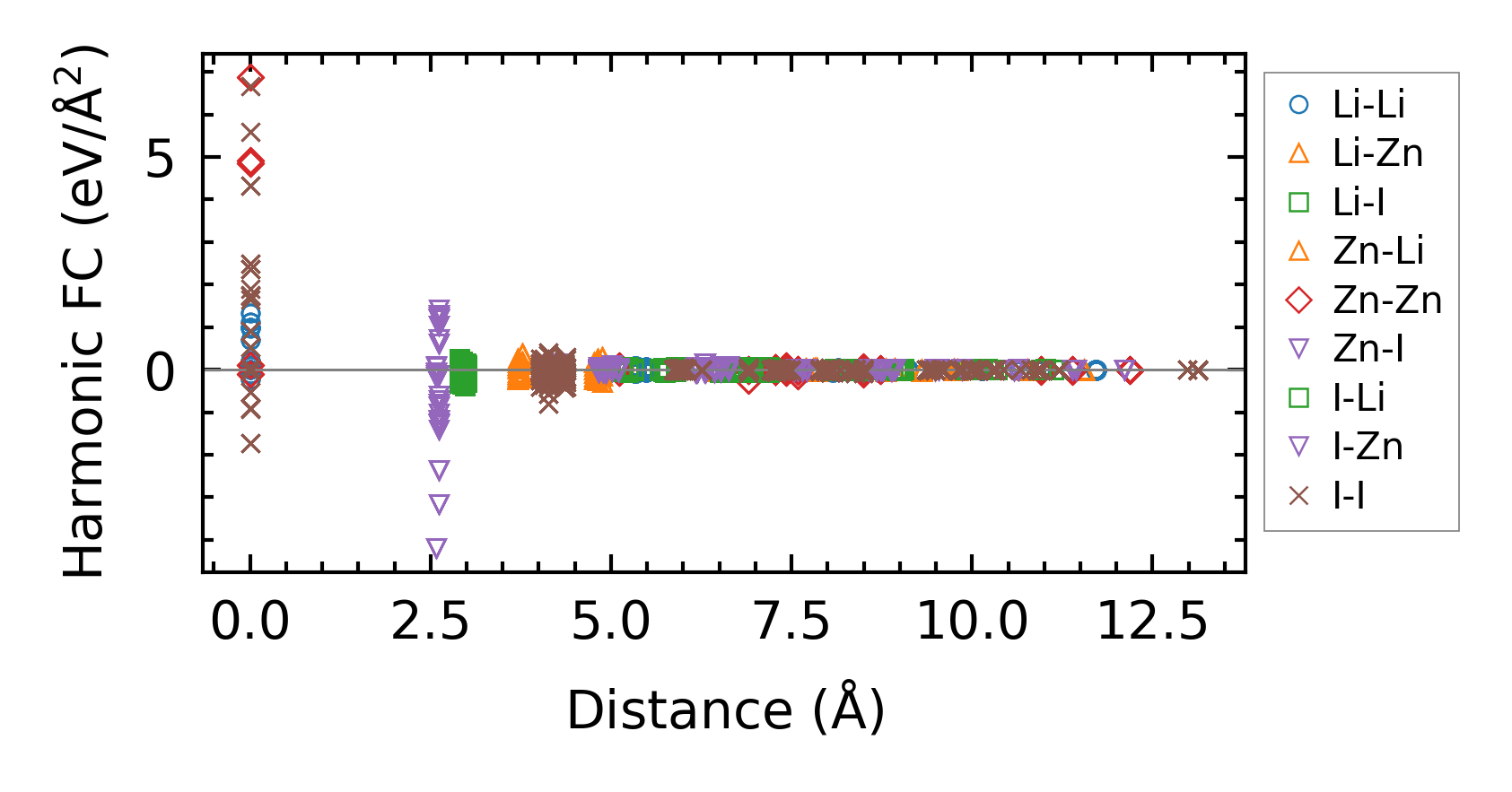

../../_images/fig_fc212407.png — (a) Force constants w.r.t atomic distance

Summary

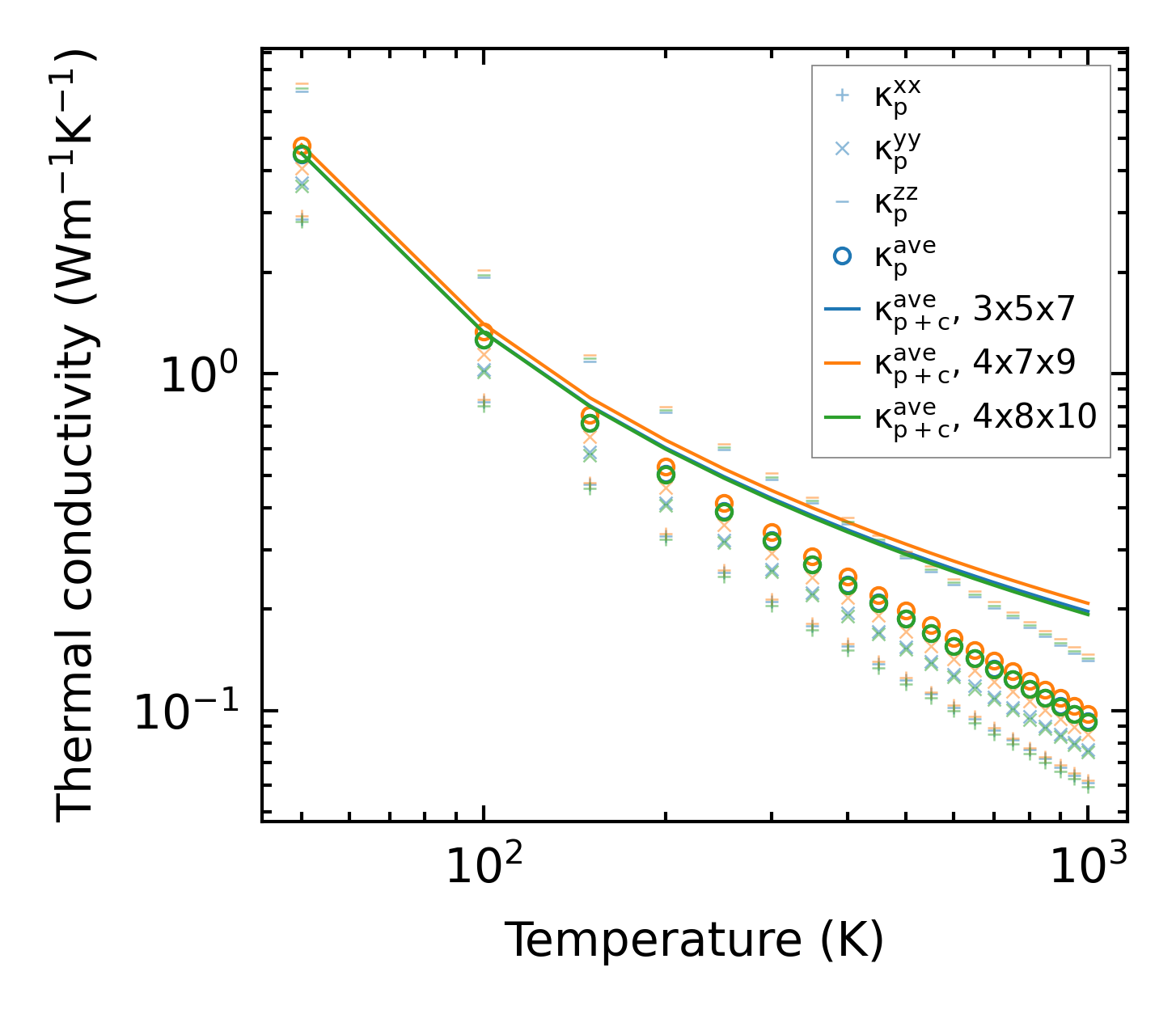

../../_images/fig_kappa9907.png — (a) Temperature-dependent lattice thermal conductivity

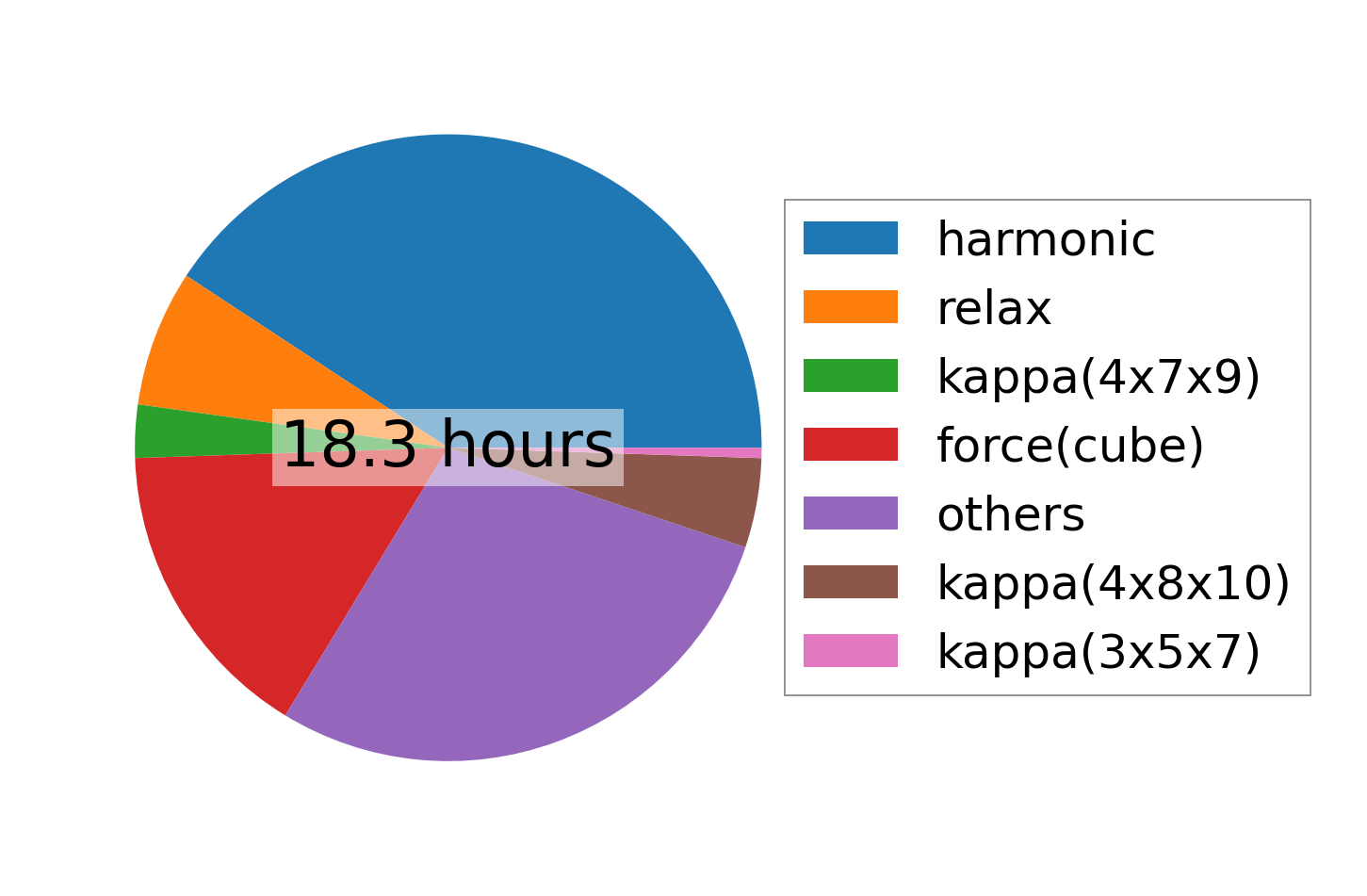

../../_images/fig_times21578.png — (b) Computation time
