mp-23352/GeBi12O20/anharm

Space group: I23 (197)
Link: Materials Project
Download: mp-23352.tar.gz

Equation of state

../../_images/fig_bm6296.png — (a) Equation of state

Harmonic properties

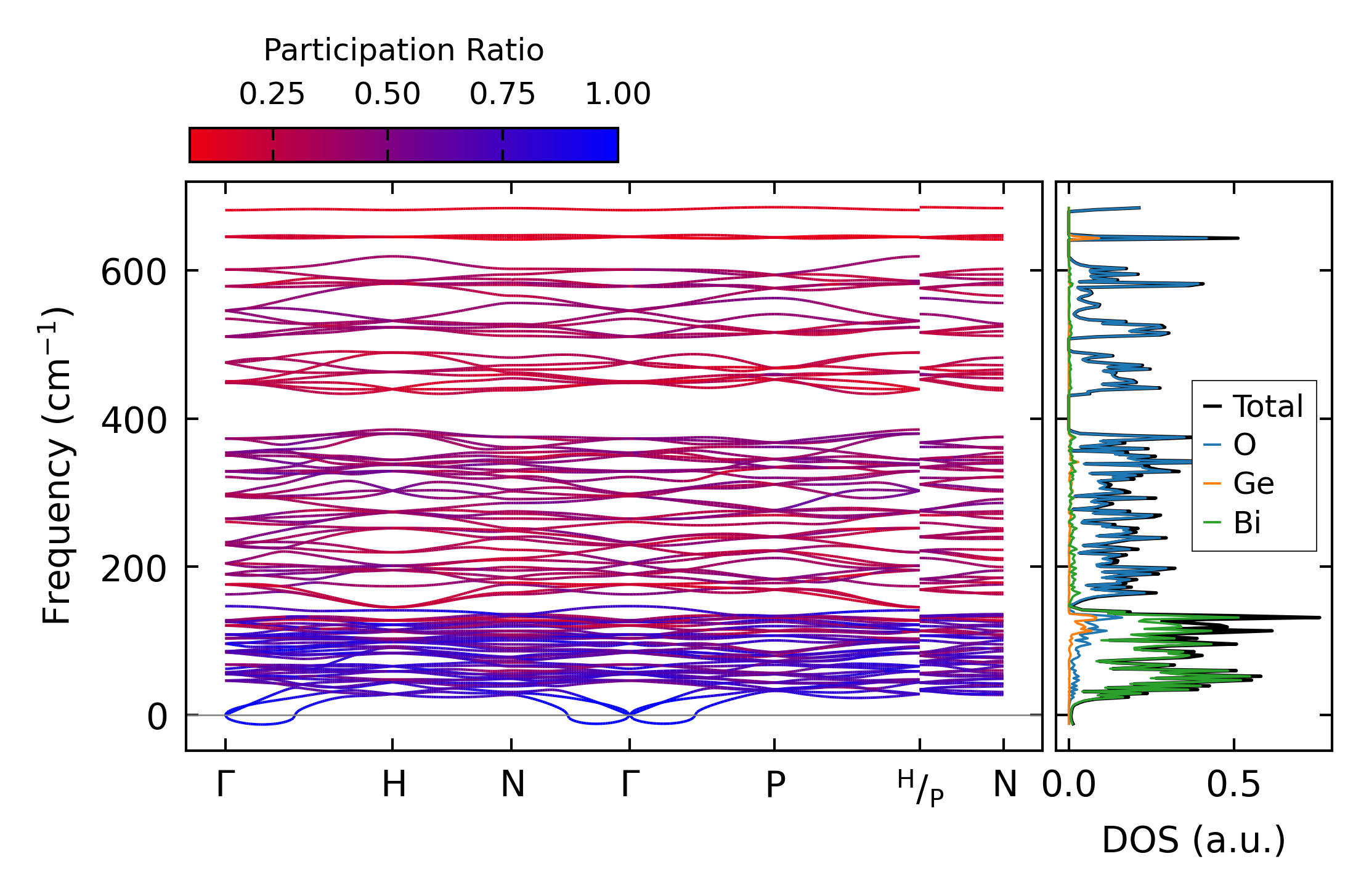

../../_images/fig_bandos_pr12633.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos17004.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo12633.png — (c) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all5232.png — (a) Grüneisen parameters

../../_images/fig_gruneisen5232.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x2 — q-mesh: 8x8x8, supercell: 2x2x2

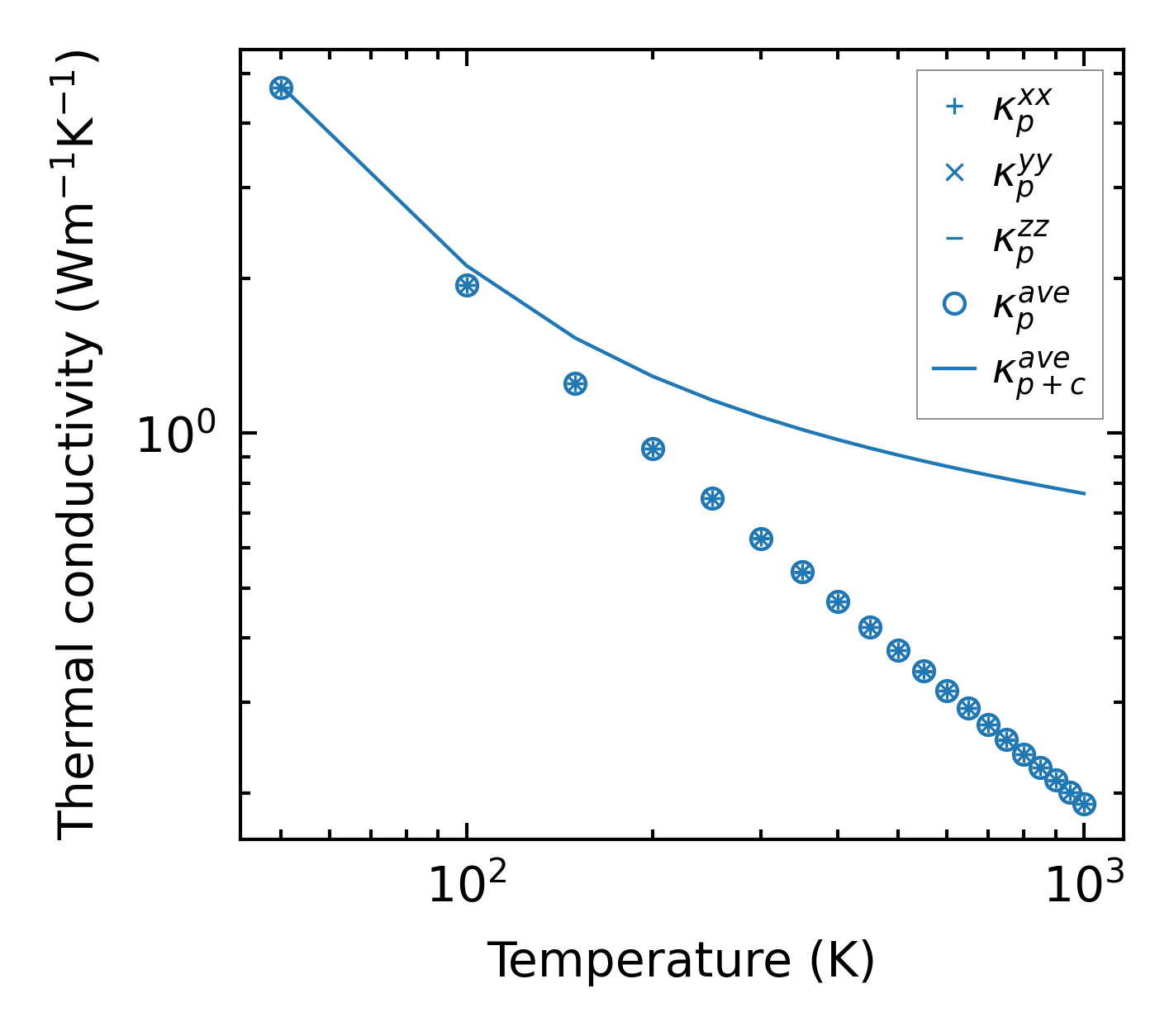

../../_images/fig_kappa9835.png — (a) Temperature-dependent lattice thermal conductivity

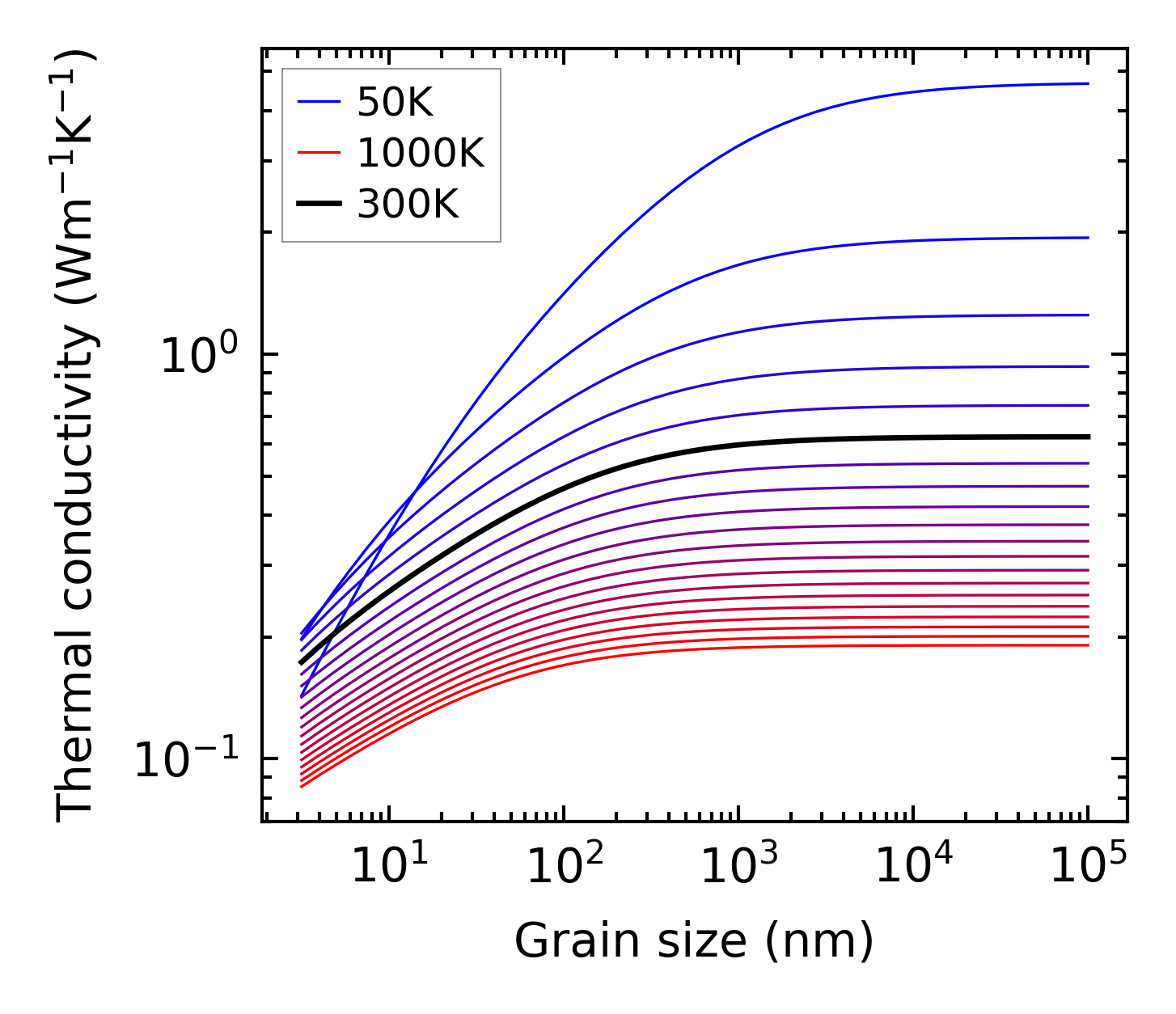

../../_images/fig_kappa_vs_grain_size5294.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

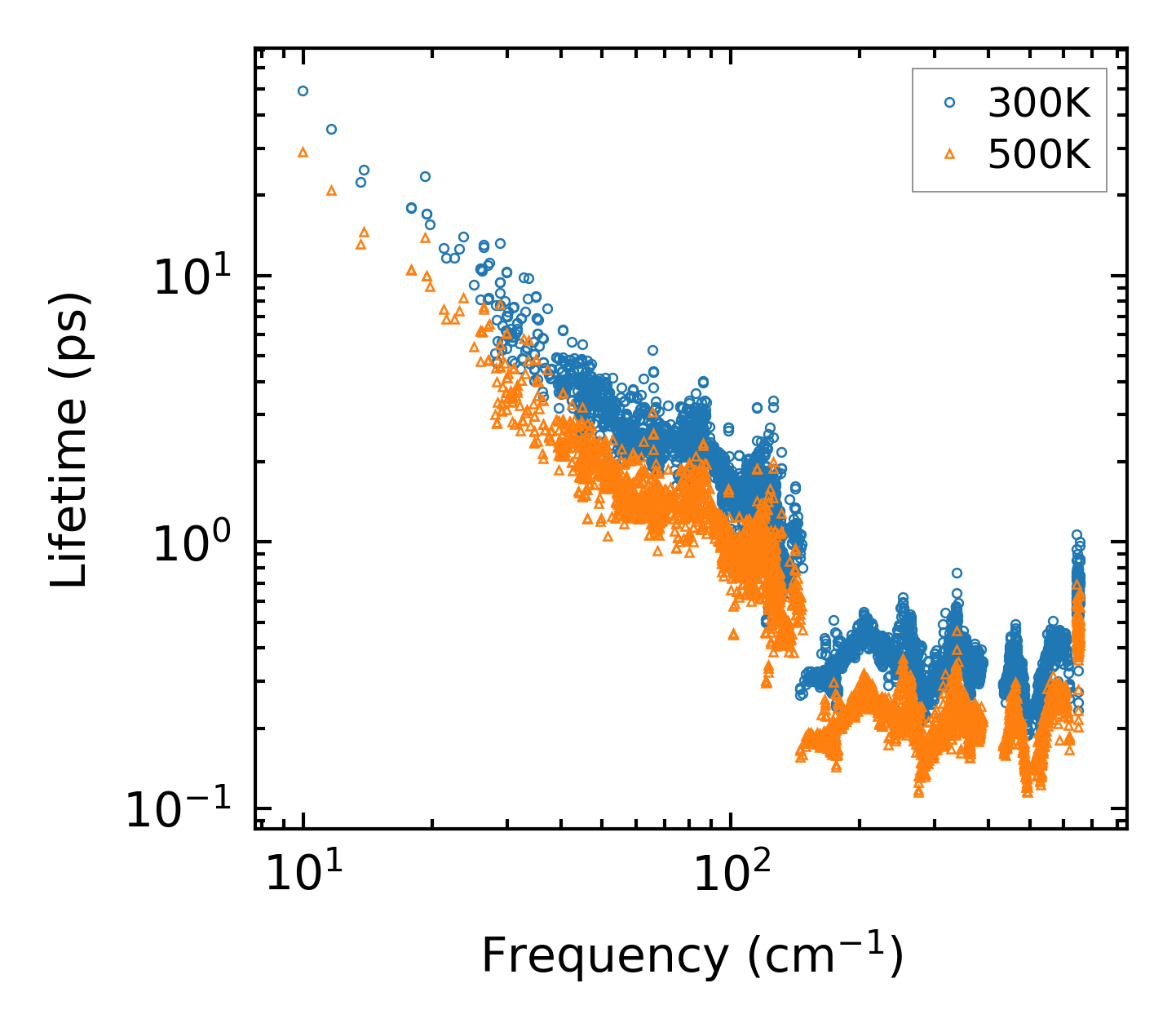

../../_images/fig_lifetime5181.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates5180.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

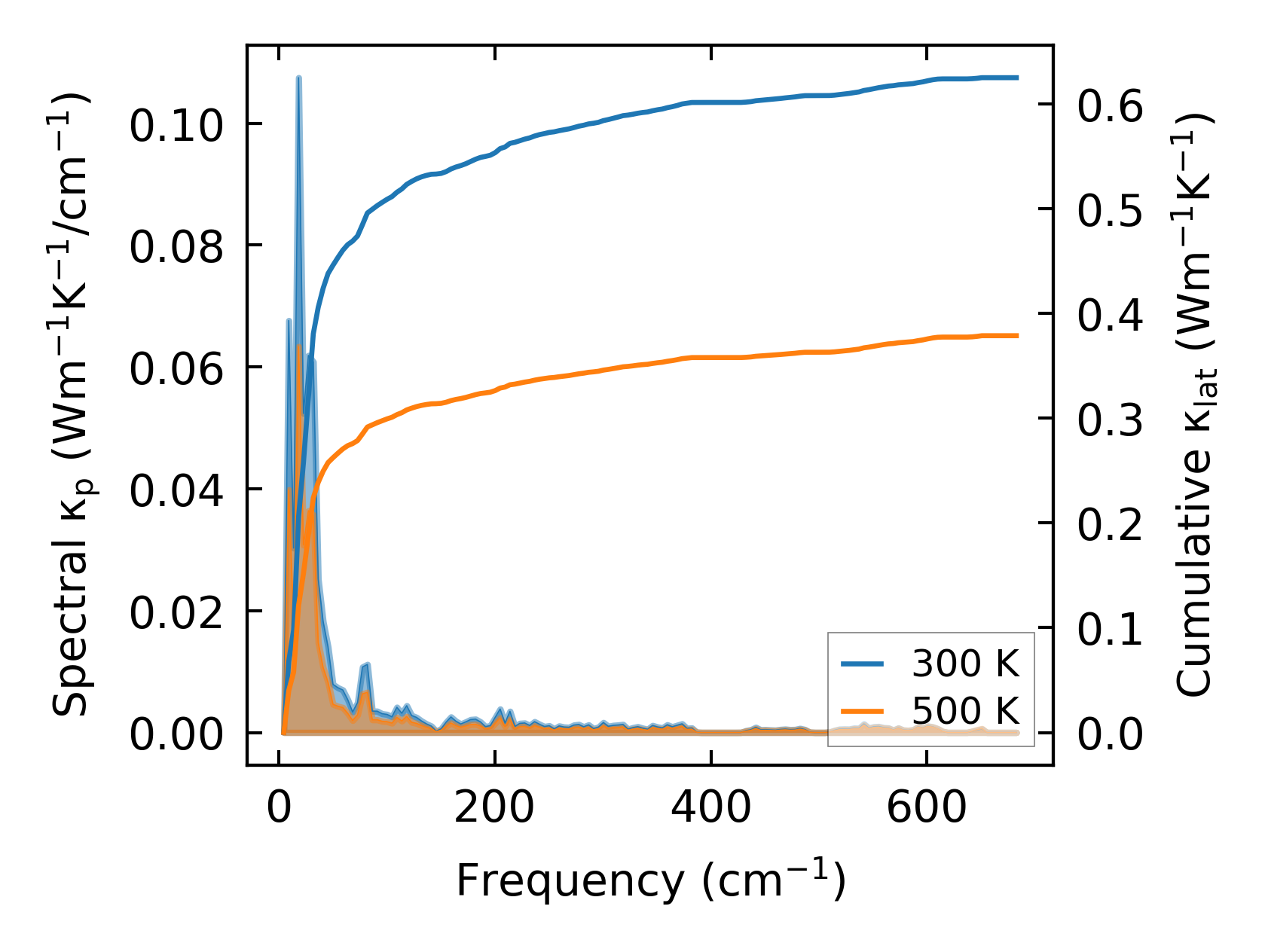

../../_images/fig_cumu_frequency5181.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

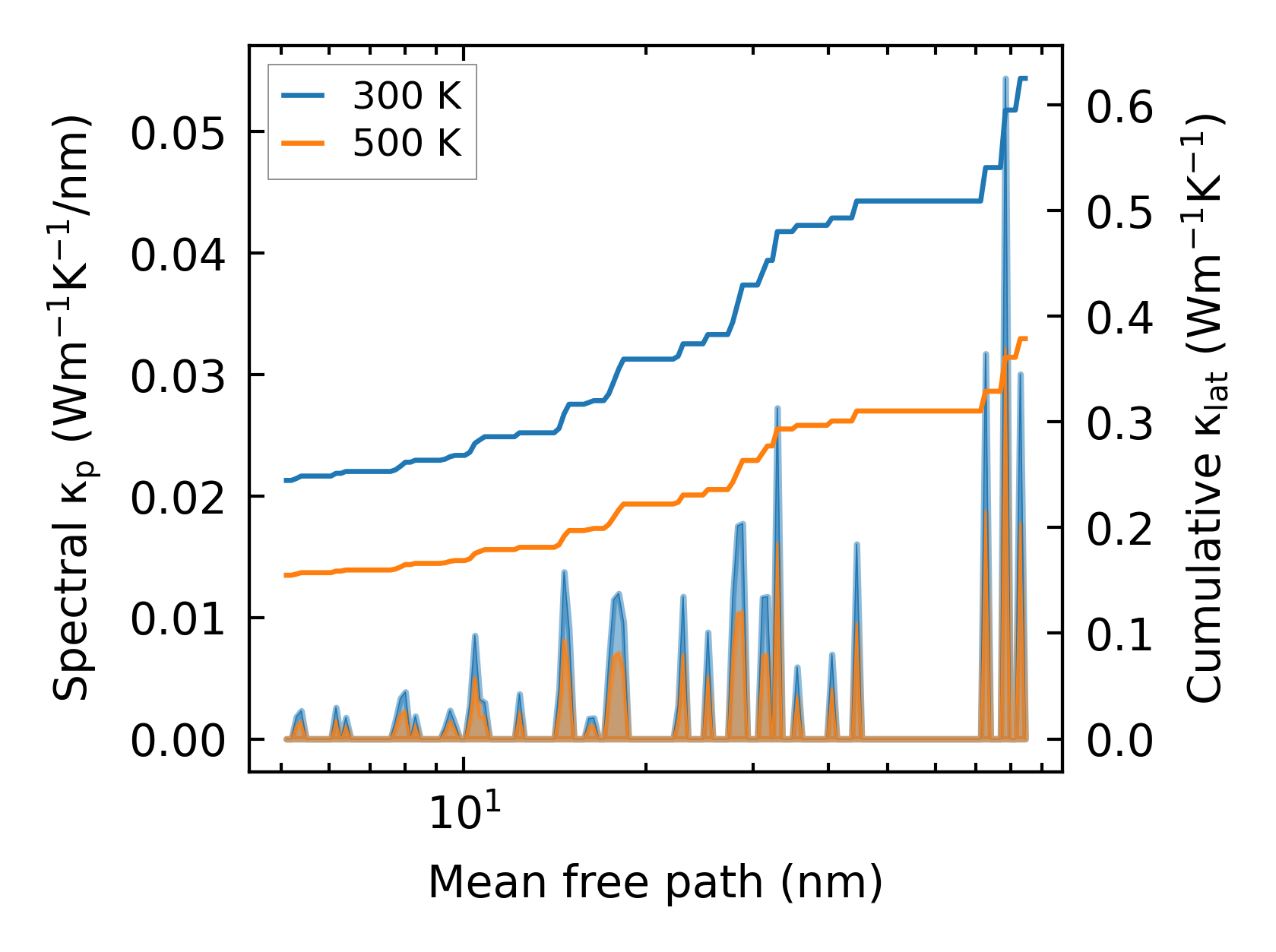

../../_images/fig_cumu_mfp5180.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

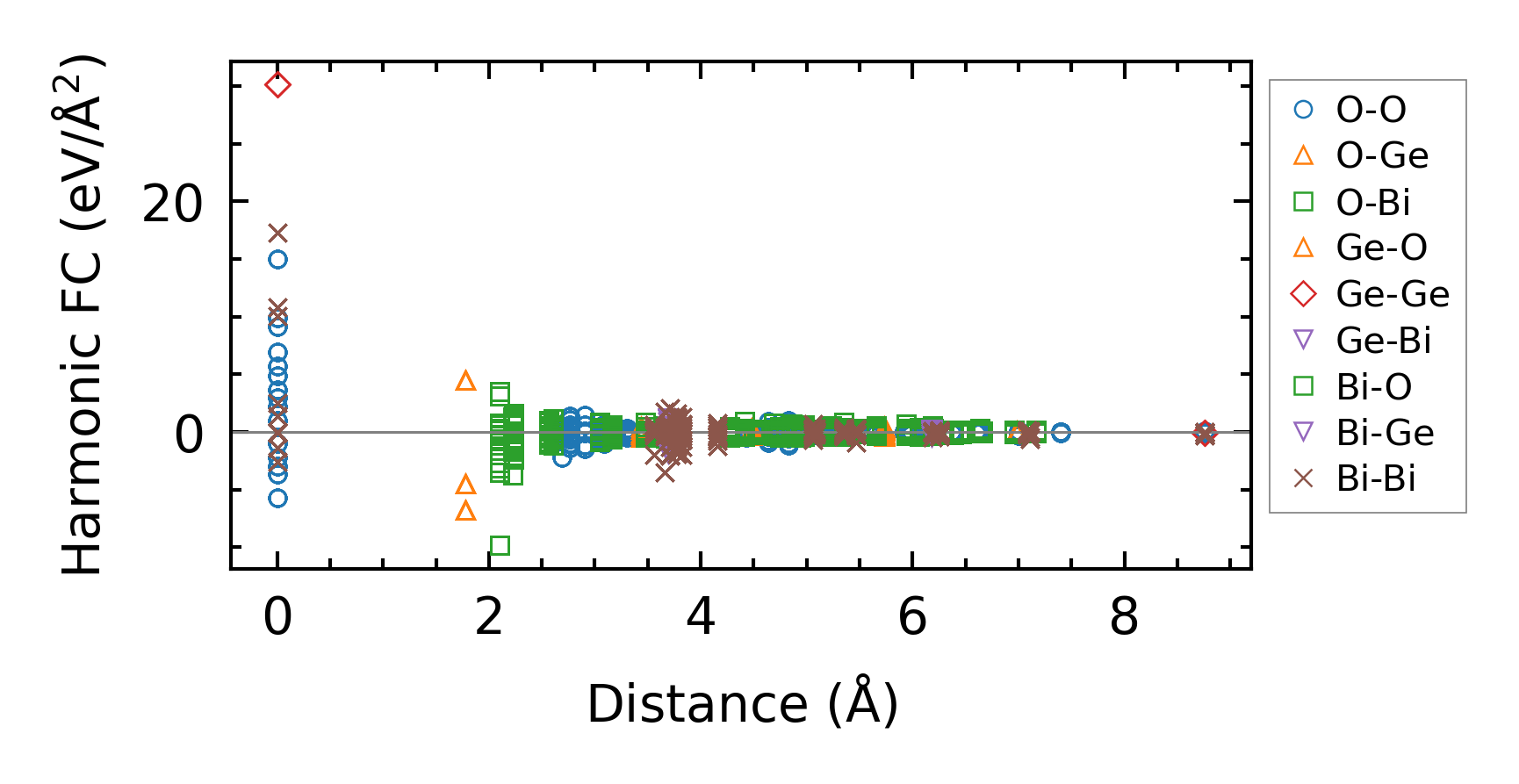

../../_images/fig_fc212330.png — (a) Force constants w.r.t atomic distance

Summary

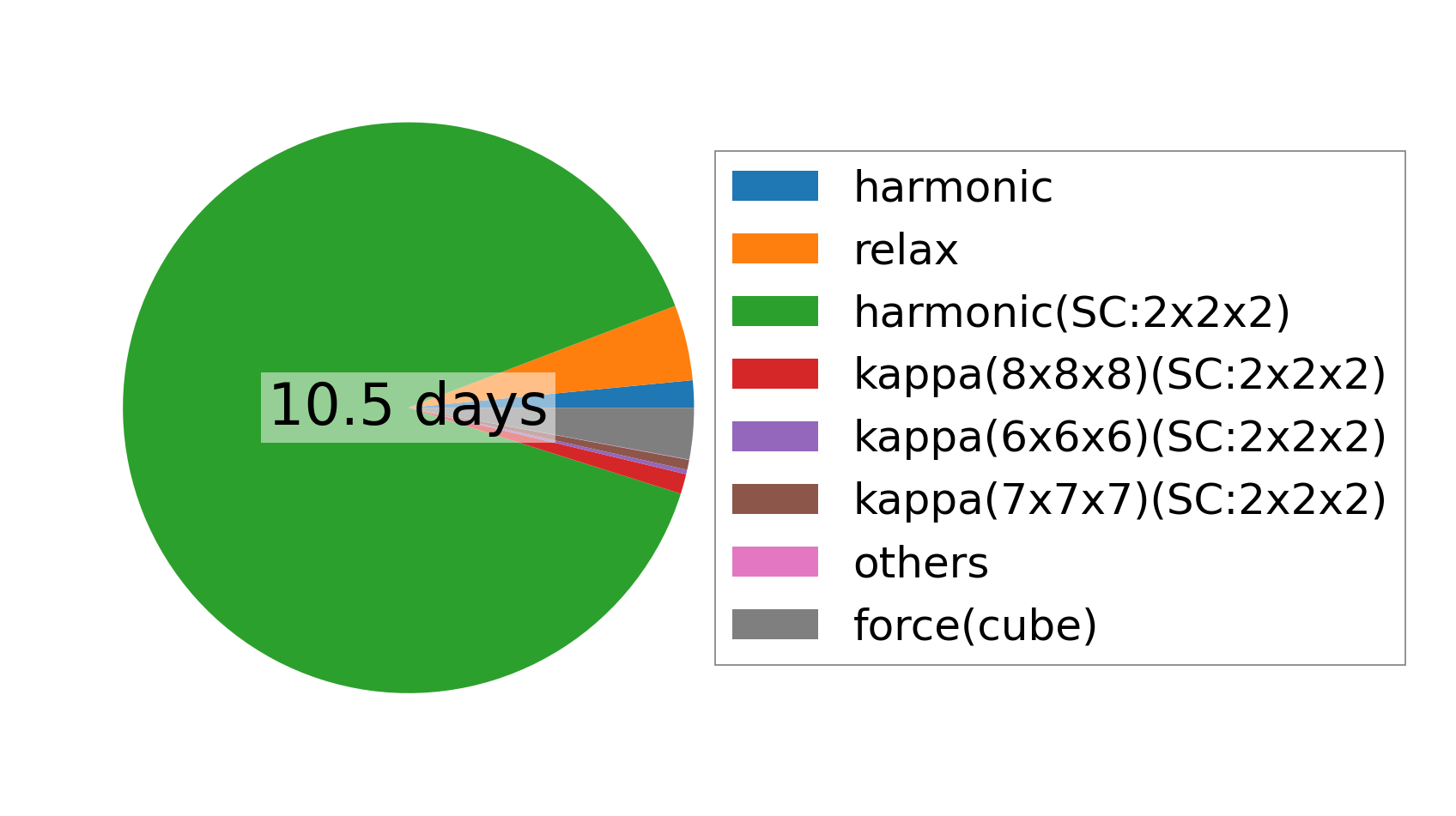

../../_images/fig_times21461.png — (a) Computation time
