mp-9993-2/Al2CdS4/anharm

Space group: Fd-3m (227)
Link: Materials Project
Download: mp-9993-2.tar.gz

Equation of state

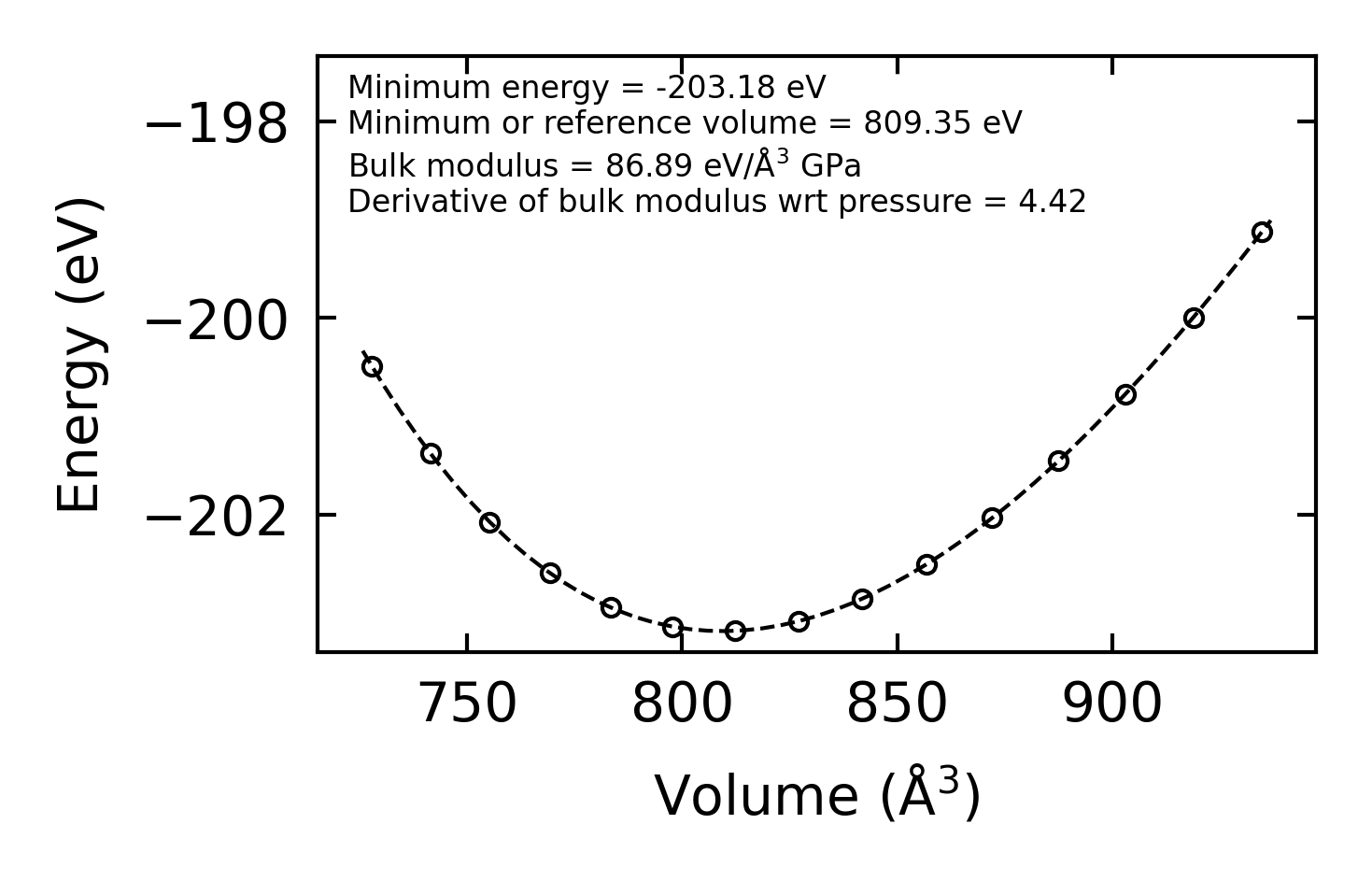

../../_images/fig_bm454.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr1291.png — (a) Phonon dispersion with participation ratio and DOS

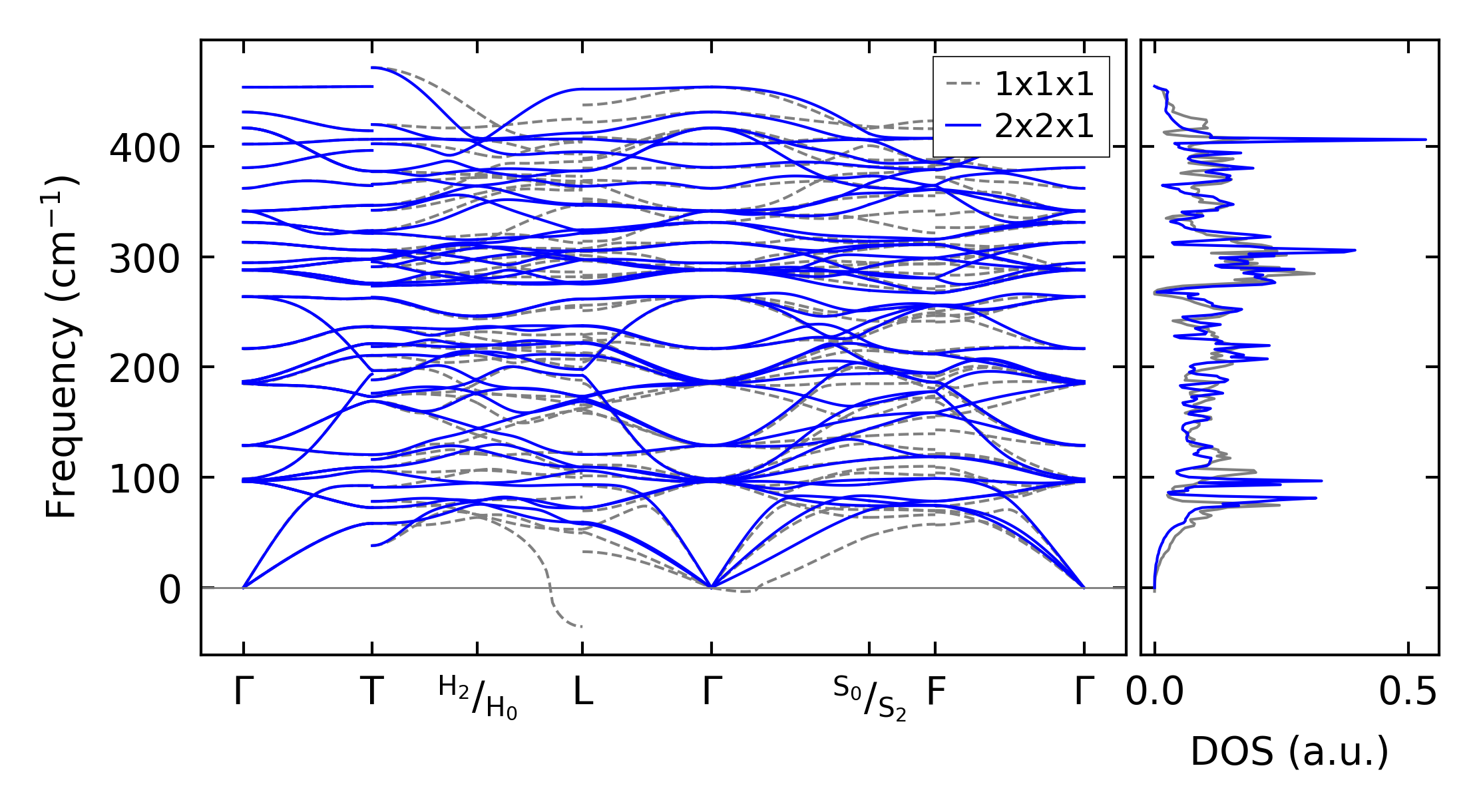

../../_images/fig_bandos1202.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo1291.png — (c) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all796.png — (a) Grüneisen parameters

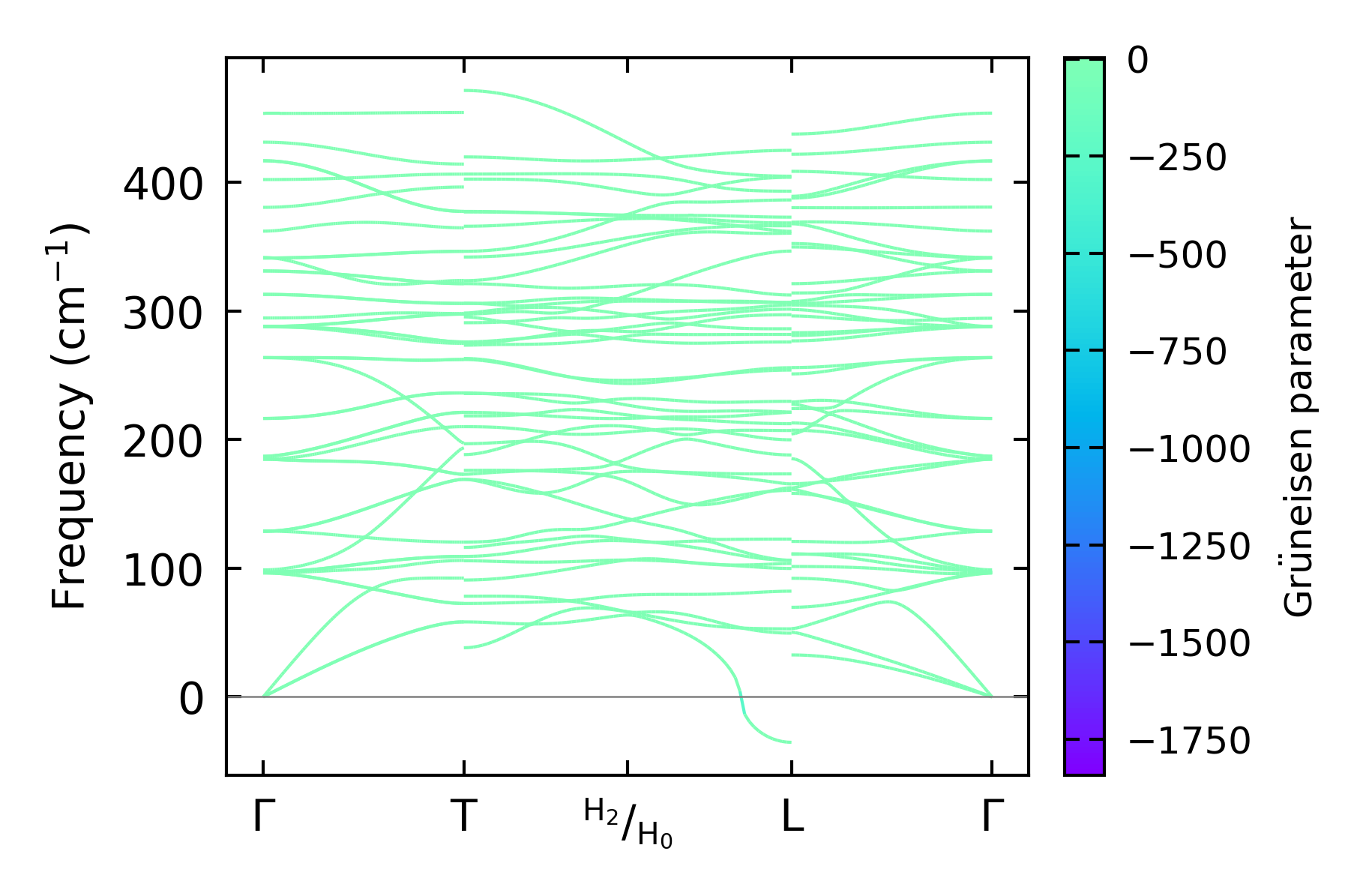

../../_images/fig_gruneisen796.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x1 — q-mesh: 11x11x11, supercell: 2x2x1

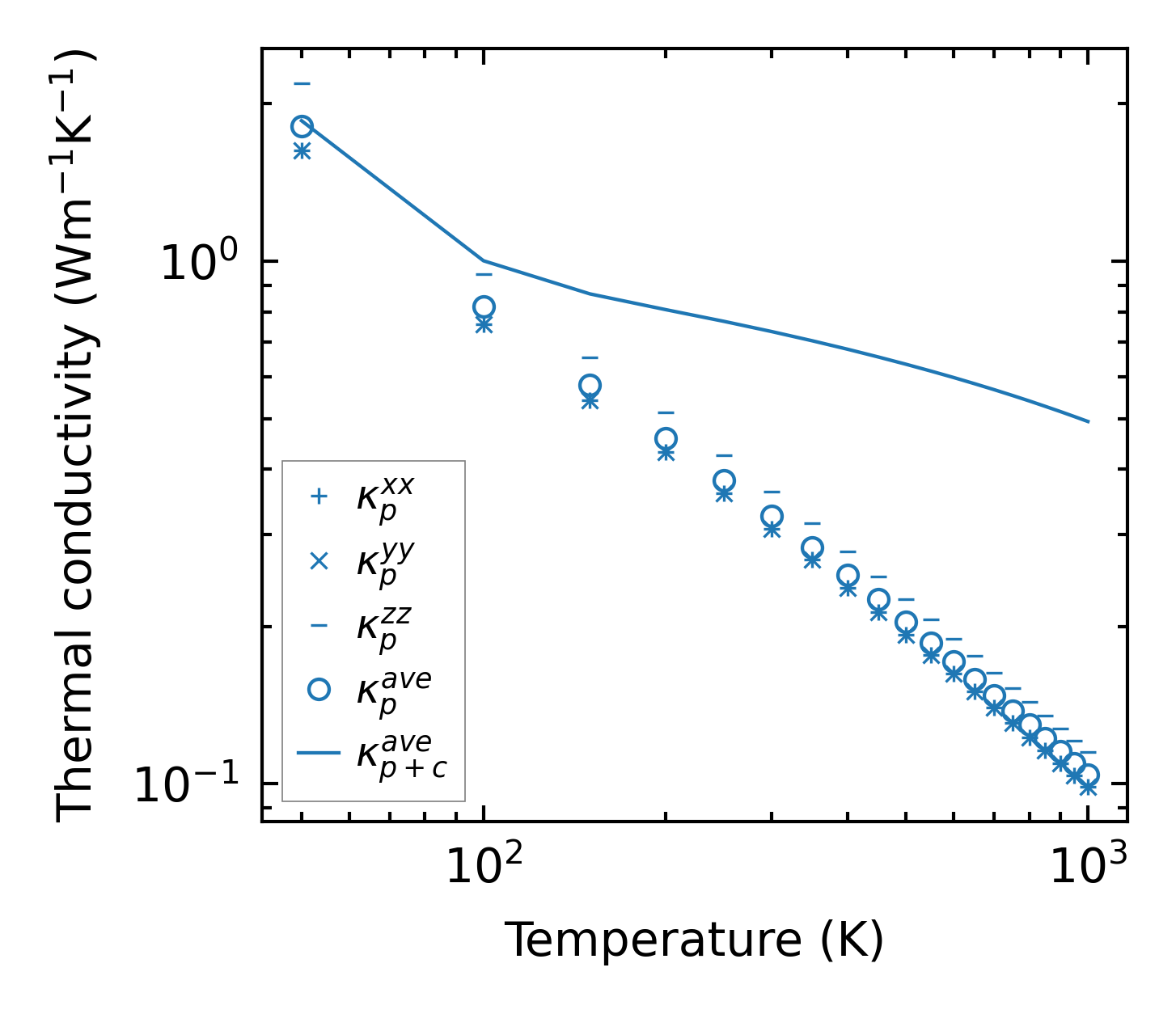

../../_images/fig_kappa1546.png — (a) Temperature-dependent lattice thermal conductivity

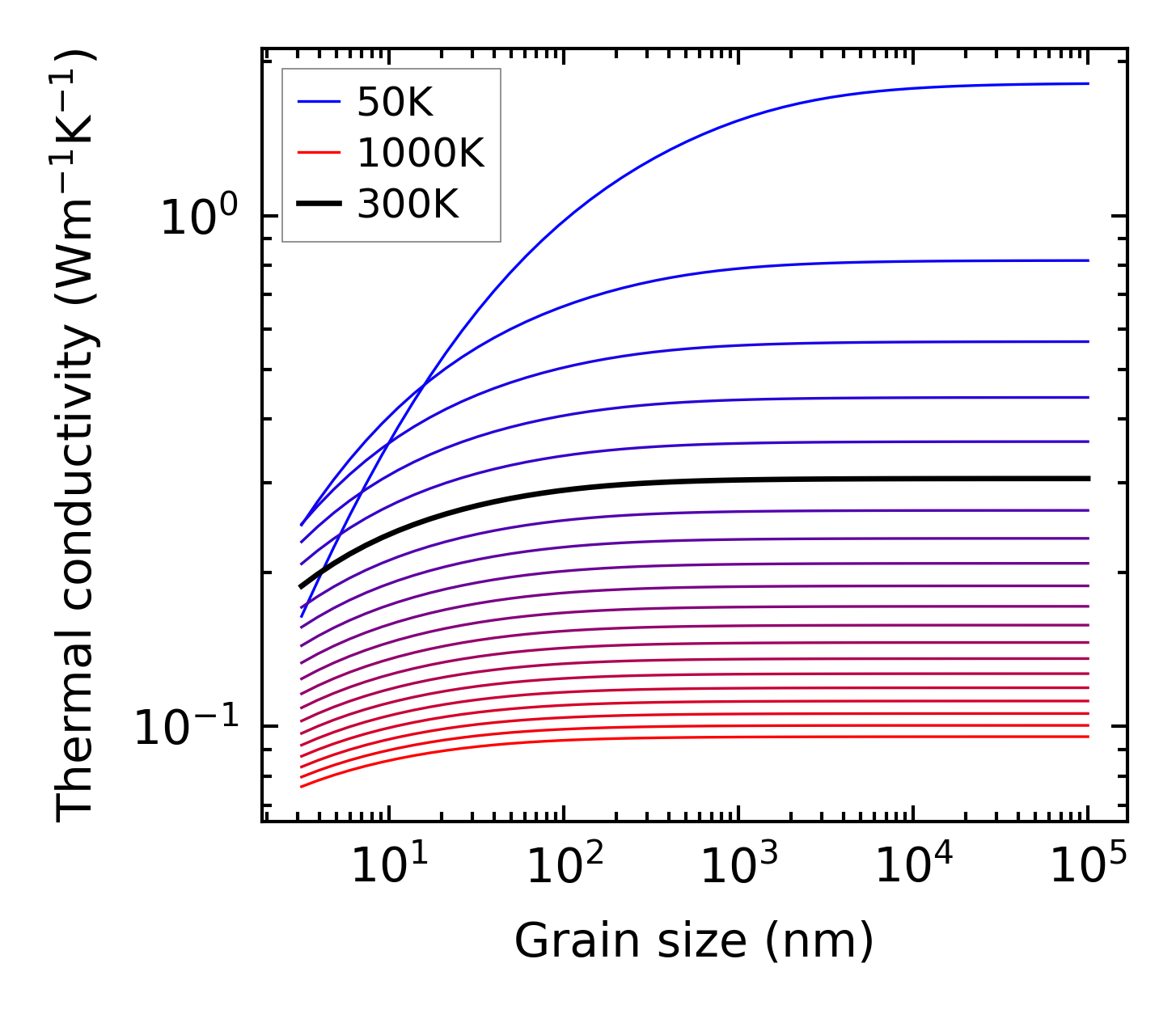

../../_images/fig_kappa_vs_grain_size805.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime790.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates789.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

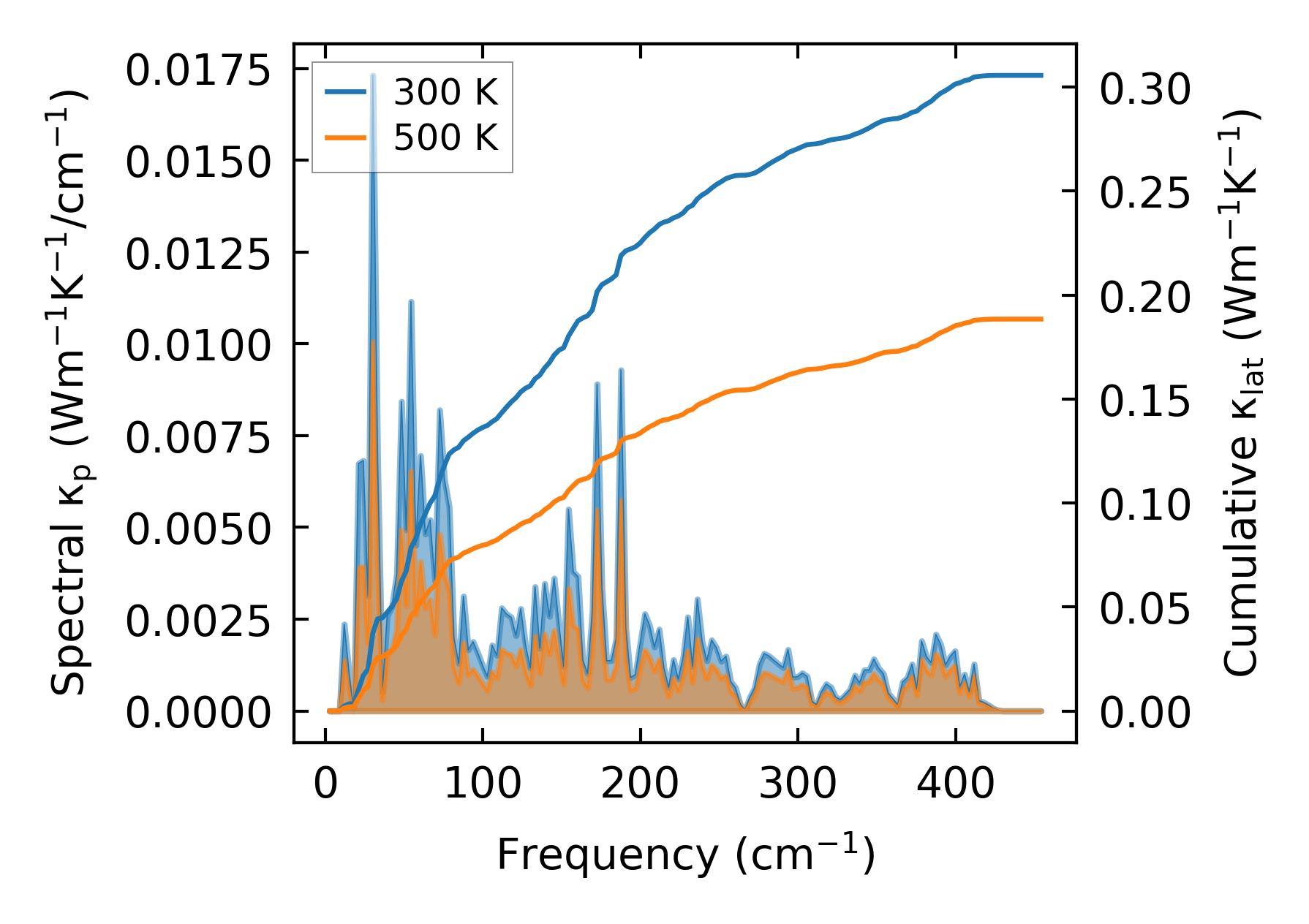

../../_images/fig_cumu_frequency790.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

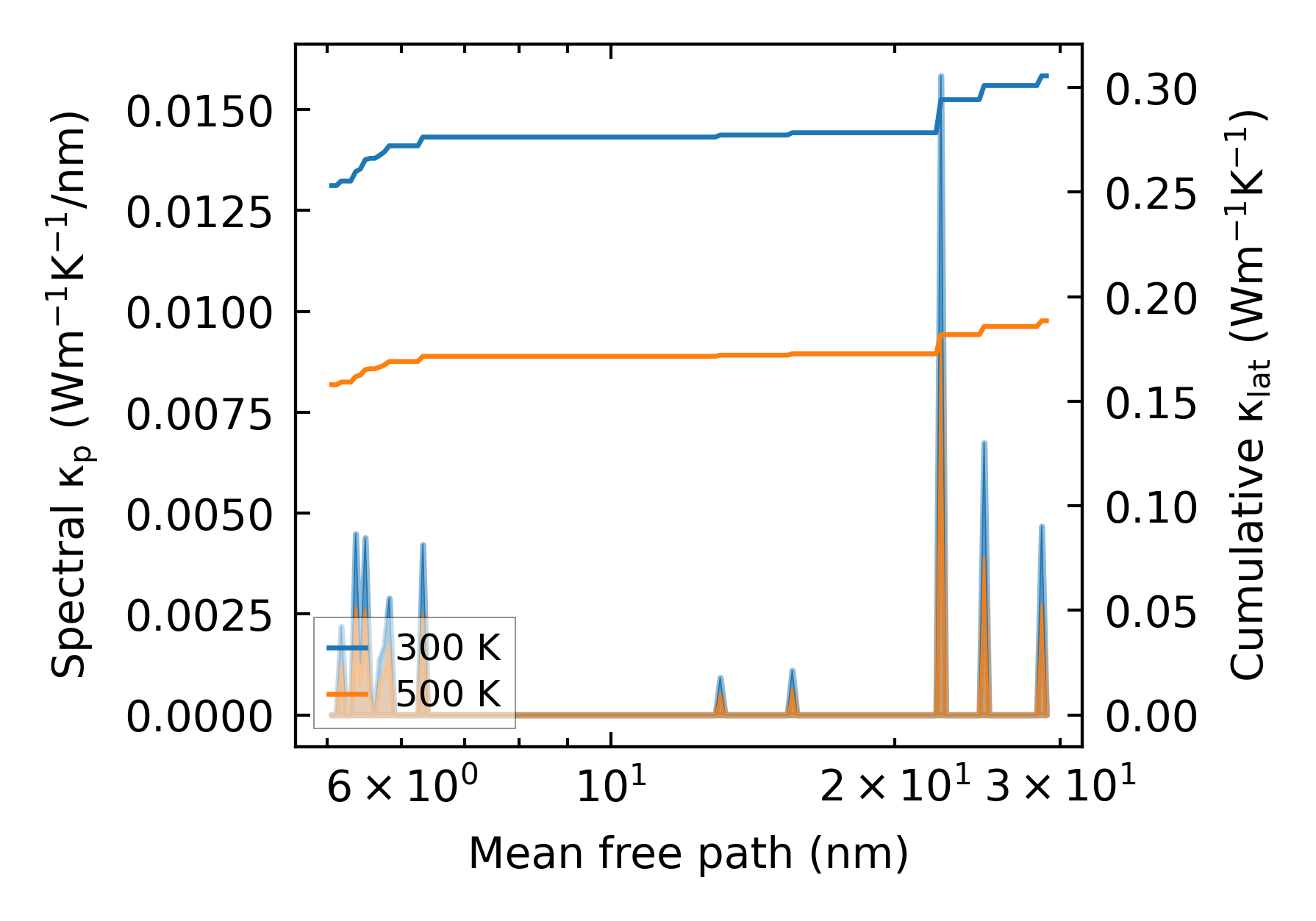

../../_images/fig_cumu_mfp790.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

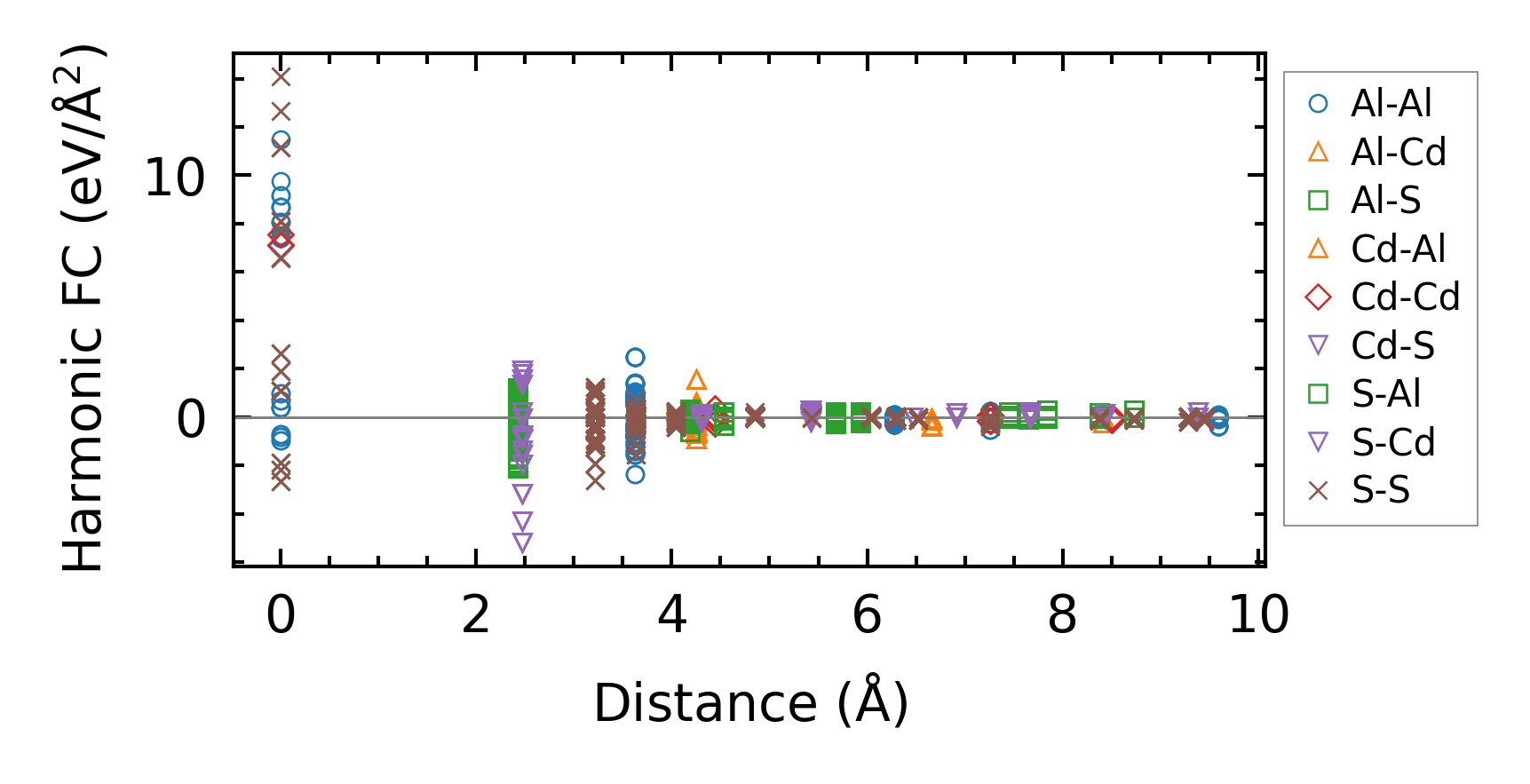

../../_images/fig_fc21157.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_times1929.png — (a) Computation time
