mp-9035/NaLuS2/anharm

Space group: R-3m (166)
Link: Materials Project
Download: mp-9035.tar.gz

Harmonic properties

../../_images/fig_bandos_pr1347.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1347.png — (b) Thermodynamic properties

Grüneisen parameters

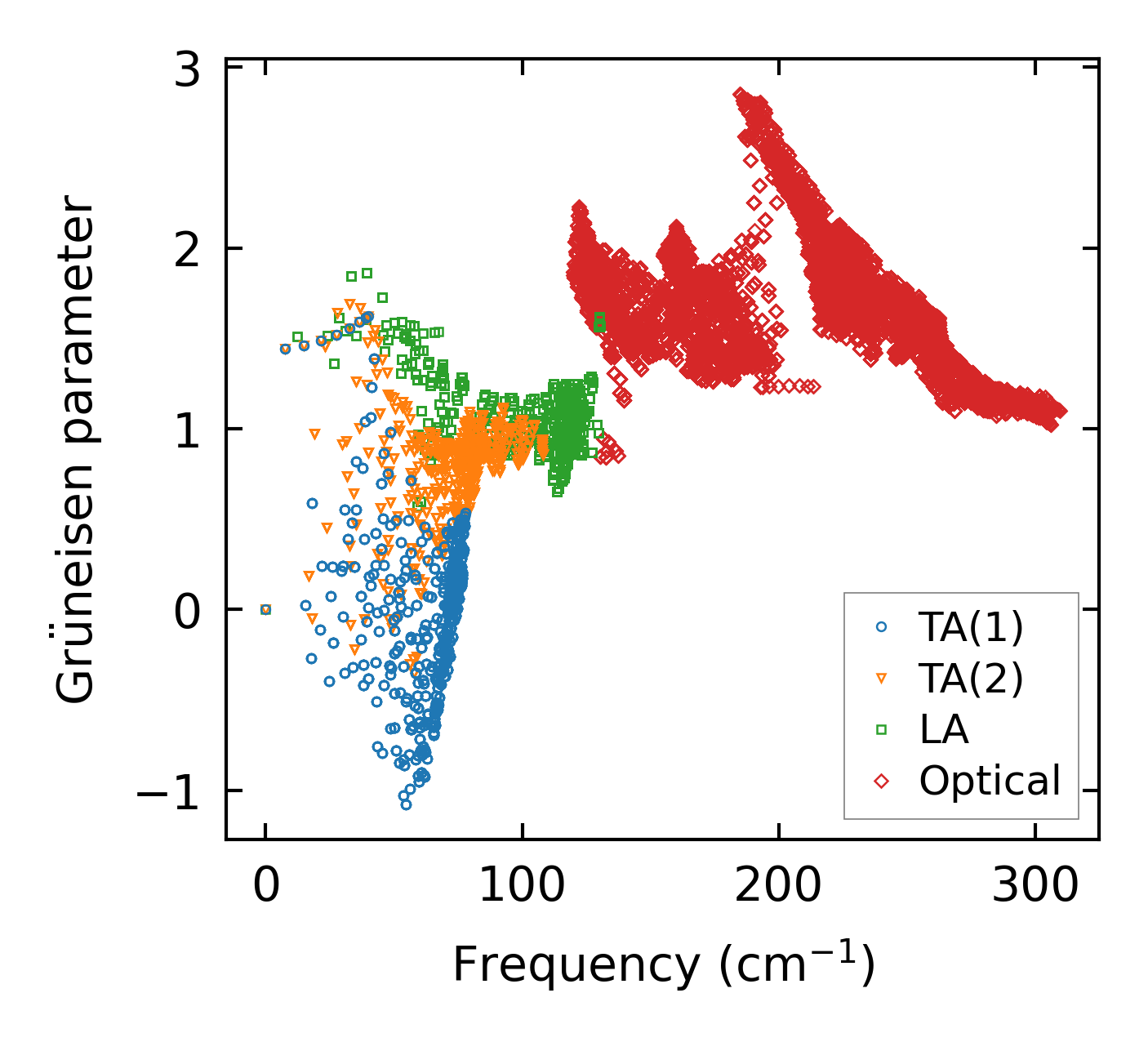

../../_images/fig_gru_all828.png — (a) Grüneisen parameters

../../_images/fig_gruneisen828.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 16x16x16, supercell: 3x3x1

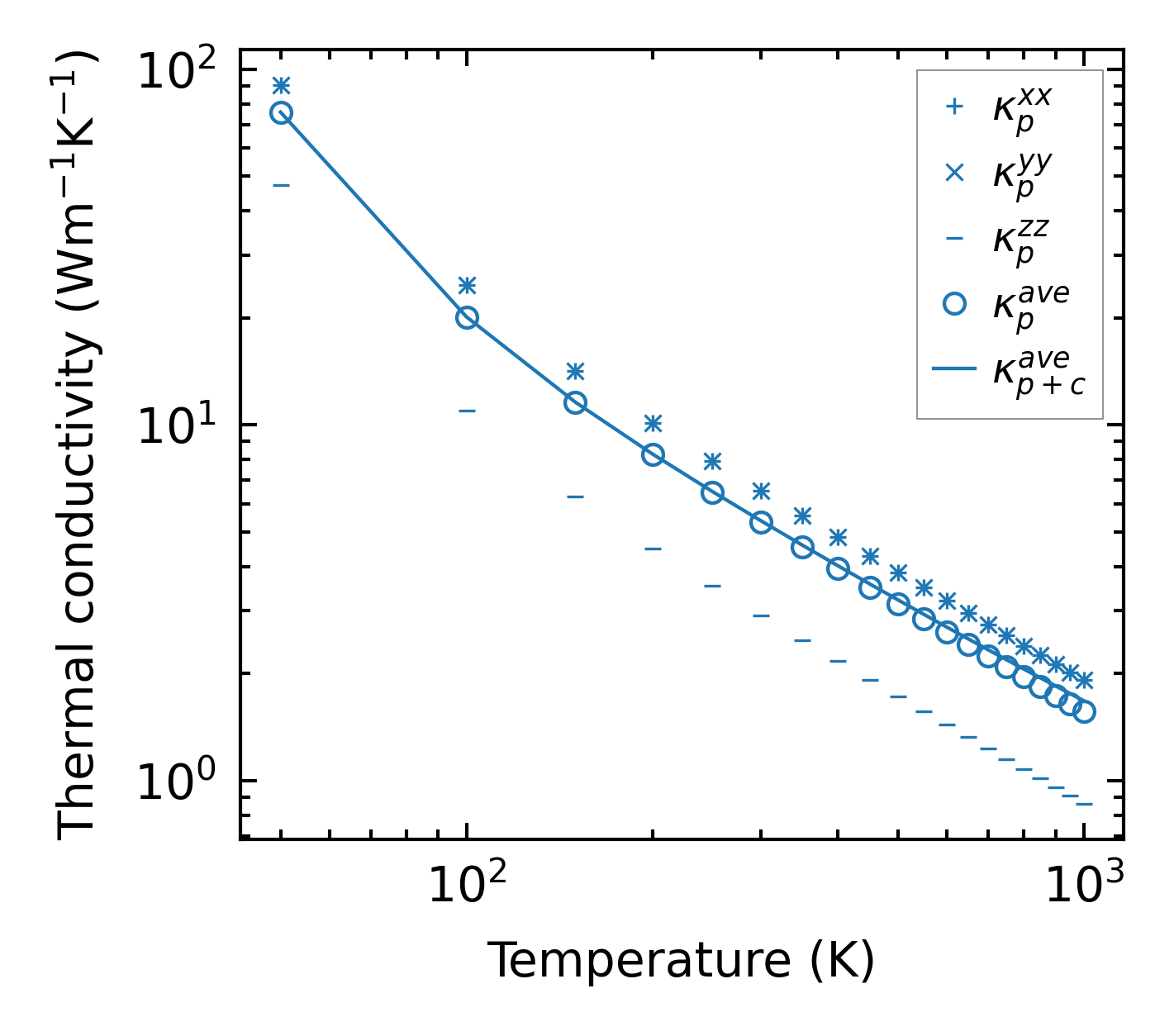

../../_images/fig_kappa1607.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size837.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

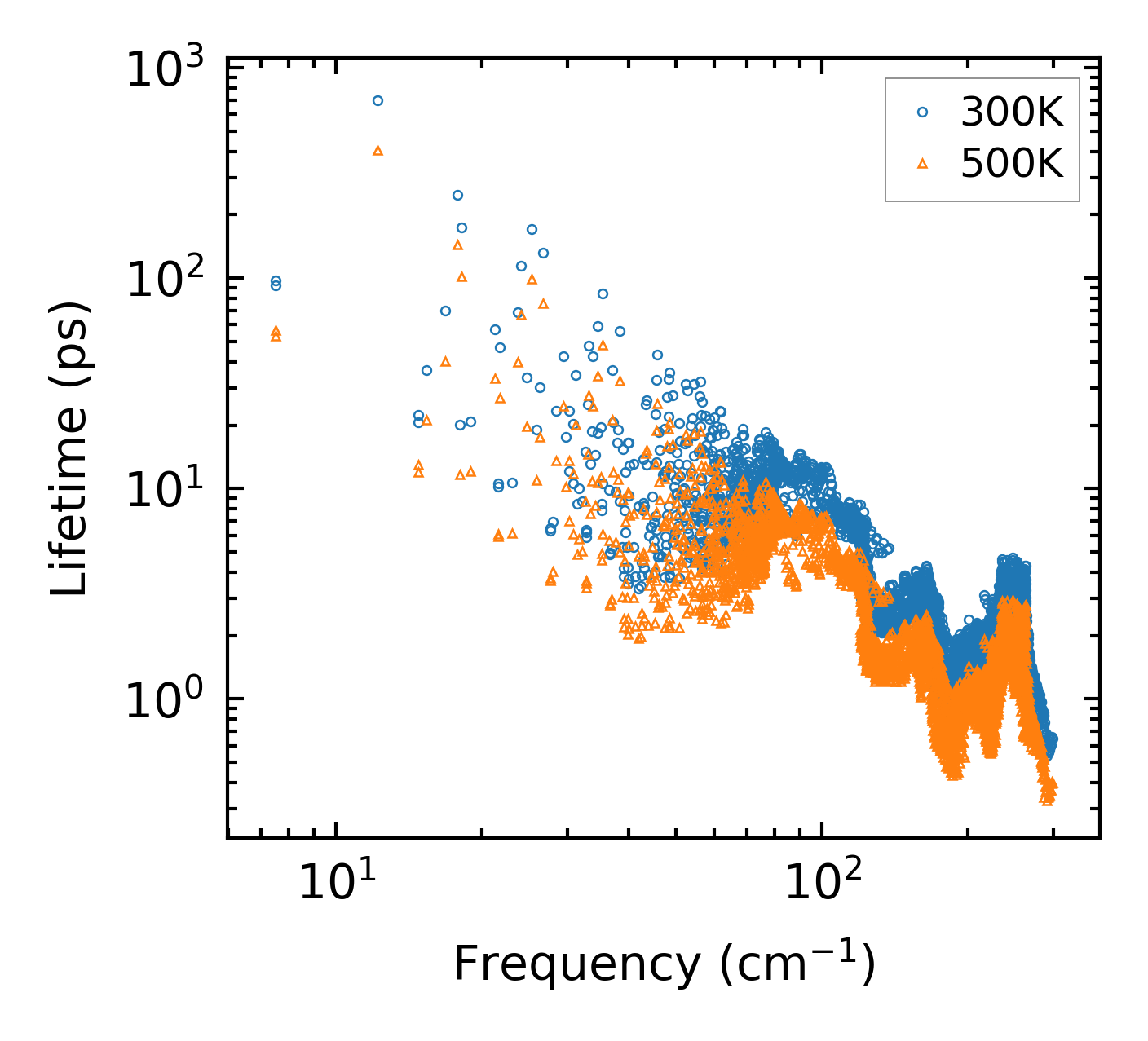

../../_images/fig_lifetime822.png — (a) Phonon lifetime due to phonon-phonon scattering

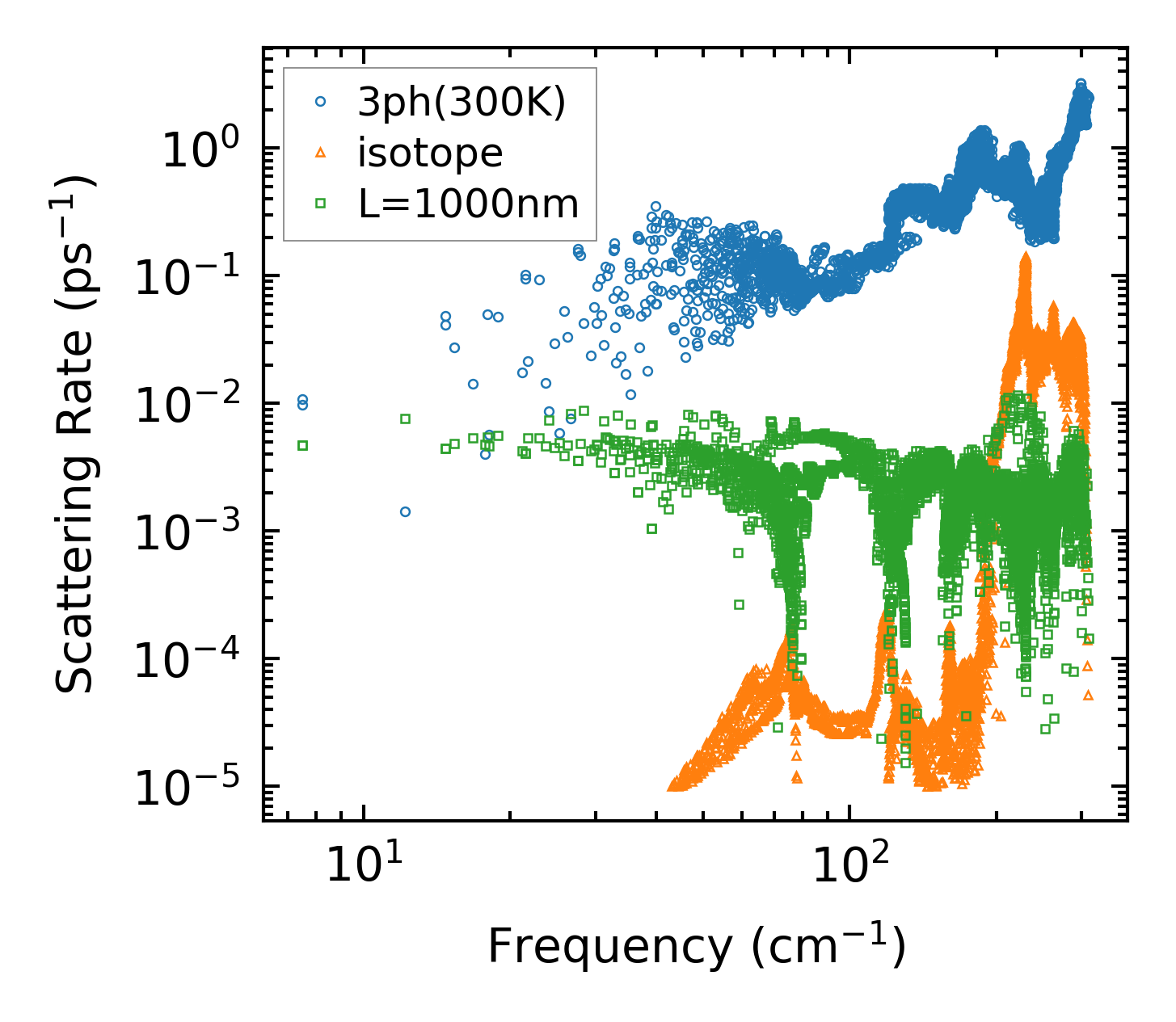

../../_images/fig_scat_rates821.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

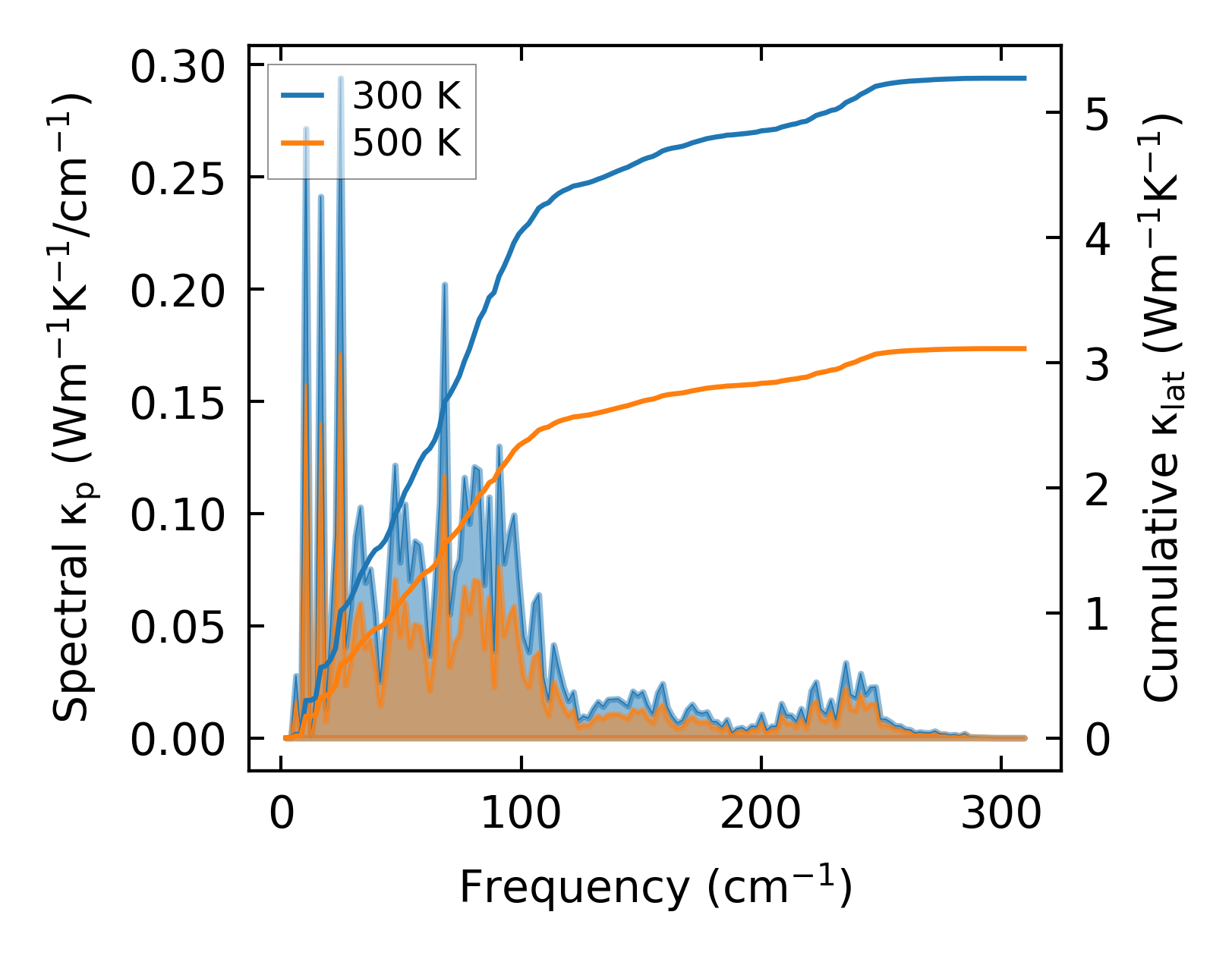

../../_images/fig_cumu_frequency822.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp822.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

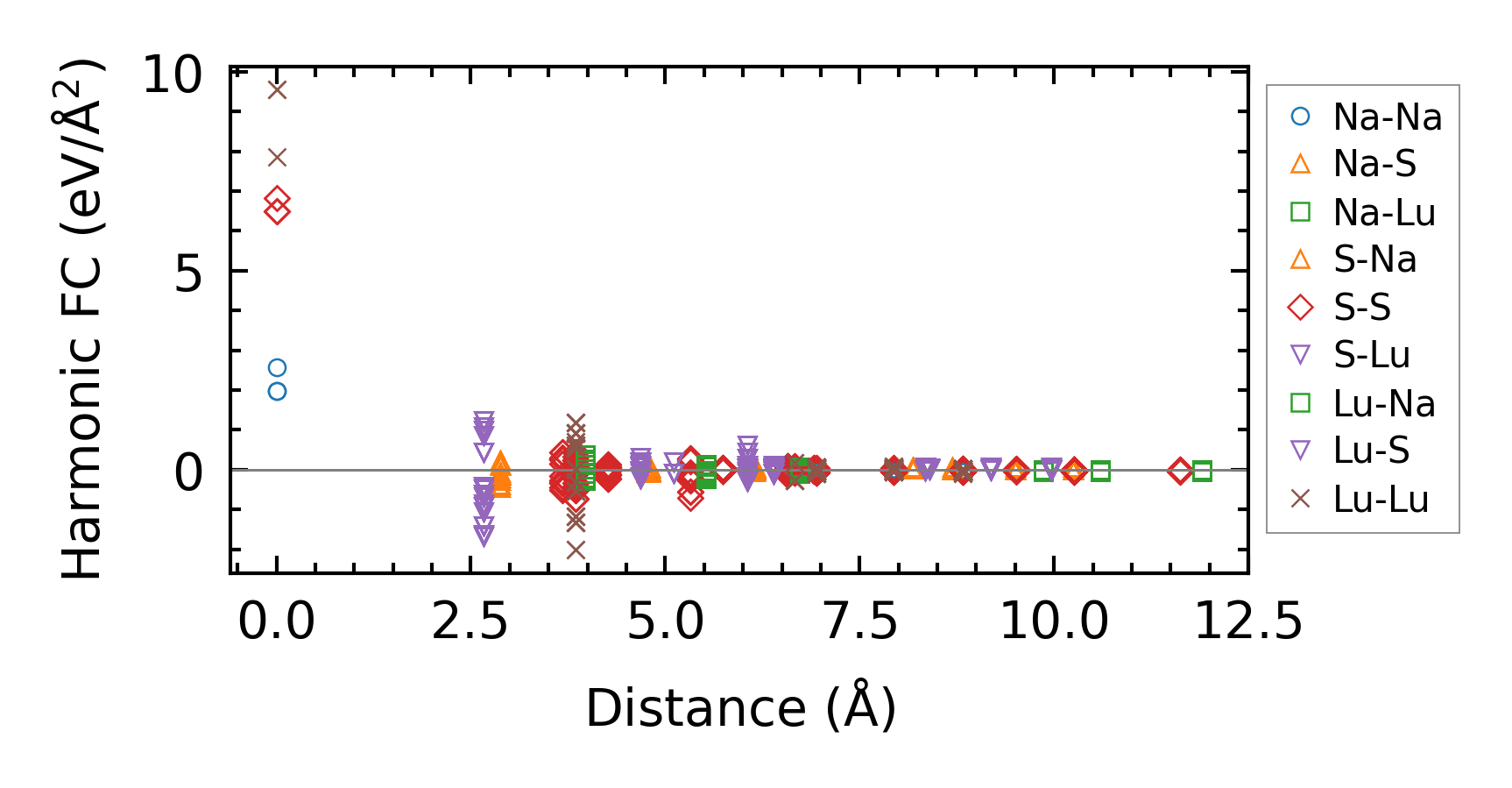

../../_images/fig_fc21203.png — (a) Force constants w.r.t atomic distance

Summary

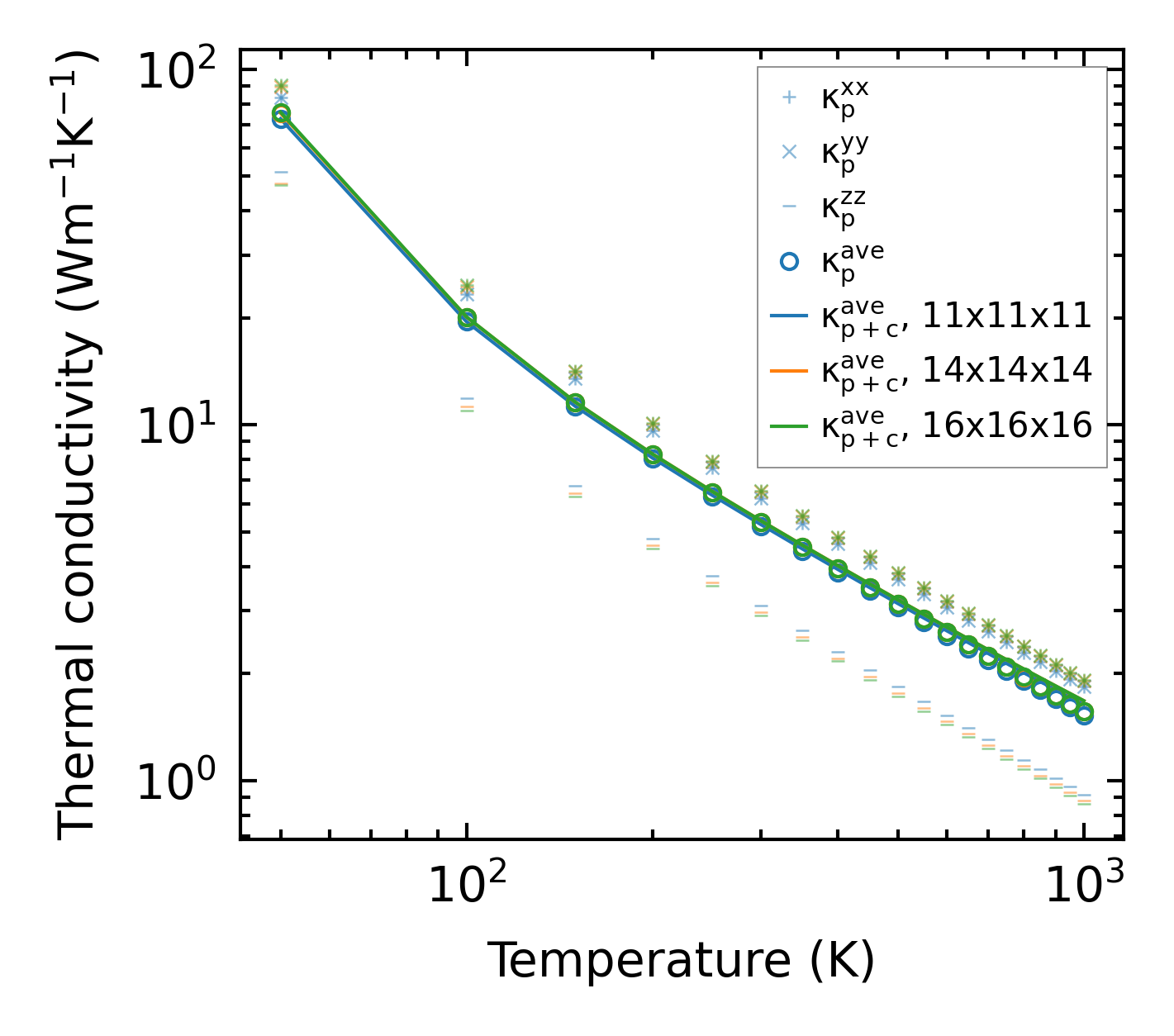

../../_images/fig_kappa1608.png — (a) Temperature-dependent lattice thermal conductivity

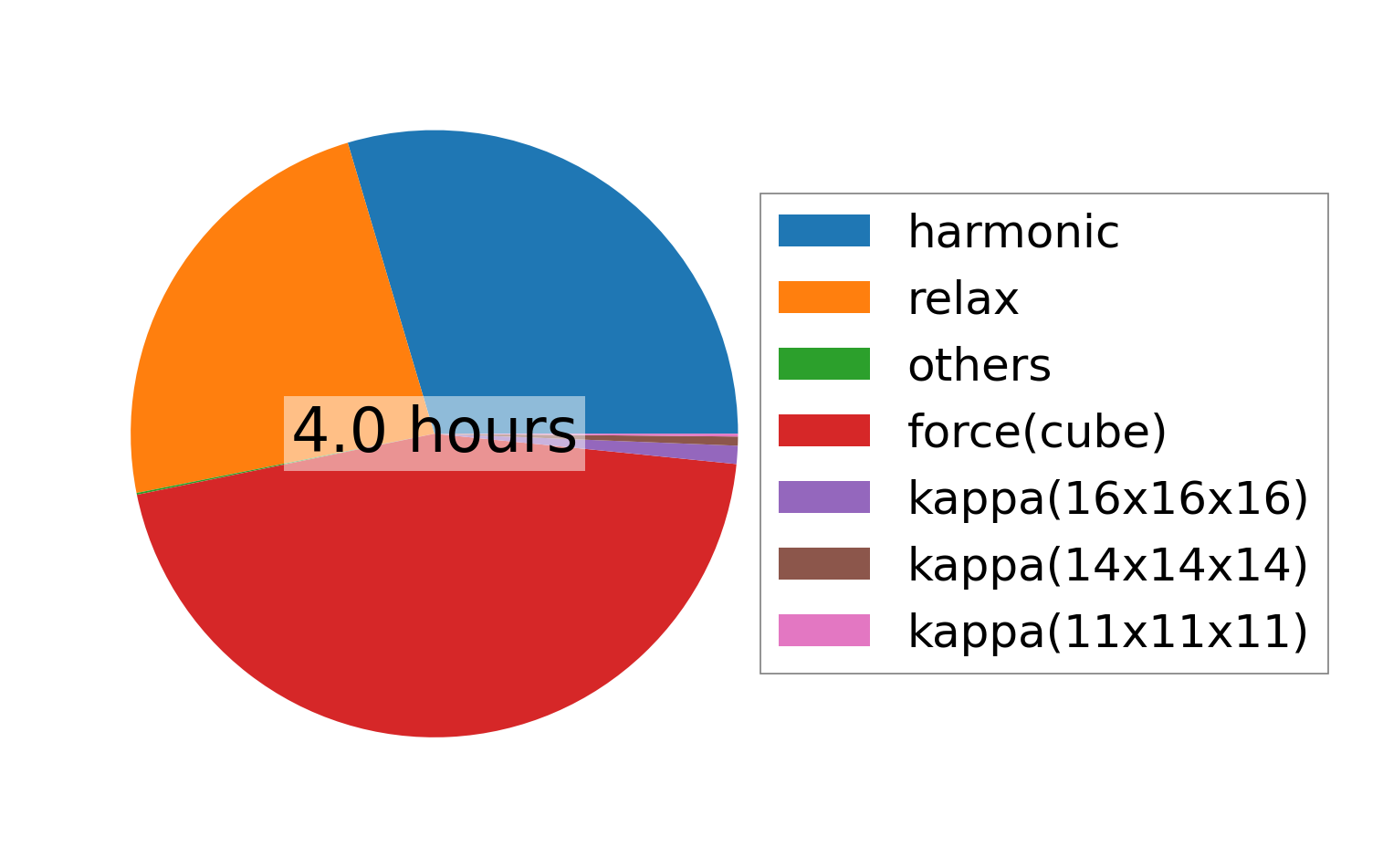

../../_images/fig_times2028.png — (b) Computation time
