mp-9726/SrBeF4/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-9726.tar.gz

Harmonic properties

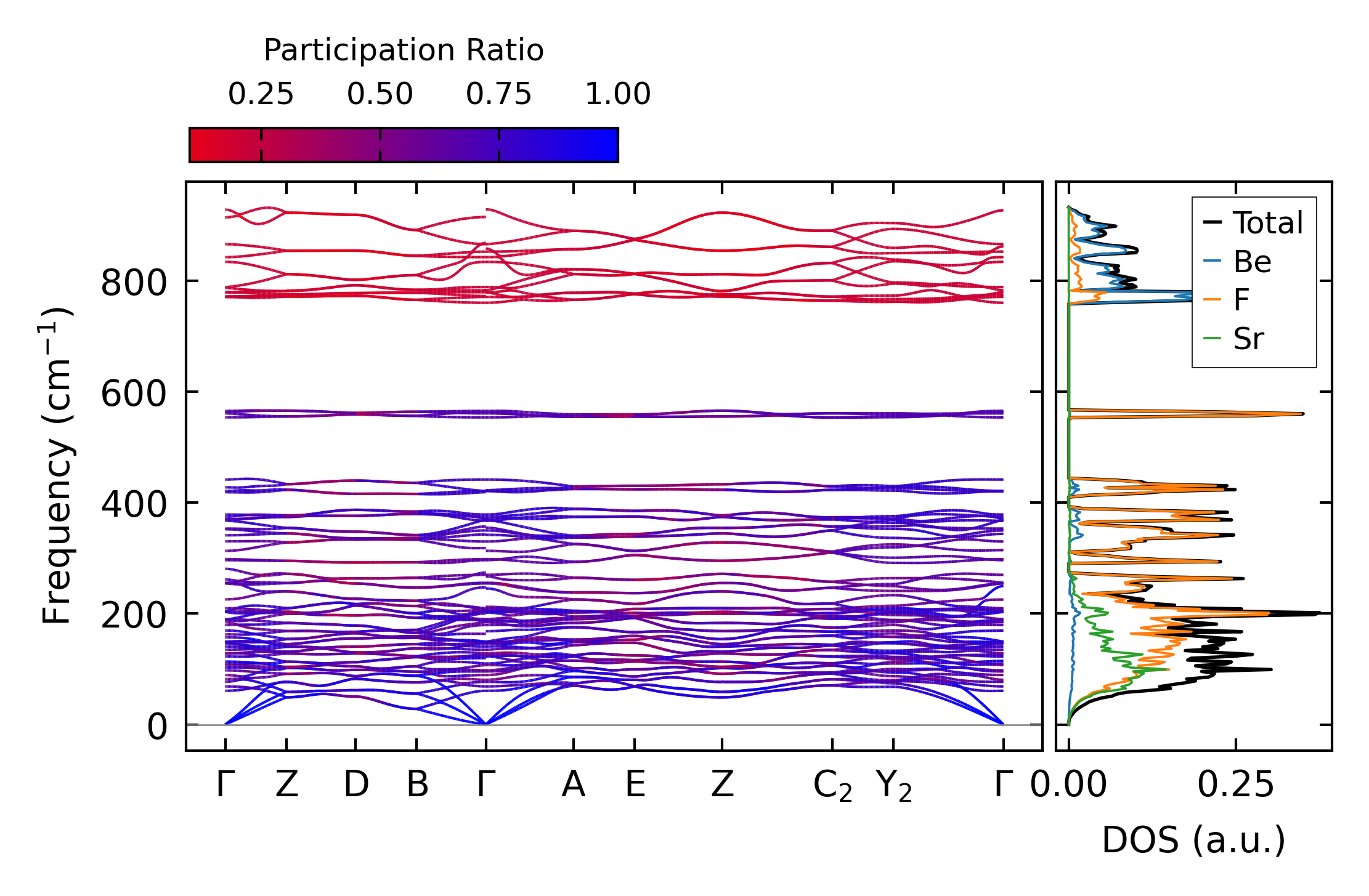

../../_images/fig_bandos_pr1210.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1210.png — (b) Thermodynamic properties

Grüneisen parameters

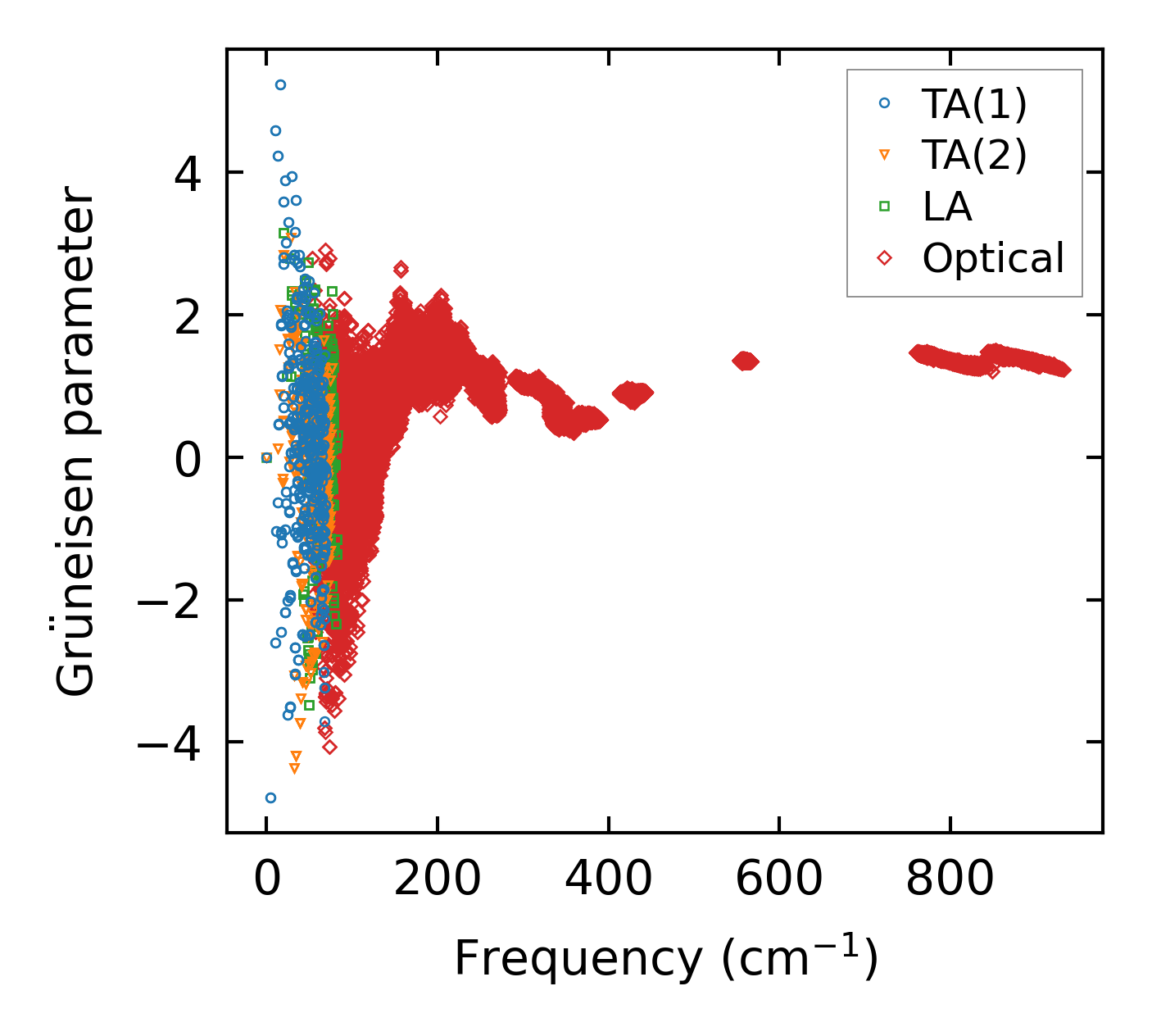

../../_images/fig_gru_all755.png — (a) Grüneisen parameters

../../_images/fig_gruneisen755.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x9x9, supercell: 2x2x1

../../_images/fig_kappa1469.png — (a) Temperature-dependent lattice thermal conductivity

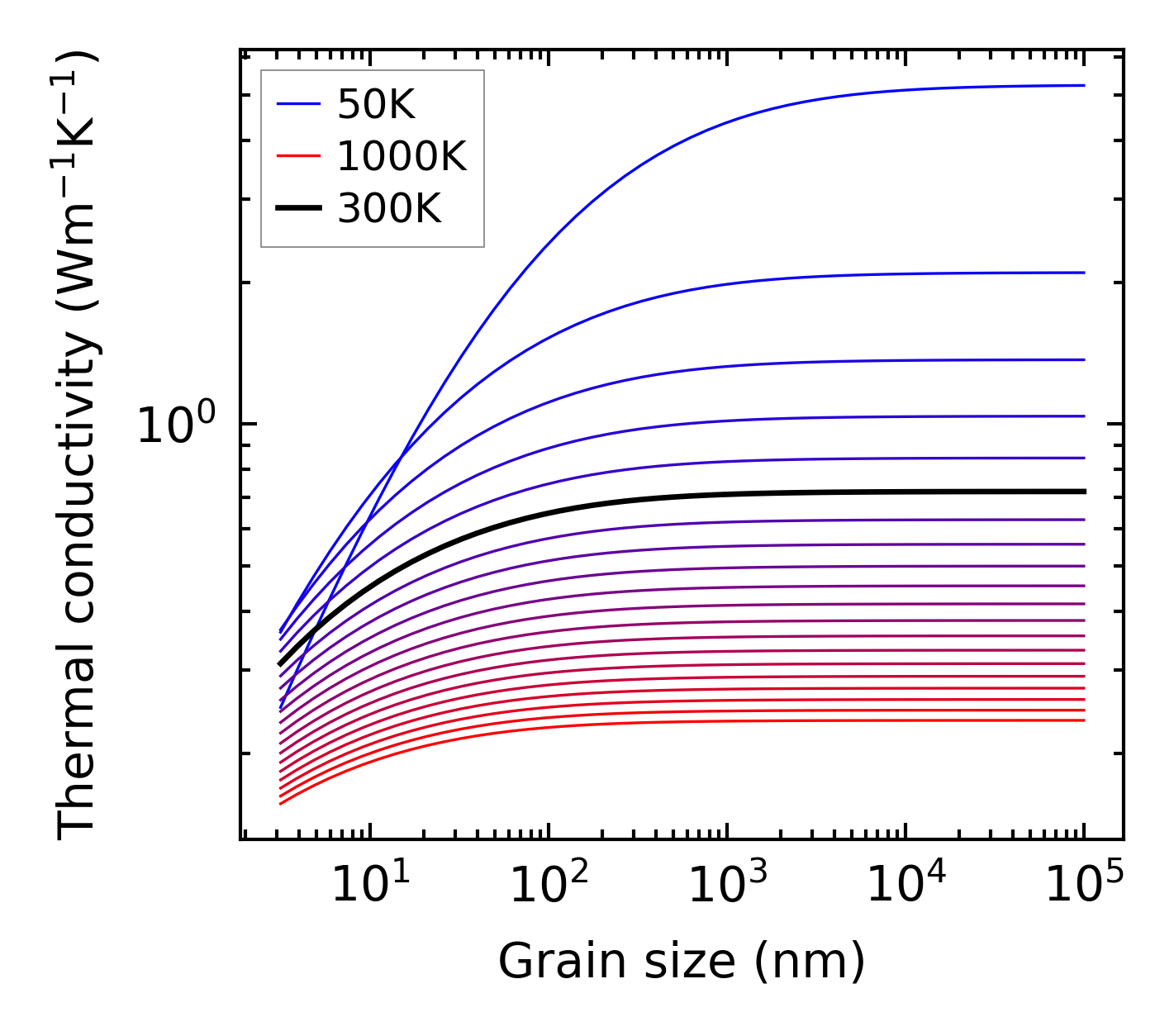

../../_images/fig_kappa_vs_grain_size763.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

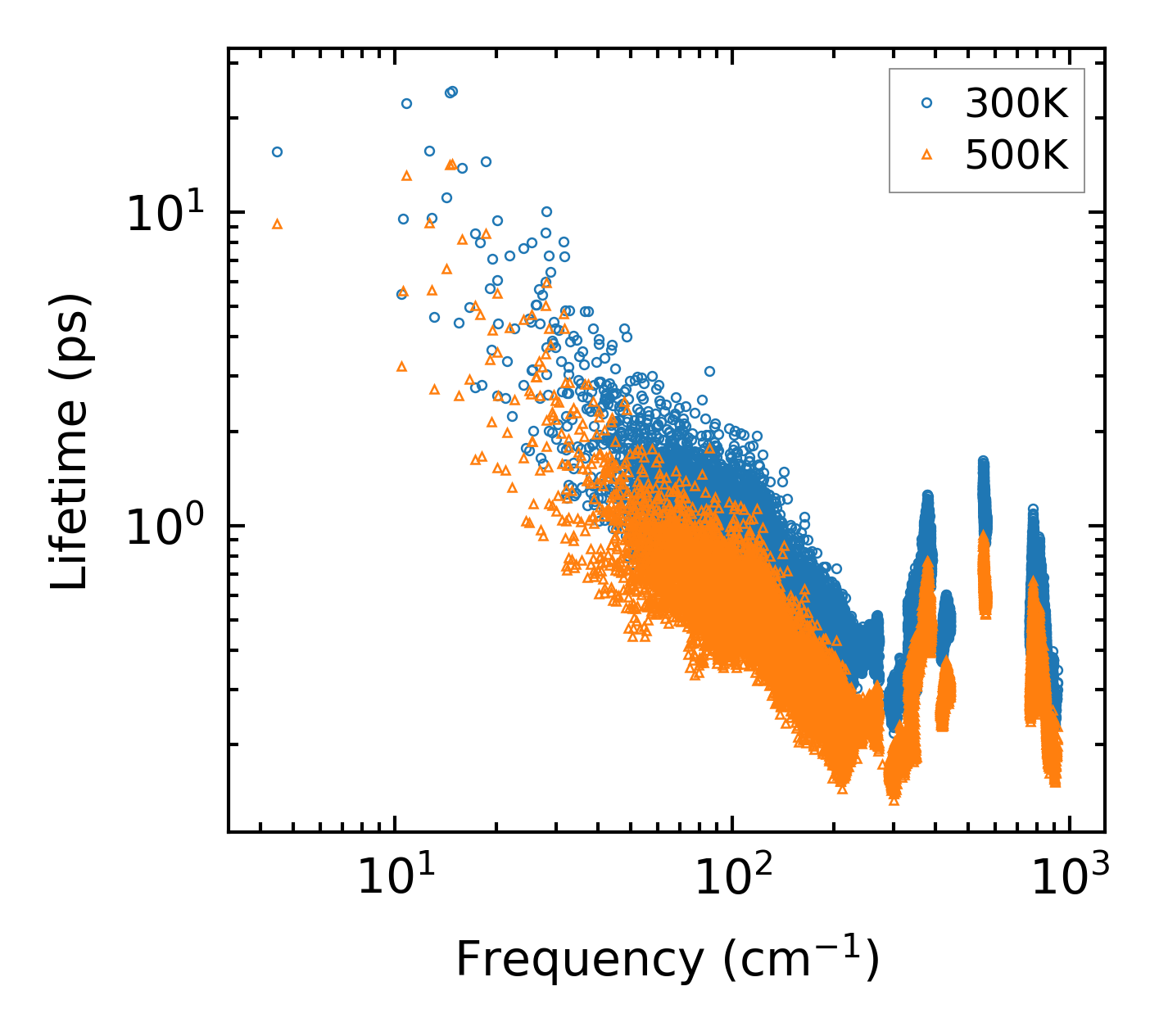

../../_images/fig_lifetime749.png — (a) Phonon lifetime due to phonon-phonon scattering

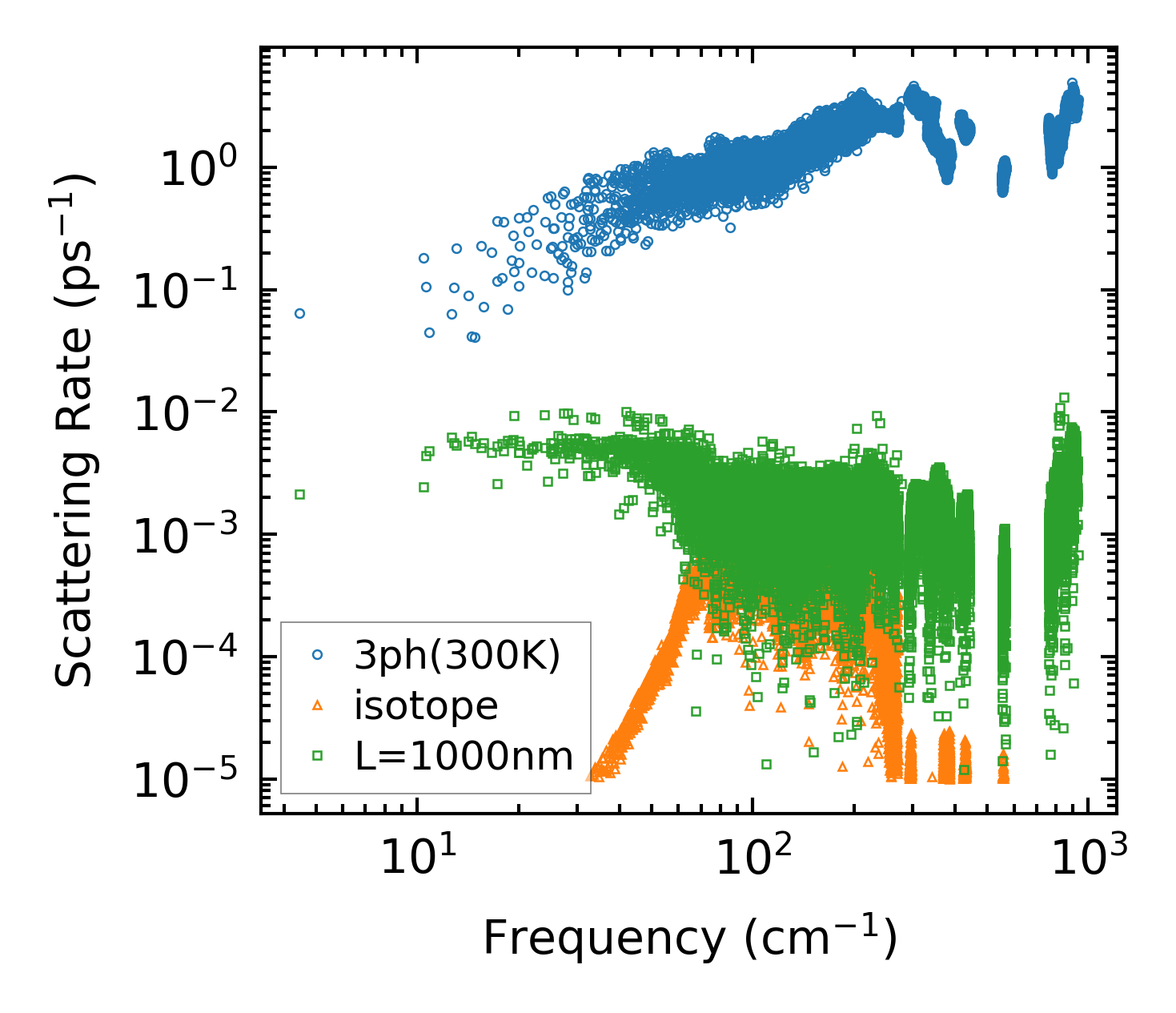

../../_images/fig_scat_rates748.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency749.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

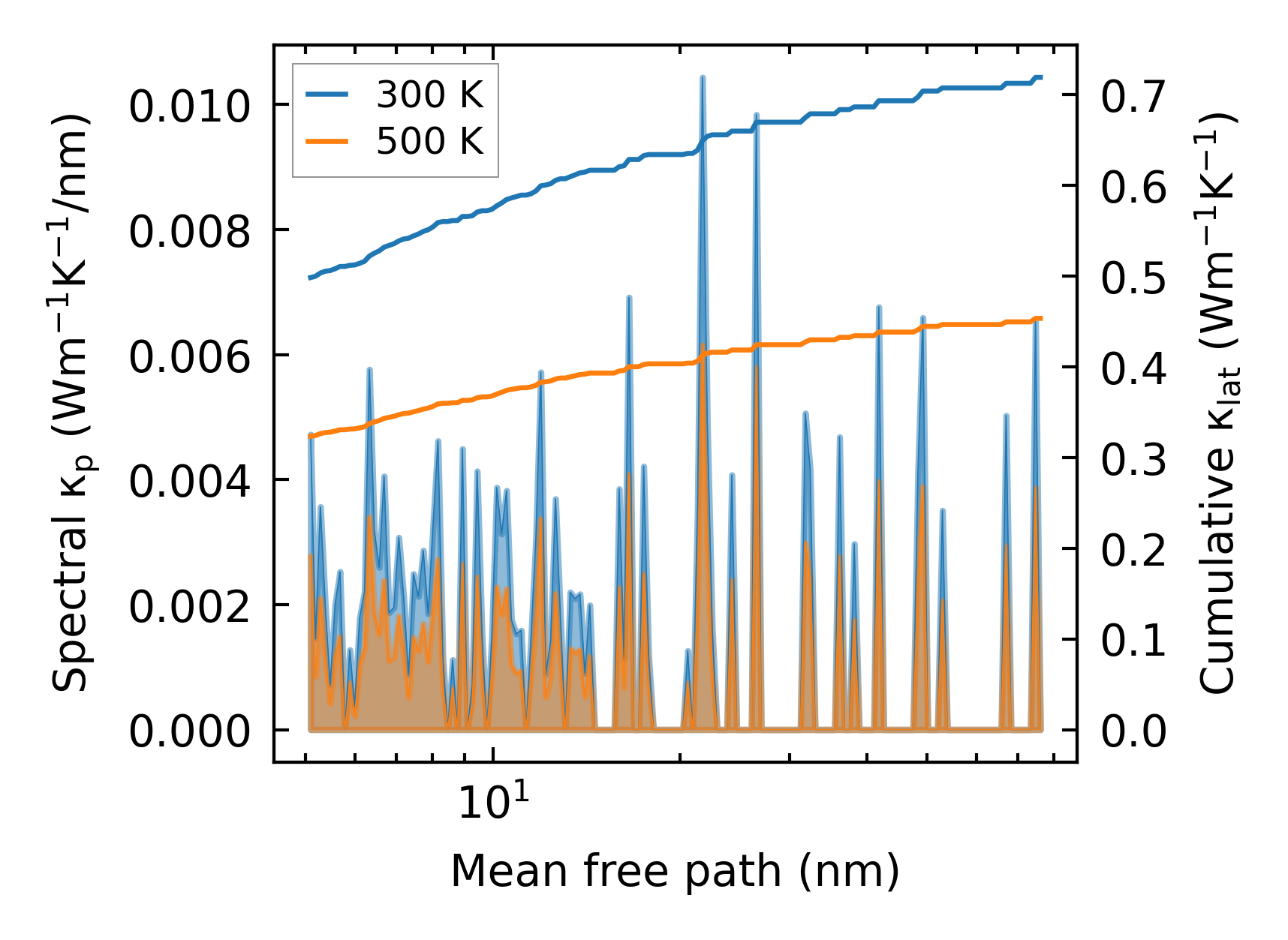

../../_images/fig_cumu_mfp749.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc21076.png — (a) Force constants w.r.t atomic distance

Summary

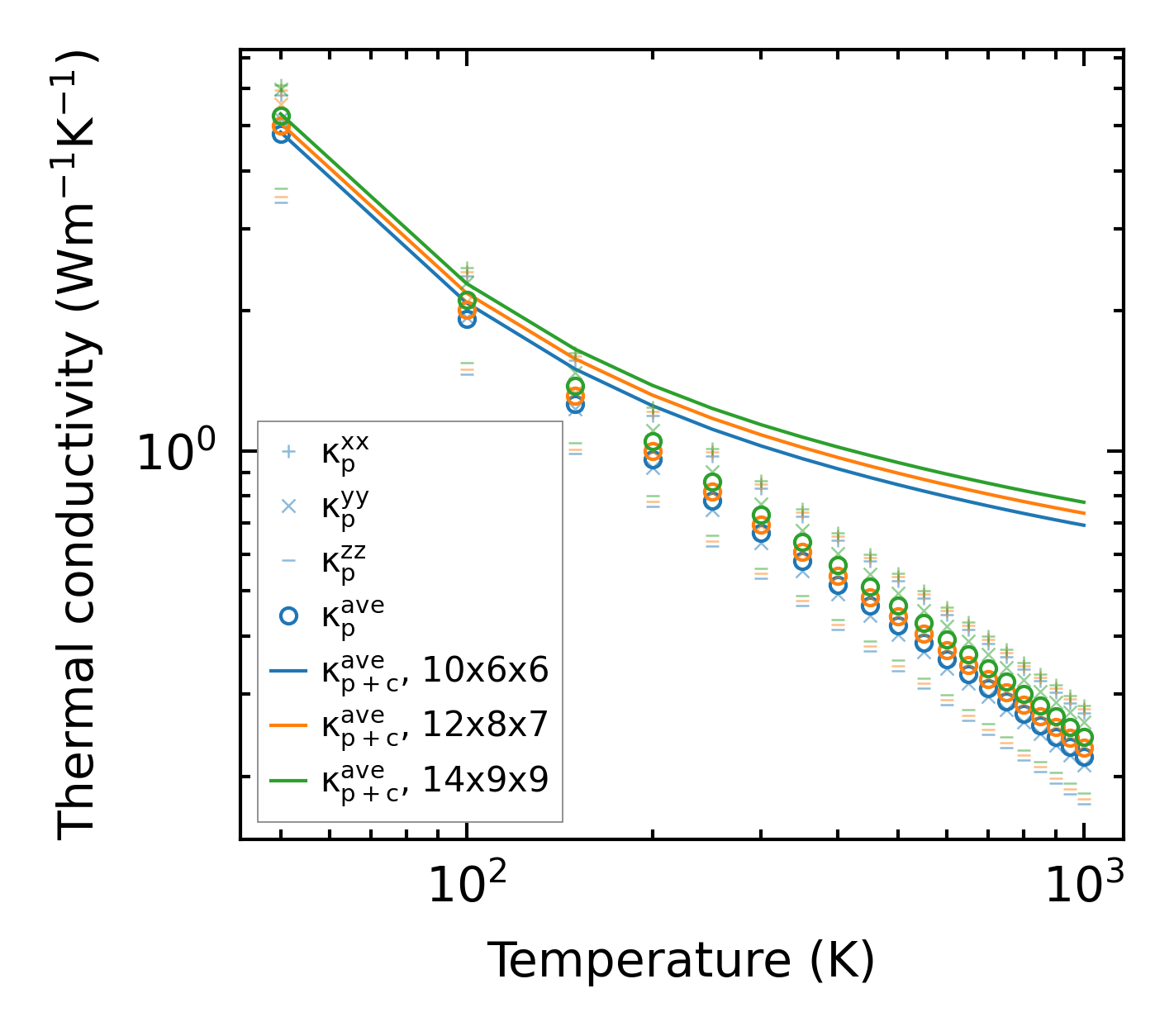

../../_images/fig_kappa1470.png — (a) Temperature-dependent lattice thermal conductivity

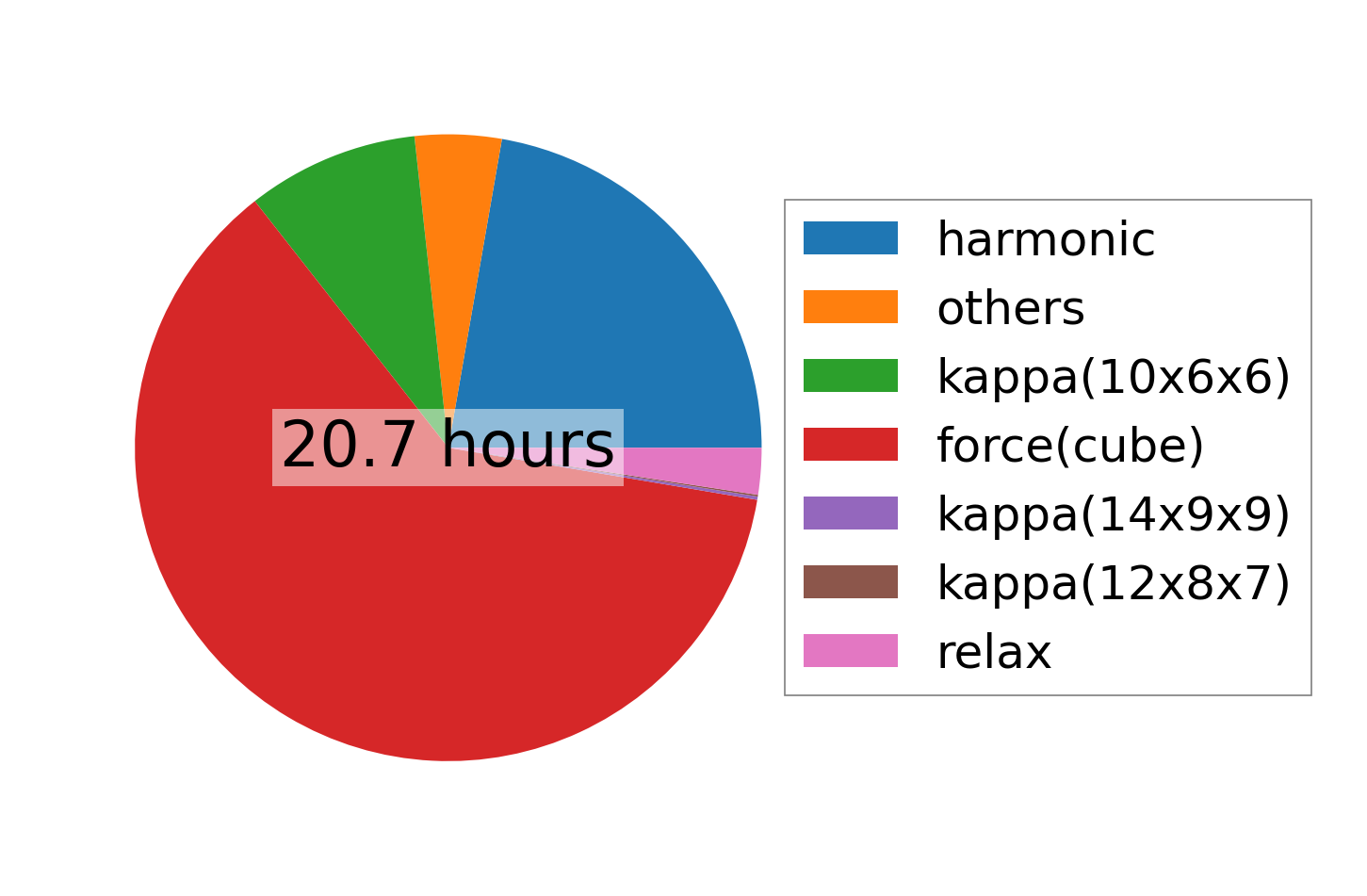

../../_images/fig_times1812.png — (b) Computation time
