mp-9497/Pr2CN2O2/anharm

Space group: P-3m1 (164)
Link: Materials Project
Download: mp-9497.tar.gz

Harmonic properties

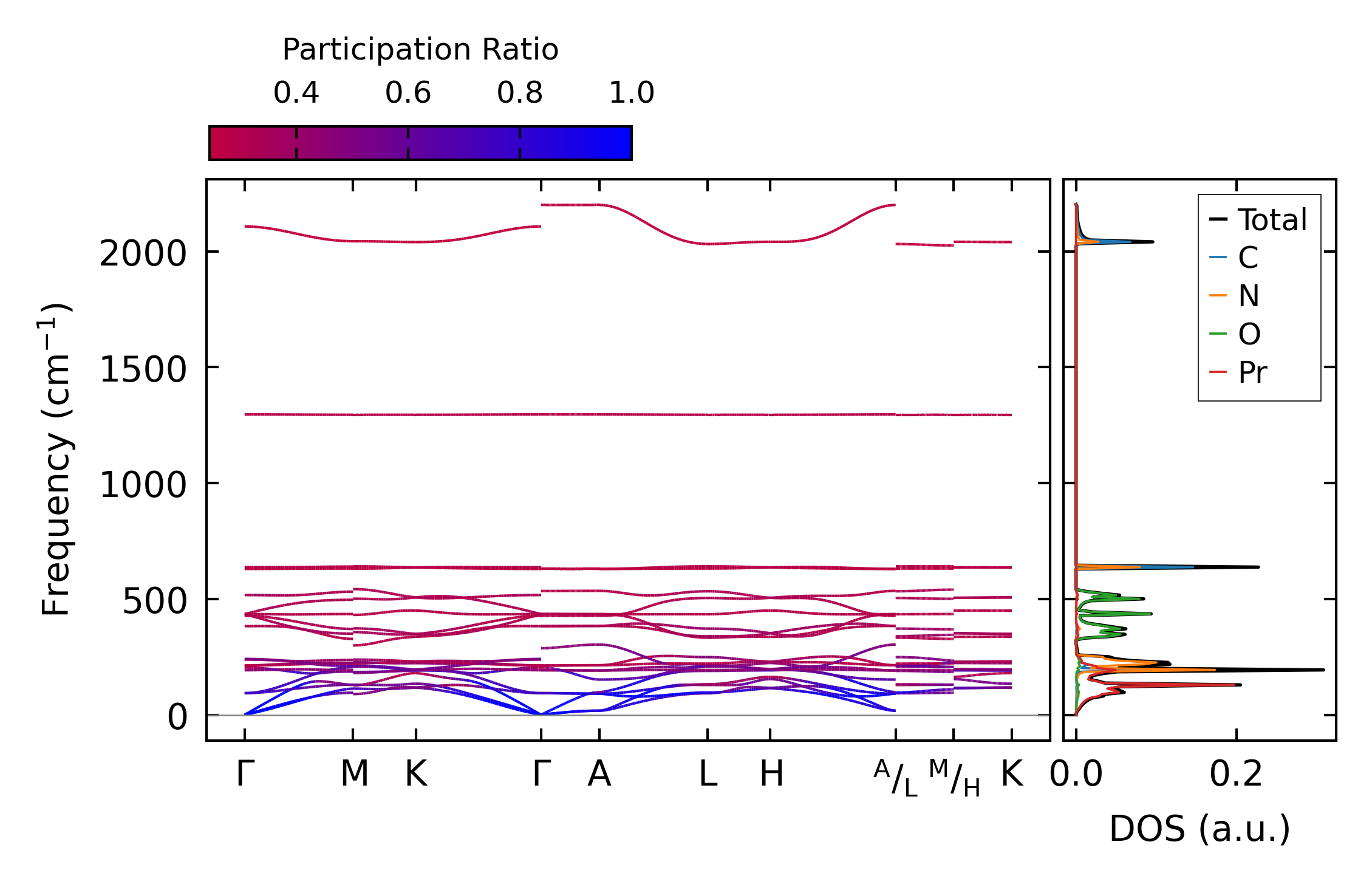

../../_images/fig_bandos_pr1131.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1131.png — (b) Thermodynamic properties

Grüneisen parameters

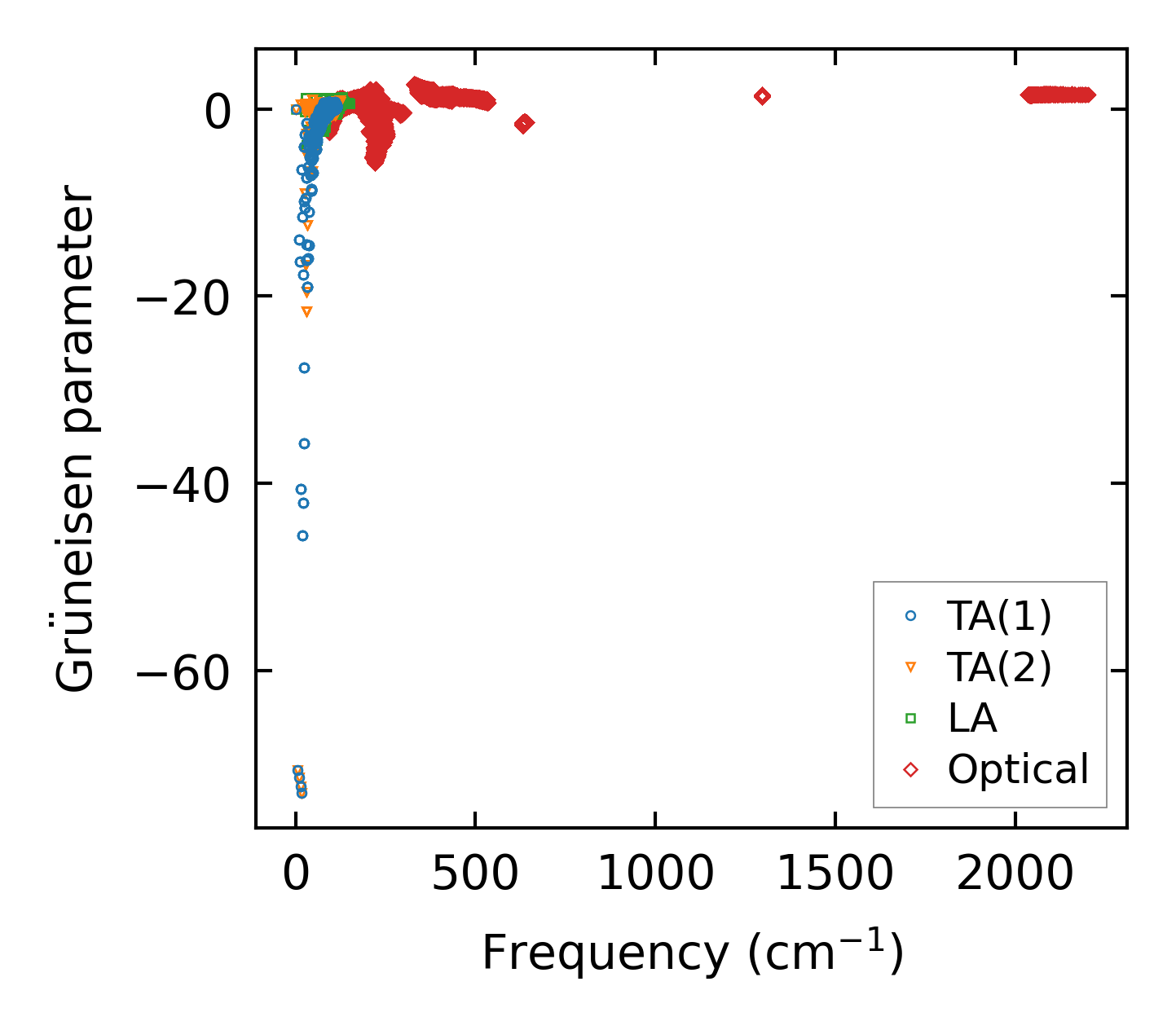

../../_images/fig_gru_all692.png — (a) Grüneisen parameters

../../_images/fig_gruneisen692.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 19x19x9, supercell: 3x3x2

../../_images/fig_kappa1351.png — (a) Temperature-dependent lattice thermal conductivity

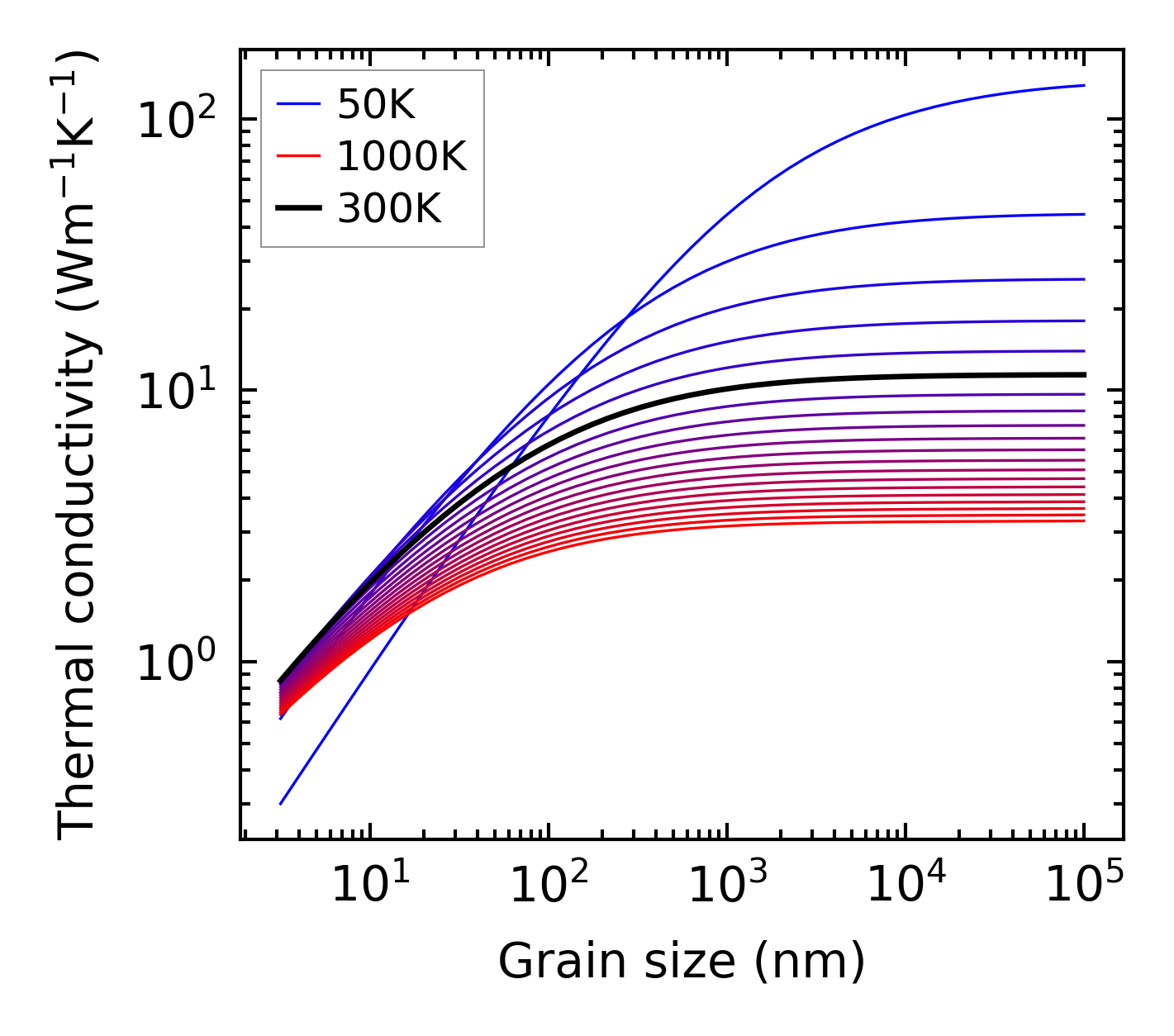

../../_images/fig_kappa_vs_grain_size701.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime690.png — (a) Phonon lifetime due to phonon-phonon scattering

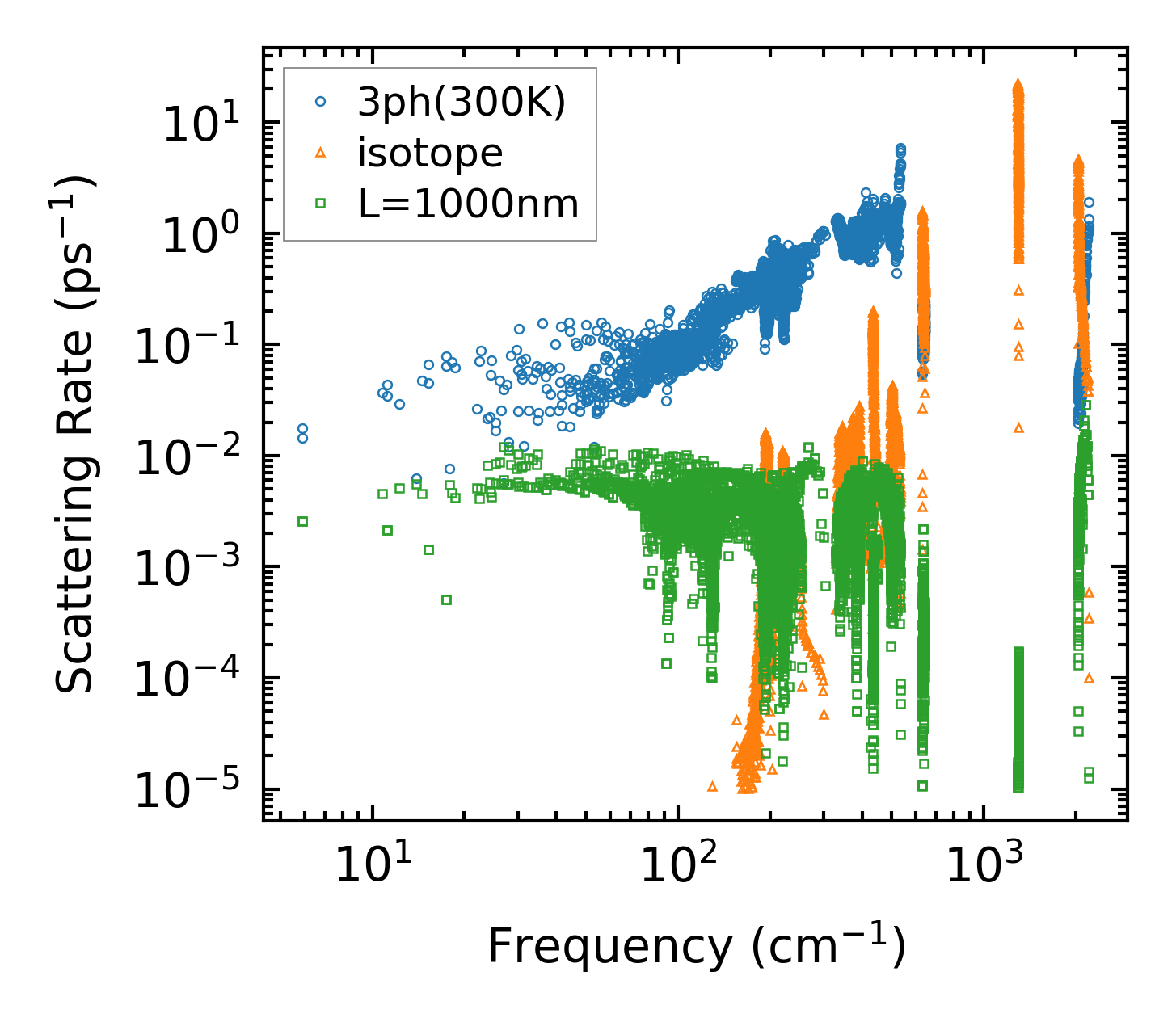

../../_images/fig_scat_rates689.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

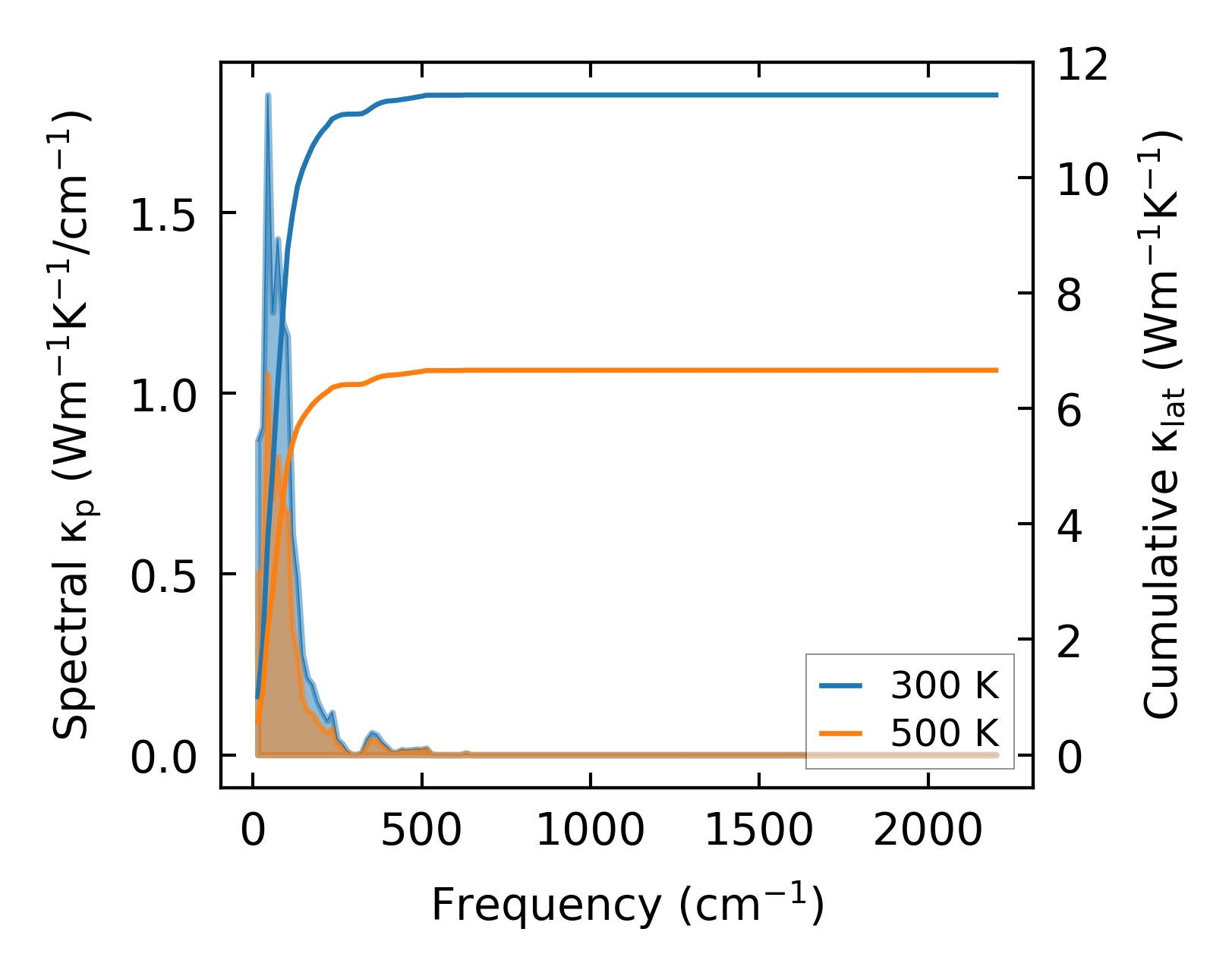

../../_images/fig_cumu_frequency690.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

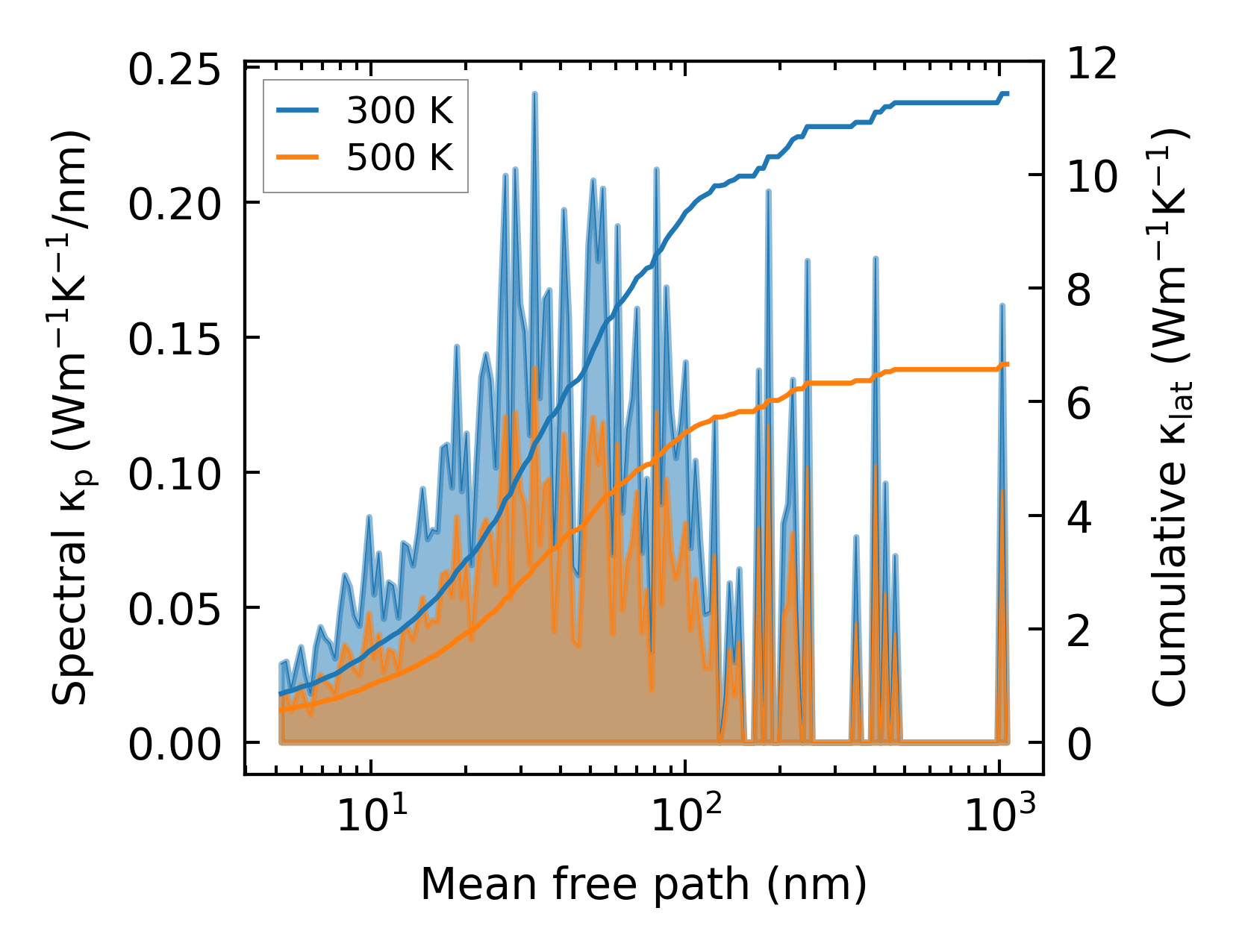

../../_images/fig_cumu_mfp690.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

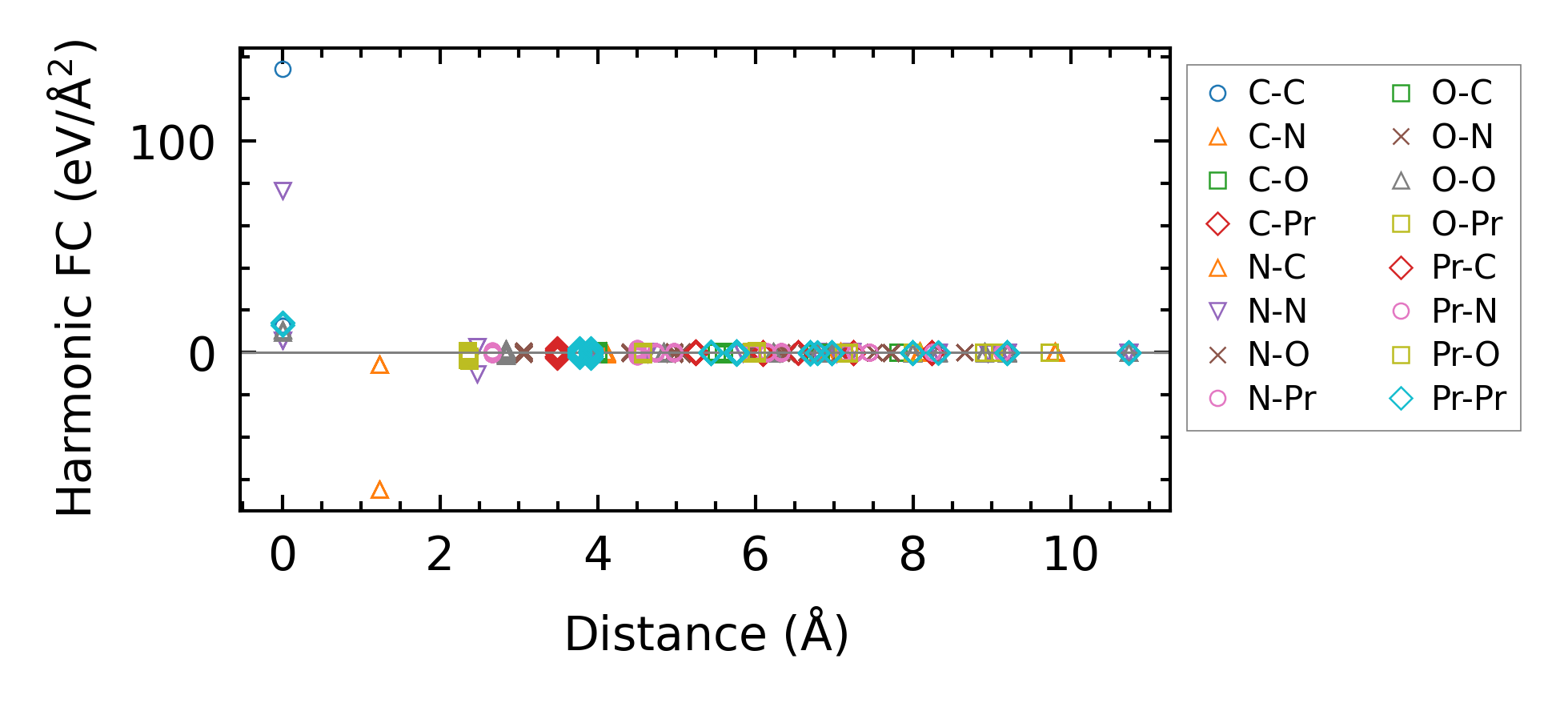

../../_images/fig_fc2997.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa1352.png — (a) Temperature-dependent lattice thermal conductivity

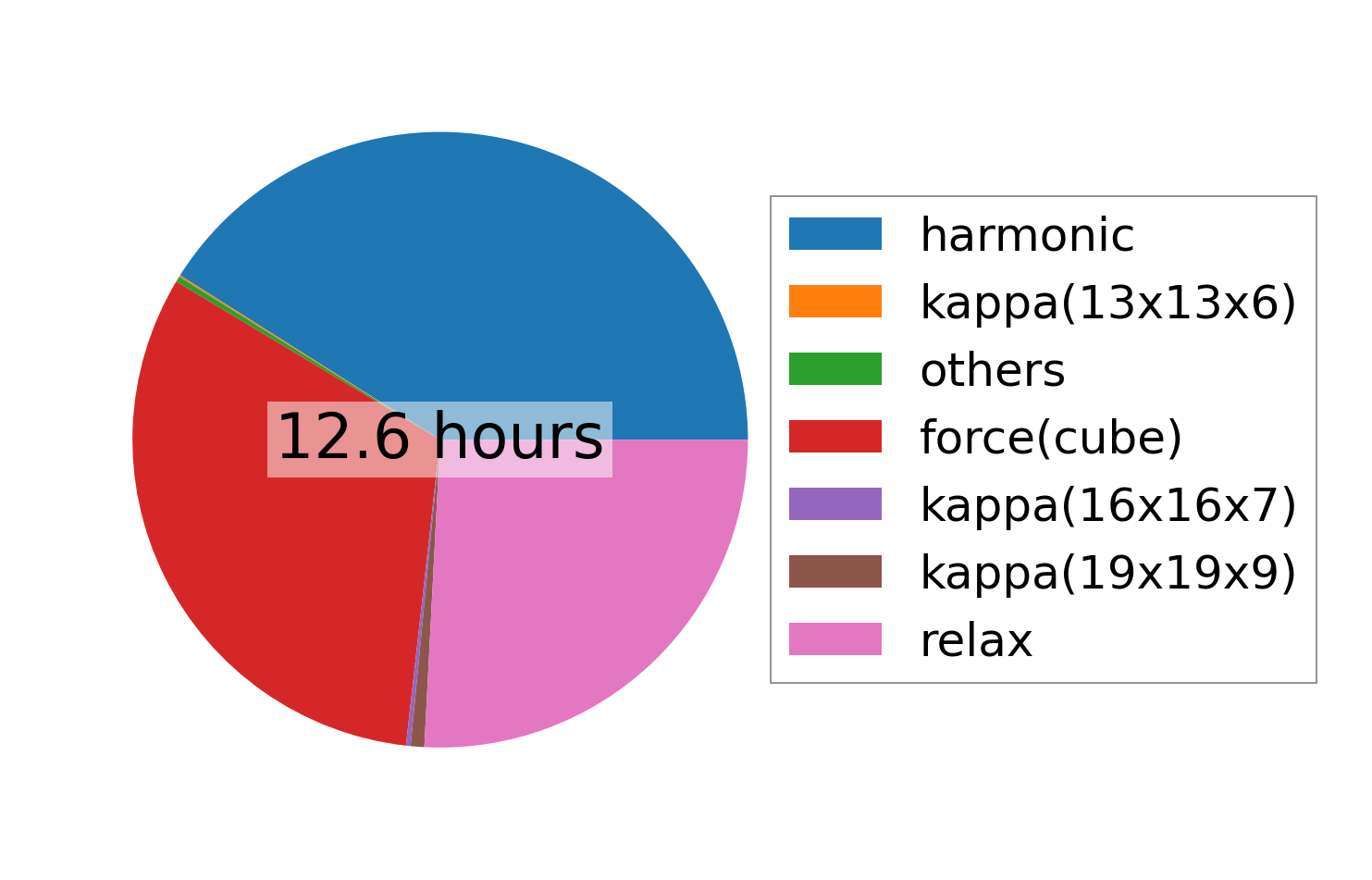

../../_images/fig_times1700.png — (b) Computation time
