mp-9565/CaMg2Sb2/anharm

Space group: P-3m1 (164)
Link: Materials Project
Download: mp-9565.tar.gz

Harmonic properties

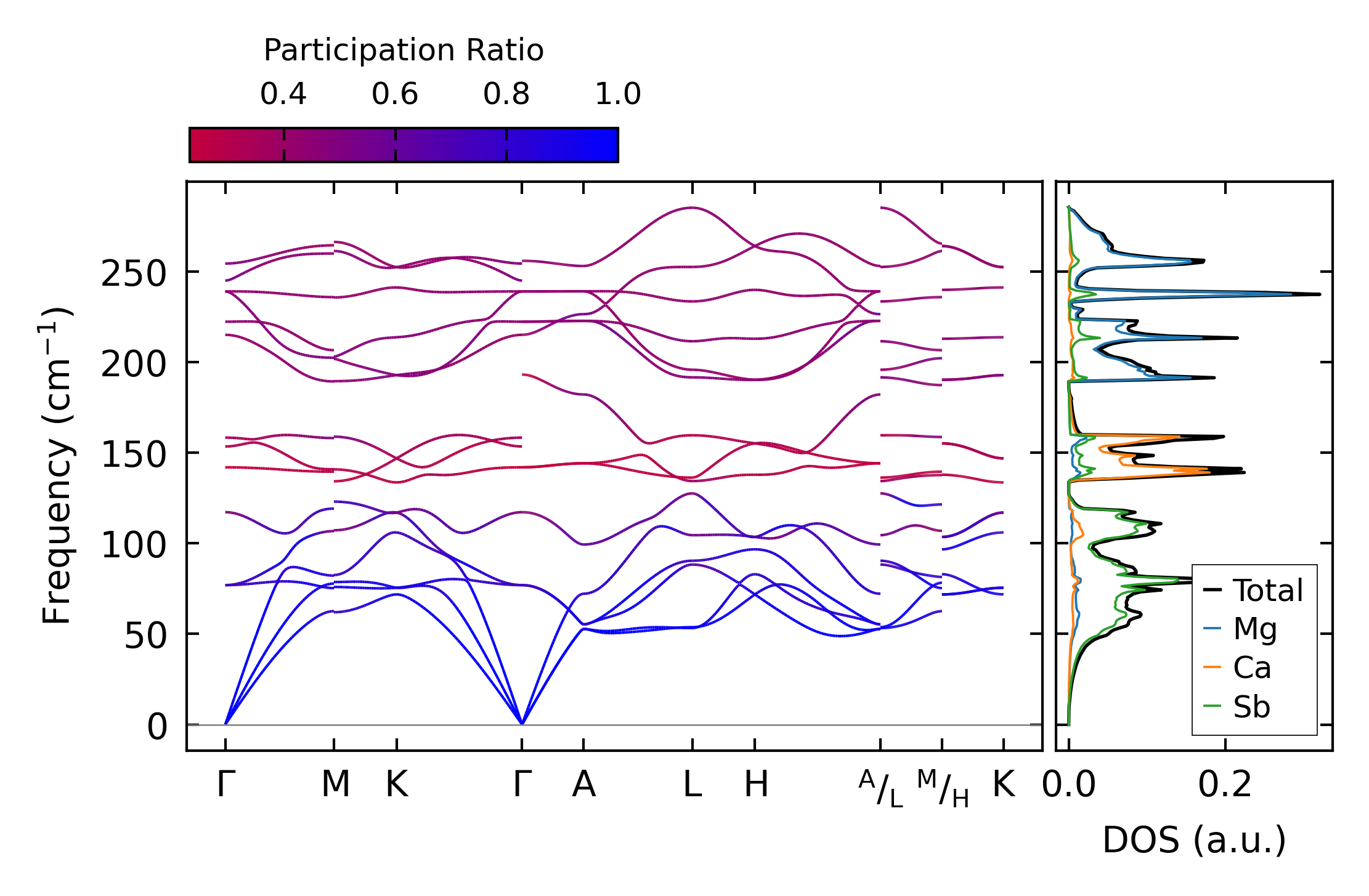

../../_images/fig_bandos_pr1151.png — (a) Phonon dispersion with participation ratio and DOS

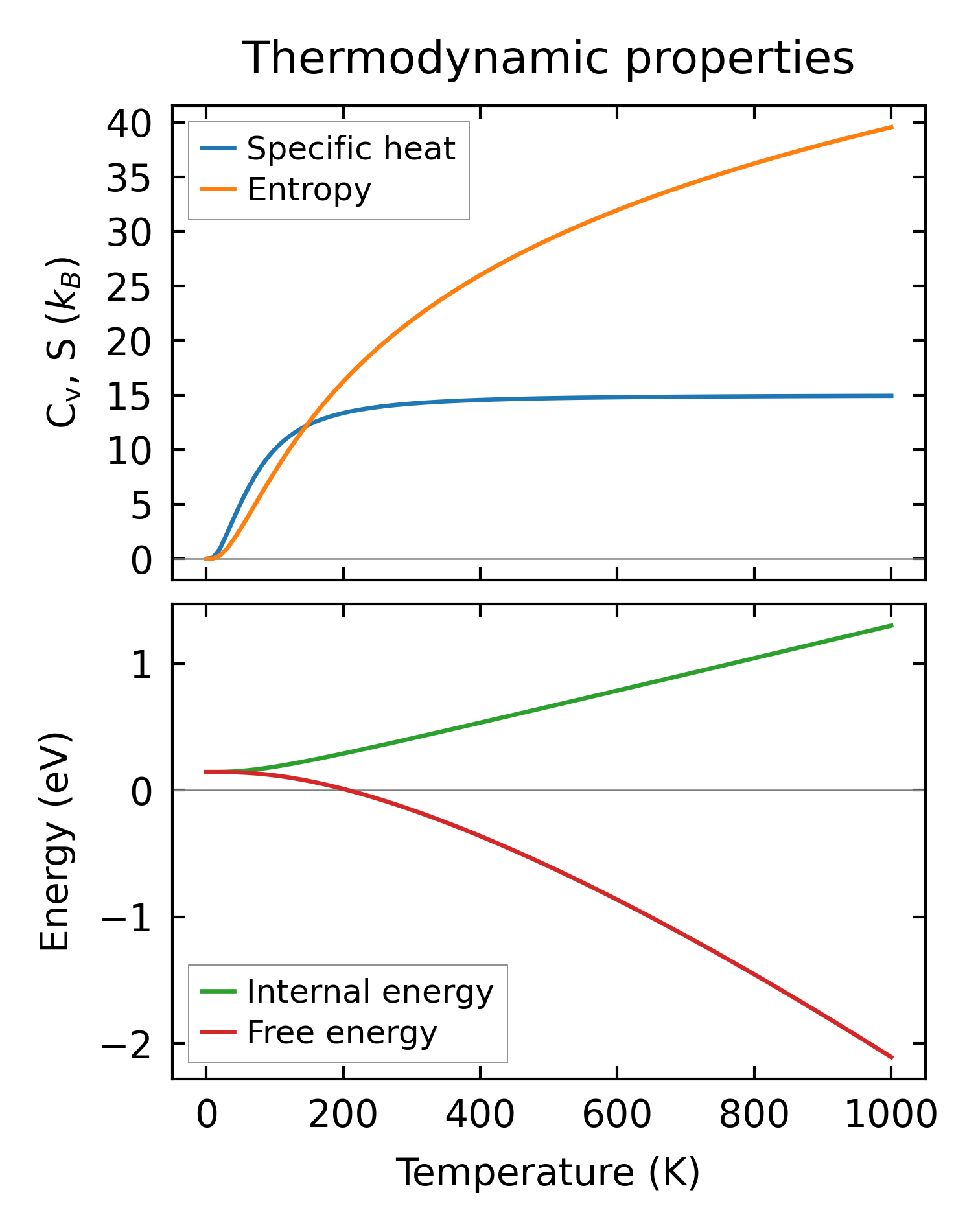

../../_images/fig_thermo1151.png — (b) Thermodynamic properties

Grüneisen parameters

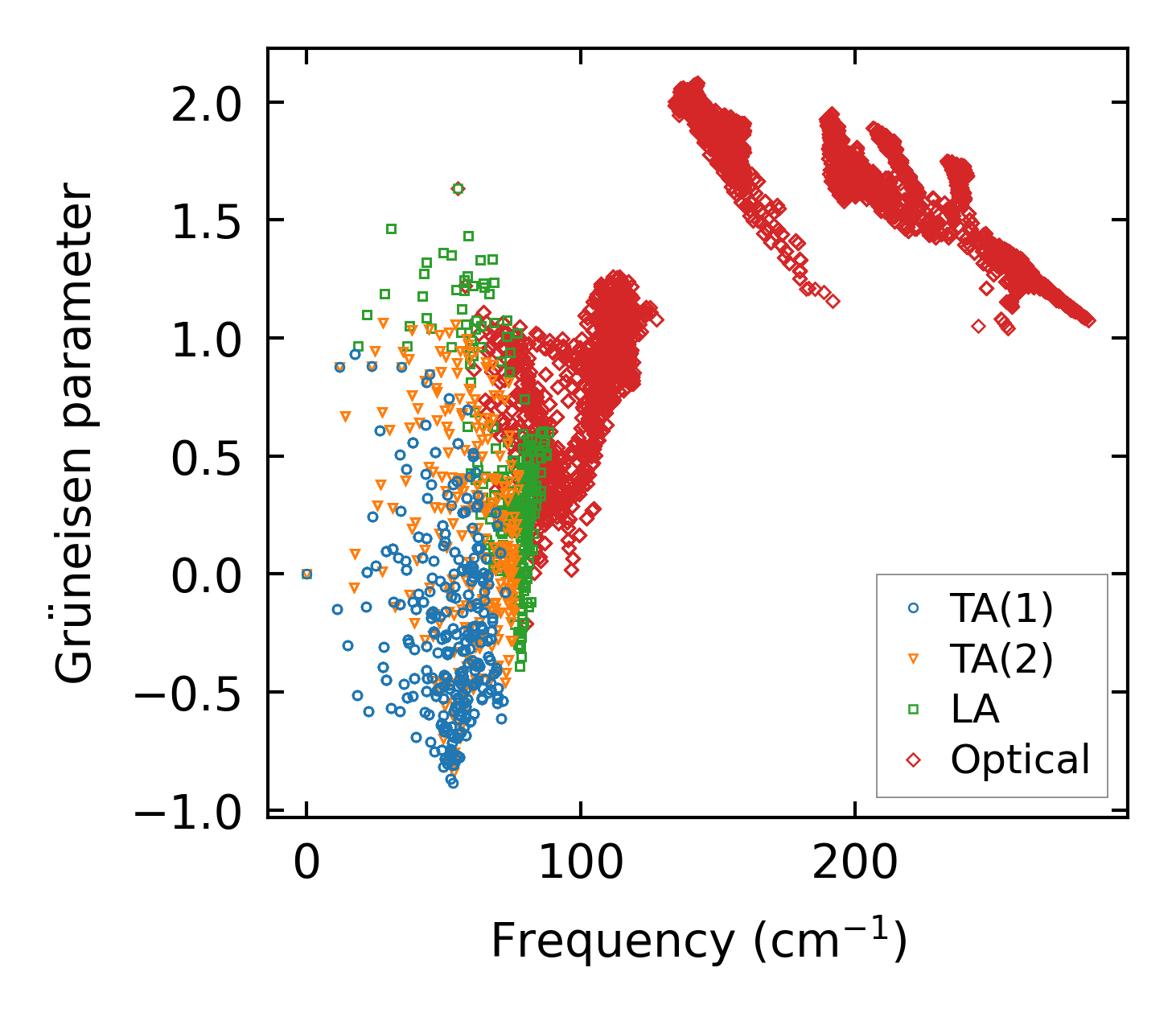

../../_images/fig_gru_all706.png — (a) Grüneisen parameters

../../_images/fig_gruneisen706.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 16x16x10, supercell: 3x3x2

../../_images/fig_kappa1378.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size715.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

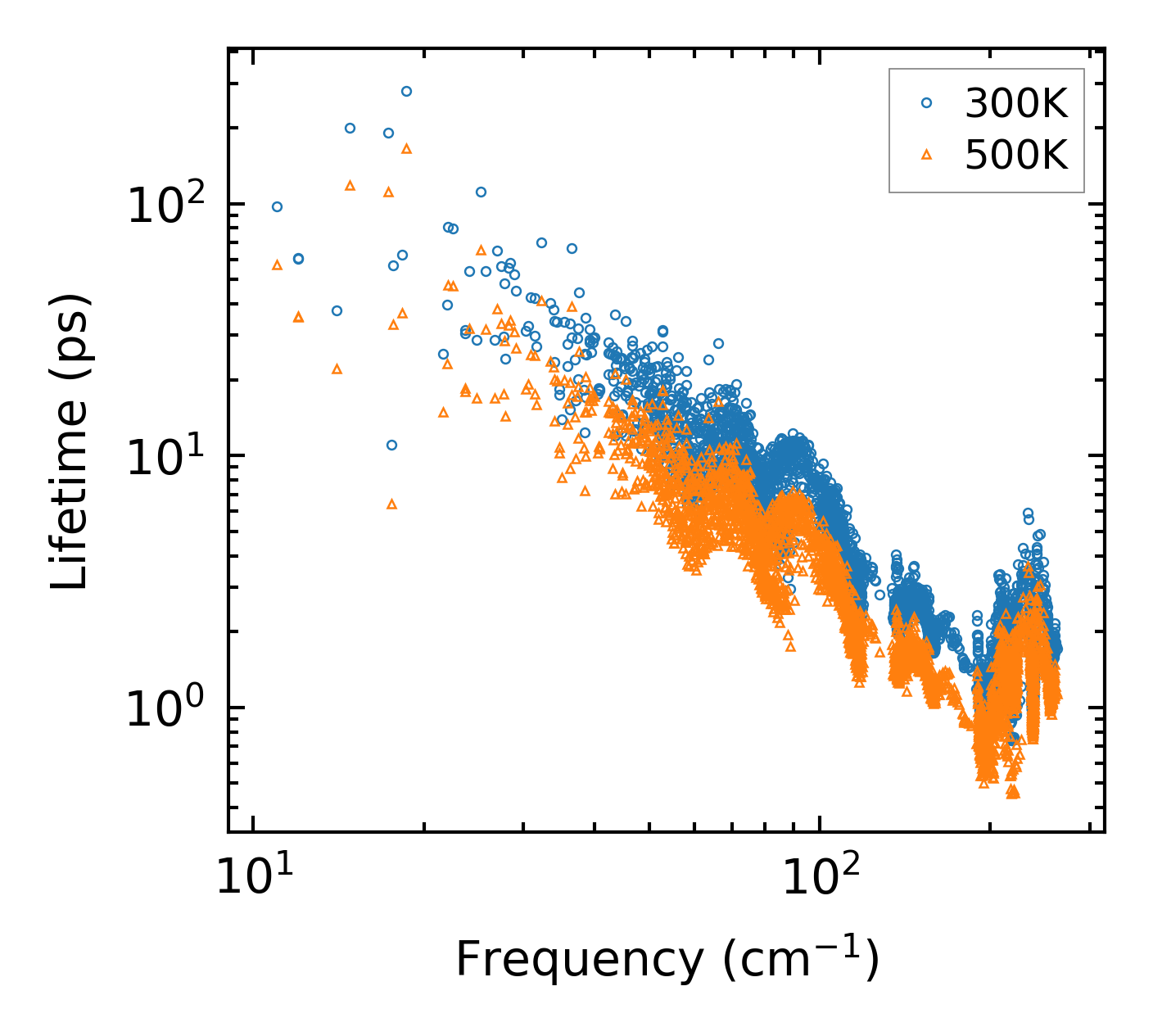

../../_images/fig_lifetime704.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates703.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

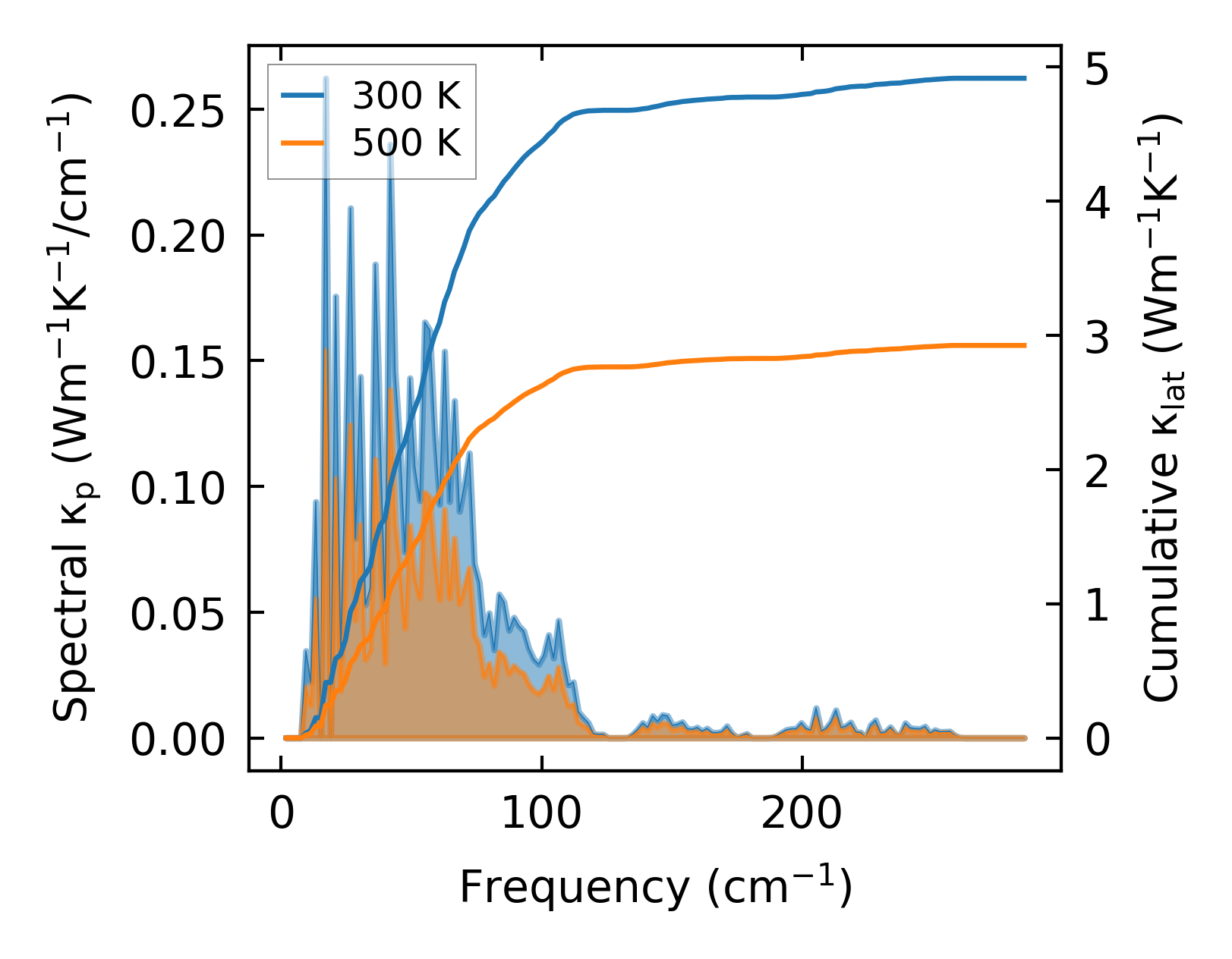

../../_images/fig_cumu_frequency704.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp704.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

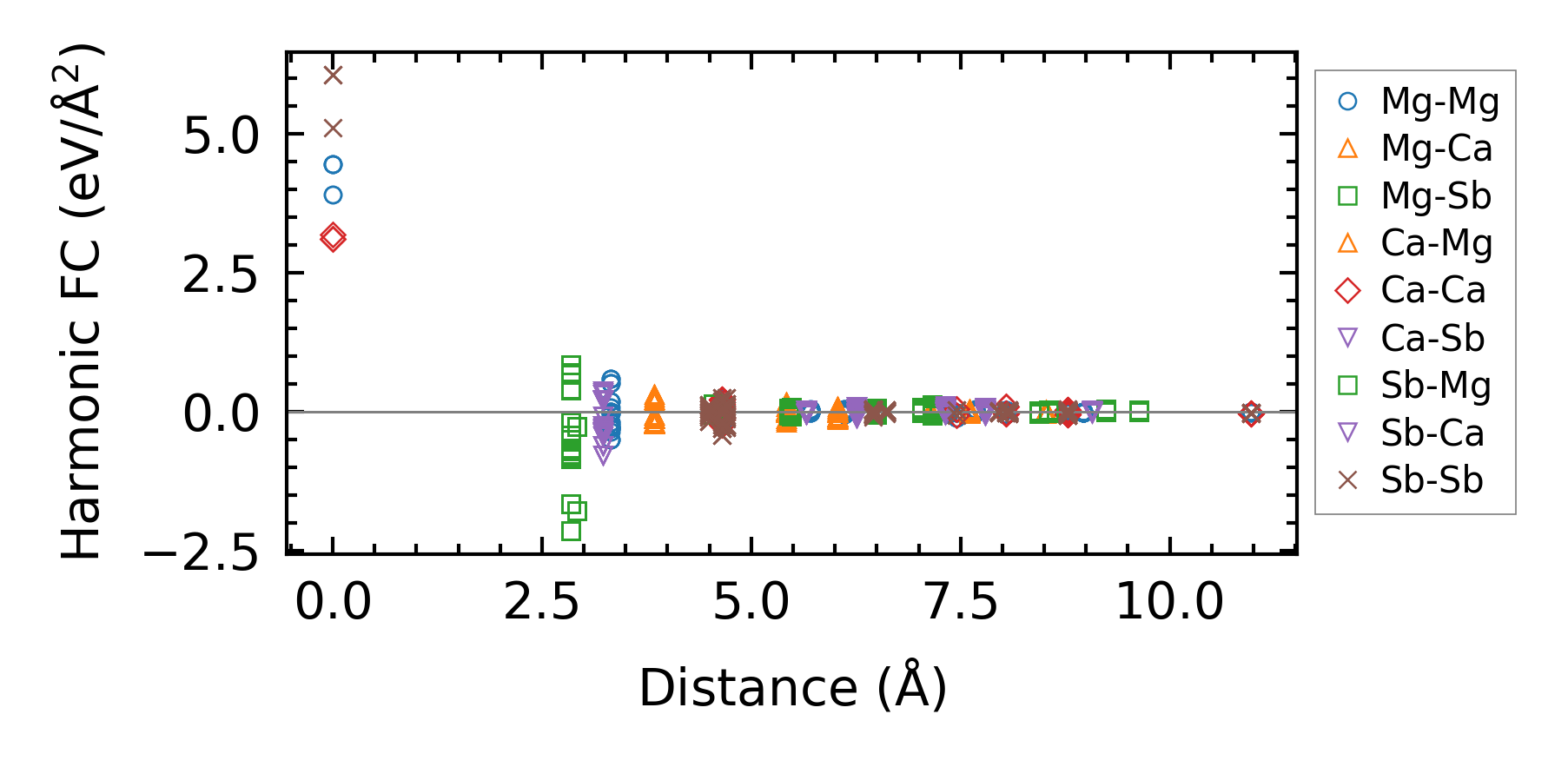

../../_images/fig_fc21017.png — (a) Force constants w.r.t atomic distance

Summary

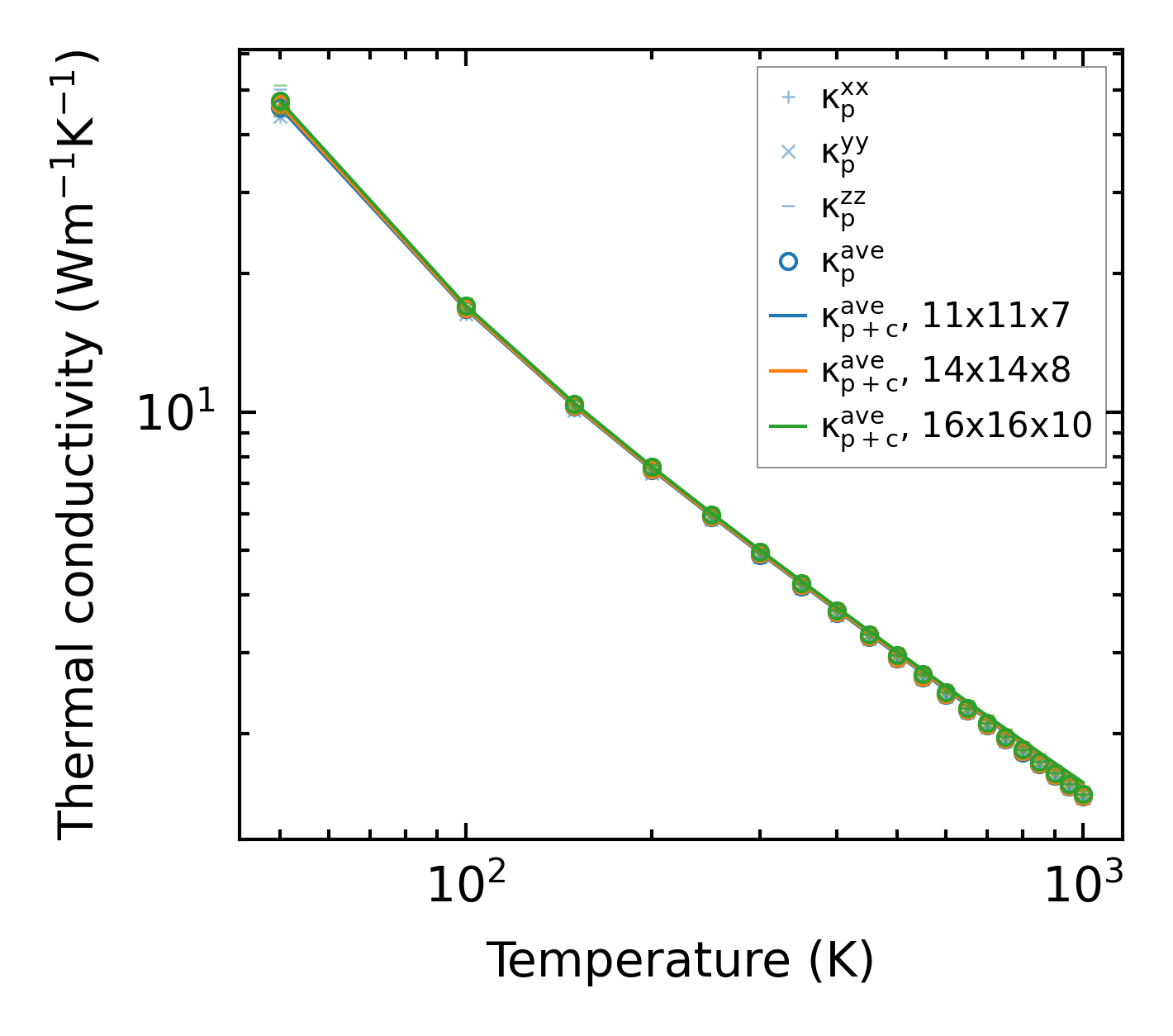

../../_images/fig_kappa1379.png — (a) Temperature-dependent lattice thermal conductivity

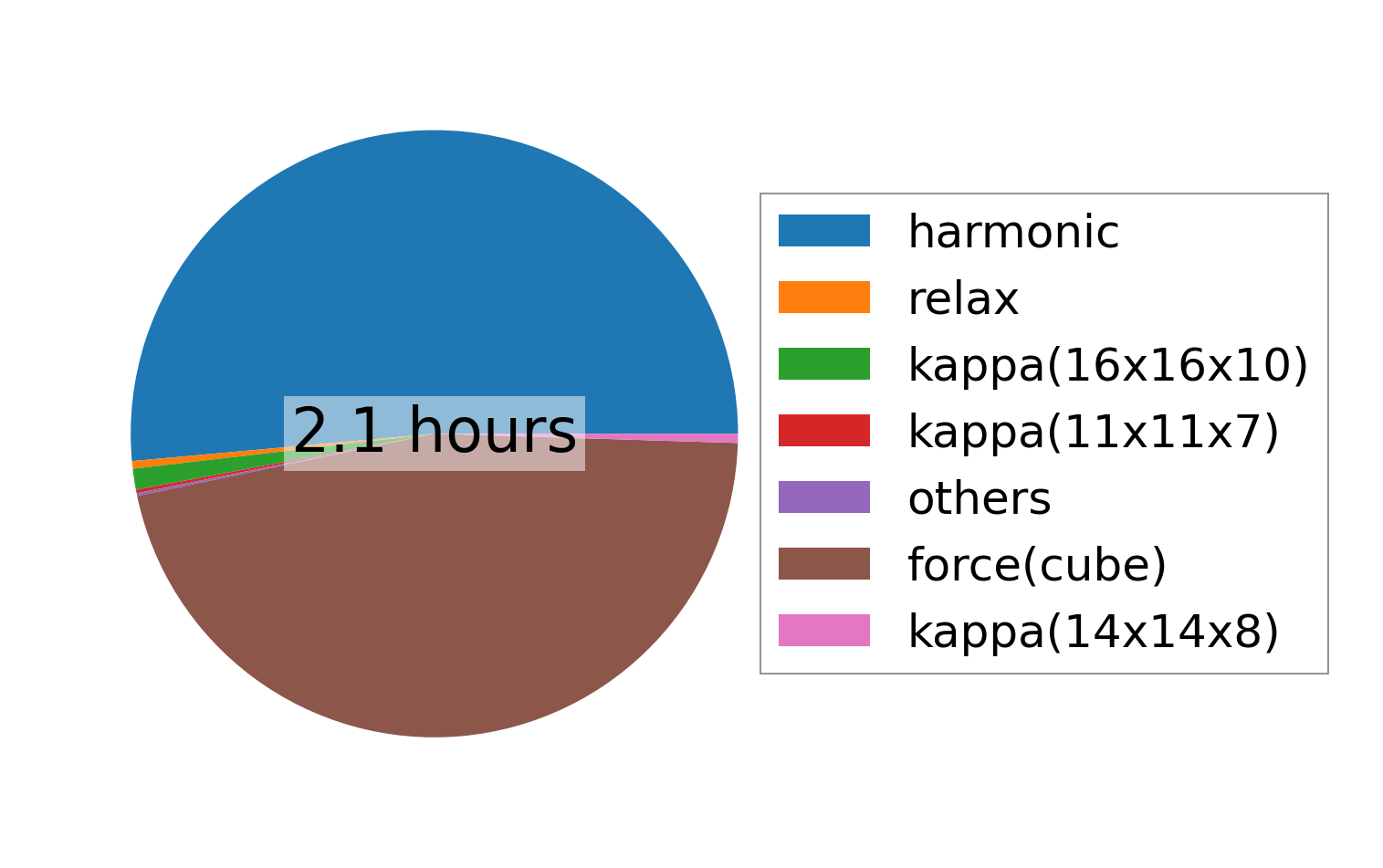

../../_images/fig_times1727.png — (b) Computation time
