mp-9332-2/KGaPO4F/anharm

Space group: Pna2_1 (33)
Link: Materials Project
Download: mp-9332-2.tar.gz

Equation of state

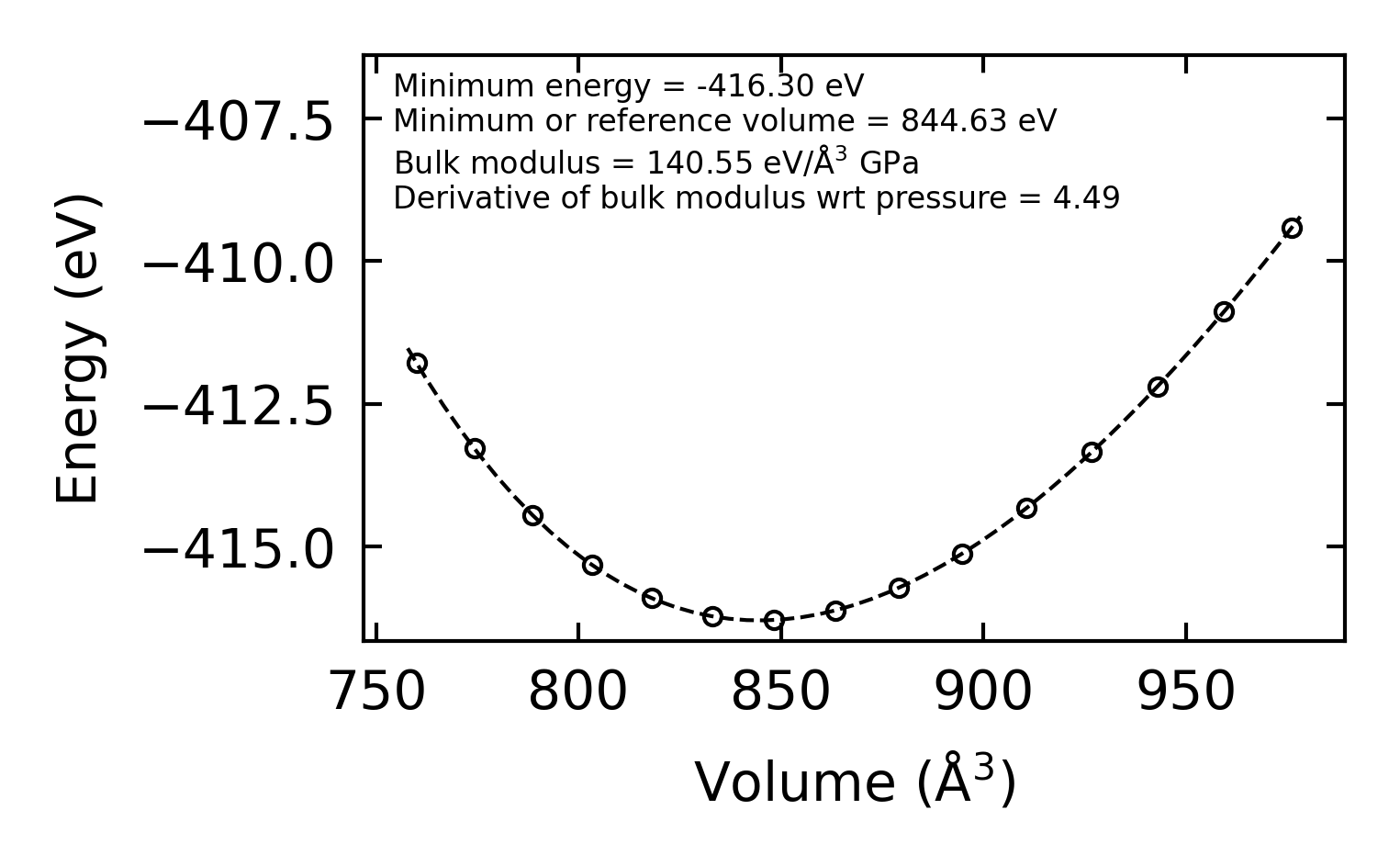

../../_images/fig_bm516.png — (a) Equation of state

Harmonic properties

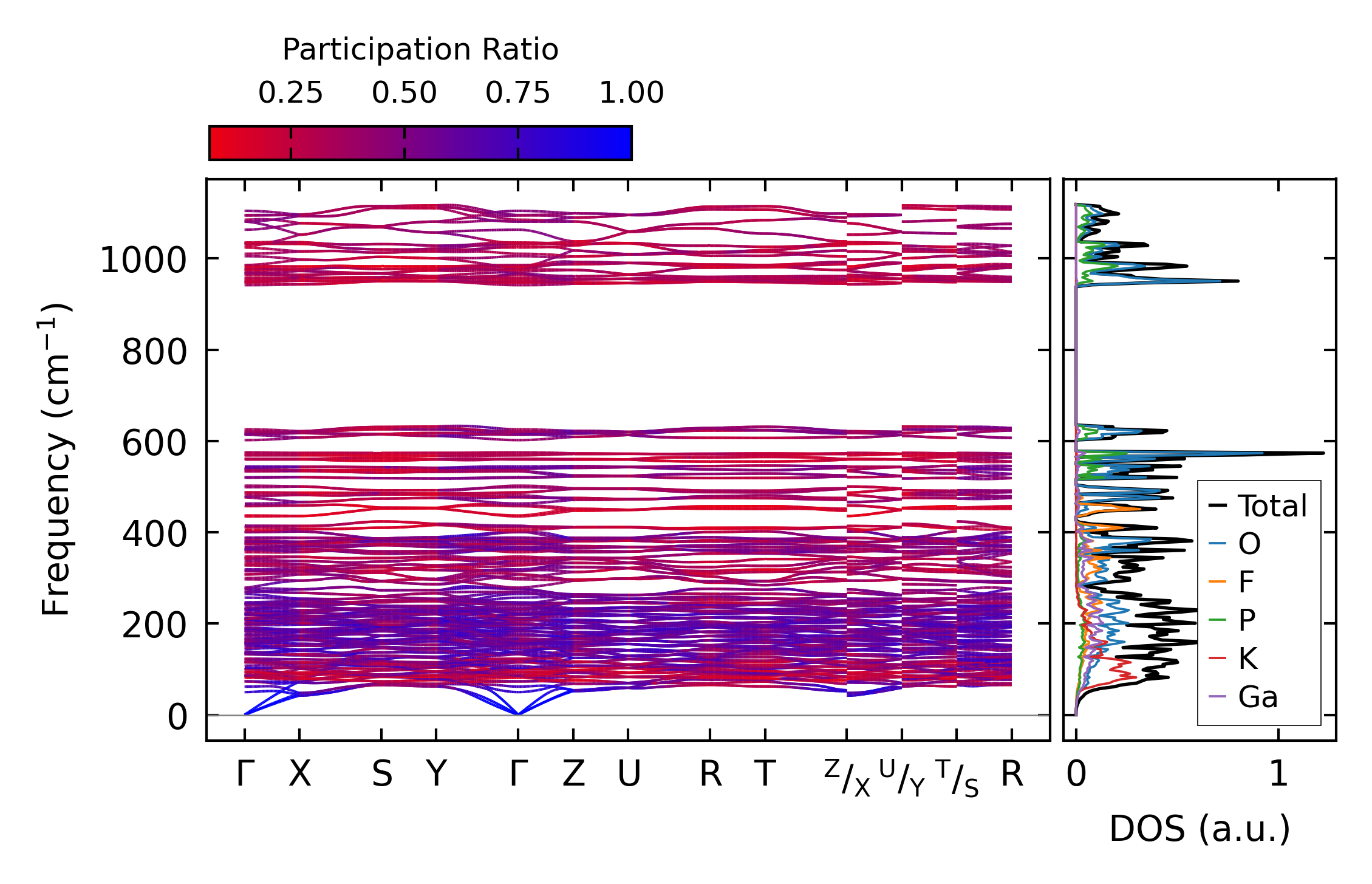

../../_images/fig_bandos_pr1442.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1442.png — (b) Thermodynamic properties

Grüneisen parameters

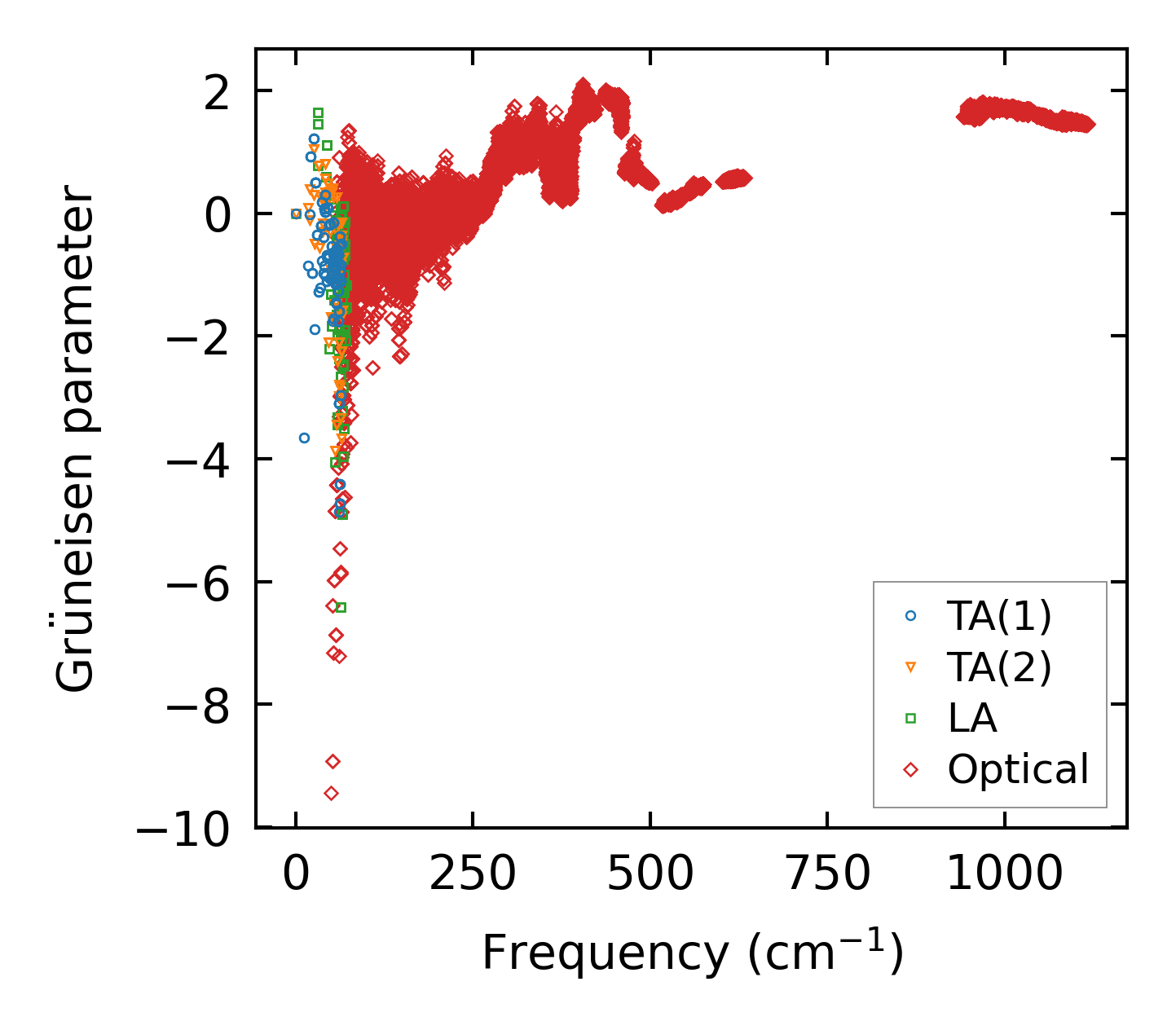

../../_images/fig_gru_all887.png — (a) Grüneisen parameters

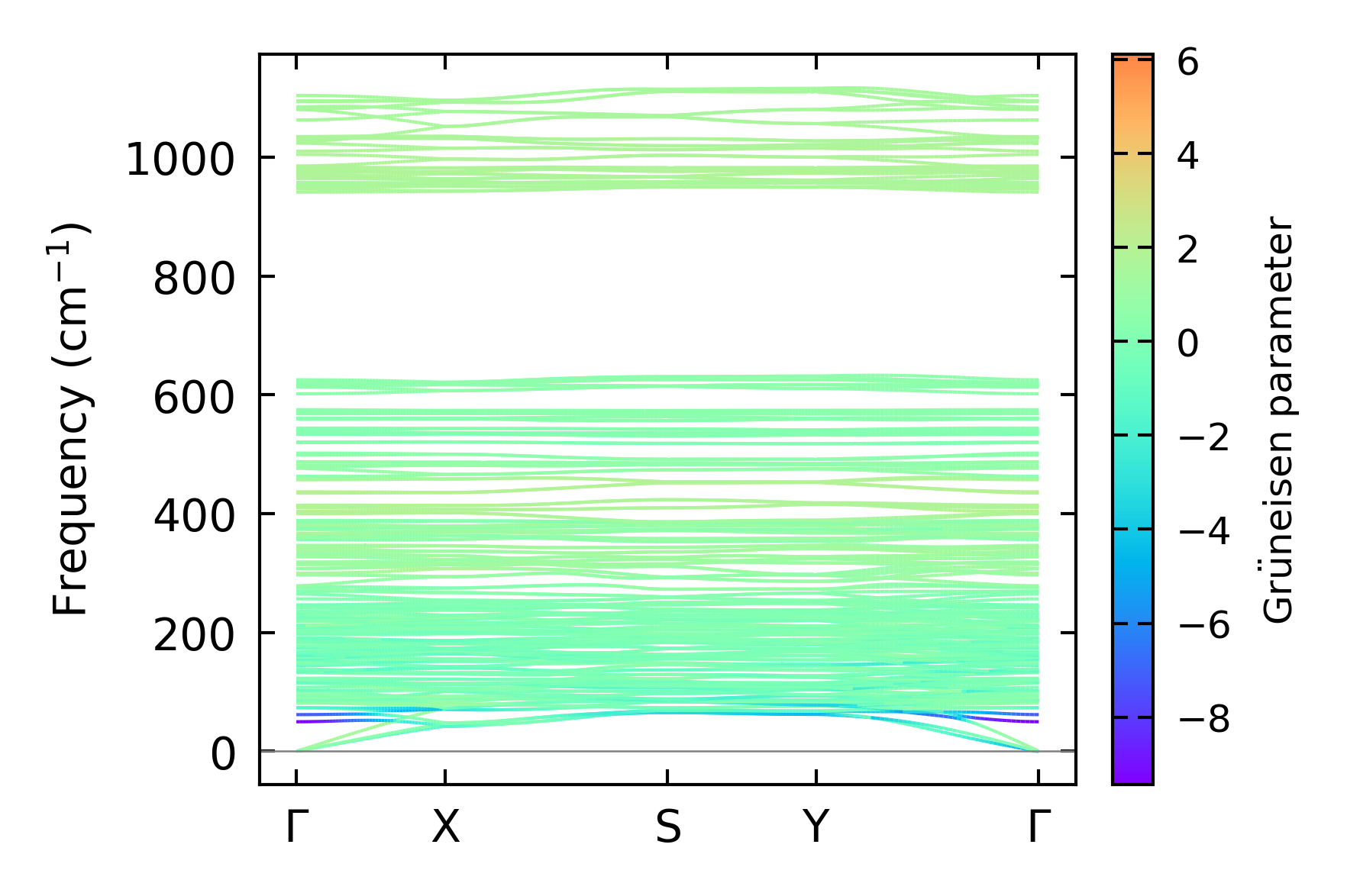

../../_images/fig_gruneisen887.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 5x11x6, supercell: 1x2x1

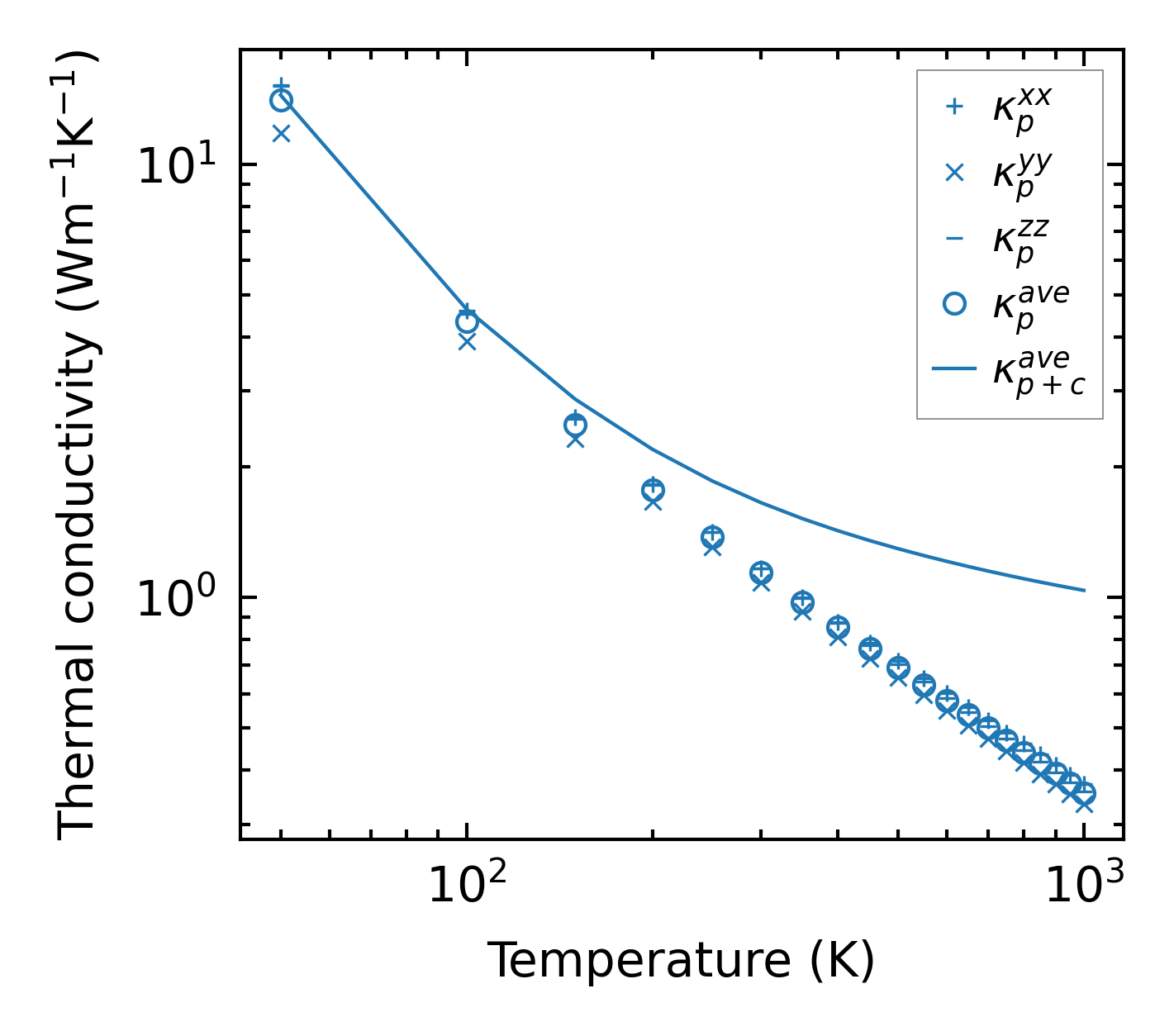

../../_images/fig_kappa1722.png — (a) Temperature-dependent lattice thermal conductivity

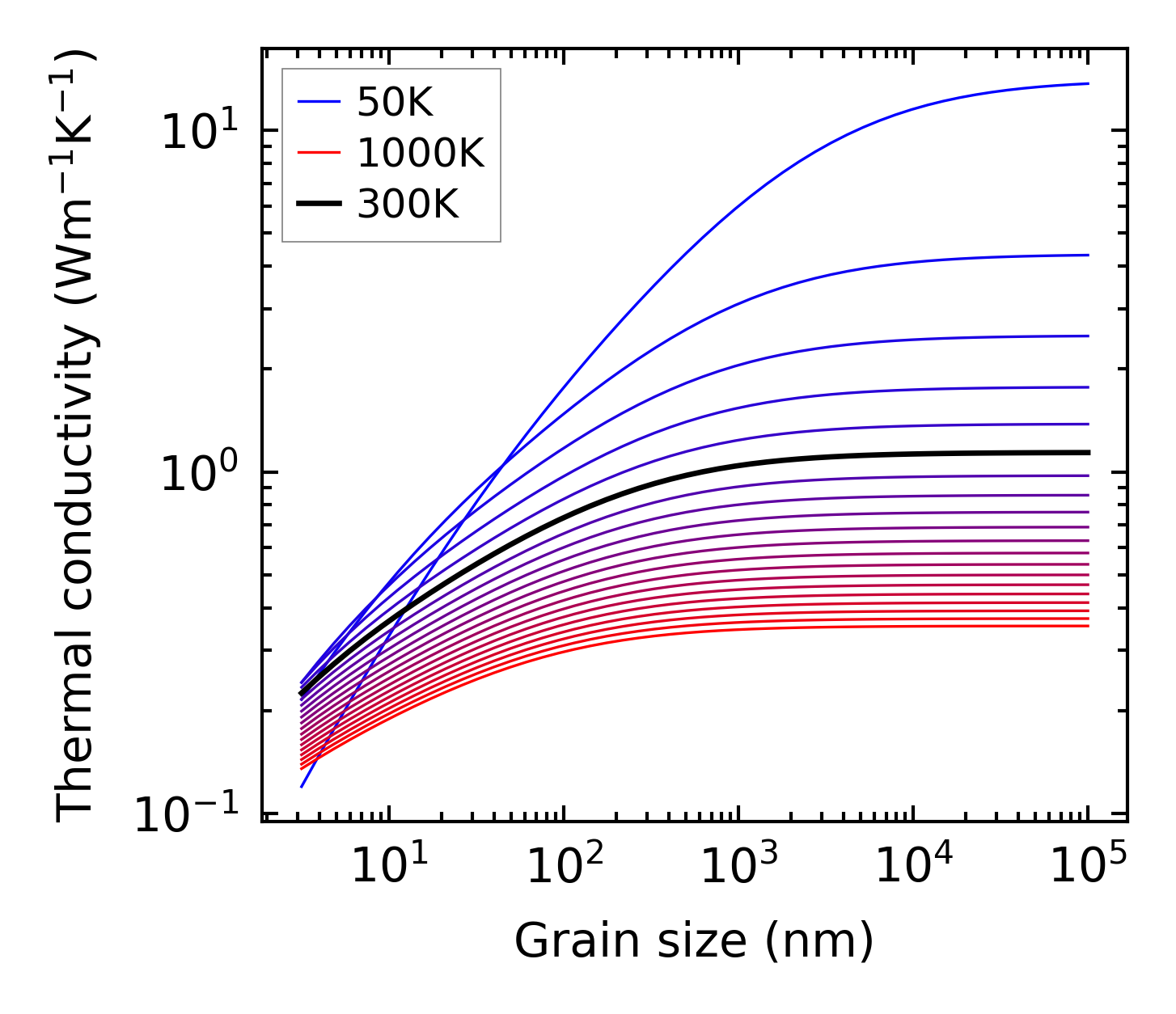

../../_images/fig_kappa_vs_grain_size897.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

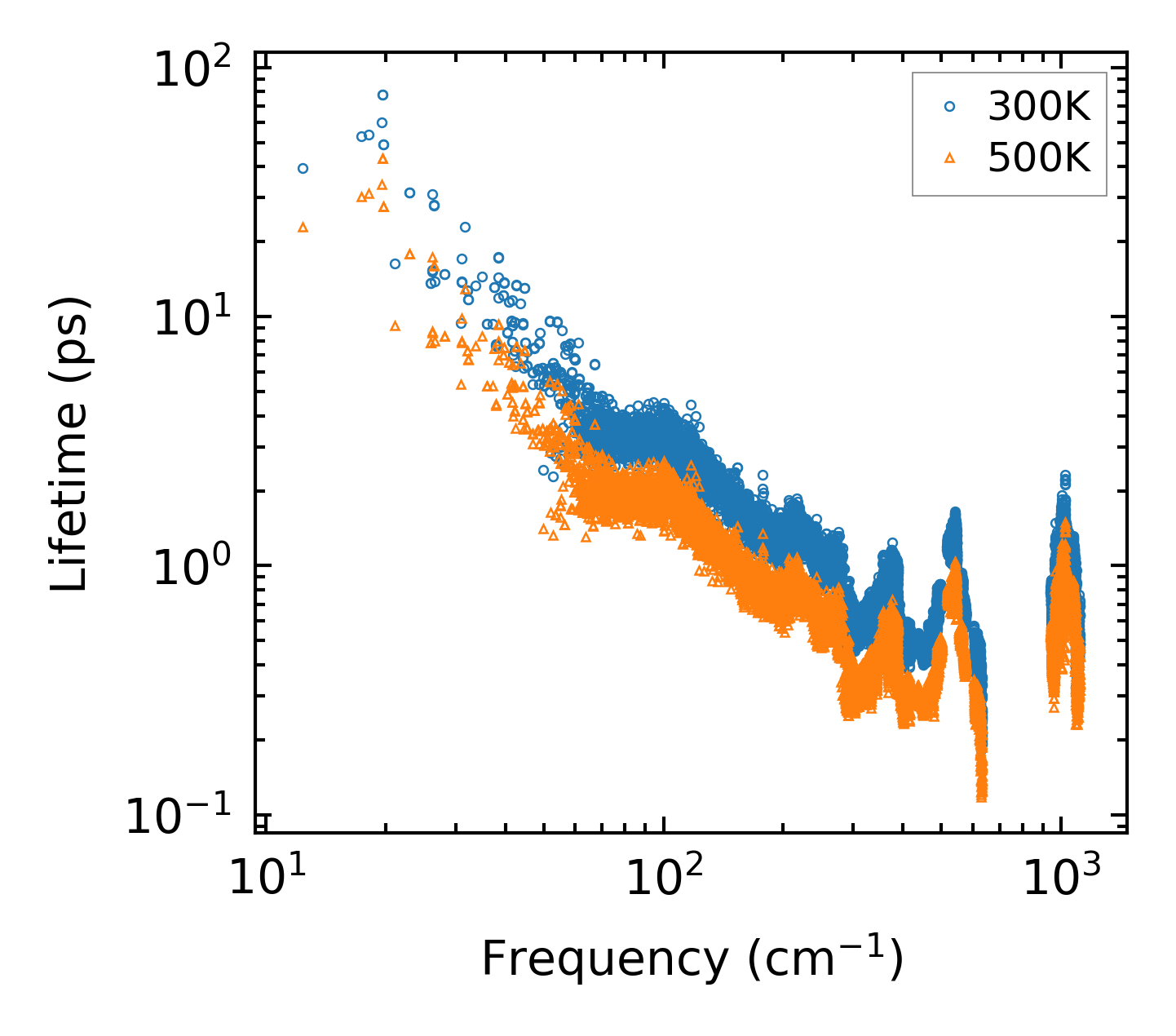

../../_images/fig_lifetime880.png — (a) Phonon lifetime due to phonon-phonon scattering

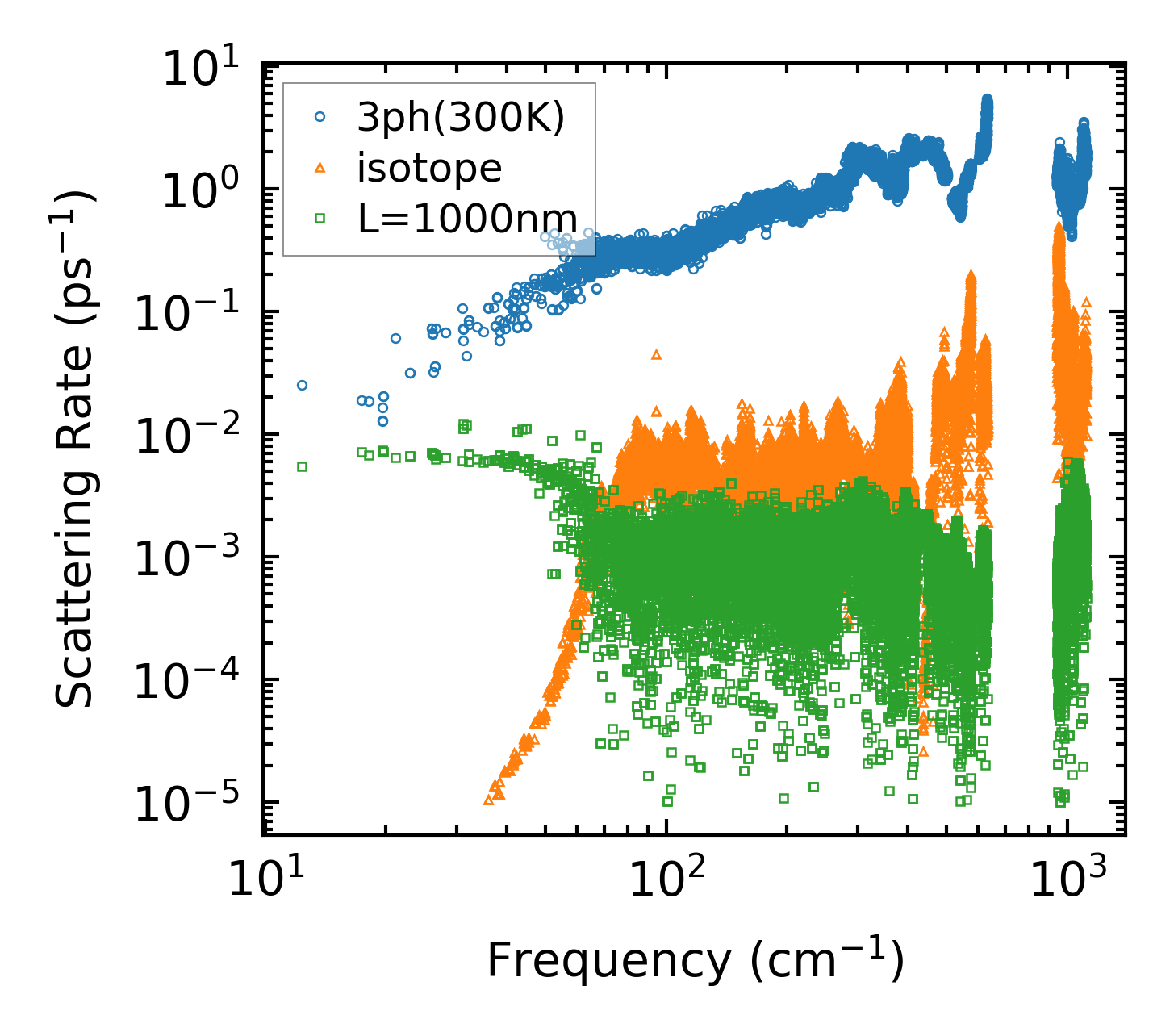

../../_images/fig_scat_rates879.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

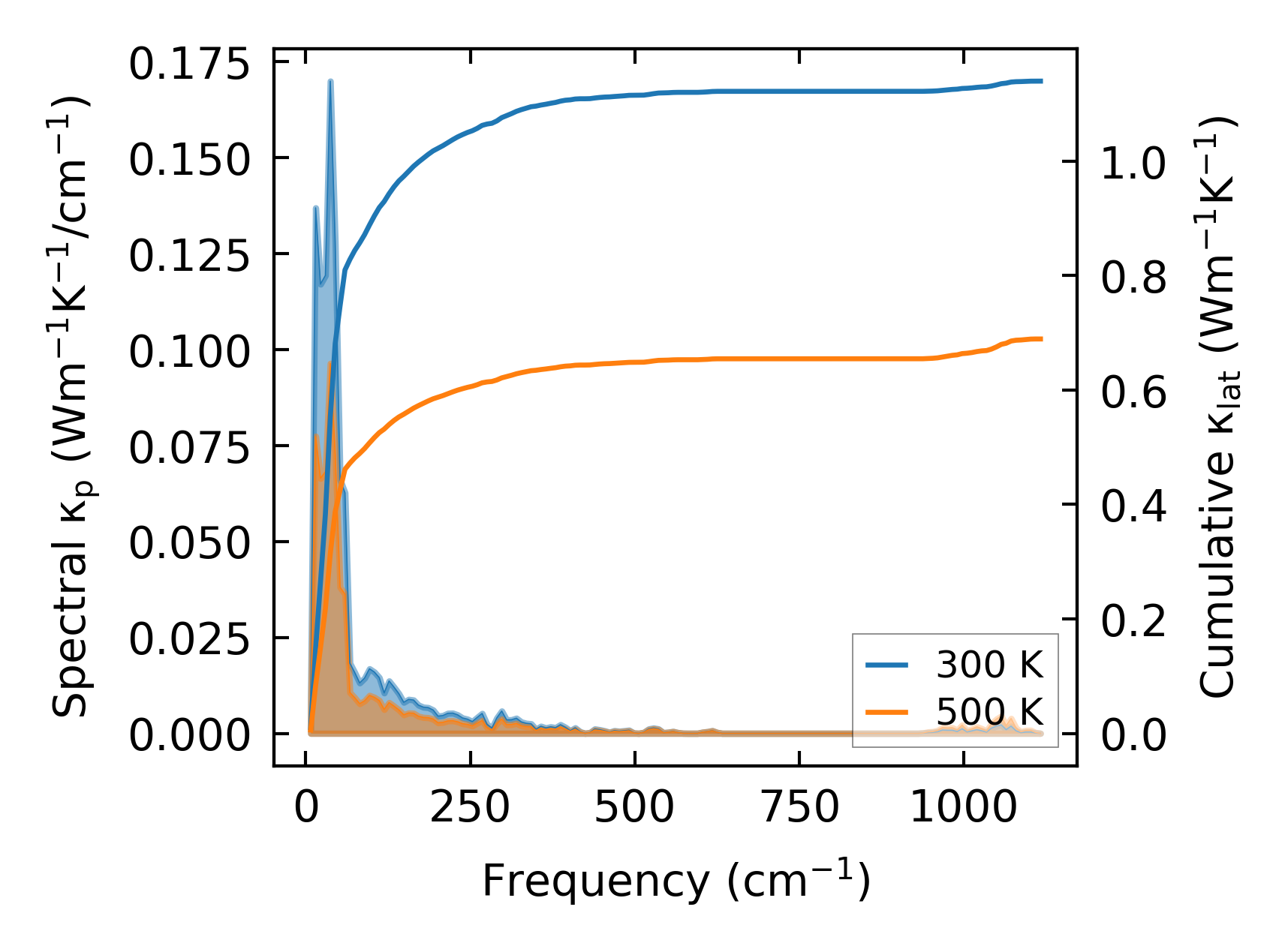

../../_images/fig_cumu_frequency880.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

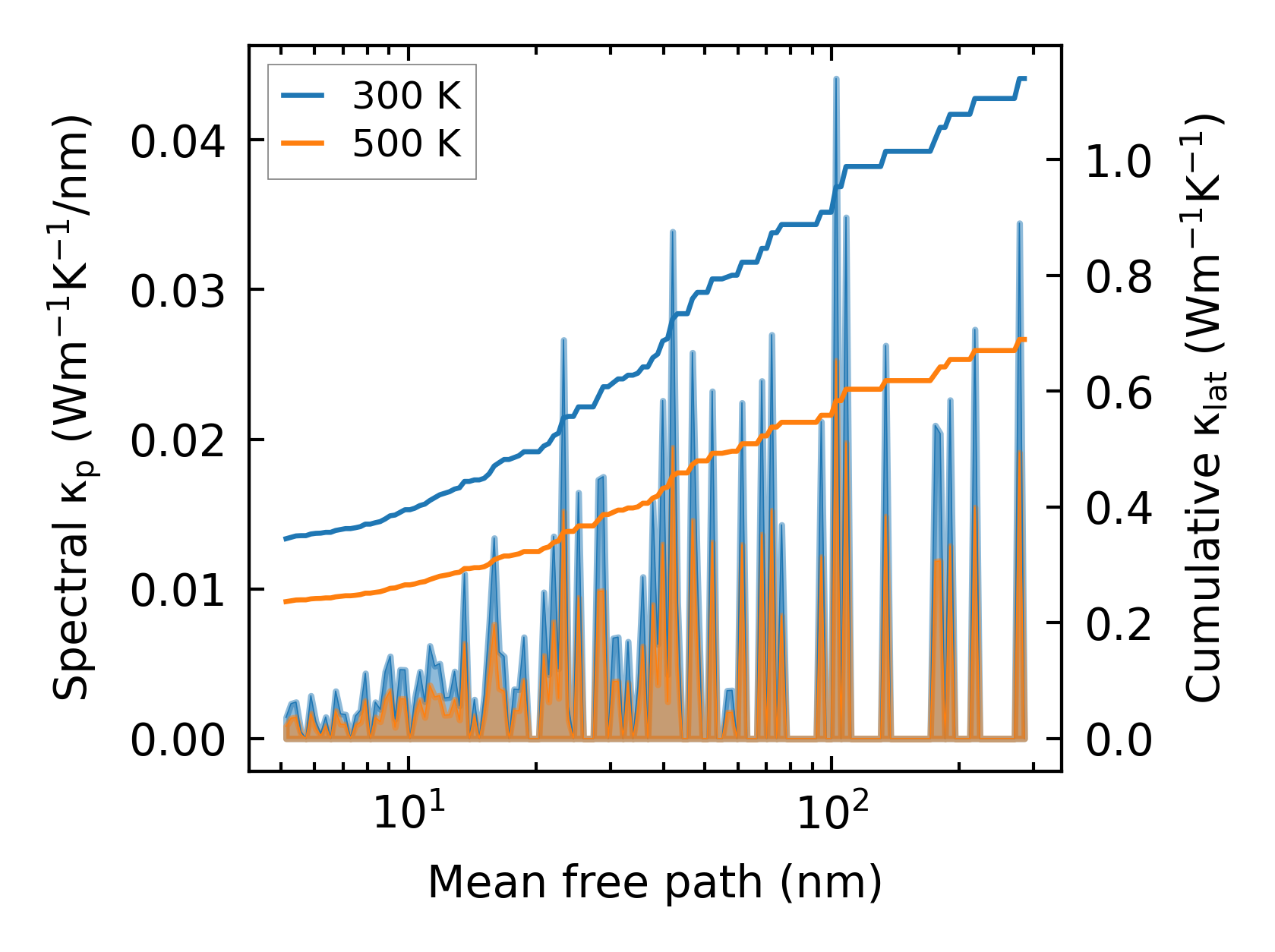

../../_images/fig_cumu_mfp880.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

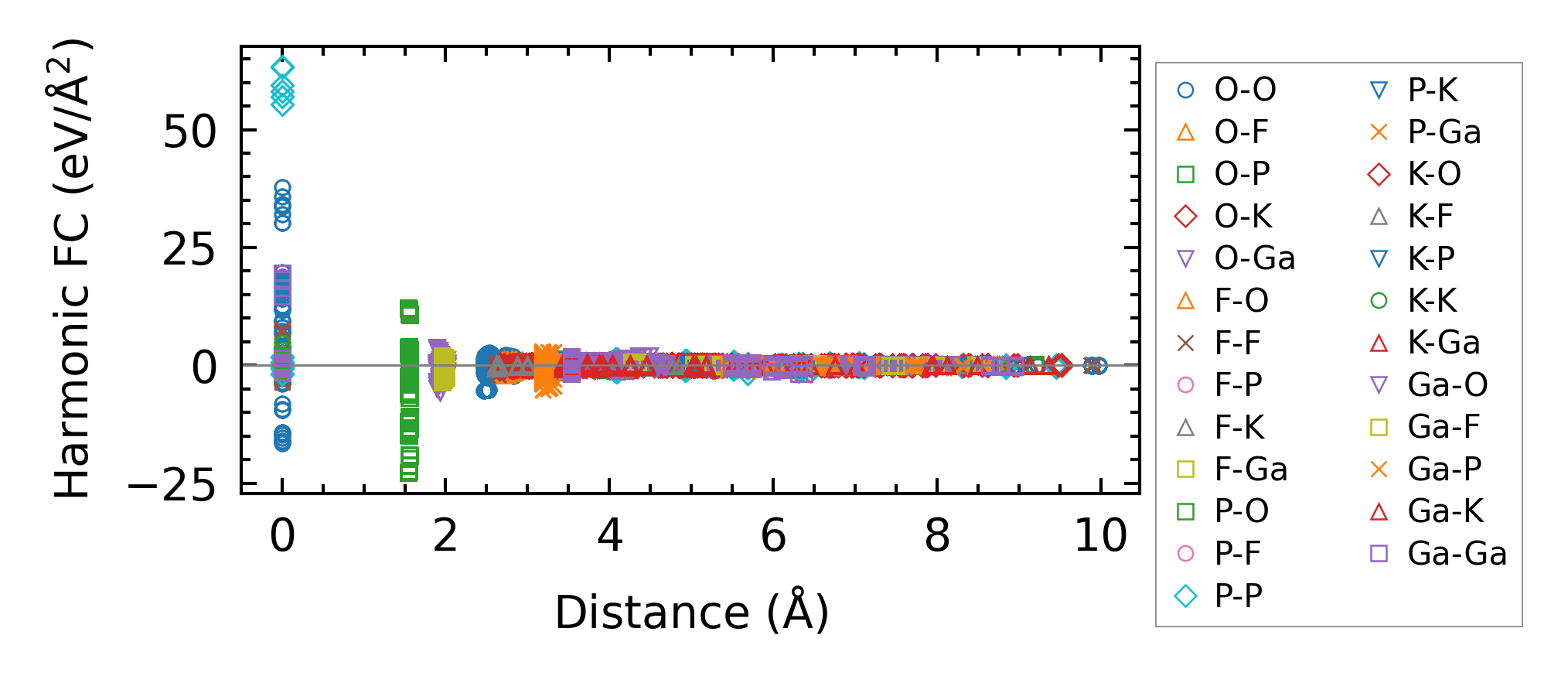

../../_images/fig_fc21294.png — (a) Force constants w.r.t atomic distance

Summary

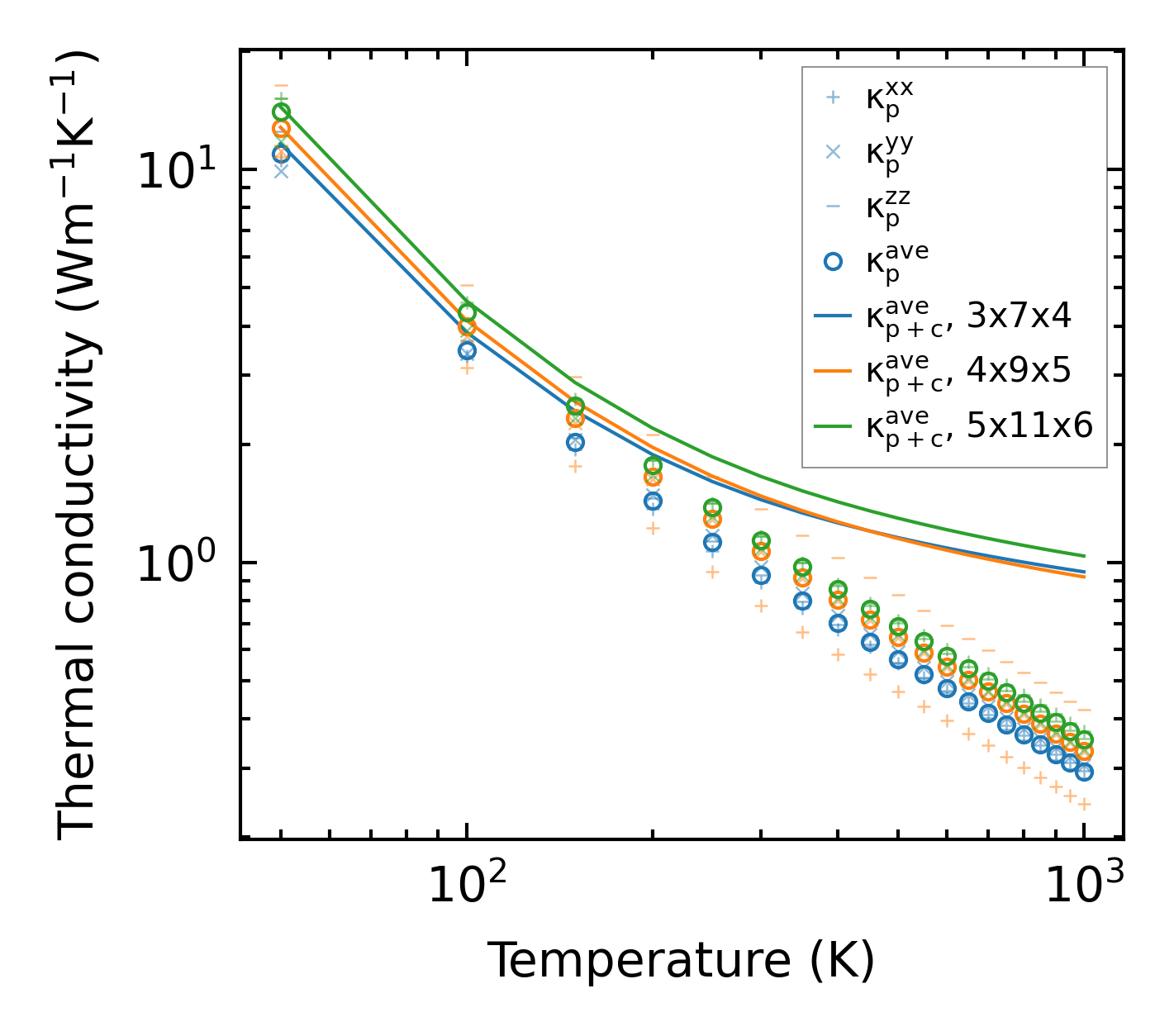

../../_images/fig_kappa1723.png — (a) Temperature-dependent lattice thermal conductivity

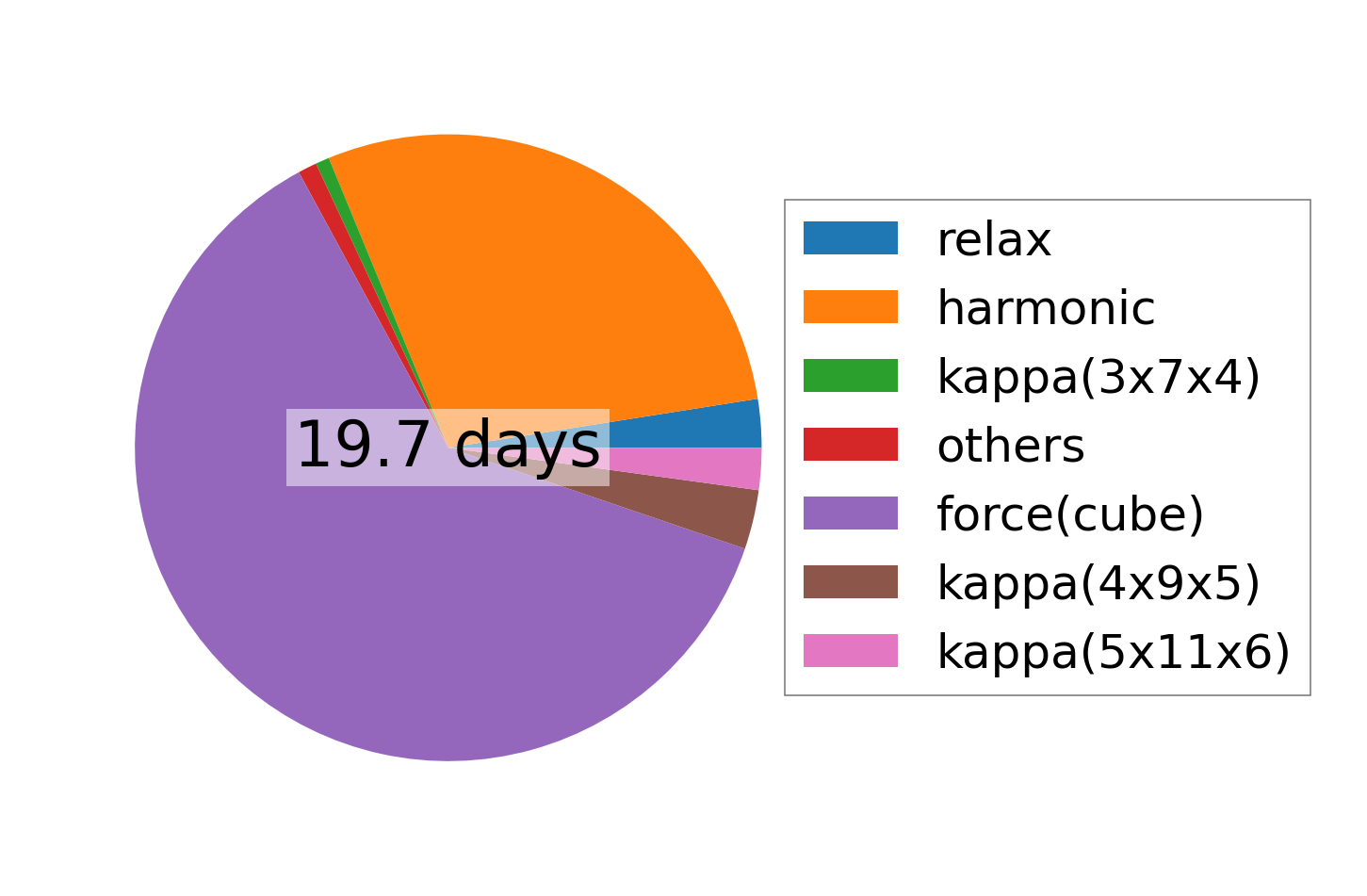

../../_images/fig_times2158.png — (b) Computation time
