mp-9839-2/K2LiAlF6/anharm

Space group: Fm-3m (225)
Link: Materials Project
Download: mp-9839-2.tar.gz

Equation of state

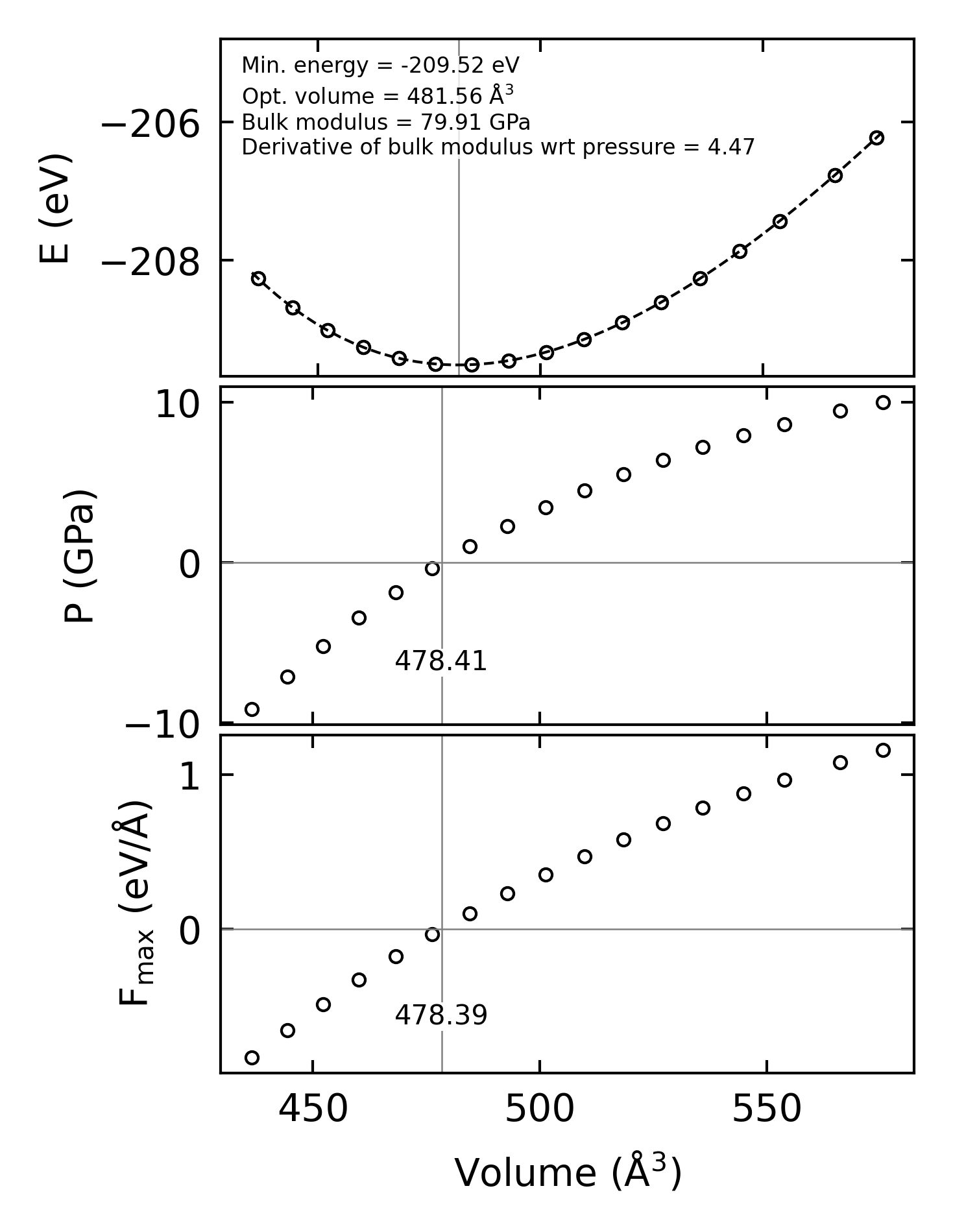

../../_images/fig_bm439.png — (a) Equation of state

Harmonic properties

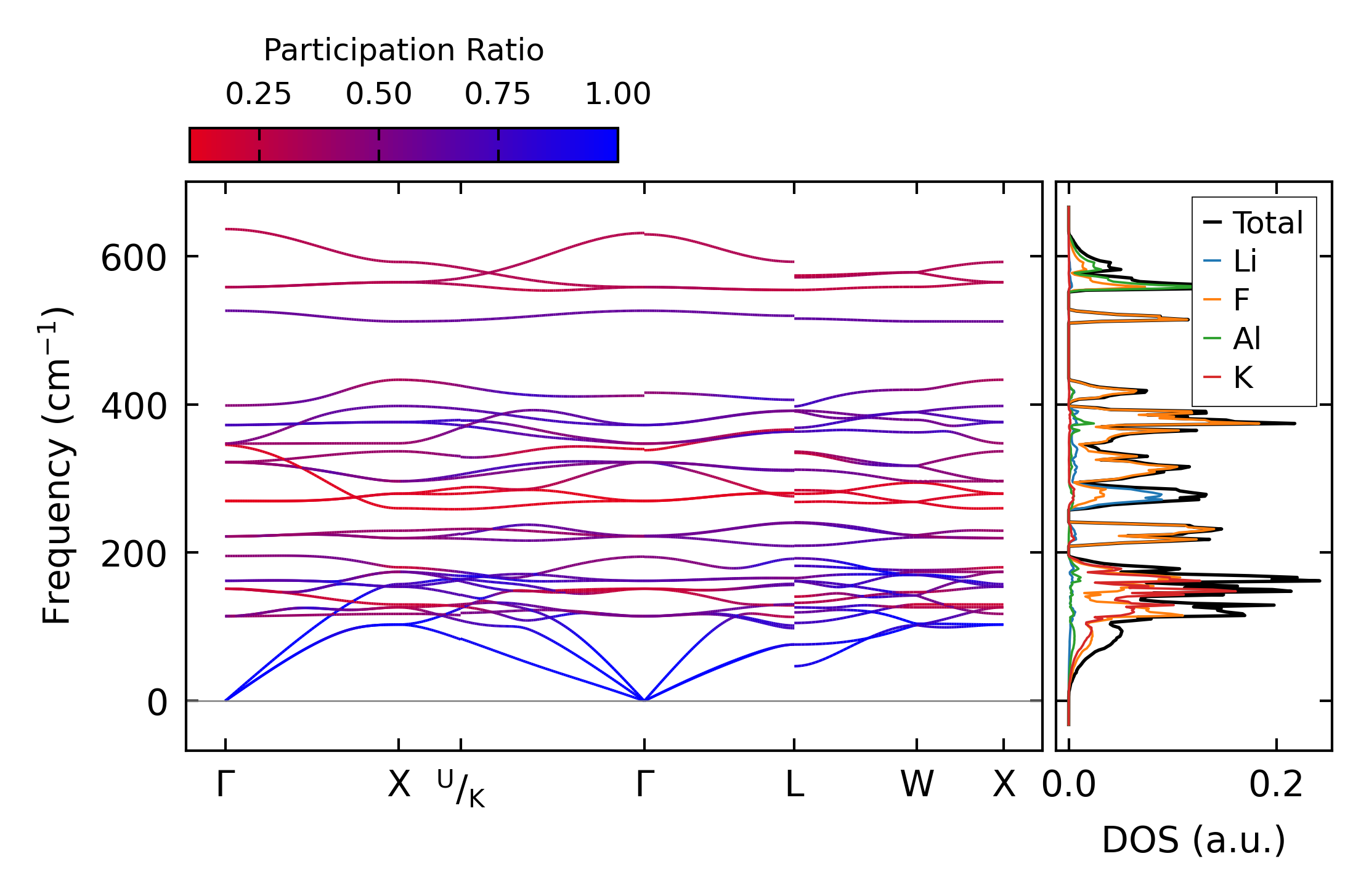

../../_images/fig_bandos_pr1257.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1257.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all774.png — (a) Grüneisen parameters

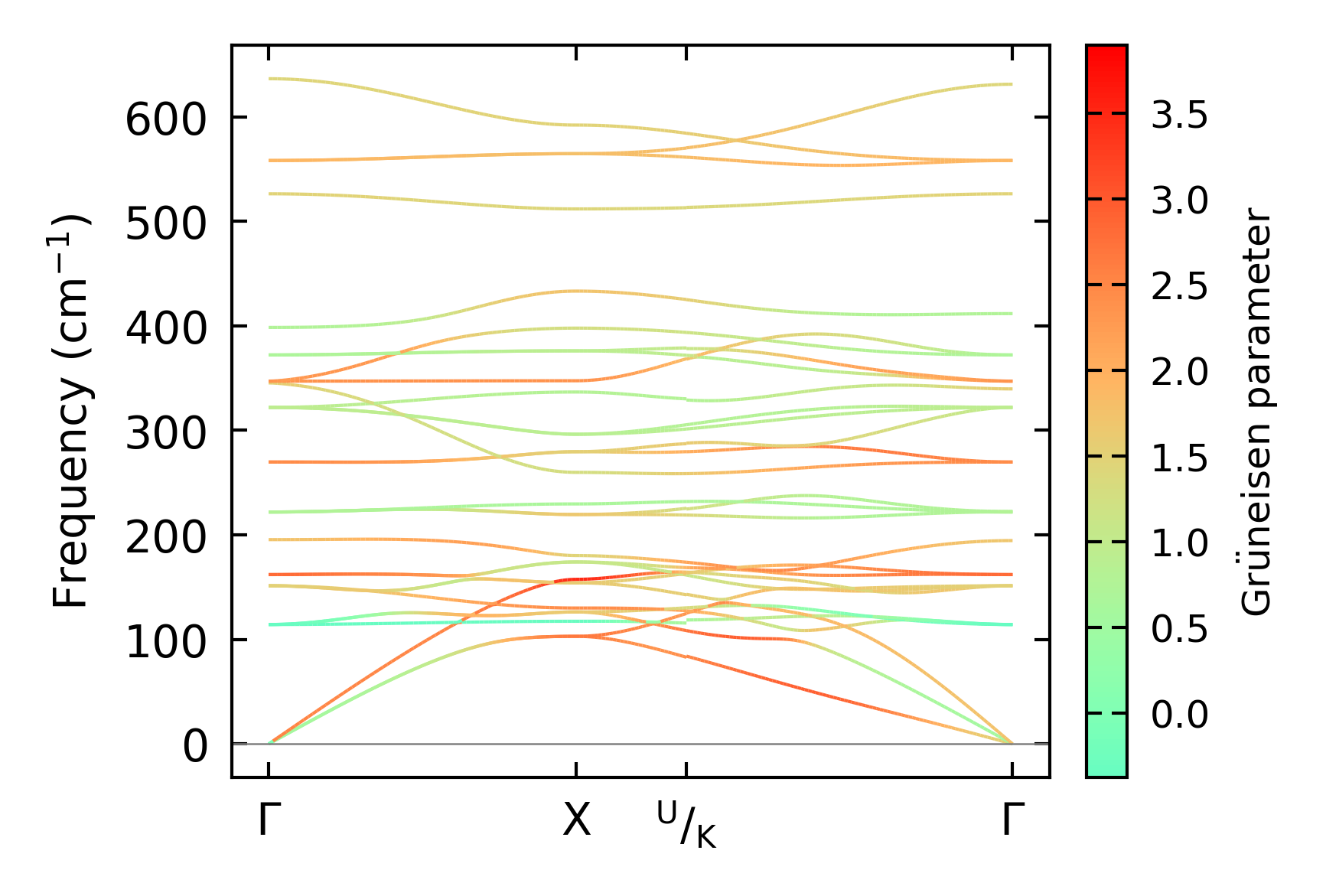

../../_images/fig_gruneisen774.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x14x14, supercell: 1x1x1

../../_images/fig_kappa1505.png — (a) Temperature-dependent lattice thermal conductivity

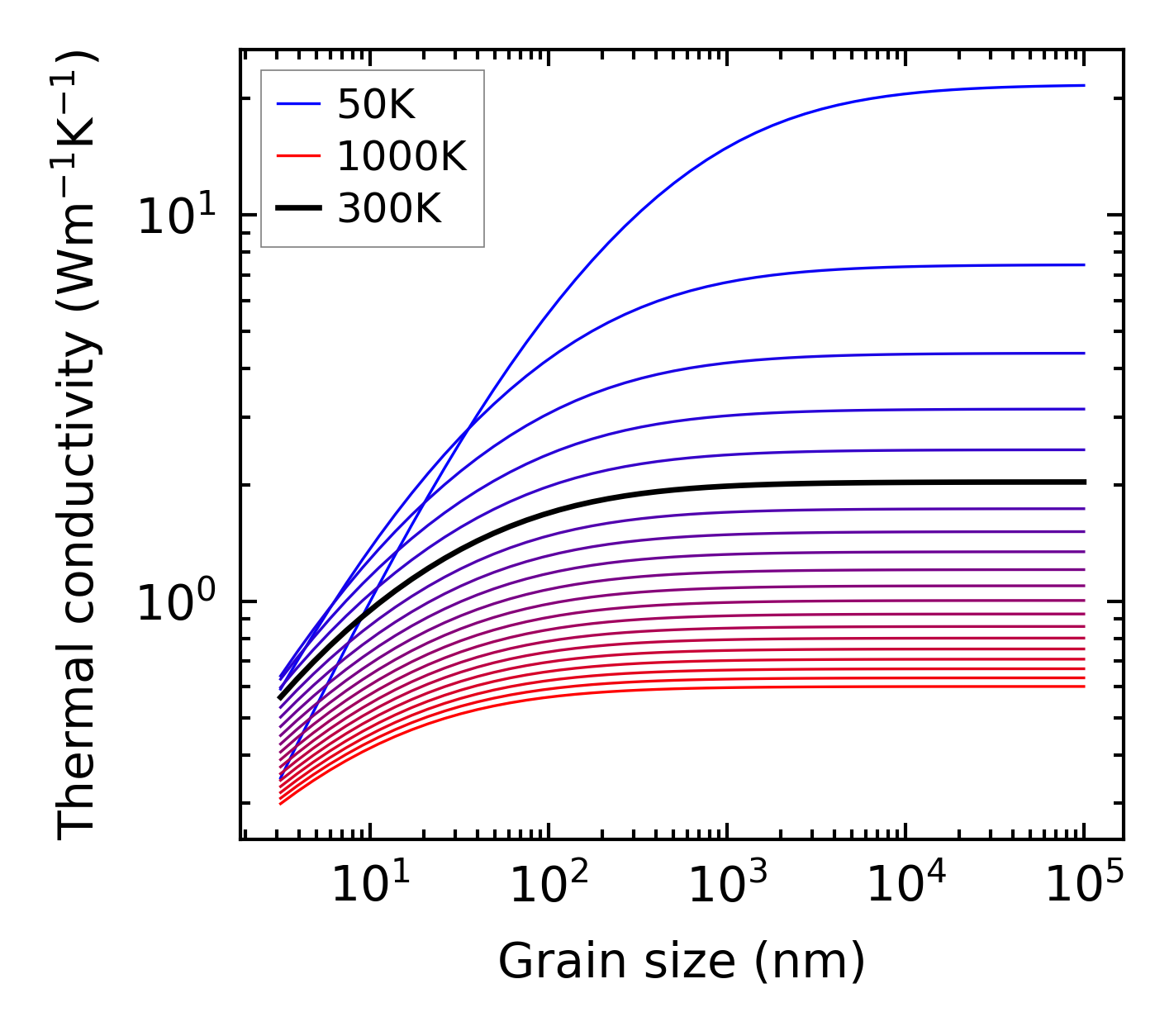

../../_images/fig_kappa_vs_grain_size782.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime768.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates767.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

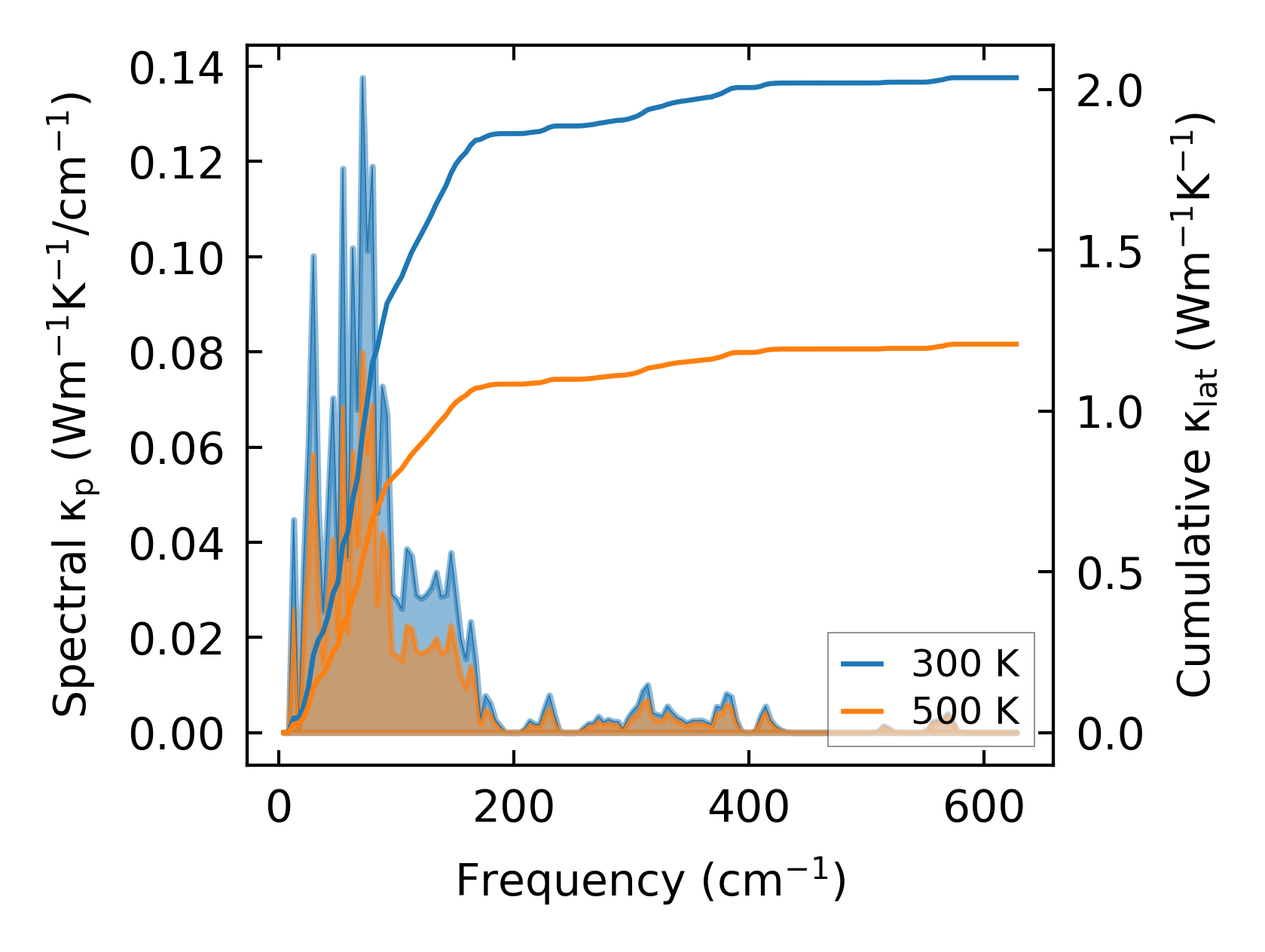

../../_images/fig_cumu_frequency768.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp768.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

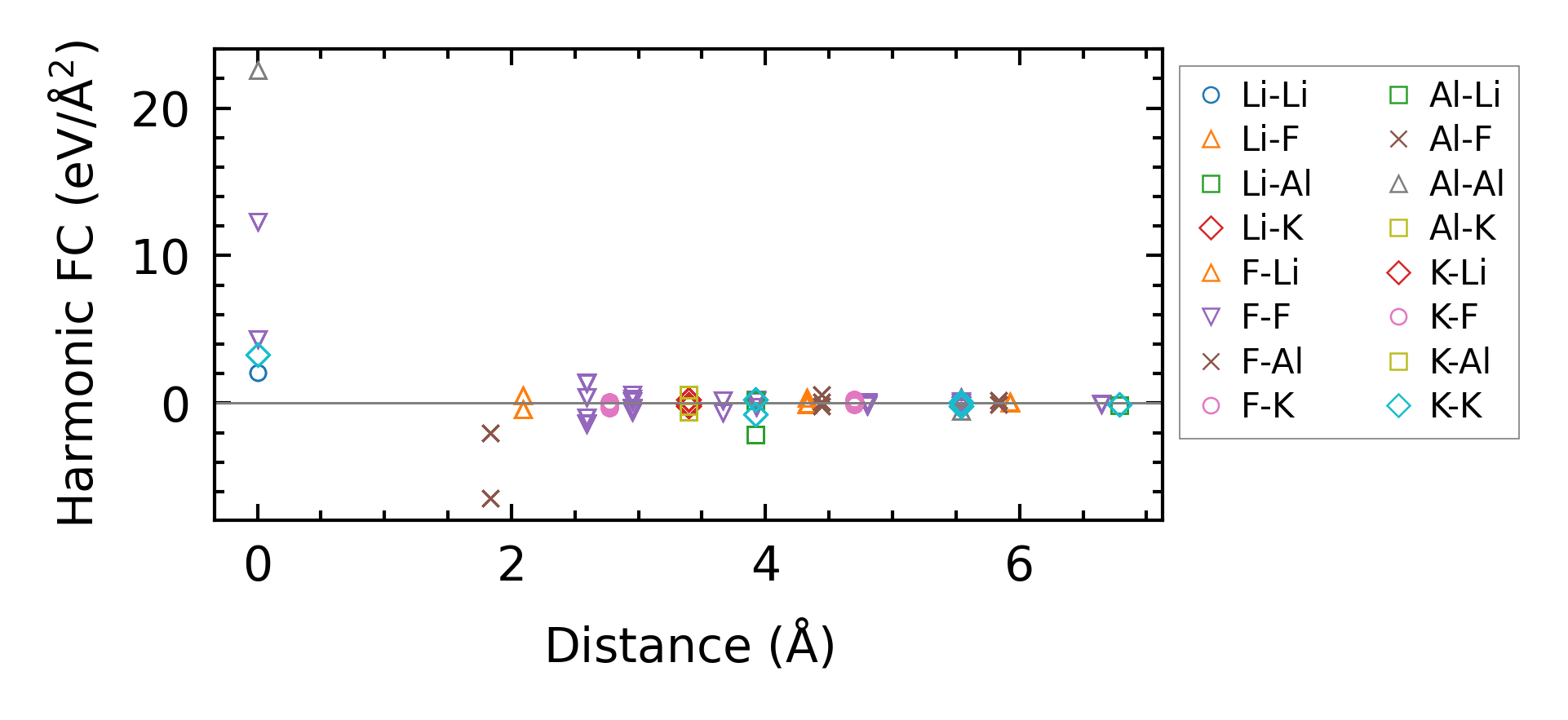

../../_images/fig_fc21123.png — (a) Force constants w.r.t atomic distance

Summary

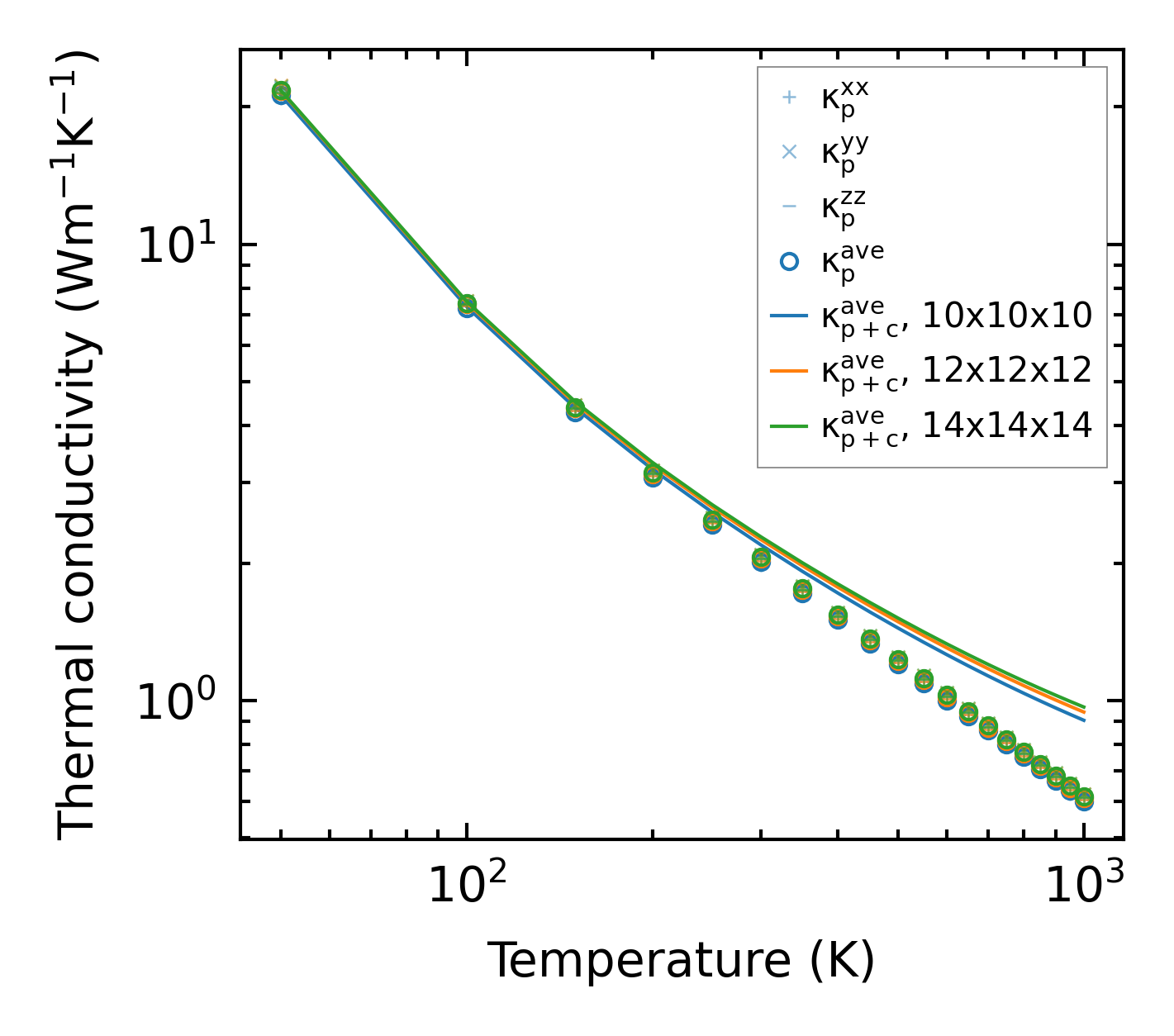

../../_images/fig_kappa1506.png — (a) Temperature-dependent lattice thermal conductivity

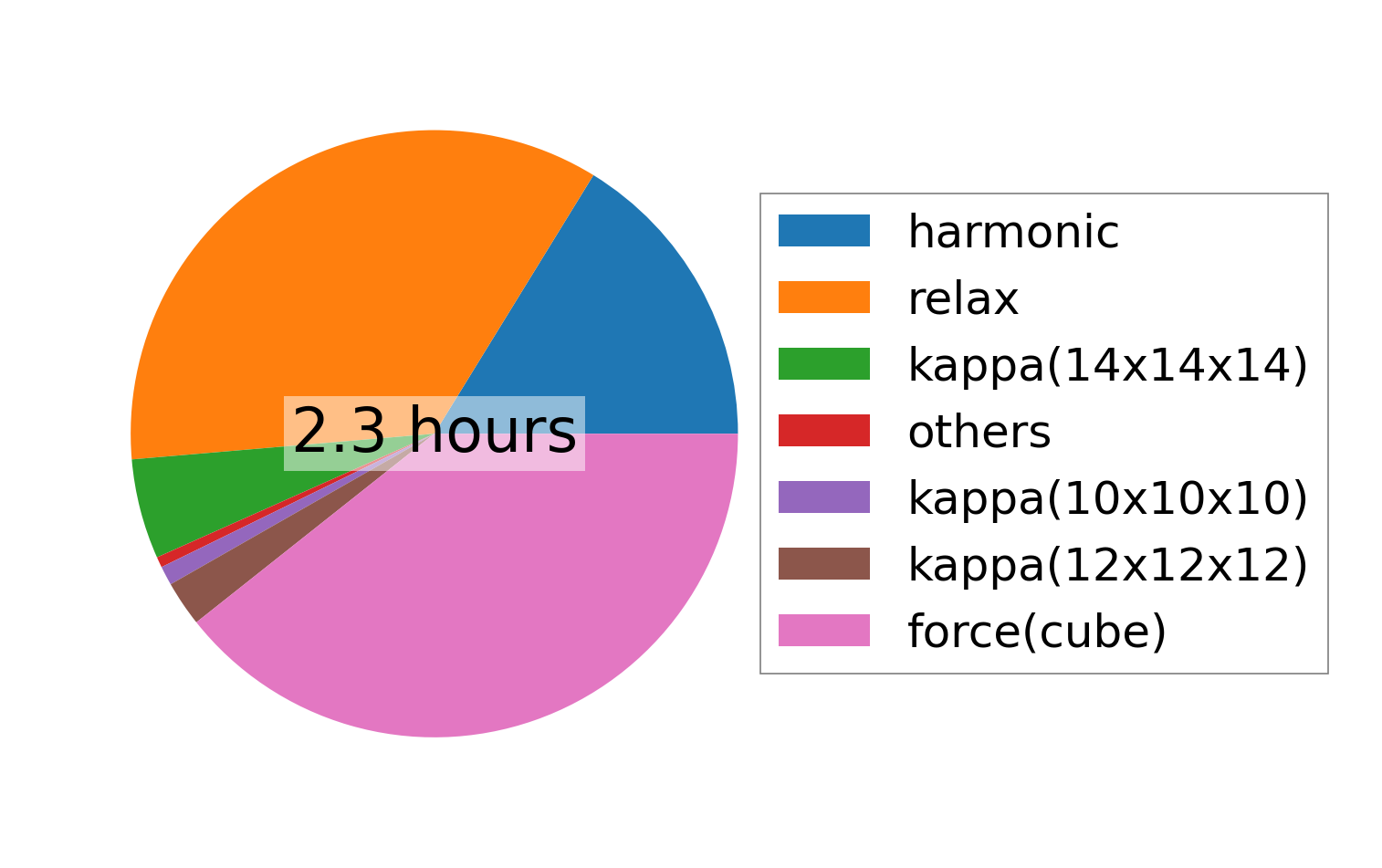

../../_images/fig_times1883.png — (b) Computation time
