mp-9392-2/Sr4Al6TeO12/anharm

Space group: I-43m (217)
Link: Materials Project
Download: mp-9392-2.tar.gz

Equation of state

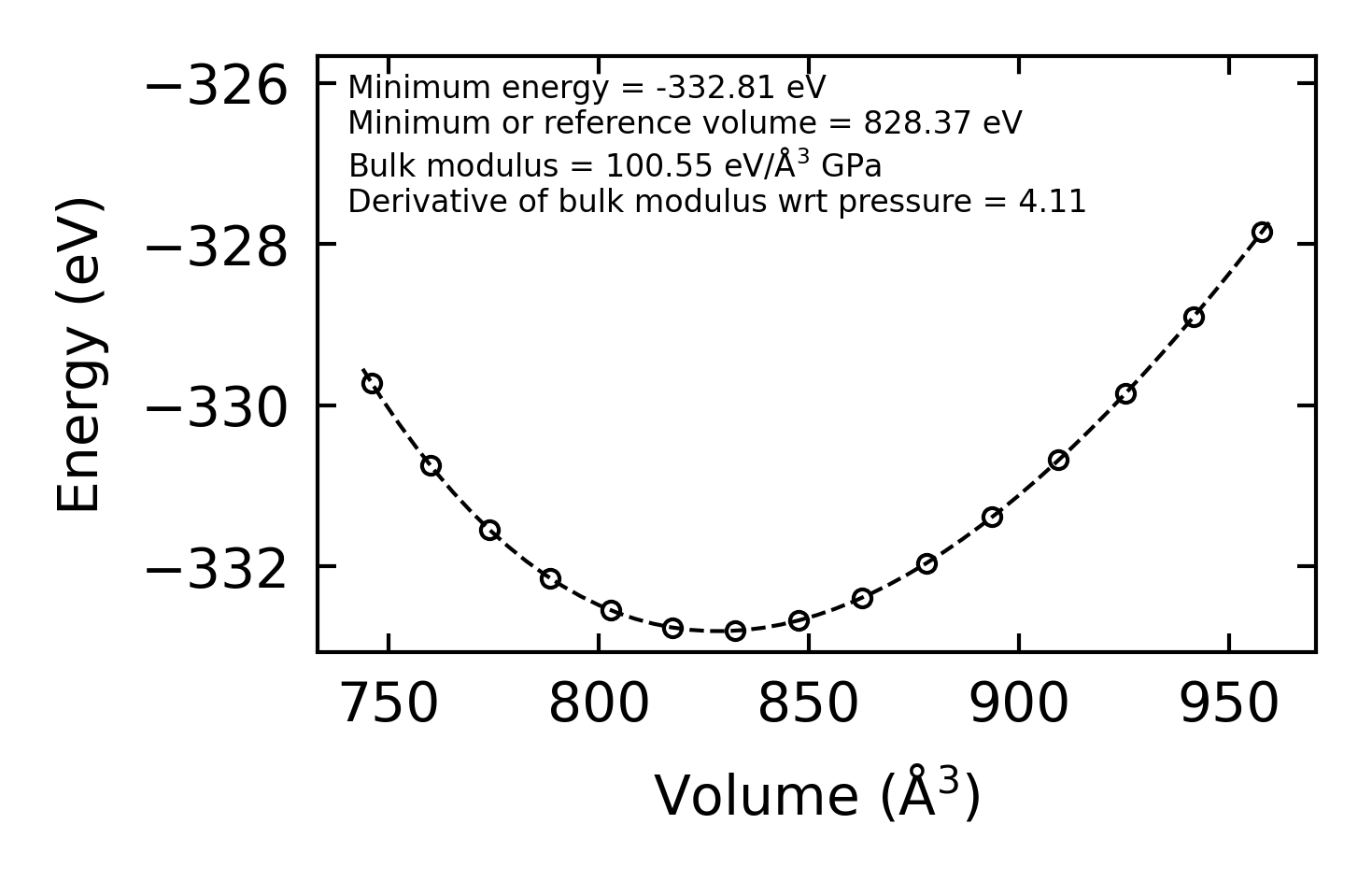

../../_images/fig_bm530.png — (a) Equation of state

Harmonic properties

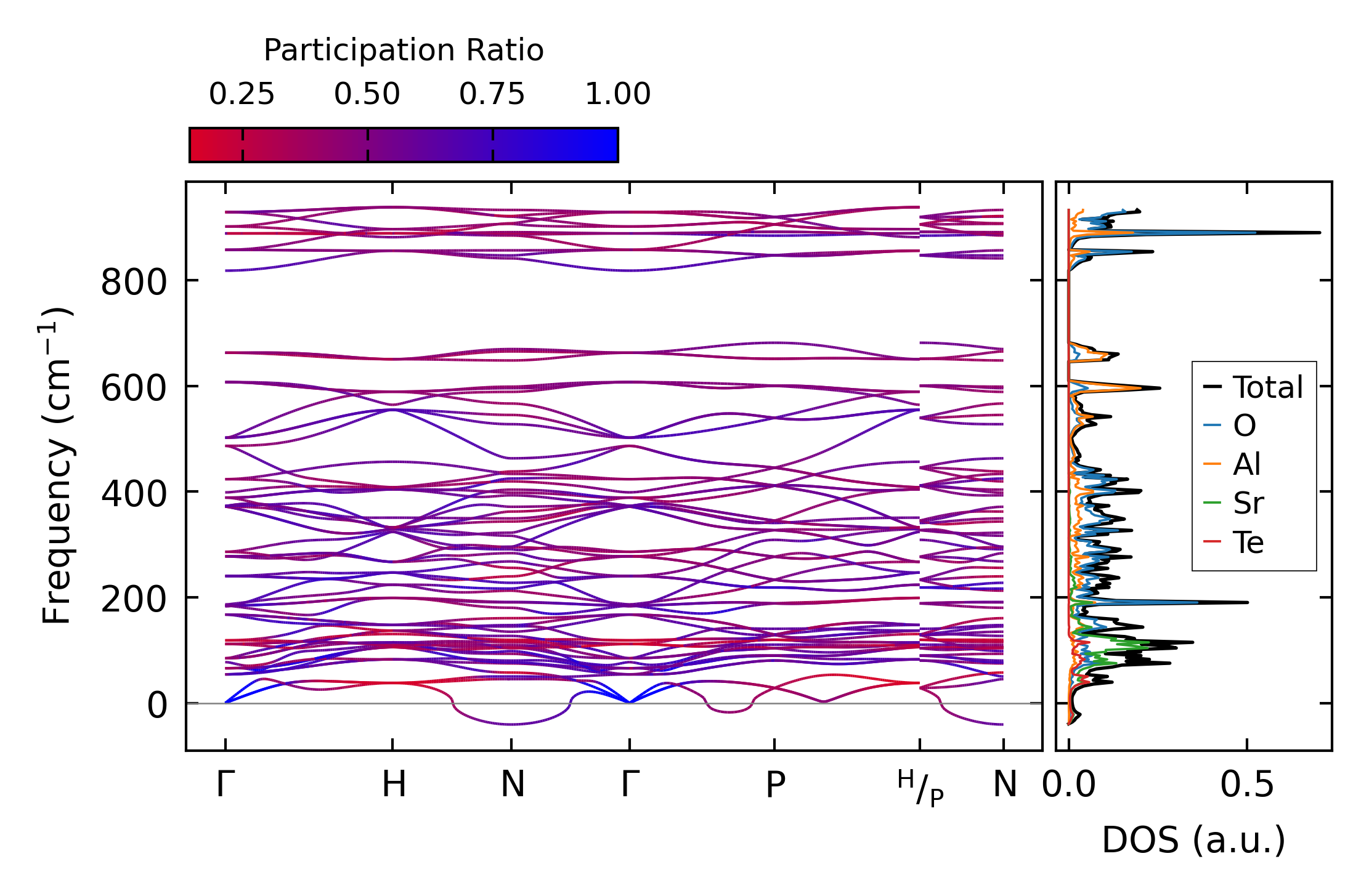

../../_images/fig_bandos_pr1470.png — (a) Phonon dispersion with participation ratio and DOS

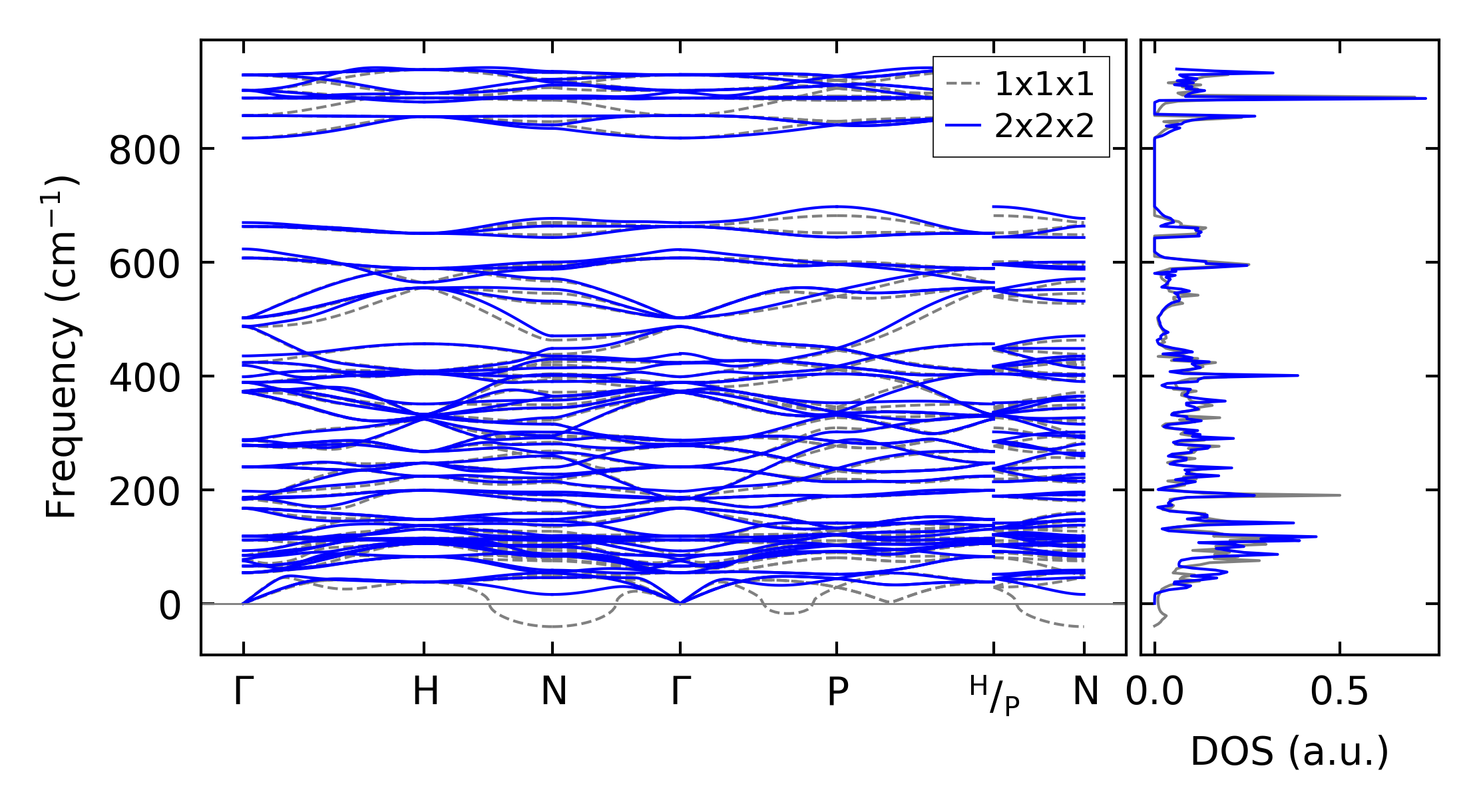

../../_images/fig_bandos1365.png — (b) Phonon dispersion and DOS

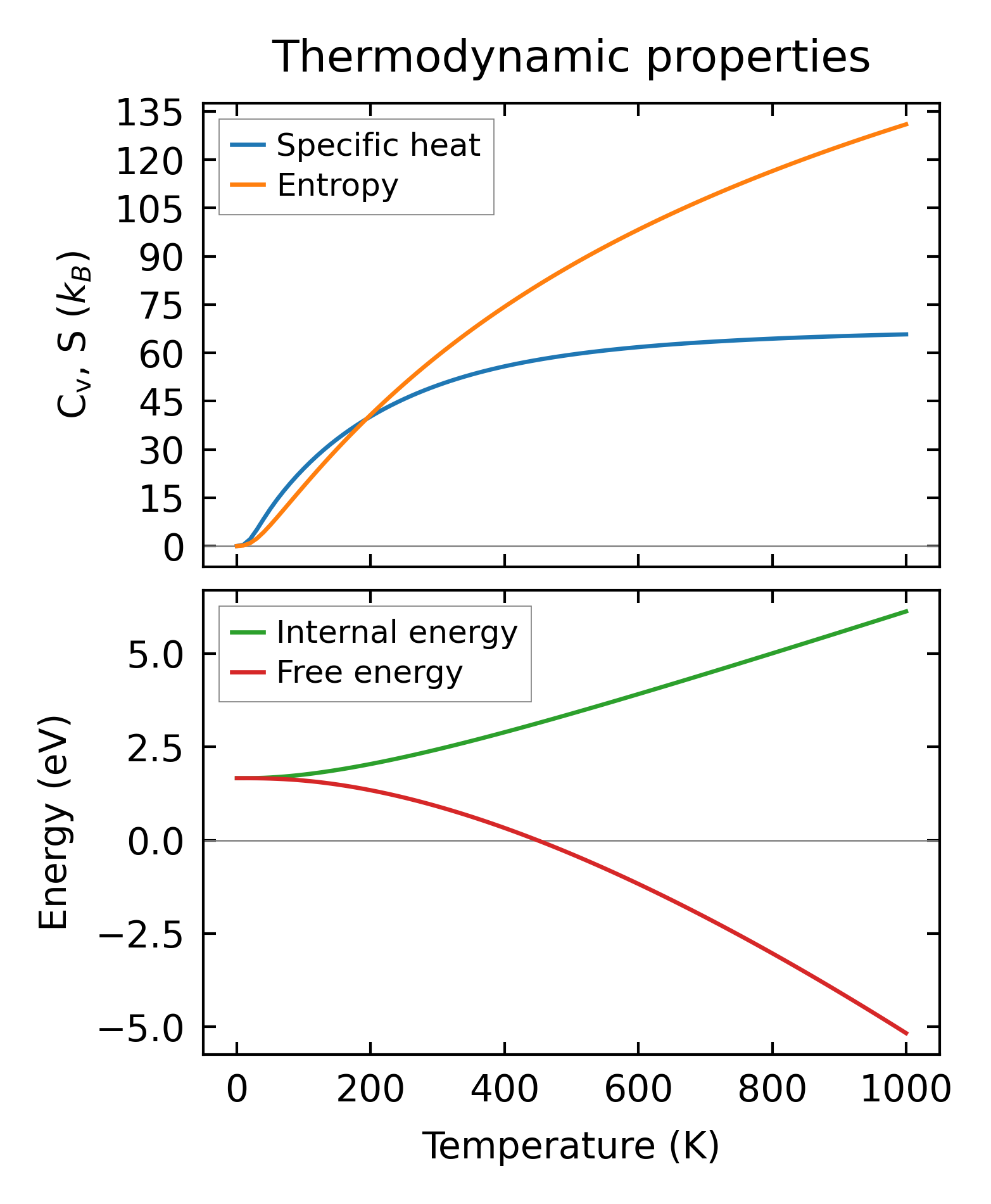

../../_images/fig_thermo1470.png — (c) Thermodynamic properties

Grüneisen parameters

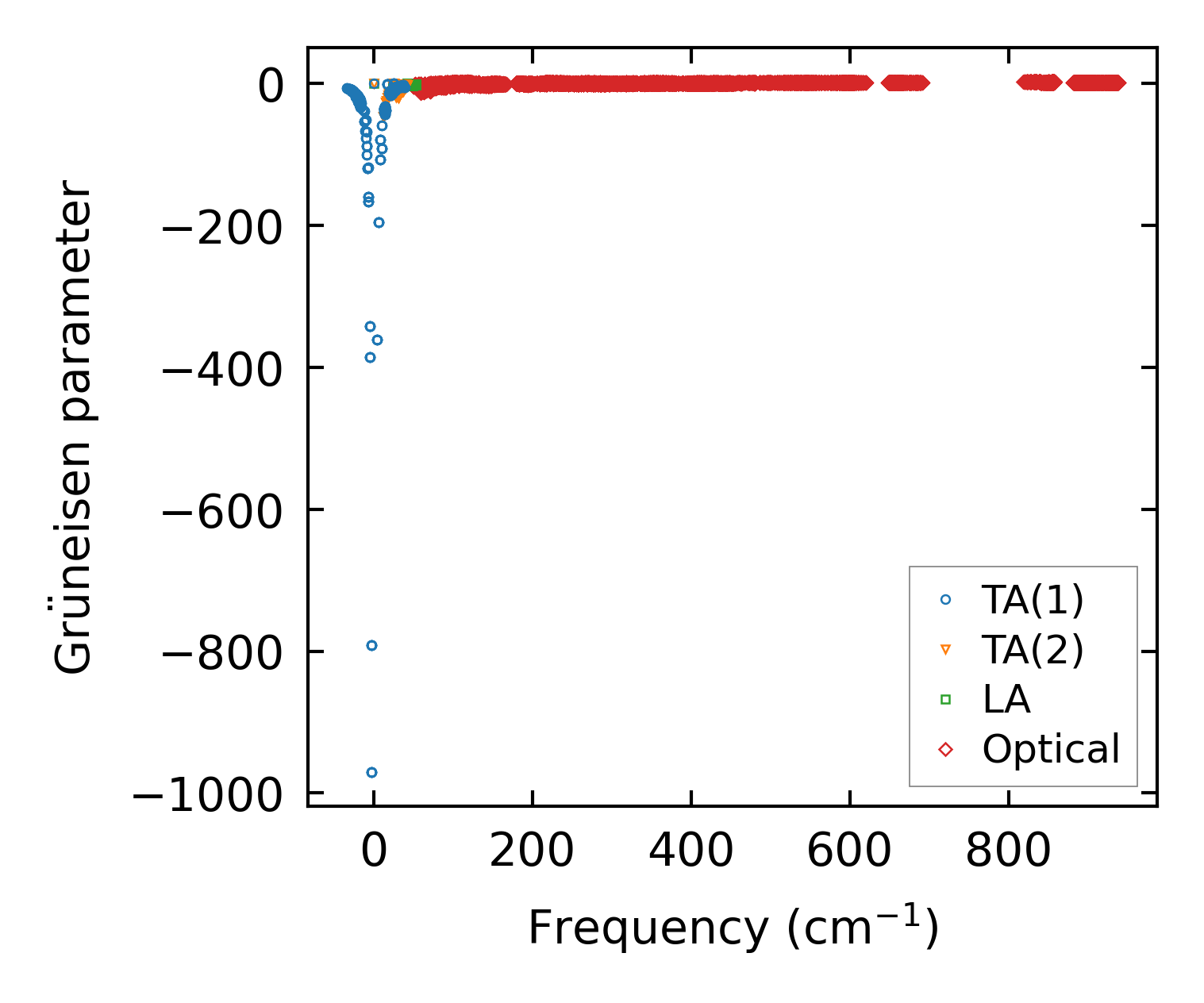

../../_images/fig_gru_all903.png — (a) Grüneisen parameters

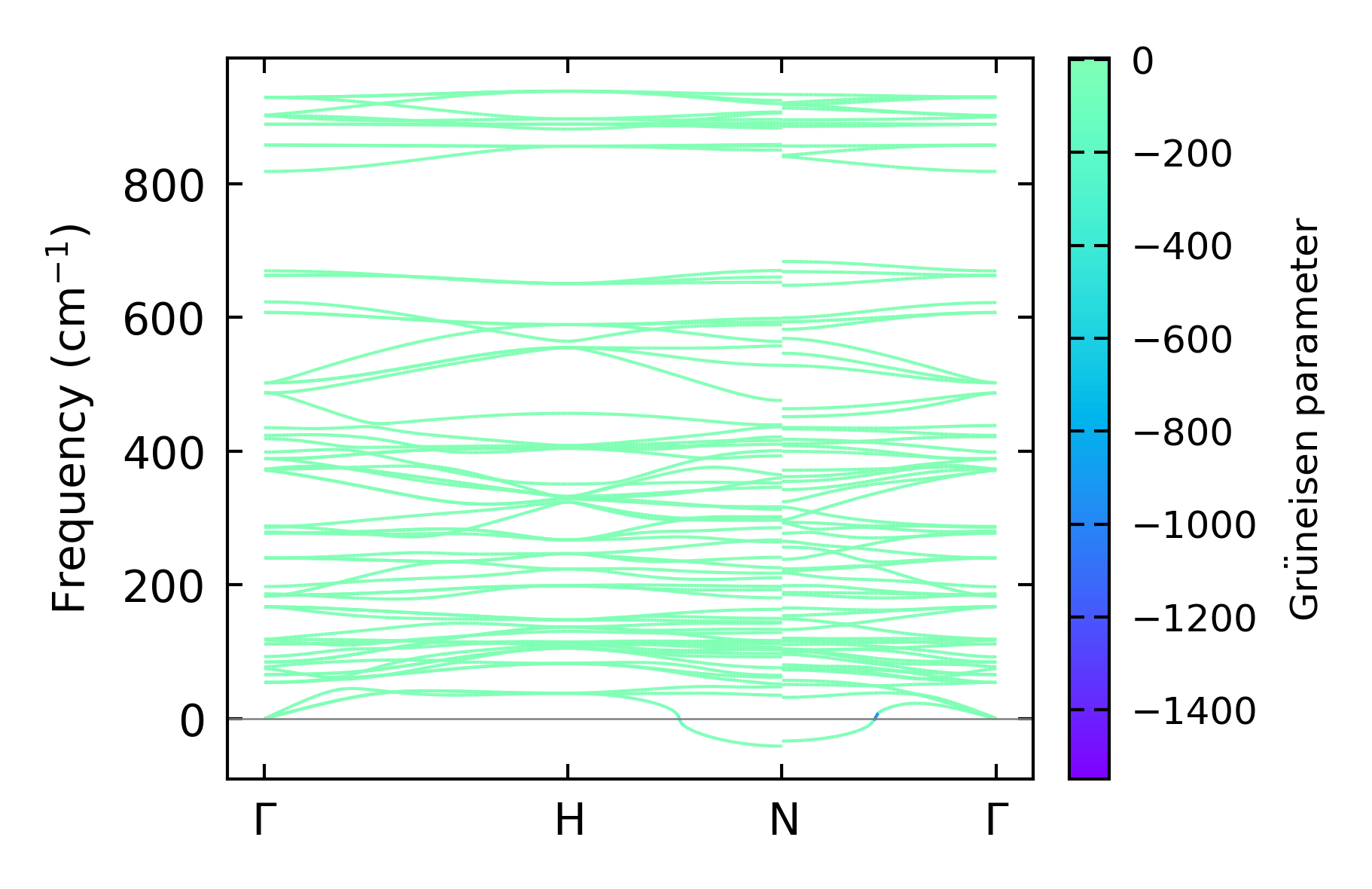

../../_images/fig_gruneisen903.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x2 — q-mesh: 9x9x9, supercell: 2x2x2

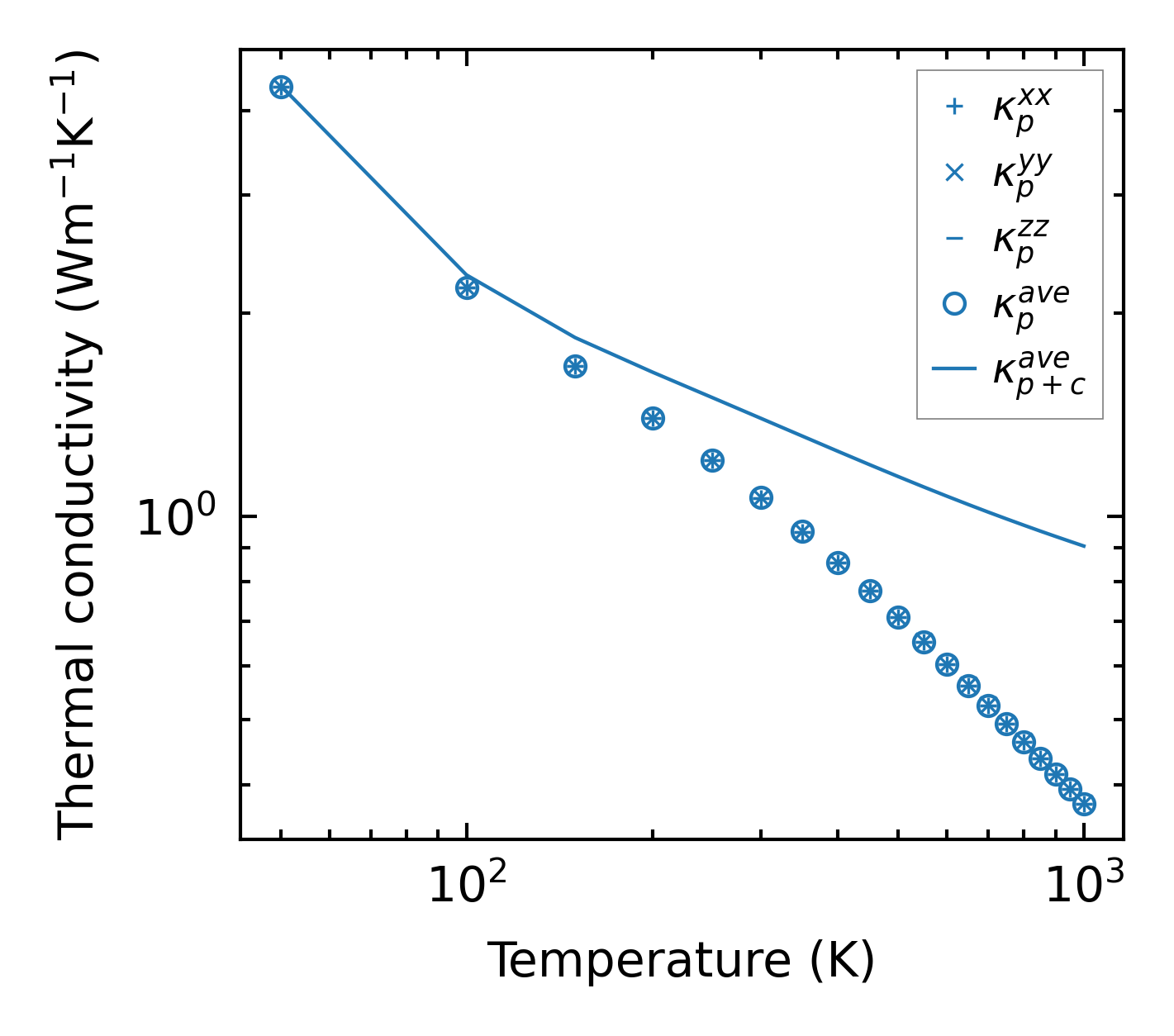

../../_images/fig_kappa1753.png — (a) Temperature-dependent lattice thermal conductivity

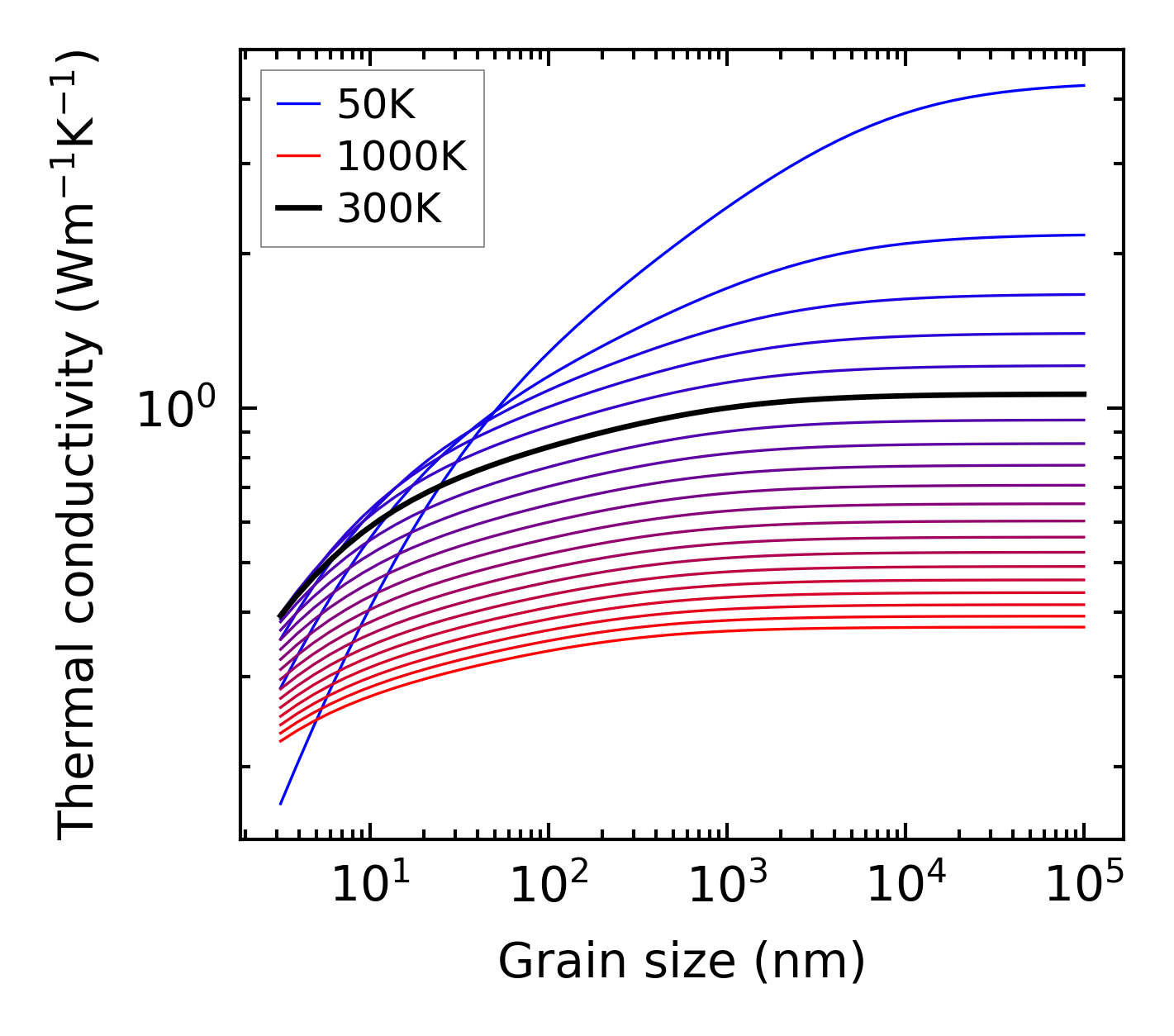

../../_images/fig_kappa_vs_grain_size913.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

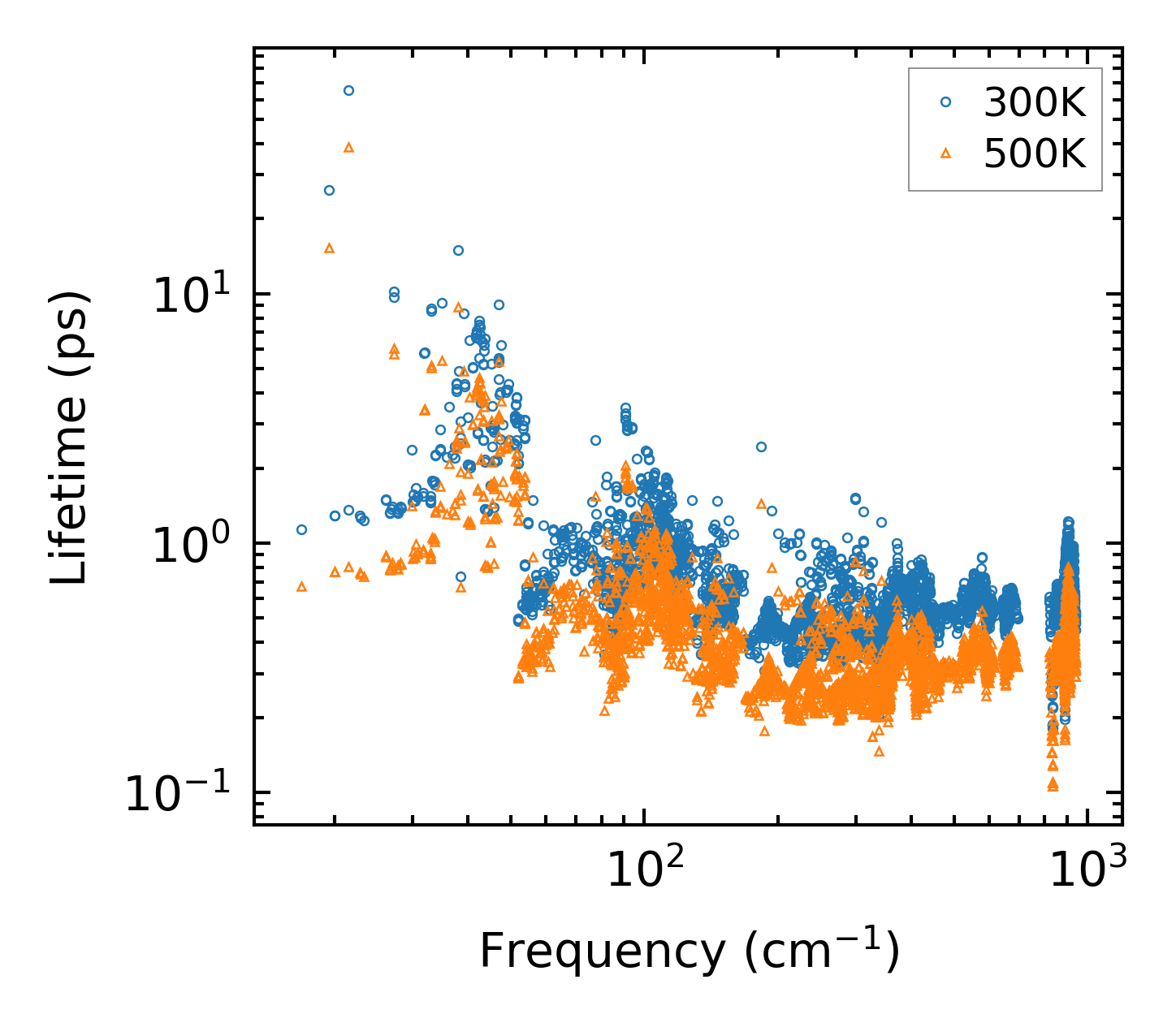

../../_images/fig_lifetime896.png — (a) Phonon lifetime due to phonon-phonon scattering

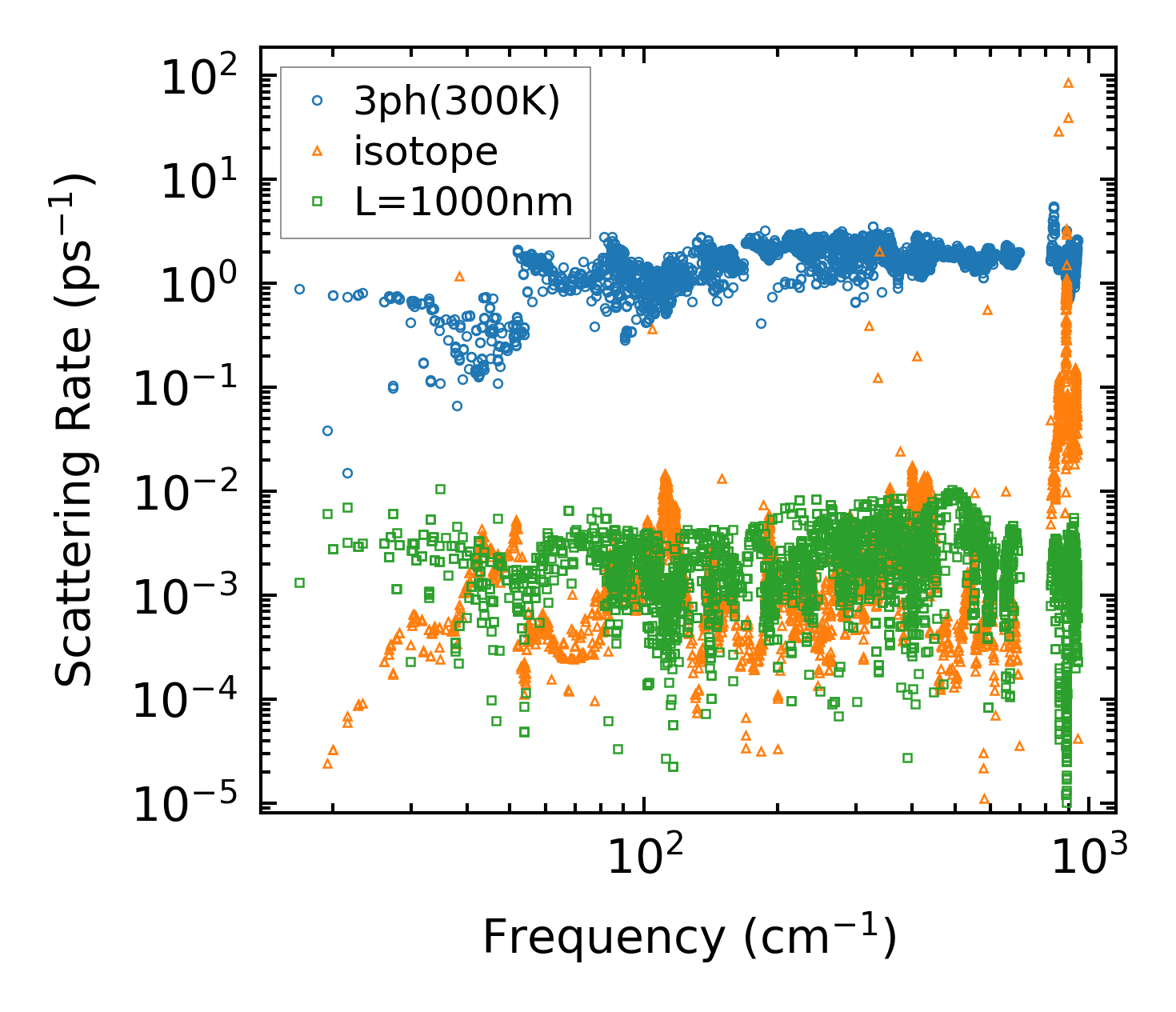

../../_images/fig_scat_rates895.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

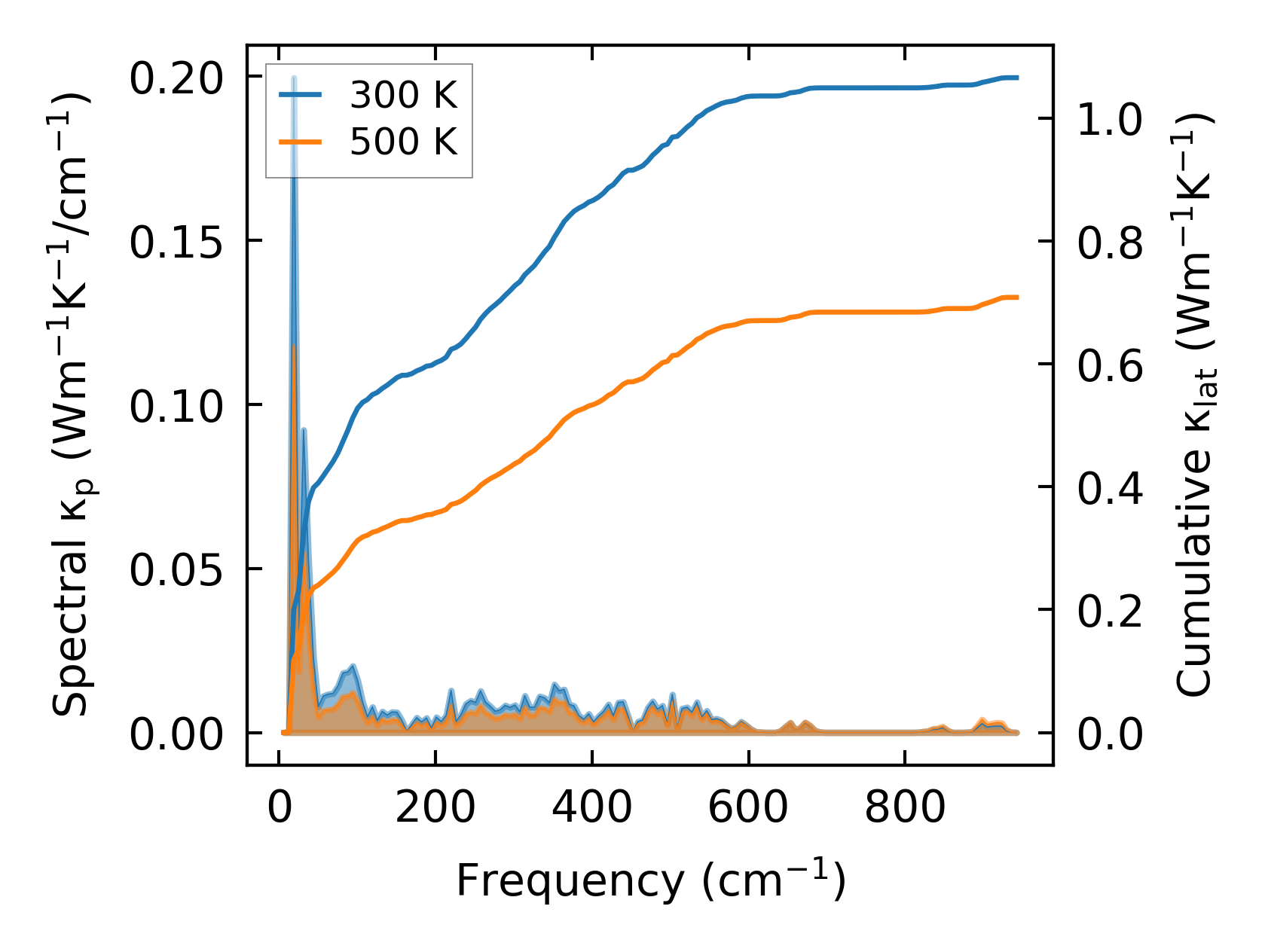

../../_images/fig_cumu_frequency896.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

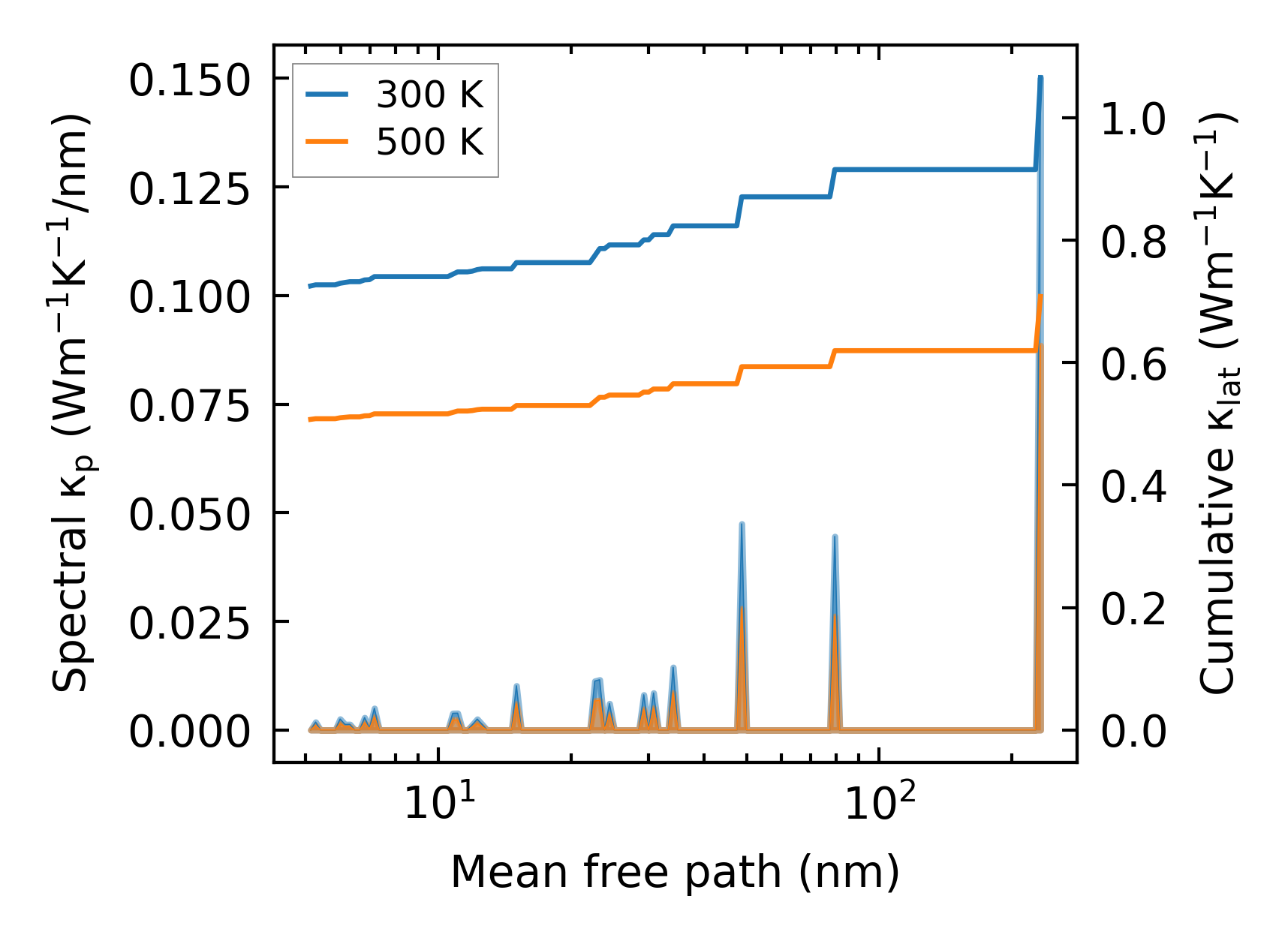

../../_images/fig_cumu_mfp896.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

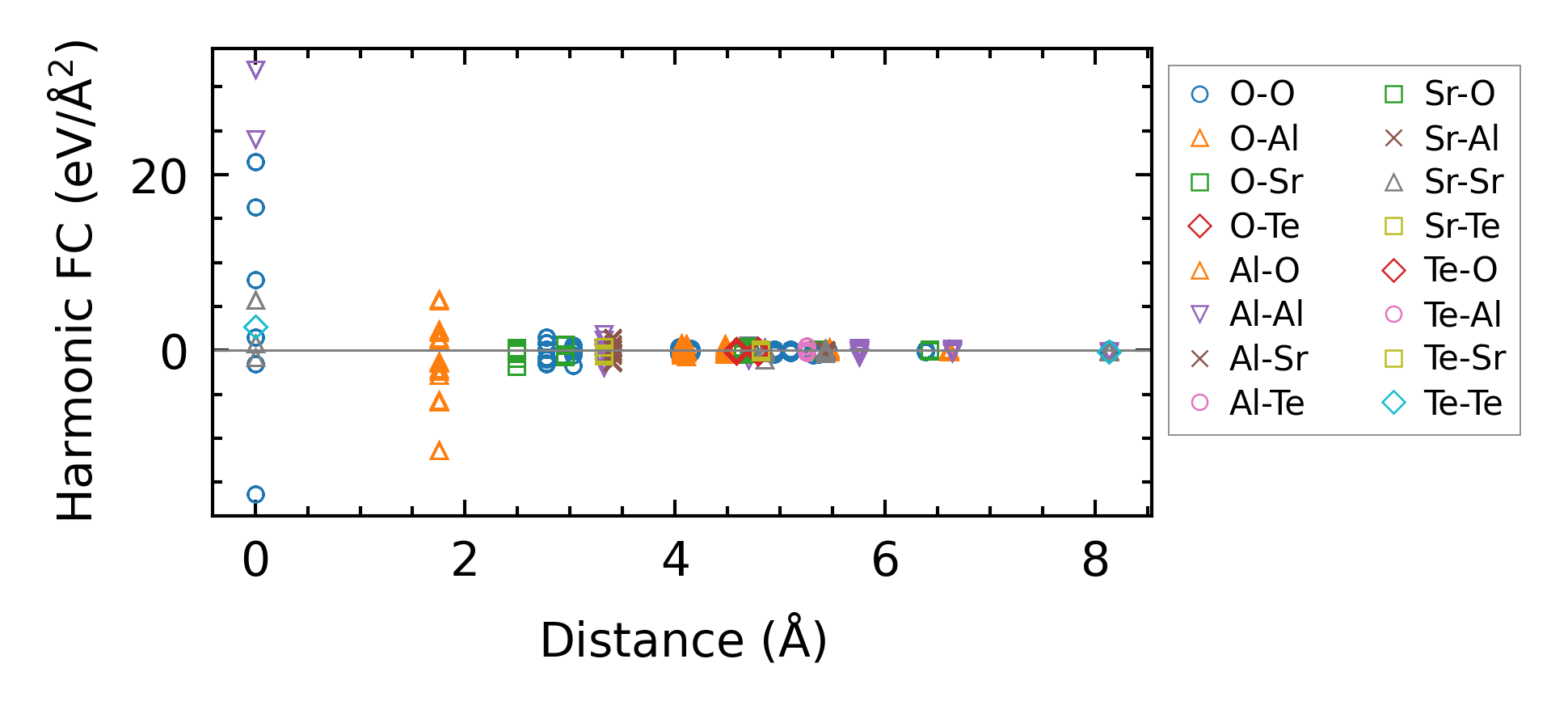

../../_images/fig_fc21322.png — (a) Force constants w.r.t atomic distance

Summary

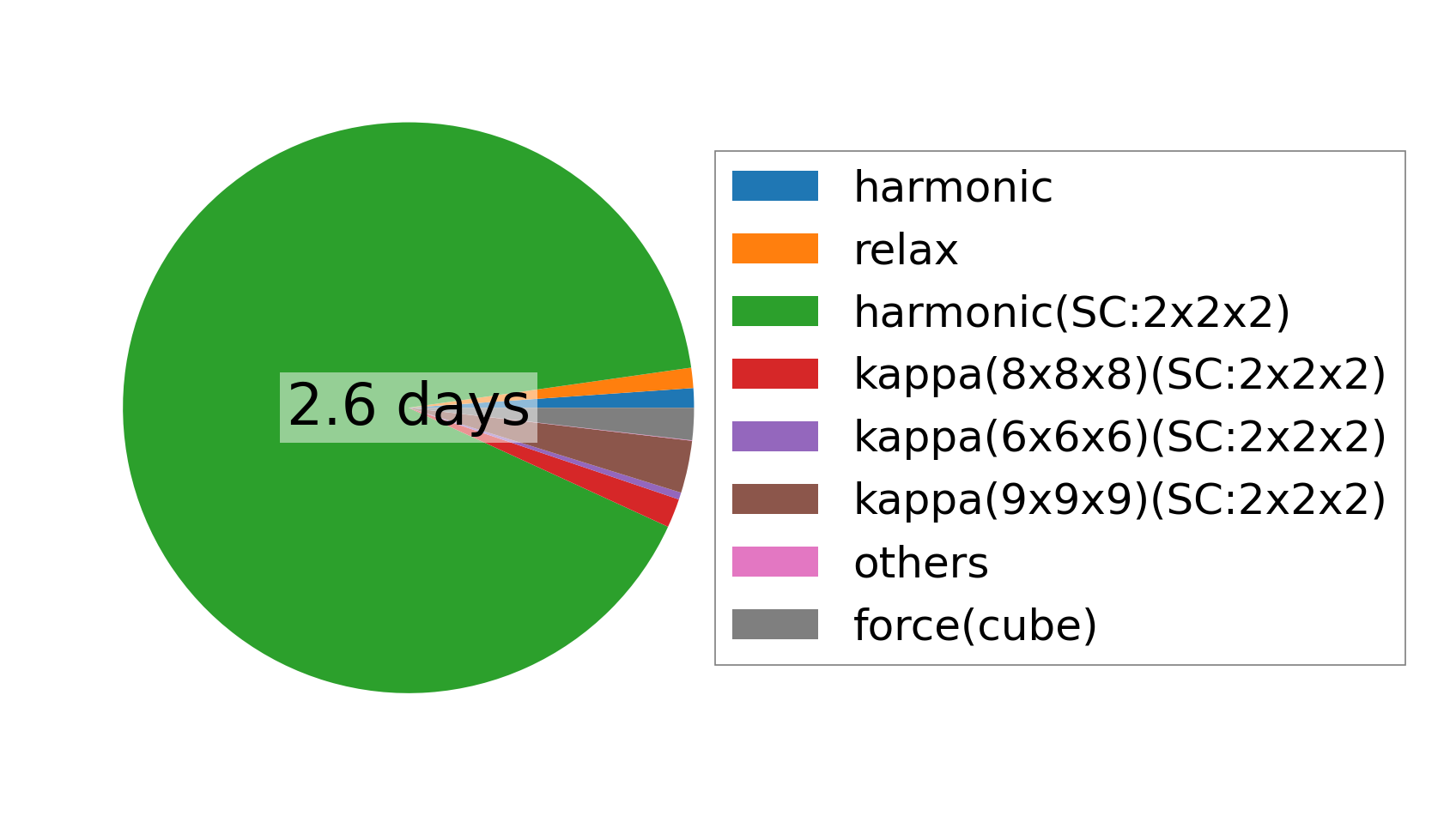

../../_images/fig_times2194.png — (a) Computation time
