mp-9126/SrSb2O6/anharm

Space group: P-31m (162)
Link: Materials Project
Download: mp-9126.tar.gz

Harmonic properties

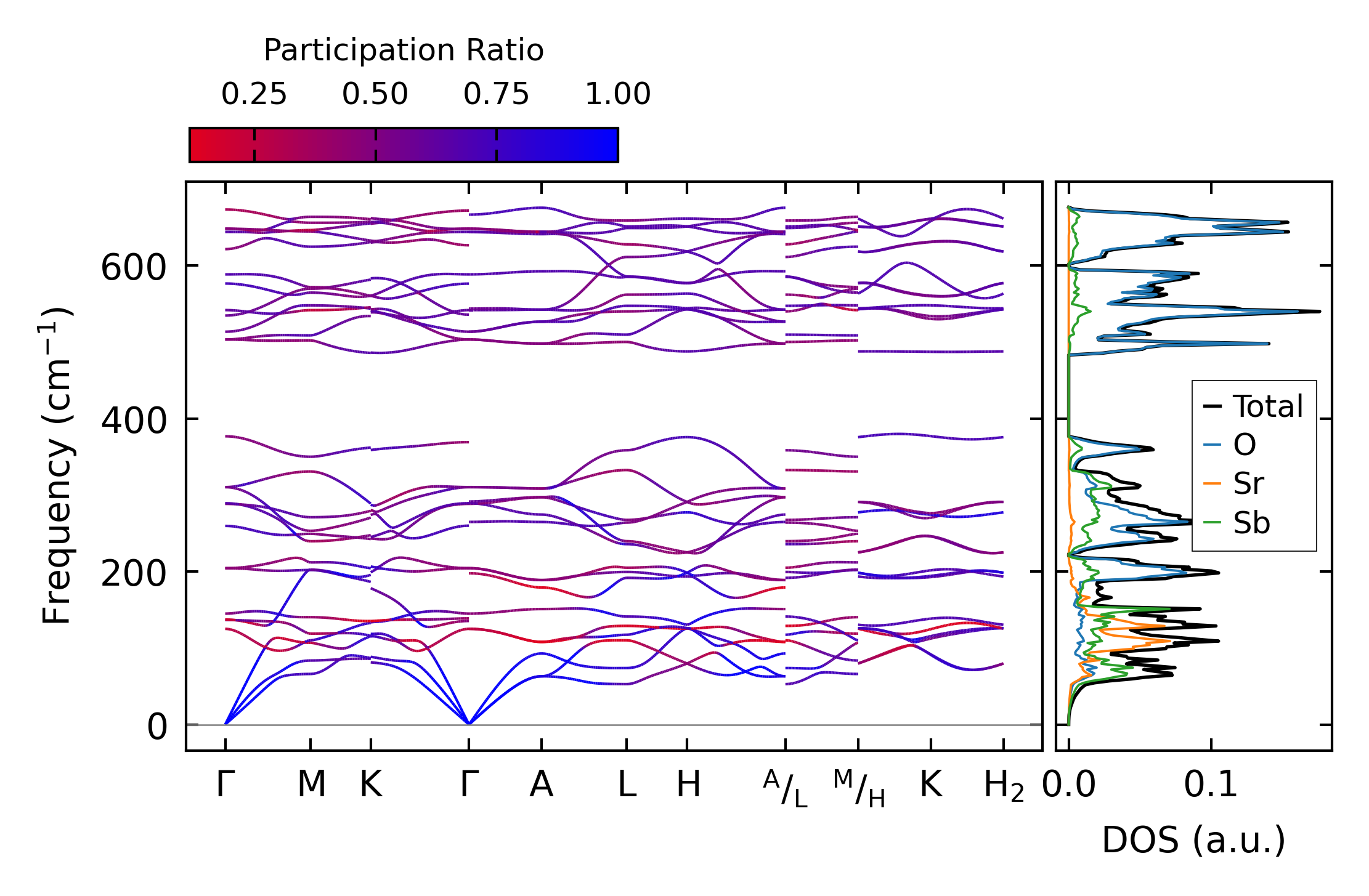

../../_images/fig_bandos_pr1371.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1371.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all847.png — (a) Grüneisen parameters

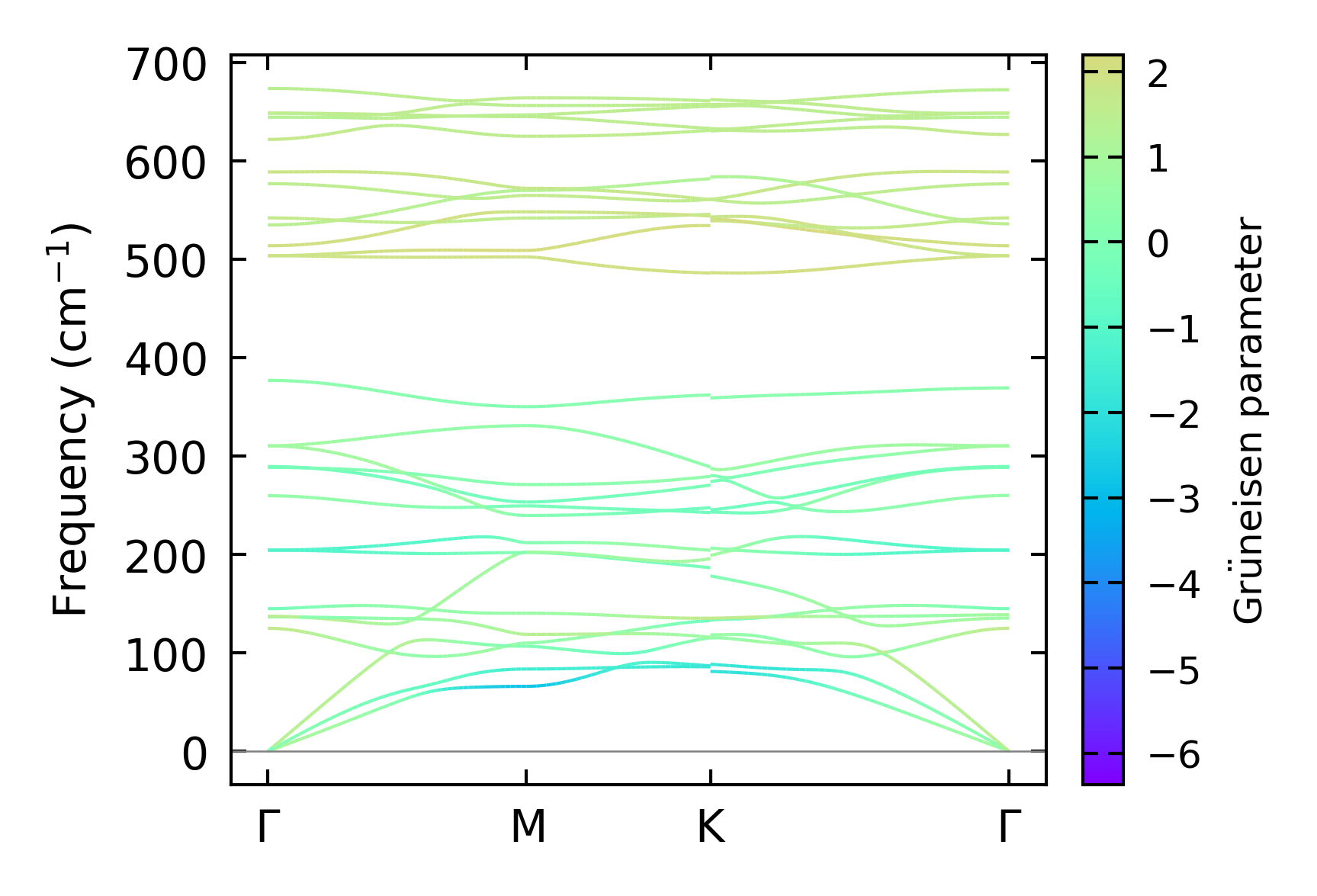

../../_images/fig_gruneisen847.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x14x14, supercell: 2x2x2

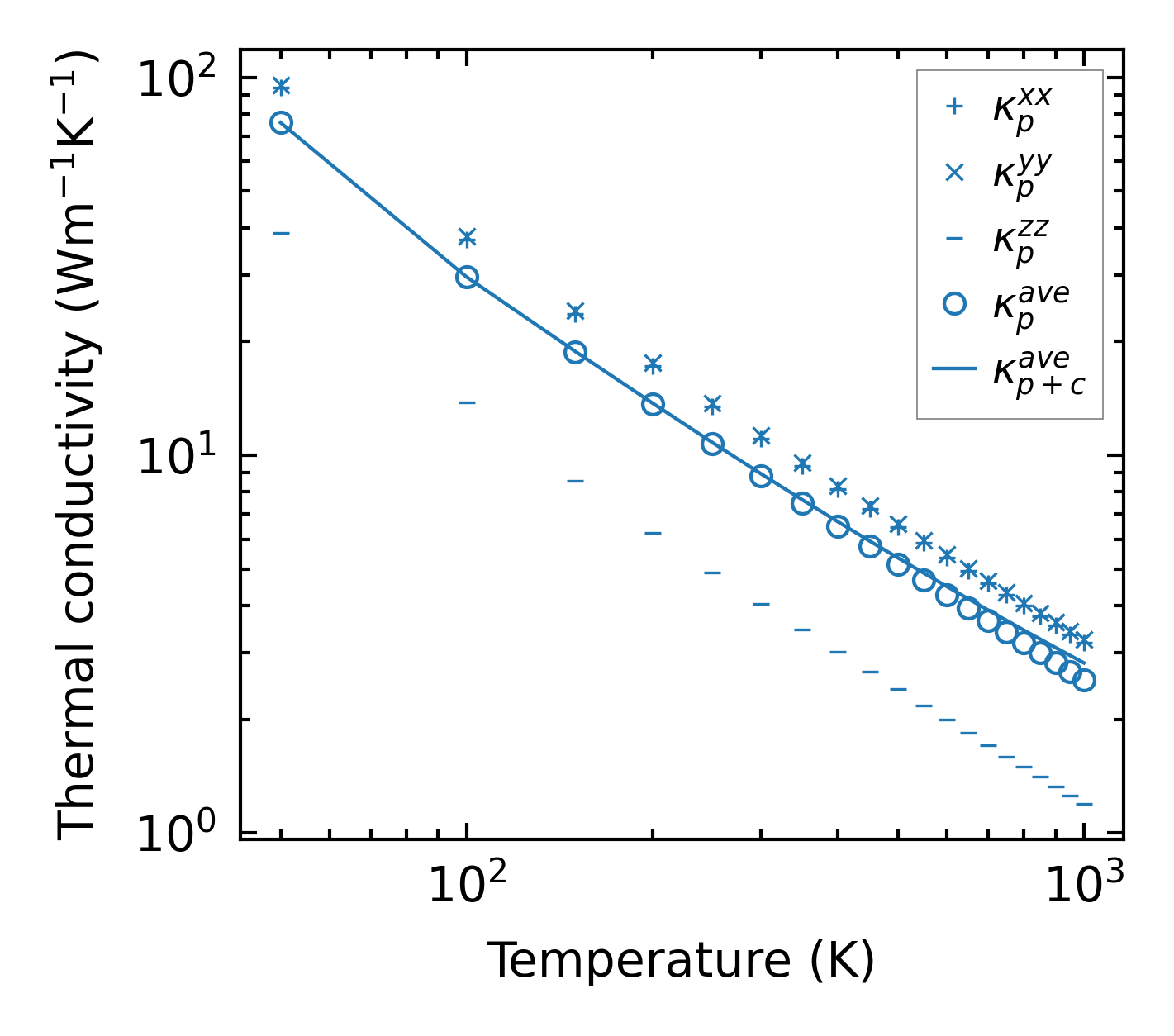

../../_images/fig_kappa1645.png — (a) Temperature-dependent lattice thermal conductivity

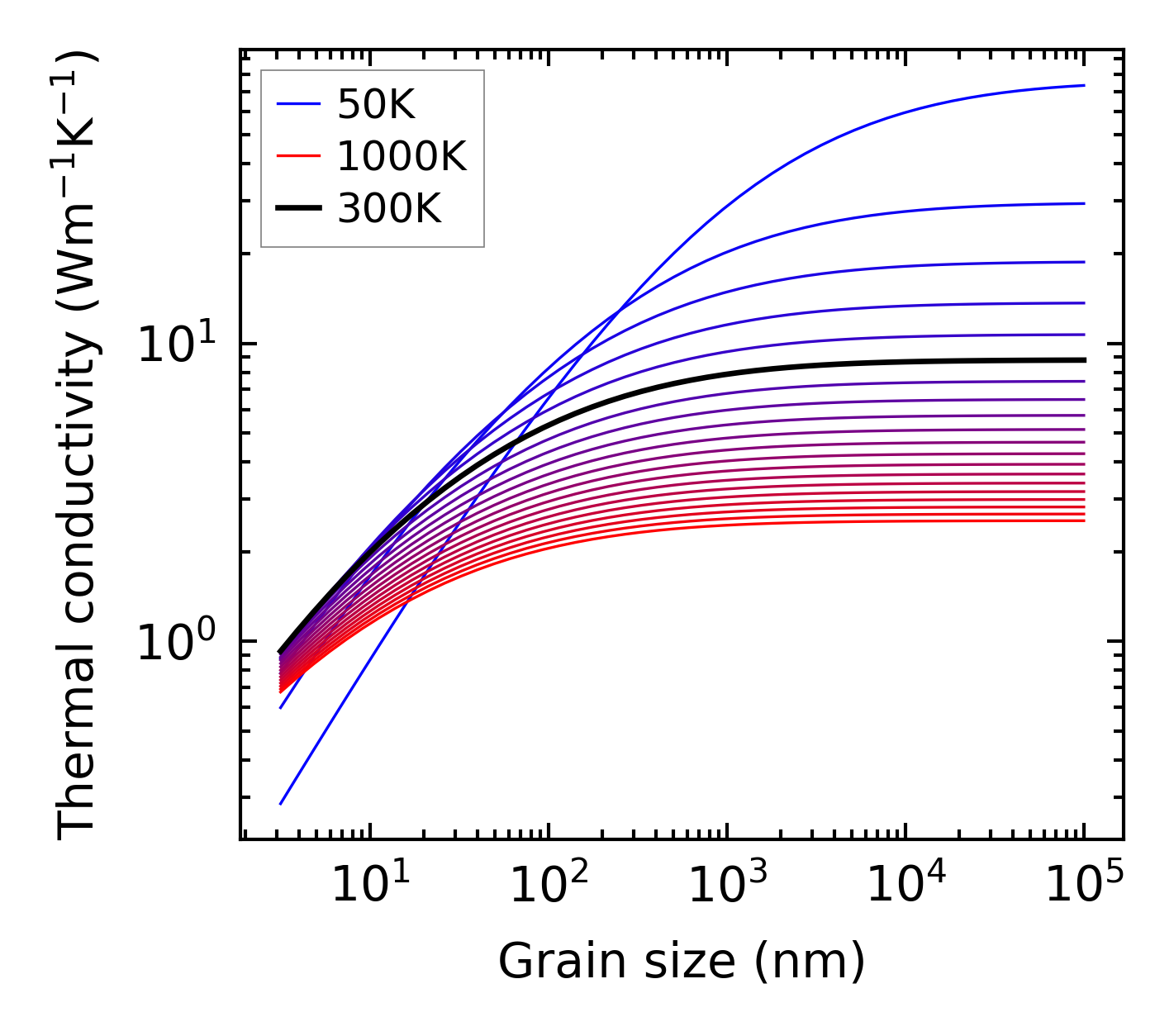

../../_images/fig_kappa_vs_grain_size857.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime841.png — (a) Phonon lifetime due to phonon-phonon scattering

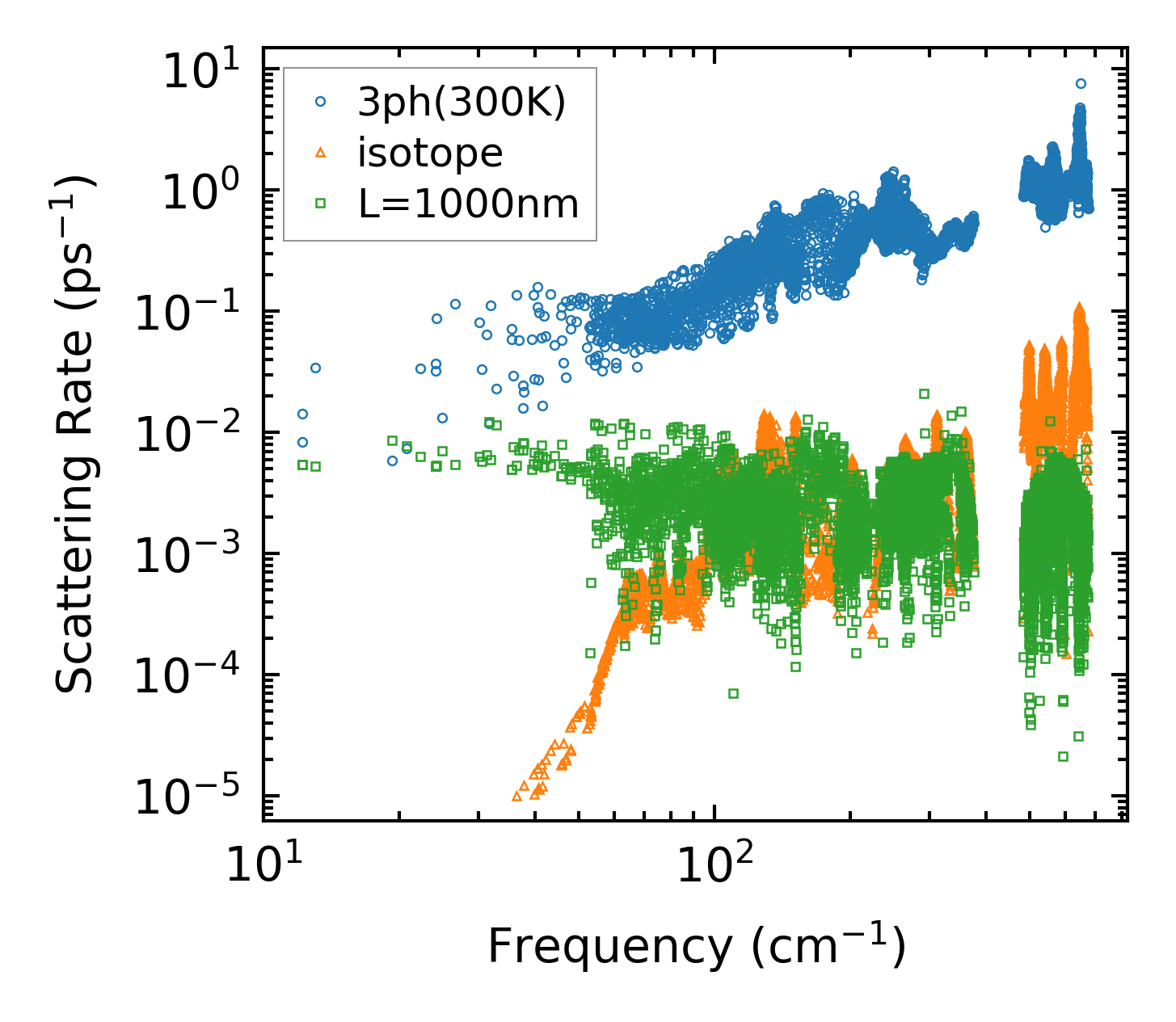

../../_images/fig_scat_rates840.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency841.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

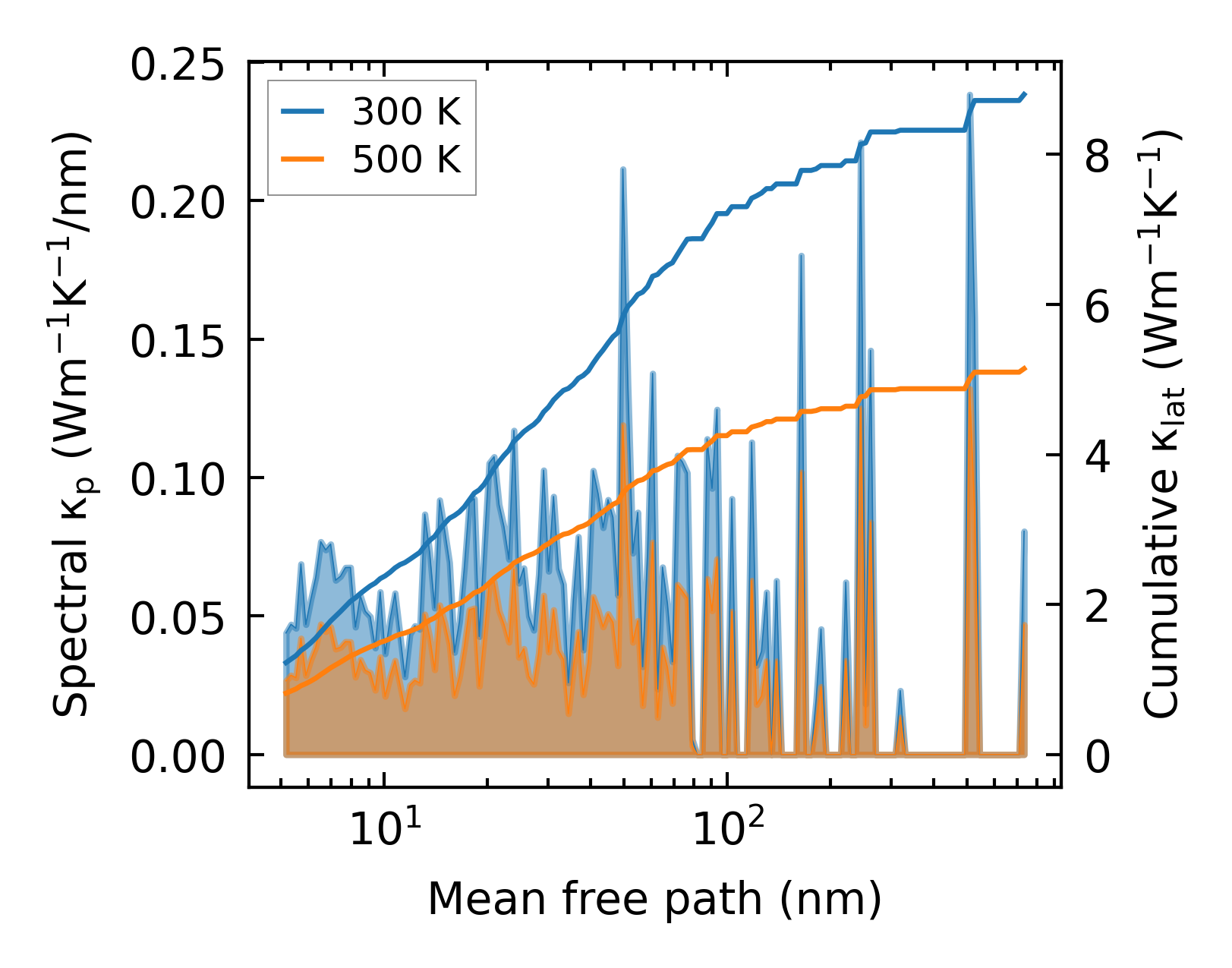

../../_images/fig_cumu_mfp841.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc21225.png — (a) Force constants w.r.t atomic distance

Summary

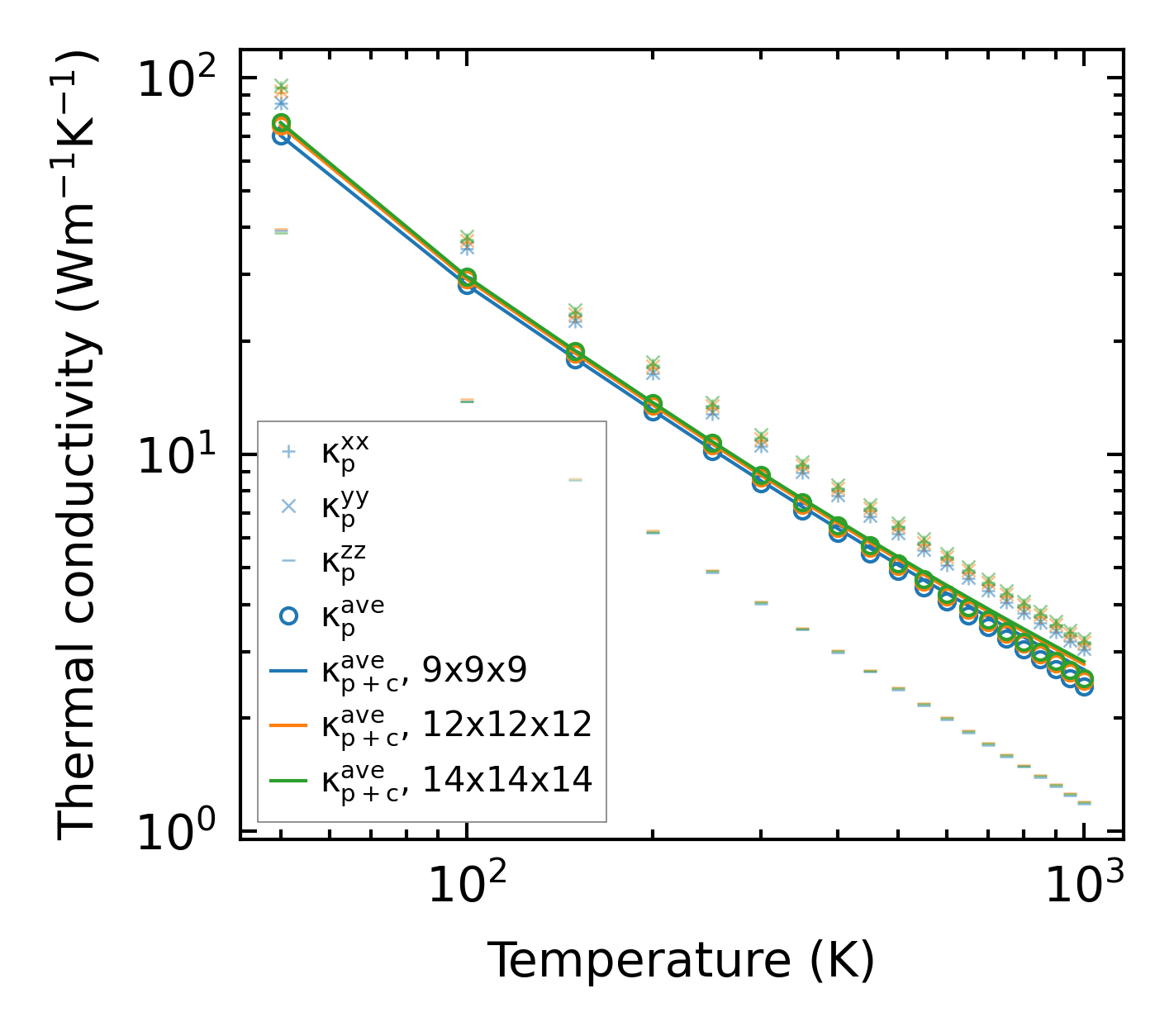

../../_images/fig_kappa1646.png — (a) Temperature-dependent lattice thermal conductivity

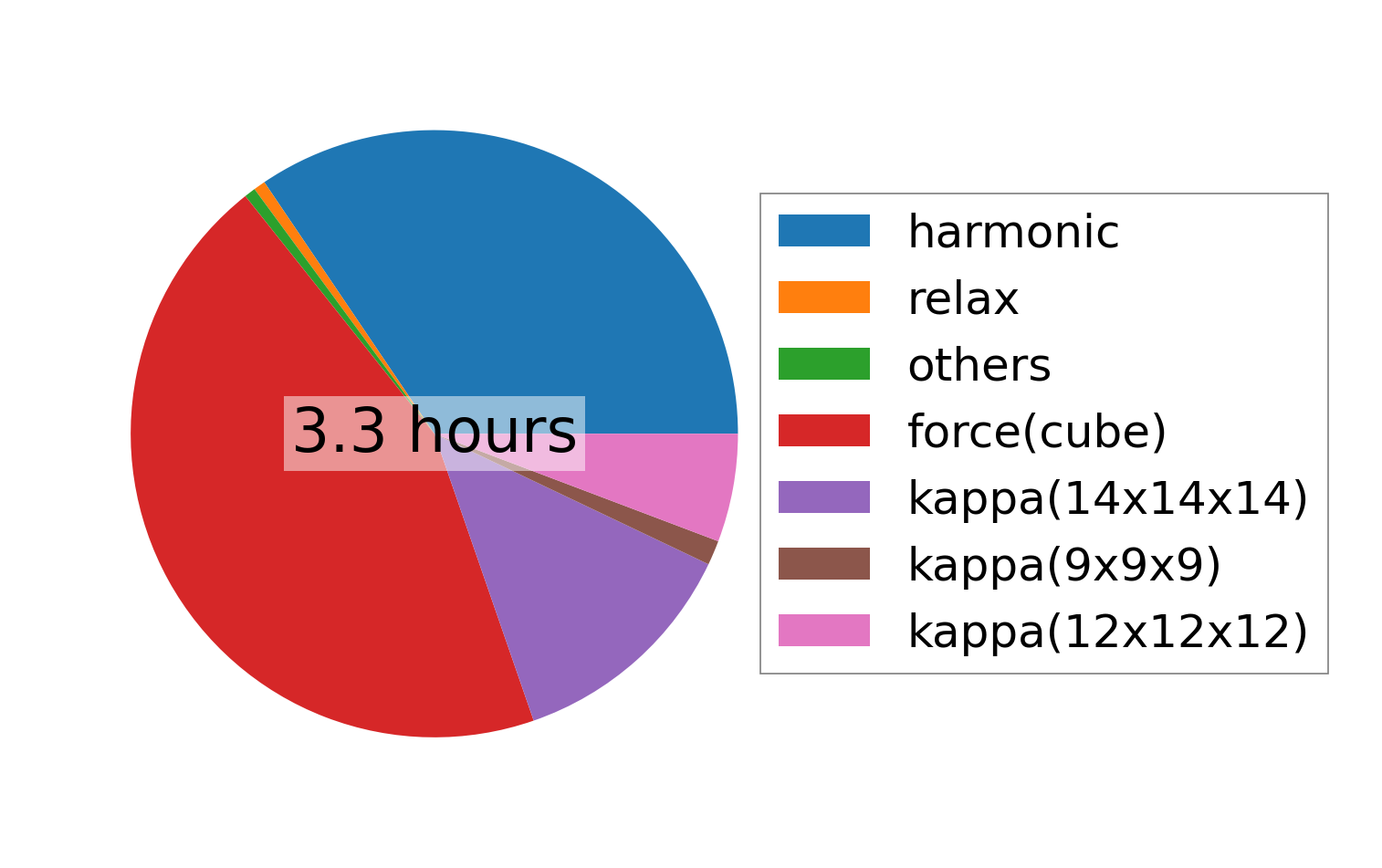

../../_images/fig_times2059.png — (b) Computation time
