mp-9295/TaCu3Te4/anharm

Space group: P-43m (215)
Link: Materials Project
Download: mp-9295.tar.gz

Equation of state

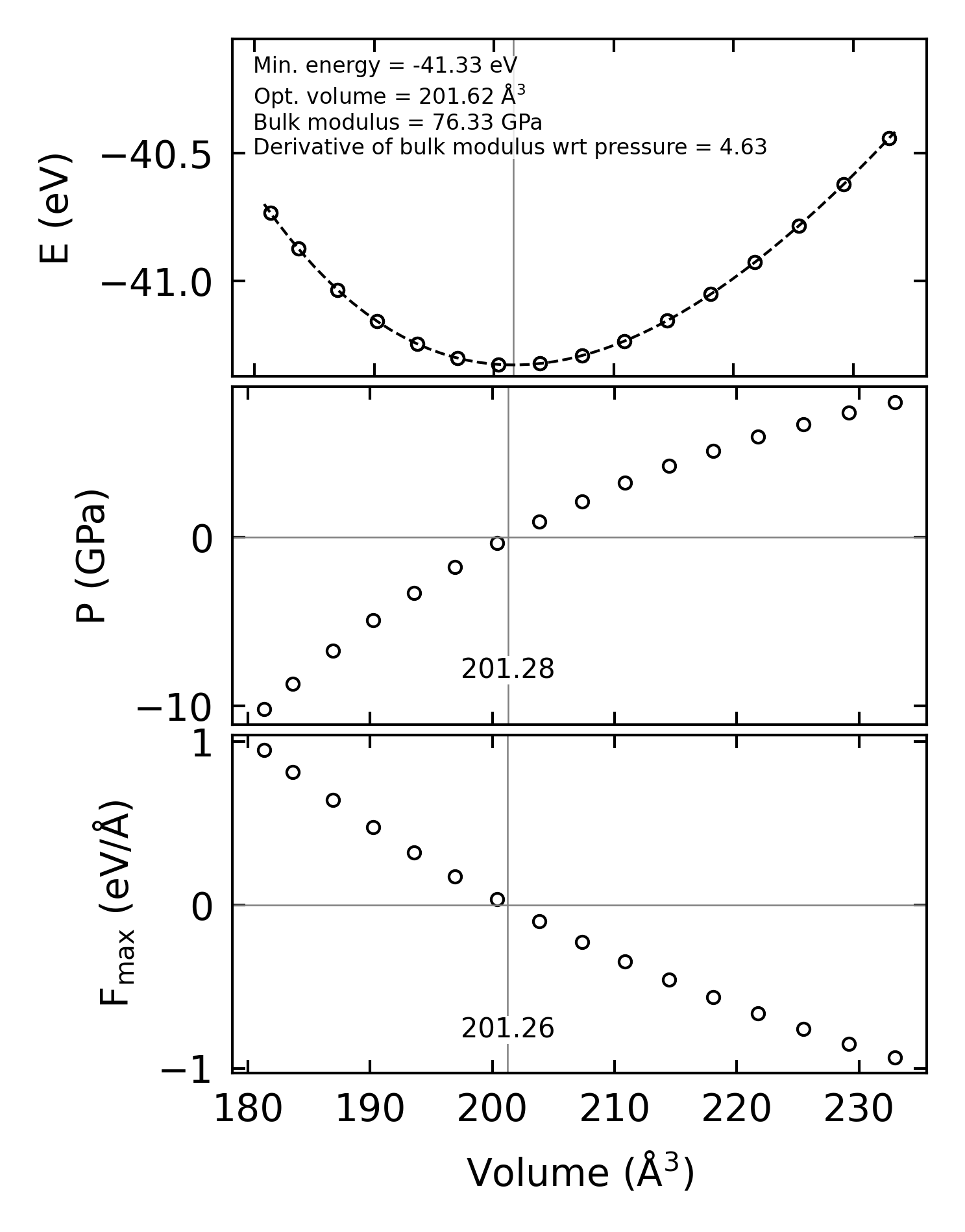

../../_images/fig_bm510.png — (a) Equation of state

Harmonic properties

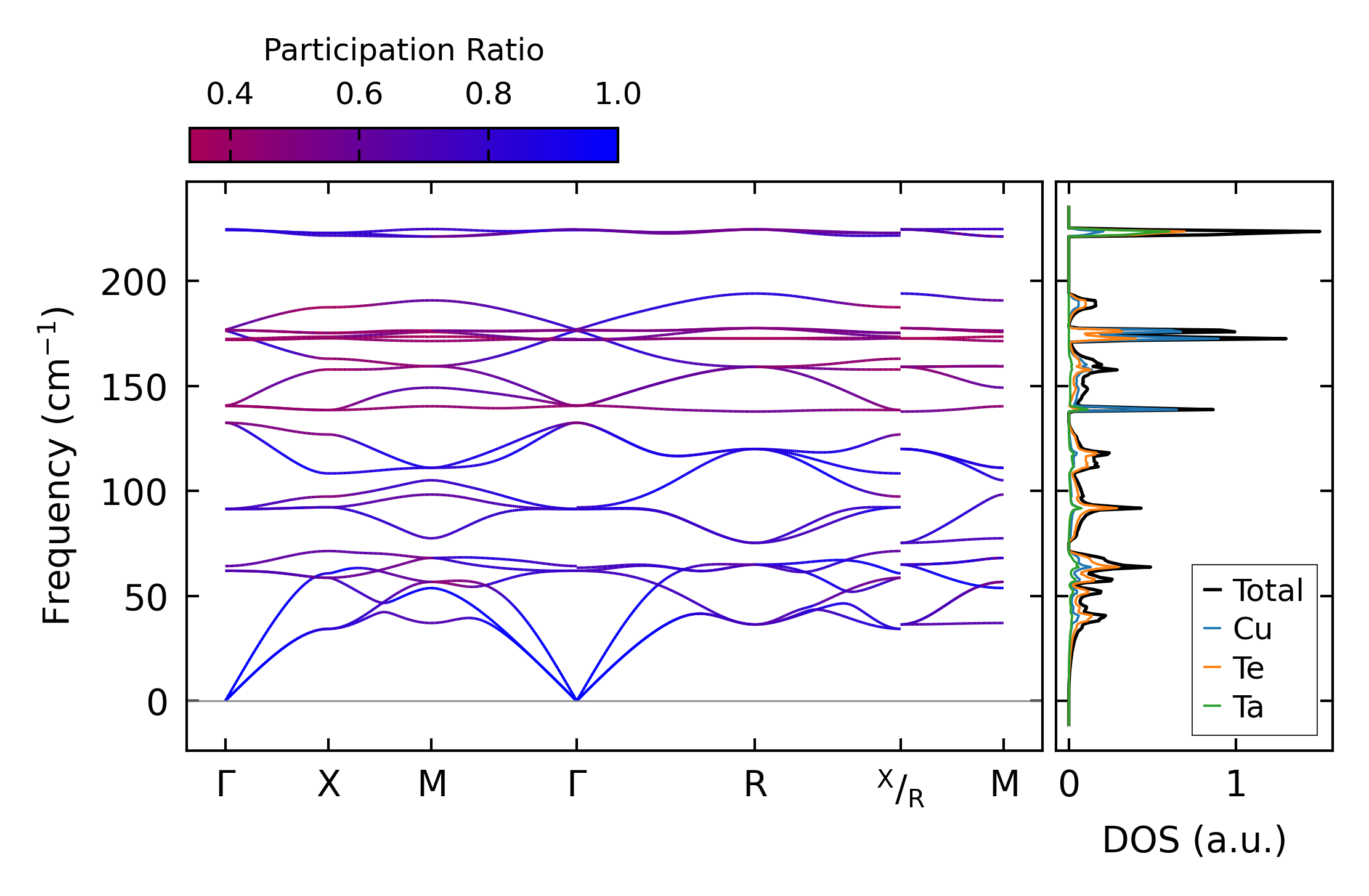

../../_images/fig_bandos_pr1423.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1423.png — (b) Thermodynamic properties

Grüneisen parameters

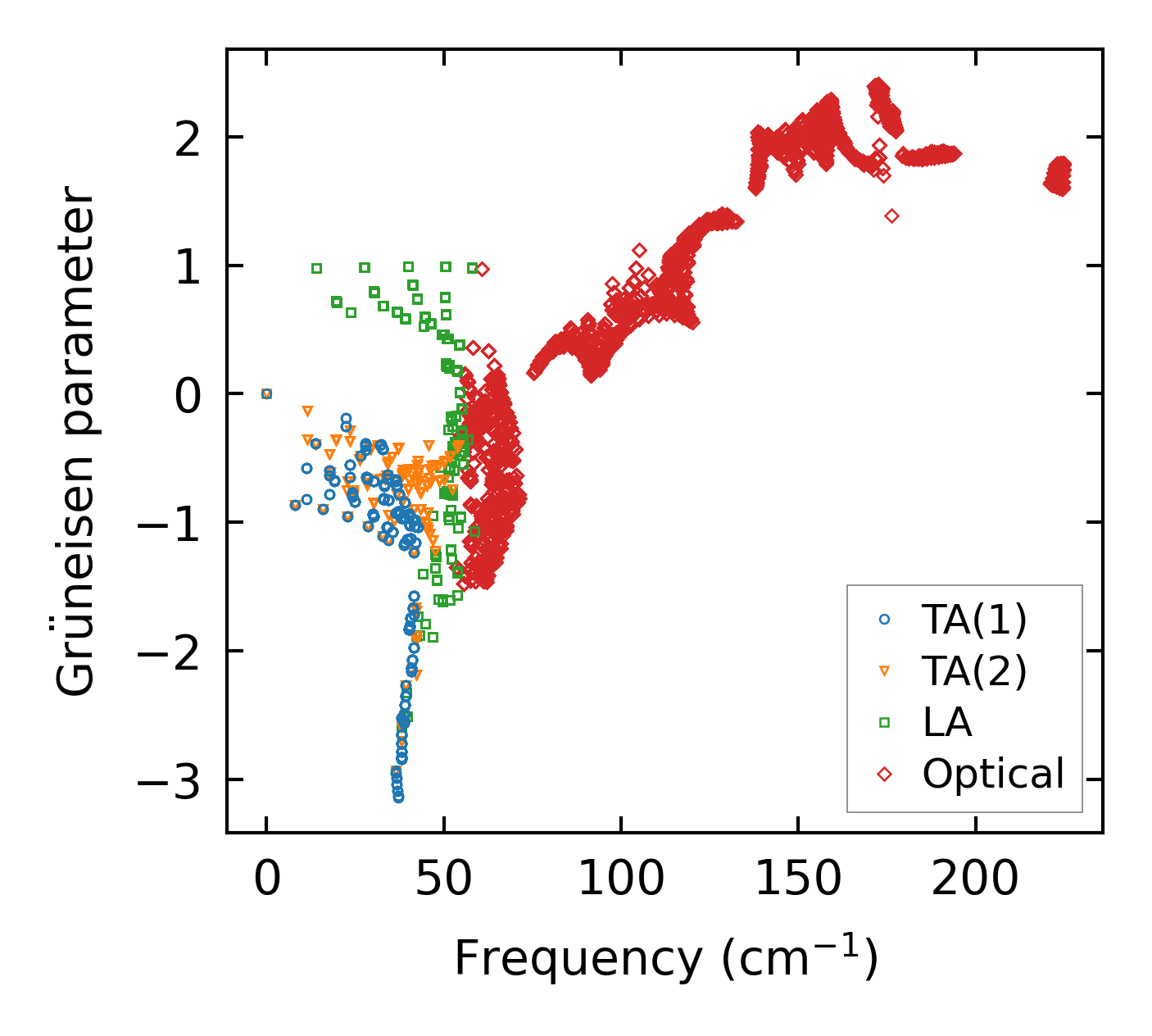

../../_images/fig_gru_all875.png — (a) Grüneisen parameters

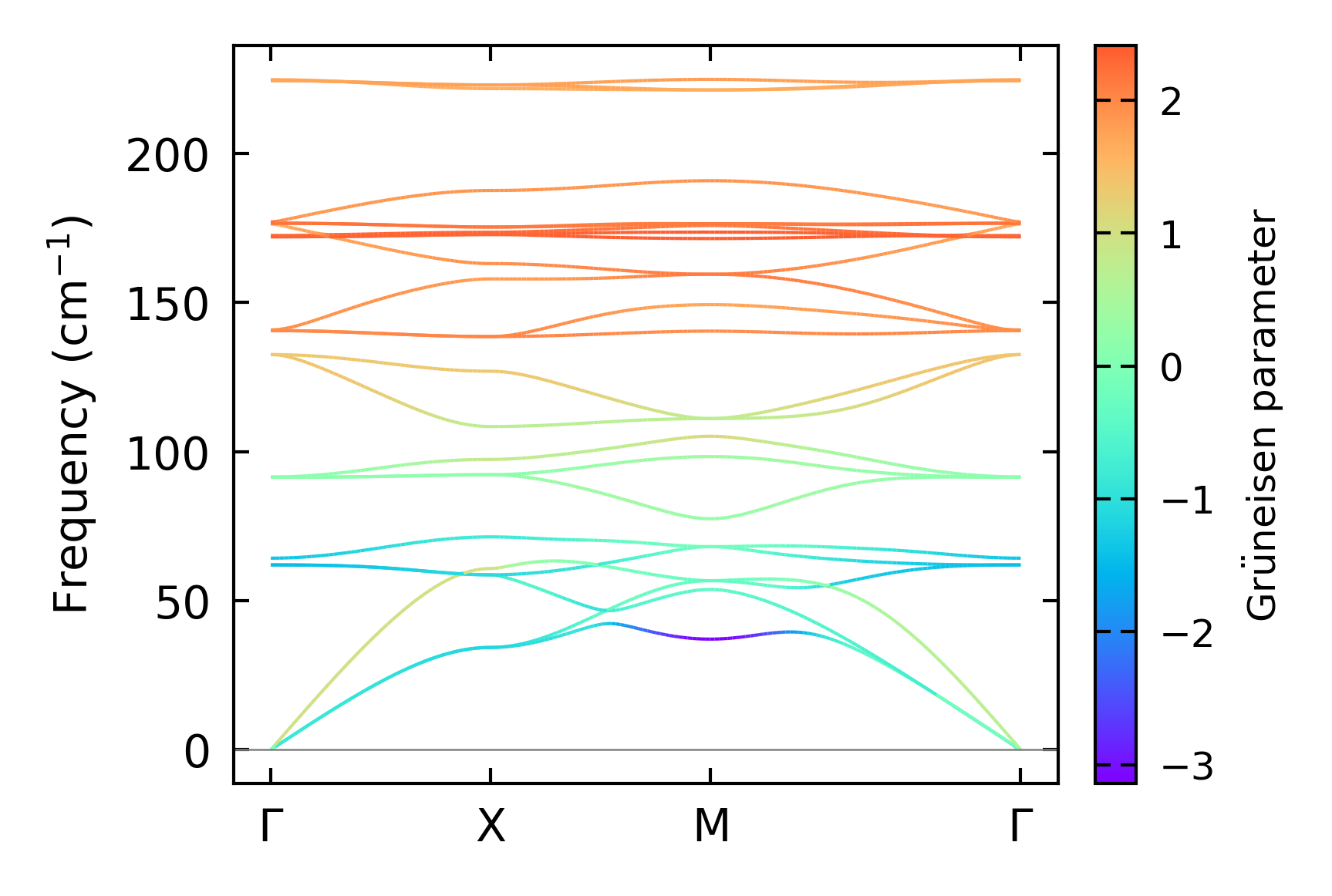

../../_images/fig_gruneisen875.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x12, supercell: 2x2x2

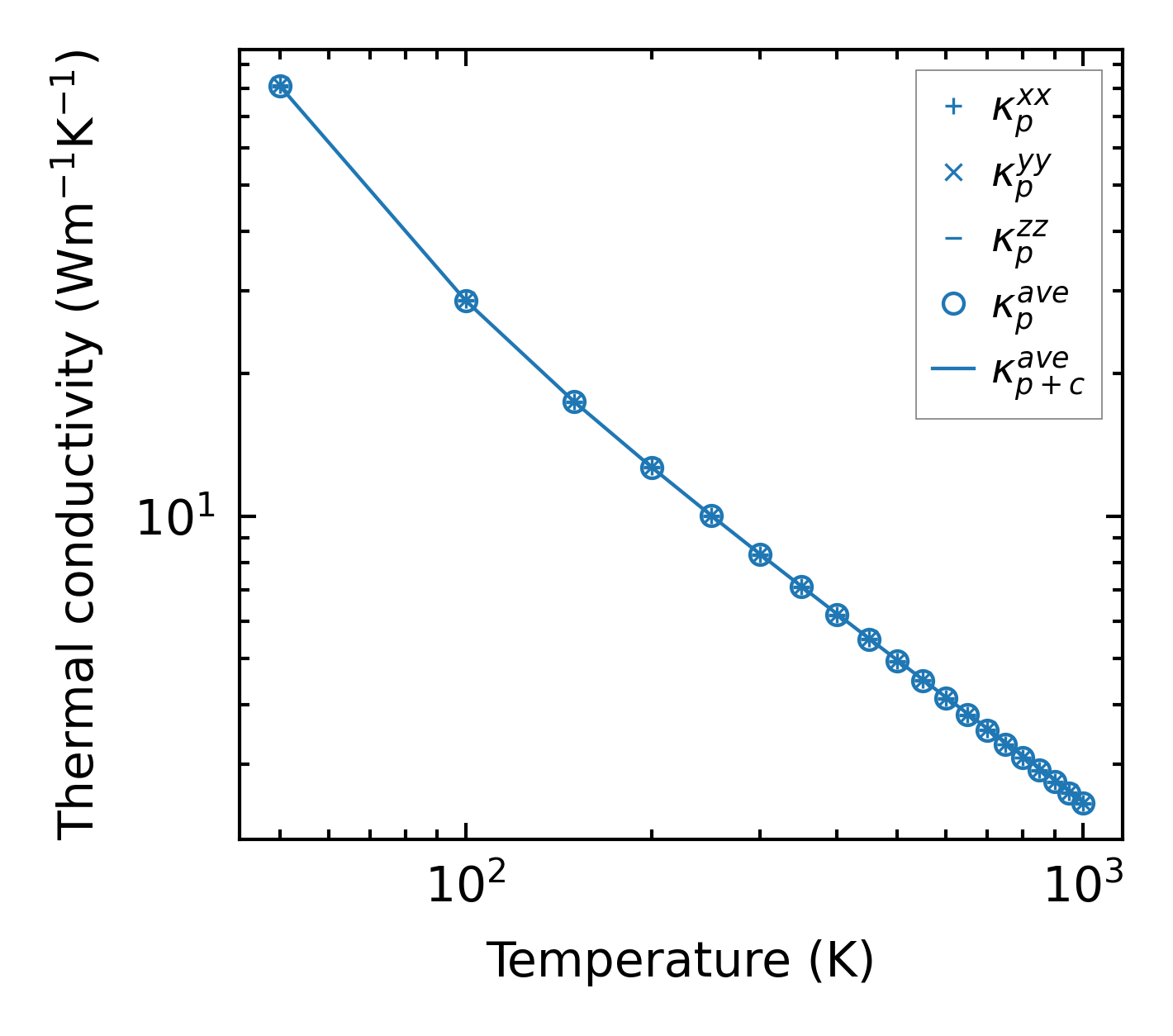

../../_images/fig_kappa1698.png — (a) Temperature-dependent lattice thermal conductivity

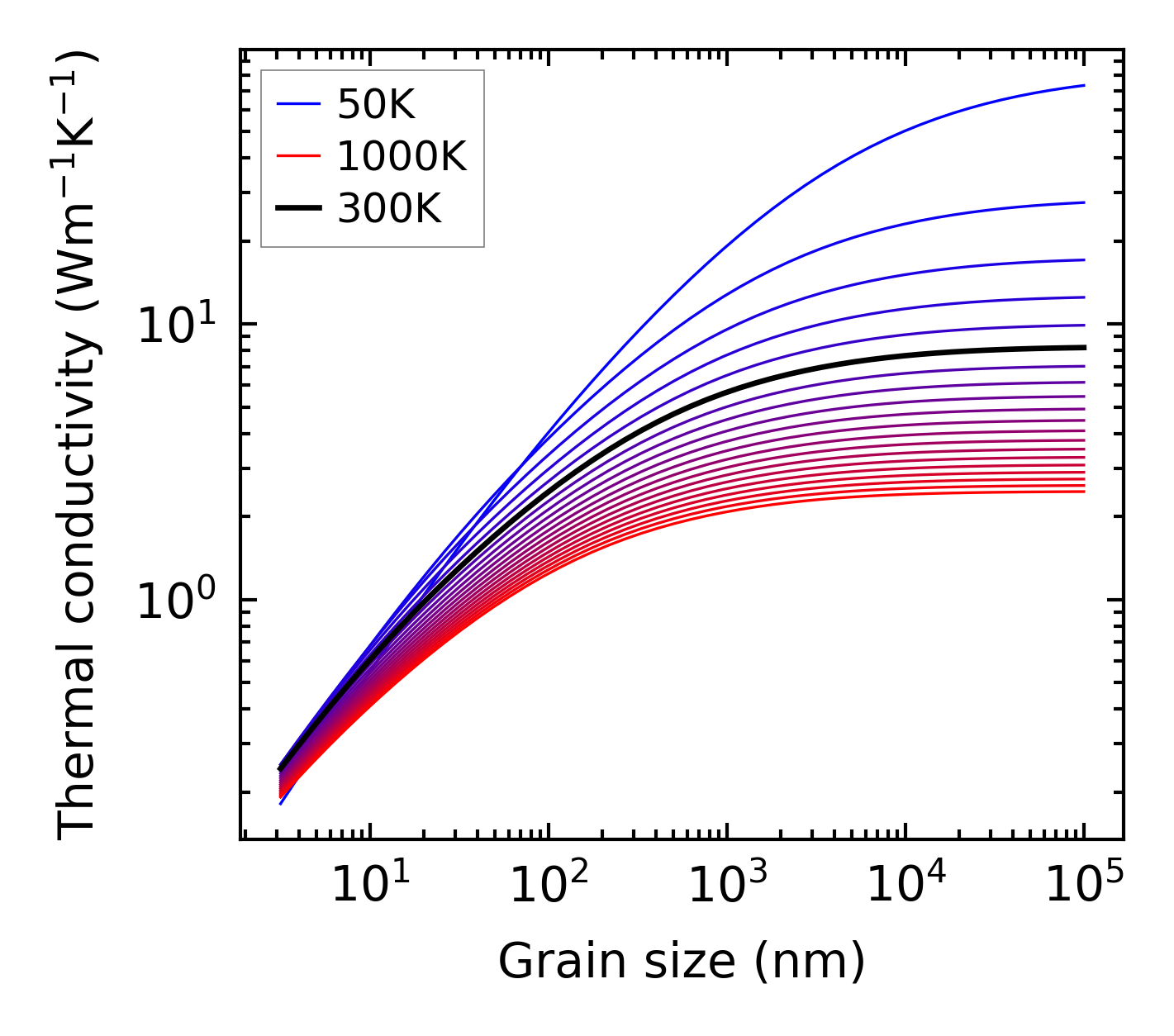

../../_images/fig_kappa_vs_grain_size885.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

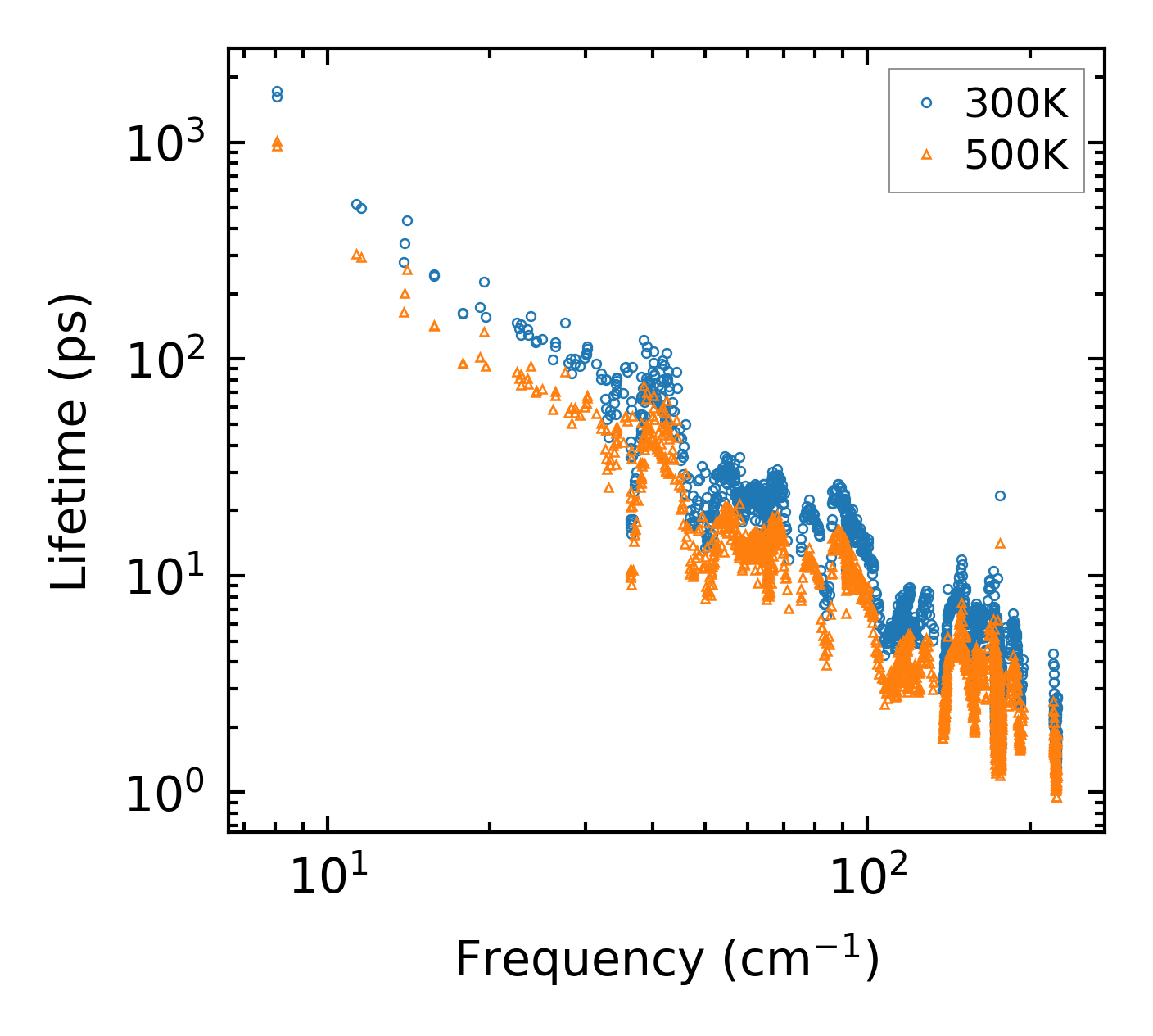

../../_images/fig_lifetime868.png — (a) Phonon lifetime due to phonon-phonon scattering

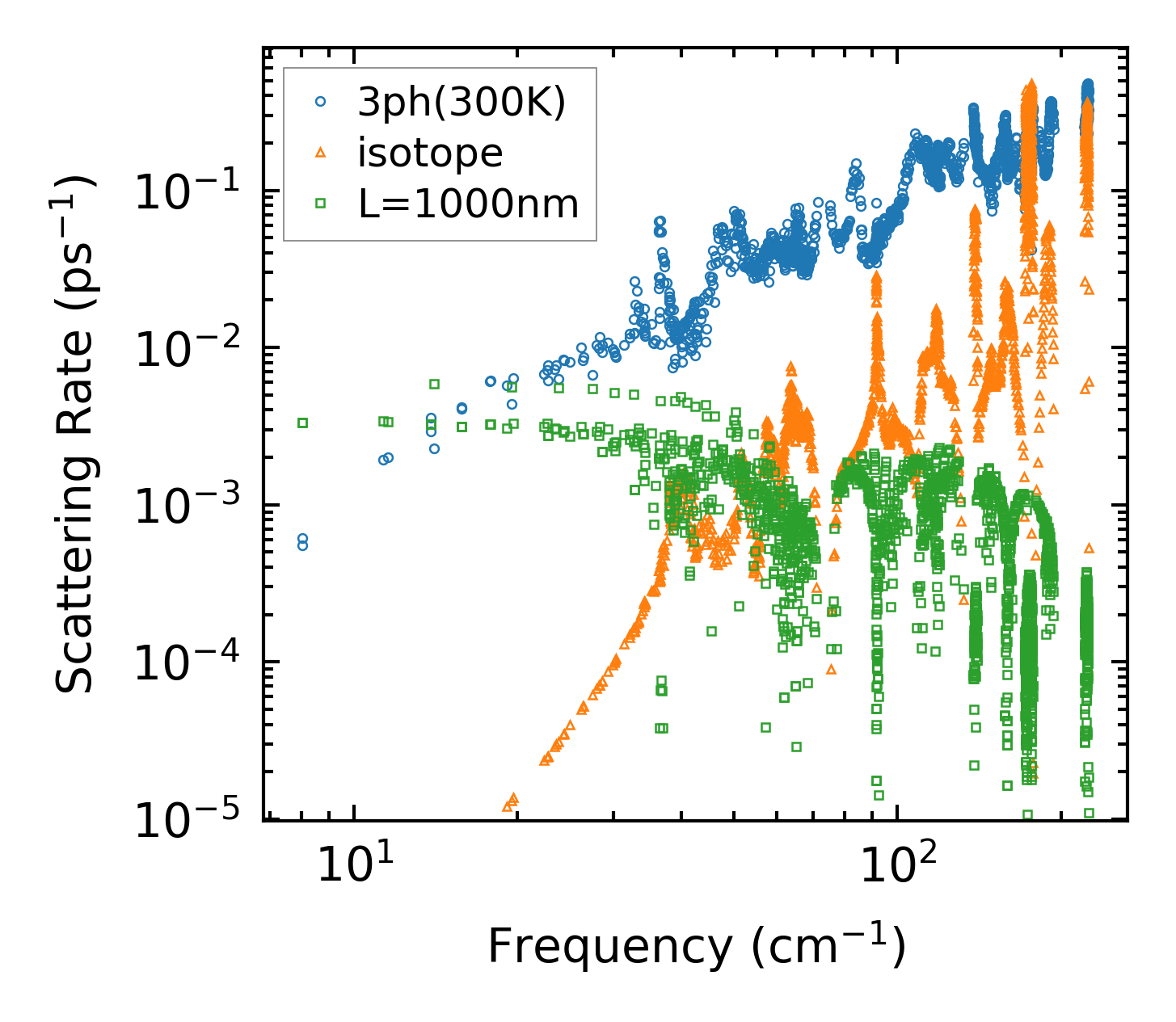

../../_images/fig_scat_rates867.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

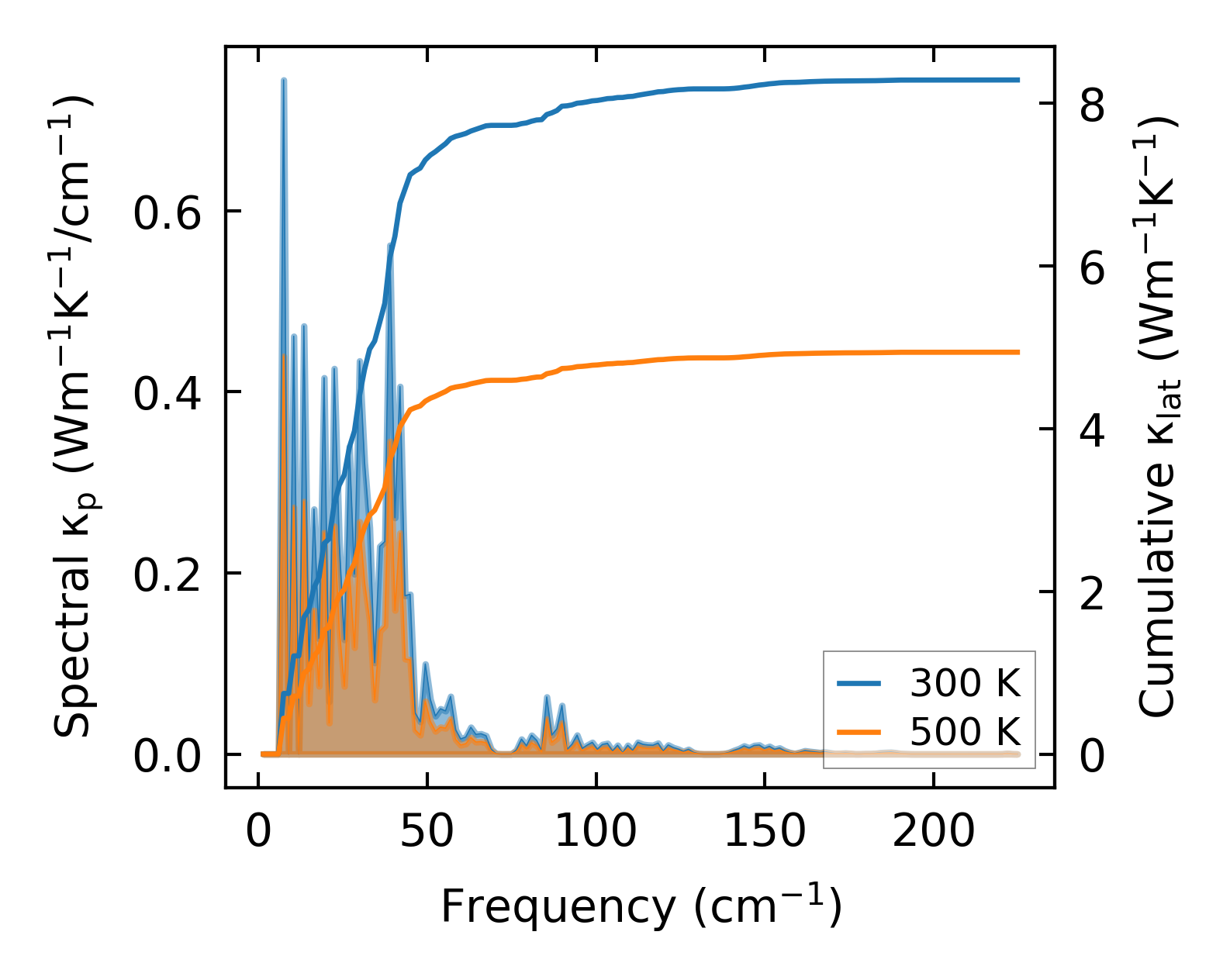

../../_images/fig_cumu_frequency868.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

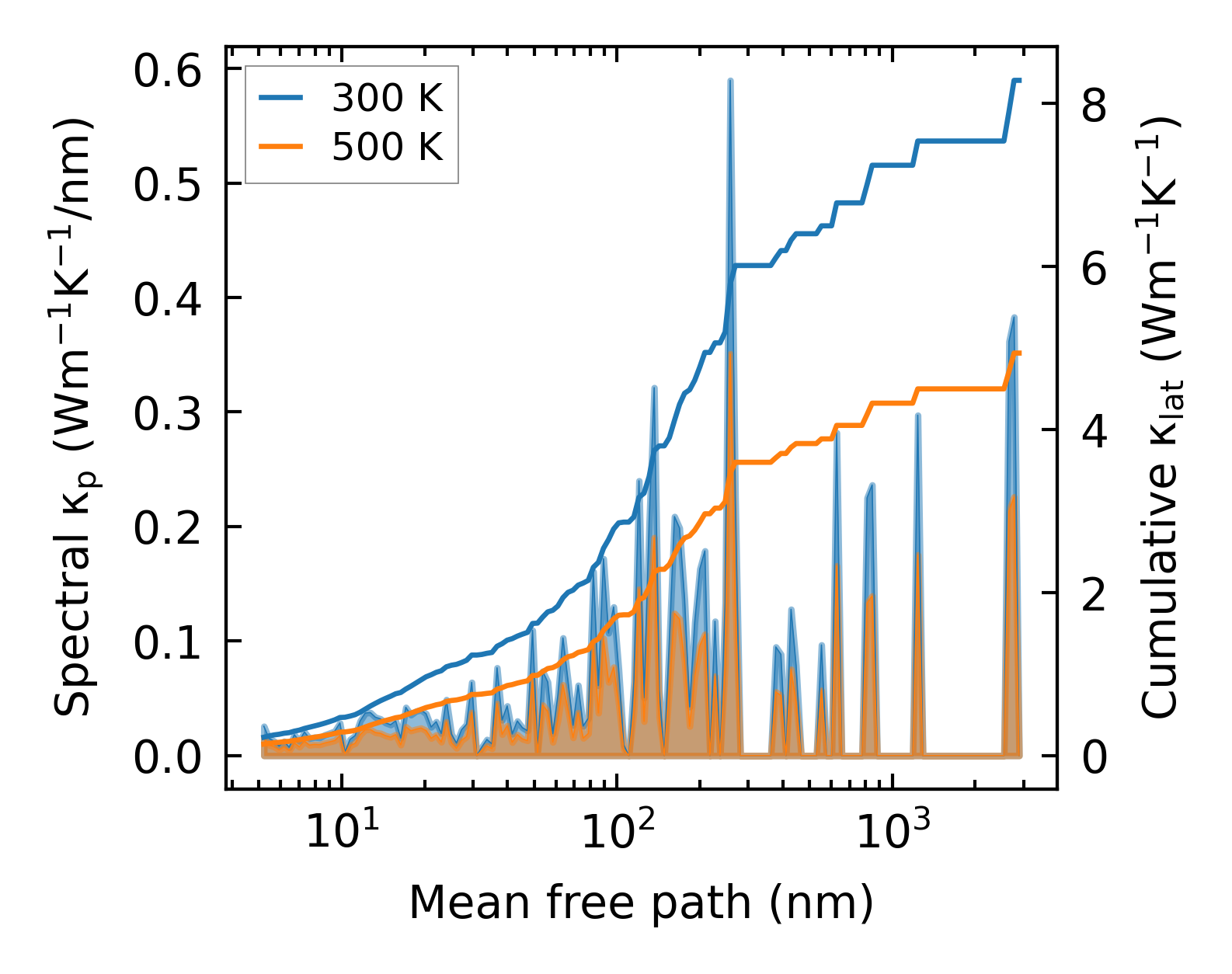

../../_images/fig_cumu_mfp868.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

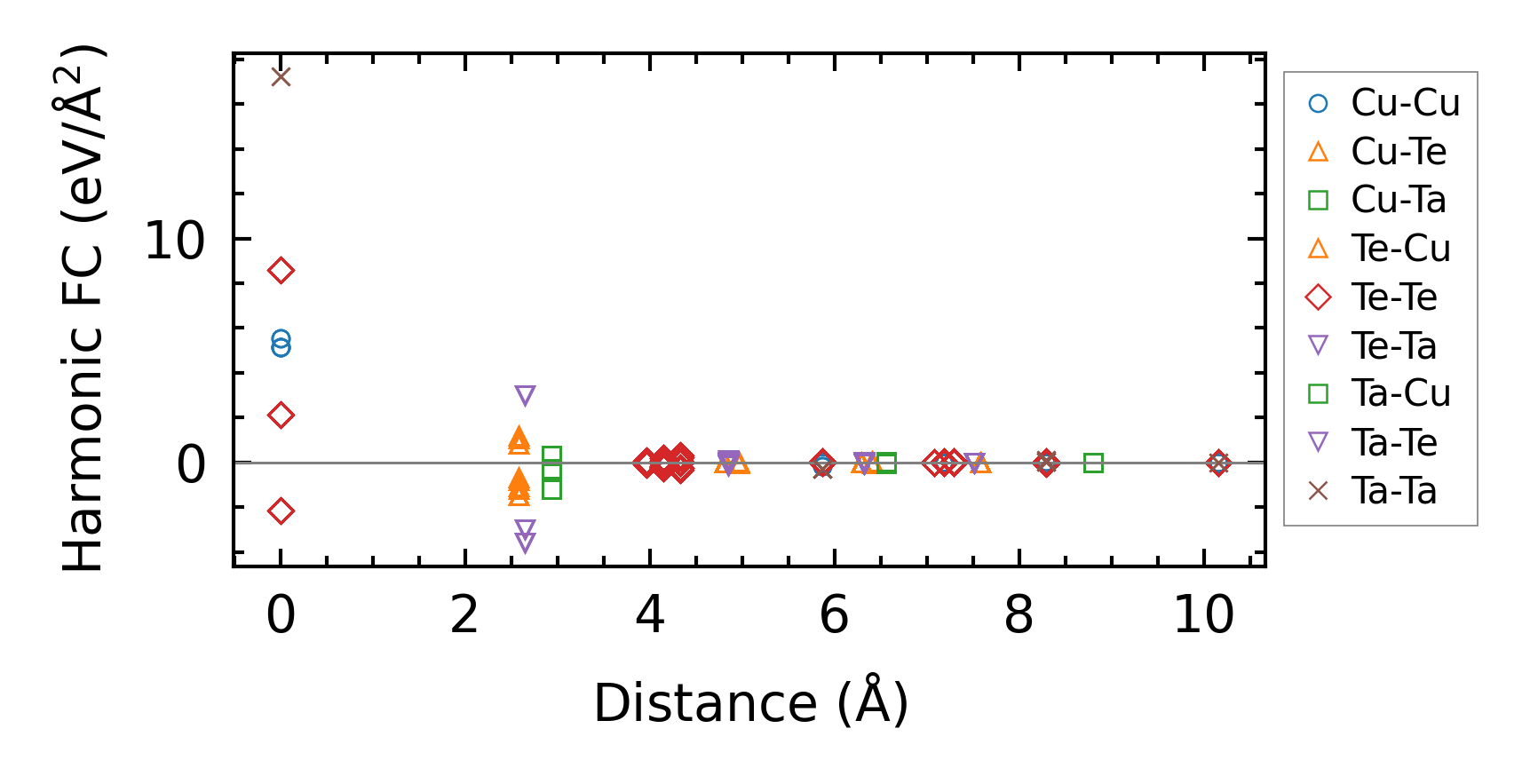

../../_images/fig_fc21275.png — (a) Force constants w.r.t atomic distance

Summary

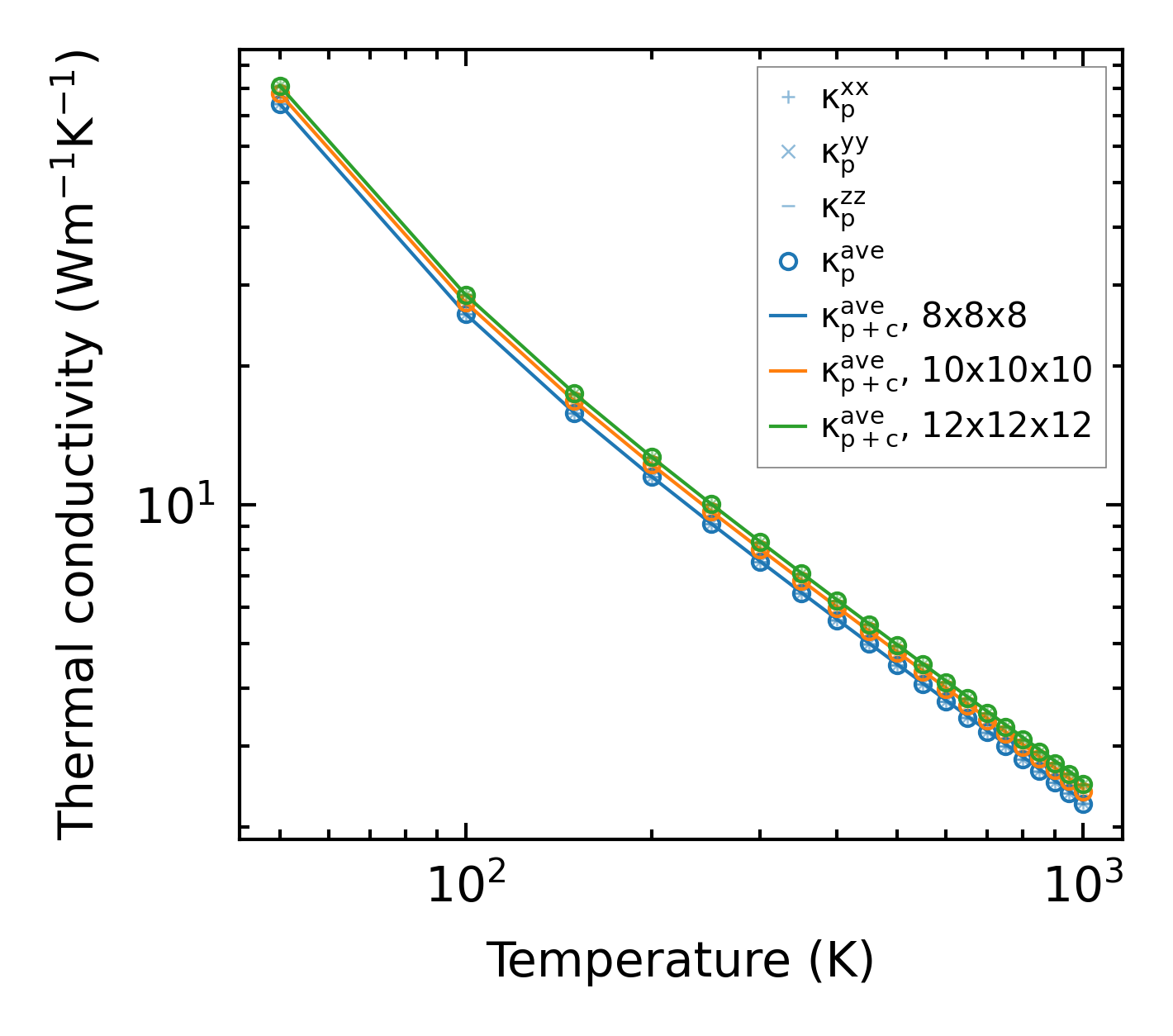

../../_images/fig_kappa1699.png — (a) Temperature-dependent lattice thermal conductivity

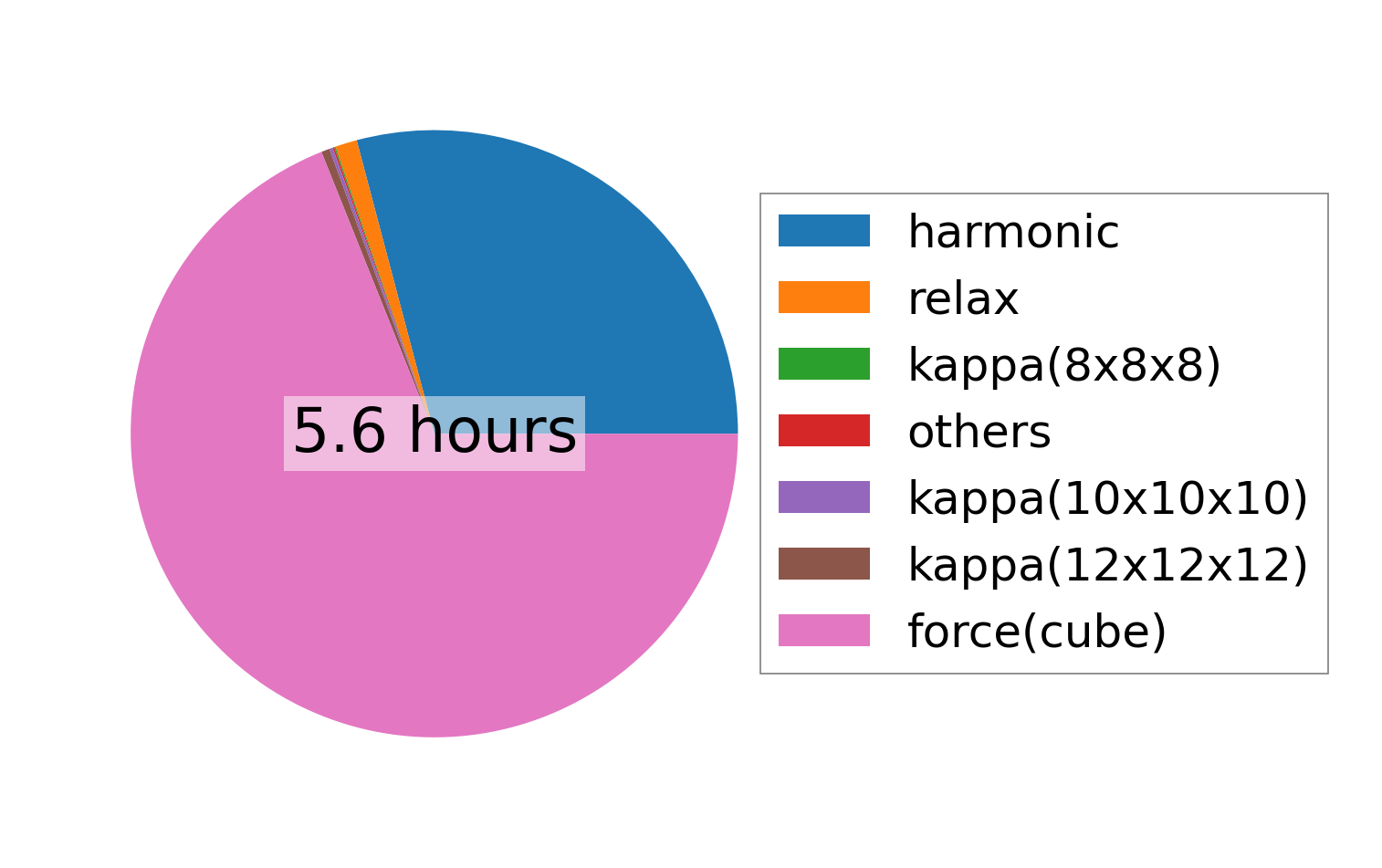

../../_images/fig_times2137.png — (b) Computation time
