mp-9672-2/K2NiP2/anharm

Space group: Cmcm (63)
Link: Materials Project
Download: mp-9672-2.tar.gz

Harmonic properties

../../_images/fig_bandos_pr1185.png — (a) Phonon dispersion with participation ratio and DOS

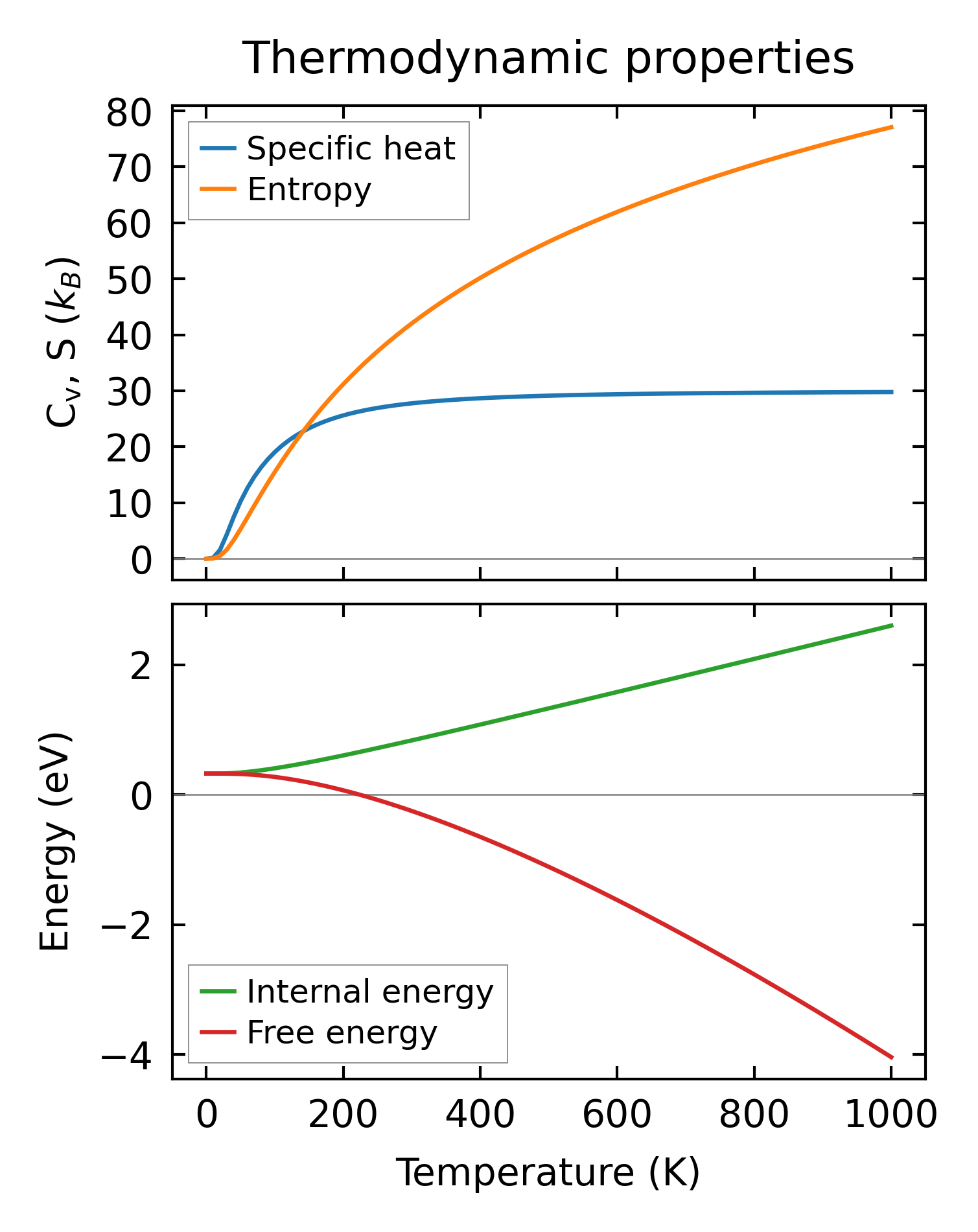

../../_images/fig_thermo1185.png — (b) Thermodynamic properties

Grüneisen parameters

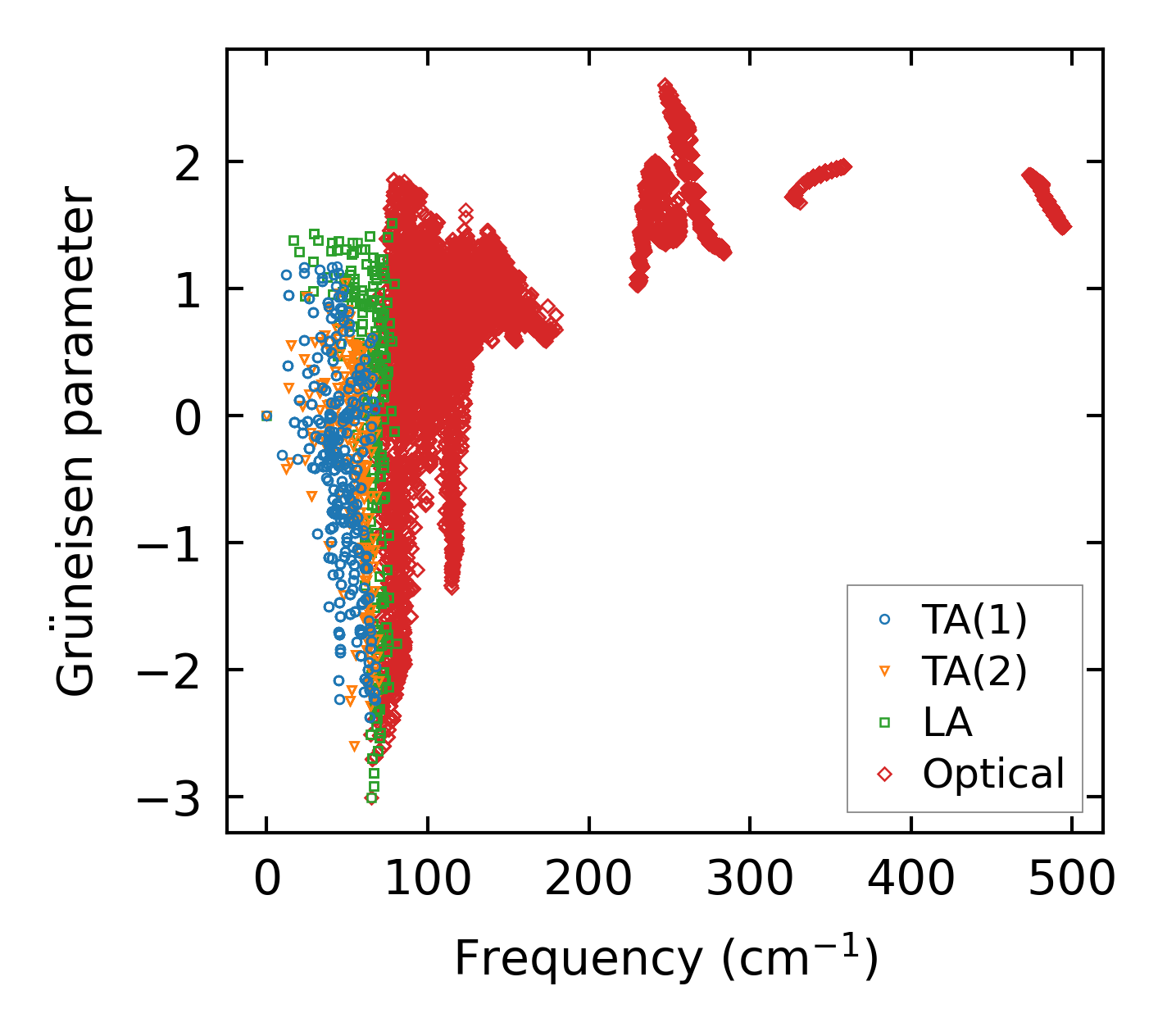

../../_images/fig_gru_all736.png — (a) Grüneisen parameters

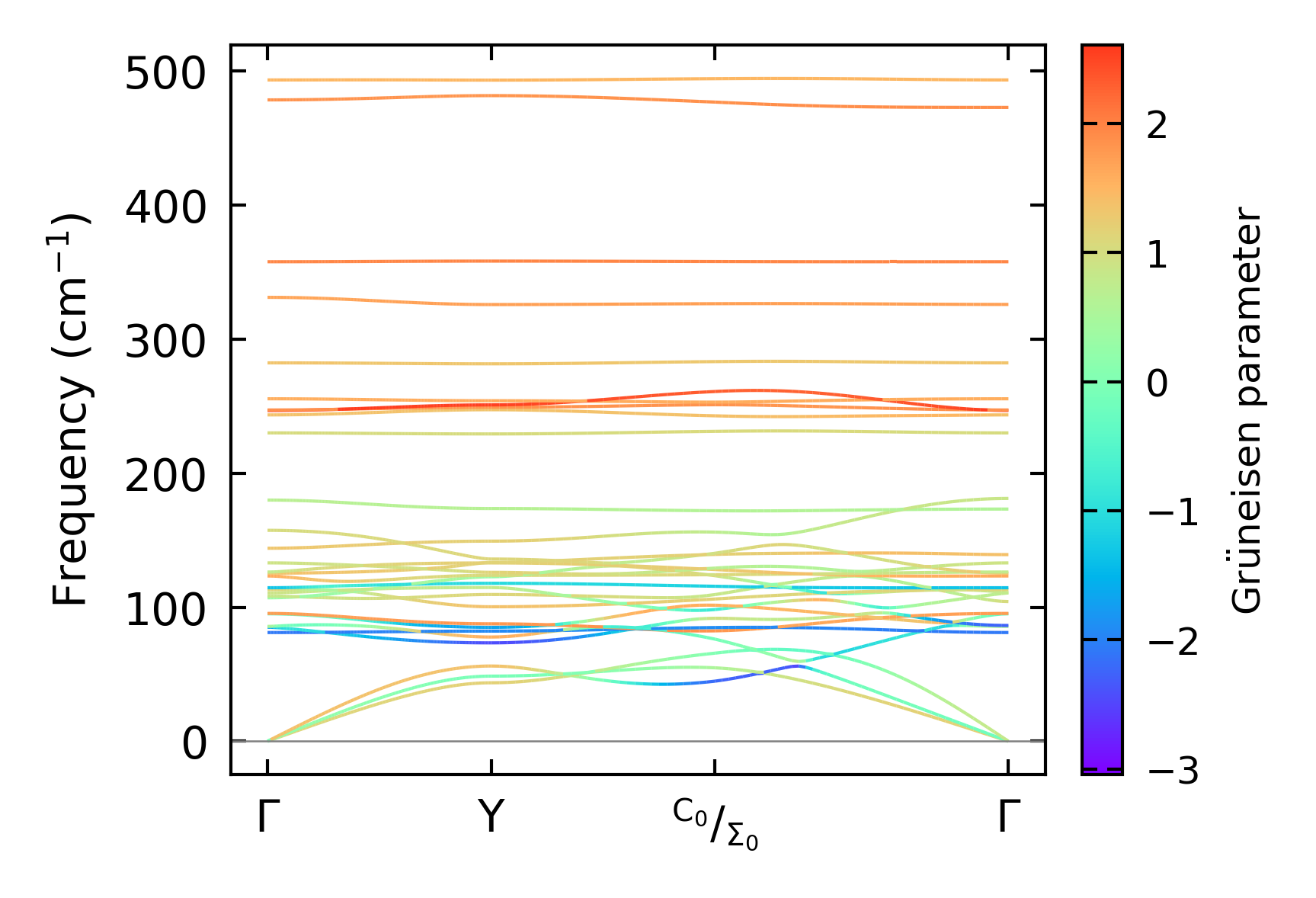

../../_images/fig_gruneisen736.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x14, supercell: 2x1x3

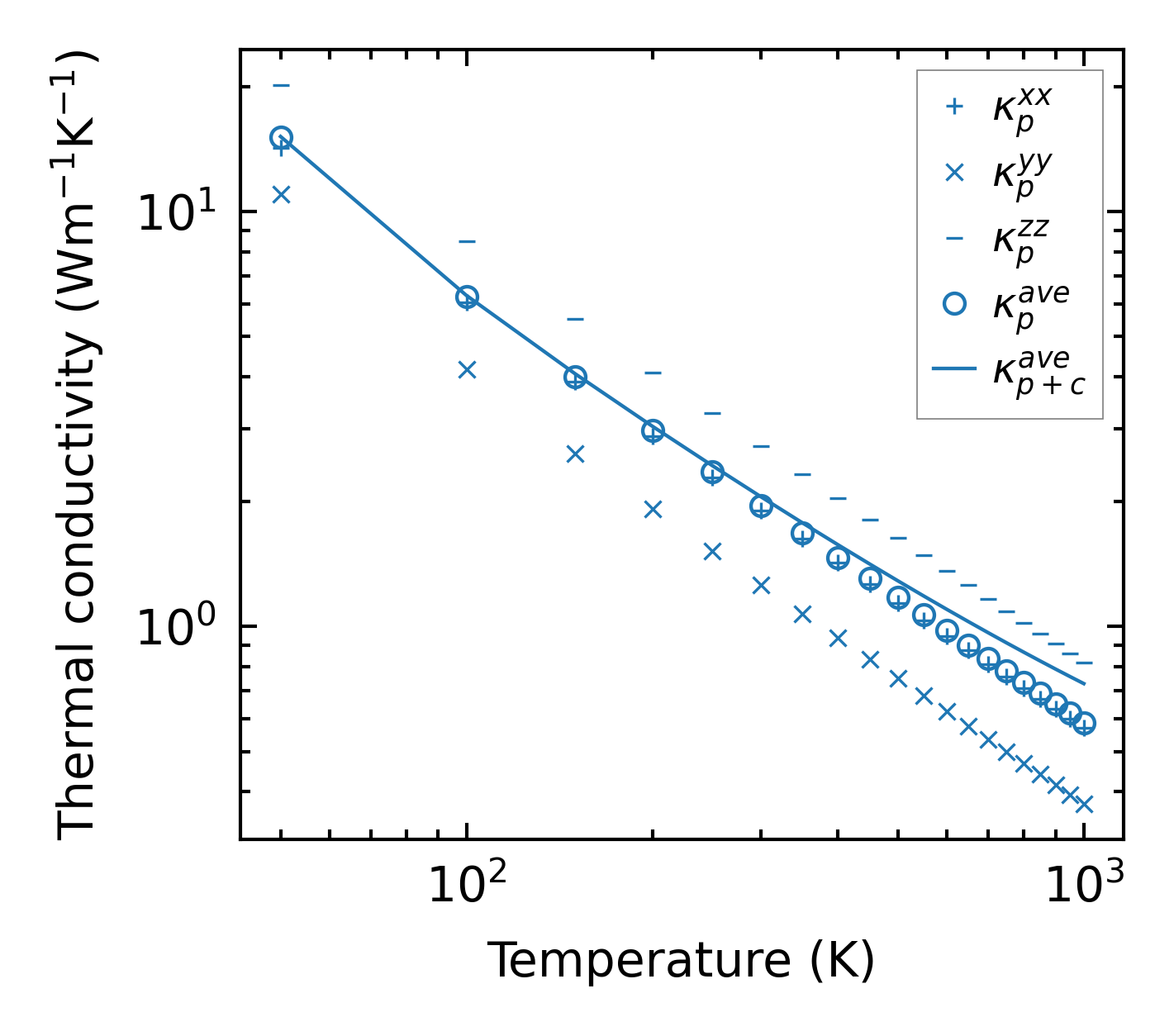

../../_images/fig_kappa1437.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size745.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime733.png — (a) Phonon lifetime due to phonon-phonon scattering

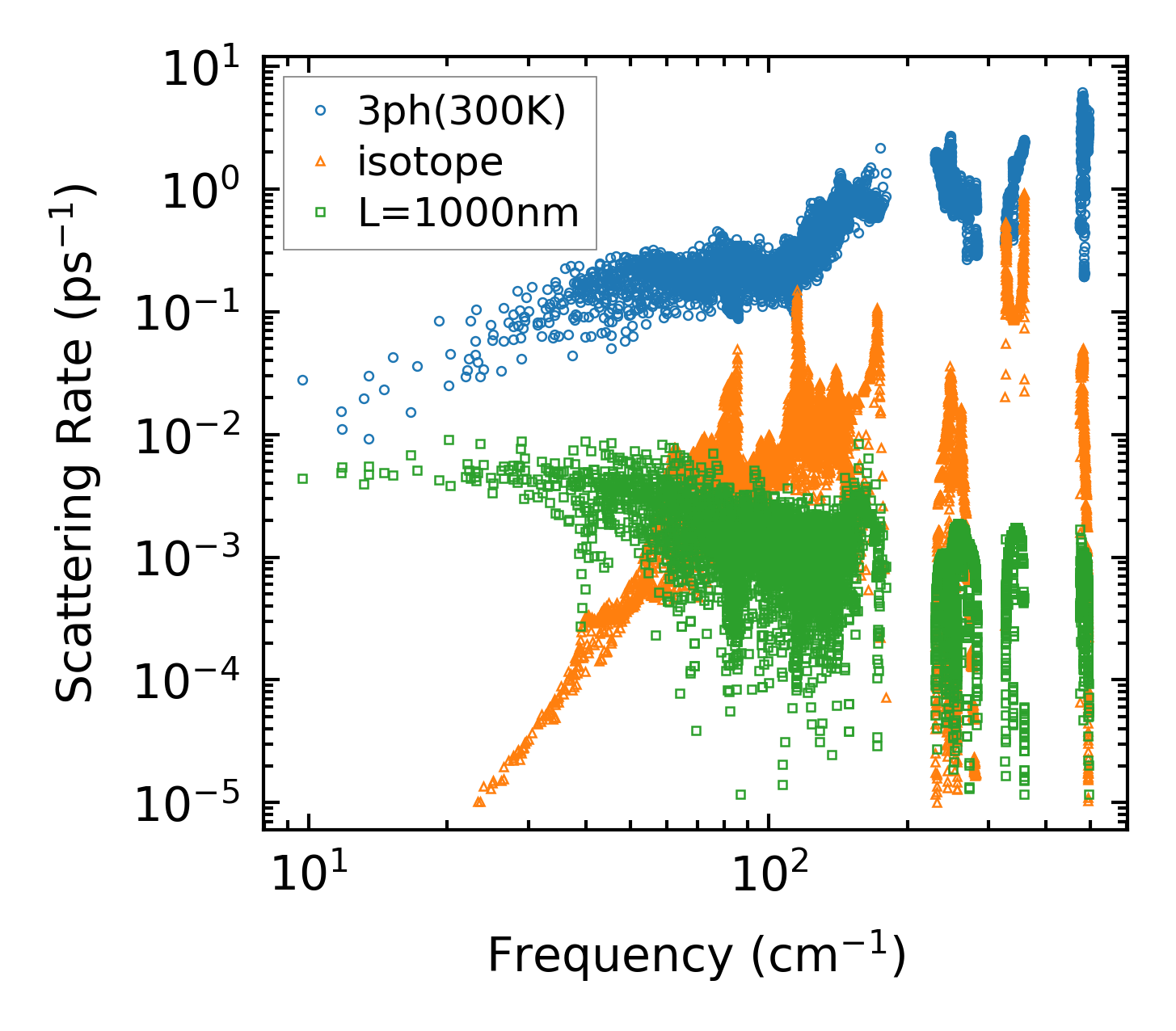

../../_images/fig_scat_rates732.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency733.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp733.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

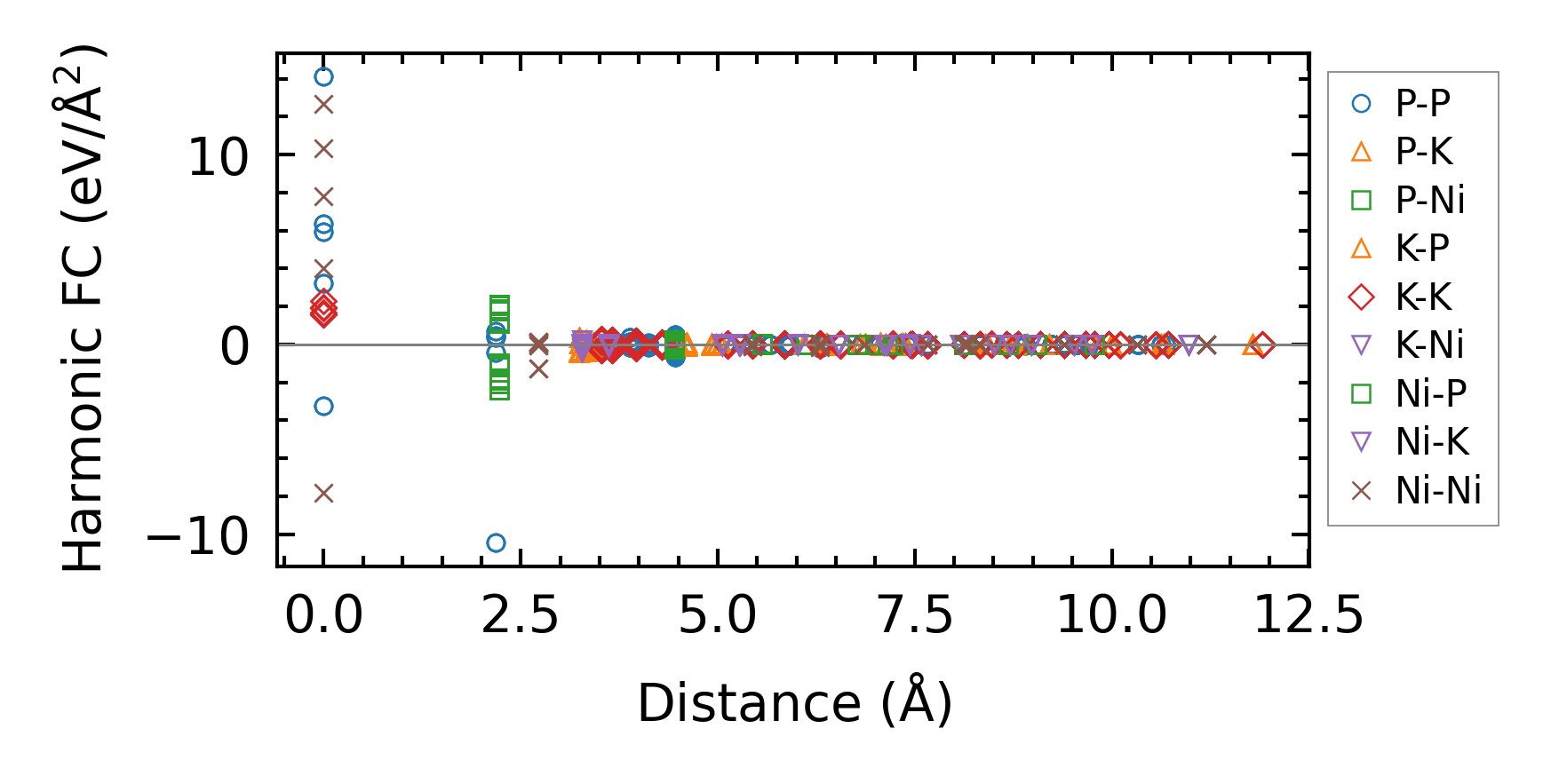

../../_images/fig_fc21051.png — (a) Force constants w.r.t atomic distance

Summary

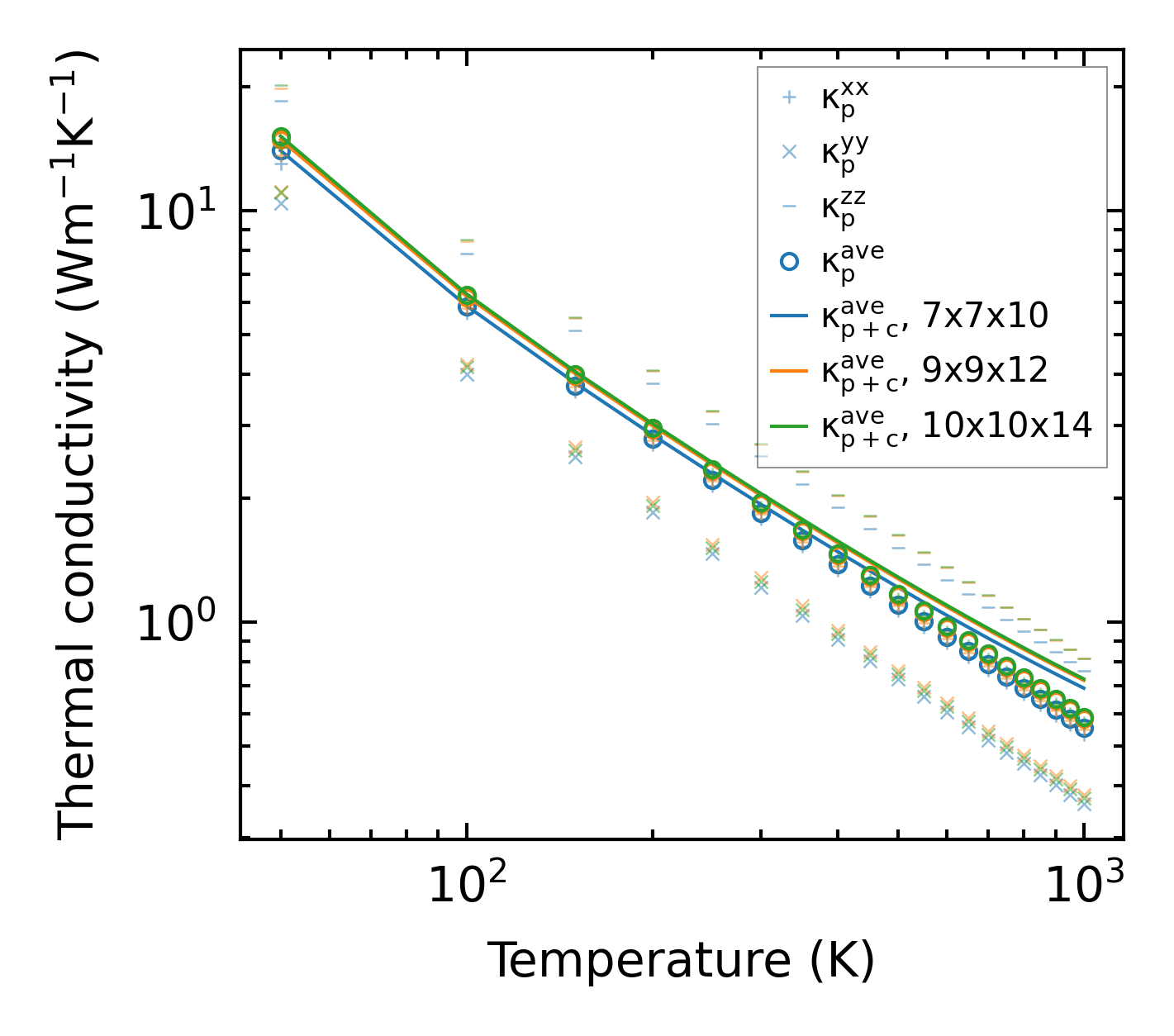

../../_images/fig_kappa1438.png — (a) Temperature-dependent lattice thermal conductivity

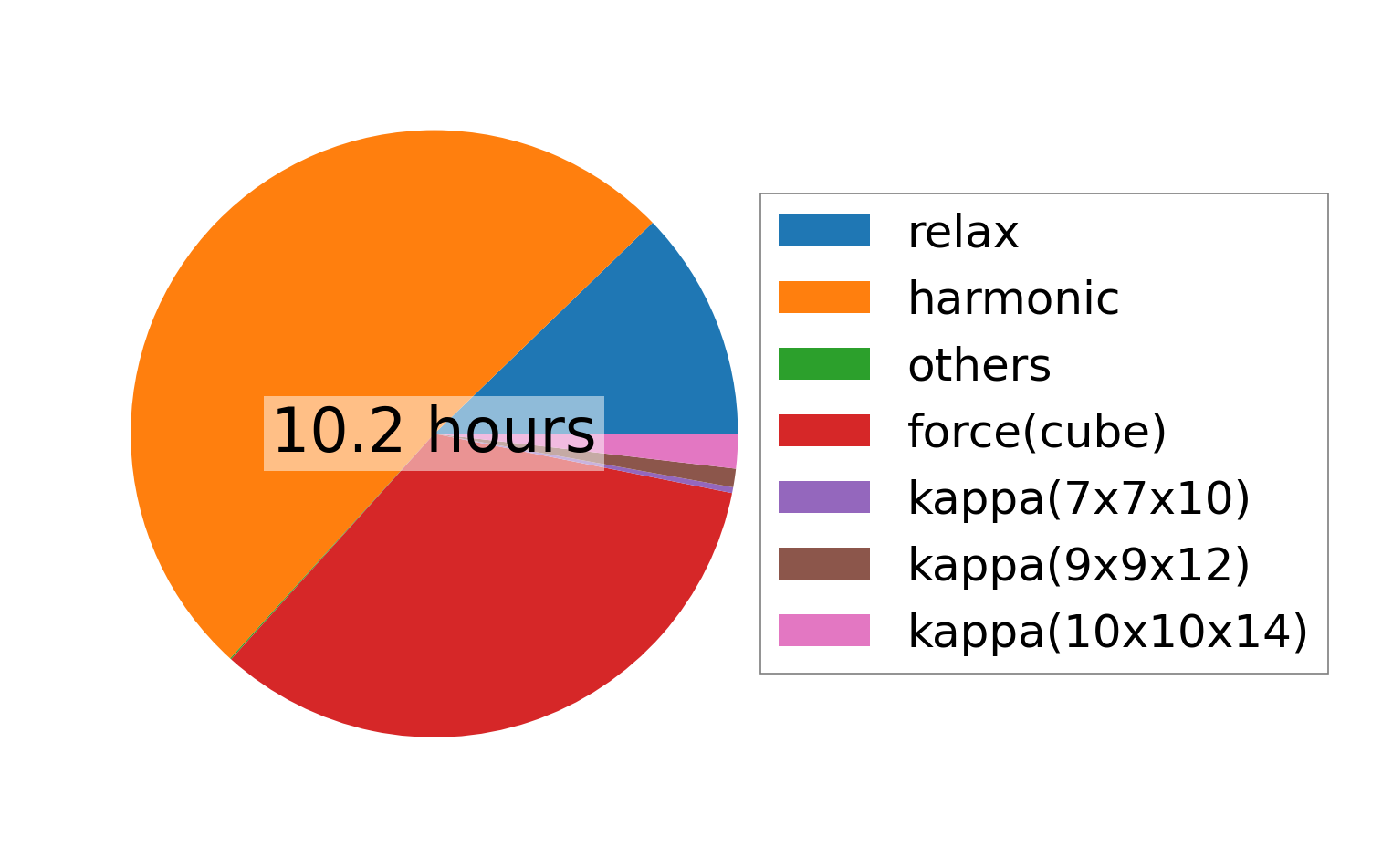

../../_images/fig_times1777.png — (b) Computation time
