mp-9749/SrB2O4/anharm

Space group: Pbcn (60)
Link: Materials Project
Download: mp-9749.tar.gz

Harmonic properties

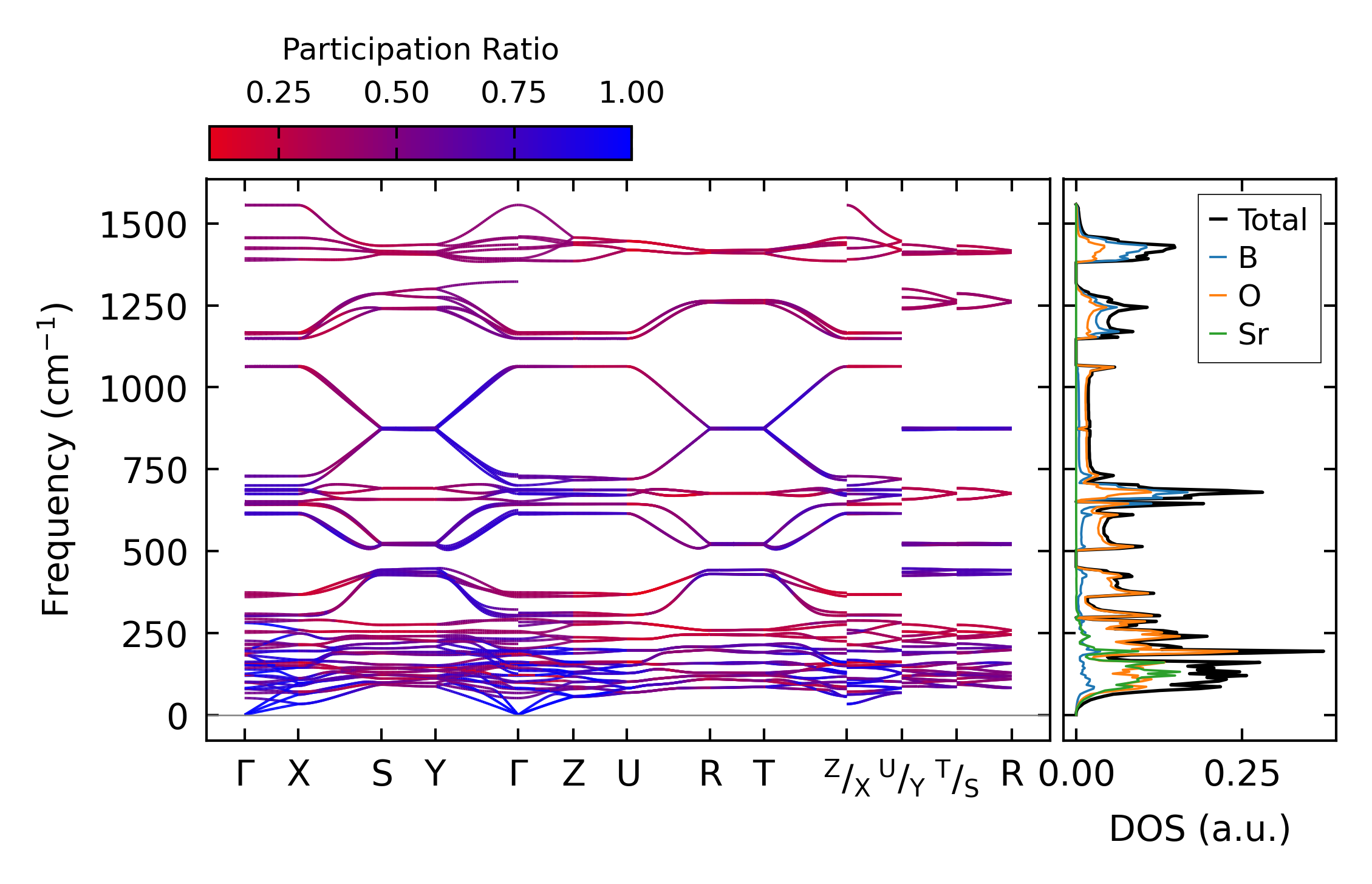

../../_images/fig_bandos_pr1218.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1218.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all758.png — (a) Grüneisen parameters

../../_images/fig_gruneisen758.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 5x16x10, supercell: 1x2x2

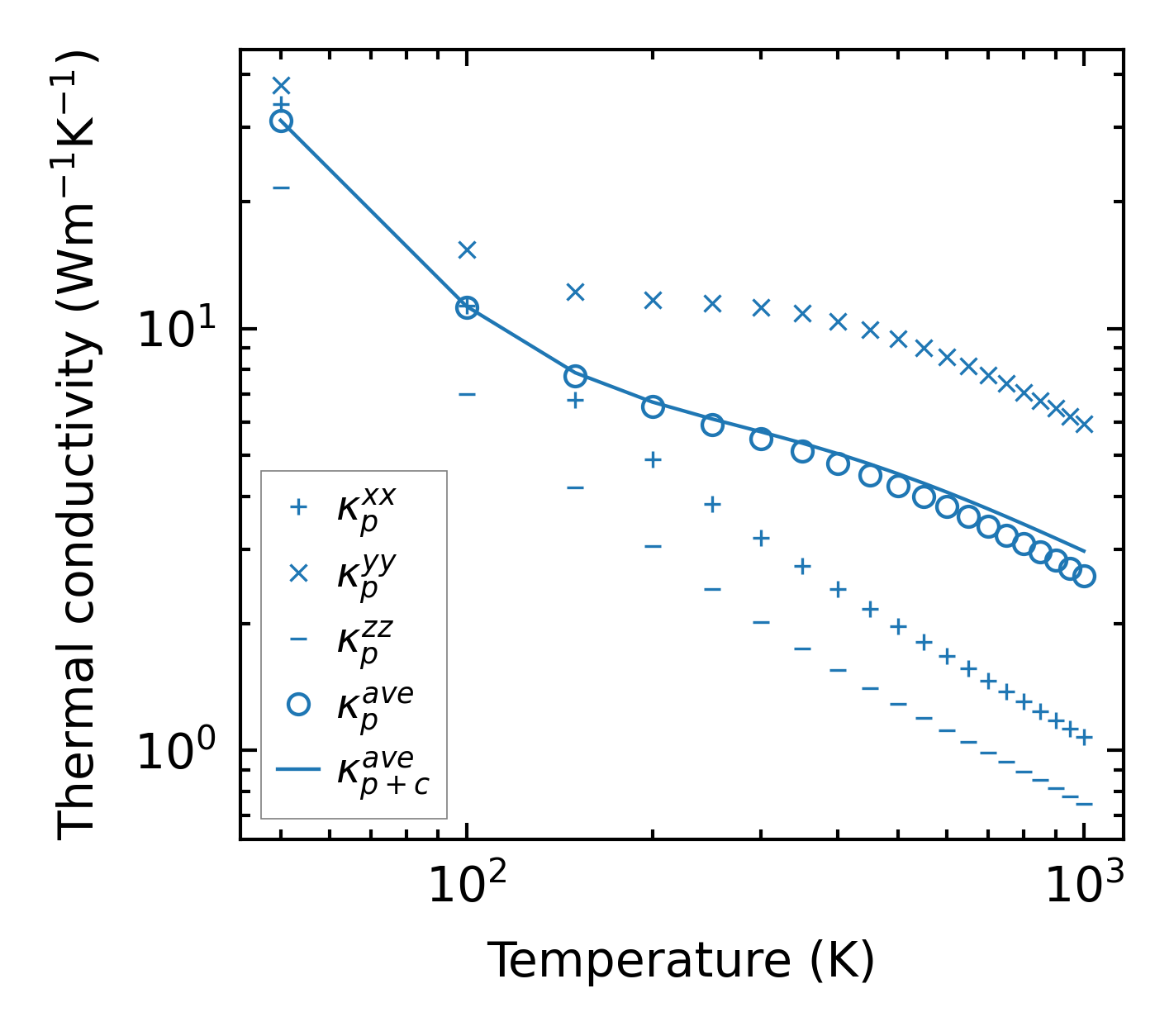

../../_images/fig_kappa1475.png — (a) Temperature-dependent lattice thermal conductivity

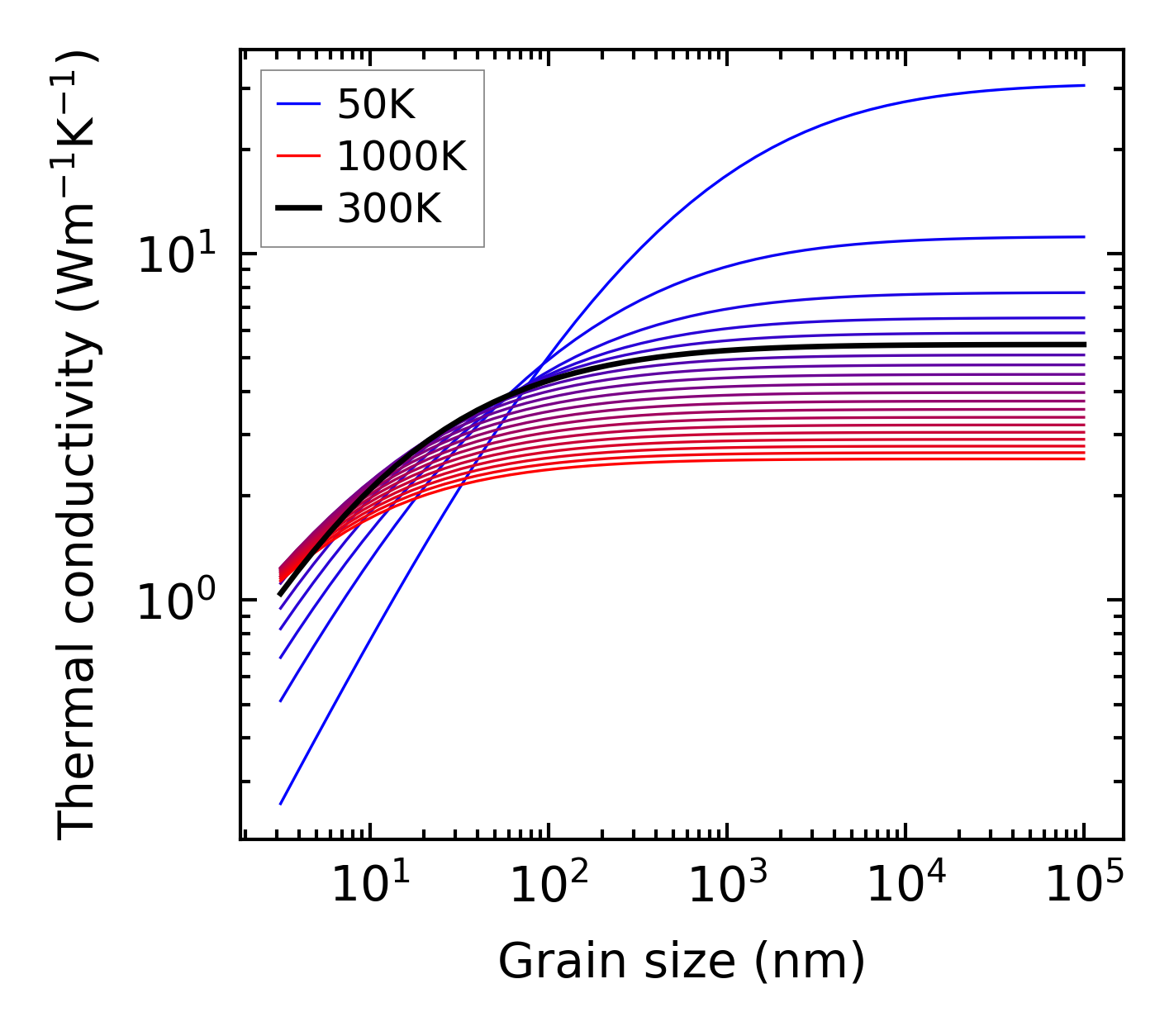

../../_images/fig_kappa_vs_grain_size766.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime752.png — (a) Phonon lifetime due to phonon-phonon scattering

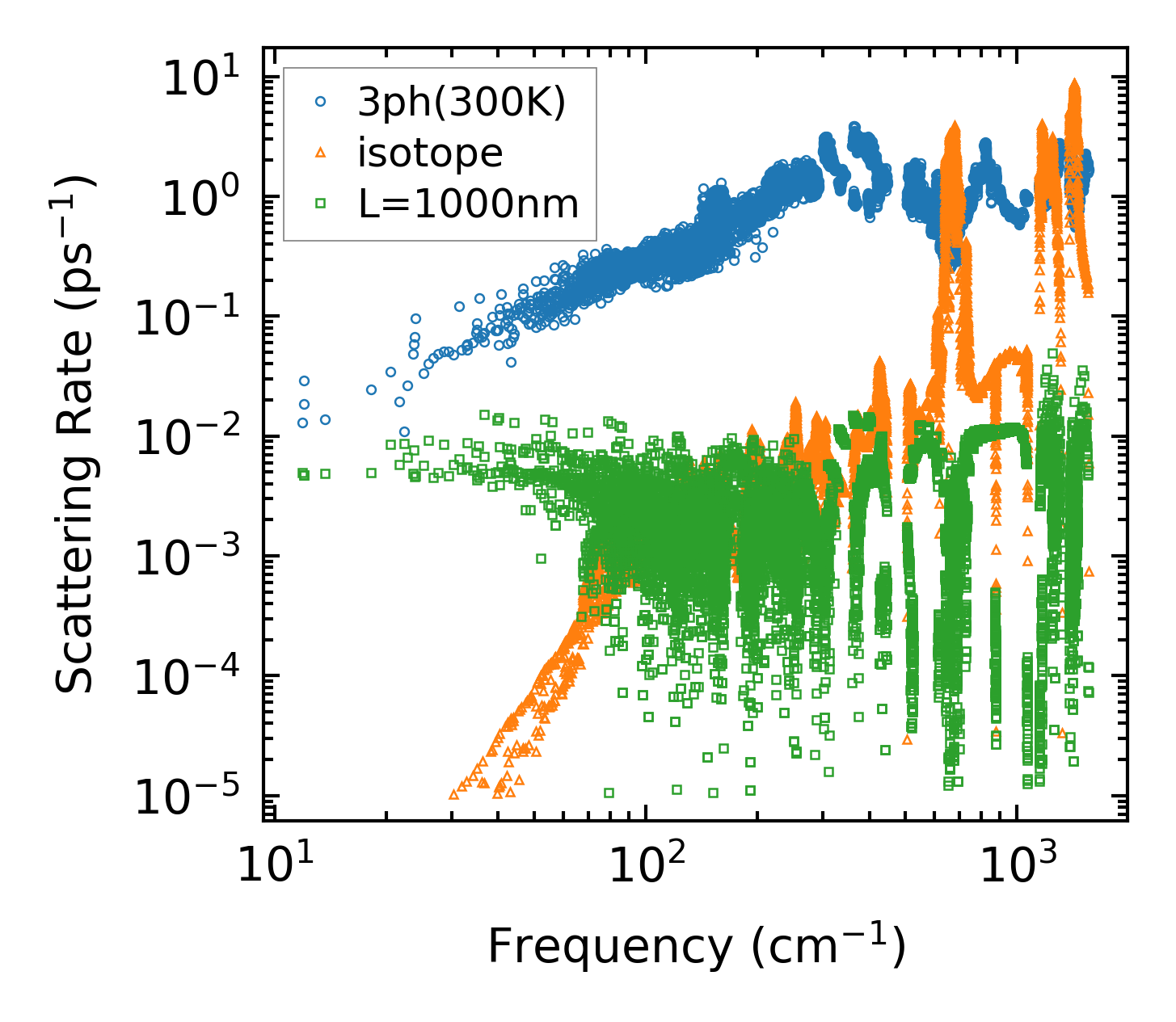

../../_images/fig_scat_rates751.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

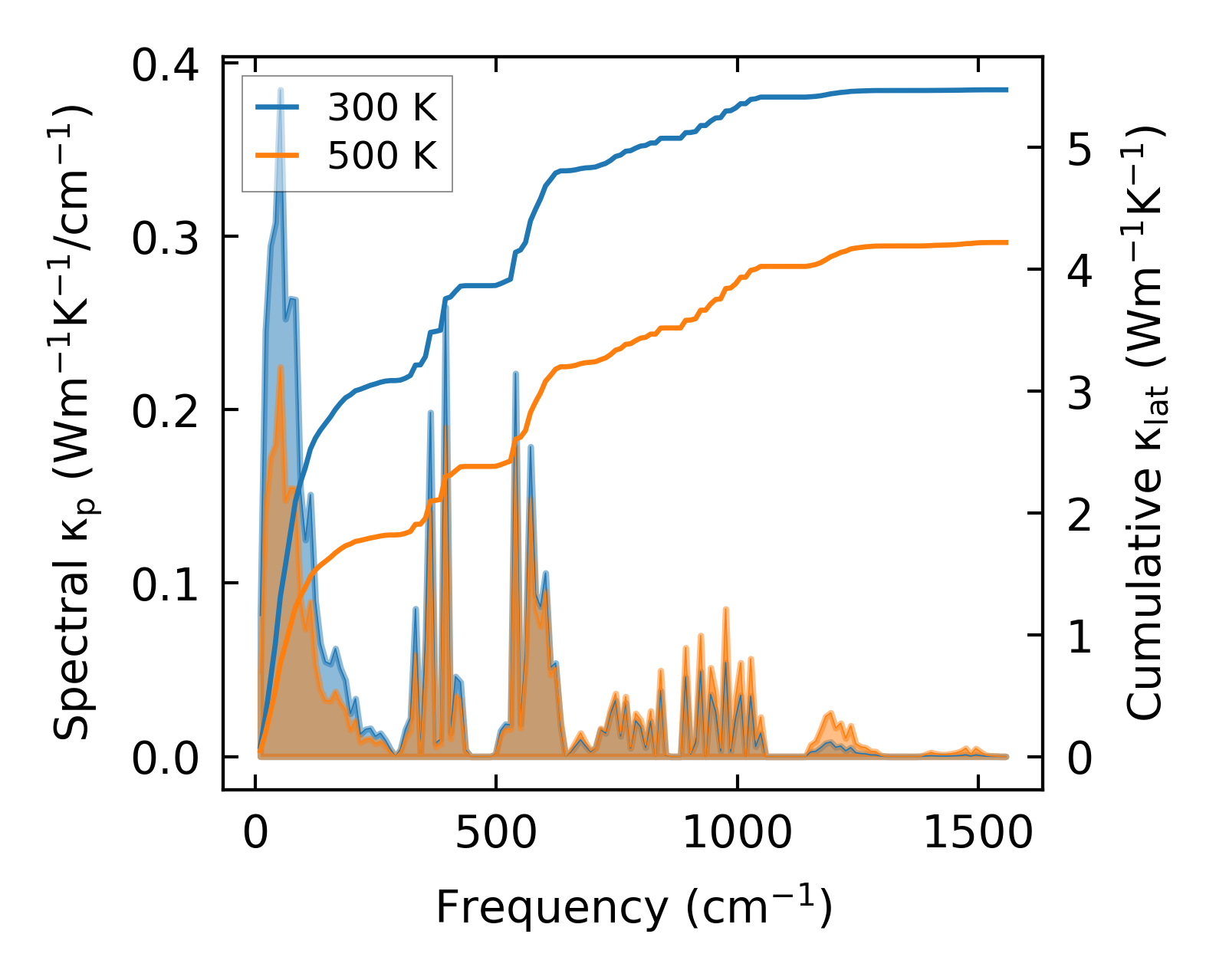

../../_images/fig_cumu_frequency752.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

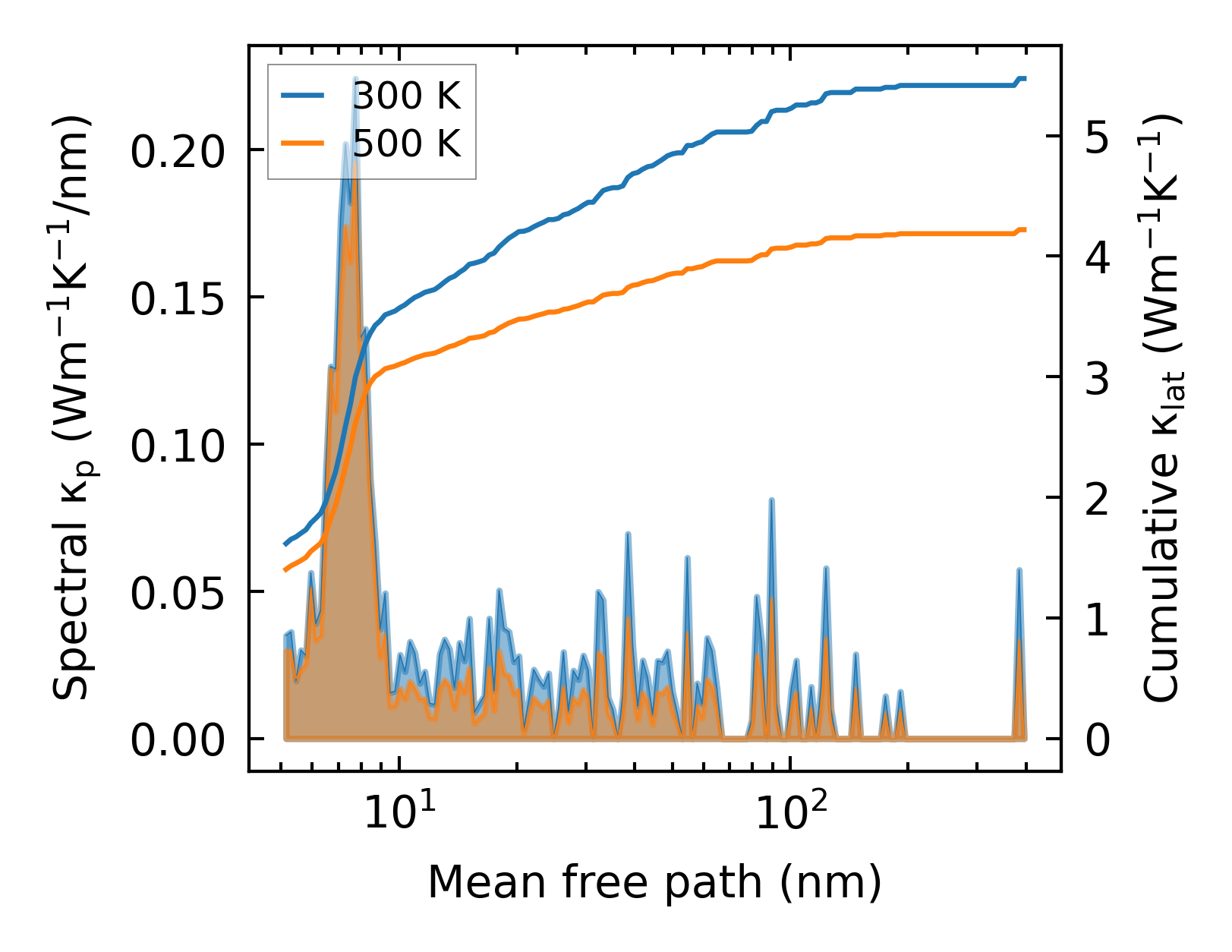

../../_images/fig_cumu_mfp752.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

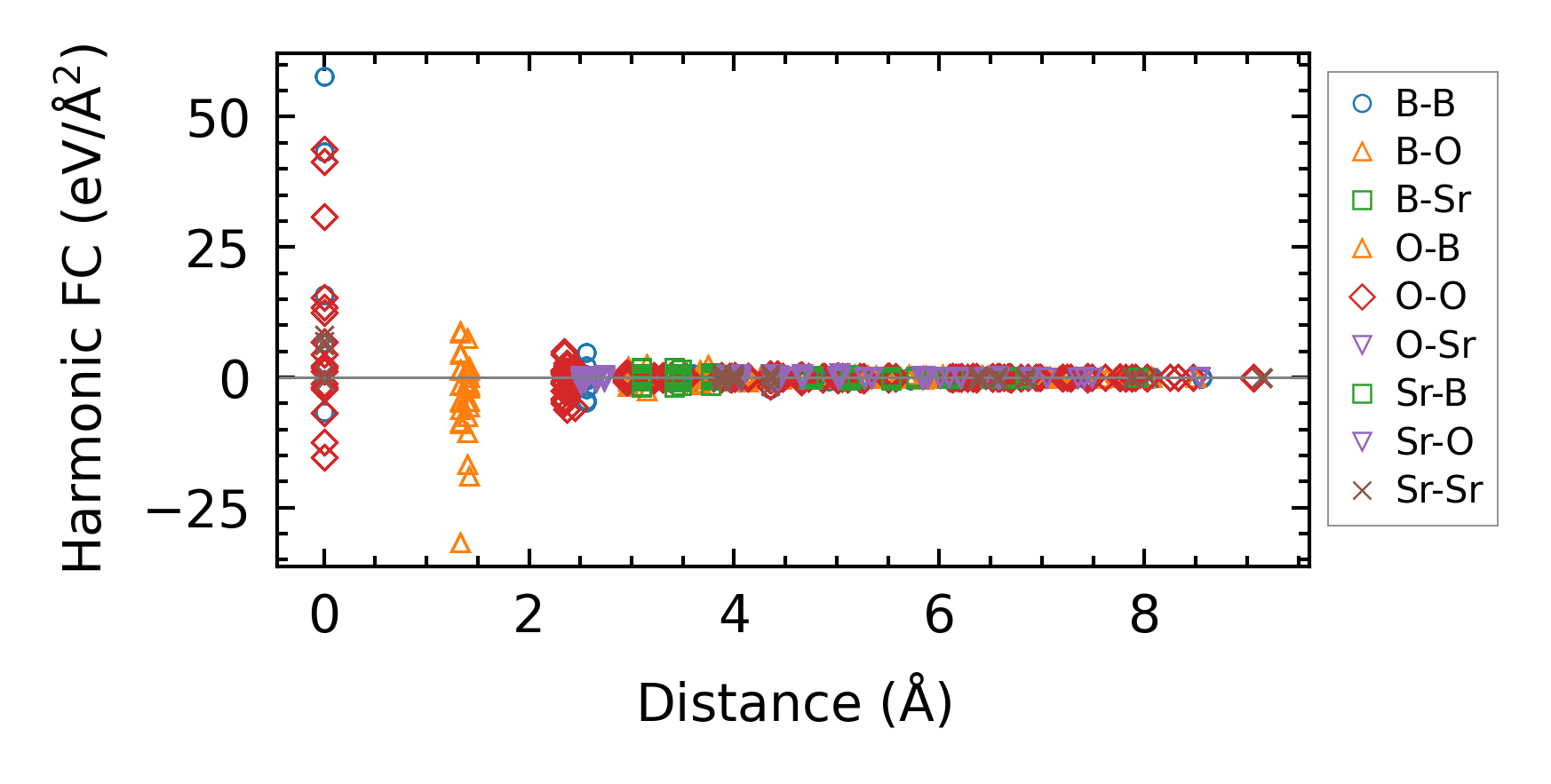

../../_images/fig_fc21084.png — (a) Force constants w.r.t atomic distance

Summary

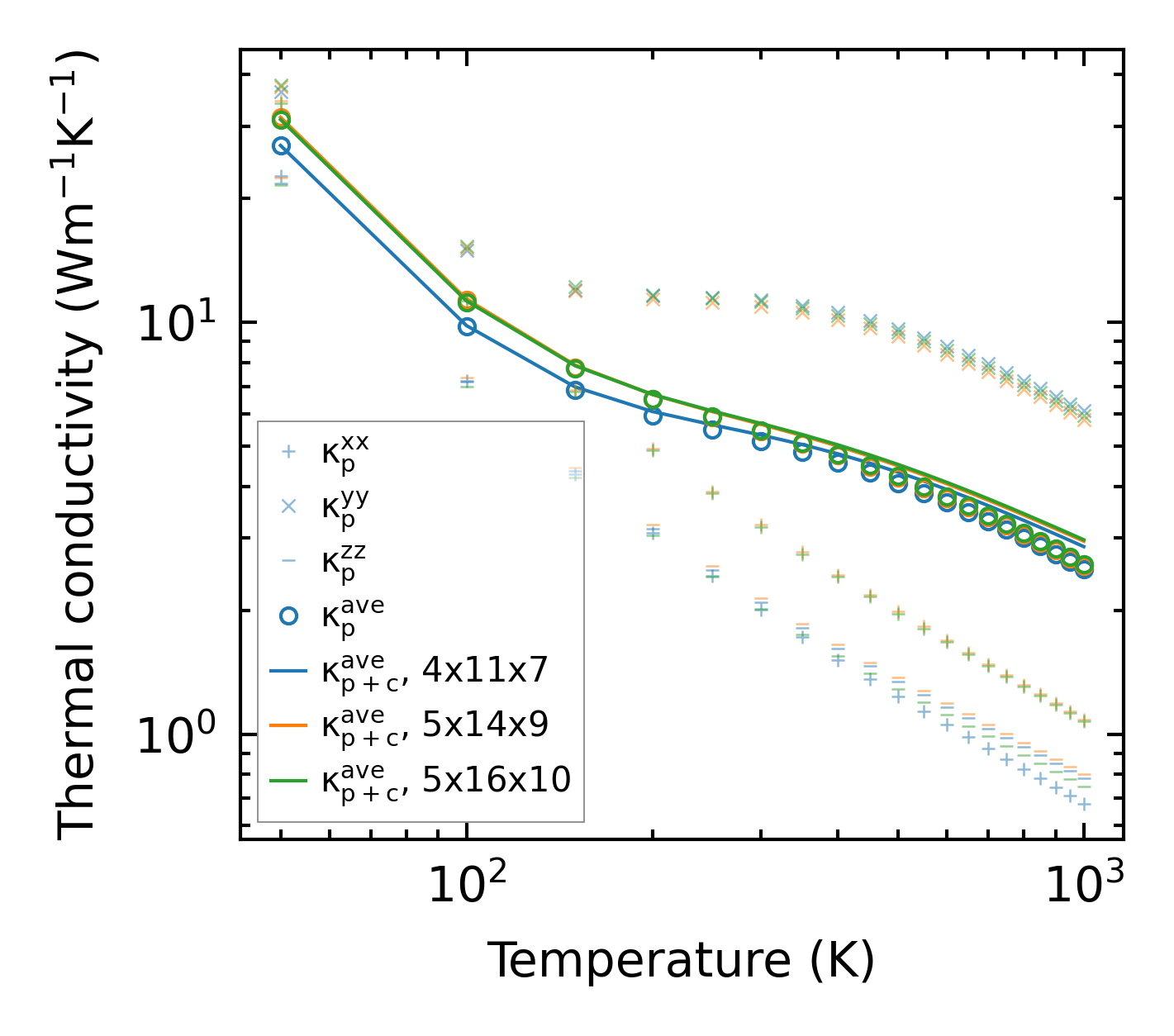

../../_images/fig_kappa1476.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times1822.png — (b) Computation time
