mp-9588/LiP/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-9588.tar.gz

Harmonic properties

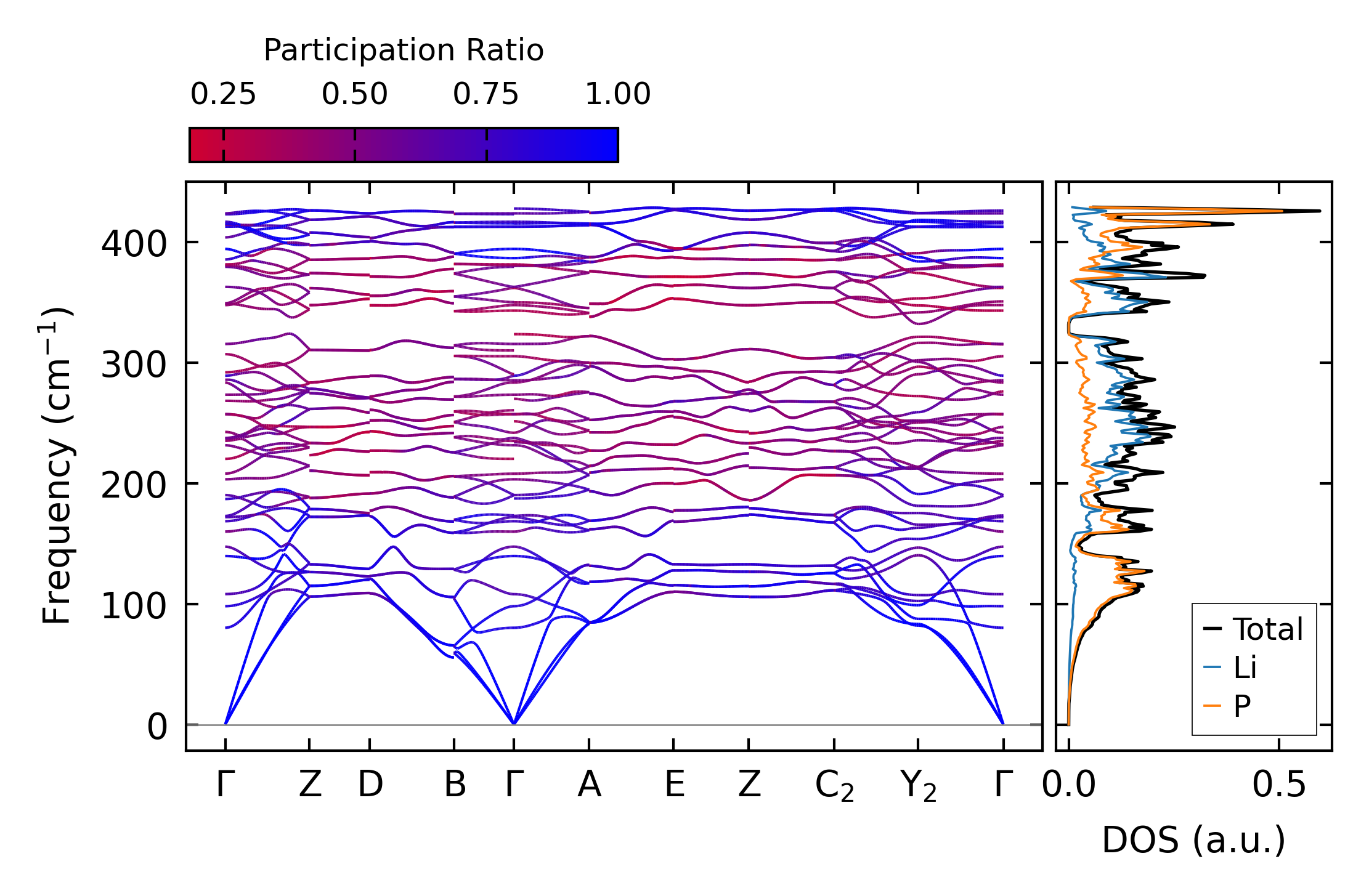

../../_images/fig_bandos_pr1164.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1164.png — (b) Thermodynamic properties

Grüneisen parameters

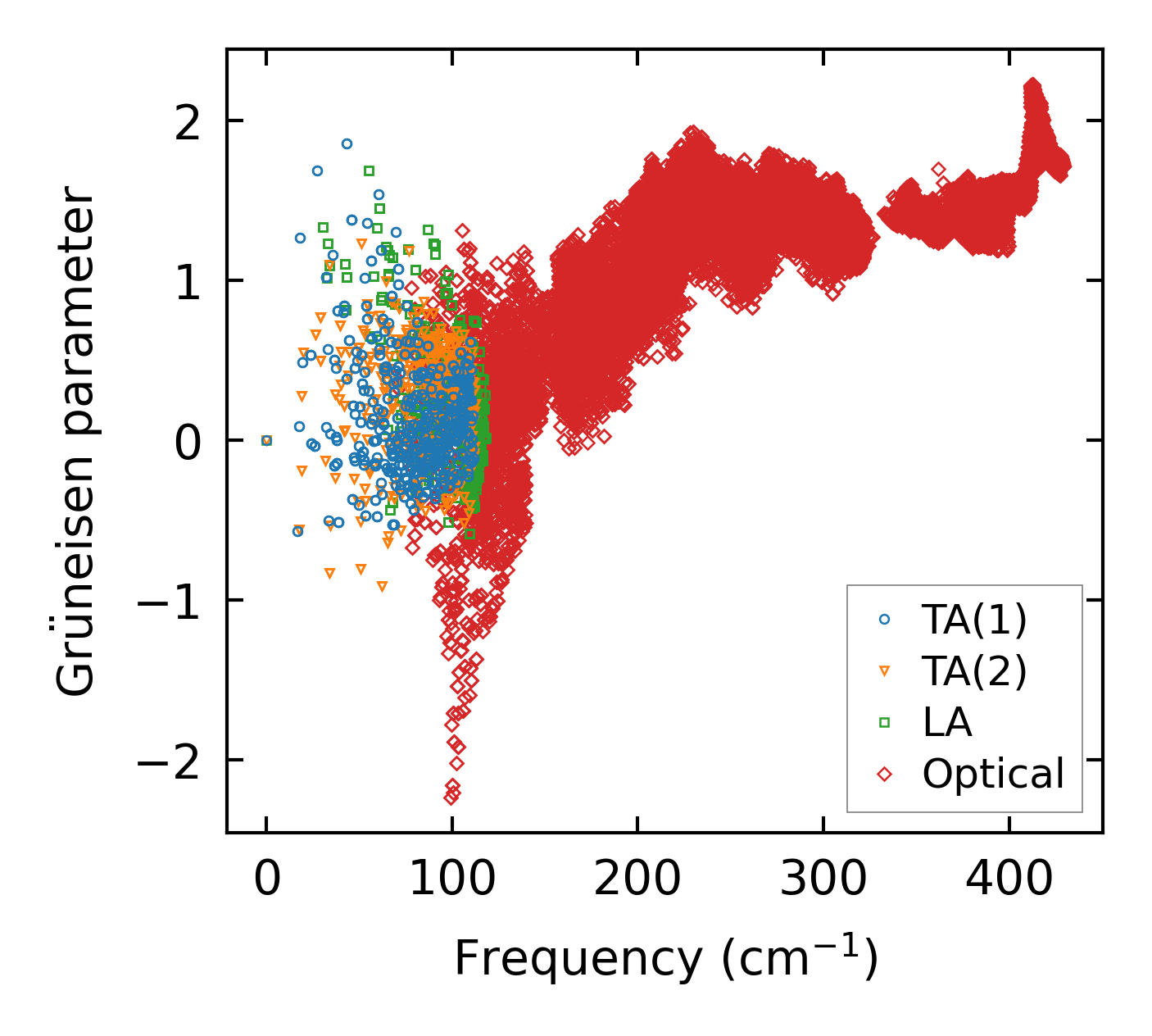

../../_images/fig_gru_all719.png — (a) Grüneisen parameters

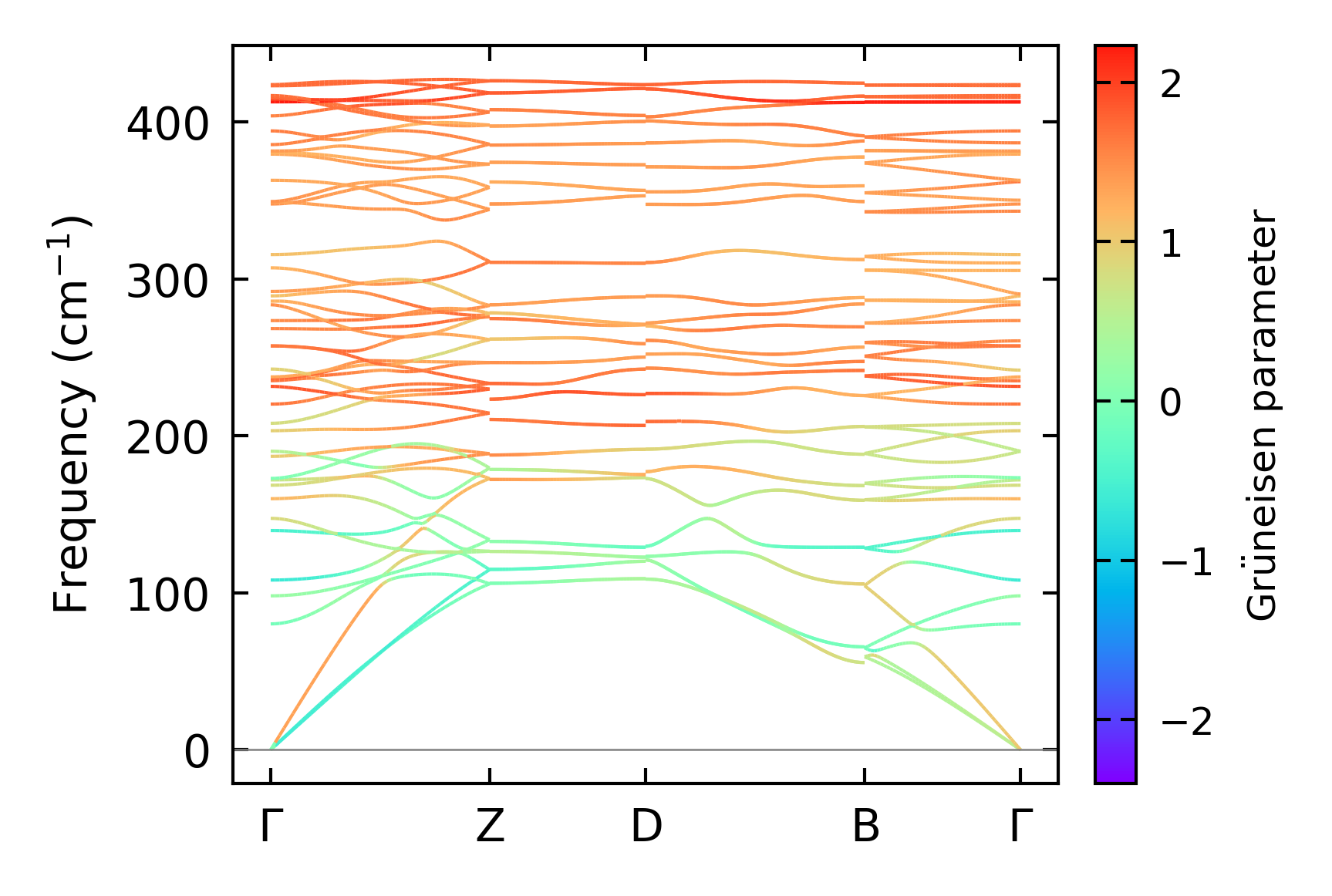

../../_images/fig_gruneisen719.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x15x7, supercell: 2x3x1

../../_images/fig_kappa1404.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size728.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

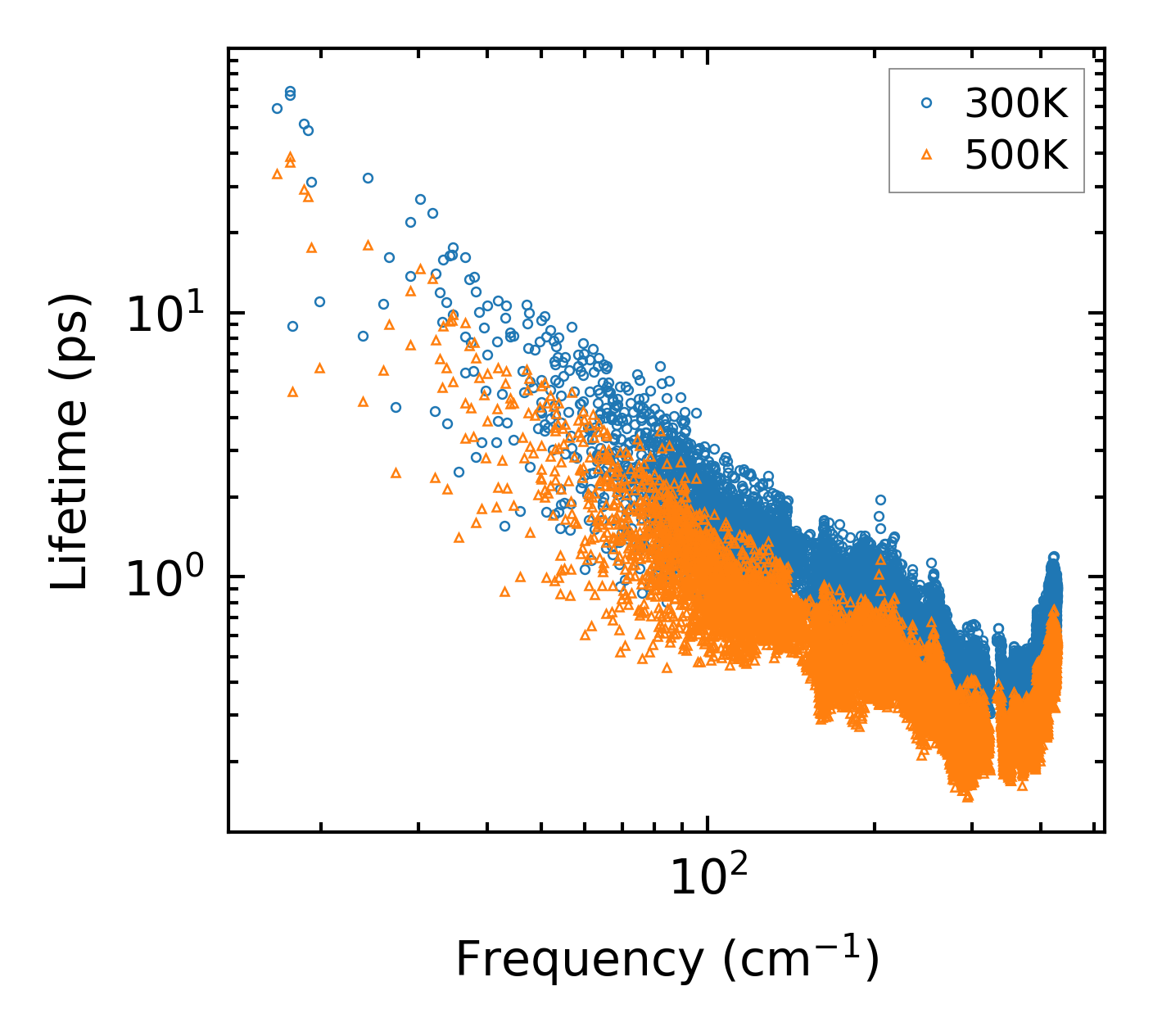

../../_images/fig_lifetime717.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates716.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

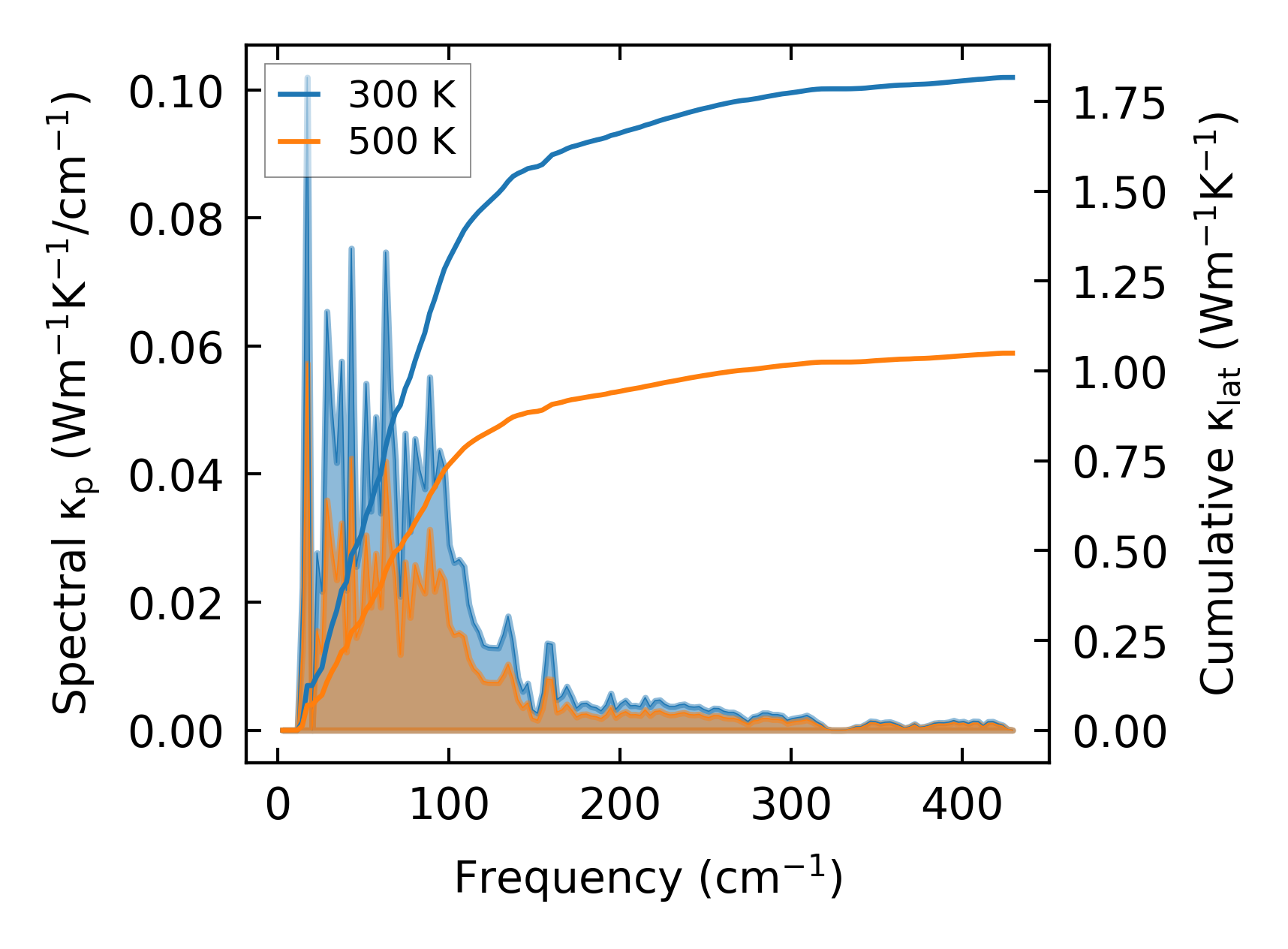

../../_images/fig_cumu_frequency717.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp717.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

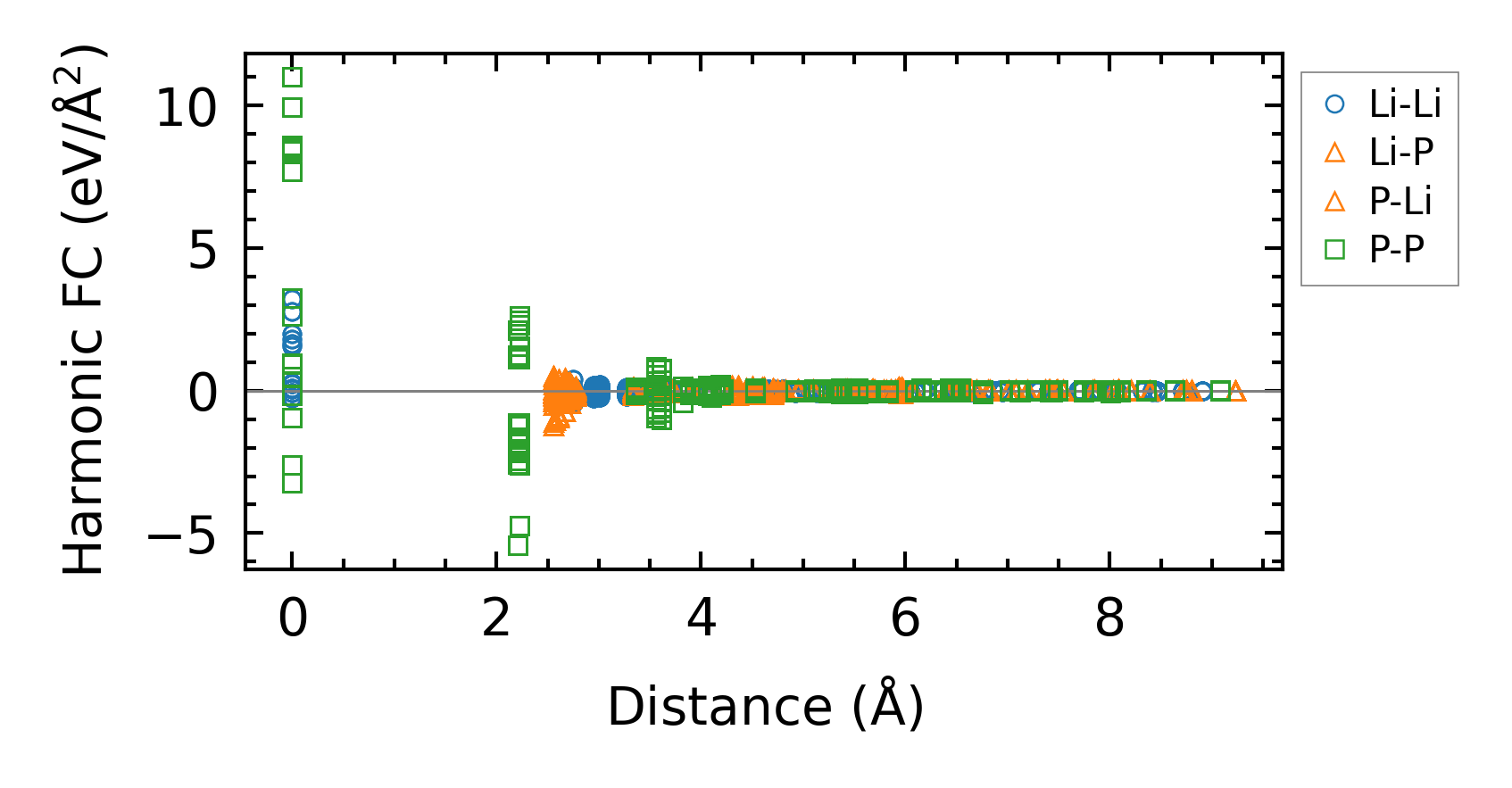

../../_images/fig_fc21030.png — (a) Force constants w.r.t atomic distance

Summary

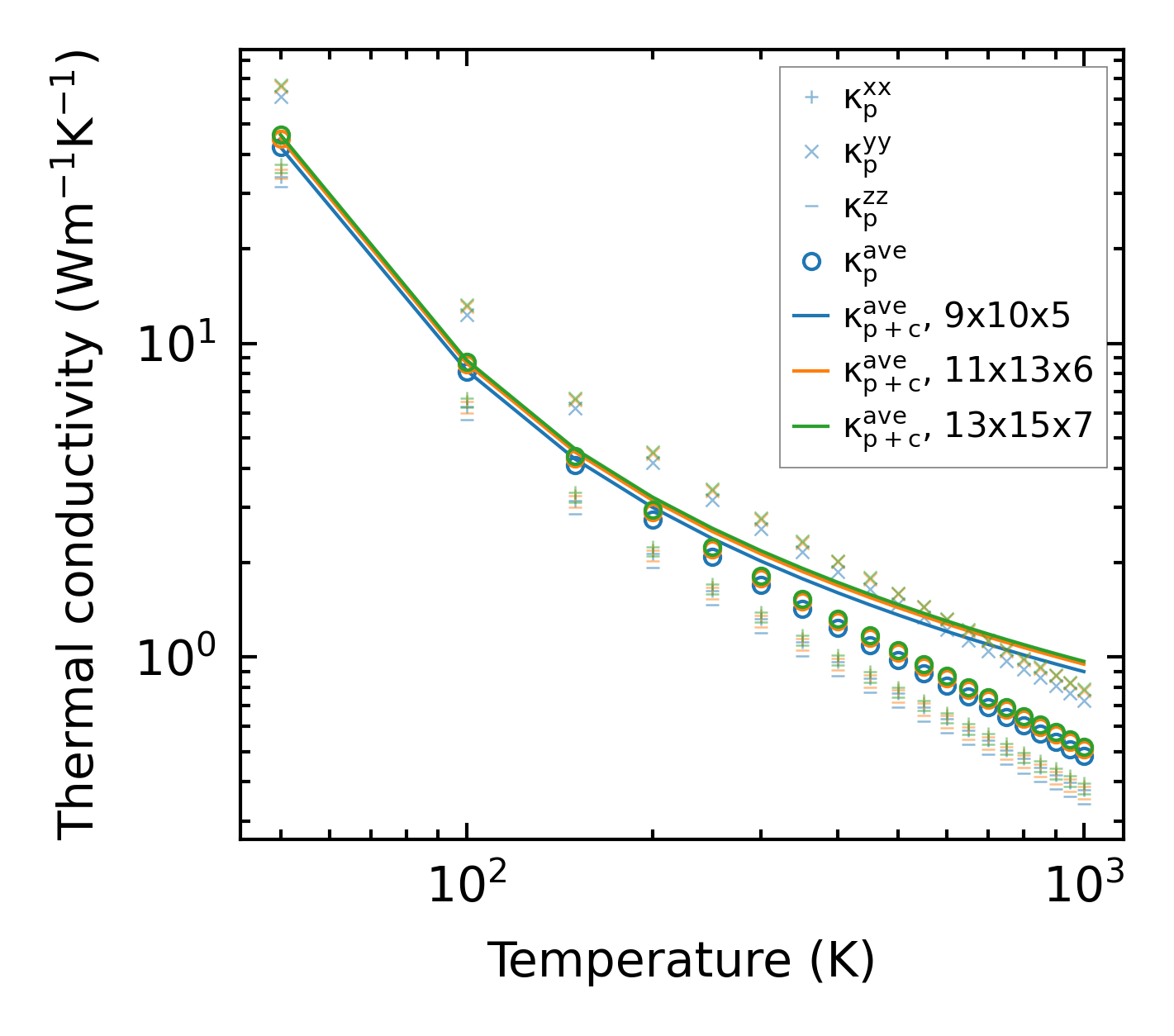

../../_images/fig_kappa1405.png — (a) Temperature-dependent lattice thermal conductivity

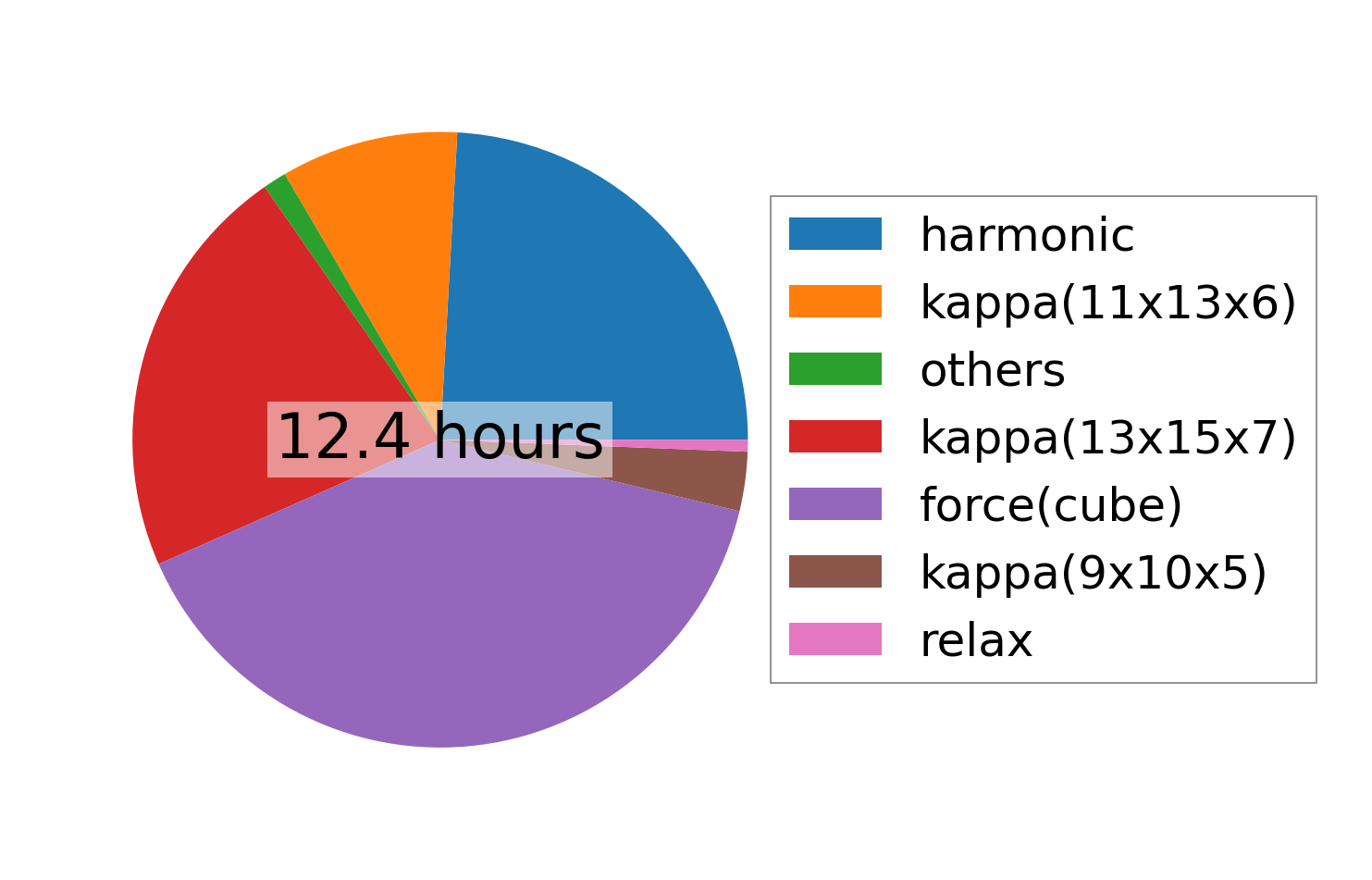

../../_images/fig_times1744.png — (b) Computation time
