mp-9071/Na8TiAs4/anharm

Space group: Fd-3m (227)
Link: Materials Project
Download: mp-9071.tar.gz

Harmonic properties

../../_images/fig_bandos_pr1356.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1356.png — (b) Thermodynamic properties

Grüneisen parameters

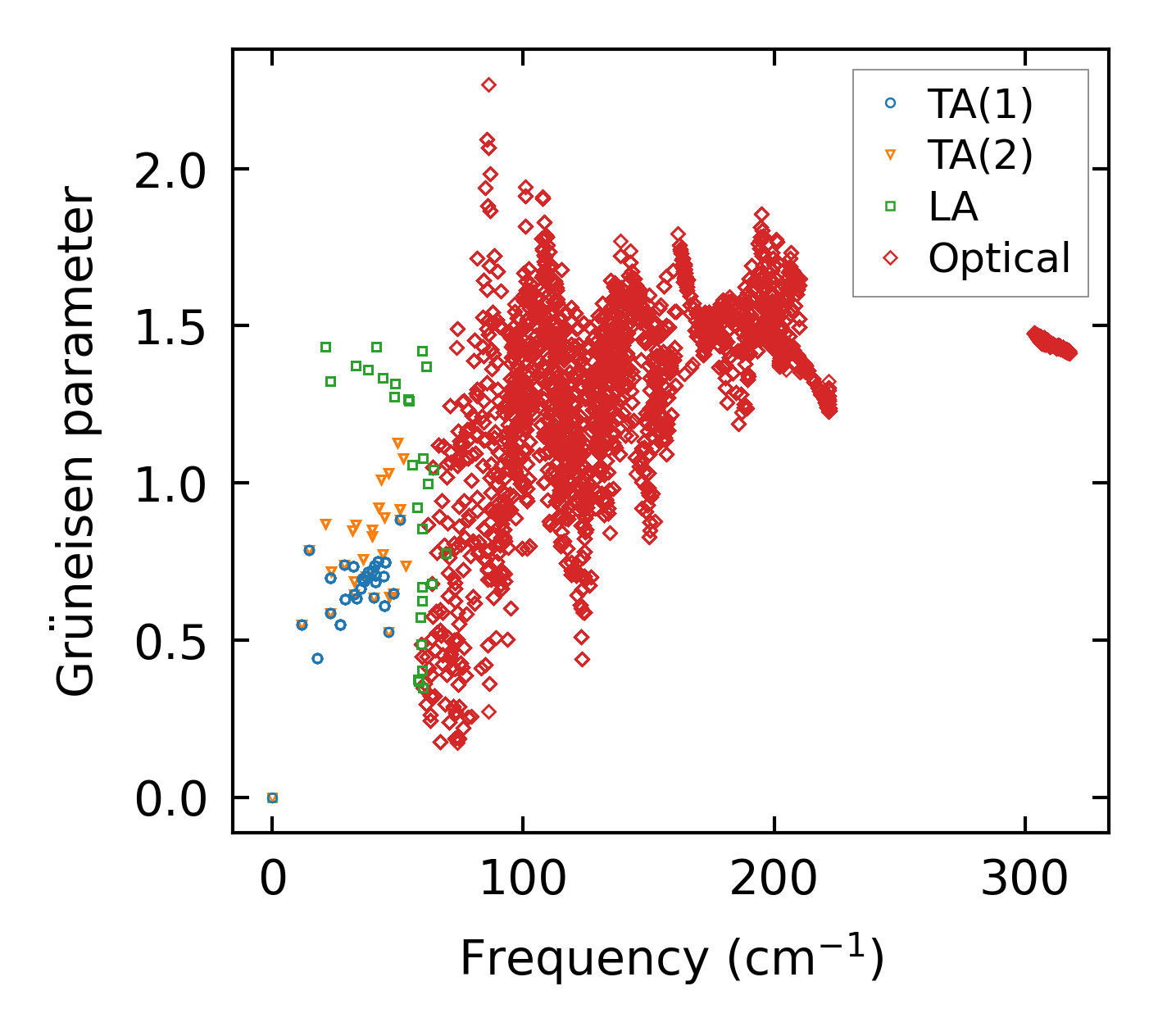

../../_images/fig_gru_all836.png — (a) Grüneisen parameters

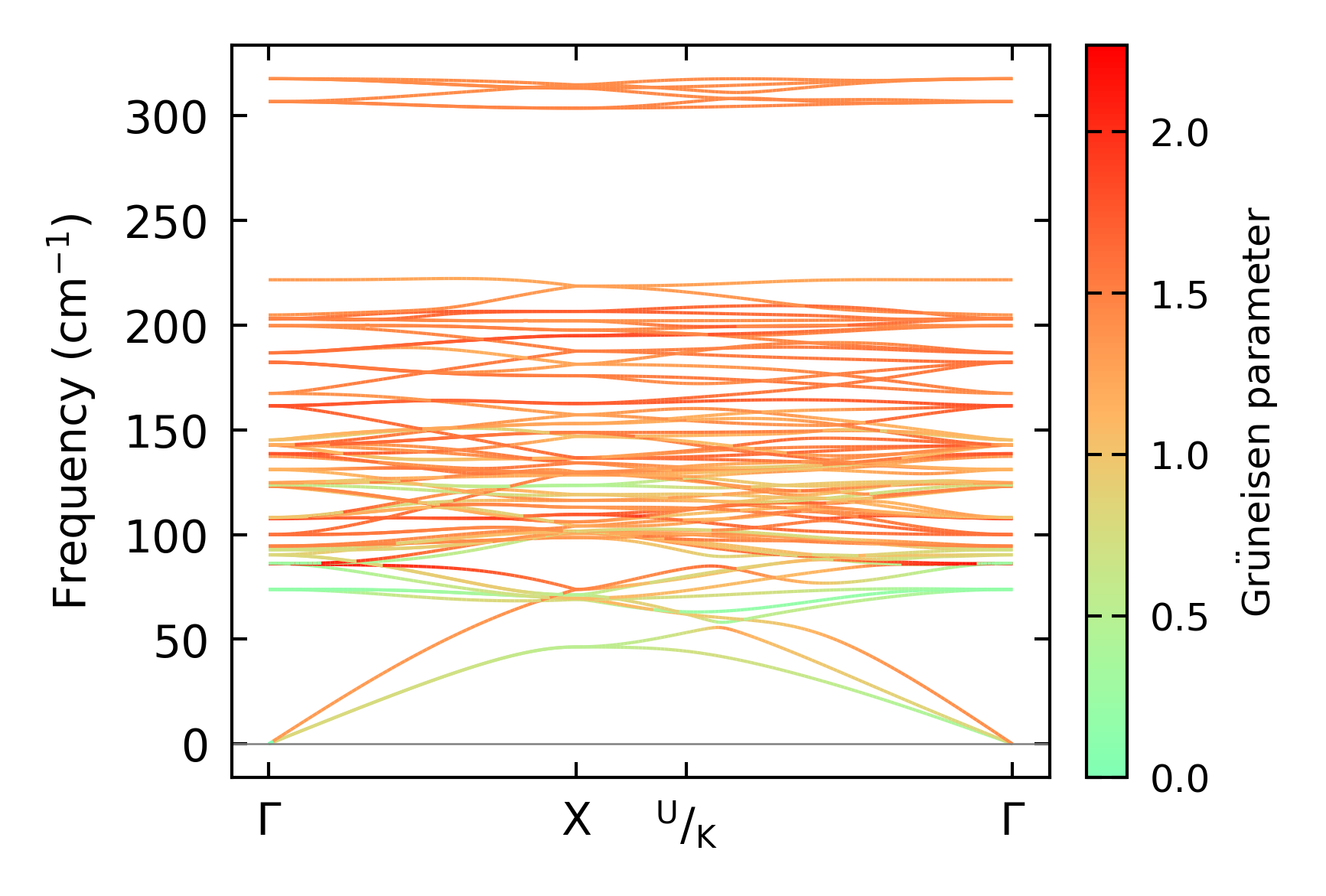

../../_images/fig_gruneisen836.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x8x8, supercell: 1x1x1

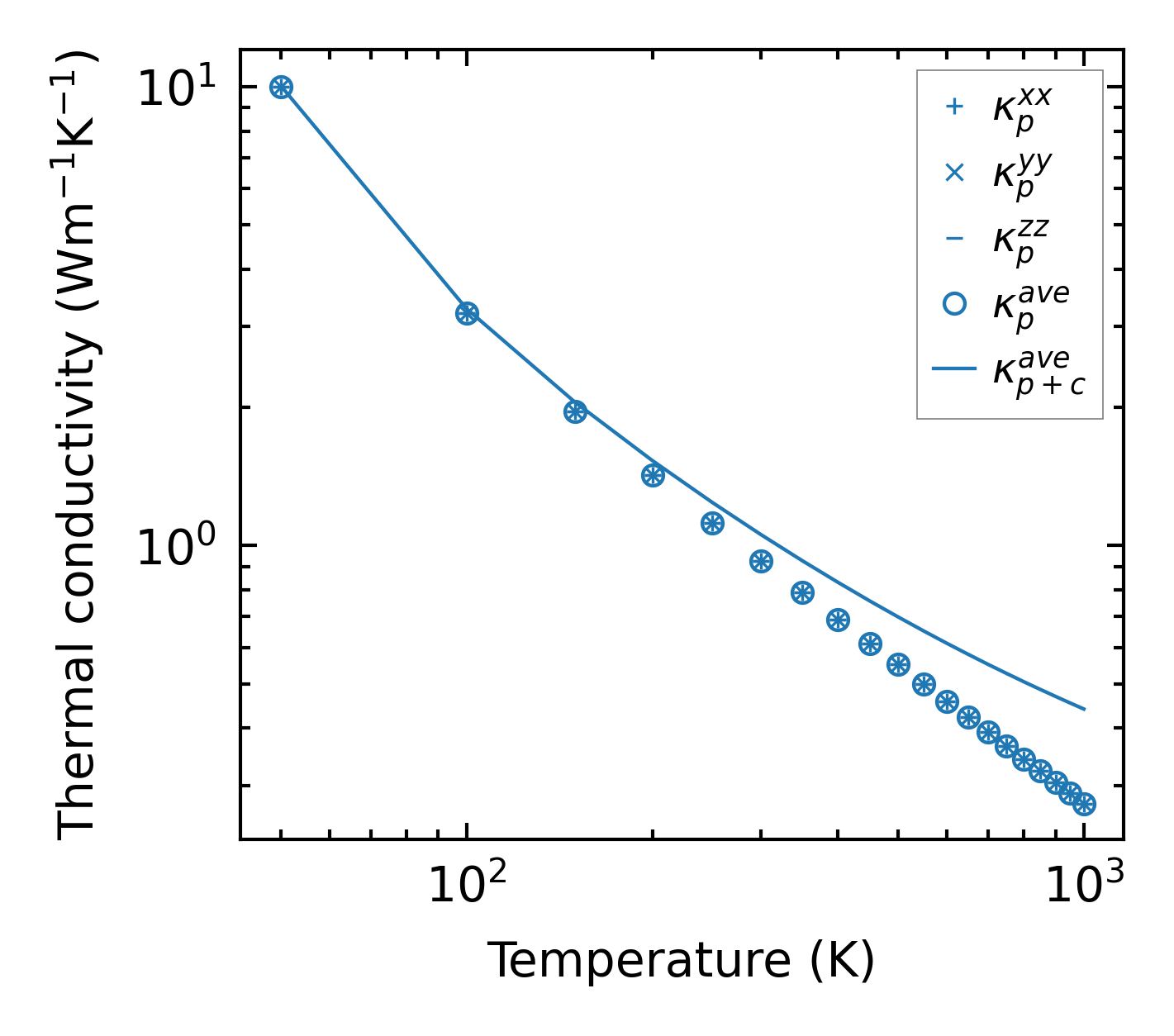

../../_images/fig_kappa1624.png — (a) Temperature-dependent lattice thermal conductivity

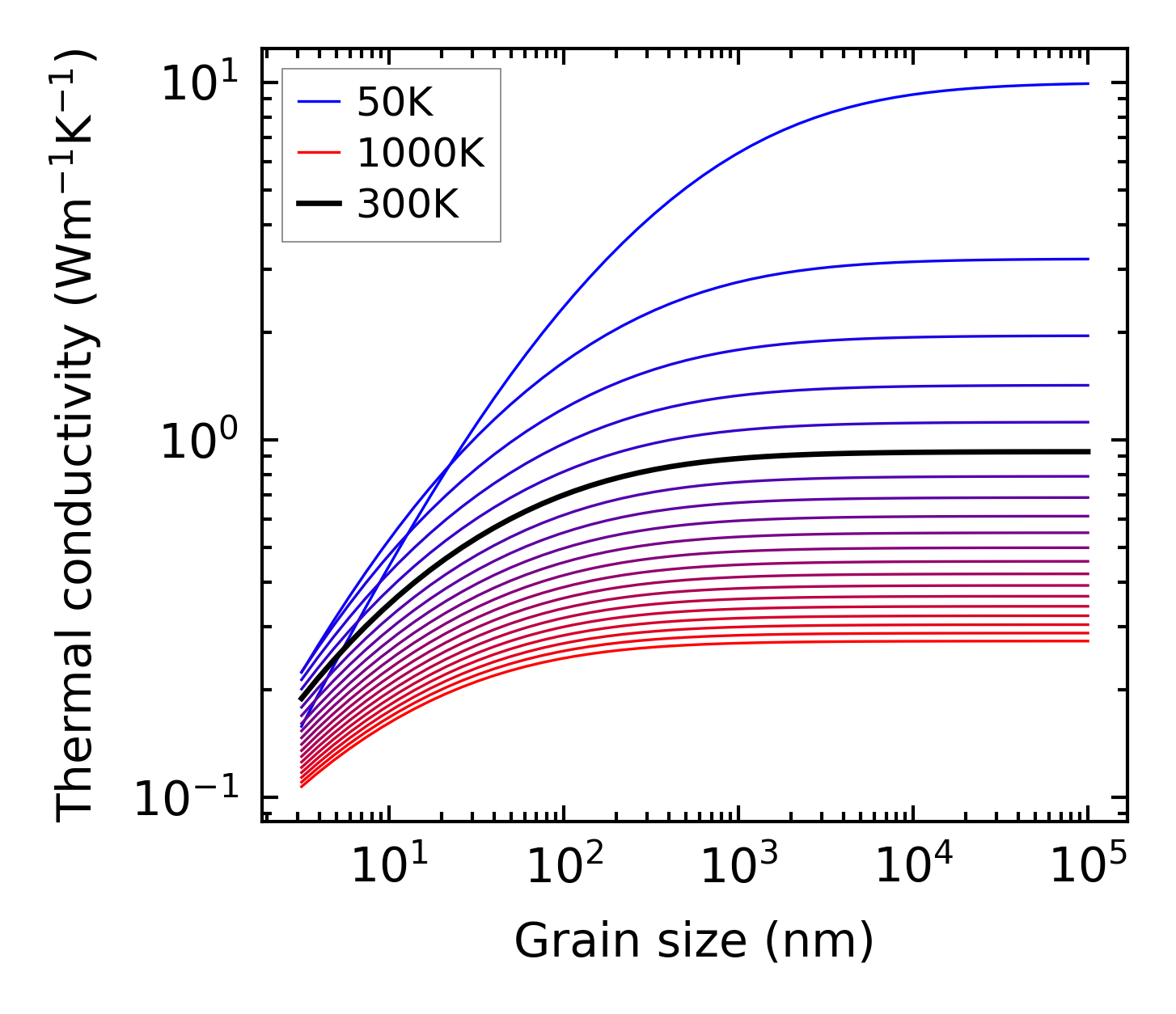

../../_images/fig_kappa_vs_grain_size846.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

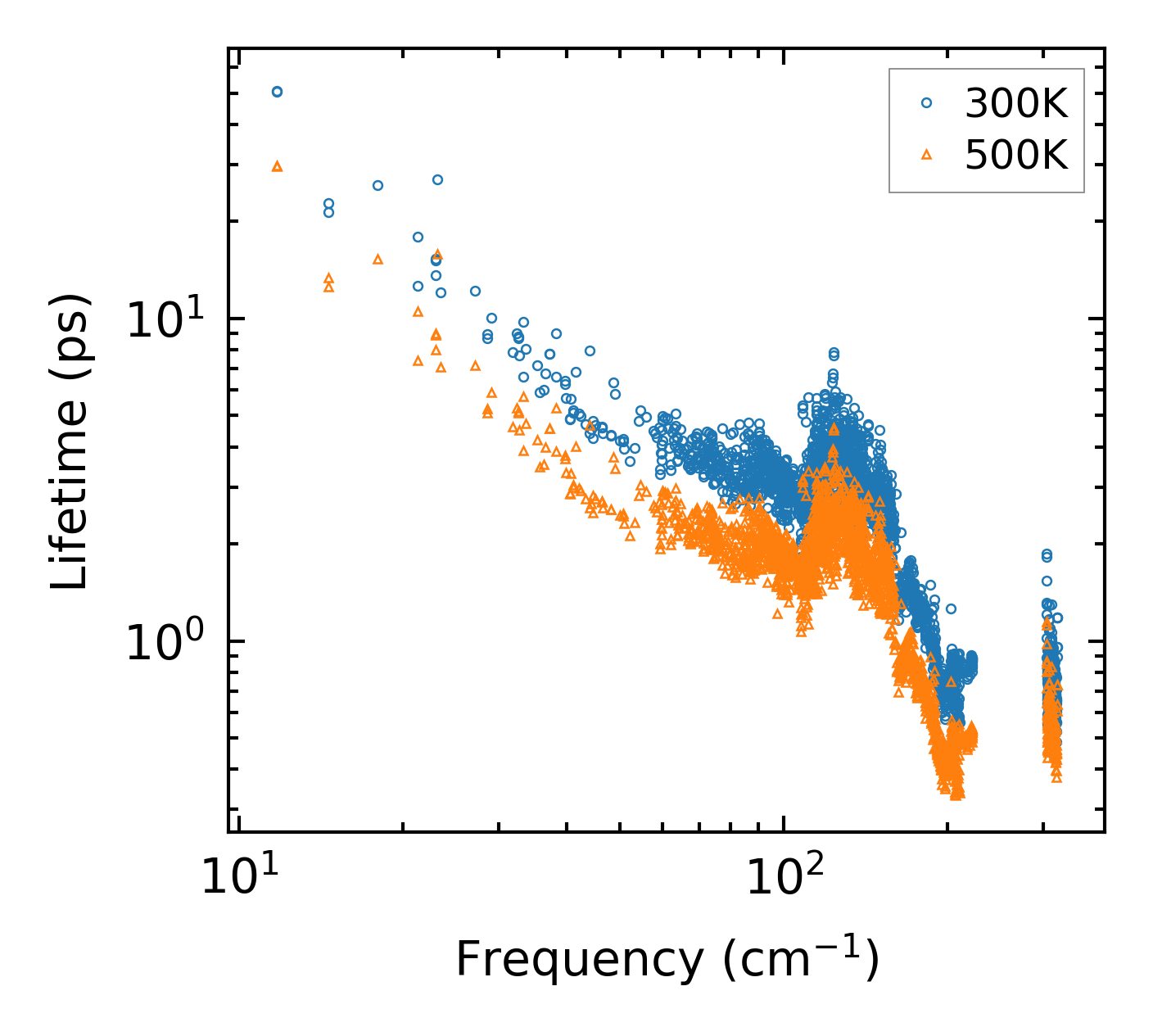

../../_images/fig_lifetime830.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates829.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

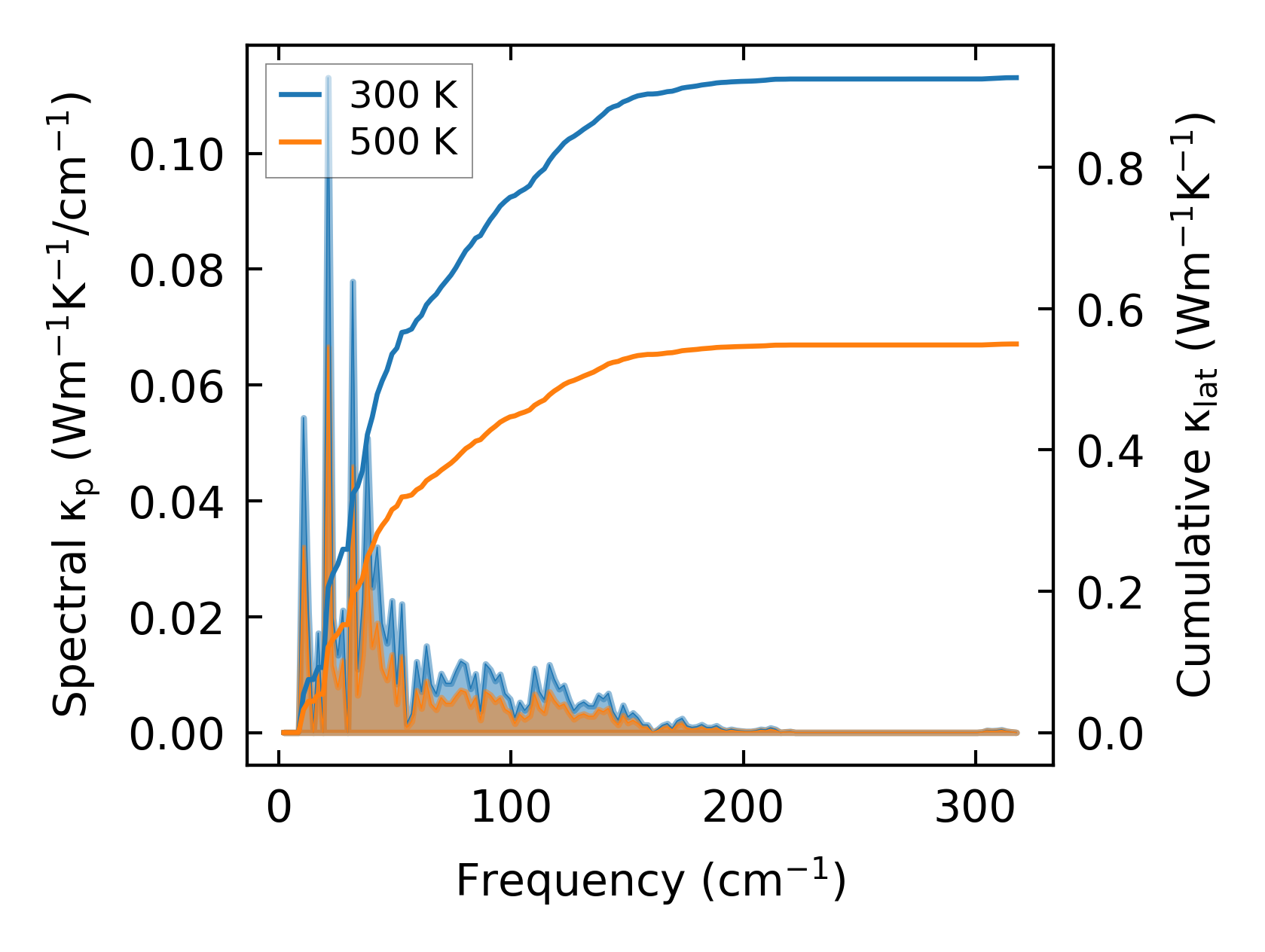

../../_images/fig_cumu_frequency830.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

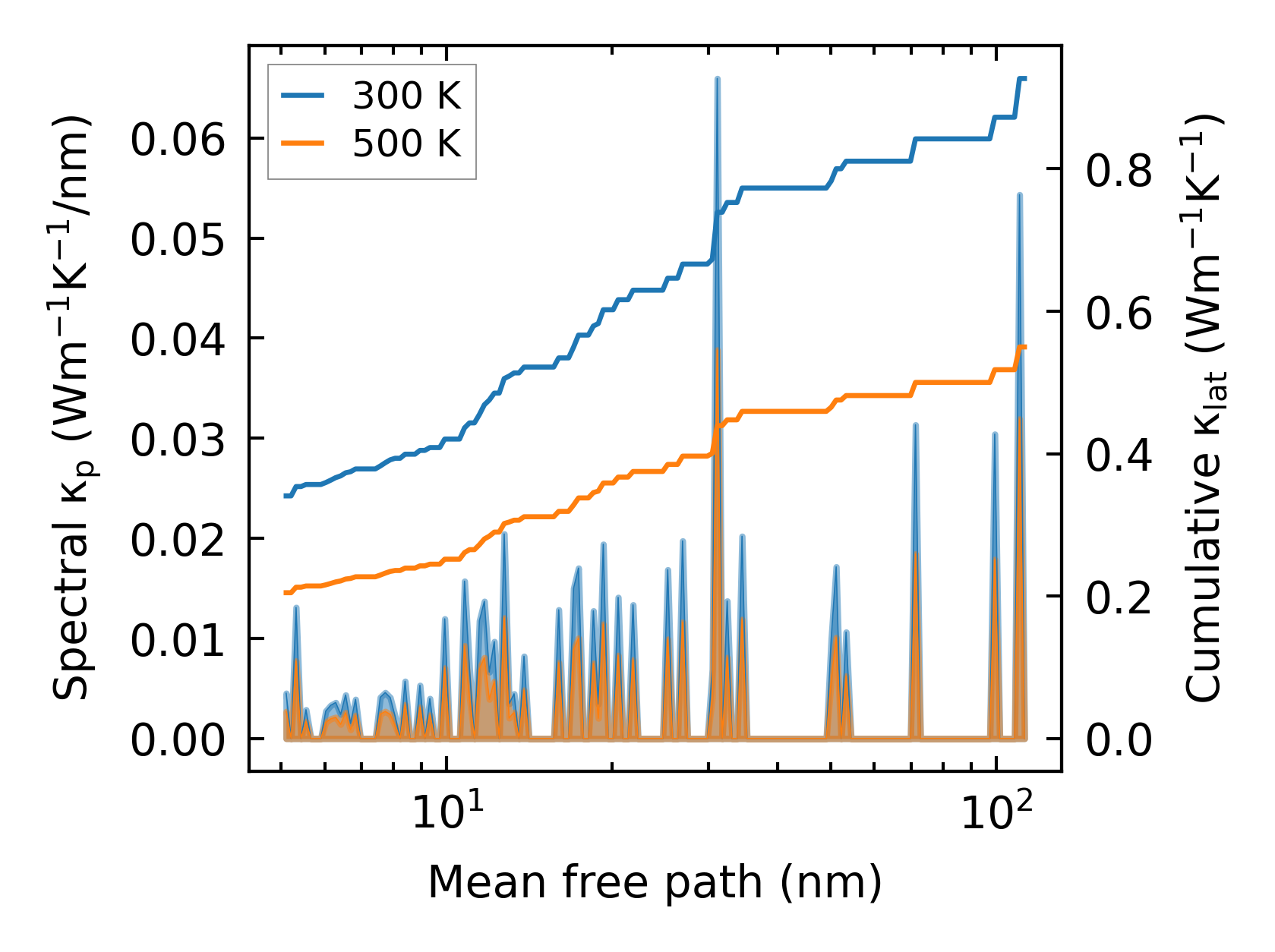

../../_images/fig_cumu_mfp830.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc21211.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa1625.png — (a) Temperature-dependent lattice thermal conductivity

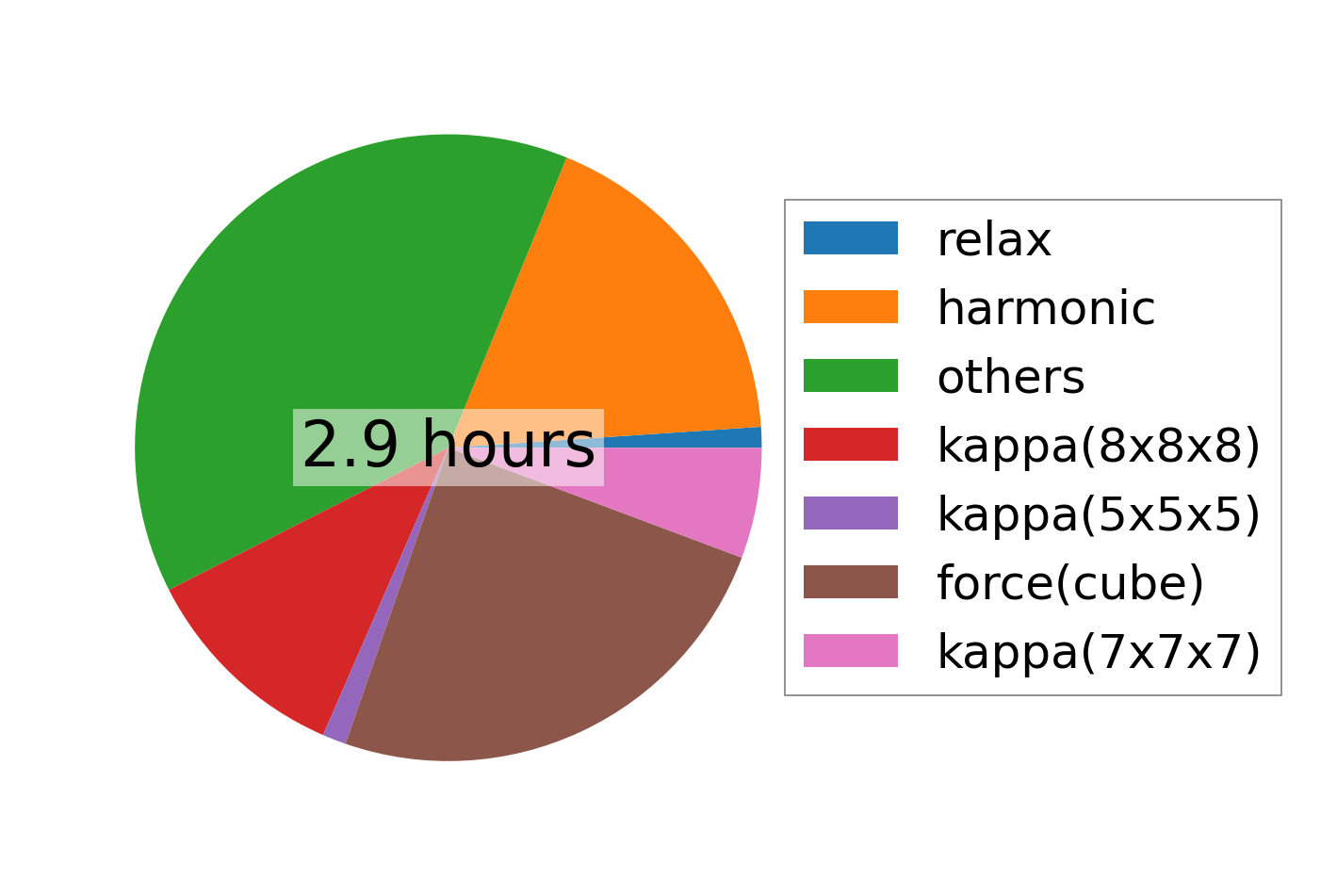

../../_images/fig_times2040.png — (b) Computation time
