mp-9362/RbPrS2/anharm

Space group: R-3m (166)
Link: Materials Project
Download: mp-9362.tar.gz

Harmonic properties

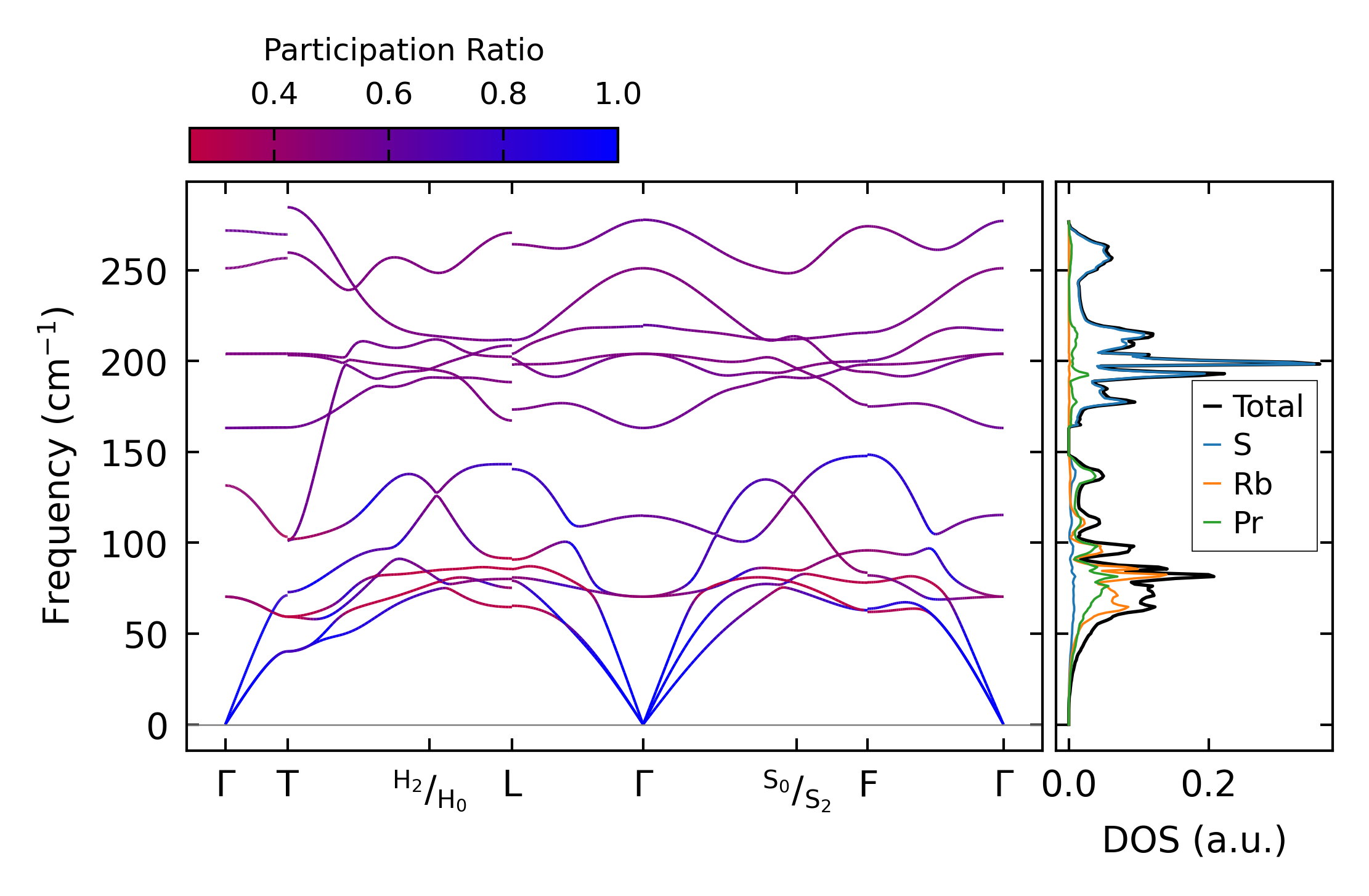

../../_images/fig_bandos_pr1453.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1453.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all891.png — (a) Grüneisen parameters

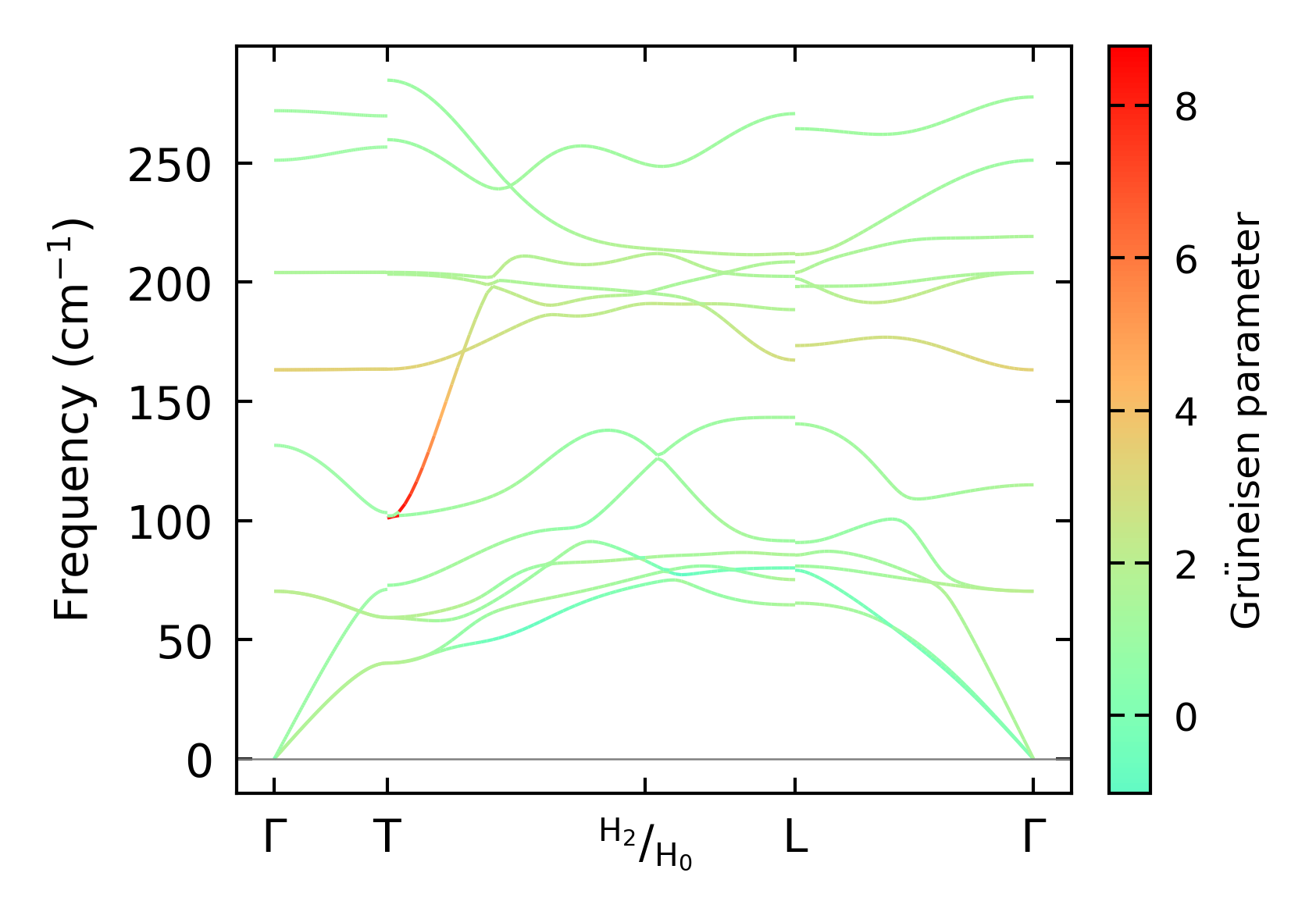

../../_images/fig_gruneisen891.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x14x14, supercell: 3x3x1

../../_images/fig_kappa1729.png — (a) Temperature-dependent lattice thermal conductivity

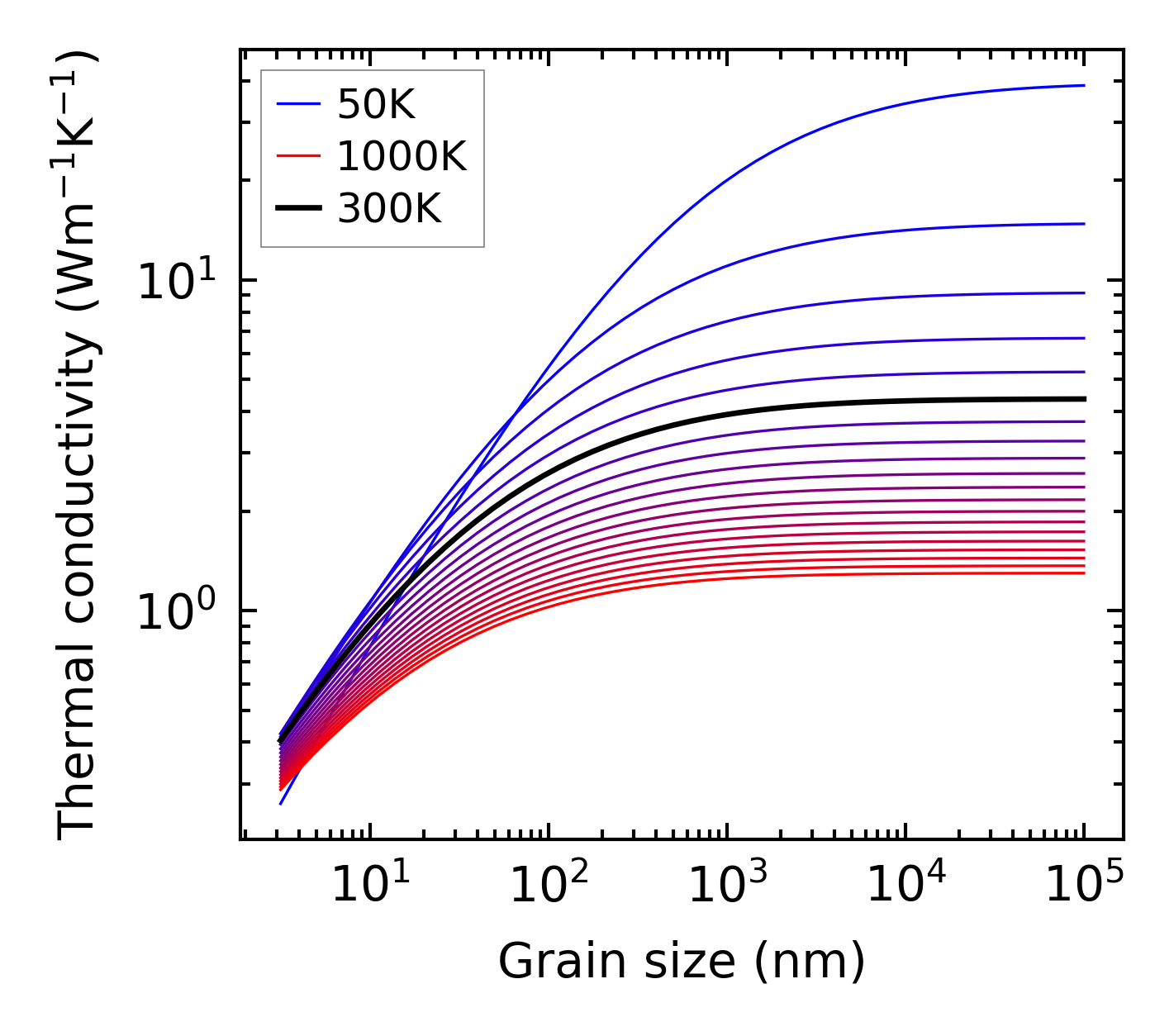

../../_images/fig_kappa_vs_grain_size901.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

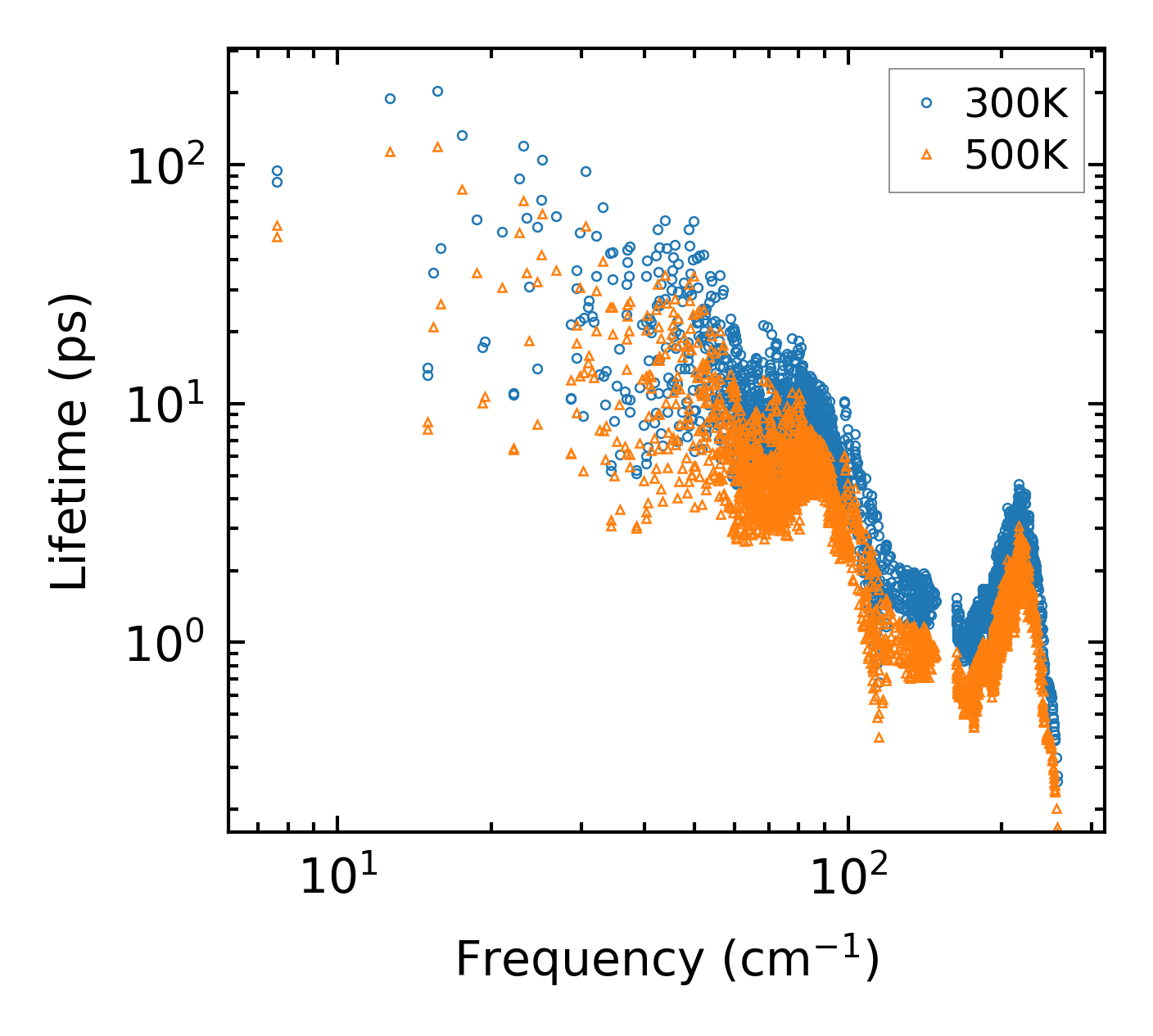

../../_images/fig_lifetime884.png — (a) Phonon lifetime due to phonon-phonon scattering

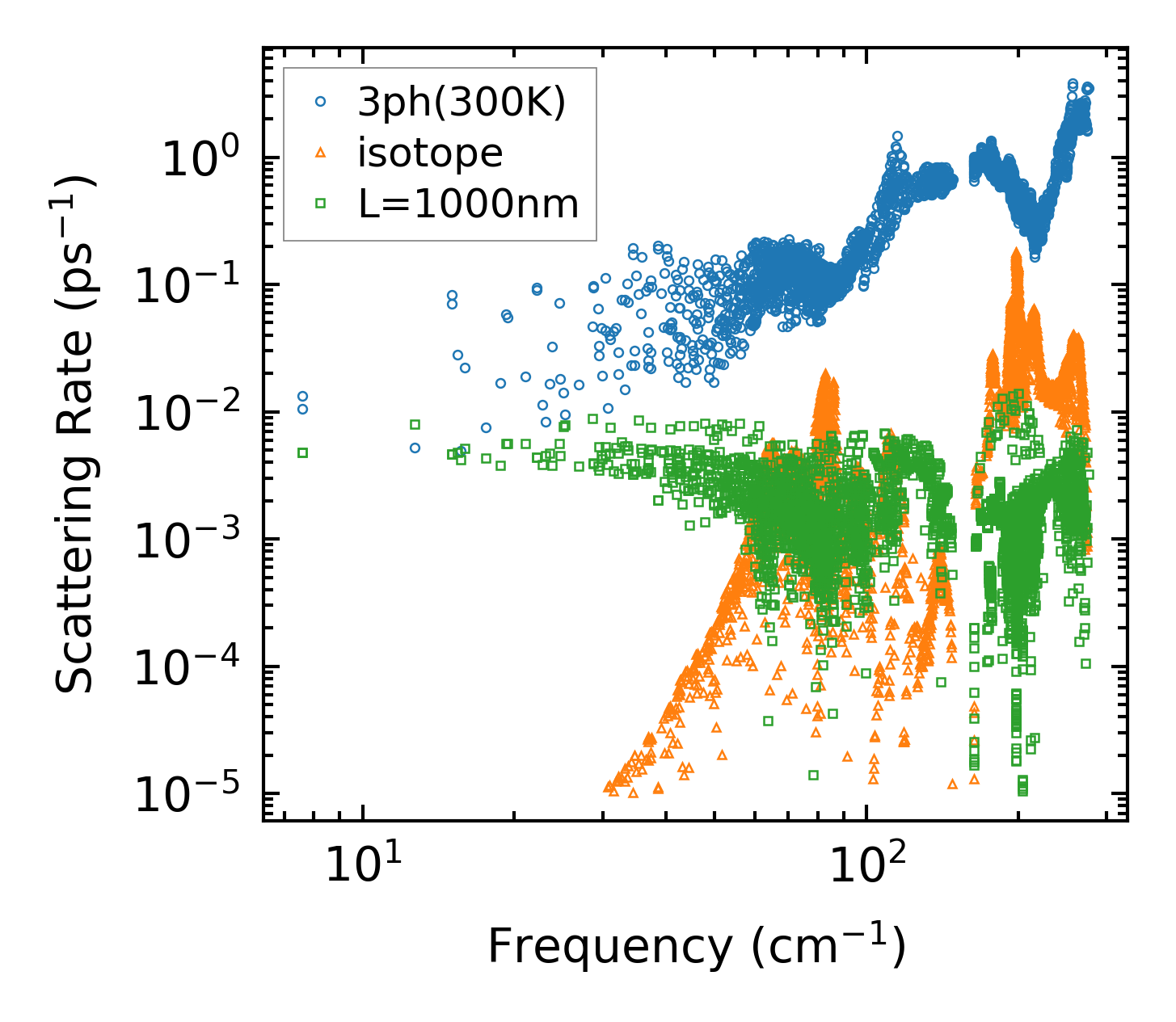

../../_images/fig_scat_rates883.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency884.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp884.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

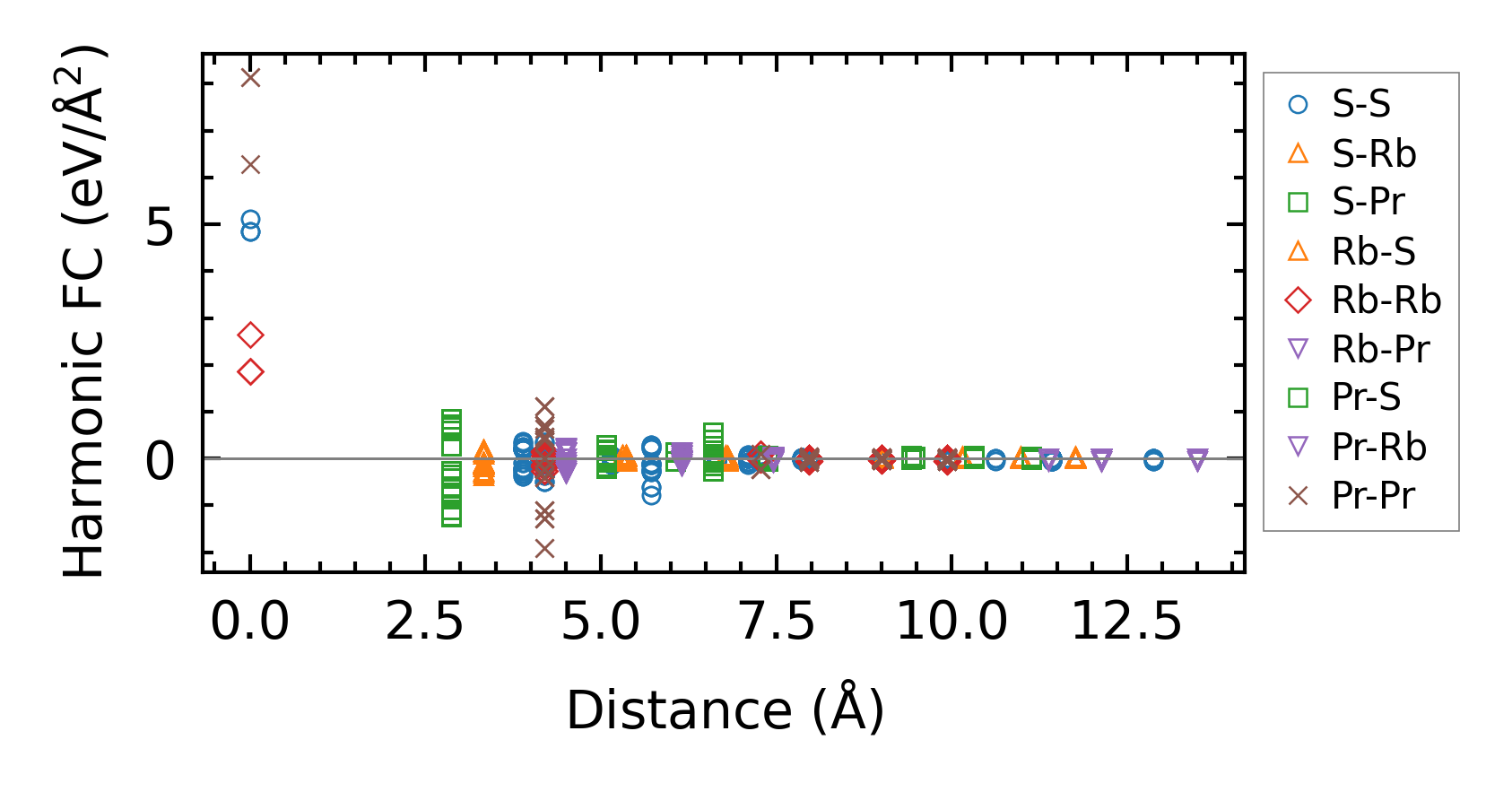

../../_images/fig_fc21305.png — (a) Force constants w.r.t atomic distance

Summary

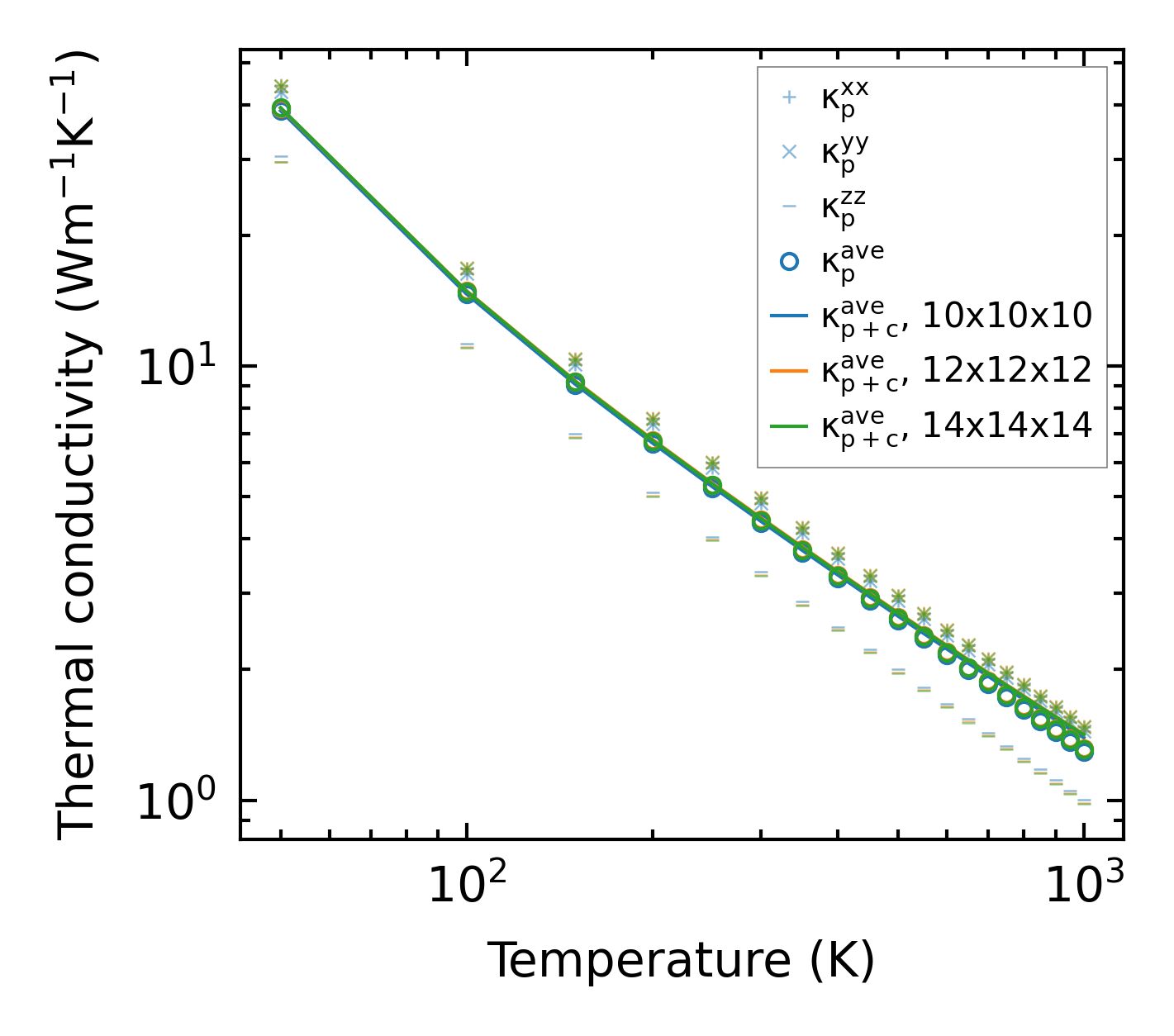

../../_images/fig_kappa1730.png — (a) Temperature-dependent lattice thermal conductivity

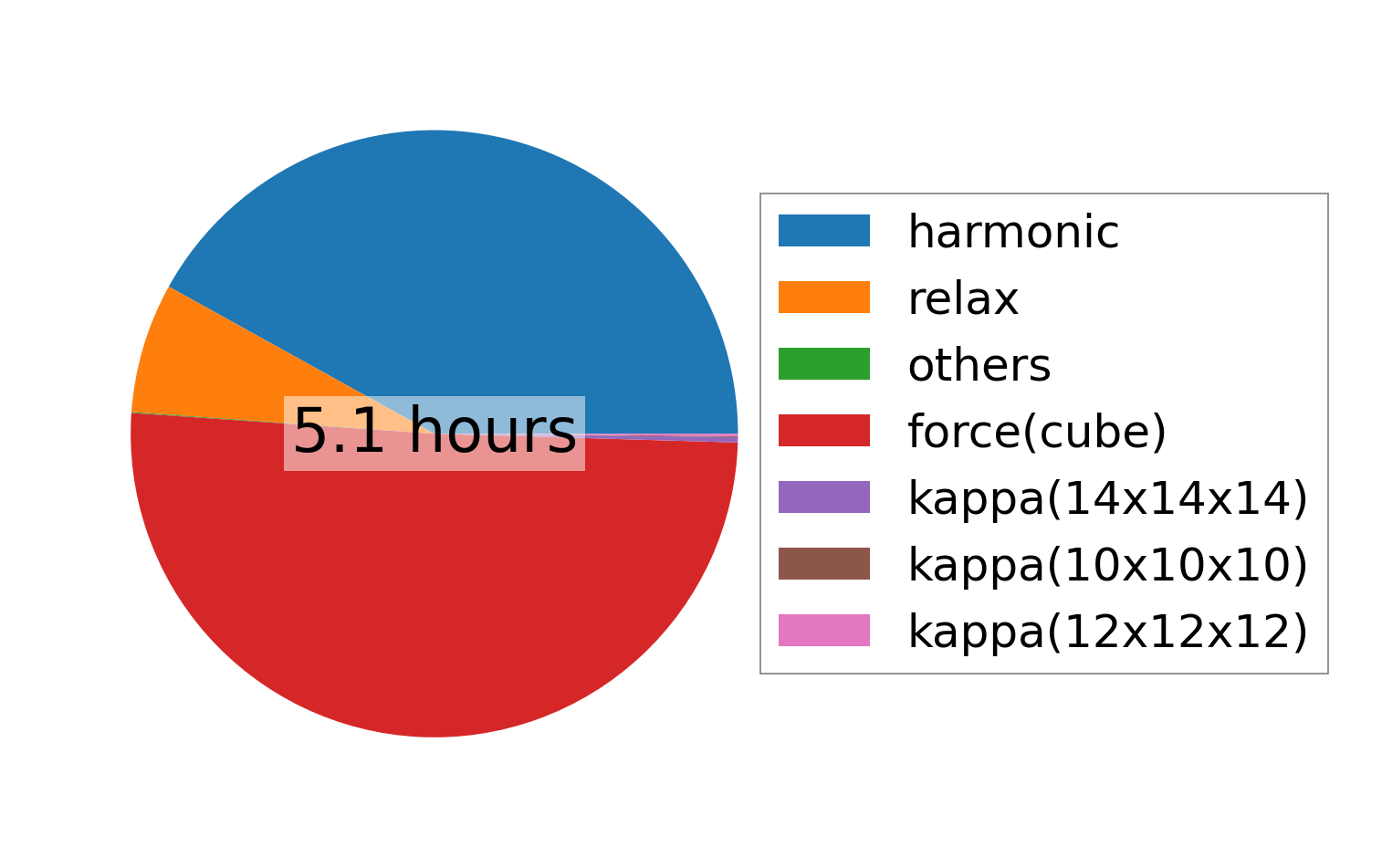

../../_images/fig_times2169.png — (b) Computation time
