mp-9262/Cs2PtF6/anharm

Space group: Fm-3m (225)
Link: Materials Project
Download: mp-9262.tar.gz

Harmonic properties

../../_images/fig_bandos_pr1410.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1410.png — (b) Thermodynamic properties

Grüneisen parameters

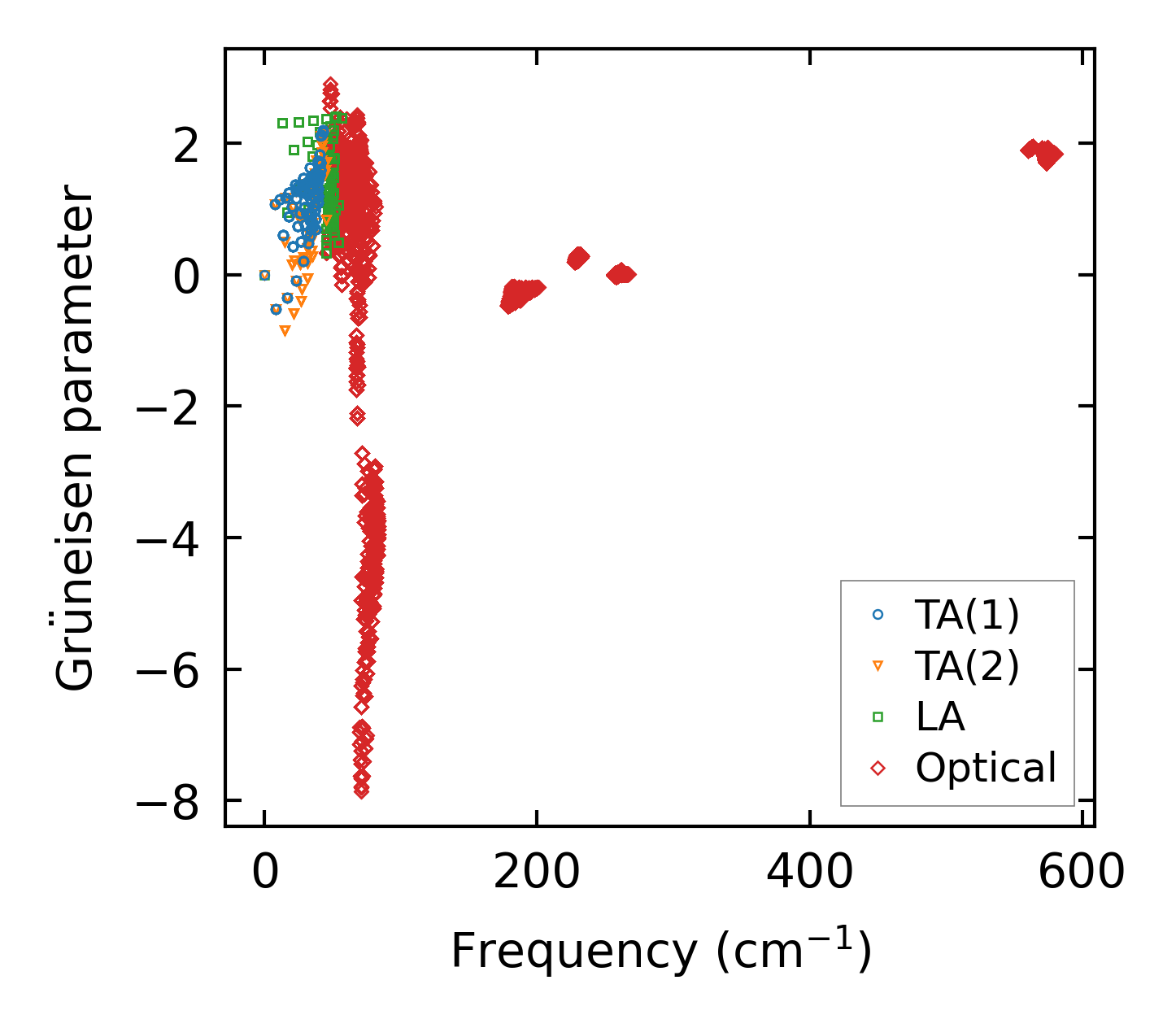

../../_images/fig_gru_all869.png — (a) Grüneisen parameters

../../_images/fig_gruneisen869.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x12, supercell: 1x1x1

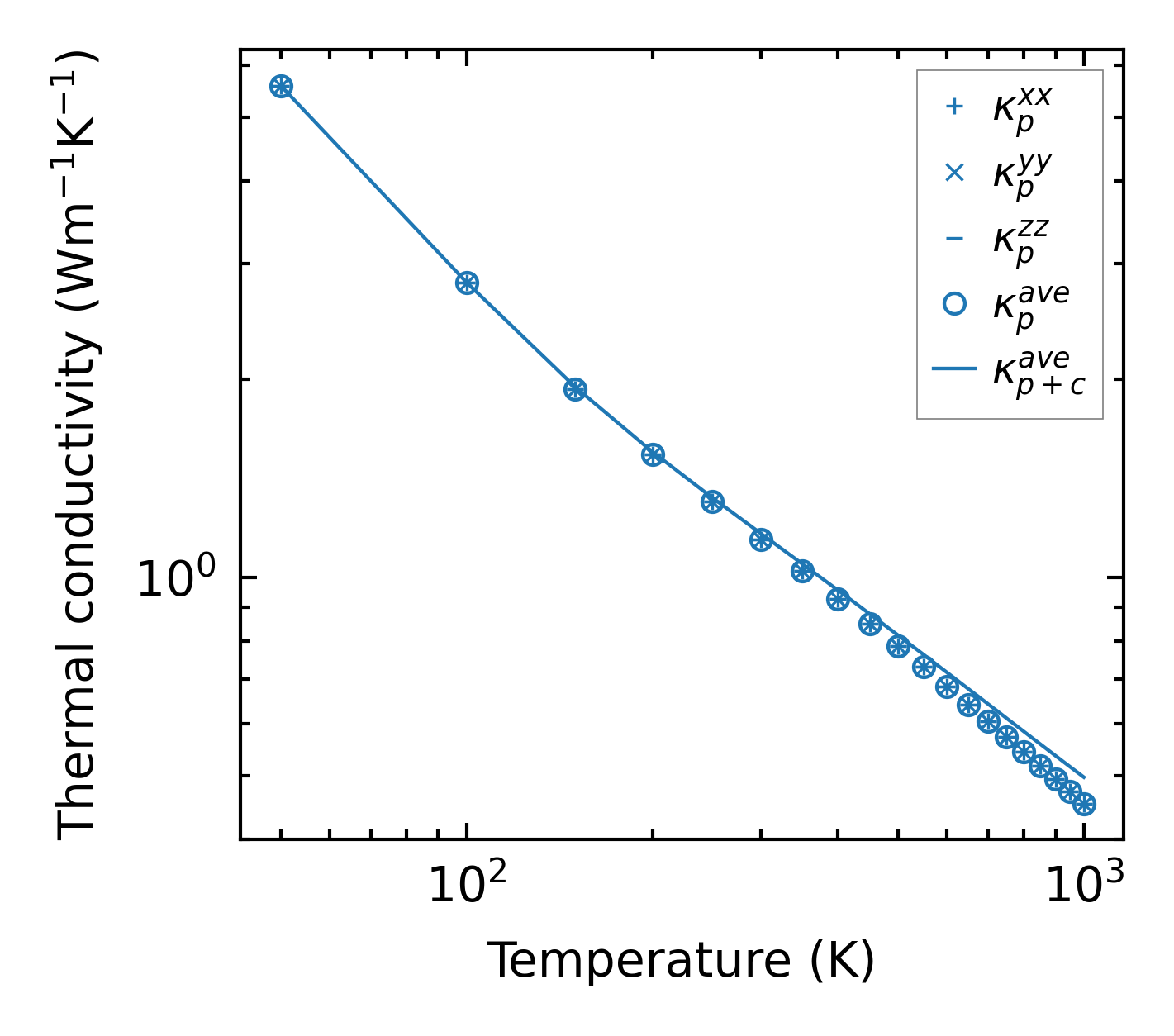

../../_images/fig_kappa1686.png — (a) Temperature-dependent lattice thermal conductivity

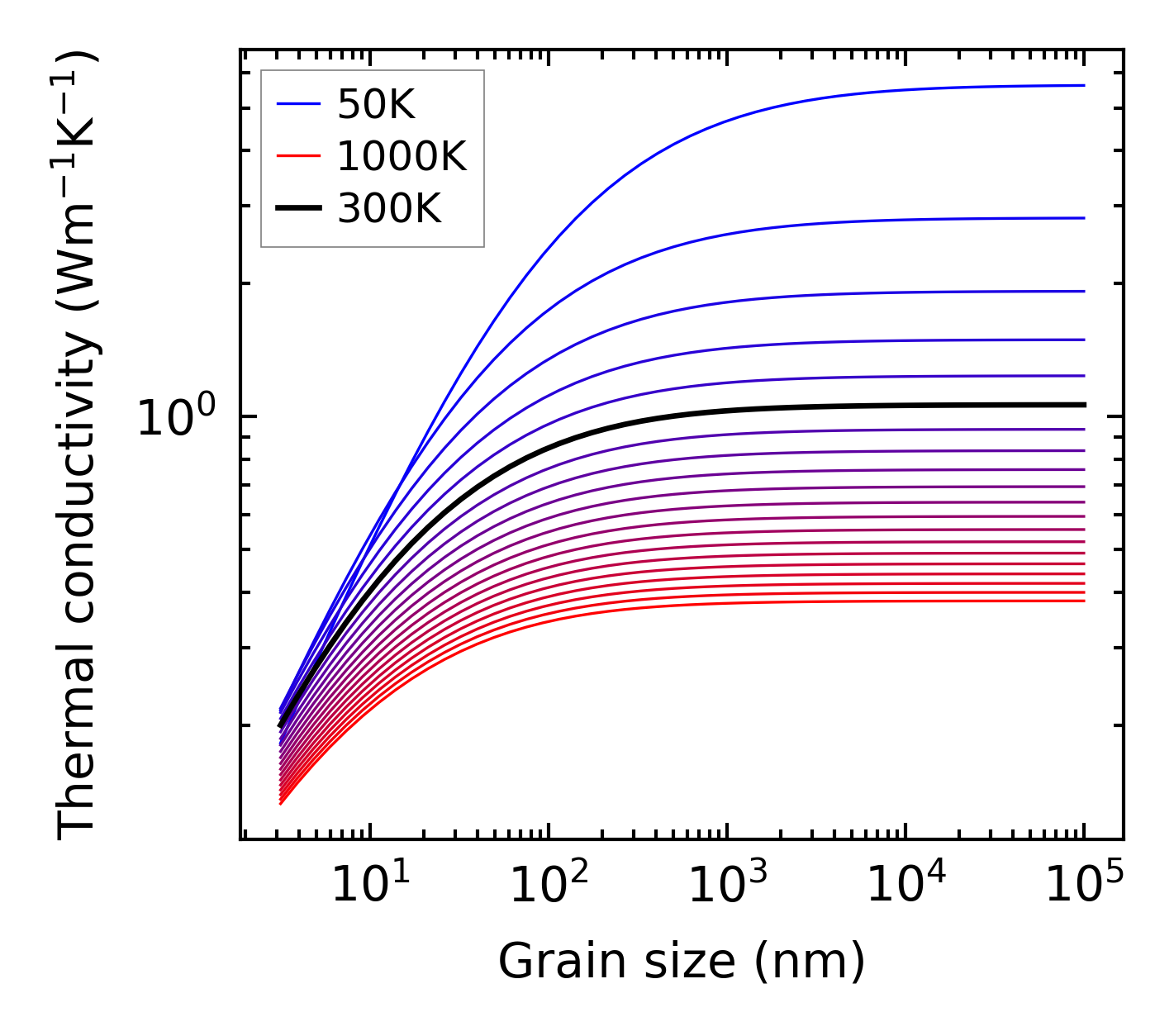

../../_images/fig_kappa_vs_grain_size879.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

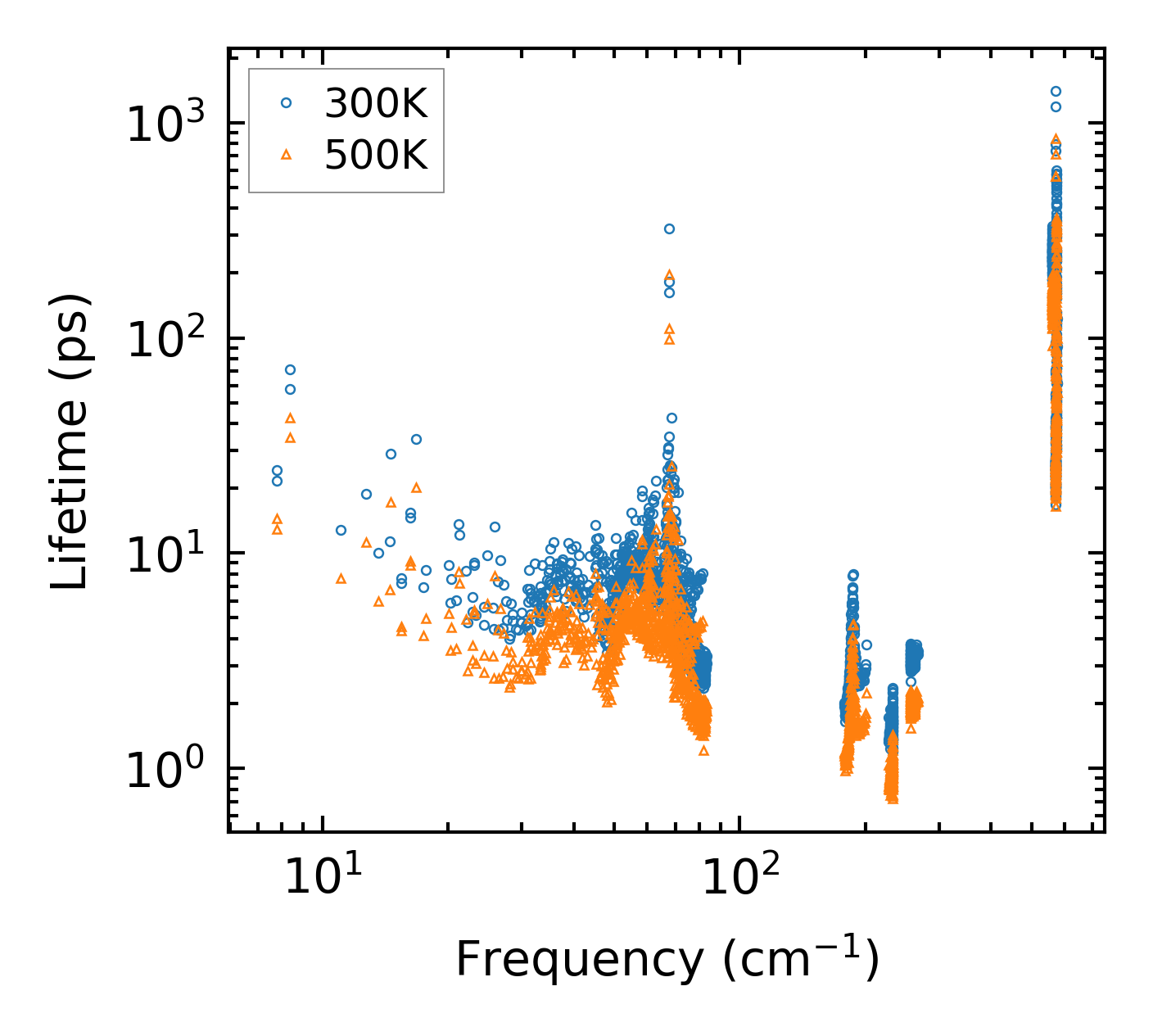

../../_images/fig_lifetime862.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates861.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency862.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

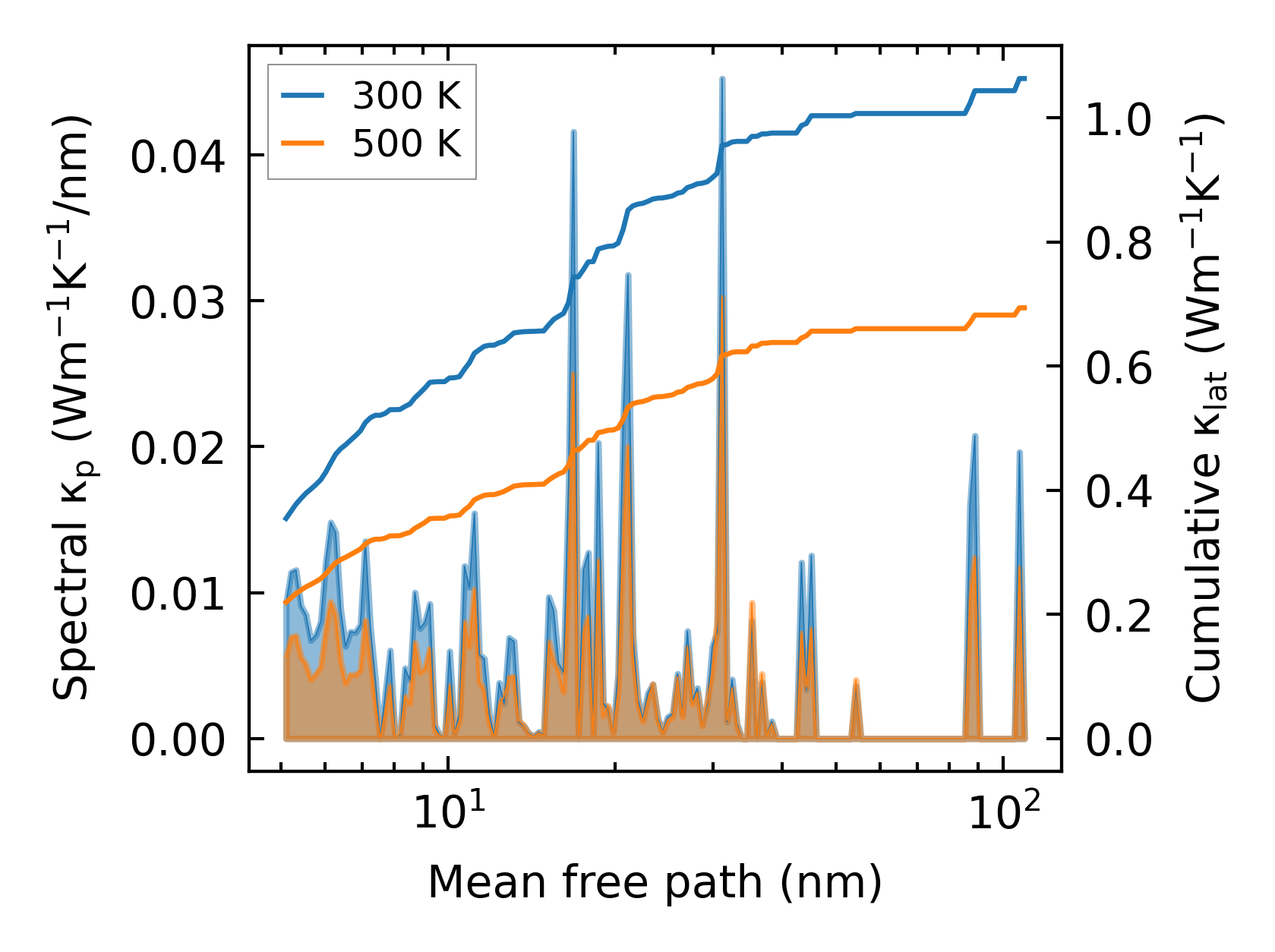

../../_images/fig_cumu_mfp862.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

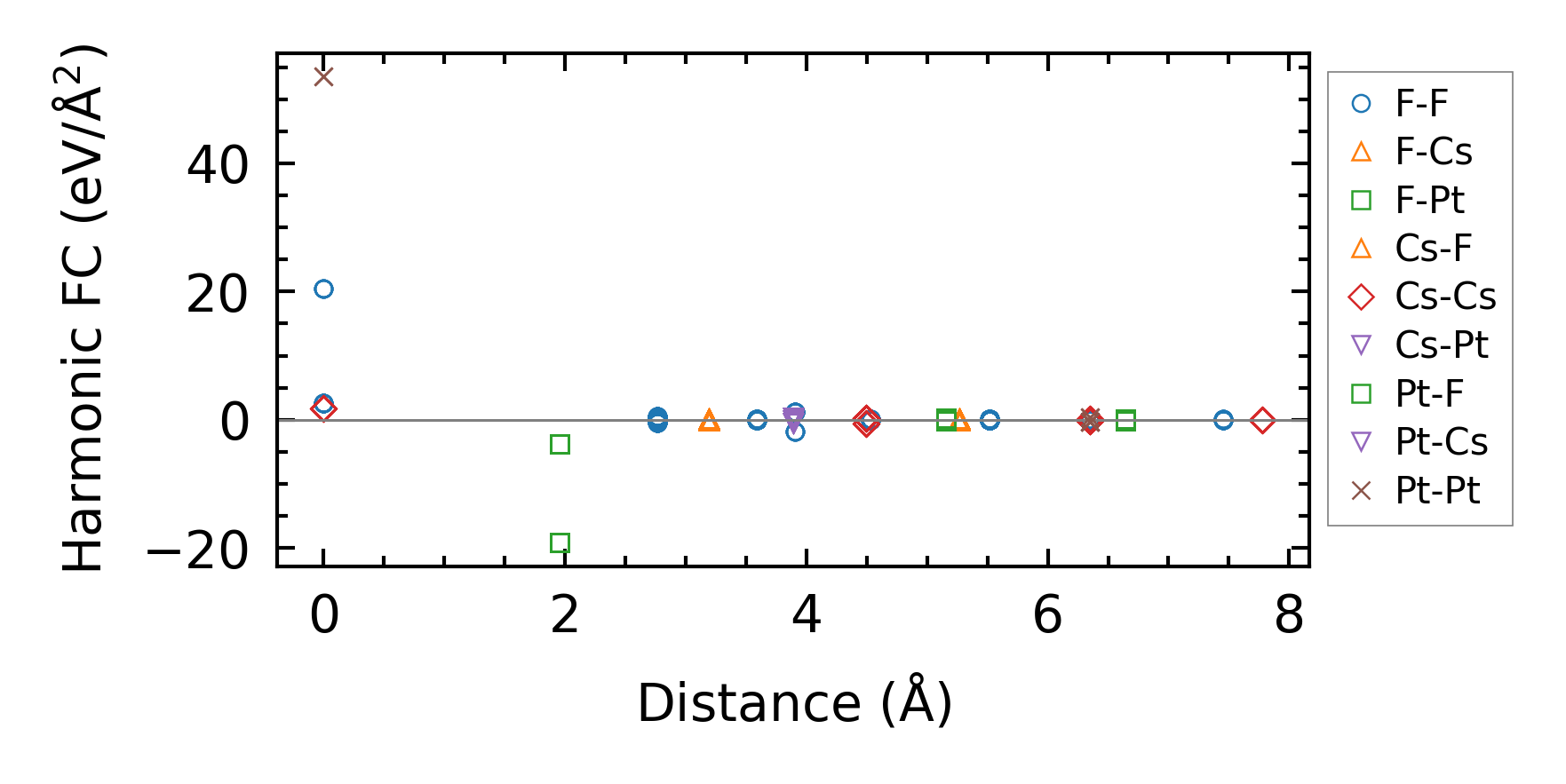

../../_images/fig_fc21263.png — (a) Force constants w.r.t atomic distance

Summary

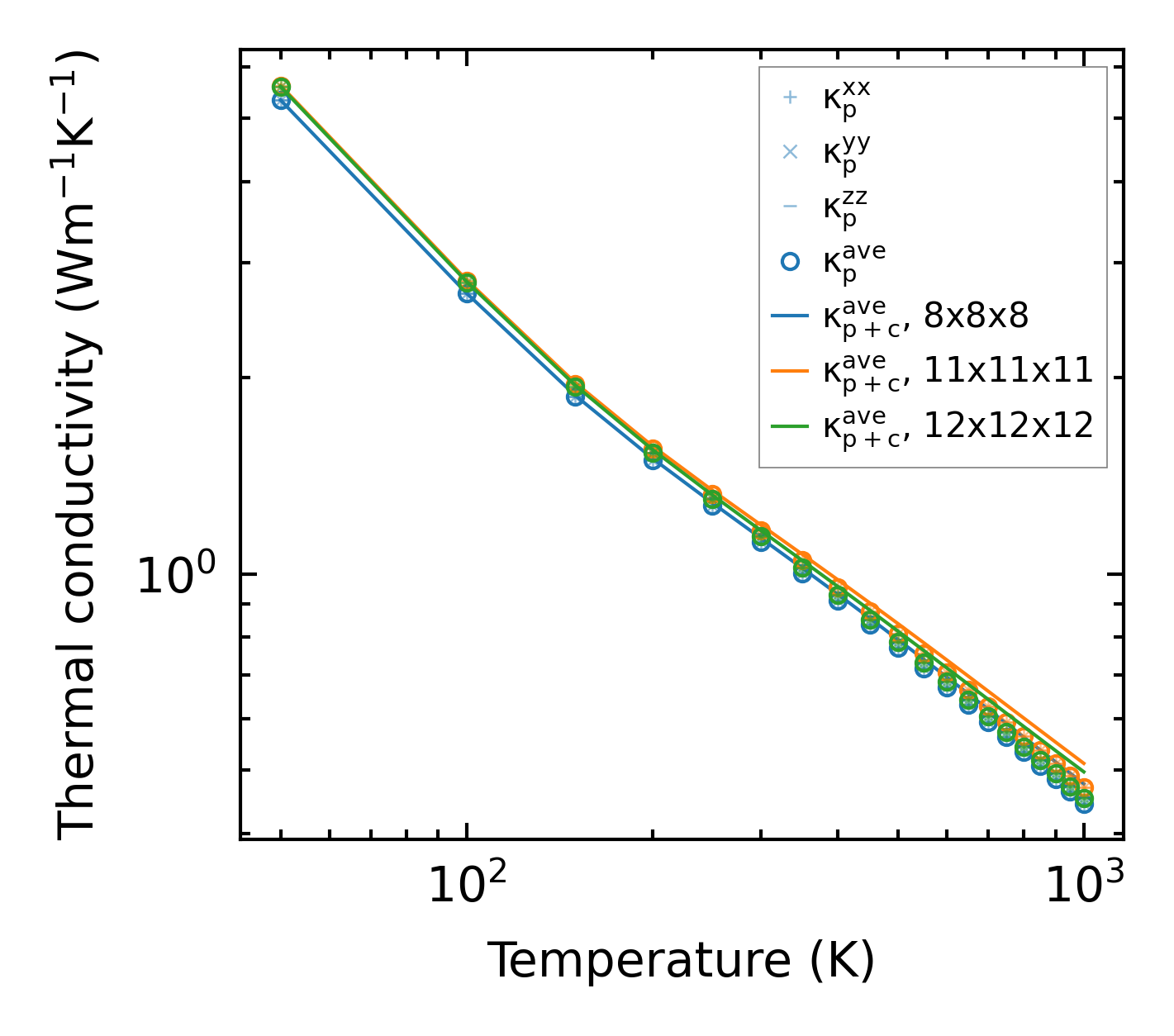

../../_images/fig_kappa1687.png — (a) Temperature-dependent lattice thermal conductivity

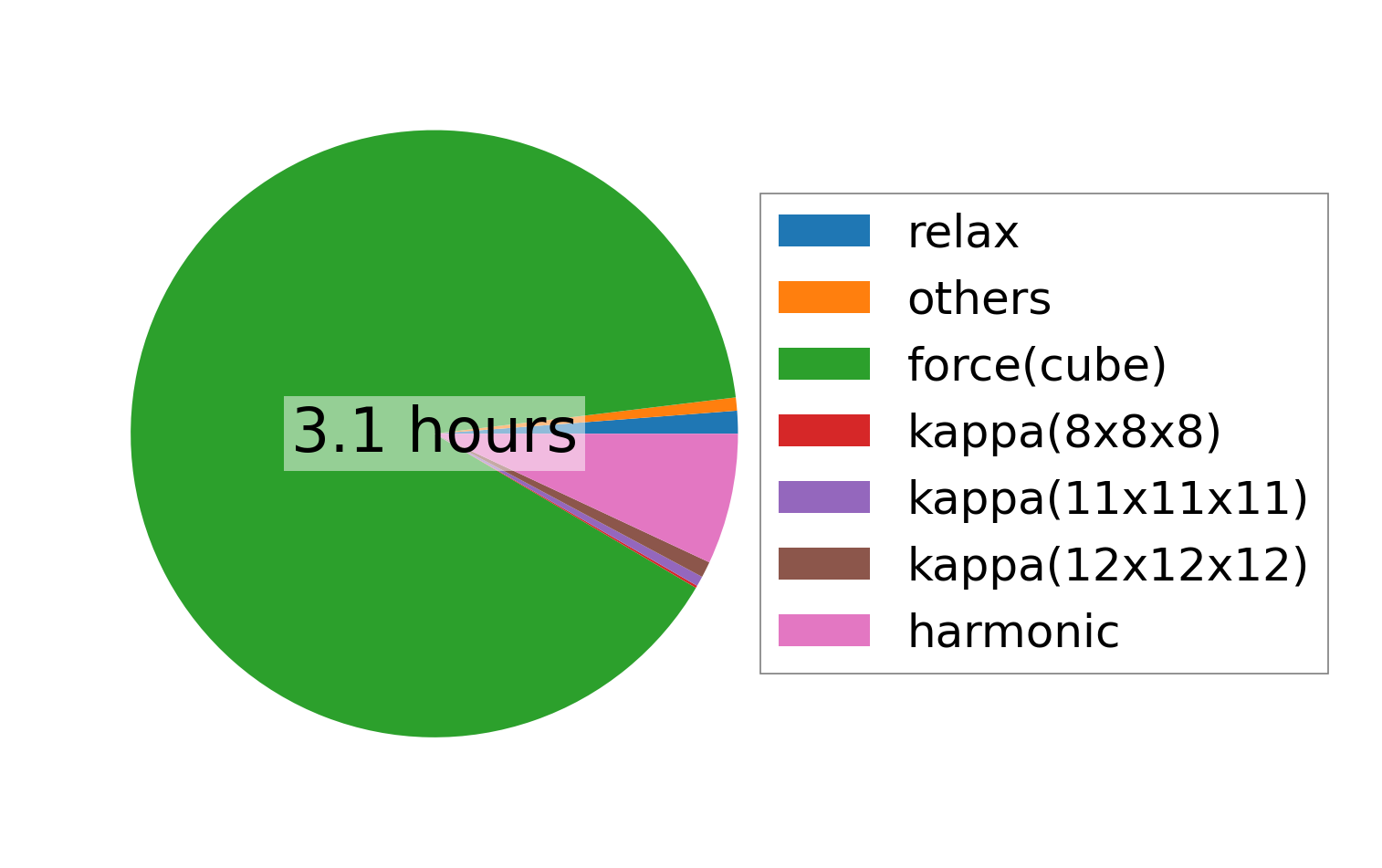

../../_images/fig_times2122.png — (b) Computation time
