mp-9754-2/Tl2Cr3O12/anharm

Space group: Pbcn (60)
Link: Materials Project
Download: mp-9754-2.tar.gz

Equation of state

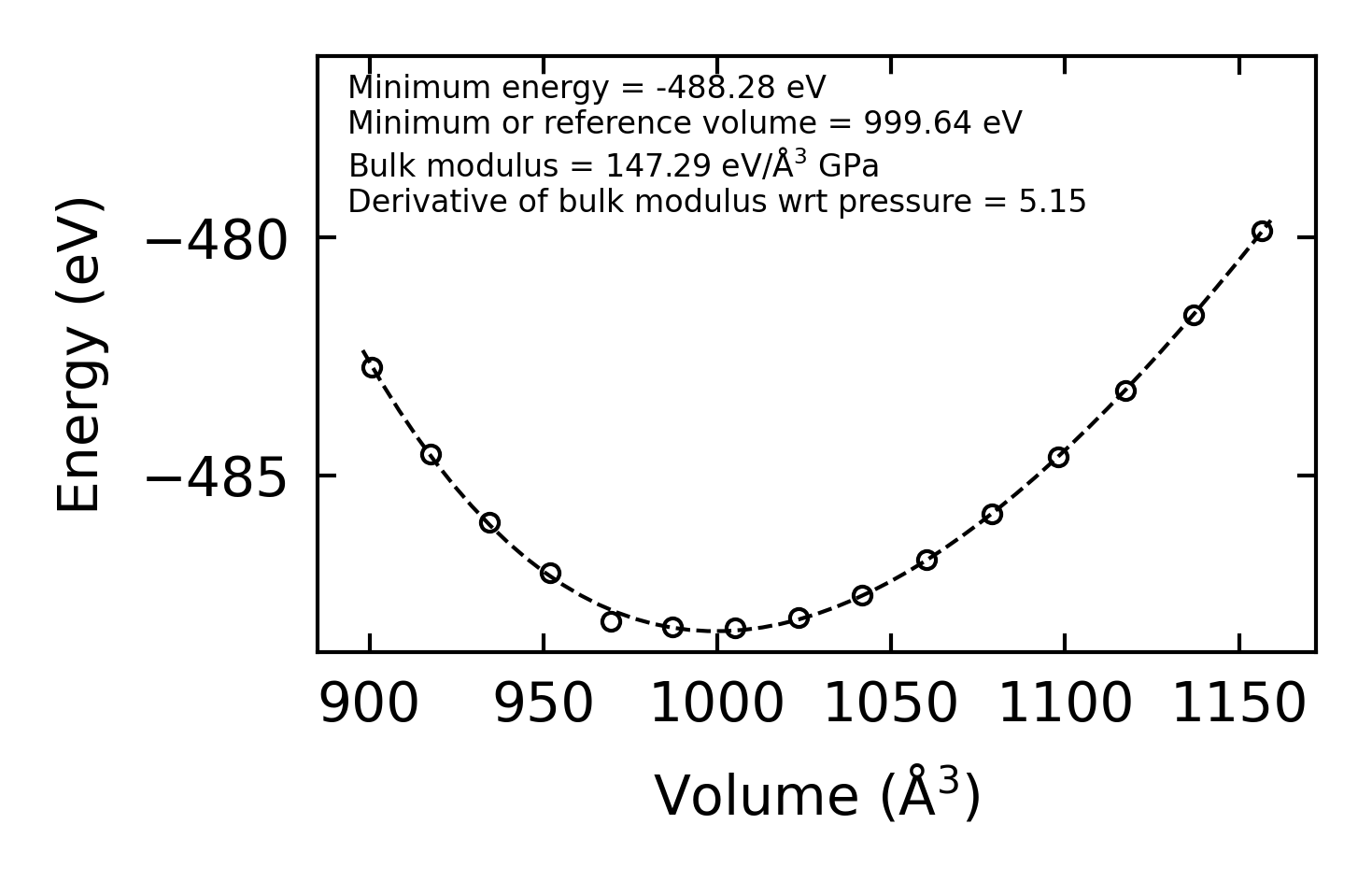

../../_images/fig_bm416.png — (a) Equation of state

Harmonic properties

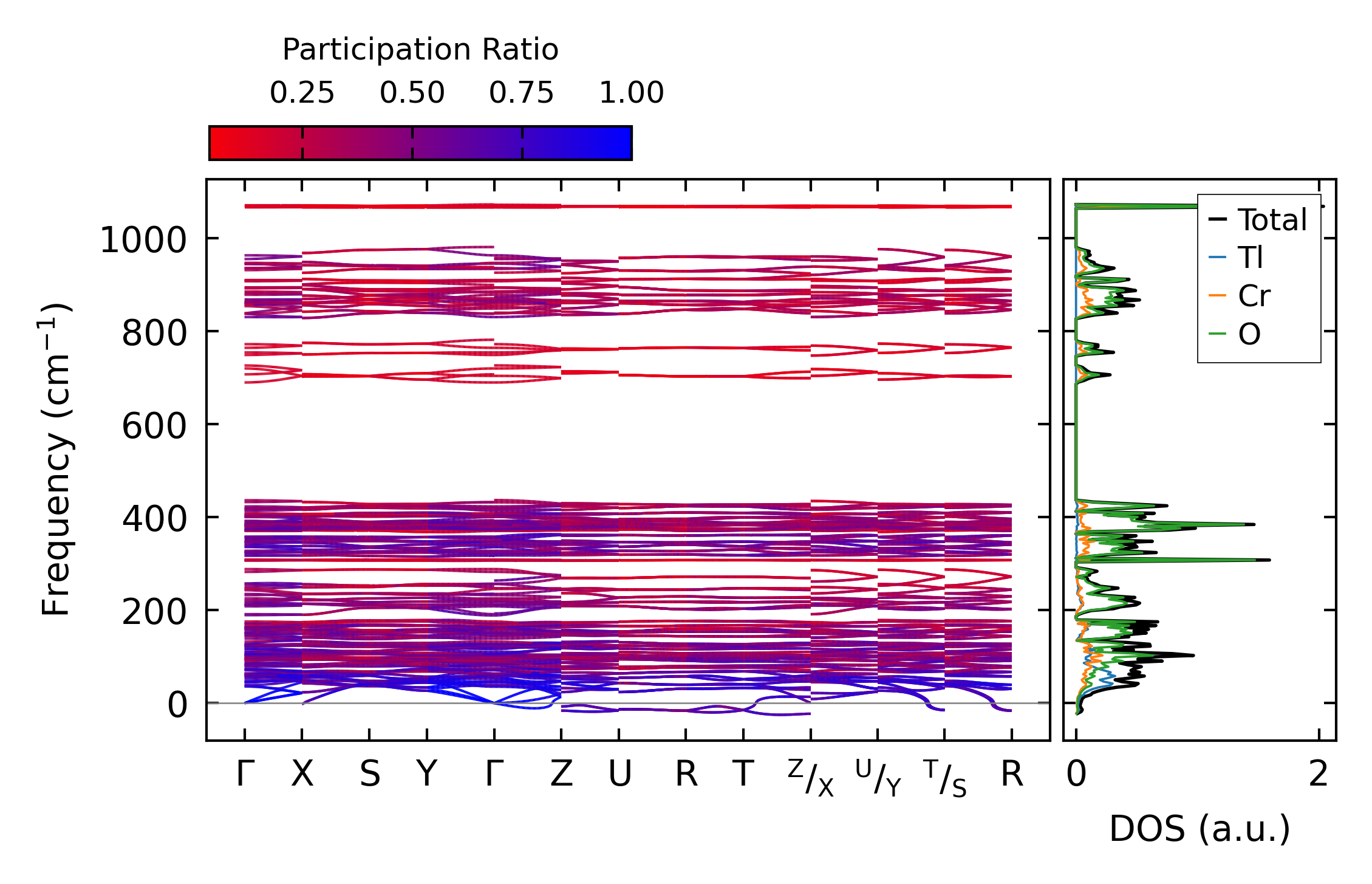

../../_images/fig_bandos_pr1222.png — (a) Phonon dispersion with participation ratio and DOS

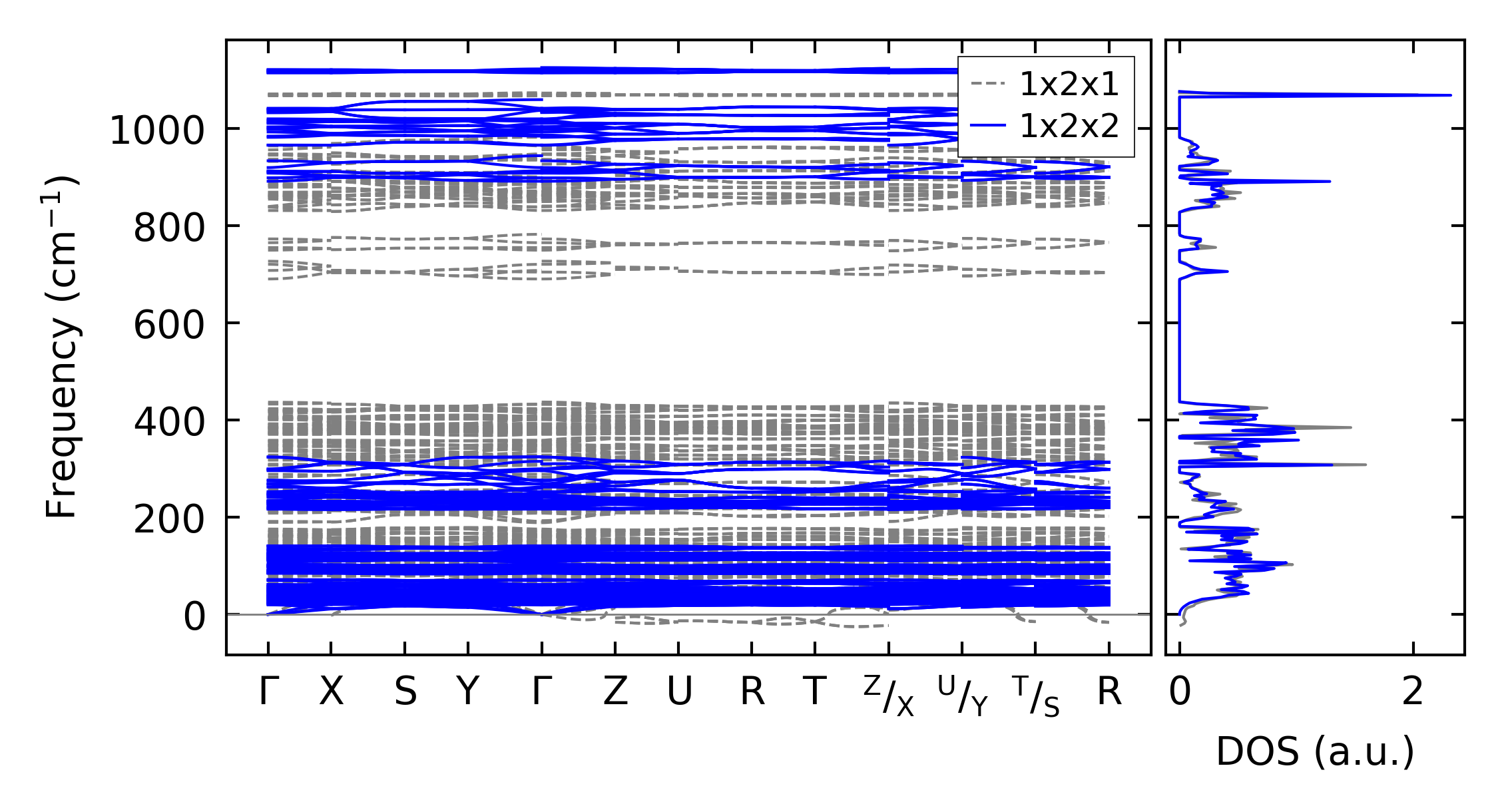

../../_images/fig_bandos1129.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo1222.png — (c) Thermodynamic properties

Grüneisen parameters

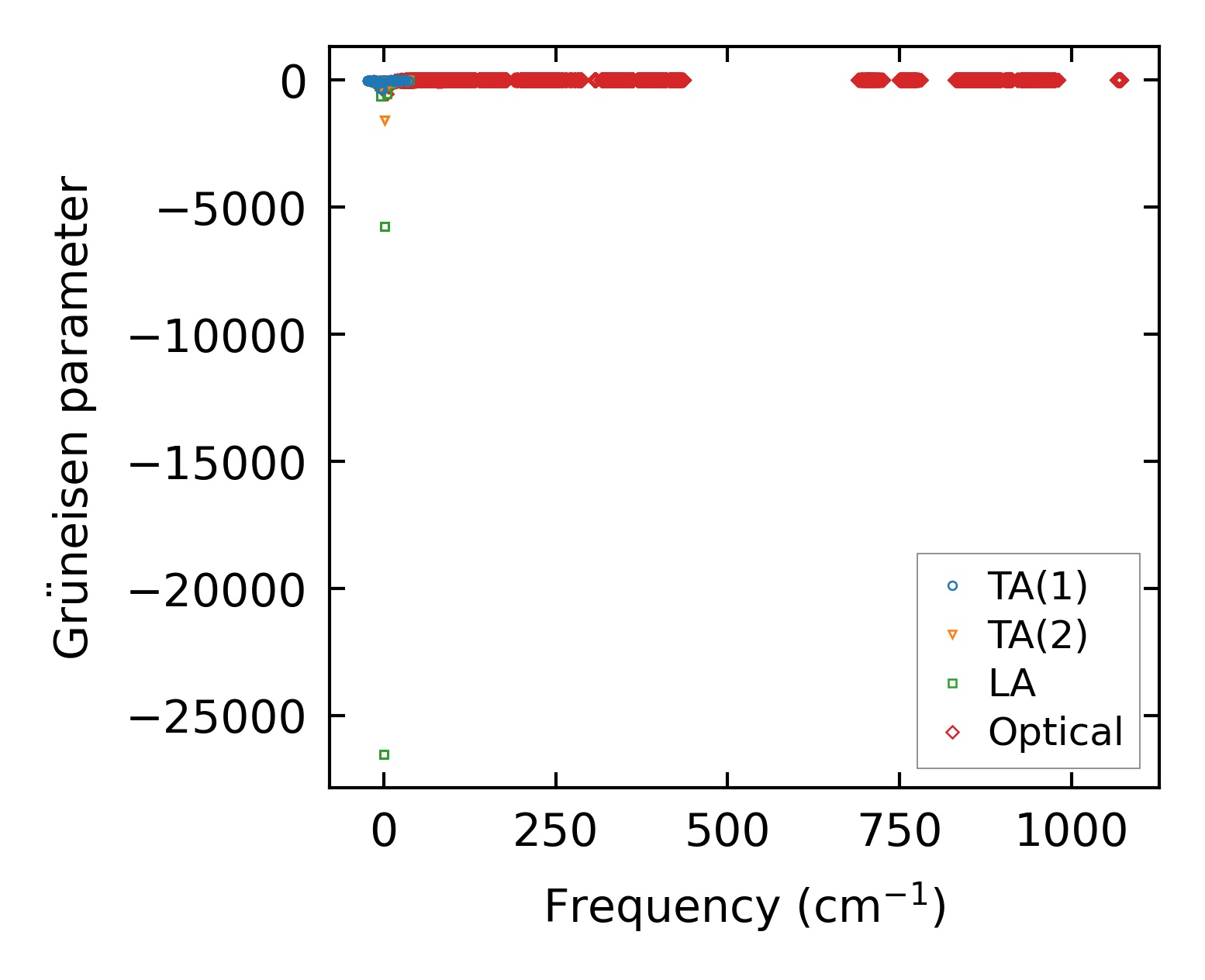

../../_images/fig_gru_all760.png — (a) Grüneisen parameters

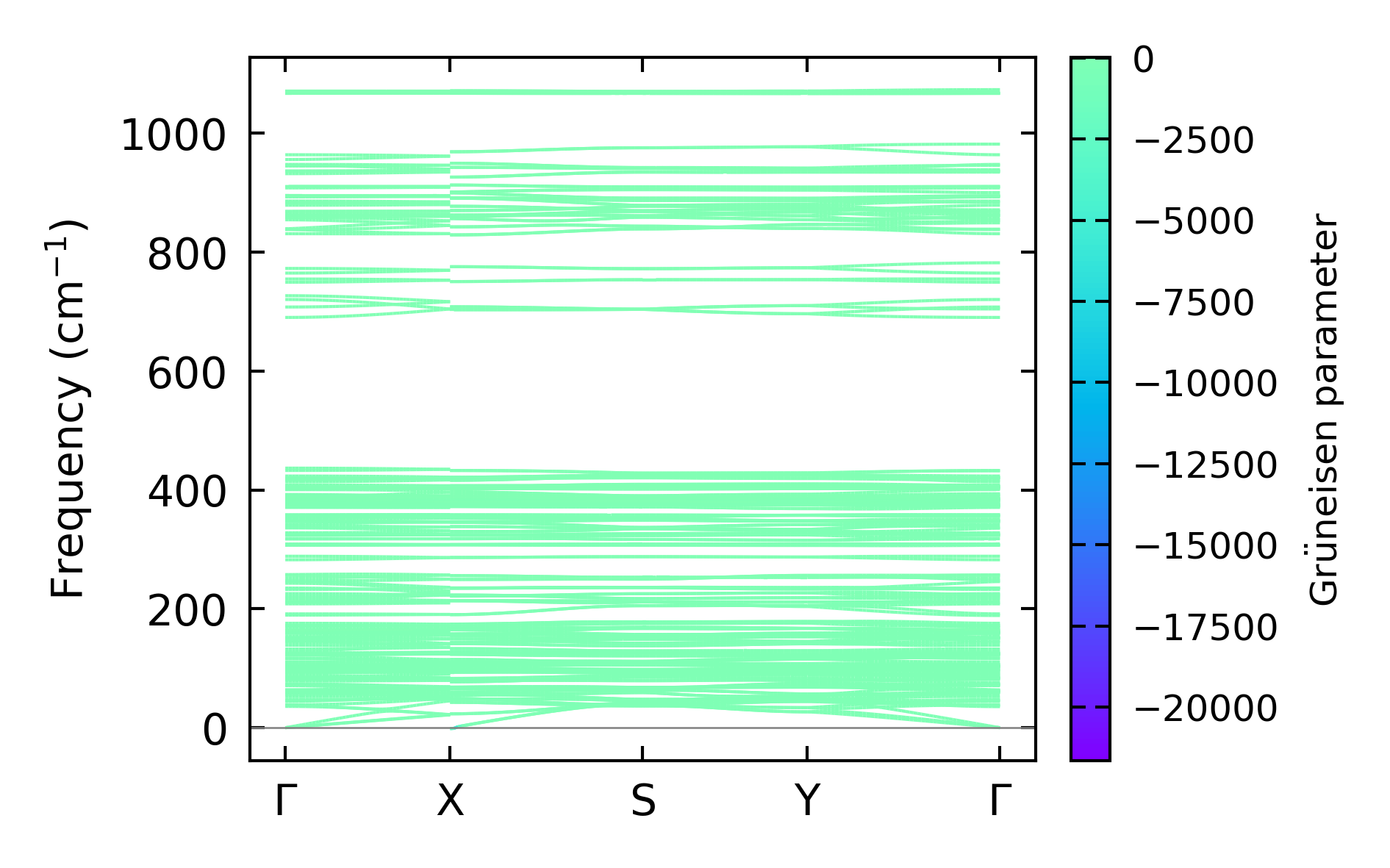

../../_images/fig_gruneisen760.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 1x2x2 — q-mesh: 5x8x8, supercell: 1x2x2

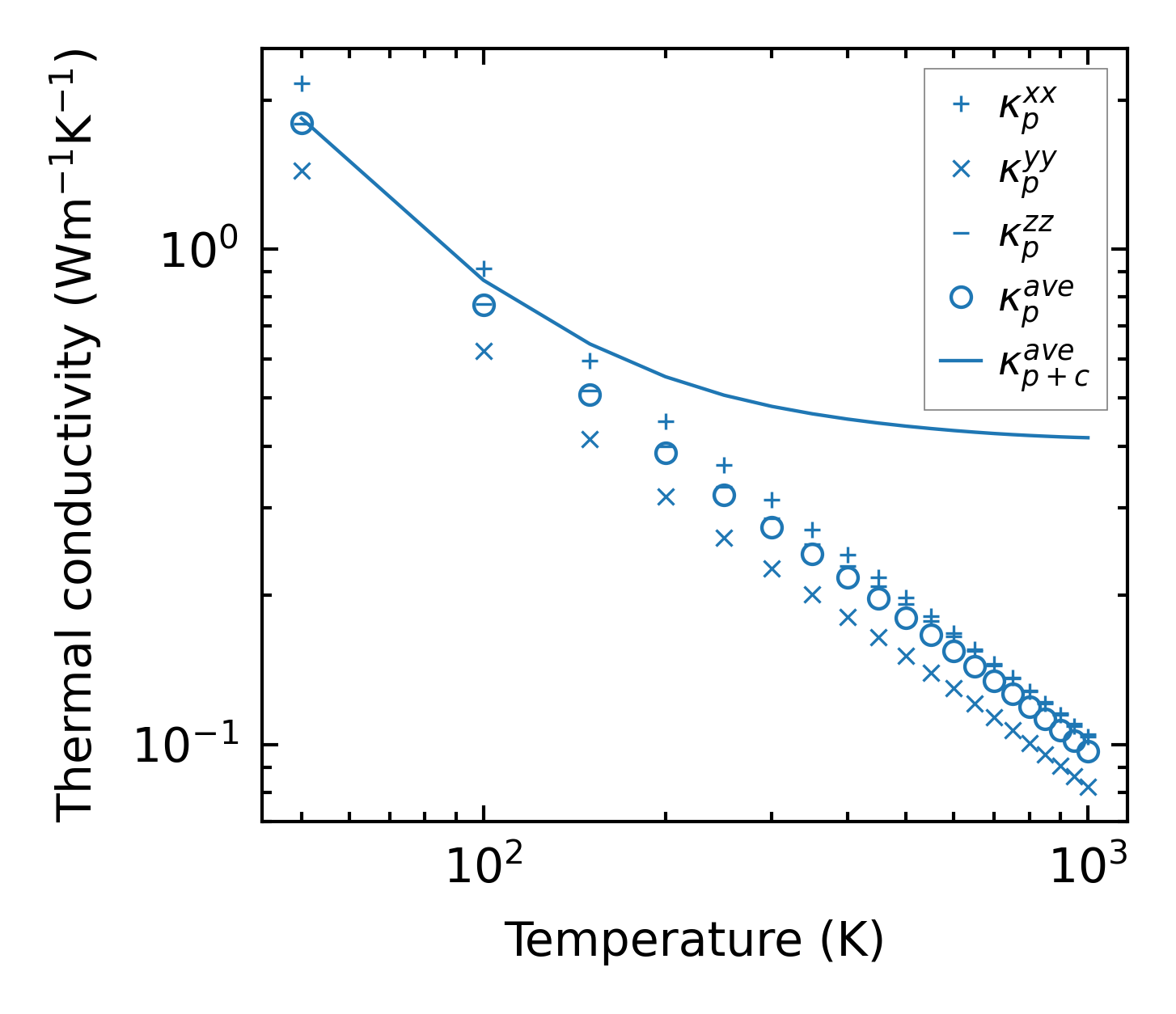

../../_images/fig_kappa1479.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size768.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

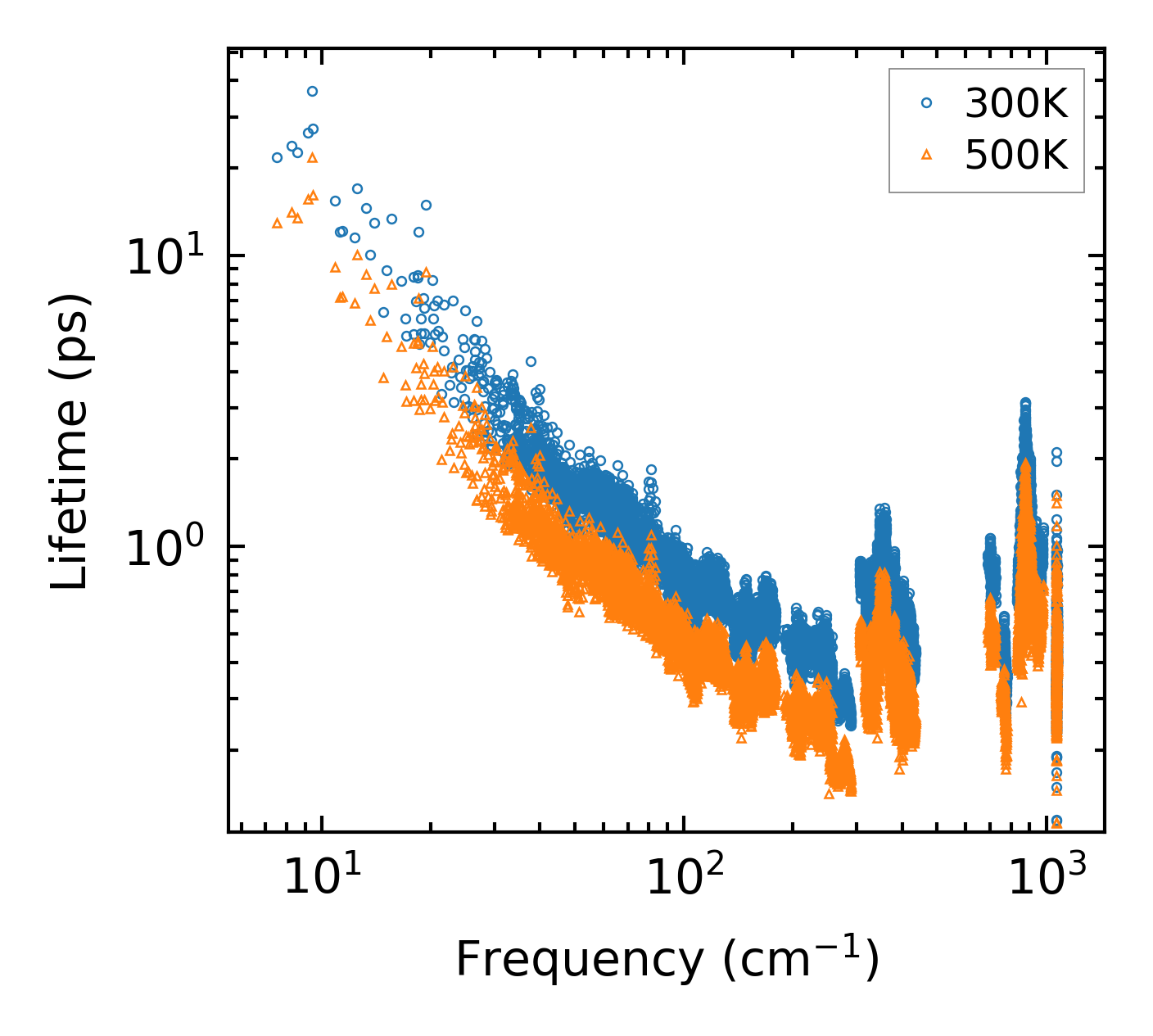

../../_images/fig_lifetime754.png — (a) Phonon lifetime due to phonon-phonon scattering

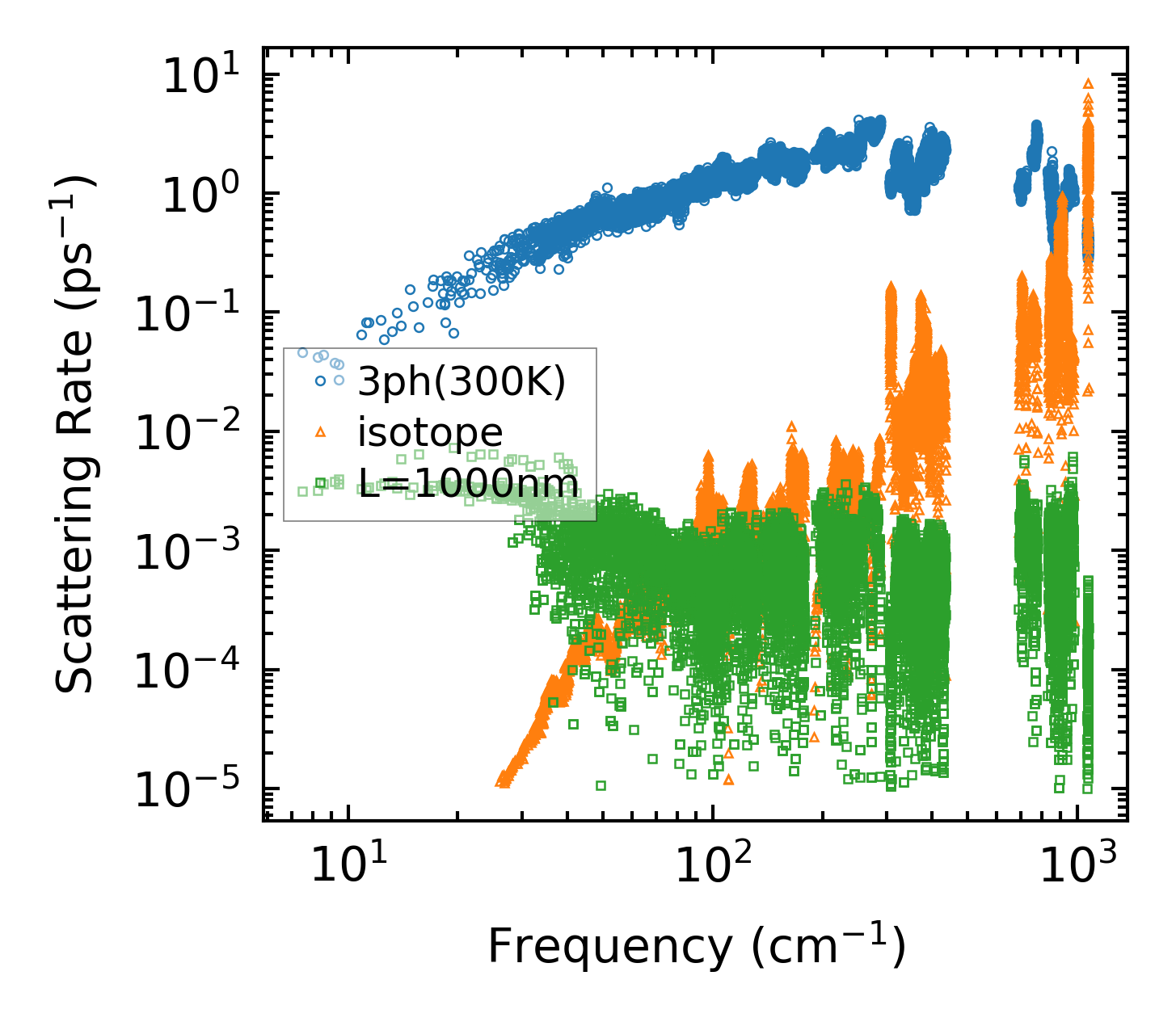

../../_images/fig_scat_rates753.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

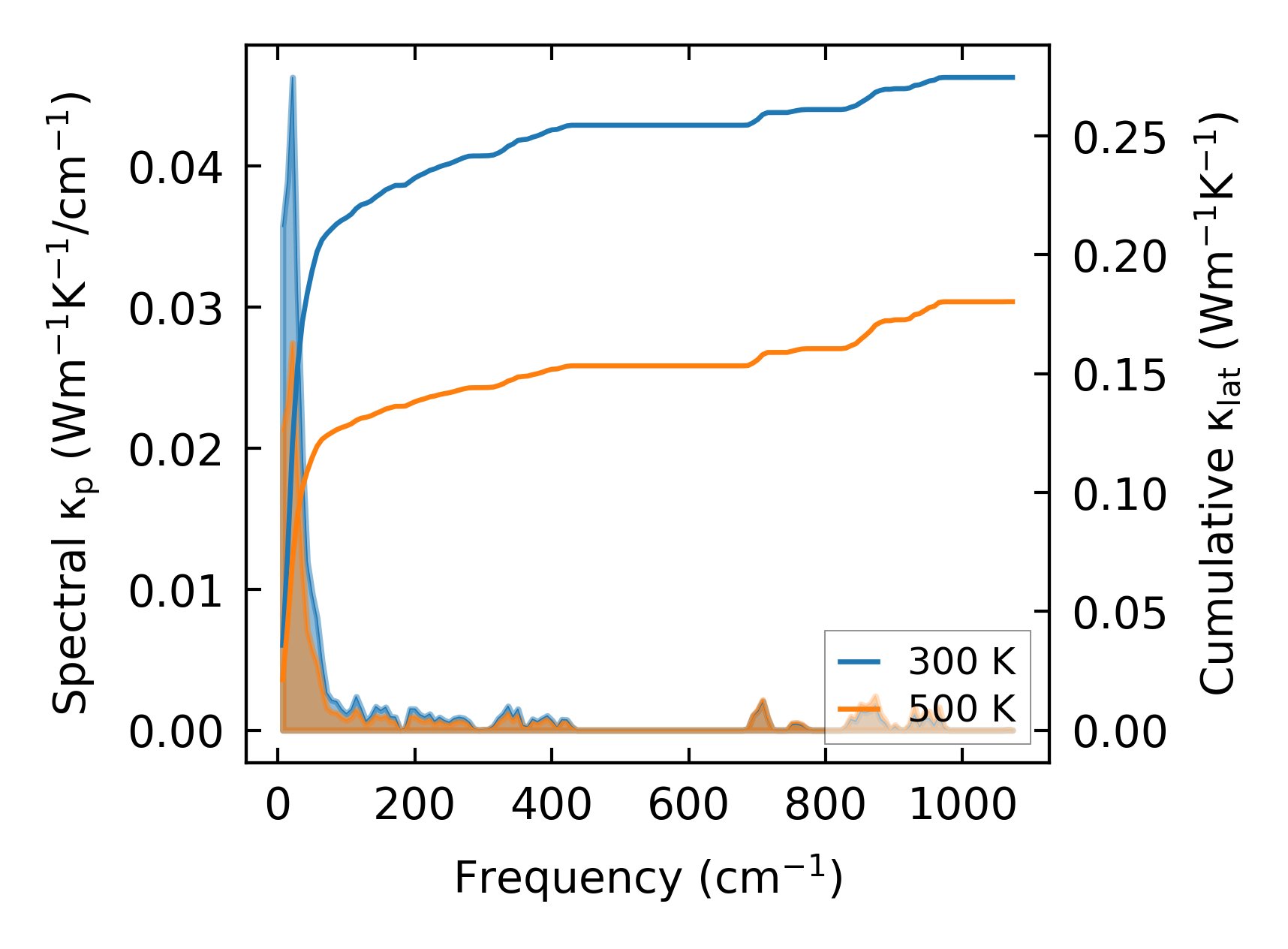

../../_images/fig_cumu_frequency754.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

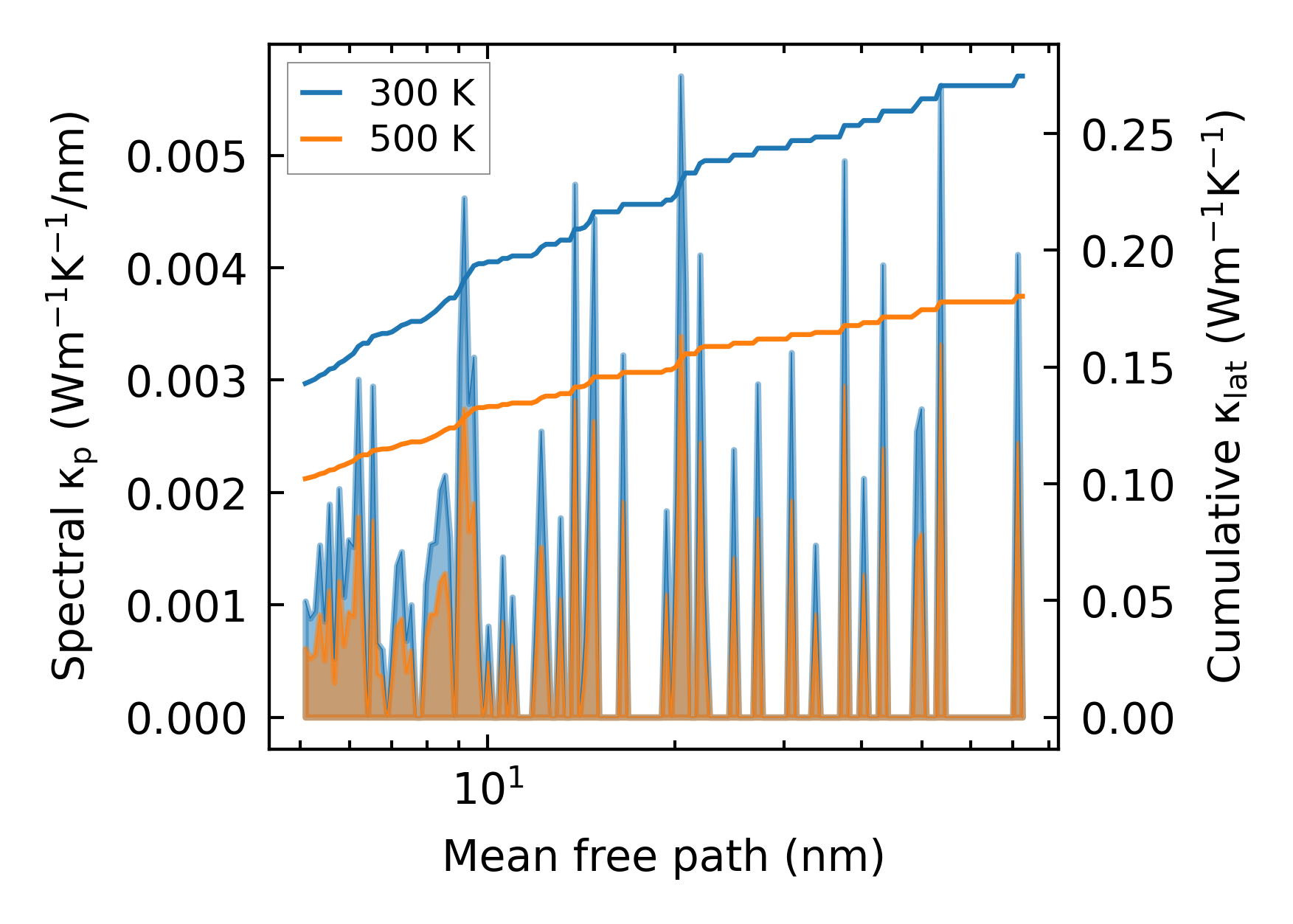

../../_images/fig_cumu_mfp754.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

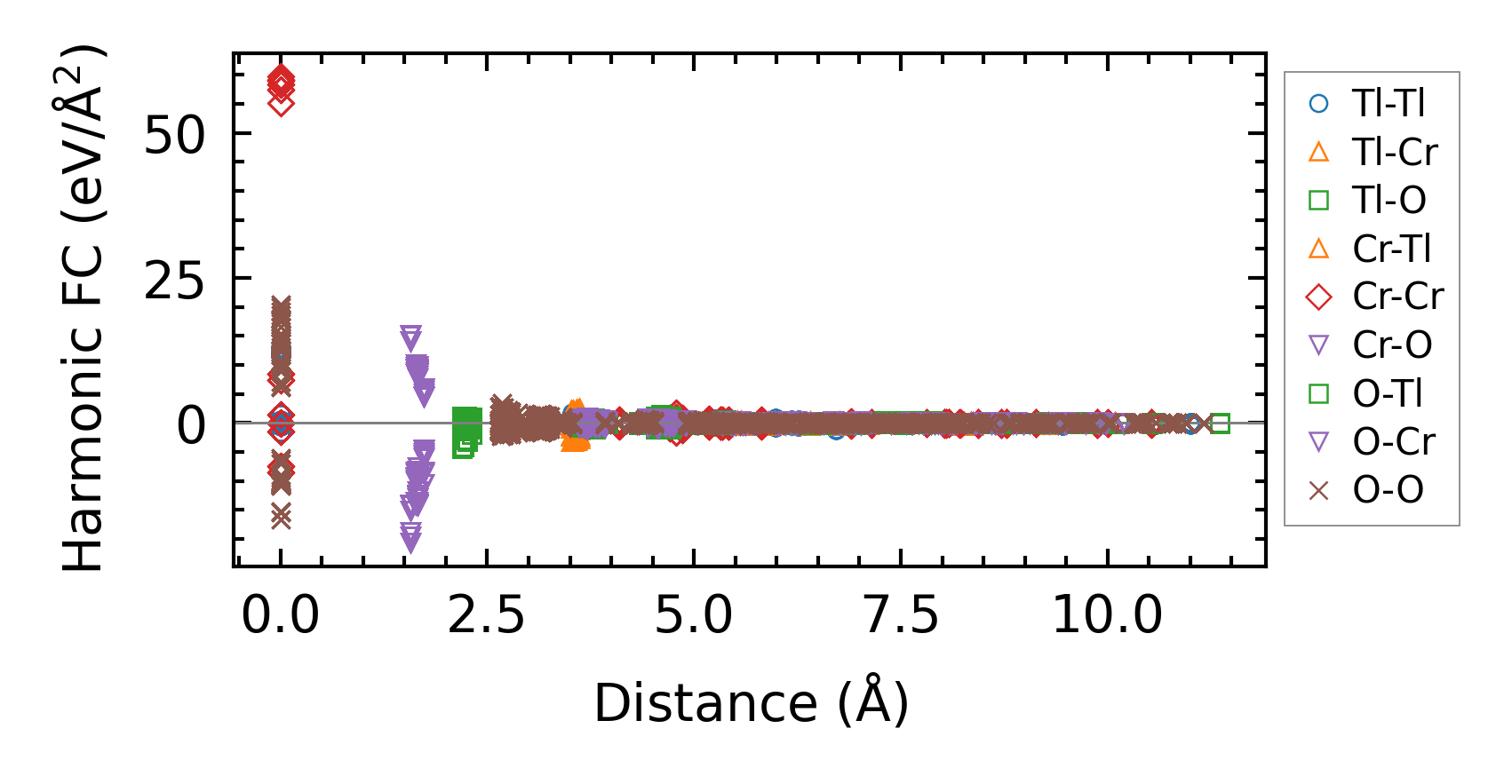

../../_images/fig_fc21088.png — (a) Force constants w.r.t atomic distance

Summary

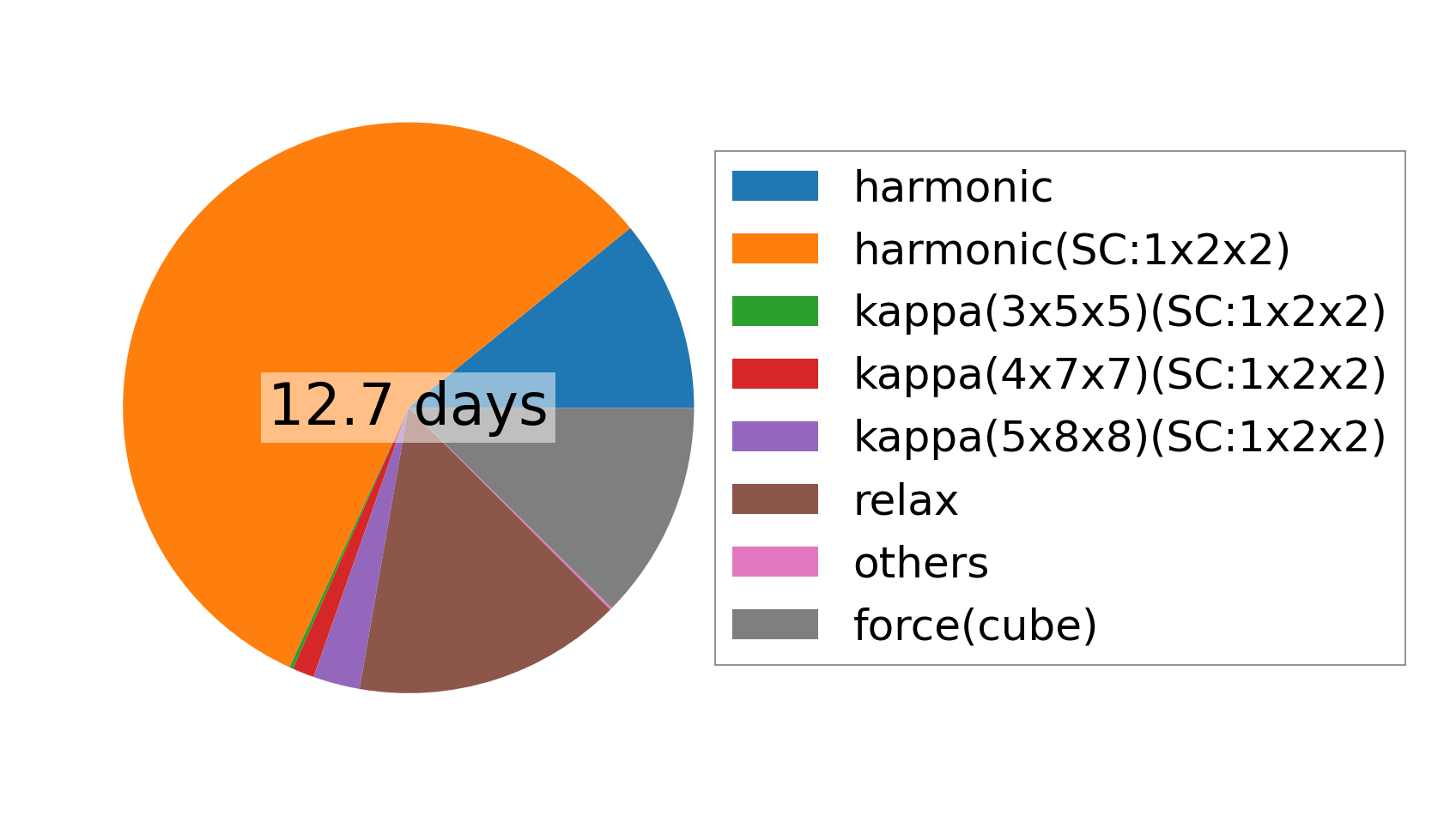

../../_images/fig_times1827.png — (a) Computation time
