mp-9846/RbCaSb/anharm

Space group: P4/nmm (129)
Link: Materials Project
Download: mp-9846.tar.gz

Harmonic properties

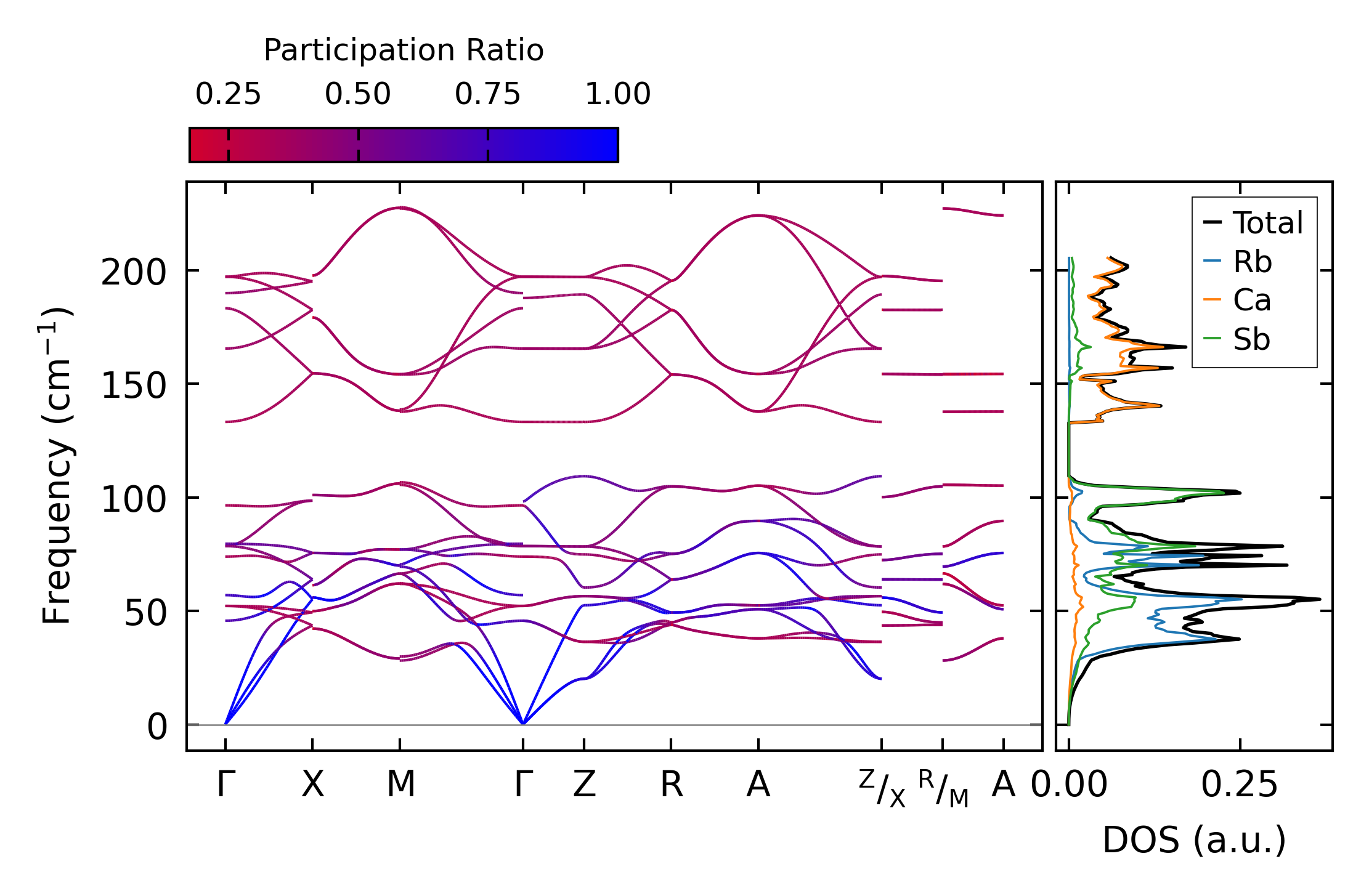

../../_images/fig_bandos_pr1262.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1262.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all777.png — (a) Grüneisen parameters

../../_images/fig_gruneisen777.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x8, supercell: 3x3x2

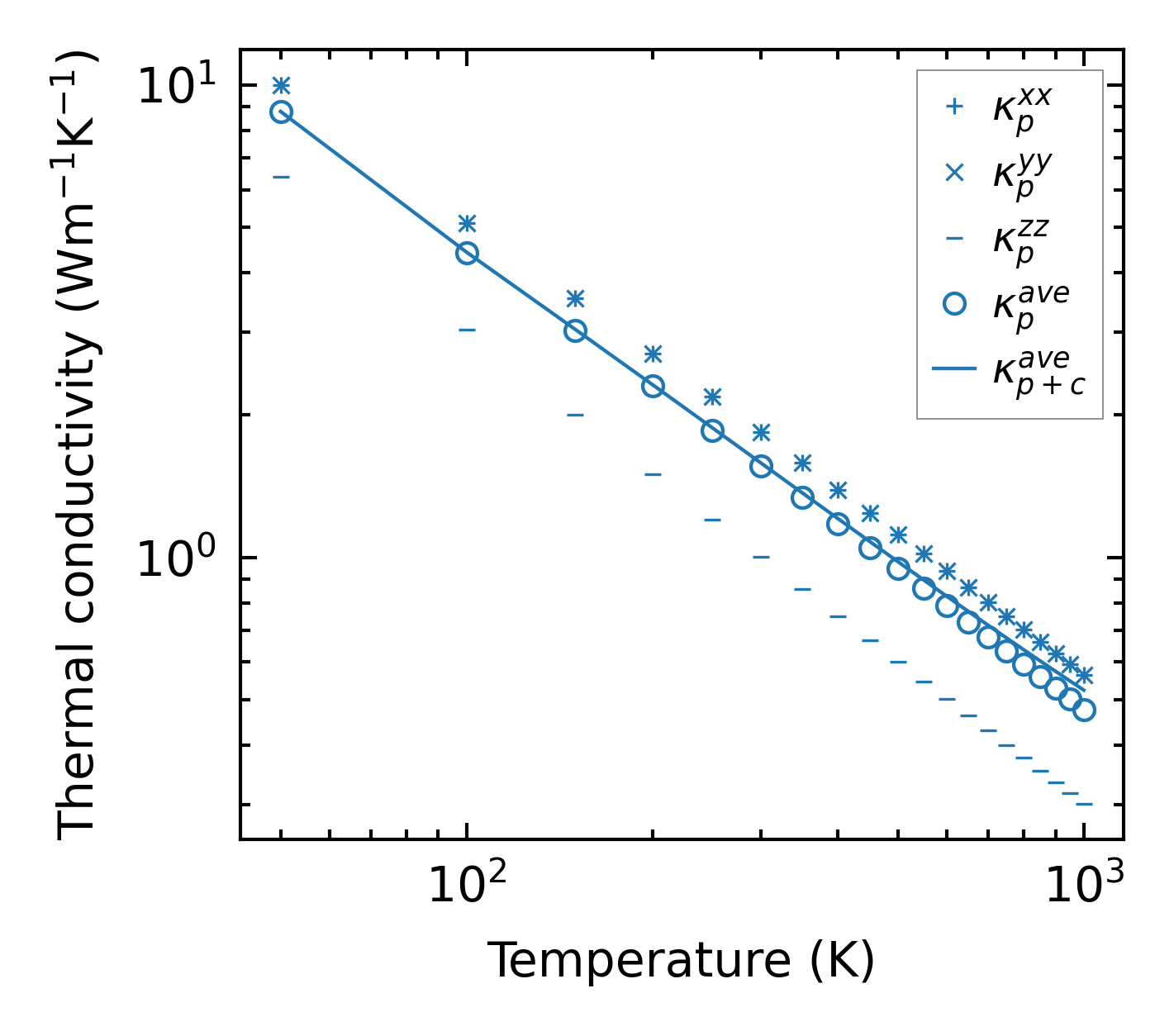

../../_images/fig_kappa1511.png — (a) Temperature-dependent lattice thermal conductivity

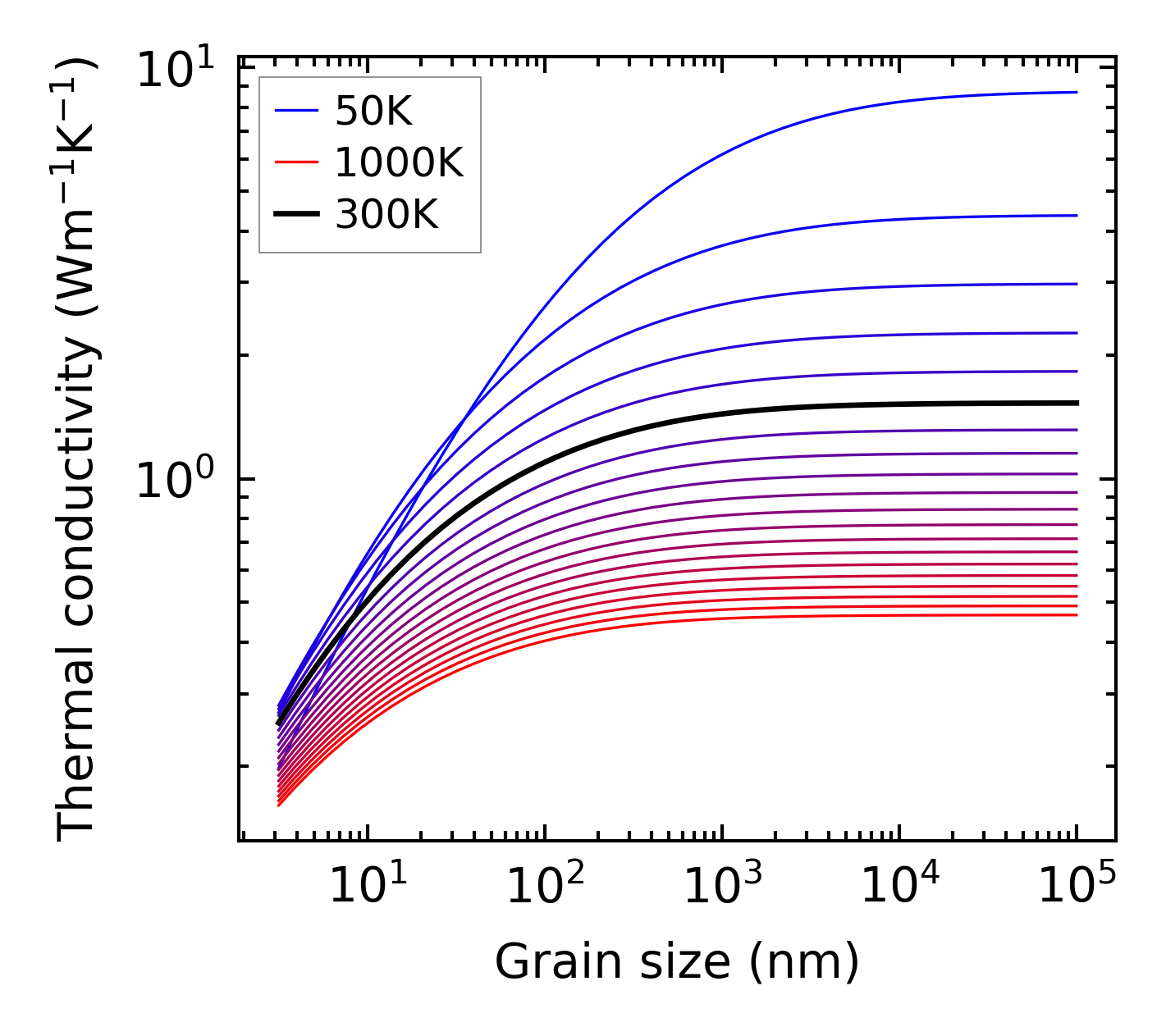

../../_images/fig_kappa_vs_grain_size785.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

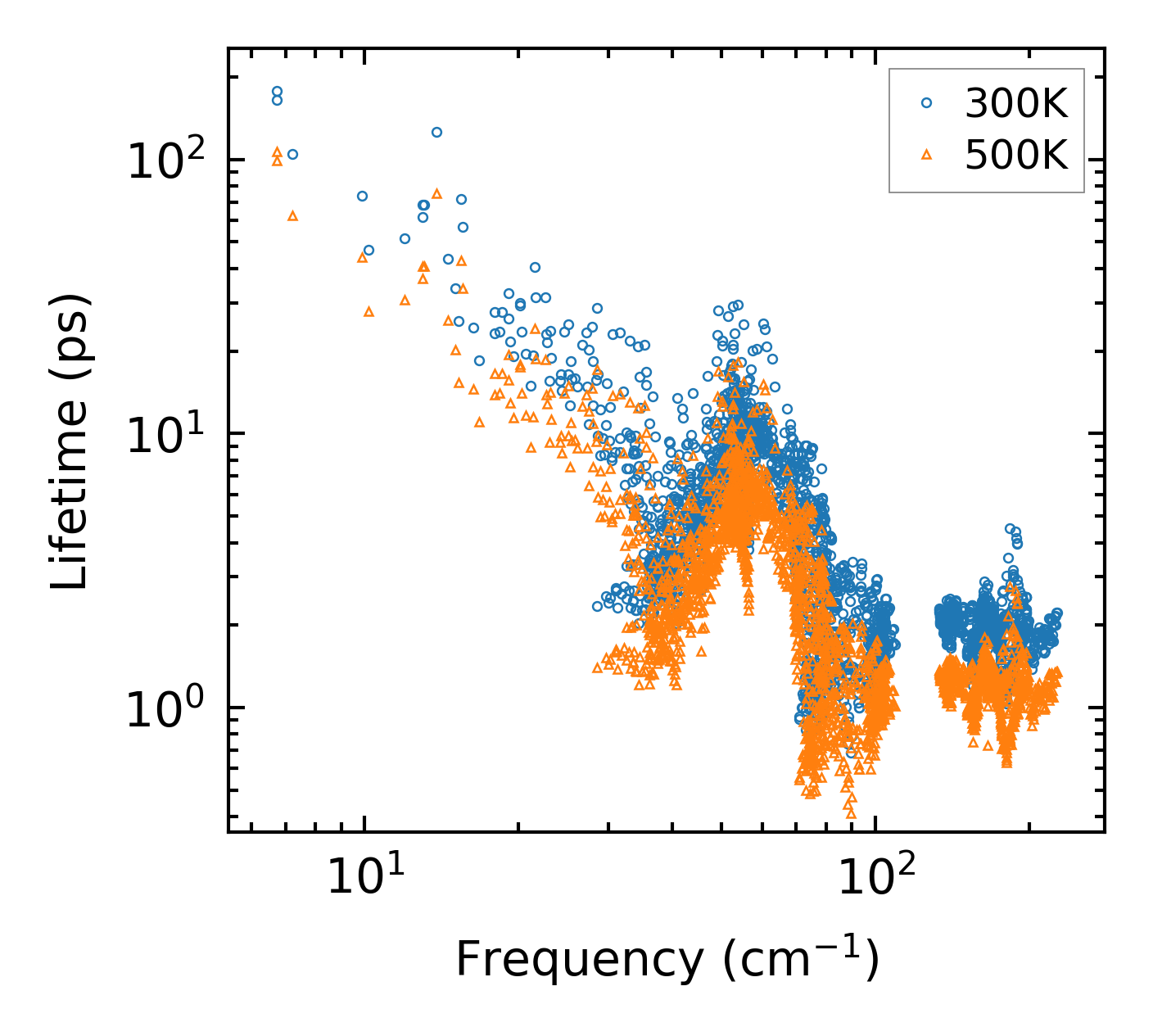

../../_images/fig_lifetime771.png — (a) Phonon lifetime due to phonon-phonon scattering

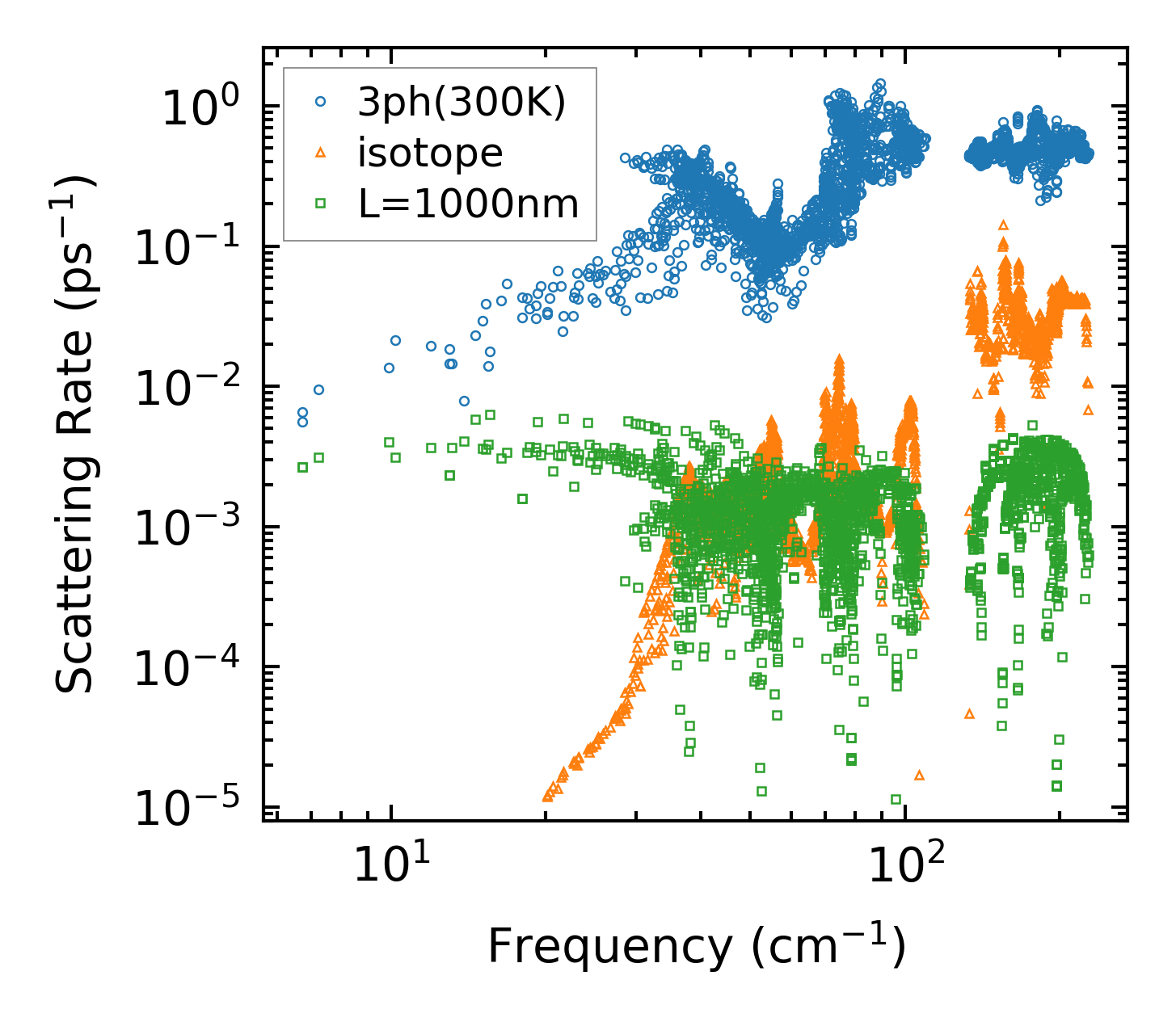

../../_images/fig_scat_rates770.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

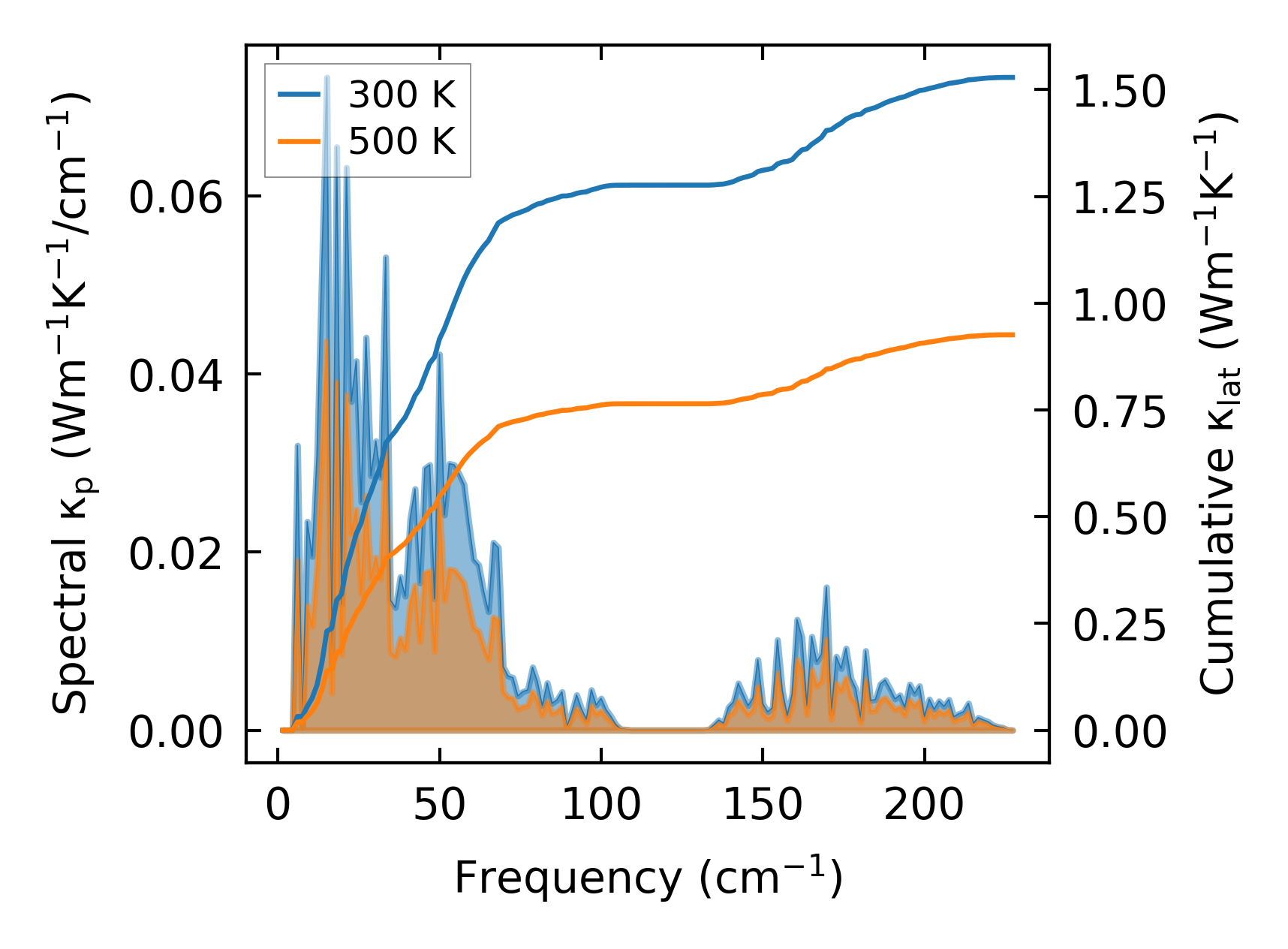

../../_images/fig_cumu_frequency771.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp771.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

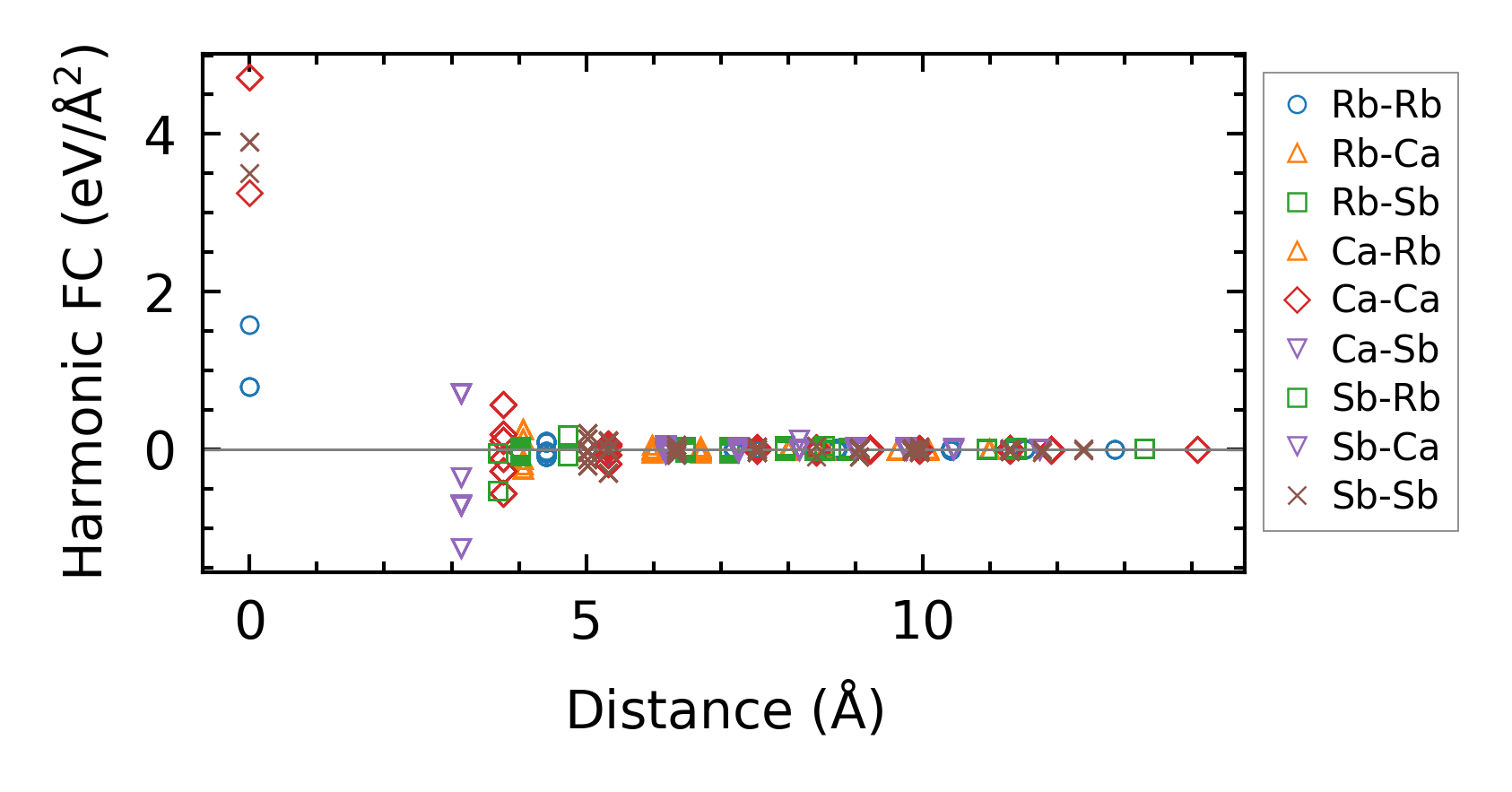

../../_images/fig_fc21128.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa1512.png — (a) Temperature-dependent lattice thermal conductivity

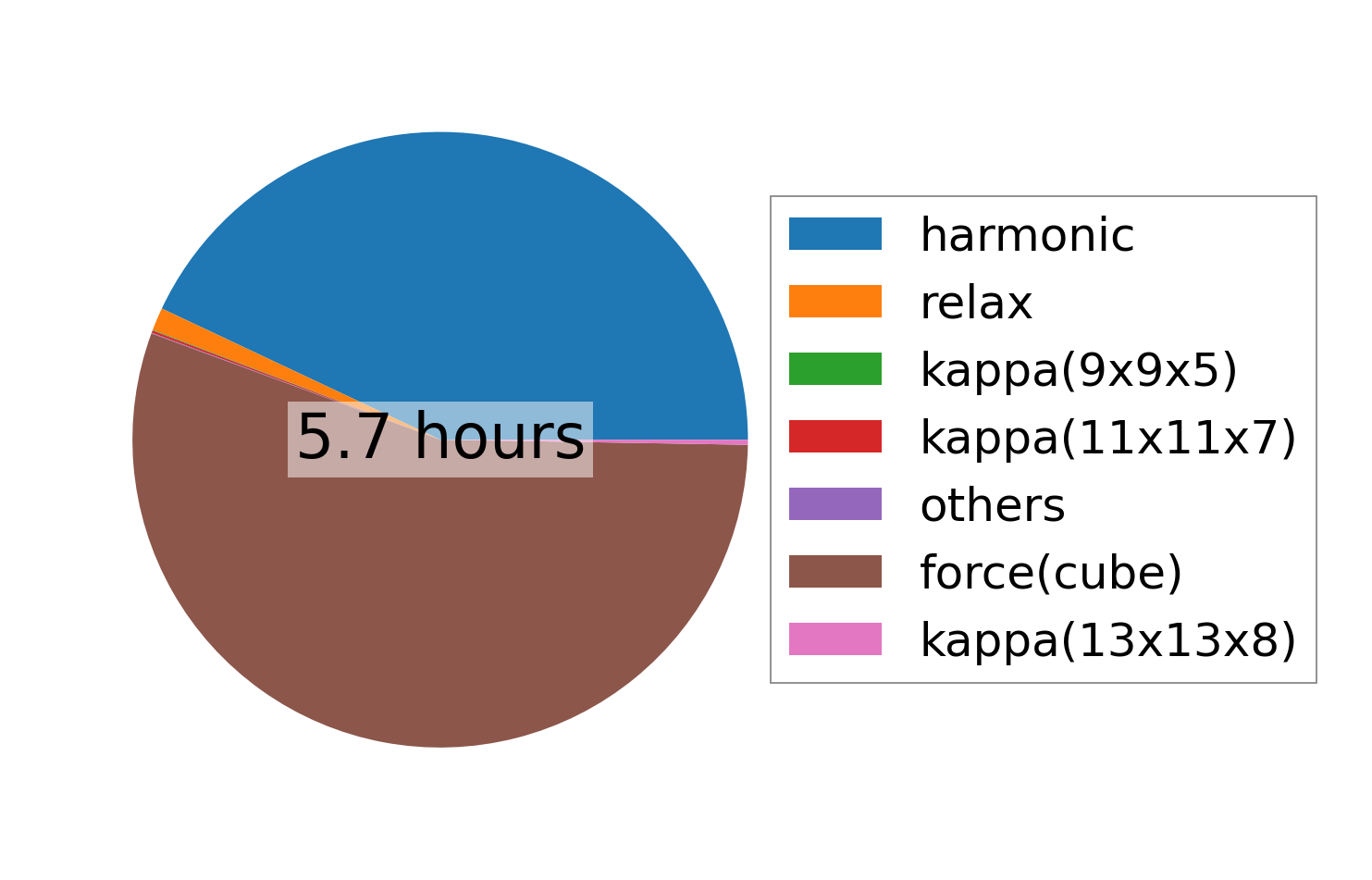

../../_images/fig_times1888.png — (b) Computation time
