mp-9089/CsTmS2/anharm

Space group: R-3m (166)
Link: Materials Project
Download: mp-9089.tar.gz

Harmonic properties

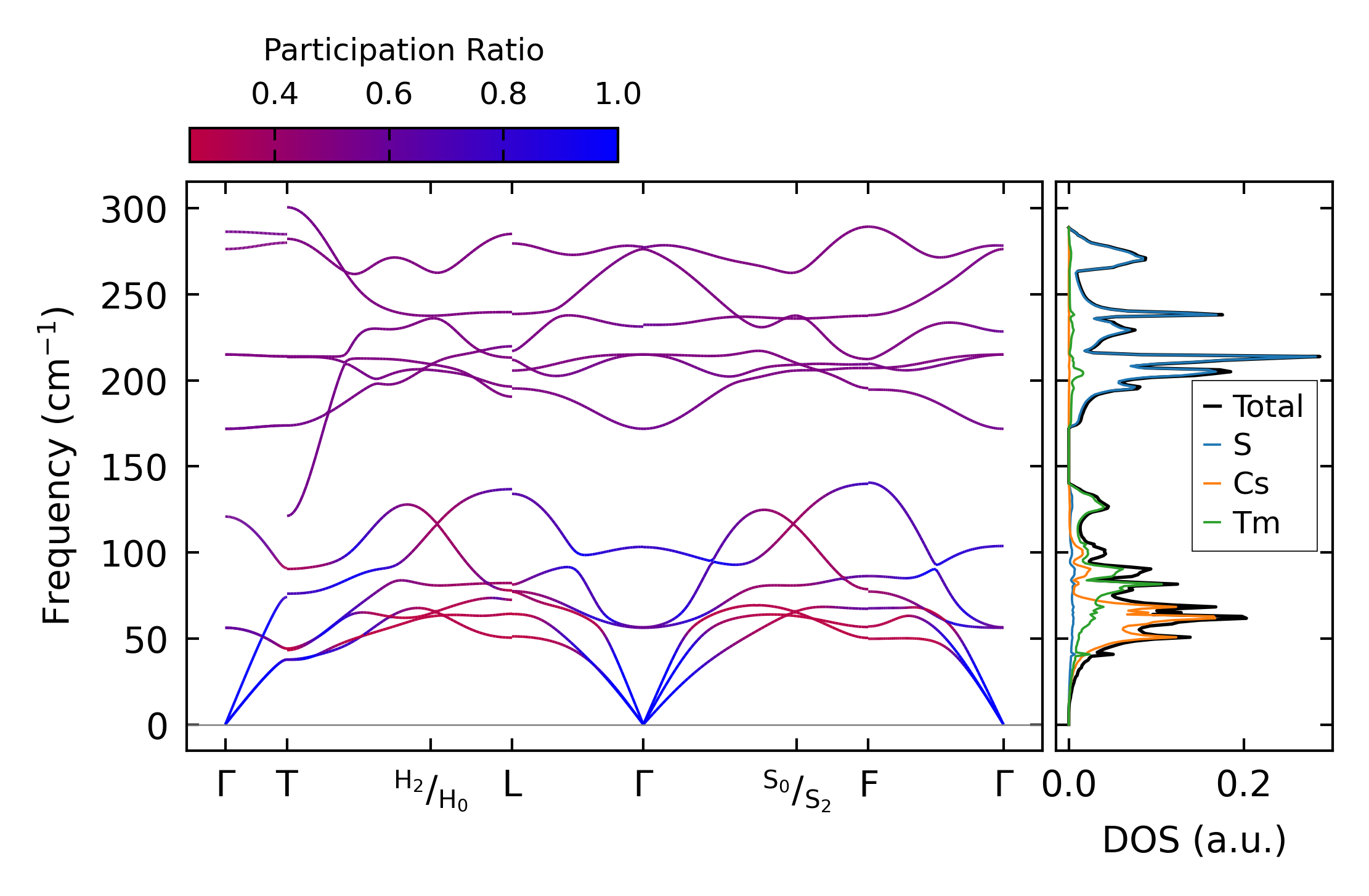

../../_images/fig_bandos_pr1364.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1364.png — (b) Thermodynamic properties

Grüneisen parameters

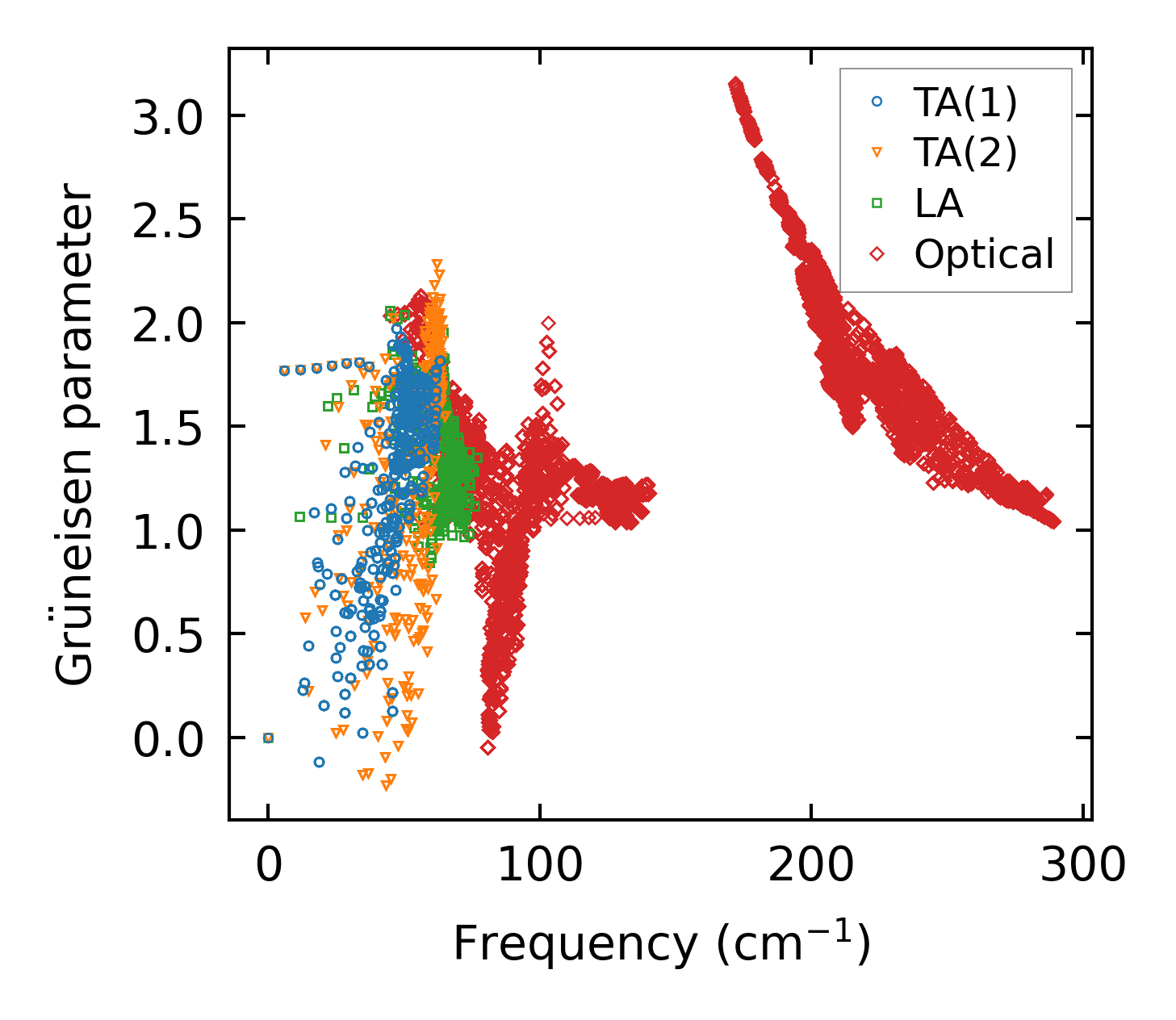

../../_images/fig_gru_all843.png — (a) Grüneisen parameters

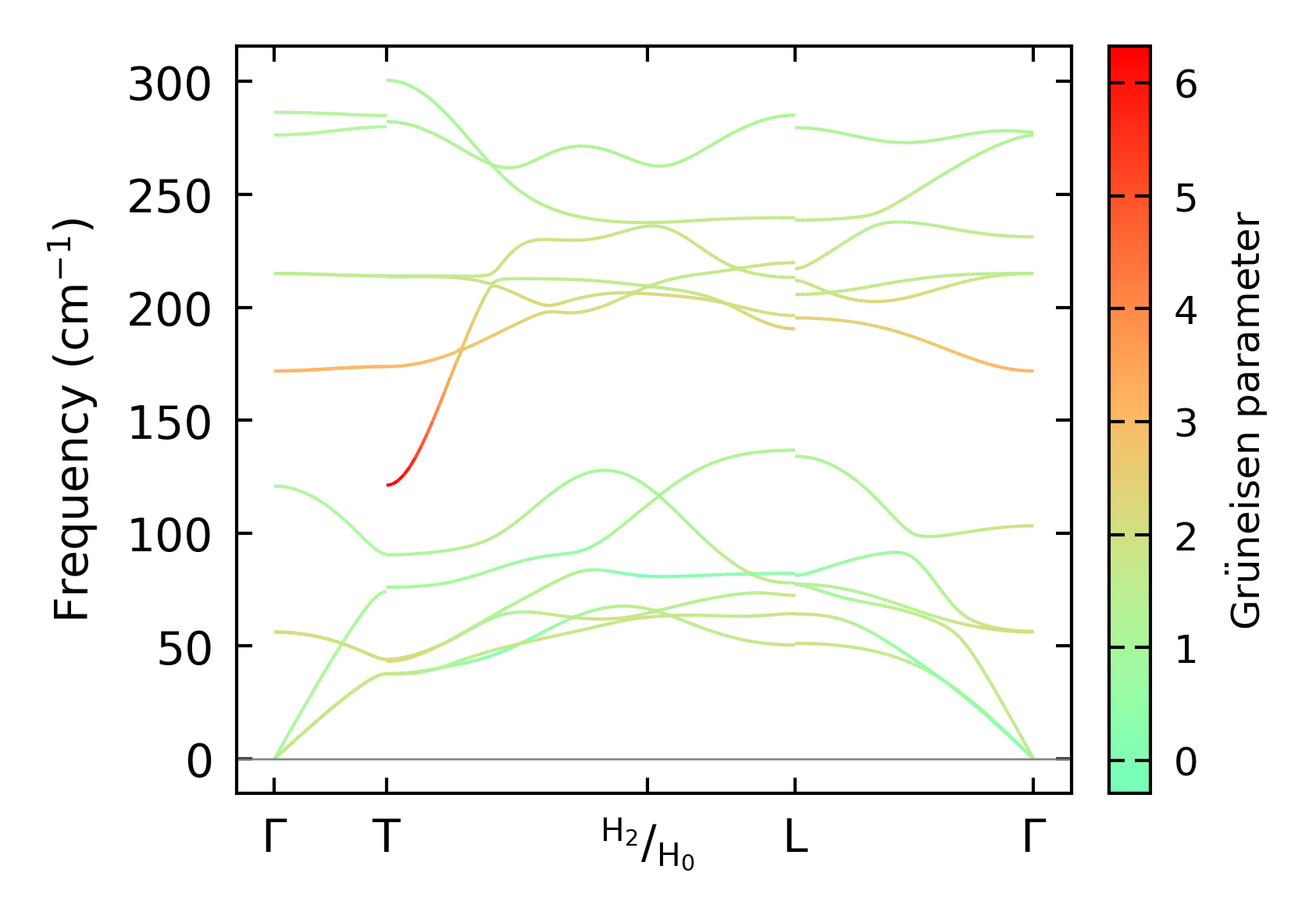

../../_images/fig_gruneisen843.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 15x15x15, supercell: 3x3x1

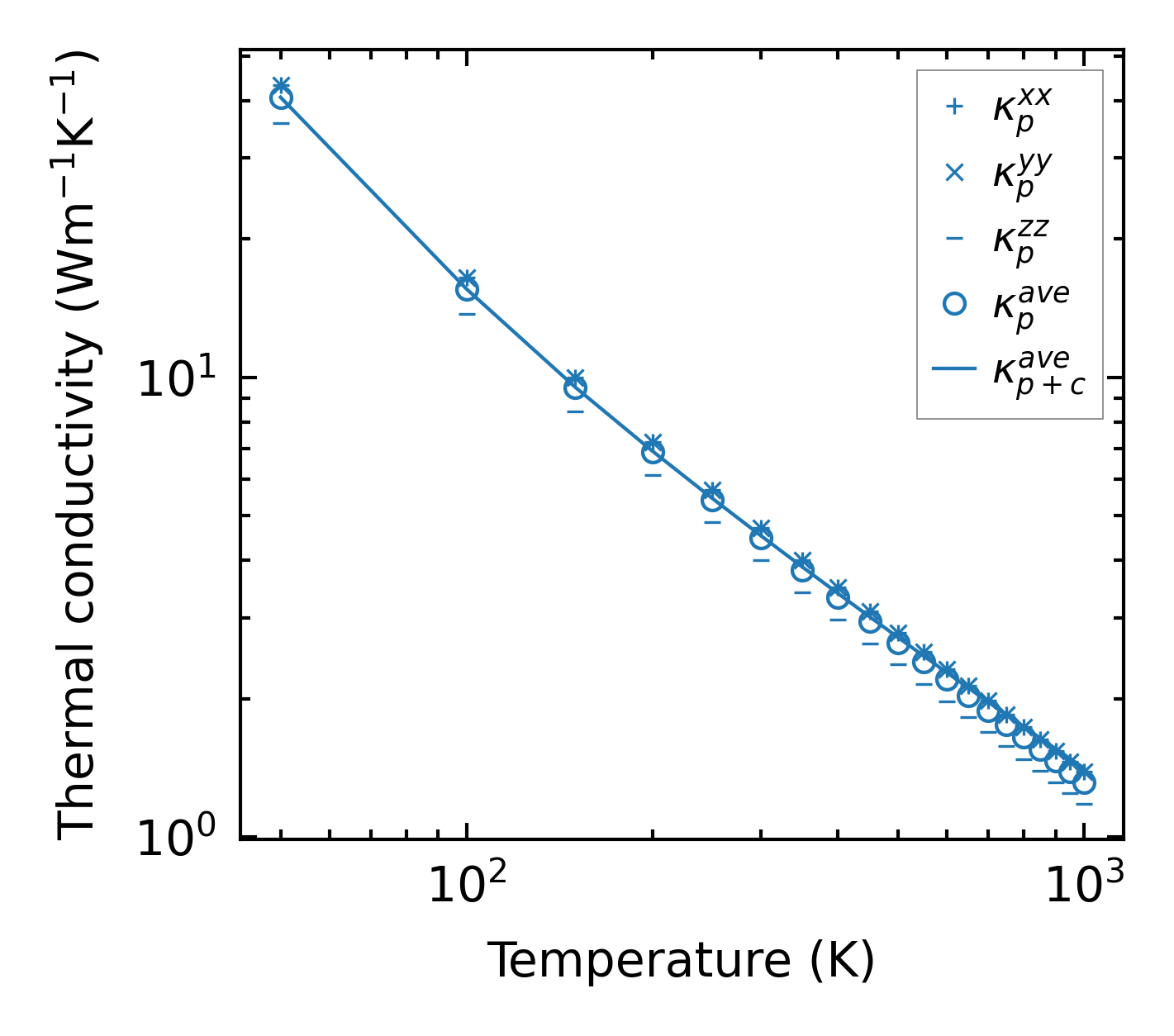

../../_images/fig_kappa1638.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size853.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

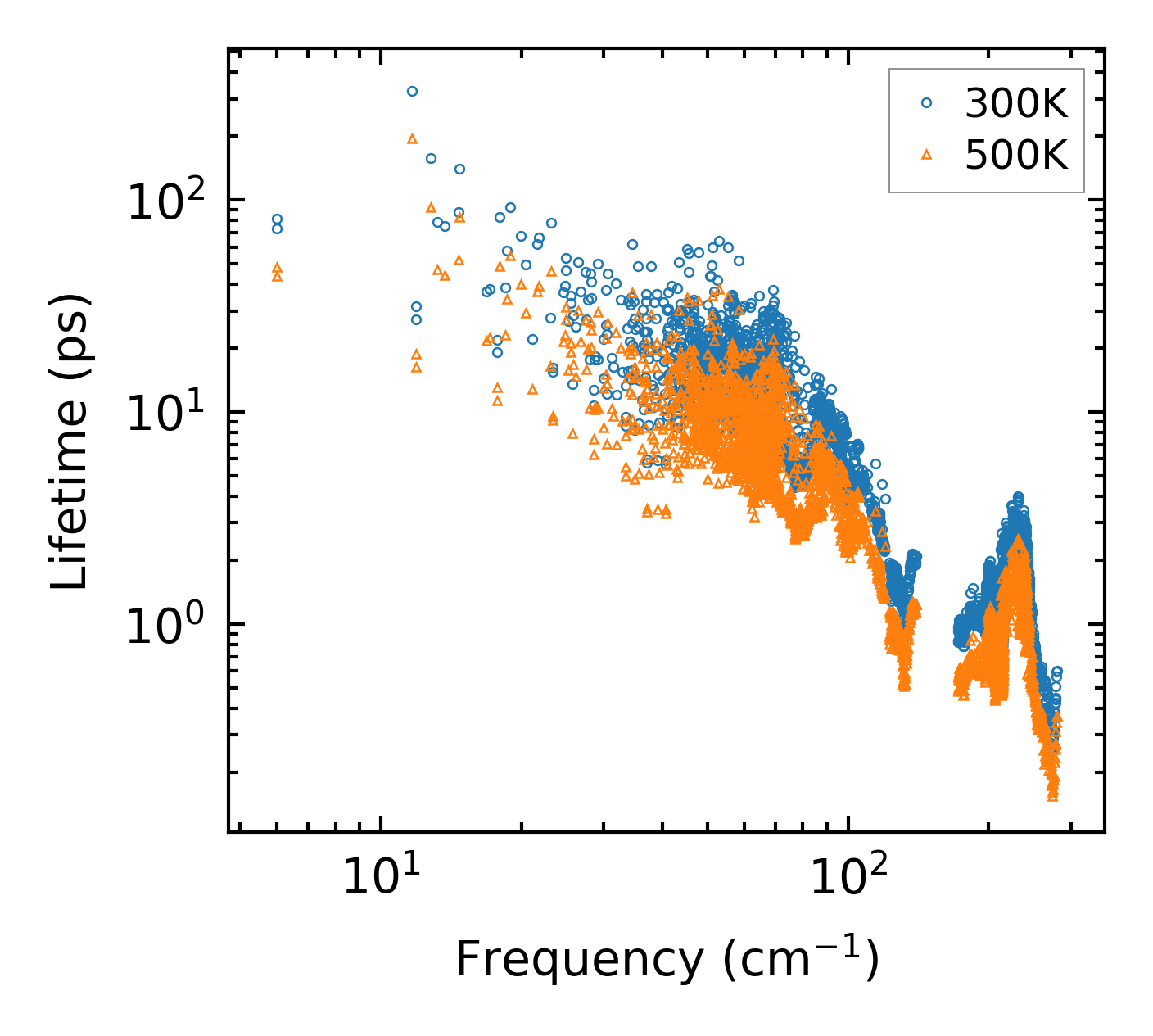

../../_images/fig_lifetime837.png — (a) Phonon lifetime due to phonon-phonon scattering

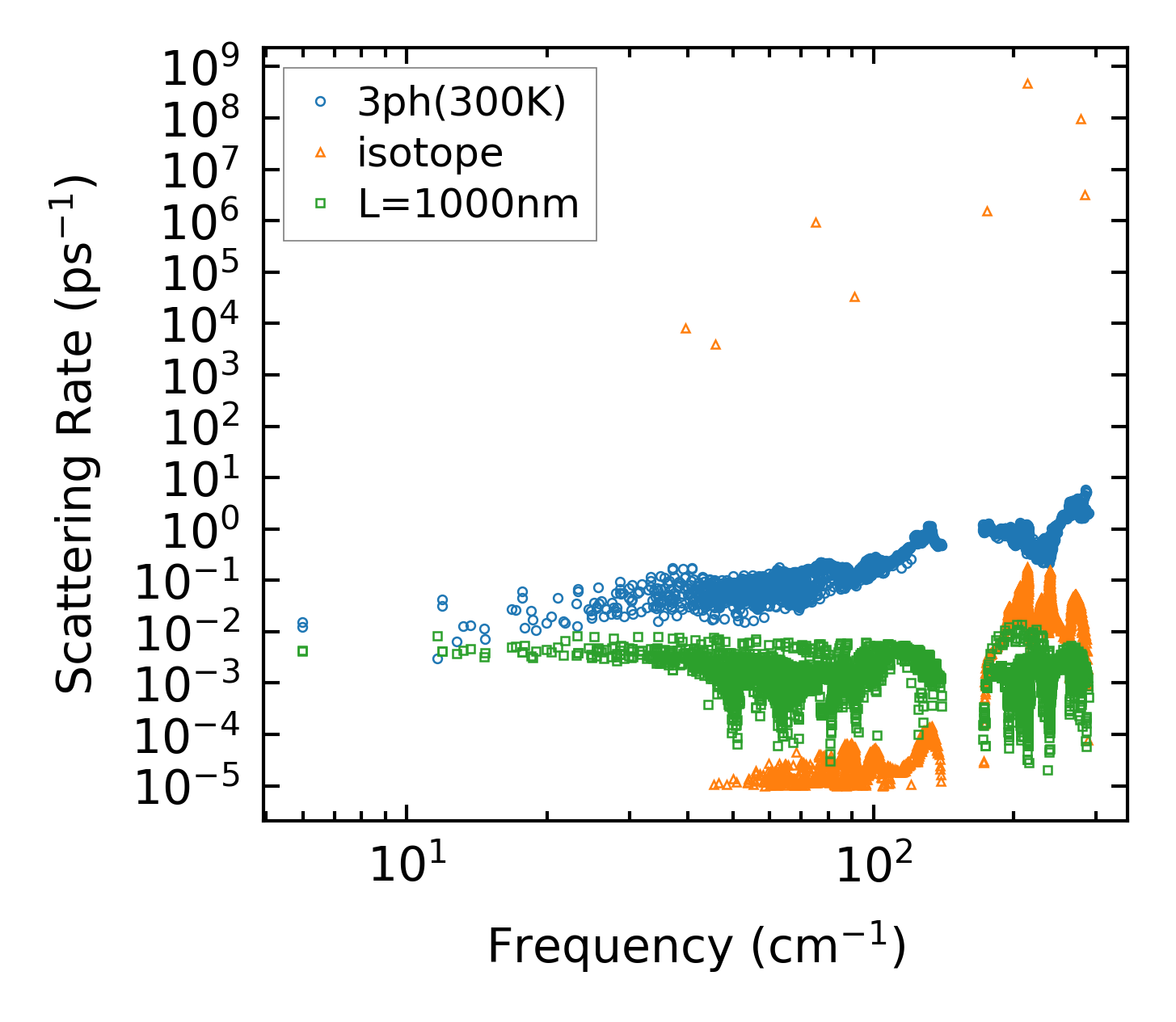

../../_images/fig_scat_rates836.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

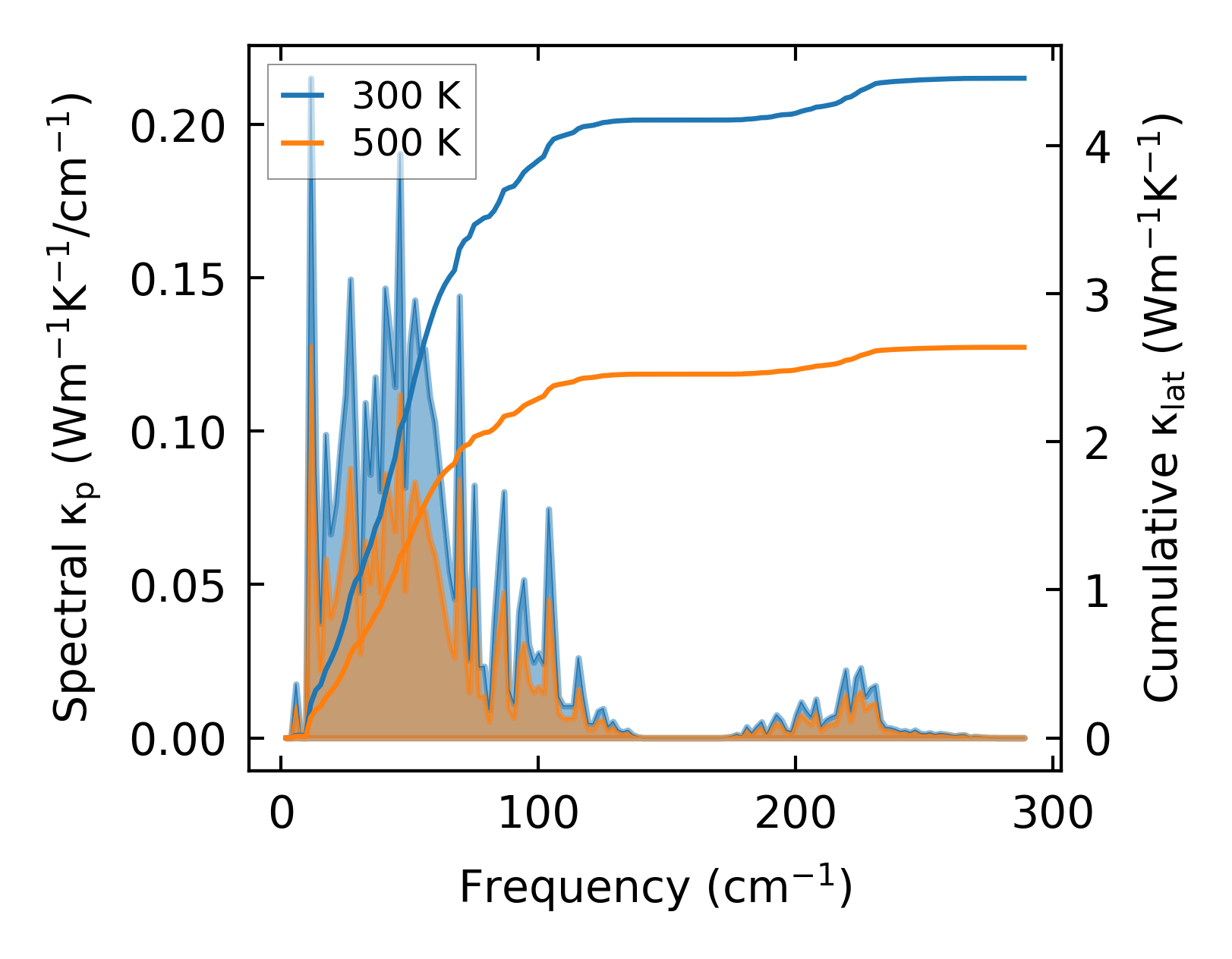

../../_images/fig_cumu_frequency837.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp837.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

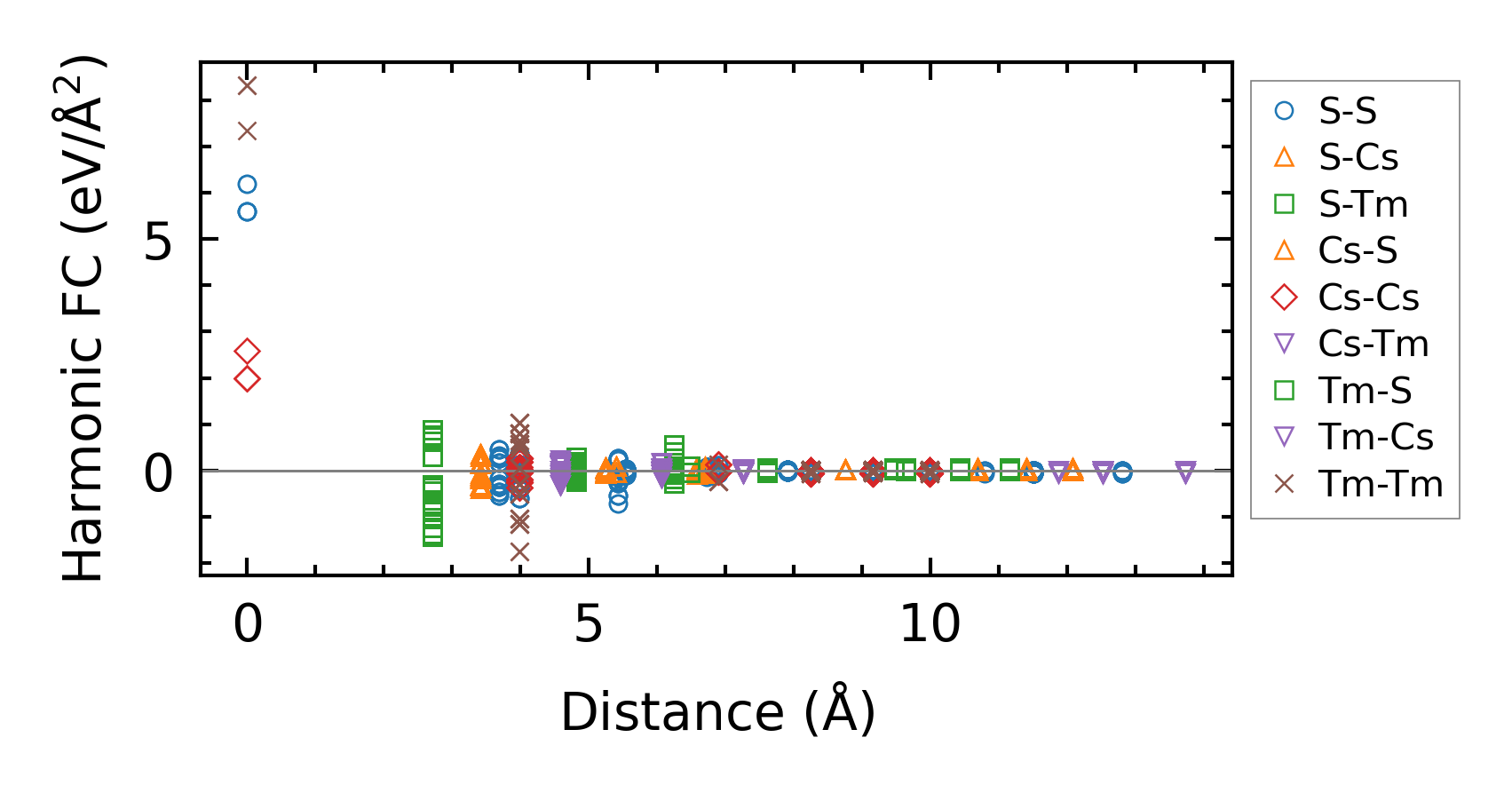

../../_images/fig_fc21219.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa1639.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times2051.png — (b) Computation time
